Page 1
PUSHPUSHPUSHPUSHPUSH
O
_
19.00"
4.46"
1.97"
42.20"
CB
DMX 512 OUT-2 DMX 512 OUT-3
A
DMX 512 OUTDMX 512 IN
MIDI THRUMIDI OUTMIDI IN
DMX 512 OUT
OVERTEMP
10
7
8
9
4
5
3
0
1
2
6
0
1
2
10
9
8
5
4
3
6
8
7
5
7
6
4
3
2
10
91
0
WARNING:
PRINTER
TUALATIN, OR
MADE IN U.S.A.
MC 24/48MODEL:
PATENT PENDING
MACROS
KEYBOARD
HH REMOTE
ALL CLASS 2 CIRCUITS
TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO
NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
CAUTION:
INPUT RATING: 4A, 120/240V, 60/50 Hz.
SEE INSTALLATION INSTRUCTIONS BEFORE
CONNECTING TO THE POWER SUPPLY.
CAUTION:
POWER CORD MUST BE FULLY SEATED FOR
PROPER OPERATION.
IMPORTANT:
REPLACE FUSES WITH SAME TYPE.
FUSES: 4A, 250V, TYPE T-SLOW BLOW.
CAUTION:
INPUT VOLTAGE OF PERIPHERALS
CONNECTED MUST MATCH VOLTAGE
APPLIED TO CONSOLE LINE CORD.
PERIPHERALS: 3A MAXIMUM TOTAL
10
5
0
1
10
10
9
8
0
5
23222120 2419181715 1614131211
5
6
7
4
3
2
1
0
5
0
10
47464544 48
23222120 24
43424139 4038373635
19181715 1614131211
109867543
2
10
5
1
0
10
0
5
34333230 3129282726
1098675432
25
5
0
10
1
VIDEO 1
VIDEO 2
9
10
0
6
5
7
8
2
3
4
GRAND
MASTER
STATUS
DCBA
CHANNELS
SUBMASTERS
FADERS
MC 24 / 48
Memory Lighting Console
LEVITON MANUFACTURING CO.
YZWXVUTRQPONMLK SIJHGFEDCAB
R

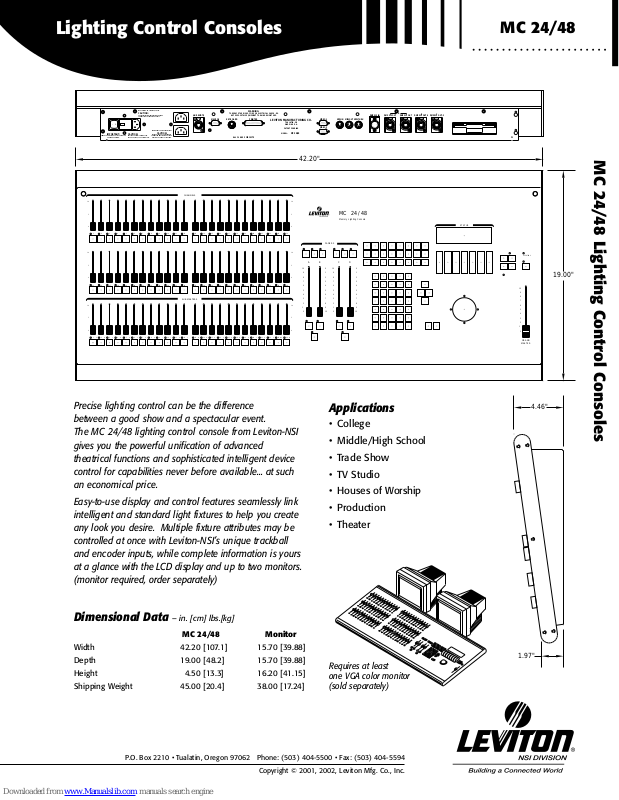

Lighting Control Consoles
MC 24/48
Precise lighting control can be the difference
between a good show and a spectacular event.
The MC 24/48 lighting control console from Leviton-NSI
gives you the powerful unification of advanced
theatrical functions and sophisticated intelligent device
control for capabilities never before available... at such
an economical price.
Easy-to-use display and control features seamlessly link
intelligent and standard light fixtures to help you create
any look you desire. Multiple fixture attributes may be
controlled at once with Leviton-NSI’s unique trackball
and encoder inputs, while complete information is yours
at a glance with the LCD display and up to two monitors.
(monitor required, order separately)
MC 24/48 Lighting Control Consoles
Dimensional Data
– in. [cm] lbs.[kg]
MC 24/48 Monitor
Width 42.20 [107.1] 15.70 [39.88]
Depth 19.00 [48.2] 15.70 [39.88]
Height 4.50 [13.3] 16.20 [41.15]
Shipping Weight 45.00 [20.4] 38.00 [17.24]
P.O. Box 2210 • Tualatin, Oregon 97062 Phone: (503) 404-5500 • Fax: (503) 404-5594
Copyright © 2001, 2002, Leviton Mfg. Co., Inc.
Applications
• College
• Middle/High School
• Trade Show
• TV Studio
• Houses of Worship
• Production
• Theater
Requires at least
one VGA color monitor
(sold separately)
Page 2
Literature # 008-MKNSI-000 G6622
P.O. Box 2210 • Tualatin, Oregon 97062 Phone: (503) 404-5500 • Fax: (503) 404-5594
Copyright © 1995, 2001, 2002 Leviton Mfg. Co. Inc.
Lighting Control Consoles
MC 24/48
............................
Description Cat. No.
MC 24/48 Console FGP-02448-00
Options
Video Card
for Second Monitor OPT-07003-0
Accessories
Gooseneck Worklights CTP-7-5052
(two per console)
Hand Held Remote (HHR) CTP-7-2022
Black Monitor, Color VGA CTP-7-2091
Dust Cover CTP-7-5061
Monitor Dust Cover CTP-7-5101
Specifications subject to change without notice
Console Capacity
• 24 two scene or 48 single scene
individual channel sliders
• 384 control channels for
conventional dimmers
• 512 control channels for intelligent
fixtures
• 24 submaster sliders
• 8 pages of submasters (24 each)
• 600 cue capacity
• 2,000 macros
• 1024 max dimmers
Display Screens
• Stage, preview, device, cue sheet,
track sheet, playback, patch, setup
Controls
• 2 pair of manual cross faders
• Master fader
• Go button
• Blackout button
• Hold/back buttons
• Rate buttons
• Bump buttons
• 7 encoder wheels for intelligent
device personality traits
• Trackball for pan and tilt
Keypad
• Cue numbering from .1 to 999.9
• Split up/down fade times
• Link to cue or macro
• Selective cue recording
• Modified rate recording
• Multi-part cues
• Proportional range editing
of levels
• Programmable up/dwell/down
times
Submasters
• Independent submasters with bump
buttons
• Overlapping inhibitive or pile-on
functions
Effects
• Up to 600 level sensitive effects
• Programmable step times
• Effects may be loaded to cue or
submaster
• Range editing of step values and
attributes
Ports
• 1 DMX512 in (5 pin XLR, male)
• 3 DMX512 out- 3 independent
patchable ports (5 pin XLR, female)
• 1 DMX512 out- switch selectable 3
pin XLR to port A, B or C
• MIDI in/out/through (5 pin DIN)
• Remote go macro (9 pin D-Sub/DB9
female)
• Parallel printer port (25 pin D-Sub/
DB25 female)
• Up to two VGA monitor outputs (high
density 15 pin D-Sub/DB15 female)
• Hand held remote port (6 pin XLR
female)
• Keyboard input (5 pin DIN)
• 2 worklight ports (BNC)
Intelligent Lighting
• Controls any DMX512 device
• Control a variety of manufacturers’
instruments simultaneously
• Pre-programmed library of popular
fixtures
• User-definable attributes to custom
create fixture personalities
Real Time Event
Programmable
• Up to 500 event capability options
• SMPTE via MIDI
