Leviton LFD20, LFD32 User Manual

LEO™

LEO™ LED Fresnel

Cat. Nos. LFD20, LFD32

User’s Guide

PK-A3121-10-00-5A

WARNINGS AND CAUTIONS

• TO AVOID FIRE SHOCK OR DEATH; TURN OFF POWER at circuit breaker or fuse and test that

power is off before installation.

• TO AVOID SERIOUS PERSONAL INJURY, always connect this product to a grounded circuit.

• To be installed and/or used in accordance with electrical codes and regulations.

• If you are unsure about any part of these instructions, consult an electrician.

SAFETY NOTES

WARNING: TO AVOID DEATH, SERIOUS PERSONAL INJURY OR PROPERTY DAMAGE:

• Do not open the housing or attempt any repairs. In the unlikely event the unit may require service please contact Leviton Technical Support. Opening the housing or attempting to repair product will void the warranty.

• Do not expose this product to rain or moisture. This product is for indoor use only! (IP20) When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.

• Do not operate this product if you see damage on the housing, lenses, or cables.

CATALOG LOGIC

LFD20-30B; LFD20-50B

LFD32-30B; LFD32-50B

Fixture Wattage Color Temperature Housing

LFD: LED Fresnel 20: 200W -30: 3200K B: Black Housing

32: 320W -50: 5600K

SPECIFICATIONS

CAT. NO. LFD20 LFD32

WATTAGE 200 W 320 W

STANDBY LOAD

BEAM ANGLE 8°-60° 16°-58°

WEIGHT 19.6 lbs. (8.9 kg) 27.6 lbs. (12.5 kg)

SIZE W 11" (280mm) x H W 13.5" (342mm) x H

17.1" (435mm) x D 19.1" (485mm) x D

19.3" (490mm) 19.3" (490mm)

ELECTRICAL 100-240 VAC, 50/60Hz 100-240 VAC, 50/60Hz

P1

GETTING STARTED

Thank you for choosing LEO™ LED Fresnel by Leviton®. Every LEO™ LED Fresnel has been thoroughly tested and has been shipped in perfect operating condition. Your LEO™ LED Fresnel should include:

• Fixture

• powerCON® B connector

• Metal Color Frame 9.65" x 9.65" (245 x 245mm) (for LFD20)

• Metal Color Frame 12" x 12" (305 x 305mm) (for LFD32)

• Safety Guard 9.65" x 9.65" (245 x 245mm) (for LFD20)

• Safety Guard 12" x 12" (305 x 305mm) (for LFD32)

Power cords with alternate connectors, and, powerCON® extension cables are available. Please contact Leviton and review product data sheets for details.

Important: Unpack the product and check the box to make sure all the parts are in the package and are in good condition. If any of them are damaged, please contact the shipper to make a claim. If any components are missing, please contact our Customer Service Department at 1-800-736-6682.

• User’s Guide

• Fuse, glass tube, 6A (for 110V) (for LFD20)

• Fuse, glass tube, 10A (for 110V) (for LFD32)

• Fuse, glass tube, 3A (for 220V) (for LFD20)

• Fuse, glass tube, 5A (for 220V) (for LFD32)

• Safety Cable, 31.5" (800mm) with Spring Clips

• 36"-39.5" (1m) power lead with powerCON® & PBG (NEMA 5-15P Connector)

PRODUCT INTRODUCTION

LEO™ LED Fresnel is a high-performance Fresnel-style LED lighting ﬁxture that delivers a beautiful ﬂat even ﬁeld of light in a choice of color temperatures (3200K and 5600K) with high color rendering index (CRI 90+). The ﬁxture is fully dimmable from 0% to 100% and can be controlled manually or via DMX controller. It also supports power linking with built-in powerCON® connectors. Virtually quiet operation makes it ideal for use in any situation. The ﬁxture is RDM-ready for precise monitoring of the LED chip’s performance and status to make maintenance easy.

P2

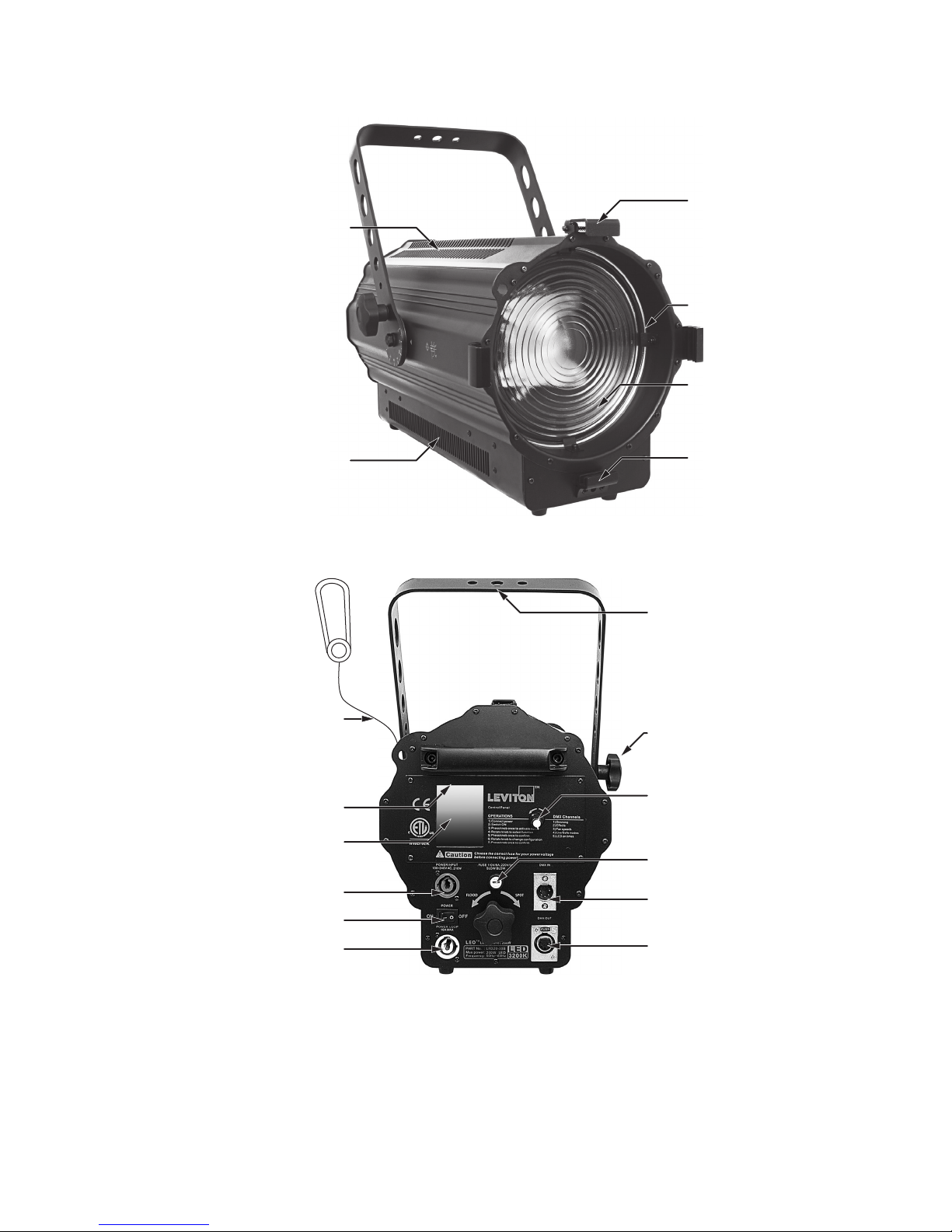

IDENTIFY THE PARTS

Front View

Vent holes

(do not block)

Barn door clip

Lens clips

Fresnel Lens

Vent holes

(do not block)

Safety Cable

Handle

LCD display

Power in

Power switch

loop out

3-Slot accesory runners

12 mm Hole mounting yoke

Yoke fastening knob

Display control knob

Fuse

DMX input (XLR5-pin male)

DMX output (XLR5-pin female)

Rear View

P3

SAFETY NOTES

• This product contains no user-serviceable parts. Do not open the housing or attempt any repairs, doing so will void the manufactures warranty. In the unlikely event the unit may require service please contact Leviton technical support.

• Do not operate this product if you see damage on the housing, lenses, or cables.

• This product is for indoor use only! (IP20) To prevent risk of ﬁre or shock, do not expose this product to rain or moisture. When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.

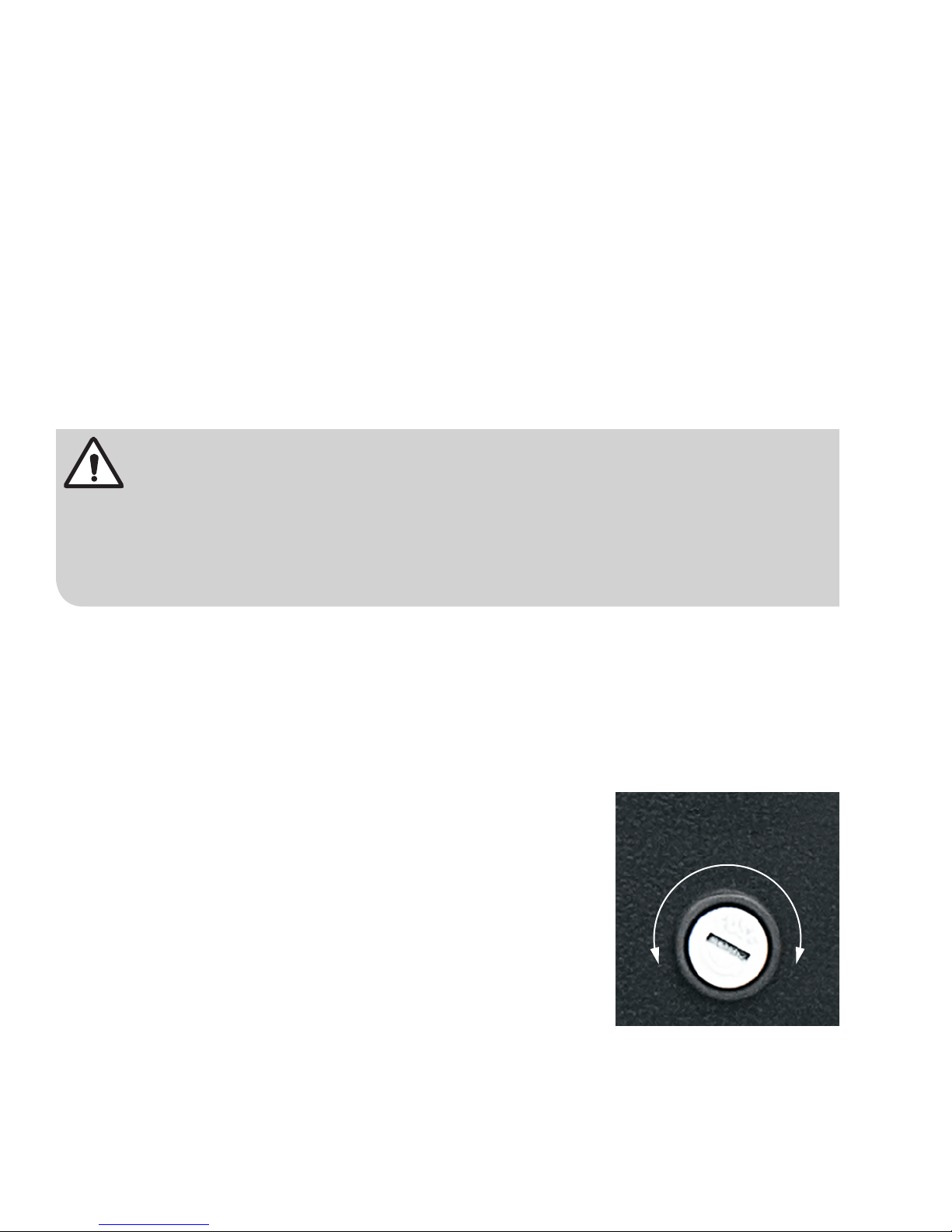

REPLACE FUSE

CAUTION:

Fuse pre-installed in BLACK fuse cover supports 220V AC Power only

Fuse pre-installed in GREY fuse cover supports 110V AC Power only

Always make sure you are connecting this product to the proper voltage in accordance with the speciﬁcations in this manual or on the product’s speciﬁcation label.

Choose the correct fuse for your power voltage before connecting power.

Step 1: Unplug the product from power.

Step 2: Use a slotted screwdriver, push slightly and rotate counterclockwise to open the fuse cap.

Step 3: Take out the fuse cap and fuse. Put a new fuse inside the fuse cap.

Step 4: Screw the fuse cap back in place and reconnect power.

FUSE 110V/6A; 220V/3A

SLOW BLOW

P4

OPEN LOCK

CONNECT POWER

DMX IN LOOP

XLR-5 signal ports

CAUTION:

WARNING: TO AVOID SERIOUS PERSONAL INJURY, always connect this product to a grounded circuit.

LEO™ LED Fresnel comes with a power lead terminated with a powerCON® A connector on one side, and a PBG NEMA 5-15P connector on the other side. Other connector options are available from Leviton or may be installed by your contractor. In addition, the ﬁxture is designed for "Feed-Thru" operation using single power source connection at the ﬁrst ﬁxture, then, using powerCON® extensions between ﬁxtures. The maximum load supported is 16A through the powerCON® connectors which is reduced to 15A if you use a 15A source power connector like a NEMA 5-15P.

If creating your own powerCON® connectors, use the table below to wire the included powerCON® B connector, or a local plug to the power lead.

Connection Wire

AC Live Brown

AC Neutral Blue

AC Ground Green / Yellow

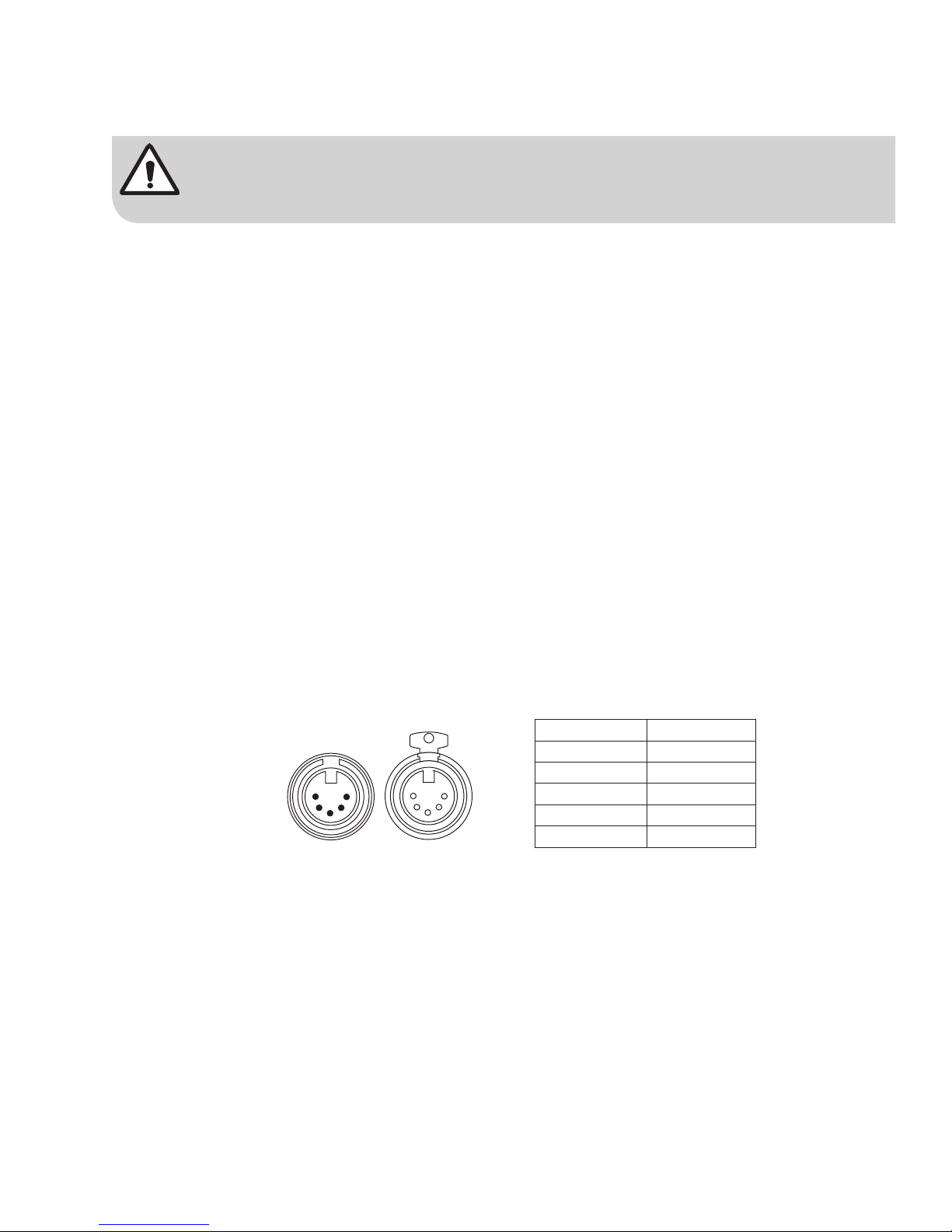

CONNECT DMX

LEO™ LED Fresnel uses 5-pin XLR connectors for signal transmission and can be controlled via DMX-512 protocol. The diagram below shows the ﬁxture’s XLR-5 signal ports.

XLR Pin # Signal

1 common

1

5

1

432

5

234

Step 1: Connect the (male) 5-pin connector side of the DMX cable to the output (female) 5-pin connector

of the DMX console.

Step 2: Connect the end of the cable coming from the console which will have a (female) 5-pin connector

to the ﬁxture’s input port ("DMX IN") consisting of a (male) 5-pin connector.

2 data 3 data + 4 NC 5 NC

Step 3: Then, proceed to connect from the output port ("LOOP") as stated above to the input of the

following ﬁxture and so on.

P5

MOUNT FIXTURE

CAUTION:

Always mount this product in a safe position with adequate ventilation and away from a heat source, at least 20" (50 cm) from adjacent surface, and no ﬂammable materials close by the product while it is operating, at least 8" (20 cm) from adjacent surfaces.

Always connect the provided Safety Cable to the ﬁxture and a suitable anchor. The safety cable should loop through the ﬁxture yoke and be connected to a secure attachment at the other end.

LEO™ LED Fresnel may be mounted in any position (max. tilting +45° to -90° from horizontal); however, make sure there is adequate room for ventilation, conﬁguration, and maintenance.

The ﬁxture comes with a hanging/mounting yoke to which you can attach mounting clamps. The bracket has a 0.5" (12mm) hole, which is appropriate for this purpose. Make sure the clamps are capable of supporting the weight of this product.

FIXTURE ANGLE ADJUSTMENT

The ﬁxture can be tilted up and down to position the light where it is needed.

Step 1: Loosen the yoke fastening knob, use the handle on the rear of the unit to keep the ﬁxture

steady.

Step 2: With the ﬁxture turned on, use the handle to tilt it to the desired angle.

Step 3: Tighten the yoke fastening knob.

FIELD ANGLE ADJUSTMENT

You can adjust the ﬁeld angle of the ﬁxture with the focusing knob on the rear of the unit.

To reduce the ﬁeld angle (SPOT), turn the focus dial clockwise.

To enlarge the ﬁeld angle (FLOOD), turn the focus dial counterclockwise.

P6

ACCESSORIES

LEO™ LED Fresnel can accommodate many different accessories.

Cat. No. Description Part Number

All Safety Cable (included) TA0SC-000

LFD20 8 Leaf Barn Door 9.65" x 9.65" (245 x 245mm) LFD20-BDB

LFD20 Metal Color Frame 9.65" x 9.65" (245 x 245mm) (included) LEDAC-CFB

LFD20 Safety Guard 9.65" x 9.65" (245 x 245mm) (included) LEDAC-SGB

LFD32 8 Leaf Barn Door 12" x 12" (305 x 305mm) LFD32-BDB

LFD32 Metal Color Frame 12" x 12" (305 x 305mm) (included) LFD32-CFB

LFD32 Safety Guard 12" x 12" (305 x 305mm) (included) LFD32-SGB

ACCESSORY SLOTS

CAUTION:

Accessories such as barn doors and color scrollers must be secured by safety cable to the mounting structure.

Make sure all color / diffusion media are locked in position with the barn door clip before hanging the ﬁxture.

LEO™ LED Fresnel has 3 accessory slots in the front of the ﬁxture and is equipped with a spring-loaded barn door clip that prevents color frames and accessories from falling out.

Step 1: Release the barn door clip by pushing it sideways while gently pulling backwards.

Step 2: Insert the media/accessories, secure with a safety cable where necessary.

Step 3: Lock the barn door clip by pushing sideways while gently pushing forward.

P7

OPERATION

CAUTION:

Do not touch this product’s housing during operation because it may be very hot if overheated.

The maximum ambient temperature is 95˚F (35˚C). Do not operate this product at a higher temperature.

Do not cover the ventilation holes when operating to avoid internal overheating.

Avoid direct eye exposure to the light source while the product is on.

In case of a serious operating problem, stop using this product immediately!

LEO™ LED Fresnel will start a self-checking process when power is applied. The unit will display the DMX address for dimming when ready to use. For standard operation, connect the ﬁxture to a power source (100~240V AC single phase), and a DMX signal cable. The LCD Display will turn on after the power switch is turned to "ON" position. You are now ready to set the desired conﬁguration and DMX addresses.

You can assign a DMX channel to control dimming, cooling fan speed, LCD display-on time, built-in effects and live/safe modes according to the DMX value on the "Menu Map". These parameters can also be assigned through a console.

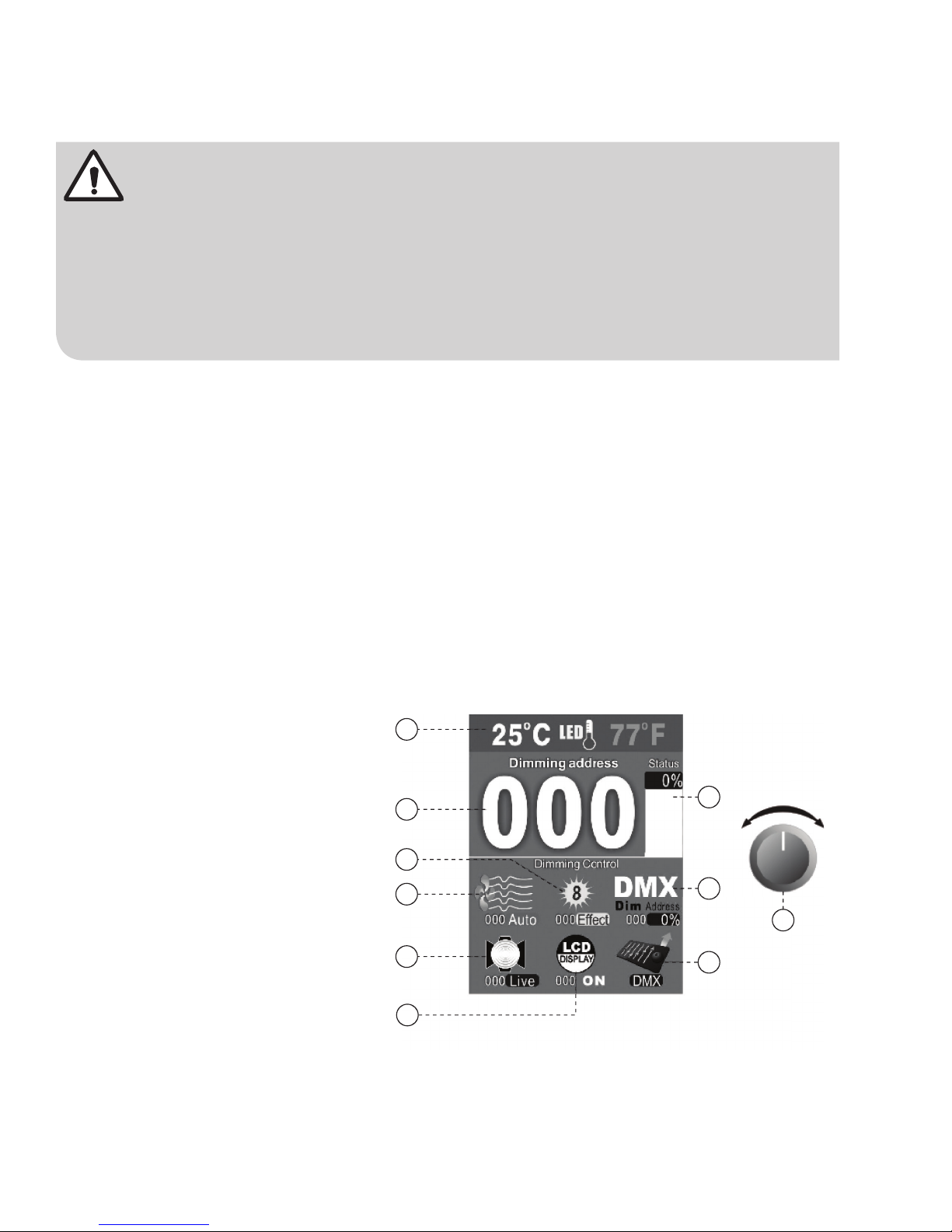

CONTROL INTERFACE

LEO™ LED Fresnel comes with a LCD Display and a control knob on the rear of the unit for control settings:

1. LED Temperature

2. DMX dimming address

3. Built-in effects

4. Cooling Fan speed control

5. Operation Mode: Live or Safe

6. LCD display on time

7. Control mode: DMX or Manual

8. DMX dimming address setting

9. Status-bar

10. Rotary-press-knob

1

2

3

4

5

9

8

10

7

P8

6

CONTROL BASICS

CAUTION:

Connect power to the powerCON® connector at the rear side of LEO™ LED Fresnel and switch the power switch to the "ON" position. The LCD display will turn on and the ﬁxture is ready to operate. The ﬁxture is defaulted for DMX control, press the rotary-press-knob once and rotate to move the cursor to the desired operation icon.

Check the fuse before connecting power.

SETTING DMX ADDRESS OF THE FIXTURE

Move the cursor to DMX Dim Address (see ﬁgure on page 8, #8) and press the rotary-press-knob. The selected icon background will change to a red color. The DMX address for dimming the ﬁxture can be changed by rotating the knob. A large 3-digit display (see ﬁgure on page 8, #2) and a small ﬁgure below the DMX address icon (see ﬁgure on page 8, #8) will show the DMX address simultaneously. Press once to conﬁrm the selected number of DMX address. The background color then returns to normal.

Note: LEO™ LED Fresnel requires only one DMX channel for dimming, and that is the minimum number of DMX channels needed for the ﬁxture.

SETTING CONTROL MODE TO "MANUAL CONTROL"

Repeat the steps to move the cursor over the DMX icon (see ﬁgure on page 8, #7) and press once. The status-bar will appear "DMX" and "manual," rotate the knob to move the cursor over "manual" and press once.

The Manual icon will replace the DMX and the status-bar will appear "STD" and "FINE". Select "STD" for standard dimming (5 knob-rotations), and "FINE" for super ﬁne dimming (about 13 knob-rotations).

Press once to conﬁrm selection. The ﬁxture is ready for manual dimming control. The percentage of local dimming will be shown at the status-bar. Press once to leave manual control mode.

SETTING THE TIME OF LCD DISPLAY-ON

Repeat the steps to select the LCD Display icon (see ﬁgure on page 8, #6) and press once. Rotate the knob to change the DMX address for remote control. Press once again to conﬁrm DMX address and the status-bar will appear "Esc" and the on time of the LCD, rotate the knob to select and press again to conﬁrm. Rotate the knob to move the cursor to "Esc" at the status-bar and press once to leave.

P9

SETTING SAFE OPERATION MODE

CAUTION:

"Live" mode allows the LED light source to operate at over-temp conditions which might shorten the lifetime and even burn out the LED chip!

It is recommended to use the factory default "Safe" mode for normal operations.

Repeat the steps to select the ﬁxture Operation Mode (see ﬁgure on page 8, #5) and press once. Rotate the knob to change the DMX address for remote control. Press once again to conﬁrm DMX address and the status-bar will appear "Esc"/"Live"/"Safe" for selection. Rotate the knob to select Live or Safe mode. Press once to conﬁrm mode selection or press "Esc" to return to main menu.

At Safe mode, LEO™ LED Fresnel will limit the light output when the LED temperature rises above 149°F (65°C) in order to protect the LED light source from overheating. The light output will be the ﬁrst priority when Live Mode is selected.

SETTING COOLING FAN SPEED

Repeat the steps to select the Cooling Fan Speed control (see ﬁgure on page 8, #4) and press once. Rotate the knob to change the DMX address for remote control. Press once again to conﬁrm DMX address and the status-bar will appear "Esc"/"Auto" and "Speed 1" to "Speed 4". Auto fan mode is recommended in order to provide full cooling power for the ﬁxture in all times. Select lower fan speed for lower fan noise operation. "Speed 1" to "Speed 4" represents 90%, 80%, 70% and 60% of full fan speed respectively. Press once to conﬁrm selection or press "Esc" to return to main menu.

Note: By default the fan starts to operate in the slowest speed (60%) when LED temperature is detected at 95 °F (35 °C) or above to maintain the lowest fan noise. The cooling fan cannot be turned off as heat generated by the LED light source will affect the lifetime and performance of the ﬁxture.

SETTING BUILT-IN EFFECTS

LEO™ LED Fresnel has 8 built-in ﬂashing and dimming effects for demonstration. Repeat the steps to select the built-in effects (see ﬁgure on page 8, #3) and press once. Rotate the knob to change the DMX address for remote control. Press once again to conﬁrm DMX address and the status-bar will appear "Esc", and "Effect 1" to "Effect 8". Press once to conﬁrm selection or press "Esc" to return to main menu.

P10

CONTROL ATTRIBUTES AND DEFAULT SETTINGS

The LEO™ LED Fresnel ﬁxtures have several different control attributes. With the exception of the dimming attribute which must be assigned a DMX value for remote control, all other attributes may be manually set only at the ﬁxtures, or, remote controlled from your DMX console. Therefore, from a DMX perspective, your ﬁxture may be a 1, 2, 3, or 4 channel ﬁxture depending on which attributes are assigned to a channel. Some customers will assign a unique DMX address for each dimming attribute, then, a common channel for all other attributes so ﬁxtures are always controlled together. The system is ﬂexible so the speciﬁc conﬁguration is up to you.

CONTROL ATTRIBUTES

Menu Items Value

Range

Dimming Address 1-512 1 Mandatory to assign DMX

Dimming mode Option 0-2 0 0

LCD display on time

Operation mode Option 0/1 1 0-127

Operation mode Address 1-512 0 0-255

Option 1-5 1 0-50

Address 1-512 0 0-255

Default

Value

Options

DMX Value

51-100

101-150

151-200

201-255

128-255

Level Remarks

channel to this attribute

Dimming according to DMX value

1

Dimming according to manual knob

2

Restore to factory setting

1

Continuously on

2

LCD display off after 30 seconds

3

LCD display off after 1 minute

4

LCD display off after 2 minutes

5

LCD display off after 3 minutes

0

Live: Light output will be the ﬁrst priority

1

Safe: LED over-temp protection, light output will be limited when temp. over 149°F (65°C)

P11

DEFAULT SETTINGS

Menu Items Value

Range

Fan speed Option 1-5 1 0-50

Fan speed Address 1-512 0 0-255

Built-in effects Option 0-8 0 0-20

Built-in effects Address 1-512 0 0-255

Default

Value

Options

DMX Value

51-100 101-150 151-200 201-255

21-40 41-70

71-100 101-130 131-160 161-190 191-220 221-255

Level Remarks

1

Auto

2

90% of full speed

3

80% of full speed

4

70% of full speed

5

60% of full speed

0

Normal dimming

1

Flash effect 1 – super fast

2

Flash effect 2 – fast

3

Flash effect 3 – medium

4

Flash effect 4 – slow

5

Fade-in & fade-out effect 1

6

Fade-in & fade-out effect 2

7

Fade-in & fade-out effect 3

8

Fade-in & fade-out effect 4

P12

MAINTENANCE

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

EXPECTED LED LIFESPAN

LEDs gradually decline in brightness over time, mostly because of heat. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal, single-LED conditions. For this reason, using clustered LEDs at their fullest intensity signiﬁcantly reduces the LED's lifespan. Under normal conditions, this lifespan can be 50,000 hours at 77 °F (25 °C). If extending this lifespan is vital, lower the operating temperature by improving the ventilation around the product and reducing the ambient temperature to an optimal operating range. In addition, limiting the overall projection intensity may also help to extend the LED's lifespan.

LENS

The lens in your ﬁxture is made of a high quality glass and reﬂective coating which should require little maintenance. However, due to fog residue, smoke and dust, lens cleaning must be carried out periodically to optimize light output. To maintain optimum performance and minimize wear, clean this product at least twice a month. However, usage and environmental conditions contribute to increased cleaning frequency.

CAUTION:

Do not use ammonia-based or other harsh commercial cleaners. They may damage the glass surface and the Anti-Reﬂective coatings.

Step 1: Unplug the product from power and wait until the product is at room temperature.

Step 2: Remove dust with a blast of oil-free air or wipe with a clean, lint-free cloth. Isopropyl alcohol

Step 3: Make sure to dry all parts completely before plugging the product back in.

Replace lenses if they contain visible damage (cracks or deep scratches).

may be used on the cloth.

P13

TRADEMARK DISCLAIMER

Use herein of third party trademarks, service marks, trade names, brand names and/or product names are for informational purposes only, are/may be the trademarks of their respective owners; such use is not meant to imply afﬁliation, sponsorship, or endorsement.

FOR CANADA ONLY

For warranty information and/or product returns, residents of Canada should contact Leviton in writing at Leviton Manufacturing of Canada Ltd to the attention of the Quality Assurance Department, 165 Hymus Blvd, Pointe-Claire (Quebec), Canada H9R 1E9 or by telephone at 1 800 405-5320.

WARRANTY INFORMATION

LEVITON LIGHTING & ENERGY SOLUTIONS DIVISION of Leviton manufacturing Co. Inc. warrants its Entertainment Products to be free of material and workmanship defects for a period of two years after system acceptance or 26 months after shipment, whichever comes ﬁrst. This Warranty is limited to repair or replacement of defective equipment returned Freight Pre-Paid to Leviton Lighting & Energy Solutions Division at 20497 Teton Ave., Tualatin, Oregon 97062, USA. User shall call 1-800-959-6004 and request a return authorization number to mark on the outside of the returning carton, to assure that the returned material will be properly received at Leviton. All equipment shipped back to Leviton must be carefully and properly packed to avoid shipping damage. Replacements or repaired equipment will be returned to sender freight prepaid, F.O.B. factory. Leviton is not responsible for removing or replacing equipment on the job site, and will not honor charges for such work. Leviton will not be responsible for any loss of use time or subsequent damages should any of the equipment fail during the warranty period, but agrees only to repair or replace defective equipment returned to its plant in Tualatin, Oregon. This warranty is void on any product that has been improperly installed, overloaded, short circuited, abused, or altered in any manner. Neither the seller nor Leviton shall be liable for any injury, loss or damage, direct or consequential arising out of the use of or inability to use the equipment. This Warranty does not cover lamps, ballasts, and other equipment which is supplied or warranted directly to the user by their manufacturer. Leviton makes no warranty as to the Fitness for Purpose or other implied Warranties.

P14

Leo is a registered trademark of Leviton Mfg. Co., Inc. in the U.S.A.:

NOTES

__________________________________________________________________________________

P15

NOTES

__________________________________________________________________________________

P16

LEO™

LEVITON MANUFACTURING CO., INC. LIGHTING & ENERGY SOLUTIONS DIVISION

20497 SW Teton Avenue. Tualatin, OR 97062 Telephone: 1-800-736-6682 FAX: 503-404-559 Tech Line (6:00 AM-4:00 PM P.S.T. Monday-Friday): 1-800-959-6004 Email: [email protected]

Leviton Manufacturing Co., Inc.

201 North Service Road, Melville, N.Y. 11747 Telephone: 1-800-323-8920 • FAX: 1-800-832-9538

Information and speciﬁcations are subject to change without notice.

DISCARD ANY OLDER VERSIONS OF THIS USER’S GUIDE AND REPLACE WITH THIS VERSION.

PK-A3121-10-00-5A
