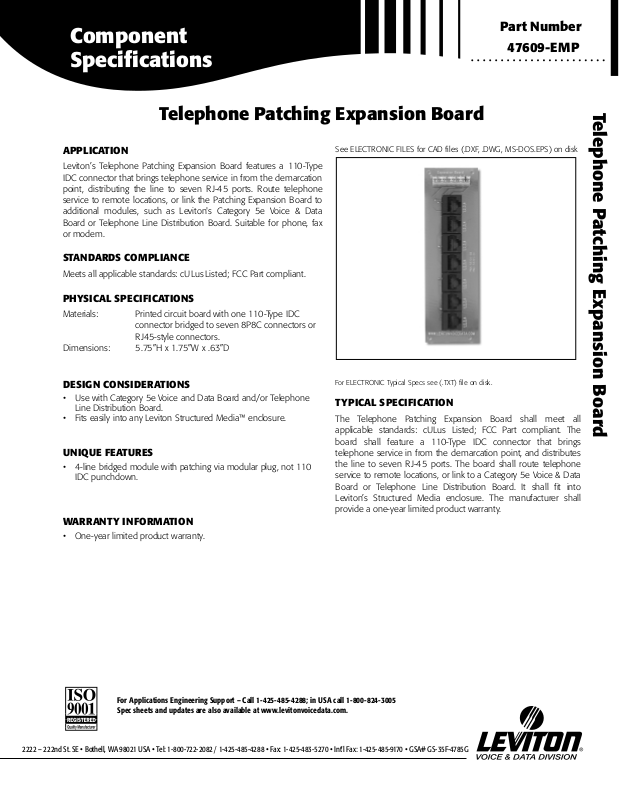

Component Specifications
3880-DIN
Telephone Patching Expansion Board
Telephone Patching Expansion Board
Part Number
2222 – 222nd St. SE • Bothell, WA 98021 USA • Tel: 1-800-722-2082 / 1-425-485-4288 • Fax: 1-425-483-5270 • Int'l Fax: 1-425-485-9170 • GSA# GS-35F-4785G
For Applications Engineering Support – Call 1-425-485-4288; in USA call 1-800-824-3005 Spec sheets and updates are also available at www.levitonvoicedata.com.
See ELECTRONIC FILES for CAD files (.DXF, .DWG, MS-DOS.EPS) on disk
47609-EMP
APPLICATION
Leviton’s Telephone Patching Expansion Board features a 110-Type IDC connector that brings telephone service in from the demarcation point, distributing the line to seven RJ-45 ports. Route telephone service to remote locations, or link the Patching Expansion Board to additional modules, such as Leviton's Category 5e Voice & Data Board or Telephone Line Distribution Board. Suitable for phone, fax or modem.
STANDARDS COMPLIANCE
Meets all applicable standards: cULus Listed; FCC Part compliant.
PHYSICAL SPECIFICATIONS
Materials: Printed circuit board with one 110-Type IDC
connector bridged to seven 8P8C connectors or RJ45-style connectors.
Dimensions: 5.75”H x 1.75”W x .63”D
DESIGN CONSIDERATIONS
• Use with Category 5e Voice and Data Board and/or Telephone Line Distribution Board.
• Fits easily into any Leviton Structured Media™ enclosure.
UNIQUE FEATURES
• 4-line bridged module with patching via modular plug, not 110 IDC punchdown.
WARRANTY INFORMATION
• One-year limited product warranty.
For ELECTRONIC Typical Specs see (.TXT) file on disk.
TYPICAL SPECIFICATION
The Telephone Patching Expansion Board shall meet all applicable standards: cULus Listed; FCC Part compliant. The board shall feature a 110-Type IDC connector that brings telephone service in from the demarcation point, and distributes the line to seven RJ-45 ports. The board shall route telephone service to remote locations, or link to a Category 5e Voice & Data Board or Telephone Line Distribution Board. It shall fit into Leviton’s Structured Media enclosure. The manufacturer shall provide a one-year limited product warranty.
Page 2
G-6057/C1-5M/jc H/2 #888
© 2002 Leviton Manufacturing Co., Inc. All Rights Reserved
Telephone Patching Expansion Board
Part Number
47609-EMP
2222 – 222nd St. SE • Bothell, WA 98021 USA • Tel: 1-800-722-2082 / 1-425-485-4288 • Fax: 1-425-483-5270 • Int'l Fax: 1-425-485-9170 • GSA# GS-35F-4785G
For Applications Engineering Support – Call 1-425-485-4288; in USA call 1-800-824-3005. Spec sheets and updates are also available at www.levitonvoicedata.com.
DIMENSIONAL LINE ART
See ELECTRONIC FILES for CAD images (.DXF, .DWG, MS-DOS.EPS)
PART NUMBERS
Description Part No.
Telephone Patching Expansion Board 47609-EMP
Front View Side View
1,2,3,4
1,2,3,4 1,2,3,4
1,2,3,4 1,2,3,4
1,2,3,4
1,2,3,4
0.67
1.40
5.45
1.30
5.75
5.75” 5.45”
1.75”
1.30”
0.63”
