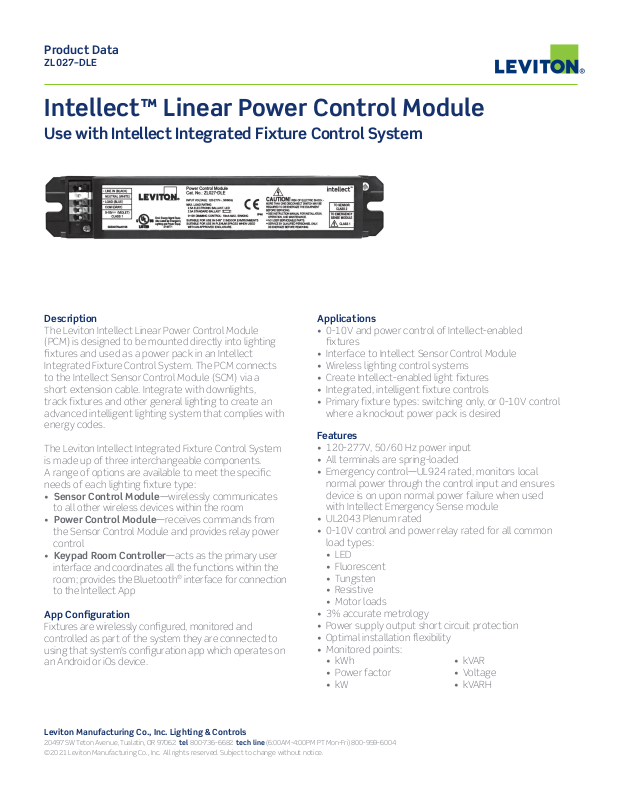

Product Data
ZL027–DLE
Intellect™ Linear Power Control Module
Use with Intellect Integrated Fixture Control System
Description
The Leviton Intellect Linear Power Control Module
(PCM) is designed to be mounted directly into lighting
fixtures and used as a power pack in an Intellect
Integrated Fixture Control System. The PCM connects
to the Intellect Sensor Control Module (SCM) via a
short extension cable. Integrate with downlights,
track fixtures and other general lighting to create an
advanced intelligent lighting system that complies with
energy codes.
The Leviton Intellect Integrated Fixture Control System
is made up of three interchangeable components.
A range of options are available to meet the specific
needs of each lighting fixture type:
• Sensor Control Module—wirelessly communicates
to all other wireless devices within the room
• Power Control Module—receives commands from
the Sensor Control Module and provides relay power
control
• Keypad Room Controller—acts as the primary user
interface and coordinates all the functions within the
room; provides the Bluetooth® interface for connection
to the Intellect App
App Configuration
Fixtures are wirelessly configured, monitored and
controlled as part of the system they are connected to
using that system’s configuration app which operates on
an Android or iOs device.
Applications
• 0-10V and power control of Intellect-enabled
fixtures
• Interface to Intellect Sensor Control Module
• Wireless lighting control systems
• Create Intellect-enabled light fixtures
• Integrated, intelligent fixture controls
• Primary fixture types: switching only, or 0-10V control
where a knockout power pack is desired
Features
• 120-277V, 50/60 Hz power input
• All terminals are spring-loaded
• Emergency control—UL924 rated, monitors local
normal power through the control input and ensures
device is on upon normal power failure when used
with Intellect Emergency Sense module
• UL2043 Plenum rated
• 0-10V control and power relay rated for all common
load types:
• LED
• Fluorescent
• Tungsten
• Resistive
• Motor loads
• 3% accurate metrology
• Power supply output short circuit protection
• Optimal installation flexibility
• Monitored points:
• kWh
• Power factor
• kW
• kVAR
• Voltage
• kVARH
Leviton Manufacturing Co., Inc. Lighting & Controls
20497 SW Teton Avenue, Tualatin, O R 97062 tel 800-736-6682 tech line (6:00AM-4:00PM PT Mon-Fri) 800-959-6004
©2021 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
Product Data
30.50mm
1.20”
80.99mm
3.19”
69mm
2.72”
B
3
2
1
4
30.50mm
1.20”
168.99mm
6.65”
157mm
6.18”
B
3
4
B
2
1
ZL027–DLE
Dimensions—Linear Power Control Module
25mm
0.98”
6.18”
157mm
6.65”
168.99mm
Dimensions—Emergency Sense Pigtail
3.19”
2.72”
69mm
80.99mm
30.50mm
1.20”
0.98”
25mm
Specifications
Electrical
Power Input 2.5A, 120-277VAC, 50/60 Hz
Output
Control 0-10V, 10mA Sinking, ANSI C82.11, Appendix E2
Power Monitoring KWH, KW, Power Factor, Voltage, Current, KVAR, KVARH, 3% accuracy
Environmental
Operating Temperature Range 32º to 167º F (0° to 75° C)
Storage Temperature Range -4º to 185º F (-20° to 85° C)
Relative Humidity 0 to 90% non-condensing, for indoor use only
Other
Intellect System Energy Codes
Intellect System Listings
Warranty
2.5A: Ballast, electronic ballast, LED, Tungsten, resistive, general purpose
Motors: 1/8HP at 120V, 1/16HP at 277V
Can be used to comply with IECC, ASHRAE 90.1 and 2019 Title 24, Part 6 dimming, occupancy/
vacancy sensing and daylight harvesting requirements
UL/cUL Listed, UL924, NOM Certified, RoHS 2 Compliant, and IEC61000-4-2, Complies with IEEE
802.15.4, UL916 standard for energy management equipment, UL2043 for plenum rated, NEMA
410 compliant
Limited 5-Year
Ordering Information
Intellect Linear Power Control Module
Extension Cable, for use between Intellect Sensor and Intellect Power Control Module, 12”
Extension Cable, for use between Intellect Sensor and Intellect Power Control Module, 18”
Extension Cable, for use between Intellect Sensor and Intellect Power Control Module, 24”
Extension Cable, for use between Intellect Sensor and Intellect Power Control Module, 30”
Product Name
Cat. No. Description
ZL027–DLE
ZLAEX-012
ZLAEX-018
ZLAEX-024
ZLAEX-030
Leviton Manufacturing Co., Inc. Lighting & Controls
20497 SW Teton Avenue, Tualatin, O R 97062 tel 800-736-6682 tech line (6:00AM-4:00PM PT Mon- Fri) 800-959-6004
Leviton Manufacturing Co., Inc. Global Headquarters
201 North Service Road, Melville, NY 11747-3138 tel 800-323-8920 tech line (8:30AM-7:00PM ET Mon-Fri) 800-824-3005
Visit our Website at: www.leviton.com/intellect
©2021 Leviton Manufacturing Co., Inc. All r ights reser ved. Subject to change w ithout not ice.
G-10290C/B21-aa
REV FEB 2021
