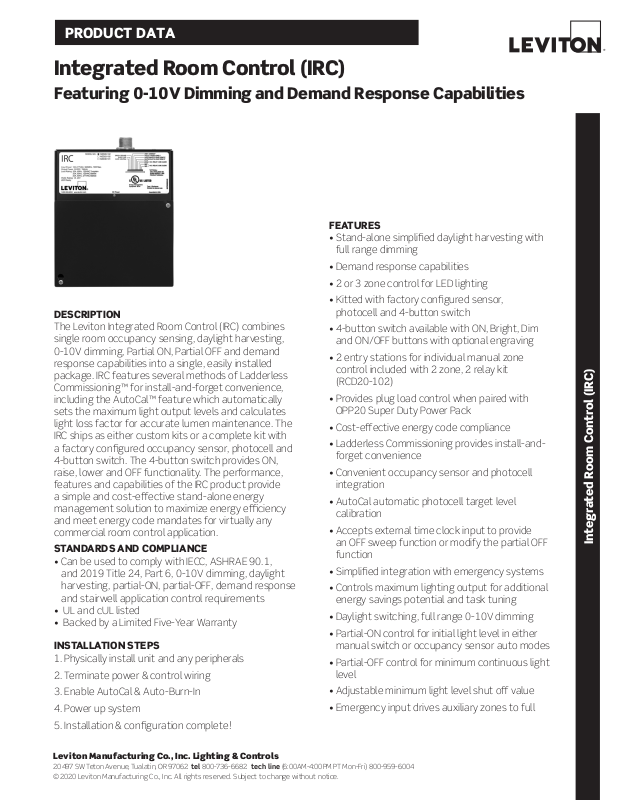

PRODUCT DATA
Integrated Room Control (IRC)
Featuring 0-10V Dimming and Demand Response Capabilities
FEATURES
• Stand-alone simplified daylight harvesting with
full range dimming
• Demand response capabilities
• 2 or 3 zone control for LED lighting
• Kitted with factory configured sensor,
DESCRIPTION
The Leviton Integrated Room Control (IRC) combines
single room occupancy sensing, daylight harvesting,
0-10V dimming, Partial ON, Partial OFF and demand
response capabilities into a single, easily installed
package. IRC features several methods of Ladderless
Commissioning™ for install-and-forget convenience,
including the AutoCal™ feature which automatically
sets the maximum light output levels and calculates
light loss factor for accurate lumen maintenance. The
IRC ships as either custom kits or a complete kit with
a factory configured occupancy sensor, photocell and
4-button switch. The 4-button switch provides ON,
raise, lower and OFF functionality. The performance,
features and capabilities of the IRC product provide
a simple and cost-eective stand-alone energy
management solution to maximize energy eciency
and meet energy code mandates for virtually any
commercial room control application.
STANDARDS AND COMPLIANCE
• Can be used to comply with IECC, ASHRAE 90.1,
and 2019 Title 24, Part 6, 0-10V dimming, daylight
harvesting, partial-ON, partial-OFF, demand response
and stairwell application control requirements
• UL and cUL listed
• Backed by a Limited Five-Year Warranty
INSTALLATION STEPS
1. Physically install unit and any peripherals
2. Terminate power & control wiring
3. Enable AutoCal & Auto-Burn-In
4. Power up system
5. Installation & configuration complete!
photocell and 4-button switch
• 4-button switch available with ON, Bright, Dim
and ON/OFF buttons with optional engraving
• 2 entry stations for individual manual zone
control included with 2 zone, 2 relay kit
(RCD20-102)
• Provides plug load control when paired with
OPP20 Super Duty Power Pack
• Cost-eective energy code compliance
• Ladderless Commissioning provides install-and forget convenience
• Convenient occupancy sensor and photocell
integration
• AutoCal automatic photocell target level
calibration
• Accepts external time clock input to provide
an OFF sweep function or modify the partial OFF
function
• Simplified integration with emergency systems
• Controls maximum lighting output for additional
energy savings potential and task tuning
• Daylight switching, full range 0-10V dimming
• Partial-ON control for initial light level in either
manual switch or occupancy sensor auto modes
• Partial-OFF control for minimum continuous light
level
• Adjustable minimum light level shut o value
• Emergency input drives auxiliary zones to full
®
Integrated Room Control (IRC)
Leviton Manufacturing Co., Inc. Lighting & Controls
20497 SW Teton Avenue, Tualatin, O R 97062 tel 800-736-6682 tech line (6:00AM-4:00PM PT Mon-Fri) 800-959-6004
©2020 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
PRODUCT DATA
LOAD RATINGS
• 20A per relay, 120/277V
• 15A per relay, 347V
• Fluorescent: 0-10VDC 120V, 1,920W max load
• Fluorescent: 0-10VDC 277V, 4,432W max load
• LED: 0-10VDC 120V, 960W max load
• LED: 0-10VDC 277V, 2,216W max load
• Electronic Ballasts, CFL, LED: 120VAC-1,2000W
max load (10A)
• Electronic Ballasts, CFL, LED: 277VAC-2770W
max load (10A)
• LED, fluorescent, non-dimmed and 0-10V sinking for
LED or fluorescent dimming control (Max 100mA),
2 or 3 zones
• 120mA power output for operation of
occupancy sensors, photocells, etc.
®
POWER
• Input Power: 120/277, 347V for Canadian models;
10W Max, 50/60 Hz
• Output Power: 2 or 3 zones up to 20A 120/277V,
2 or 3 zones up to 15A 347V (Canadian models)
• Available Peripheral Power: 120mA, 24V
DIMENSIONS
• 6.65” (168.91mm)L x 8.65” (219.71mm)H
x 2.1” (56.13mm)D
• Shipping Weight: 4lbs
• Unit Weight: 3.3lbs
• 1/2” & 3/4” concentric conduit knockouts
• 1/2” nipple with pigtails for easy line
voltage connections
ORDERING INFORMATION
ROOM-IN-A-BOX KITS - Order a Complete System with One Part Number
CAT. NO. DESCRIPTION
IRC Dimming Room Control Kit, includes Low Voltage devices; 2 Zone Room Controller w/(2) 0-10V outputs and (2)
RCD20-102
RCD30-101
RCD20-C02
RCD30-C01
120/277V relays, M/T Occupancy Sensor (OSC20-M0W), 4 Button Switch (RLVSW-4LW), Photocell (ODC0P-00W),
120/277VAC, 50/60Hz
IRC Dimming Room Control Kit, includes Low Voltage devices; 3-Zone Room Controller w/(3) 0-10V outputs and (1)
120/277V relay, M/T Occupancy Sensor (OSC20-M0W), 4 Button Switch (RLVSW-4LW), Photocell (ODC0P-00W),
120/277VAC, 50/60Hz
IRC Dimming Room Control Kit, includes Low Voltage devices; 2-Zone Room Controller w/(2) 0-10V outputs and
(2) 347V relays, M/T Occupancy Sensor (OSC20-M0W), 4 Button Switch (RLVSW-4LW), Photocell (ODC0P-00W),
347VAC Canadian model, 50/60Hz
IRC Dimming Room Control Kit, includes Low Voltage devices; 3-Zone Room Controller w/(3) 0-10V outputs and (1)
347V relay, M/T Occupancy Sensor (OSC20-M0W), 4 Button Switch (RLVSW-4LW), Photocell (ODC0P-00W), 347VAC
Canadian model, 50/60Hz
INDIVIDUAL IRC FOR KITS
CAT. NO. DESCRIPTION
Integrated Room Control (IRC)
MZD20-102 IRC Dimming Version, 2 zone, 2 relay, 120V or 277VAC
MZD30-101 IRC Dimming Version, 3 zone, 1 relay, 120V or 277VAC
MZD20-C02 IRC Dimming Version, 2 zone, 2 relay, 347VAC
MZD30-C01 IRC Dimming Version, 3 zone, 1 relay, 347VAC
Leviton Manufacturing Co., Inc. Lighting & Controls
20497 SW Teton Avenue, Tualatin, O R 97062 tel 800-736-6682 tech line (6:00AM-4:00PM PT Mon-Fri) 800-959-6004
Leviton Manufacturing Co., Inc. Global Headquarters
201 North Service Road, Melville, NY 11747-3138 tel 800-323-8920 tech line (8:30AM-7:00PM ET Mon-Fri) 800-824-3005
Visit our Website at: www.leviton.com/IRC
©2020 Leviton Man ufacturing Co., Inc. Al l rights reserved. S ubject to change without notice.
G-9267C/K20-aa
REV NOV 2020
