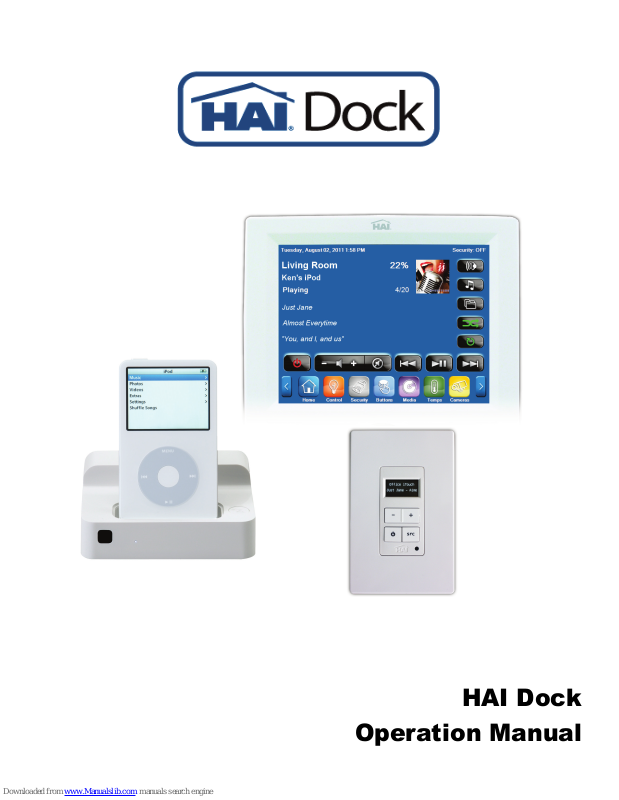

Leviton HAI Dock Operation Manual

HAI Dock

Operation Manual

About Trademarks

 Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other

countries.

 iPod, iTunes, AirMac, AirPort, Macintosh, MacOS, and Safari are either registered trademarks or trademarks of Apple Computer,

Inc. in the United States and/or other countries.

 Other brand or product names are registered trademarks or trademarks of their respective owners.

Document Number: 96I00-1 Rev. A

August, 2011

Copyright © 2011 Home Automation, Inc.

All Rights Reserved

Regulatory Compliance Statements

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, it may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for assistance.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

EN55022 Class-B
EN55024

Safety instructions regarding the radio waves

 Do not use this product near medical devices, such as a heart pacemaker. The radio waves

generated by this product may interfere with the operation of these devices.

 Do not use this product near microwave ovens. The radio wave used by microwave ovens may

cause interference with this product.

i

Safety Precautions

Users are strongly advised to adhere to the directions and recommendations offered in this manual. Failure to do
so may result in problems during operation.

Use the following safety guidelines to help protect yourself and the

• Do not attempt to service the HAI Dock yourself.

• Always follow installation instructions closely.

• Make sure the correct voltage is being supplied before turning the power on.

• Use only the AC adapter and power cord that are approved for use with this unit.

• Do not install in a very humid environment.

• Do not install in an area exposed to sunlight or heat.

• Do not use in areas containing flammable materials like propane gas and gasoline or in areas that generate

dust. Doing so may cause an explosion or fire.

• Do not dismantle, repair, or modify the product. Doing so may cause damage or an electric shock. Refer all

servicing to qualified personnel.

• Do not use water, thinner, or organic solvent for cleaning the product exterior. Doing so may

cause damage or an electric shock. Use a dry cloth instead and turn off the power before
cleaning.

Disclaimer

• While every effort has been made to ensure that the information contained in this guide is accurate and
complete, no liability can be accepted for any errors or omissions.

• HAI reserves the right to change the specifications of the hardware and software described herein at any time
without prior notice.

• No part of this guide may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language in any form, by any means, without prior written permission of HAI.

• HAI makes no warranties for damages resulting from corrupted or lost data due to mistaken operation or
malfunction of the HAI Dock, the software, personal computers, peripheral devices, or
unapproved/unsupported devices.

ii

Table of Contents

Regulatory Compliance Statements ............................................. i

Safety Precautions ........................................................................ ii

Disclaimer ..................................................................................................................................................................... ii

Introducing the HAI Dock ....................................................... 1

Features ........................................................................................................................................... 1

Package Contents ........................................................................................................................... 2

Supported Operating Systems .................................................................................................................................... 2

Supported iPod Models ............................................................................................................................................... 2

HAI Dock Overview

Connections to the HAI Dock ......................................................................................................... 5

Connecting the Network .............................................................................................................................................. 5

To router, hub, or network switch .............................................................................................................................. 5

Connecting the Power.................................................................................................................................................. 5

Connecting the Audio Output ..................................................................................................................................... 6

........................................................................................................................... 3

Getting Started

Configuring the HAI Dock ............................................................................................................... 7

HAI Dock Setup Utility.................................................................................................................................................. 8

HAI Dock Operation ...................................................................................................................... 13

Operation Modes ........................................................................................................................................................ 14

Playing Music ................................................................................................................................ 14

Inserting and Removing an iPod .................................................................................................. 15

Accessing the Web Server ........................................................................................................... 15

Status ........................................................................................................................................................................... 16

Configuration .............................................................................................................................................................. 17

System Information .................................................................................................................................................... 17

Reset to Factory Default ............................................................................................................... 18

........................................................................... 7

Interfacing with the HAI Dock ............................................ 19

Enabling the HAI Dock .................................................................................................................. 19

Creating a New Project with the HAI Dock............................................................................................................... 19

Adding Touchscreens to the Project ........................................................................................................................ 20

Adding the HAI Dock to an Existing Design ............................................................................... 22

Importing the HAI Dock Pages .................................................................................................................................. 22

Discovering Touchscreens ........................................................................................................... 23

Adding an HAI Controller to the Design ...................................................................................... 24

Adding the HAI Dock to the Design ............................................................................................. 24

Discover the HAI Dock ............................................................................................................................................... 25

Assigning the Audio Output ...................................................................................................................................... 26

Assigning a Touchscreen Page for Media

Updating the Touchscreens ......................................................................................................... 28

................................................................................................................. 27

iii

Accessing Your Music .................................................................................................................. 30

Browse the Media Library .......................................................................................................................................... 31

Selecting a new Music Source
Selecting a New Audio Zone

.................................................................................................................................... 32

....................................................................................................................................... 33

Specifications .......................................................................... 34

iv

Chapter 1

Introducing the HAI Dock

The HAI Dock is a product that allows you to access music and other content on an iPod, iPod Touch, or
iPhone using IP enabled devices, such as HAI OmniTouch 5.7e and 10pe Touchscreens, and Hi-Fi2
audio distribution systems. The HAI Dock connects over a wired or wireless LAN network. When used
with a supported audio distribution system, an iPod that is connected to an HAI Dock becomes an audio
source that can be played in any audio zone in the house.

Using an HAI OmniTouch 5.7e, 10p, or 10pe Touchscreen, you can browse and make music selections
by Playlists, Artists, Albums, Songs, Podcasts, Genres, Composers, and Audiobooks. Album art and
other music metadata are displayed with each selection.

Features

 Works with OmniTouch 5.7e and 10pe Touchscreens when combined with an HAI controller and supported

audio distribution system (e.g. HAI Hi-Fi or Hi-Fi2, NuVo, Russound, Xantech, Speakercraft, or Proficient).

 Works standalone with Hi-Fi2 audio distribution systems. VSC keypads will display iPod metadata (artist,

album, and track) and allows for control commands (play, pause, next track, and previous track) at the VSC
keypad.

 HAI Dock sends iPod metadata and album artwork to IP enabled devices, such as HAI OmniTouch 5.7e and

10pe.

 IP enabled devices can send control commands (play, pause, stop, next track, previous track, rewind, fast

forward, next chapter, previous chapter, etc.) to an iPod that is docked in the HAI Dock.

 HAI Dock allows IP enabled devices to navigate and browse the music library on the iPod by Playlists,

Artists, Albums, Songs, Podcasts, Genres, Composers, and Audiobooks.

 Connects to an existing wired 10/100 LAN network or wireless 802.11 b/g (on supported HAI Dock models)

network.

 Up to 8 HAI Docks can be connected and controlled on a network.

 Charges the battery in the docked iPod.

1

Package Contents

After opening the box, ensure the following items are present:

o HAI Dock
o Power Supply
o Audio Cable
o HAI Dock CD (Setup Utility and Manual)
o Getting Started Guide

Supported Operating Systems

o Windows 7, Windows Vista, Windows XP, Windows 2000
o Mac OS X 10.2.7 to 10.4.x (PPC version)
o Mac OS X 10.4.3 or later (Intel version)

Supported iPod Models

o iPod classic
o iPod Nano (3G, 4G, 5G, 6G)
o iPod touch (1st, 2G, 3G, 4G)
o iPhone (1st, 3G, 3GS, 4G)

2

HAI Dock Overview

Control playback of a connected iPod
from a distance using the Apple

can be controlled via IP

The Operation Mode LED is off when
the HAI Dock is in Standby Mode. In

Ethernet PHY, and the wireless radio

When is Standby Mode, press this

in Network

press and

The Operation Mode Button is also
used to reset the HAI Dock to factory

This section describes the main components of the HAI Dock.

Front View

Infrared (IR)

1

Receiver

Operation

2

Mode LED

Remote when the HAI Dock is in Local
Mode.

The Operation Mode LED is illuminated
when the HAI Dock is in Network Mode
(running and
enabled devices).

Standby Mode the USB controller,

iPod

3

Connector

Operation

4

Mode Button

(if applicable) is disabled.

Connects the iPod to the HAI Dock.

button to start the unit
Mode.

When in Network Mode,
hold for 2 seconds to put the unit into
Standby Mode.

default settings.

3

Use a standard network cable to
connect the Network Port to the local

Shows the network communication

Shows the network communication

Connect supplied 3.5mm male stereo
patch cable between the Audio Output

Fi2 or other audio distribution

3.5mm male to 2 RCA male stereo
an be used to connect

HAI Dock to audio equipment which

The Ethernet (MAC) Address of the
HAI Dock is found on the label on the

Address is the HAI Dock serial

For example: If the Ethernet Address
is 00:07:A6:00:11:22 (noted as
0007A6001122) then the product's

Rear View

5 Power Jack

Network

6

Port

Connect the supplied AC power supply
to this jack to provide power to the HAI
Dock.

network.

7 Green LED

8 Orange LED

S-Video

9

Output

Audio

10

Output

status.

status.

This output is currently not active.

on the HAI Dock and an audio input on
Hi­system.

patch cable c

requires RCA audio inputs.

Bottom View

4

11

Ethernet
Address

bottom of the unit.

The last 6 digits of the Ethernet

number.

serial number is “001122”.

Connections to the HAI Dock

Make sure that the Operation Mode LED is

To operate the HAI Dock, the following must be connected: Network (LAN), Power, and Audio Output.

Connecting the Network

Connect a network cable to the Network Port on the HAI Dock and connect the other end of the network
cable to a router, hub, or network switch on the local network.

To router, hub, or network switch

Connecting the Power

Connect the supplied AC power supply to the Power Jack on the HAI Dock. Plug the power cord into
an outlet.

illuminated.

5

RIM

Remote Input Module

Hi-Fi RIM

AUDIO IN

IR OUT

Connecting the Audio Output

AUDIO

Connect the HAI Dock to an audio system using the Audio Output jack on the HAI Dock using a

3.5mm male stereo patch cable (supplied).

6

Chapter 2

Getting Started

The HAI Dock is configured over the network using the supplied HAI Dock Setup Utility. The HAI Dock
Setup utility runs on a PC on the same local network as the HAI Dock.

Configuring the HAI Dock

To configure the HAI Dock using the HAI Dock Setup Utility:

1. Ensure that the HAI Dock is connected to the local network.

2. Ensure that the AC power supply is connected to the HAI Dock.

3.

Ensure that the HAI Dock is in Network Mode (the Operation Mode LED is illuminated).

4.

Insert the HAI Dock Setup Utility CD (HAI Part Number 96A02-1) into your PC and run the

utility Setup.exe.

7

HAI Dock Setup Utility

Verify that the HAI Dock is connected to the

Read the Software License Agreement and

to accept the terms and

Follow the instructions on the screen to configure the HAI Dock using the HAI Dock Setup Utility.

1. When the HAI Dock Setup Utility is started, you are first prompted to select your language:

Select your language and then click Next.

2. Verify that the HAI Dock is connected to the network with a network cable and is turned on:

3. Read the Software License Agreement:

network and is turned on and then click Next.

then click Yes
proceed.

8

4. The HAI Dock Setup Utility will discover all of the HAI Docks connected on the local

Select the HAI Dock to be configured and

t an IP

the HAI Dock will accept an IP Address and
other network parameters from a DHCP

To have the HAI Dock use the DHCP

Get an IP Address

elected, click

Enter the subnet mask of the network in

network:

then click Next.

5. Configure the TCP/IP network settings for the HAI Dock:

By default, the HAI Dock will Ge
Address Automatically. The DHCP client in

If DHCP is disabled on the router and there is no other DHCP server on the network, you can
manually assign a static IP address. The IP address of the HAI Dock must be compatible with your
existing network. To manually assign a static IP address to the HAI Dock:

server on the network.

settings, with the

Automatically radio button s
Next.

a) Select the Assign IP Address radio

button.

b) Enter the desired IP address for the HAI

Dock in the IP Address edit box.

c)

the Subnet Mask edit box.

d) Enter the default gateway of the network

in the Default Gateway edit box.

e) When complete, click Next.

9

6. Configure the IP Remote Settings for the HAI Dock:

Network Name: Give a unique name to the

For example: Kitchen Dock

TCP device (e.g. OmniTouch 5.7e and 10pe
touchscreen) uses to connect to the HAI

This setting identifies which

HAI Dock.
(15 characters maximum).

IP Remote TCP Port: This is the port that a

Dock.

IP Remote UDP Port: This is the port that
Hi-Fi2 uses to connect to the HAI Dock

Source ID:
source input the HAI Dock is connected to on
the audio system.

When complete, click Next.

If this is a wireless version of the HAI Dock, the following setup screens will be displayed.
Otherwise, confirm configuration parameters and complete Setup (see Step 9).

7. The HAI Dock will search for wireless networks:

8. Once wireless networks have been discovered, they are displayed in a list:

10

Select the wireless network that you want to

connect to, enter the Network Key, reenter

Confirm Network

If you are going to use the HAI Dock with a
network cable instead of wirelessly, check

Next

View and confirm the configuration

The new configuration is being stored in the

the Network Key under
Key, and then click Next.

If the wireless network that you wish to use is
not shown in the list, click Detailed Config
and manually configure each setting.

Skip wireless configuration and then click

complete Setup.

9. Confirm configuration parameters and save the settings in the HAI Dock:

parameters and then click Execute.

If any changes need to be made, click Back
and make the necessary modifications.

HAI Dock. Please wait.

11

HAI Dock Setup is completed. Click Finish.

10. Reboot the HAI Dock:

The HAI Dock must be rebooted for the new settings to take effect. If wireless has been configured,
first unplug the network cable before rebooting the HAI Dock.

To reboot the HAI Dock, disconnect the power cable momentarily, and then reconnect the power
cable.

12

HAI Dock Operation

Status

LED

Description

Status

LED

Description

Wired LAN

Green: Blink
Orange: Off

Green: ON

transmission

Wireless LAN

Green and Orange blink at the same
time

Orange: Blink

Green and Orange blinks alternatively

The HAI Dock has 3 LED indicators which can be used to determine its operation mode and network status.
The Operation Mode LED indicator is located on the front of the unit and indicates the operation mode status:

HAI Dock is running. Connected iPod can play music and can be
controlled via IP enabled devices on the network (IP Remote). In this
mode:

Network Mode On

1) The HAI Dock charges the battery in the docked iPod.

2) The iPod cannot be controlled locally while docked.

3) Some iPod models may display “Accessory Connected” while
docked.

Connected iPod can play music and can be controlled locally.

1) The HAI Dock does not charge the battery in the docked iPod.

Standby Mode Off

2) In this mode the USB controller, Ethernet PHY, and the wireless
radio (if applicable) is disabled.

3) This mode complies with the European Power Regulations.

The Network LED indicators (green and orange) on the back of the unit indicate the network connection status:

Waiting for network connection.

Orange: Blinks during data

Green: ON

Communicating with a wired LAN. Orange LED
blinks during data transmission.

Waiting for network connection.

Connecting with router or wireless access point
(WAP) and communicating in infrastructure mode.

Communicating in Ad hoc mode.

13

Operation Modes

To set the HAI Dock to Network Mode, if the unit is currently in Standby Mode (i.e. Operation Mode LED is off),
press the Operation Mode Button momentarily. The Operation Mode LED will illuminate.

To set the HAI Dock to Standby Mode, if the unit is currently in Network Mode (i.e. Operation Mode LED is on),
press and hold the Operation Mode Button for 2 seconds. The Operation Mode LED will turn off.

Playing Music

To play music, ensure that an audio system is connected to the Audio Output jack on the HAI Dock.

To play music while in Standby Mode:

1. Insert the iPod into the HAI Dock.

2. Press the Operation Mode Button for 2 seconds so that the
Operation Mode LED goes off.

3. Start a Playlist, Song, Podcast, or Audiobook on the iPod.

4. The selected music will play over the connected audio system.

To play music while in Network Mode:

1. Start a Playlist, Song, Podcast, or Audiobook on the iPod.

2. Verify that the HAI Dock is in Network Mode (i.e. the Operation Mode LED is illuminated). If it is
not, press the Operation Mode Button so that the Operation Mode LED illuminates.

3. Insert the iPod into the HAI Dock.

4. From a connected IP device or Hi-Fi2 audio system, select Play.

5. The selected music will play over the connected audio system.

14

Displays iPod Status (information about the connected iPod), System Status

can

be viewed.

Configuration

Configure the wired and wireless (if applicable) network settings of the HAI Dock.

Displays information about the HAI Dock. Also used to change the web server

the

HAI Dock.

Inserting and Removing an iPod

An iPod can be inserted (docked) or removed (undocked) from the HAI Dock at any time and in any
operation mode.

Whenever an iPod that is currently playing a Playlist, Song, Podcast, or Audiobook is docked in an
HAI Dock that is currently in Network Mode, the iPod is automatically paused. After docking the iPod,
simply go to a connected IP device or Hi-Fi2 audio system and select Play to resume playback.

At any time, an iPod can be removed from one HAI Dock and inserted into a different HAI Dock on
the network (e.g. an iPod is moved from the Kitchen HAI Dock to the Bedroom HAI Dock). Likewise,
each HAI Dock will accept any supported iPod at any time. For example, after Dad removes his
iPhone from the Kitchen HAI Dock, Mom can then dock her iPod in the Kitchen. When controlling the
HAI Dock using IP devices, the name of the iPod is displayed as the audio source, so that there’s no
guessing to whose iPod is currently docked.

Accessing the Web Server

The HAI Dock has a built-in web server that can be used for configuring, modifying, and monitoring
the status of the HAI Dock and docked iPod.

Status

System
Information

To access the web server, open a web browser and enter the IP address of the HAI Dock in the
Address Bar.

(network settings), and Wireless Status (wireless settings and signal strength)

password, reset (factory default), remotely restart, and update the firmware in

15

Status

Item

Description

Factory default

Configure the password within 7 characters. This is used as

web interface.

The default username is: root

Select between iPod Status, System Status, and Wireless status. Click [Refresh] to update the
status on the page.

Protected Information

The Configuration Menu and some of the System Information settings are protected with a user name
and password. When the screen below is displayed, type a user name (root) and click OK.

Password

the authentication password for configuration changes via the

16

By default there is no password

Blank

Configuration

Select between Network Settings and Wireless Settings. Click the item you wish to configure.

Select or enter a value for the appropriate item, then click Submit.

System Information

Select between System Information, Password, Reset, or Firmware Upgrade and follow the
instructions on the screen.

17

Reset to Factory Default

To reset the HAI Dock back to its factory default configuration:

1) Disconnect the AC power cable.

2) Press and hold the Operation Mode Button on the front of the HAI Dock and reconnect the AC
power cable. Keep holding the Operation Mode Button to start the factory default configuration.

3) The factory default configuration is complete when the orange Network LED is turned on.

4) Release the Operation Mode LED Button.

18

Chapter 3

Interfacing with the HAI Dock

A custom touchscreen design must be used to operate the HAI Dock from an OmniTouch 5.7e, 10p,
or 10pe Touchscreen. HAI Automation Studio must be used to enable and configure the HAI Dock,
assign the audio output to source input on the audio distribution system, assign the touchscreen
page, and update each of the respective touchscreens with the new design.

Enabling the HAI Dock

Using HAI Automation Studio, you must add an HAI controller, the HAI Dock, and an audio distribution
system to your touchscreen design.

HAI Dock functionality was added to Automation Studio in Version 1.0.2.167. If you have a touchscreen
design that was created in Automation Studio prior to Version 1.0.2.167, you must import the HAI Dock
pages as described under Adding the HAI Dock to an Existing Design in this document. If you are
adding the HAI Dock functionality to an existing project, skip Creating a New Project with the HAI

Dock and Adding Touchscreens to the Project.

Creating a New Project with the HAI Dock

To create a new Automation Studio Project with touchscreens that will use the HAI Dock:

1. Start HAI Automation Studio and create a new project.

2. Select 5.7e Touch Screen as the Project Type and select OmniTouch_57e as the Template.

3. Give a name to the project next to Project Name under Properties.

19

Adding Touchscreens to the Project

When the project was created (using the steps above), one touchscreen was automatically added to
the project along with a touchscreen design. The touchscreen and design was given a default name.
It is generally a good idea to rename the touchscreen and the project that better describes where the
touchscreen is installed. For example, it the touchscreen is installed in the kitchen, the touchscreen
and the design should be named Kitchen.

1. In Project Explorer, click on the touchscreen that was added.

2. Select the Properties tab. Give a name to the touchscreen next to Name under Misc.

3. In Project Explorer, click on the design under the touchscreen that was just named.

4. Select the Properties tab. Give a name to the design next to Name under Design.

5. If desired, add another touchscreen to the project by right-clicking on Touchscreens under

Project Explorer and select Add Device.

20

6. From the Add Device dialog, select HAI OmniTouch 5.7e, HAI OmniTouch 10 Portable, or
10Pe Portable under Touchscreens.

7. In Project Explorer, click on the touchscreen that was added.

8. Select the Properties tab. Give a name to the touchscreen next to Name under Design.

9. In Project Explorer, right-click on the touchscreen that was added and select Add Design.

10. From the Add Design dialog, select OmniTouch_57e as the Template and give a name the

design next to Theme Name under Name.

11. Repeat for each touchscreen installed.

12. When complete, skip to the section entitled Discovering the Touchscreens in this document.

21

Adding the HAI Dock to an Existing Design

If you have an existing Automation Studio project with a custom design, you can add the HAI Dock
functionality by importing the HAI Dock pages as described below.

Importing the HAI Dock Pages

To use the HAI Dock functionality in an Automation Studio design that was created in a version of
Automation Studio prior to Version 1.0.2.167, you must import the HAI Dock pages using the Add
Modules feature in Automation Studio.

1. In Project Explorer, open the canvas a touchscreen design by double-clicking on the
touchscreen design.

2. From the Menu Bar in Automation Studio, select Project.

3. From the Project menu, select Add Modules.

4. From the Add Modules menu, select HAIDock.

22

5. A dialog is displayed to confirm the import of the HAI Dock pages.

Once confirmed, the import cannot be undone. Before confirming, make sure that the HAI
Dock pages do not already exist. If they do, duplicate pages will be added.

6. Click OK to add the pages.

7. Repeat this process for each touchscreen design under Project Explorer.

Discovering Touchscreens

You must use Automation Studio to discover each touchscreen in the project.

To discover a touchscreen:

1. In Project Explorer, right-click on a touchscreen and select Discover.

2. In the Discovery Touchscreens dialog, select the respective touchscreen from the list and then

click Select.

3. Repeat this process for each touchscreen installed under Project Explorer.

23

Adding an HAI Controller to the Design

When using an HAI Dock, an HAI controller with a configured audio distribution system must be
added to the project. To add an HAI controller to the project:

1. In Project Explorer, right-click on Controller and select Add Device from the menu.

2. From the Add Device dialog, select HAI Controller from the Controllers list. Then select the PC
Access account file that will be used with the touchscreen.

Adding the HAI Dock to the Design

When an HAI Dock is added to the project, Automation Studio will guide you through the steps to
configure it. Add the HAI Dock to the project as follows:

1. In Project Explorer, right-click on Media Devices and select Add Device from the menu.

24

2. From the Add Device dialog, select HAI Dock from the Media Devices list.

Discover the HAI Dock

After the HAI Dock has been added, you will be prompted to discover it as follows:

In the Discover HAI Docks dialog, select the discovered HAI Dock, and then press the Select
button to save the network settings with the design.

Note: An HAI Dock can be rediscovered at any time by right-clicking
on HAI Dock and select Discover from the menu in Project Explorer.

25

Assigning the Audio Output

The Audio Output of the HAI Dock must be assigned to a source input on the audio distribution
system. After discovering the HAI Dock, the Media Mapping dialog is displayed:

1. From the Media Mapping dialog, select the Media Input (source input on the audio distribution
system) where the audio will be routed for the Media Source (Audio Output) of the HAI Dock.

2. When complete, click the OK button.

Note: At any time the Media Source can be remapped to the Media Input as follows:

a) In Project Explorer, expand the HAI Dock device to display the Media Sources folder.

b) Expand the Media Sources folder to display Channel 1 (audio output).

c) Right-click on one of Channel 1 and select Assign Outputs.

Alternatively, you can click the music note icon in the menu bar to display the dialog.

26

Assigning a Touchscreen Page for Media

3. When complete, click the

Finally, a page that the touchscreen will jump to when the Media button is pressed must be assigned. A
special Dock Now Playing page has been created for the HAI Dock. After assigning the Audio Output,
the Channel Mapping dialog is displayed:

1. Click on the drop-down under Pages next to HAI Dock and select Dock Now Playing.

2. Click on the drop-down under Pages next to Supported WHA and select Dock Now Playing.

Note: At any time the Pages can be remapped as follows:

a) In Project Explorer, expand the HAI Dock device to display the Media Services folder.

b) Expand the Media Services folder to display the available Services.

c) Right-click on My iPod and select Assign Pages.

OK button.

27

Updating the Touchscreens

The final step in enabling the HAI Dock is to update each touchscreen using Automation Studio.

To update the touchscreens:

1. Click the Update icon on the toolbar.

2. If the project has not been saved, you will be prompted to save.

3. To save the project and continue with the update, click OK.

4. All discovered touchscreens are displayed in the Update Touchscreens dialog.

28

5. Put a check in the boxes under Update to select which touchscreens will be updated.

6. Click the Update button to update the selected touchscreens.

7. After the update is complete, the touchscreens will have HAI Dock functionality.

29

Accessing Your Music

Using an HAI OmniTouch 5.7e, 10p, or 10pe Touchscreen, you can browse and make music selections
by Playlists, Artists, Albums, Songs, Podcasts, Genres, Composers, and Audiobooks.

From the Menu Bar on an OmniTouch 5.7e, 10p, or 10pe Touchscreen, select the Media icon.

When the media button is selected, the HAI Dock media page is displayed:

30

Browse the Media Library

To play music in an audio zone, select the music from the device. To browse the device for music:

1. Press the Browse button to display the available media:

2. You are able to browse your media by Playlists, Artists, Albums, Songs, Podcasts, Genres,
Composers, and Audiobooks.

3. Select the desired method to browse the media. For example, if Artists was selected, a list of
artists will be displayed:

4. Select the item in the list to drill-down to the music in the selected category.

31

5. Select the Play button to the right of the selected item to immediately play the song and/or
entire contents of the selection.

6. At any time, you can press the Back button to return to the previous menu.

Selecting a new Music Source

To select a new music source for your audio zone:

1.

Press the Source button to display the available music sources:

2.

Select the audio output for the iPod that you want to listen to, or select from one of the other
available sources.

Notes:

1. When controlling the HAI Dock using an OmniTouch Touchscreen, the name of the iPod is
displayed as the audio source, so that there’s no guessing to whose iPod is currently docked.

2. When an iPod is not currently docked in an HAI Dock, the name HAI Dock will be displayed as the
audio source in the list instead of the name on an iPod.

32

Selecting a New Audio Zone

To select a new audio zone to control with the touchscreen:

1.

Press the Zone button to display the available audio zones:

2.

Select the audio zone that you want to control with the touchscreen.

33

Temperature

: +0°C to +40°C , +32°F to +104°F

Humidity

: 5% to 95%RH (Non-condensing)

Temperature

: -20°C to +50°C , -4°F to +122°F

Humidity

: 5% to 95%RH (Non-condensing)

EMI

VCCI Class B / FCC Class B / EN55022 / EN55024

CPU

32bit RISC CPU

RAM

: 8MByte

FlashROM

: 2MByte

Wired network interface

10BASE-T/100BASE-TX

1 port (a

utomatic detection)

Frequency

2.4GHz

Transmission
system

Transmission
speed

1M/2M/5.5M/11M
(Automatic detection)

US : 1-11ch
EU : 1-13ch

Frequency

2.4GHz

Transmission
system

Transmission
speed

6M/9M/12M/18M/24M/36M/48M/54M
(Automatic detection)

US : 1-11ch
EU : 1-13ch

Operating environment

Storage environment

Memory

Chapter 4

Specifications

Wireless network interface

DS-SS

IEEE802.11b

Channel

OFDM

IEEE802.11g

Channel

34
