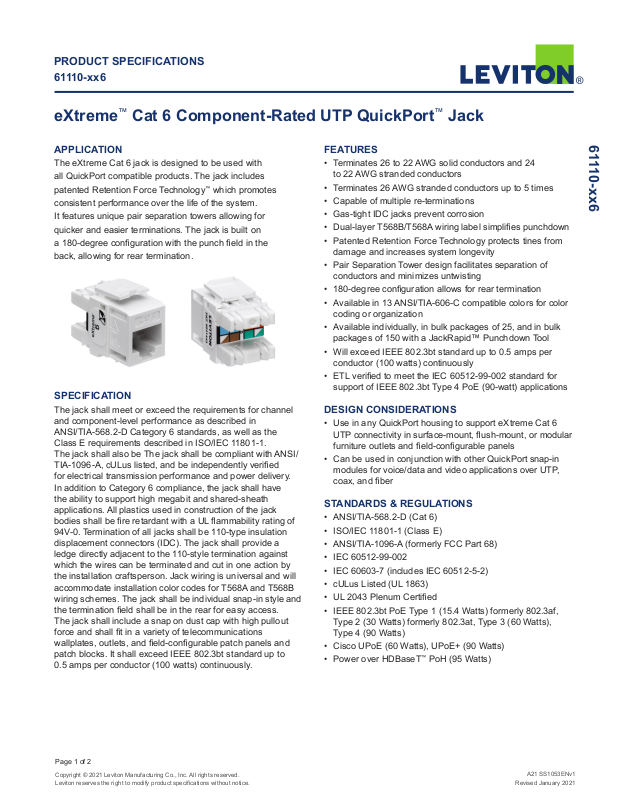

Page 1
PRODUCT SPECIFICATIONS
61110-xx6

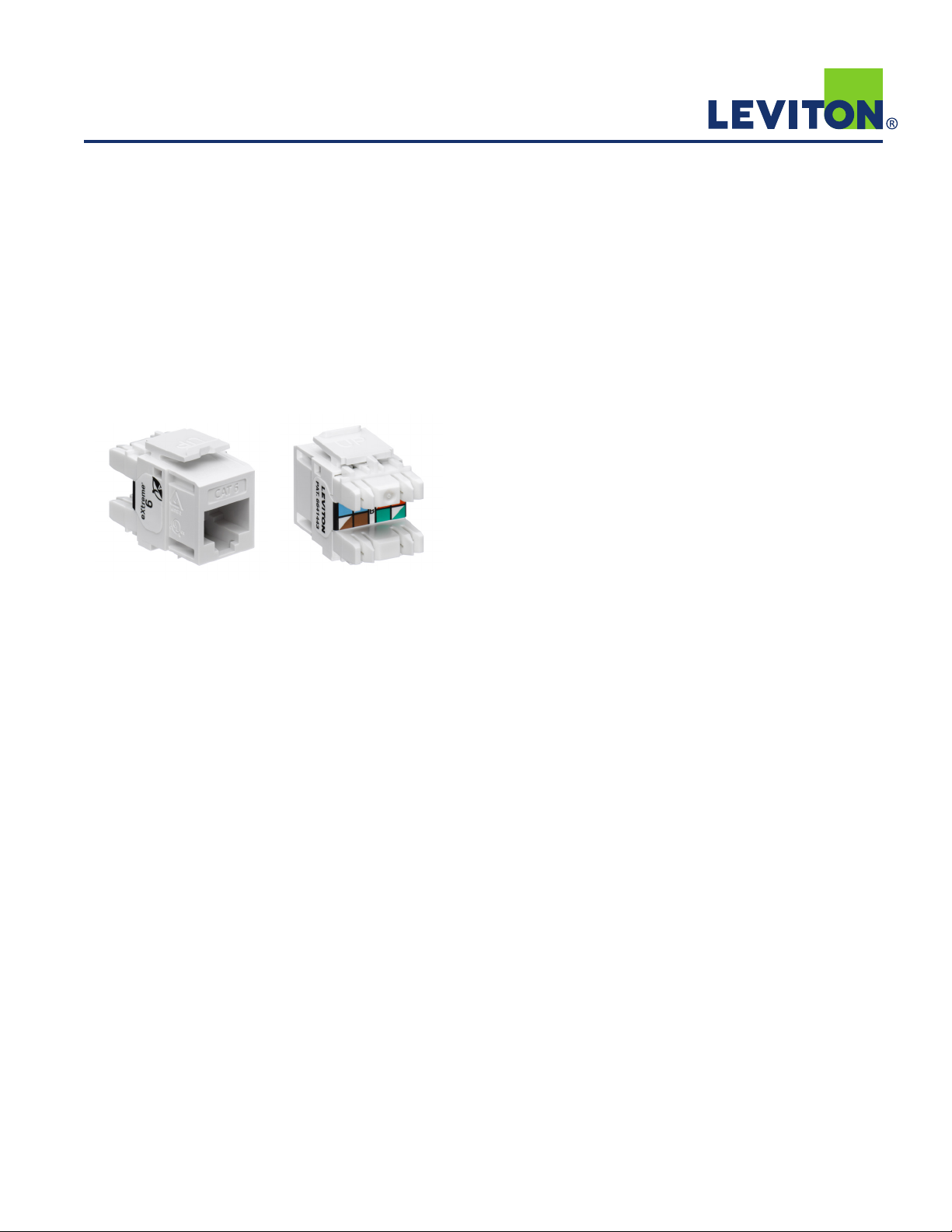

eXtreme™ Cat 6 Component-Rated UTP QuickPort™ Jack
APPLICATION
The eXtreme Cat 6 jack is designed to be used with
all QuickPort compatible products. The jack includes
patented Retention Force Technology™ which promotes
consistent performance over the life of the system.
It features unique pair separation towers allowing for
quicker and easier terminations. The jack is built on
a 180-degree conguration with the punch eld in the
back, allowing for rear termination.
SPECIFICATION
The jack shall meet or exceed the requirements for channel
and component-level performance as described in
ANSI/TIA-568.2-D Category 6 standards, as well as the
Class E requirements described in ISO/IEC 11801-1.
The jack shall also be The jack shall be compliant with ANSI/
TIA-1096-A, cULus listed, and be independently veried
for electrical transmission performance and power delivery.
In addition to Category 6 compliance, the jack shall have
the ability to support high megabit and shared-sheath
applications. All plastics used in construction of the jack
bodies shall be re retardant with a UL ammability rating of
94V-0. Termination of all jacks shall be 110-type insulation
displacement connectors (IDC). The jack shall provide a
ledge directly adjacent to the 110-style termination against
which the wires can be terminated and cut in one action by
the installation craftsperson. Jack wiring is universal and will
accommodate installation color codes for T568A and T568B
wiring schemes. The jack shall be individual snap-in style and
the termination eld shall be in the rear for easy access.
The jack shall include a snap on dust cap with high pullout
force and shall t in a variety of telecommunications
wallplates, outlets, and eld-congurable patch panels and
patch blocks. It shall exceed IEEE 802.3bt standard up to
0.5 amps per conductor (100 watts) continuously.
FEATURES
• Terminates 26 to 22 AWG solid conductors and 24
to 22 AWG stranded conductors
• Terminates 26 AWG stranded conductors up to 5 times
• Capable of multiple re-terminations
• Gas-tight IDC jacks prevent corrosion
• Dual-layer T568B/T568A wiring label simplies punchdown
• Patented Retention Force Technology protects tines from
damage and increases system longevity
• Pair Separation Tower design facilitates separation of
conductors and minimizes untwisting
• 180-degree conguration allows for rear termination
• Available in 13 ANSI/TIA-606-C compatible colors for color
coding or organization
• Available individually, in bulk packages of 25, and in bulk
packages of 150 with a JackRapid™ Punchdown Tool
• Will exceed IEEE 802.3bt standard up to 0.5 amps per
conductor (100 watts) continuously
• ETL veried to meet the IEC 60512-99-002 standard for
support of IEEE 802.3bt Type 4 PoE (90-watt) applications
DESIGN CONSIDERATIONS
• Use in any QuickPort housing to support eXtreme Cat 6
UTP connectivity in surface-mount, ush-mount, or modular
furniture outlets and eld-congurable panels
• Can be used in conjunction with other QuickPort snap-in
modules for voice/data and video applications over UTP,
coax, and ber
STANDARDS & REGULATIONS
• ANSI/TIA-568.2-D (Cat 6)
• ISO/IEC 11801-1 (Class E)
• ANSI/TIA-1096-A (formerly FCC Part 68)
• IEC 60512-99-002
• IEC 60603-7 (includes IEC 60512-5-2)
• cULus Listed (UL 1863)
• UL 2043 Plenum Certied
• IEEE 802.3bt PoE Type 1 (15.4 Watts) formerly 802.3af,
Type 2 (30 Watts) formerly 802.3at, Type 3 (60 Watts),
Type 4 (90 Watts)
• Cisco UPoE (60 Watts), UPoE+ (90 Watts)
• Power over HDBaseT™ PoH (95 Watts)
61110-xx6
Page 1 of 2
Copyright © 2021 Leviton Manufacturing Co., Inc. All rights reserved.
Leviton reserves the right to modify product specications without notice.
A21 SS1053ENv1
Revised January 2021
Page 2
PRODUCT SPECIFICATIONS
14.6mm
30.6mm
61110-xx6

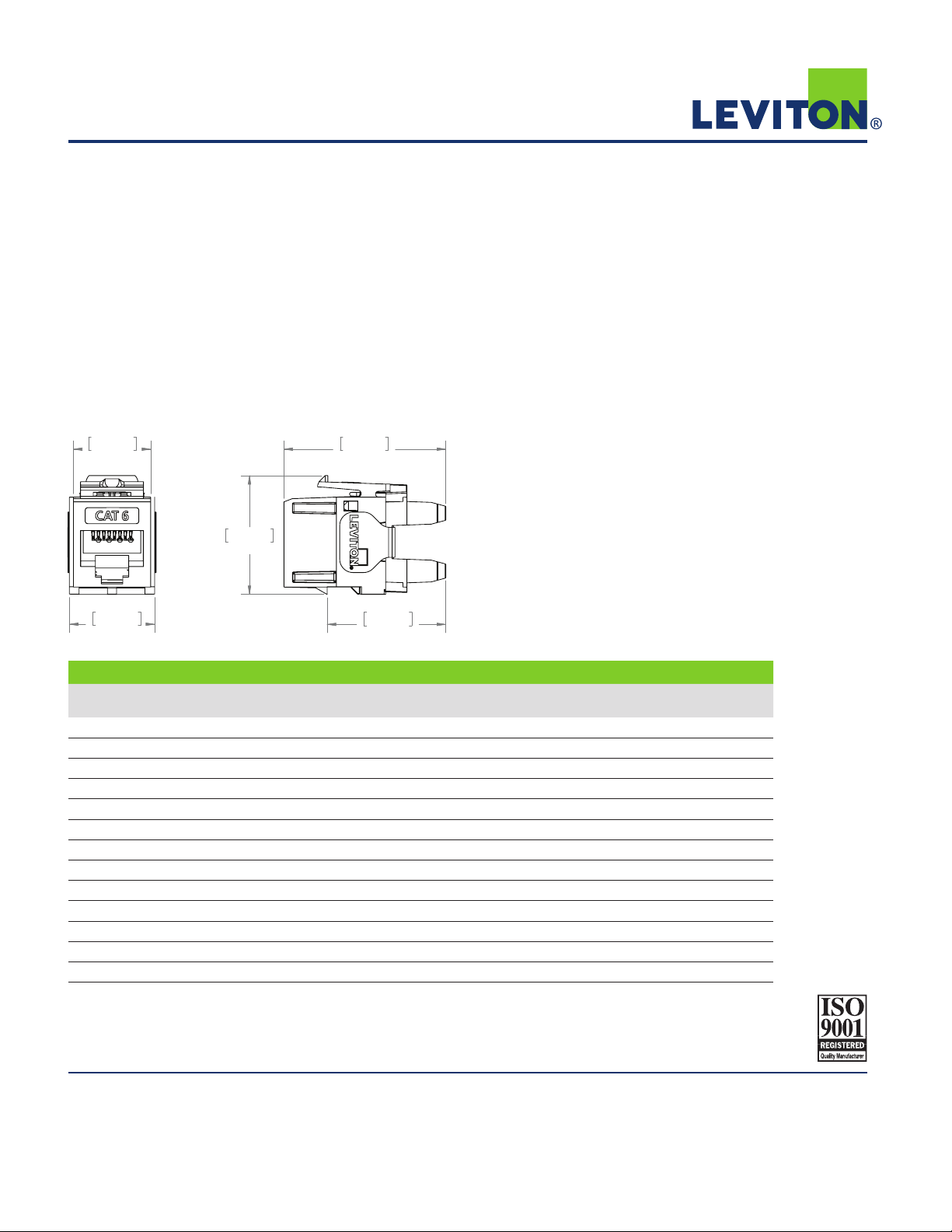

MECHANICAL SPECIFICATIONS
Dimensions: See below
Materials: Connector Body: High-impact,
re-retardant plastic rated UL 94V-0.
Spring-Wire Contacts: High-quality,
copper-based alloy, plated with 50
microinches of gold over 100 microinches
of nickel for lowest contact resistance,
maximum life.
Temperature
(Storage): -40 ºC to +70 ºC
Temperature
(Operating): -10 ºC to +60 ºC
.58in
16.1mm
.64in
22.5mm
.88in
1.21in
22.4mm
.88in
COUNTRY OF ORIGIN
USA
61110-xx6
WARRANTY INFORMATION
For Leviton product warranties, go to leviton.com/warranty
PART NUMBERS
Description Jack
eXtreme™ Cat 6 Component-Rated UTP QuickPort™ Jack, white 61110-RW6 61110-BW6 61110-JW6
eXtreme Cat 6 Component-Rated UTP QuickPort Jack, ivory 61110-RI6 61110-BI6 61110-JI6
eXtreme Cat 6 Component-Rated UTP QuickPort Jack, orange 61110-RO6 61110-BO6 61110-JO6
eXtreme Cat 6 Component-Rated UTP QuickPort Jack, blue 61110-RL6 61110-BL6 61110-JL6
eXtreme Cat 6 Component-Rated UTP QuickPort Jack, black 61110-RE6 61110-BE6 61110-JE6
eXtreme Cat 6 Component-Rated UTP QuickPort Jack, light almond 61110-RT6 61110-BT6 61110-JT6
eXtreme Cat 6 Component-Rated UTP QuickPort Jack, gray 61110-RG6 61110-BG6 61110-JG6
eXtreme Cat 6 Component-Rated UTP QuickPort Jack, crimson 61110-RC6 61110-BC6 61110-JC6
eXtreme Cat 6 Component-Rated UTP QuickPort Jack, yellow 61110-RY6 61110-BY6 61110-JY6
eXtreme Cat 6 Component-Rated UTP QuickPort Jack, green 61110-RV6 61110-BV6 61110-JV6
eXtreme Cat 6 Component-Rated UTP QuickPort Jack, purple 61110-RP6 61110-BP6 61110-JP6
eXtreme Cat 6 Component-Rated UTP QuickPort Jack, brown 61110-RB6 61110-BB6 61110-JB6
eXtreme Cat 6 Component-Rated UTP QuickPort Jack, dark red 61110-RR6 61110-BR6 61110-JR6
QuickPack™
25/Bag
150/Bag with
JackRapid™ Tool
For further support information, visit leviton.com/ns/support
Page 2 of 2
