Evr-Green® 4000
Level 2 Networked Public Use Charging Stations
— FEATURING —

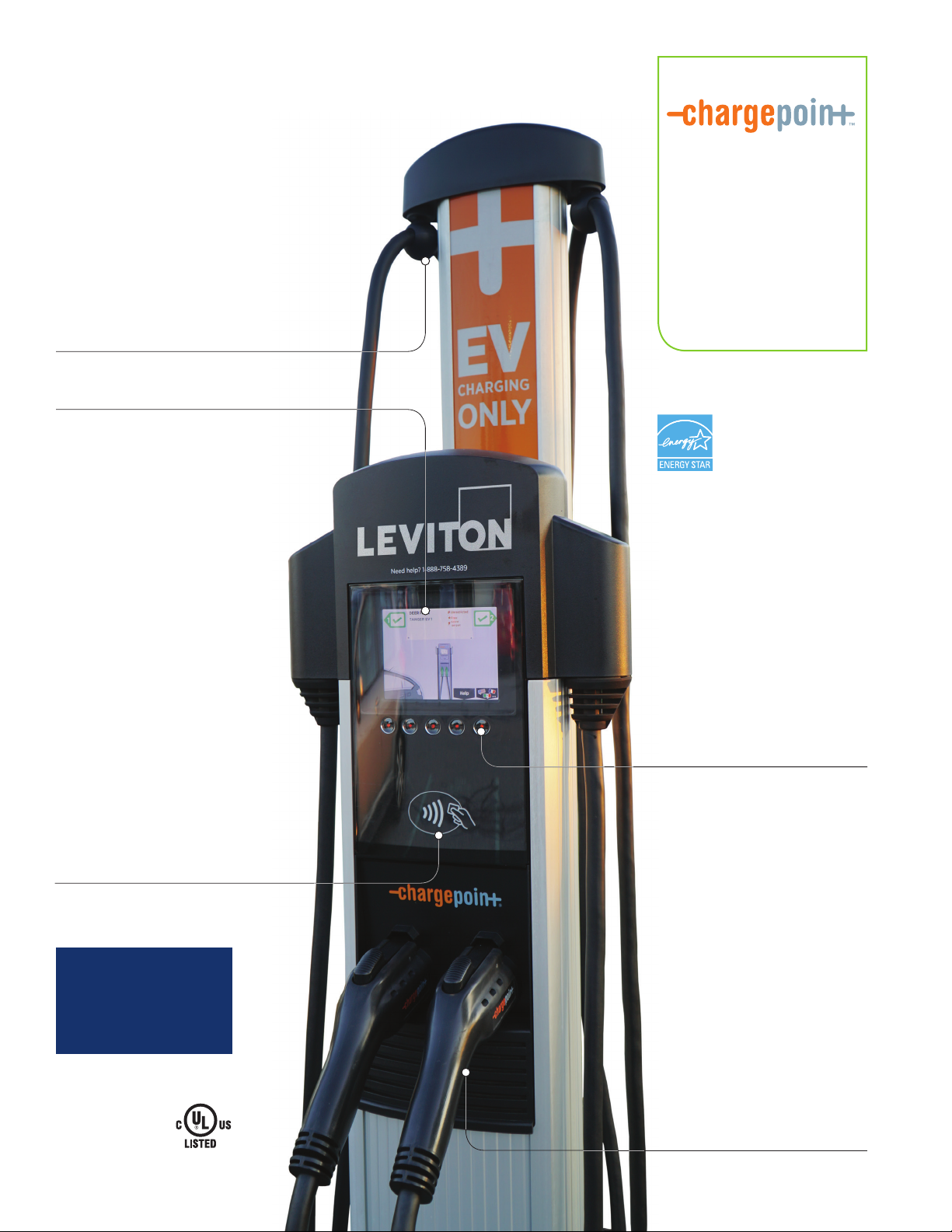

Integrating design and functionality with superior
reliability and durability, Evr-Green
®
charging
stations are ideal for workplace, commercial or
outdoor public charging.
Hassle-Free Cord Management
• Self-retracting cord is always o the
ground when not in use
• Ultra-reliable second-generation
gravity operated mechanism
LCD Display
• Provides animated charging instructions
in a clear, simple format
• Readable in daylight with automatic
brightness control
• 5.7 inch 640X480 resolution active
matrix display
• Full motion 30 fps video support
• Allows for custom video so that
you may communicate with your
users or deliver special advertising
messaging
• Download up to 60 seconds of
full-motion, full-color video*
(* Video service plan required)
NETWORK
SERVICES
ChargePoint™ Network Services
let you control access, set
pricing, display advertising,
monitor station status, and
generate usage reports while
providing 24/7/365 call center
support to drivers.
The First
ENERGY STAR
Certified EV Charger
Gateway Design
• Removes the need for distance
restrictions between chargers
• Stations are configured into
optimal radio groups for better
communication
Designed for Accessibility
• Buttons provide audio feedback
• Multiple languages supported
(English, French, Spanish)
®
Multi-Format RFID Card Reader
• ISO 15693, ISO 14443 and NFC
• Accepts ChargePoint cards as well
as Visa, MasterCard, AmEx, and
Discover contactless credit cards
Common Applications
• Oce buildings
• MDU settings
• Municipalities
• Educational Institutions
Listed by Underwriters
Laboratories Inc.
Energy and Power
Management
• Dual head stations allow a single
40 A circuit to be shared
between two parking spaces
(Power Sharing Kit included)
• Power select options to use in a
20 A or 30 A dual pole circuit
• Single vehicle charges at full
6.2/7.2 kW (30 A @ 208/240 V)
and two vehicles simultaneously
charge at 3.3/3.8 kW
(16 A @ 208/240 V) each
• Real-time energy measurement
controlled within the modem and
communicated through the cloud
• 15 minute interval recordings of
energy use and station status
• Time of day (TOD) pricing
Page 3
Ordering Information
71.1"
(1806mm)
46.7"
(1186mm)
13.7"
(347mm)
9.2"
(233mm)
3.5"
(88mm)
16.9"
(430mm)
Component Options
Typical Configurations
Description Cat. No.
Head Unit
Mounting
Mechanism
Mount Cap
Cable Management Assembly CPCBX
Concrete Mounting Kit
(for Bollard Mounting Versions)
Wall Mounting Body CPMEX
Single Head CPHU1
Dual Head CPHU2
Bollard Body CPMBX
Bollard Cap CPCAP-B
Wall Mount Cap CPCAP-W
CPCMK
BOLLARD
(FREE-STANDING)
STATIONS
Description Components
Single Head
Bollard
Dual Head
Bollard
Single Head
Wall Mount
Dual Head
Wall Mount
CPHU1, CPMBX, CPCAP-B, CPCBX, CPCMK
CPHU2, CPMBX, CPCAP-B, CPCBX, CPCMK
CPHU1, CPMEX, CPCAP-W, CPCBX
CPHU2, CPMEX, CPCAP-W, CPCBX
WALL MOUNT
STATIONS
SINGLE HEAD

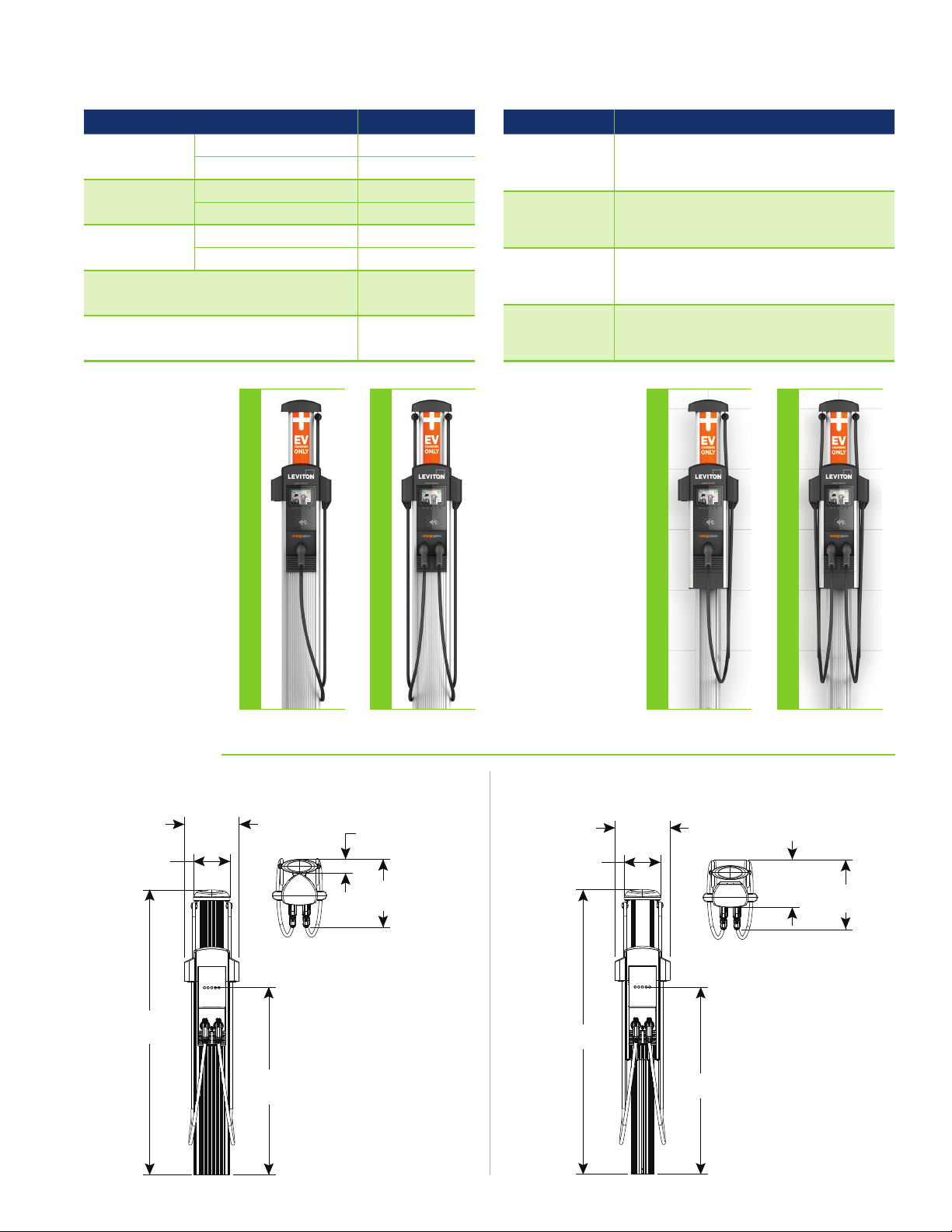

Dimensions
Bollard (Free-Standing) Stations
13.7"
(347mm)
9.2"
(233mm)
71.1"
(1806mm)
46.7"
(1186mm)
3.5"
(88mm)
16.9"
(430mm)
DUAL HEAD
Wall Mount Stations
FRONT VIEWFRONT VIEW TOP DOWN VIEWTOP DOWN VIEW
9.2"
(233mm)
71.0"
(1805mm)
13.7"
(347mm)
SINGLE HEAD
46.7"
(1186mm)
DUAL HEAD
11.8"
(299mm)
17.3"
(440mm)
Page 4
Specifications
Electrical Input Single Port Dual Port
AC Power Input Rating – Standard 208/240 VAC 60 Hz single phase @ 30 A 208/240 VAC 60 Hz single phase @ 30 A x 2
AC Power Input Rating – Power Sharing n/a 208/240 VAC 60 Hz single phase @ 32 A
Input Power Connections – Standard One 40 A branch circuit Two independent 40 A branch circuits
Input Power Connections – Power Sharing n/a One 40 A branch circuit
Required Service Panel Breaker – Standard 40 A dual pole (non-GFCI type) 40 A dual pole (non-GFCI type) x 2
Required Service Panel Breaker – Power Sharing n/a 40 A dual pole (non-GFCI type)
Service Panel GFCI Do not provide external GFCI as it may conflict with internal GFCI (CCID)
Wiring – Standard 3-wire (L1, L2, Earth) 5-wire (L1, L1, L2, L2, Earth)
Wiring – Power Sharing n/a 3-wire (L1, L2, Earth)
Station Power 8 W typical (standby), 15 W maximum (operation)
Electrical Output
AC - Standard 7.2 kW (240 VAC @ 30 A) 7.2 kW (240 VAC @ 30 A) x 2
AC - Power Sharing n/a
Functional Interfaces
Connector(s) Type SAE J1772™ SAE J1772™ x 2
Charging Cable Length 18’ (5.5 meters) 18’ (5.5 meters) x 2
Overhead Cable Management System Yes
LCD Display 5.7” full color, 640x480, 30 fps full motion video, active matrix, UV protected
Card Reader ISO 15693, 14443, NFC
Locking Holster Yes Yes x 2
Safety and Connectivity Features
Ground Fault Detection 20 mA CCID with auto retry
Open Safety Ground Detection Continuously monitors presence of safety (green wire) ground connection
Plug-Out Detection Power terminated per SAE J1772™ specifications
Power Measurement Accuracy +/- 2% from 2% to full scale (32 A)
Power Report/Store Interval 15 minute, aligned to hour
Local Area Network 2.4 GHz Wi-Fi (802.11 b/g/n)
Wide Area Network LTE Category 4
Safety and Operational Ratings
Enclosure Rating Type 3R per UL 50E
Safety Compliance
Surge Protection
EMC Compliance FCC Part 15 Class A
Operating Temperature -40°F to 122°F (-40°C to 50°C)
Operating Humidity up to 85% @ +50°C (122°F) non-condensing
Non-Operating Humidity up to 95% @ +50°C (122°F) non-condensing
Terminal Block Temperature Rating 221°F (105°C)
Additional Services
Service Plans Includes 1-year parts warranty
NOTE: All 4000 series stations require a network service plan per port. A 1-year prepaid commercial cloud plan is included.
ChargePoint, Inc. reserves the right to alter product offerings and specifications at any time without notice, and is not responsible for typographical or
graphical errors that may appear in this document.
UL listed for USA and cUL certified for Canada; complies with UL 2594, UL 2231-1,
UL 2231-2, and NEC Article 625
6 kV @ 3000 A. In geographic areas subject to frequent thunder storms, supplemental
surge protection at the service panel is recommended.
7.2 kW (240 VAC @ 30 A) x 1 OR
3.8 kW (240 VAC @ 16 A) x 2
