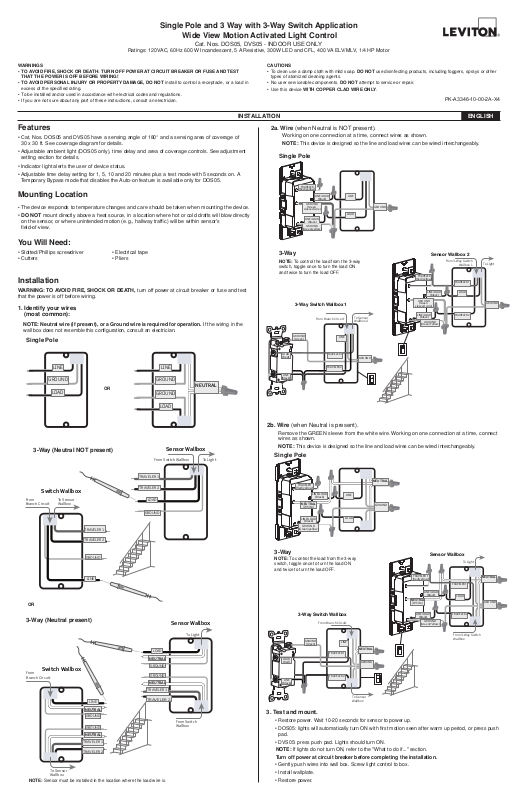

Single Pole and 3 Way with 3-Way Switch Application
Sensor Wallbox
Wallbox
Sensor Wallbox
Light
Sensor Wallbox 2
Wide View Motion Activated Light Control
Ratings: 120VAC, 60Hz 600 W Incandescent, 5 A Resistive, 300W LED and CFL, 400 VA ELV/MLV, 1/4 HP Motor
Cat. Nos. DOS05, DVS05 - INDOOR USE ONLY
WARNINGS
• TO AVOID FIRE, SHOCK OR DEATH: TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST
THAT THE POWER IS OFF BEFORE WIRING!
• TO AVOID PERSONAL INJURY OR PROPERTY DAMAGE, DO NOT install to control a receptacle, or a load in
excess of the specified rating.
• To be installed and/or used in accordance with electrical codes and regulations.
• If you are not sure about any part of these instructions, consult an electrician.
INSTALLATION
Features
• Cat. Nos. DOS05 and DVS05 have a sensing angle of 180° and a sensing area of coverage of
30 x 30 ft. See coverage diagram for details.
• Adjustable ambient light (DOS05 only), time delay and area of coverage controls. See adjustment
setting section for details.
• Indicator light alerts the user of device status.
• Adjustable time delay setting for 1, 5, 10 and 20 minutes plus a test mode with 5 seconds on. A
Temporary Bypass mode that disables the Auto-on feature is available only for DOS05.
Mounting Location
• The device responds to temperature changes and care should be taken when mounting the device.
• DO NOT mount directly above a heat source, in a location where hot or cold drafts will blow directly
on the sensor, or where unintended motion (e.g., hallway traffic) will be within sensor's
field-of-view.
You Will Need:
• Slotted/Phillips screwdriver • Electrical tape
• Cutters • Pliers
Installation
WARNING: TO AVOID FIRE, SHOCK OR DEATH, turn off power at circuit breaker or fuse and test
that the power is off before wiring.
1. Identify your wires
(most common):
NOTE: Neutral wire (if present), or a Ground wire is required for operation. If the wiring in the
wall box does not resemble this configuration, consult an electrician.
Single Pole
CAUTIONS
• To clean use a damp cloth with mild soap. DO NOT use disinfecting products, including foggers, sprays or other
types of atomized cleaning agents.
• No user serviceable components. DO NOT attempt to service or repair.
• Use this device WITH COPPER CLAD WIRE ONLY.
PK-A3346-10-00-2A-X4
ENGLISH

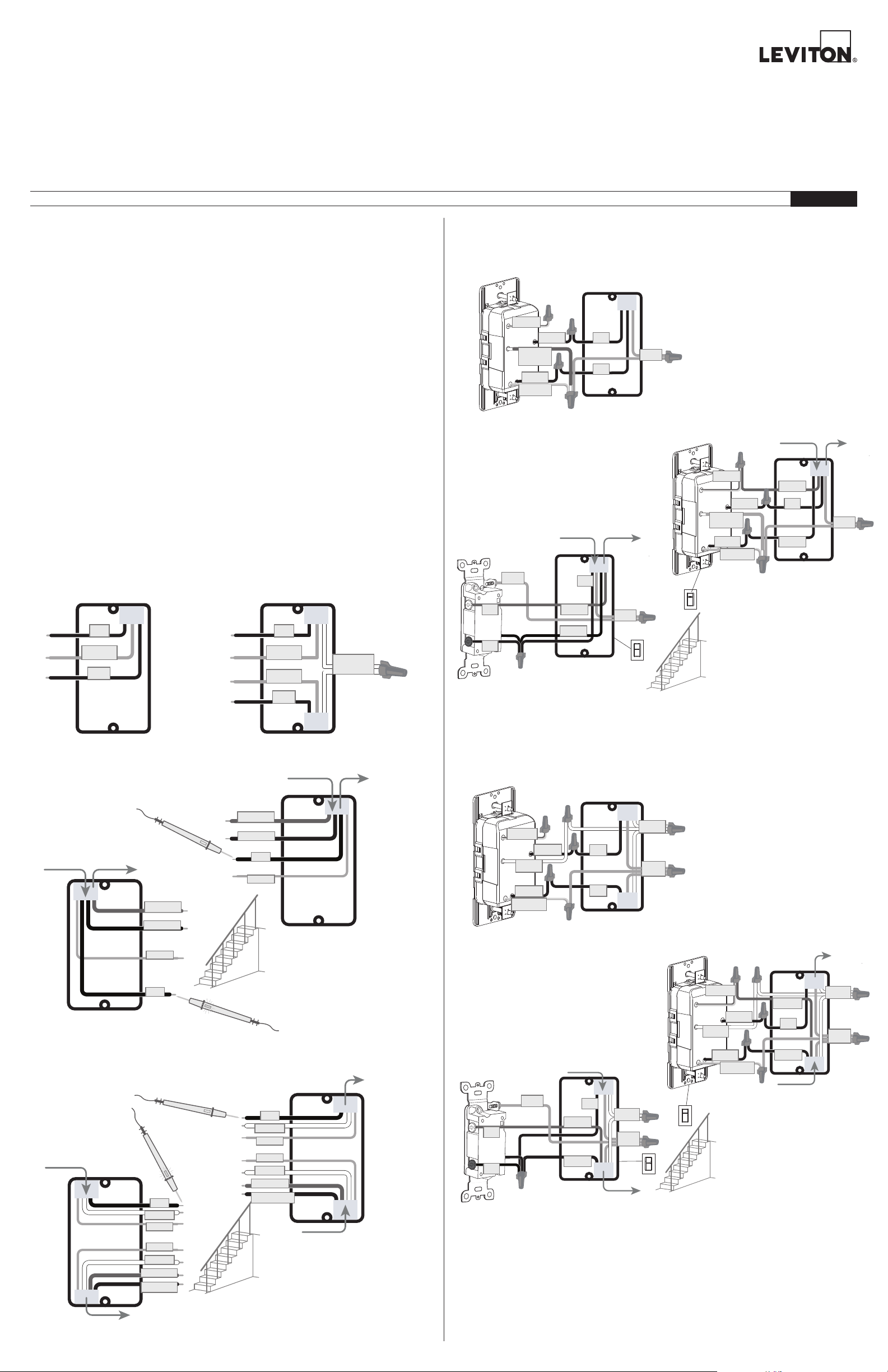

2a. Wire (when Neutral is NOT present).
Working on one connection at a time, connect wires as shown.
NOTE: This device is designed so the line and load wires can be wired interchangeably.
Single Pole
TRAVELER
(Red/yellow)
LINE/LOAD
GROUND
(Green
sleeved wire)
LINE/LOAD
(Black)
GROUND
(Green/yellow)
(Black)
LINE
GROUND
LOAD
3-Way
LINE/LOAD
(Black)
From 3-Way Switch
Wallbox 1
TRAVELER 1
LOAD
TRAVELER 2
To Light
GROUND
NOTE: To control the load from the 3-way
switch, toggle once to turn the load ON
and twice to turn the load OFF.
3-Way Switch Wallbox 1
GROUND
(Green)
From Branch Circuit
LINE
To Sensor
Wallbox 2
TRAVELER
(Red/yellow)
GROUND
(Green
sleeved wire)
LINE/LOAD
(Black)
GROUND
(Green/Yellow)
LINE
GROUND
LOAD
3-Way (Neutral NOT present)
Switch Wallbox
From
Branch Circuit
To Sensor
Wallbox
TRAVELER 1
TRAVELER 2
OR
TRAVELER 1
TRAVELER 2
LOAD
GROUND
LINE
GROUND
GROUND
LOAD
From Switch Wallbox
NEUTRAL
To
LOAD
(Red)
LINE
(Black)
TRAVELER 1
TRAVELER 2
GROUND
2b. Wire (when Neutral is present).
Remove the GREEN sleeve from the white wire. Working on one connection at a time, connect
wires as shown.
NOTE: This device is designed so the line and load wires can be wired interchangeably.
Single Pole
TRAVELER
(Red/yellow)
NEUTRAL
(White)
LINE/LOAD
(Black)
GROUND
(Green/yellow)
LINE/LOAD
(Black)
LINE
LOAD
NEUTRAL
GROUND
GROUND
LINE
OR
3-Way (Neutral present)
LOAD
NEUTRAL
Switch Wallbox
From
Branch Circuit
LINE
NEUTRAL
GROUND
GROUND
NEUTRAL
TRAVELER 1
TRAVELER 2
To Sensor
NOTE: Sensor must be installed in the location where the load wire is.
GROUND
GROUND
NEUTRAL
TRAVELER 1
TRAVELER 2
To Light
From Switch
Wallbox
3-Way
NOTE: To control the load from the 3-way
switch, toggle once to turn the load ON
Sensor Wallbox
To Light
and twice to turn the load OFF.
3-Way Switch Wallbox
GROUND
(Green)
LOAD
(Red)
LINE
(Black)
From Branch Circuit
LINE
TRAVELER 1
TRAVELER 2
NEUTRAL
GROUND
To Sensor
Wallbox
TRAVELER 1
(Red/yellow)
NEUTRAL
(White)
LINE/LOAD
(Black)
LINE/LOAD
(Black)
GROUND
(Green/Yellow)
TRAVELER 1
LOAD
TRAVELER 2
From 3-Way Switch
Wallbox
NEUTRAL
GROUND
3. Test and mount.
• Restore power. Wait 10-20 seconds for sensor to power up.
• DOS05: lights will automatically turn ON with first motion seen after warm up period, or press push
pad.
• DVS05: press push pad. Lights should turn ON.
NOTE: If lights do not turn ON, refer to the "What to do if..." section.
Turn off power at circuit breaker before completing the installation.
• Gently push wires into wall box. Screw light control to box.
• Install wallplate.
• Restore power.
Page 2
15 FT
40-48 IN
20 FT 30 FT
Major motion coverage 900ft
2
Minor motion coverage 400ft
2
30 FT
Major motion coverage 900ft
2
Minor motion coverage 400ft
2

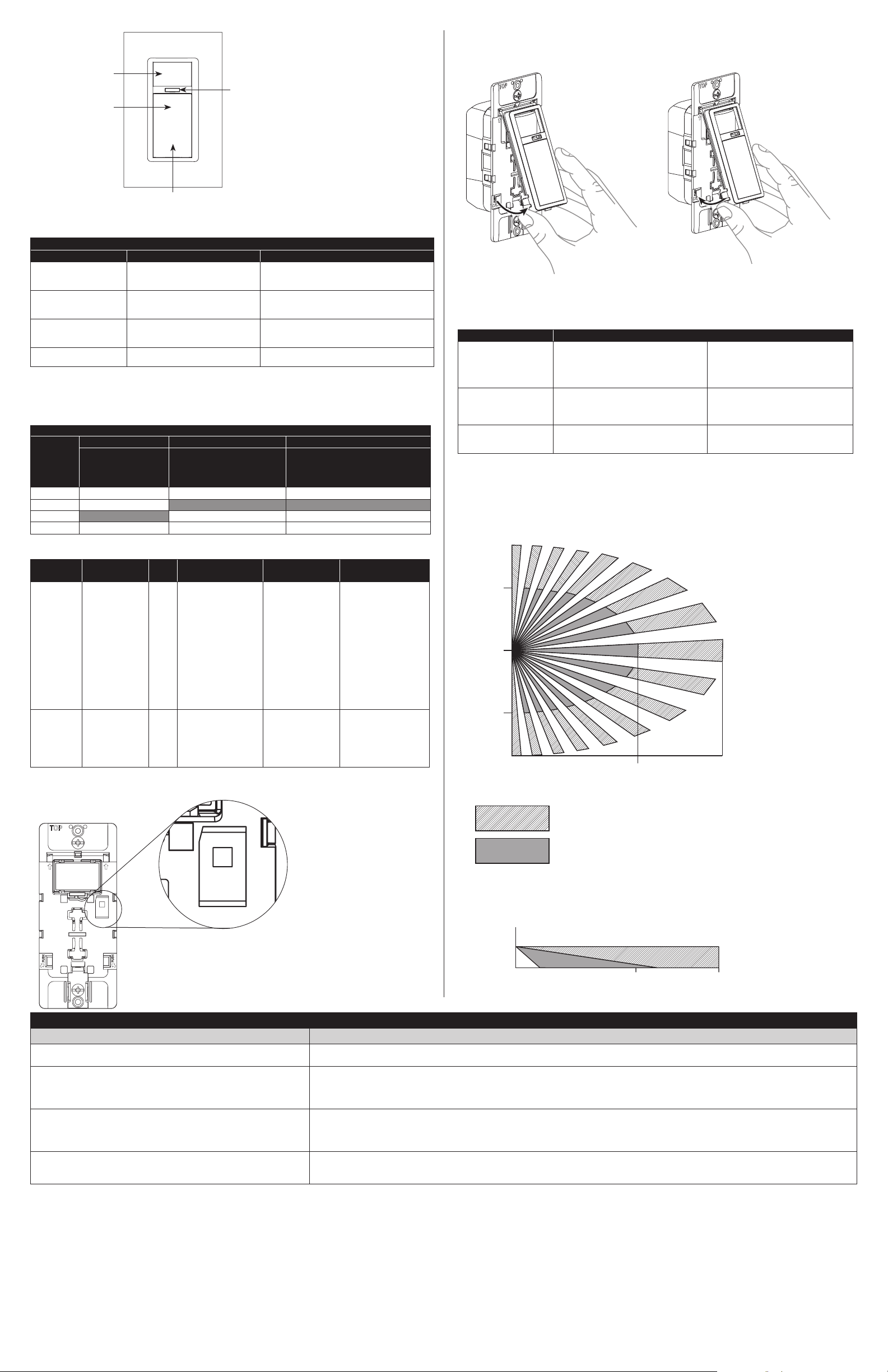

Operation
OCC
VAC
RED indicator light
(Will flash any time
motion is detected)
GREEN locator/
TOP of button
NOTE: Press either
TOP or BOTTOM of
button to turn ON/OFF.
BOTTOM of button
indicator light
(Turns ON when
load is OFF)
Programming
1. How to change the settings.
How to choose a setting and option
In order to... Do this... Indicator light will...
Enter programming mode
Change settings (Timer,
Sensitivity, Ambient Light)
Change options within a
setting
Save and exit settings
Hold TOP and BOTTOM button for
5 seconds
Single press TOP button = advance
to the next setting (see table below)
Single press BOTTOM button =
advance to the next option
(see table below)
Hold either TOP or BOTTOM button
for 5 seconds
NOTE: If there is no activity for 30 seconds, the device will automatically exit programming mode and
setting changes will not be saved. Multiple settings can be saved by entering the programming settings
once, selecting desired settings and then save and exit.
Setting Types and Options (defaults are in bold)
Column 1 Column 2 Column 3
Option
Number
Option 1 1 minute Low (50% Range) Low Light level
Option 2 5 minutes
Option 3
Option 4 20 minutes All settings to default Disabled – turns ON for all light levels
TIMER
(Duration of time for
which load is ON since
last detected motion)
10 minutes
SENSITIVITY
(Sensitivity to motion –
adjusting the major and minor
detection range.)
Medium Medium Light level
High High/Brightest light level
GREEN light will be solid ON for 5 seconds.
NOTE: if nothing happens, device is already in
programming mode
RED light will blink to indicate column selected
(Timer ->Sensitivity ->Ambient Light ->Timer)
(Example: Column 1 = 1 blink/sec)
GREEN light will blink to indicate option selected
Examples: Option 1 = 1 blink/sec
Option 2 = 2 blinks/sec
GREEN light will be solid ON for 5 seconds
DOS05 ONLY -
AMBIENT LIGHT
(If the room is brighter than the setting
selected, the load will not turn ON.)
Changing your device color
Remove Replace
VAC
VAC
3. Using advanced modes.
Mode name To enable this mode... The device will...
Turn on the load for 5 seconds every
time motion is detected. RED light
will blink 1x/2 sec when in Test Mode.
Locator LED function is disabled while
motion detection function is active.
Ignore motion keeping the light/load off.
GREEN light will double flash every 2
GREEN light will be solid ON for
5 seconds. NOTE: if nothing happens,
device is already in programming mode.
Test Mode
Temporary Bypass
Mode (Available for
occupancy sensors only)
Programming Mode
(See Programming
directions below)
Press and hold TOP of button for 5
seconds. To exit, press TOP or BOTTOM
of button or it will automatically exit after
2 minutes.
Press and hold BOTTOM of button for 5
seconds. To exit, press TOP or BOTTOM
of button.
Hold TOP and BOTTOM of button for
5 seconds.
Sensing Area Coverage
1. Horizontal field of view:
seconds.
2. When to use occupancy or vacancy.
Modes
Occupancy
(DOS05
only)
Vacancy When Manual
When to use
this setting
When automatic
ON/OFF lighting
control is desired.
ON, Automatic
OFF lighting
control is desired.
Occupancy/Vacancy Switch (DOS05 only)
Remove color kit and wallplate to access.
Amount of Ambient
Time
Any 1. Low - Light will turn
Any N/A TOP or BOTTOM of
Light Present
ON automatically if
room is darkest.
2. Medium - Light
will turn ON
automatically if room
has more light.
3. High - Light will turn
ON automatically if
room has the most
light.
4. Disabled - Light will
turn ON always.
Turns light
ON when...
User walks into the
view of the sensor
when the light is
OFF and it is darker
than the ambient
light level set.
OR
TOP or BOTTOM of
button is pushed.
button is pushed.
OR
User moves around
within 30 secs of the
light turning OFF.
Light turns OFF
when...
No motion is detected
for the duration of the
programmed time period.
OR
TOP or BOTTOM of
button is pushed.
TOP or BOTTOM of
button is pushed.
OR
No motion is detected
for the duration of the
programmed time period.
10 FT
10 FT
15 FT
0
20 FT
Major motion coverage 900ft
Minor motion coverage 400ft
30 FT
2
2
OCC
2. Vertical field of view:
VAC
40-48 IN
20 FT
What to do if...
Issue Make this adjustment
Lights do not operate with push pad and RED indicator does not
blink when motion is present
Lights do not switch ON when motion is detected - DOS05
Lights always stay ON
Lights do not turn ON - DVS05
FCC STATEMENT: This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation of the device. This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving Antenna. • Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/tv technician for help.
FCC CAUTION: Any changes or modifications not expressly approved by Leviton Manufacturing Co., Inc., could void the user's authority to operate the equipment.
FOR CANADA ONLY
For warranty information and/or product returns, residents of Canada should contact Leviton in writing at Leviton Manufacturing of Canada Ltd to the attention of the Quality Assurance Department, 165 Hymus Blvd, Pointe-Claire (Quebec),
Canada H9R 1E9 or by telephone at 1-800-405-5320.
LIMITED 5 YEAR WARRANTY For Leviton’s limited product warranty, go to www.leviton.com. For a printed copy of the warranty,call 1-800-824-3005.
Patents covering this product, if any, can be found on www.leviton.com/patents.
Leviton and Block and Design logo is a registered trademark and Decora is a trademark of Leviton Mfg. Co., Inc.
© 2020 Leviton Mfg. Co., Inc.
• Verify wiring connections to sensor.
• Motion is beyond sensing range - move closer to switch.
• Adjust the light level lower (Option 3, 2, 1 or disable).
• The RED light will blink to indicate motion. If it is blinking and the load is not turning ON, it could be due to ambient light OR it check to
make sure that the Occ-Vac switch is in OCC position.
• Check time delay settings and compare to how long the lights stay ON.
• Make sure no motion occurs in coverage area for time selected by covering the lens.
• Check that switch is not installed near a heat source (like stove, lights, heat vents) or detecting motion from an adjacent area (like
hallway traffic) and if it is, relocate it.
• Make sure that control is installed correctly.
• Make sure the power is ON.
• Check to make sure the light bulb is functional.
For Technical Assistance Call: 1-800-824-3005 (USA Only)
or 1-800-405-5320 (Canada Only) www.leviton.com
PK-A3346-10-00-2A-X4
Page 3
ARTWORK PRINT SPECIFICATIONS
Artwork Print Specification Sheet Rev A13.eps
PART NUMBER REV DESCRIPTION
PK-A3346-10-00-2A-X4
Artwork must be printed at 100% (1:1 scale)
Material Specifications:
*
Exterior Brightness:
*
Material Specifications: Asia Suppliers
*
Exterior Brightness:
*
Thickness:
*
Material:
Recycled Content:
Recycled Content:
*
Finish:
*
Thickness:
*
Material:
*
Finish:
*
For manuals - designates cover specifications
North America Suppliers
0.0040/ 0.0038
20lb Bond / 50lb Offset Paper
N/A
95/ 89-92
N/A/ Smooth or Vellum
0.003/ 0.0027
55G / 60G Offset Paper
N/A
90
N/A
Color: Fonts:
No. of Color(s): over
Black
1:
2:
3:
4:
Die Line Key:
1 1
Perforate
Kiss Cut Cellophane
MANUAL INTERIORS / BINDERY / FOLD SCHEME :
Body Material:
Thickness:
Bindery
Die cut
Perfect Bind
PROCESS :
Fold
x
Drill
Saddle Stitch
Trim
No. of Color(s): over
1:
2:
3:
4:
DIMENSIONS / FOLD SCHEME / BINDERY DIAGRAM
11"
Instruction Sheet
x
Spot
CMYK
Spot
CMYK
1:
2:
3:
4:
Fonts:
1:
2:
3:
4:
Helvetica
Fold LineDie Cut
Glue
Offset Flexo
Other
Line Screen:
Angle:
Resolution:
17"
Die Cut Punch/Drill Hole
Part No.
Fold Line
4.25"
2.75"
Part No.
COMMENTS :
The information in this document is the exclusive PROPRIETARY property of LEVITON MANUFACTURING COMPANY, INC. It is disclosed with the understanding that acceptance or review by the recipient
constitutes an undertaking by the recipient. (1) to hold this information in strict confidence, and (2) not to disclose, duplicate, copy, modify or use the information for any purpose other than that for which disclosed.
FOR LEVITON USE ONLY
08
H. Cai
(cc: J. Tang
x
x x
Released Artwork Format:
PlantApprovals:
x x
Mktg Eng
Cust Other
Artist:
RS0366-6570
S.LoPinto
Notes:
PN-ARN: Pilot Rev:ECR Number:
A. Jahan
DLRESIAPPENG@leviton.
com
Production PDF
x
Artwork Release Date:
T. Babich
PMCQA
F. Tse
S & A
cc: J. Lowe
Legal: V. LoNigro
Other
IP Legal: C. Buttitta
--/--/--
Loading...
