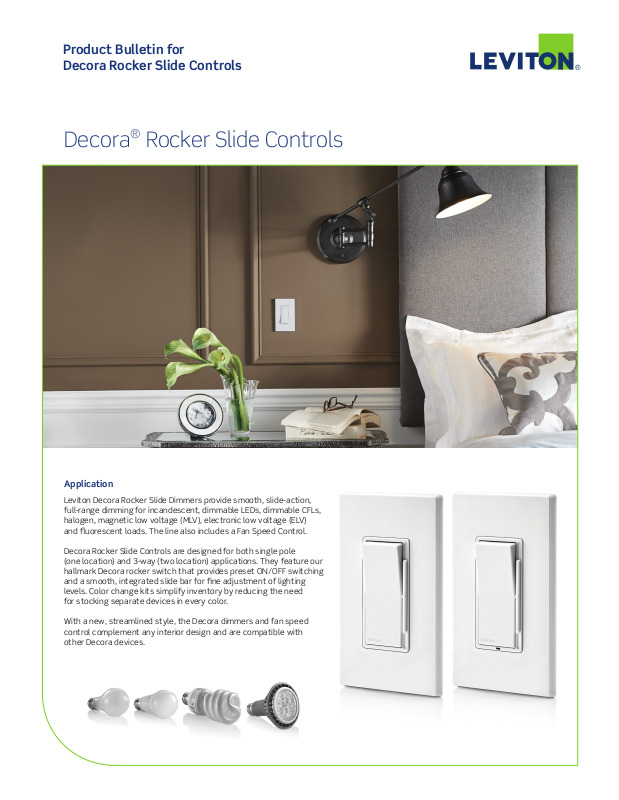

Page 1
Product Bulletin for
Decora Rocker Slide Controls
Decora® Rocker Slide Controls
Application
Leviton Decora Rocker Slide Dimmers provide smooth, slide-action,
full-range dimming for incandescent, dimmable LEDs, dimmable CFLs,
halogen, magnetic low voltage (MLV), electronic low voltage (ELV)
and fluorescent loads. The line also includes a Fan Speed Control.
Decora Rocker Slide Controls are designed for both single pole
(one location) and 3-way (two location) applications. They feature our
hallmark Decora rocker switch that provides preset ON/OFF switching
and a smooth, integrated slide bar for fine adjustment of lighting
levels. Color change kits simplify inventory by reducing the need
for stocking separate devices in every color.
With a new, streamlined style, the Decora dimmers and fan speed
control complement any interior design and are compatible with
other Decora devices.
Page 2
FEATURES AND BENEFITS
New design with rocker switch and slender dimmer
control slide bar
Integrated linear full-range slide control for easy,
precise operation
Separate ON/OFF switch that preserves the selected
brightness setting
Provides single pole (one location) or 3-way (two location)
lighting control when paired with a 3-way switch
Comes packaged in White with Ivory and Light Almond
color change kits
Additional color change kits available in Black, Brown,
Red and Gray
Slim, compact housing fits easily into a standard wallbox
Suitable for multi-gang installations with other
Decora products
No fins for multi-gang installation
Built-in radio/TV interference filter
LED/CFL/Incandescent/Halogen Dimmers
DSL06 and DSM10 designed for optimal control of dimmable
LED and CFL lamps
DSM10 also compatible with Magnetic Low Voltage lamps
Microprocessor control oers flexibility to fine-tune LEDs and CFLs
for best performance (DSL06 and DSM10)
Setting available for ensuring start up for CFL lamps
Wider dimming range on LED and CFL lamps than conventional
incandescent dimmers
Optional programming feature allows users to modify the dimming
range to optimize low light level performance when required
Locator light can be enabled or disabled
0-10V LED/Mark 7® Fluorescent Dimmer
DS710 designed for use with LED fixtures using 0-10V
power supplies
Dual voltage 120V/277V
No power pack required for switching
50ma 0-10V “Sinking” current available
Quiet Fan Speed Control
1.5 Amps of quiet fan speed control
Combines a Decora rocker ON/OFF switch with a contemporary
slender slide bar for the selection of low, medium or high fan speeds
Ideal for libraries, home oces, bedrooms and any area where
ceiling fan noise could become distracting
SPECIFICATIONS AT-A-GLANCE
DSL06 DSM10 DSF01 DSE06 DS710 DSX10 DSX12 DSH08-1 DSH06-7
Voltage, Frequency
120VAC-60Hz Yes Yes Yes Yes Ye s Yes - Yes -
277VAC-60Hz - - - - Yes - Ye s - Yes
Load Rating
Incandescent/ Halogen 600W 1000W - - - - - - -
LED/CFL 300W 450W - 300W - - - - -
M LV - 1000VA - - - - - - -
E LV - - - 600VA - - - - -
Fluorescent - - - -
Motor - - 1.5A - - - - - -
Mechanical
Neutral Required No No No Ye s No No No Yes Yes
Single Pole/3-Way Yes Yes Yes Yes Ye s Yes Yes Yes Yes
Locator Light Yes Yes No No No No No No No
1200VA
1500VA
1000VA 1200VA 8A 6A
TYPICAL SPECIFICATIONS
Operating Temperature Range - 0°C to 55°C
Storage Temperature Range - -10°C to 85°C
Relative Humidity – 20% to 90% Non-Condensing
AGENCY STANDARDS AND COMPLIANCE
Dimmers
cCSAus Certified to Standard 184.1
Complies with UL 1472
NOM
Fan Speed Control
cCSAus Certified to C22.2 No. 156
Complies with UL 1917
NOM
WARRANTY INFORMATION
Five-Year Limited Warranty
INSTALLATION CONSIDERATIONS
Note: Sharing a neutral wire may cause flickering. Connect all devices
to the same phase or run a separate neutral to each phase. Consult
Leviton Tech Line if problems persist.
Warning: To avoid fire, shock or death when retrofitting Mark 10
Powerline dimming ballasts into fixtures that originally had Instant
Start ballasts, the sockets MUST be replaced with Rapid Start sockets
to allow proper dimmer operation and prevent property damage, injury
or death. Refer to the instructions provided with the ballast and the
Leviton dimmer.
DSL06 and DSM10: LED and CFL lamps marked or rated as dimmable
can be used with this dimmer. For a complete list of approved LED and
CFL lamps visit www.leviton.com/universal
Use Leviton Power Extenders to extend the load capacity of box mounted
dimmers. Leviton Power Extenders are available for incandescent, magnetic low
voltage, electronic low voltage, Mark 10 Powerline fluorescent dimming ballasts
or equivalents and 0-10 VDC dimmable fluorescent ballasts such as Mark 7
0-10V, OSRAM Sylvania Quicktronic® Helios™ or equivalent ballasts.
Page 3
MAXIMUM LOAD FOR MULTI-GANG APPLICATIONS
In multi-gang applications de-rating may be required in accordance with the following chart.
Maximum Load for Multi-Gang Applications
Cat. No. Single 2-gang 3-gang or more
DSL06
DSM10
600W Incandescent
300W (2.5A) LED/CFL
1000W Incandescent
1000VA MLV
450W (3.75A)
LED/CFL
500W Incandescent
300W (2.5A) LED/CFL
800W Incandescent
800VA MLV
450W (3.75A)
LED/CFL
500W Incandescent
300W (2.5A) LED/CFL
700W Incandescent
700VA MLV
450W (3.75A)
LED/CFL
DSF01 1.5A 1.5A 1.5A
DSE06 480W (4A) 480W (4A) 480W (4A)
DS710 (120V) 960W 960W 960W
DS710 (277V) 1200W 1200W 1200W
DSX10 800W 800W 800W
DSX12 960W 960W 960W
DSH06-7 6A 6A 6A
DSH08-1 8A 8A 8A
DIMENSIONAL DRAWINGS
Cat. No. DSL06
1.32
33.43
10.72
.25
6.25
.42
3.81
3.28
4.13
96.82
83.34
104.90
1.75
44.45
LOCATOR
LIGHT
Cat. No. DSM10*, DSF01, DSE06, DS710, DSX10, DSH06 & DSH08
.42
10.72
1.75
4.13
3.81
3.28
96.82
83.34
104.90
44.45
1.32
33.43
2.74
2.76
70.11
69.62
* has a locator light
.25
6.25
Page 4
WIRING DIAGRAMS
Hot (Black)
Neutral (white)
Dimmer
Hot (Black)
Neutral (white)
60Hz
3-Way Dimmer
Hot (Black)
Neutral (white)
Fan Speed Control
Hot (Black)
Neutral (white)
60Hz
3-Way Fan Speed Control
Hot (Black)
Neutral (white)
Dimmer
Green
Ground
RedBlue
Hot (Black)
Neutral (white)
Line
120VAC, 60Hz
Dimmer
ELV
Transformer
Primary
Side
White
Red
Insulating
Label
Cat. No. DSL06 & DSM10 Universal Dimmers
BlackRed
Red
Cap with
Wire Connector
Green
Ground
Single Pole
Cat. No. DSF01 Fan Speed Control
BlackRed
Red
Cap with
Wire Connector
Green
Ground
Line
120VAC, 60Hz
Line
120VAC, 60Hz
Black Screw
(common)
3-Way
Black Screw
(common)
Red
BKRD
Line
RD
Green
Ground
BlackRed
Green
Ground
120VAC,
Line
120VAC,
Single Pole
Cat. No. DSE06 Electronic Low Voltage Dimmer
Transformer
Primary
Side
ELV
Insulating
Label
Red
Single Pole
RedBlue
White
Green
Ground
Line
120VAC, 60Hz
Primary
Side
ELV
Transformer
Blue
White
Dimmer
3-Way
Red
Red
Green
Ground
3-Way
3-Way
Black Screw
(common)
Neutral (white)Line SideLoad Side
Hot (Black)
Line
120VAC, 60Hz
Page 5
WIRING DIAGRAMS
Hot (Black)
Dimmer
Wiring Diagram 1
Insulating
Label
Green
Ground
BlackRed
Hot (Black)
Neutral (white)
Line
120/277VAC, 60Hz
Dimmer
Violet (+)
Gray (-)
Yellow
To Lamps
Red
Blue
0-10 VDC
Ballast
Red
Wiring Diagram 1
Wiring Diagram 2
Hot (Black)
Neutral (white)
3-Way Dimmer
To Lamps
Neutral (white)
Green
Ground
BlackRed
Red
Hot (Black)
Neutral (white)
Line
120/277VAC, 60Hz
Dimmer
Ballast
Insulating
Label
Hot (Black)
Neutral (white)
3-Way Dimmer
Hot (Black)
Neutral (white)
Dimmer
Line SideLoad Side
Hot (Black)
Neutral (White)
Dimmer 3-Way Switch
Green
Ground
RedBlue
Red
Hot (Black)
Neutral (white)
Line
120/277VAC, 60Hz
Dimmer
Orange
Hi-Lume® or
ECO-10
®
(EcoSeries)
Ballast
White
Insulating
Label
Cat. No. DS710 0-10V LED/Mark 7® Fluorescent Dimmer
To Lamps
Red
Blue
Yellow
0-10 VDC
Ballast
Insulating
Gray (-)
Violet (+)
Label
Red
BlackRed
Green
Ground
Line
120/277VAC, 60Hz
Neutral (white)
Blue
Yellow
Red
0-10 VDC
Ballast
Gray (-)
Violet (+)
Single Pole
Cat. No. DSX10 & DSX12 Mark 10® Powerline Fluorescent Dimmers
Hot (Black)
Line
120/277VAC, 60Hz
Ballast
Ballast
Insulating
Label
Red
Dimmer
BlackRed
Green
Ground
Green
Ground
Black Screw
(common)
3-Way
Black Screw
(common)
Red
Red
BlackRed
120/277VAC, 60Hz
Green
Ground
Line
BlackRed
Line
120/277VAC, 60Hz
Green
Ground
Single Pole
Cat. No. DSH06 & DSH08 Fluorescent Dimmers
Hi-Lume® or
®
ECO-10
(EcoSeries)
Ballast
Insulating
Label
Orange
Red
RedBlue
White
Green
Ground
Single Pole
Line
120/277VAC, 60Hz
Hi-Lume® or
ECO-10
(EcoSeries)
Ballast
3-Way
Blue
®
Orange
White
Red
Red
Green
Ground
Black Screw
(common)
Line
120VAC, 60Hz
3-Way
Page 6
ORDERING INFORMATION
Cat. No. Description Rating Color
DSL06
DSM10
Incandescent, LED, CFL dimmer
with locator light
Incandescent, MLV, LED, CFL dimmer
with locator light
600W Incandescent
300W LED/CFL
1000W Incandescent/MLV
450W LED/CFL
DSF01 Quiet Fan Speed Control 1.5A Z
DSE06
DS710
DSX10
DSX12
DSH06-7
DSH08-1
Voltage Dimmer (Trailing Edge),
Electronic Low
No locator light, neutral required
Mark 7® Fluorescent ballast and LED Power
Supply 0-10V dimmers, No locator light
Mark 10® Powerline Fluorescent Dimmer,
No locator light
Mark 10® Powerline Fluorescent Dimmer,
No locator light
Fluorescent dimmer for Hi-Lume® or
Eco-10® type ballasts, No locator light
Fluorescent dimmer for Hi-Lume® or
Eco-10® type ballasts, No locator light
600VA ELV
300VA LED/CFL
1200VA @120VAC
1500VA @ 277VAC
1000VA @ 120VAC Z
1200VA @ 277VAC Z
6A @ 277VAC Z
8A @120VAC Z
COLOR CHANGE KITS
Description Cat. No. Color
Snap-on frame with slide bar and
rocker, locator light in frame
Snap-on frame with slide bar and
rocker, no locator light
DSKIT-00 W, I, T, G, E, B, R
DSKIT-0N W, I, T, G, E, B, R
Z
Z
Z
Z
Decora Rocker Slide controls come packaged with three colors. Products with sux (-Z) include White, Ivory and
Light Almond. Color Change Kits are available in the following colors: White (-W), Ivory (-I), Light Almond (-T), Gray (-G),
Black (-E), Brown (-B) and Red (-R).
Third party trademarks used herein are the property of their respective owners and are used for identification/reference purposes only.
Leviton Manufacturing Co., Inc. World Headquarters
201 North Service Road, Melville, NY 11747-3138
Telephone: 1-800-323-8920 FAX: 1-800-832-9538
Tech Line (8:30AM-7:00PM E.T. Monday-Friday): 1-800-824-3005
Visit our Website at: www.leviton.com
© 2015 Leviton Manufacturing Co., Inc. All rights reserved.
All trademarks are the property of their respective owners.
Follow us on:
G-9382/K14-dp
Loading...
