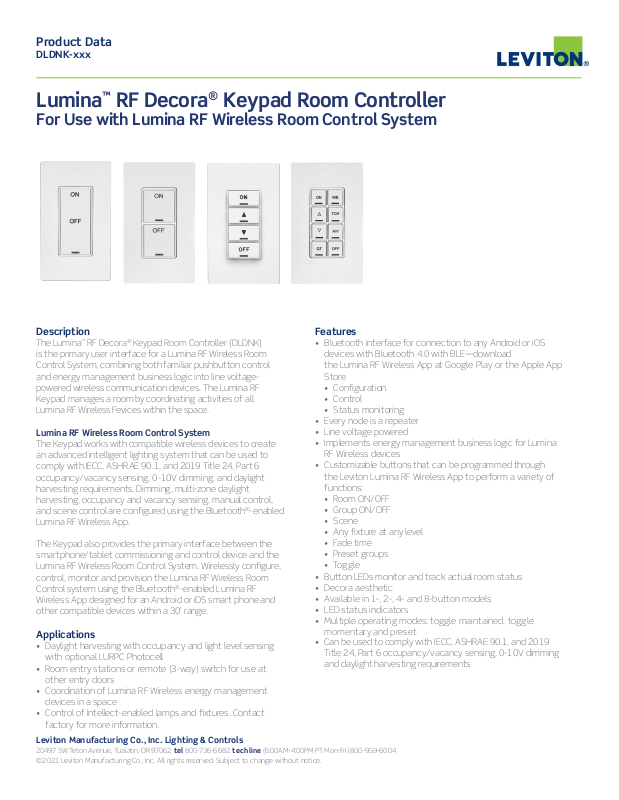

Page 1
Product Data
DLDNK-xxx
Lumina™ RF Decora® Keypad Room Controller
For Use with Lumina RF Wireless Room Control System
Description
The Lumina™ RF Decora® Keypad Room Controller (DLDNK)
is the primary user interface for a Lumina RF Wireless Room
Control System, combining both familiar pushbutton control
and energy management business logic into line voltagepowered wireless communication devices. The Lumina RF
Keypad manages a room by coordinating activities of all
Lumina RF Wireless Fevices within the space.
Lumina RF Wireless Room Control System
The Keypad works with compatible wireless devices to create
an advanced intelligent lighting system that can be used to
comply with IECC, ASHRAE 90.1, and 2019 Title 24, Part 6
occupancy/vacancy sensing, 0-10V dimming, and daylight
harvesting requirements. Dimming, multi-zone daylight
harvesting, occupancy and vacancy sensing, manual control,
and scene control are configured using the Bluetooth®-enabled
Lumina RF Wireless App.
The Keypad also provides the primary interface between the
smartphone/tablet commissioning and control device and the
Lumina RF Wireless Room Control System. Wirelessly configure,
control, monitor and provision the Lumina RF Wireless Room
Control system using the Bluetooth®-enabled Lumina RF
Wireless App designed for an Android or iOS smart phone and
other compatible devices within a 30’ range.
Applications
• Daylight harvesting with occupancy and light level sensing
with optional LURPC Photocell
• Room entry stations or remote (3-way) switch for use at
other entry doors
• Coordination of Lumina RF Wireless energy management
devices in a space
• Control of Intellect-enabled lamps and fixtures. Contact
factory for more information.
Leviton Manufacturing Co., Inc. Lighting & Controls
20497 SW Teton Avenue, Tualatin, O R 97062 tel 800-736-6682 tech line (6:00AM-4:00PM PT Mon-Fri) 800-959-6004
©2021 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
Features
• Bluetooth interface for connection to any Android or iOS
devices with Bluetooth 4.0 with BLE—download
the Lumina RF Wireless App at Google Play or the Apple App
Store
• Configuration
• Control
• Status monitoring
• Every node is a repeater
• Line voltage powered
• Implements energy management business logic for Lumina
RF Wireless devices
• Customizable buttons that can be programmed through
the Leviton Lumina RF Wireless App to perform a variety of
functions:
• Room ON/OFF
• Group ON/OFF
• Scene
• Any fixture at any level
• Fade time
• Preset groups
• Toggle
• Button LEDs monitor and track actual room status
• Decora aesthetic

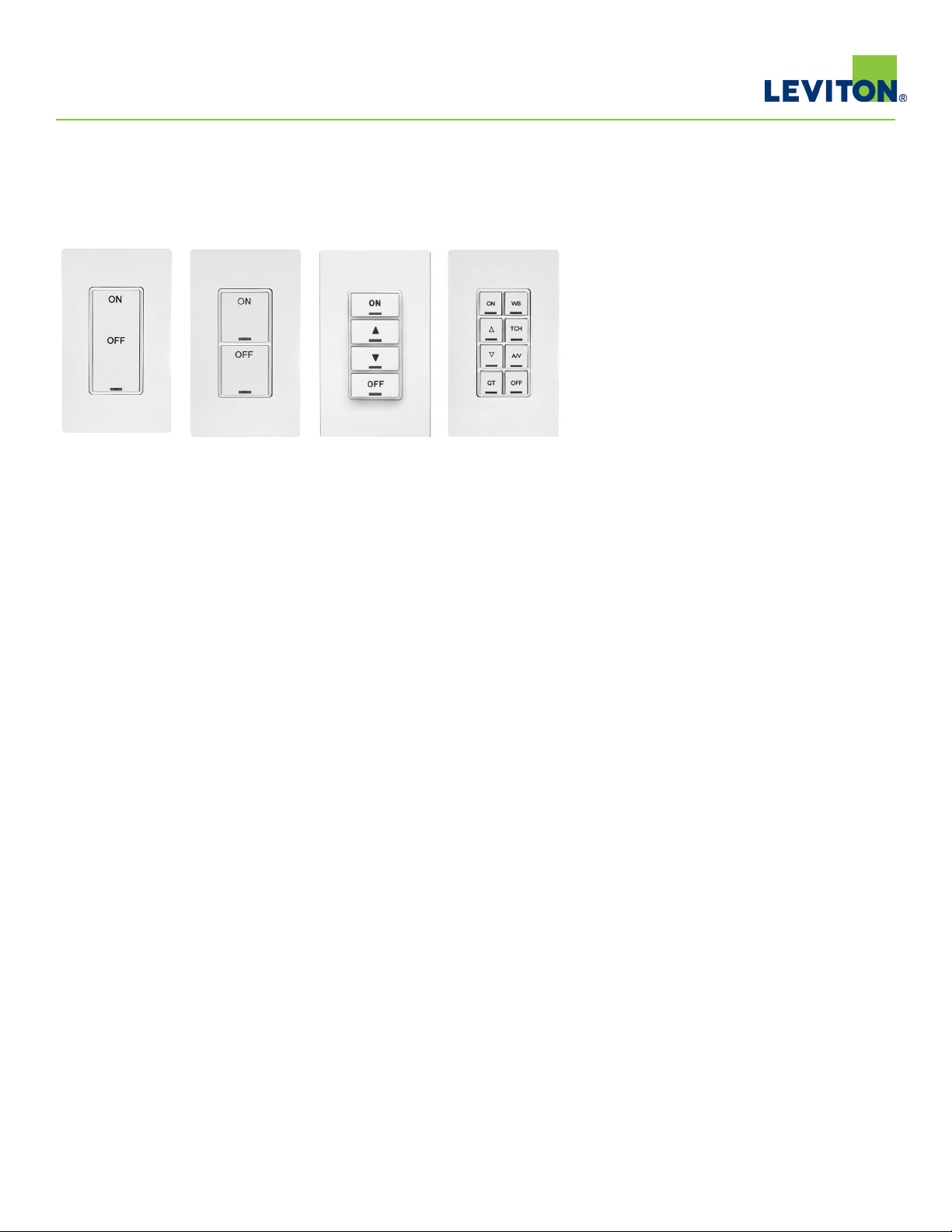

• Available in 1-, 2-, 4- and 8-button models
• LED status indicators
• Multiple operating modes: toggle maintained, toggle
momentary and preset
• Can be used to comply with IECC, ASHRAE 90.1, and 2019
Title 24, Part 6 occupancy/vacancy sensing, 0-10V dimming
and daylight harvesting requirements
Page 2
Product Data
4.61”
(117.07mm)
2.75”
(69.84mm)
1.77”
(45.00mm)
1.51”
(38.37mm)
4.43”
(112.43mm)
1.47”
(37.45mm)
0.29”
(7.33mm)
0.09”
(2.40mm)
2.54”
(64.42mm)
0.12”
(3.00mm)
0.08”
(1.97mm)
BK
WH
Neutral (White)
Line
120-277VAC, 60 Hz
Hot (Black)
DLDNK-xxx

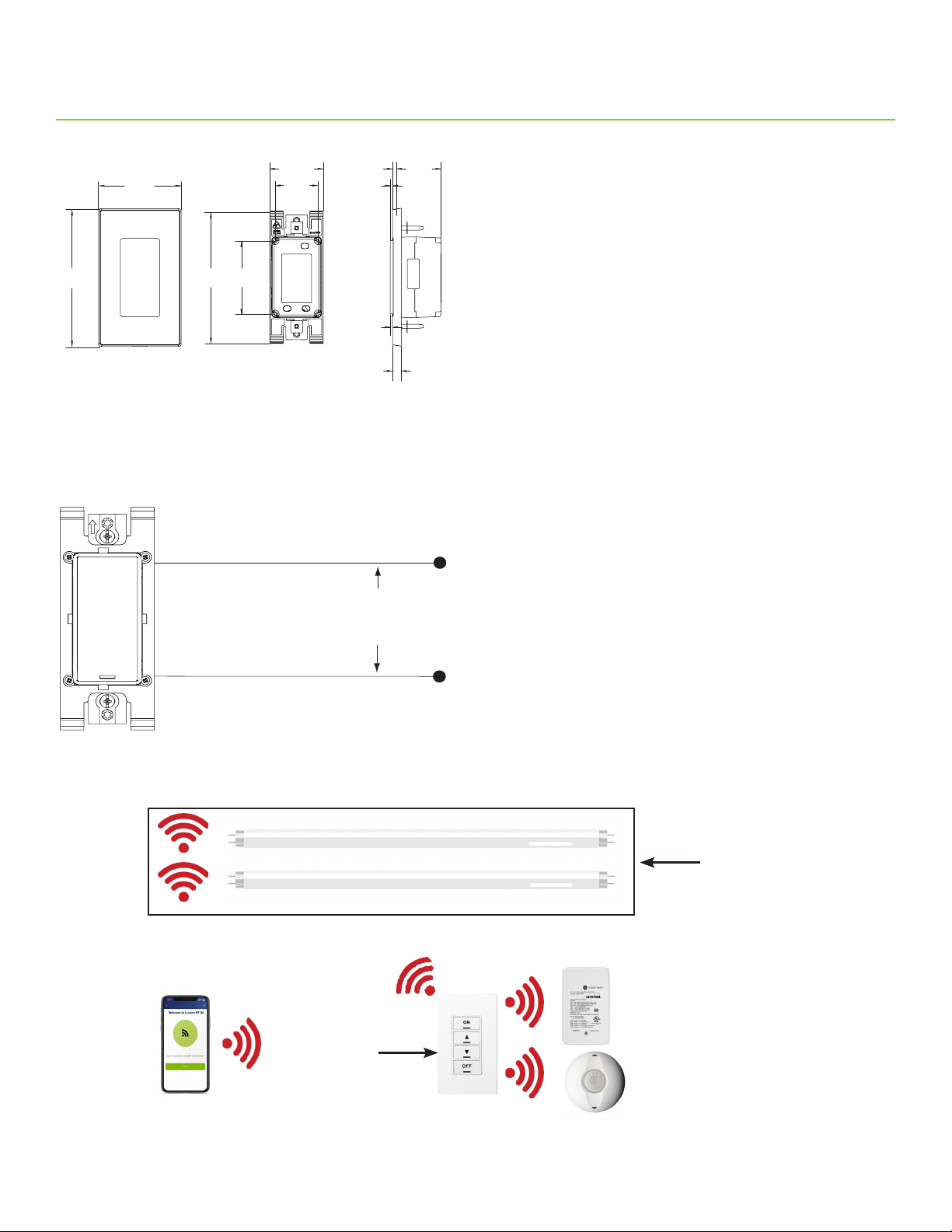

Dimensions Diagram
Front View
with Wallplate
Wiring Diagram
Wireless Communication
Front View
without Wallplate
Side View
Constant
Line
Voltage
Lumina RF
Wireless App
Fixture retrofitted with Intellect-enabled fixtures
Hot, Neutral
120-277VAC
Lumina RF
Keypad Room Controller
Wireless Load Controller
Wireless Occupancy
Sensor
Page 3

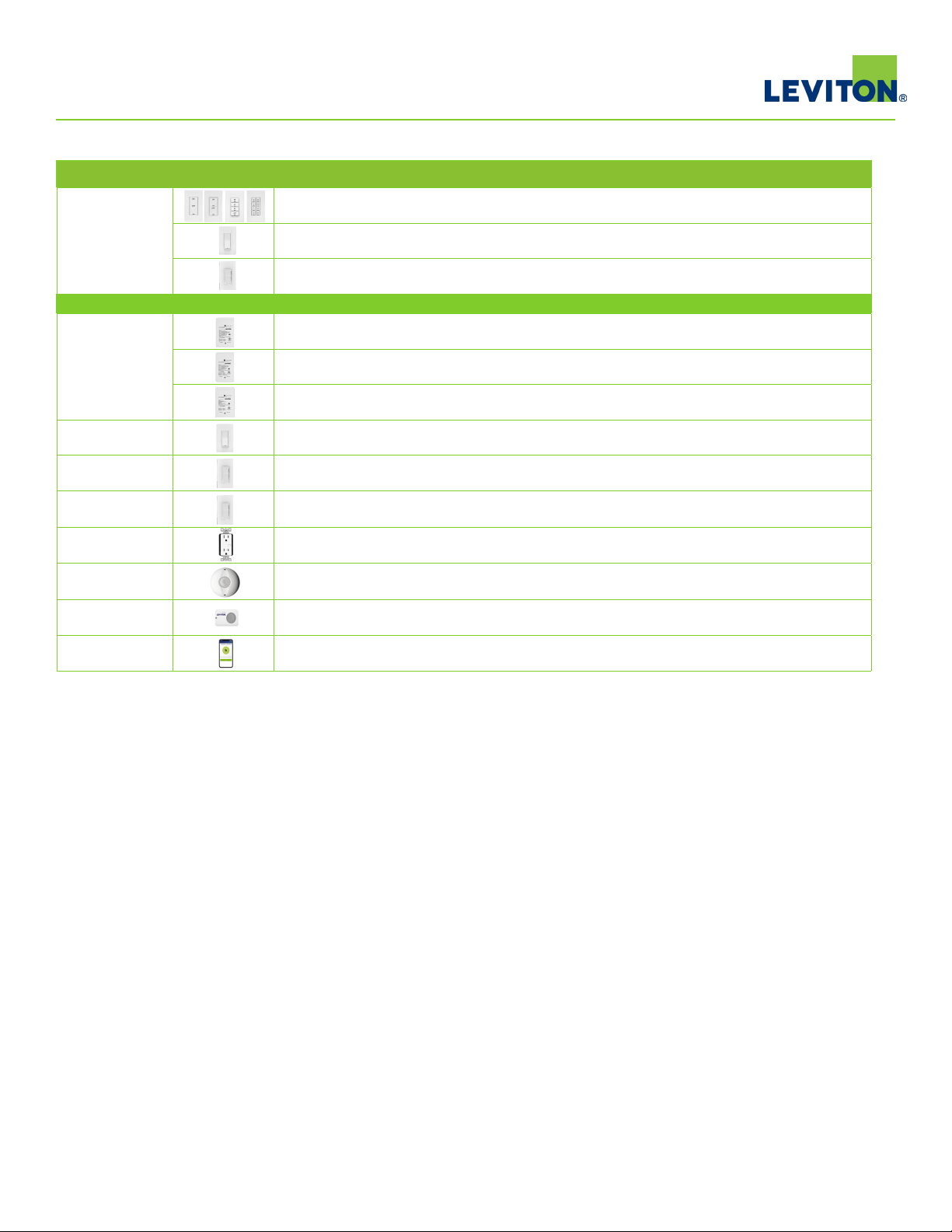

Lumina RF Wireless Compatibility Chart
Lumina RF Wireless Room Control System*
DLDNK-01W | DLDNK-02W | DLDNK-04W | DLDNK-08W
Lumina RF Keypad Room Controllers*
Room
Controllers*
Compatible Products**
Load Control
Devices
ON/OFF Switch
0-10V Dimmer
1000W Dimmer
Receptacle
Occupancy
Sensors
Photocells
Configurator Tool
*Room Controllers can also be used as Remote Keypads for multi-way switching
**Not compatible with other Lumina RF Gateway products. Contact Leviton for more information.
DL05S-D0Z
Lumina RF Decora
DL057-D0Z | DL057-30Z
Lumina RF Decora
®
Wall Switch Room Controller with 5A Relay
®
0-10V Dimming Room Controller with 5A Relay
LU20S-DNW
Wireless 20A ON/OFF Switching Power Pack
LU107-DNW
Wireless 10A 0-10V Dimming Power Pack
LU04P-1NW
Wireless 800W Phase Cut Dimming Power Pack
ZS10S-D0Z
Wireless ON/OFF Decora
®
Wall Switch
ZS057-D0Z | ZS057-30Z | ZS057-ALZ
Wireless 0-10V Decora® Wall Dimmer
DL1KD-1BZ
Lumina RF 1000W Full Phase Dimmer
ZSTLR-1HW
Wireless Controlled Receptacle
ZSC04-INW | ZSC15-INW
Wireless PIR Occupancy Sensors
LURPC-01W
Wireless Photocell
Lumina RF Standalone App
Download via Google Play or Apple App Store
Leviton Manufacturing Co., Inc. Lighting & Controls
20497 SW Teton Avenue, Tualatin, O R 97062 tel 800-736-6682 tech line (6:00AM-4:00PM PT Mon-Fri) 800-959-6004
©2021 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
Page 4
Product Data
DLDNK-xxx
Specifications
Electrical
Input Voltage 120-230-277VAC , 50/60 Hz, 40mA
Output None—wireless communication only
Radio Frequency 2.4 GHz wireless mesh network
IP Rating IP30
Network Connections
Connections 16 AWG (Power connections)
Environmental
Operating Temperature Range 32º F to 122º F (0° to 50° C)
Storage Temperature Range -4º to 185º F (-20° to 85° C)
Relative Humidity 0 to 90% non-condensing, for indoor use only
Other
Energy Codes
Listings
Radio Certifications
Warranty
IEEE 802.15.4, Up to 75’ between Lumina RF devices, mesh network—all devices are repeaters,
up to 30’ between Keypad and Bluetooth phone or tablet, 75’ between Keypad and first fixtures
Can be used to comply with IECC, ASHRAE 90.1, and 2019 Title 24, Part 6 occupancy/vacancy
sensing, 0-10V dimming, and daylight harvesting requirements
UL/cUL Certified, UL924, NOM Listed, RoHS 2 Compliant, and IEC61000-4-2, UL916 standard
for energy management equipment
FCC certified for wireless communication (U.S.), FCC ID: QGH-DLDNK, IC Certified (Canada),
IC ID: 2473A-DLDNK
5-Year Limited
Ordering Information
Product Name
Cat. No. Description
DLDNK-01W
DLDNK-02W
DLDNK-04W
DLDNK-05W
Leviton Manufacturing Co., Inc. Lighting & Controls
20497 SW Teton Avenue, Tualatin, O R 97062 tel 800-736-6682 tech line (6:00AM-4:00PM PT Mon-Fri) 800-959-6004
Lumina RF Decora 1-Button multi-function BLE keypad with room controller and LED feedback
functionality, 120-277VAC, 50/60Hz, White
Lumina RF Decora 2-Button multi-function BLE keypad with room controller and LED feedback
functionality, 120-277VAC, 50/60Hz, White
Lumina RF Decora 4-Button multi-function BLE keypad with room controller and LED feedback
functionality, 120-277VAC, 50/60Hz, White
Lumina RF Decora 8-Button multi-function BLE keypad with room controller and LED feedback
functionality, 120-277VAC, 50/60Hz, White
Leviton Manufacturing Co., Inc. Global Headquarters
201 North Service Road, Melville, NY 11747-3138 tel 800-323-8920 tech line (8:30AM-7:00PM ET Mon-Fri) 800-824-3005
Visit our Website at: www.leviton.com/luminarf
©2021 Leviton Manufacturing Co., Inc. All r ights reser ved. Subject to change w ithout not ice.
G-10081J/B21-aa
REV FEB 2021
