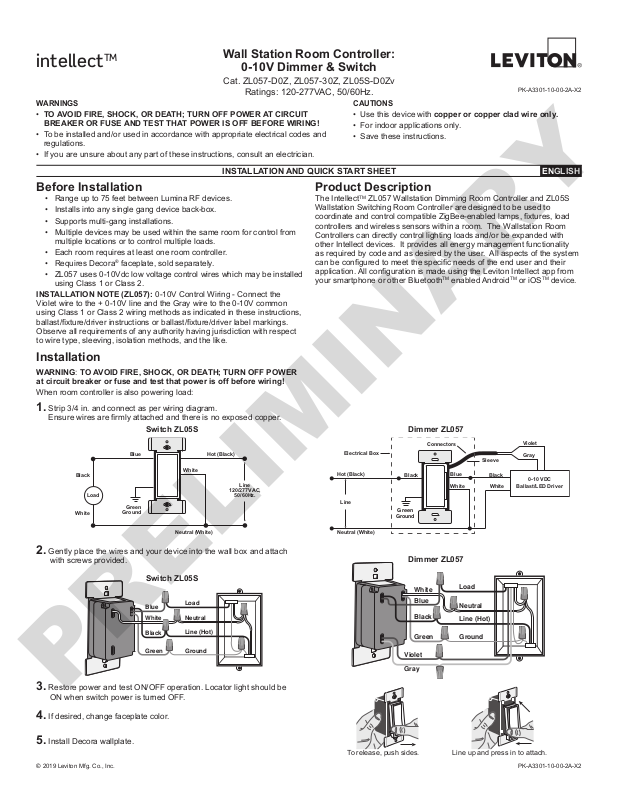

Wall Station Room Controller:
0-10V Dimmer & Switch
Cat. ZL057-D0Z, ZL057-30Z, ZL05S-D0Zv
Ratings: 120-277VAC, 50/60Hz.
WARNINGS
• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT
BREAKER OR FUSE AND TEST THAT POWER IS OFF BEFORE WIRING!
• To be installed and/or used in accordance with appropriate electrical codes and
regulations.
• If you are unsure about any part of these instructions, consult an electrician.
CAUTIONS
• Use this device with copper or copper clad wire only.
• For indoor applications only.
• Save these instructions.
INSTALLATION AND QUICK START SHEET
Before Installation Product Description
• Range up to 75 feet between Lumina RF devices.
• Installs into any single gang device back-box.
• Supports multi-gang installations.
• Multiple devices may be used within the same room for control from
multiple locations or to control multiple loads.
• Each room requires at least one room controller.
• Requires Decora® faceplate, sold separately.
• ZL057 uses 0-10Vdc low voltage control wires which may be installed
using Class 1 or Class 2.
INSTALLATION NOTE (ZL057): 0-10V Control Wiring - Connect the
Violet wire to the + 0-10V line and the Gray wire to the 0-10V common
using Class 1 or Class 2 wiring methods as indicated in these instructions,
ballast/xture/driver instructions or ballast/xture/driver label markings.
Observe all requirements of any authority having jurisdiction with respect
to wire type, sleeving, isolation methods, and the like.
The IntellectTM ZL057 Wallstation Dimming Room Controller and ZL05S
Wallstation Switching Room Controller are designed to be used to
coordinate and control compatible ZigBee-enabled lamps, xtures, load
controllers and wireless sensors within a room. The Wallstation Room
Controllers can directly control lighting loads and/or be expanded with
other Intellect devices. It provides all energy management functionality
as required by code and as desired by the user. All aspects of the system
can be congured to meet the specic needs of the end user and their
application. All conguration is made using the Leviton Intellect app from
your smartphone or other BluetoothTM enabled AndroidTM or iOSTM device.
PK-A3301-10-00-2A-X2
ENGLISH
Installation
WARNING: TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER
at circuit breaker or fuse and test that power is off before wiring!

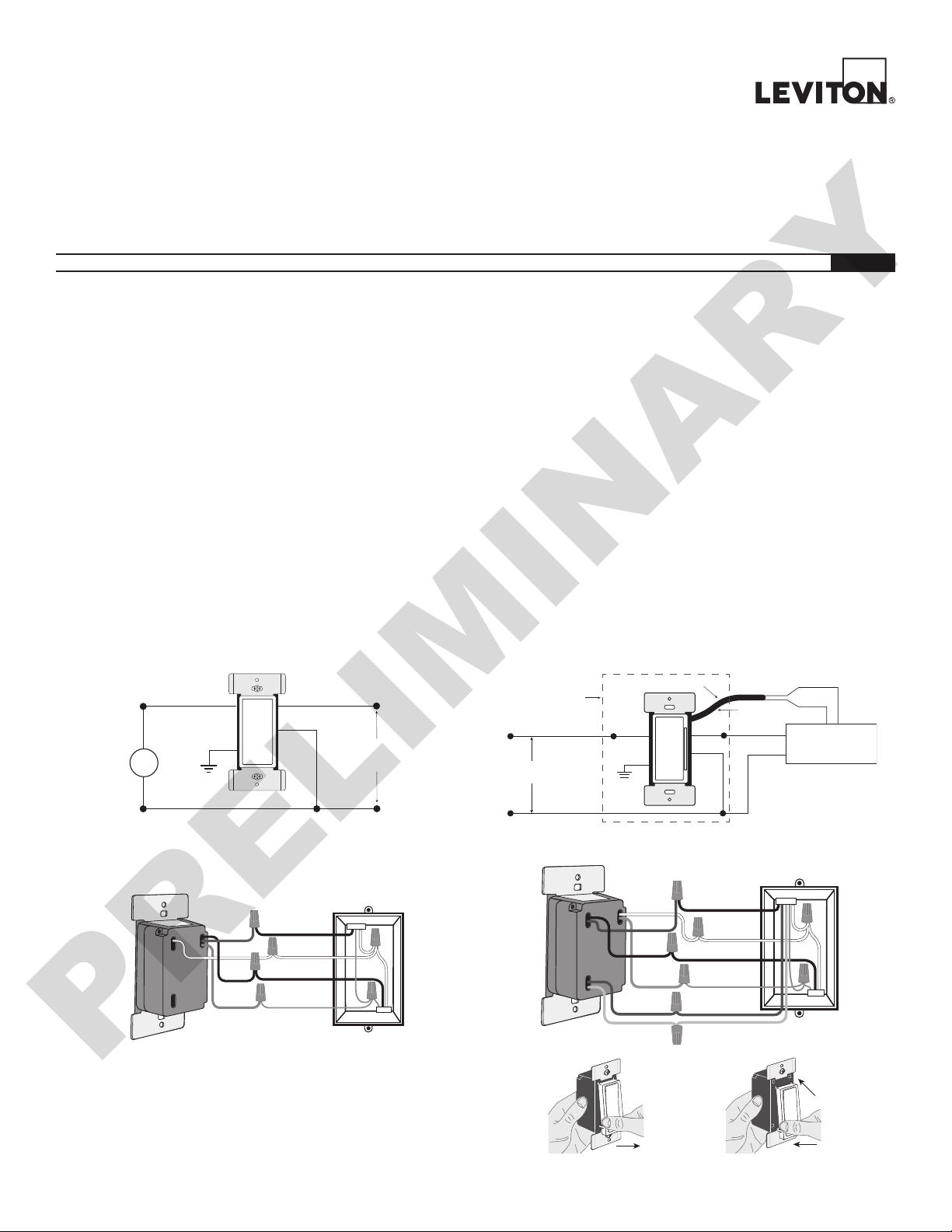

When room controller is also powering load:
1. Strip 3/4 in. and connect as per wiring diagram.
Ensure wires are rmly attached and there is no exposed copper.
Switch ZL05S
Black
White
Load
Blue
Green
Ground
White
Hot (Black)
Line
120/277VAC,
50/60Hz.
2. Gently place the wires and your device into the wall box and attach
with screws provided.
Switch ZL05S
Blue
White
Black
Green
Load
Neutral
Line (Hot)
Ground
Electrical Box
Hot (Black)
Line
Dimmer ZL057
Connectors
Black
Green
Ground
Dimmer ZL057
White
Blue
Black
Green
Violet
Gray
Blue
White
Load
Neutral
Line (Hot)
Ground
Sleeve
Black
White
Violet
Gray
0-10 VDC
Ballast/LED Driver
3. Restore power and test ON/OFF operation. Locator light should be
ON when switch power is turned OFF.
4. If desired, change faceplate color.
5. Install Decora wallplate.
To release, push sides. Line up and press in to attach.
PK-A3301-10-00-2A-X2© 2019 Leviton Mfg. Co., Inc.
Page 2
Installation (cont'd)Installation (cont'd)
PRELIMINARY

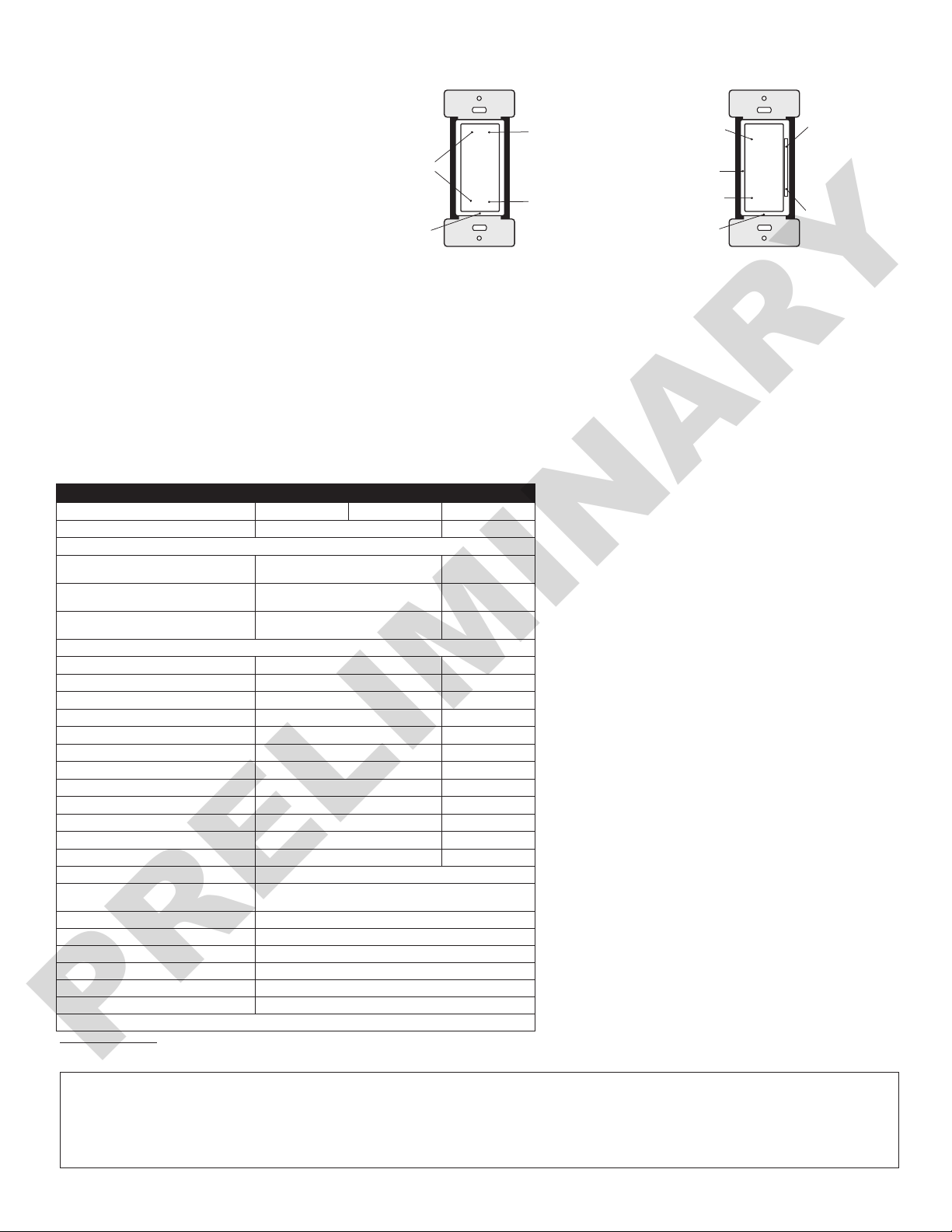

Switch ZL05S Dimmer ZL057
6. Using the Intellect App, setup device and
congure your system.
Using your system, you can program
different functionality, such as pushing the
top of the paddle for a presentation scene
or pushing the bottom of the paddle for
OFF.
Can be performed by pressing
PROGRAMMING
the top OR bottom of switch.
LOCATOR LIGHT - on when
switch is off so you can nd
your control
PADDLE TOP
- ON
PADDLE BOTTOM
- OFF
PADDLE TOP
- ON
BRIGHTNESS INDICATORS
LEDs indicate brightness
PADDLE BOTTOM
LOCATOR LIGHT- on when
switch is off so you can nd
level.
- OFF
your control
ROCKER UP
- Tap to raise 12%
(default rate)
Push and hold to raise
until released.
ROCKER DOWN
- Tap to lower 12%.
(deault rate)
Push and holdto lower
until released.
Conguration and Programming
• System Conguration is performed using the Leviton Intellect application, downloadable from Google PlayTM or the App StoreTM, using any Bluetooth
enabled Android or iOS Device. Use the application to:
a.
Manually add/remove xtures, keypads, load controllers, sensors, switches or dimmers to the room for an advanced intelligent lighting control system.
b. Change Sensor Parameters like Sensitivity, Timeout, target light level.
c. Create user dened groups of xtures and loads.
d. Dene Scenes (Meeting, Presentation, Lunch, Dinner, Test, etc.).
• Factory Default – resets device to out of the box state
o Push top or bottom of paddle for approximately 20 seconds until the locator light ashes AMBER the second time.
o Release paddle.
o Locator light will alternate between green/amber while device is resetting, and turn off when complete.
o When complete, device will reboot. Locator light will blink GREEN slowly while looking for an open network.
NOTE: Renement is required to the initial conguration. Based on some room geometries, the system may not be able to accurately congure itself
automatically. The Intellect smart device application will lead you through this process.
SPECIFICATIONS
Catalog No. ZL05S-D0Z ZL057-D0Z ZL057-30Z
Input Voltage/Frequency 120-277VAC, 50/60Hz. 347VAC, 60Hz
Input Current
120V
277V
347V -
Load Ratings
LED, CFL, Electronic Ballast @ 120V 8A -
LED, CFL, Electronic Ballast @ 277V 5A -
LED, CFL, Electronic Ballast @ 347V - 4A, 1388VA
Magnetic Ballast @ 120V 10A
Magnetic Ballast @ 277V 10A
Magnetic Ballast @ 347V - 3.45A, 1200VA
Resistive, Tungsten @ 120V 6.67A -
Resistive, Tungsten @ 277V 6.67A -
Resistive, Tungsten @ 347V - 6.67A
Motor @ 120V 1/4Hp (FLA 5.8A) -
Motor @ 277V 1/3Hp (FLA 3.0A) -
Motor @ 347V - 1/4Hp
IP Rating IP10
Network Connections
Operating Temperature 0°C - 40°C (32°F - 104°F)
Storage Temperature -40°C to 85°C
UL Pollution Degree 2
UL Impulse Voltage 6000V
Purpose of Control Operating Control
Action Control Type 1
FOR CANADA ONLY
For warranty information and/or product returns, residents of Canada should contact Leviton in writing at Leviton Manufacturing of Canada Ltd to the attention of the Quality
Assurance Department, 165 Hymus Blvd, Pointe-Claire (Quebec), Canada H9R 1E9 or by telephone at 1 800 405-5320.
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper
use for two years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement, at its option. For details visit www.leviton.com or call 1-800-824-3005. This warranty
excludes and there is disclaimed liability for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused,
opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or implied warranties of any kind, including
merchantability and fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness for a
particular purpose, is limited to two years. Leviton is not liable for incidental, indirect, special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment,
lost sales or profits or delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
IEEE 802.15.4, 2.4Ghz, wireless, mesh network up to 75'
Standby: 0.2W
Max: 0.5W+Load Current
Standby: 0.3W
Max: 0.6W+Load Current
range between devices
NOTE: Dash indicates model not rated for use.
LIMITED 2 YEAR WARRANTY AND EXCLUSIONS
For Technical Assistance Call: 1-800-824-3005 (U.S.A. Only) www.leviton.com
-
-
0.5W+Load
Current
TRADEMARK DISCLAIMER: Use herein of third party trademarks, service marks,
trade names, brand names and/or product names are for informational purposes only,
are/may be the trademarks of their respective owners; such use is not meant to imply
afliation, sponsorship, or endorsement.
FCC COMPLIANCE STATEMENT:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures: Reorient or relocate the
receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION:
Any changes or modications not expressly approved by Leviton Manufacturing Co.,
Inc., could void the user’s authority to operate the equipment.
FCC SUPPLIER’S DECLARATION OF CONFORMITY:
TM
RF Wall Station Room Controllers ZL057-D0Z, ZL057-30Z, ZL05S-D0Z
Intellect
manufactured by Leviton Manufacturing Co., Inc. 201 North Service Road, Melville,
NY 11747. www.leviton.com. This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:(1) This device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IC STATEMENT
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
RF EXPOSURE AND CO-LOCATION:
To comply with FCC OET Bulletin 65 and ISED RF exposure limits for general
population / uncontrolled exposure this device should be installed and operated with
a minimum distance of 7.9 inches (20 cm) between the radiator and your body. This
transmitter must not be co-located or operated in conjunction with any other antenna
or transmitter.
