Leviton Decora ODS15-ID Product Data

PRODUCT DATA

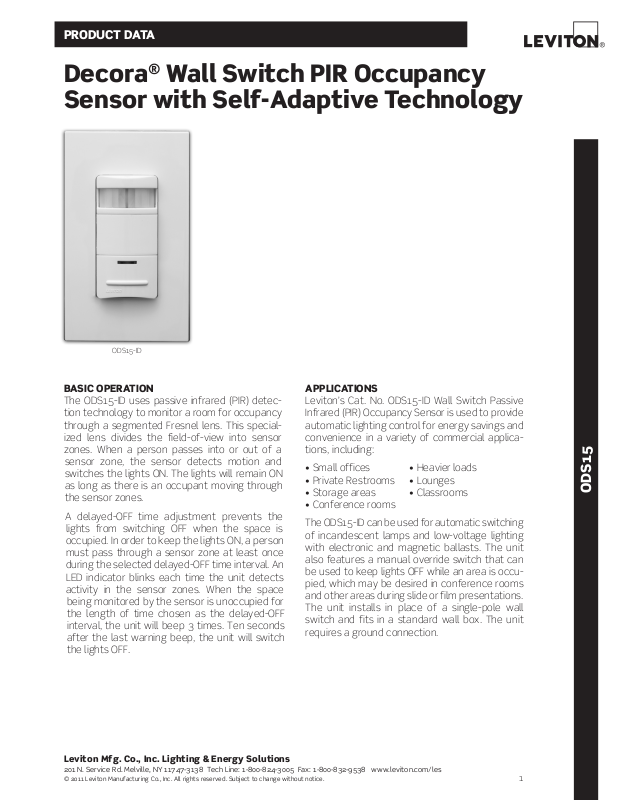

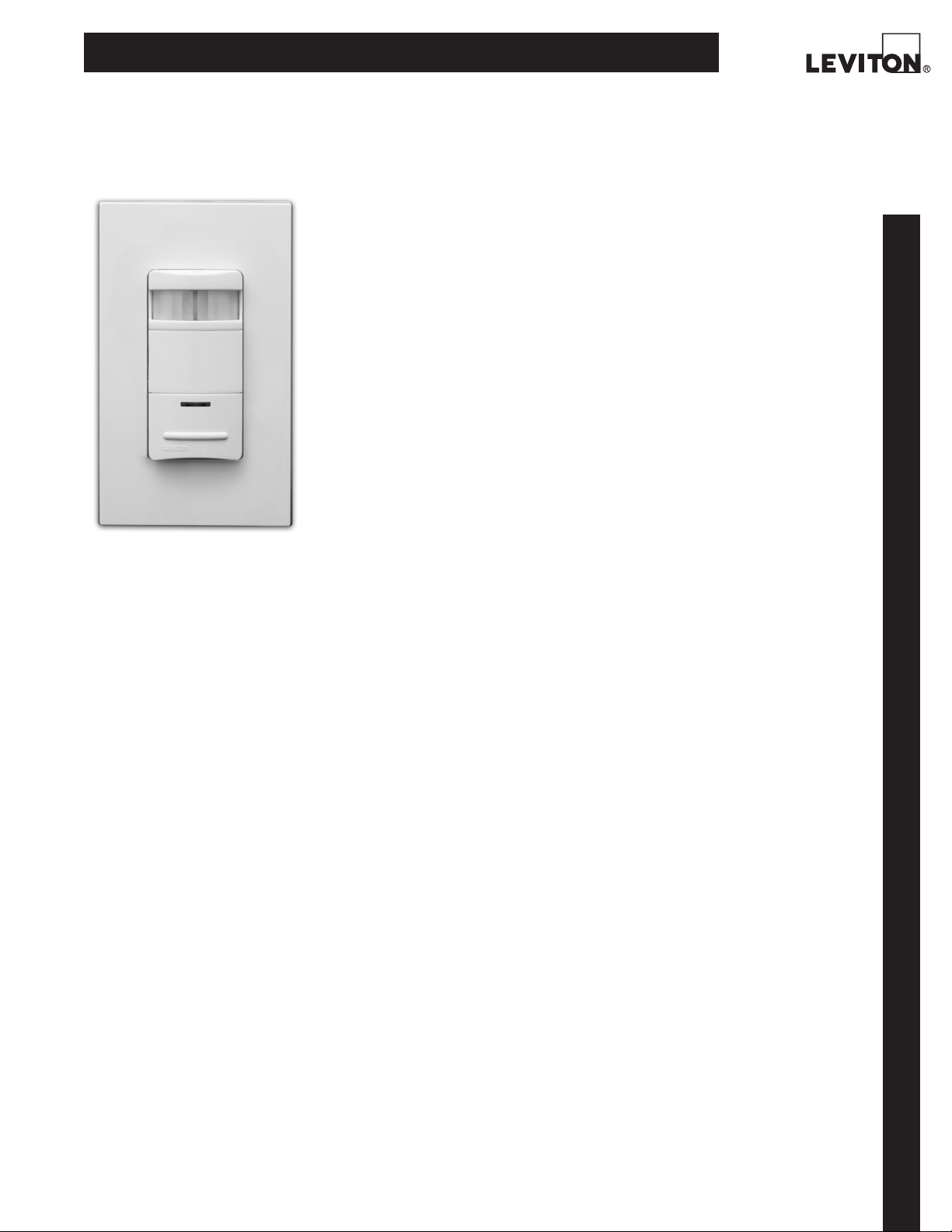

Decora® Wall Switch PIR Occupancy
Sensor with Self-Adaptive Technology

ODS15-ID

BASIC OPERATION

The ODS15-ID uses passive infrared (PIR) detec­tion technology to monitor a room for occupancy
through a segmented Fresnel lens. This special­ized lens divides the field-of-view into sensor
zones. When a person passes into or out of a

sensor zone, the sensor detects motion and
switches the lights ON. The lights will remain ON
as long as there is an occupant moving through
the sensor zones.

A delayed-OFF time adjustment prevents the

lights from switching OFF when the space is
occupied. In order to keep the lights ON, a person
must pass through a sensor zone at least once
during the selected delayed-OFF time interval. An
LED indicator blinks each time the unit detects
activity in the sensor zones. When the space

being monitored by the sensor is unoccupied for
the length of time chosen as the delayed-OFF
interval, the unit will beep 3 times. Ten seconds
after the last warning beep, the unit will switch
the lights OFF.

APPLICATIONS

Leviton’s Cat. No. ODS15-ID Wall Switch Passive
Infrared (PIR) Occupancy Sensor is used to provide
automatic lighting control for energy savings and
convenience in a variety of commercial applica­tions, including:

• Small offices • Heavier loads

• Private Restrooms • Lounges

• Storage areas • Classrooms

• Conference rooms

The ODS15-ID can be used for automatic switching
of incandescent lamps and low-voltage lighting
with electronic and magnetic ballasts. The unit
also features a manual override switch that can
be used to keep lights OFF while an area is occu­pied, which may be desired in conference rooms
and other areas during slide or film presentations.
The unit installs in place of a single-pole wall
switch and fits in a standard wall box. The unit
requires a ground connection.

ODS15

Leviton Mfg. Co., Inc. Lighting & Energy Solutions

201 N. Service Rd. Melville, NY 11747-3138 Tech Line: 1-800-824-3005 Fax: [phone] www.leviton.com/les

© 2011 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.

1

TO P VIEW

SIDE VIEW

15 40

0

0

15

15

30

30

40

40

4

Minor Motion, IR

Major Motion, IR

5

0

ODS15

PRODUCT DATA

FEATURES

• Fits in standard wallbox and replaces single-pole

wall switch; ground connection required. Gangable
with other units.

• Low-profile design eliminates obtrusive “scanning-

device” look. Elegant Decora wallplates comple­ment

any interior for sleek aesthetics; uses Decora
wallplates and coordinates
line of Decora wiring devices.

• 180° field-of-view provides approximately 2100

square feet of coverage suitable for small offices,
conference rooms, class rooms, stock rooms, loung­es, private restrooms and a variety of commercial
areas.

• Convenient pushbutton provides manual-ON/OFF

light switching at any time.

• Two dual element PIR sensors used to widen detec­tion range.

• Segmented Fresnel lens provides optimum sensitivity
and performance. Designed with an extensive “minor

motion” area where even slight body movements will
be detected.

• Vandal resistant PIR lens.

• Patented blinders - horizontal field-of-view may
be adjusted between 180° and 60° of arc by using

integral blinders located on either side of the lens.
No masking tape required.

• Manual-ON/auto-OFF mode for installations where

manual ON switching is required but auto-OFF switch-

ing is still desired for CEC Title 24 energy savings.

• To comply with Title 24, red LED indicator light

flashes when PIR sensor detects motion to verify
detection is active.

• Time Delay - In adapting mode, the time delay can
be configured from 30s (test mode), 5, 10, and 20

minutes. In non-adapting mode, the delay can be

configured from 5, 10, 20, and 30 minutes.

• Light Sensor adjustable Ambient Light Override
ranges from approxi-mately 2Fc (20LUX) to 500+FC
(5000+LUX) to prevent lights from turning ON auto-

matically during periods of ample natural light,
increasing energy savings.

• Light sensor enables the load hold-OFF feature once

level has been set.

• Self-adjusting delayed-OFF time interval compen­sates for real-time occupancy patterns, preventing

unnecessary ON/OFF switching.

• Exclusive Walk-Through feature provides increased

energy savings by not leaving the lights ON for an
extended period after only momentary occupancy.

• Vacancy Confirmation, when the time out expires
and the relays turn OFF a 30 second vacancy con-

firmation exists to turn the relays back ON.

• False detection circuitry.

• Presentation Mode feature for slide or film presen-

tations allows pushbuttons to turn lights OFF and

with Leviton’s popular

keep them OFF while the room is occupied.

• Additional manual service switch provided for

installer to force lights to hold-OFF or hold-ON during
installation

• Beep Warn - unit beeps 3 times after delayed-OFF
time expires, then waits 10 seconds before turning

lights OFF.

• Exclusive Levition H.I.S. Circuitry. Specifically

designed to handle today’s high inrush electronic
ballast loads and offer unmatched durability and
service.

• One unit can be used for 120V through 277V light­ing. Compatible with both electronic and magnetic
ballasts.

• Relay switches at the zero crossing point of the AC

power curve to ensure maximum contact life and
compatibility with electronic ballasts.

• No neutral design in optional for retrofit applications

FIELD-OF-VIEW

The ODS15-ID provides a 180° field of view with
a maximum coverage area of approximately 2100

square feet. The maximum sensing distance in front

of the sensor is 40 feet, and at each side is 30 feet.
The “minor motion” zone detects relatively small

body movements and allows the lights to stay ON
even though a person may not be moving or walking
around the room. The remainder of the field-of-view,

the “major motion” zone, exhibits a lesser degree of

sensitivity and requires larger movements.

Major Motion, IR

Minor Motion, IR

ODS15-ID

Field-of-View (in feet)

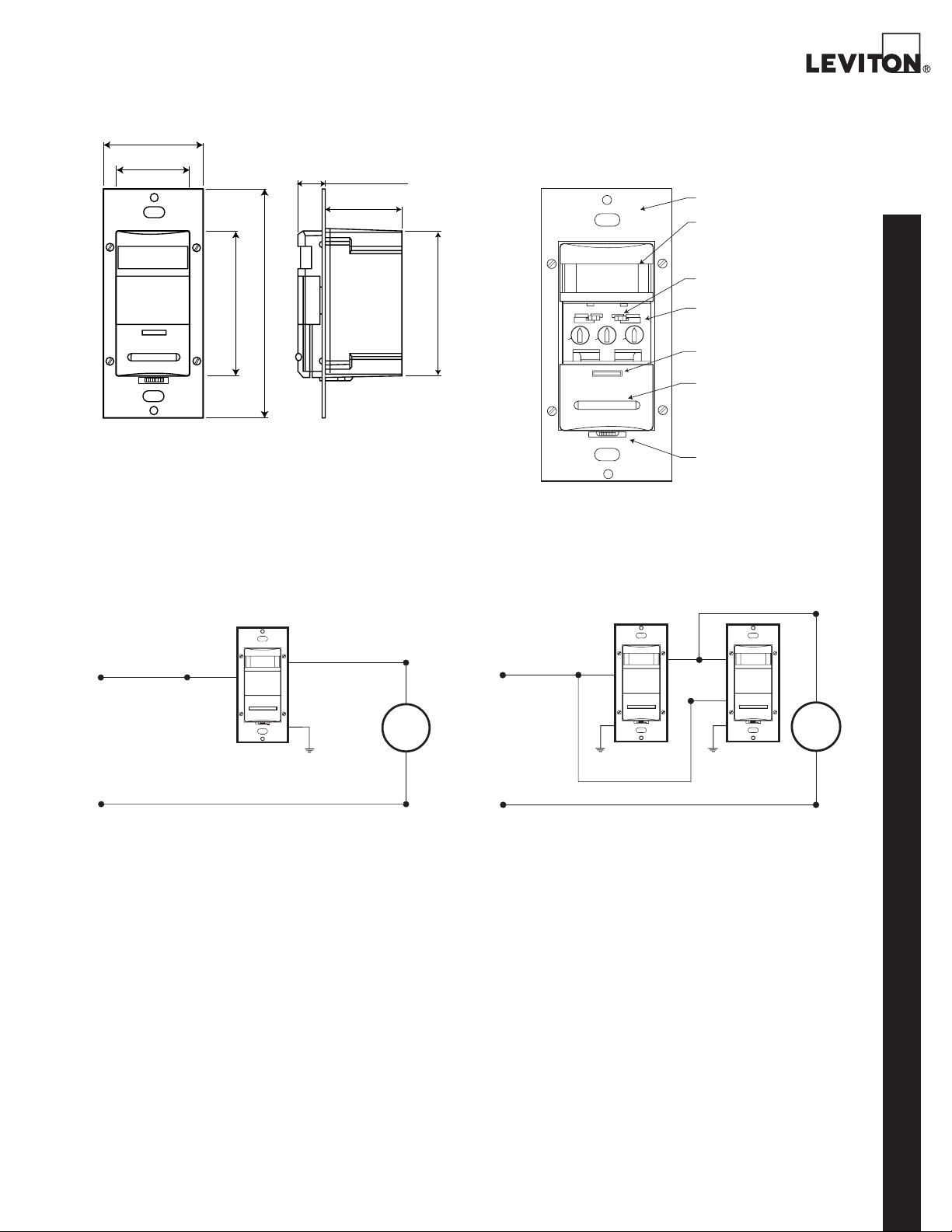

DIMENSIONAL DIAGRAMS

Hot (Black)

Load

ODS10/15

Black

Green

Ground

Blue

Line
120-230-277VAC ,
50/60Hz

Neutral (White)

Black

White

Note: Ground must be connected

ODS10/15

Note: Ground must be connected

1.75 

(44.4 mm)

1.30

(33.0 mm)

0.48 (12.6 mm)

1.35 

(34.4 mm)

Mounting Yoke

Vandal
Resistant
PIR Lens

Paten ted Blinders

ON

OFF

AUTO

BOTTOM

WIRING DIAGRAMS

BLINDERS

10

47

20

47

10

10

2.61 (66.3 mm)

4.06 (103.2 mm)

2.60 (66.2 mm)

30

TIME LIGHT

RANGE

Control Panel,
Cover Removed

LED Windo w
& Light Sensor

Pushbutton

AUTO

ON

Service Switch

OFF

BOTTOM

Blue

Hot (Black)

Blue

Black

Black

Black

Line
120-230-277V AC,
60H z

Green

Ground

Green

Ground

Load

White

ODS15

Leviton Mfg. Co., Inc. Lighting & Energy Solutions

201 N. Service Rd. Melville, NY 11747-3138 Tech Line: 1-800-824-3005 Fax: [phone] www.leviton.com/les

© 2011 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.

ODS10/15 Single Location Control

Neutral (White)

ODS10/15 Two-Location Control

3

PRODUCT DATA

INSTALLATION

The ODS15-ID is preset to deliver optimum perfor­mance in a wide variety of applications without requir­ing any adjustments during installation. Exclusive
self-adjusting operating features will automatically
compensate for real-time occupancy patterns to pro­vide maximum convenience and energy savings. The
unit may replace a single-pole wall switch mounted in
a standard wallbox. The unit must be properly ground­ed in order to operate. The unit’s integral blinders
may be used to restrict the field-of-view to prevent
unwanted detection of hallway traffic. It should be

positioned at least 6 feet away from HVAC registers.

The switch located under the push-button provides

three operational setting: “ON” holds the lighting
load ON (motion detection not active), “OFF” discon-

nects the lighting load from the power for relamping

purposes, and “AUTO” activates automatic motion

detection. Note that whenever the unit is powered
up, it will take approximately 1 minute to begin normal
operation.

SPECIFICATIONS

ELECTRICAL

Line Voltage 120-230-277 VAC
Power

Consumption
Operational

Frequency
Wire

Designation
Load Rating Fluorescent: 1800VA @ 120V 4000VA @ 277V

120V - 120mW;
277V - 280mW

50/60Hz

Line—Black, Load—Blue, Ground—Green

No Neutral Required

Incandescent: 1800W @ 120V
Motor: 1/4 HP @ 120V

ENVIRONMENTAL

Operating
Temperature
Range

Storage
Temperature
Range

Relative
Humidity

32°F to 122°F (0°C to 50°C)

14°F to 185°F (-10°C to 85°C)

20% to 90% non-condensing

OTHER

Listings UL Listed/CSA Certified

Complies with California Title 24 Energy Code
Complies with FCC Regulations, NOM

Warranty Limited Five-Year Warranty

ORDERING INFORMATION

CAT. NO.* DESCRIPTION

ODS15-ID Decora Wall Switch Occupancy Sensor,

To indicate color, add suffix to the end of the catalog number.
White (-W) , Ivory (-I), Light Almond (-T), Gray (-G), and Ebony (-E).

*NAFTA compliant and Made in USA models available.

ODS15

LEVITON SPECIFICATION SUBMITTAL

JOB NAME: CATALOG NUMBERS:
JOB NUMBER:

Leviton Manufacturing Co., Inc. Lighting & Energy Solutions

201 N. Service Rd. Melville, NY 11747-3138 Tech Line: 1-800-824-3005 Fax: [phone] www.leviton.com/les

Leviton Manufacturing of Canada, Ltd.

165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9 • Telephone: [phone] • FAX: [phone]

Leviton S. de R.L. de C.V.

Lago Tana 43, Mexico DF, Mexico CP 11290 • Tel. [phone] • FAX: [phone] • www.leviton.com.mx

Visit our Website at: www.leviton.com/les

© 2011 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.

with self-adjusting features

G-8319B/K11-tb

REV NOV 11
