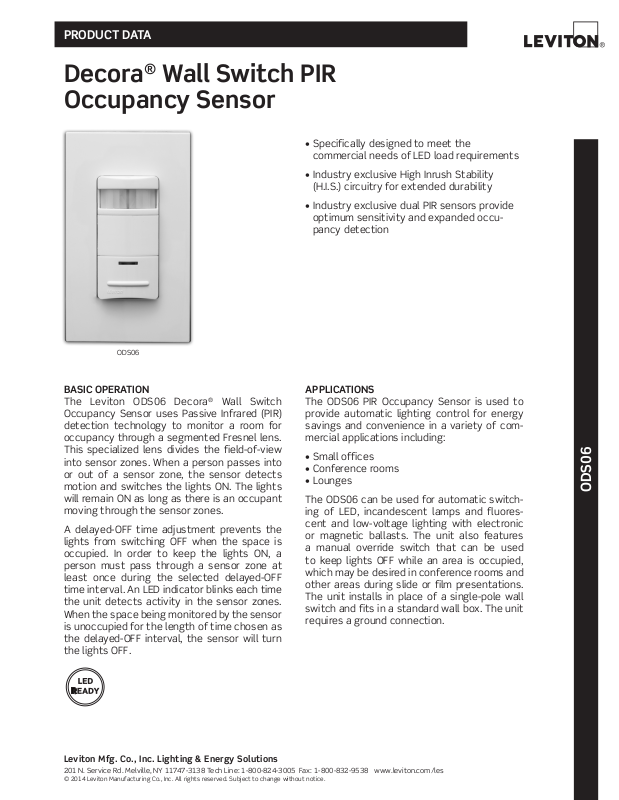

Decora® Wall Switch PIR
Occupancy Sensor
• Specifically designed to meet the
commercial needs of LED load requirements
• Industry exclusive High Inrush Stability
(H.I.S.) circuitry for extended durability
• Industry exclusive dual PIR sensors provide
optimum sensitivity and expanded occupancy detection
ODS06
BASIC OPERATION

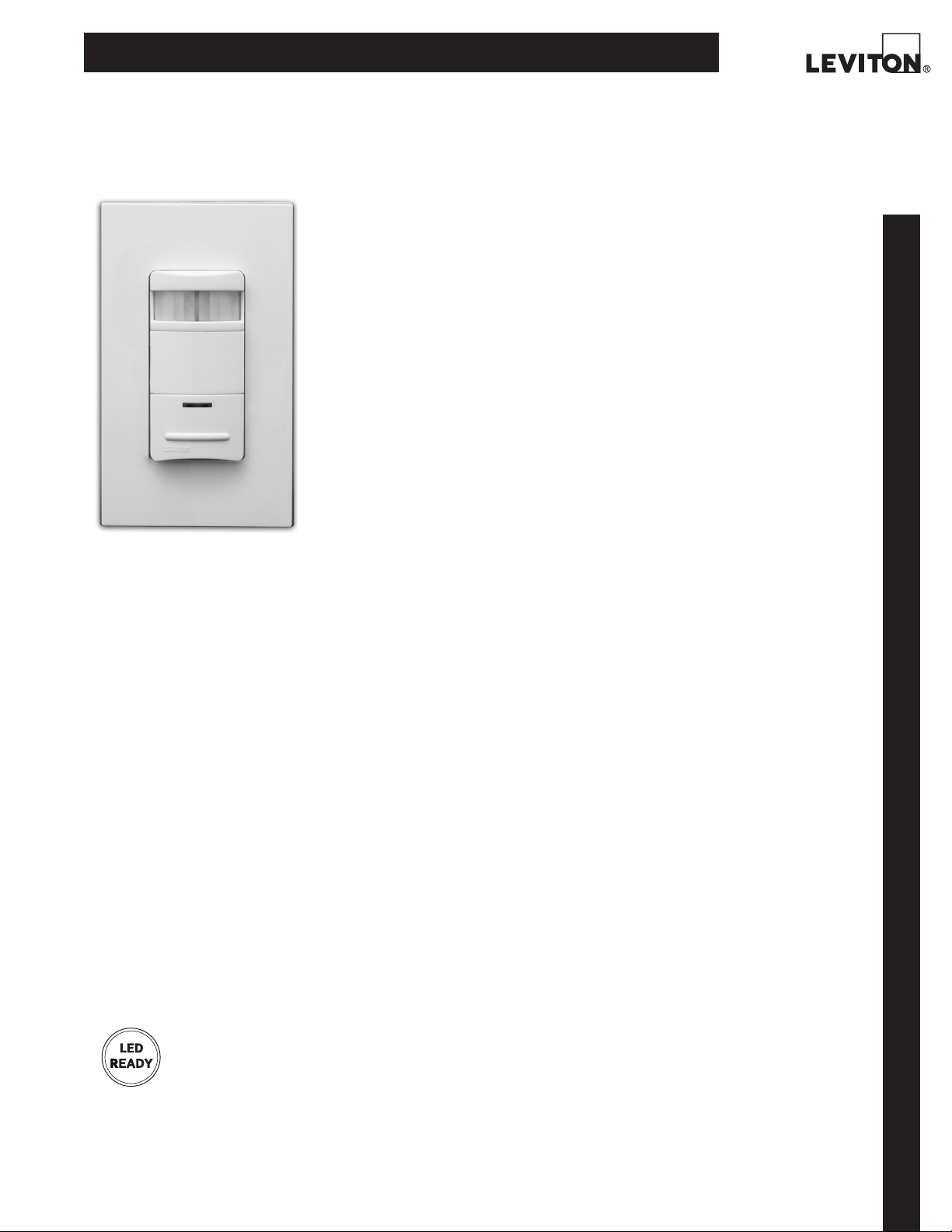

The Leviton ODS06 Decora® Wall Switch
Occupancy Sensor uses Passive Infrared (PIR)
detection technology to monitor a room for
occupancy through a segmented Fresnel lens.
This specialized lens divides the field-of-view
into sensor zones. When a person passes into
or out of a sensor zone, the sensor detects
motion and switches the lights ON. The lights
will remain ON as long as there is an occupant
moving through the sensor zones.
A delayed-OFF time adjustment prevents the
lights from switching OFF when the space is
occupied. In order to keep the lights ON, a
person must pass through a sensor zone at
least once during the selected delayed-OFF
time interval. An LED indicator blinks each time
the unit detects activity in the sensor zones.
When the space being monitored by the sensor
is unoccupied for the length of time chosen as
the delayed-OFF interval, the sensor will turn
the lights OFF.
APPLICATIONS
The ODS06 PIR Occupancy Sensor is used to
provide automatic lighting control for energy
savings and convenience in a variety of commercial applications including:
• Small offices
• Conference rooms
• Lounges
ODS06
The ODS06 can be used for automatic switching of LED, incandescent lamps and fluorescent and low-voltage lighting with electronic
or magnetic ballasts. The unit also features
a manual override switch that can be used
to keep lights OFF while an area is occupied,
which may be desired in conference rooms and
other areas during slide or film presentations.
The unit installs in place of a single-pole wall
switch and fits in a standard wall box. The unit
requires a ground connection.
Leviton Mfg. Co., Inc. Lighting & Energy Solutions
201 N. Service Rd. Melville, NY 11747-3138 Tech Line: 1-800-824-3005 Fax: 1-800-832-9538 www.leviton.com/les
© 2014 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
Page 2
PRODUCT DATA
TOP VIEW
SIDE VIEW
15
0
0
15
15
30
30
40
40
4
Minor Motion, IR
Major Motion, IR
5
0
30
FEATURES
• Fits in standard wallbox and replaces single-pole
wall switch. Gangable with other units.
• Low-profile design eliminates obtrusive appearance. Elegant Decora wallplates complement
any interior for sleek aesthetics; uses Decora
wallplates and coordinates with Leviton’s popular line of Decora wiring devices.
• 180° field-of-view provides approximately 1600
square feet (149 square meters) of coverage
suitable for small offices, conference rooms,
lounges and a variety of commercial areas.
• Convenient pushbutton provides manual-ON/
FIELD-OF-VIEW
The ODS06 provides a 180° field-of-view with a
maximum coverage area of approximately 1600
square feet (149 square meters). The maximum
sensing distance in front of the sensor is 30 feet
(3 square meters), and at each side is 30 feet. A
“minor motion” zone detects relatively small body
movements and allows the lights to stay ON even
though a person may not be moving or walking
around the room. The remainder of the field-ofview, the “major motion” zone, exhibits a lesser
degree of sensitivity and requires larger movements.
OFF light switching at any time.
• Two dual element PIR sensors used to widen
detection range.
• Vandal resistant PIR lens.
• Patented Blinders - horizontal field-of-view may
be adjusted between 180° and 180° of arc by
using integral blinders located on either side of
the lens. No masking tape required.
• Manual-ON/Auto-OFF mode for installations
where manual-ON switching is required but
auto-OFF switching is still desired for CA Title 24
energy savings.
• To comply with CA Title 24, red LED indicator
light flashes when sensor detects motion to
verify detection is active.
• Time Delay adjustment for delayed-OFF time
settings of 30 seconds (for walking test), 10
minutes, 20 minutes, and 30 minutes. Allows
customized adjustments to maximize energy
savings.
• Vacancy confirmation - when the time out
expires and the lights turn OFF a 30 second
ODS06
vacancy confirmation exists to turn the lights
ODS06
Field-of-View (in feet)
back ON.
• Presentation Mode feature for slide or film presentations allows push buttons to turn lights
OFF and keep them OFF while the room is occupied.
• One unit can be used for 120-230-277V lighting.
Compatible with LED drivers and electronic and
magnetic ballasts.
• No neutral design is optimal for retrofit applications.
Page 3
Hot (Black)
Load
ODS06
Black
Green
Ground
Blue
Line
120-130-277VAC,
50/60Hz
Neutral (White)
Black
White
Note: Ground must be connected

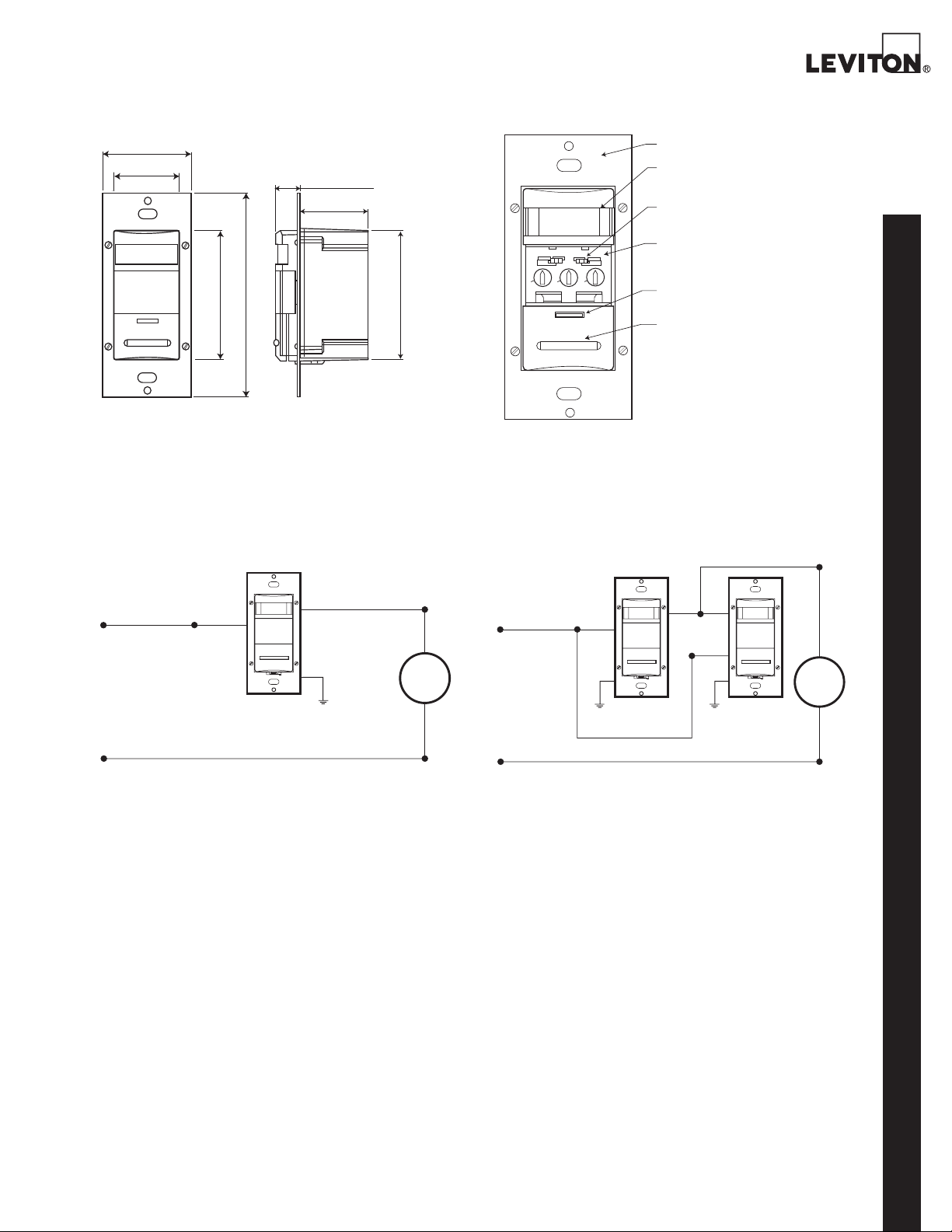

DIMENSIONAL DIAGRAMS
1.75”
(44.4 mm)
1.30”
(33.0 mm)
WIRING DIAGRAM
2.61”
(66.3 mm)
4.06”
(103.2 mm)
0.48”
(12.6 mm)
1.35”
(34.4 mm)
2.60”
(66.2 mm)
BLINDERS
1
4 7
2
10
3
TIME LIGHT
RANGE
4 7
10
ODS06
Mounting Yoke
Vandal Resistant
PIR Lens
Patented
Blinders
Control Panel,
Cover Removed
LED Window and
Light Sensor
Push Button
ODS06 Wall Switch Occupancy Sensor Wiring
Diagram, Single Location Control
Blue
Hot (Black)
Blue
Black
Black
Line
120-230-277VAC,
50/60Hz
Green
Ground
Green
Ground
Neutral (White)
Note: Ground must be connected
ODS06 Wall Switch Occupancy Sensor Wiring
Diagram, Multi-Location Control
Black
Load
White
ODS06
Leviton Mfg. Co., Inc. Lighting & Energy Solutions
201 N. Service Rd. Melville, NY 11747-3138 Tech Line: 1-800-824-3005 Fax: 1-800-832-9538 www.leviton.com/les
© 2014 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
Page 4
PRODUCT DATA
INSTALLATION
The ODS06 may replace a single-pole wall switch
mounted in a standard wallbox. The unit must be
properly grounded in order to operate. The unit’s
integral blinders may be used to restrict the fieldof-view to prevent unwanted detection of hallway
traffic. It should be positioned at least 6 feet away
from HVAC registers. Note that whenever the unit
is powered up, it will take approximately one minute to begin normal operation.
ELECTRICAL
Line Voltage 120-230-277 VAC
ODS06
Operational
Frequency
Wire
Designation
Load Rating Fluorescent: 800VA @ 120V
ENVIRONMENTAL
Operating
Temperature
Range
Storage
Temperature
Range
Relative
Humidity
OTHER
Listings cULus, CA Title 24 compliant,
Warranty Limited Five-Year Warranty
50/60Hz
Line - Black, Load - Blue,
Ground - Green
No neutral required
1500VA @ 277V
Incandescent: 600W @ 120V
Motor: 1/4 HP @ 120V
32°F to 122°F (0°C to 50°C)
14°F to 185°F (-10°C to 85°C)
20% to 90% non-condensing
Complies with FCC Regulations,
NOM Certified
ORDERING INFORMATION
CAT. NO. DESCRIPTION
ODS06-INx Decora PIR Wall Switch Occupancy
Sensor, NAFTA compliant
