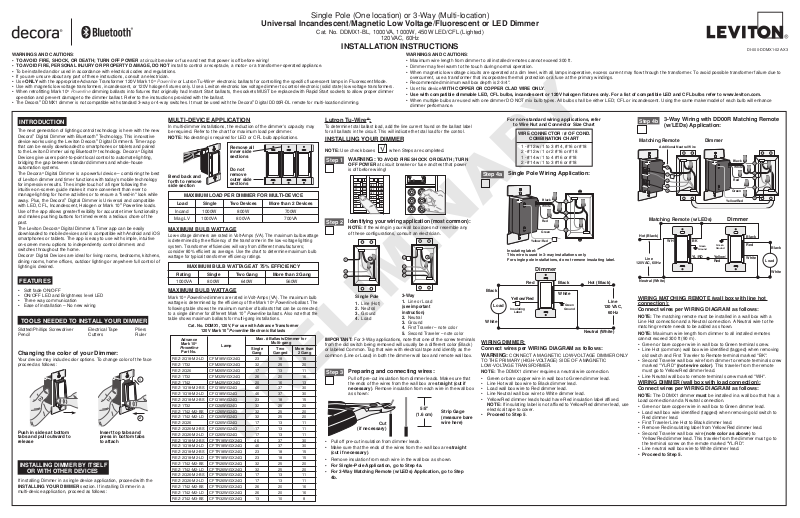

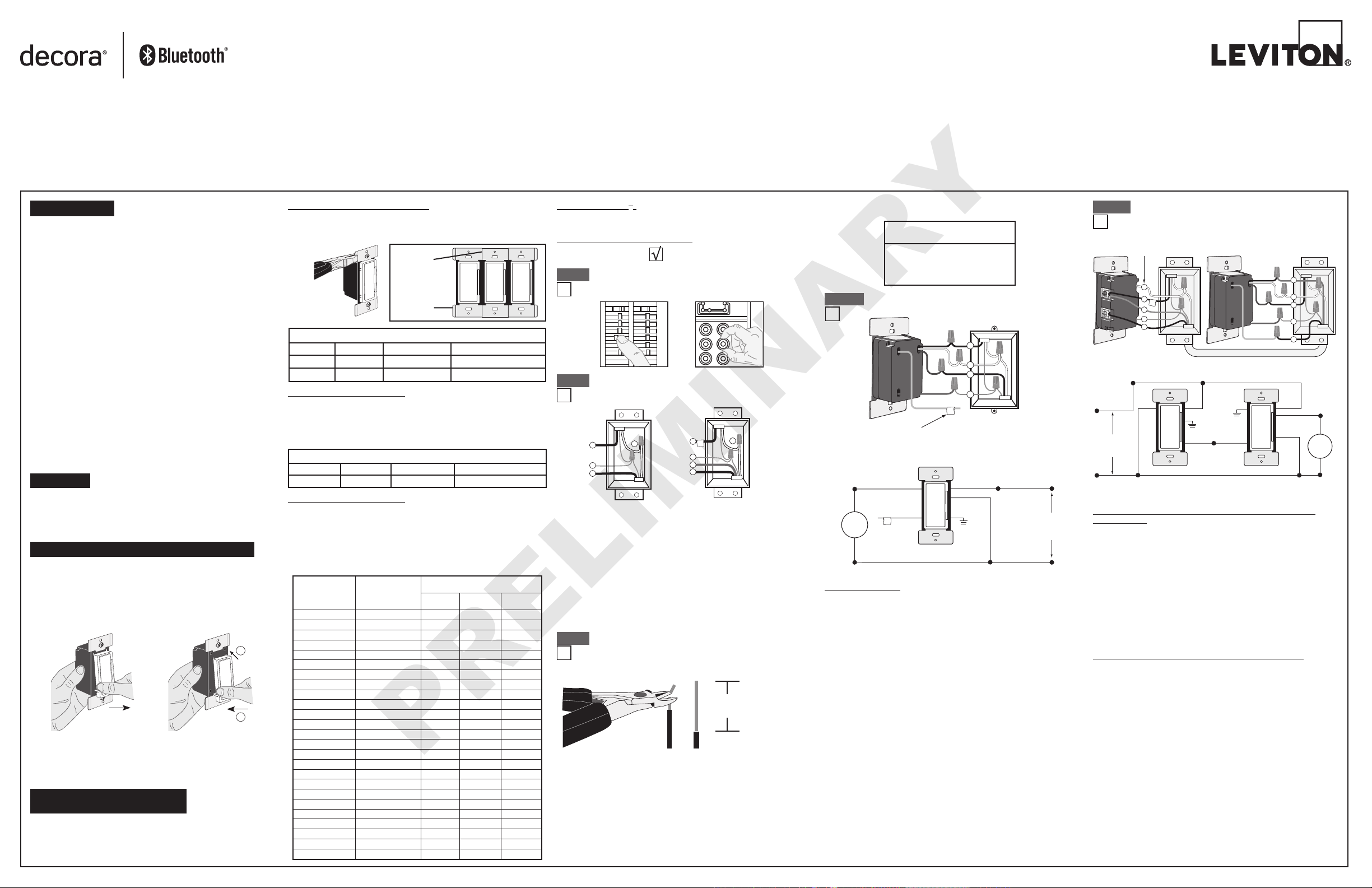

Page 1

PRELIMINARY

Single Pole (One location) or 3-Way (Multi-location)

Dimmer

Neutral (White)

For single pole installations, do not remove insulating label.

Neutral (White)

Dimmer

Matching Remote (w/LEDs)

Black

White

120V

Matching Remote Dimmer

Universal Incandescent/Magnetic Low Voltage/Fluorescent or LED Dimmer

Cat. No. DDMX1-BL, 1000VA, 1000W, 450W LED/CFL (Lighted)

120VAC, 60Hz

INSTALLATION INSTRUCTIONS

WARNINGS AND CAUTIONS:

• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER at circuit breaker or fuse and test that power is off before wiring!

•

TO AVOID FIRE, PERSONAL INJURY OR PROPERTY DAMAGE, DO NOT install to control a receptacle, a motor- or a transformer-operated appliance.

• To be installed and/or used in accordance with electrical codes and regulations.

• If you are unsure about any part of these instructions, consult an electrician.

• Use ONLY with the appropriate Advance Transformer 120V Mark 10® Powerline or Lutron Tu-Wire® electronic ballasts for controlling the speciﬁc ﬂuorescent lamps in Fluorescent Mode.

• Use with magnetic low voltage transformers, incandescent, or 120V halogen ﬁxtures only. Use a Leviton electronic low voltage dimmer to control electronic (solid state) low voltage transformers.

• When retroﬁtting Mark 10® Powerline dimming ballasts into ﬁxtures that originally had Instant Start ballasts, the sockets MUST be replaced with Rapid Start sockets to allow proper dimmer operation and prevent damage to the dimmer ballast. Refer to the instructions provided with the ballast.

• The Decora®

DDMX1 dimmer is not compatible with standard 3-way or 4-way switches. It must be used with the

Decora® Digital DD00R-DL remote for multi-location dimming

WARNINGS AND CAUTIONS:

DI-000-DDMX1-02A-X3

• Maximum wire length from dimmer to all installed remotes cannot exceed 300 ft.

• Dimmer may feel warm to the touch during normal operation.

• When magnetic low voltage circuits are operated at a dim level, with all lamps inoperative, excess current may ﬂow through the transformer. To avoid possible transformer failure due to overcurrent, use a transformer that incorporates thermal protection or a fuse at the primary windings.

• Recommended minimum wall box depth is 2-3/4".

• Use this device WITH COPPER OR COPPER CLAD WIRE ONLY.

Use with compatible dimmable LED, CFL bulbs, incandescent or 120V halogen ﬁxtures only. For a list of compatible LED and CFL bulbs refer to www.leviton.com.

•

• When multiple bulbs are used with one dimmer DO NOT mix bulb types. All bulbs shall be either LED; CFL or incandescent. Using the same make/model of each bulb will enhance dimmer performance.

INTRODUCTION

The next generation of lighting control technology is here with the new

Digital Dimmer with Bluetooth® Technology. This innovative

Decora device works using the Leviton Decora that can be easily downloaded to smartphones or tablets and paired to the Leviton Dimmer using Bluetooth Devices give users point-to-point local control to automate lighting,

Digital Dimmer & Timer app

technology. Decora® Digital

bridging the gap between standard dimmers and whole-house automation systems.

The Decora of Leviton dimmer and timer functions with today’s mobile technology

Digital Dimmer is a powerful device – combining the best

for impressive results. The simple touch of a ﬁnger following the intuitive on-screen guide makes it more convenient than ever to manage lighting for home activities or to ensure a "lived-in" look while away. Plus, the Decora with LED, CFL, Incandescent, Halogen or Mark 10

Digital Dimmer is Universal and compatible

Use of the app allows greater ﬂexibility for accurate timer functionality and makes pushing buttons for timed events a tedious chore of the past.

The Leviton Decora downloaded to mobile devices and is compatible with Android and iOS

Digital Dimmer & Timer app can be easily

smartphones or tablets. The app is easy to use with simple, intuitive on-screen menu options to independently control dimmers and switches throughout the home.

Digital Devices are ideal for living rooms, bedrooms, kitchens,

Decora dining rooms, home ofﬁces, outdoor lighting or anywhere full control of lighting is desired.

FEATURES

• Soft fade ON/OFF

• ON/OFF LED and Brightness level LED

• Three way communication

• Ease of installation – No new wiring

TOOLS NEEDED TO INSTALL YOUR DIMMER

Slotted/Phillips Screwdriver Electrical Tape Pliers Pencil Cutters Ruler

Changing the color of your Dimmer:

Your device may include color options. To change color of the face proceed as follows:

Push in sides at bottom tabs and pull outward to release

Insert top tabs and press in bottom tabs to attach

INSTALLING DIMMER BY ITSELF

OR WITH OTHER DEVICES

If installing Dimmer in a single device application, proceed with the INSTALLING YOUR DIMMER section. If installing Dimmer in a multi-device application, proceed as follows:

Powerline loads.

MULTI-DEVICE APPLICATION

In multi-dimmer installations, the reduction of the dimmer’s capacity may be required. Refer to the chart for maximum load per dimmer.

NOTE: No derating is required for LED or CFL bulb applications.

Remove all inner side sections

Do not

Bend back and forth to remove side section

MAXIMUM LOAD PER DIMMER FOR MULTI-DEVICE

Load

Incand

Mag LV

Single

1000W

1000VA

MAXIMUM BULB WATTAGE

Low-voltage dimmers are rated in Volt-Amps (VA). The maximum bulb wattage is determined by the efﬁciency of the transformer in the low-voltage lighting system. Transformer efﬁciencies will vary from different manufacturers; consider 80% efﬁcient as average. Use the chart to determine maximum bulb wattage for typical transformer efﬁciency ratings.

MAXIMUM BULB WATTAGE AT 75% EFFICIENCY

Rating

1000VA

Single

800W

MAXIMUM BULB WATTAGE

Mark 10® Powerline dimmers are rated in Volt-Amps (VA). The maximum bulb wattage is determined by the efﬁciency of the Mark 10 following table shows the maximum number of ballasts that can be connected to a single dimmer for different Mark 10 table shows maximum ballasts for multi-gang installations.

Cat. No. DDMX1, 120V, For use with Advance Transformer

120V Mark 10

Advance Mark 10®

Powerline

Part No.

REZ-2Q18-M2-LD REZ-1T32 REZ-2Q26 REZ-1T32 REZ-1T42 REZ-1Q18-M2-BS REZ-1Q18-M2-LD REZ-2Q18-M2-BS REZ-1T32 REZ-1T42-M2-BS REZ-1T42-M2-LD REZ-2Q26 REZ-2Q26-M2-BS REZ-2Q26-M2-LD REZ-1Q18-M2-BS REZ-1Q18-M2-LD REZ-2Q18-M2-BS REZ-2Q18-M2-LD REZ-1T42-M2-BS REZ-1T42-M2-LD REZ-2Q26-M2-BS REZ-2Q26-M2-LD REZ-1T42-M2-BS REZ-1T42-M2-LD REZ-2T42-M3-BS CFTR32W/GX24Q 13 10 8

CFM26W/GX24Q 32 25 20 CFM26W/GX24Q 17 13 11 CFM32W/GX24Q 26 20 16 CFM42W/GX24Q 20 16 13 CFQ18W/G24Q 46 37 30 CFQ18W/G24Q 46 37 30 CFQ18W/G24Q 23 18 15 CFQ26W/G24Q 32 25 20 CFQ26W/G24Q 32 25 20 CFQ26W/G24Q 32 25 20 CFQ26W/G24Q 17 13 11 CFQ26W/G24Q 17 13 11 CFQ26W/G24Q 17 13 11 CFTR18W/GX24Q 46 37 30 CFTR18W/GX24Q 46 37 30 CFTR18W/GX24Q 23 18 15 CFTR18W/GX24Q 23 18 15 CFTR26W/GX24Q 32 25 20 CFTR26W/GX24Q 32 25 20 CFTR26W/GX24Q 17 13 11 CFTR26W/GX24Q 17 13 11 CFTR32W/GX24Q 26 20 16 CFTR32W/GX24Q 26 20 16

remove outer side sections

Two Devices

800W

800VA

Two Gang

640W

Powerline ballasts. Also note that the

Powerline Electronic Ballasts

Max. # Ballasts/Dimmer for

Lamp

Single

Gang

More than 2 Devices

700W

700VA

More than 2 Gang

560W

Powerline ballast. The

Multi-gang

Two

Ganged

More than

2 Gang

151823CFM18W/GX24Q

Lutron Tu-Wire®:

To determine total ballast load, add the line current found on the ballast label for all ballasts in the circuit. This will indicate the total load for the control.

INSTALLING YOUR DIMMER

NOTE: Use check boxes when Steps are completed.

Step 1

Step 2

IMPORTANT: For 3-Way applications, note that one of the screw terminals

from the old switch being removed will usually be a different color (Black) or labeled Common. Tag that wire with electrical tape and identify as the common (Line or Load) in both the dimmer wall box and remote wall box.

Step 3

• Pull off pre-cut insulation from dimmer leads.

• Make sure that the ends of the wires from the wall box are straight

• Remove insulation from each wire in the wall box as shown.

• For Single-Pole Application, go to Step 4a.

• For 3-Way Matching Remote (w/LEDs) Application, go to Step

WARNING: TO AVOID FIRE SHOCK OR DEATH; TURN

OFF POWER at circuit breaker or fuse and test that power

is off before wiring!

ONOFF

ONOFFONOFF

Identifying your wiring application (most common):

NOTE: If the wiring in your wall box does not resemble any

of these conﬁgurations, consult an electrician.

Single Pole

Line (Hot)

2. Neutral

3. Ground

4. Load

3 4 5

3-Way

Line or Load

(see important instruction)

2. Neutral

3. Ground

4. First Traveler – note color

5. Second Traveler – note color

Preparing and connecting wires:

Pull off pre-cut insulation from dimmer leads. Make sure that the ends of the wires from the wall box are straight (cut if necessary). Remove insulation from each wire in the wall box as shown:

5/8"

(1.6 cm)

Cut

(if necessary)

(cut if necessary).

4b.

Strip Gage (measure bare wire here)

For non-standard wiring applications, refer

to Wire Nut and Connector Size Chart

WIRE CONNECTOR / # OF COND.

COMBINATION CHART

1 - #12 w/ 1 to 3 #14, #16 or #18 2 - #12 w/ 1 or 2 #16 or #18 1 - #14 w/ 1 to 4 #16 or #18 2 - #14 w/ 1 to 3 #16 or #18

Step 4a

Black

White

Single Pole Wiring Application:

Black

White

Red

Green

Yellow/Red

Insulating label: This wire is used in 3-way installations only.

Red

Yellow/Red

Load

Insulating

Label

White

Green

Ground

Hot (Black)Black

Line

120 VAC,

60Hz

WIRING DIMMER: Connect wires per WIRING DIAGRAM as follows: WARNING: CONNECT A MAGNETIC LOW-VOLTAGE DIMMER ONLY

TO THE PRIMARY (HIGH-VOLTAGE) SIDE OF A MAGNETIC LOW-VOLTAGE TRANSFORMER.

NOTE: The DDMX1 dimmer requires a neutral wire connection.

• Green or bare copper wire in wall box to Green dimmer lead.

• Line Hot wall box wire to Black dimmer lead.

• Load wall box wire to Red dimmer lead.

• Line Neutral wall box wire to White dimmer lead.

• Yellow/Red dimmer lead should have Red insulation label afﬁxed. NOTE: If insulating label is not afﬁxed to Yellow/Red dimmer lead, use

electrical tape to cover.

• Proceed to Step 5.

Step 4b

Hot (Black)

3-Way Wiring with DD00R Matching Remote (w/LEDs) Application:

Additional Neutral Wire

Green

Ground

Yellow/ Red

Black

White

Red

Green

Yellow/Red

Line

AC, 60Hz

WH BK

YL/RD

Green

Ground

Black

Red

White

Load

WIRING MATCHING REMOTE (wall box with line hot connection):

Connect wires per WIRING DIAGRAM as follows:

NOTE: The matching remote must be installed in a wall box with a

Line Hot connection and a Neutral connection. A Neutral wire to the matching remote needs to be added as shown.

NOTE: Maximum wire length from dimmer to all installed remotes cannot exceed 300 ft (90 m).

• Green or bare copper wire in wall box to Green terminal screw.

• Line Hot (common) wall box wire identiﬁed (tagged) when removing old switch and First Traveler to Remote terminal marked "BK".

• Second Traveler wall box wire from dimmer to remote terminal screw marked "YL/RD" (note wire color). This traveler from the remote must go to Yellow/Red dimmer lead.

• Line Neutral wall box to remote terminal screw marked "WH".

WIRING DIMMER (wall box with load connection): Connect wires per WIRING DIAGRAM as follows:

NOTE: The DDMX1 dimmer must be installed in a wall box that has a

Load connection and a Neutral connection.

• Green or bare copper wire in wall box to Green dimmer lead.

• Load wall box wire identiﬁed (tagged) when removing old switch to Red dimmer lead.

• First Traveler Line Hot to Black dimmer lead.

• Remove Red insulating label from Yellow/Red dimmer lead.

• Second Traveler wall box wire (note color as above) to Yellow/Red dimmer lead. This traveler from the dimmer must go to the terminal screw on the remote marked "YL/RD".

• Line neutral wall box wire to White dimmer lead.

• Proceed to Step 5.

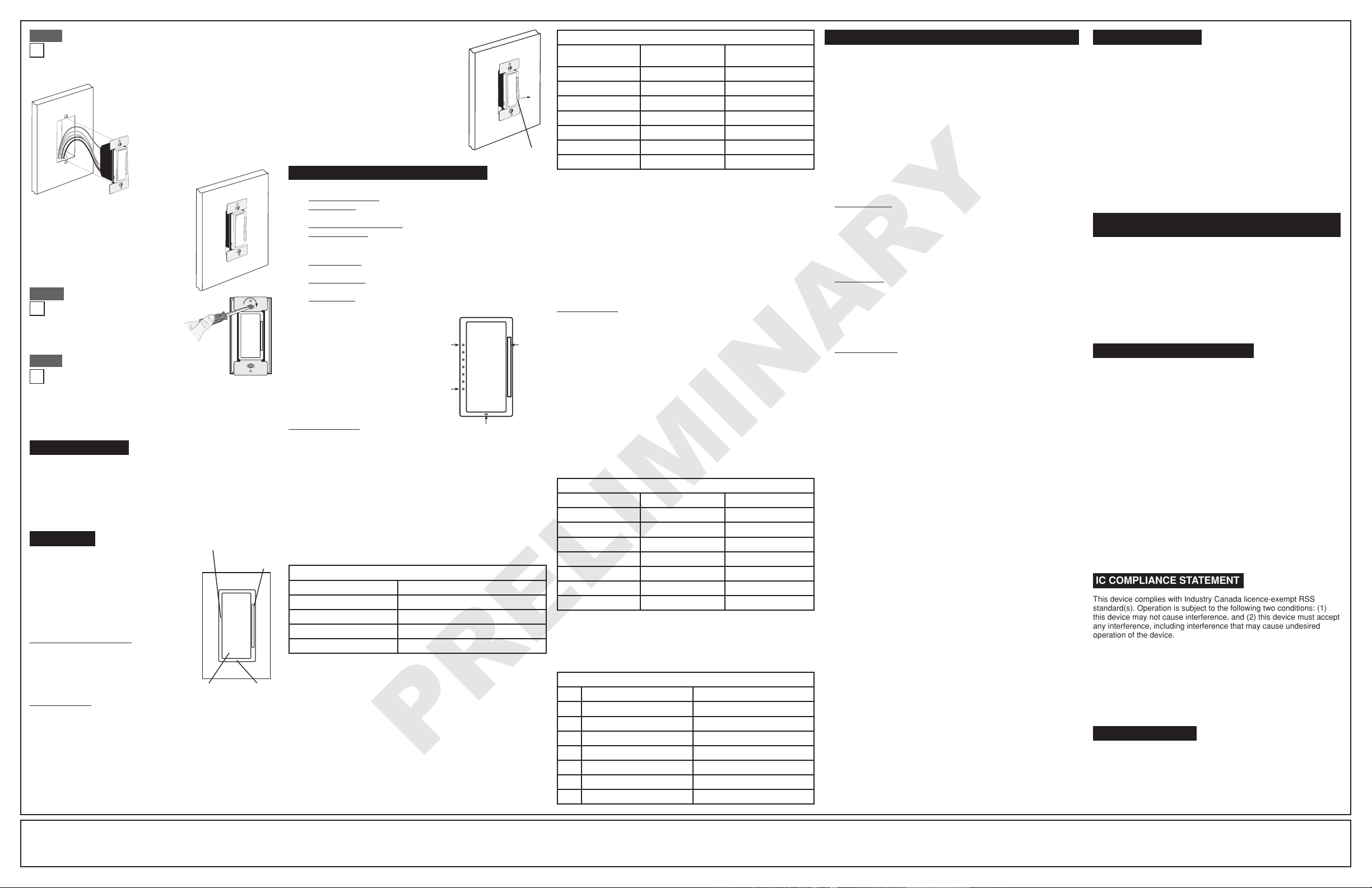

Page 2

PRELIMINARY

Locator LED

Step 5

NOTE: If using in a dimmable ﬂuorescent application see Advanced Programming Feature A-1 prior to testing the device.

• Restore power at circuit breaker or fuse.

• Press pad until locator light is OFF. Lights

If lights still do not turn ON, refer to the TROUBLESHOOTING section.

Step 6

Installation may now be completed by tightening mounting screws into wall box. Attach wallplate.

Step 7

OTE: To pair your dimmer with your mobile device, download the

Leviton Decora Store or your iTunes account. Contact Leviton’s Techline at 1-800824-3005 or visit Leviton’s website at www.leviton.com for additional information.

Testing your Dimmer prior to mounting in wall box:

• Position all wires to provide room in outlet wall box for device.

• Ensure that the word “TOP” is facing up on device strap.

• Partially screw in mounting screws in wall box mounting holes.

NOTE: Dress wires with a bend as shown in diagram in order to relieve stress when mounting device.

should turn ON. If lights do not turn ON, press the TOP half of the DIM/BRIGHT Bar until the lights brighten.

Dimmer Mounting:

TURN OFF POWER AT CIRCUIT BREAKER OR FUSE.

Restore Power:

Restore power at circuit breaker or fuse. Installation is complete.

Digital Dimmer and Timer app from the Google Play

FACTORY DEFAULT

If your dimmer is not responding, or you are unable to control it after you have tried to Pair/Connect to it multiple times, it may be necessary to reset the dimmer to its original factory settings. To accomplish this, proceed as follows:

On the dimmer, hold the TOP of the rocker until the locator LED starts to blink. The dimmer is now reset. Once the dimmer is reset, it may be necessary to re-pair with the your application.

OPERATION

NOTE: The locator light will illuminate when

the load is in the OFF position to facilitate access in the dark.

NOTE: If using the dimmer in a 3-way application, the lights will turn ON at brightness set on dimmer’s DIM/BRIGHT bar. The lighting can be controlled from either the dimmer, the remote location or the mobile device app.

Push Pad (Default settings) Turn ON from OFF position:

Tap TOP of Rocker: Lights turn ON to preset level.

Turn OFF from ON position:

Tap BOTTOM of Rocker. Lights turn OFF.

DIM/BRIGHT Bar BRIGHTEN:

Press the TOP half of the DIM/BRIGHT Bar – Lights brighten to desired level.

DIM:

Press the BOTTOM half of the DIM/BRIGHT Bar – Lights dim to desired

If you continue to hold, the lights will DIM to minimum level and

level. then turn OFF. NOTE: When lights are OFF you can change the light level that the lights will turn ON to using the DIM/BRIGHT Bar. If there is a power outage, when the power is restored, the lights will return to the last setting before the power interruption.

LED Brightness

Display

Rocker

DIM/BRIGHT

Bar

Locator

Light

Air-Gap Switch: On the dimmer only, engage

the air-gap switch by gently pulling out from the bottom of the DIM/BRIGHT bar until the bottom of the bar lifts completely out of the frame and a click is heard (refer to Figure). LED's will turn OFF. This will stop power to the ﬁxture to replace the bulb. After servicing is complete, press the DIM/BRIGHT Bar back into place for normal operation.

Cleaning: Clean with a damp cloth. DO NOT use chemical cleaners.

Gently pull out from bottom

ADVANCED PROGRAMMING FEATURES

Deﬁnition of A Modes

Load Type Selection

A-1)

Energy Save: Sets the maximum brightness level for energy

A-2)

savings.

Minimum Brightness Level: Sets the minimum dimming level.

A-3)

Preset ON Level: Sets the turn on brightness level regardless of

A-4)

the previous set light level.

Deﬁnition of B Modes

ON Fade Rate: Sets the amount of time in seconds it takes the

B-1)

lights to turn ON to maximum brightness.

OFF Fade Rate: Sets the amount of time in seconds it takes the

B-2)

lights to turn OFF from maximum brightness.

LED Options: Sets the time period in seconds the Locator LED

B-3)

and Brightness display will stay on before extinguishing.

Deﬁnition of LEDs

Bottom LED = LED 1 Top LED = LED 7

NOTES:

• The device will exit programming mode after 3 minutes of inactivity.

• Pressing the TOP of the Rocker at any time during programming will advance the device to the next programming mode.

Program Mode A

To enter Program Mode A:

Press and hold the TOP of the Rocker and the TOP of the DIM/BRIGHT Bar simultaneously for 5 seconds until the Locator LED begins to blink.

Upon releasing the TOP of the Rocker and the TOP of the DIM/

A-1)

BRIGHT Bar, the Locator LED will continue to blink once per second to display the device is in Program Mode A-1, Load Type Selection. The bottom LED will illuminate to display that the Load Type selected is Incandescent/MLV load (default load type). To change the load type, use the DIM/BRIGHT Bar to change the corresponding LED to the desired load type according to the Load Type Chart below. By tapping the TOP of the Rocker, this setting will automatically be saved and the device will advance to the next Programming Mode, A-2, Energy Save (Maximum Brightness

Level).

LOAD TYPE CHART

When indicator is at LED # Selected Load Type is

1 Incandescent/MLV

2 LED

3 CFL

4 Mark 10

Energy Save (Maximum Brightness Level): NOTE - Energy Save

A-2)

Mode can only be used with an incandescent or magnetic low voltage load. The Locator LED will blink 2 times per second to indicate the device is in Program Mode A-2, Energy Save (Maximum Brightness Level).The default Energy Save Mode is 100% i.e. full bright. To change the Energy Save level, use the DIM/BRIGHT Bar to move the corresponding LED to the desired discreet preset level according to the Energy Save Chart. By tapping the TOP of the Rocker this setting will automatically be saved and the device will advance to the next Programming Mode, A-3, Minimum Brightness Level.

LED 7

LED 1

Dim/ Bright Bar

ENERGY SAVE CHART

When indicator is at

LED #

7 100% 0%

6 97% 5%

5 95% 8%

4 90% 11%

3 85% 14%

2 80% 17%

1 75% 20%

A-3)

The Locator LED will blink 3 times per second to indicate the device is in Program Mode A-3, Minimum Brightness Level. The default Minimum Brightness Level is LED 2. To change the Minimum Brightness Level from 1-50%, use the DIM/BRIGHT Bar. The light output will reﬂect the minimum brightness level selected. By tapping the TOP of the Rocker this setting will automatically be saved and the device will advance to the next programming mode, A-4, Preset ON Level.

A-4)

The Locator LED will blink 4 times per second to indicate Program Mode A-4, Preset ON Level. To change the current Preset ON Level from 1-100%, use the DIM/BRIGHT Bar. If this feature is not desired, press and hold the BOTTOM half of the DIM/BRIGHT Bar until no LED is lit (default setting). By tapping the TOP of the Rocker this setting will automatically be saved and the device will exit Programming Mode A.

Program Mode B To enter Program Mode B:

Press and hold the TOP of the Rocker and then the BOTTOM of the DIM/ BRIGHT Bar for 5 seconds until the Locator LED and the TOP LED (LED 7) begin to blink.

Upon releasing the TOP of the Rocker and the BOTTOM of the DIM/

B-1)

BRIGHT Bar, the Locator LED will continue to blink once per second indicating the dimmer is in Program Mode B-1, ON Fade Rate. To change the ON Fade Rate, use the DIM/BRIGHT Bar to move the LED to the desired preset level according to the Fade Rate Chart. By tapping the Top of the Rocker this setting will automatically be saved and the device will advance to the next programming mode, B-2, OFF Fade Rate.

The Locator LED will blink 2 times per second to indicate Program

B-2)

Mode B-2, OFF Fade Rate. To change the OFF Fade Rate, use the DIM/BRIGHT Bar to move the LED to the desired preset level according to the Fade Rate Chart. By tapping the TOP of the Rocker this setting will automatically be saved and the device will advance to the next programming mode, B-3 LED Options.

LED Fade ON Fade OFF

1 0 seconds (instant) 0 seconds (instant)

2 0.5 seconds 0.5 seconds

3 1.5 seconds 1.5 seconds

4 3 seconds 3 seconds

5 6 seconds 6 seconds

6 10 seconds 10 seconds

7 25 seconds 25 seconds

B-3)

The Locator LED will blink 3 times per second to indicate Program Mode B-3, LED Options. To change the LED Options settings, use the DIM/BRIGHT Bar to move the LED to the desired preset setting according to the LED Options Chart. By tapping the Top of the Rocker this setting will automatically be saved and the device will exit Programming Mode B.

LED Locator LED Timeout LED Brightness Display Options

1 Active Active

2 Active Turns OFF 5 seconds after use

3 Turns OFF 5 seconds after use Active

4 Turns OFF 5 seconds after use Turns OFF 5 seconds after use

5 N/A N/A

6 N/A N/A

7 N/A N/A

Light output is at

FADE RATE CHART

LED OPTIONS CHART

Energy consumption

savings amount to

Download the Leviton Decora® Digital Dimmer & Timer App for your device.

Android: Tap the Google Play Store icon on your phone or go to

http://play.google.com on your computer and follow the instructions to obtain the app.

iPhone: Tap the App Store icon on your phone or access the app

through your iTunes account on your computer.

Once you have downloaded the app, follow the instructions on the screen to pair your mobile device with your dimmer. Once your mobile device is paired, use the following options to control your dimmer:

• On - Off: Turns the dimmer ON and OFF.

• Schedule: Creates distinct ON/OFF events based on time and day.

• Sleep Timer: Sets countdown to turn dimmer OFF.

Advanced Settings Device Options

• Randomized Scheduled Events: Cycles lights ON and OFF to

ensure a "lived-in" look while away.

• Hide LED Dim Bar: Turns LED Dim Bar OFF.

• Hide Status LED: Turns Status LED OFF.

• DST Offset Hours: Adjusts the Sunrise/Sunset time in hours.

• DST Offset Minutes: Adjusts the Sunrise/Sunset time in minutes. Bulb Options

• Load Type: Sets load type to Incandescent/Magnetic Low-Voltage,

LED, CFL or Mark 10®.

• Fade On: Sets the amount of time for the lights to turn ON to

maximum brightness.

• Fade Off: Sets the amount of time for the lights to turn to OFF from

maximum brightness.

Lighting Options

• Preset: Sets the brightness level at which the lights turn ON.

• Minimum: Sets a minimum brightness level for lighting.

• Maximum: Sets a maximum brightness level for lighting.

TROUBLESHOOTING CONTROLLING YOUR DIMMER WITH BLUETOOTH

• Lights Flickering

- Lamp has a bad connection.

- Wires not secured ﬁrmly with wire connectors of dimmer or terminal screws of remote.

- If using in a dimmable ﬂuorescent application see Advanced Programming Feature A-1.

• Light does not turn ON and Locator LED does not turn ON

- Circuit breaker or fuse has tripped.

- Lamp is burned out.

- Neutral not wired to Dimmer (White wire).

- Conﬁrm that the device is being supplied from a 120V, 60 Hz AC source ONLY.

• I ntermittent dimmer operation

- Conﬁrm that the Load being controlled does not exceed the 1000VA dimmer limit.

• Remote does not operate lights

- Ensure that total wire length does not exceed 300 ft.

- Ensure wiring is correct.

For additional information, contact Leviton’s Techline at

1-800-824-3005 or visit Leviton’s website at www.leviton.com

This product is covered by U.S. Patent No. 8,664,886 and corresponding foreign patents.

FCC COMPLIANCE STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving Antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/tv technician for help.

FCC CAUTION

Any changes or modiﬁcations not expressly approved by Leviton Manufacturing Co., Inc., could void the user's authority to operate the equipment.

IC COMPLIANCE STATEMENT

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

The Bluetooth Bluetooth SIG, Inc., used under license by Leviton. Use herein of third party trademarks, service marks, trade names, brand names and/or product names are for informational purposes only, are/may be the trademarks of their respective owners; such use is not meant to imply afﬁliation, sponsorship, or endorsement. No part of this document may be reproduced, transmitted or transcribed without the express written permission of Leviton Manufacturing Co., Inc.

word mark and logos are registered trademarks owned by

FOR CANADA ONLY

For warranty information and/or product returns, residents of Canada should contact Leviton in writing at Leviton Manufacturing of Canada

Ltd to the attention of the Quality Assurance Department, 165 Hymus Blvd, Pointe-Claire (Quebec), Canada H9R 1E9 or by

telephone at 1-800-405-5320.

DI-000-DDMX1-02A-X3

Leviton warrants to the original consumer purchaser and not for the beneﬁt of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for ﬁve years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement, at its option. For details visit www.leviton.com or call 1-800-824-3005. This warranty excludes and there is disclaimed liability for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused, opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or implied warranties of any kind, including merchantability and ﬁtness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and ﬁtness for a particular purpose, is limited to ﬁve years. Leviton is not liable for incidental, indirect, special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment, lost sales or proﬁts or delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.

LIMITED 5 YEAR WARRANTY AND EXCLUSIONS

Page 3

PRELIMINARY

ARTWORK PRINT SPECIFICATIONS

17"

4.25"

PART NUMBER REV DESCRIPTION

DI-000-DDMX1-02A-X3 Instruction sheet

SPECIFICATIONS :

Thickness:

Material:

For manuals - designates cover specifications

40 lb.

Finish:

Colors: over

Die Line Key:

Die Cut

Perforate

Fold Line

MANUAL INTERIORS / BINDERY / FOLD SCHEME :

Body Material:

Thickness:

Bindery

Die cut

Perfect Bind

PROCESS :

Offset Flexo

Other

Line Screen:

Angle:

Resolution:

Fold

Drill

Saddle Stitch

Trim

Colors: over

DIMENSIONS / FOLD SCHEME / BINDERY DIAGRAM

11"

Die Cut Punch/Drill Hole

Part No.

Spot

CMYK

Kiss Cut

Spot

CMYK

Fold Line

Fonts:

HelveticaBlack

Cellophane

Fonts:

2.75"

Glue

Part No.

FINAL

COMMENTS :

The information in this document is the exclusive PROPRIETARY property of LEVITON MANUFACTURING COMPANY, INC. It is disclosed with the understanding that acceptance or review by the recipient constitues an undertaking by the recipient. (1) to hold this information in strict confidence, and (2) not to disclose, duplicate, copy, modify or use the information for any purpose other than that for which disclosed.

FOR LEVITON USE ONLY

PlantApprovals:

X X

Mktg Eng

Cust Other

Artist:

HD0085-4848

D. Hunt

Notes:

PN-ARN: Pilot Rev:ECR Number:

J. Tang 08 B. Grande

K. Cohen

Released Artwork Format:

Production PDF

RS0263-4912 - French completed under this Art Request number.

PMCQA

S & A

Artwork Release Date:

F. Tse

Other

C. ButtittaV. LoNigro

Artwork Print Specification Sheet Rev A11.eps
