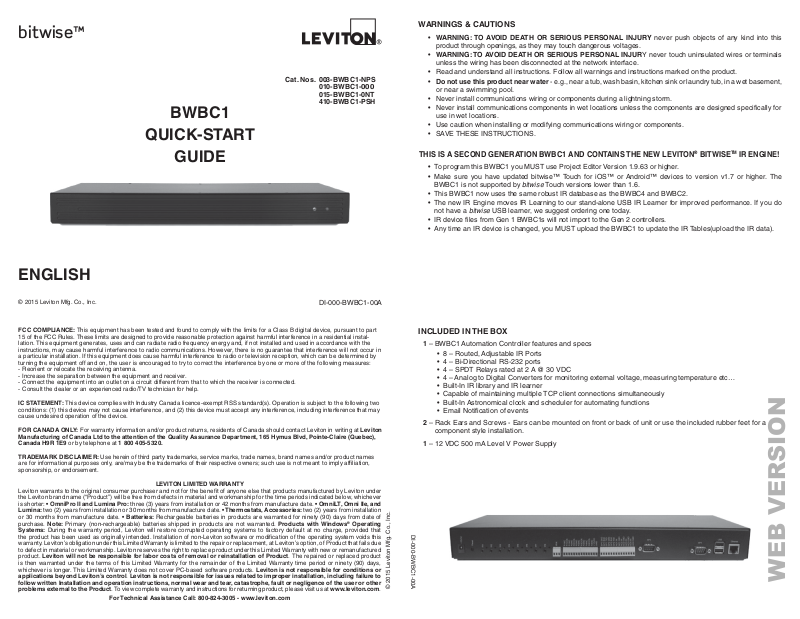

bitwise™

WEB VERSION

ENGLISH

BWBC1

QUICK-START

GUIDE

Cat. Nos.

003-BWBC1-NPS
010-BWBC1­015-BWBC1-0NT
410-BWBC1-PSH

000

WARNINGS & CAUTIONS

• WARNING: TO AVOID DEATH OR SERIOUS PERSONAL INJURY never push objects of any kind into this
product through openings, as they may touch dangerous voltages.

• WARNING: TO AVOID DEATH OR SERIOUS PERSONAL INJURY never touch uninsulated wires or terminals
unless the wiring has been disconnected at the network interface.

• Read and understand all instructions. Follow all warnings and instructions marked on the product.

• Do not use this product near water - e.g., near a tub, wash basin, kitchen sink or laundry tub, in a wet basement,
or near a swimming pool.

• Never install communications wiring or components during a lightning storm.

• Never install communications components in wet locations unless the components are designed specifically for
use in wet locations.

• Use caution when installing or modifying communications wiring or components.

• SAVE THESE INSTRUCTIONS.

THIS IS A SECOND GENERATION BWBC1 AND CONTAINS THE NEW LEVITON® BITWISETM IR ENGINE!

• To program this BWBC1 you MUST use Project Editor Version 1.9.63 or higher.

• Make sure you have updated bitwise™ Touch for iOS™ or Android™ devices to version v1.7 or higher. The

BWBC1 is not supported by bitwise Touch versions lower than 1.6.

• This BWBC1 now uses the same robust IR database as the BWBC4 and BWBC2.

• The new IR Engine moves IR Learning to our stand-alone USB IR Learner for improved performance. If you do

not have a bitwise USB learner, we suggest ordering one today.

• IR device files from Gen 1 BWBC1s will not import to the Gen 2 controllers.

• Any time an IR device is changed, you MUST upload the BWBC1 to update the IR Tables(upload the IR data).

© 2015 Leviton Mfg. Co., Inc.

FCC COMPLIANCE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal­lation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

IC STATEMENT: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.

FOR CANADA ONLY: For warranty information and/or product returns, residents of Canada should contact Leviton in writing at Leviton
Manufacturing of Canada Ltd to the attention of the Quality Assurance Department, 165 Hymus Blvd, Pointe-Claire (Quebec),
Canada H9R 1E9 or by telephone at 1 800 405-5320.

TRADEMARK DISCLAIMER: Use herein of third party trademarks, service marks, trade names, brand names and/or product names

are for informational purposes only, are/may be the trademarks of their respective owners; such use is not meant to imply affiliation,
sponsorship, or endorsement.

Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that products manufactured by Leviton under
the Leviton brand name (“Product”) will be free from defects in material and workmanship for the time periods indicated below, whichever
is shorter: • OmniPro II and Lumina Pro: three (3) years from installation or 42 months from manufacture date. • OmniLT, Omni IIe, and
Lumina: two (2) years from installation or 30 months from manufacture date. • Thermostats, Accessories: two (2) years from installation
or 30 months from manufacture date. • Batteries: Rechargeable batteries in products are warranted for ninety (90) days from date of
purchase. Note: Primary (non-rechargeable) batteries shipped in products are not warranted. Products with Windows
Systems: During the warranty period, Leviton will restore corrupted operating systems to factory default at no charge, provided that
the product has been used as originally intended. Installation of non-Leviton software or modification of the operating system voids this
warranty. Leviton’s obligation under this Limited Warranty is limited to the repair or replacement, at Leviton’s option, of Product that fails due
to defect in material or workmanship. Leviton reserves the right to replace product under this Limited Warranty with new or remanufactured
product. Leviton will not be responsible for labor costs of removal or reinstallation of Product. The repaired or replaced product
is then warranted under the terms of this Limited Warranty for the remainder of the Limited Warranty time period or ninety (90) days,
whichever is longer. This Limited Warranty does not cover PC-based software products. Leviton is not responsible for conditions or

applications beyond Leviton’s control. Leviton is not responsible for issues related to improper installation, including failure to
follow written Installation and operation instructions, normal wear and tear, catastrophe, fault or negligence of the user or other
problems external to the Product. To view complete warranty and instructions for returning product, please visit us at www.leviton.com.

For Technical Assistance Call: 800-824-3005 - www.leviton.com

LEVITON LIMITED WARRANTY

DI-000-BWBC1-00A

®

Operating

INCLUDED IN THE BOX

1 – BWBC1 Automation Controller features and specs

• 8 – Routed, Adjustable IR Ports

• 4 – Bi-Directional RS-232 ports

• 4 – SPDT Relays rated at 2 A @ 30 VDC

• 4 – Analog to Digital Converters for monitoring external voltage, measuring temperature etc…

• Built-In IR library and IR learner

• Capable of maintaining multiple TCP client connections simultaneously

• Built-In Astronomical clock and scheduler for automating functions

• Email Notification of events

2 – Rack Ears and Screws - Ears can be mounted on front or back of unit or use the included rubber feet for a

component style installation.

1 – 12 VDC 500 mA Level V Power Supply

DI-000-BWBC1-00A

© 2015 Leviton Mfg. Co., Inc.

INSTALLING THE BWBC1 – QUICK START

WEB VERSION

The BWBC1 (like the BWBC4) is an IP based controller and does need to be connected to a Local Area Network
(LAN). The BWBC1 is shipped from the factory in DHCP mode and should be able to obtain an IP address as long
as there is a DHCP server available on the network.

NOTE: BWBC1 programming and functionality require Project Editor Software version 1.9.63 or Higher.

1) Add the BWBC1 controller to a new or existing project.
a. Connect the BWBC1 to your LAN via the Ethernet Port and power from the included power adapter.

i. During start-up the Red Status LED on the front of the unit will blink in a “Heartbeat” pattern until all

processes are loaded and running. (This takes about 45 seconds.)

b. Start Project Editor Software and open an existing project or create a new one. Right-click on the BWBC1’s

node of the Project and select “Add Controller from Network”. In the resulting Controller Discovery Window,
select the IP address for the BWBC1 and select “Add to Project”.

2) Modify properties for the newly added BWBC1 via right-click on the BC1:BWCBC1 node in the project.
a. Network Settings

i. Give the BWBC1 a meaningful name for the project. Perhaps the client’s name or the location.
ii. Uncheck the “Use DHCP” checkbox
iii. Assign a valid static IP address to the BWBC1
iv. Click “Apply Settings to BWBC1”

b. Time

i. Choose the Appropriate Time Zone for the install from the drop down menu.
ii. Make sure the current Time and Date from your PC are shown in the two lines below the drop down

and click the “Set” button to set the BWBC1 time and date.

INSTALLING THE BWBC1 – QUICK START – CONTINUED

3) Location Settings – The BWBC1 has a built-in schedule that will also allow events to be triggered based on a

specific time, sunrise or sunset. In order for the sunrise and sunset calculations to work properly, it is necessary
to set the Location in the Project node.

a. Right-Click on the Project Node and select “Location”
b. Type the name of your city or town and click search to find your Lat/Long and click “OK”.

4) Email Settings – The BWBC1 can also send email notifications to recipients based on events or macros.
a. Right-Click on the Project Node and select “Email Settings”
b. Fill out the fields using the proper email server settings. For a list of common SMTP email server settings go

to http://www.emailaddressmanager.com/tips/mail-settings.html

c. Add recipients to the project and Send a test to yourself to verify email server settings.

CONGRATULATIONS!

You now have a BWBC1 configured on the network and ready to program. For more details on programming for
devices, macros and GUI interfaces, please view our training video series available in the Support Center.

CONTACT

Technical Support: 1-800-824-3005
Email: [e-mail]

[e-mail]

Web: www.leviton.com/automation

SPECIFICATIONS

CONNECTIVITY

Ethernet 10/100 Base-T

USB 2.0

DEVICE CONTROL

IR Ports 8 (routable, attenuable)

RS232

Relays 4 (SPDT)

Signal Sense 4 (analog or digital)

Network Yes

DIMENSIONS

H x W x D 2.75 in. x 17.25 in. x 6.87 in.

H x W x D (packaging)

DI-000-BWBC1-00A

MOUNTING

Shelf Yes

Rack

© 2015 Leviton Mfg. Co., Inc.

POWER

External 12 VDC - 0.5 A (adapter included)

2 Ports - future expansion

4 (2 DB9, 2 terminal strip)

5 in. x 21 in. x 13 in.

Yes (1RU front or rear with included rack ears)
