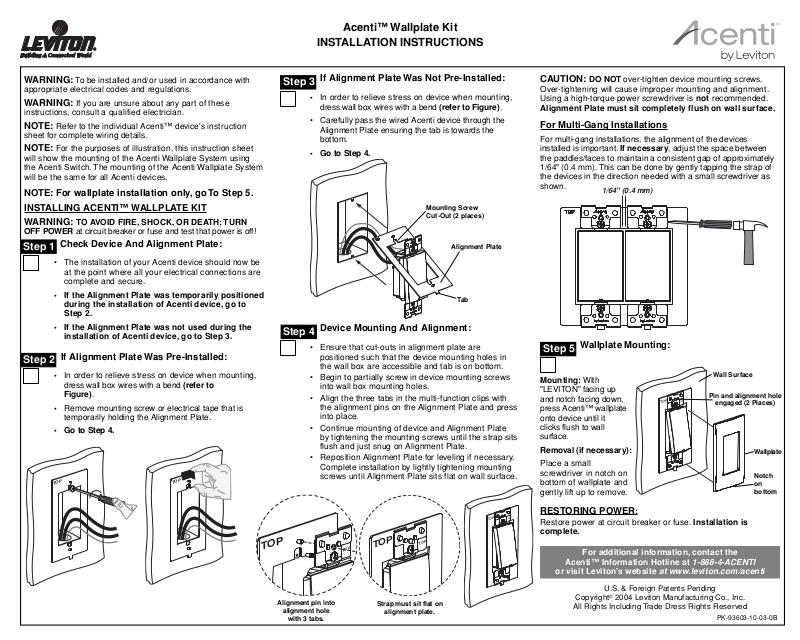

Acenti™ Wallplate Kit
TOP
TOP
TOP
TOP
INSTALLATION INSTRUCTIONS
WARNING: To be installed and/or used in accordance with
appropriate electrical codes and regulations.
WARNING: If you are unsure about any part of these
instructions, consult a qualified electrician.
NOTE: Refer to the individual Acenti™ device's instruction
sheet for complete wiring details.
NOTE: For the purposes of illustration, this instruction sheet
will show the mounting of the Acenti Wallplate System using the Acenti Switch. The mounting of the Acenti Wallplate System will be the same for all Acenti devices.
NOTE: For wallplate installation only, go To Step 5. INSTALLING ACENTI™ WALLPLATE KIT
WARNING:
OFF POWER at circuit breaker or fuse and test that power is off!
Step 1
Step 2
TO AVOID FIRE, SHOCK, OR DEATH; TURN
Check Device And Alignment Plate:
• The installation of your Acenti device should now be at the point where all your electrical connections are complete and secure.
If the Alignment Plate was temporarily positioned
during the installation of Acenti device, go to Step 2.
If the Alignment Plate was not used during the
installation of Acenti device, go to Step 3.
If Alignment Plate Was Pre-Installed:
In order to relieve stress on device when mounting,
dress wall box wires with a bend (refer to Figure).
Remove mounting screw or electrical tape that is
temporarily holding the Alignment Plate.
Go to Step 4.
TOP
TOP
Step 3
If Alignment Plate Was Not Pre-Installed:
In order to relieve stress on device when mounting,
dress wall box wires with a bend (refer to Figure).
• Carefully pass the wired Acenti device through the Alignment Plate ensuring the tab is towards the bottom.
Go to Step 4.
Mounting Screw Cut-Out (2 places)
Alignment Plate
Step 4
Device Mounting And Alignment:
• Ensure that cut-outs in alignment plate are positioned such that the device mounting holes in the wall box are accessible and tab is on bottom.
• Begin to partially screw in device mounting screws into wall box mounting holes.
• Align the three tabs in the multi-function clips with the alignment pins on the Alignment Plate and press into place.
• Continue mounting of device and Alignment Plate by tightening the mounting screws until the strap sits flush and just snug on Alignment Plate.
• Reposition Alignment Plate for leveling if necessary. Complete installation by lightly tightening mounting screws until Alignment Plate sits flat on wall surface.
Tab
CAUTION: DO NOT over-tighten device mounting screws.
Over-tightening will cause improper mounting and alignment. Using a high-torque power screwdriver is not recommended.
Alignment Plate must sit completely flush on wall surface.
For Multi-Gang Installations
For multi-gang installations, the alignment of the devices installed is important. If necessary, adjust the space between the paddles/faces to maintain a consistent gap of approximately 1/64" (0.4 mm). This can be done by gently tapping the strap of the devices in the direction needed with a small screwdriver as shown.
Step 5
Mounting: With
"LEVITON" facing up and notch facing down, press Acenti™ wallplate onto device until it clicks flush to wall surface.
Removal (if necessary):
Place a small screwdriver in notch on bottom of wallplate and gently lift up to remove.
1/64" (0.4 mm)
Wallplate Mounting:
TOP
Wall Surface
Pin and alignment hole
TOP
engaged (2 Places)
Wallplate
Notch on bottom
RESTORING POWER:
Restore power at circuit breaker or fuse. Installation is complete.
TOP
Alignment pin into
alignment hole
with 3 tabs.
TOP
Strap must sit flat on
alignment plate.
For additional information, contact the
Acenti™ Information Hotline at
or visit Leviton's website
U.S. & Foreign Patents Pending
Copyright
All Rights Including Trade Dress Rights Reserved
©
2004 Leviton Manufacturing Co., Inc.
1-888-4-ACENTI
at www.leviton.com/acenti
PK-93603-10-03-0B
Page 2
