Photometric Performance
• 1kW Fresnel, Lamp No. 176-097 1000W ANSI Code EGT
• For field diameter at any distance, multiply that distance by .242 for spot and 1.369 for flood
Beam Candlepower
Spot 184,000
Flood 16,200
Description Cat. No.
1kW Studio Fresnel Manual 1-0065
with wire lead only Pole-Op 1-1065
1kW Studio Fresnel stand
model with 12’, 3-wire cable OPT-00001
& in-line switch N/A
1kW Studio Fresnel with 20A,
2-pole, 3-wire grounding OPT-00002
pin connector same
1kW Studio Fresnel with
36” cable and 20A OPT-00004
U-ground connector same
1kW Studio Fresnel 20A,
2-pole, 3-wire grounding OPT-00006
twistlock same
1kW Studio Fresnel with
variation on OPT-00007
standard (describe) same
Accessories Cat. No.
6" Eight Leaf Barndoor 118-013
6" Diffusion Frame 120-005
6" Dichroic Filter 130-003
Safety Cable 138-059
Combo Stud (Stand mount) 138-012
6" High Hat 138-049
1 1/8" stud adapter for
pole-operated yokes 1-9501
1 1/8" stud adapter for
manual yokes 532-012
6" Scrim Set, single &
half single 122-147
Compact Stand (Castered) 152-053
C-clamp for up to 2" I.D. pipe
(furnished w/hanging model) 158-003
Operating Pole 1-9701
Lamps Cat. No.
1000W, 120V, 3200˚K,
250 Hrs., ANSI Code EGT 176-097
750W, 120V, 3200˚K,
200 Hrs., ANSI Code EGR 176-147
500W, 120V, 3200˚K,
100 Hrs., ANSI Code EGN 176-102
1000W, 240V, 3200˚K,
200 Hrs., Code CP40, G22 176-060
1000W, 220V, 3200˚K,
200 Hrs., Code CP40, G22 176-061
Specifications subject to change without notice
Specifications
• Housing is constructed of extruded and die-cast
aluminum, sheet steel and sheet aluminum with
a high-temperature baked finish.
Mechanical
• Optical Train consists of a medium bipost
halogen lamp, one specular pure aluminum
Alzak
®
reflector, and one low expansion fresnel
lens mounted in a hinged door for rapid lamp
replacement.
• Socket assembly shall be steatite insulated,
with floating diamond, four-point forged brass
contacts.
• Voltage 120/240V AC/DC
• Performance with catalog number 176-097
(ANSI code EGT) lamp in a 12.5˚ field with
184,000 beam candlepower, in spot focus, and
in flood focus a 68.8˚ field with 16,200 beam
candlepower.
• Mounting heavy steel yoke, with reinforced cast
aluminum corners for easy carrying. Manual
version fits 5/8" combo stud or C-clamp to fit up
to 2" ID pipe. Pole-operated yoke equipped with
panning gear mechanism which accommodates
1 1/8" stud or C-clamp to fit up to 2" ID pipe.
• Electrical 36" cable, 3 wire leads.
1kW Studio Fresnel
Spot Focus (Beam angle 6.1˚, Field angle 12.5˚)
Illumination* 204/2272 115/1278 74/818 51/570
(footcandles/lux)
Diameter Beam: Field 3.6/1.1:7. 3/2.2 4.8/1.4:9.7/2.9 6.0/1.8:12.1/3.6 7. 2/2.2:14.5/4.4
(feet/meters)
Distance 30/9 40/12 50/15 60/18
(feet/meters)
Flood Focus (Beam angle 60.1˚, Field angle 68.8˚)
Distance (feet/meters) 9/3 12/4 15/5 18/6
Diameter Beam: Field 10.4/3.5:12.3/4.1 13.9/4.6 :16.4/5.5 17.4/5.8:20.5/6.8 20.8/6.9:24.6/8.2
(feet/meters)
Illumination* 198/1776 111/1000 71/640 49/444
(footcandles/lux)
*All illumination data is measured at beam center
Manual 1-0065
Pole-Op 1-1065
............................

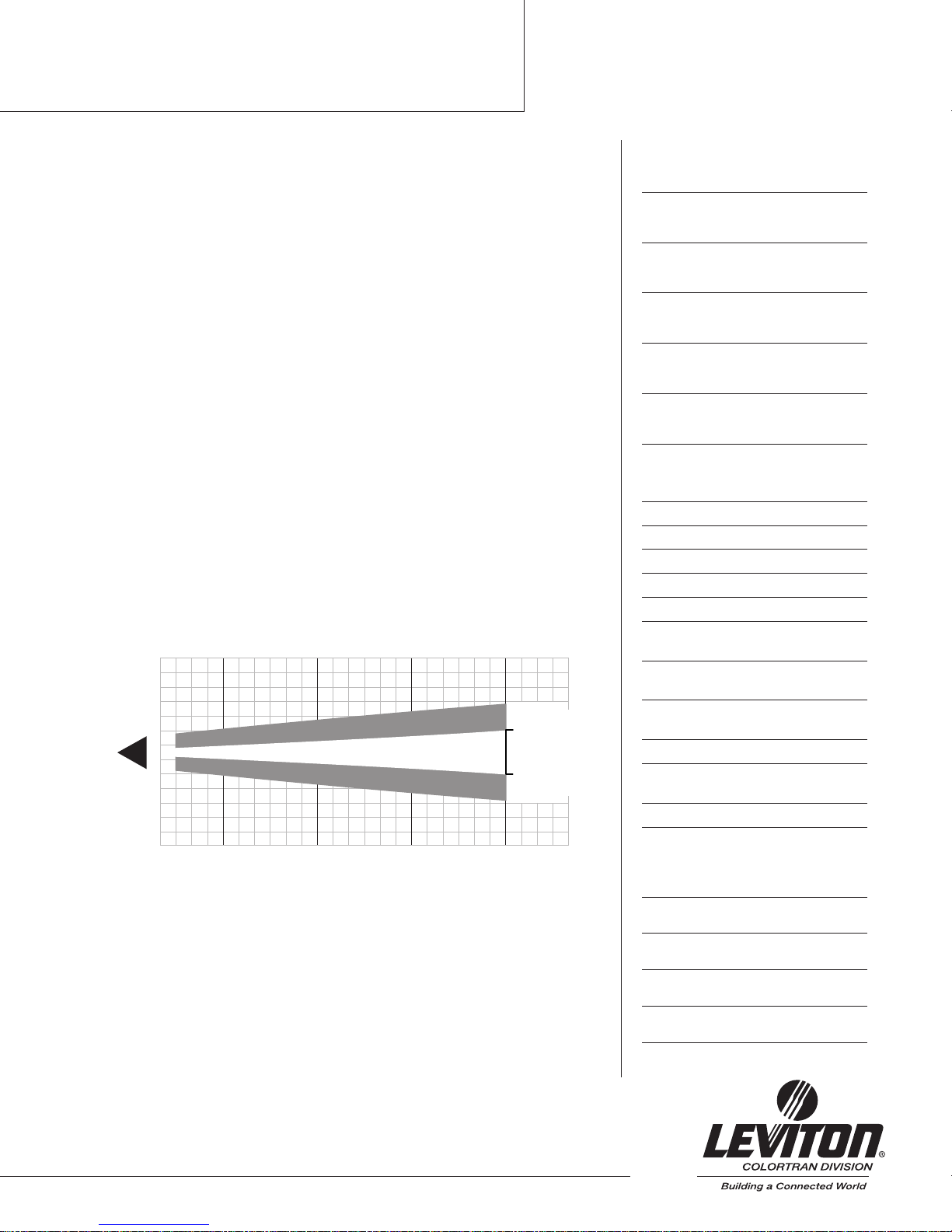

Field Angle
Beam Angle
(50% of max. int.)
(10% of max. int.)
