Page 1

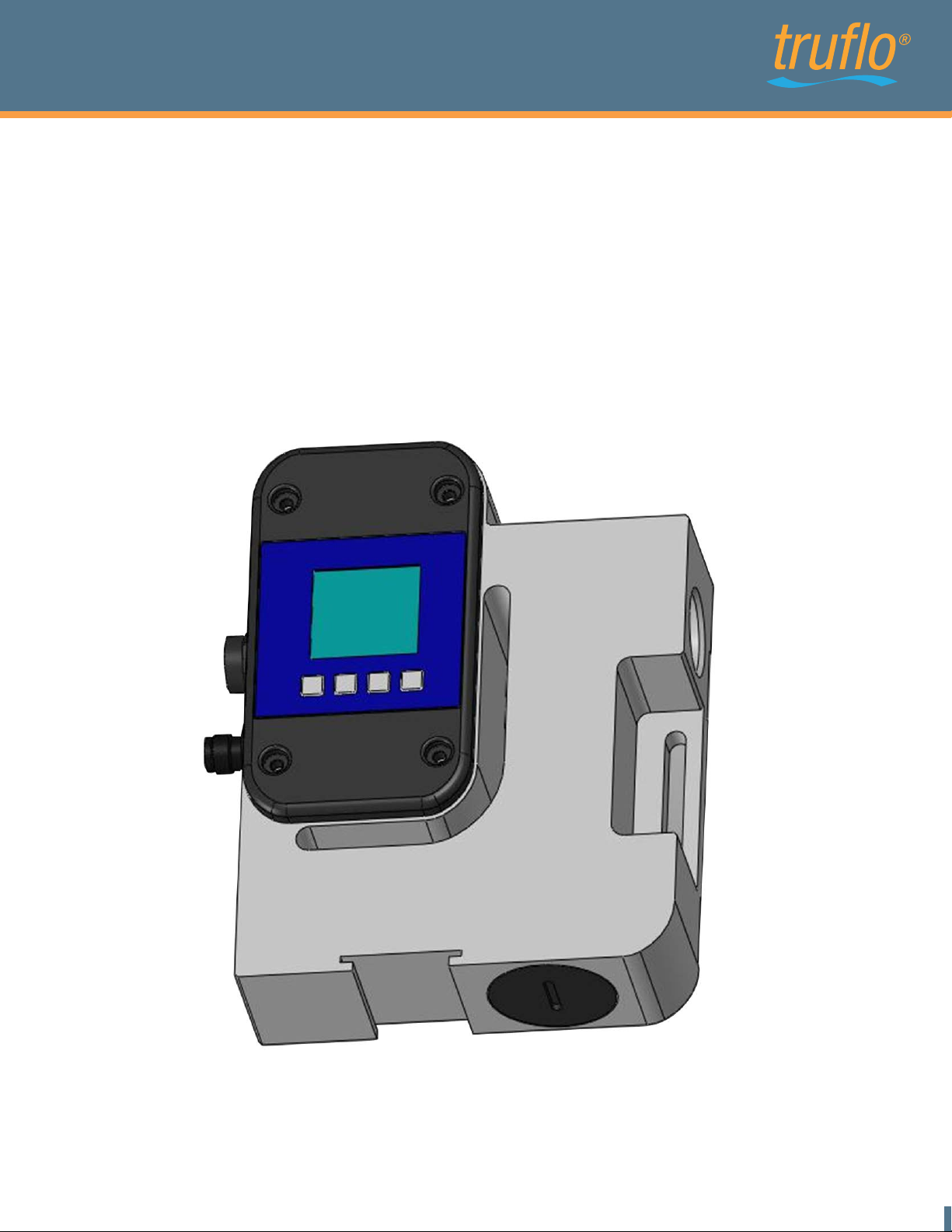

ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
Flowmeter Ultrasonic Flow
Metering / Dosing Device
Operating Manual
Read the user's manual carefully before starting to use the unit or software.
Producer reserves the right to implement changes without prior notice.
www.GlobalTestSupply.com
Page 2
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
Table of Contents
General safety instructions
1. Planning information
1.1 Areas of application  1.2 Measuring principle  1.3 Operational safety
2. Assambly and installation
2   2
3. Commissioning
   3 
4. Exchange of measuring device
.1 Installation instructions
2.2 Assembly of the flowmeter .3 Electrical wiring
3.1 Operation
3.2 Functionalities of flowmeter and default settings .3 Overview of default settings
3.4 General Information
01 02
02 02 03
03 03 04 07
09 09 13 23 23
23
5. Technical specifications
  5.2 Technical specifications

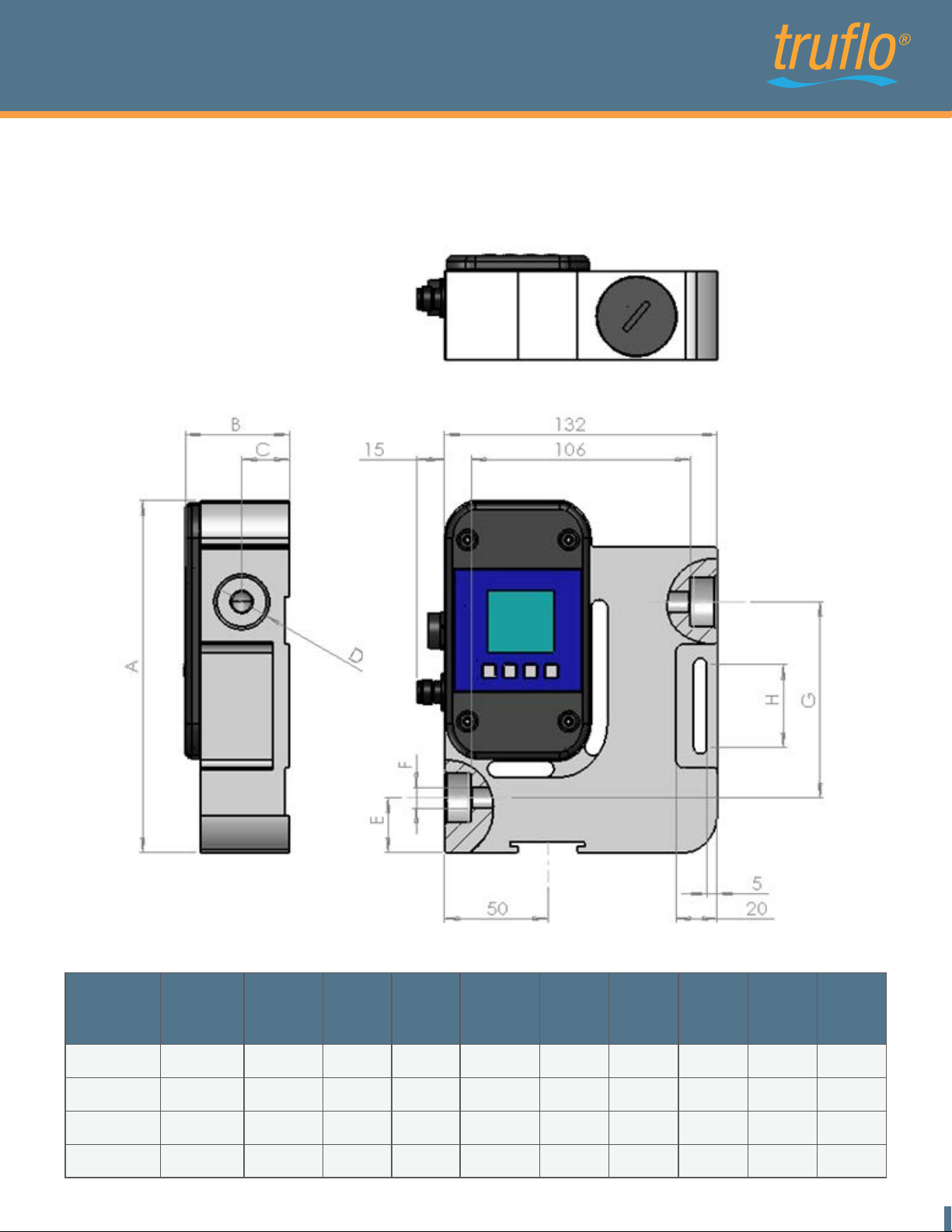

5.1 Dimensions and weight
Table of Figures
Fig. 1: Presentation of the principle of ultrasonic flow measuring Fig. 2: Installation position of Flowmeter Fig. 3: Mounting examples for Flowmeter Fig. 4: Mounting possibilities Fig. 5: Fixing Flowmeter Fig. 6: Flowmeter mounted on a DIN rail Fig. 7: Pin code: Connection plug / socket for 5-pin version Fig. 8: Pin code: Connection plug / socket for 8-pin version Fig. 9: Operating with the key pad
ig. 10: Menu organization for 5-pin version
F Fig. 11: Menu organization for 8-pin version Fig. 12: Function of the creeping suppression illustrated with 0.6 l/min Fig. 13: Connecting output Q1 to relay

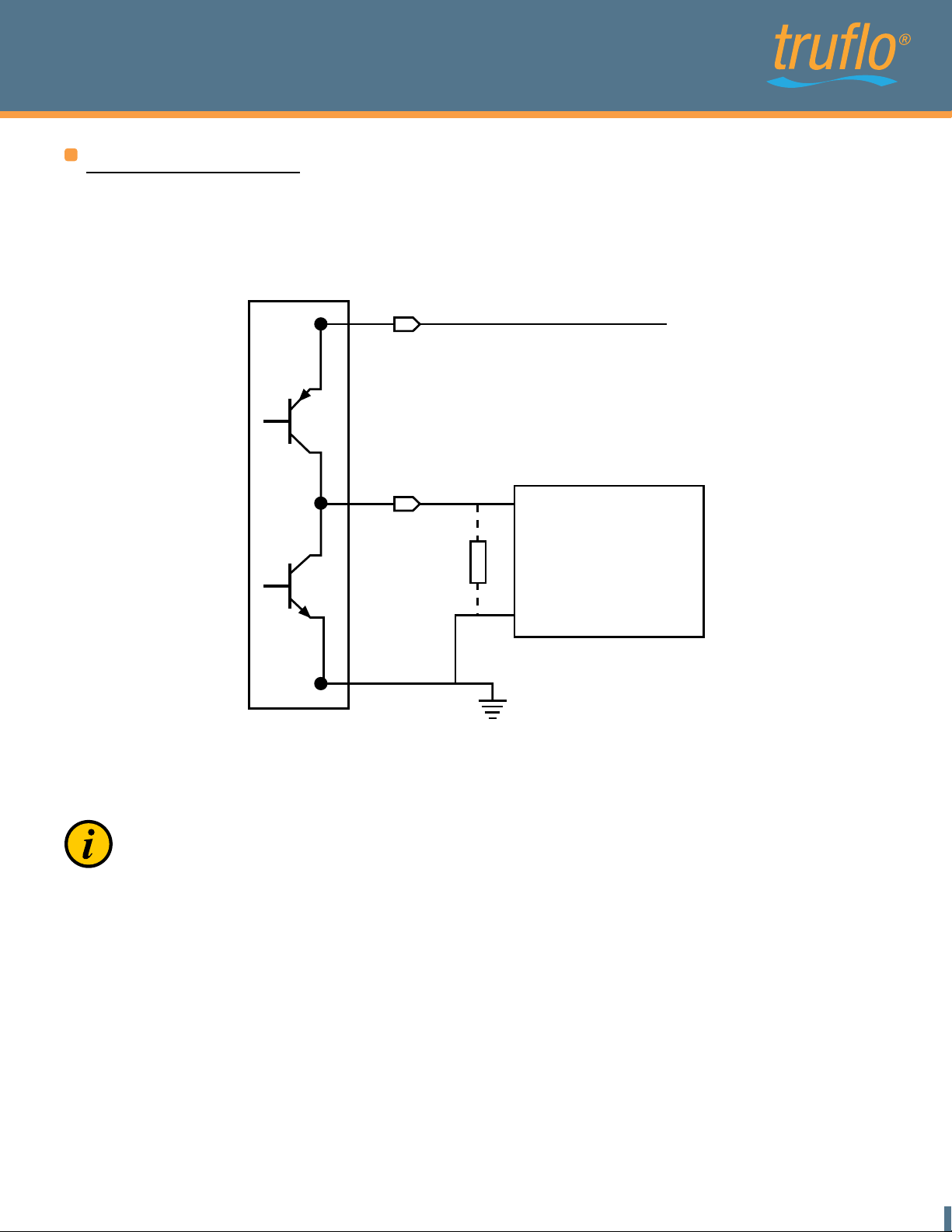

ig. 14: Connecting output Q2 to counter
F
25 25 26
02 03 05 05 06 06 07 08 10 11 12 15 20 21
www.GlobalTestSupply.com
Page 3
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
General Safety Instructions
Please always observe the following safety instructions! Please pay attention to the safety instructions with the following pictograms and signal words in these operating instructions:
IMPORTANT! indicates situations or cases which, if not avoided, could result in
damage or failure of the Flowmeter 44i equipment.
WARNING! Iindicates general hazardous situations or cases which, if not avoided,
could result in serious injury or death.
NOTICE
Is used to lead users to helpful information not related to personal injury.
Intended Use :
The flow meter Flowmeter may only be used for measuring the flow of pure, homogeneous liquids.
The Flowmeter is not intended for use in medical applications. The volume flow meter Flowmeter is built operationally safe in accordance with the latest state
of the art technologized developments and industry standard EN 61010 regulations (corresponds to VDE 0411 "Safety specifications for electrical measurement, control and l
aboratory devices").
The manufacturer is not liable for any injury, damage or harm due to inappropriate or unintended meter may only be made, if they are expressly performed in accordance with the operating instructions in this operating manual.
Personnel for Installation, Commissioning and Operation
use or modifications of the flow meter. Conversions and/or changes to the flow
Assembly, electrical installation, commissioning and maintenance of the flow meter must be carried out by qualified, trained personnel. The qualified personnel must have read and understood the operating instructions in this operating manual and must follow the operating instructions in this manual.
The installer has to ensure that the flow meter is correctly connected according to the electrical connection diagrams in this operating manual.
WARNING!
Serious injury or death from electric shock may occur if wiring, installation, disassembly or remove of wires is performed while electrical power is e
nergized
Technological Progress
The manufacturer reserves the right to revise, alter, or modify the flow meter to the most current technology without special prior notice. Further information about the latest updates and potential additions to these operating instructions are available from the manufacturer.
www.GlobalTestSupply.com
01
Page 4
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
1. Planning Information
1.1 Areas of application
The flow measurement device in the Flowmeter designed to measure dynamic flow in pipes and tubes. This flow meter is suitable for liquids only. The Flowmeter is used in
Chemicals supply for controlling, logistics, monitoring Cooling systems, logistics, monitoring Process equipment for control and monitoring of formulas Valve control for continuous release of liquid volumes Supply with de-ionized water Very dynamic liquid processes with dosing times of below 1 second
Flowmeter has the following features and benefits:
No movable parts, therefore no wear High repeatability Easy to clean Safe operation Compact design Integrated detection of empty conduits Integrated dosing function with pre-set and adjustable amounts Chemical resistant Constant pipe cross-section over the entire measurement channel
1.2 Measuring principle
It usually takes more energy to swim against the flow than with the flow. The ultrasonic flow measurement is based on the phase-difference approach: Two u ultrasonic the same phase, i.e. without phase difference. If liquid is flowing there is a phase shift. It differs when measured in direction of the flow than when measured against the direction of the flow. This phase difference is directly proportional to the flow rate.
ltrasonic-sensors located opposite from each other alternatively transmitting and receiving
signals. If there is no liquid flow both sensors receive the transmitted ultrasonic signals in
L
D
wL
=
-
c - v
c
v
c-v
v
receiver / sender
sender / receiver
v
v
c
c+v
wL
=
+
c + v
L: length of measuring pipe K: factor D: diameter of measuring pipe
- +
v: flow velocity c: sound velocity of the fluid
: phase with the flow
+
: phase against the flow
-

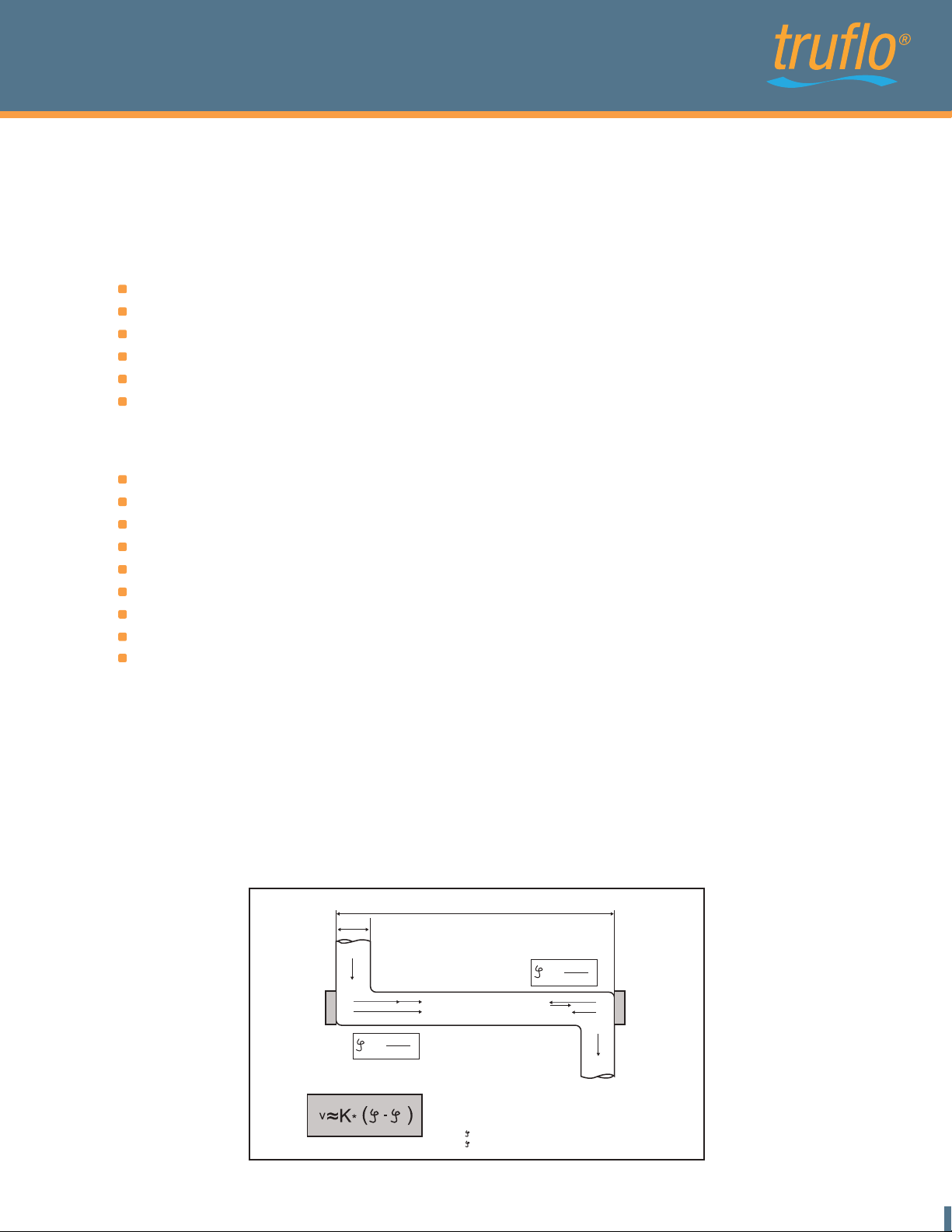

Fig. 1: Presentation of the principle of ultrasonic flow measuring
www.GlobalTestSupply.com
02
Page 5
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
1.3 Operational Safety
Comprehensive self-tests ensure highest possible safety. Faults (process or system errors) are output on a digital output or displayed on the display menu.
The protection class is IP 67. Flowmeter meets the general EMC immunity requirements according to CE, EN 61000-6-3, EN
61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6. Flowmeter meets the safety requirements concerning the Protective Extra Low Voltage directive
according to EN 50178, SELV, PELV.
2. Assembly and Installation
2.1 Installation instructions
The housing of Flowmeter is labeled with an arrow symbolizing the direction of the flow. The flowmeter must be installed in direction of the flow.
The nameplate of the Flowmeter has an arrow, symbolizing the flow direction of measurement. The flow meter has to be installed in a way so that the flow-through is in the same direction as the arrow symbol.
NOTICE

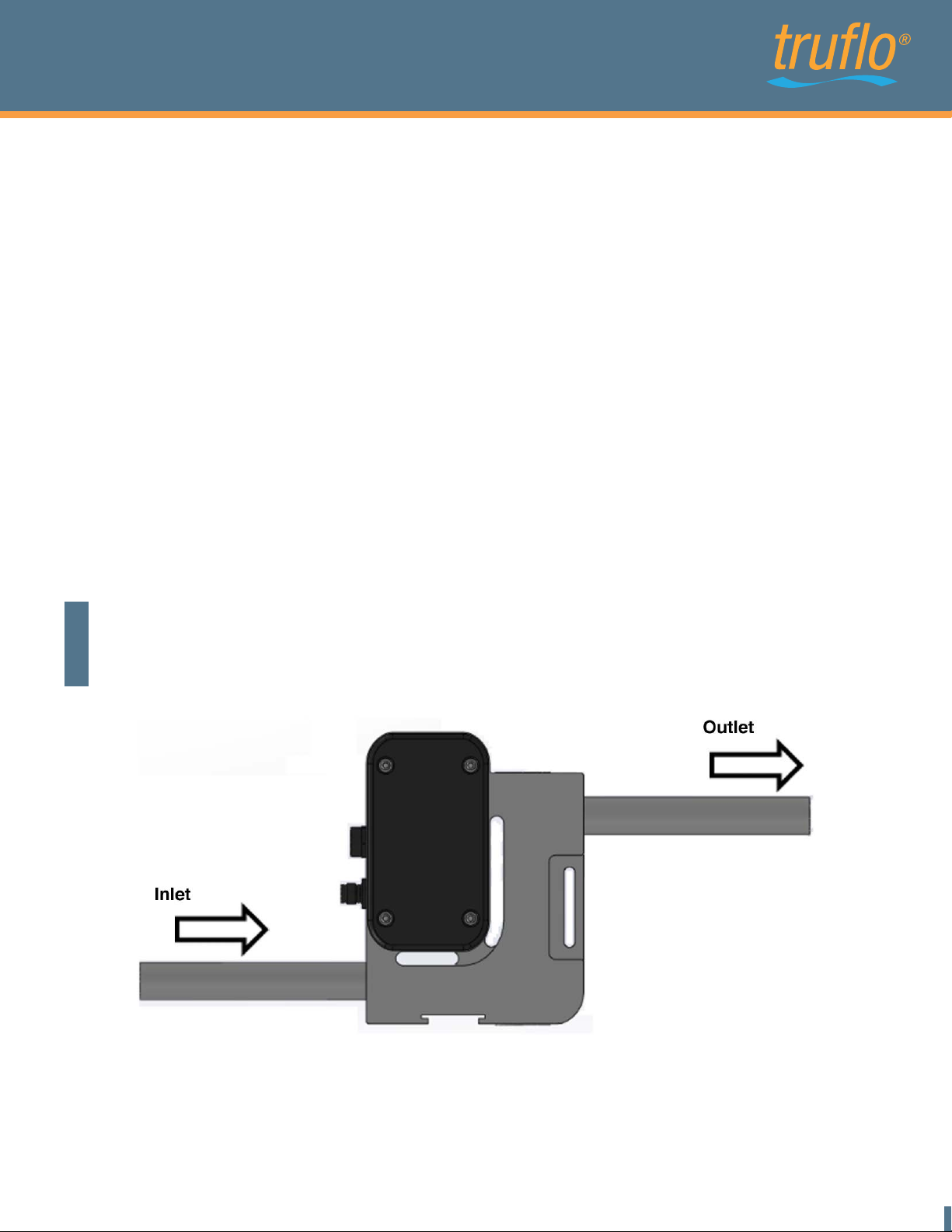

Fig. 2: Installation position of flowmeter
For fastest possible bubble detection it is important to keep the pipe distance from tank to Flowmeter as short as possible. Accurate measurement can only be assured, if the pipe is completely filled and the liquid does not outgas.
www.GlobalTestSupply.com
03
Page 6
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
Notwithstanding it may be advantageous for dosing applications to install the Flowmeter as close as possible to the dosing valve, since soft pipes increases the cross-section depending on the system pressure. This may lead to repeatable differences.
Insure that no cavitations dissolve from the measured liquid. Depending on the measured liquid it can be helpful to have enough back pressure on the outlet of Flowmeter to avoid cavitations. Insure all mechanical connections are tight.
NOTICENOTICE
Particles present in the flow stream may result in measuring errors. When using pumps, Flowmeter must be installed in flow direction on the pressure side, on order to
ensure sufficient pressure. The maximum pressure rating of Flowmeter has to be considered.
Do not exceed the maximum pressure allowance for of the Flowmeter (see section
5.2 Technical specifications). Exceed the maximum pressure can lead to destruction
WARNING!
of the Flowmeter.
For correct volume flow measurements straight and unobstructed inflow and outflow distances have to be observed. Starting from the connection thread these straight and unobstructed flow zones must be:
Nominal Diameter
Inflow distance Outflow distance
DN 5
0cm 0cm
DN 7
0cm 0cm
DN 10
5cm 0cm
DN 15
40cm 20cm
2.2 Assembly of the flow meter
The flow meter is mounted into a pipe system by using the mechanical connection. Flowmeter should be mounted vertically into the pipe for the best measuring performance. Do not install the flow meter after a dosing valve where the flow meter can run empty. Placing the flow meter after a dosing valve and allowing it to run empty will cause a measuring deviation at the next measurement. To avoid bubbles in the liquid, Flowmeter should be installed on the pressure side of the pump.
www.GlobalTestSupply.com
04
Page 7
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter

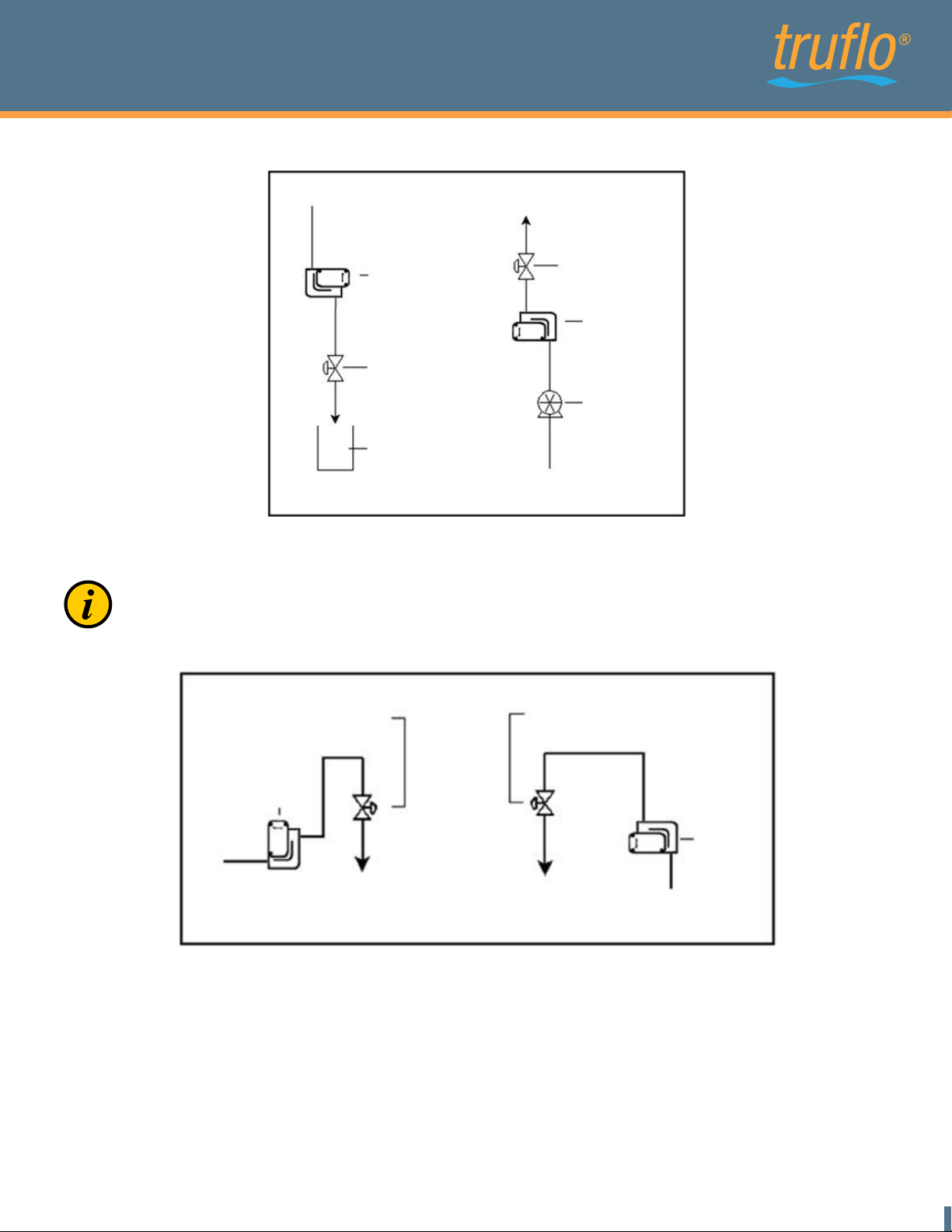

Fig. 3: Mounting examples for Flowmeter
If it is not possible to mount the flow meter vertically, then mount the instrument in a location where the pipe will be filled at all times. The best measuring result is achieved if bubbles do not pass through Flowmeter.
Fig. 4: Mounting possibilities
For applications with a "clean design" for which it is necessary to completely drain the pipe system, we recommend mounting the flow meter in the vertical position. Residual liquid may remain inside the device if flow meter is mounted horizontally.
Vibrations or mechanical forces may decrease measuring accuracy. So if there is due to vibration or mechanical movements is necessary to fix Flowmeter additionally, the instrument can be either mounted on a DIN rail, or be fixed on the lateral slot.
www.GlobalTestSupply.com
05
Page 8
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter

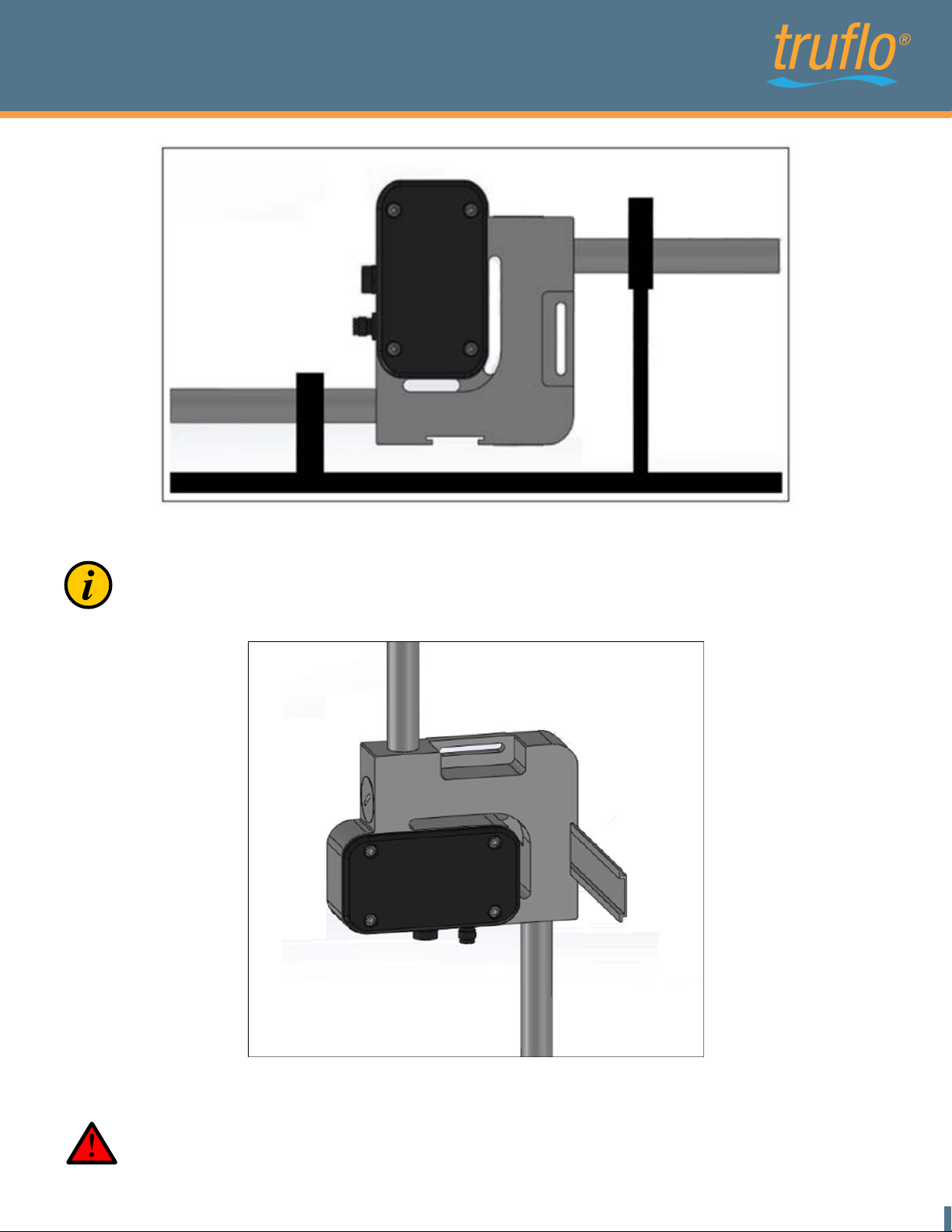

Fig. 5: Fixing Flowmeter
Flowmeter must be installed without mechanical tensions on the existing pipe system. The flow meter may be damaged if there is tension on the existing pipe system.
Fig. 6: Flowmeter mounted on a DIN rail
Non-compliance of the installation instructions may result in tearing of the housing, liquid may leak out.
www.GlobalTestSupply.com
06
Page 9
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
2.3 Electrical Wiring
Serious injury or death from electric shock may occur if wiring, installation, disassembly or remove of wires is performed while electrical power is energized.
Always shut off or disconnect electrical power at service panel and lock switch or breaker and tag to prevent energizing electrical power during work or while
WARNING!
Flowmeter is not assembled and installed.
Wiring installation, disassembly and removal must be performed by qualified persons experienced and knowledgeable about electrical work.
4
3
5
1
2
4 3
5
1
2

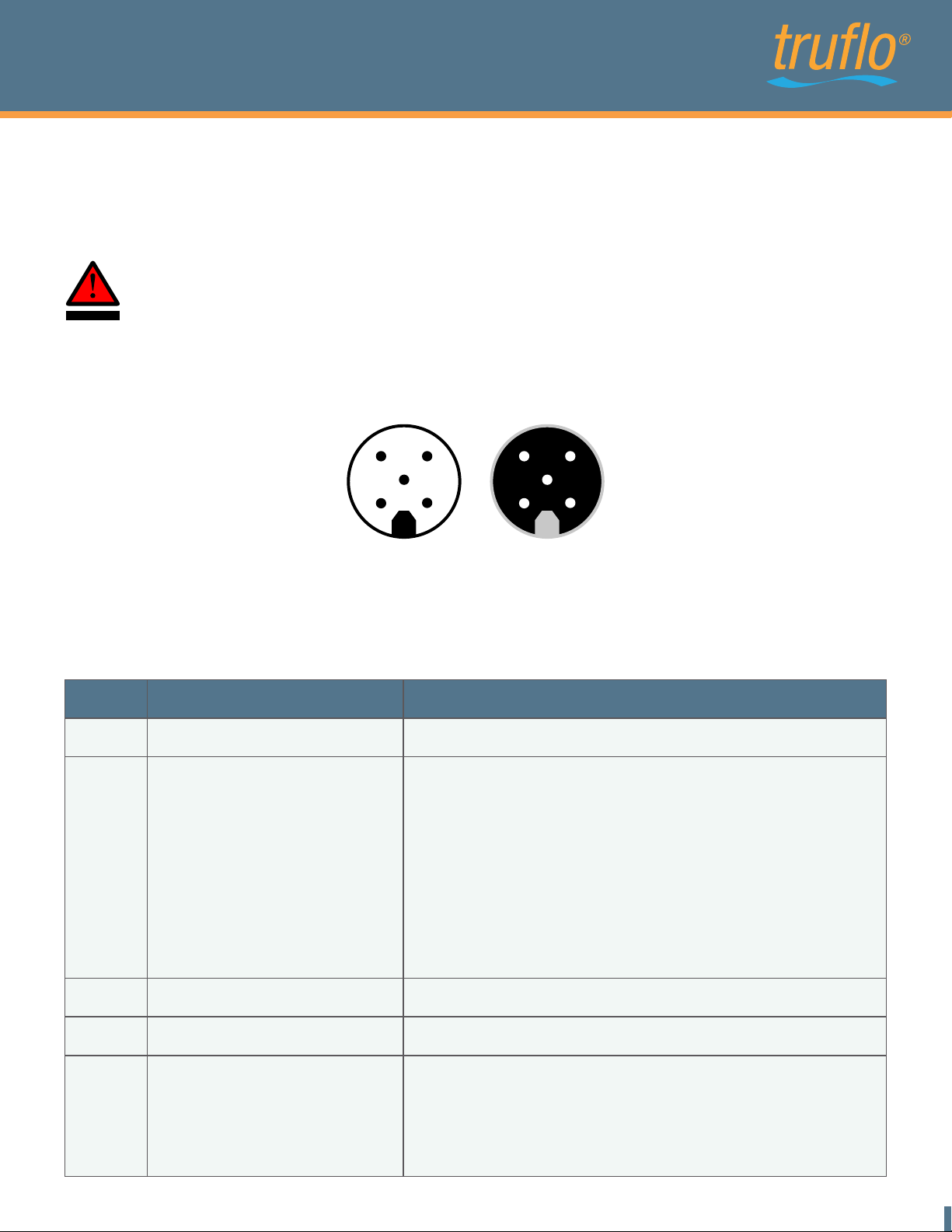

Fig. 7: Pin code: Connection plug / Socket
Connector cable pin configuration defined by manufacturer The outlets may be re-programmed for specific applications
Pin Function Description
1 L+ Power supply: 18...30 VDC 2 Pulse output O1 alternative:
1. Empty-pipe output
2. Dosing output
3. Upper or Lower Limit output
4. Negative flow
3 GND Ground : 0 V
Digital Output Q1 Freely adjustable ranging from 0.1 to 3000 ml/pulse in 0.1
l/pulse steps, npn-Transistor, max. load 30V/100mA.
m Max. Voltage must be less than the supply voltage. Configurable output of 0V or 24V when pipe is empty. Configurable output of 0V or 24V
utput
Configurable o lower limit Configurable output of 0V or 24V when liquid flows in negative direction
of 0V or 24V when reaching upper or
4 Communication Communication interface 5 Analog output QA 4….20mA ; 0….20mA

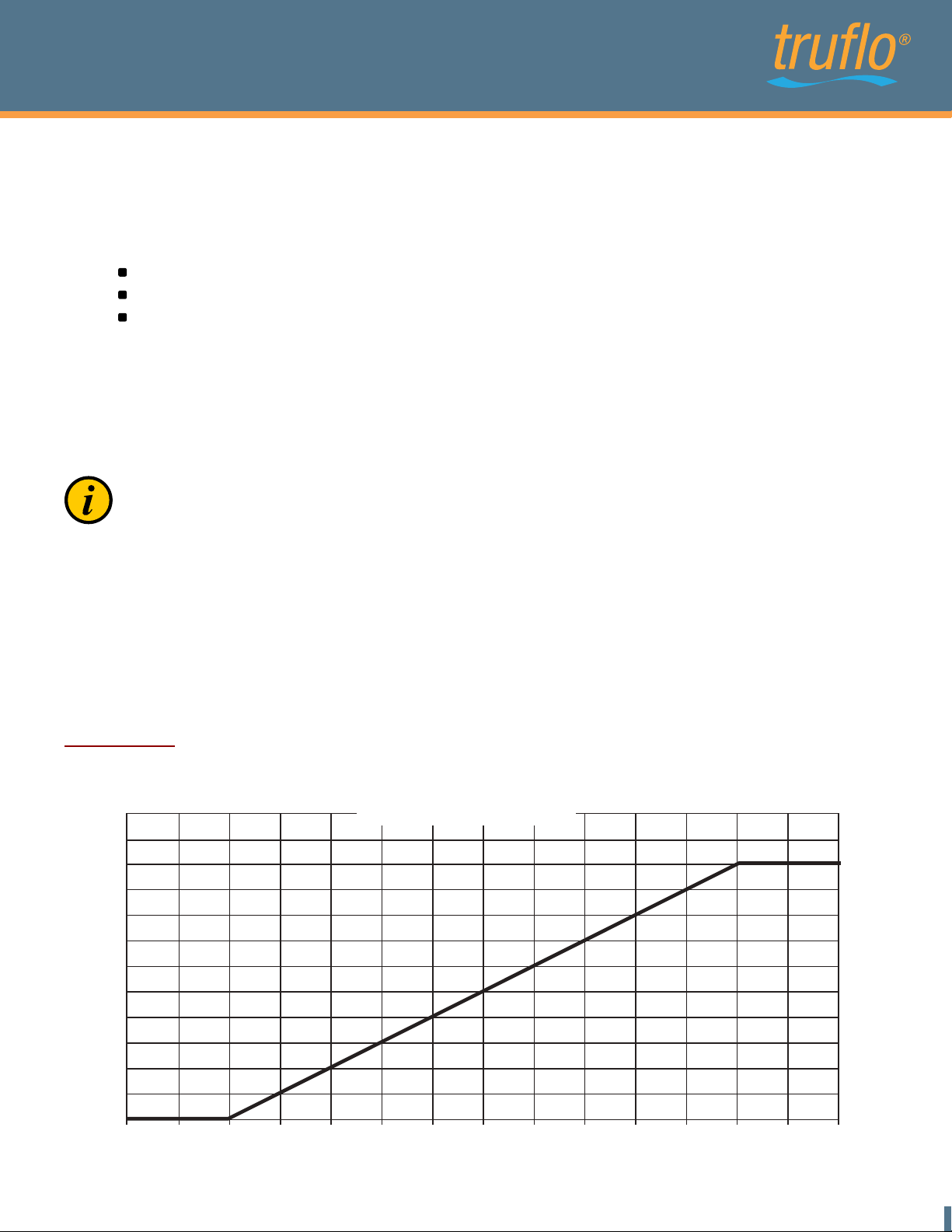

Example: 0L/min => 4mA 60L/min => 20mA Empty pipe Alert => 3.5mA (4-20mA depending on the configured limits)
www.GlobalTestSupply.com
07
Page 10
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
6
1
5
4
87 3
2
6
1
5
4
87 3
2

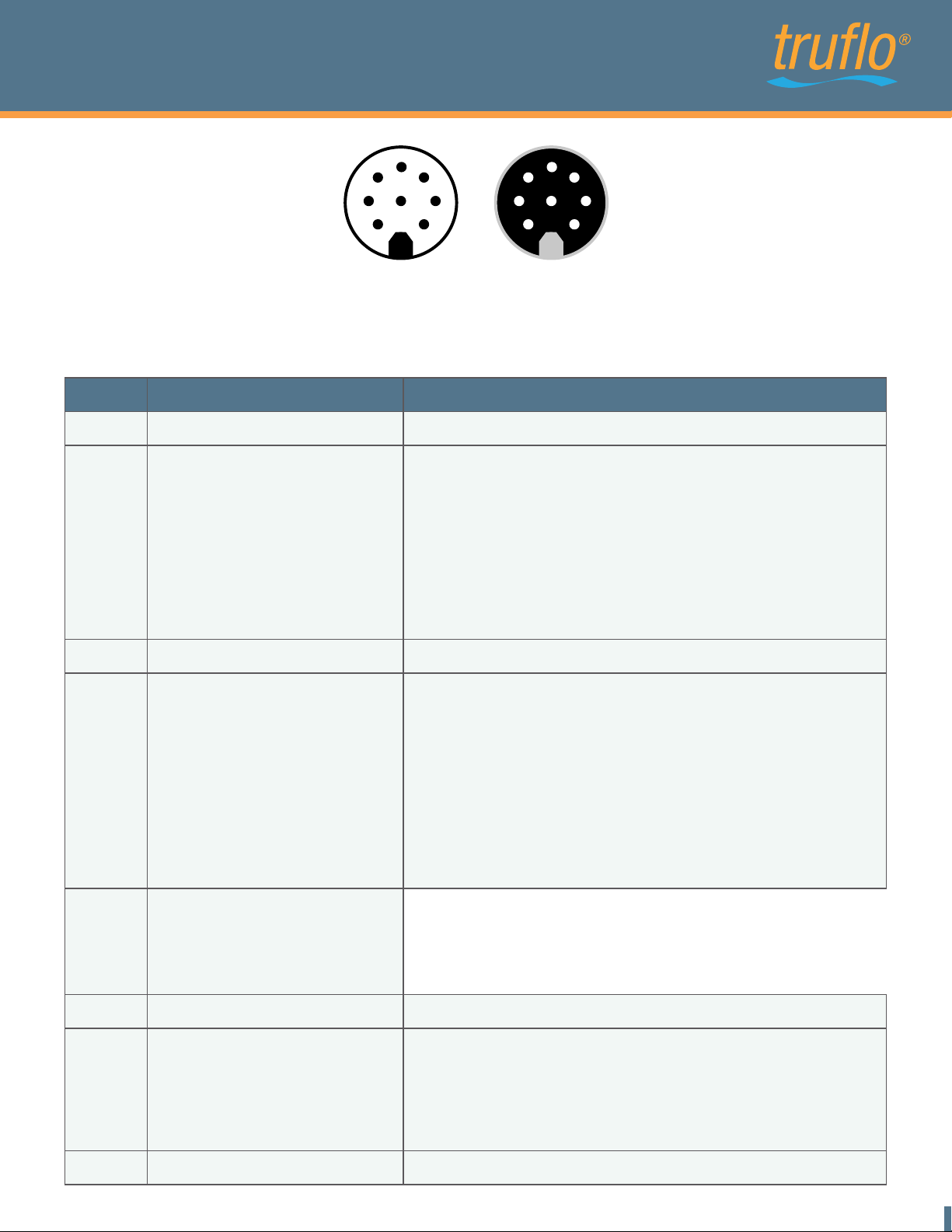

plug / socketFig. 8: Pin code: Connection
Connector cable pin configuration defined by manufacturer The outlets may be re-programmed for specific applications.
Pin Function Description
1 L+ Power supply: 18...30 VDC 2 Pulse output O1 alternative:
1. Empty-pipe output
2. Dosing output
3. Upper or Lower Limit output
4. Negative flow
Digital Output Q1 Freely adjustable ranging from 0.1 to 3000 ml/pulse in 0.1
l/pulse steps, npn-Transistor, max. load 30V/100mA.
m Max. Voltage must be less than the supply voltage. Configurable output of 0V or 24V when pipe is empty. Configurable output of 0V or 24V
of 0V or 24V when reaching upper or
Configurable o lower limit Configurable output of 0V or 24V when liquid flows in
egative direction
n
utput
3 GND Ground : 0 V 4
5 Analog Output QA 4….20mA ; 0….20mA
6 Communication Communication Interface 7
Digital output Q2 Functions:
1. Empty pipe output
2. Dosing output
3. Pulse output
4. Upper or Lower Limit output
5. Negative flow
Digital input I1
1. Dosing output
2. Set offset
3. Reset counter
4. Creeping flow off
Digital output Q2 Configurable npn- or pnp-Transistor, max. Load 30V/ 100mA. Max. Voltage must be less than the supply voltage. Configurable output of 0V or 24V when pipe is empty. Configurable output of 0V or 24V Freely adjustable ranging from 0.1 to 3000 ml/pulse in 0.1 ml/pulse steps. Configurable or lower limit. Configurable output of 0V or 24V when liquid flows in negative direction.
Example: 0L/min => 4mA 60L/min => 20mA Empty pipe Alert => 3.5mA (4-20mA depending on the configured limits)
Digital input I1 Starts the dosage by a rising edge of 24V. The Offset is set by a rising edge of 24V. Reset of the counter by a rising edge of 24V. Creeping suppression is deactivated as long as there are 24V at the input.
utput
o
of 0V or 24V when flow reaches upper
8 Shielding EMC safety
www.GlobalTestSupply.com
08
Page 11
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
Attention : Only operate the flow meter Flowmeter44i within the operating limits stipulated on the product label and the operating manual / data sheet. Use of the Flowmeter 44i outside these conditions will lead to overloads which cause permanent damage.
3. Commissioning
NOTE : If Flowmeter is used for a fluid other than water the "basic trim" has to be carried
out during commissioning. Therefor the device has absolutely be filled with medium. The basic trim can be done on the device display (alternatively Programmtool). During the
NOTICE
3.1 Operation
If Flowmeter is used as a volume flow meter for water or water-like liquids it will not require on-site calibration. Parameters for water are calibrated at the factory. The Flowmeter 44i may also be ordered with customized settings, but customized settings must be requested when Flowmeter is ordered.
adjustment the medium may not flow as it affects the function
NOTE : If necessary, e.g. if viscosity and/or speed of sound deviate significantly from water, the pre-set parameters can be adjusted via Programmtool. It is always necessary to adjust the manufacturer pre-set parameters when using the Flowmeter as a dosing device
NOTICE
according to section 3.2 (Dosing 1. Flowmeter as a dosing device). Adjusting the manufacturer pre-set parameters requires Programmtool.
The following parameters may be changed to settings suitable for the individual conditions: for 5-pin version
Digital output Q1, function and behavior Analog output QA, function and behavior Flow range, for which shall apply 4...20 mA Pulse value Creeping suppression Optimization of measurement curve with up to 8 interpolation values (medium matrix)
The following parameters may be changed to settings suitable for the individual conditions: for 8-pin version
Digital output Q1, function and behavior Digital output Q2, function and behavior Digital input I1, function and behavior Analog output QA, function and behavior Flow range, for which shall apply 4...20 mA Pulse value Creeping suppression Optimization of measurement curve with up to 8 interpolation values (medium matrix)
www.GlobalTestSupply.com
09
Page 12
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
Display and user menu
Flowmeter is equipped with a display to visualize actual measurement values and to change parameters of the flow meter. Menu navigation and parameter changes are controlled by the four keys on the keypad.

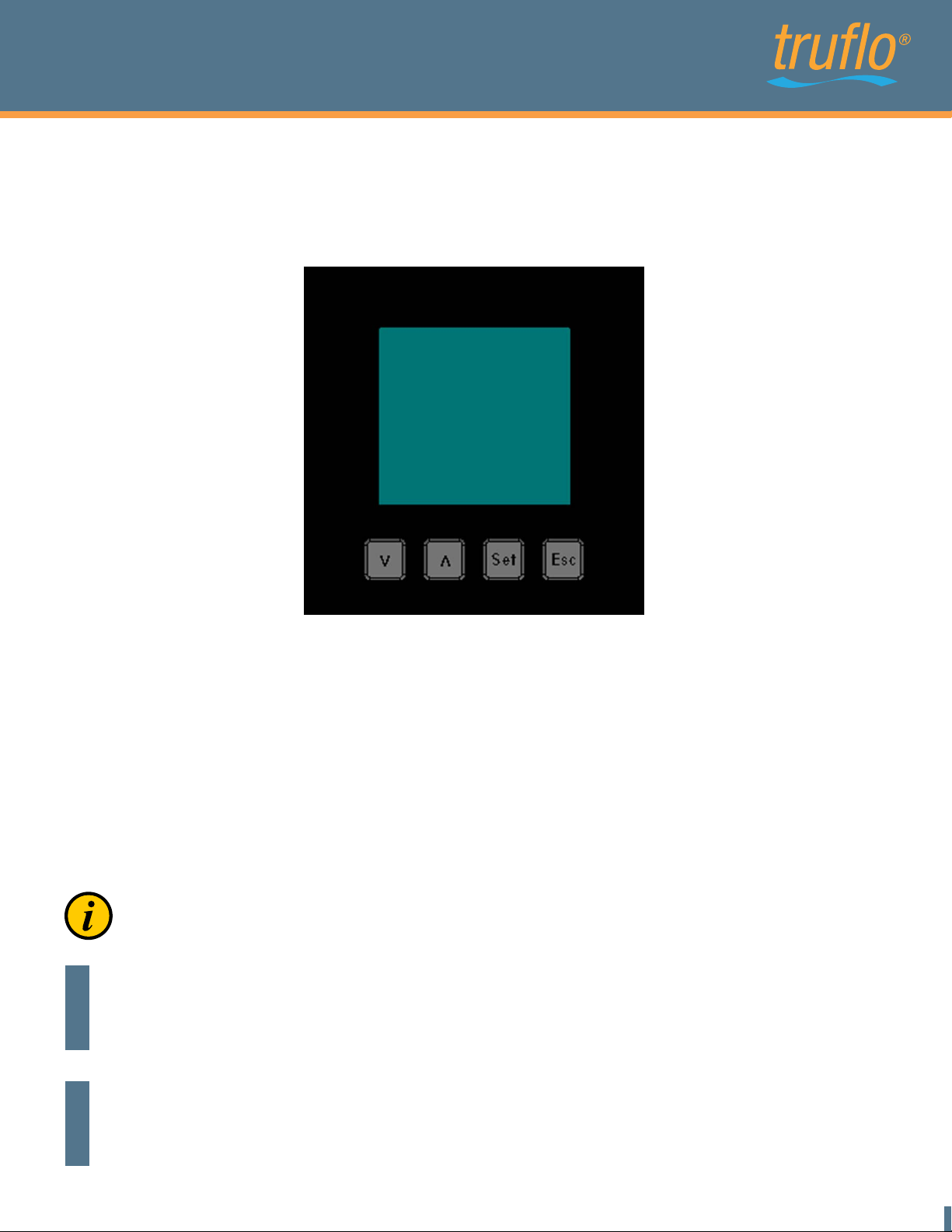

Fig. 9: Operating with the key pad
Press the "Set" key to display the main menu. Different menu options can be selected by using the two arrow keys. To enter e.g. analog limits "Analog output - Upper limit" use the arrow keys to change values and press "Set" to confirm. To switch back to the last menu level press the "Esc" key. As soon as the operator tries to change values the user will be prompted to enter a password. Password protection is used to ensure changes to values or configurations are done by authorized personnel. The default password for Flowmeter is 41414. The password can be changed with Programmtool. The user level will remain active for 5 minutes after the last press on any button.
The Password should only be shared with personnel authorized to make changes to setting.
NOTE : Always the first parameter of the menu appears in the display.This need not be the
adjusted enabled parameter. The enabled parameter appears inverted and possibly visible by scrolling.
NOTICE
NOTE : Functions marked with asterisk (*) are only available for the Flowmeter 8-pin version.
Flowmeter without user display supports the same functions as the display-version. The display and programming unit Programmtool is needed to change configurations of
NOTICE
Flowmeter without user display.
www.GlobalTestSupply.com
10
Page 13
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter

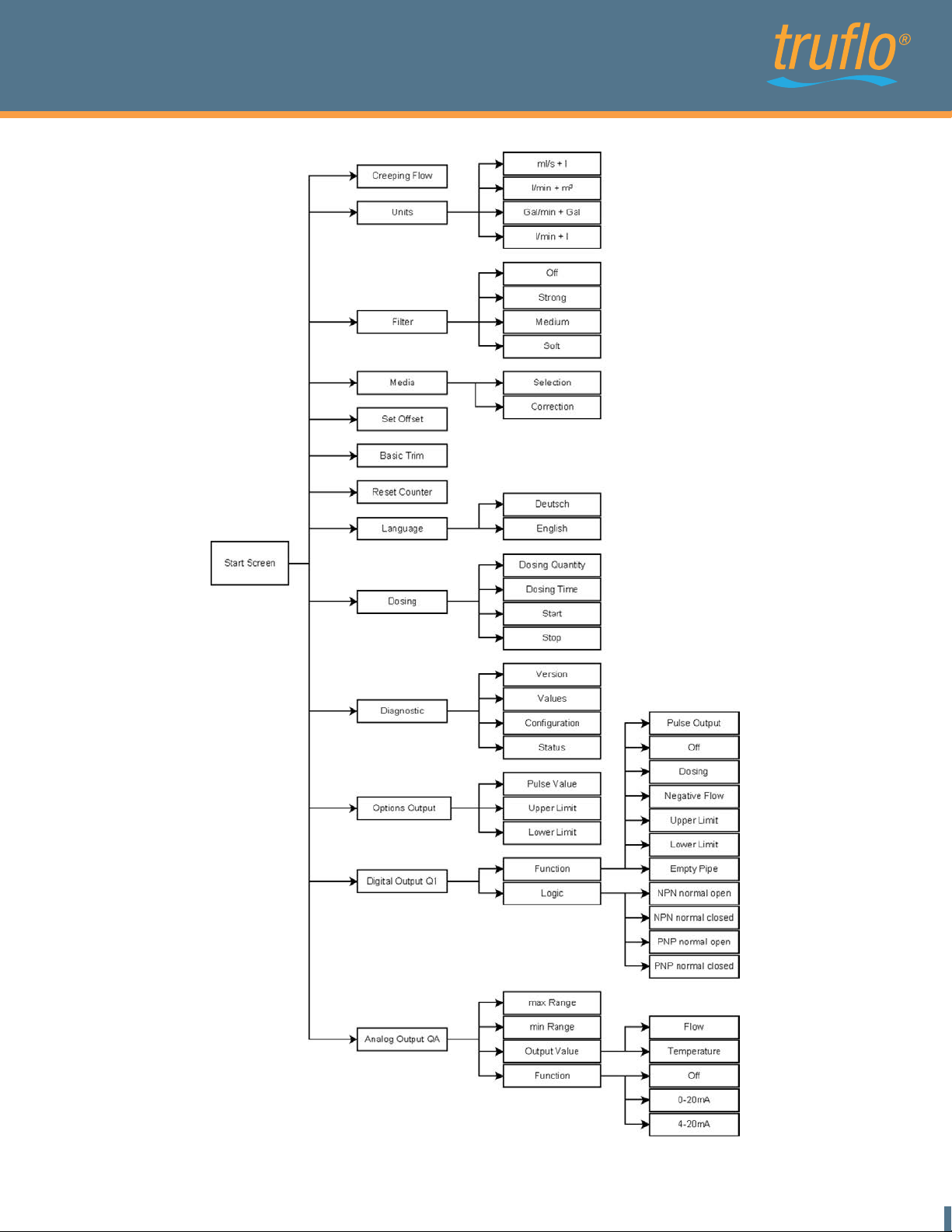

Fig. 10: Menu organization for 5-pin version
www.GlobalTestSupply.com
11
Page 14
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter

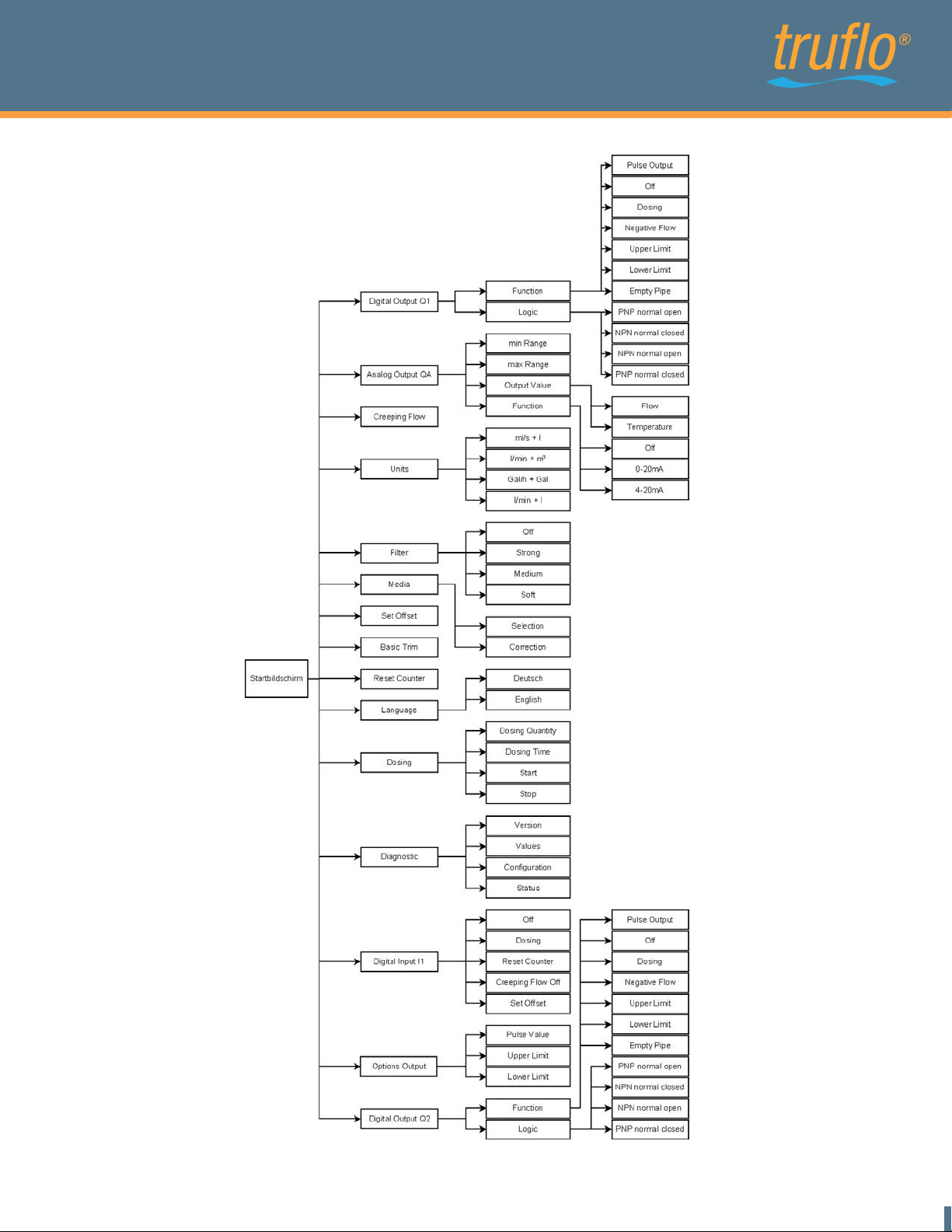

Fig. 11: Menu organization for 8-pin version
www.GlobalTestSupply.com
12
Page 15
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
3.2 Functionalities of flow meter and default settings Set Offset
In the sub menu "Set Offset" it is possible to set the actual offset of the flow meter. Use this function only when Flowmeter is completely filled with liquid, and there is no flow. If the offset is set while flow is present or when the pipe is empty it will cause an offset drift what results in a faulty measurement. Example of operation see appendix.
A small offset change, e.g. caused by variable temperatures, is automatically done by the flow meter. It is also possible to set the offset via the configurable digital inputs.
Language
The language of the display can be changed. Available languages are English and German.

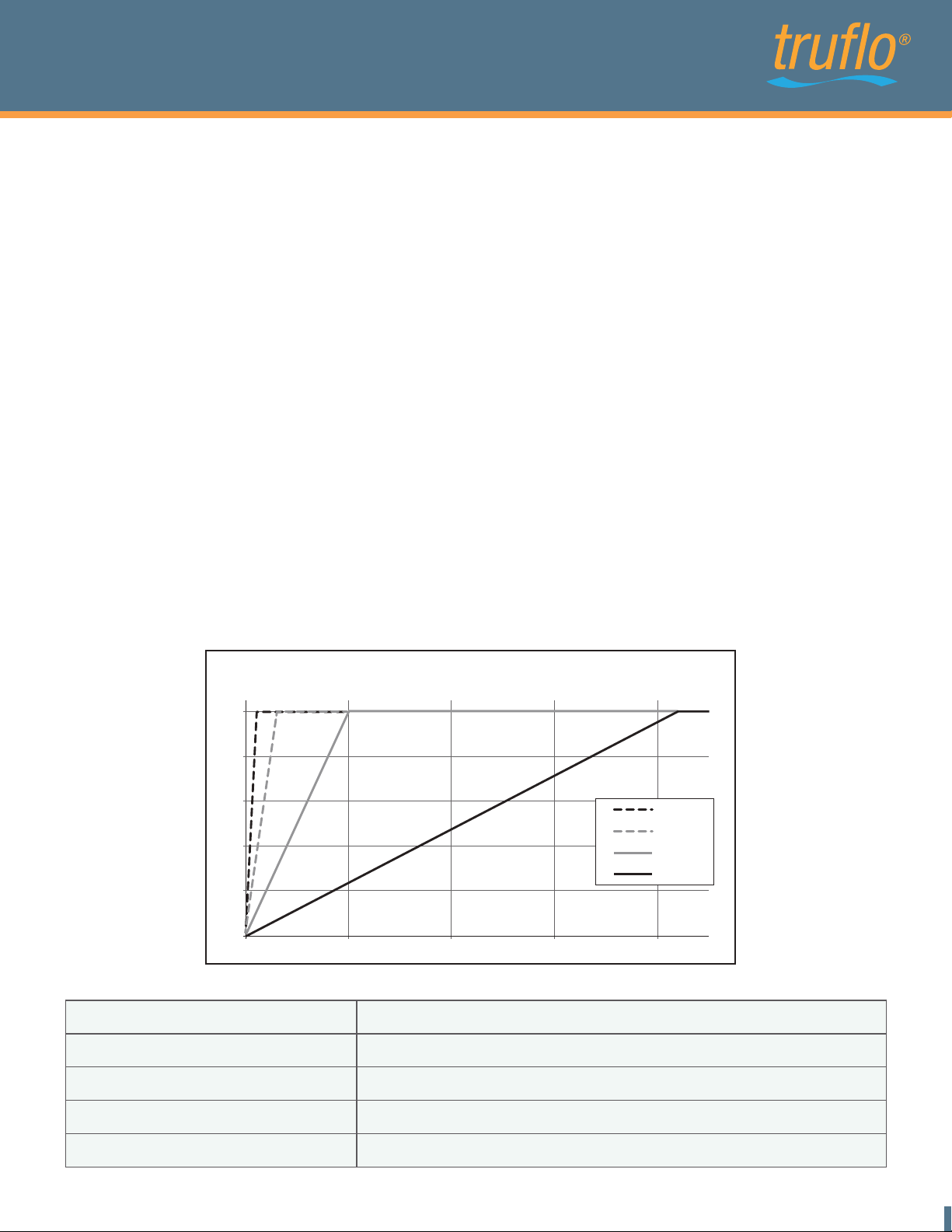

Filter
The function "Filter" averages the analog output signal. Possible settings: Soft, Medium, Strong, Off The analog output signal reacts faster to signal changes when average determination is set to
"soft". Whereas the analog output signal reacts slower when average determination is set to "strong".
Wert [%]
100
80
60
40
20
0
0 1 2 3 4
Response time analog output
Off Soft Medium Strong
Zeit [s]
Filter off soft medium strong
www.GlobalTestSupply.com
100% 16ms
0,3s
1s
4,2s
13
Page 16
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
Units
Flowmeter is able to show actual flow or the volume in different units. Following units can be selected: ml/s + l , Gal/min +Gal , l/min + l , l/min + m³.
The first letters correspond to the unit of the flow value. The letters after the + correspond to the unit of the volume value.
Reset Counter
The volume counter of Flowmeter can be reset. Example of operation see appendix
Important! : Once reset, counter values cannot be restored. After a reset the counter works normally.
Basic Trim
NOTE : The "Basic Trim" function insures that the flow meter is conforming to the media specific characteristics. To execute this function, Flowmeter runs a self-diagnostic function which optimizes all important parameters. This process lasts approximately 1 minute.
NOTICE
Important! : To make sure the basic trim is correctly done, the flow meter has to be filled
with liquid without a flow. When there is an error detected while performing the basic trim function, the display shows "Error". After successfully finishing the basic trim function, the display will show "Done"
Creeping suppression
The creeping suppression excludes flow measurements that result from convection in a narrow band around zero, even with a closed valve. At the factory, the creeping suppression is set at a standard value in relation to the cross-section of the flow meter. Changes to a smaller value of the parameter may cause an offset drift what results in a faulty measurement.
There are higher tolerances below the standard default settings, see also section 5.2 measurement errors!
Setting range : 0.0...20 l/min, in 0.006 l/min steps Default settings : 0.024 l/min for DN 5  0.09 l/min for DN 7  0.3 l/min for DN10  0.9 l/min for DN15
www.GlobalTestSupply.com
14
Page 17
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter

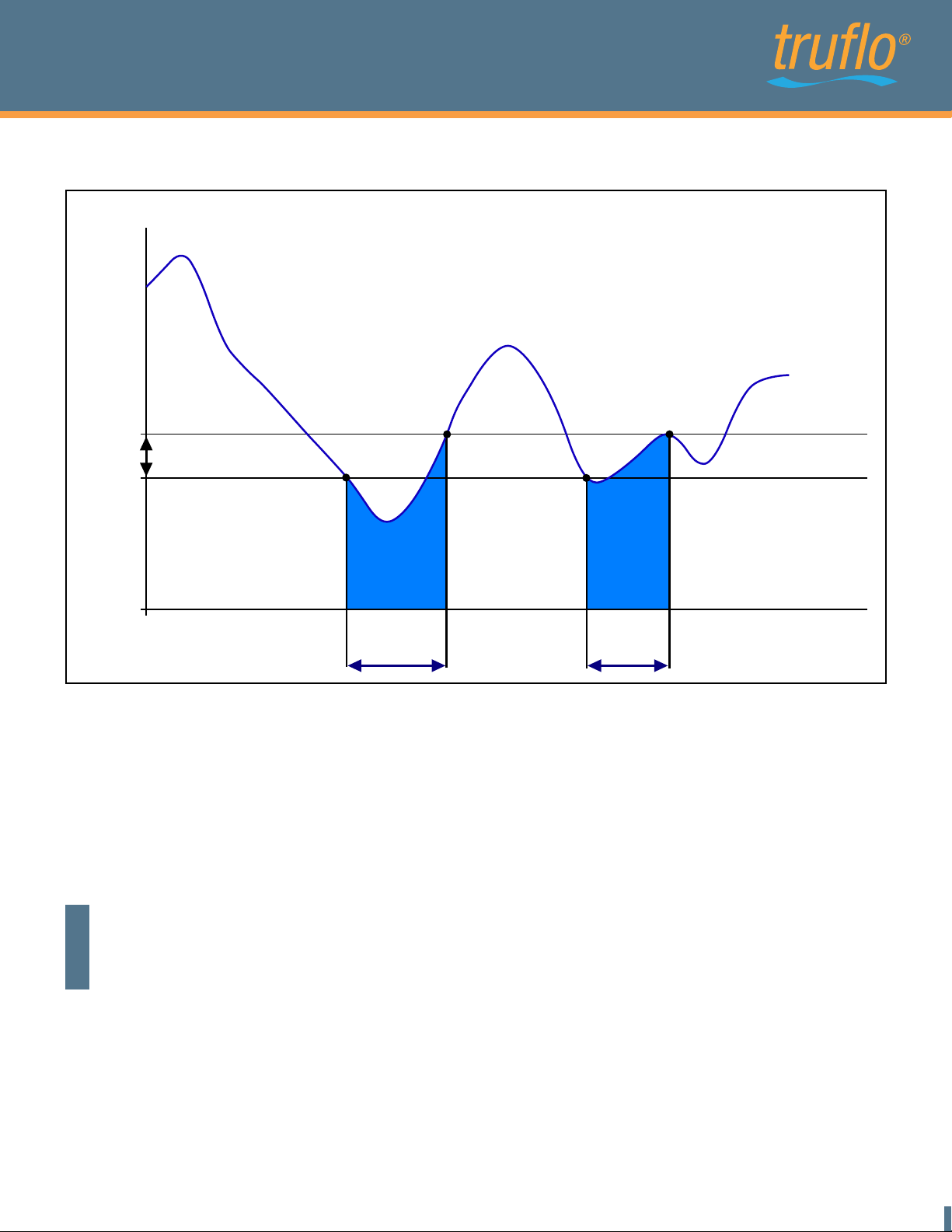

The creeping suppression works with a hysteresis of - 25%.
Flow [l/min]
1. Creeping Suppression switch on
2. Creeping Suppression switch off
1.2
1.05
0.9
0.75
2
2
0.6
-25%
1
1
0.45
0.3
0.15 0
Pulse/Analog output active inactive active inactive active
Fig. 12: Function of the creeping suppression illustrated with 0.6 l/min
Example : Creeping suppression = 0.6 l/min If the flow rate is lower than 0.45 l/min the pulse output/analog output becomes inactive. If the flow rate exceeds 0.6 l/min a pulse is output again and added to the totalizer. Similarly, a value is transmitted to the analog output again.
Diagnostic
The sub menu "Diagnostic" shows the software/hardware version and other helpful values for analysis. Actual values and the instrument´s present status are important to analyze the measurement or failure by the manufacturer service
NOTICE
Analog output QA
The analog output is available as current output 4-20mA or 0-20mA. This is selected with the purchase order. As a standard it comes with current output 4-20mA. It can also be switched off by using the device menu or Programmtool.
www.GlobalTestSupply.com
15
Page 18
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
The current output ranges from 0 to 22.6mA measuring the flow rate or the condition of the flow measurement.
The values here signify for 4-20mA configuration:
20 mA the upper limit of the relevant measurement 4 mA the lower limit of the relevant measurement
3.5 mA empty pipe
Upper and lower limit parameters can be set within the type-specific measurement of the device. By default, zero flow is set at 4 mA and the maximum flow is set at 20 mA.
Set point ranges : 0-20mA, 4-20mA, off Output value : Flow, Temperature
When current output is used, the load must not be higher than 500Ohm. A higher load prevents the device from providing the maximum current of 22.6mA.

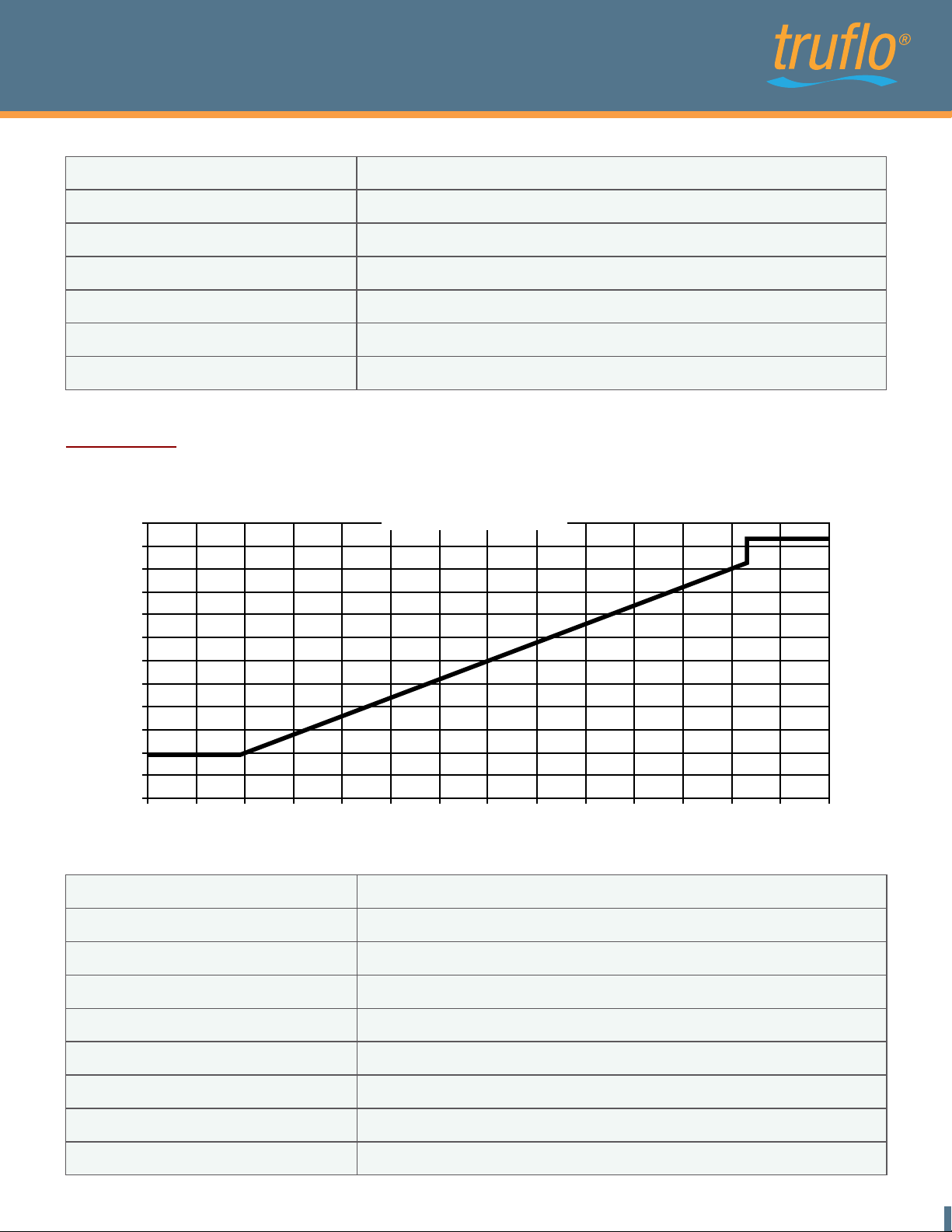

Characteristic curves analog output
The analog output is available as current output 4-20mA or 0-20mA. This is selected with the purchase order. As a standard it comes with current output 4-20mA. It can also be switched off by using the device menu or Programmtool.
0 - 20mA
For the following graphic "min Range" is used for 0% and "max Range" is used for 100%.
24 22 20
Current [mA]
-20-100102030405060708090100 110
18 16 14 12 10
8 6 4 2 0
Current output 0...20mA
120
Value [%]
www.GlobalTestSupply.com
16
Page 19
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
Value
Smaller 0% 0% (min Range) Between 0% and 100% 100% (max Range) Bigger 100% Bigger max Value
Linear interpolation from 0 to 20 mA
Current [mA]
0 0
20 20 20
0 - 20mA
For the following graphic "min Range" is used for 0% and "max Range" is used for 100%
24 22 20 18
Current [mA]
16 14 12 10
8 6 4 2 0
-20-100102030405060708090100 110 120
Current output 0...20mA
Value
Empty pipe Smaller -1.2% Between -1.2% and 0% 0% (min Range) Between 0% and 100% 100% (max Range) Between 100% and 103% Bigger 103%
www.GlobalTestSupply.com
Linear interpolation from 3.8 to 4mA
Linear interpolation from 4 to 20mA
Linear interpolation from 20 to 20.5mA
Current [mA]
3.5
3.8
4
20
22.6
17
Page 20
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
Pulse value
This section determines the output settings for pulsed outputs. Choose configuration such as to neither exceed the maximum output frequency of the Flowmeter
(10kHz) nor the maximum input frequency of the control. If the maximum frequency is exceeded the Flowmeter will not output pulses correctly.
Example This Means Setting Range Default Setting
Flow
ml/s
1
100
1000
100
0.5 10 0.05 20 1 1000
2.0 ml/Pulse a pulse is emitted every 2.0 ml.
0.1...3000.0 ml/Pulse, in 0.1 ml/Pulse steps
1.0 ml/Pulse
Pulse value
ml/Pulse
1 1
0.1 10
Frequency
Hz
1
100
10000
10
Period
s
0.0001
Duration of the Pulse
1
0.01
0.1
In the last case every 20 seconds, a pulse of 1 second duration is put out.
s ms
0.5
0.005
0.00005
0.05
500
5
0.05 50
Dosing
The Flowmeter can be configured for manually dosing by choosing the dosing function via the user display. The Volume "Dosing Batch" and the "Dosing Time" are freely adjustable. When the "Dosing Time" is set to zero, the timer control is inactive. A dosage can be started and stopped with the menu function keys "Start" and "Stop".
Setting range "Dosing Batch" : 0 - 3500 Liters Setting range "Dosing Time" : 0 -30000 Seconds Default setting "Dosing Batch": 0 Liters Default setting "Dosing Time"
Important! : If Dosing Time =0 the time switch-off is inactive.
: 3 Seconds
www.GlobalTestSupply.com
18
Page 21
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
Digital outputs
All outputs switch over to high resistance when the supply is smaller than 18V. When overload or short circuit is detected the digital outputs are switched off after 100µs for a period of 2s. When time is up the outputs get applied again.
Empty pipe output
Empty pipe 0V normal closed High resistant 0V normal open 0V 24V normal closed High resistant 24V normal open 24V High resistant
Filled, no flow
0V
High resistant
24V
Pulse output
Empty pipe 0V normal closed 0V 0V normal open 0V 24V normal closed High resistance 24V normal open High resistance High resistance
Filled, no flow
0V 0V
High resistance
Filled, flow
0V Pulses
0V Pulses 24V Pulses 24V Pulses
Upper limit output
Below lower limit
0V normal closed High resistance
Between the limits
High resistance
Above upper limit
0V 0V normal open 0V 24V normal closed High resistance 24V normal open 24V 0V
High resistance
0V
High resistance
24V
High resistance
Lower limit output
Below lower limit 0V normal closed 0V 0V normal open High resistance 24V normal closed 24V 24V normal open High resistance 24V
www.GlobalTestSupply.com
Betwenn the limits
High resistance
0V
High resistance
Above upper limit
High resistance
0V
High resistance
24V
19
Page 22
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
Dosing output
Startup of device 0V normal closed High resistance 0V normal open High resistance 24V normal closed High resistance 24V normal open High resistance 24V
While dosing
High resistance
0V
High resistance
Before/after dosing
0V
High resistance
24V
High resistance
Important! When using the dosing function the output should not be configured as normal closed! If the dosing output is configured as normal closed the valve will stay open after the
Digital output Q1
Digital output Q1 may be used as pulse output, empty pipe detection, for switching dosing valve or limit control. By using Programmtool the user can switch between npn and pnp-transistor logic. In case of inductive load a diode has to be connected parallel to the coil.
24V
GND
24V
pnp
Relay
Output
npn
Fig. 13: Connecting Output Q1 to relay
Setting area : off, pulse output, empty pipe, dosing output, lower limit, upper limit, negative flow
www.GlobalTestSupply.com
20
Page 23
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
Digital output Q2*
The npn or pnp logic can be selected. When the output is connected to an inductive load a diode has to be installed antiparallel to the load.
Example 2 : Flowmeter via pnp, external counter e.g. PLC
24V
24V
pnp
Output
In
ca.
Counter
GND
npn
2 kOhm
GND

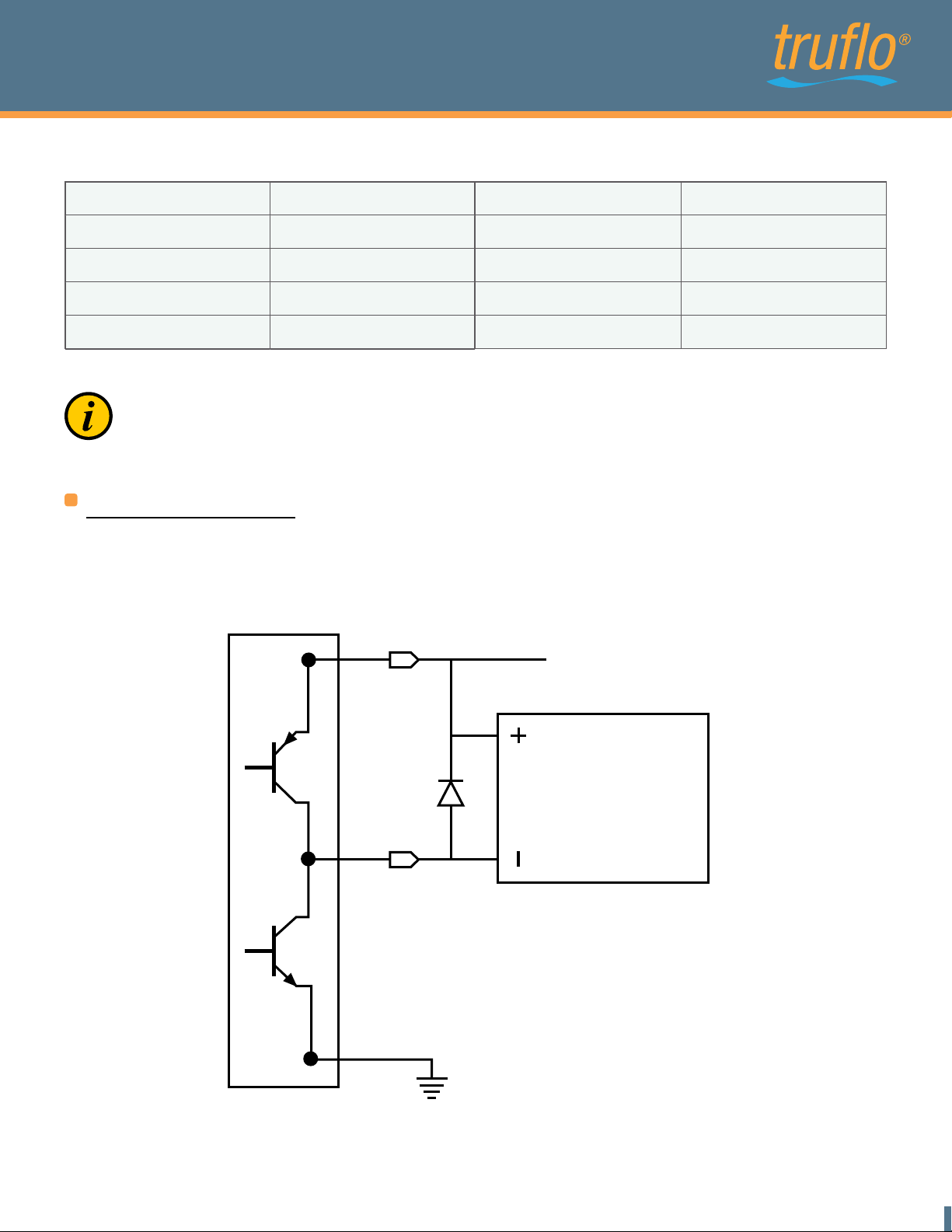

Fig. 14: Connecting output Q2 to counter
Setting area : off, pulse output, empty pipe, dosing output, lower limit, upper limit, negative flow
Important! Inductive load on the digital outputs without an installed diode may cause
damage on the Flowmeter electronics.
Dosing function
Dosing can be determined in different ways :
1. Flowmeter as dosing device (dosing control via Flowmeter) Flowmeter controls the complete dosing function. The dosing quantity (e.g. 400 ml) is pre-set in the
Flowmeter via the display or Programmtool. Dosing starts, as soon as the digital input is wired to 24V, e.g. via a pushbutton. Flowmeter will open the dosing valve via the output configured for it. When the pre-set dosing quantity is released, the dosing valve is closed via the above output. The dosing procedure can also be started and stopped by using the dosing user menu. The second output can be used independently for signaling empty pipe, limit control or flow direction.
www.GlobalTestSupply.com
21
Page 24
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
2. Flowmeter as flowmeter (dosing control via dosing equipment) The dosing equipment controls the entire dosing function. The dosing quantity is fixed in the dosing
equipment control during commissioning by pre-selecting the meter pulses. Dosing starts, when the relevant pushbutton of the dosing equipment is pushed. The control will now open the dosing valve. From now on Flowmeter will send a voltage pulse to the control for each volume unit that has flown through (e.g. per 1ml). When the pre-selected pulse quantity is reached, the control closes the dosing valve. In this case, output 1 is used to send out pulses, output 2 is independently usable for empty pipe detection, limit control or signalling negative flow.
The customer has to provide an emergency stop and an overfilling stop to prevent hazardous situations. Both functions must perform safety shut down of pumps and
WARNING!
closing of valves.
Media
Flowmeter comes with a medium matrix with up to 8 interpolation values. Different media can be managed in the sub menu "Media". By using the sub menu point "Correction" it is possible to correct the flow measurement in percent. Example of operation see appendix.
Digital input I1*
Flowmeter has a digital input that is programmable to following functions: dosing input, set offset, creeping suppression inactive and reset counter. In order to start a dosing process, 24V DC power is required. The status of the dosing parameters is modified with the Programmtool
NOTE : The dosing input is locked so that a re-start is not possible during a running dosing process. After changing configurations via Programmtool a restart of the device is necessary to activate the doing input function.
NOTICE
When input setting is changed a device restart is required. After restart the changes are activated.
Available input functions
Set offset Creeping flow off Dosing
Reset counter off
0V
24V
- ­Rising edge:
0->24V Set offset
Run only in stationary medium
State : deactivating creeping flow
­Rising edge:
0->24V start dosing
­Rising edge:
0->24 Vcounter is reset
-
-
The input function "Set Offset" may only be used when there is no flow through the meter. If an offset trim is done while liquid flow is present an offset drift will cause measurement deviations. If the Flowmeter shows an offset drift caused by a wrong offset setting, run the function "Set Offset" or "Basic Trim" again with filled flow meter and no present flow.
www.GlobalTestSupply.com
22
Page 25
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
3.3 Overview of default settings
Function
Digital output Q1 Digital output Q2* Digital input I1* Current output QA
Pulse value Creeping suppression
Default settings
Pulse output as 24V normal open Empty pipe detection as 24V normal open No function assigned Flow as 4-20mA signal
20mA -> 3 l/min at DN5 6 l/min at DN7 24 l/min at DN10 60 l/min at DN15
1 ml/pulse
0.024 l/min at DN5
0.09 l/min at DN7
0.3 l/min at DN10
0.9 l/min at DN15
3.4 General Information
Please check the following before powering the flowmeter for the first time:
Check the electrical connections and cable allocations Check the installation position of the flowmeter. Are the direction of the arrow on the name plate and the actual flow direction in the pipe congruent? Is the measurement pipe completely filled with fluid? C
heck the back pressure in the system
When everything has been checked, switch on power. After 30 minutes with power running the measuring device reaches the maximum accuracy.
4. Exchange of Measuring Device
Switch off power before disconnecting the electrical connections! Wiring installation, disassembly and removal must be performed by qualified persons experienced and knowledgeable about electrical work.
WARNING!
Serious injury or death from electric shock may occur if wiring, installation, d
isassembly or remove of wires is performed while electrical power is energized
Please note that after replacing the flowmeter
a) the programming of the previous flowmeter should be saved and copied on the new flowmeter b) when using the dosing function, set a quantity
If the device requires a configuration change, the display and programming unit Programmtool may be required (see section 6. Accessories).
www.GlobalTestSupply.com
23
Page 26
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
Repair, Hazardous Substances
Before sending the flowmeter Flowmeter for repair, the following precautions must be taken:
Clean all process chemicals from the device. Fully rinse the flow path. Please pay close attention to the process fittings. All media must be removed before returning. This is particularly important, if the medium to be measured is health
WARNING!
Devices judged to be insufficiently cleaned will be returned to sender. No inspection of device will be done until proper cleaning is completed by user.
Costs due to inadequate cleaning of the instrument for possible disposal or injury (burns, etc.) will be charged to the sender of the meter into account.
hazardous.
With the flowmeter send a detailed report describing the failure, the application and the physical-chemical properties of the medium parameters. (e.g. a decontamination declaration).
WARNING!
In order to be able to process your repair order quickly and smoothly it is important that you provide a technical contact person including phone and fax number as well as e-mail address.
www.GlobalTestSupply.com
24
Page 27
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
5. Technical Specifications
5.1 Dimensions and weight
Nominal
Diameter
DN5
DN7 DN10 DN15 175.5 55 25 G1 29
Length A
[mm]
167.5
167.5
170.5
Depth B
[mm]
50 50 50
C
[mm]
23 23 23
D
[mm]
G1/2 G1/2 G3/4
Width E
[mm]
25 25
26.5
F
[mm]
7
7 10 15
www.GlobalTestSupply.com
G
[mm]
98 98 95 90
H
[mm]
40 40 40 30
Weight
[g]
PE-HD
670 670 720 895
Weight
[g]
PVDF
1100 1100 1190 1470
25
Page 28
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
5.2 Technical Specifications
Housing
DN5, DN7, DN10, DN15Nominal diameters Connection inner thread G1/2, G1/2, G3/4, G1 Medium temperature 0...+60°C Protection class IP 65 Pressure nominal 7 Bar Material PE-HD (Polyethylene), PVDF (Polyvinylidene fluoride)
Electronics
18...30VDCPower supply Power input at 24VDC = 3.6W Connection Plug 5 pins, option plug 8 pins
Ambient temperature 0....+60°C
Storage temperature 0....+60°C
Current output QA 0/4...20 mA,
Lower- and upper limit adjustable, Ground connected to supply ground Error Signal according to NAMUR NE43 with 4…20mA
Digital output Q1/2 via transistor npn- and pnp-logic
max. 30V/100mA output voltage according to DIN 19240: 5V means LOW 12V means HIGH Short cut resistant
Frequency 0....10kHz
Data interface Data interface for parameterize Measuring deviation ± 2% of reading ± 3mm/s, option ± 1% of reading ± 3mm/s
Reference conditions (VDE/VDI 2642) Measuring range 0.024 - 3 l/min DN 5
0.09 - 6 l/min DN 7
0.3 - 24 l/min DN10
0.9 - 60 l/min DN15
Repeatability 0.5%
The measuring system Flowmeter meets the general EMC immunity requirements according to CE, EN 61000-6-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6. It is in conformity with the requirements of the EC directives and has the CE label.
www.GlobalTestSupply.com
26
Page 29
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter

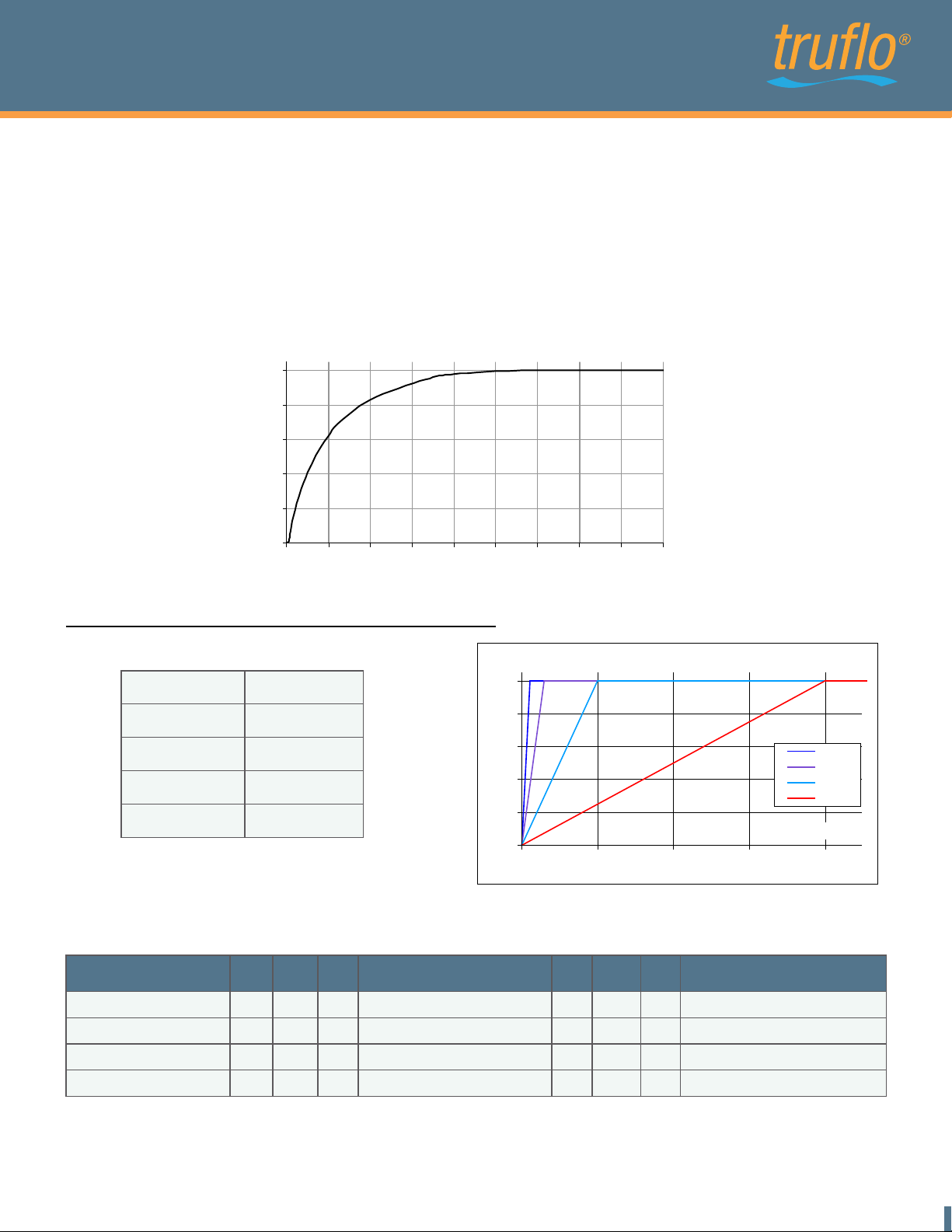

Behavior of the Temperature Sensor
The integrated temperature sensor has no direct contact to the liquid and is used to calculate the expansion of the housing. The environment temperature greatly influences the actual temperature of the temperature sensor. The response time of temperature changes relates to the mounting position of the temperature sensor inside the housing.
Step-Response Time
Step-response time after a significant temperature change. (Filter "Off")
100
80
60
Temperature [%]
40
20
0
0 5 10 15 20 25 30 35 40 45
Step-response time
Filter Configurations for Temperature Sensor
Filter Off Soft Medium Strong 4min
100% 1s 16s 1min
Step-response with filter
100
80
60
40
Value [%]
20
0
0 1 2 3 4
Time [min]
Off Soft Medium Strong
Time [s]
Influence of the environment temperature In the table below some examples of the temperature influence are shown.
Liquid Temp
40 40 40 60
X
0.7
X
0.7
X
0.7
X
0.7
X
0.7
+
Environment temp.
+ + +
20°C 20°C 20°C
0.3
X
0.3
X
0.3
X
0.3
X
0.3
X
=
= = = =
Measured temp.
34°C 37°C 40°C 48°C+ 20°C
In case of an error :
In case of a short circuit of the temperature sensor -50°C are shown. In case of a cable brake between temperature sensor and electronic -30°C are shown.
www.GlobalTestSupply.com
27
Page 30
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
Possible error text Flowmeter
Display text
Empty Pipe
Low Voltage
Short Circuit
Lower Limit
Upper limit
Sonic Speed Actual sonic speed out of specified value. Run basic trim! Only text
When "Empty Pipe" is detected, no flow measurement When power supply is less than 18V the outputs
are inactiv. When over load of the digital outputs is detected
(>100mA), outputs are inactive. When the flow is less than an adjustable limit and the
output is configured for limit control. At the same time the configured output is switched.
When the flow is more than an adjustable limit and the output is configured for limit control. At the same time the configured output is switched.
Pulse value
Behavior
Display flashing + text
Display flashing + text
Only text
Only text
Only text
www.GlobalTestSupply.com
28
Page 31
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
Appendix Examples of Operation
Enter Password
Key Display Picture
4X
Set
Set
Set
Set
Set
Password
400004X
X0000
X1000
XX000
XX400
XXX00
XXX10
Reset Counter
XXXX0
Key Display Picture
4X
XXXX4
Set Offset Basic Trim
Set
Set
Reset Counter Language
Dosing
Set
Reset Counter Start?
Reset Counter
Set
Start? Done
www.GlobalTestSupply.com
29
Page 32
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
Set Offset
Use this function only when Flowmeter is completely filled with liquid, and there is no flow. If the offset is set while flow is present or when the pipe is empty it will cause an offset drift what results in a faulty measurement.
Reset Counter
Key Display Picture
Set Offset Basic Trim
2X
Set
Set
Set
Set
Reset Counter Language
Dosing Filter
Media Set Offset Basic Trim
Mengenreset
Set Offset Start?
Reset Counter Start?
Done
1-point correction
With the 1-point correction, the meter is calibrated to an operating point. Given an arbitrary amount of volume is filled into a container and measured with a weight. Attention: subtract the weight of the container. With i has to be compared with the meter display. Shows t entered for the 1-point correction.
nclusion of the density of the medium, the volume (volume = mass / density) is obtained. This
he meter for instance 2% more than determined by the scale a value of -02.0% must
www.GlobalTestSupply.com
30
Page 33
ULTRAFLO 5000
PVDF-PE Plastic Ultrasonic Flow Meter
Key Display Picture
Set Offset Basic Trim
3X
Set
Set
Set
Set
Reset Counter Language
Dosing Units
Filter Media Set Offset
Basic Trim
Media Water
Media Correction
Media Correction
-00.0%
Setting the sign Setting the value
Media
Set
To enable the correction back to delivery, a correction of 00.0% is to be entered.
Correction Done
www.GlobalTestSupply.com
31
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
