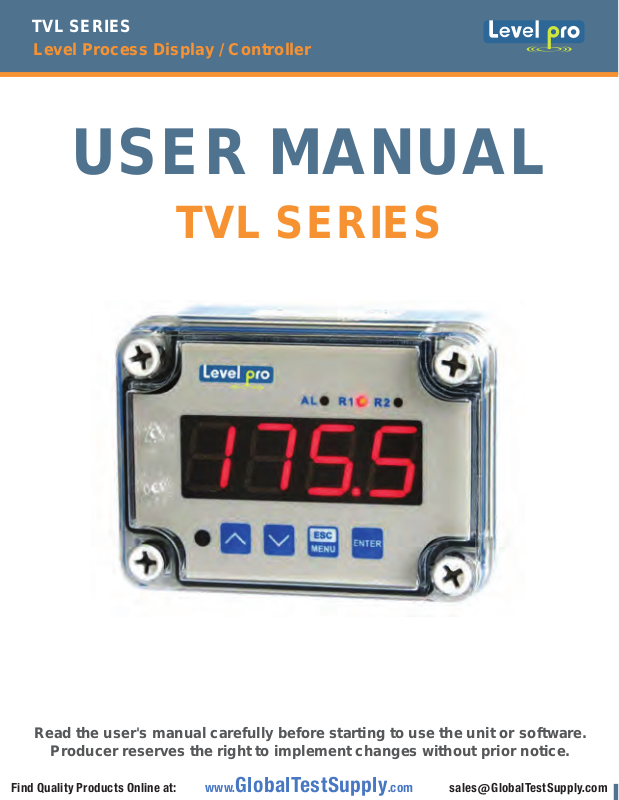

Page 1
TVL SERIES
Level Process Display / Controller
USER MANUAL
TVL SERIES
Read the user's manual carefully before starting to use the unit or software.
Producer reserves the right to implement changes without prior notice.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 2
TVL SERIES
Level Process Display / Controller
TABLE OF CONTENTS
1. BASIC REQUIREMENTS AND USER SAFETY
2. GENERAL CHARACTERISTICS
3. TECHNICAL DATA
4. DEVICE INSTALLATION
4.1.UNPACKING
4.2.ASSEMBLY
4.3.CONNECTION METHOD
4.4. MAlNTENANCE
5.FRONT PANEL DESCRIPTION
6.PRINCIPLE OF OPERATION
6.1.MEASUREMENT MODE

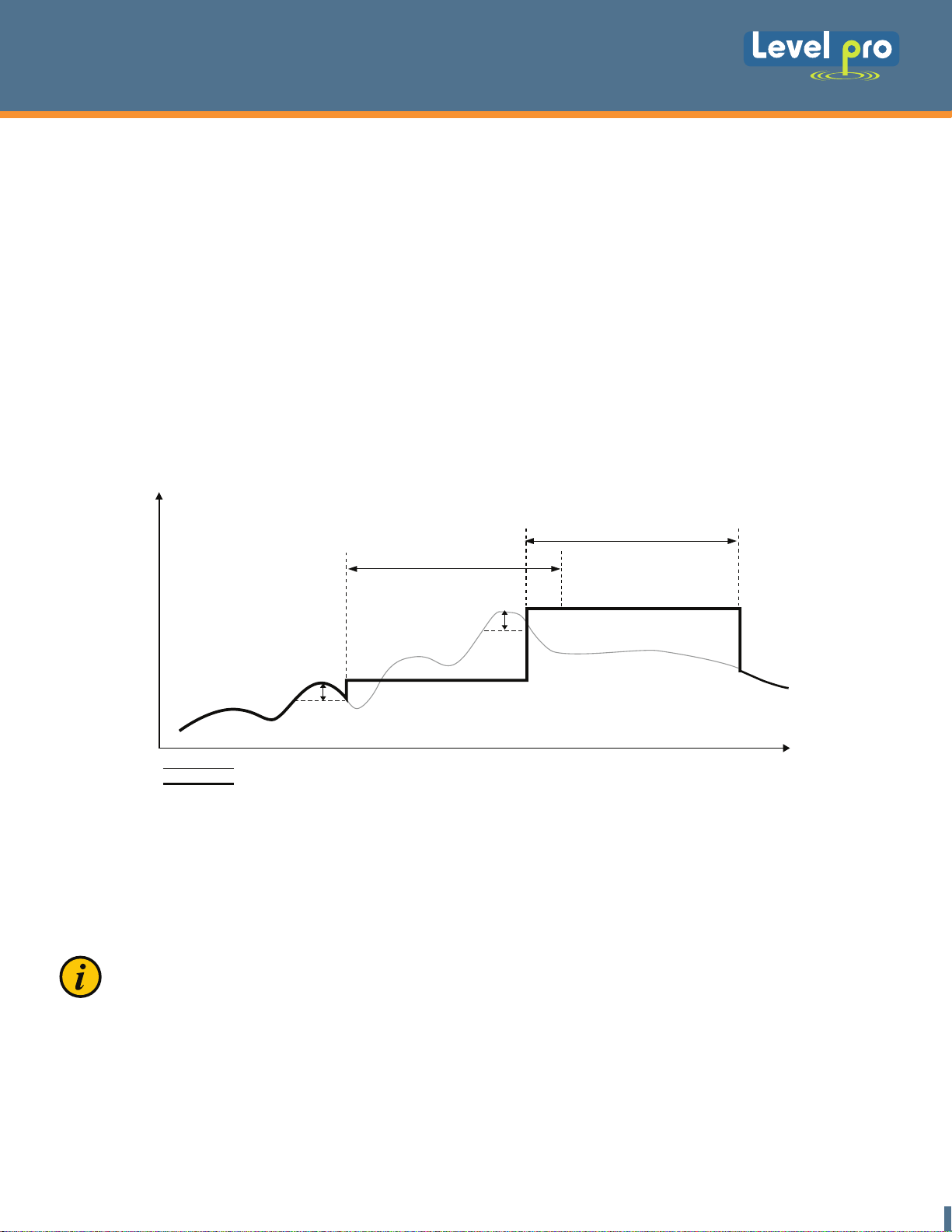

6.2.DETECTION OF THE PEAK VALUES
6.3.CONTROL OF THE RELAY OUTPUTS
7.DEVICE PROGRAMMING
7.1. PROGRAMMING MENU
7.2. PARAMETERS EDITION
02
03
03
05
05
05
06
08
09
10
10
11
11
13
13
14
7.2.1. Numeric parameters (digit change mode)
7.2.2. Numeric parameters (slide change mode)
7.2.3. Switch parameters (“LIST” type)
7.3. MENU DESCRIPTION
7.3.1. “rEL1” menu
7.3.2. “inPt” menu
7.3.3. ”OutP” menu
7.3.4. ”bri” parameter
7.3.5. ”HOLd” menu
7.3.6. ”SECu” menu
7.3.7. ”rS” menu
7.3.8. ”Edit” parameter
7.3.9. ”dEFS” parameter
7.3.10. ”SErv” menu

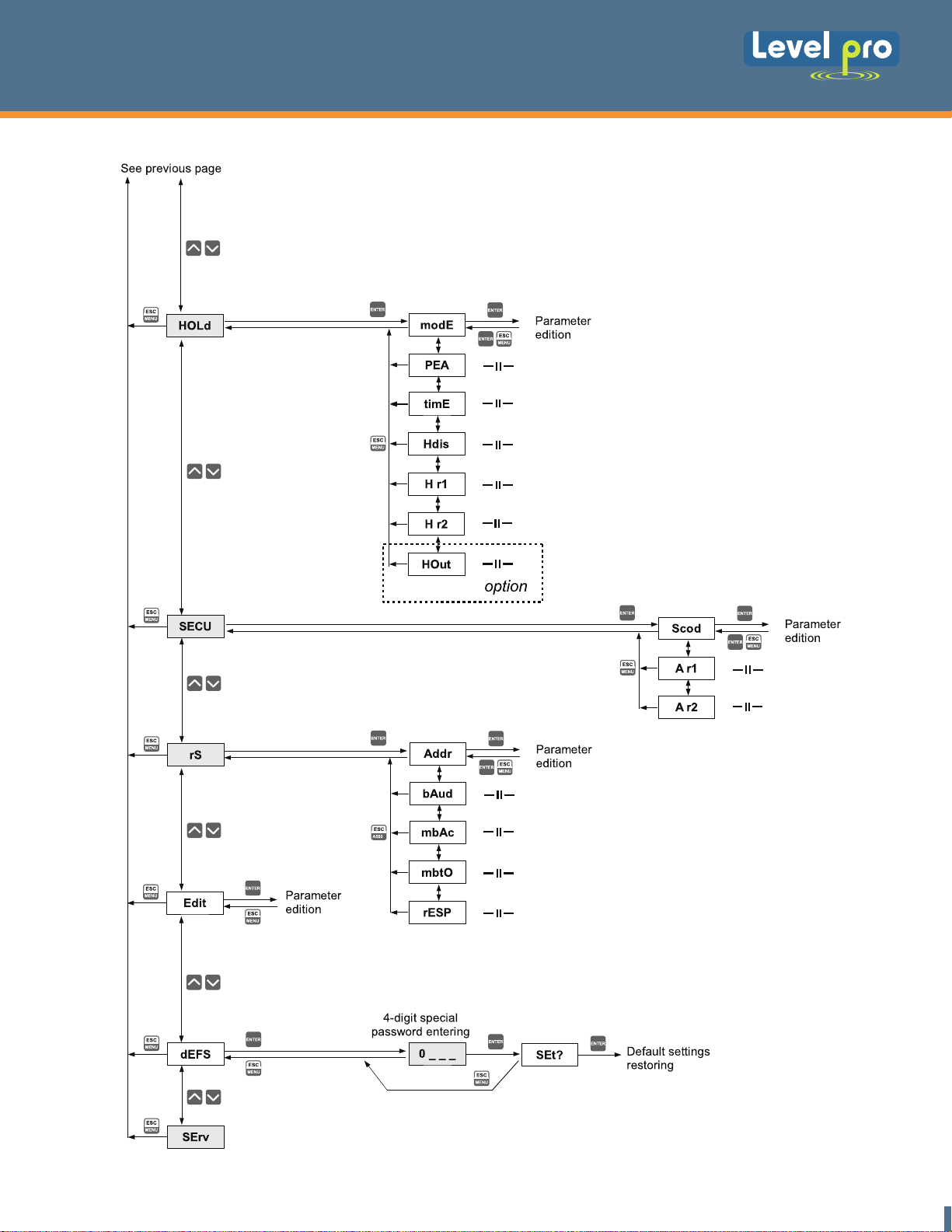

7.4. MENU STRUCTURE
8.THE ALARM LED
14
14
14
15
15
16
22
25
25
25
26
27
27
27
28
30
9.OVER-CURRENT PROTECTION
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
30
Page 3
TVL SERIES
Level Process Display / Controller
Explanation of symbols used in the manual
This symbol denotes especially important guidelines concerning the installation
and operation of the device. Not complying with the guidelines denoted by this
symbol may cause an accident, damage or equipment destruction.
IF THE DEVICE IS NOT USED ACCORDING TO THE MANUAL THE USER IS
RESPONSIBLE FOR POSSIBLE DAMAGES.
This symbol denotes especially important characteristics of the unit. Read any
information regarding this symbol carefully.
1. BASIC REQUIREMENTS AND USER SAFETY
Do not use the unit in areas threatened with excessive shocks, vibrations, dust, humidity, corrosive
gasses and oils.
Do not use the unit in areas where there is risk of explosions.
Do not use the unit in areas with significant temperature variations, exposure to condensation or ice.
Do not use the unit in areas exposed to direct sunlight.
Make sure that the ambient temperature (e.g. inside the control box) does not exceed the
recommended values. In such cases forced cooling of the unit must be considered (e.g. by using a
ventilator).
The manufacturer is not responsible for any damages caused by inappropriate installation, not
maintaining the proper environmental conditions and using the unit contrary to its assignment.
Installation should be conducted by qualified personnel . During installation all available safety
requirements should be considered. The fitter is responsible for executing the installation according
to this manual, local safety and EMC
regulations.
GND input of device should be connected to PE wire;
The unit must be properly set-up, according to the application. Incorrect configuration can cause
defective operation, which can lead to unit damage or an accident.
If in the case of a unit malfunction there is a risk of a serious threat to the safety of people or
property additional, independent systems and solutions to prevent such a threat must be used.
The unit uses dangerous voltage that can cause a lethal accident. The unit must be switched off
and disconnected from the power supply prior to starting installation of troubleshooting (in the case
of malfunction).
Neighboring and connected equipment must meet the appropriate standards and regulations
concerning safety and be equipped with adequate overvoltage and interference filters.
Do not attempt to disassemble, repair or modify the unit yourself. The unit has no user serviceable
parts. Defective units must be disconnected and submitted for repairs at an authorized service
center.
The unit is designed for operation in an industrial environment and must not be used in a
household environment or similar.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
02
Page 4
TVL SERIES
Level Process Display / Controller
2. GENERAL CHARACTERISTICS
The TruVu meter is equipped with one current input 0-20 / 4-20mA and one voltage input 0-5 /
1-5 / 0-10 / 2-10V. Current input has additionally overcurrent protection circuit, which protects
standard resistor. The selection of active input is realized by software, and the selected input can be
changed at any time. Additionally the
several kinds: linear, square, square root, user defined (max.20 points length) and volume

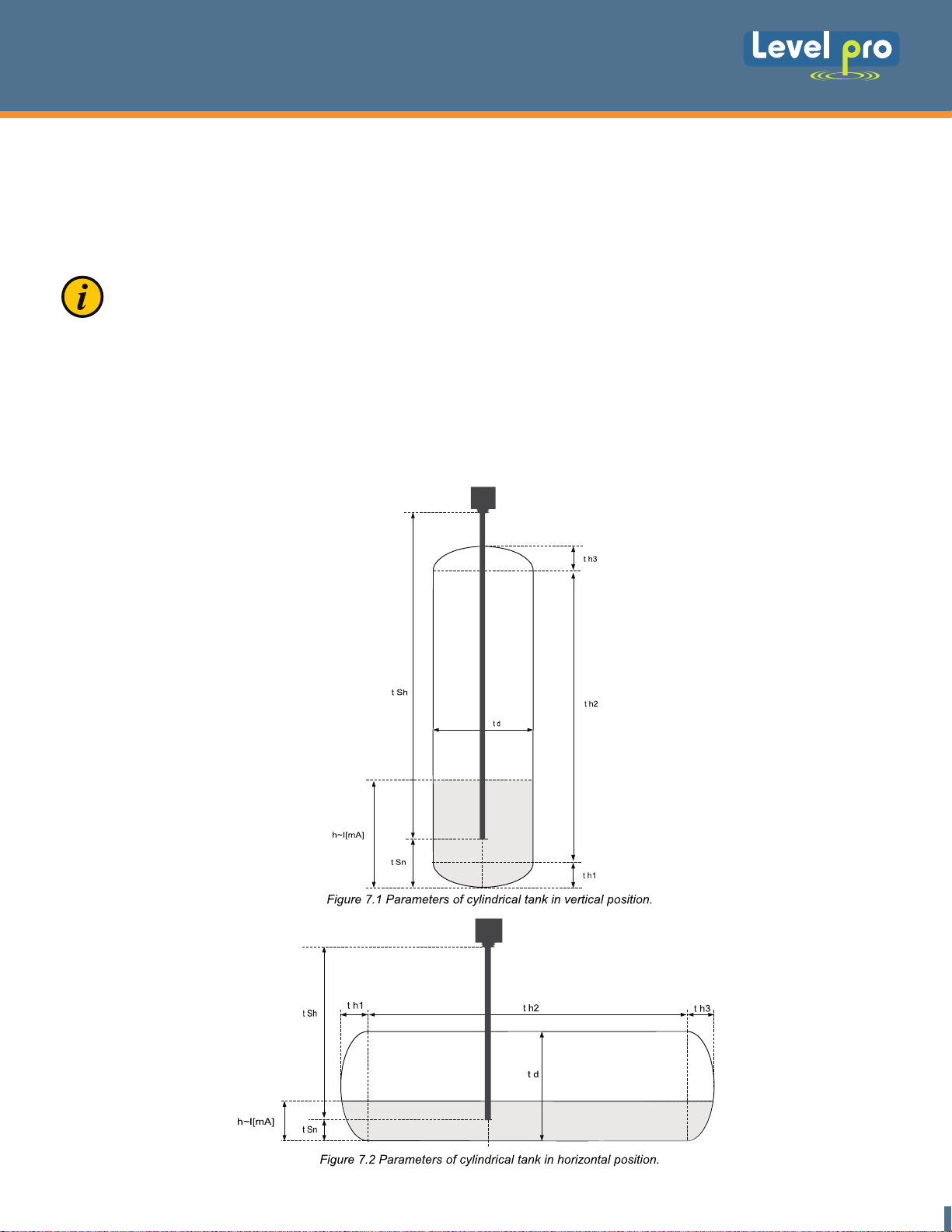

characteristics of a cylindrical tank in the vertical and horizontal position. Result is showed on 4-digit
LED display. Displayed values range can be selected by user, from -999 to 9999, plus decimal point.
The device can be equipped with two relay (or OC type) outputs. Device TruVu is equipped
with RS-485 / Modbus RTU communication interface and sensor supply output. The meter can be
ordered in three power supply versions.
The device has 4 buttons being used for main presets programming. To get high protection
level, the keyboard is mounted under a transparent cover. To allow user to change presets without
opening the cover, an IR sensor is located on Front. Remote controller keyboard is equivalent to the
device keyboard (Note, that remote controller is not a part of the TruVu set – it is an additional
equipment).
TruVu allows user to select a conversion characteristic of
The TruVu can be used for controlling and regulation of processes that require proportional
and threshold control for example: Temperature, Level, Valve Control.
3. TECHNICAL DATA
Power supply voltage
(depending on version)
External fuse (required)
Power consumption
Current input
Current measurement
accuracy
Current input resistance
Voltage input
Voltage measurement
accuracy
Voltage input resistance
230V AC ± 10%, 50 ÷ 60 Hz (separated) or 110V AC ± 5%, 50 ÷ 60 Hz (Standard)
or 24V AC ± 5%, 50 ÷ 60 Hz (separated) or 24V DC ± 15%, (not separated)
T - type, max. 2 A
2max. 2.6 VA @ 230V AC and @ 110V A max. 4.5 W @ 24V DC
0÷20 mA, 4÷20 mA overload protected, maximum input current about 40 mA
± 0,1% @ 25°C; ± one digit (for 0÷20 mA range)
< 65 W (typical 55 W)
0÷5 V, 1÷5 V, 0÷10 V, 2÷10 V
± 0,1% @ 25°C; ± one digit (for 0÷10 V range)
> 50 k
Temperature stability
Display range
Accepted prolonged
input overload
Find Quality Products Online at: [email protected]
50 ppm / °C
-999 ÷ 9999, plus decimal point
20%
www.GlobalTestSupply.com
03
Page 5
TVL SERIES
Level Process Display / Controller
Outputs relay
Sensor power supply U
Communication interface
Baud rate
Display(depending
on version)
Data memory
Protection level
Housing type
Housing material
without glands:
with glands:
0 or 2 NO, 1A/250V AC (cos = 1) or 4 NO
not stabilized, not separated from measuring inputs, in 230V AC and 110V AC and
o
24V AC version: U
in 24V DC version: U
(where Us - device power supply, Ro - internal resistance for sensor power supply output)
= 24V DC ± 3V / max. 25 mA;
o
= Us / max. 100 mA, Ro = 30
o
RS 485, 8N1 and 8N2, Modbus RTU, not separated
1200 bit/s ÷ 115200 bit/s
LED, 4 digit, 20mm height, red or LED, 4 digit, 20mm height, green
Non-Volatile Memory, EEPROM type
IP 65 NEMA 4X
IP 65 NEMA 4X
Poly Carbonate
110 x 80 x 67 mm
110 x 105 x 67 mm
Operating temperature
(depending on version)
Storage temperature
(depending on version)
Humidity
Altitude
Screws tightening max. torque
Max. connection leads diameter
Safety requirements
-25°C to +50°C
-30°C to +70°C or -20°C to +70°C
5 to 90% no condensation
up to 2000 meters above sea level
0,5 Nm
2,5 mm²
According to: PN-EN 61010-1
installation category: II
pollution degree: 2
voltage in relation to ground: 300V AC
insulation resistance: >20M
insulation strength between power supply and
input/output terminal: 1min. @ 2300V
insulation strength between relays terminal:
1min. @ 1350V
EMC
according to: PN-EN 61326-1
This is a class A unit. In a residential or a similar area it can cause radio
frequency interference. In such cases the user can be requested to use
appropriate preventive measures.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
04
Page 6
TVL SERIES
Level Process Display / Controller
4. DEVICE INSTALLATION
The unit has been designed and manufactured in a way assuring a high level of user safety and
resistance to interference occurring in a typical industrial environment. In order to take full advantage
of these characteristics installation of the unit must be conducted correctly and according to the local
regulations.
Read the basic safety requirements on page 3 prior to starting the installation.
Ensure that the power supply network voltage corresponds to the nominal voltage stated on the unit's
identification label.
The load must correspond to the requirements listed in the technical data.
All installation works must be conducted w ith a disconnected power supply.
Protecting the power supply connections against unauthorized persons must be taken into
consideration.
4.1. UNPACKING
After removing the unit from the protective packaging, check for transportation damage. Any
transportation damage must be immediately reported to the carrier. Also, write down the unit serial
number located on the housing and report the damage to the manufacturer.
Attached with the unit please find:
User's Manual,
Warranty,
4.2. ASSEMBLY
Disconnect the power supply prior to starting assembly.
Check the connections are wired correctly prior to switching the unit on.
To install device on the wall, a
pinholes should be made. Figure
4.1 presents dimensions of the
device and distances between
holes. The back side of the device
has four mounting holes. This part
of the case should be mounted to a
wall by screws.
80 mm
60 mm
110 mm
90 mm
o
o
4.4
8.4
67 mm

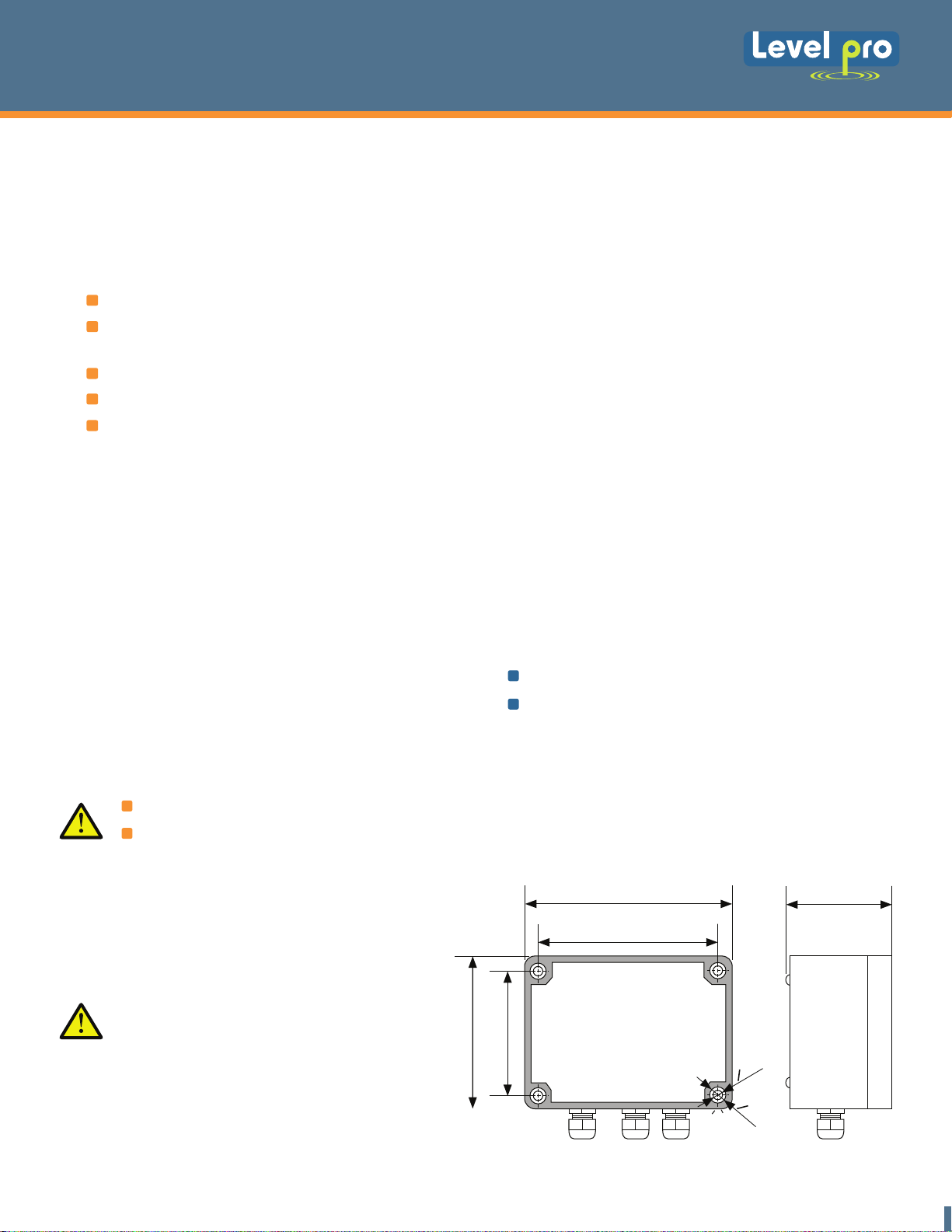

Figure 4.1. Device and assembly dimensions
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
05
Page 7
TVL SERIES
Level Process Display / Controller
4.3. CONNECTION METHOD
Due to possible significant interference in industrial installations appropriate measures
assuring correct operation of the unit must be applied. To avoid the unit of
Installation should be conducted by qualified personnel . During installation all available
safety requirements should be considered. The fitter is responsible for executing the
installation according to this manual, local safety and Federal regulations.
The unit is not equipped with an internal fuse or power supply circuit breaker.
Because of this an external time-delay cut-out fuse with a small nominal current value
must be used (recommended bipolar, max. 2A) and a power supply circuitbreaker located
near the unit. In the case of using a monopolar fuse it must be mounted on the phase
cable (L).
The power supply network cable diameter must be selected in such a way that in the case
of a short circuit of the cable from the side of the unit the cable shall be protected against
destruction with an electrical installation fuse.
Wiring must meet appropriate standards and local regulations and laws.

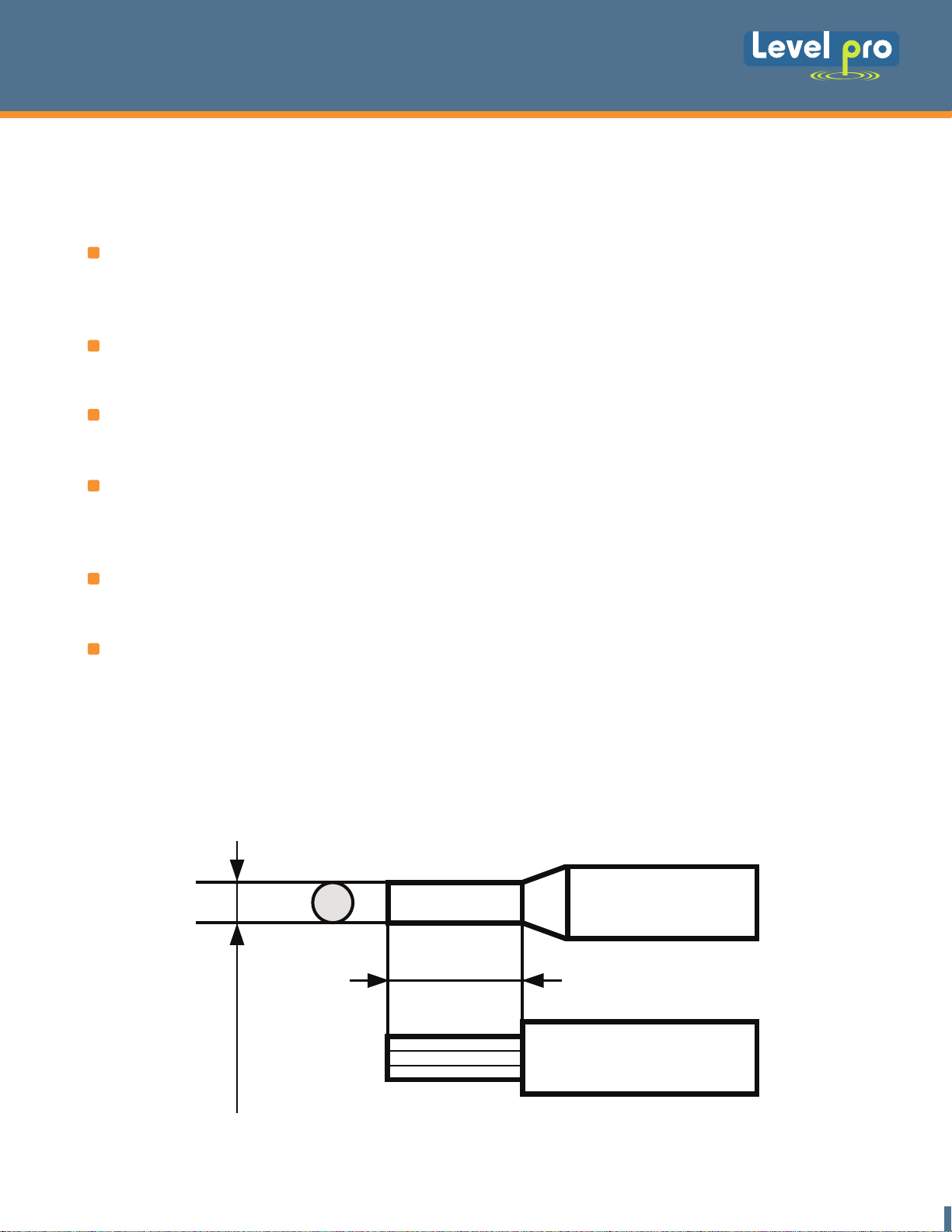

In order to secure against accidental short circuit the connection cables must be
terminated with appropriate insulated cable tips.
Tighten the clamping screws. The recommended tightening torque is 0.5 Nm.Loose
screws can cause fire or defective operation. Over tightening can lead to damaging the
connections inside the units and breaking the thread.
In the case of the unit being fitted with separable clamps they should be inserted into
appropriate connectors in the unit, even if they are not used for any connections.
Unused terminals (marked as n.c.) must not be used for connecting any connecting cables
(e.g. as bridges), because this can cause damage to the equipment or electric shock.
If the unit is equipped with housing, covers and sealing to, protecting against water
intrusion, pay special attention to their correct tightening or clamping. In the case of any
doubt consider using additional preventive measures (covers, roofing, seals, etc.).
Carelessly executed assembly can increase the risk of electric shock
After the installation is completed do not touch the unit's connections when it is switched
on, because it carries the risk of electrical shock.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
06
Page 8
TVL SERIES
Level Process Display / Controller
Due to possible significant interference in industrial installations appropriate
measures assuring correct operation of the unit must be applied. To avoid the unit of
improper indications keep recommendations listed below.
Avoid running signal cables and transmission cables together with power supply cables
and cables controlling inductive loads (e.g. contactors). Such cables should cross at a
right angle.
Contactor coils and inductive loads should be equipped with interference protection
systems, e.g. RC-type.
Use of screened signal cables is recommended. Signal cable screens should be
connected to the earth or ground only at one of the ends of the screened cable.
In the case of magnetically induced interference the use of twisted pair of signal cables is
recommended. Twisted pair (best if shielded) must be used with RS-485 serial
transmission connections.
In the case of measurement or control signals are longer than 100 Feet or go outside of
the building then additional safety circuits are required.
In the case of interference from the power supply side the use of appropriate interference
filters is recommended. Bear in mind that the connection between the filter and the unit
should be as short as possible and the metal housing of the filter must be connected to
the earth with the largest possible surface. The cables connected to the filter output must
Connection of the power supply, and the measurement and controlling signals should
be made by screw connectors mounted inside the housing.
0.25"
max. 0.08"
Figure 4.2. Method of cable insulation replacing and cable terminals
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
07
Page 9
TVL SERIES
Level Process Display / Controller
Use Screw Driver Provided
Instrument
Screw Driver
(Provided)
Figure 4.3. Method of connecting cables to the clamping connectors
Lev elpro Wiring Diagram
Examples : Pump Shut-Off
Valve Shut-Off
Pump
17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
Valve
Levelpro Level Sensor
Source for
Relays output, depends
on the instalation
+
Transmitter
+
Relay
Relay
Load no.1
Power supply
85.280V
4-20
-
Output
AL R1 R2
-
External
Display
+
ESC
ENTER
MENU
Examples :
Remote Location Office, Fill Station
ProAlert 1000
ViewSonic Alerm
NORMAL
TEST SILENCE
ProAlert
Alarm
Audible / Vesual
LP 100
TruVu Display
Provides
24VDC Power
to Levelpro Sensor
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
08
Page 10
TVL SERIES
•
•
•
•
•
•
•
•
•
Level Process Display / Controller

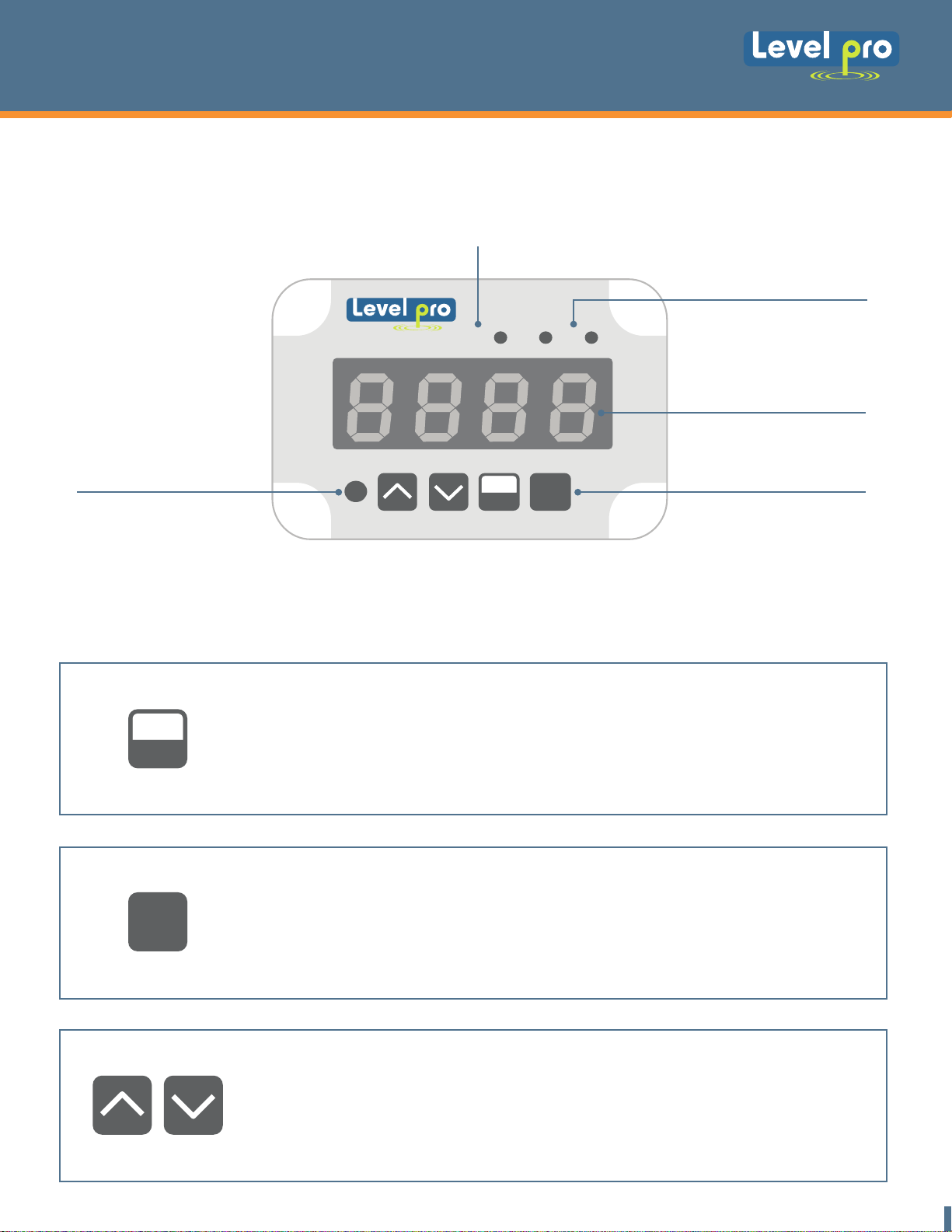

5. FRONT PANEL DESCRIPTION
Alarm LED indicator (AL)
AL R1 R2
Thresholds exceeding
LED indicators (R)
Bright Large Display
Infrared Receiver
ESC
MENU
ENTER
Symbols and functions of Push Buttons :
Symbol used in the manual : [ESC/MENU]
ESC
MENU
ENTER
Functions :
Enter to main menu ( press and hold for at least 2 sec.)
Exit the current Screen and Enter to previous menu (or measure mode)
Cancel the changes made in parameter being edited
Symbol used in the manual : [ENTER]
Functions :
Start to edit the parameter
Enter into the sub-menu,
Confirmation of changes made in parameter being edited
Programming
Pushbuttons
Symbol used in the manual : [^] [v]
Functions :
Change of the present menu,
Modification of the parameter value,
Change of the display mode.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
09
Page 11
TVL SERIES
Level Process Display / Controller
6. PRINCIPLE OF OPERATION
After turning the power supply on, device ID and software version are showed on the display,
next the controller then will go into the measurement mode.
6.1. MEASUREMENT MODE
In the measure mode, the measurement results, converted over selected characteristic, are
displayed on the LED display. The measurement range equal to the nominal range is called :
nominal measurement range, and the measurement range equal to the extended nominal
range is called: permissible measurement range (Figure 6.1, 6.2).
"Lo r" parameter
"Hi r" parameter
nominal measurement range
4 mA 20 mA
permissible measurement range

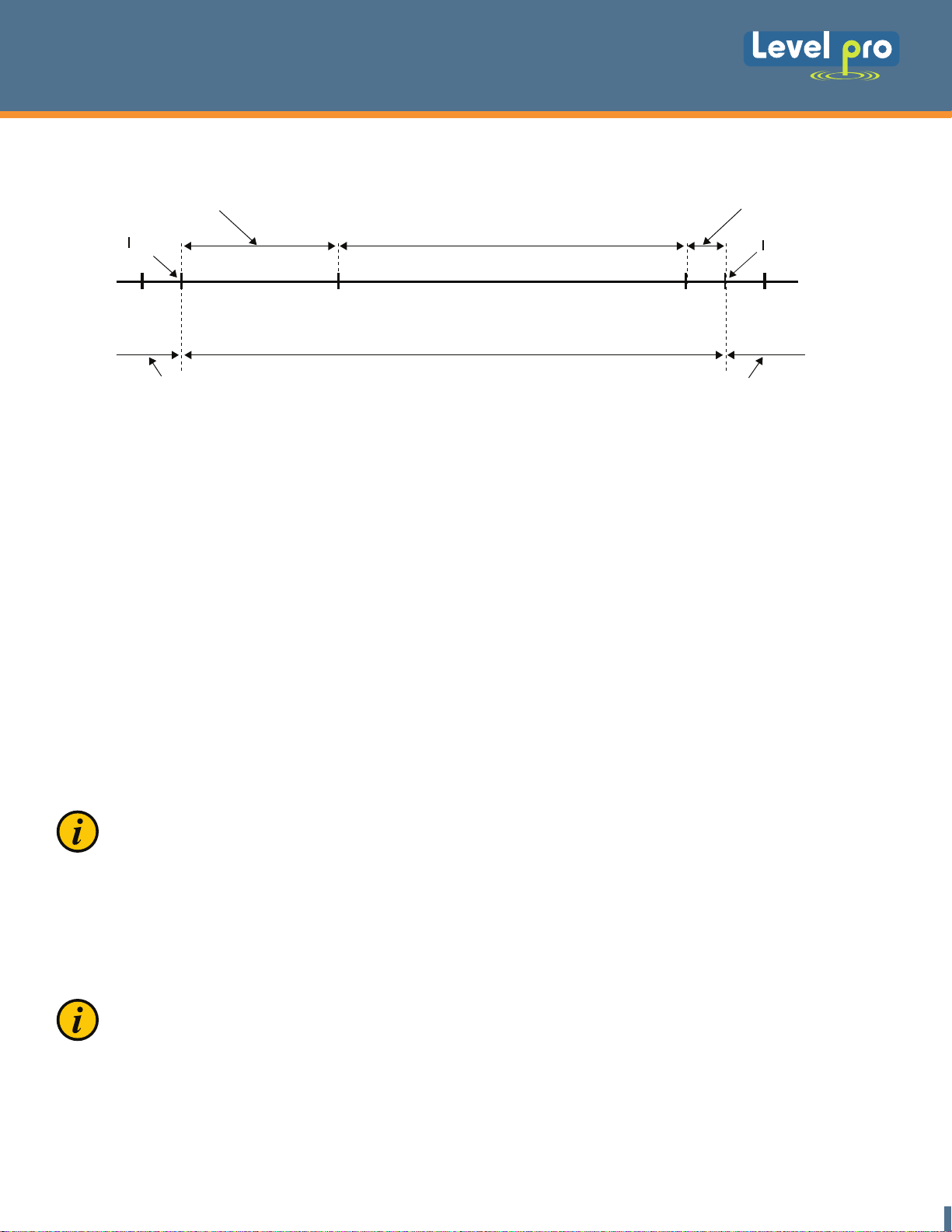

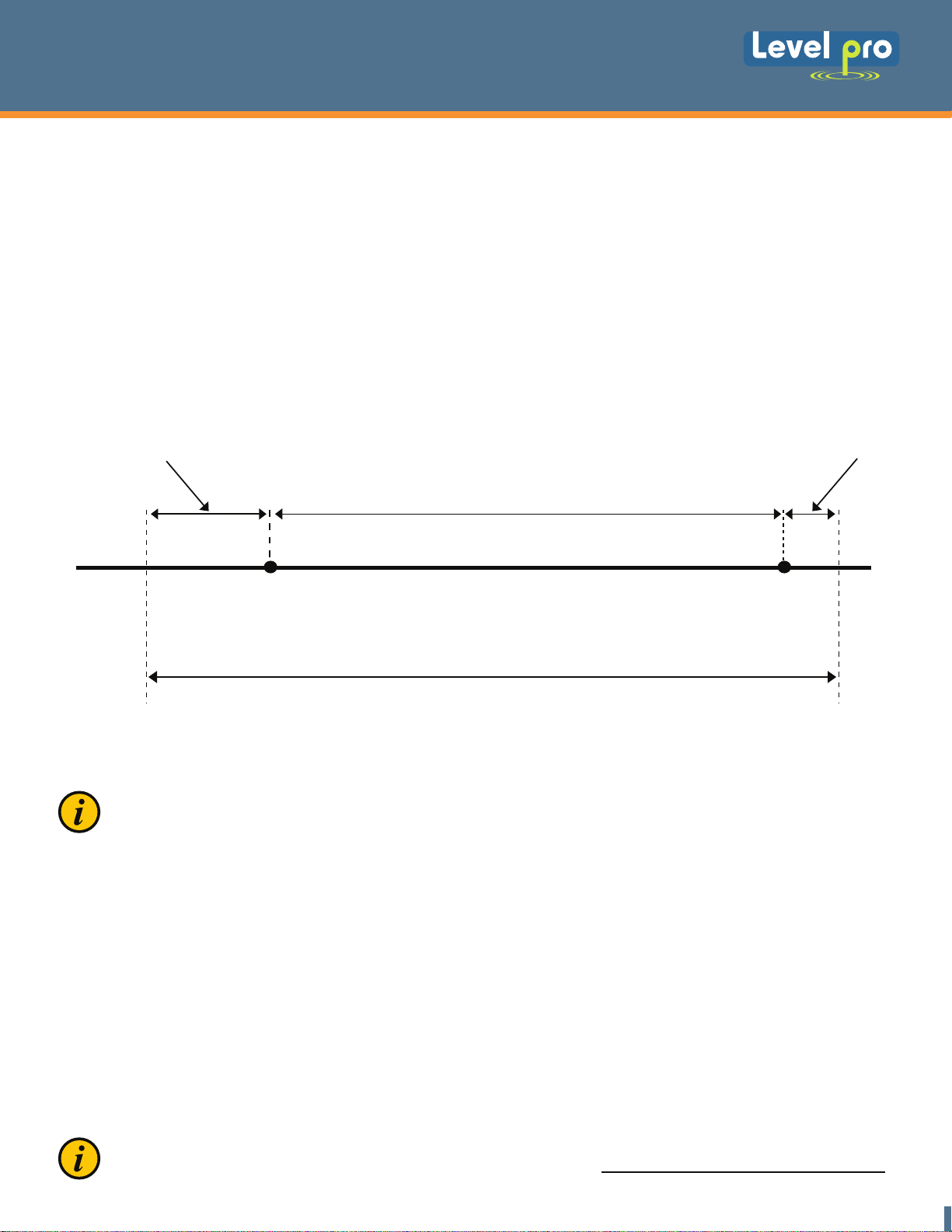

Figure 6.1. Definitions of measurement ranges in mode 4 - 20mA
If the measurement value does not exceed permissible measurement range but
displayed value exceeds range -999 ÷ 9999, the warning "-Ov-" is displayed rather than
the calculated Value.
In the measurement mode user can check main thresholds values. After pressing [^] or [v]
button, name of the threshold (e.g. "rEL1") and the value will be displayed on the display in an
alternating mode. If [^] or [v] is pressed within 5 sec, the next threshold will be displayed,
Otherwise the device Will return to the measurement mode. If a free access is enabled (see
description of "SECu" menu), user can change the value of particular threshold pressing button
[ENTER] (see : PARAMETERS EDITION).
Input type, range of displaying values, characteristic of conversion, decimal point position and
measure filtering ratio, are user configurable parameters. All accessible parameters can be
changed by entering the menu (see: DEVICE PROGRAMMING). Use the local keyboard or the
remote controller to do it. (Note: all parameters can be remotely changed via RS-485 interface).
Configuration of the device (via menu or RS-485 interface) Does not stop the measurements.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
10
Page 12
TVL SERIES
Level Process Display / Controller
6.2. DETECTION OF THE PEAK VALUES
The TruVu controller is equipped with a peak detection function. It can detect the peak of the input
signal and display the values. Presets connected with this function are placed in a "HOLd" menu
(see description of "HOLd" menu). The detection of the peak can be done if the measured signal
raises and drops in value at least equal to parameter "PEA". Detected peaks are displayed during
the time defined by parameter "timE". If a new peak is detected while the current one is displayed,
this new peak will be displayed and display time counter will be cleared (Figure 6.3). If no peaks are
detected while time "timE" elapses, device starts to show the current value of input signal Once
again. If "HdiS"="HOLD" then setting parameter "timE"=0.0 causes holding peak value until [ESC]
button is pressed. If "HdiS"="rEAL" then value "timE"=0.0 means no holding. Displaying peak
value is signalized by flashing most right decimal point.
The r
(see "HOLd" menu).
elays/LEDs can be controlled depend on the current value of input signal or the peak value
measure
"timE"
"timE"
"PEA"
"PEA"
real measurement result
display value
Figure 6.3. Process of peaks detection
time
6.3. CONTROL OF THE RELAY OUTPUTS
The control of the input (Fluid) (measured signal) is realized via relay outputs. Front panel LEDs
named "R" indicates the state of particular relay output.
If device is not equipped with one or more relay outputs, menus refer to the relays being
available, but apply to LED indicators only. In such case LEDs indicates exceeding of
particular thresholds but no relay will be activated.
Modes of the control can be changed depend on the values of parameters "SEtP", "SEt2", "HYSt",
"modE", "t on", "toFF", "unit" and "AL". Depend on "modE" parameter, relays can be not used
or controlled over one or two thresholds values.
I
f one threshold is used (Figure 6.4) the relay can be turned on ("modE" = "on") or off
("modE" = "oFF") when the input signal value is contained in zone A. If two thresholds are used
(Figure 6.5) the relay will be turned on when value of input signal is contained in zone A ("modE" =
"in") or zone B ("modE" = "out") and turned off if the signal is contained in the second one.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
11
Page 13
TVL SERIES
Level Process Display / Controller
State of
Relay/LED
"SEtP" Parameter
State of
Relay/LED
zone B
zone A
Measure
"HYSt"Parameter

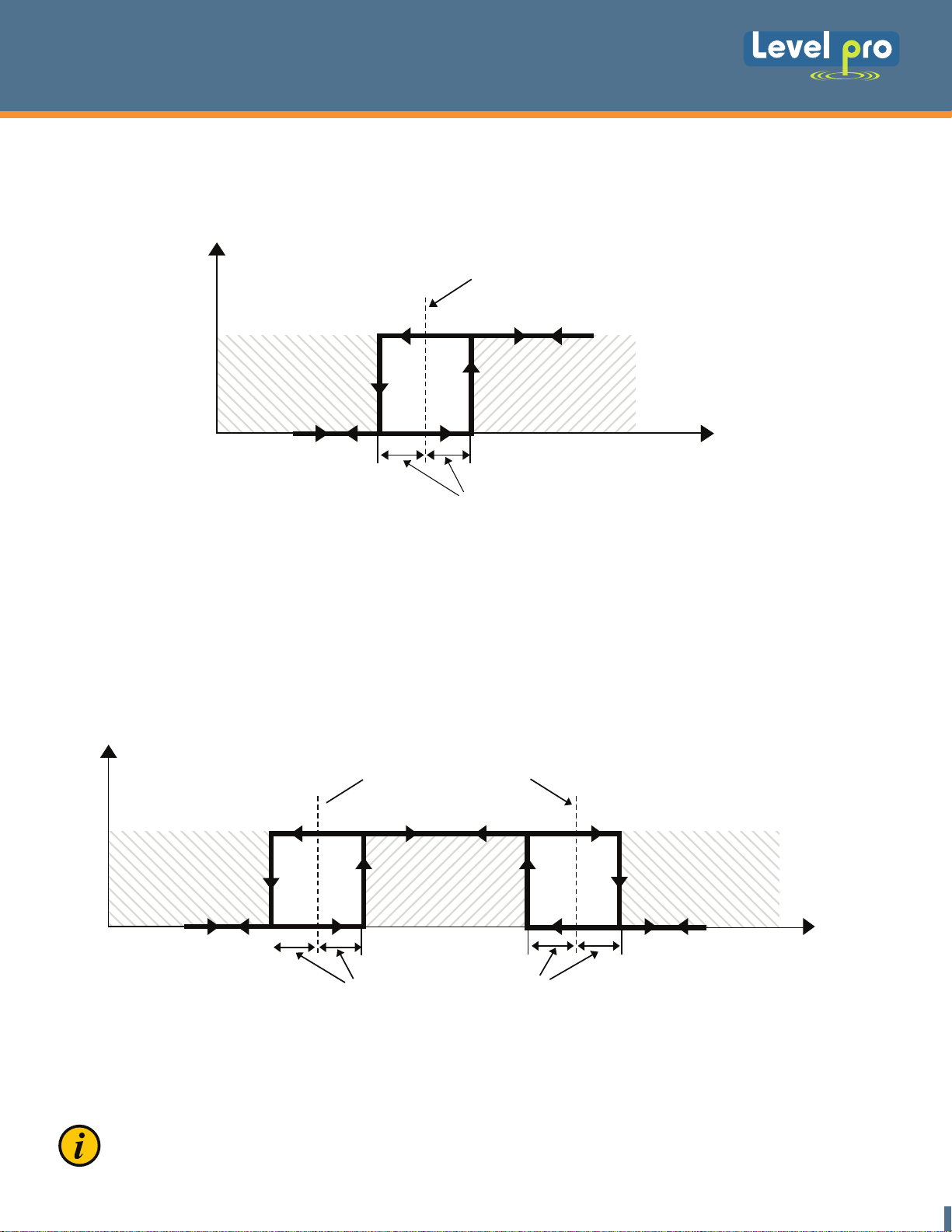

Figure 6.4. One threshold control of the Relay/LED outputs
"SEtP" or "SEt2"
Parameter
zone B
zone A
zone B
Measure
"HYSt" Parameter
Figure 6.5. Two threshold control of the Relay/LED outputs
The relay outputs and LEDs (named R) can be controlled depend on both - the current value
and the peak value (when peak detection is active) of the input signal.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
12
Page 14
TVL SERIES
Level Process Display / Controller
7. DEVICE PROGRAMMING
The device menu allows user to set all the parameters connected to the operation of measurement input,
control modes, critical situations behaviour, communication via RS-485 and access settings. The
meaning of the particular parameters is described in paragraph MENU DESCRIPTION.
Some of the parameters can be accessed without entering menu (Quick View Mode). After pressing [^] or
[v] button, name of the threshold (e.g."rEL1") and the value will be displayed on the display in the
alternating mode. If [^] or [v] is pressed within 5 sec, the next threshold will be displayed, else the device
comes back to the measurement mode. If a free access is enabled (see description of ”SECu” menu),
user can change the value of particular threshold pressing button [ENTER] (see: PARAMETERS
EDITION).
If particular parameter has been changed and confirmed in the Quick View Mode, the new value
is displayed in the alternating mode with parameter name within a few seconds. Confirmed
changes may be checked or user can switch viewed parameter by pressing [^] or [v] button.

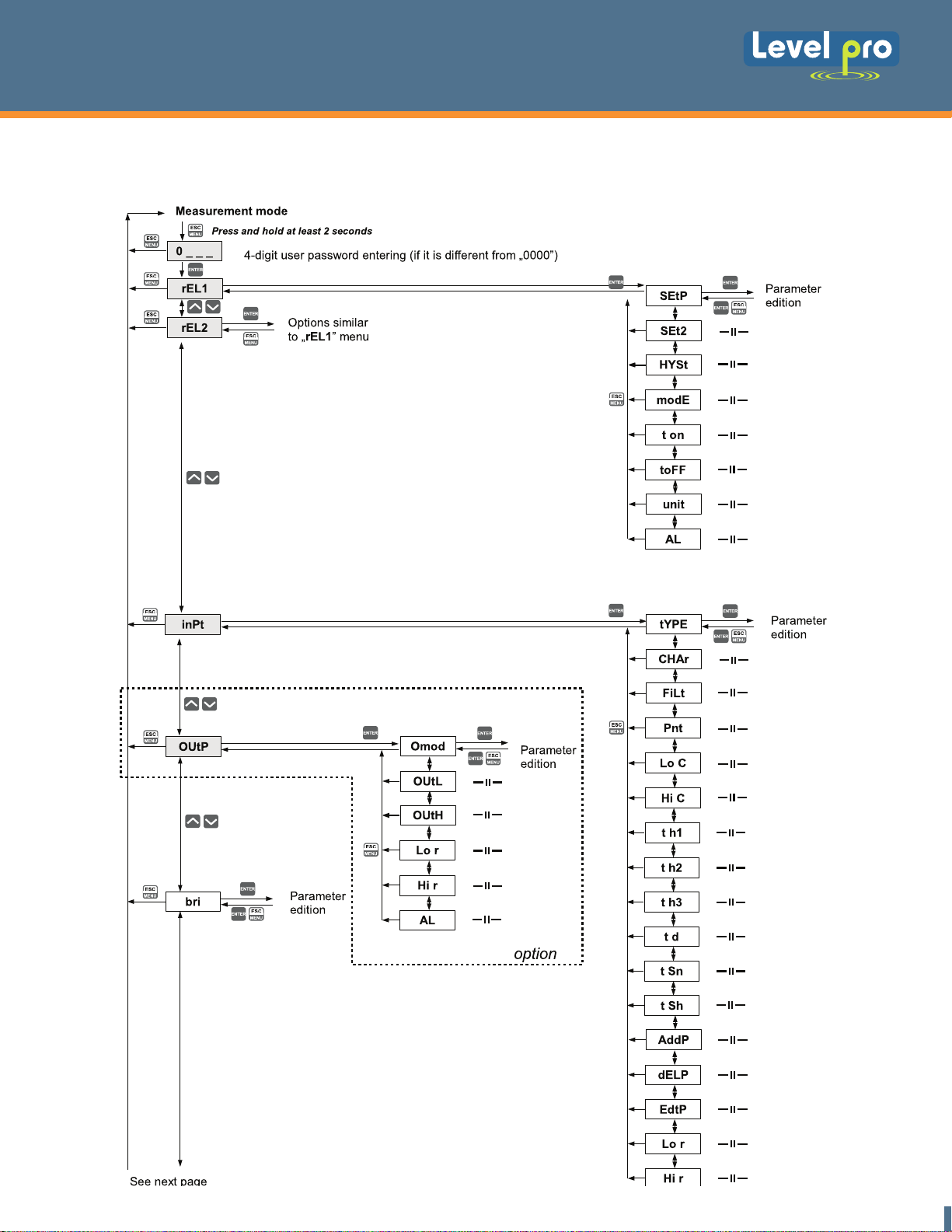

7.1. PROGRAMMING MENU
To enter main menu (being in the measurement mode) operator must to Press and Hold for at least 2 sec.
[ESC/MENU] button.
If t
he user Password is Defined (see parameter "Scod", menu "SECU"), the operator will have to enter
the correct password before proceeding to the menu options . The Entering of the passwords is similar to
the edition of numeric parameters (see: PARAMETERS EDITION ), however presently editing the digit is
shown only on the display, other digits are replaced by “-” sign. After entering of last digit of the password
first menu position will be displayed (if the password is correct) or warning "Err" if password is incorrect.
Pay attention when device parameters are being changed. If it is possible, turn off controlled
installation.
Functions of the buttons while sub-menu and parameters choice:
Selection of sub-menu or parameter for editing. Name of selected item
(submenu or parameter) is displayed.
Operation of [ENTER]button depend on present menu position:
• if the name of some sub-menu is displayed - enter this sub-menu; name of the first
ENTER
parameter (or next level sub-menu) is displayed,
• if the name of some parameter is displayed - enter the edition of this parameter;
present value of the parameter is displayed,
ESC
MENU
After about 1 min. of inactivity the, device will exit the menu mode and return to the measurement
mode.
Find Quality Products Online at: [email protected]
[ESC/MENU] button allow user to exit present menu level and goes to upper level
menu (or measurement mode).
www.GlobalTestSupply.com
13
Page 15
•
•
TVL SERIES
Level Process Display / Controller
7.2. PARAMETERS EDITION
To start edition of any parameter user should select name of desired one using [^] [v] buttons and then
press [ENTER].
7.2.1. Numeric parameters (digit change mode)
Numerical parameters are displayed as decimal numbers. The mode of the new value entered depends
on chosen edit method ( see parameter "Edit").
In m
ode "by digit" ("Edit"="dig") pressing one of the keys [^] or [v] causes change of current position
(flashing digit) or the sign (+/-). Short pressing of the [ENTER] button causes change of the position
(digit).
Press [
user must to confirm (or cancel) the changes. To conform changes (and story it in EEPROM) press
[ENTER] button shortly after ”SEt?” is displayed. To cancel the changes press [ESC] button shortly after
”SEt?” is displayed. After that device returns to the menu.
ENTER] for at least 2 seconds to accept the changes, after that question "SEt?" is displayed, and
7.2.2. Numeric parameters (slide change mode)
In "slide change" mode ("Edit"="Slid"), buttons [^] and [v] has different functions.
To increase edited value press (or press and hold) [^] button only, the increasing becomes faster as long
as button [^] is pressed. To slow down the button [v] can be used. If [v] is pressed shortly (and button [^]
is still pressed), increasing will slow down for a moment only, if [v] is pressed and held while button [^] is
still pressed the quick digit change will be kept on lower speed.
To
decrease edited value press (or press and hold ) [v] button only. The decreasing becomes faster as
long as button [v] is pressed. To slow down the decrease, button [^] can be used. If [^] is pressed shortly
(and button [v] is still pressed), decreasing slow down for a moment only, if [^] is pressed and held while
button [v] is still pressed the Speed will slow down and will be kept on lower speed.
Press [
user must confirm (or cancel) the changes. To confirm the changes (and store them in EEPROM) press
the [ENTER] button shortly after "SEt?" is displayed. To cancel the changes press [ESC] button shortly
after "SEt?" is displayed. After that device returns to the menu.
ENTER] at least 2 seconds to accept the changes, after that question "Set?" is displayed, the
7.2.3. Switch parameters ("LIST" type)
Switch parameters can be described as a sets of values (a lists) out of which only one of the options
available on the list can be selected for the given parameter. Options of switching parameter are selected
using [^], [v] keys. Short (Quick) pressing of [ENTER] results in the display the user to acknowledge the
question (”SEt?”). If key [ENTER] is pressed again, the changes are accepted, stored in EEPROM end
the edition process finished. Pressing the key [ESC] after ”SEt?” causes cancelling of changes made
and display returns to the main menu.
Functions of buttons when editing numeric and switching parameters :
While editing numeric parameter:
Change of current (flashing) digit
•
Slide change of value (acceleration, deceleration, direction change)
While editing switch parameter - selection of switch parameter.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
14
Page 16
•
•
TVL SERIES
Level Process Display / Controller
If numerical parameter is being edited, a short quick pressing of [ENTER] button will
change edited position. A long press of [ENTER] button (at lest 2 sec.) the display to
request ”SEt?” confirm, which allow user to make sure the change of the parameter
ENTER
value is correct. If switch parameter is being edited, a short press of [ENTER] button
causes the display a ”SEt?” confirmation. When [ENTER] button is pressed again
(while ”SEt?” is displayed) the new value of the parameter is stored in EEPROM
memory.
ESC
MENU
Pressing this button the operator can cancel the changes done up to now (if they were
not approved by [ENTER] button after the ”SEt?” request) and will return to the main
menu. menu.
7.3. MENU DESCRIPTION
Password checking. If the password is different from "0000", then the number
(password must be entered every to enter main menu)every enter to main menu
“- - - -”
Due to problem with direct displaying of “m” and “K” letters, they are exchanged with special signs
“ “ for “m” and “ “ for K respectively. However, the user manual letters "m" and "K" are used to
make it more readable (example: “modE”, “tc K”).
follows the entering of password. If entered password is correct then first menu
position will be displayed other wise the warning "Err", and unit returns to
measurement mode.
7.3.1. "rEL1" menu
This menu allows to configure the operation mode of relays and LEDs marked "R" (e.g. "R1").
If there are few relay outputs available, then every output has its own configuration menu (e.g. menu
"rEL2" for relay (LED) "R2"). Principle of the relays operation is described in paragraph CONTROL OF THE
RELAY OUTPUTS.
The relay outputs and LEDs (named R) can be controlled depend on both – the current value and
the peak value (when peak detection is active) of the input signal.
If device is not equipped with one or more relay outputs, menus refer to this relays are available,
but apply to LED indicators only. In such case LEDs indicates exceeding of particular thresholds.
first threshold of the relay (range -999 ÷ 9999). Negative values can be input by
"SEtP"
Find Quality Products Online at: [email protected]
selecting a “-” sign on first digit (to change value use [^] and [v] buttons). Threshold
is the median value of relay hysteresis.
www.GlobalTestSupply.com
15
Page 17
TVL SERIES
•
•
Level Process Display / Controller
second threshold of the relay (range -999 ÷ 9999). Negative values can be input
"SEt2"
"HYSt"
Presented parameters should be set to ensure that "SEtP" + "HYSt", "SEt2" + "HYSt", "SEtP" "HYSt" or "SEt2" - "HYSt" does not exceed the measure range. Additionally, in the two threshold
mode ("modE"= "in" or "out"), the hysteresis for both thresholds must not overlap one another (in
other case relay will not change state).
by selecting a “-” sign on first digit ( to change value use [^] and [v] buttons). This
threshold is accessible when "modE" parameter is set to "in" or "out" value.
Threshold is the median value of relay hysteresis.
hysteresis of relay (range 0 ÷ 999). Full hysteresis of the relay is equal to 2x
"HYSt" parameter. The relay state can change when an input signal is out of
threshold hysteresis to threshold+hysteresis zone.
"modE" - relay operation mode :
"noAC"
"on"
"oFF"
"in"
"out"
the relay is not active (permanently turned off)
one threshold mode, the relay is turned ON when input signal exceeds the SEtP +
HYSt value, and is turned off when the input signal became ower than SEtP – HYSt,
one threshold mode, the relay is turned OFF when input signal exceeds SEtP +
HYSt value, and is turned on when the input signal became lower than SEtP – HYSt,
two threshold mode, the relay is turned ON when the input signal is greate than
“lower threshold + HYSt” and below than “bigger threshold
HYSt”, and turned off when the input signal is contained within the second zone.
The hanger threshold equals the hanger one of “SEtP” and “SEt2” thresholds, the
smalle threshold” means the smaller one of “SEtP” and “SEt2” thresholds.
two threshold mode, relay is turned ON when the input value is greater than
“bigger threshold + HYSt” and lower than “smaller threshold – HYSt”, and turns on
when the input signal is contained in the second zone. The hanger threshold means
hanger one of “SEtP” and “SEt2” thresholds, the Smaller threshold” means Smaller
one of “SEtP” and “SEt2” thresholds.
"modb"
LEDs lights up when relays are closed, independently of relays' mode.
When the power supply fails, the unit does not store relays state selected by RS- 485 interface.
Find Quality Products Online at: [email protected]
the relay is controlled via RS-485 interface, independently on the input signal.
www.GlobalTestSupply.com
16
Page 18
TVL SERIES
Level Process Display / Controller
turn on the delay time, the relay is turned on with delay equal “t on” if the input
"t on"
"toFF"
If time when the input signal exceeds some border value and is shorter than the “t on” or “toFF” time, the
relay does not change is state (see paragraph : CONTROL OF THE RELAY OUTPUTS).
value exceeds the appropriate border value (defined with threshold and
hysteresis), “t on” time. “t on” range 0 ÷ 99.9, defined with 0.1 sec. resolution. Unit of
this parameter is set by “unit” parameter.
turn off delay time, the relay is turned off with delay equal “toFF” if the input value
exceeds appropriate border value (defined with threshold and hysteresis), “toFF”
time. “toFF” range 0 ÷ 99.9, defined with 0.1 sec. resolution. Unit of this parameter is
set by “unit” parameter.
unit of time for “t on” i “toFF” parameters. The unit be set to one of two values:
"unit"
"AL"
"min"
"SEC"
this parameter defines the relay reaction when some critical situations occurs:
"noCH"
"on"
"oFF"
If parameter “modE” is set to “on” , “oFF”, “in” or “Out” the “critical situation” means that the
allowable measurement range is exceeded.
If parameter "modE" is set to "modb", the "critical situation" means the communication
delay (when no data is received) is longer than "mbtO" parameter (see description: "rS"
menu).
minutes
seconds
relay do not change state,
relay will be turned on,
relay will be turned off.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
17
Page 19
TVL SERIES
Level Process Display / Controller
7.3.2. "inPt" menu
This menu presets the measurement input:
- type of the input / sensor. This parameter can be set to values:
“tYPE"
”CHAr”
”0-20”, “4-20” - current inputs.
”0-10”, “2-10”, ”0-5”, “1-5” - voltage inputs.
Displayed values are defined by parameters “Lo C”,”Hi C” (or by user defined
characteristic points) and parameter ”Pnt”.
- this option presets type of the conversion characteristic, and can be set to:
”Lin” - linear
“Sqr” - square
“Sqrt” - square root
“USEr”
“tn v”
“n h””
- user defined characteristic. Maximal length 20 points. Every point is defined by user. Adding,
Editing and Deleting of points is done by options „AddP”, „EdtP”, „dELP” („InPt” menu) respectively.
- volume characteristics of a cylindrical tank in the vertical position, determined by parameters:
„t h1”, ”t h2”, „t h3”, „t d”, „t Sn”, „t Sh” in „InPt” menu (see below for details of the parameters),
- volume characteristics of a cylindrical tank in the horizontal position, determined by parameters:
„t h1”, ”t h2”, „t h3”, „t d”, „t Sn”, „t Sh” in „InPt” menu (see below for details of the parameters).
When one of those characteristics is chosen display
range is defined by “Lo C” and “Hi C”.
}
If user defined characteristic is selected, and if number of defined points is lower than 2 then
warning "Errc" is displayed in measurement mode.
The process of displayed result calculation is described in details in DISPLAY VALUES CALCULATION
paragraph.
”FiLt”
”Pnt”
“Lo C”
“Hi C”
- this parameter sets filtration rate. It can be set to values from 0 (no filtration ) to 5 (strongest filtration – time
window about 2 sec).
- decimal point position. It can be set to one of:
“0”, “0.0”, “0.00”, “0.000”
Decimal point position is changed by [^], [v] buttons.
These parameters describe the values displayed for minimum and maximum input signal value for selected
input type. For example, if input type is set to 4-20 mA “LoC” parameter defines the value displayed when input
current is equal 4 mA, and “Hi C” parameter defines the value displayed for 20 mA of input current. Available
range for these parameters: -999 ÷ 9999. Negative values can be set by entering '-' sign on the first position (by
use of [^], [v] buttons).
If volume characteristics of a cylindrical tank is selected (parameter “CHAr” = ”tn v” or “CHAr” = ”tn
h”) the parameters „Lo C” and „Hi C” are not available.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
18
Page 20
•
TVL SERIES
Level Process Display / Controller
„t h1”, „t h2”, „t h3”, „t d” - the parameters defining shape of cylindrical tank (Figure 7.1 and Figure
7.2).
a) for the cylindrical tank in the vertical position:
„t h1”
„t h2”
„t h3”
„t d”
- the height of the bottom part of a tank (in the elliptic paraboloid shape), this parameter has
the fixed precision - 2-decimal point,
- the height of the middle part of a tank in the cylindrical shape, this parameter has
the fixed precision - 2-decimal point,
- the height of the top part of a tank (in the elliptic paraboloid shape), this
parameter has the fixed precision - 2-decimal point,
- the diameter of the middle part of a tank, this parameter has the fixed precision -
- 2-decimal point,
b) for the cylindrical tank in the horizontal position:
„t h1”
„t h2”
„t h3”
„t d”
- the length of the left bottom of a tank (in the elliptic paraboloid shape), this
parameter has the fixed precision - 2-decimal point,
- the length of the middle part of a tank in the cylindrical shape, this parameter has
the fixed precision - 2-decimal point,
- the length of the right bottom of a tank (in the elliptic paraboloid shape), this
parameter has the fixed precision - 2-decimal point,
- the diameter of the middle part of a tank, this parameter has the fixed precision -
- 2-decimal point,
„t Sn”, „t Sh”
- parameters defining the length and position of the sensor used to measure
level of liquids, gases or solids in the tank (Figure 7.1, 7.2).
„t Sn”
„t Sh”
Find Quality Products Online at: [email protected]
- distance between end of the sensor and bottom of the tank, this parameter has the fixed precision 2-decimal
point but the unit is 100 times smaller than “t Sh” (see Info below),
- the measuring range, this parameter has the fixed precision - 2-decimal point.
The unit value of “t Sn” parameter is 100-fold less than the unit value of other parameters defining
cylindrical tank, i.e. if we set value 10.00 in “t Sh” parameter and set value 08.00 in "t Sn" parameter
this mean that value of “t Sn” parameter is real has 00.08 value in preserved unit of the “t Sh”
parameter.
www.GlobalTestSupply.com
19
Page 21
TVL SERIES
•
•
•
•
Level Process Display / Controller
If we set parameters of tank in [m] unit (“t Sn” parameter takes [cm] unit respectively, see above),
than displays the result the volume of the tank in [m3] unit, if we set parameters of tank in [cm]
unit (“t Sn” parameter takes [mm] unit respectively, see above), than displays the result the
volume of the tank in [cm3] unit.
"t Sh" parameter may be greater than height (for ver tical position) or diameter (for horizontal
position) of the tank, which means that the total volume of the tank can be achieved by eg. such
middle-current range,
If the measurement value does not exceed permissible measurement range but displayed value
exceeds range of 9999 than you can move to the right position of the decimal point if it is still
possible (see parameter Menu->”inPt”->”Pnt”).
If in the volume characteristics of a cylindrical tank is exceeded the value of the volume of the
tank sets by parameters available in menu "inPt" instead of the calculated result will be display
warning “-Hi-”.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
20
Page 22
TVL SERIES
•
•
•
Level Process Display / Controller
If user defined characteristic is selected (parameter “CHAr” = ”USEr”) the parameters „Lo C” and „Hi
C” are not available for modification, due to their values are calculated from defined characteristic.
- this menu allow user to add single point to the user defined characteristic. After selection of this option device
waits for „X” and „Y” coordinates of new point. Modification of the coordinates is done accordingly to numerical
“AddP”
parameters edition. Coordinate „X” defines the percentage ratio of input current to selected current range. The
„X” range: -99,9 ÷ 199,9. Coordinate „Y” defines displayed value for particular „X” value. The „Y” value can be
changed in range: -999 ÷ 9999, decimal point position depend on „Pnt” parameter (menu ”inPt ”).
User can not enter two points with the same value of „X” coordinate. If user trays to do it, ”Err”
warning is displayed. To modify any defined point use ”EdtP” option.
To
distinguish „X” and „Y” coordinates, if „X” coordinate is displayed an additional decimal point on
utmost right position is displayed.
If
user defined characteristic is selected, and if number of defined points is lower than 2 then
warning ”Errc” is displayed in measurement mode.
- this option allows user to delete any of the points of the user defined characteristic. After selection current
number of points of the user defined characteristic is displayed for about approx. 1.5 sec. After that device waits
“dELP”
“EdtP”
for selection of point being deleted (by [^], [v] buttons). The short pressing of [ENTER] button causes by
switching between X and Y value of the displayed point. The long press (press and hold at least 2 sec) of [ENTER]
button causes by displaying „dEL?” ask. If [ENTER] button is pressed again, current point is deleted and new
updated number of points of the user defined characteristic is displayed.
- this option allows user to modify of particular point of the user defined characteristic. After selection current
number of points of the user defined characteristic is displayed for about approx. 1.5 sec. After that device waits
for selection of point being edited (by [^], [v] buttons). The short pressing of [ENTER] button causes by
switching between X and Y value of the displayed point. The long press (press and hold at least 2 sec) of [ENTER]
button causes by entering to edit the selected coordinate of the point. Modification of the coordinates is done
accordingly to numerical parameters edition.
“AddP”, ”dELP” and “EdtP” options are available only if the user defined characteristic is used (it
means when parameter “CHAr” = ”USEr”).
- these parameters define the expansion of nominal range in percent. They determine the permissible range of
input signal (Figure 7.3).
“Lo r”
”Hi r”
The permissible range allow user to exceed the nominal range of input signal. If input value is contained in the
permissible range a proper result is displayed.
If input signal exceeds this range (defined by “Lo r” and “Hi r”), “-Lo-” or “- Hi-” warning is displayed depend on
input signal value.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
21
Page 23
TVL SERIES
Level Process Display / Controller
"Lo r" = 75,0% (3 mA)
min
01 4 20
display
message "-Lo-"
Figure 7.3 Example of definition of permissible range of input signal -
"Lo r" and "Hi r" parameters ("4-20" mode)
nominal measurement range (4-20mA)
permissible measurement range
measurement result is displayed
regardless on nominal range exceeding
"Hi r" = 5,0 % (1 mA)
max
[mA]
21 22
display
message "-Hi-"
The “Lo r” parameter is important if input is set to “4-20”, “ 1-5” or “2-10” mode only, and determines lower
border of the permissible range. If input is set to “0-20”, “ 0-5” or “0-10” mode then lower border of the
permissible range is always 0.
For example if input is set to “4-20” mode, then lower border is calculated due to
expression : Imin = 4 mA - 4 mA × “Lo r” %. The “Lo r” value can be set from 0 to 99.9%.
Parameter “Hi r” determines the upper border of the permissible range accordingly to the expression (for all
modes).
Fo
r example if input is set to “4-20” mode, then upper border is calculated due to
expression: Imax = 20 mA + 20 mA × “Hi r” %.
The value of “Hi r” can be set from 0 to 19.9%
In example no 1 of the DISPLAY VALUES CALCULATION paragraph the procedure of the permissible input
range determining is presented in details.
If the measurement value does not exceed permissible measurement range but displayed value
exceeds range -999 ÷ 9999, the warning ”-Ov-” is displayed rather than the calculated result.
7.3.3. ”OutP” menu
This menu contains parameters of analogue output control. M enu is available if the device is equipped witch
analogue output.
Analogue output can be controlled depend on both present measured value and peak value (if
peak detection is enabled).
“Omod”
- analogue output mode. Depending on version of the device there are following
options:
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
22
Page 24
TVL SERIES
Level Process Display / Controller
For active current output:
"oFF" - current output disabled,
"0-20" - current output enabled with 0 ÷ 20 mA mode,
"4-20" - current output enabled with 4 ÷ 20 mA mode,
"mod
b" - current output controlled via RS-485 interface.
For passive current output:
"oFF" - current output disabled,
"4-20" - current output enabled with 4 ÷ 20 mA mode,
"modb" - current output controlled via RS-485 interface.
For active voltage output:
"oFF" - voltage output disabled,
"0-5" - voltage output enabled with 0 ÷ 5V mode,
"1-5" - voltage output enabled with 1 ÷ 5V mode,
"0-10" - voltage output enabled with 0 ÷ 10V mode,
"2-10" - voltage output enabled with 2 ÷ 10 V mode,
"modb" - voltage output controlled via RS-485 interface.
"OUtL"
"OUtH"

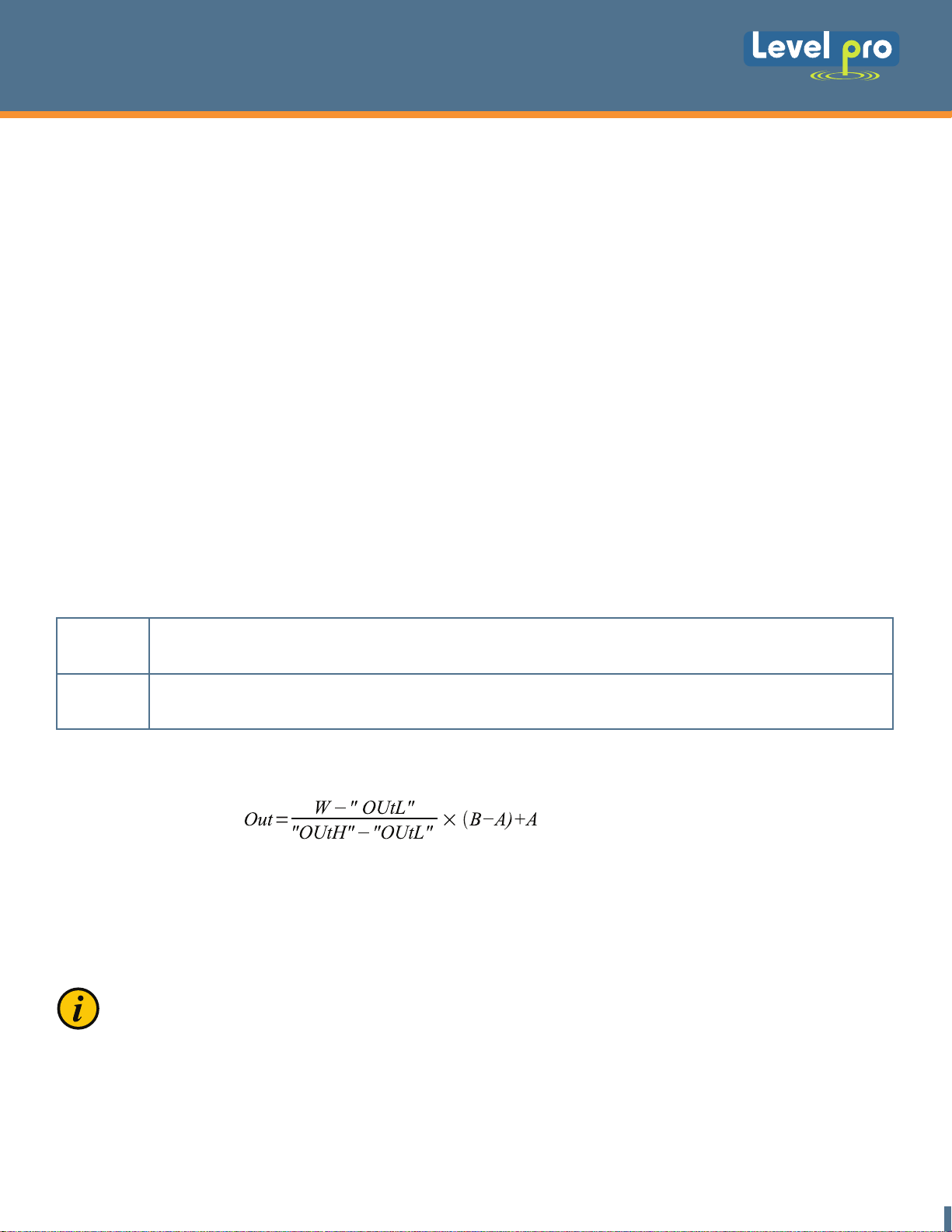

The analogue output value is calculated due to formula given below:
where:
- this parameter determines the input value for which the output signal is minimal
(depend of output mode „Omod”).
- this parameter determines the input value for which the output signal is maximal
(depend of output mode „Omod”).
W – displayed value,
Out – analogue output value,
B – higher range limit (20mA / 5V / 10V),
A – lower range limit (0mA / 4mA / 0V / 1V / 2v),
“OutL” parameter can be greater than “OutH”. In this case the conversion characteristic is reversed,
it means that if input value raises the output value falls.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
23
Page 25
TVL SERIES
Level Process Display / Controller
”Lo r”, ”Hi r”
“AL”
- this parameter determines the behaviour of analogue output if any critical situation occurs.
According to version of the device, this parameter can be set:
- this parameters define the output value range. If calculated output value Out
exceeds defined range then analogue output generates signal equal to upper or lower
border of the defined range. These parameters defines the percentage extension of
nominal analogue range (with 0,1% resolution).
Parameter “Lo r” defines lower border of the range due to formula:
Out
min = A - (A × “Lo r” %), where:
A – lower signal value range limit.
This parameter can be set from 0 to 99.9% (for active current output and active
voltage output) or from 0 to 29.9% (for passive current output).
Parameter “Hi r” defines higher border of the range due to formula:
Out
max = B + (B × “Hi r” %), where:
B – higher signal value range limit.
This parameter can be set from 0 to 19.9% (for active and passive current output) or
from 0 to 9.9% (for active voltage output).
In example on page 51 of the DISPLAY VALUES CALCULATION paragraph the
procedure of the analogue outputs determining is presented in details.
For active current output:
“noCH” - current will not change,
“22.1” - current will be set to 22.1 mA,
“3.4” - current will be set to 3.4 mA,
“0.0” - current will be set to 0 mA.
For passive current output:
“noCH” - current will not change,
“22.1” - current will be set to 22.1 mA,
“3.4” - current will be set to 3.4 mA,
For active voltage output:
“noCH” - voltage will not change,
“11.0” - voltage will be set to 11 V,
“5.5” - voltage will be set to 5.5 V,
“1.2” - voltage will be set to 1.2 V.
“0.6” - voltage will be set to 0.6 V,
“0.0” - voltage will be set to 0 V.
When the critical situation goes, the output signal will be set to value calculated due to
formulas given above.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
24
Page 26
TVL SERIES
Level Process Display / Controller
7.3.4. "bri" parameter
This parameter allows user to set bright of the LED display, bright can be set to conventional values
from 1 to 8.
7.3.5. "HOLd" menu
This menu contains parameters connected with peak detection function. See also full description of
the peak detection function in paragraph : DETECTION OF THE PEAK VALUES
“modE”
“timE”
“HdiS”
“H r1”, “H r2”
”HOUt”
- the type of detected changes of the input signal, can be set to values:
”norm” - peaks, peak and next drop of the input signal of value equal at least “PEA”,
”inv” - drops, drop and next peak of the input signal of value equal at least “PEA”,
- maximum time of displaying of the peak (drop) value, can be set from 0.0 to 19.9 sec, with
0.1 sec. resolution. If „HdiS”=”HOLD” then setting parameter "timE"=0.0 causes holding
peak value until [ESC] button is pressed. If „HdiS”=”rEAL” then value "timE"=0.0 means no
holding.
- type of displayed values:
”rEAL” - current value is displayed,
”HOLd” - peak (drop) value is displayed,
”rEAL” - relay/LED operates depend on the current value,
”HOLd” - relay/LED operates depend on the peak (drop) value.
- current output operation mode:
”rEAL” - current output operates depend on the current value,
”HOLd” - current output operates depend on the peak (drop) value.
- relay/LED outputs (R1, R2) operation mode:
7.3.6. "SECu" menu
This menu contains presets connected with availability of other parameters:
“Scod”
Find Quality Products Online at: [email protected]
- user password (4-digits number). If this parameter is set at value “0000”, user password is
turned off.
If the user do not remember his password, the access to the menu is possible by the “oneuse password”. To get this password please contact with Marketing Division. “Single use
password” can be used only one time, after that it is destroyed. Entering this password
causes in clearing of user password, it means sets the user password to „0000”.
www.GlobalTestSupply.com
25
Page 27
TVL SERIES
Level Process Display / Controller
The “one-use password” can be used ONE TIME ONL Y, it is impossible to use it again! The “one-use
password” can be restored by Service Division only.
“A r1, A r2”
- this option permits user (”on”) or prohibits (”oFF”) to modify the thresholds of
the relays/LEDs R1, R2 without knowledge about user password.
7.3.7. "rS" menu
This menu is connected with RS-485 interface, and sets his properties:
”Addr”
”bAud”
”mbAc”
The access to registers no 04h i 05h cant be denied by ”mbAc” parameter (see: LIST OF REGISTERS).
- this parameter defines the address of the device, accordingly to Modbus protocol. It can be set in range from 0
to 199. If the value 0 is set then device, responds to frames with address 255 (FFh).
- this parameter determines RS-485 interface baud rate. It can be set to one of 8 possible values: ”1.2”, ”2.4”,
”4.8”, ”9.6”, ”19.2”, ”38.4”,”57.6”,”115.2”, which respond to the baud rates of 1200, 2400, 4800, 9600, 19200,
38400, 57600 and 115200 bit/s respectively.
- this parameter sets the access to the configuration registers of the device. Possible values:
”on” - configuration registers can be set via RS-485 interface,
”oFF” - configuration registers can not be set via RS-485 interface.
- this parameter defines maximal time (sec) between following frames received by the device. If the delay will
”mbtO”
”rESP”

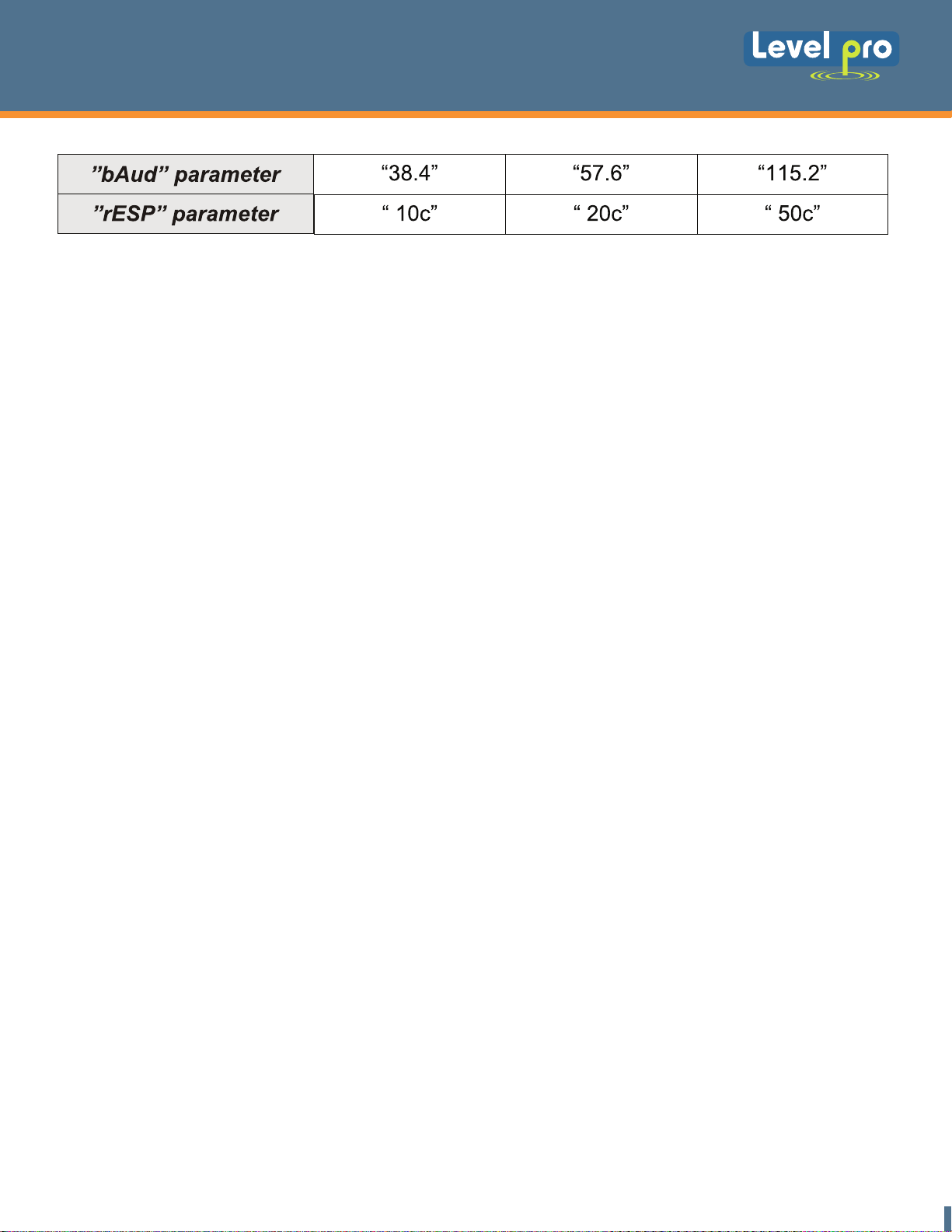

In the most cases parameter ”rESP” should be set to ”Std” (no additional delay). Unfortunately for
some third party RS-converters ”rESP” should be adjusted experimentally. Table 7.1 contains most
frequently used values.
be greater than the value of ”mbtO” parameter, the relays and analogue outputs which are controlled via RS485 interface, will set to alert state (see "OUtP" menu, and “rEL1” menu description). Parameter “mbtO” can be
set to values from 0 to 99 seconds. The value 0 means that the time will be not controlled.
- this parameter defines minimal (additional) delay between the Modbus message and the answer of the device
(received and sent via RS-485 interface). This additional delay allows the device to work with poor RS-converters
which do not works properly on baud rates higher than 19200. This parameter can be set to one of values:
”Std” - answer as quick as possible, no additional delay
” 10c”
” 20c”
” 50c”
”100c”
”200c”
}
answer delayed of 10, 20, 50, 100 of 200 chars respectively, where
one character time depends on selected baud rate
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
26
Page 28
TVL SERIES
Level Process Display / Controller
Tab.7.1. Settings of "rESP" paramerer
7.3.8. "Edit" parameter
This parameter allows to change the edition mode of numerical parameters:
"dig" - the change to "by digit" mode,
"Slid" - slide change mode.
7.3.9. "dEFS" parameter
This setting allows to restore the factory settings of the device. To get the access to this option
special password is required: „5465”, next the device displays acknowledge question „SEt?”. Press
[ENTER] to acknowledge the restoring of factory settings or [ESC] to cancel.
7.3.10. "SErv" menu
This menu contains the parameters for authorized service only. To enter this menu proper service
password must be entered. Improper settings can causes of damage of the device.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
27
Page 29
TVL SERIES
Level Process Display / Controller
7.4. MENU STRUCTURE
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
28
Page 30
TVL SERIES
Level Process Display / Controller
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
29
Page 31
TVL SERIES
Level Process Display / Controller
8. THE ALARM LED
The ALARM LED (AL) is turned on when input signal is out of the permissible input range. See
parameters: "tyPE", "Lo r" and "Hi r" in paragraph "InPt" menu.
9. OVER-CURRENT PROTECTION
The current input of the device is equipped with over-current protection circuit. This circuit protects
the standard resistor against damage. Maximum input current is set to 40mA (typical). When
temperature of the standard resistor falls, the protection circuit will turn on automatically, and the
device will measure the input current again. Due to thermal phenomenon in the standard resistor,
precision of the measurement may be lower until to the standard resistor temperature will falls to the
environment temperature.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
30
Page 32
TVL SERIES
Level Process Display / Controller
Specification may be modified without notice in advance.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Loading...
