LevelOne WNC-0601 User Manual

WUA-0606

150Mbps Wireless USB Adapter

User Manual

V2.0

Table of Contents

Chapter 1 Product Introduction...............................................................1

1.1 P

ACKAGE CONTENTS

..........................................................................1

1.2 LED I

NDICATOR DESCRIPTION

..............................................................1

1.3 P

RODUCT FEATURES

..........................................................................2

1.4 P

RODUCT USAGE

..............................................................................2

1.5 B

EFORE INSTALLATION

.......................................................................3

1.6 D

ISABLE OTHER MANUFACTURERS’ WIRELESS NETWORK ADAPTERS

...............3

1.7 P

RODUCT MAINTENANCE

...................................................................4

Chapter 2 Installation Guide ...................................................................5

2.1 H

ARDWARE INSTALLATION

..................................................................5

2.1.1 Install the USB network adapter ............................................. 5

Chapter 3 How to use the Windows Built-in Wireless Configuration ........9

3.1 W

IRELESS NETWORK CONNECTION UNDER WINDOWS

XP ..........................9

3.2 W

IRELESS NETWORK CONNECTION UNDER

VISTA .................................. 13

3.3 W

IRELESS NETWORK CONNECTION UNDER WINDOWS

7 .......................... 16

Chapter 4 Client Wireless Utility ........................................................... 18

4.1 S

TATION MODE (CLIENT MODE

) ......................................................... 18

4.1.1 Site Survey ............................................................ 19

4.1.2 Link Information .................................................... 22

4.1.3 Profile .................................................................... 24

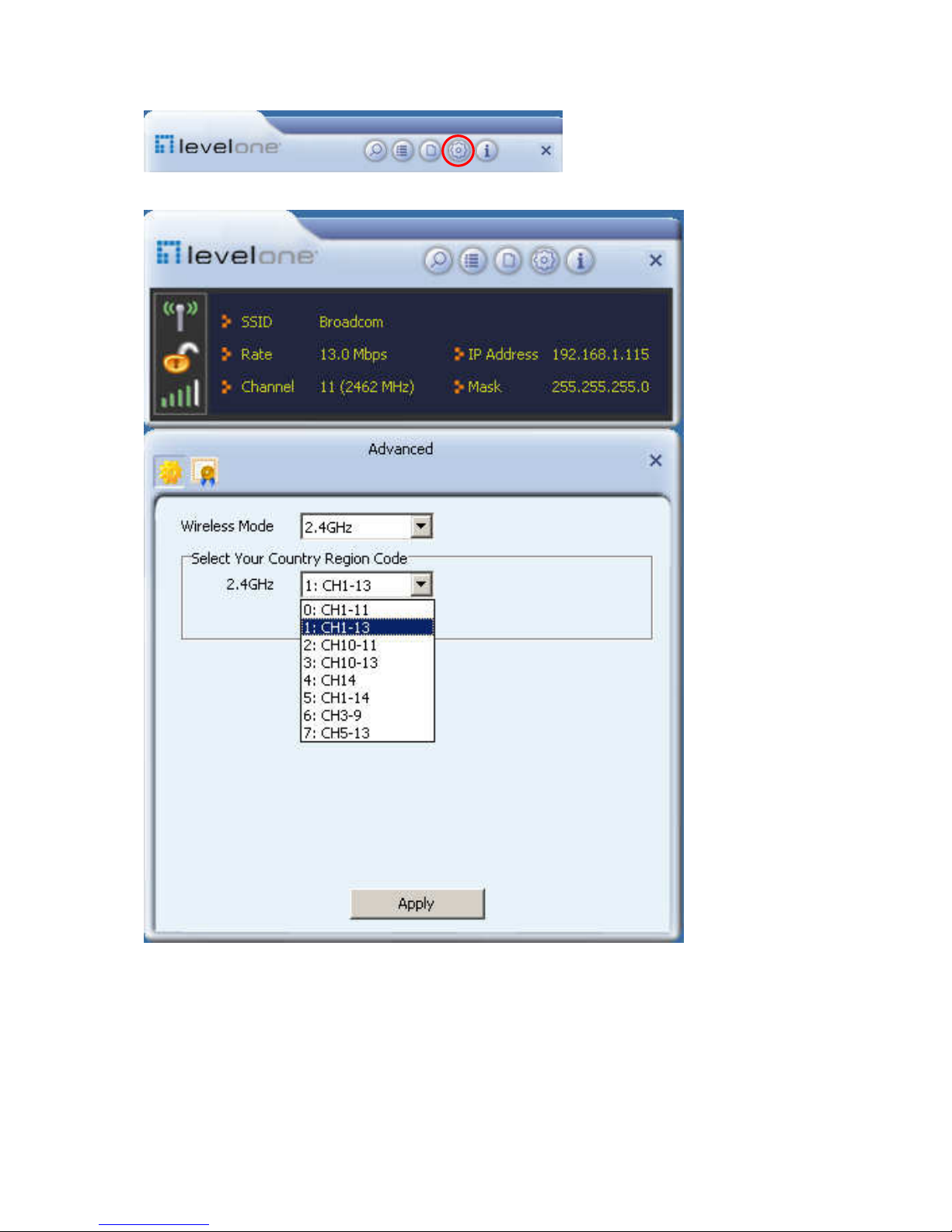

4.1.4 Advanced ............................................................... 33

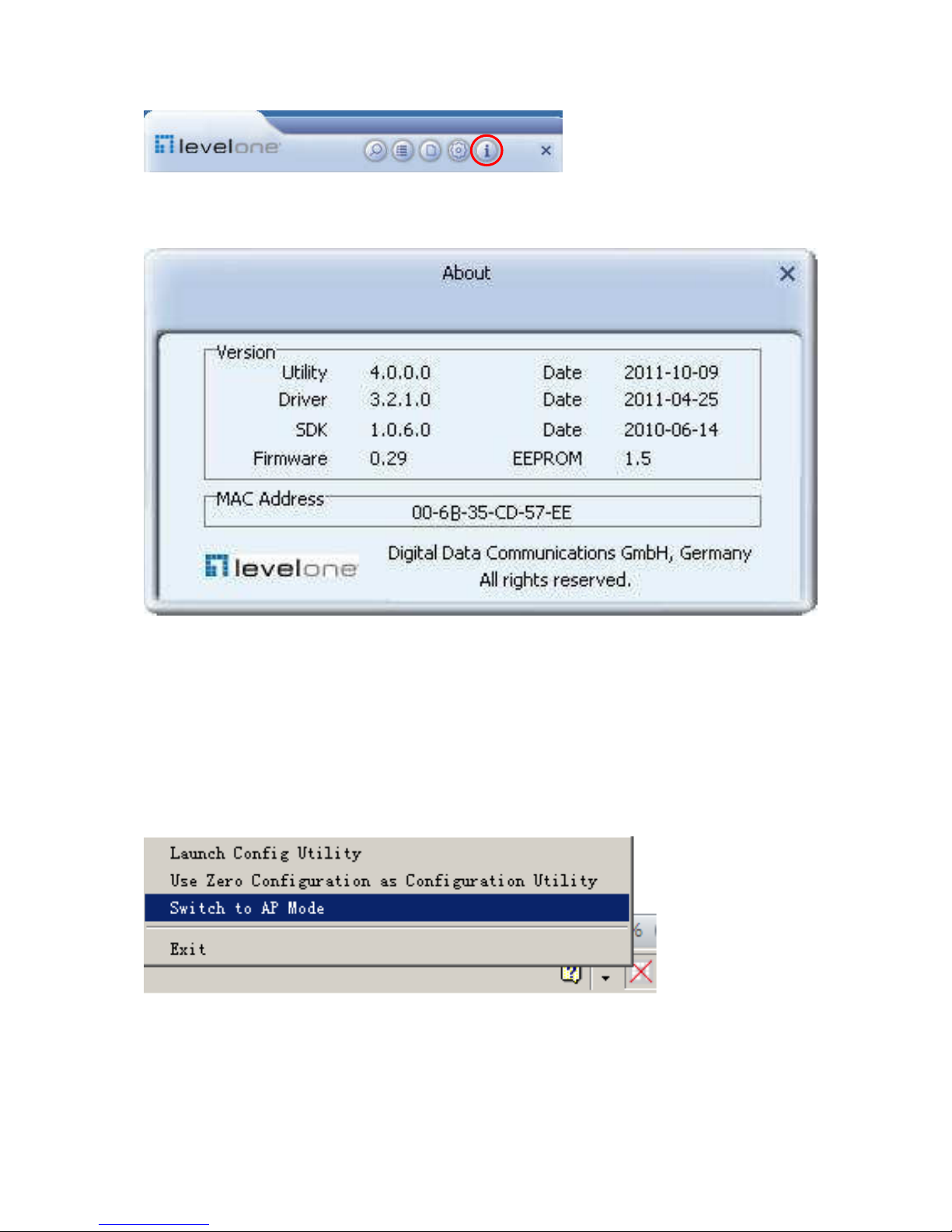

4.1.5 About..................................................................... 34

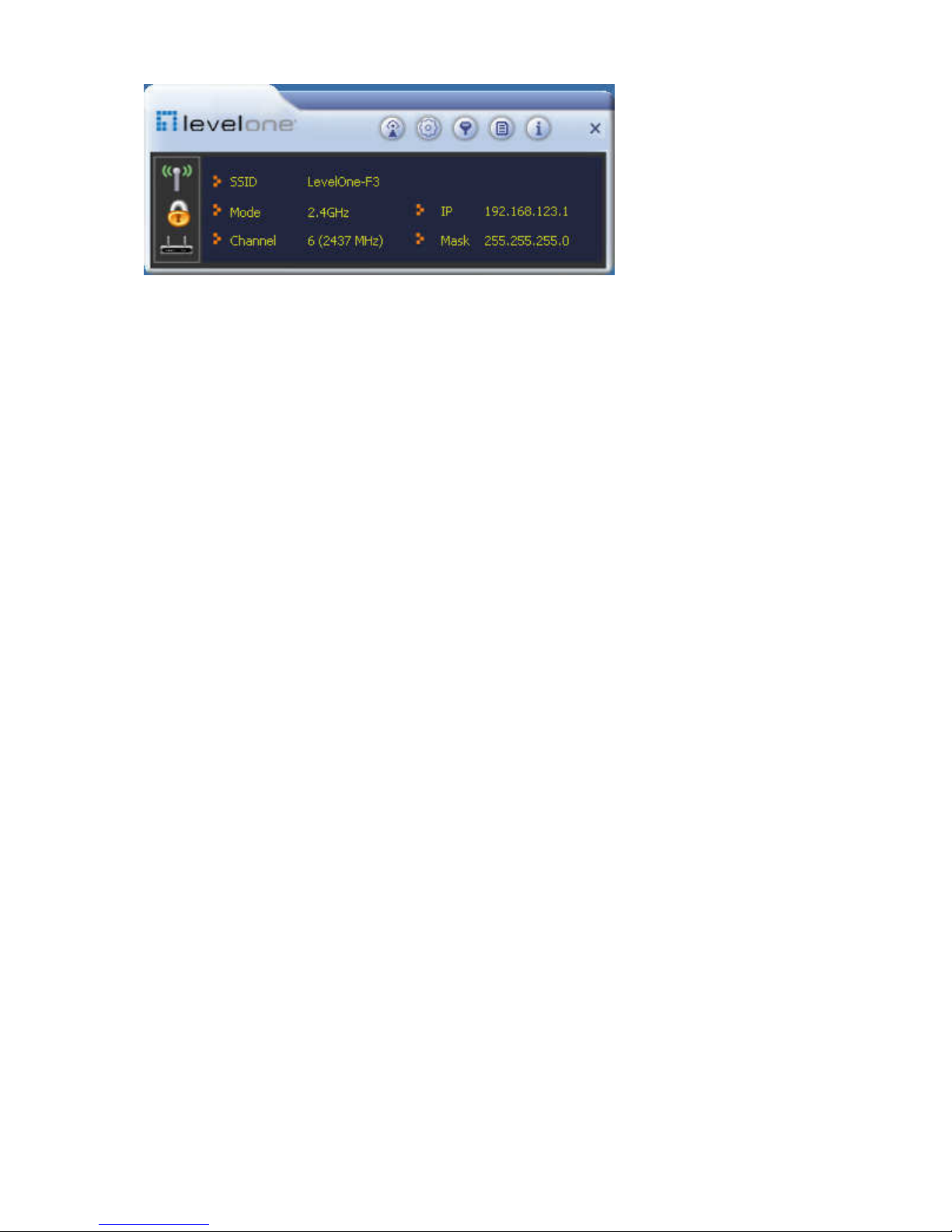

4.2 AP

MODE

..................................................................................... 34

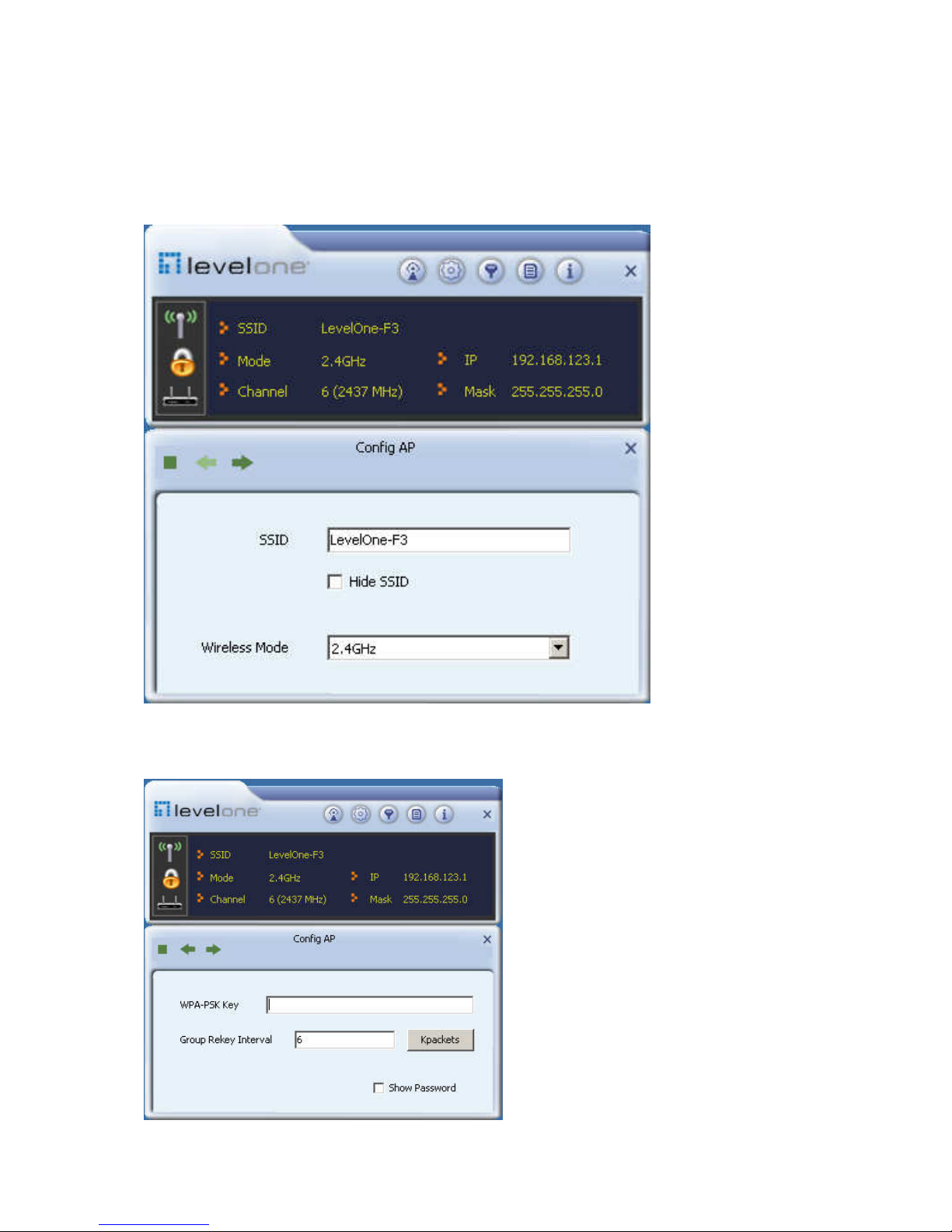

4.2.1 Config AP ............................................................................. 37

4.2.2 Advanced ............................................................................. 38

4.2.3 Access Control List ............................................................... 39

4.2.4 Associate List ....................................................................... 40

4.2.5 AP Mode under Windows 7 ................................................ 41

Appendix 1: Acronyms and Terms ......................................................... 42

Appendix 2: How to Set WPS ................................................................ 43

Appendix 3: FAQ ................................................................................... 51

Appendix 4: Safety................................................................................ 54

-1-

Chapter 1 Product Introduction

Thank you for choosing this LevelOne wireless adapter!

The LevelOne WUA-0606 is a 11N wireless USB network adapter with up to

150Mbps wireless transmission rate. It complies with the latest IEEE802.11n

standard, and is compatible with 802.11b/g wireless devices. With mini and

exquisite design, it is easy to carry along. It supports WPS encryption method

to quickly implement wireless encryption and secure network; supports

WMM to better smooth video and sound; supports Windows 7, Vista,

Windows XP, Windows 2000.

In conclusion, WUA-0606 is a high-performance and cost-effective 11N

wireless USB network adapter with good signal, long transmission range etc.

1.1 Package Contents

 WUA-0606 USB Adapter
 Quick Installation Guide
 CD Manual/Driver/Utility

The above list is for your reference only,the actual contents may differ

according to the product you purchase.

1.2 LED Indicator Description

There is one status LED indicator on the side of the wireless network adapter.

It lights up and stays ON when working correctly, and flashes when

transferring data.

-2-

1.3 Product Features

 Supports 150Mbps receiving and sending rate
 Complies with IEEE 802.11n and is compatible with IEEE 802.11b/g

standards

 Supports 20MHz/40MHz frequency width
 Detects wireless network and adjusts transmitting rate automatically

 Provides two working modes: Infrastructure and Ad-Hoc
 Supports WEP data encryption and WPA-PSK/WPA2-PSK encryption

methods

 Supports WPS (Wi-Fi Protected Setup) encryption to secure your

wireless network

 Complies with Windows 2000/XP/Vista/7.

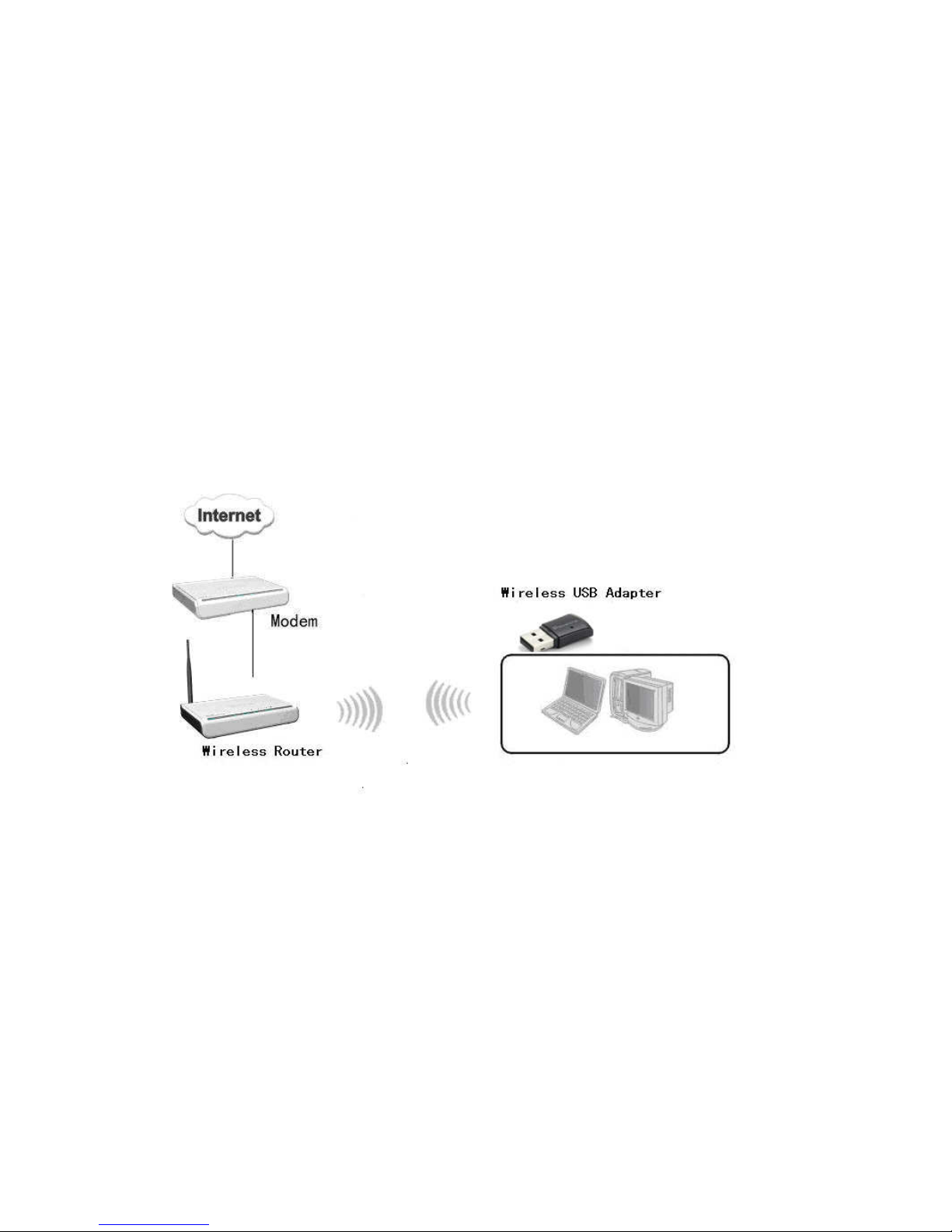

1.4 Product Usage

The WUA-0606 Wireless USB Adapter offers a fast, reliable and extendable

solution for wireless access.

It is mostly used in the following circumstances:

1. Enables staff members who require greater mobility in the office to have
access to wireless networks anywhere inside their company.

2. Enables wireless communication for companies or places which are not
suitable for wired LAN installation because of budget or building environment
restrictions, such as historical buildings, rentals, or places for short-term
usage.

3. Suits businesses or individual who often changes network topology.

4. Suits company or individual who would like to avoid using expensive
cables or renting lines etc.

-3-

1.5 Before Installation

1. Please peruse this user guide before you install and use the product.

2. Please close or uninstall the configuration programs of other

manufacturers’ before you install the configuration programs of WUA-0606

Mato avoid possible UI collision.

3.In order to avoid possible network collision between this LevelOne network

adapter and those of other manufactures, we recommend you to first

disable the network of other manufacturer when installaing drive.

1.6 Disable other manufacturers’ wireless network adapters

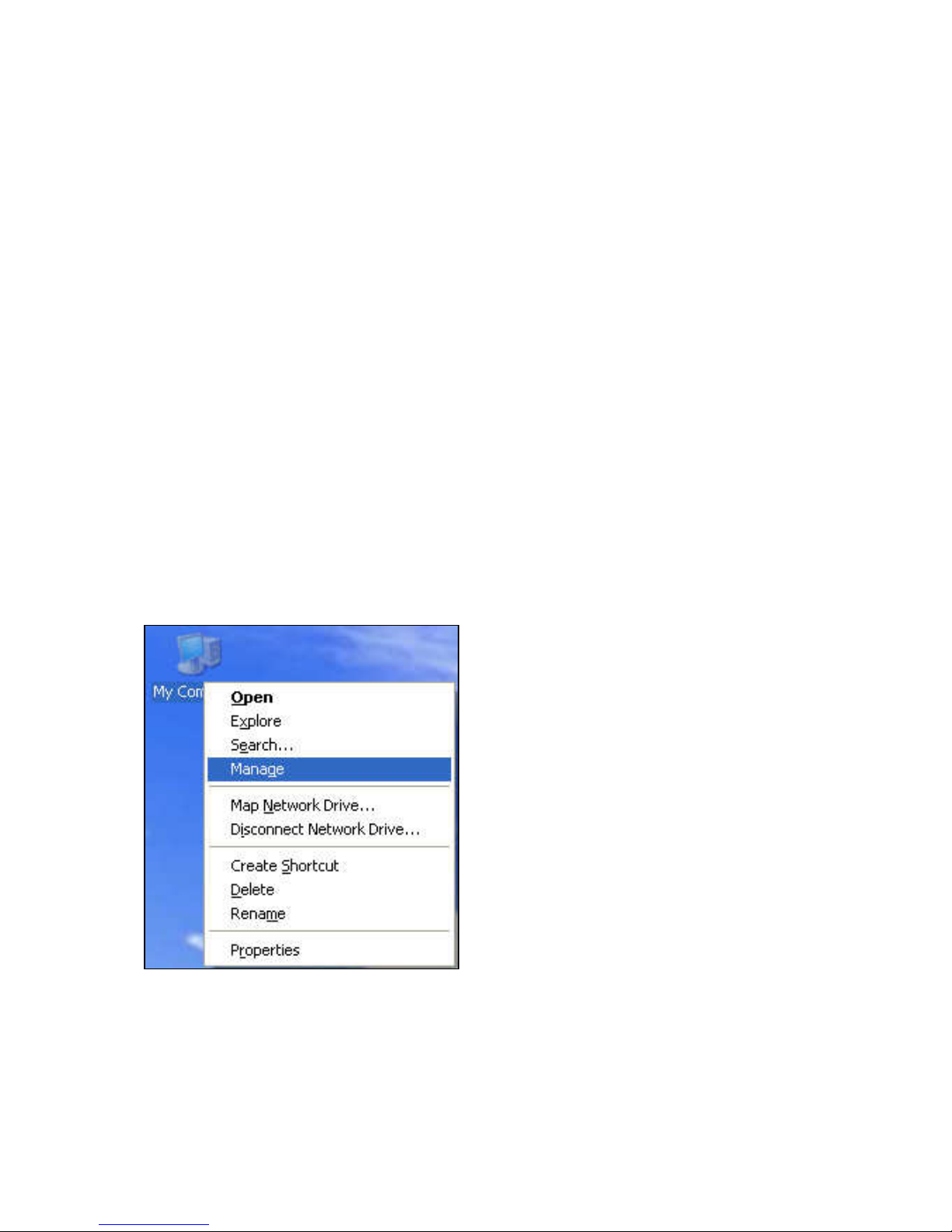

1. Right click “My Computer” and select “Manage”

-4-

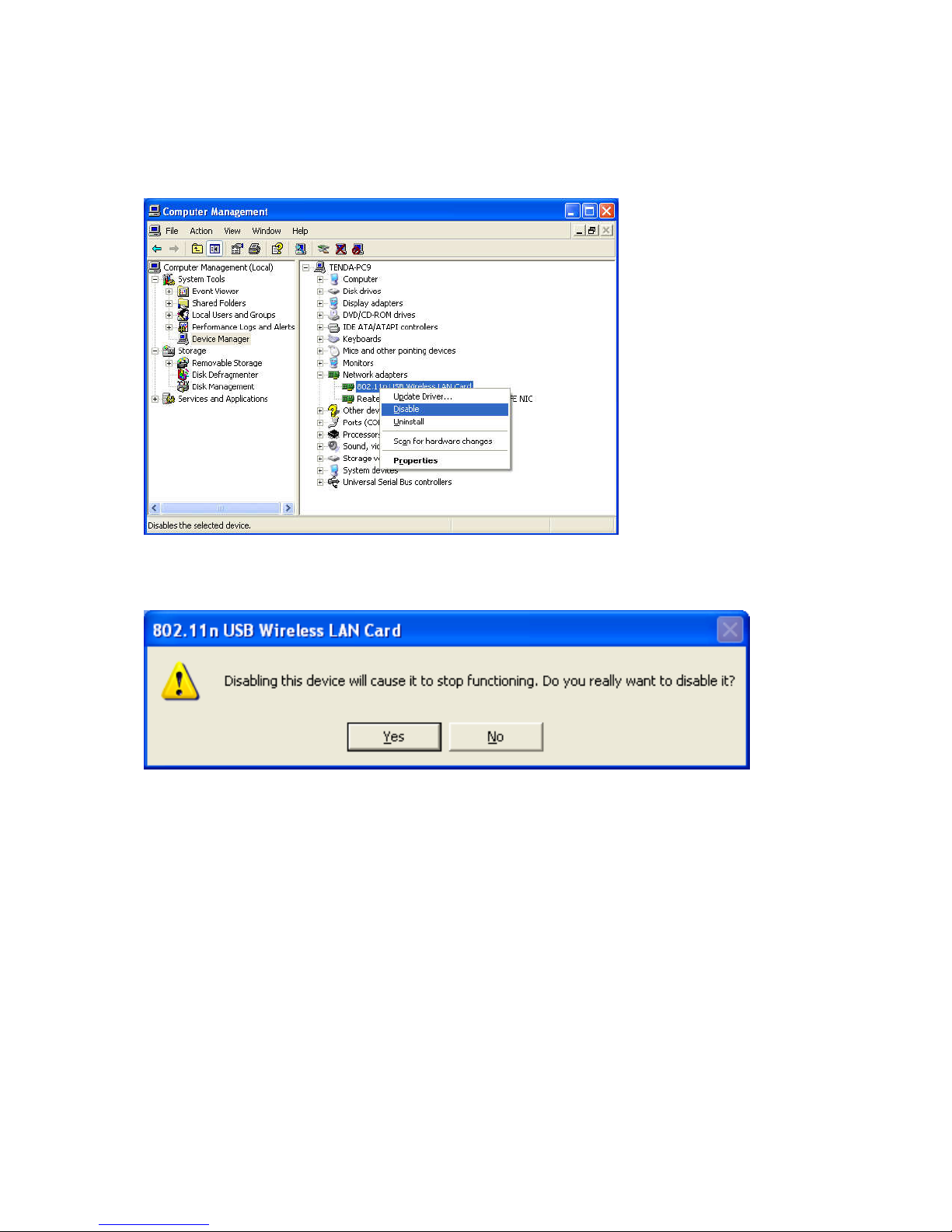

2. On the Computer Management screen ,select“Device Manager” －

“Network adapters”, and right click the network adapter you want to disable

and click “Disable”

3. Click the “Yes” button on the dialogue box to disable the network adapter.

1.7 Product Maintenance

1. Please keep the product away from water and humid environment to

guarantee its normal performance

2. Protect it against hazardous substances (such as acids, alkalis etc).

3. Please don’t directly expose the adapter to the sunlight or excessive

heat.

4. Please contact LevelOne tech support if any problems occur.

-5-

Chapter 2 Installation Guide

This chapter will guide you through the process of installing the network

adapter software package, with the included software CD. The package

integrates driver and configuration software. Thus, when you are installing

the driver, the configuration software will be installed automatically as well.

The software installation steps and operating guide in this user guide are

explained under Windows XP, Installation steps for other operating systems

are similar.

2.1 Hardware Installation

2.1.1 Install the USB network adapter

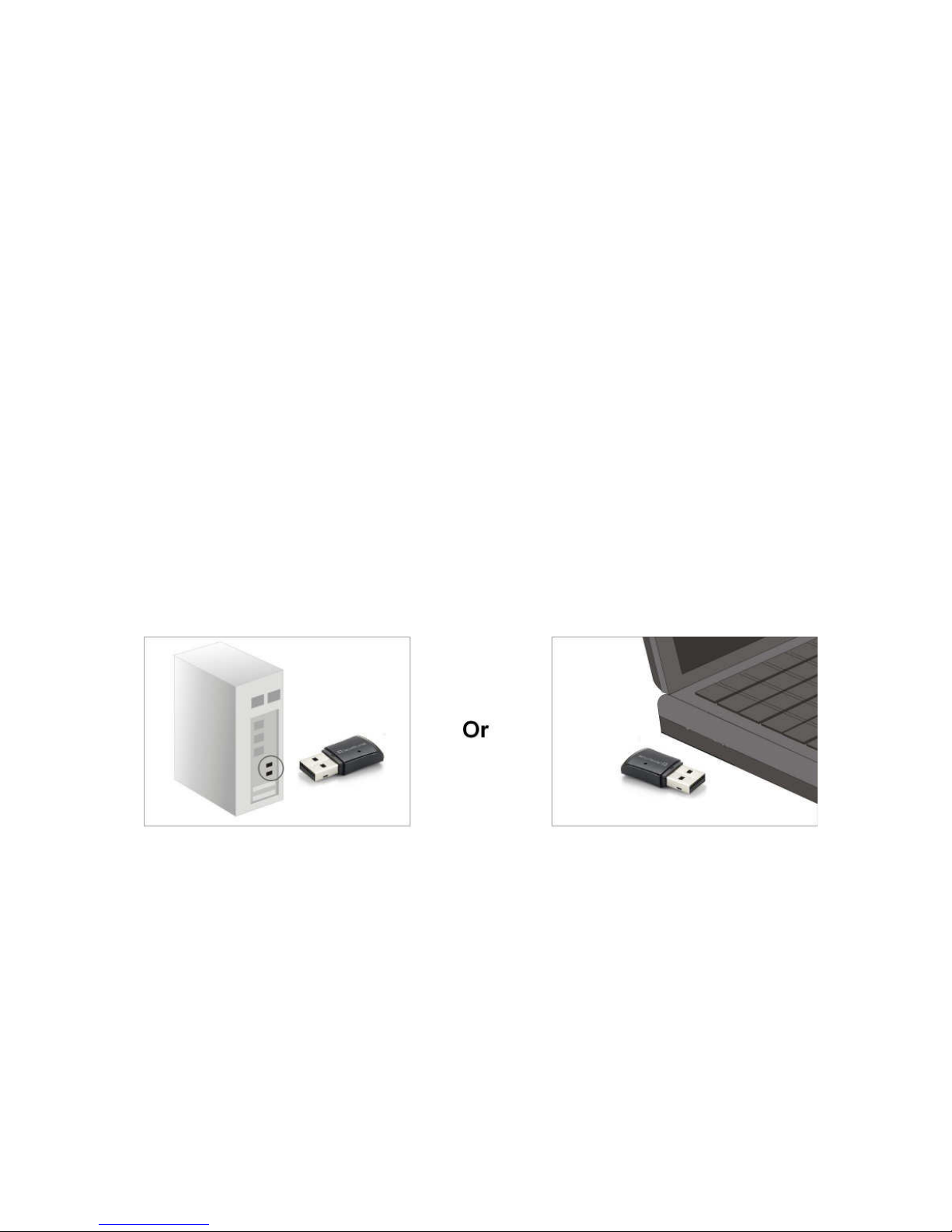

Please insert the Wireless USB Adapter into the USB port of your computer.

-6-

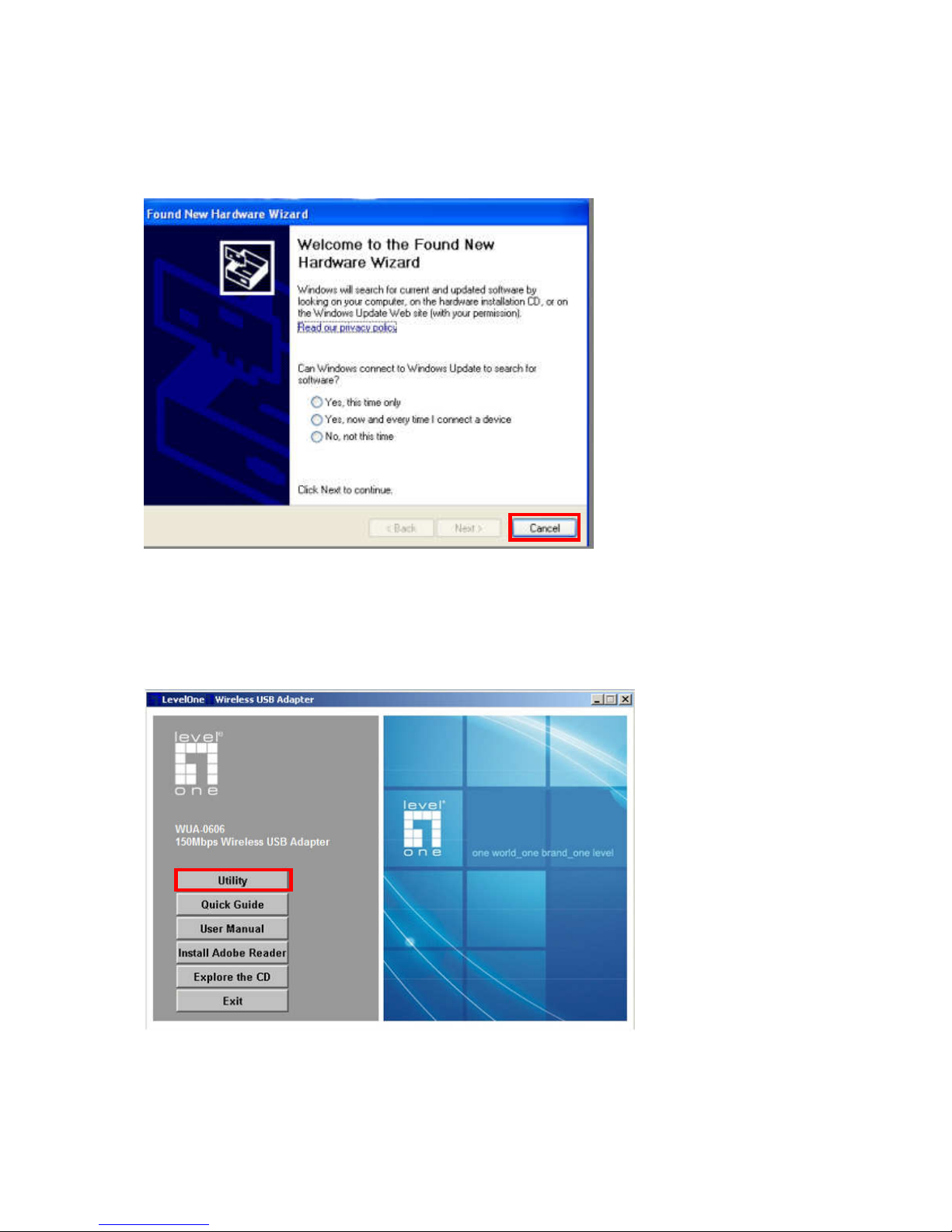

2.2. When The “Found New Hardware Wizard” system dialogue pops up,

we recommend that you select “Cancel” and use the included Setup Wizard

software CD for fast installation.

2.3 Insert the included CD into the CD drive of your computer to auto-run the

program. (If it doesn’t auto-run, please double click “Setup.exe”in the CD,).

When the below screen appears click “Utility”button.

-7-

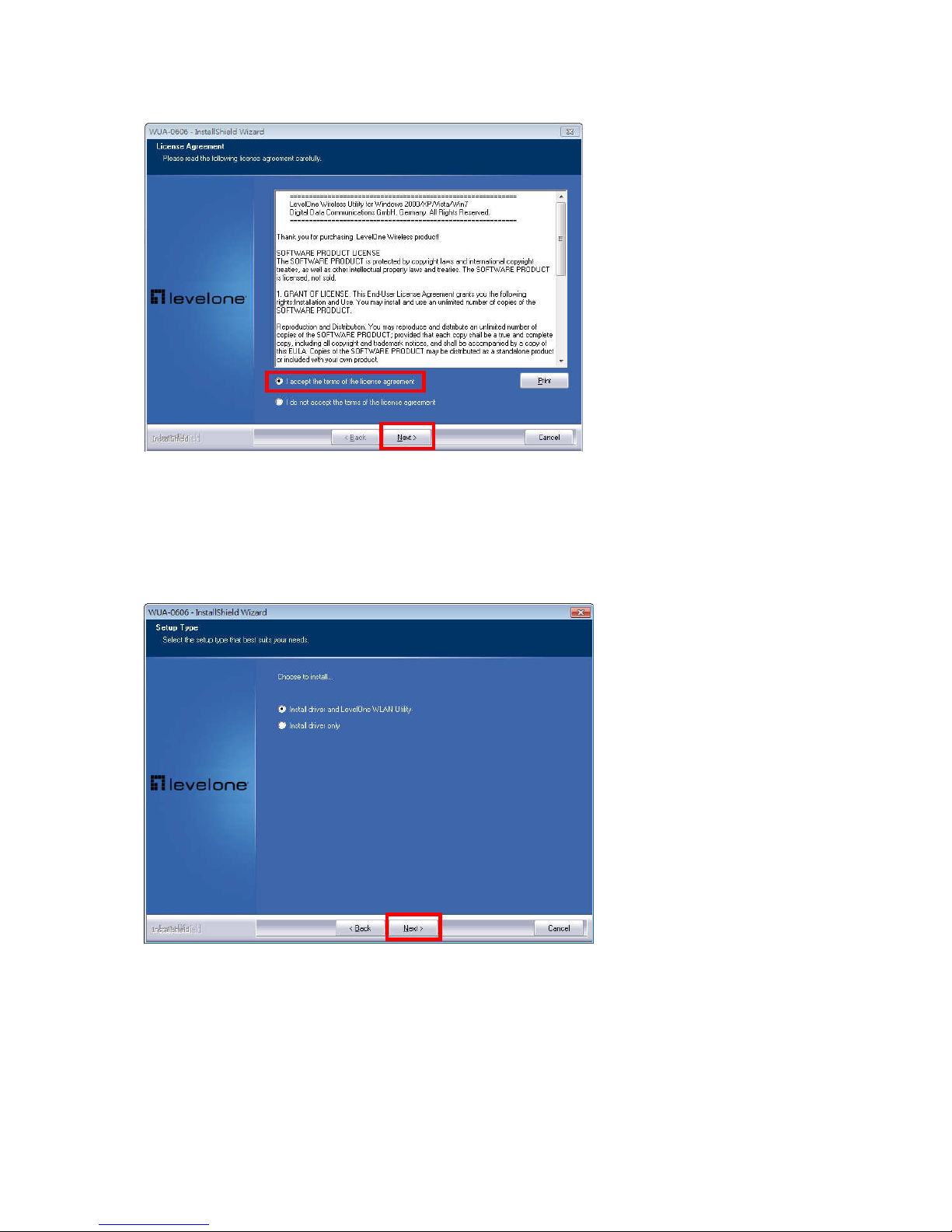

2.4 Select “I accept the terms of the license agreement” and click “Next”.

2.5 Two set up types are provided: one is “Install driver and LevelOne WLAN

Config Tool” ,the other is “Install driver only”. We recommend you to use the

default installation method. click “Next”

-8-

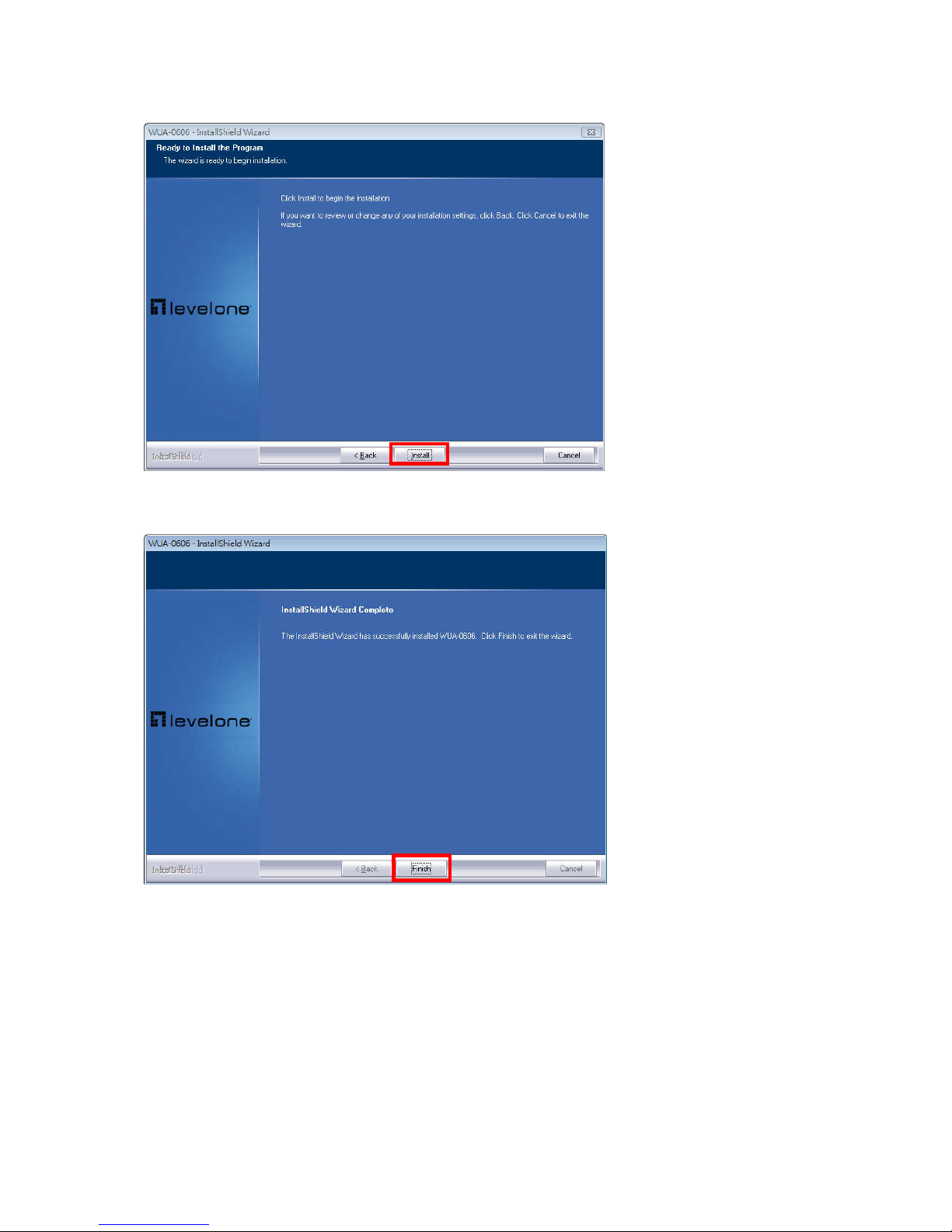

2.6. Click “Install” to install the driver and configuration software.

2.7 Click “Finish” to complete the installation.

-9-

Chapter 3 How to use the Windows Built-in
Wireless Configuration

This chapter explains to users who don’t install LevelOne configuration

program how to use Windows Built-in Wireless Configuration to connect to

the wireless network .

Use of the Windows Built-in Wireless Configuration requires enabling

Windows Wireless Configuration service(the default is enabled).

3.1 Wireless Network Connection under Windows XP

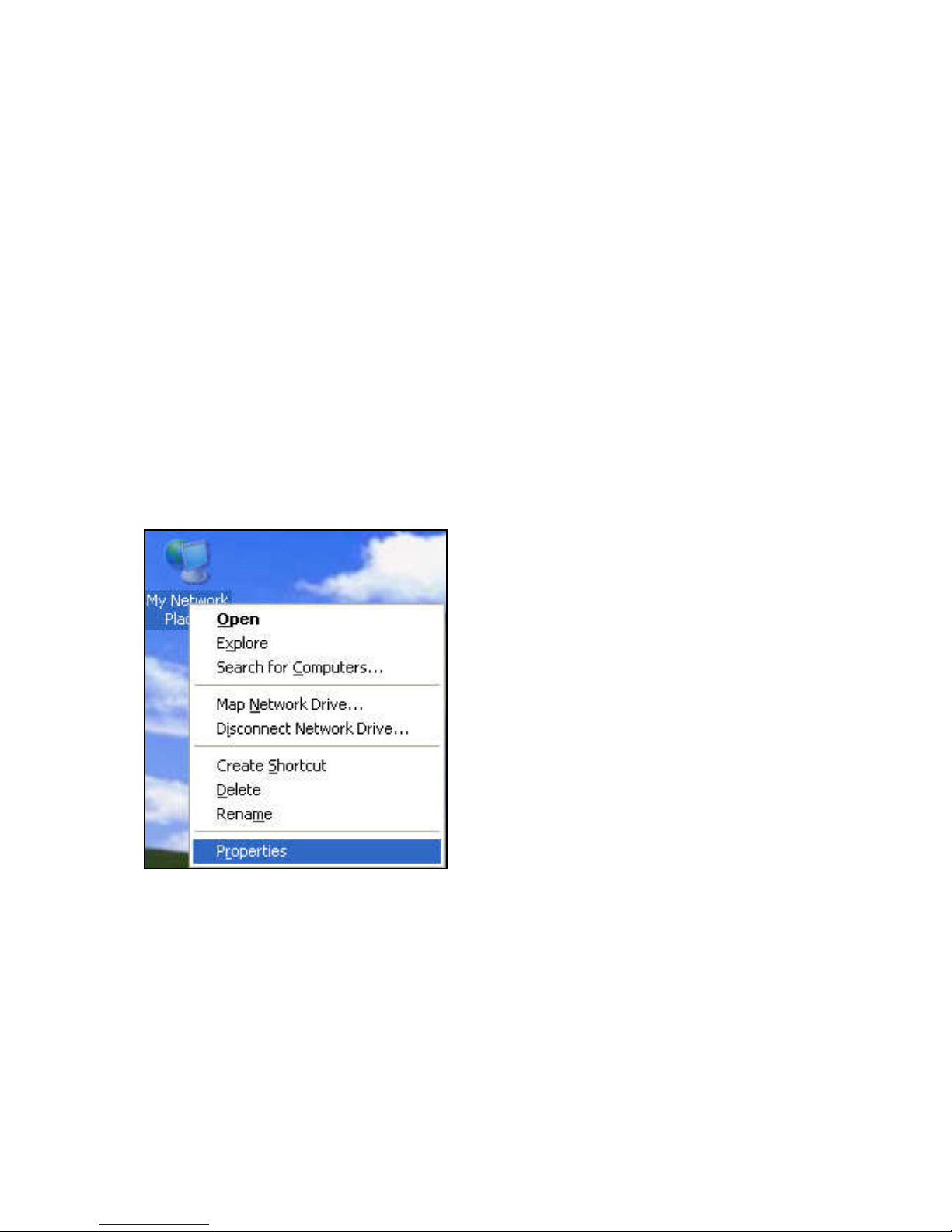

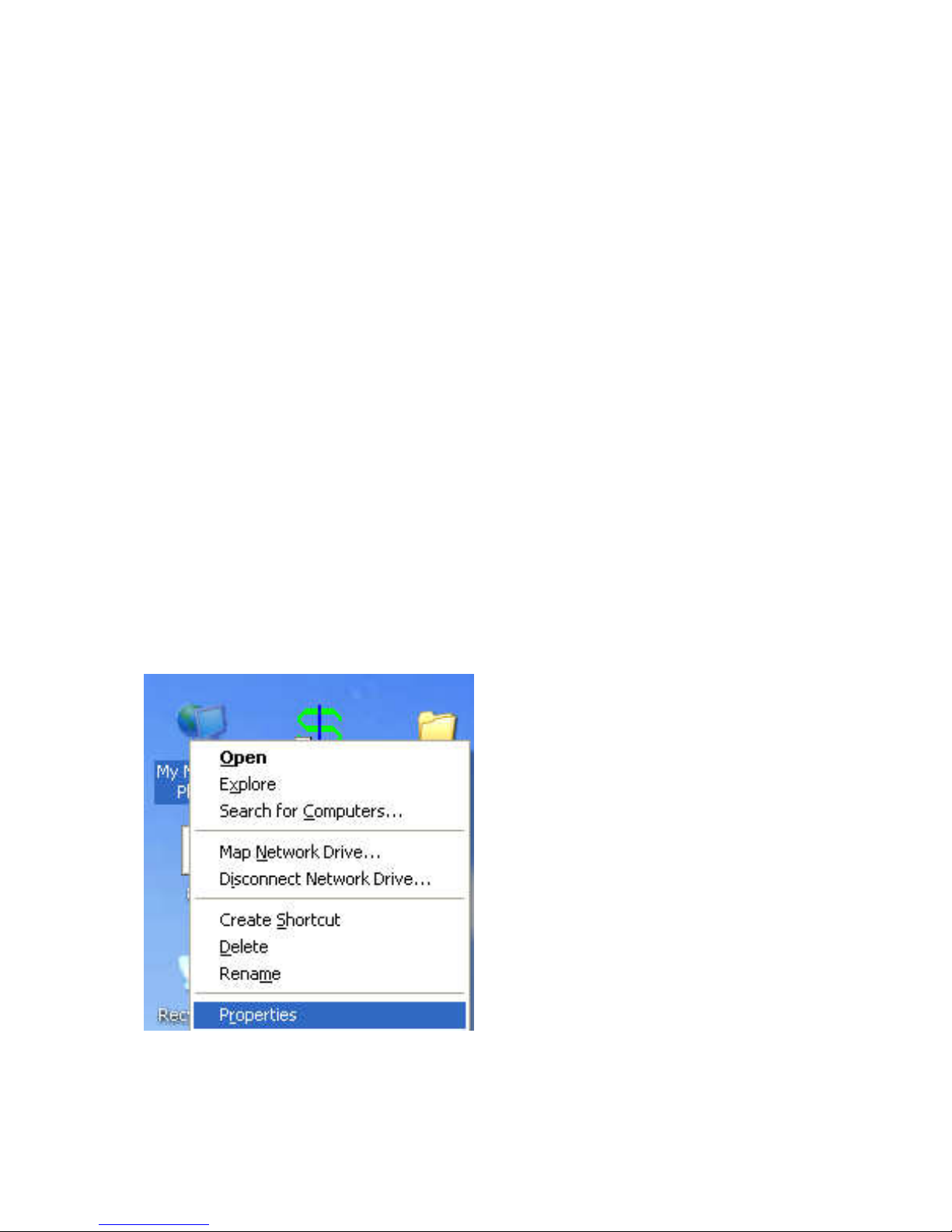

1. Right click “My Network Places” on the desktop and select “Properties”.

-10-

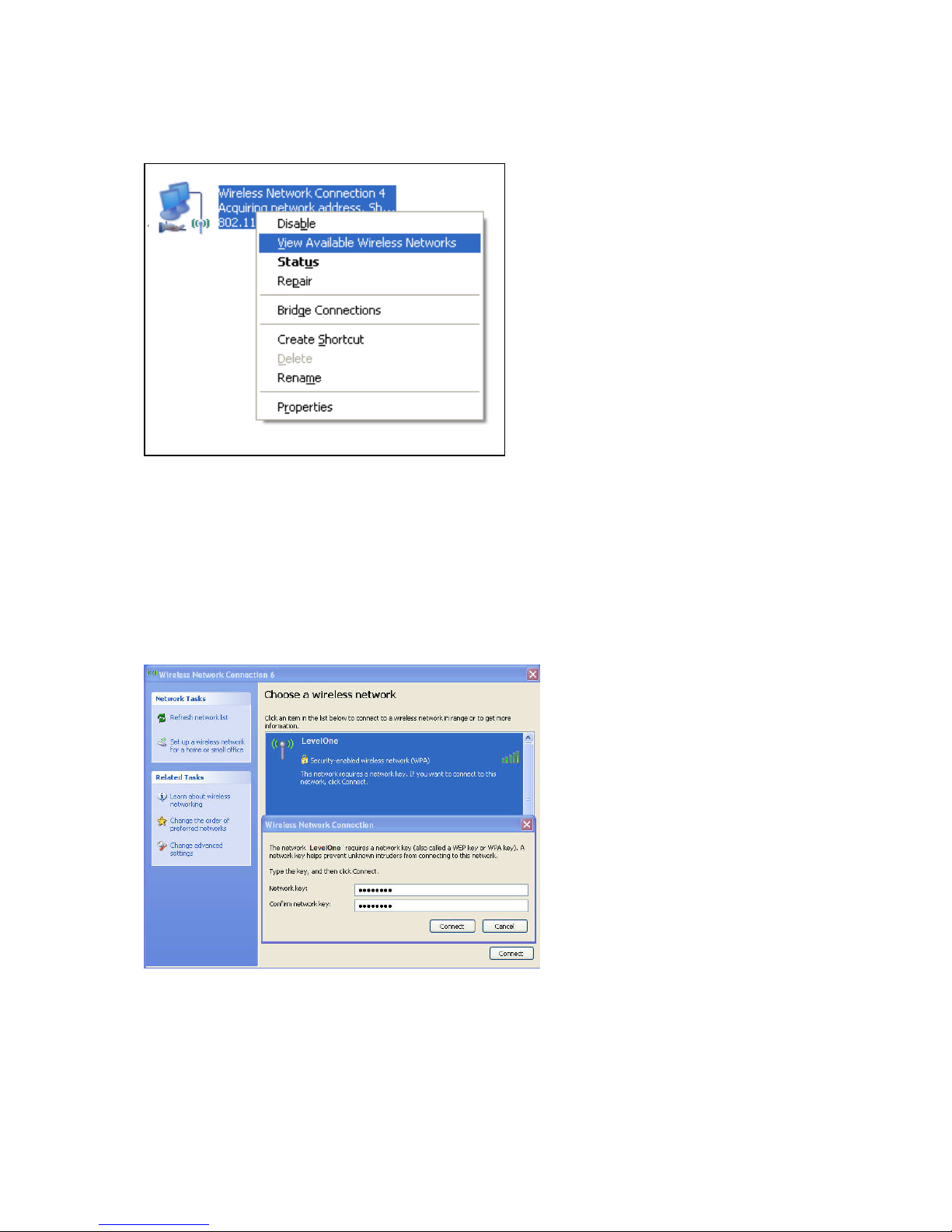

2. Open the network connection.Right click “Wireless Network Connection”
and select “View Available Wireless Networks” as shown below.

3. On the right of the screen displayed are the currently scanned wireless
networks. If the one you want to connect has not been scanned, click
“Refresh Network List” to update the network list.

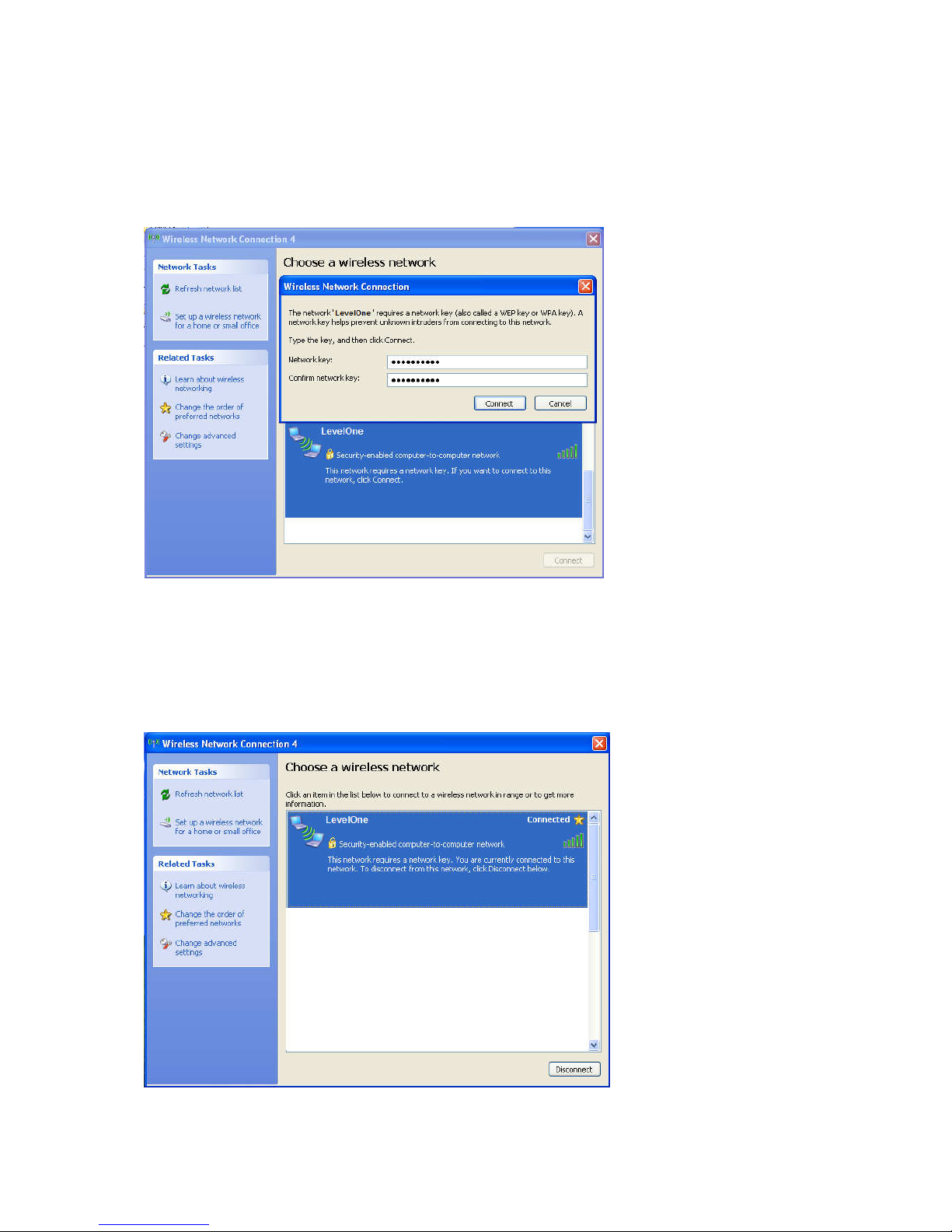

Select the wireless network you want to connect, and click “Connect” or
double click this wireless network. Input the key in the key dialogue box (the
key input is case-sensitive) then click “Connect”.

NOTE: If the wireless device you are connecting to is not encrypted, the key

dialogue box will not pop up.

-11-

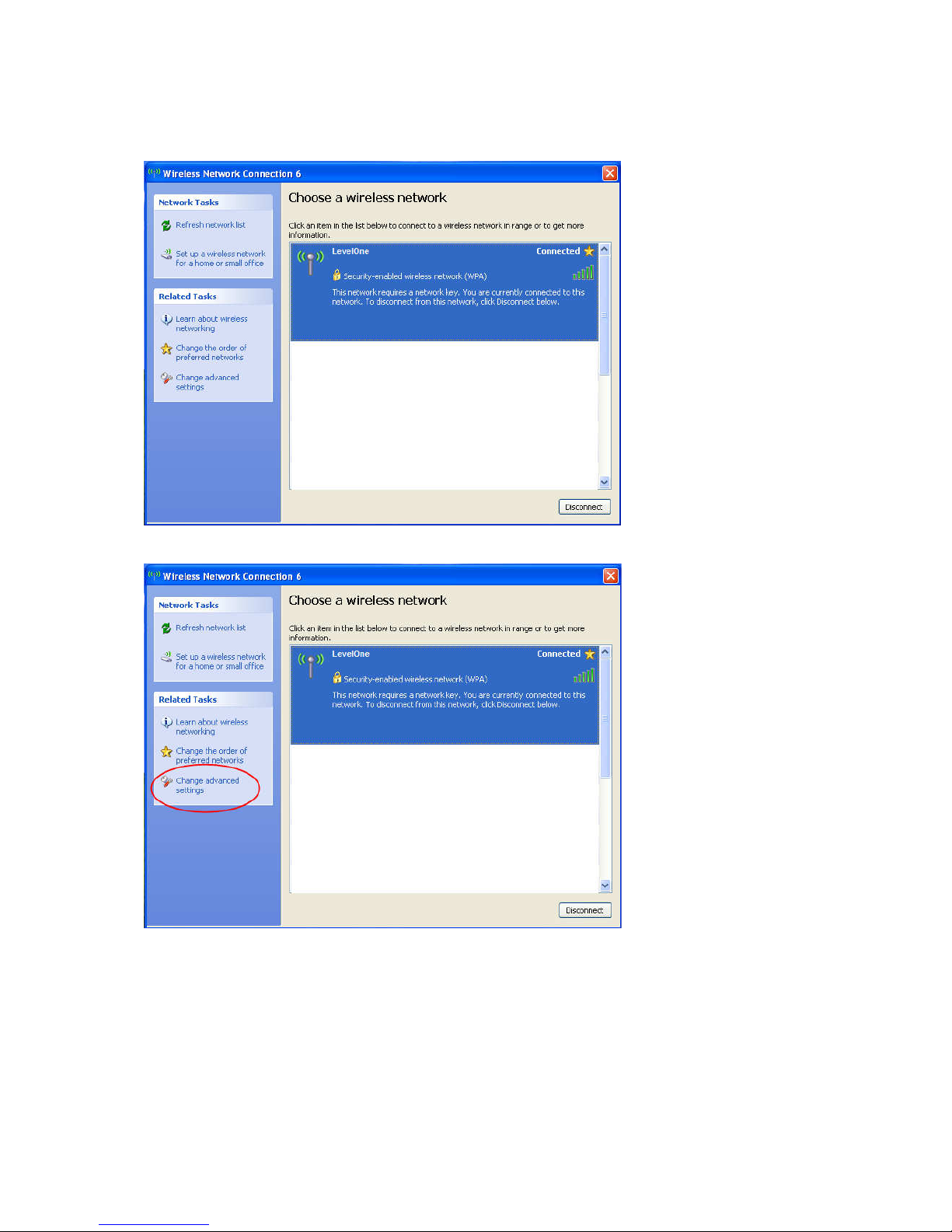

4.When it shows “Connected” as the picture below, then you can enjoy

wireless access to Internet now.

5. You can modify wireless network key from “Change advanced settings”.

-12-

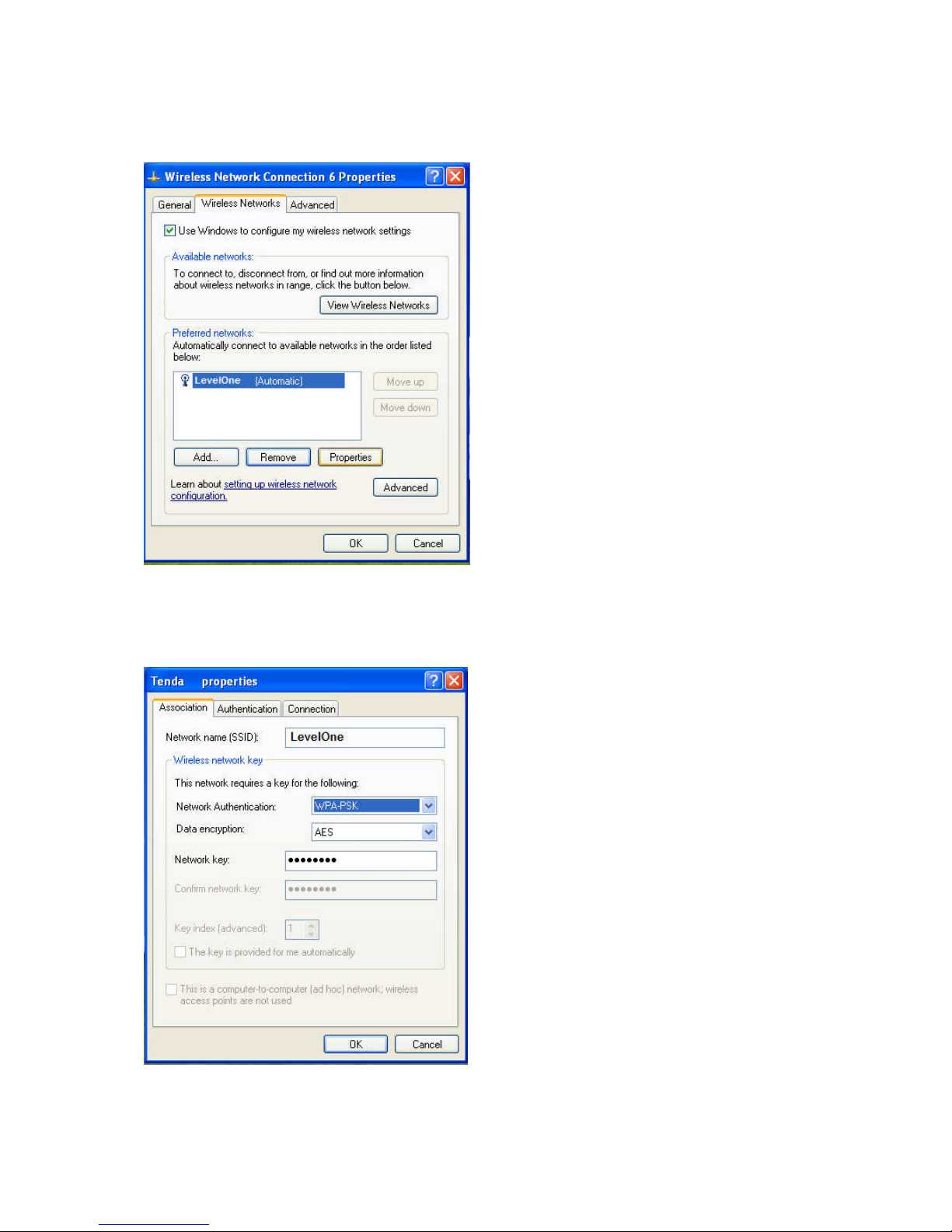

6. Select “Wireless Networks”and choose the one you want to modify, and

then click “Properties”.

7. Modify the key in the appearing dialogue box.

-13-

3.2 Wireless Network Connection under VISTA

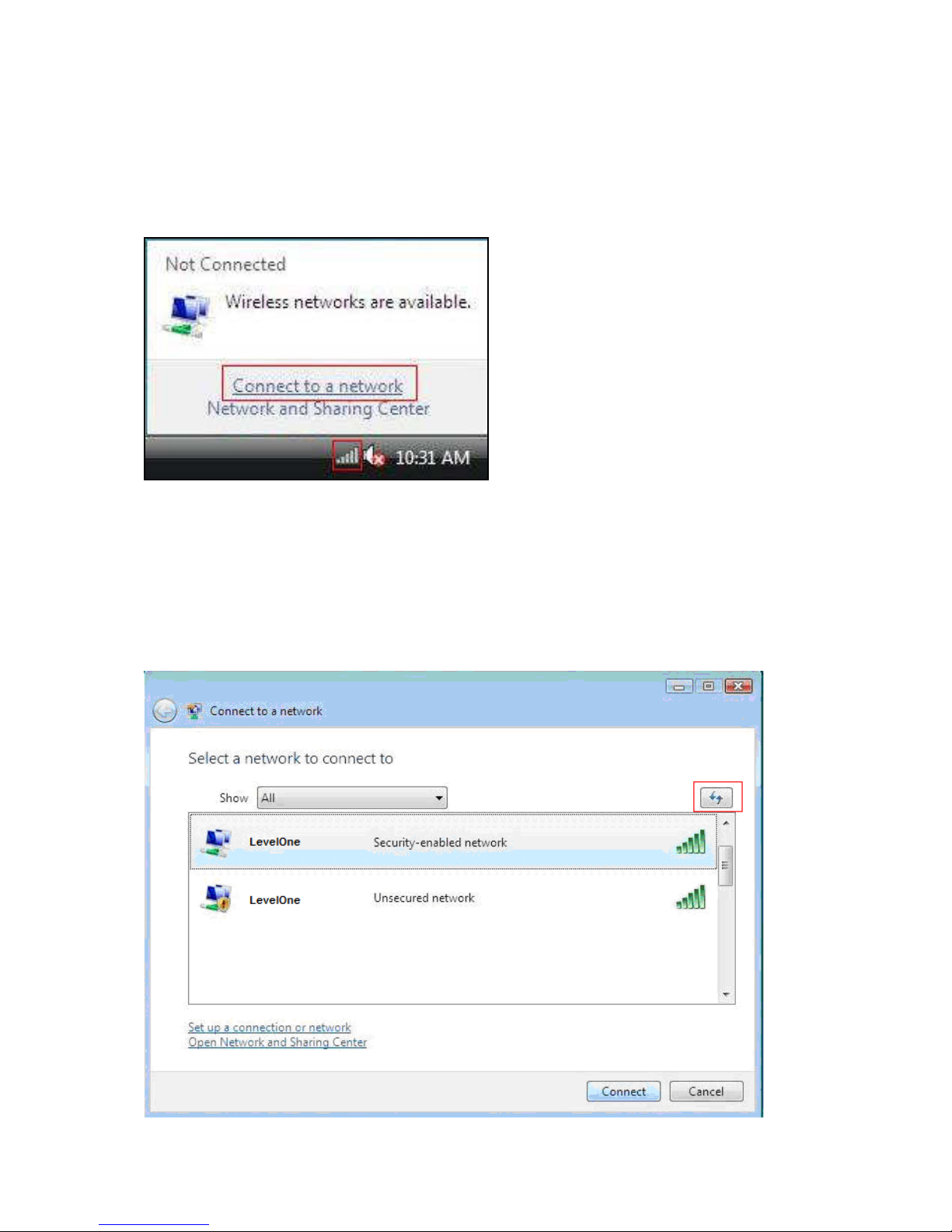

1. Click the Wireless Connection icon in the lower right corner of your

desktop and select “Connect to a network” as shown below.

2 Select the wireless network you wish to connect and click “Connect” or

double click the wireless network to connect. Click the Refresh icon in the

upper right corner to update the network list if you don’t find the specified

wireless network.

-14-

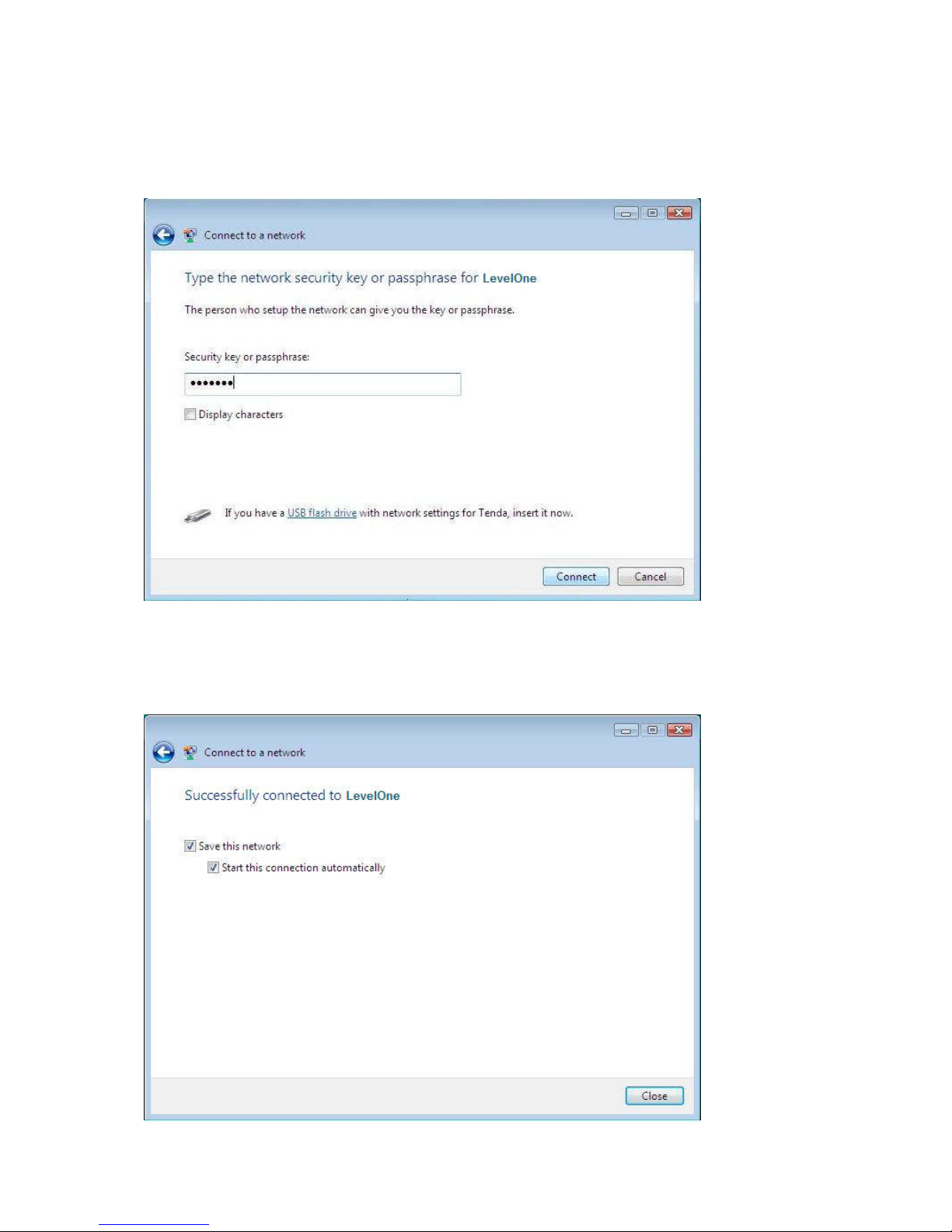

3. If the wireless network that you are connecting has enabled security mode,

you’ll be prompted to enter the network key .Click “Connect” after you enter

the correct key.

1. The following screen will appear after successfully connected to the

wireless network.

-15-

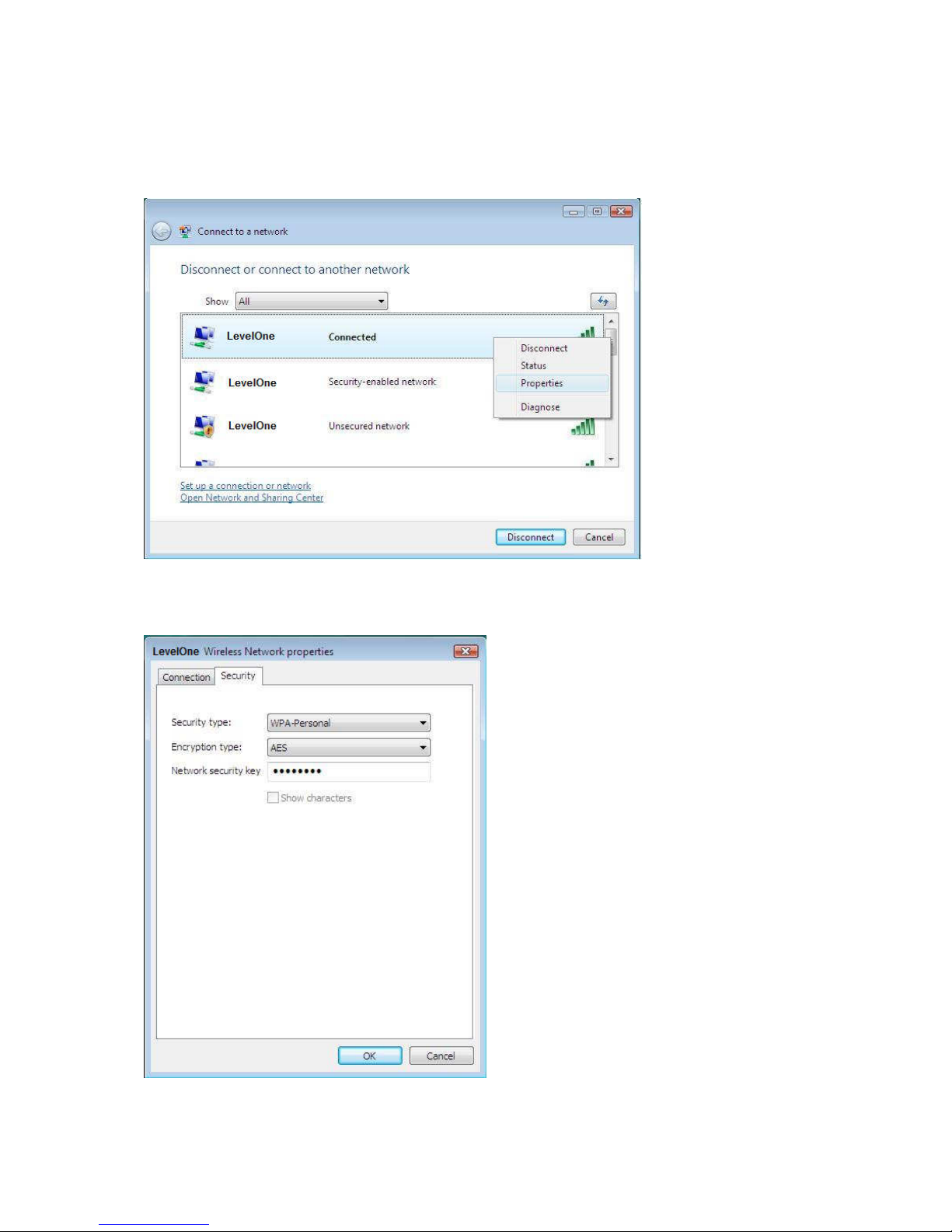

2. If you want to change the wireless network key, just right click the

wireless network’s SSID and then select “Properties”.

3. You can modify the key from the appearing dialogue box.

-16-

3.3 Wireless Network Connection under Windows 7

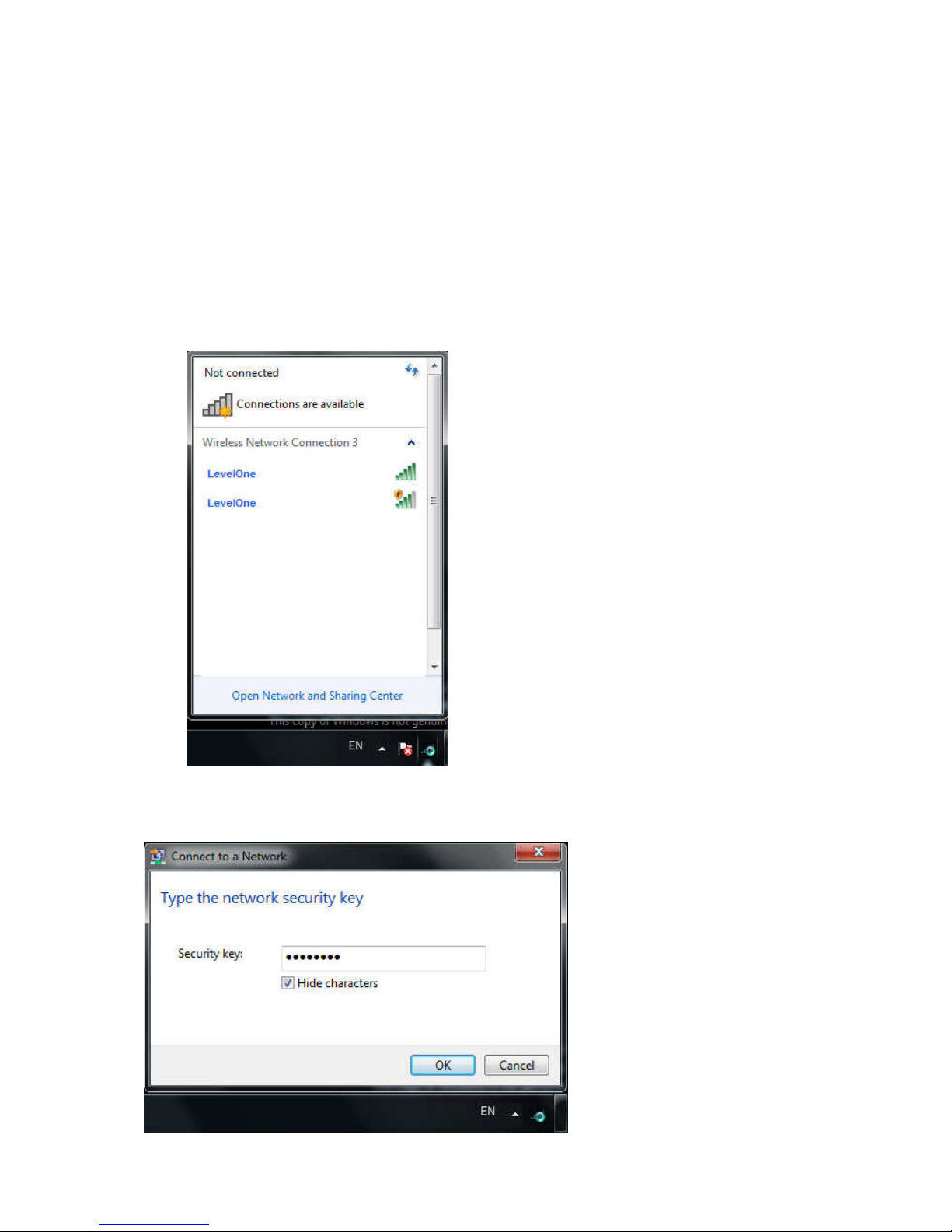

1. Click the wireless connection in the lower right corner of the computer’s

desktop to view the available wireless networks. Select the wireless

network you wish to connect and click “Connect” or double click the

wireless network to connect. If you don’t find the specified one, please

click the refresh icon in the upper right corner to update the list.

2. If the wireless network you are connecting is encrypted, you’ll be

prompted to enter the key. Click “Ok” after you enter the correct key.

-17-

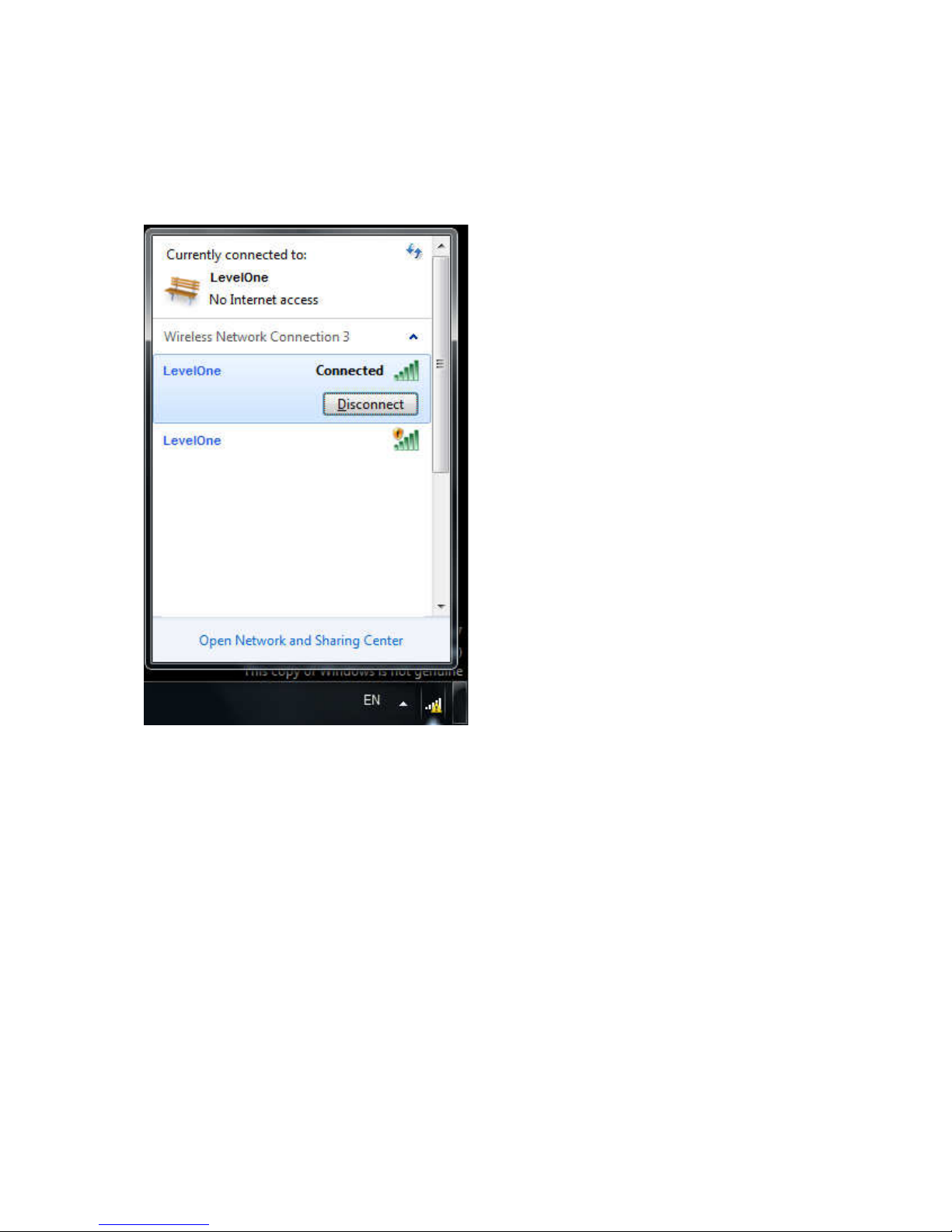

3. It shows “Connected” after successfully connected. You can disconnect it,

view its status or modify the wireless network properties by right click the

wireless network

-18-

Chapter 4 Client Wireless Utility

When you are installing the driver, select “Install driver and WLAN Config
Tool” and the adapter driver and client utility will be installed. All functions of
this adapter can be configured via LevelOne’s utility interface (in the
following text it is abbreviated as UI).

Select “Start”—“All Programs” —“LevelOne”— “WUA-0606”, or click the

“WUA-0606” shortcut on your PC’s desktop to start UI.

4.1 Station mode (Client Mode)

Station mode (Client Mode) Overview

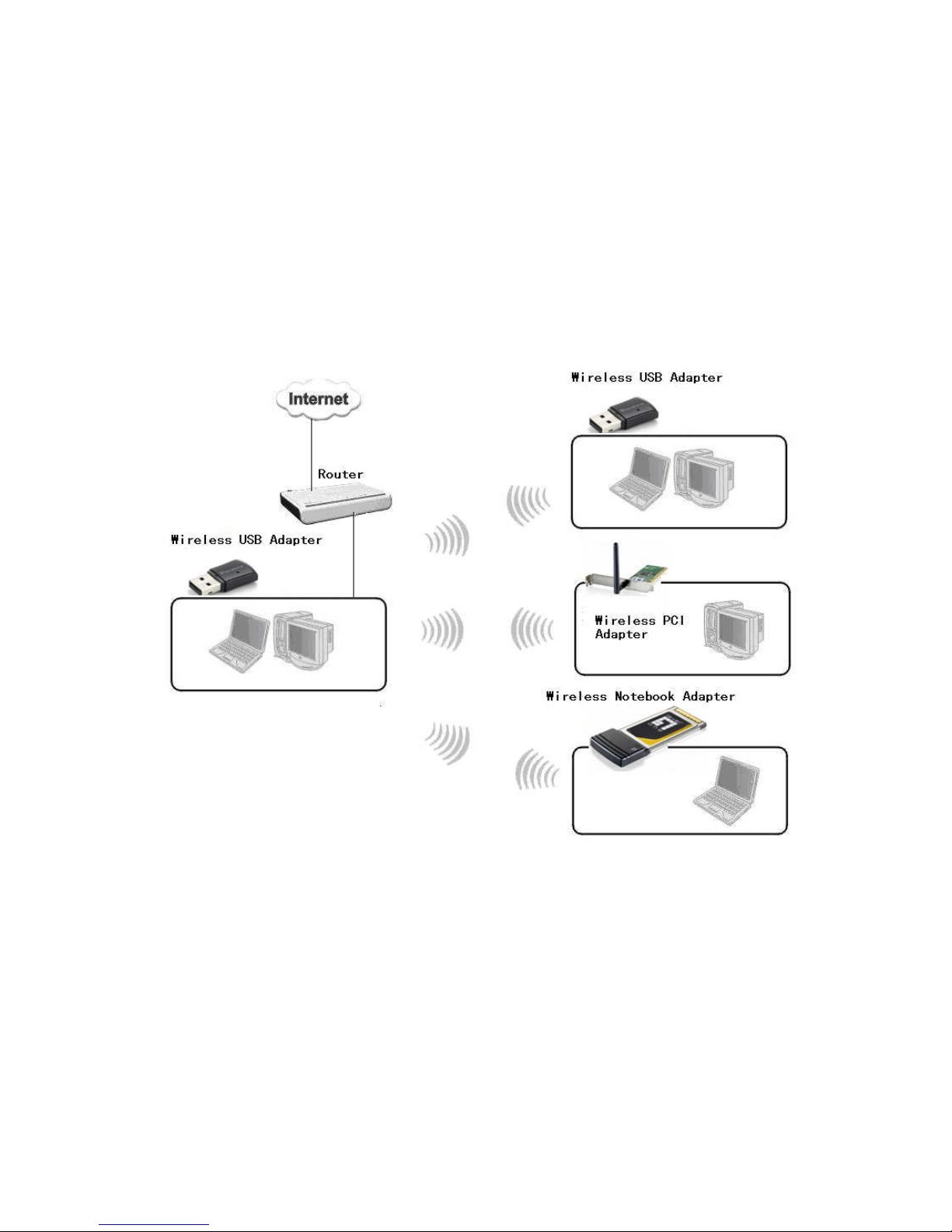

It is a common solution to use the wireless network adapter as a client to

receive signals.

-19-

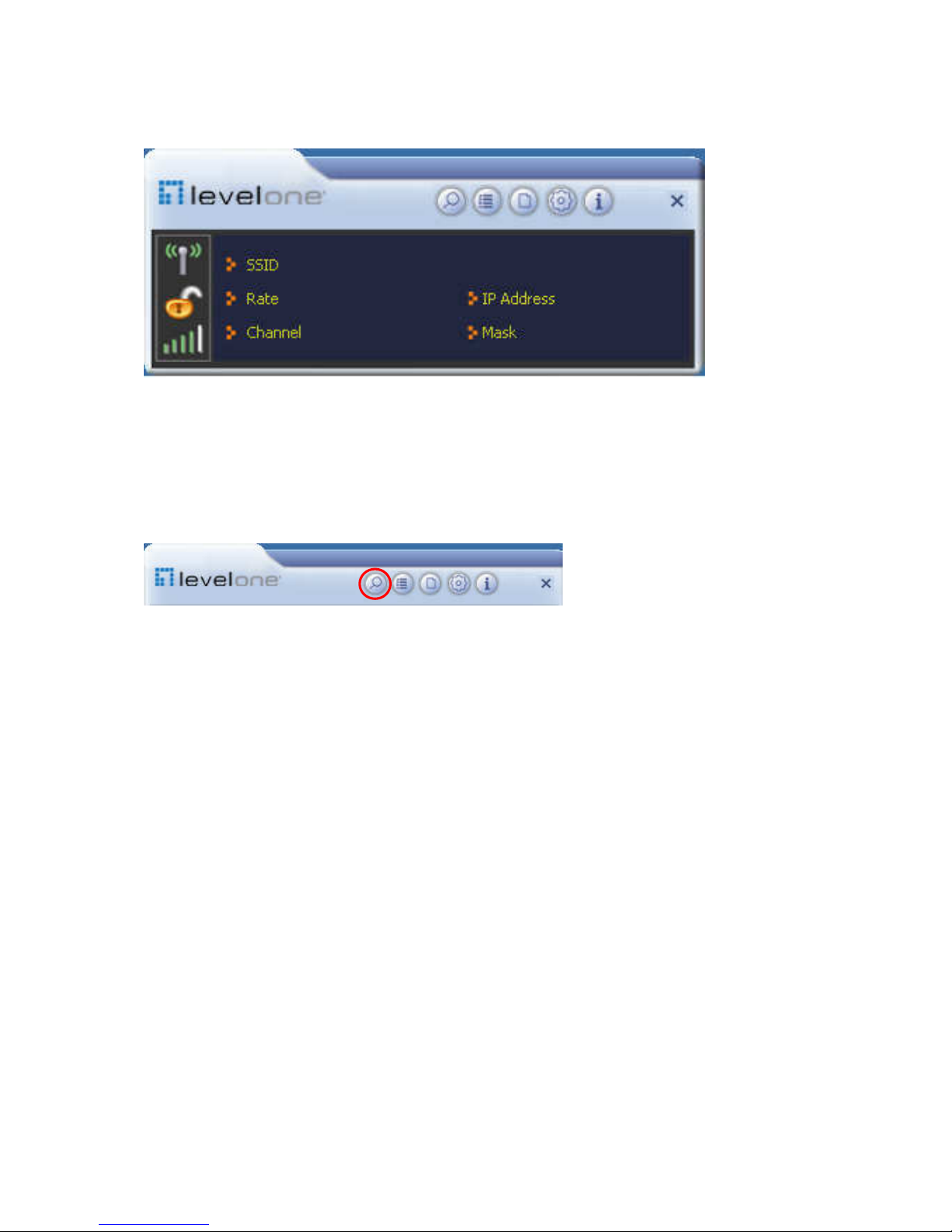

Main interface for station mode

The function buttons on the top(From L to R )are respectively Site Survey,

Link Information, Profile, Advanced, About, and MiniSize. While the left

column displays Turn On/Off RF, Security /No security, and Signal status.

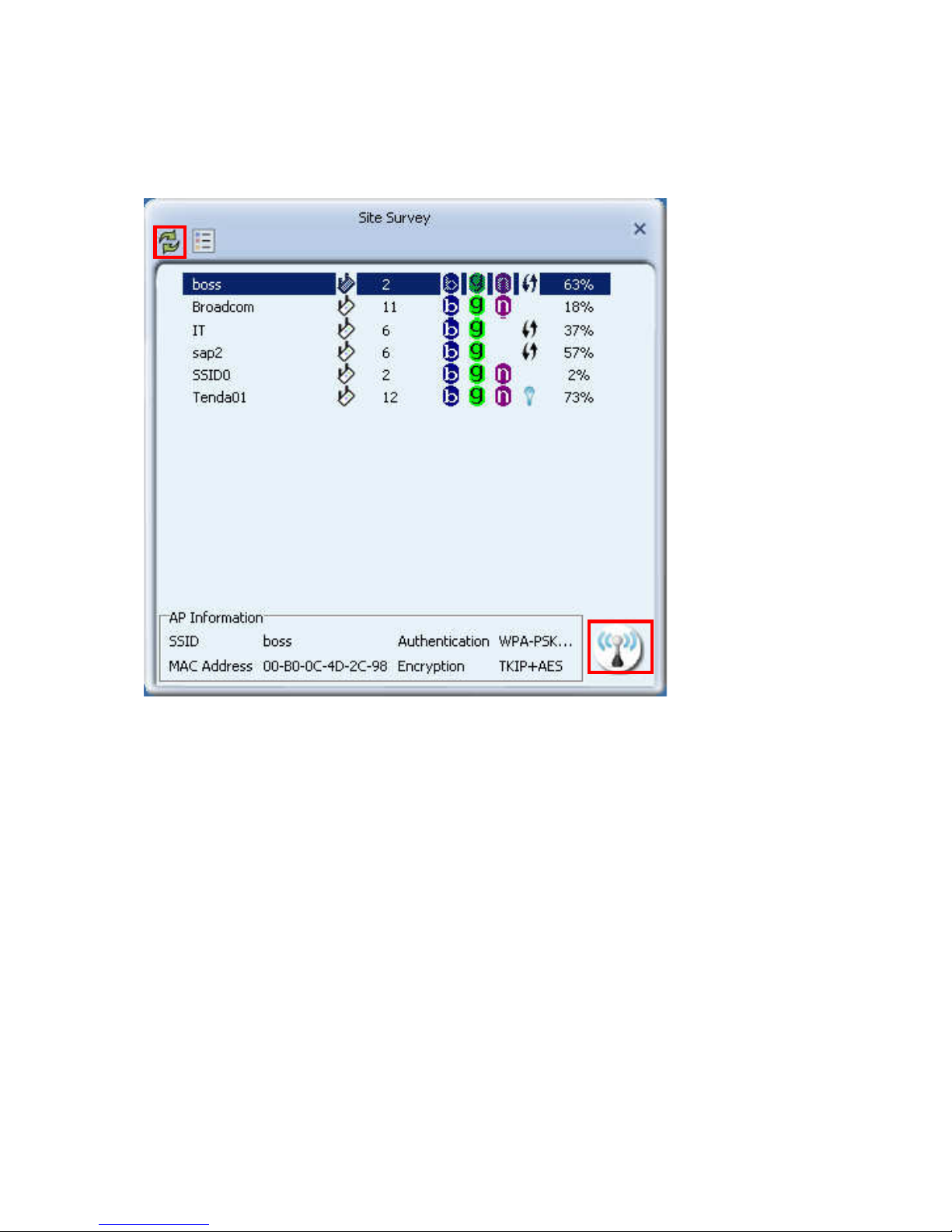

4.1.1 Site Survey

The “Site Survey” screen displays currently scanned wireless signals and you

can click one to connect the signal. Select one and you may view the AP’s

MAC address, wireless mode (A/B/G/N), authentication type, and encryption

type, or WPS authentication and signal strength.

-20-

Before you connect to a wireless network, please click the “Rescan” button to

update the wireless network list and select the one you wish to connect, then

click the “Connect” icon.

For the networks that are not encrypted, you can directly click “Connect”.

However, for the encrypted wireless networks,a “Profile” dialog will pop up

and you must select the corresponding authentication type and encryption

type,and then click the “Next” button to input the correct key.Please note

that this type of connection will not create a profile ,thus next time connect

to this network you still need to select it manually.

-21-

The detailed explanations about the authentication and encryption are as

follows:

WEP：：：：Supports 10/26-bit Hex characters and 5/13-bit ASCII.

WPA-PSK：：：：Supports 8-63-bit ASCII and 8-64-bit Hex characters.

WPA2-PSK：Supports 8-63-bit ASCII and 8-64-bit Hex characters.

WPA-PSK/WPA2-PSK：：：：Supports 8-63-bit ASCII and 8-64 -bit hex characters.

NOTE:

The Hex characters consist of numbers 0~9 and letters a-f.

ASCII characters consist of any Arabic digitals/letters and characters.

-22-

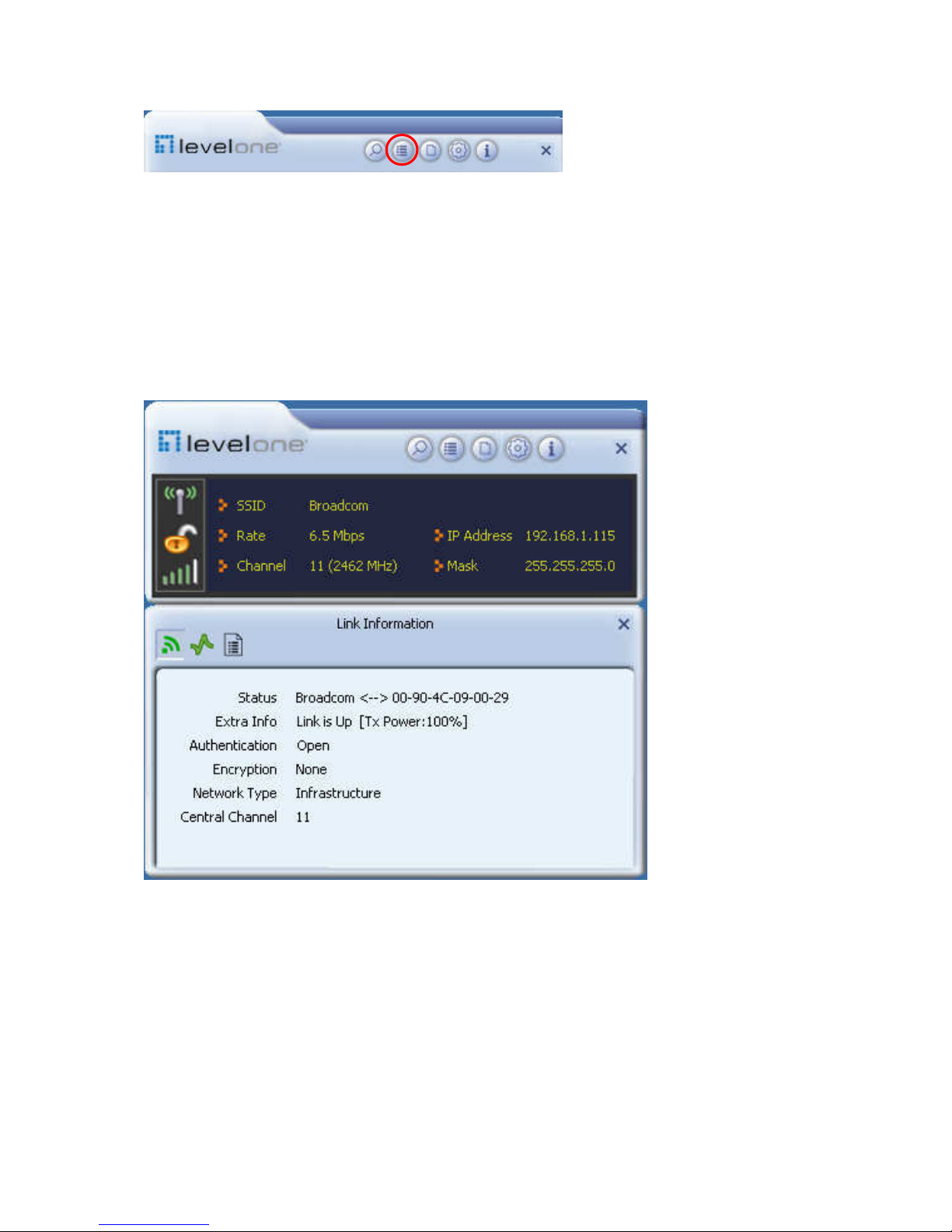

4.1.2 Link Information

After successfully connected to one wireless network, you can view its

detailed information by clicking the “Link Information” on the main interface.

1. “Link Status” screen displays the detailed information of the connected

AP including its SSID,MAC address, authentication type, encryption type,

network type and channel.

-23-

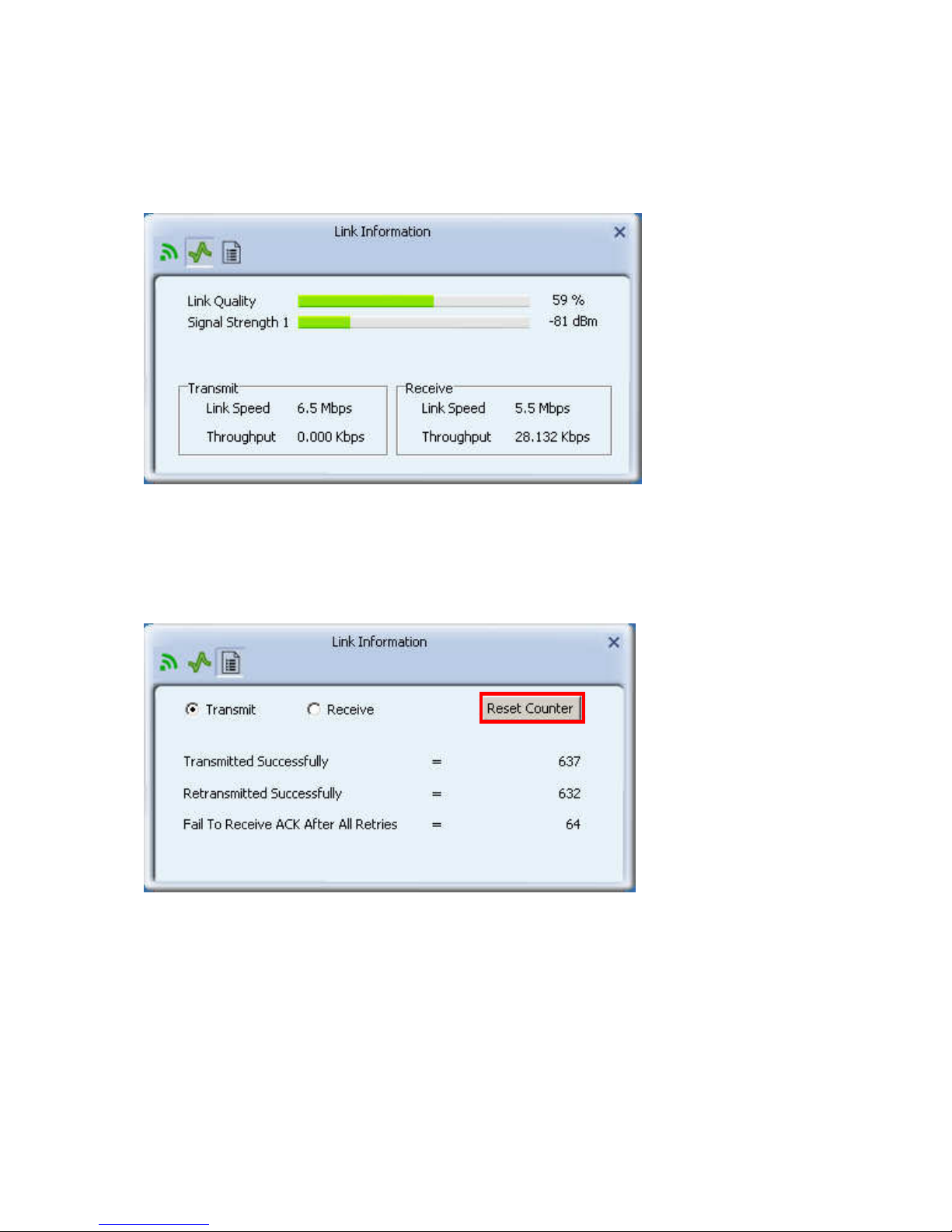

2. “Throughput” screen displays the signal strength of each of the wireless

adapter’s antennas and the link quality.

3.”Statistics” screen is used to count the total Rx and Tx data packets,

including transmitted,retransmitted and fail to receive ACK after all

retries.You can click the “Reset Counter” button to clear the count.

-24-

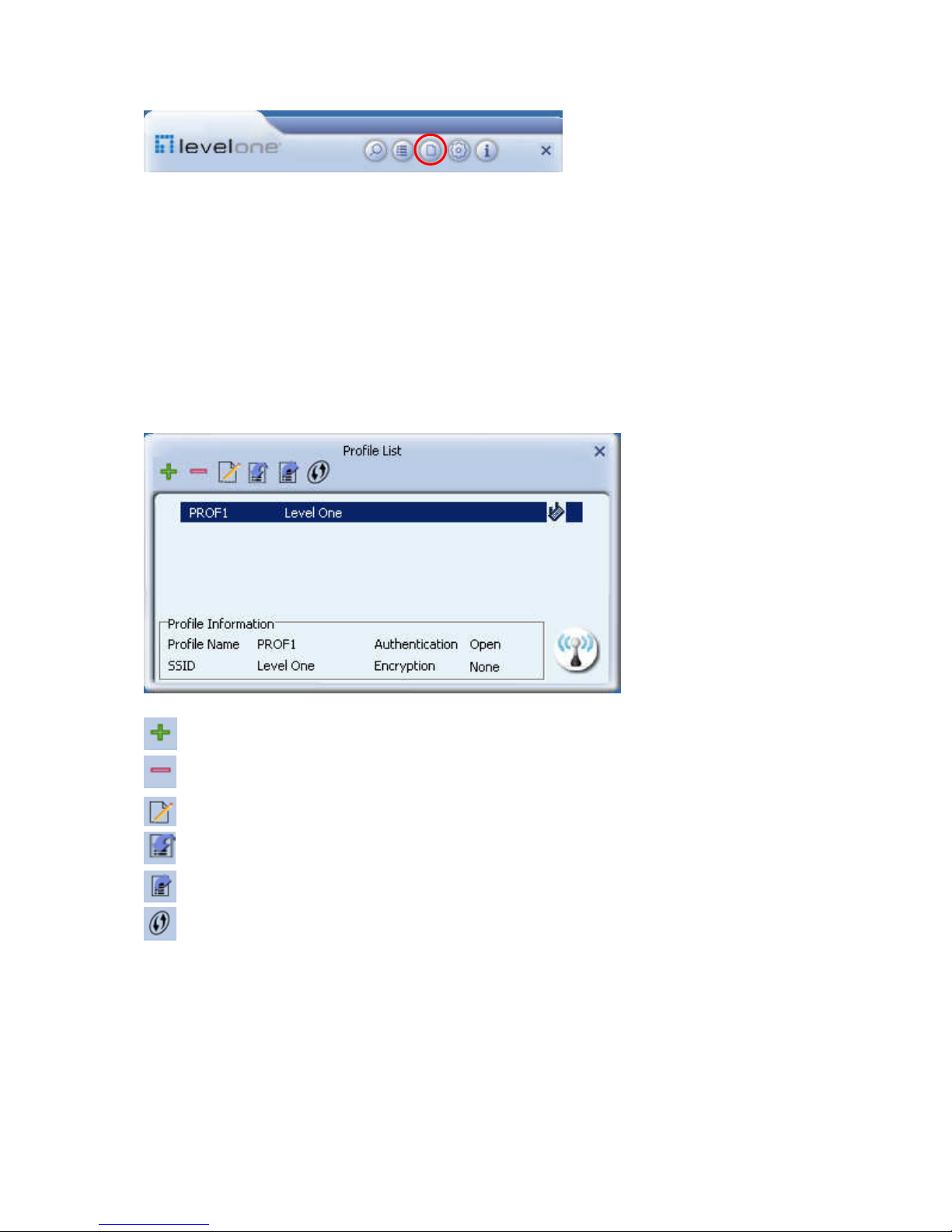

4.1.3 Profile

Except the above common connection type, you can also connect to the
wireless network by adding a profile on the “Profile“screen.The Profile screen
is used to save the wireless network parameters. When the adapter is
successfully connected to a network, the profile name of this network will
automatically be added here, which helps the adapter to quickly connect to
the wireless network next time. However, there’s one exception that when
you have set the hidden SSID,namely the SSID can not be scanned,then you
must manually connect by adding the profile name.The main interface is as
shown below.

Add: create a new profile

Delete: delete the existing profile

Edit: modify the existing profile

Import: import the previously configured profile.

Export: export the configured profile.

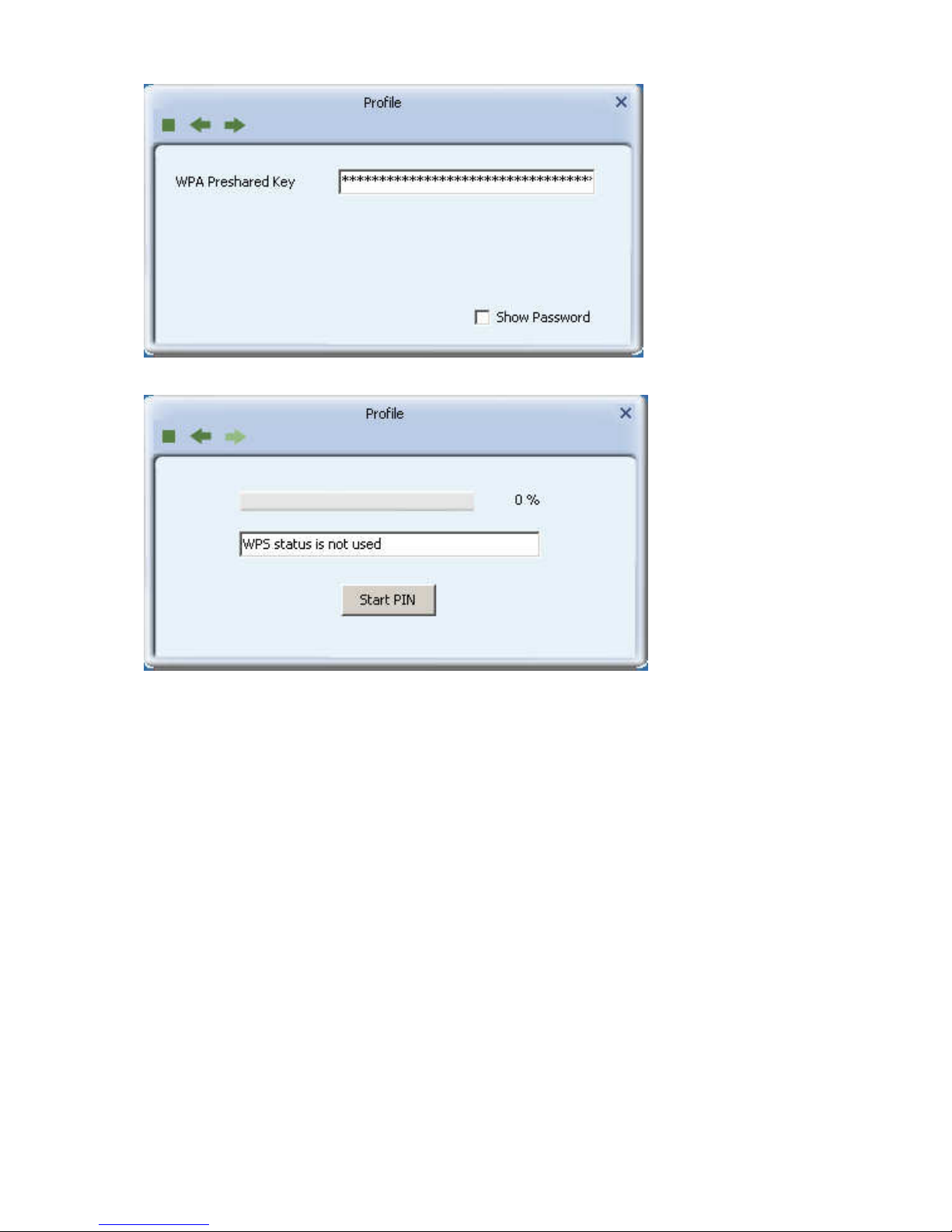

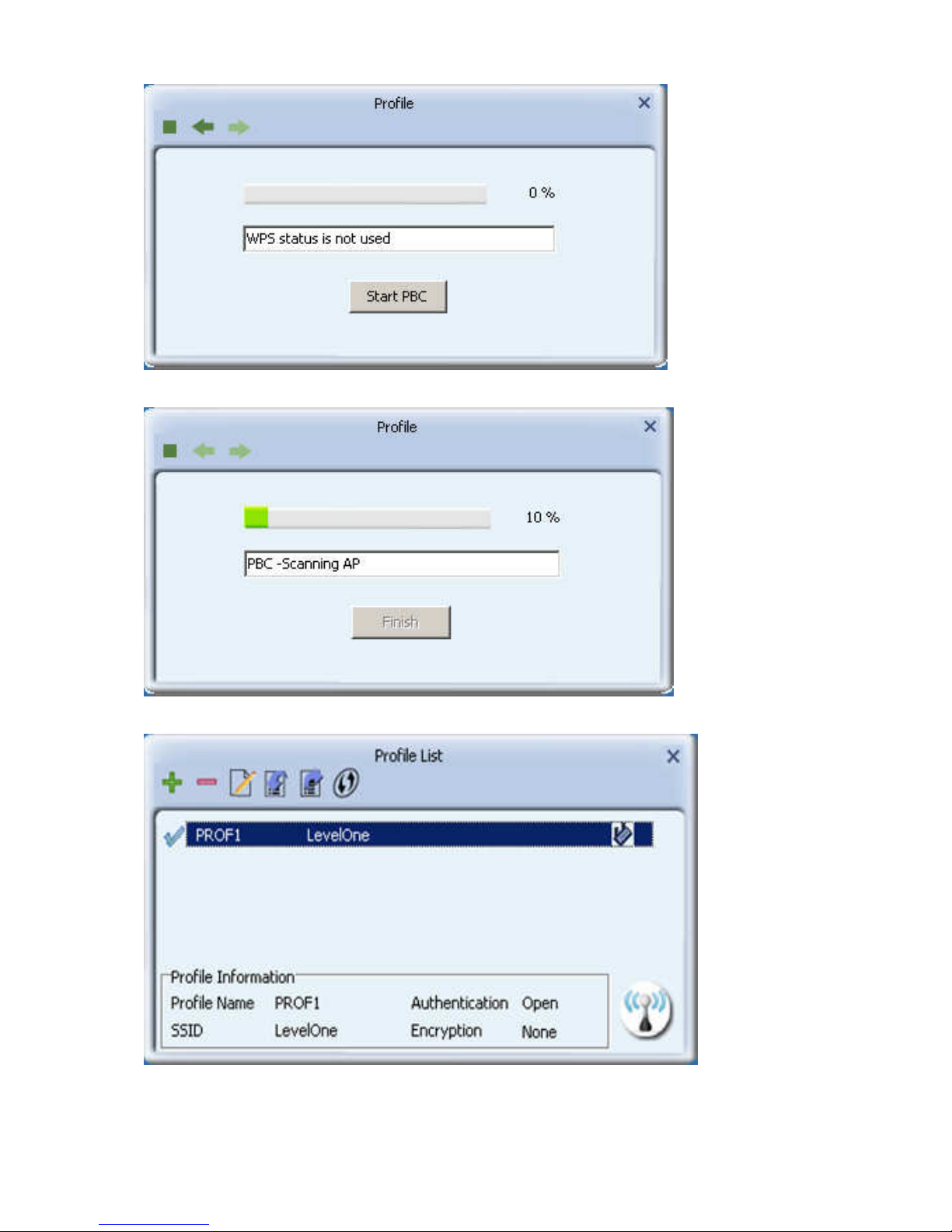

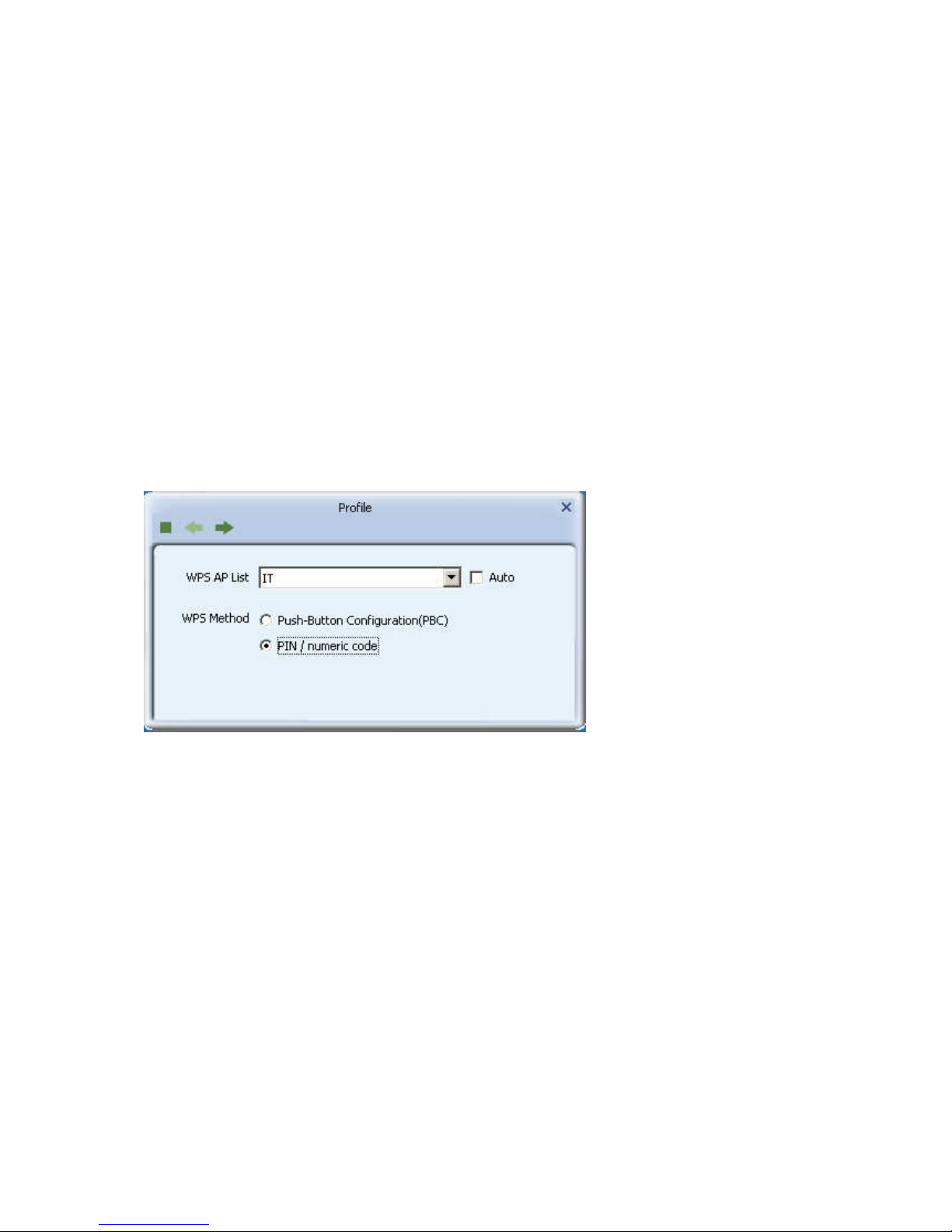

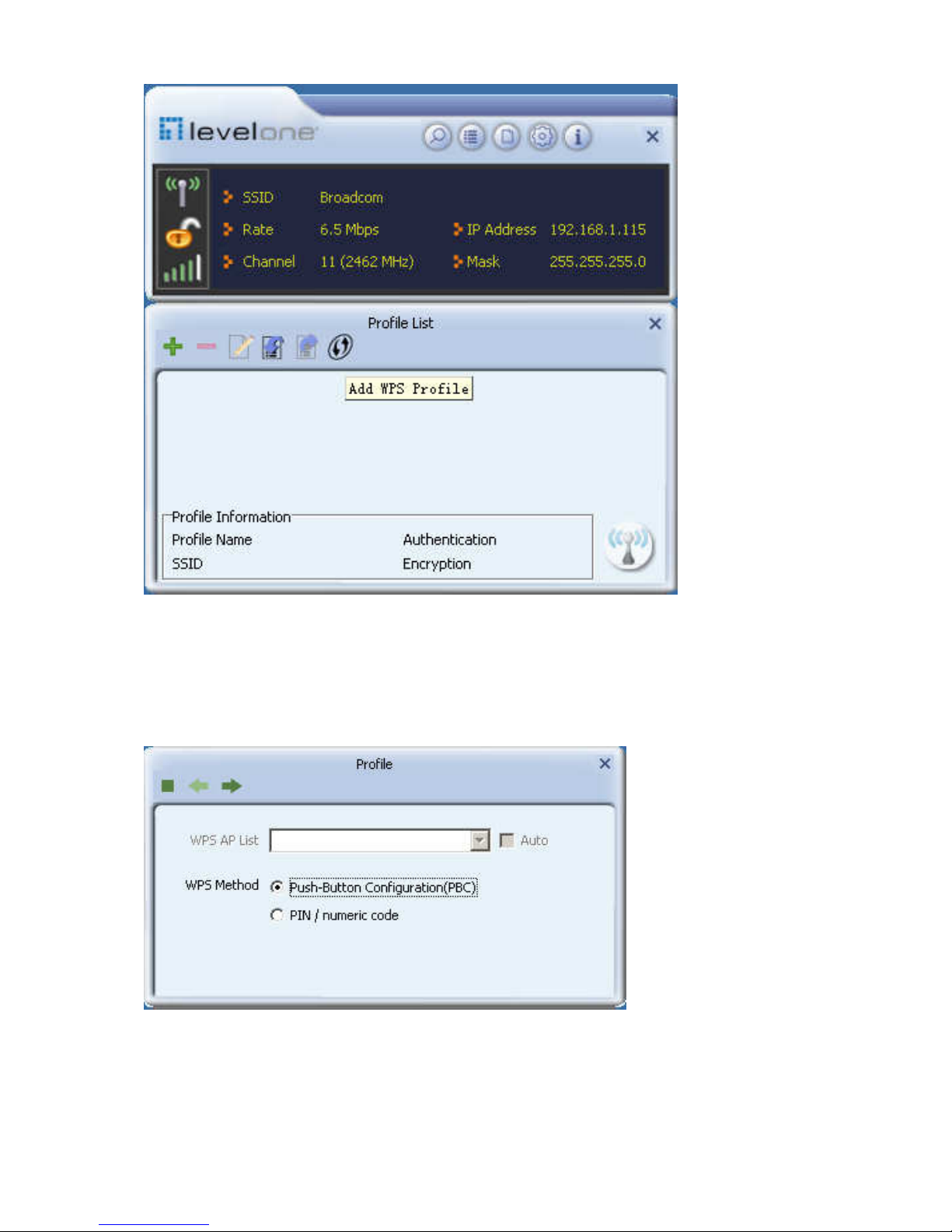

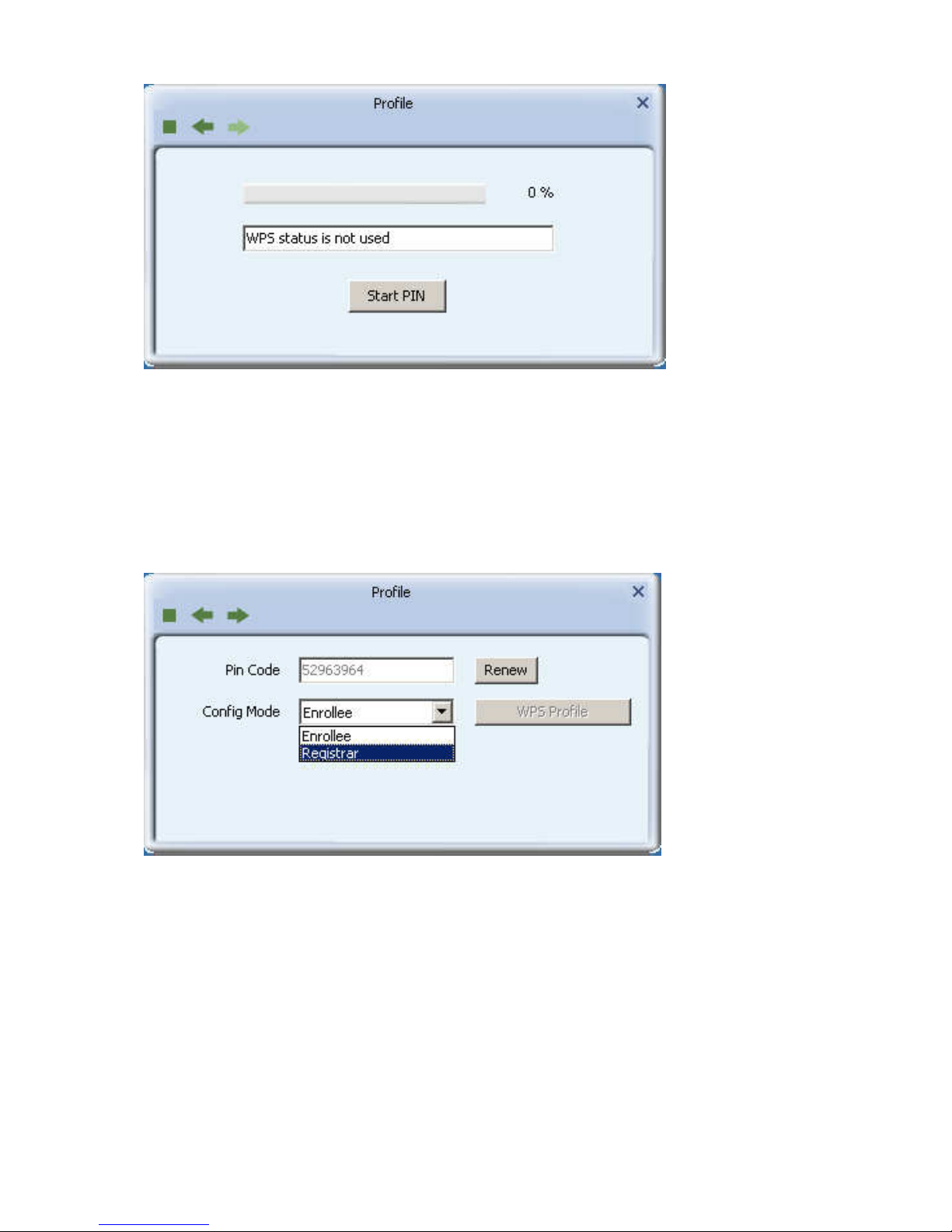

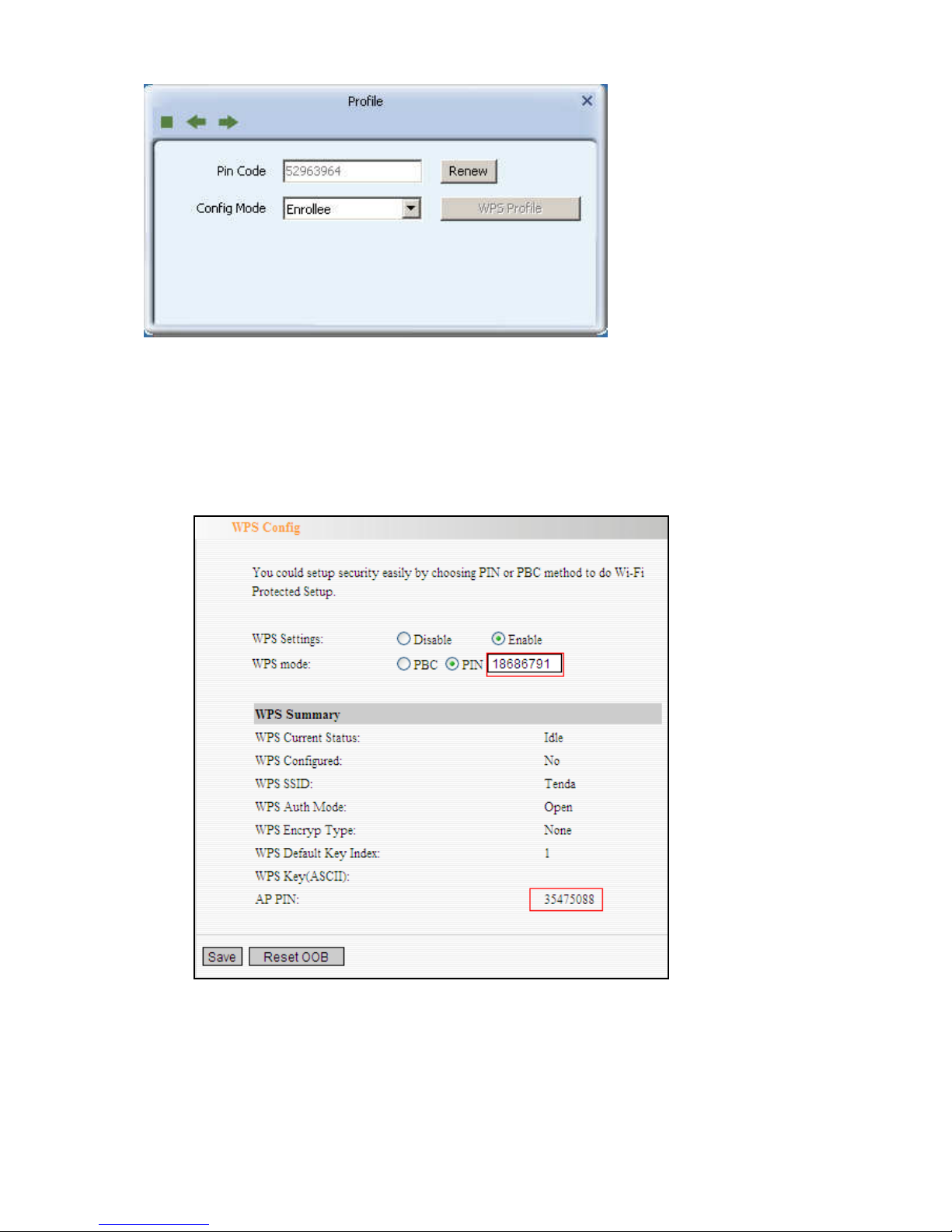

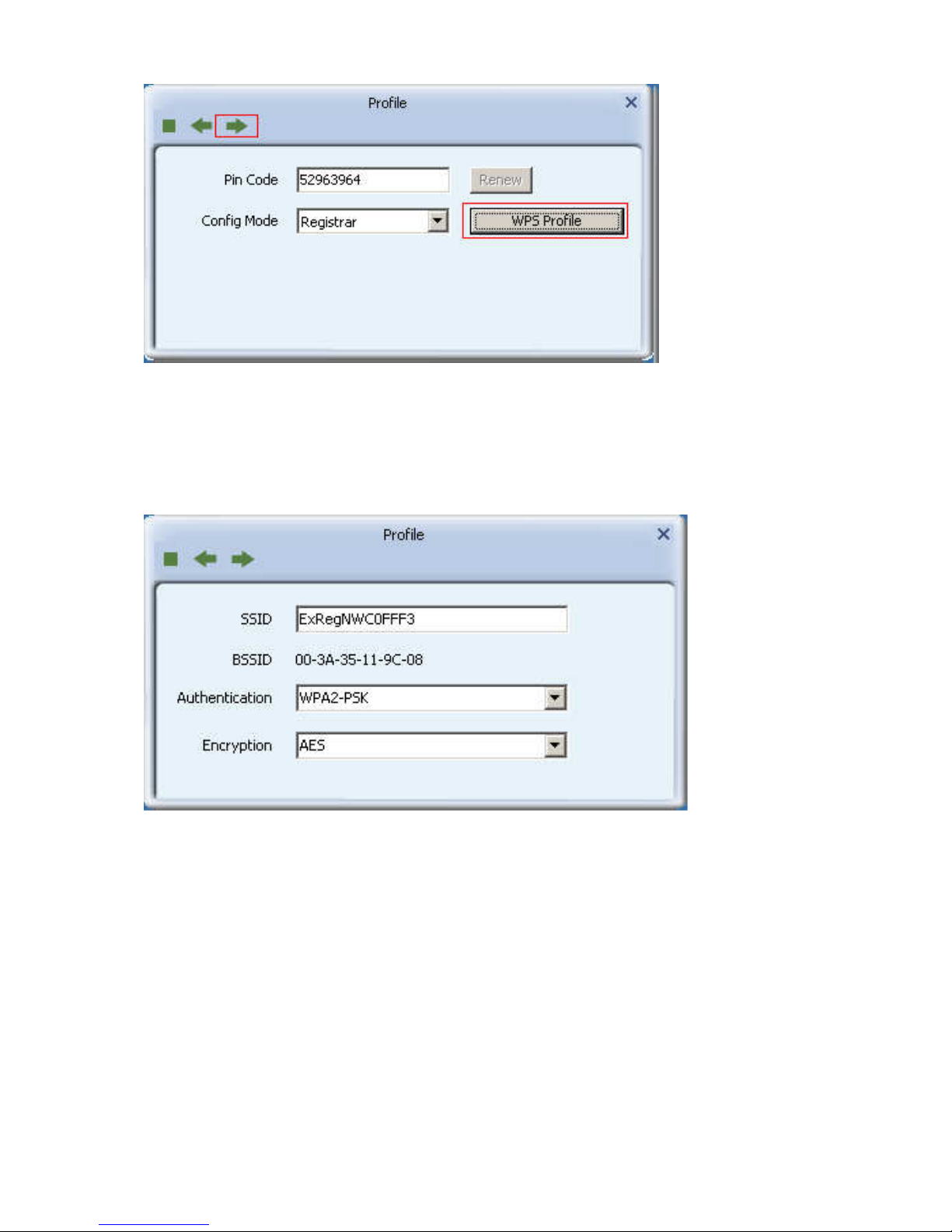

Add WPS Profile: WPS setting requires that the connecting wireless

device support WPS function. WPS helps you to fulfill wireless encryption fast

as well as secure your wireless network. For detailed setting steps, refer to

appendix2.

-25-

There are two network types for your option when clicking the “Add” button

to add wireless adapter connection: Infrastructure and Ad-Hoc.

Infrastructure is an application mode that integrates the wired and wireless

LAN architectures. It is different from Ad-Hoc in that in this mode the

computer installed with the wireless network adapter has to fulfill the

wireless communication via AP or wireless router. It can be devided into two

modes:“wireless AP + wireless network adapter” and “wireless router +

wireless network adapter”.

Ad-Hoc is a special wireless mobile network application mode. All nodes in

the network are equal.Usually it is used to share resources by connecting the

opposing computer’s wireless adapter.

-26-

1. Infrastructure Profile Management

When you are connecting the wireless adapter to an AP or a wireless router,

please select the Infrastructure mode.

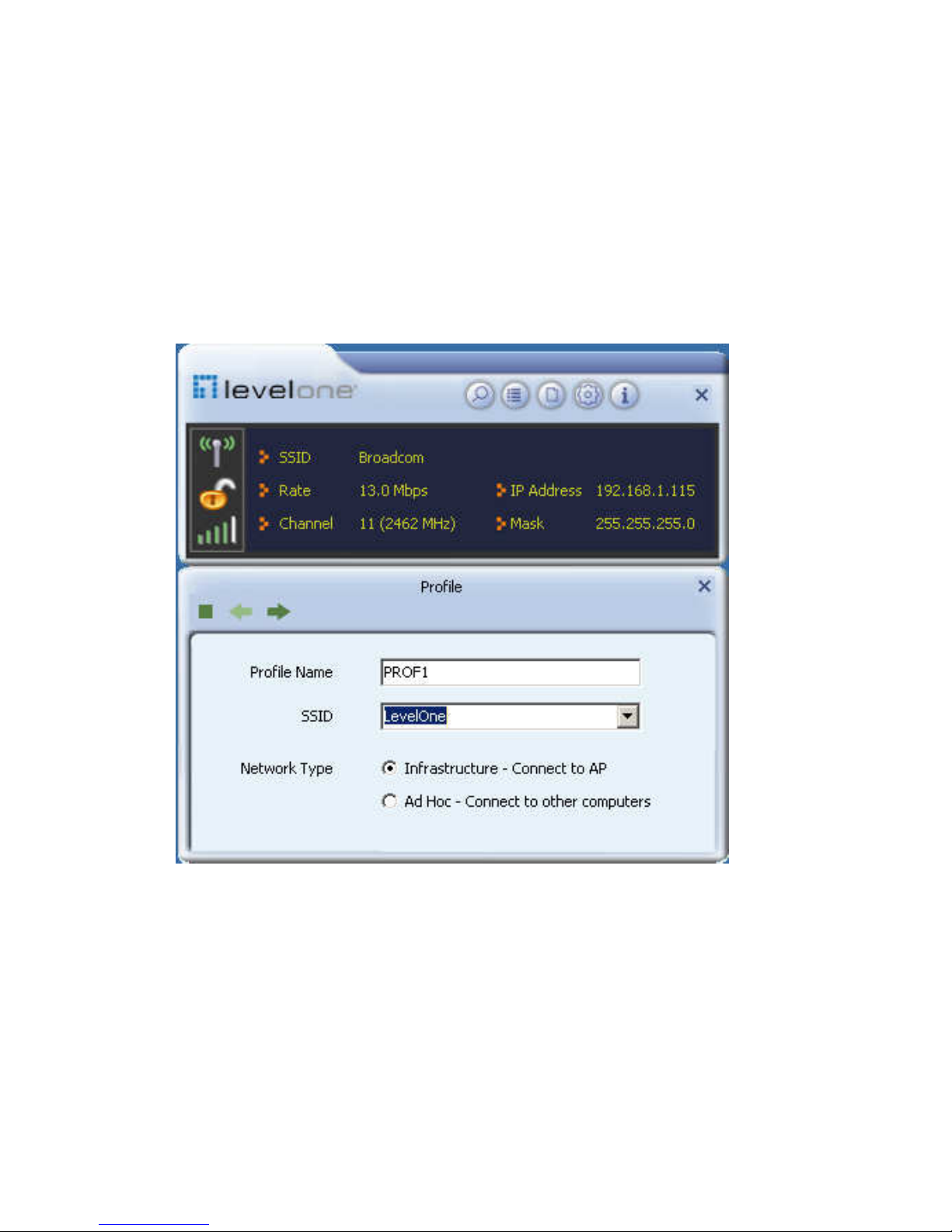

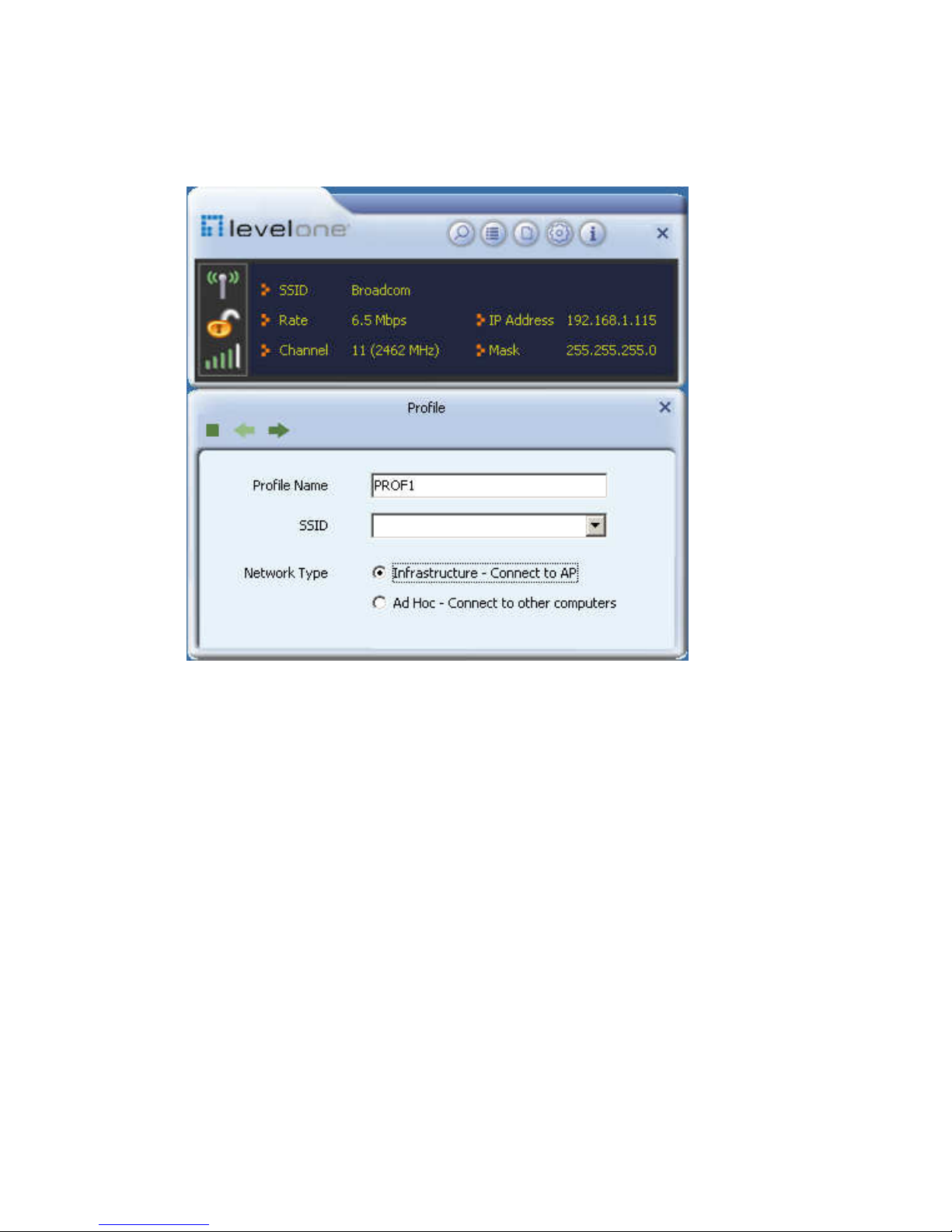

Click the “Add”button and select the network type as”

Infrastructure”,and enter the profile name and SSID or you can find the SSID

you wish to connect from the drop-down list.

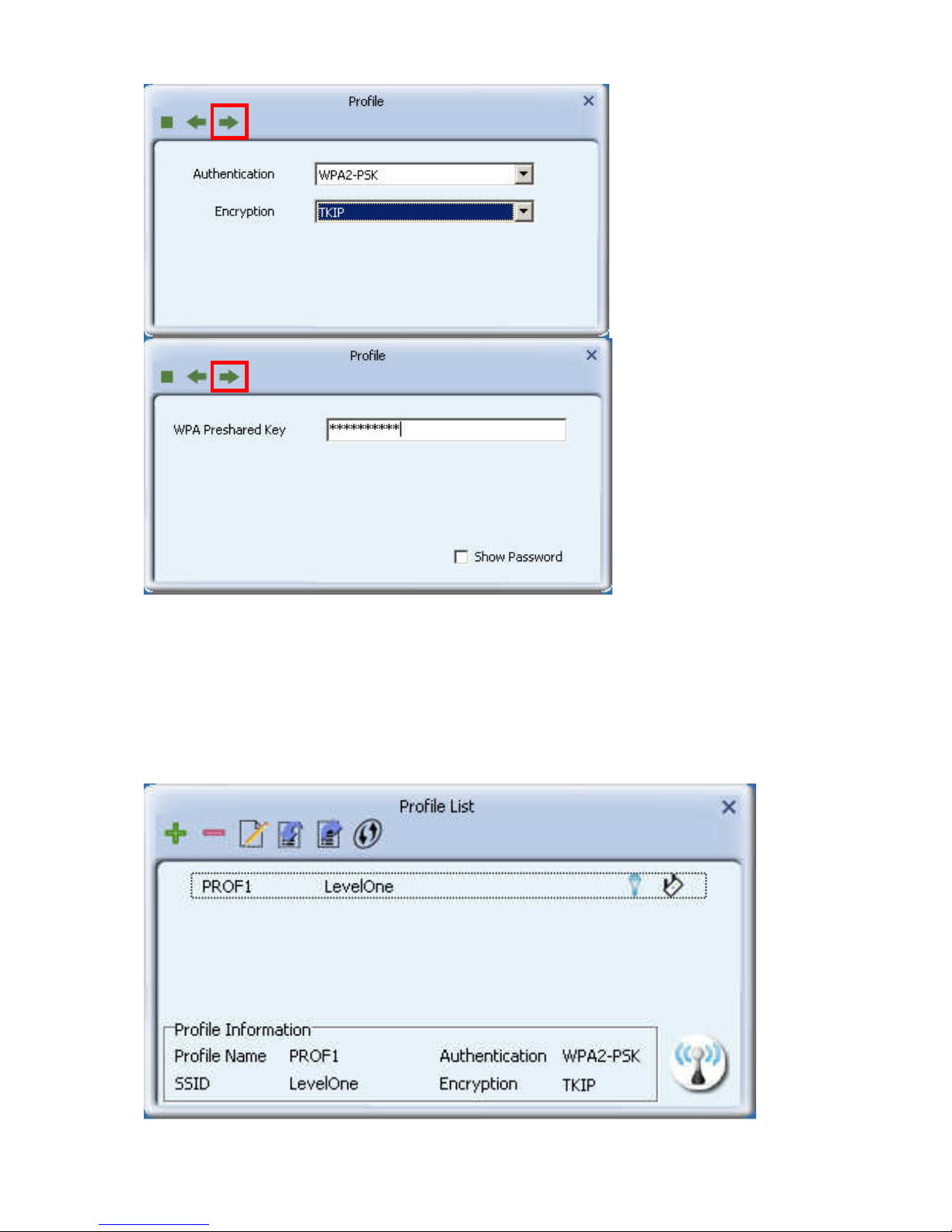

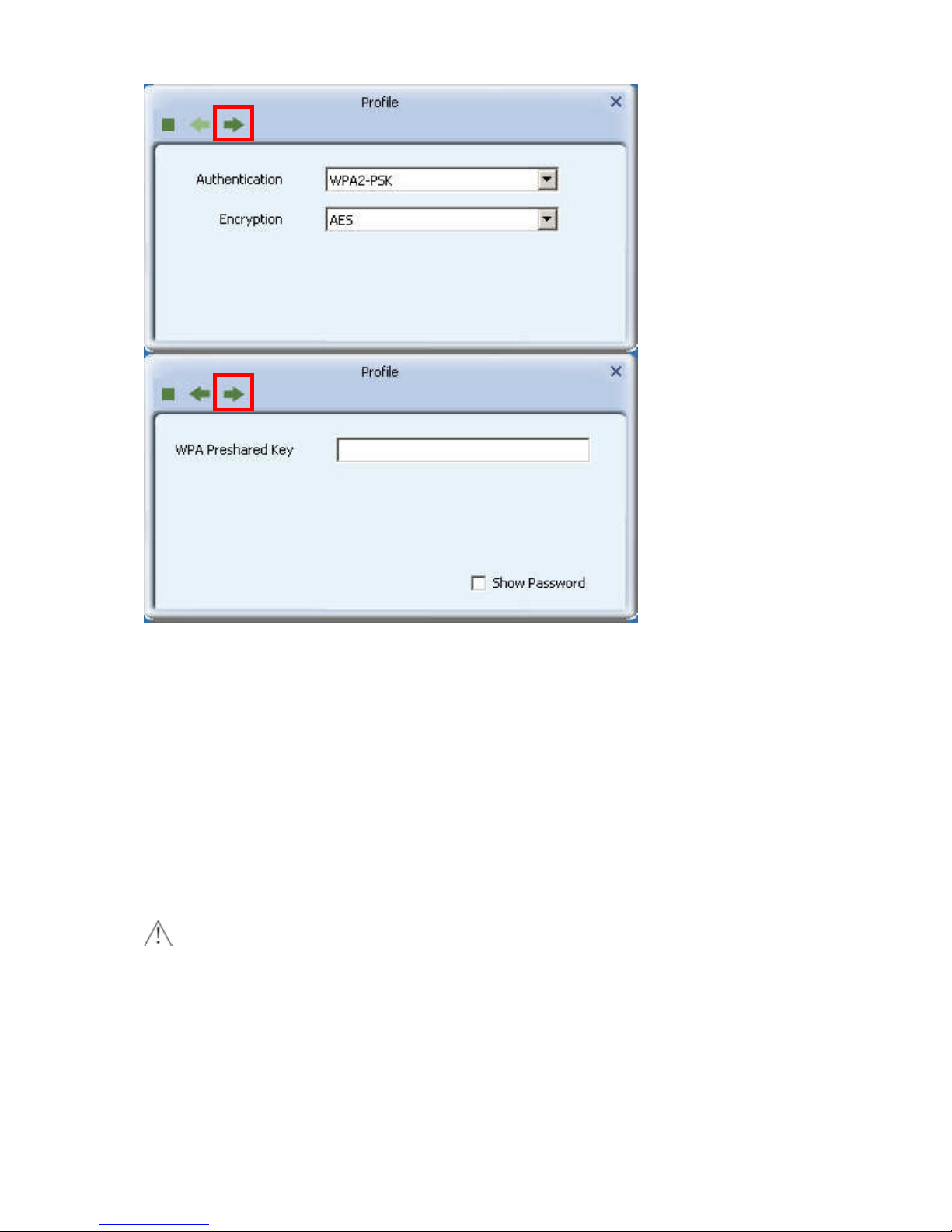

Click the next button to select the authentication type and encryption type

such as WPA－PSK and AES, and then input the key and click next.

-27-

After a profile is successfully added, the profile name can be seen on the

profile list,you can edit , import or export the profile,click “Active” to finish

the connection,now you can also view the detailed connection status on the

“Link Information”screen.

-28-

NOTE:

If the SSID broadcast function of the wireless router or AP you wish to

connect is disabled, then the wireless adapter can not scan the SSID, thus you

need to connect by creating the corresponding profile.

2.Ad-Hoc Profile management

Using the Ad-hoc mode to establish a wireless network requires that each

computer should be equipped with a wireless network adapter. By

connecting these wireless adapters, computers are able to share the

resources. The detailed setting steps are as follows:

1）Firstly you’ll have to allocate a static IP to each wireless adapter to be

connected in Ad-hoc mode.

a.Right click “My Network Places” on your computer’s desktop and select

“Properties”.

-29-

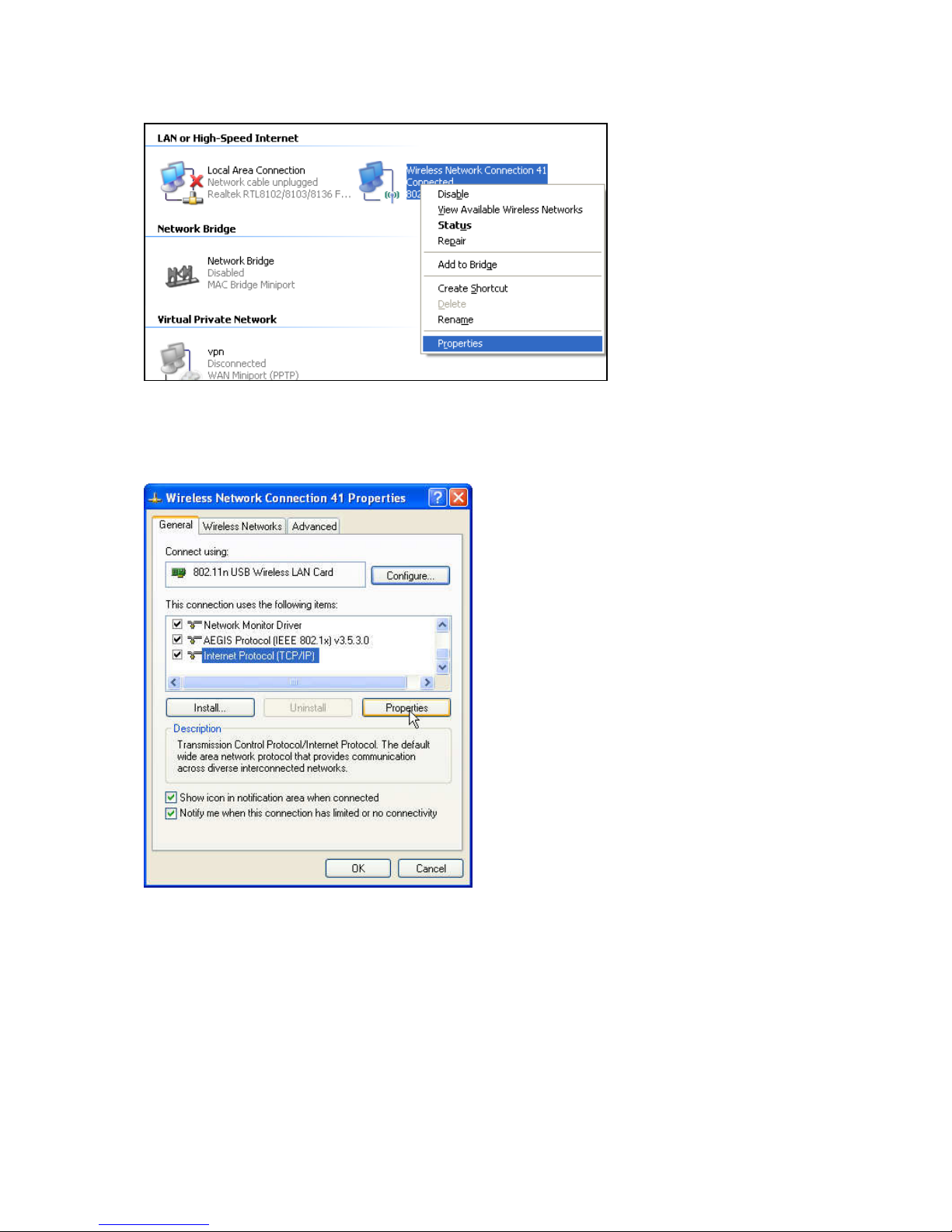

b.Right click “Wireless Network Connection”, and select “Properties”

c.Select “Internet Protocol(TCP/IP)”and click “Properties”.

-30-

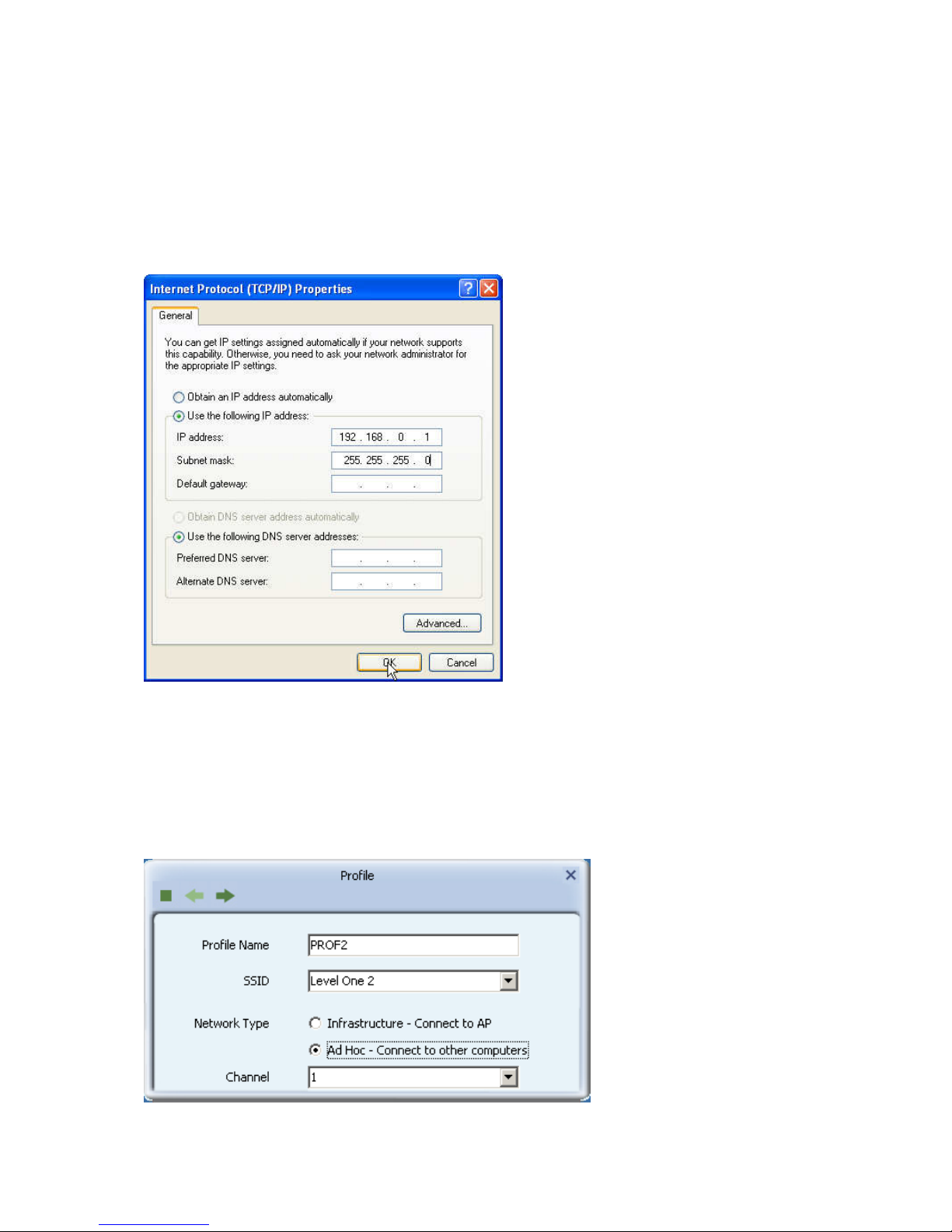

d. Please enter the IP address and subnet mask, and make sure this IP

address is not used by other devices in the network.For example: if your

wireless adapter’s IP address is 192.168.0.1 ， then set other wireless

adapters’ IP addresses within the range of 192.168.0.2—192.168.0.254.Click

“Ok” to save the settings.

2) Create a new Ad-hoc profile

Click the “Add” button and enter the network name in the SSID field to

identify the wireless network, and select Ad-hoc as the network type and

then select the channel.

-31-

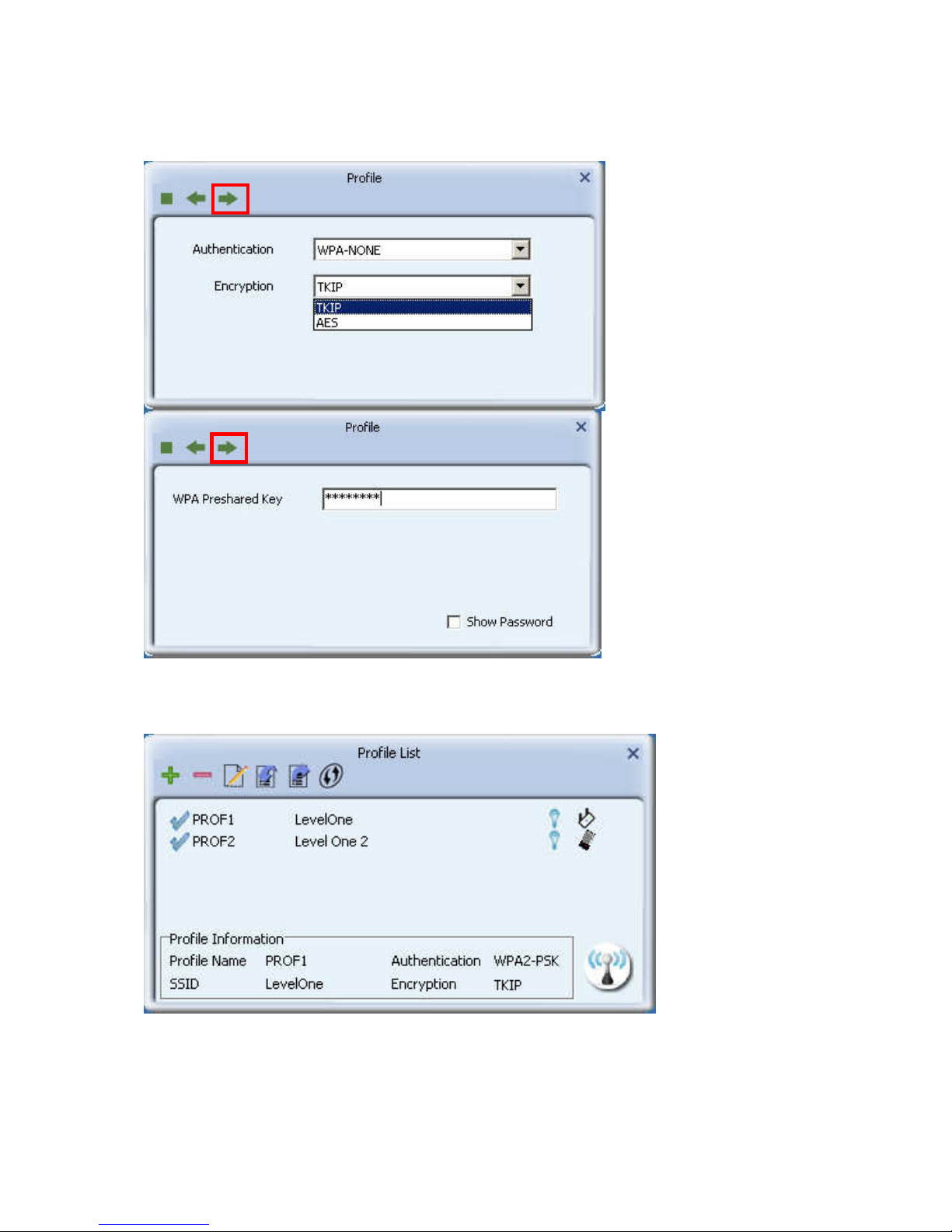

Click the “Next” button to select the authentication type and encryption type

and then input the correct key and click “Next”.

After a profile is successfully added,the profile can be seen on the profile

list ,select it and click the “Active” icon on the lower right corner.

-32-

And then search for the wireless network on other clients. Double click the

wireless network you have configured and you’ll be prompted for the

key .After entering the key, click “Connect”.

When the highlighted part shows “Connected“ ,it indicates the connection is

successful.

-33-

4.1.4 Advanced

This section is used to set the channels.

-34-

4.1.5 About

This screen mainly displays the version information of the UI’s different

programs as well as Level one’s copyright statement.

4.2 AP mode

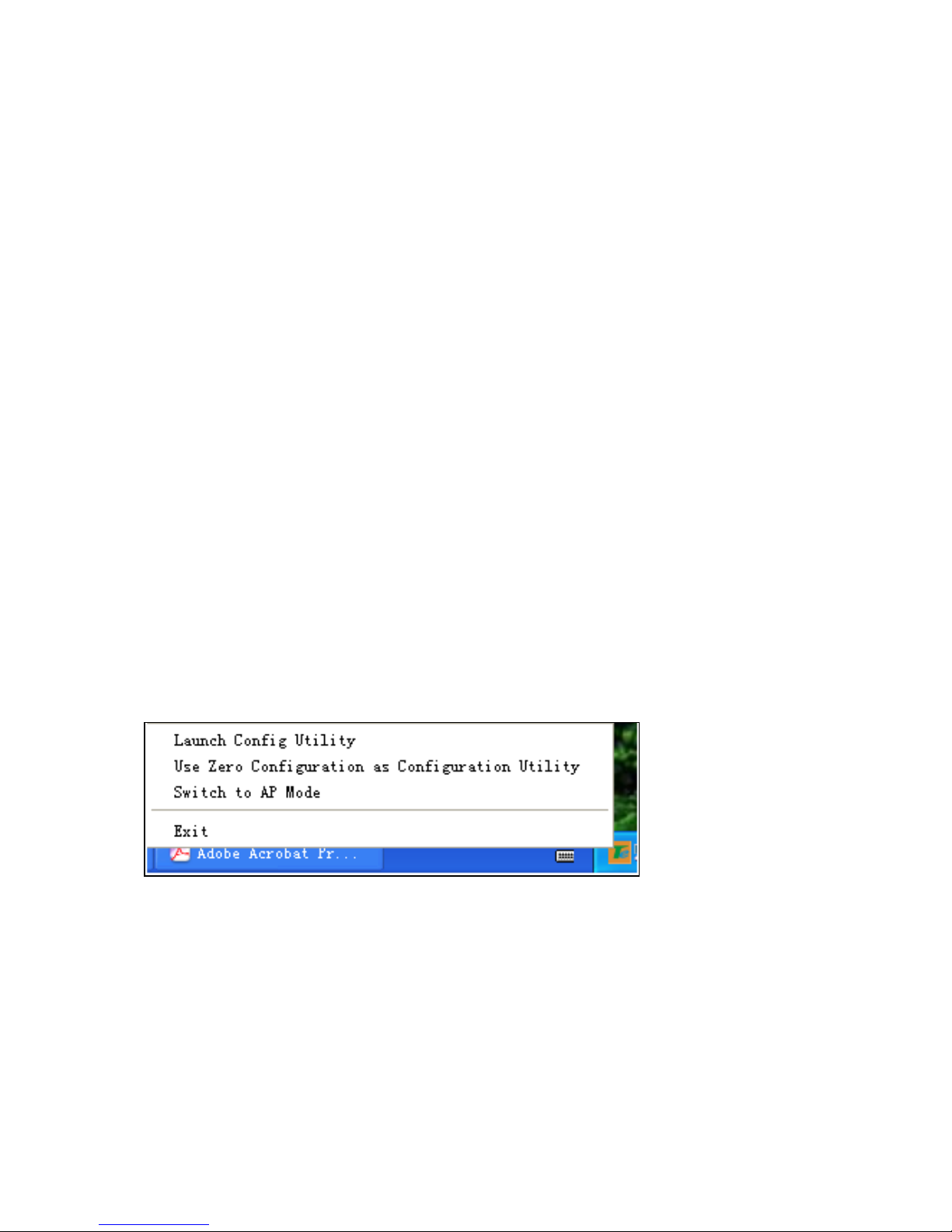

When you want to use the wireless adapter’s AP function, please right click

the UI icon on the taskbar of your computer desktop and select “Switch to AP

Mode”.

In this mode, the wireless adapter acts as an AP to transmit wireless signal

and create a wireless network, while allowing other wireless clients to access

this network.

-35-

As shown in the diagram below: The PC in the left has already accessed to the

Internet by using a wired network adapter, meanwhile, you install a

LevelOne wireless adapter (take a USB wireless adapter as an example) and

its UI on this computer, and set the adapter to AP mode.

By using the wireless adapters to scan the AP’S SSID to connect, the

computers in the right can also access to the Internet after successfully

connected

In this mode, the client utility differs from that in station mode, and the main

interface is as shown below.

-36-

When it is switched to AP mode, the wireless adapter will automatically set

its IP address as 192.168.123.1, and other clients that connected to this AP

will automatically obtain the IP addresses of: 192.168.123.X(X is any integer

from 2 to 254).The function buttons on the top (From L to R ) are respectively

Config AP, Advanced, Access Control List, Associate List, About, and MiniSize,

while the left column displays Turn On/Off RF, Security /No security, and AP

mode icon.

-37-

4.2.1 Config AP

This screen is used to set the AP’s general parameters including SSID, wireless

mode, channel, authentication type and encryption type, as shown in the

picture below.

Here the authentication type is set as “Open” and the encryption type “Not

Use”.

-38-

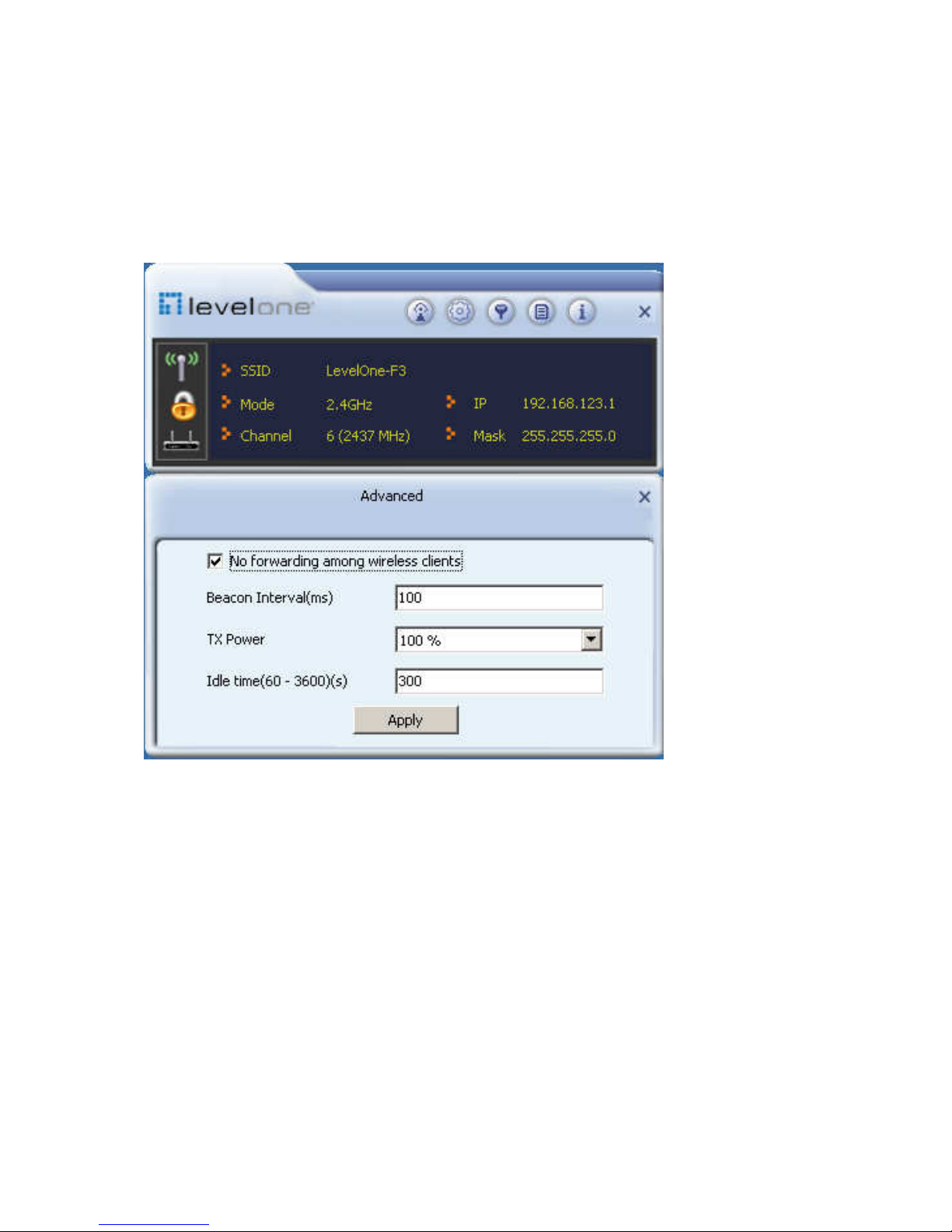

4.2.2 Advanced

This screen is used to set the advanced parameters of the wireless adapter

when working in AP mode, such as No forwarding among wireless clients and

TX power.

No forwarding among wireless clients: This feature isolates the

communications among the wireless clients that are connected to the

wireless adapter in AP mode.

TX power: To adjust the transmit power for the wireless adapter

-39-

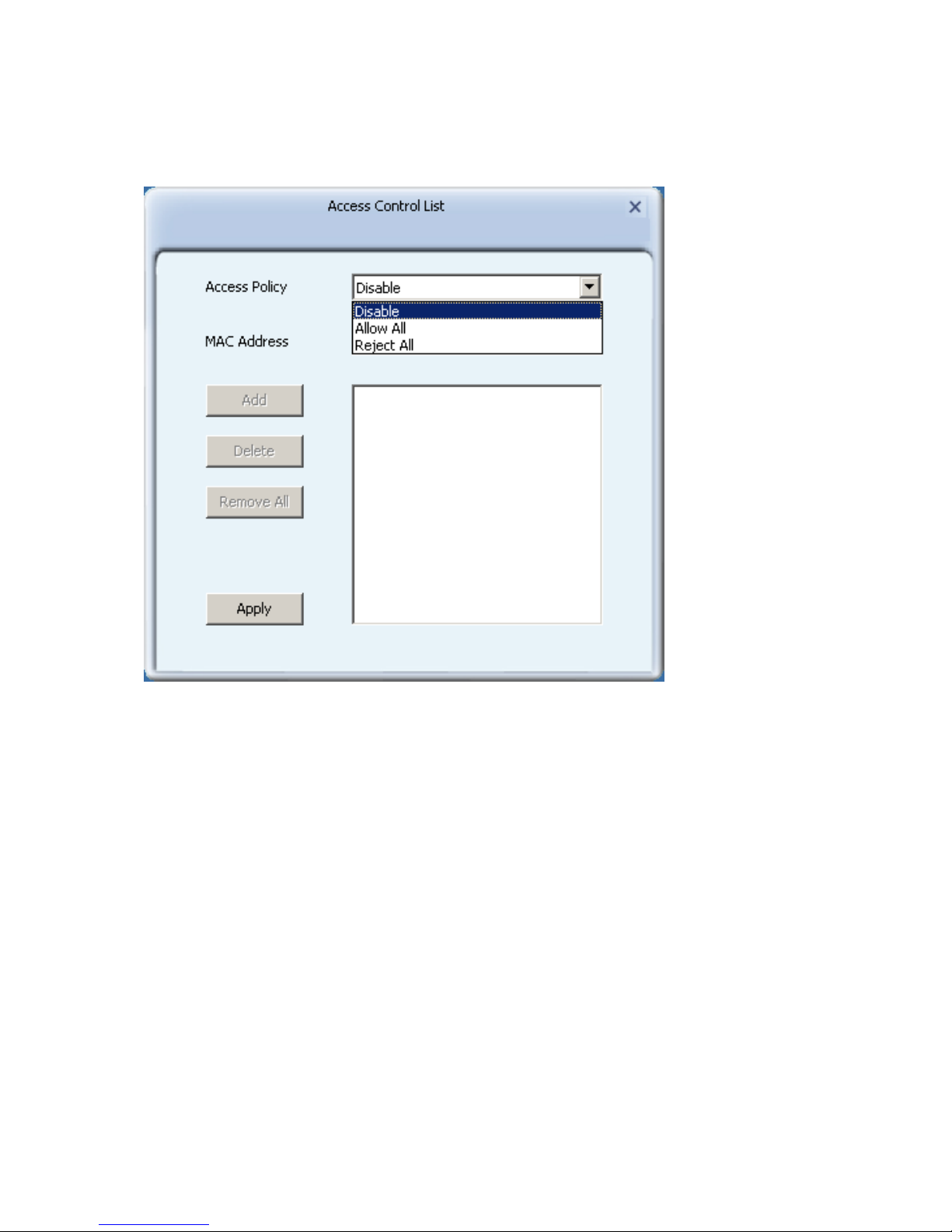

4.2.3 Access Control List

Access Control is based on the wireless adapter’ MAC addresses to allow or

reject a specified client’s access to this wireless network.

Access Policy:

Disable: To disable the filter function.

Allow All: To permit all hosts whose wireless MAC addresses are included in

the list to access the wireless network, other hosts whose wireless MAC

addresses have not been added to the list will be prohibited by default.

Reject All: To prohibit all hosts whose wireless MAC addresses are included in

the list from accessing the wireless network, other hosts whose wireless MAC

addresses have not been added to the list will be permitted by default.

MAC Address：：：：To input the client’s wireless MAC address you want to filter

in the physical address field.

Add: to add the entered wireless client MAC address to the list.

-40-

Delete: to delete an existing MAC address in the list.

Remove All: to delete all clients’ wireless MAC addresses in the list.

Add the MAC address of the client’s wireless network adapter to the list and

select “All Allow” in the access policy drop-down list, computers whose

wireless MAC addresses are not included in the list will be rejected by default.

Select “All reject”, and only the host computers whose wireless MAC

addresses are included in the list can not access the AP wireless network.

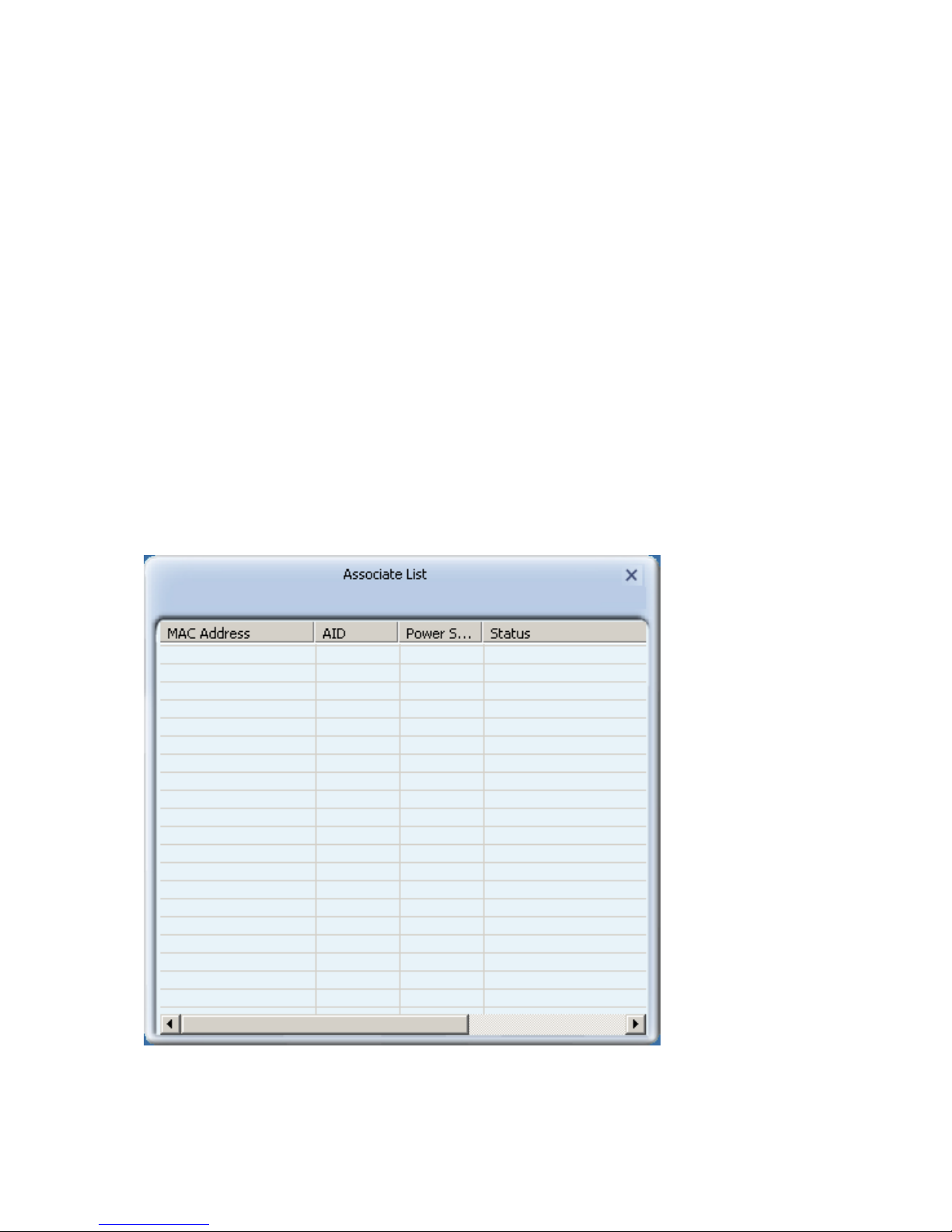

4.2.4 Associate List

When there’s client connected to this AP and has successfully obtained the IP

address ,then the client’s MAC address, AID and Status can be seen on the

list.

-41-

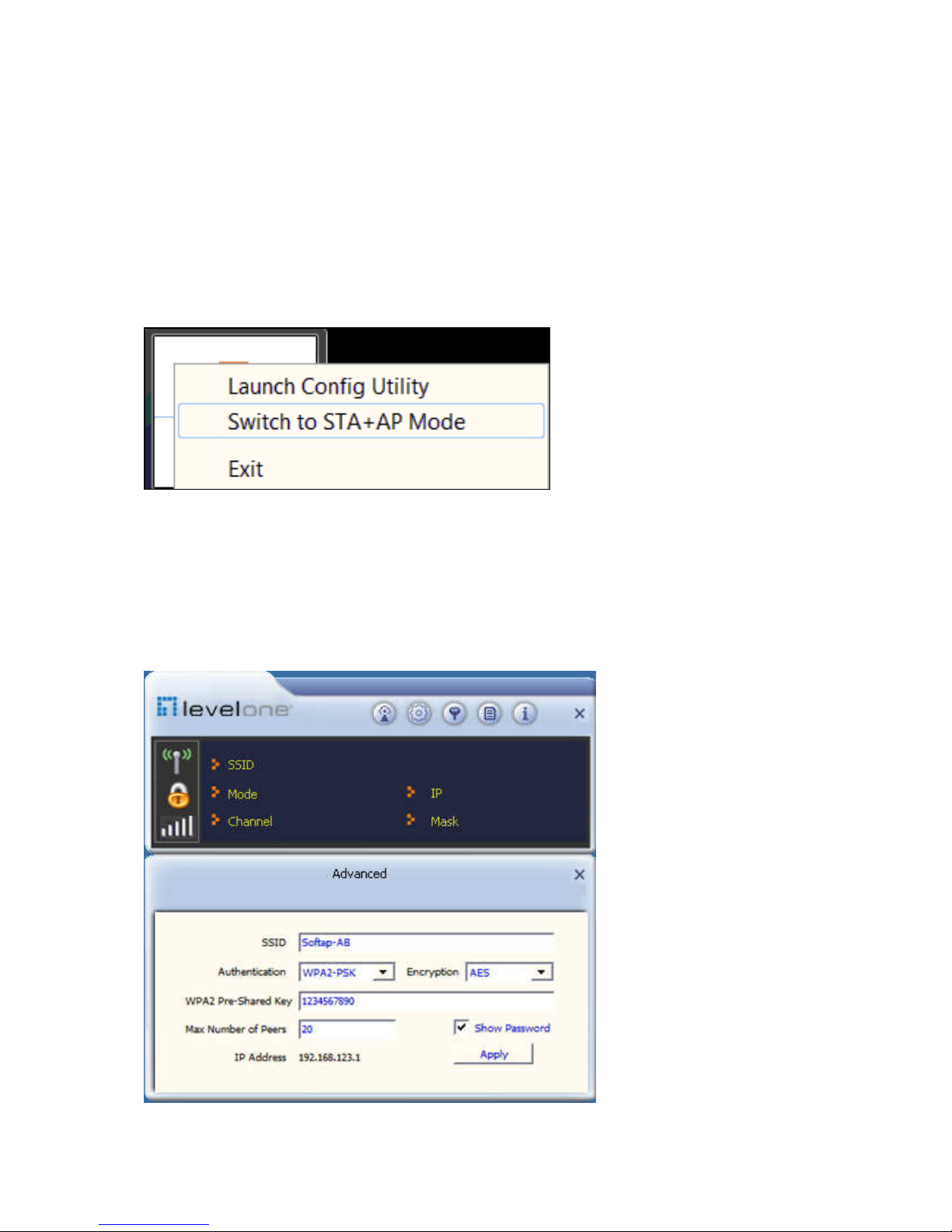

4.2.5 AP Mode under Windows 7

1. Under Windows 7, wireless adapters are allowed to work in both STA and

AP modes. Here, the wireless adapter acts not only as a client, but also an AP

to send wireless signal, which equals to an amplifier. Right click the UI icon on

the lower right corner of the computer desktop and select “Switch to STA+AP

Mode”.

2. You can change the SSID on the Config AP screen and control the number

of the connected clients by modifying the max number of peers. AP mode has

only one encryption method which is WPA2-AES by default and cannot be

modified.

-42-

Appendix 1: Acronyms and Terms

WLAN Wireless Local Area Network

802.11 A family of specifications developed by the IEEE for WLAN

technology.

802.11a An extension to 802.11 WLAN standards that provides up to 54

Mbps transmission in the 5 GHz UNI radio band.

802.11b An extension to 802.11 WLAN standard that provides up to 11

Mbps transmission in the 2.4 GHz ISM radio band. 802.11b uses DSSS

modulation.

802.11g An extension to 802.11 WLAN standard that provides up to 54

Mbps transmission in the 2.4 GHz ISM radio band. 802.11b uses OFDM

modulation and is backwards compatible with 802.11b.

802.11n higher transmission rate, supports Multi-Input Multi-Output(MIMO）

technology.

WEP Wired Equivalent Privacy. A security protocol for WLANs defined in

the IEEE 802.11 standard.

WPA Wireless Protected Access， adopts rotating keys.

RSN Robust Security Network，A substitute for WPA, and it adopts 802.1x

standard and advanced encryption

ICS Microsoft Internet Connection Sharing enables multi-computer to share

access to Internet via one PC.

-43-

Appendix 2: How to Set WPS

WPS setting supports two modes :PBC and PIN. The detailed setting steps are

as follows:

1.Wireless Connection in PBC Mode

1.1 Enable the router’s WPS-PBC feature.

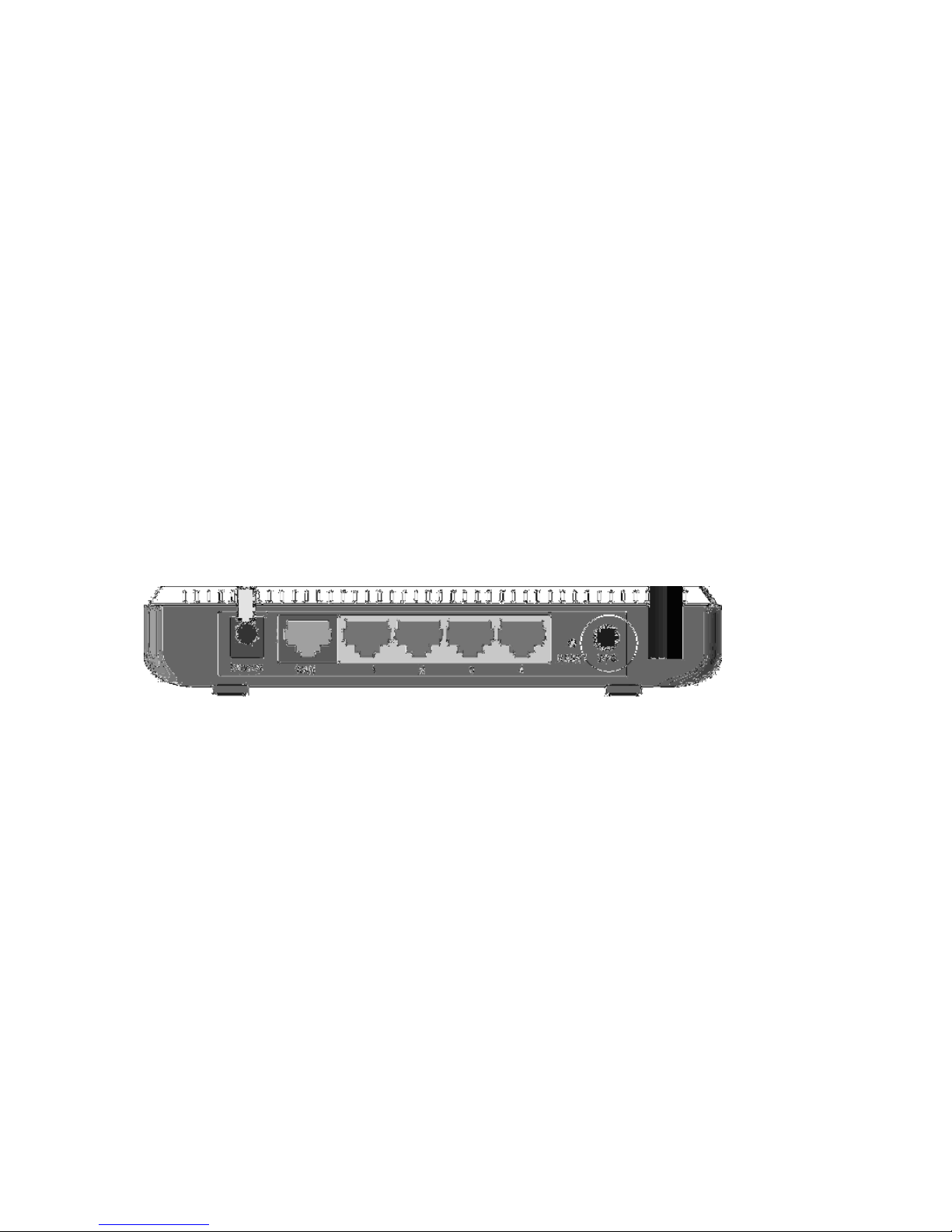

If your router provides WPS button, just press and hold it for about 1 second,

then the WPS LED will be flashing for about 2 minutes, which indicates the

router’s WPS feature has been enabled. Otherwise, you can also log on to the

router’s web-based utility to enable the PBC mode in WPS settings screen(For

detailed settings,please refer to your router’s user guide).

1.2 Perform PBC connection on the UI of the wireless adapter

1) On the main interface of LevelOne’s UI, click “Profile”—“Add WPS Profile”.

-44-

2) On the Profile screen, select “Push-Button Configuration”(PBC) and then

click the “Next” button, select “Start PBC” two minutes after the router

enables the WPS function. The connection is established when the

negotiating process finishes.

Start PBC:

-45-

Negotiating process:

A profile forms automatically after the connection is successfully established.

1.3 Using the wireless adapter’s WPS button to perform PBC connection.

-46-

If your wireless adapter provides a WPS button,you may use the button to

perform PBC connection.

a).Run the adapter’s UI and switch to STATION mode

b).Two minutes after the router’s WPS-PBC is enabled,press the adapter’s

WPS button to connect in PBC mode.

c).You may view the PBC connection process on the UI’s PBC screen.

2. Wireless Connections in PIN Mode

On the “Add WPS Profile” screen, select “PIN ” as the WPS Method. You may

select the wireless AP to be connected in WPS mode on the WPS AP

drop-down List,or select “Auto “and then click the next button.

2.1 Enrollee Mode

The PIN code field lists the adapter’s current PIN code, when you select

“Enrollee” as the Config Mode, you need to copy this PIN code and input it in

the PIN code field of the router’s WPS setting screen.

-47-

First enter its WPS configuration screen,enable WPS settings and select PIN

for WPS mode and then input 18686791 in the PIN code field,and then click

the “Save” button. When the WPS indicator of the Router starts flashing,it

indicates that WPS feature is enabled.

Click the next button on the Profile screen and click “Start PIN” to start the

PIN code negotiation.

-48-

2.2 Registrar Mode

On the “Add WPS Profile” screen, select the SSID of the AP that need to

negotiate in WPS mode instead of selecting”Auto”.Then select”PIN” as the

WPS method and click the next button to display the folowing screen:

Select “Registrar” as the config mode and enter the router’s PIN code,such as

35475088 that displays on the router’s WPS screen in section 2.1, in the PIN

code field here.

-49-

Now you can view the SSID ,authenticaiton type,and encrytion type that need

to be negotiated by the WPS in registrar mode.These values can be modified

but we recommend using the default.Here we use the defaut setting and

then click the next buton.

You can view the negotiation key on the screen below ,but you are not

recommended to modify it,just click the next buton.

-50-

Then click “Start PIN” on the screen below to perform WPS connection.

NOTE:

1.Under the WPS connection mode, when multiple routers simultaneously

enable the WPS function, it may cause connection failure.

2.If the router connect to the adapter using the WPS, only one client can be

connected at one time, and so if the router need to connect to multiple

clients through WPS, you should repeat the WPS operation.

-51-

Appendix 3: FAQ

Q1: Microsoft ICS service is pending.

A1: If ICS service cannot be enabled after a long time, please re-switch from

Station Mode to AP Mode ,if not successful ,please restart the computer.

Q2: ICS is already bound by another network device.

A2: Microsoft ICS service can only combine one group of WAN and LAN. This

message indicates ICS may have been enabled by other network adapters.

Please manually cancel ICS and re-switch to AP mode.

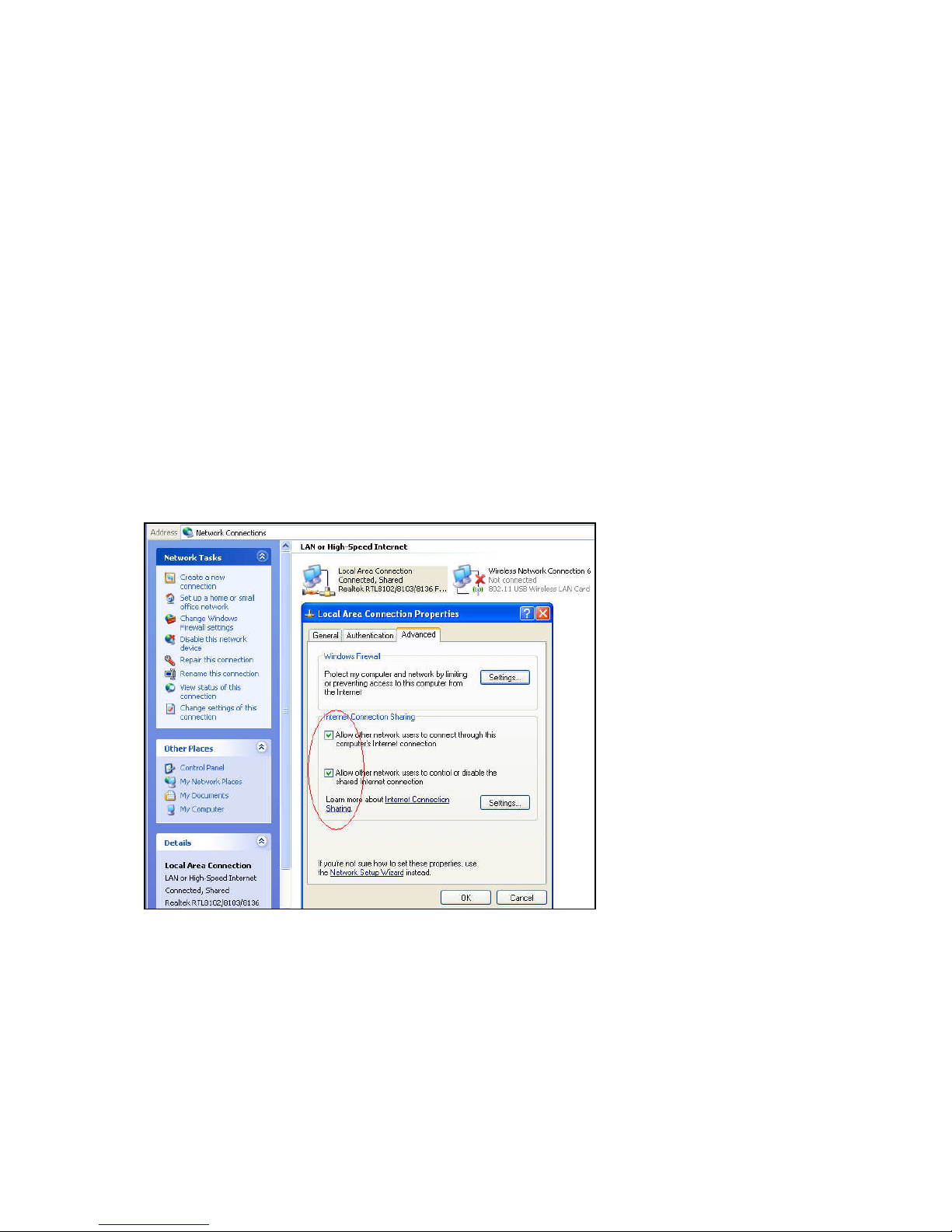

Manually enable or cancel ISC.

-52-

Q3: Failed to enable ICS.

A3: Microsoft ICS service can only combine one group of WAN and LAN. This

message indicates ICS may have been enabled by other network adapters.

1.Please manually cancel or restart and cancel ICS, then re-switch to AP

mode.

2. This dialogue box appears because virtual wi-fi miniport adapter can only

be used by one wireless network adapter at a time. Please disable any other

non-LevelOne wireless network adapters and re-switch to AP mode.

Q4: Under Windows 7,when I switch from station mode to AP mode ,the

screen flashes“Disabling ICS， please wait……”and immediately return to

station screen.

A4: This is because you have disabled “Microsoft Virtual WiFi Miniport

Adapter”,please re-enable it and then switch to AP mode.

Q5: Client cannot obtain IP when connected to soft AP of the wireless

network adapter.

A5: Manually set an IP address at the same net segment as that of the AP and

the gateway and DNS at the IP address of AP.Thus, communication can be

achieved.

Q6: The SSID is not fully displayed on the wireless network list, what should I

do?

A6: Keep the mouse on the displayed SSID for about 2 seconds, as the below

picture shows,and you’ll see the full SSID on the appearing box.

-53-

Q7: Under Windows 2000 system, IP address can not be obtained when it is

switched to AP Mode.

A7: Under Windows 2000 system, you have to manually configure sharing

and then switch to AP. And an IP address of 192.168.0.1 will be obtained.

If you still have any problem, please contact our customer service or visit our
website: http://www.levelone.eu/support.php

Q8: Sometimes the UI can not be moved by the mouse and also can not be

minisized,why?

A8: When you are performing some configurations or connections ,the UI

only activates the currently operating window,other windows are locked and

can not be operated,but it will restore to normal when you close or finish the

current configuration and connection .

Q9: How to exit the UI?

A9: Right click the system tray icon and click “Exit” on the appearing dialog.

Q10: Now that the LevelOne WUA-0606 wireless adapter’s driver can be

installed without the software CD, why it still provide the CD?

A10: Some functions are missing for the drive integrated in the WUA-0606

adapter, and also the drive does not support the WPS button and AP mode,

however, by installing the drive on the CD, the utility UI can be installed to

fulfill these advanced features.

-54-

Appendix 4: Safety

FCC WARNING

This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following
measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for

help.
To assure continued compliance, any changes or modifications not
expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment. (Example - use
only shielded interface cables when connecting to computer or
peripheral devices).

-55-

FCC Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20 centimeters
between the radiator and your body.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.

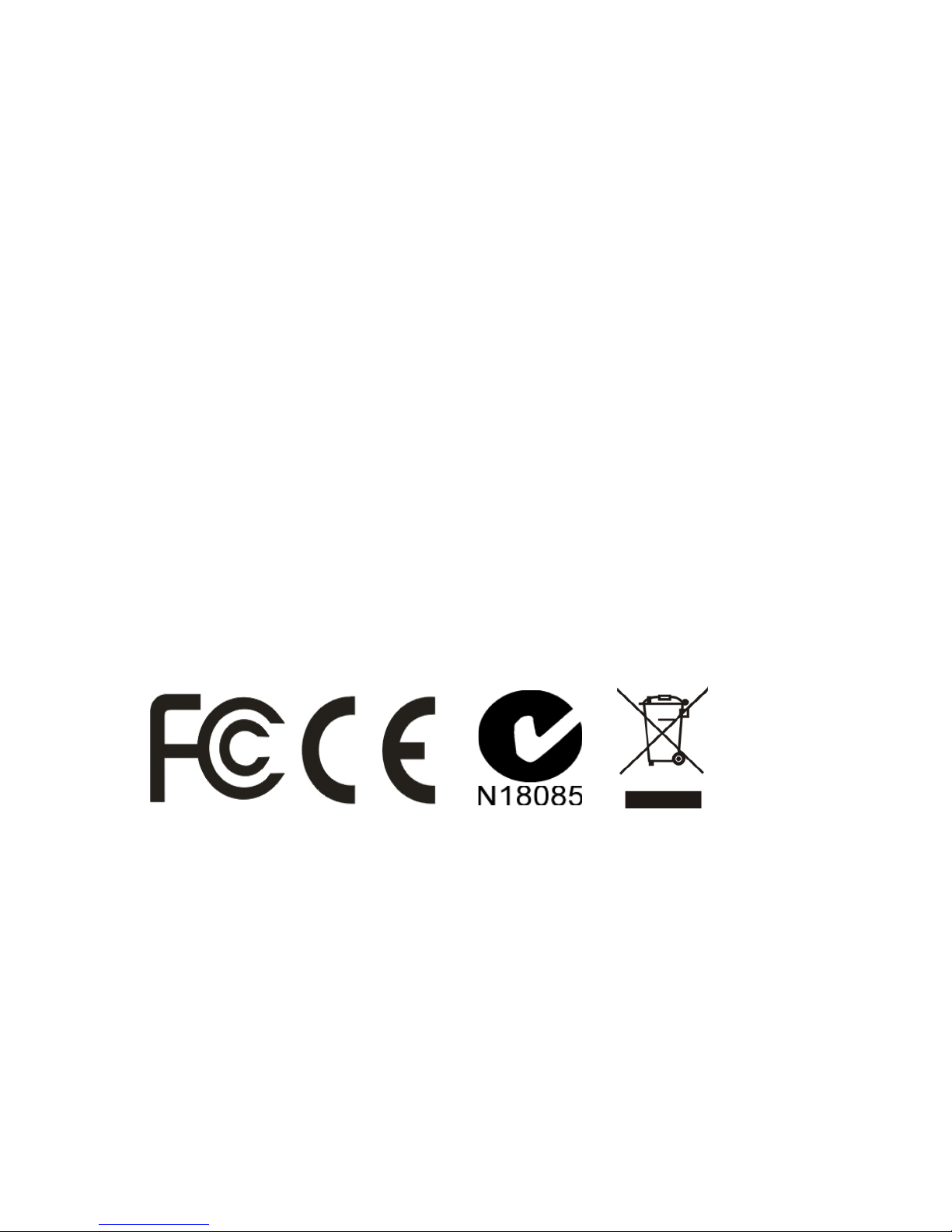

CE Marking Warning

Digital Data Communications, declares that this product (Model-no.
WUA-0606) is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.

The CE-Declaration of Conformity can be downloaded at:
http://www.levelone.eu/support.php

Eu Declaration or Declaration of Conformity
