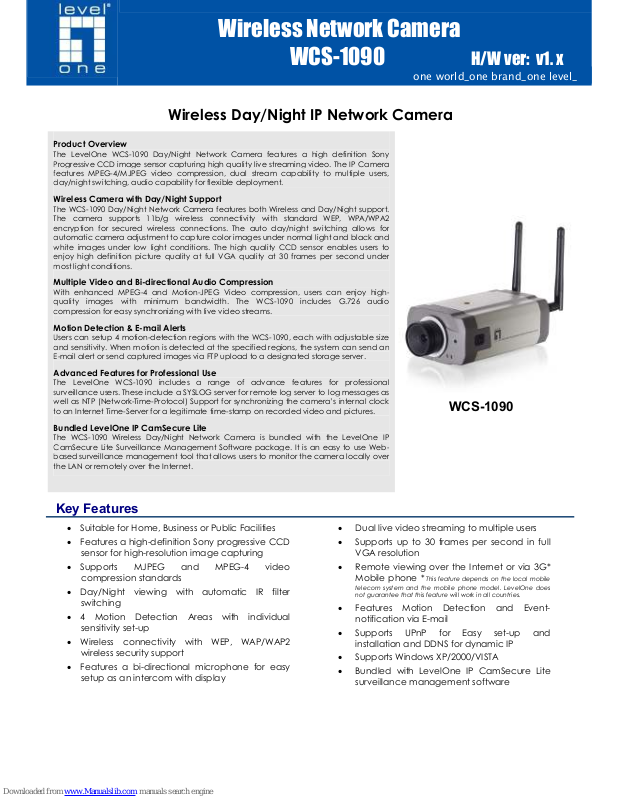

Page 1
Wireless Network Camera
WCS
-
1090
H/W ver: v1. x
one world_one brand_one level_
Wireless Day/Night IP Network Camera
Product Overview
The LevelOne WCS-1090 Day/Night Network Camera features a high definition Sony
Progressive CCD image sensor capturing high quality live streaming video. The IP Camera
features MPEG-4/MJPEG video compression, dual stream capability to multiple users,
day/night switching, audio capability for flexible deployment.
Wireless Camera with Day/Night Support
The WCS-1090 Day/Night Network Camera features both Wireless and Day/Night support.
The camera supports 11b/g wireless connectivity with standard WEP, WPA/WPA2
encryption for secured wireless connections. The auto day/night switching allows for
automatic camera adjustment to capture color images under normal light and black and
white images under low light conditions. The high quality CCD sensor enables users to
enjoy high definition picture quality at full VGA quality at 30 frames per second under
most light conditions.
Multiple Video and Bi-directional Audio Compression
With enhanced MPEG-4 and Motion-JPEG Video compression, users can enjoy highquality images with minimum bandwidth. The WCS-1090 includes G.726 audio
compression for easy synchronizing with live video streams.
Motion Detection & E-mail Alerts
Users can setup 4 motion-detection regions with the WCS-1090, each with adjustable size
and sensitivity. When motion is detected at the specified regions, the system can send an
E-mail alert or send captured images via FTP upload to a designated storage server.
Advanced Features for Professional Use
The LevelOne WCS-1090 includes a range of advance features for professional
surveillance users. These include a SYSLOG server for remote log server to log messages as
well as NTP (Network-Time-Protocol) Support for synchronizing the camera’s internal clock
to an Internet Time-Server for a legitimate time-stamp on recorded video and pictures.
Bundled LevelOne IP CamSecure Lite
The WCS-1090 Wireless Day/Night Network Camera is bundled with the LevelOne IP
CamSecure Lite Surveillance Management Software package. It is an easy to use Webbased surveillance management tool that allows users to monitor the camera locally over
the LAN or remotely over the Internet.
WCS-1090
Key Features
• Suitable for Home, Business or Public Facilities
• Features a high-definition Sony progressive CCD
sensor for high-resolution image capturing
• Supports MJPEG and MPEG-4 video
compression standards
• Day/Night viewing with automatic IR filter
switching
• 4 Motion Detection Areas with individual
sensitivity set-up
• Wireless connectivity with WEP, WAP/WAP2
wireless security support
• Features a bi-directional microphone for easy
setup as an intercom with display
• Dual live video streaming to multiple users
• Supports up to 30 frames per second in full
VGA resolution
• Remote viewing over the Internet or via 3G*
Mobile phone
*
This f eature depends on the local mobile
telecom system and the mobile phone model. LevelOne does
not guarantee that this feature will work in all countries.
• Features Motion Detection and Eventnotification via E-mail
• Supports UPnP for Easy set-up and
installation and DDNS for dynamic IP
• Supports Windows XP/2000/VISTA
• Bundled with LevelOne IP CamSecure Lite
surveillance management software
Page 2
Wireless Network Camera
WCS
-
1090
H/W ver: v1. x
one world_one brand_one level_
Technical Specification
Video Specifications
Image Sensor
• Sony ICX098BQ 1/4” CCD Sensor
Lens
• 6mm CS-Mount Type, Fixed Focus Lens, F1.6
• 0.5 Lux minimum illumination
Compression
• MPEG-4/M-JPEG Dual Stream
Resolution Support
• 640x480, 320x240, 160x120 @ 30 fps NTSC
• 640x480, 320x240, 160x120 @ 25 fps PAL
IR Filter Switcher
• Motorized Switcher
• Manual trigger
• Scheduled
Image Control
• Auto-White-Balance
• Auto- Exposure Control
• Auto Day/Night Switching
• Auto-Gain-Control
Video Options
• Time Stamp
• Text Overlay
• Motion detection
3GPP
• 160x120@15fs,
• MPEG-4 for mobile phone viewing
Audio Specifications
Compression
• G.726, G.711
Microphone/Speaker
• Built-in Microphone
• Microphone Input, 3.5mm Phone Jack
• Speakers Output*, 3.5 mm Phone Jack
* The audio out-port only supports G.726 compression
only
Hardware Specifications
Network Interface
• 1x 10/100 BaseT (RJ45) port
• 2x antenna for 802.11b/g wireless connectivity
• WEP, WPA/WPA2 security protocols
Network Protocols
• TCP/IP, DHCP, SMTP, NTP, HTTP, HTTPS, UPnP, FTP,
RTP, RTSP
I/O Ports
• Input Control x 2 (2 pins)
• Output Control x 2 (2 pins)
LED Indicators
• Ready, Activity, Device Off
Power Adapter
• 12V/1A DC External
Power Consumption
• Standard Power: 10W
Environmental Conditions
• Operating Temperature: 0°C ~ 40°C
• Operating Humidity: 10% ~ 80%
• Storage Temperature: -20°C to 70°C
• Storage Humidity: 10% ~ 90%
Dimensions
• 80mm (W) x 50mm (H) x 132mm (D)
Alert
Motion Detection
• 4 Detection Areas with individual sensitivity
E-Mail Alert
• 3 e-mail address
FTP Uploading
• 2 FTP servers address and login settings
Instant Message
• 1 Jabber client and 1 HTTP notification for IM
notification
Software Specifications
• Bundled with LevelOne IP CamSecure Lite
• Camera Wizard Windows-Based for initial
Installation
Browser Support
• Browser Support Internet Explorer 6 and above
• ActiveX Support ActiveX 8.0 and above
Certification
FCC
CE
Page 3
Wireless Network Camera
WCS
-
1090
H/W ver: v1. x
one world_one brand_one level_
Product Diagram
Order Information
WCS-1090 Wireless Day/Night IP Network Camera
Package Content
1. WCS-1090
2. Power Adapter
3. Antenna
4. Lens
5. Camera Stand
6. Allen Wrench
7. CD Manual/ Utility
8. Quick installation Guide
For more information, please contact your LevelOne representative, or v isit www.level1.com
All technical specifications are subject to change without notice.
All mentioned brand names are registered trademarks and property of their owners
