Page 1

LevelOne

User Manual

WBR-6600

N_Max Wireless ADSL2+ Modem Router

V1.0 – 0811

Page 2

Table of Contents

TABLE OF CONTENTS ..................................................................................................................................... 2

CHAPTER 1 - INTRODUCTION ........................................................................................................................ 6

Introducing the WBR-6600 ........................................................................................................................ 6

Features .................................................................................................................................................... 8

Installation Diagram of the WBR-6600 ................................................................................................... 12

CHAPTER 2 - PRODUCT OVERVIEW ........................................................................................................... 13

Standards-Based Technology ................................................................................................................. 13

Installation Considerations ...................................................................................................................... 13

Package Contents ................................................................................................................................... 14

Important Notes....................................................................................................................................... 14

The Front LEDs - WBR-6600 .................................................................................................................. 15

The Rear Ports - WBR-6600 ................................................................................................................... 16

Antenna Position Placement ................................................................................................................... 18

Cabling .................................................................................................................................................... 18

CHAPTER 3 - INSTALLATION ........................................................................................................................ 19

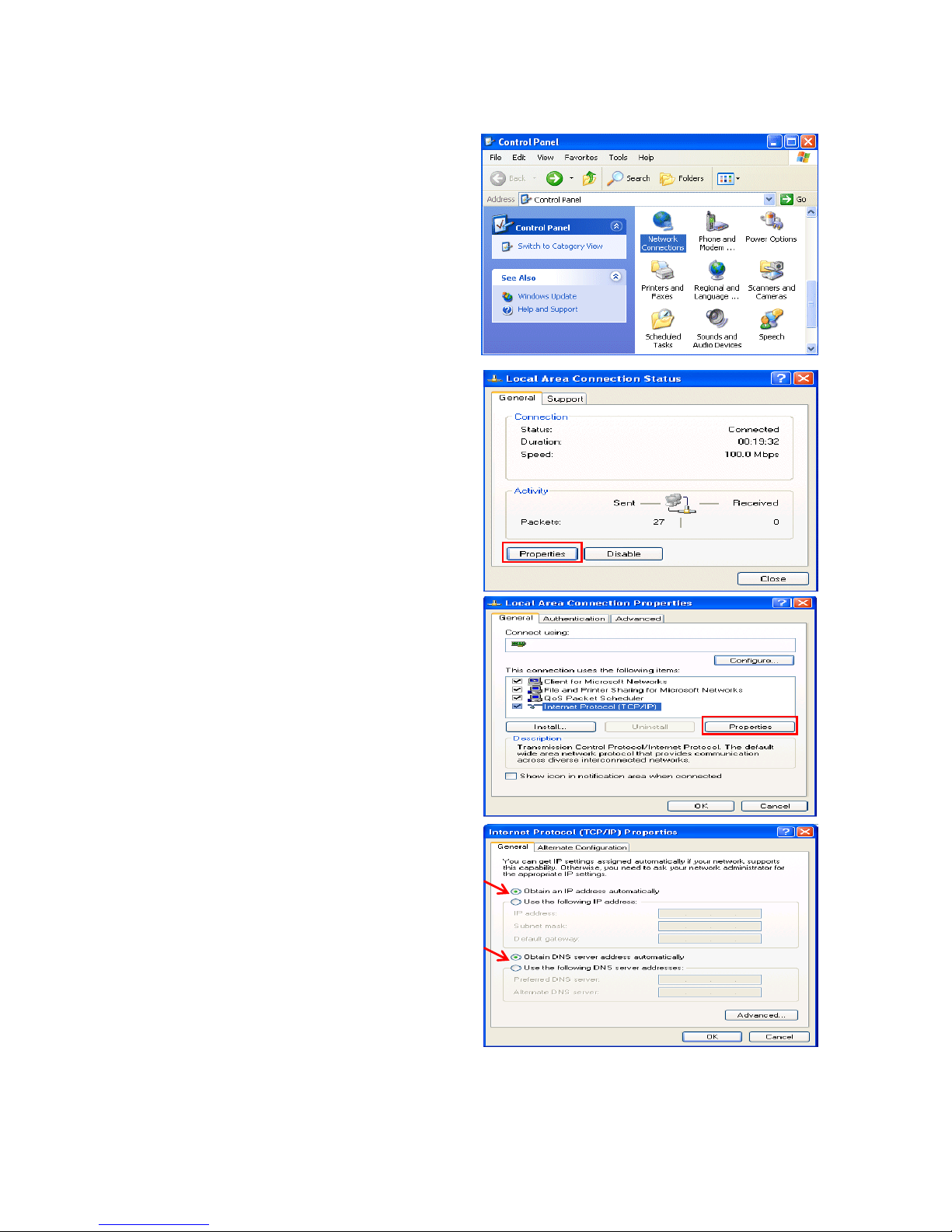

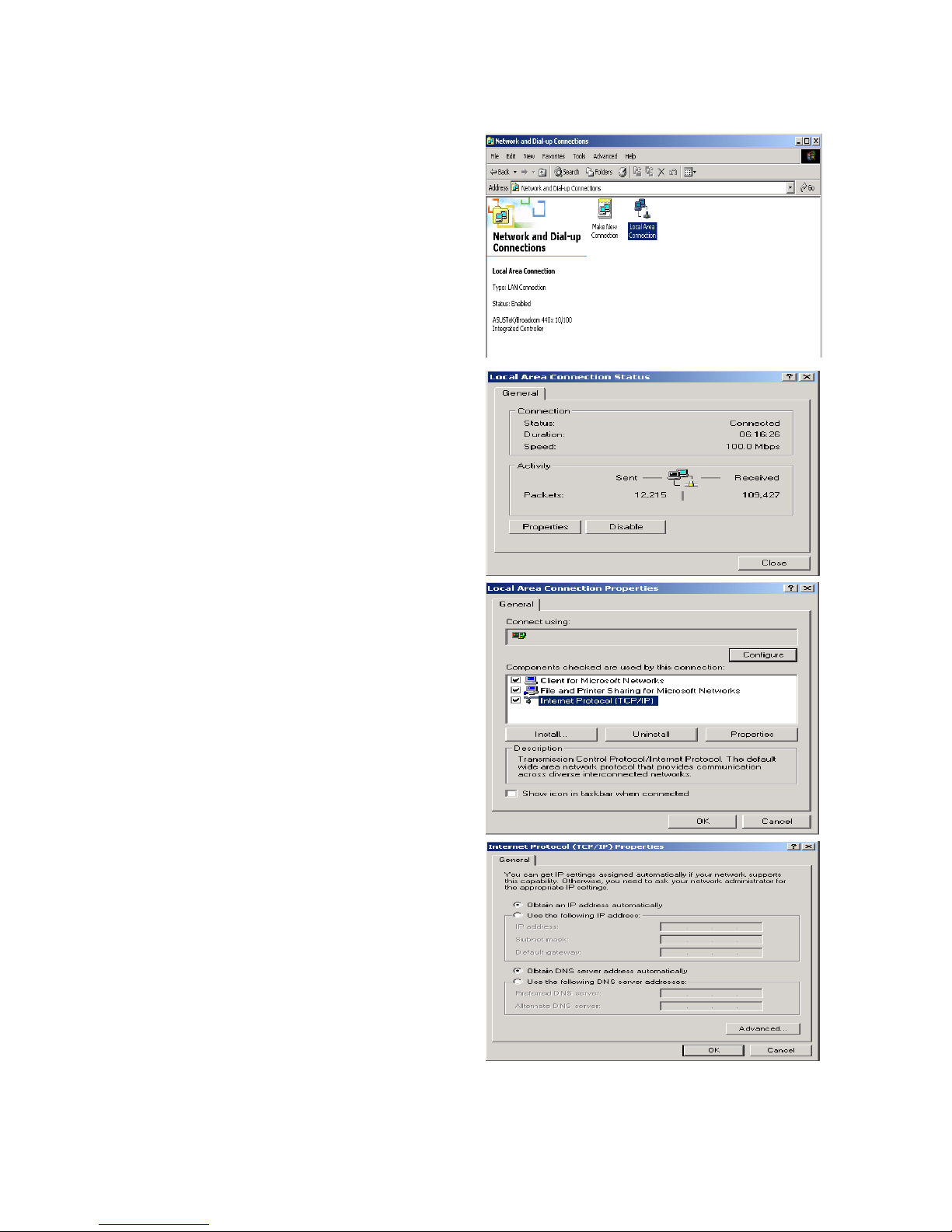

Before Configuration ............................................................................................................................... 19

Factory Default Settings .......................................................................................................................... 24

LAN and WAN Port Addresses ............................................................................................................... 25

Information from your ISP ....................................................................................................................... 25

Configuring with your WBR-6600............................................................................................................ 26

CHAPTER 4 – BASIC CONFIGURATION ....................................................................................................... 30

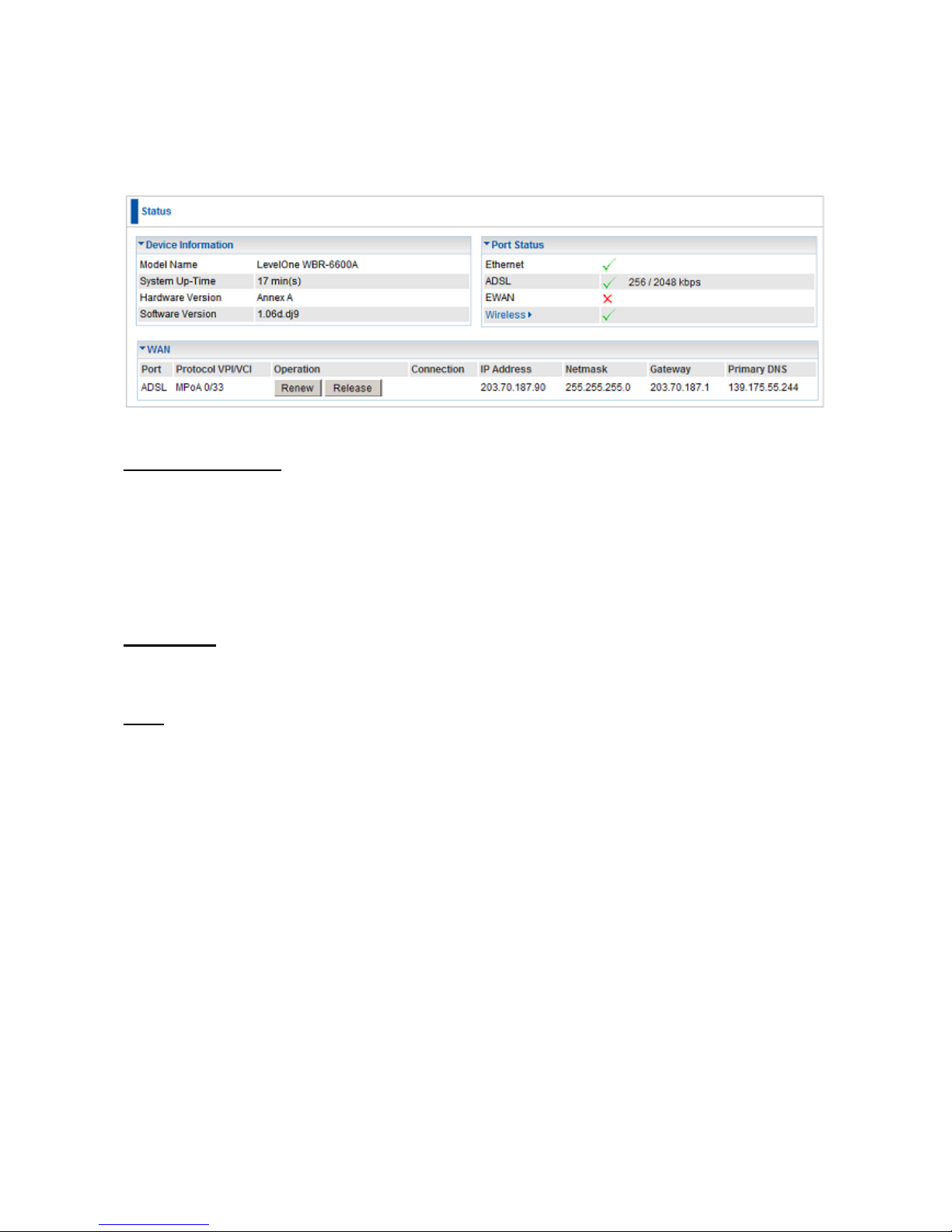

Status Page ............................................................................................................................................. 31

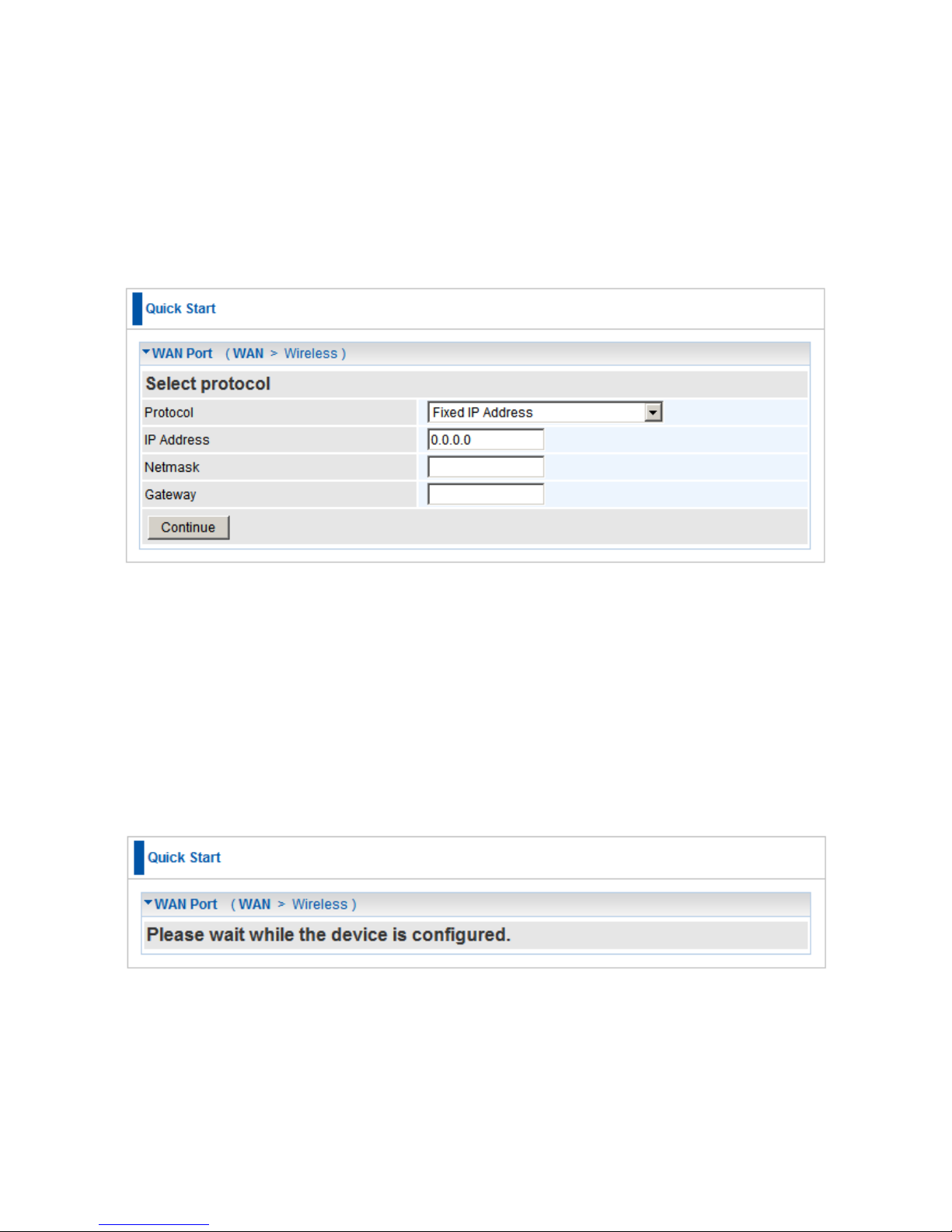

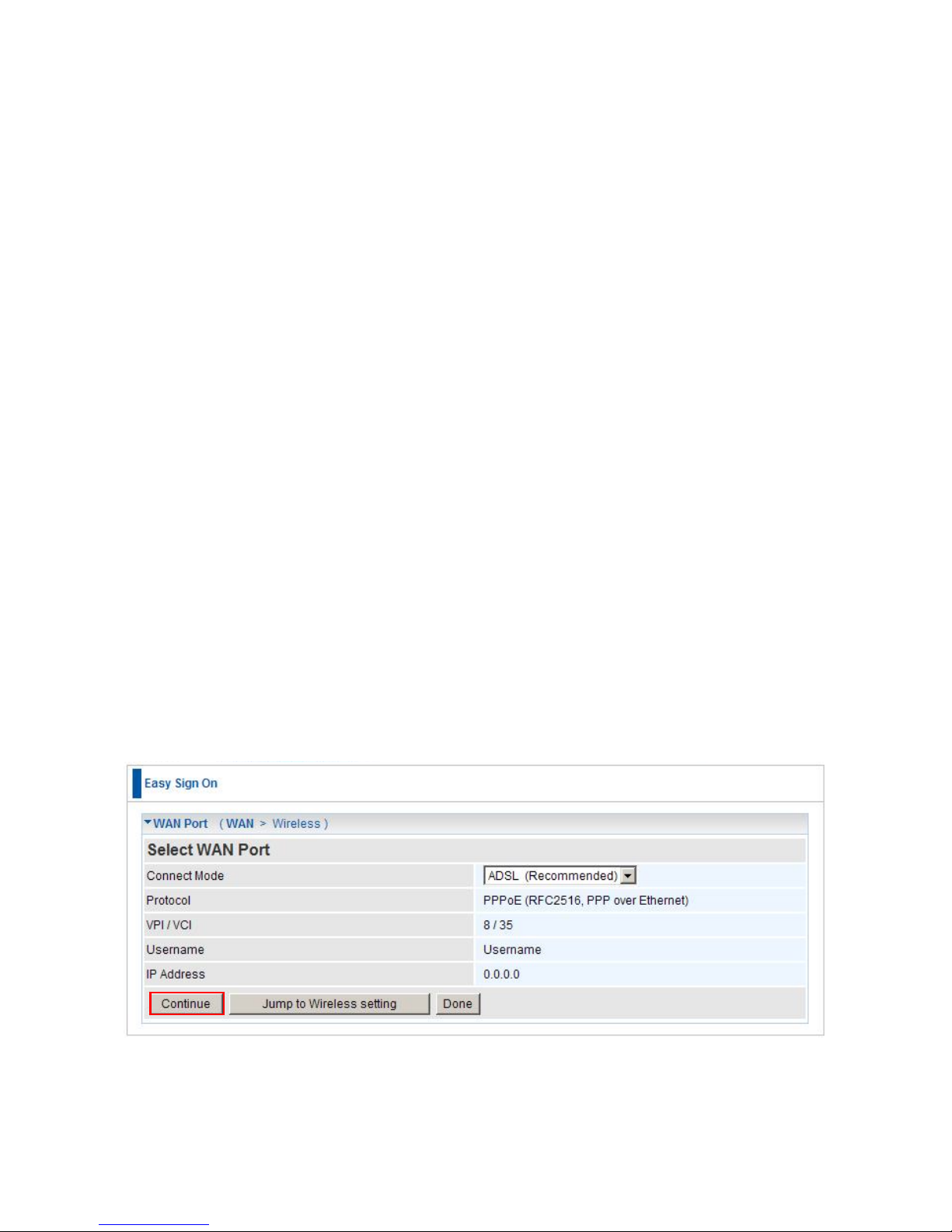

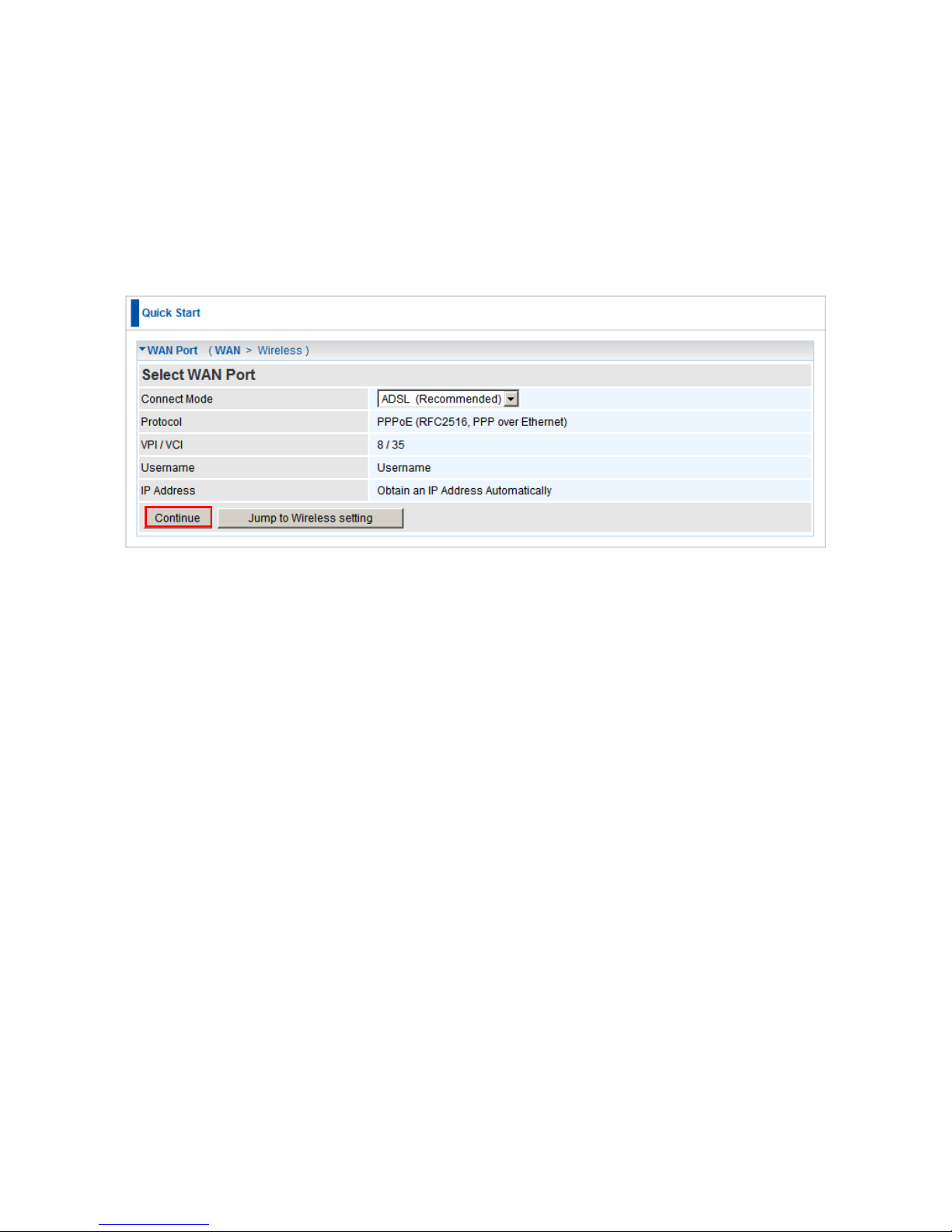

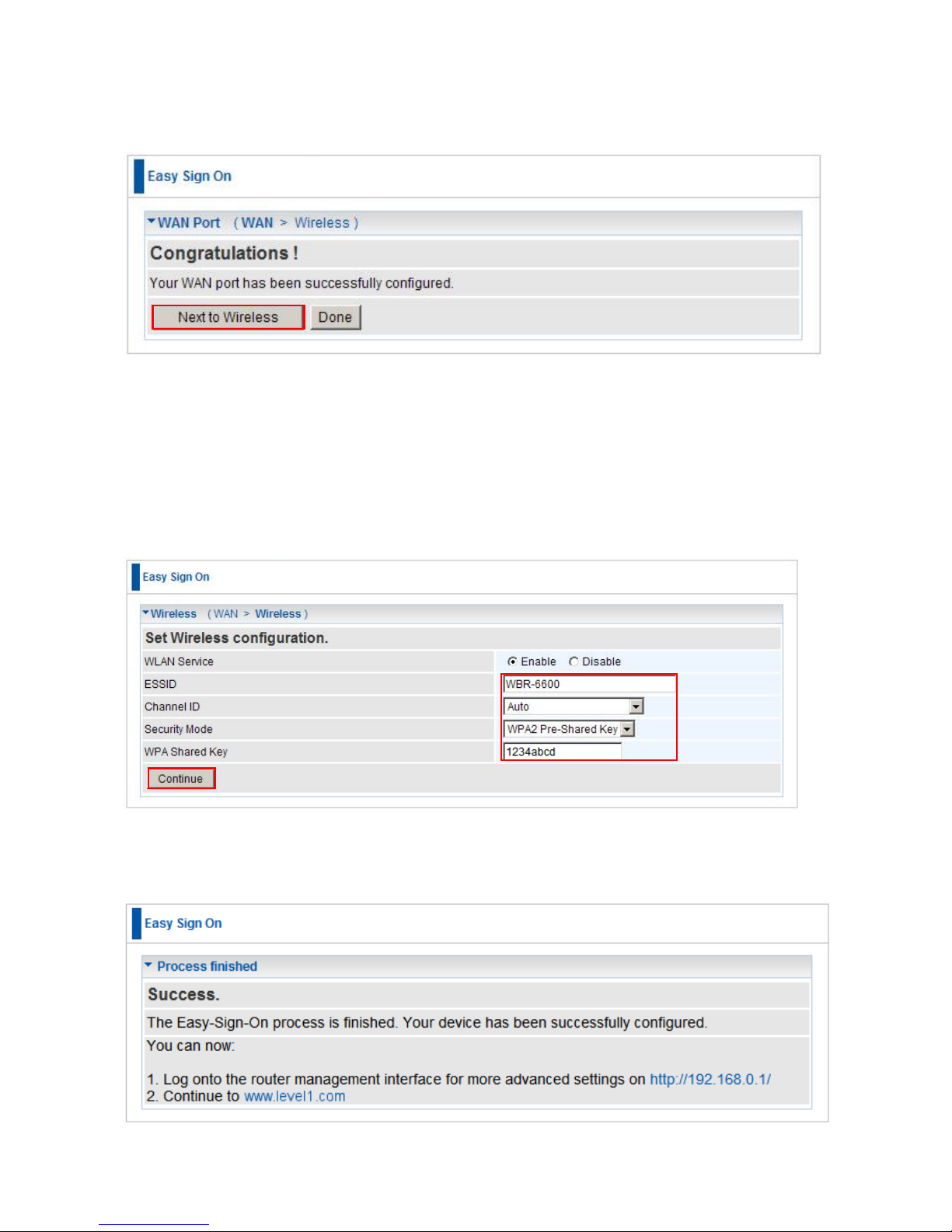

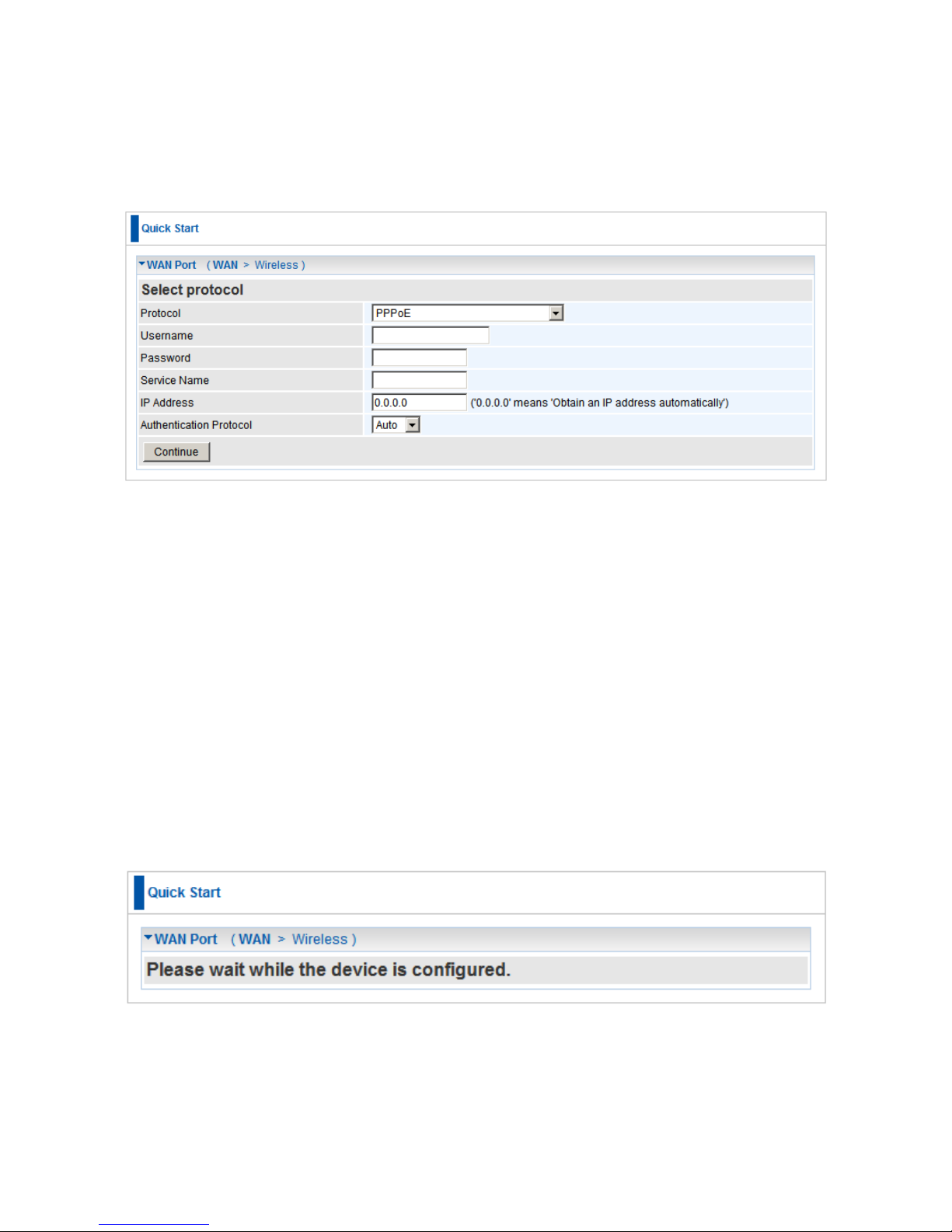

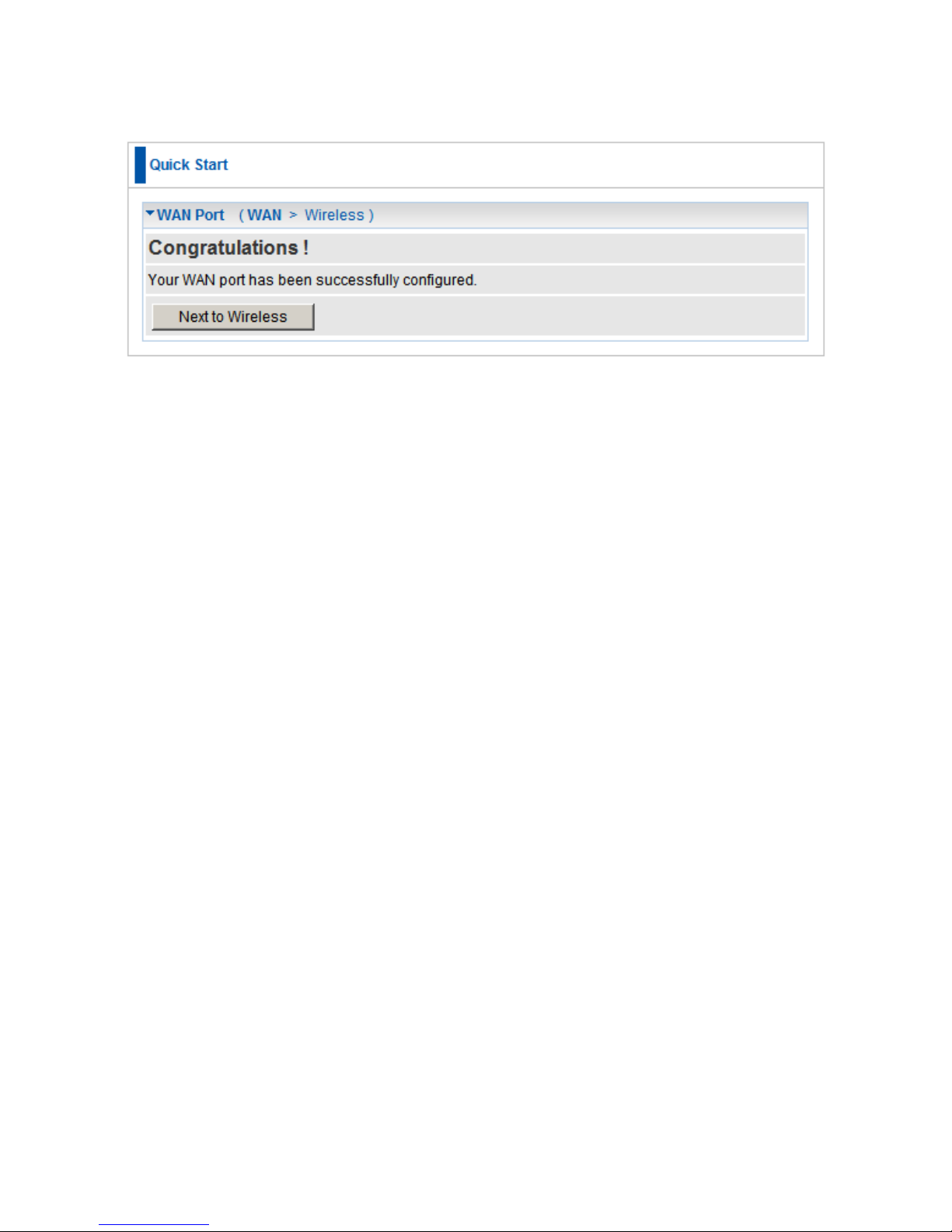

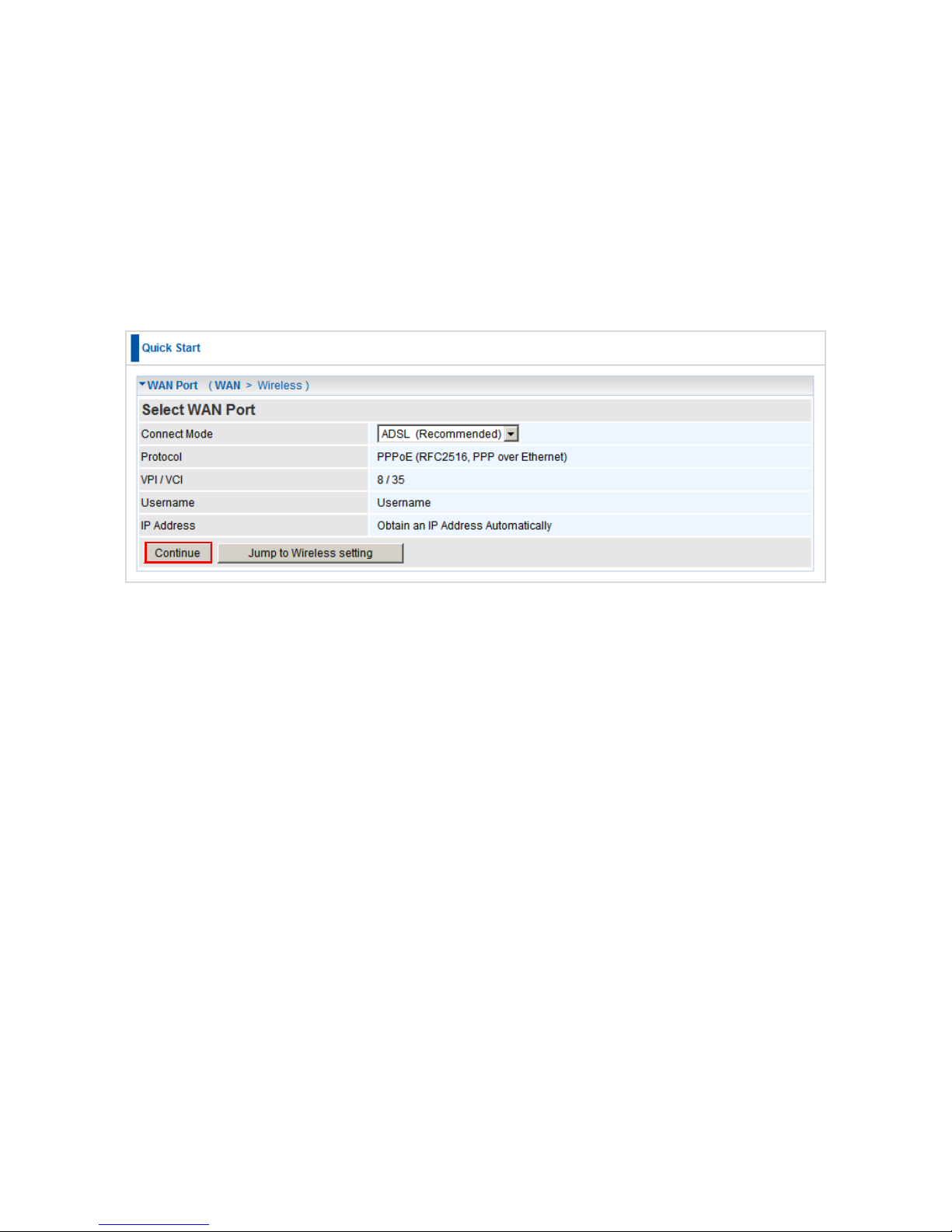

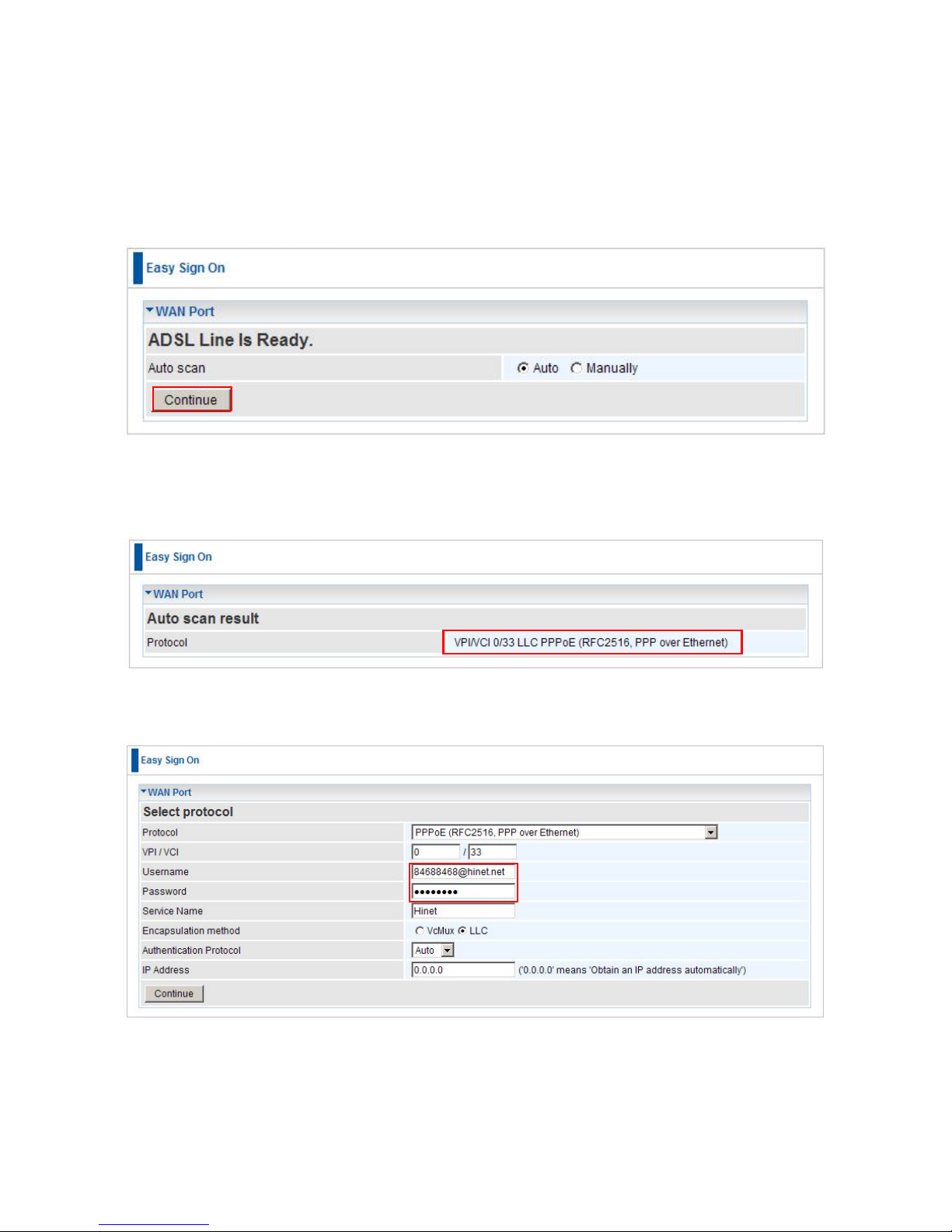

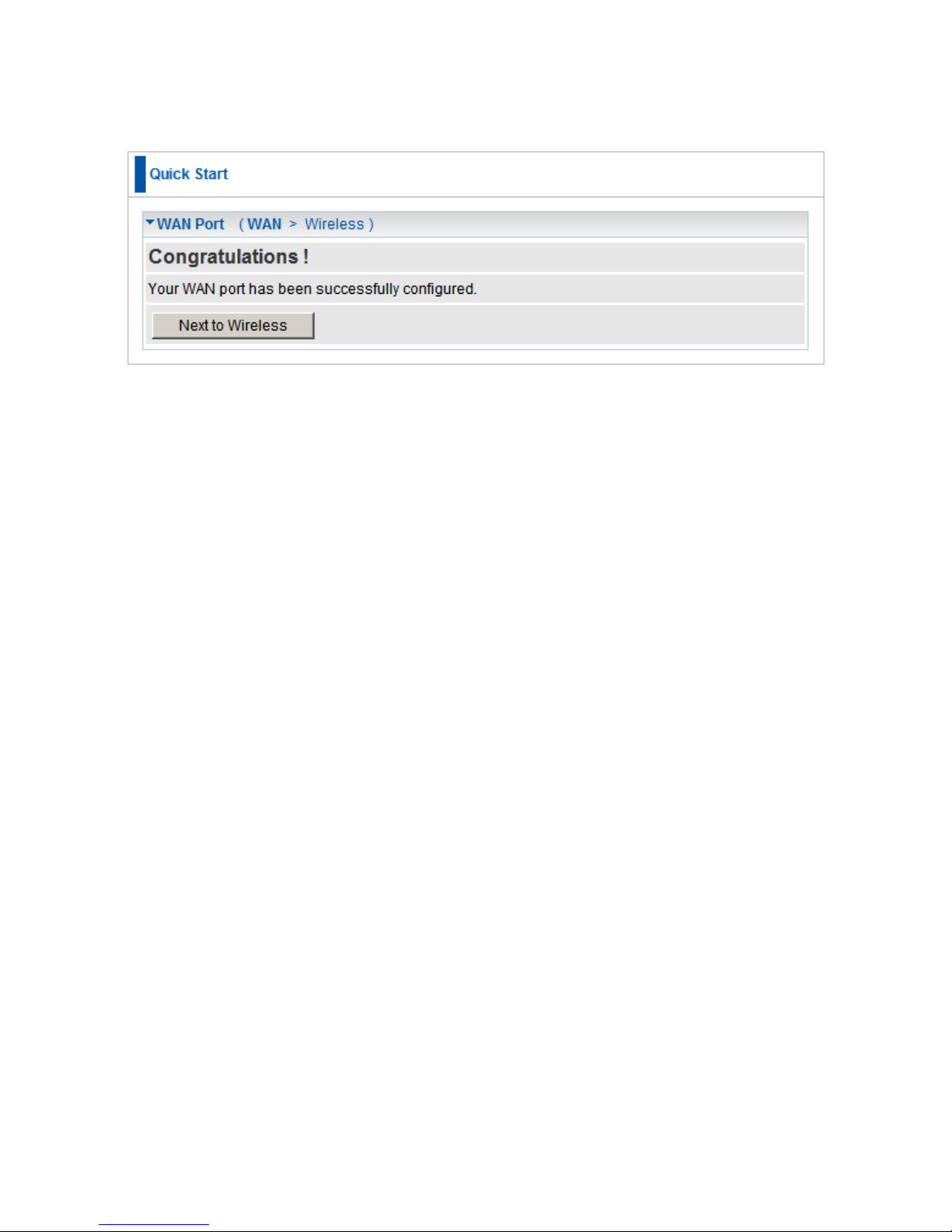

Quick Start ............................................................................................................................................... 32

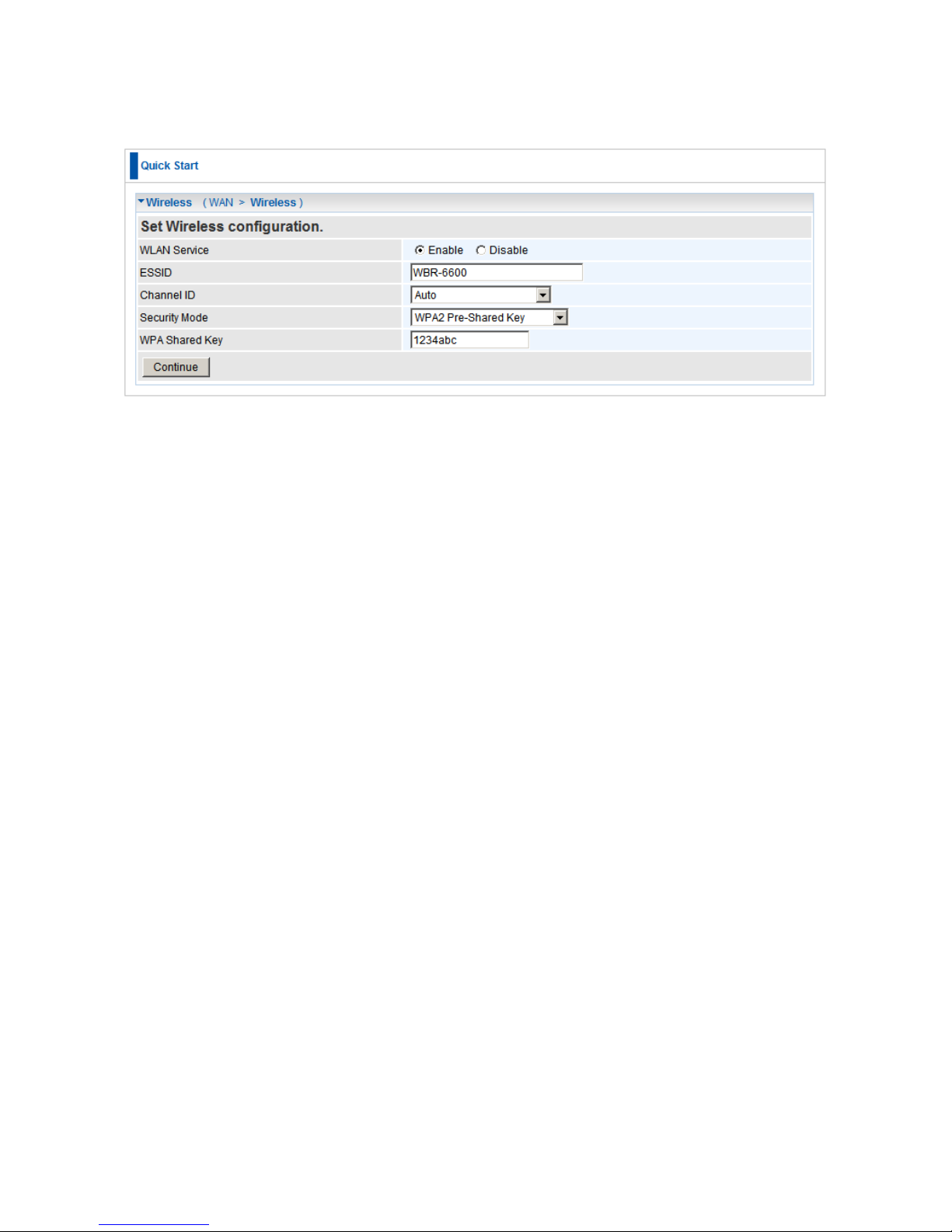

Set Wireless Configuration ............................................................................................................. 33

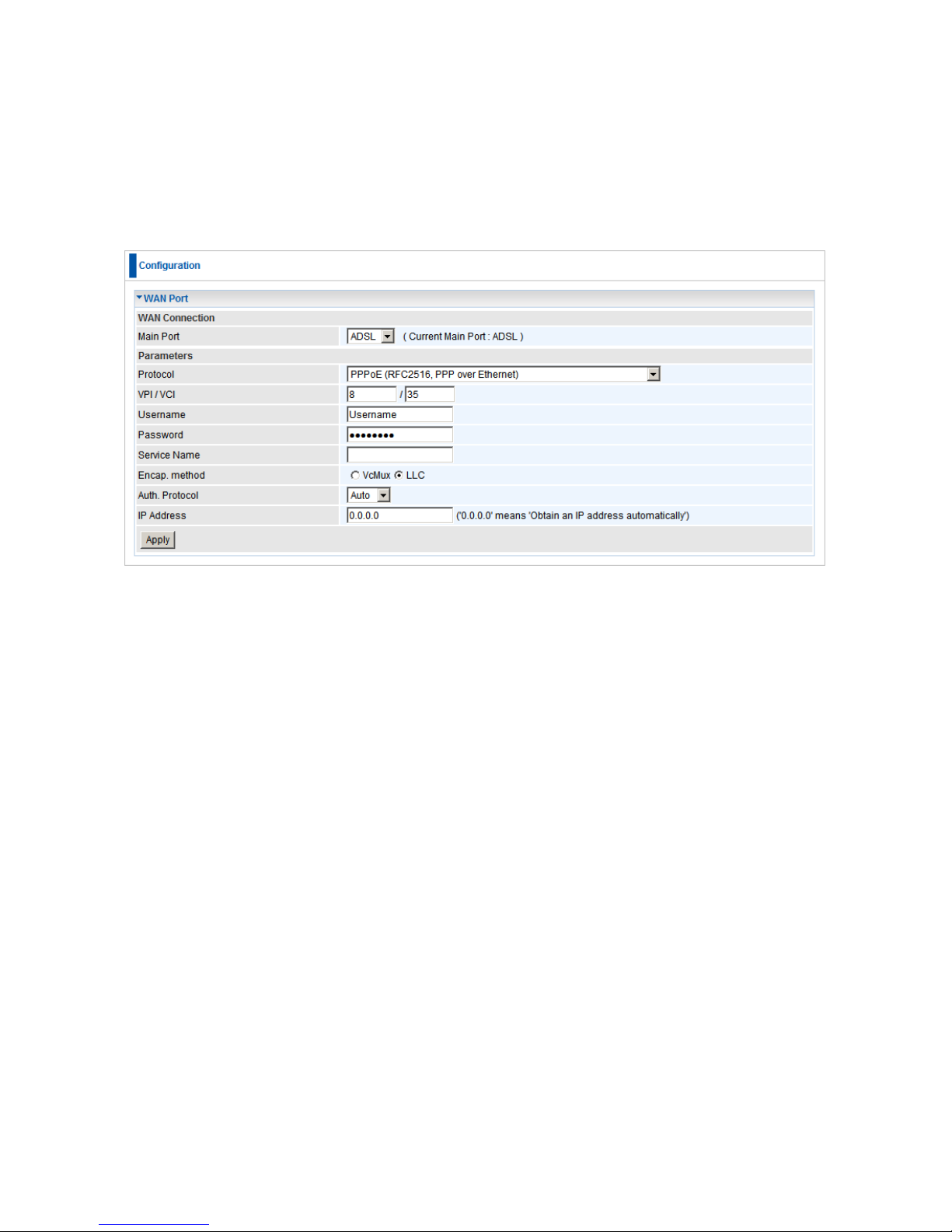

WAN ........................................................................................................................................................ 34

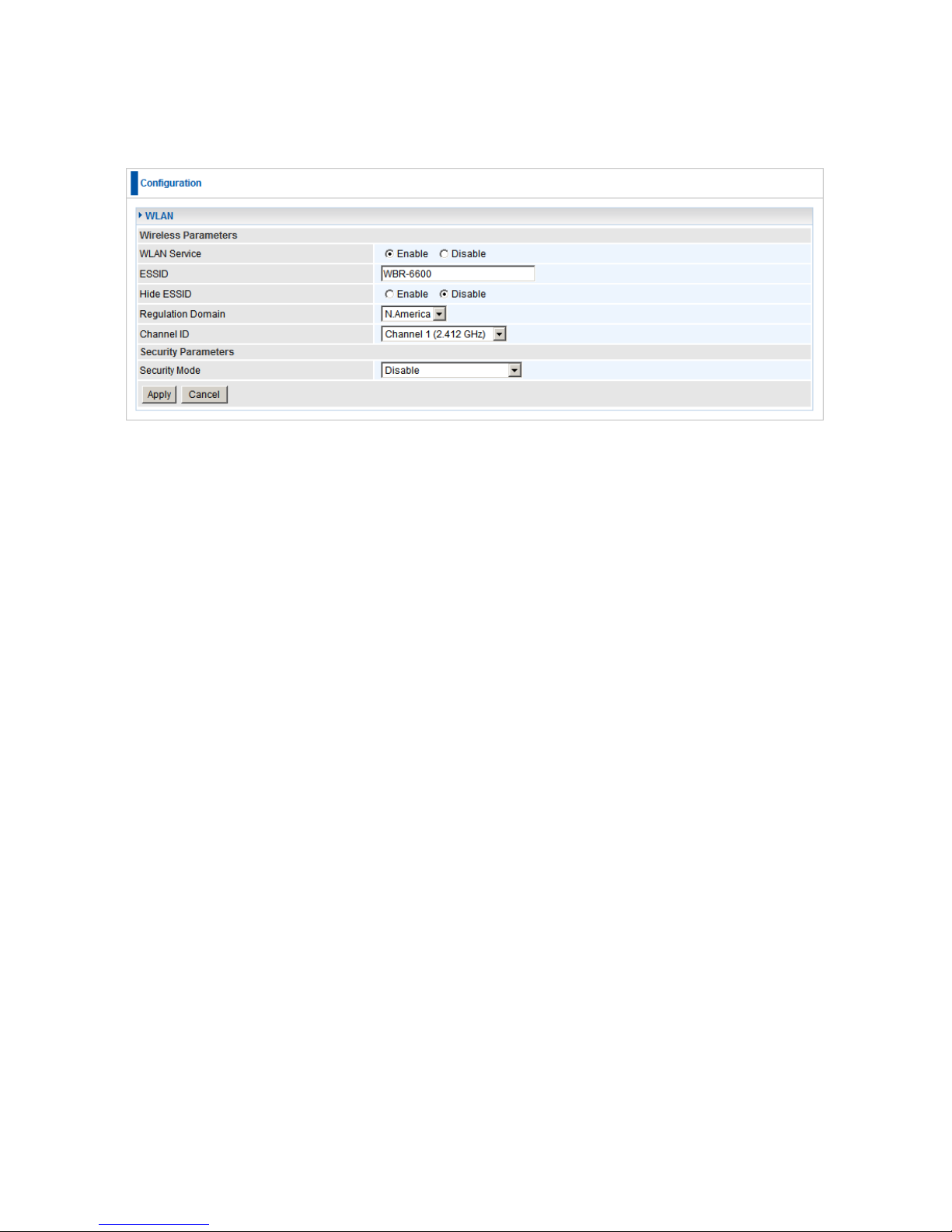

WLAN ...................................................................................................................................................... 35

Wireless Security Parameters................................................................................................................. 36

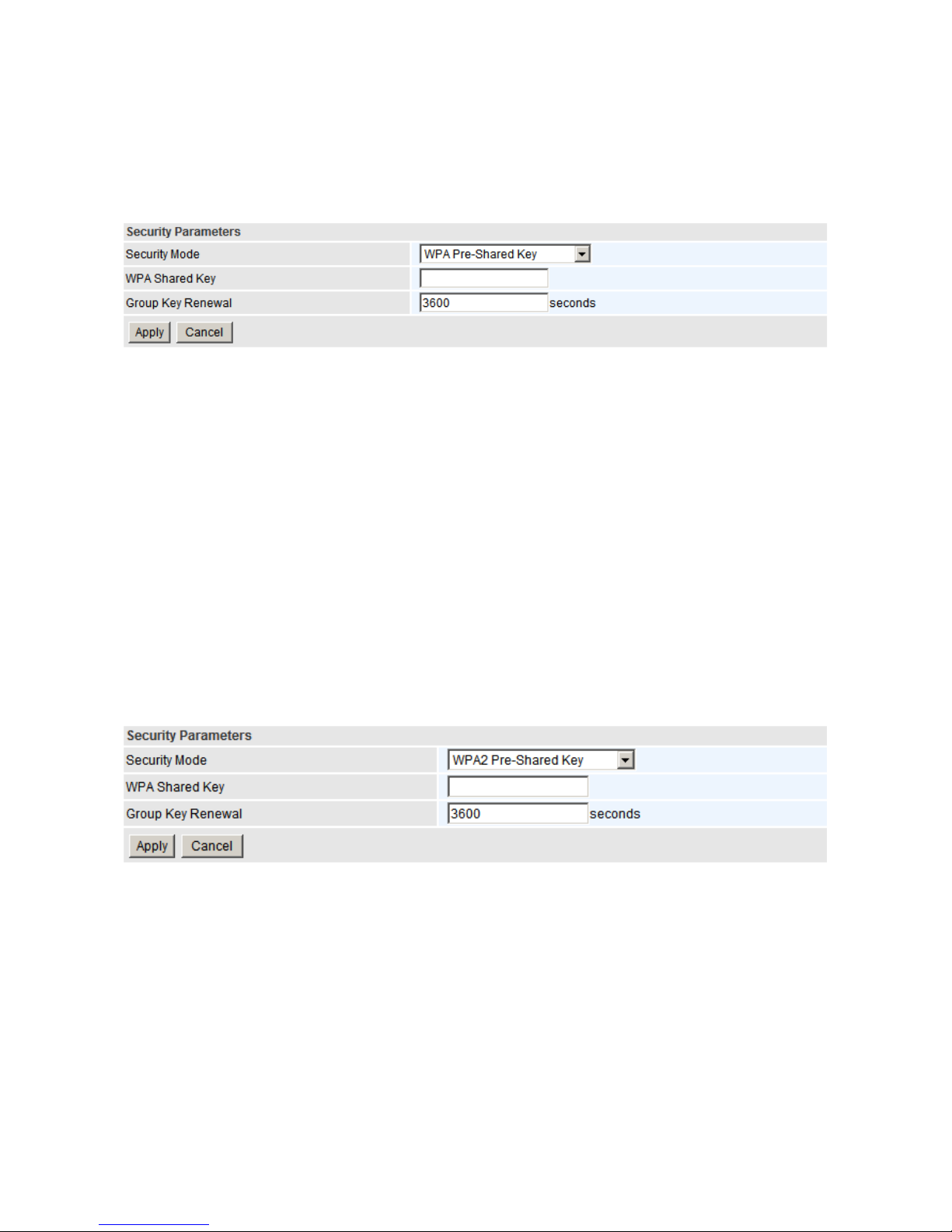

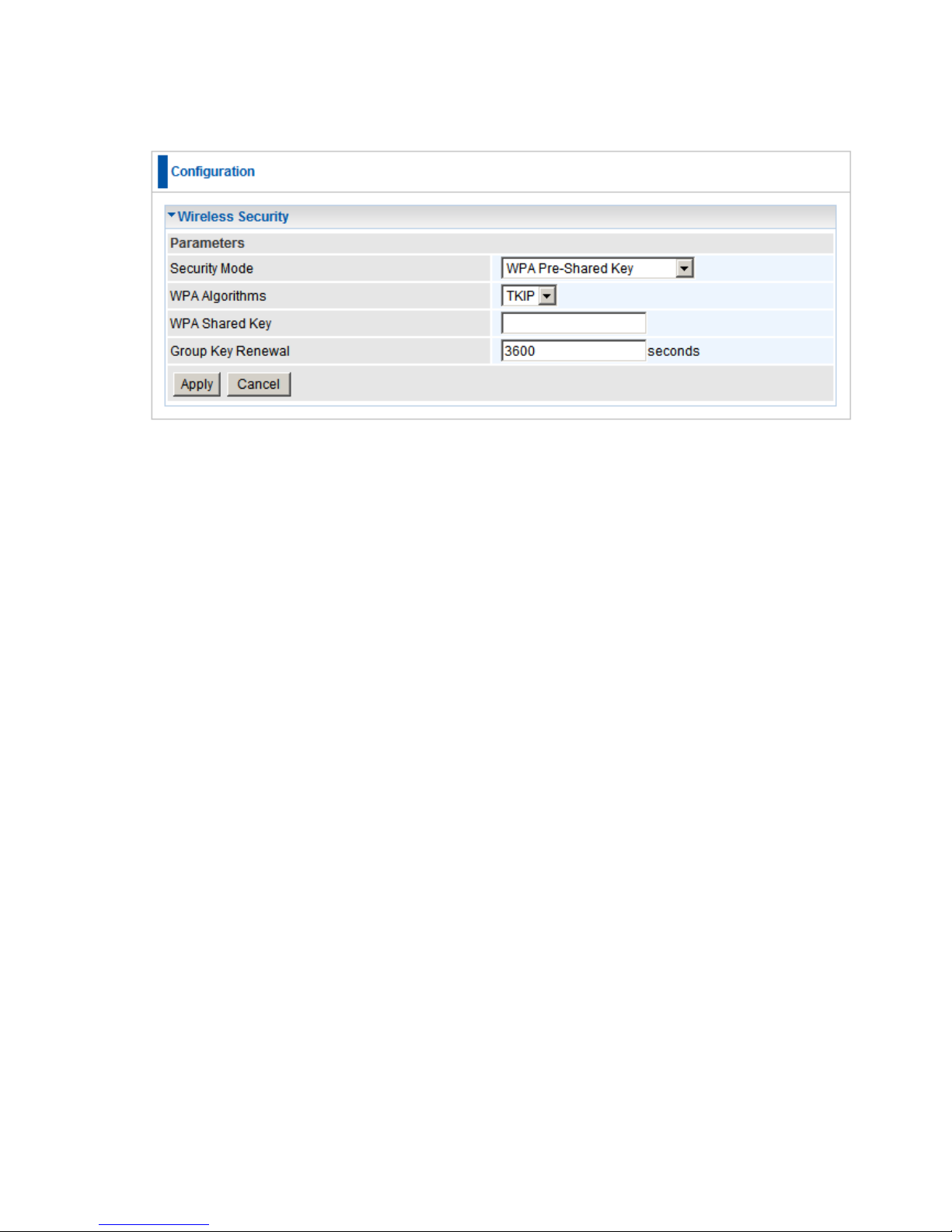

WPA Pre-Shared Key ..................................................................................................................... 36

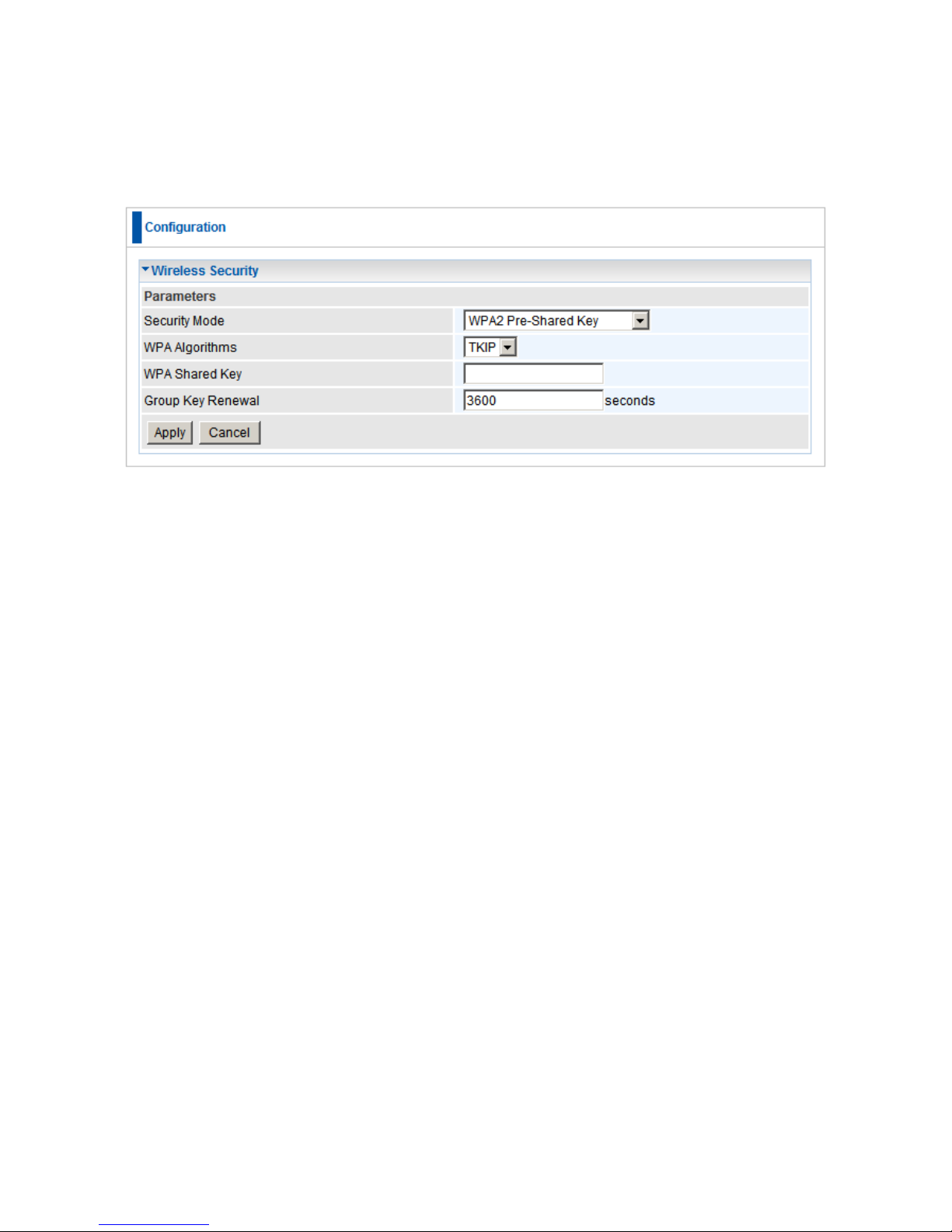

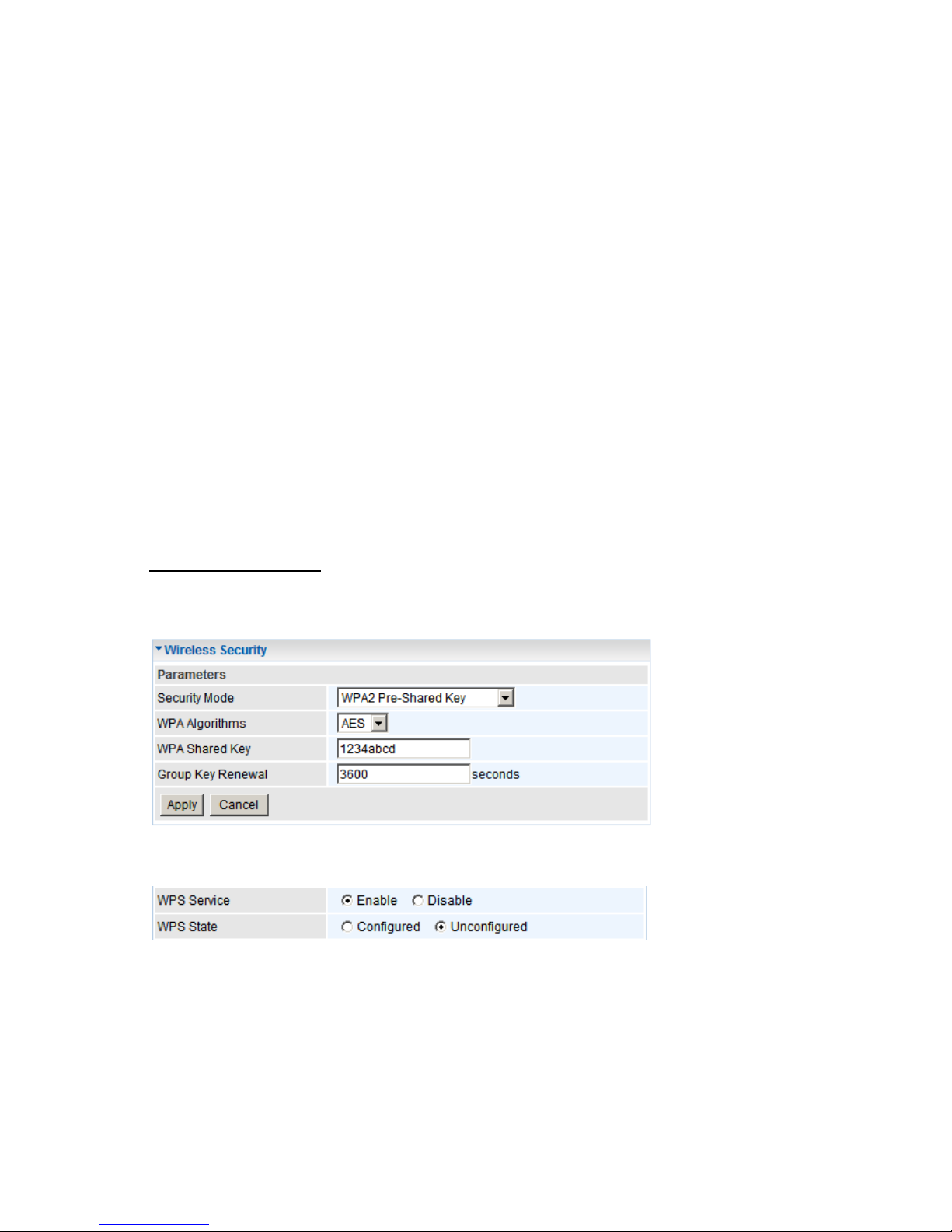

WPA2 Pre-Shared Key ................................................................................................................... 36

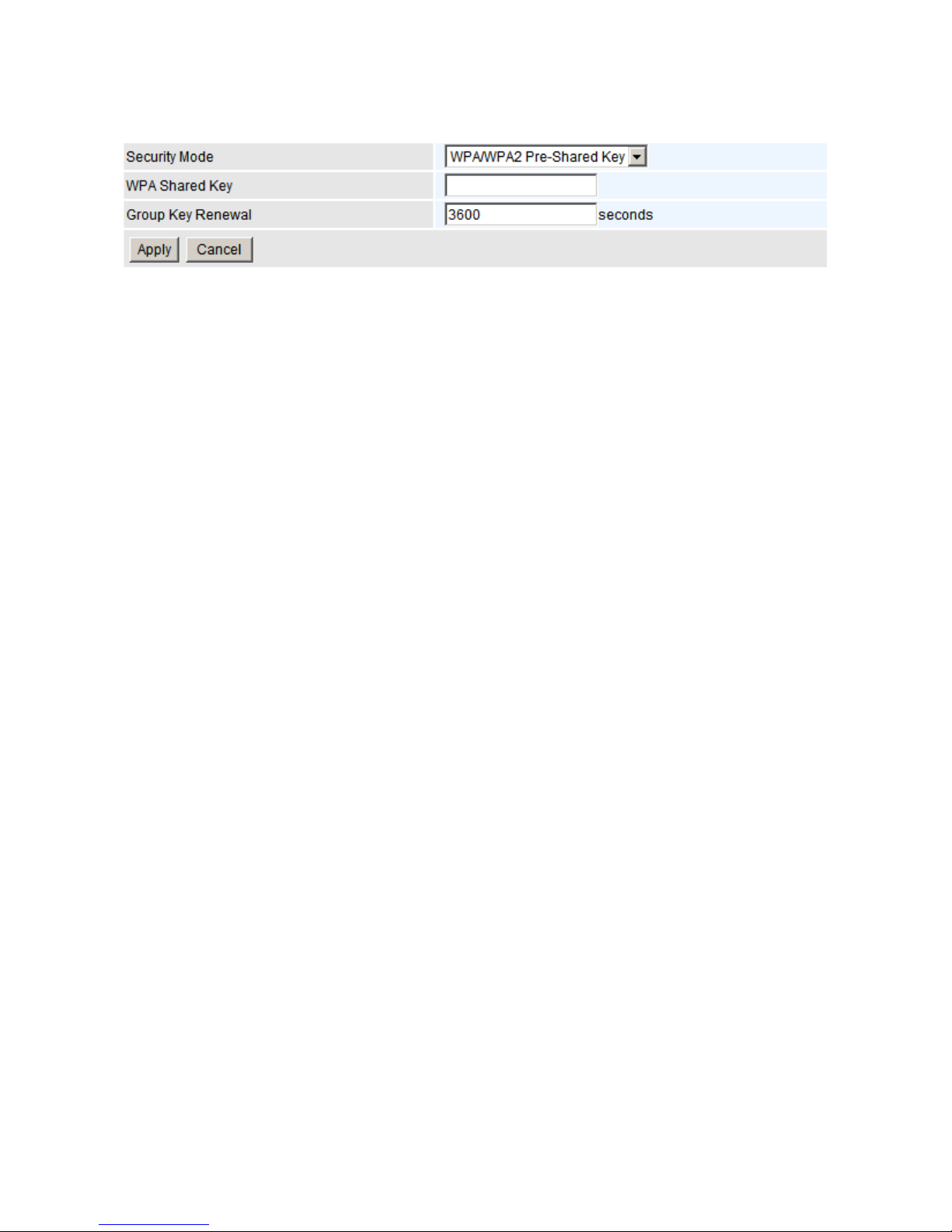

WPA/WPA2 Pre-Shared Key .......................................................................................................... 37

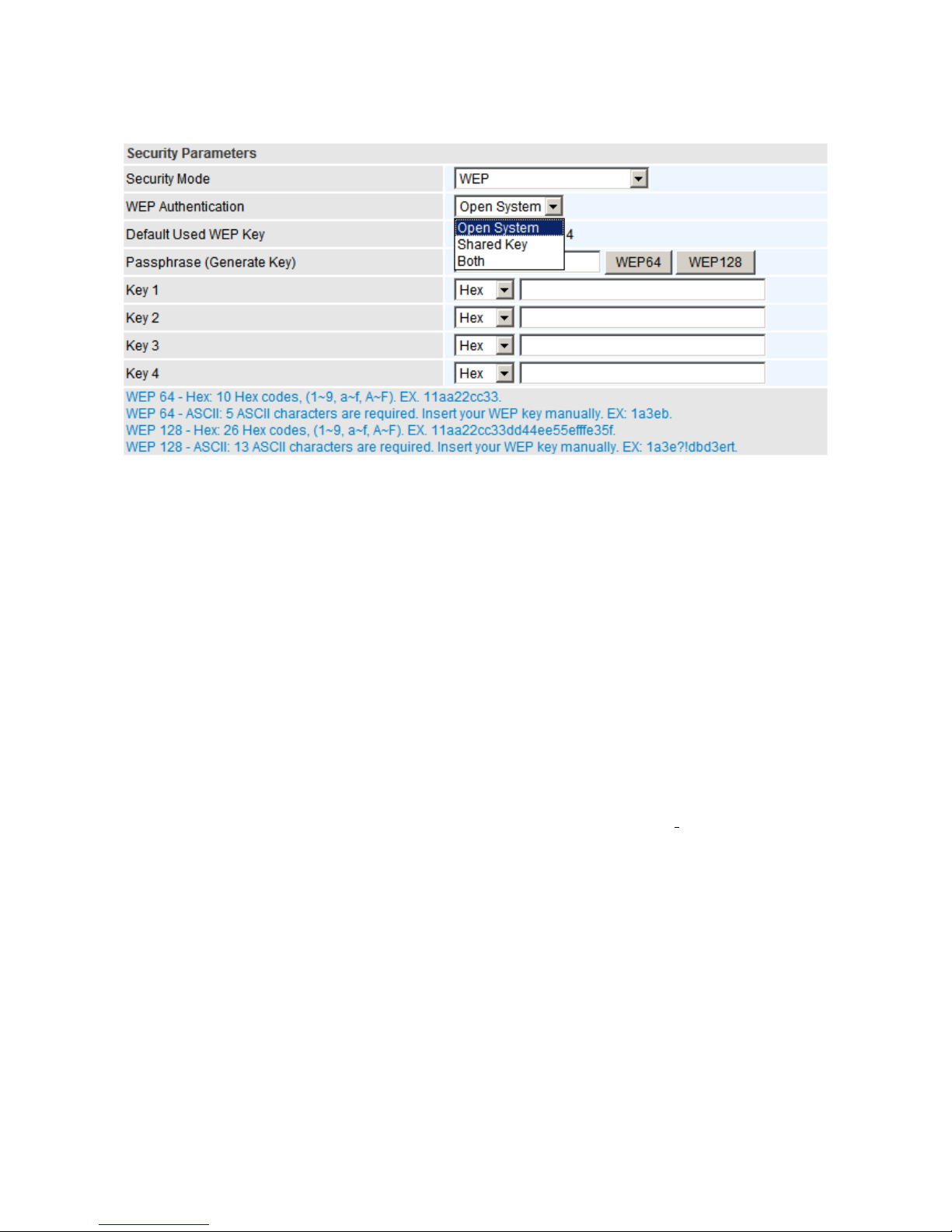

WEP ............................................................................................................................................... 38

Page 3

CHAPTER 5 – ADVANCE CONFIGURATION ................................................................................................ 39

Status Page ............................................................................................................................................. 40

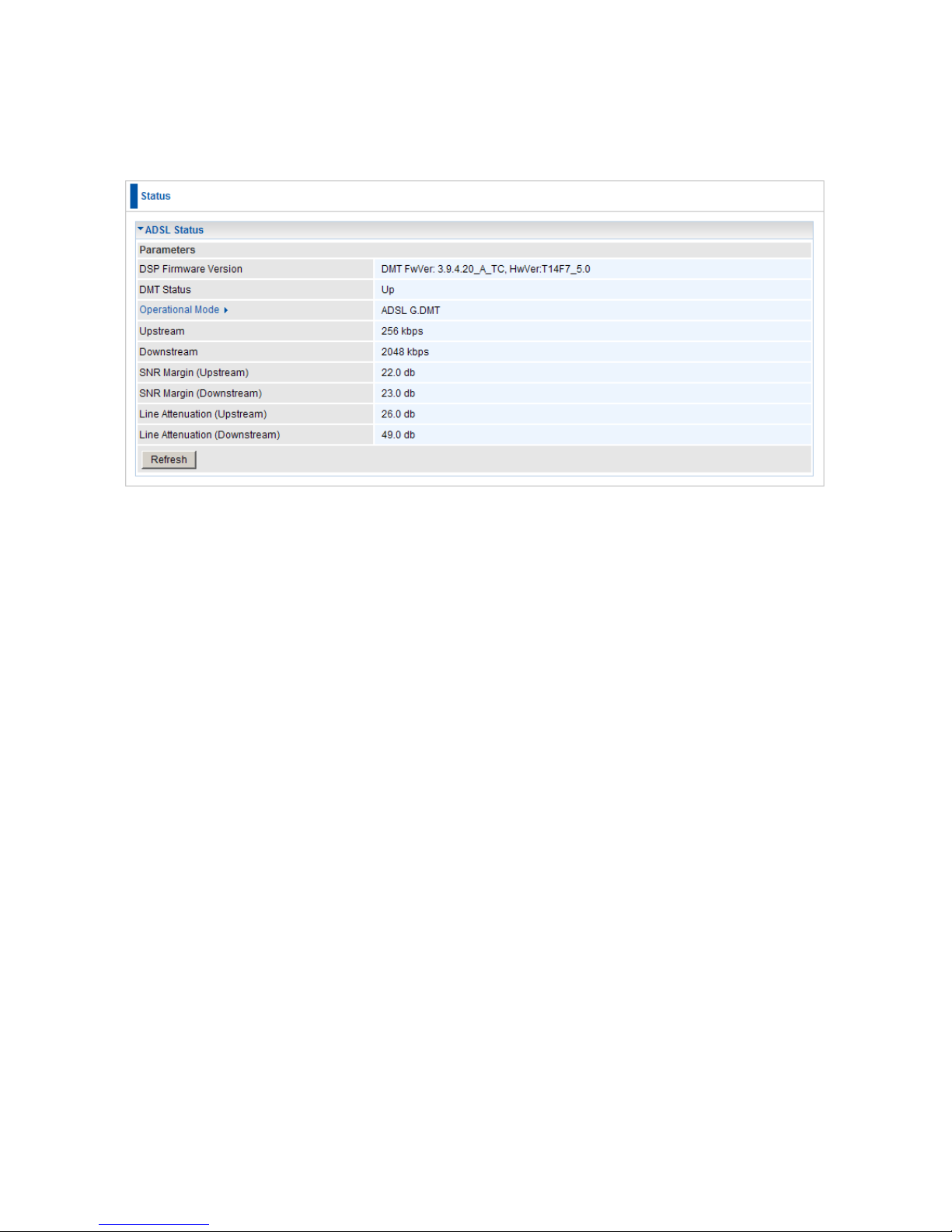

ADSL Status ................................................................................................................................... 42

Operational Mode ........................................................................................................................... 43

ARP Table....................................................................................................................................... 44

DHCP Table .................................................................................................................................... 45

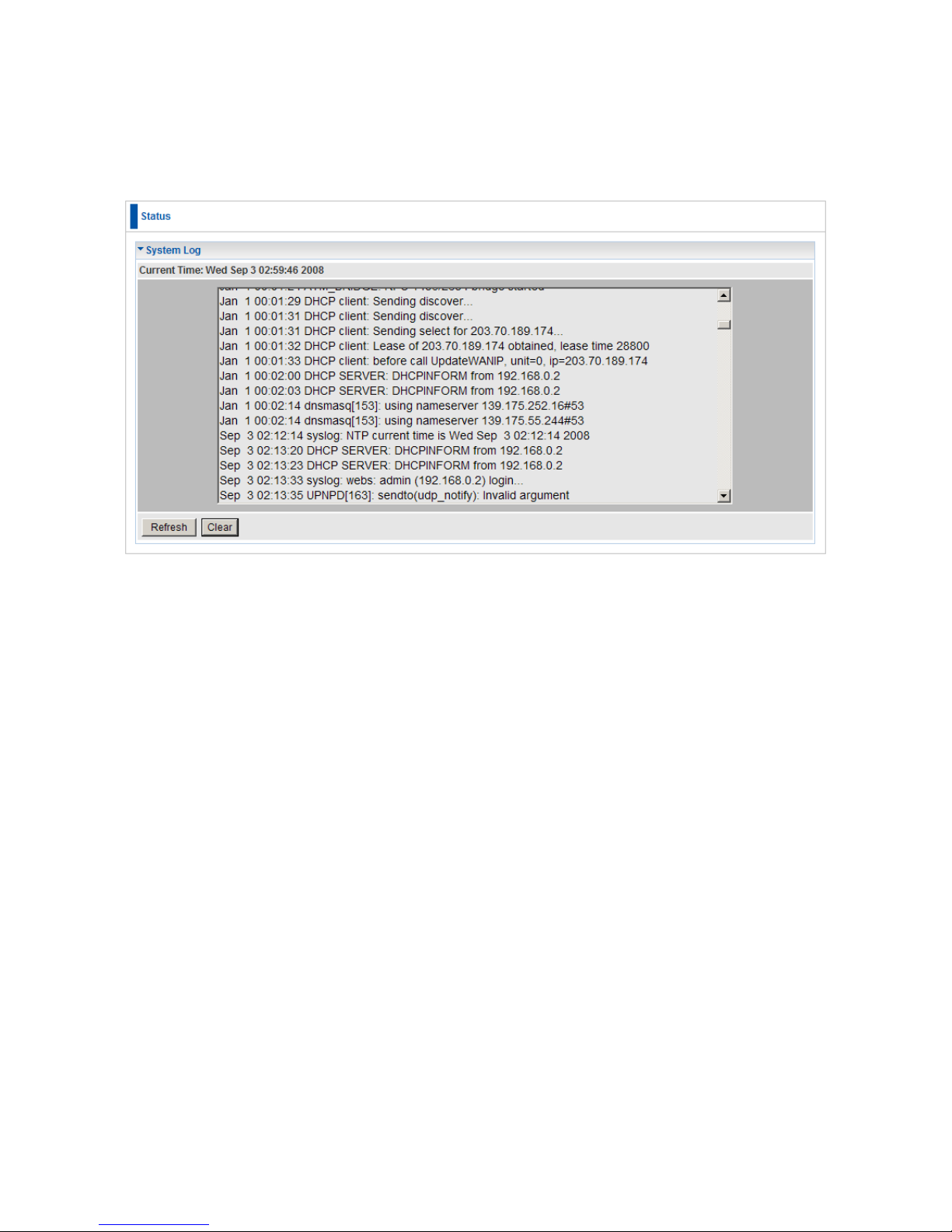

System Log .................................................................................................................................... 46

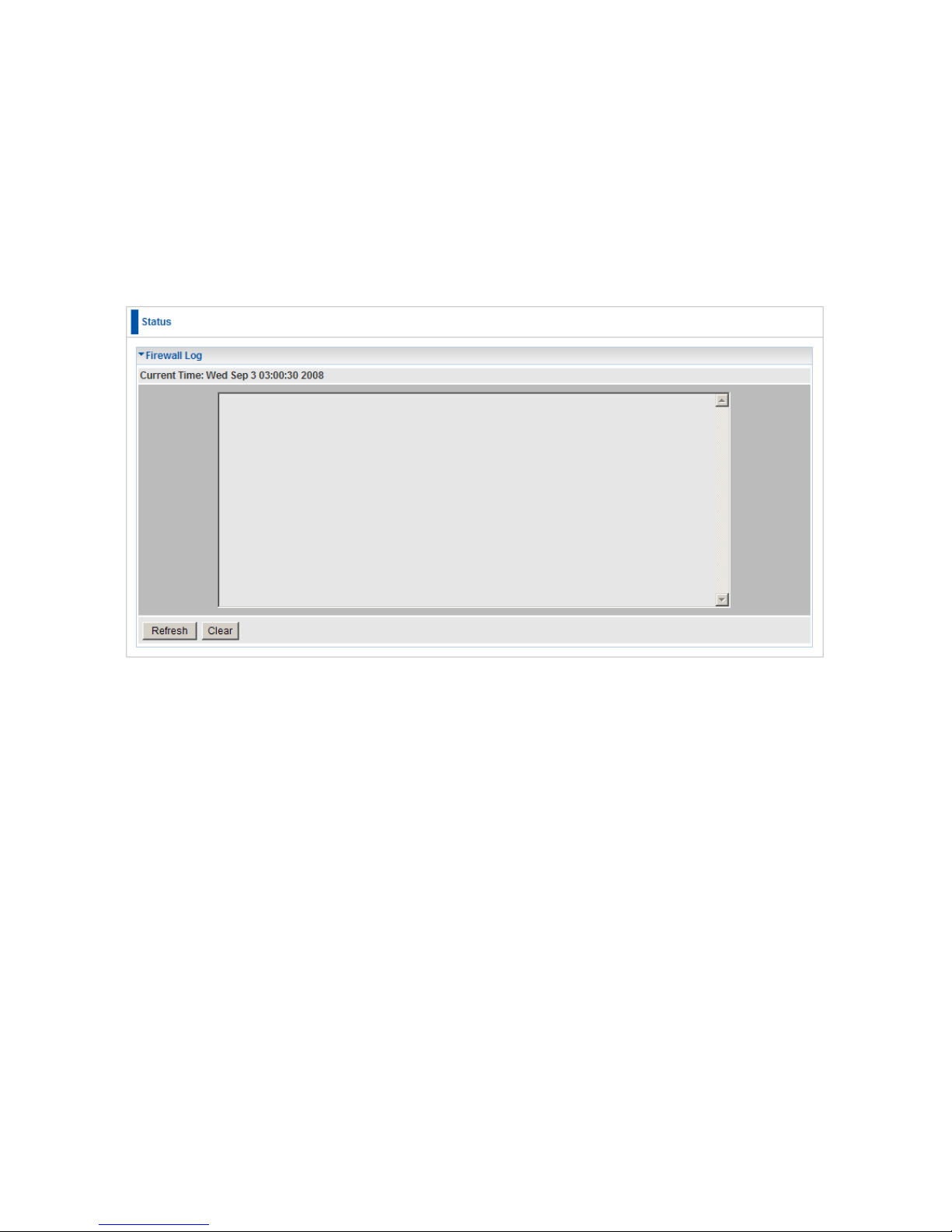

Firewall Log .................................................................................................................................... 47

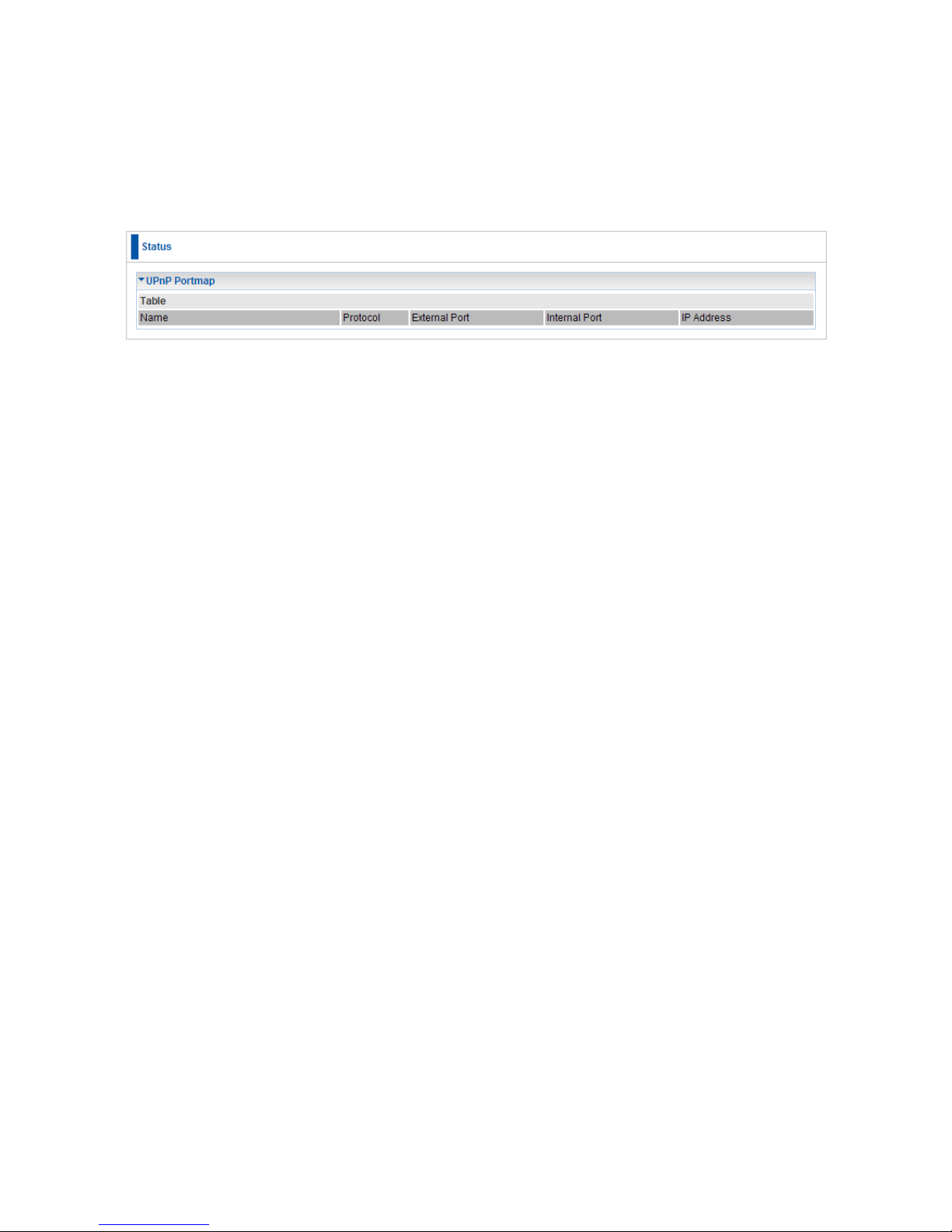

UPnP Portmap ............................................................................................................................... 48

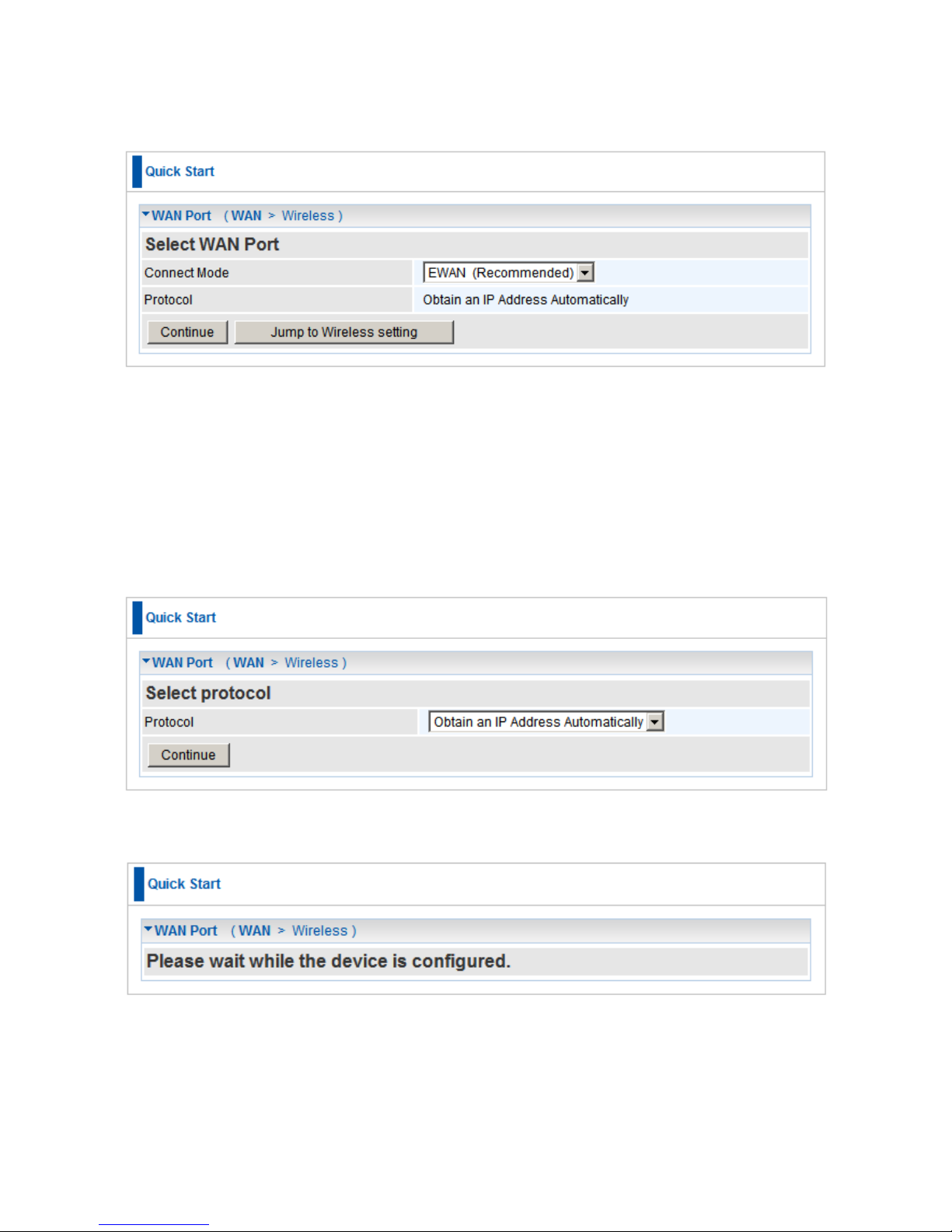

Quick Start ............................................................................................................................................... 49

ADSL .............................................................................................................................................. 49

EWAN ............................................................................................................................................. 50

Set Wireless Configuration ............................................................................................................. 56

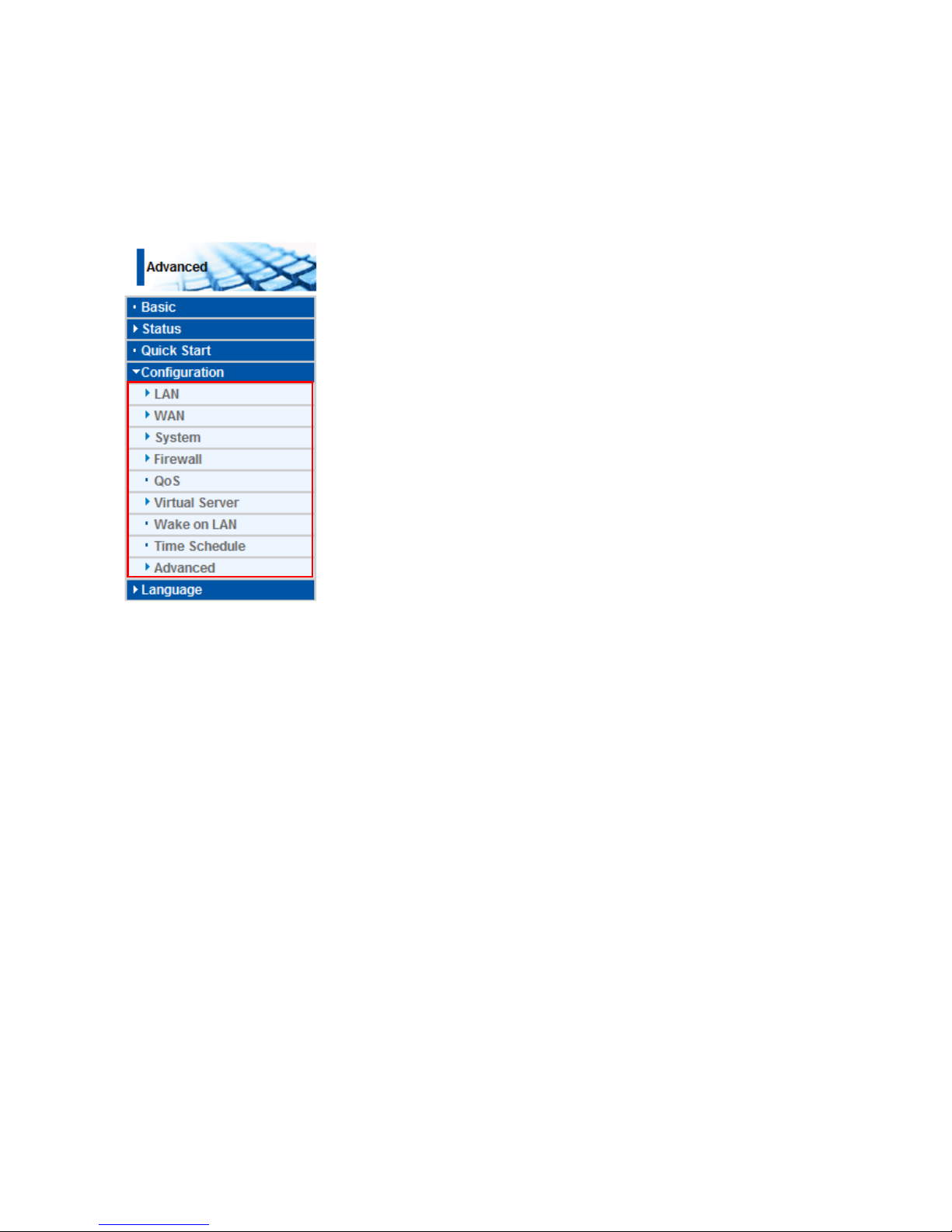

Configuration ........................................................................................................................................... 57

LAN (Local Area Network) ...................................................................................................................... 58

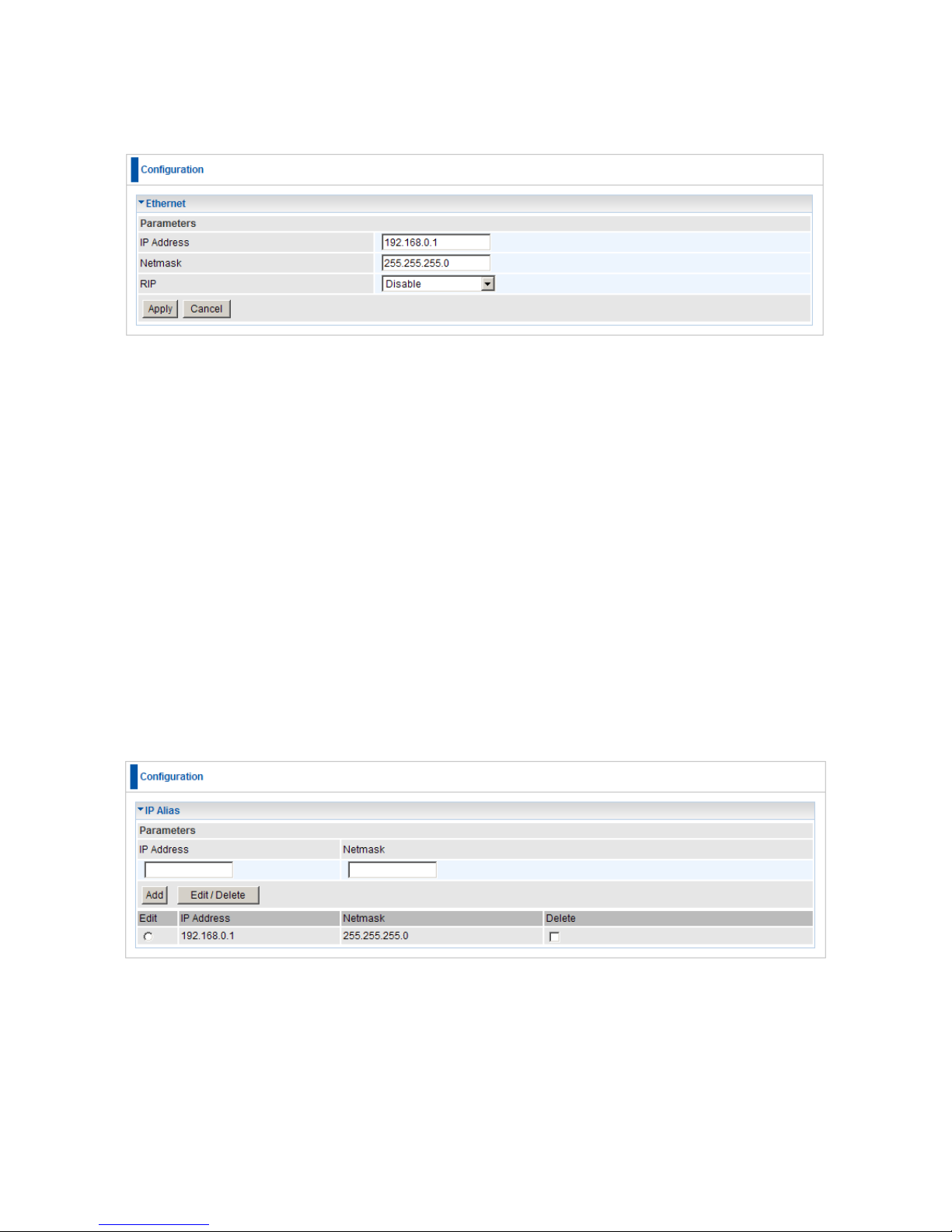

Ethernet .......................................................................................................................................... 59

IP Alias............................................................................................................................................ 59

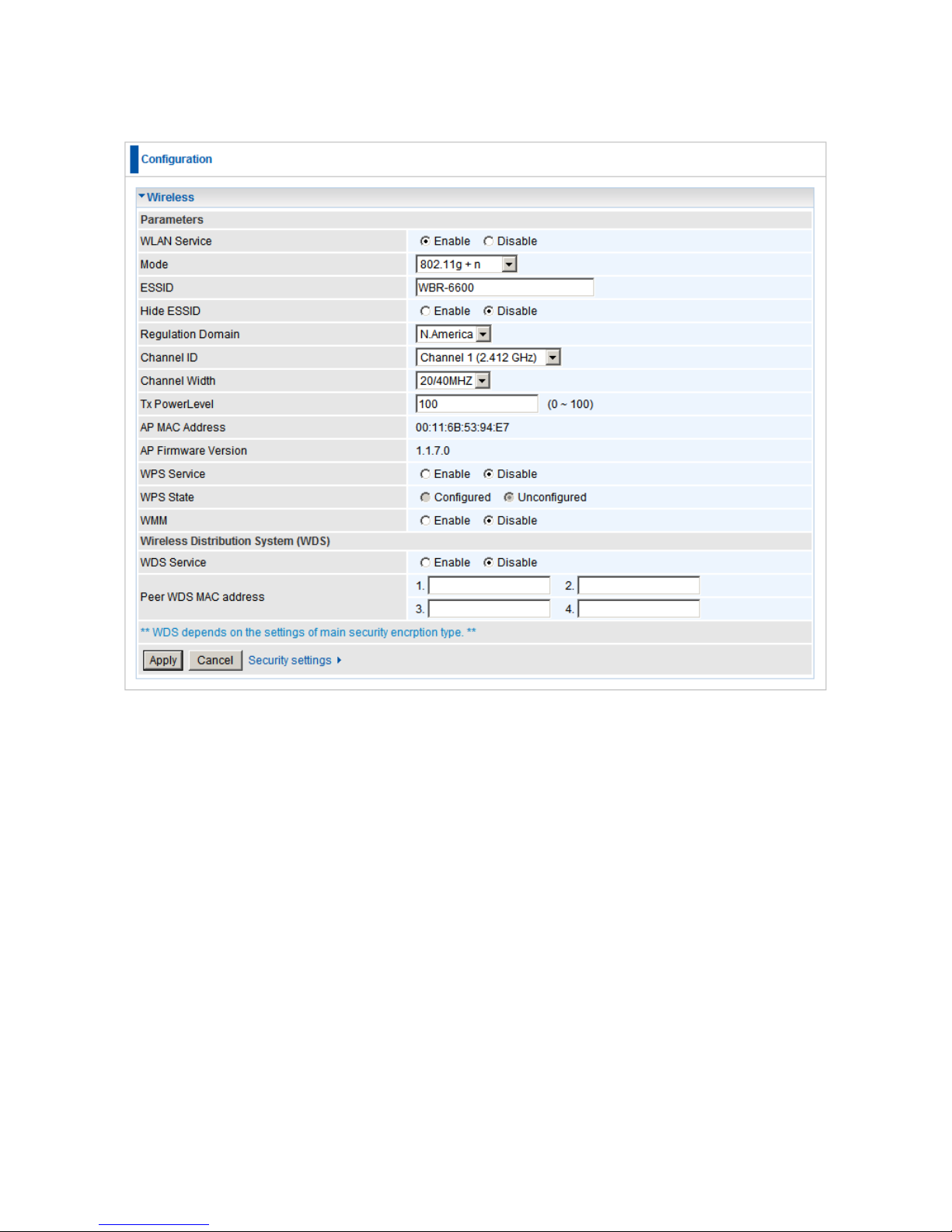

Wireless .......................................................................................................................................... 60

Wireless Distribution System (WDS).............................................................................................. 62

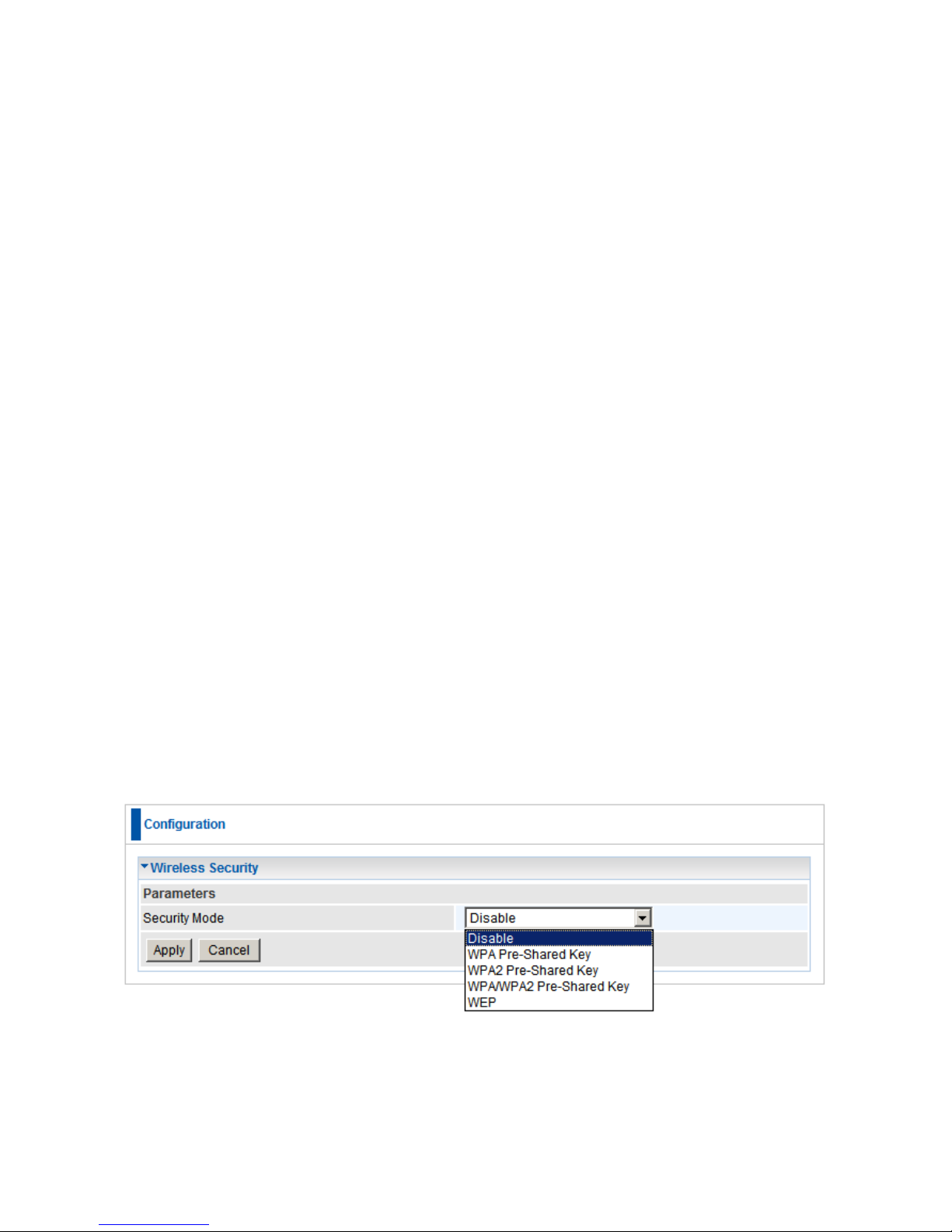

Wireless Security............................................................................................................................ 62

WPA Pre-Shared Key ..................................................................................................................... 63

WPA2 Pre-Shared Key ................................................................................................................... 64

WPA/WPA2 Pre-Shared Key .......................................................................................................... 65

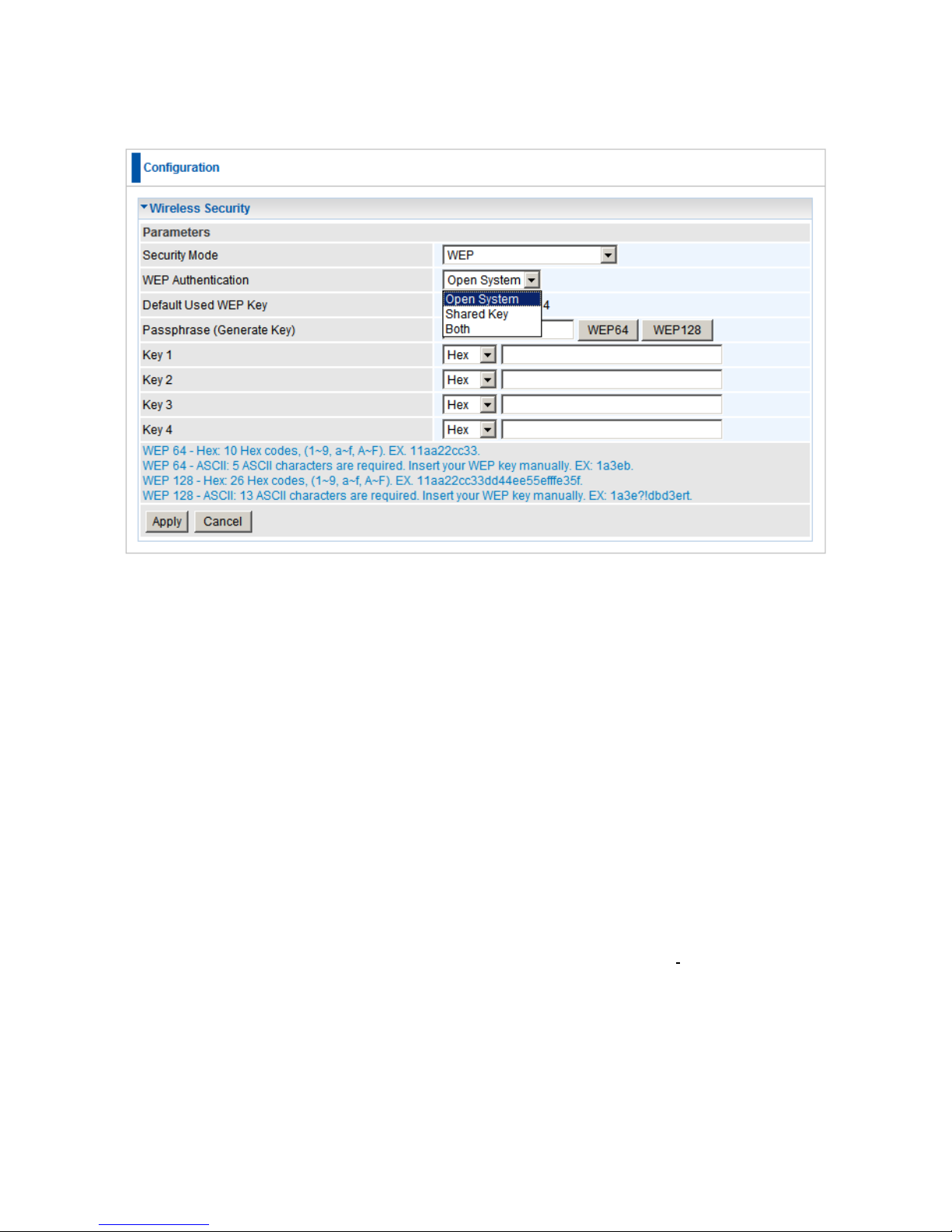

WEP ............................................................................................................................................... 66

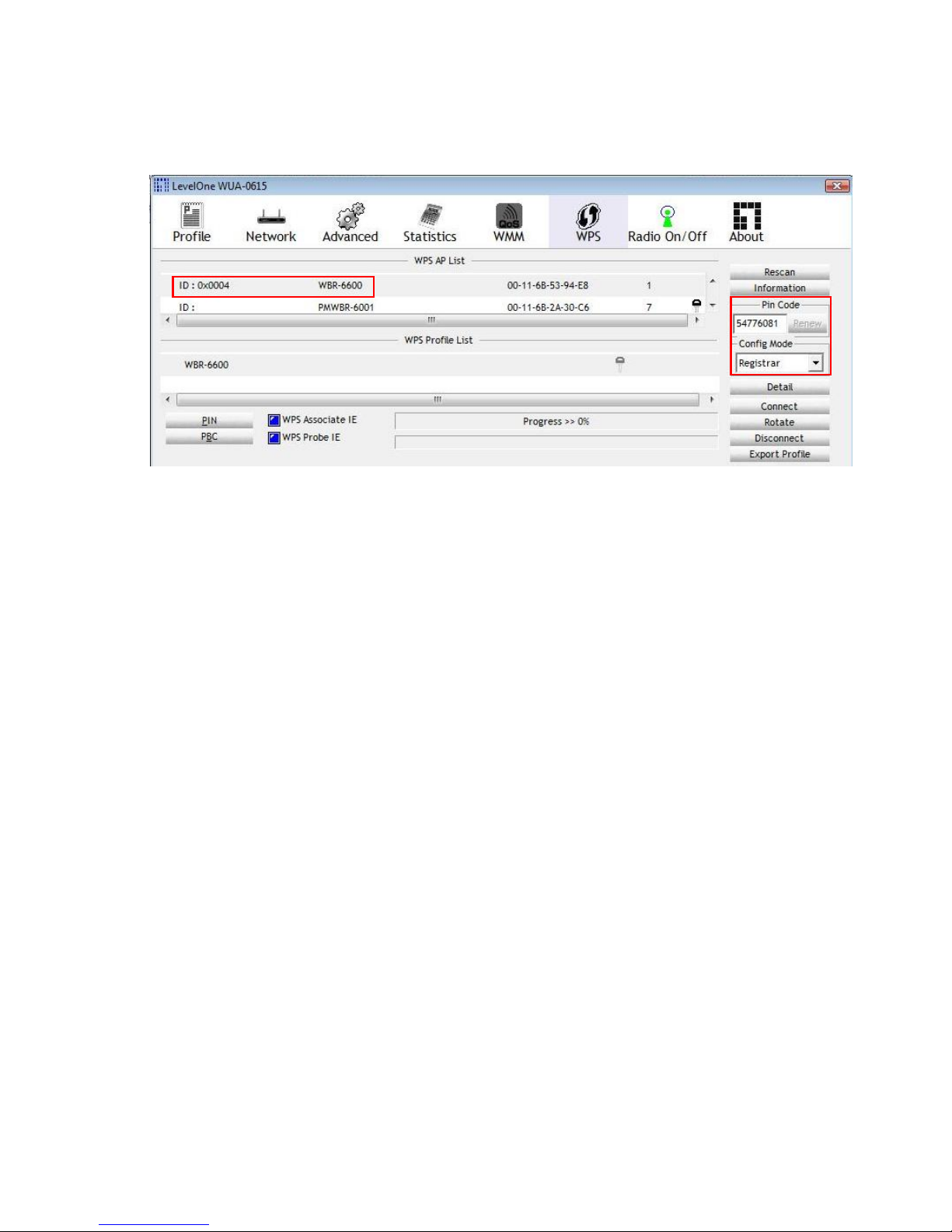

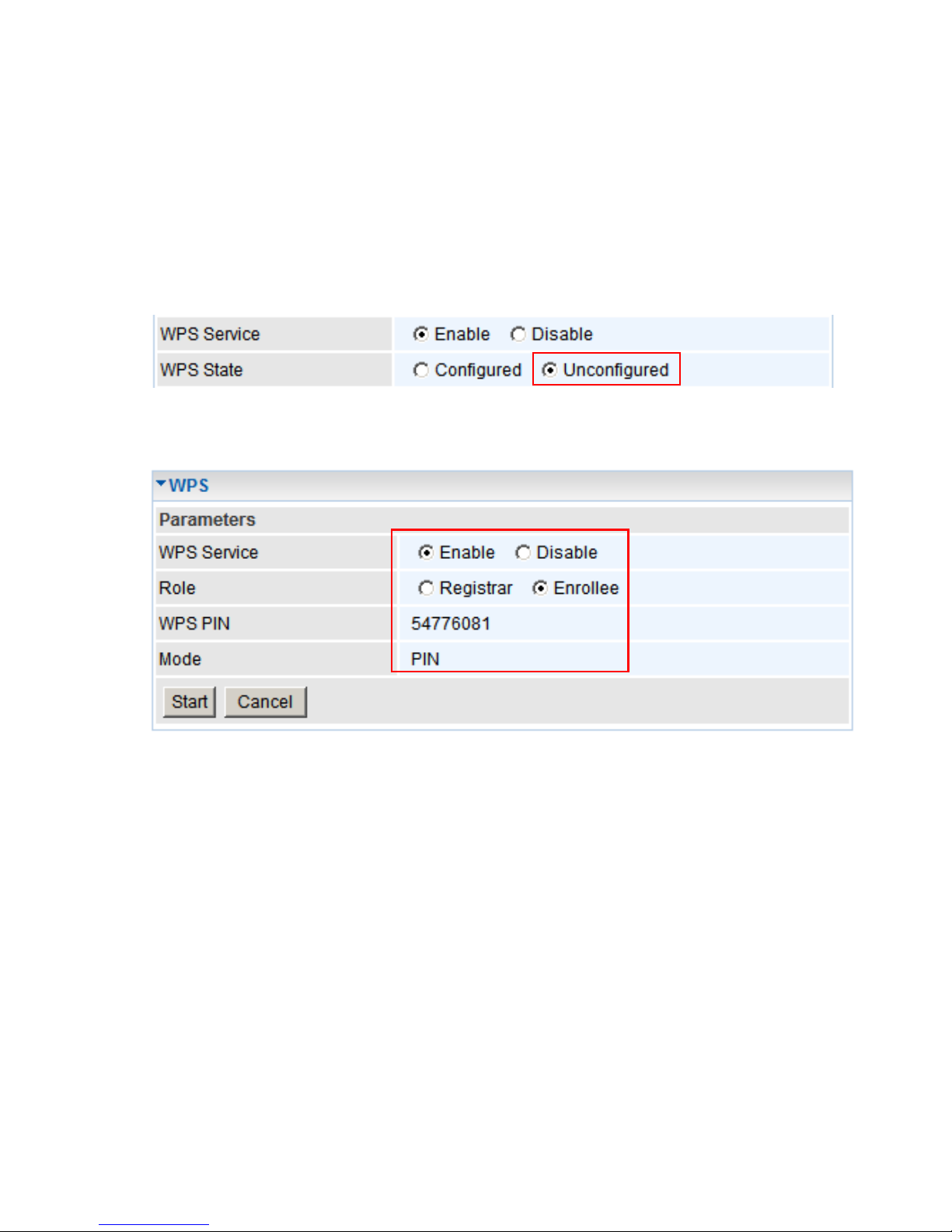

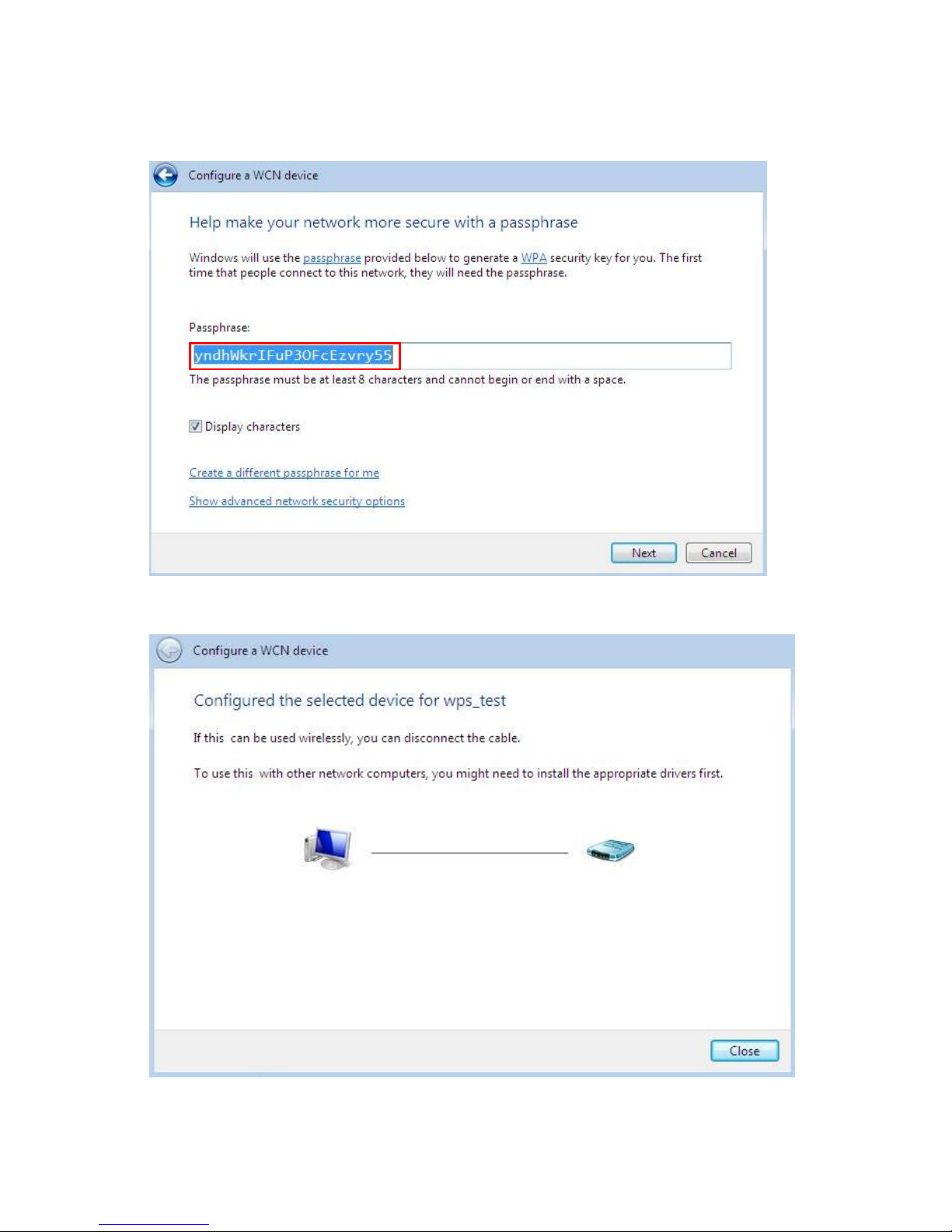

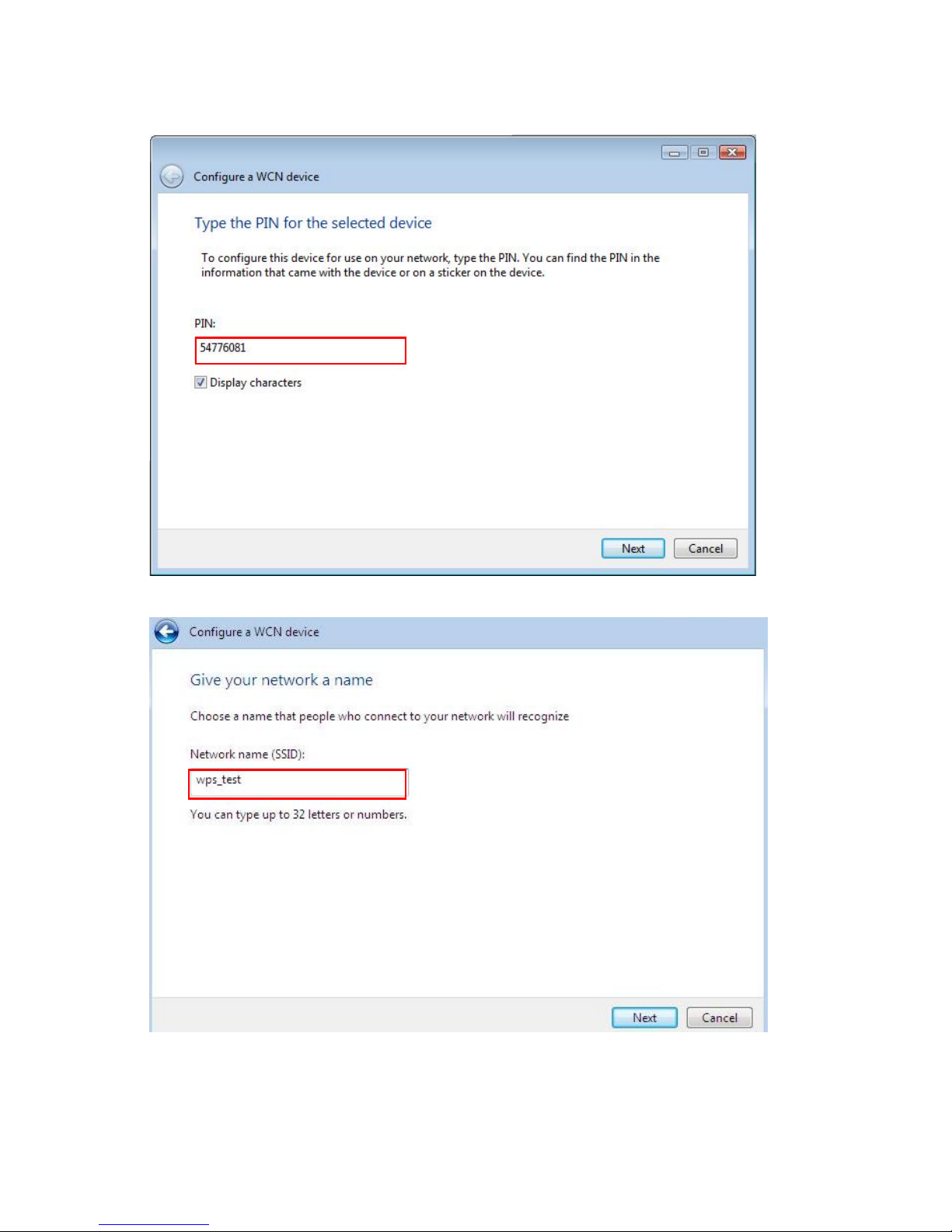

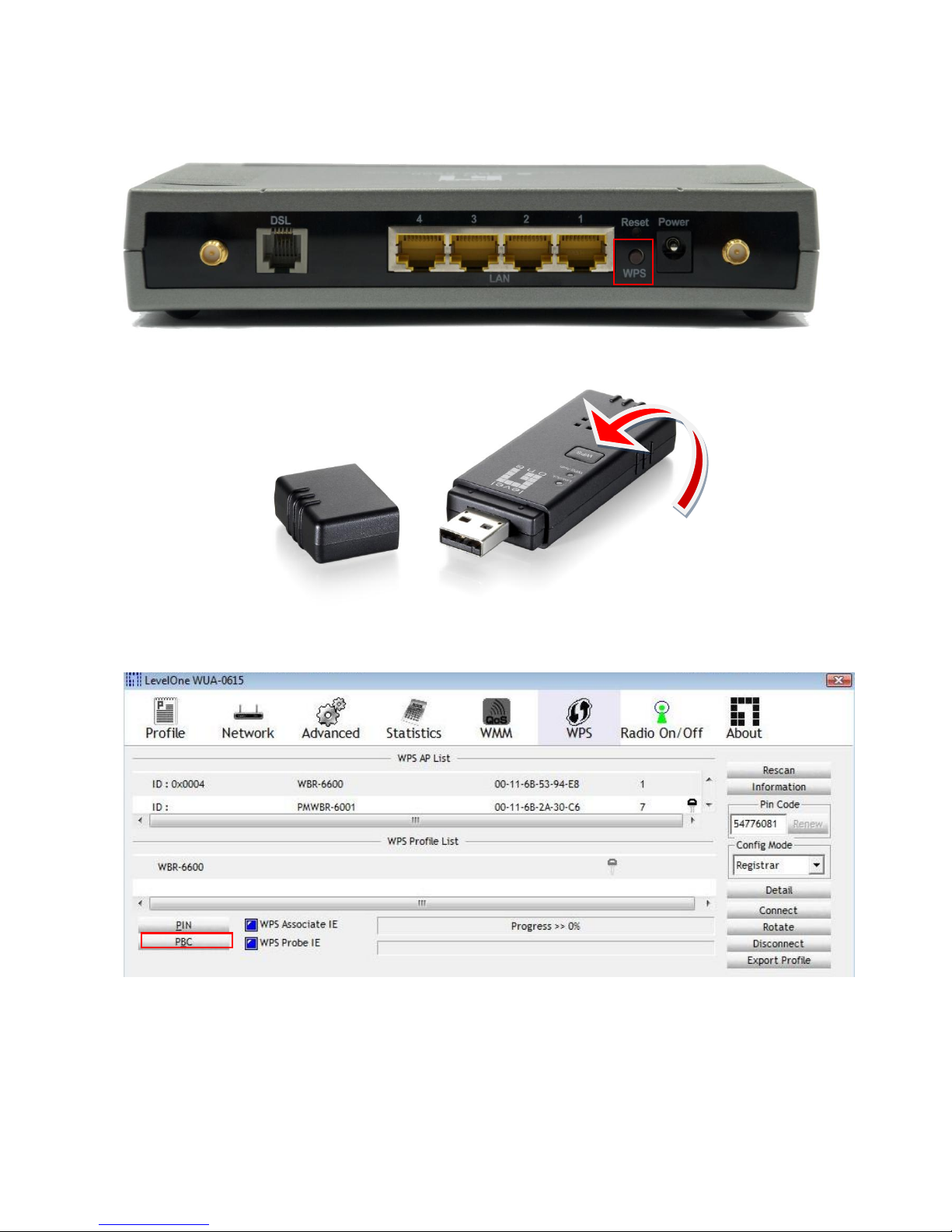

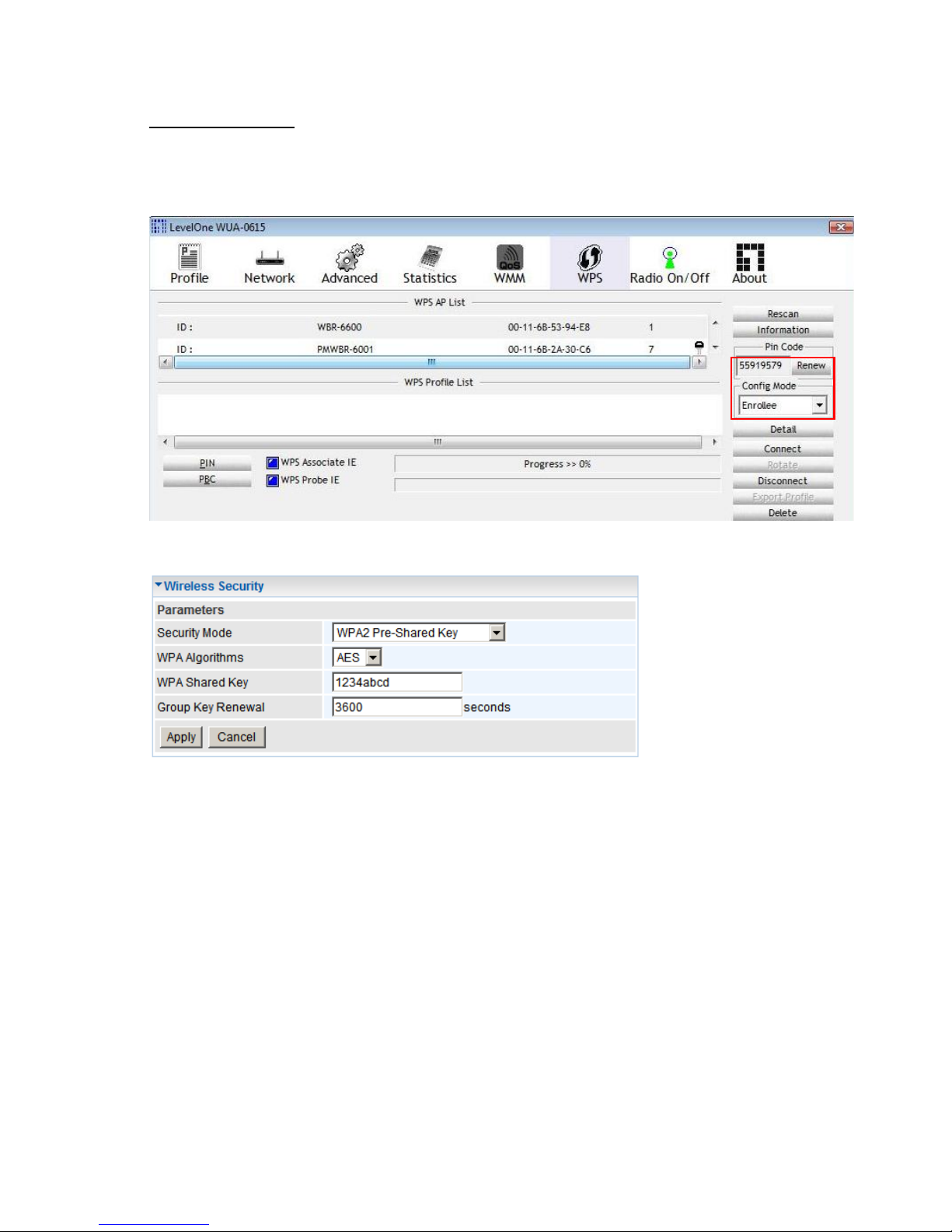

Wi-Fi Protected Setup (WPS) ........................................................................................................ 67

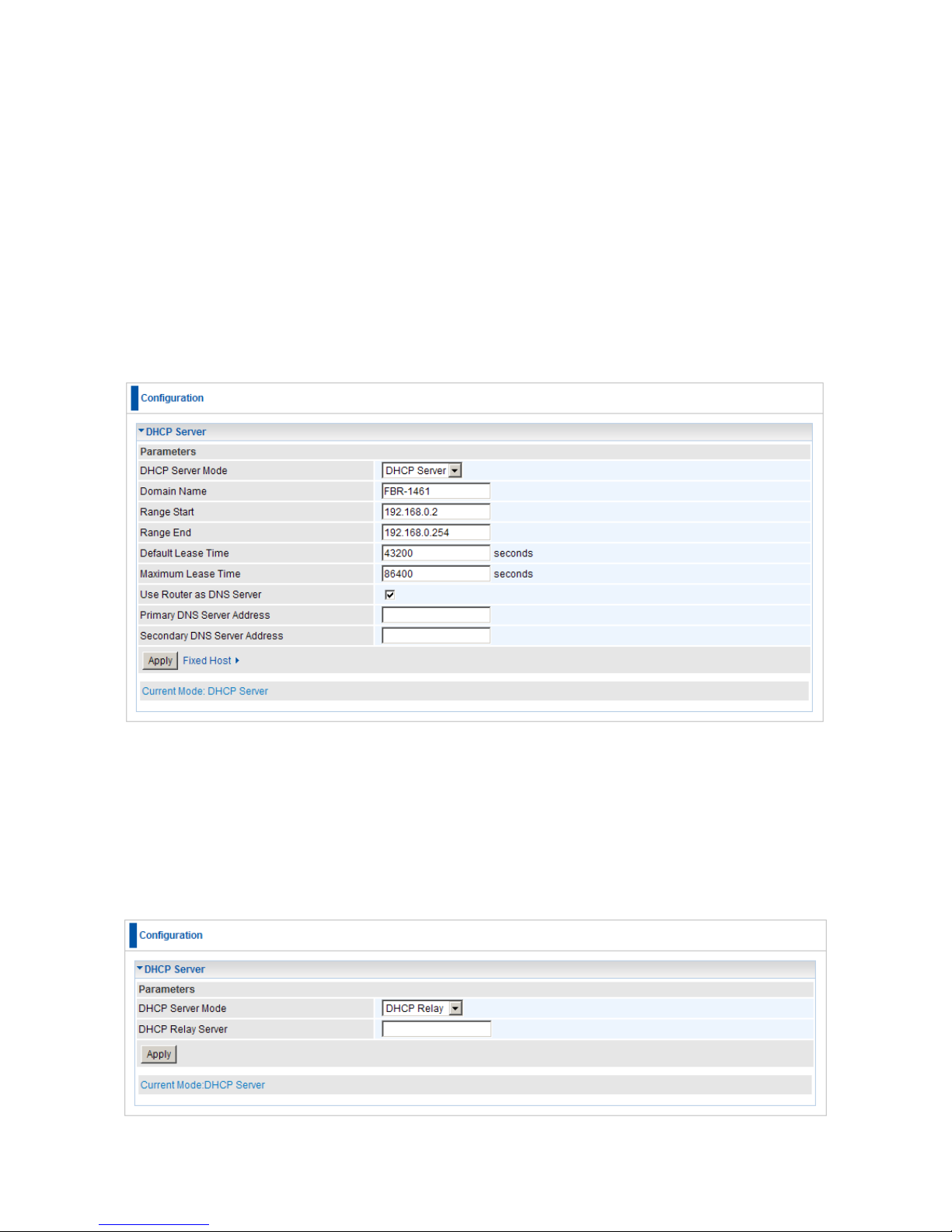

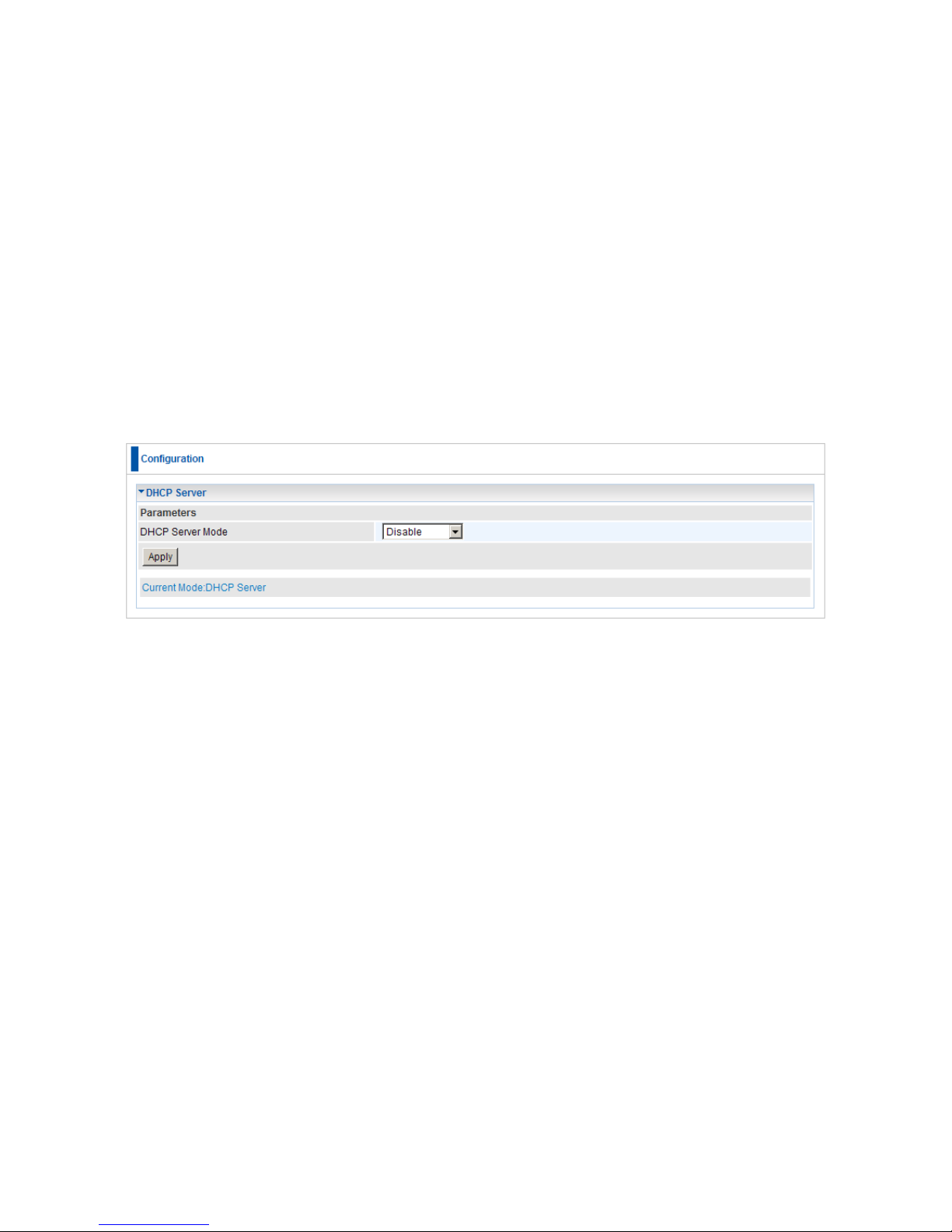

DHCP Server .................................................................................................................................. 77

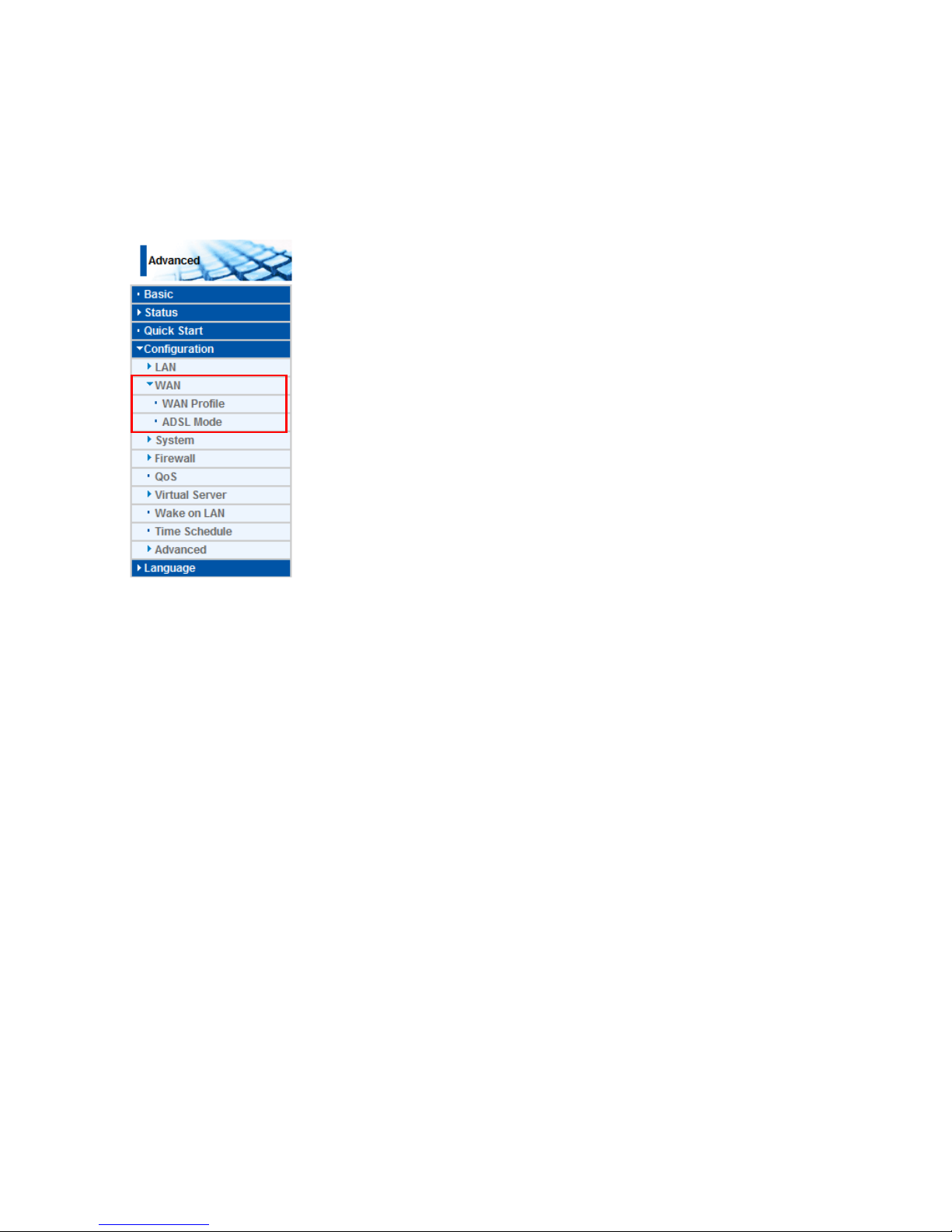

WAN (Wide Area Network)...................................................................................................................... 79

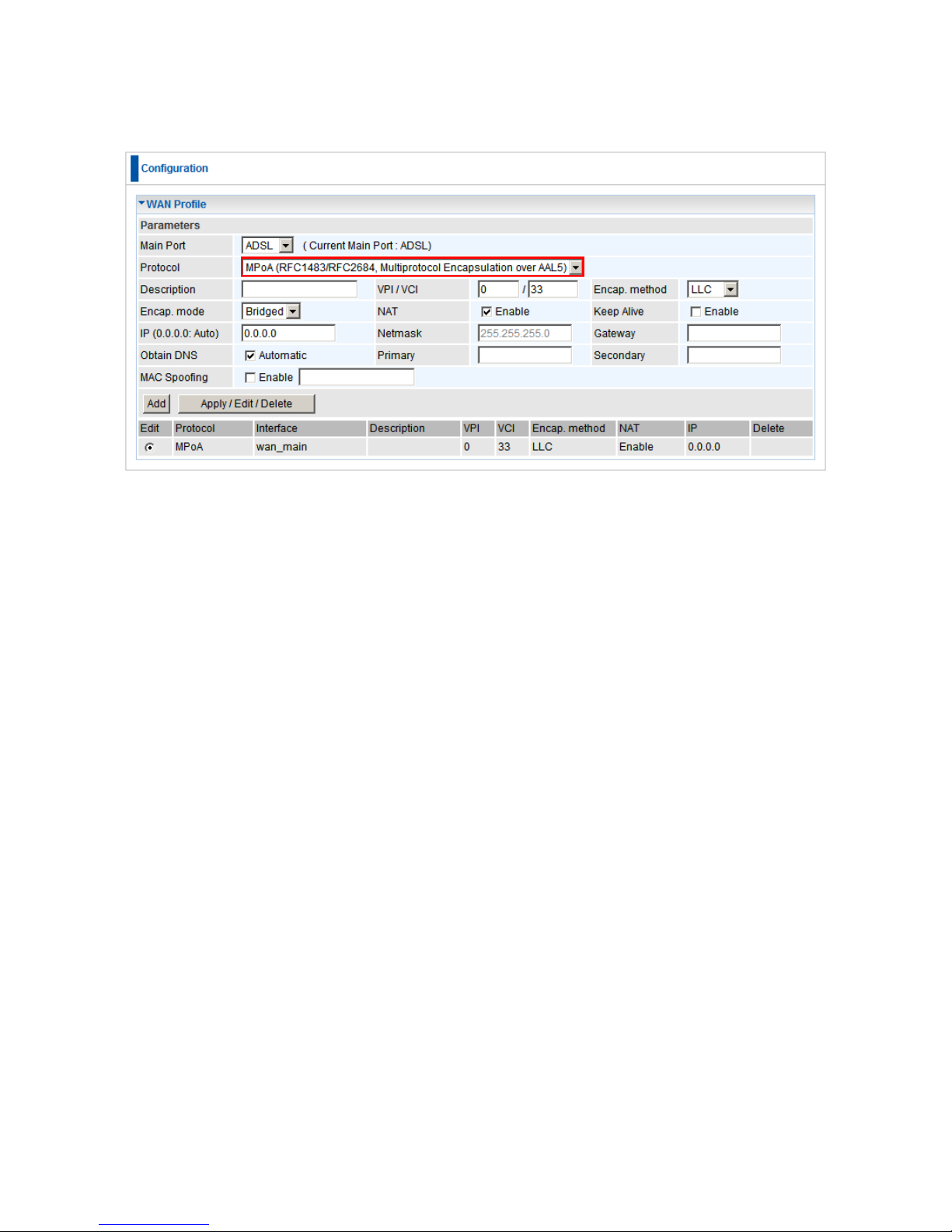

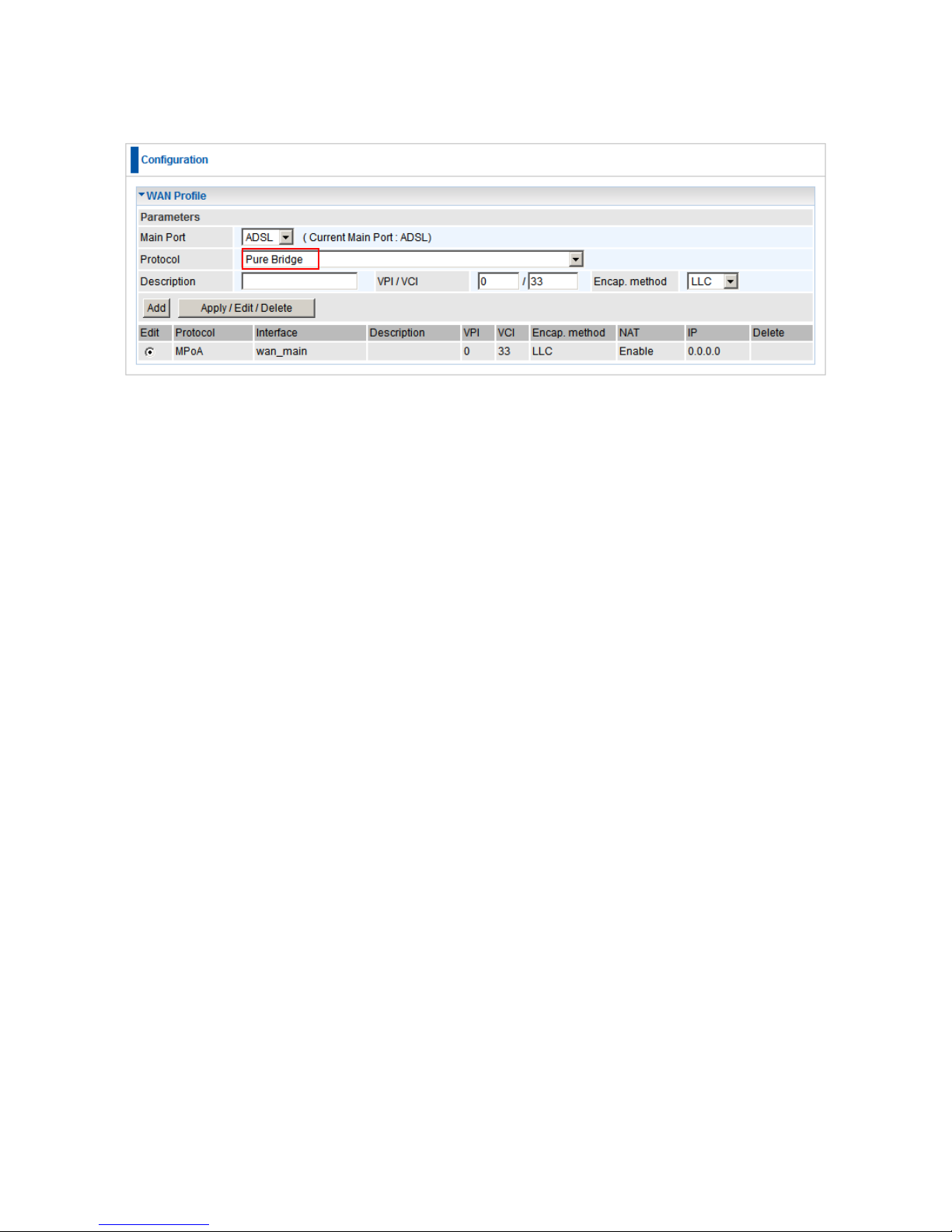

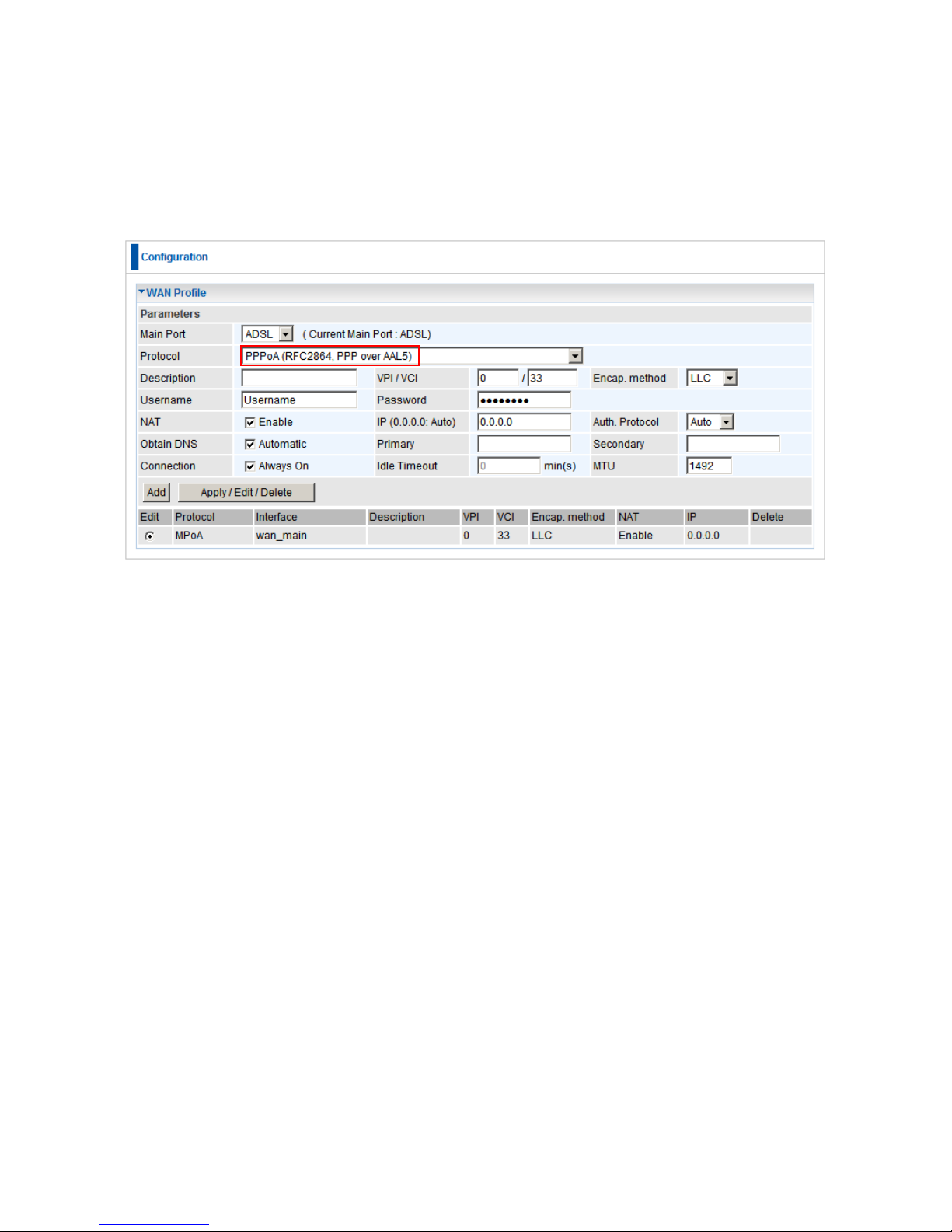

WAN Profile .................................................................................................................................... 80

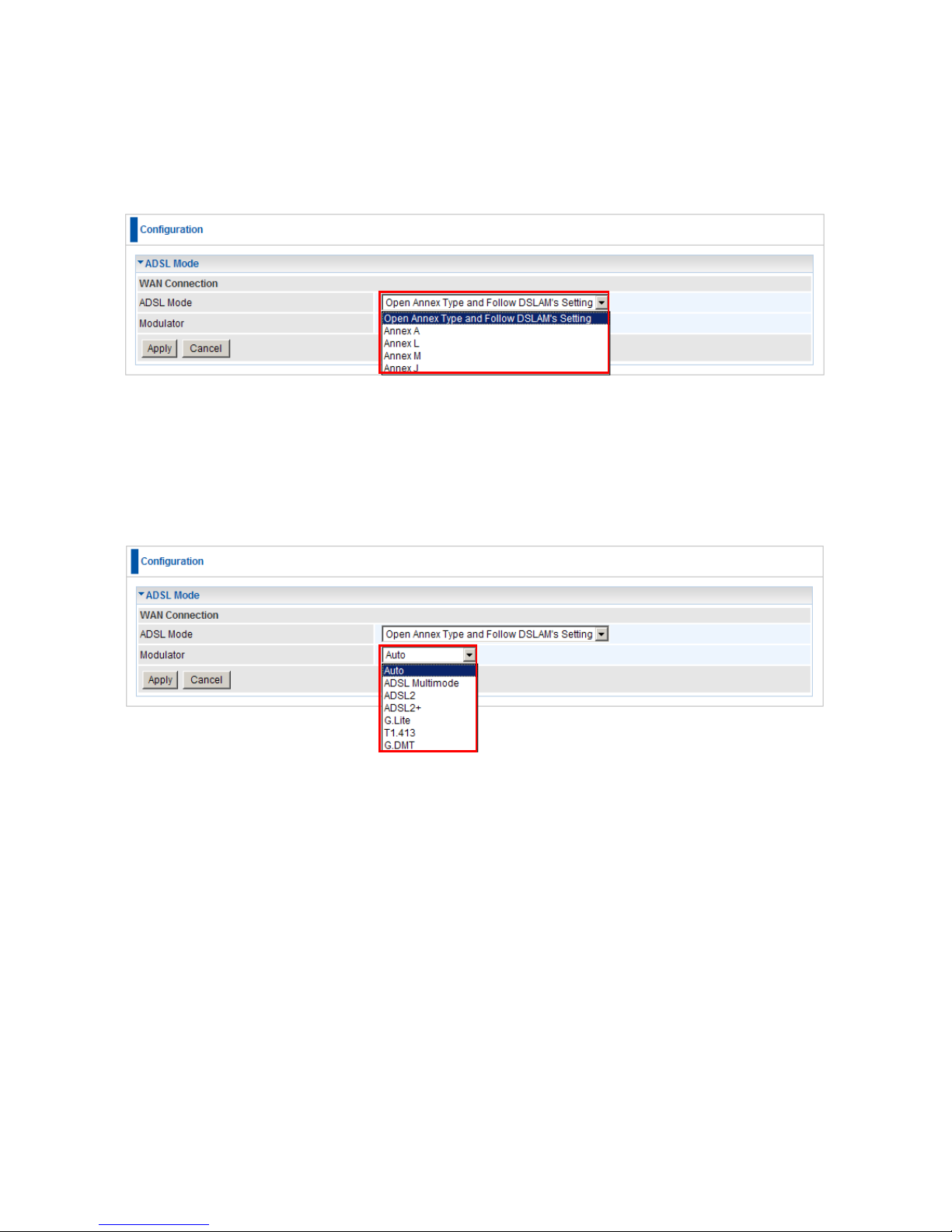

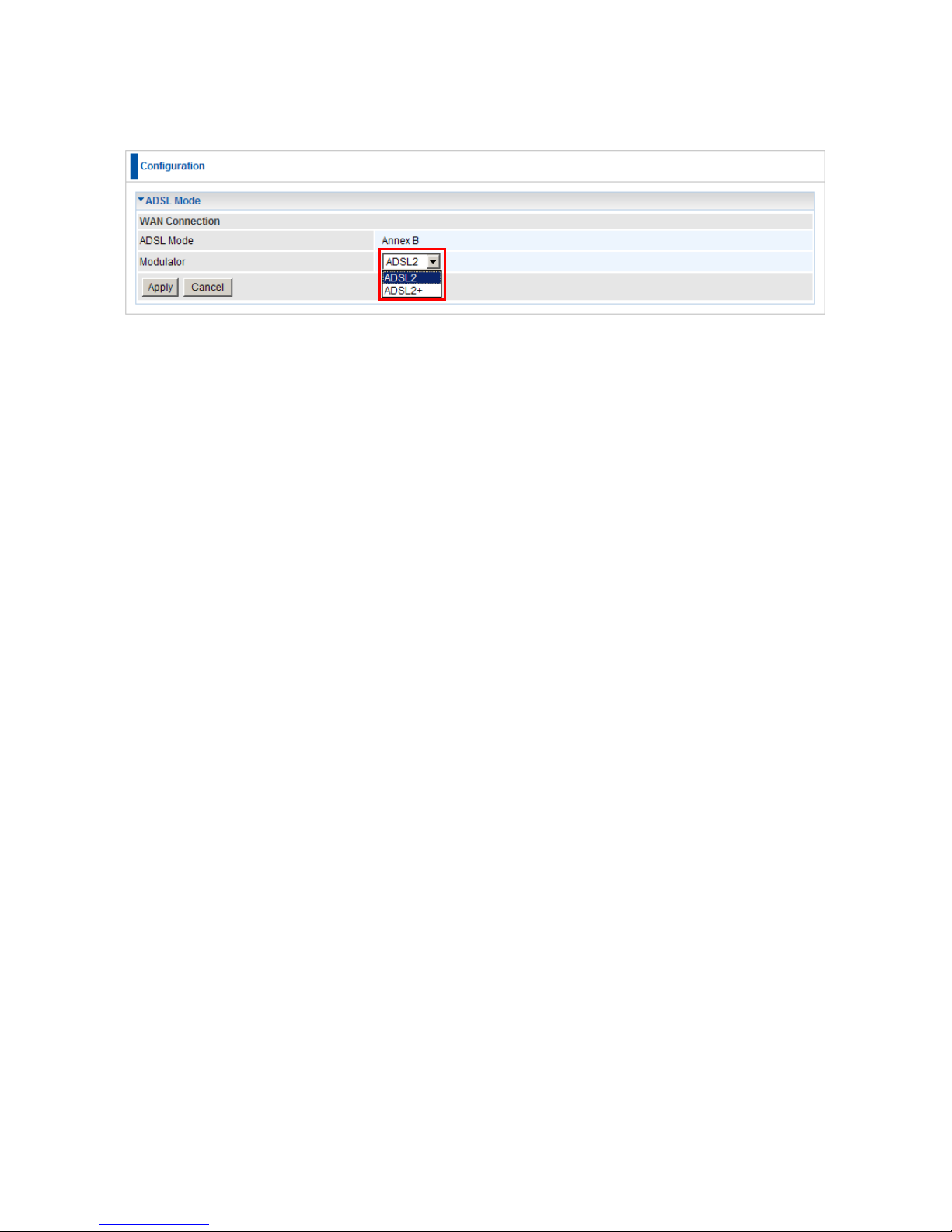

ADSL Mode .................................................................................................................................... 86

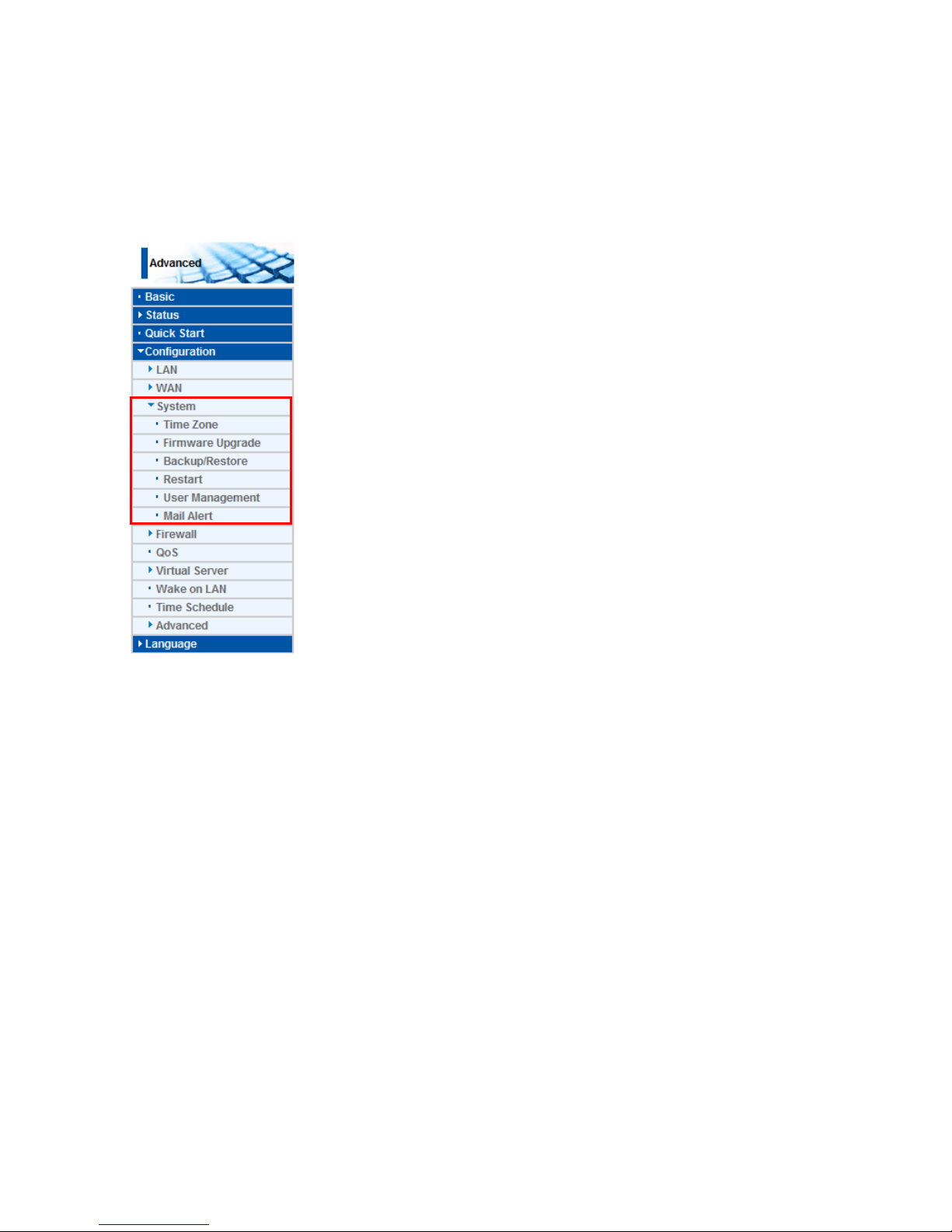

System .................................................................................................................................................... 88

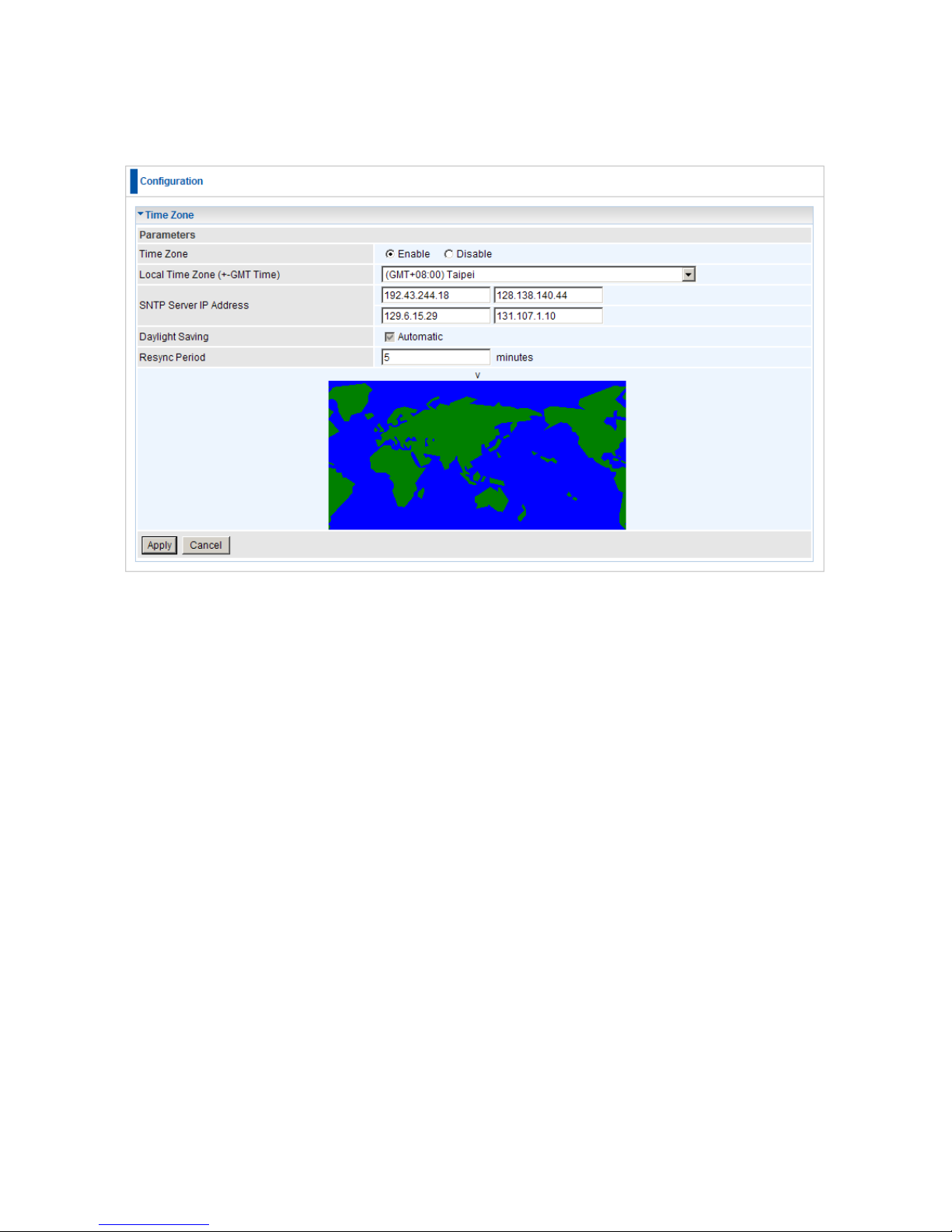

Time Zone ............................................................................................................................................... 89

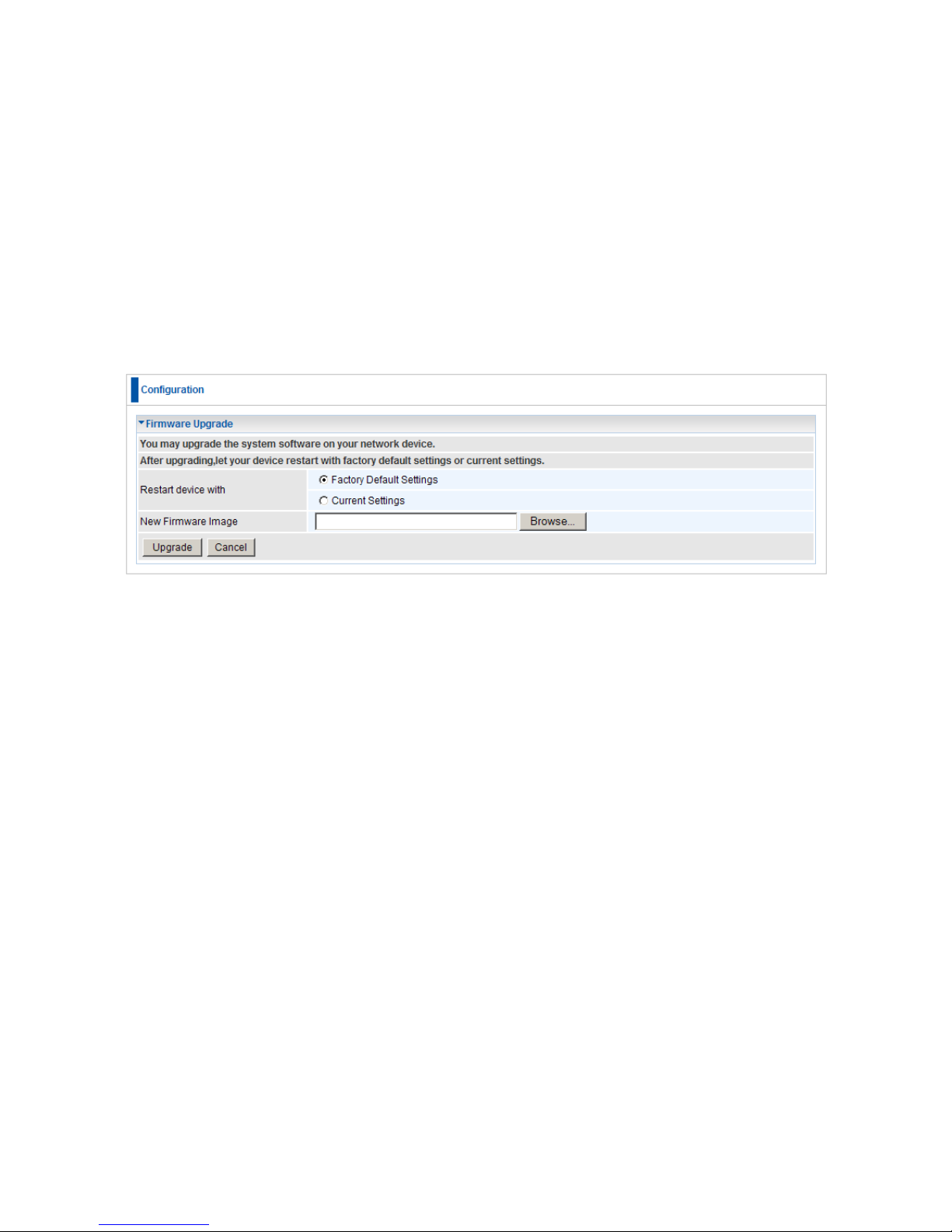

Firmware Upgrade .................................................................................................................................. 90

Backup / Restore .................................................................................................................................... 91

Page 4

Restart Router ......................................................................................................................................... 92

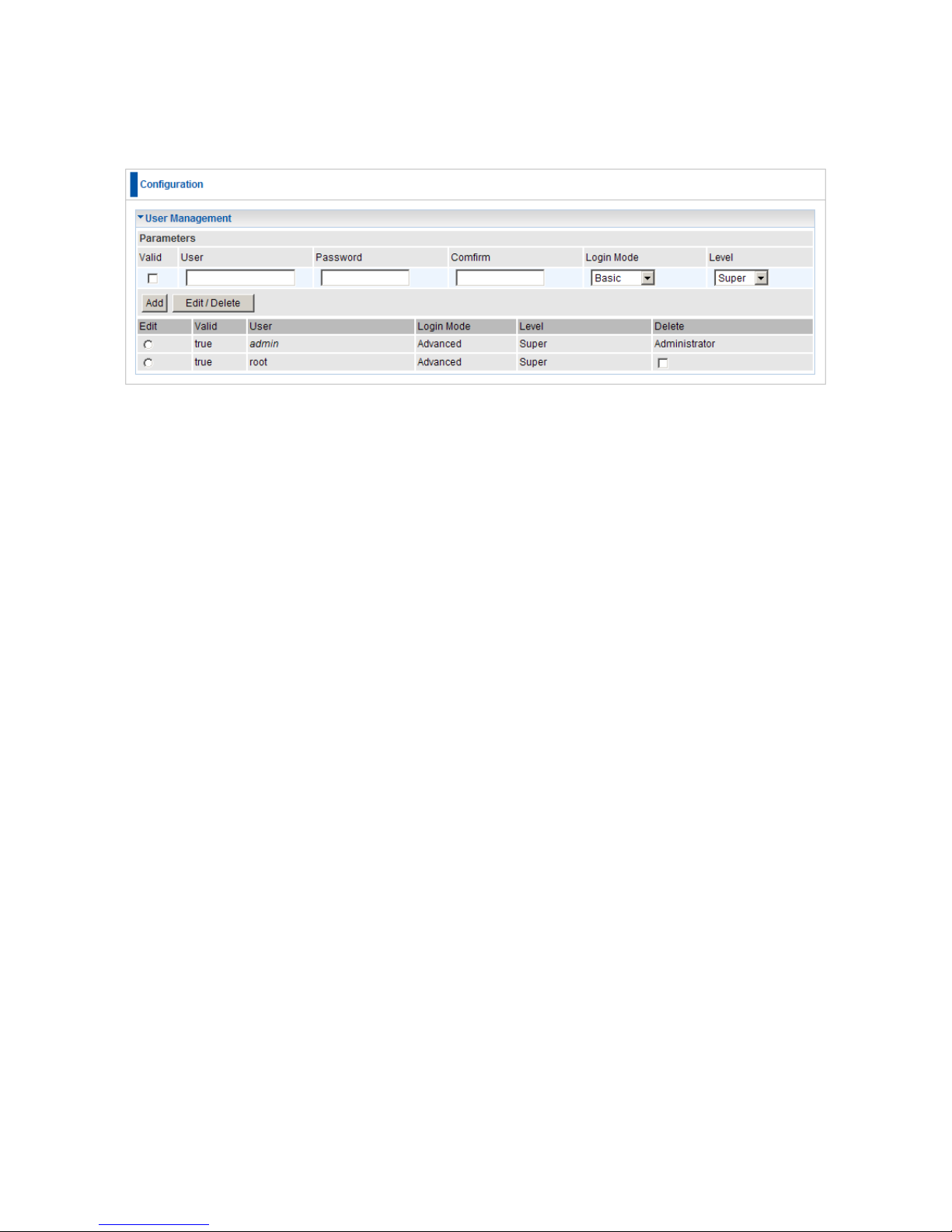

User Management .................................................................................................................................. 93

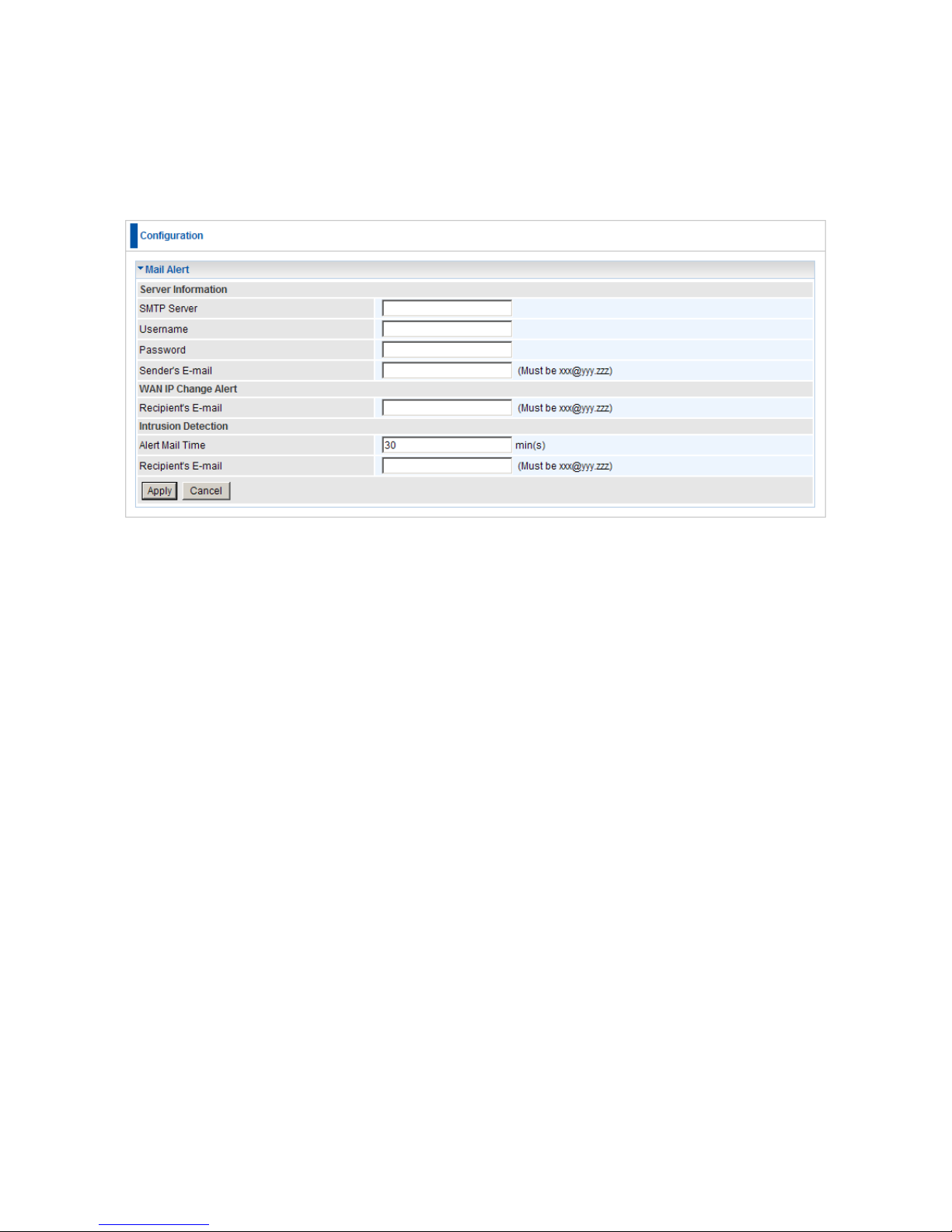

Mail Alert ................................................................................................................................................. 94

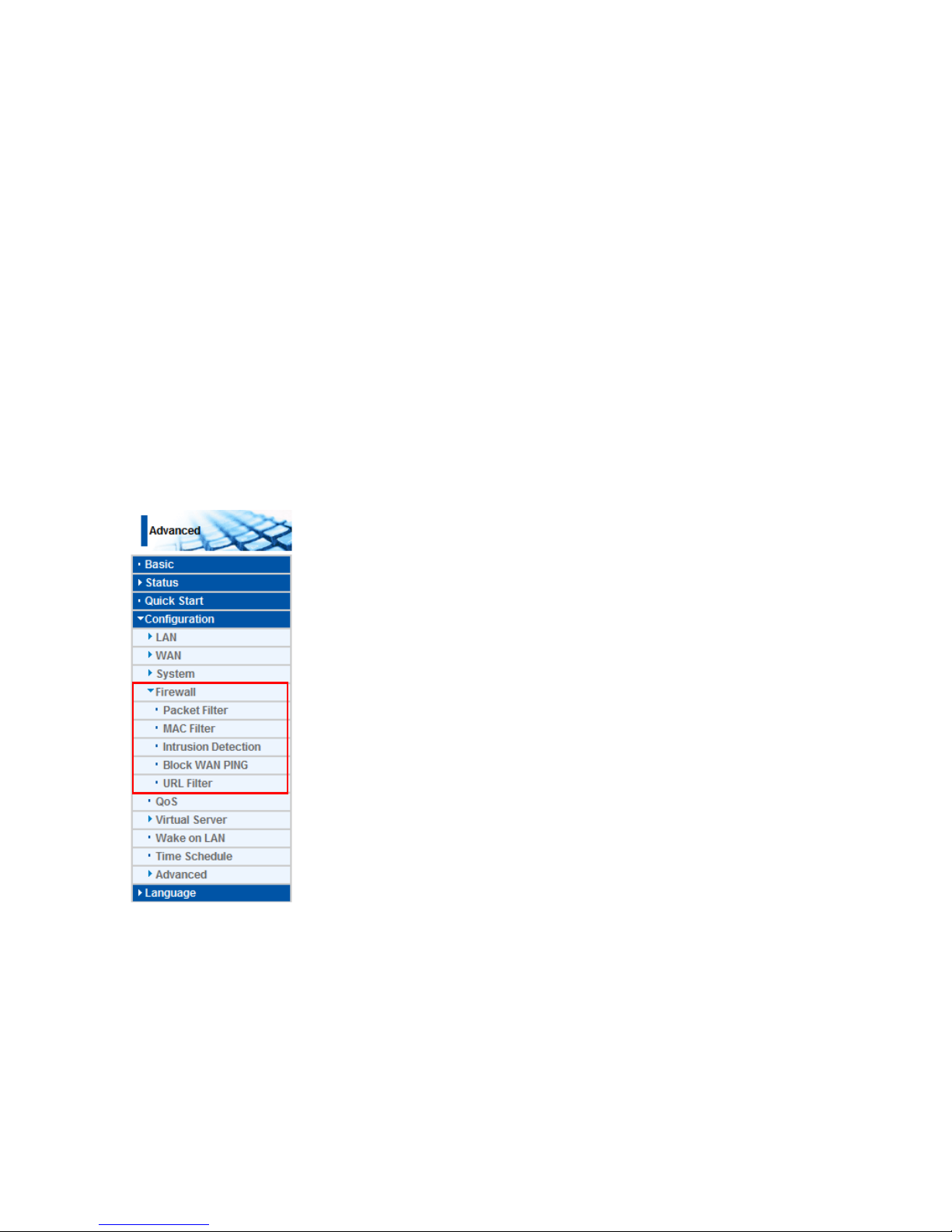

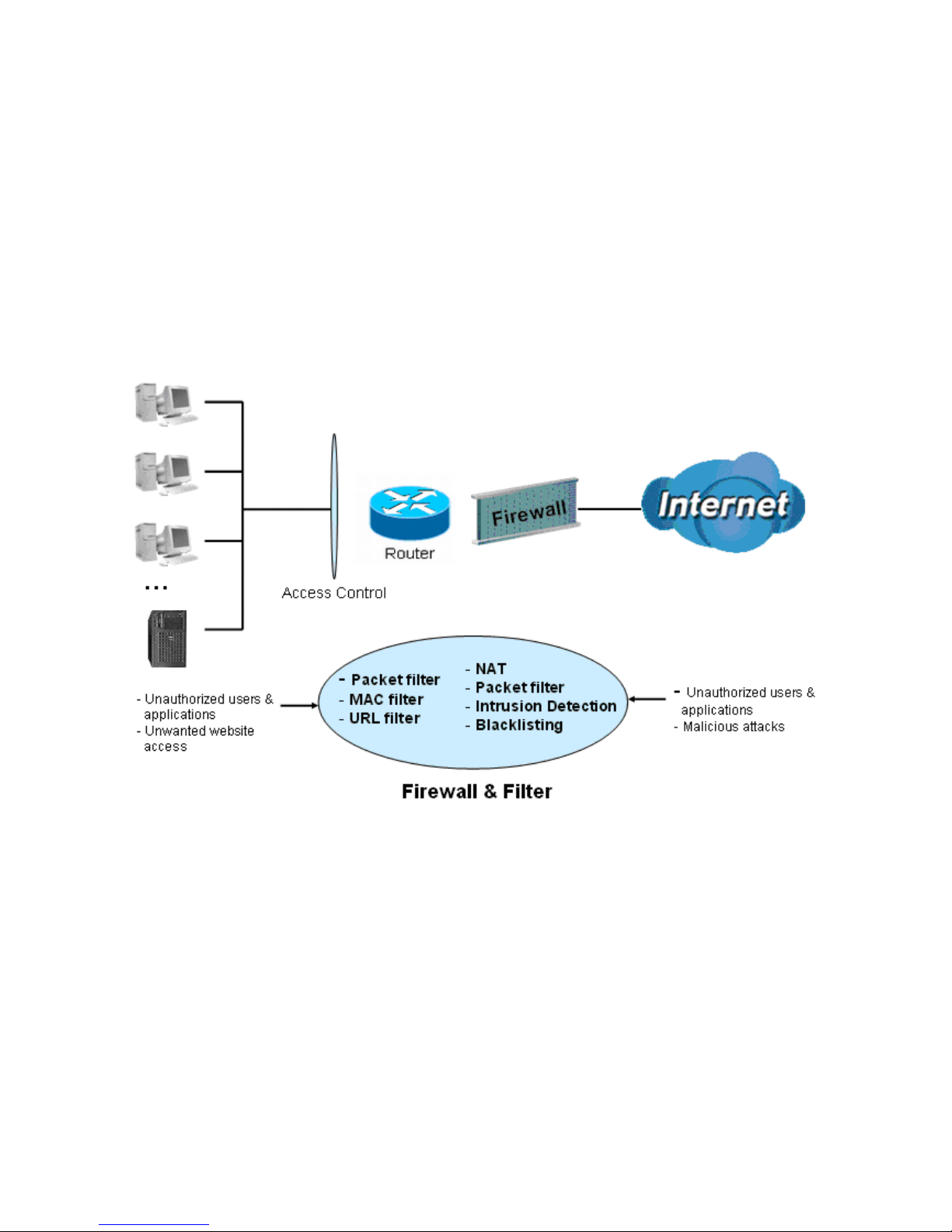

Firewall .................................................................................................................................................... 95

Packet Filter ................................................................................................................................... 97

MAC Filter ...................................................................................................................................... 99

Block WAN PING ......................................................................................................................... 102

URL Filter ..................................................................................................................................... 103

QoS (Quality of Service) ....................................................................................................................... 106

Virtual Server ......................................................................................................................................... 112

Port Mapping ................................................................................................................................. 114

DMZ ............................................................................................................................................... 116

Wake on LAN ......................................................................................................................................... 117

Time Schedule ....................................................................................................................................... 118

Advanced ............................................................................................................................................... 119

Static Route .................................................................................................................................. 120

Static ARP .................................................................................................................................... 120

Dynamic DNS ............................................................................................................................... 121

VLAN ............................................................................................................................................ 122

Device Management .................................................................................................................... 123

IGMP ............................................................................................................................................ 131

SNMP Access Control .................................................................................................................. 131

Remote Access ............................................................................................................................ 134

Save Configuration to Flash .................................................................................................................. 135

Restart ................................................................................................................................................... 135

Logout ................................................................................................................................................... 136

CHAPTER 6 - TROUBLESHOOTING ........................................................................................................... 137

REGULATORY APPROVALS ........................................................................................................................ 139

FCC Statement...................................................................................................................................... 139

CE Approval .......................................................................................................................................... 140

General Public License ......................................................................................................................... 140

Page 5

Default Settings

IP Address

192.168.0.1

Admin / Password

admin / password

Wireless Mode

Enable

SSID

WBR-6600

Security

None

Page 6

Chapter 1 - Introduction

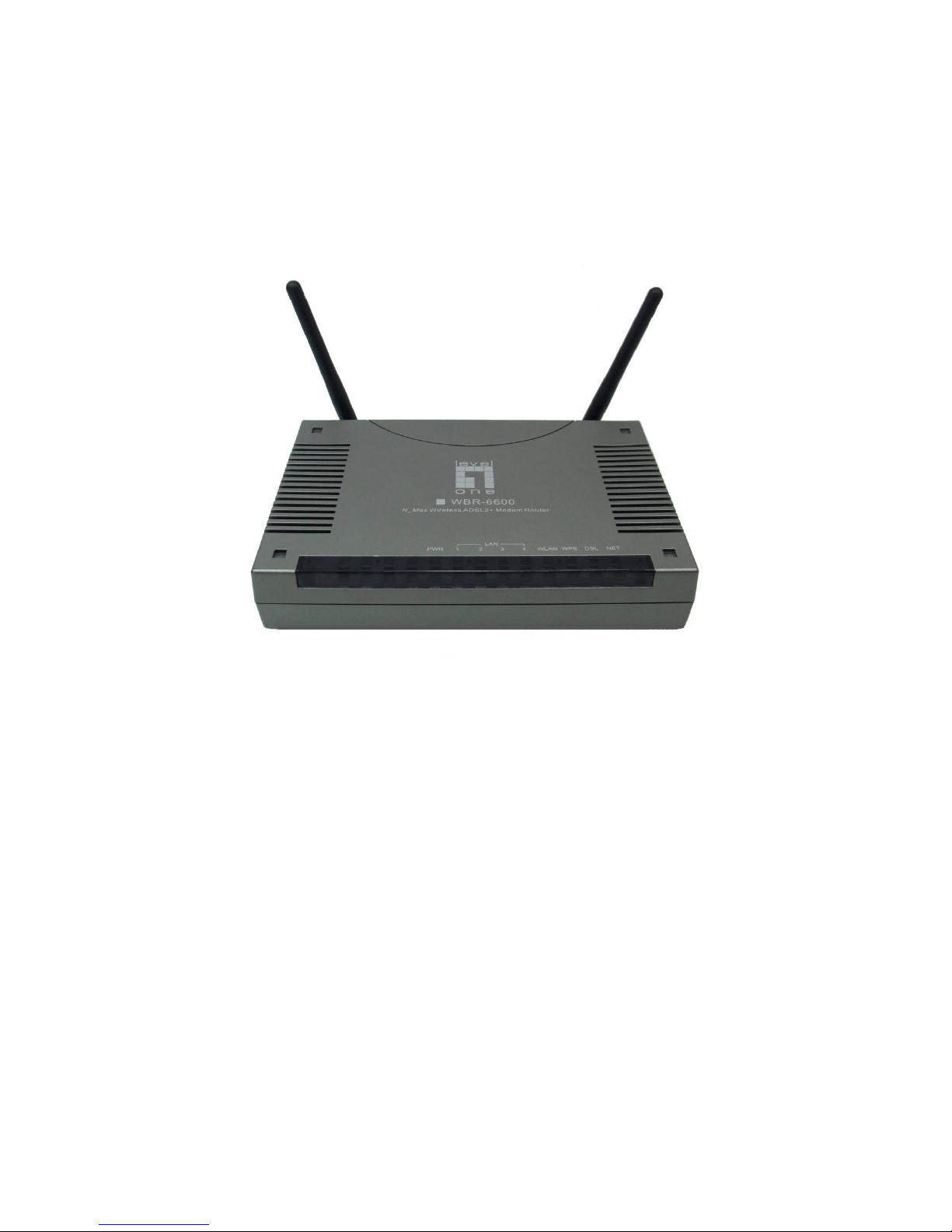

Introducing the WBR-6600

Thank you for purchasing the WBR-6600 Router. Your new router is an all-in-one unit that combines an ADSL modem, ADSL2/2+ router and Ethernet network switch to provide everything you need to get the machines on your network connected to the Internet over an ADSL broadband connection.

The WBR-6600 router complies with ADSL2+ standards for deployment worldwide and supports downstream rates of up to 24 Mbps and upstream rates of up to 1 Mbps. Designed for small office, home office and residential users, the router enables even faster Internet connections. You can enjoy ADSL services and broadband multimedia applications such as interactive gaming, video streaming and real-time audio much easier and faster than ever before.

The WBR-6600 supports PPPoA (RFC 2364 – PPP (Point-to-Point Protocol) over ATM Adaptation Layer 5), RFC 1483 encapsulation over ATM (bridged or routed), PPP over Ethernet (RFC 2516) to establish a connection with your ISP. Your new router also supports VC-based and LLC-based multiplexing.

The perfect solution for connecting a small group of PCs to a high-speed broadband Internet connection, the WBR-6600 allows multiple users to have high-speed Internet access simultaneously.

Your new router also serves as an Internet firewall, protecting your network from access by outside users. Not only does it provide a natural firewall function with Network Address Translation (NAT), it also provides rich firewall features to secure your network. All incoming data packets are monitored and filtered. You can also configure your new router to block internal users from accessing the Internet.

The WBR-6600 provides two levels of security support. First, it masks LAN IP addresses making them invisible to outside users on the Internet, so it is much more difficult for a hacker to target a machine on your network. Second, it can block and redirect certain ports to limit the services that outside users can access. To ensure that games and other Internet applications run properly, you can open specific ports for outside users to access internal services on your network.

Page 7

The Integrated DHCP (Dynamic Host Control Protocol) client and server services allow multiple users to get IP addresses automatically when the router boots up. Simply set local machines as a DHCP client to accept a dynamically assigned IP address from the DHCP server and reboot. Each time a local machine is powered up; the router recognizes it and assigns an IP address to instantly connect it to the LAN.

For advanced users, Virtual Service (port mapping) functions allow the product to provide limited visibility to local machines with specific services for outside users. For instance, a dedicated web server can be connected to the Internet via the router and then incoming requests for web pages that are received by the router can be rerouted to your dedicated local web server, even though the server now has a different IP address.

Virtual Server can also be used to re-task services to multiple servers. For instance, you can set the router to allow separated FTP, Web, and Multiplayer game servers to share the same Internet-visible IP address while still protecting the servers and LAN users from hackers.

Page 8

Features

Express Internet Access – ADSL2/2+ capable

The WBR-6600 complies with ADSL worldwide standards. Supporting downstream rates of 8Mbps with ADSL, the router is capable of up to 12/24 Mbps with ADSL2/2+, and upstream rates of up to 1 Mbps. Users enjoy not only high-speed ADSL services but also broadband multimedia applications such as interactive gaming, video streaming and real-time audio which are easier and faster than ever. The router is compliant with Multi-Mode standard (ANSI T1.413, Issue 2; G.dmt (ITU G.992.1); G.hs (ITU G994.1); G.dmt.bis (ITU G.992.3); and G.dmt.bisplus (ITU G.992.5)

802.11n Wireless AP with WPA Support

With integrated 802.11n Wireless Access Point in the router, the device offers a quick and easy access among wired network, wireless network and broadband connection (ADSL) with single device simplicity, and as a result, mobility to the users. In addition to 300 Mbps

802.11n data rate, it also interoperates backward with existing 802.11g and 802.11b equipment. The Wireless Protected Access (WPA) and Wireless Encryption Protocol (WEP) supported features enhance the security level of data protection and access control via Wireless LAN.

Fast Ethernet Switch A 4-port 10/100Mbps fast Ethernet switch is built-in with automatic switching between MDI

and MDI-X for 10Base-T and 100Base-TX ports, with auto detection allowing you to use either straight or cross-over Ethernet cables.

EWAN Besides using ADSL to get connected to the Internet, WBR-6600 offers its Ethernet port 1

as a WAN port to be used to connect to Cable Modems, VDSL, fiber optic lines and PON. This alternative, yet faster method to connect to the internet will provide users more flexibility to get online.

Page 9

Multi-Protocol to Establish a Connection

The router supports PPPoA (RFC 2364 - PPP over ATM Adaptation Layer 5), RFC 1483 encapsulation over ATM (bridged or routed), PPP over Ethernet (RFC 2516) to establish a connection with an ISP. The router also supports VC-based and LLC-based multiplexing.

Universal Plug and Play (UPnP) and UPnP NAT Traversal This protocol is used to enable simple and robust connectivity among stand-alone devices and PCs from many different vendors, and it makes setting up a network simple and affordable. UPnP architecture leverages TCP/IP and the Web to enable proximity networking in addition to control and data transfer among networked devices. With this feature enabled, you can seamlessly connect to Net Meeting or MSN Messenger.

Network Address Translation Network Address Translation (NAT) allows multiple users to access outside resources such as the Internet simultaneously with one IP address/one Internet access account. Many application layer gateways (ALG) are supported such as web browser, ICQ, FTP, Telnet, E-mail, News, Net2phone, Ping, NetMeeting, IP phone and others.

Firewall NAT technology supports simple firewalls and provides options for blocking access from the Internet, like Telnet, FTP, TFTP, WEB, SNMP and IGMP.

Domain Name Server Relay Domain Name Server (DNS) relay provides an easy way to map a domain name with a user-friendly name such as www.google.com with an IP address. When a local machine sets its DNS server to the router‟s IP address, every DNS conversion request packet from the PC to this router is forwarded to the real DNS on the outside network.

Dynamic Domain Name Server (DDNS) The Dynamic DNS service allows you to alias a dynamic IP address to a static hostname. This dynamic IP address is the WAN IP address. To use the service, you must first apply for an account from a DDNS service such as http://www.dyndns.org/.

Page 10

PPP over Ethernet (PPPoE)

The WBR-6600 provides an embedded PPPoE client function to establish a connection. You get greater access speed without changing the operation concept, while sharing the same ISP account and paying for one access account. No PPPoE client software is required for the local computer. Automatic Reconnect and Disconnect Timeout (Idle Timer) functions are also provided.

Quality of Service (QoS)

QoS gives you full control over which types of outgoing data traffic should be given priority by the router, ensuring important data like gaming packets, customer information, or management information move through the router at lightning speed, even under heavy load. The QoS features are configurable by Internal IP address, External IP address, protocol, and port. You can throttle the speed at which different types of outgoing data pass through

the router, to ensure P2P users don‟t saturate upload bandwidth, or office browsing doesn‟t

bring client web serving to a halt. In addition, or alternatively, you can simply change the priority of different types of upload data and let the router sort out the actual speeds.

Virtual Server:

You can specify which services are visible to outside users. The router detects an incoming service request and forwards it to the specific local computer for handling. For example, you can assign a PC in a LAN to act as a Web server inside and expose it to the outside network. Outside users can browse inside the web server directly while it is protected by NAT. A DMZ host setting is also provided for local computers exposed to the outside Internet network.

Dynamic Host Configuration Protocol (DHCP) Client and Server On a WAN site, the DHCP client obtains an IP address from the Internet Service Provider (ISP) automatically. On a LAN site, the DHCP server allocates a range of client IP addresses, including subnet masks and DNS IP addresses and distributes them to local computers. This provides an easy way to manage the local IP network.

Rich Packet Filtering

This feature filters the packet based on IP addresses as well as Port numbers. Filtering packets to and from the Internet provides a higher level of security control.

Page 11

Web-based GUI

A web-based GUI offers easy configuration and management. It also supports remote management capability for remote users to configure and manage this product.

Firmware Upgradeable You can upgrade the router with the latest firmware through its web-based GUI.

Page 12

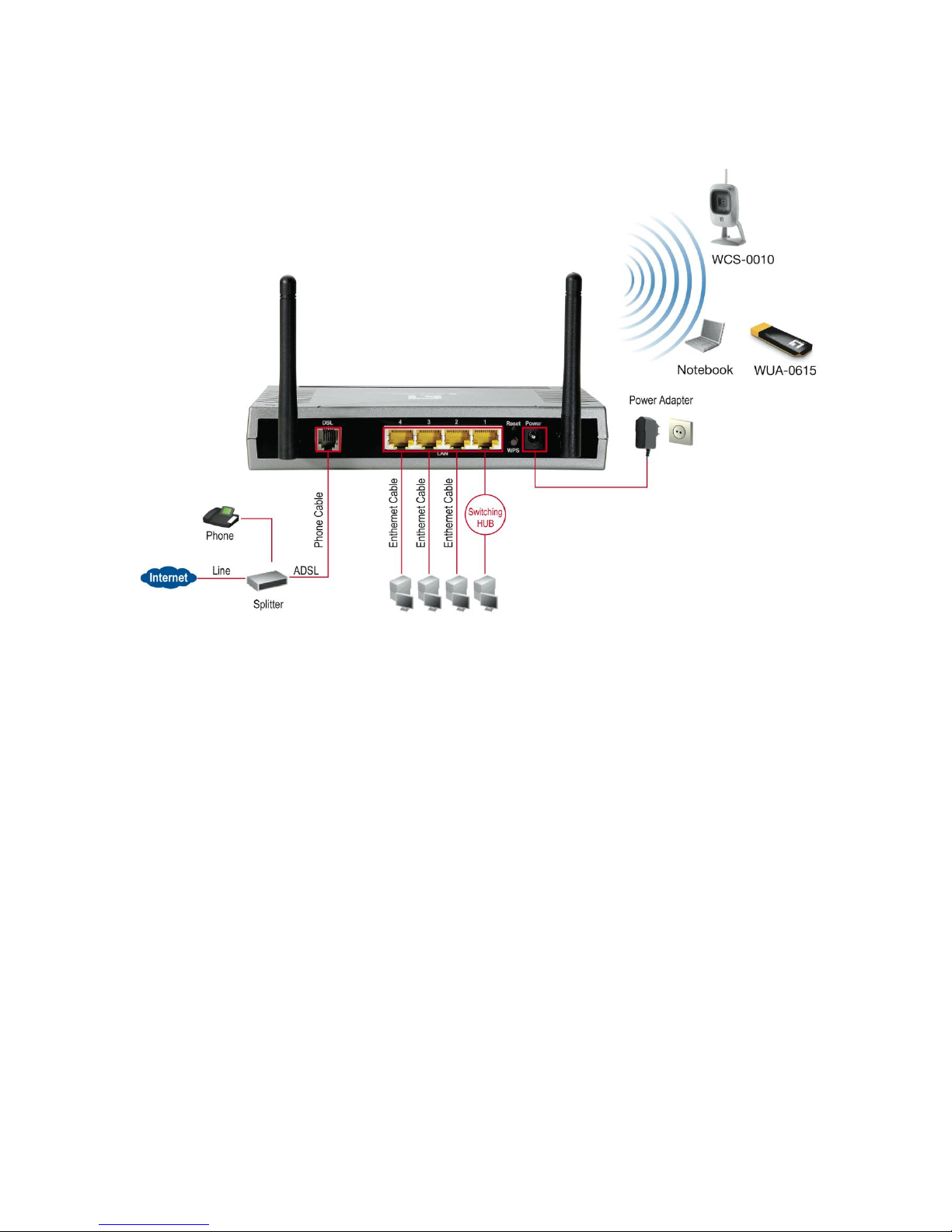

Installation Diagram of the WBR-6600

Page 13

Chapter 2 - Product Overview

Standards-Based Technology

The WBR-6600 Wireless Router utilizes the 802.11n standard. The IEEE 802.11n standard is an extension of the 802.11g standard. It increases the data rate up to 300 Mbps within the

2.4GHz band, utilizing OFDM technology. This means that in most environments, within the specified range of this device, you will be able to transfer large files quickly or even watch a movie in MPEG format over your network without noticeable delays. This technology works by transmitting high-speed digital data over a radio wave utilizing OFDM (Orthogonal Frequency Division Multiplexing) technology. OFDM works by splitting the radio signal into multiple smaller sub-signals that are then transmitted simultaneously at different frequencies to the receiver. OFDM reduces the amount of crosstalk (interference) in signal transmissions.

Installation Considerations

The WBR-6600 Wireless Router lets you access your network, using a wireless connection, from virtually anywhere within its operating range. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass.

Keep the number of walls and ceilings between the WBR-6600 and other network devices to a minimum - each wall or ceiling can reduce your WBR-6600 wireless product‟s range from 3-90 feet (1-30 meters.)

Position your devices so that the number of walls or ceilings is minimized. Be aware of the direct line between network devices. Position the devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception. Building Materials can impede the wireless signal - a solid metal door or aluminium studs may have a negative effect on range.

Try to position wireless devices and computers with wireless adapters so that the signal passes through drywall or open doorways and not other materials. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate extreme RF (radio frequency) noise.

Page 14

Package Contents

WBR-6600 N_Max Wireless ADSL2+ Modem Router CD-ROM containing the online manual

2x Antennas RJ-11 ADSL/Telephone Cable Ethernet (CAT-5 LAN) Cable AC-DC power adapter (12V DC, 1A) Quick Installation Guide

Important Notes

Warning:

 Do not use the WBR-6600 in high humidity or high temperatures.  Do not use the same power source for the WBR-6600 as other equipment.  Do not open or repair the case yourself. If the WBR-6600 is too hot, turn off the power

immediately and have it repaired at a qualified service center.

 Avoid using this product and all accessories outdoors.

Attention:

 Place the WBR-6600 on a stable surface.  Only use the power adapter that comes with the package. Using a different voltage

rating power adaptor may damage the router.

Page 15

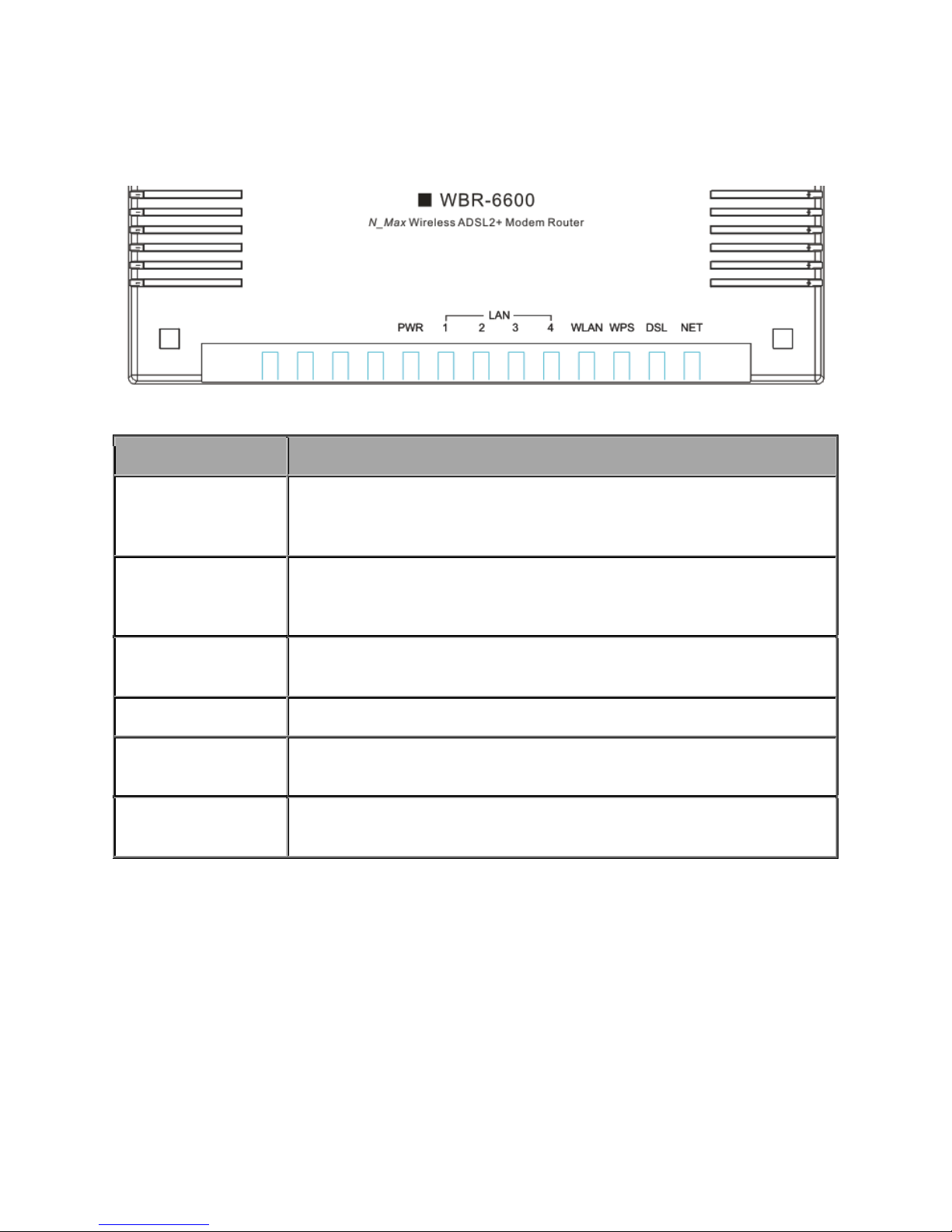

The Front LEDs - WBR-6600

LED

Meaning

Power:

When the power is plugged in, it will light Red and when the system is ready, it will remain Green. Whilst the system is rebooting or firmware upgrading, the LED light flashes.

LAN Ports 1-4:

Lights when connected to an Ethernet device. Green for 100Mbps; Orange for 10Mbps. Blinking when data is Transmitted / Received.

WLAN:

Lights green when the wireless connection is established. Flashes when sending/receiving data.

WPS

Blinking when WiFi Protected Setup (WPS) is in progress.

DSL:

Remain lit when successfully connected to ADSL. Linesync is achieved.

NET :

Lights red when WAN port fails to get IP address. Lights green when WAN port gets IP address successfully.

Page 16

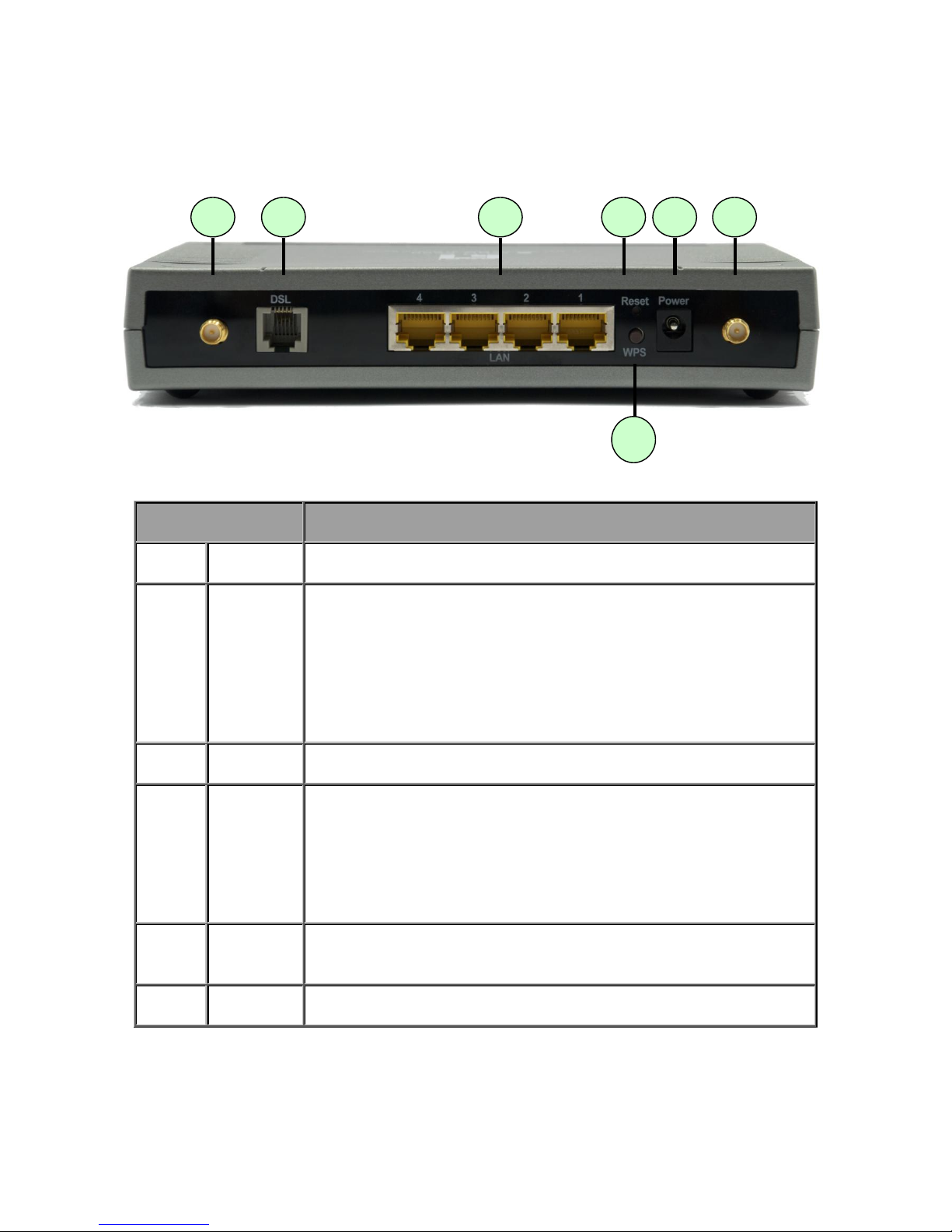

The Rear Ports - WBR-6600

Port

Description

Power

Connect the supplied power adapter to this jack.

Reset

After the router is powered on, press this reset button using the end of paper clip or other small pointed object to reset the router and to restore it to factory default settings.

1. Recovery procedures for non-working routers (e.g. after a failed firmware upgrade flash).

2. Recovery procedures for a lost web interface password:

WPS

Push WPS button to trigger Wi-Fi Protected Setup function.

Ethernet

Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the four LAN ports when connecting to a PC or an office/home network of 10Mbps or 100Mbps.

Note: Only Ethernet port 1 can be used for EWAN.

DSL

Connect the supplied RJ-11 (“telephone”) cable to this port when connecting to the ADSL/telephone network.

Antenna

Connect the detachable antenna to this port.

Page 17

The detail instruction in Reset Button

Recovery procedures for non-working routers (e.g. after a failed firmware upgrade flash): Hold the Reset Button on the back of the modem in. Keep this button held in and turn on the modem. Once the lights on the modem have stopped flashing, release the Reset Button. The modem's emergency-reflash web interface will then be accessible via http://192.168.0.1 where you can upload a firmware image to restore the modem to a functional state. Please note that the modem will only respond via its web interface at this address, and will not respond to ping requests from your PC or to telnet connections.

Note:

Before powering on the router to enter the recovery process, please configure the IP address of the PC as 192.168.0.100 and proceed with the following step by step guide.

1. Power the router off.

2. Hold the "Reset Button”.

3. Power on the router. Then Router's IP will reset to Emergency IP address (Say

192.168.0.1)

4. Flash the firmware.

Page 18

Antenna Position Placement

To get the best quality wireless reception out of your router, the antennas should be positioned at 45 degree angles, like the following image, to minimize the wireless interference caused between the antennas.

Cabling

One of the most common causes of problems is because of bad cabling or ADSL line(s). Make sure that all connected devices are turned on. On the front of the product is a bank of LEDs. Verify that the LAN Link and ADSL line LEDs are lit. If they are not, verify that you are using the proper cables.

Ensure that all other devices connected to the same telephone line as your router (e.g. telephones, fax machines, analogue modems) have a line filter connected between them and the wall socket (unless you are using a Central Splitter or Central Filter installed by a qualified and licensed electrician), and to ensure that all line filters are correctly installed and the right way around. Missing line filters or line filters installed being the wrong way around can cause problems with your ADSL connection, which includes frequent disconnections.

Page 19

Chapter 3 - Installation

You can configure the WBR-6600 router through the convenient and user-friendly interface of a web browser. Most popular operating systems such as Linux, MAC OS and Windows 98/NT/2000/XP/Vista include a web browser as a standard application.

Before Configuration

PCs must have a properly installed Ethernet interface which connects to the router directly or through an external repeater hub. In addition, PCs must have TCP/IP installed and configured to obtain an IP address through a DHCP server or a fixed IP address that must be in the same subnet as the router. The default IP address of the router is 192.168.0.1 and the subnet mask is 255.255.255.0 (i.e. any attached PC must be in the same subnet, and have an IP address in the range between 192.168.0.2 and 192.168.0.254). The easiest way is to configure the PC is to obtain an IP address automatically from the router using DHCP. If you encounter any problems accessing the router‟s web interface you are advised to uninstall any kind of software firewall on your PCs, as they can cause problems when trying to access the 192.168.0.1 IP address of the router.

Please follow the steps below for installation on your PC‟s network environment. First of all,

check your PC‟s network components. The TCP/IP protocol stack and Ethernet network

adapter must be installed. If not, please refer to your Windows-related or other operating system manuals.

Note: Any TCP/IP capable workstation can be used to communicate with or through the

WBR-6600. To configure other types of workstations, please consult the manufacturer‟s documentation.

Page 20

Configuring a PC in Windows XP

1. Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network Connections

2. Double-click Local Area Connection.

3. In the Local Area Connection Status window, click Properties.

4. Select Internet Protocol (TCP/IP) and click Properties.

5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio

buttons.

6. Click OK to finish the configuration.

Page 21

Configuring a PC in Windows 2000

1. Go to Start / Settings / Control Panel.

In the Control Panel, double-click on

Network and Dial-up Connections.

2. Double-click Local Area Connection.

3. In the Local Area Connection Status window click Properties.

4. Select Internet Protocol (TCP/IP) and click Properties.

5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio

buttons.

6. Click OK to finish the configuration.

Page 22

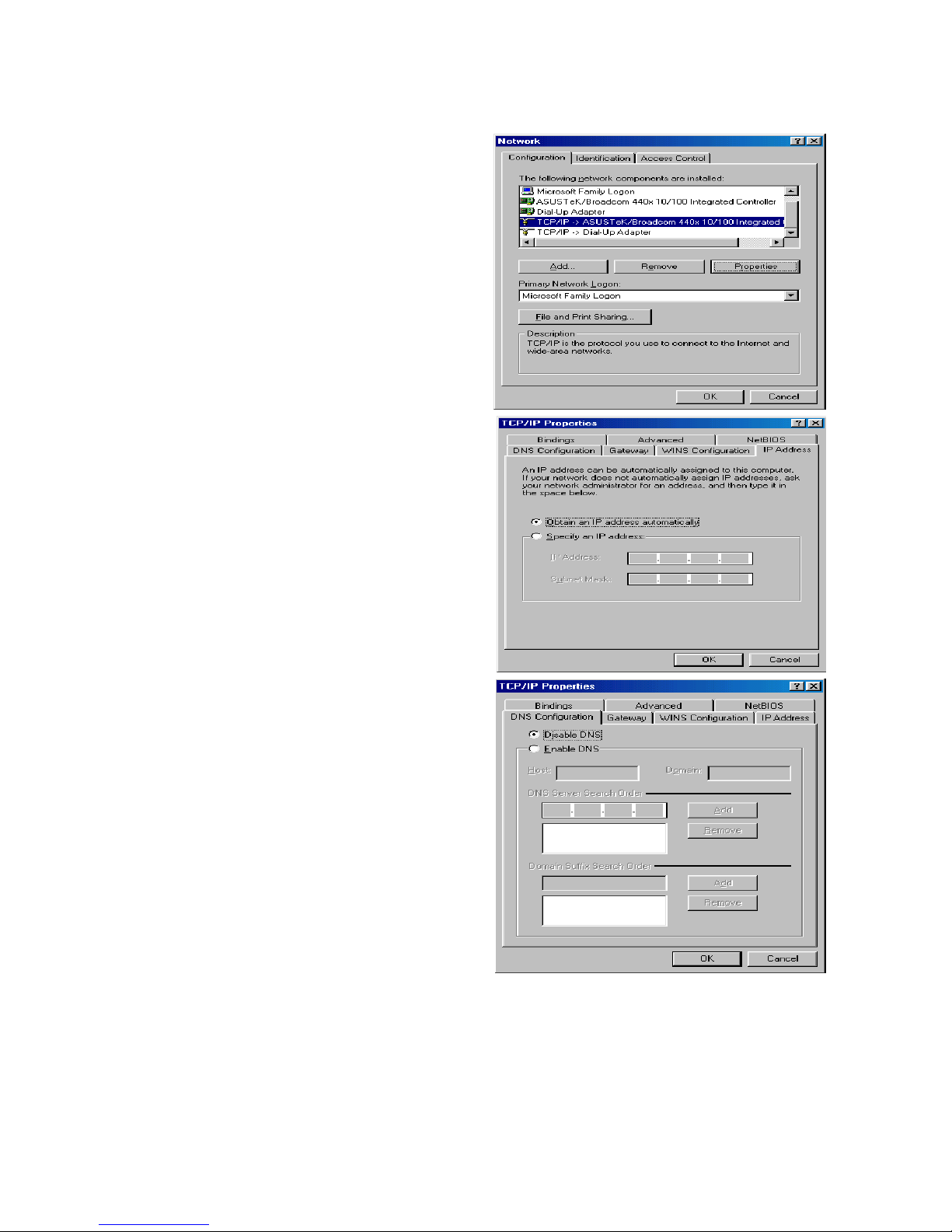

Configuring PC in Windows 98/Me

1. Go to Start / Settings / Control Panel.

In the Control Panel, double-click on

Network and choose the Configuration tab.

2. Select TCP/IP, or the name of your

Network Interface Card (NIC) in your PC.

3. Select the Obtain an IP address automatically radio button.

4. Then select the DNS Configuration

tab.

5. Select the Disable DNS radio button and click OK to finish the configuration.

Page 23

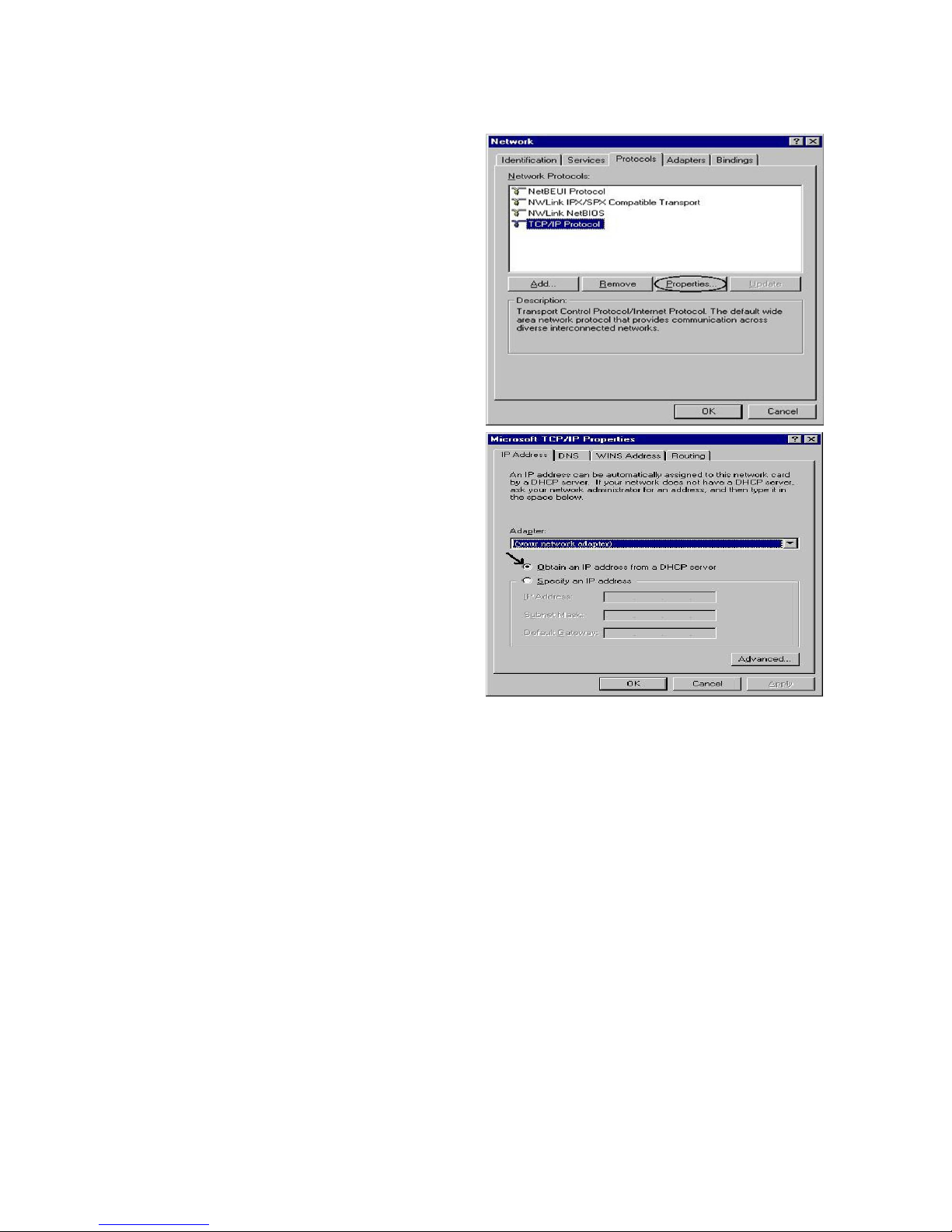

Configuring PC in Windows NT4.0

1. Go to Start / Settings / Control Panel.

In the Control Panel, double-click on

Network and choose the Protocols tab.

2. Select TCP/IP Protocol and click Properties.

3. Select the Obtain an IP address from a DHCP server radio button and click OK.

Page 24

Factory Default Settings

Before configuring the WBR-6600 router, you need to know the following default settings.

Web Interface: (Username and Password)

Username: admin Password: password

The default username and password are “admin” and “password” respectively.

Attention:

If you ever forget the username/password to login to the router, you may press the RESET button up to 6 seconds then release it to restore the factory default settings.

Caution: After pressing the RESET button for more than 6 seconds then release it, to be sure you power cycle

the device again.

LAN Device IP Settings:

IP Address: 192.168.0.1 Subnet Mask: 255.255.255.0

ISP setting in WAN site:

PPPoE

DHCP Server:

DHCP server is enabled. Start IP Address: 192.168.0.2 IP pool counts: 253

Page 25

LAN and WAN Port Addresses

The parameters of LAN and WAN ports are preset at the factory. The default values are shown below.

LAN Port

WAN Port

IP address

192.168.0.1

The PPPoE function is enabled to automatically get the WAN port configuration from the ISP, but you have to set the username and password first.

Subnet Mask

255.255.255.0

DHCP server function

Enabled in ports 1, 2, 3, and 4

IP addresses for distribution to PCs

253 IP addresses continuing from 192.168.0.2 through

192.168.0.254

Information from your ISP

Before configuring this device, you have to check with your ISP (Internet Service Provider) what kind of services are provided, such as PPPoE, PPPoA, MPoA or Pure Bridge.

Gather the information as illustrated in the following table and keep it for reference.

PPPoE

VPI/VCI, VC-based/LLC-based multiplexing, Username, Password, Service Name, and Domain Name System (DNS) IP address (it can be automatically assigned by your ISP when you connect or be set manually).

PPPoA

VPI/VCI, VC-based/LLC-based multiplexing, Username, Password, and Domain Name System (DNS) IP address (it can be automatically assigned by your ISP when you connect or be set manually).

RFC1483 Bridged

VPI/VCI, VC-based/LLC-based multiplexing to use Bridged Mode.

RFC1483 Routed

VPI/VCI, VC-based/LLC-based multiplexing, IP address, Subnet mask, Gateway address, and Domain Name System (DNS) IP address (it is fixed IP address).

Page 26

Configuring with your WBR-6600

Note:

1. To configure this device, you must have Internet Explorer 5.0 / Netscape 4.5 or above installed

2. You may configure the router for Internet access in two ways:

(A) Easy Sign On (B) Web Configuration

Easy Sign On:

After setting up the router with the appropriate cables plugged, proceed to load your internet browser.

Easy Sign On will start automatically once you open your Web Browser.

Follow the Easy Sign On Wizard and it will guide you to complete the basic network configuration.

Note:

If Easy Sign-On does not start, please type in the address http://192.168.0.1, enter Username and Password and click Quick Start. The Quick Start process is the same as Easy Sign-On.

1. Click Continue.

Page 27

2. Choose “Auto” or “Manually” to scan ADSL settings.

Note:

If automatic detection does not work, please ask your ISP and enter the Protocol, VPI and VCI manually.

3. The Auto scan result is displayed. Please note this may vary depending on your local operator settings. If you are not sure, please consult your ISP (Internet Service Provider).

4. Please enter “Username” and “Password” as supplied by your ISP and click continue.

Page 28

5. Internet Settings are Complete. Now proceed to wireless network settings.

6. LevelOne recommends WPA2 for maximum security.

The shared key is the passkey to your wireless network. It can be numbers or letters and needs to be at least 8 characters.

Please ensure your wireless computers and devices are set to the same security mode and key as the WBR-6600.

7. Congratulations!! You‟ve completed the setup procedure and you are now ready to surf the Internet.

Page 29

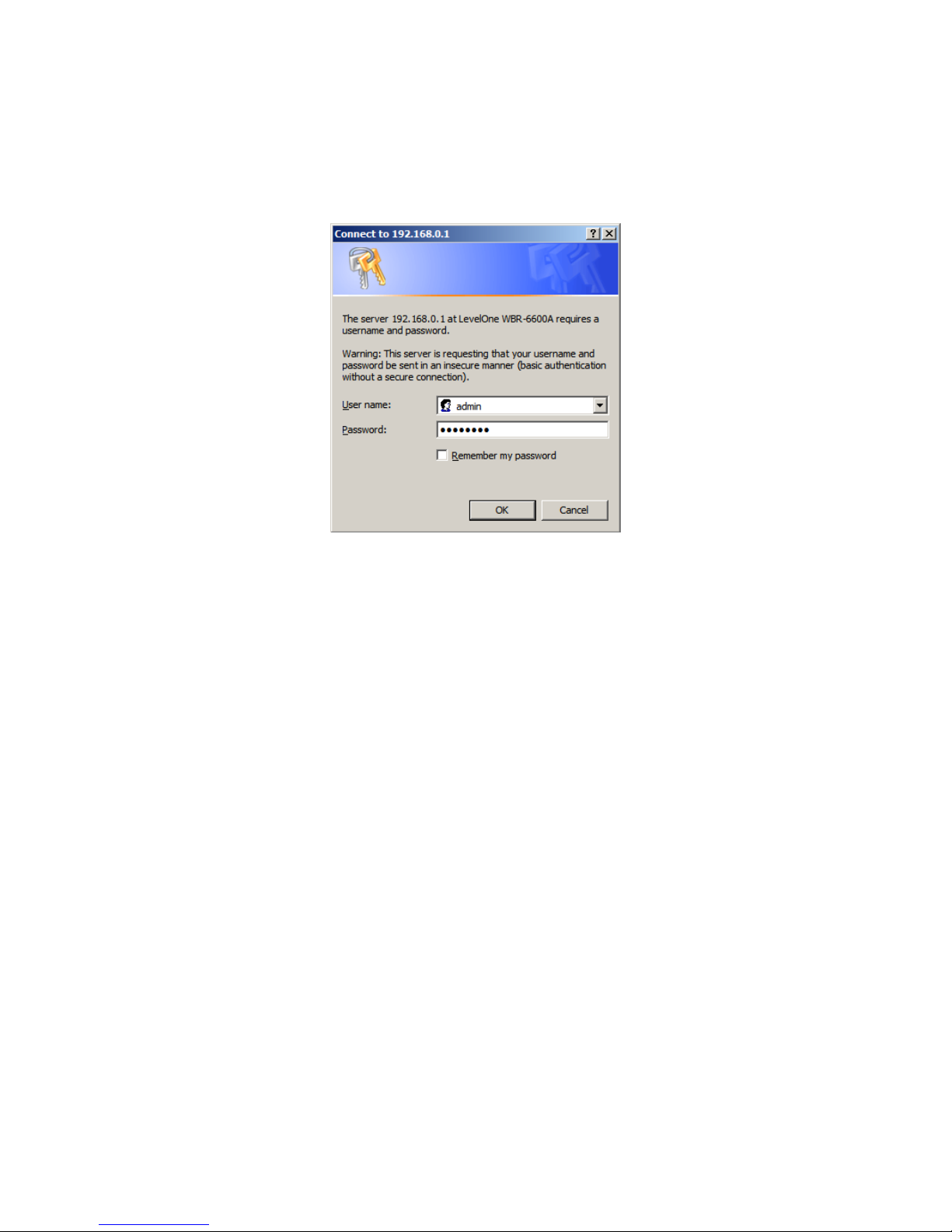

Web Configuration:

Open your web browser, enter the IP address of your router, which by default is 192.168.0.1, and press the “Enter” key, a user name and password window prompt appears. The default username and password are “admin” and “password”.

Congratulations! You have successfully logged on to your WBR-6600 Modem Router!

Page 30

Chapter 4 – Basic Configuration

Once you have logged on to your WBR-6600 Router via your web browser, you can begin to set it up according to your requirements. On the configuration homepage, the left navigation pane links you directly to the setup pages, which include:

 Advance (Switch to Advance Configuration mode)  Status  Quick Start  WAN  WLAN

Page 31

Status Page

This page shows you the current status of the WBR-6600.

Device Information

 Model Name: The model name of the device.  System Up-Time: Records system up-time.  Hardware Version: Device version  Software Version: Firmware version

Port Status  Port Status：User can look up to see if they are connected to Ethernet, ADSL.

WAN

 Port: Name of the WAN connection.  Protocol VPI/VCI: Virtual Path Identifier and Virtual Channel Identifier  Operation: Current available operation.  Connection: The current connection status.  IP Address: WAN port IP address.  Netmask: WAN port IP subnet mask.  Gateway: The IP address of the default gateway.  Primary DNS: The IP address of the primary DNS server.

Page 32

Quick Start

This wizard is similar to Easy Sign On, and will guide you through setting up your WBR-6600.

Click Continue to start the wizard. The steps are the same as the Easy Sign On.

Page 33

Set Wireless Configuration

 WLAN Service: Default setting is set to Enable.  ESSID: The ESSID is the unique name of a wireless access point (AP) to be

distinguished from another. For security purpose, change to a unique ID name to the AP which is already built-in to the router‟s wireless interface. It is case sensitive and must not excess 32 characters. Make sure your wireless clients have exactly the ESSID as the device, in order to get connected to your network.

 Channel ID: Select the ID channel that you would like to use. (Recommend Auto)  Security Mode: You can disable or enable with WPA or WEP for protecting wireless

network. The default mode of wireless security is Disable.

Page 34

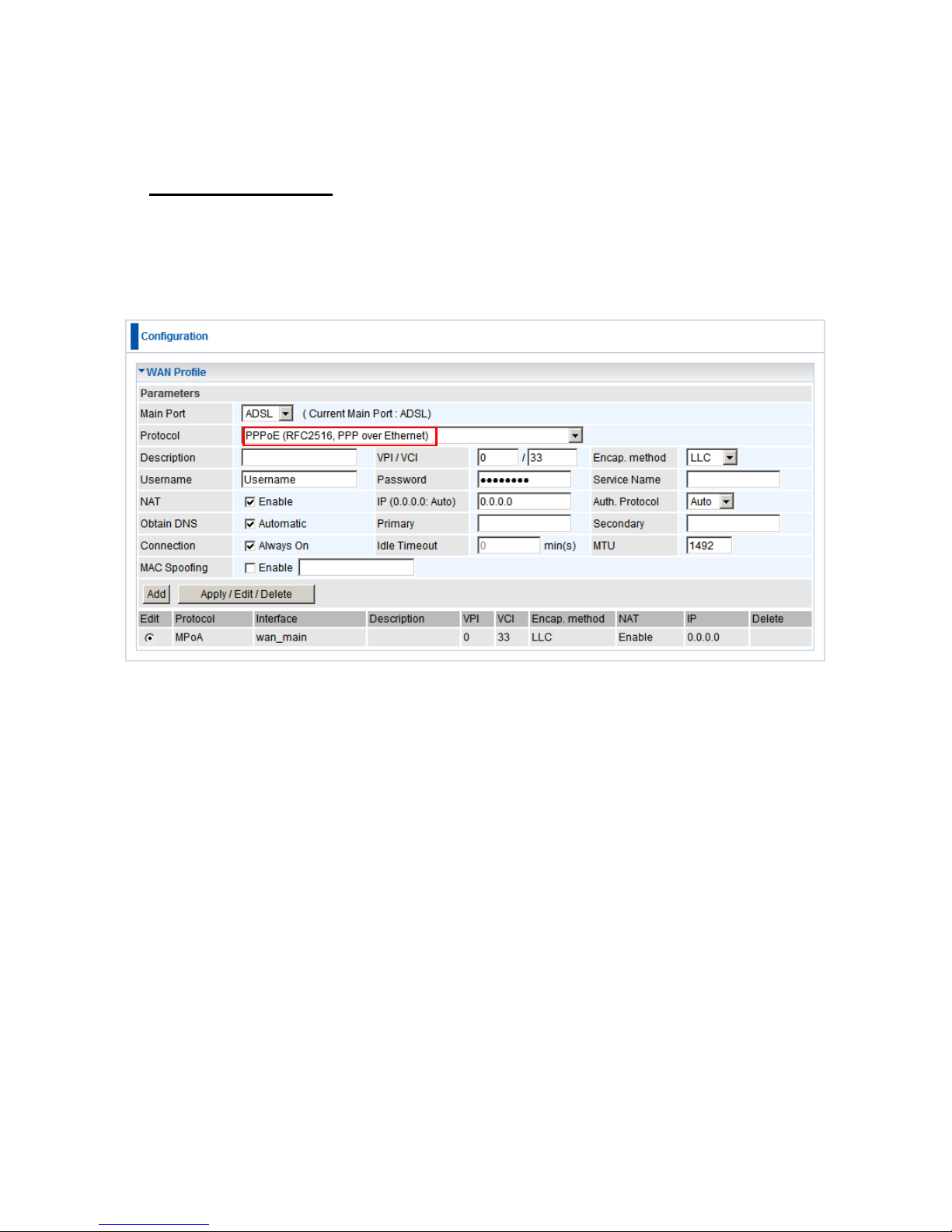

WAN

Here you can manually enter the ADSL settings provided by your Service Provider. Use this if the Easy Sign On, or Quick Start cannot successfully auto-detect your ADSL settings.

 Main Port: To switch between ADSL and EWAN for WAN port function.  VPI/VCI: Enter the VPI and VCI information provided by your ISP.  Username: Enter the username provided by your ISP. You can input up to 128

alphanumeric characters (case sensitive). This is in the format of “username@ispname”

instead of simply “username”.

 Password: Enter the password provided by your ISP. You can input up to 128

alphanumeric characters (case sensitive)

 Service Name: This item is for identification purposes. If it is required, your ISP provides

you the information. Maximum input is 15 alphanumeric characters.

 Encap. method: Select the encapsulation format, the default is LLC. Select the one

provided by your ISP

 Auth. Protocol: Default is Auto. Your ISP advises on using Chap or Pap.  IP Address: Your WAN IP address. Leave this at 0.0.0.0 to automatically obtain an IP

address from your ISP.

Note: EWAN function turns LAN 1 into a WAN port. It supports DHCP, PPPoE or Static IP.

Page 35

WLAN

 WLAN Service: Enable or Disable Wireless function. Default setting is set to Enable.  ESSID: The ESSID is the unique name of a wireless access point (AP) to be

distinguished from another. For security propose, change to a unique ID name to the AP which is already built-in to the router‟s wireless interface. It is case sensitive and must not excess 32 characters. Make sure your wireless clients have exactly the ESSID as the device, in order to get connected to your network.

 Note: ESSID is case sensitive and must not excess 32 characters.

 Hide ESSID: It is function in which transmits its ESSID to the air so that when wireless

client searches for a network, router can then be discovered and recognized. Default setting is Disable.

 Enable: Select Enable if you do not want broadcast your ESSID. When select

Enable, no one will be able to locate the Access Point (AP) of your router.

 Disable: When Disable is selected, you can allow anybody with a wireless

client to be able to locate the Access Point (AP) of your router.

 Regulation Domain: There are seven Regulation Domains for you to choose from,

including North America (N.America), Europe, France, etc. The Channel ID will be different based on this setting.

 Channel ID: Select the ID channel that you would like to use.  Security Mode: You can disable or enable with WPA or WEP for protecting wireless

network. The default mode of wireless security is Disable.

Page 36

Wireless Security Parameters

WPA Pre-Shared Key

 WPA Shared Key: The key for network authentication. The input format is in character

style and the key size should be in the range between 8 and 63 characters.

 Group Key Renewal: The period of renewal time for changing the security key

between wireless client and Access Point (AP). This process is done automatically.

Note: In basic mode, WPA will utilize TKIP encryption method. If you want to use WPA with AES encryption, please go to Advanced settings.

WPA2 Pre-Shared Key

 WPA2 Shared Key: The key for network authentication. The input format is in

character style and key size should be in the range between 8 and 63 characters.

 Group Key Renewal: The period of renewal time for changing the security key

between wireless client and Access Point (AP). This process is done automatically.

Note: In basic mode, WPA2 will utilize AES encryption method. If you want to use WPA2 with TKIP encryption, please go to Advanced settings.

Page 37

WPA/WPA2 Pre-Shared Key

In this mode, the router will accept both WPA and WPA2 wireless clients  WPA Shared Key: The key for network authentication. The input format is in character

style and key size should be in the range between 8 and 63 characters.

 Group Key Renewal: The period of renewal time for changing the security key

between wireless client and Access Point (AP). This process is done automatically.

Page 38

WEP

 WEP Authentication: To prevent unauthorized wireless stations from accessing data

transmitted over the network, the router offers secure data encryption, known as WEP. If you require high security for transmissions, there are three options to select from: Open System, Share key or Both.

 Default Used WEP Key: Select the encryption key ID; please refer to Key (1~4) below.  Passphrase: This is used to generate WEP keys automatically based upon the input

string and a pre-defined algorithm in WEP64 or WEP128. You can input the same string in both the AP and Client card settings to generate the same WEP keys. Please note that you do not have to enter Key (1-4) as below when the Passphrase is enabled.

 Key (1-4): Enter the key to encrypt wireless data. To allow encrypted data transmission,

the WEP Encryption Key values on all wireless stations must be the same as the router. There are four keys for your selection. The input format is in HEX or ASCII style, 5 and 13 ASCII codes are required for WEP64 and WEP128 respectively no any separator is included.

Page 39

Chapter 5 – Advance Configuration

 Basic (Switch to Basic Configuration Mode)  Status (ADSL Status, ARP Table, DHCP Table, System Log, Firewall Log, UPnP

Portmap)

 Quick Start  Configuration (LAN, WAN, System, Firewall, QoS, Virtual Server, Wake on LAN, Time

Schedule and Advanced)

The following sections provide an overview of the settings available for configuring your router.

Page 40

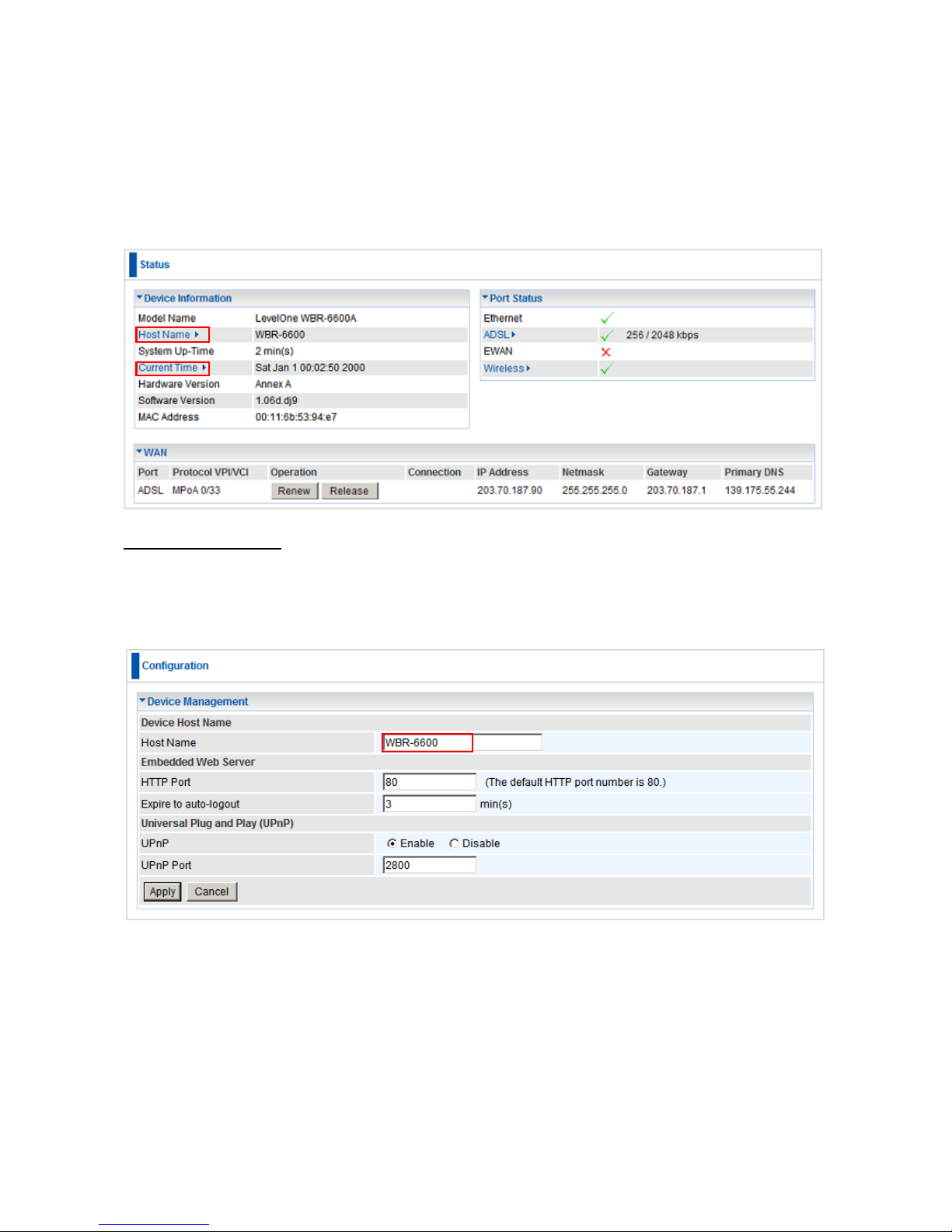

Status Page

This page shows you the current status of the WBR-6600, with advanced options such as Host Name and Time settings.

Device Information

 Model Name: The model name of the device.  Host Name: Provide a name for the router for identification purposes. Host Name lets

you change the router name. Click on Host Name to direct you to the following page:

 System Up-Time: Records system up-time.  Current time: Set the current time. See the Time Zone section for more information.  Hardware Version: Device version.  Software Version: Firmware version.  MAC Address: The LAN MAC address.

Page 41

Port Status

 Port Status: User can look up to see if they are connected to Ethernet, ADSL, EWAN or

Wireless.

WAN

Page 42

ADSL Status

This page shows you the current status of the WBR-6600‟s ADSL connection.

 DSP Firmware Version: DSP code version  DMT Status: Current DMT Status  Operational Mode: To show the state when user select “AUTO” on connect mode.  Upstream: Upstream rate.  Downstream: Downstream rate.  SNR Margin (Upstream): This is noise margin in upstream.  SNR Margin (Downstream): This is noise margin in downstream.  Line Attenuation (Upstream): This is attenuation of signal in upstream.  Line Attenuation (Downstream): This is attenuation of signal in downstream.

Page 43

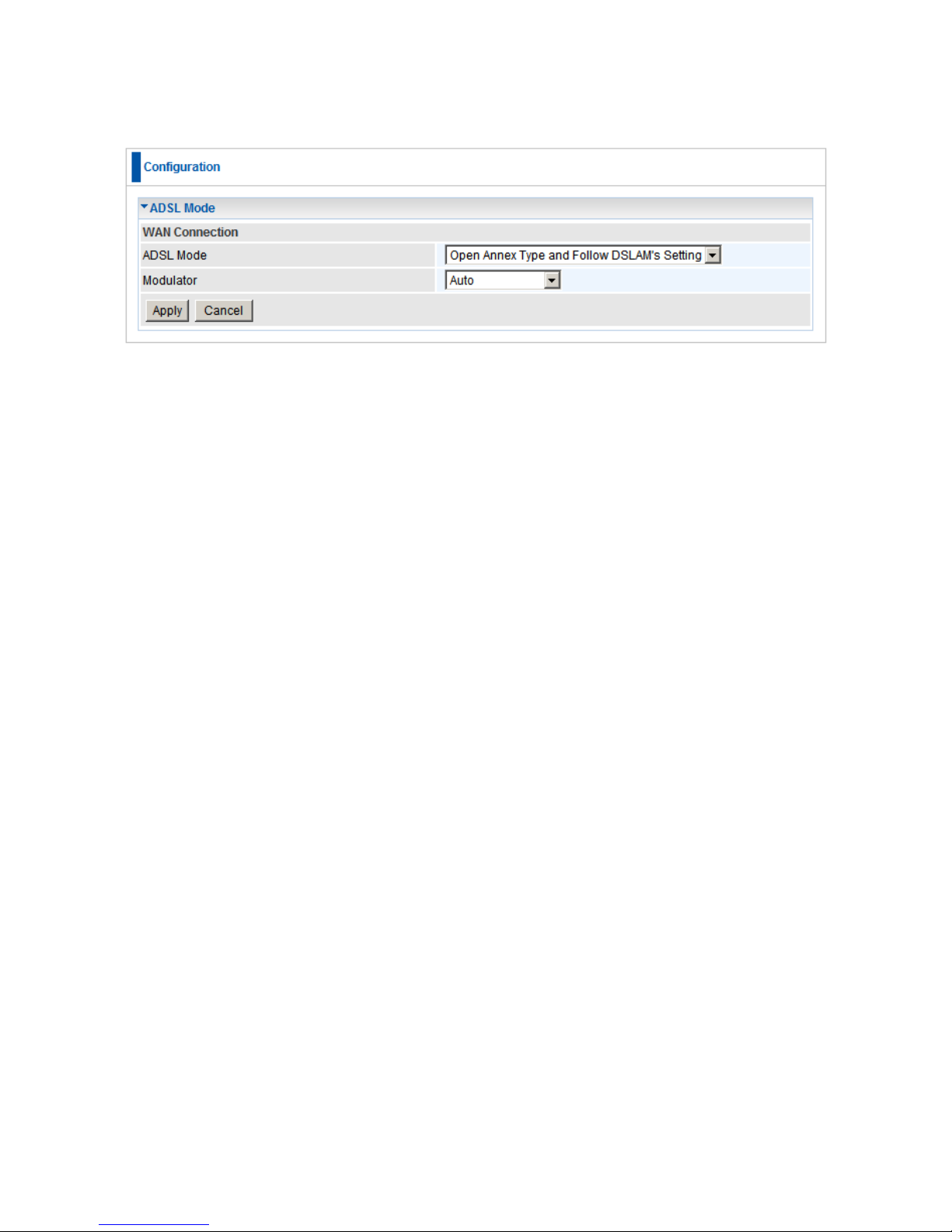

Operational Mode

ADSL Mode: There are four modes “Open Annex Type and Follow DSLAM’s Setting”, ”Annex A”, ”Annex L”, ”Annex M” and “Annex J” that user can select for this

connection.

Modulator: There are seven modes “AUTO”,”ADSL Multimode”,”ADSL2”, ”ADSL2+”,”G.Lite”, “T1.413” and “G.DMT” that user can select for this connection.

Page 44

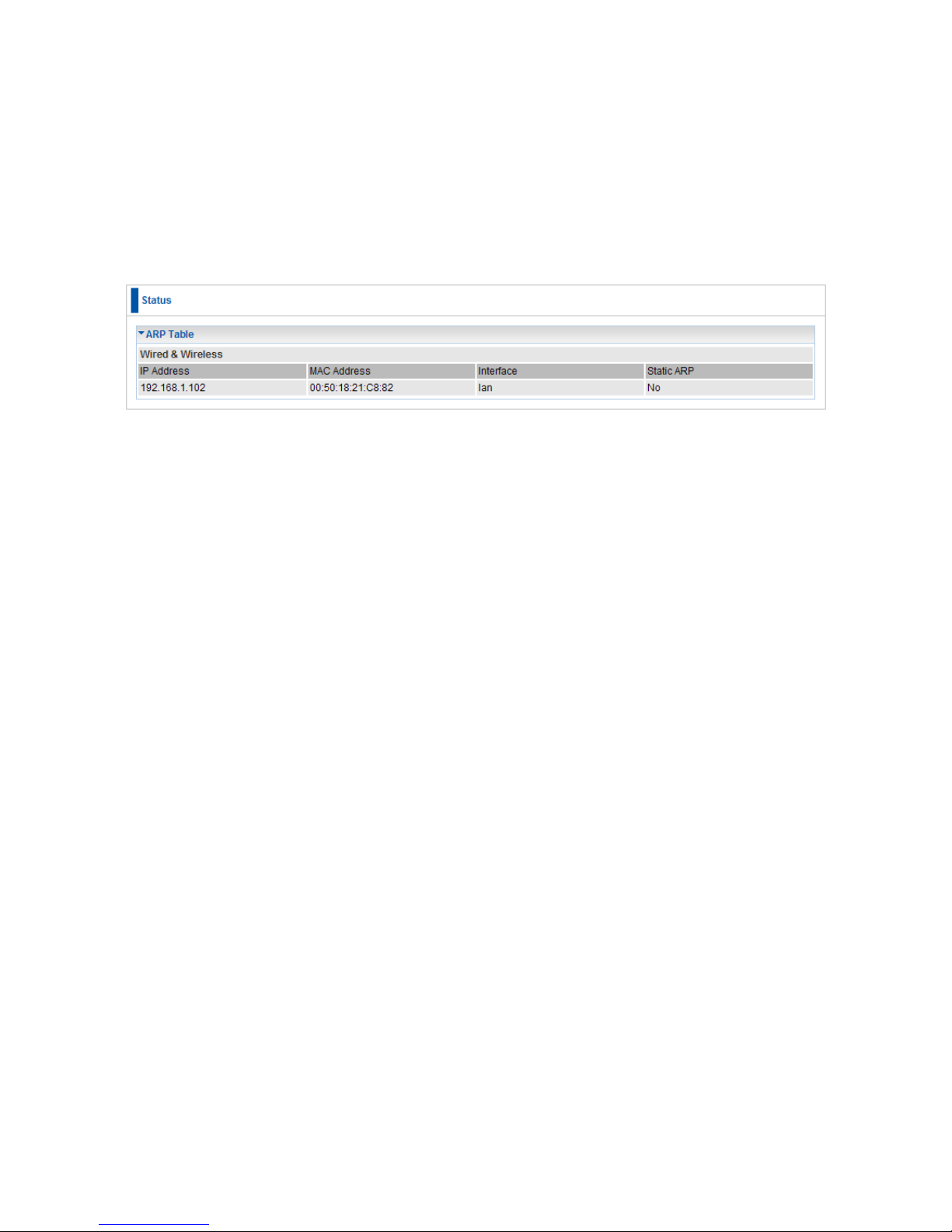

ARP Table

This section displays the router‟s ARP (Address Resolution Protocol) Table, which shows

the mapping of Internet (IP) addresses to Ethernet (MAC) addresses. This is useful as a quick way of determining the MAC address of the network interface of your PCs to use with the router‟s Firewall – MAC Address Filter function. See the Firewall section of this manual for more information on this feature.

 IP Address: It is IP Address of internal host that join this network.  MAC Address: The MAC address of internal host.

Page 45

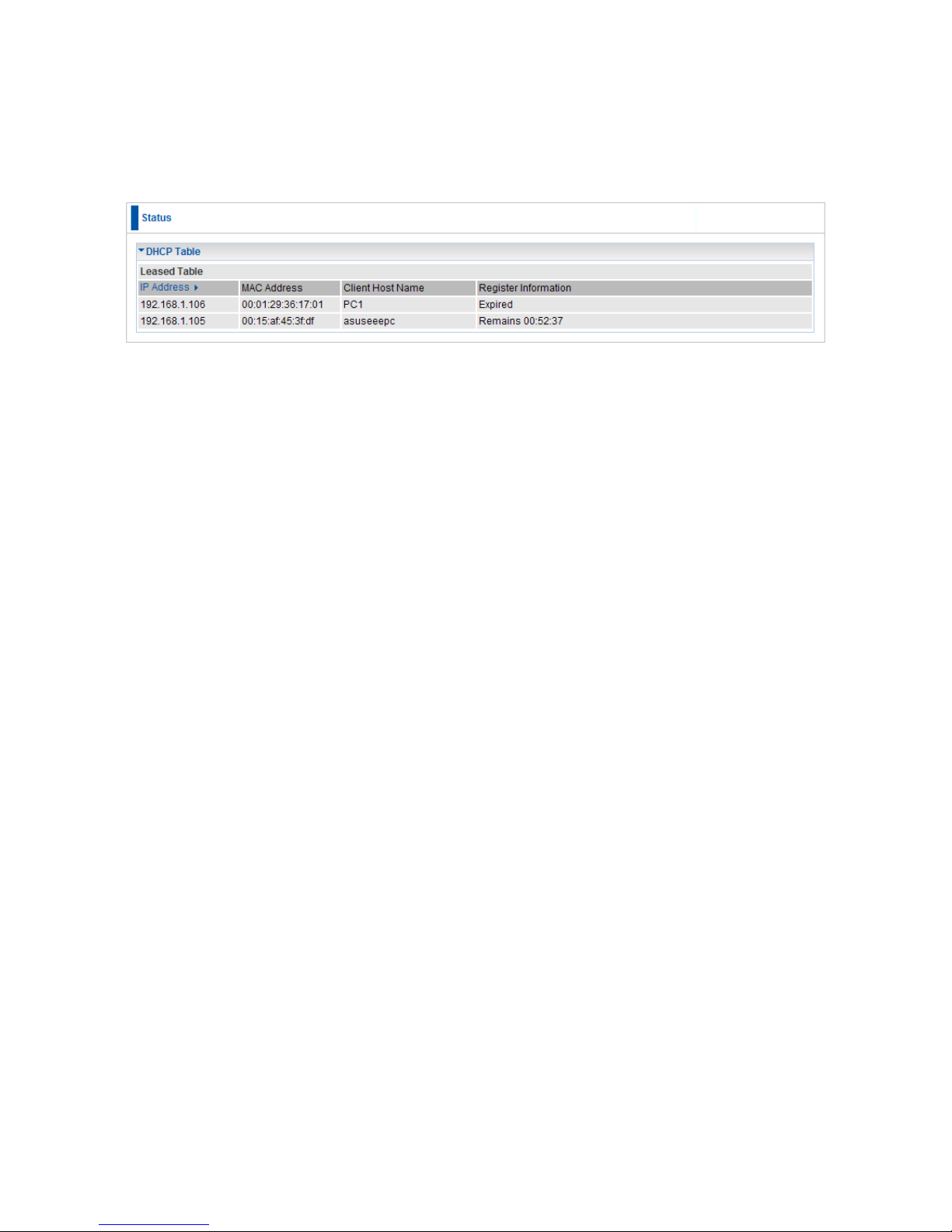

DHCP Table

This page shows you the network clients (Notebooks or PCs) that are allocated IP Addresses by the WBR-6600‟s DHCP Server.

 IP Address: The current corresponding DHCP-assigned dynamic IP address of the

device.

 MAC Address: The MAC Address of internal DHCP client host.  Client Host Name: The Host Name of internal DHCP client.  Register Information: Register time information

Page 46

System Log

Display system logs accumulated up to the present time. You can trace historical information with this function.

Page 47

Firewall Log

Firewall Log displays log information of any unexpected action with your firewall settings. This page displays the router‟s Firewall Log entries. The log shows log entries when you have enabled Intrusion Detection or Block WAN PING in the Configuration – Firewall section of the interface. Please see the Firewall section of this manual for more details on how to enable Firewall logging.

Page 48

UPnP Portmap

The section lists all port-mapping established using UPnP (Universal Plug and Play). Please see the Advanced section of this manual for more details on UPnP and the router‟s UPnP configuration options.

Page 49

Quick Start

This wizard is similar to Easy Sign On, and will guide you through setting up your WBR-6600.

Click ”Continue” to start the wizard. The steps are the same as the Easy Sign On.

ADSL

 Connect mode: ADSL  Protocol: The current ATM protocol in the device  VPI / VCI: The current value of VPI / VCI in the device  IP address: To show current value of IP address in the device.

Page 50

EWAN

Click on Continue to choose the Protocol to connect with EWAN or click Jump to Wireless Setting to use Protocol: Obtain an IP Address Automatically to connect and

setup wireless settings at the same time.

Obtain an IP Address Automatically

When connecting to the ISP, the WBR-6600 also functions as a DHCP client. WBR-6600 can automatically obtain an IP address, subnet mask, gateway address, and DNS server addresses if the ISP assigns this information via DHCP.

Click on the Continue button and wait for your connection to be connected.

Page 51

If connection is successful the following image will be shown.

Page 52

Fixed IP Address

Select this option to set static IP information. You will need to enter in the Connection type, IP address, Netmask, and gateway address, provided to you by your ISP. Each IP address entered in the fields must be in the appropriate IP form, which is four IP octets separated by a dot (x.x.x.x). The Router will not accept the IP address if it is not in this format.

 Protocol: The current ATM protocol in the device  IP Address: Your WAN IP address. Leave this at 0.0.0.0 to automatically obtain an IP

address from your ISP.

 Netmask: The default is 0.0.0.0. User can change it to other such as

255.255.255.0.Type the subnet mask assigned to you by your ISP (if given).

 Gateway: You must specify a gateway IP address (supplied by your ISP)

Click on the Continue button and wait for your connection to be connected.

Page 53

If connection is successful the following image will be shown.

Page 54

PPPoE

PPPoE (PPP over Ethernet) provides access control in a manner similar to dial-up services using PPP.

 Protocol: The current ATM protocol in the device  Username: Enter the username provided by your ISP. You can input up to 128

alphanumeric characters (case sensitive). This is in the format of “username@ispname” instead of simply “username”.

 Password: Enter the password provided by your ISP. You can input up to 128

alphanumeric characters (case sensitive).

 Service Name: Enter a name for this connection.  IP Address: Your WAN IP address. Leave this at 0.0.0.0 to automatically obtain an IP

address from your ISP.

 Auth. Protocol: Default is Auto. Your ISP advises on using Chap or Pap.

Click on the Continue button and wait for your connection to be connected.

Page 55

If connection is successful the following image will be shown.

Page 56

Set Wireless Configuration

 WLAN Service: Default setting is set to Enable.  ESSID: The ESSID is the unique name of a wireless access point (AP) to be

 Channel ID: Select the ID channel that you would like to use. (Recommend Auto)  Security Mode: You can disable or enable with WPA or WEP for protecting wireless

network. The default mode of wireless security is Disable.

Page 57

Configuration

Click this item to access the following sub-items that configure the ADSL router: LAN, WAN, System, Firewall, QoS, Virtual Server, Wake on LAN, Time Schedule and Advanced.

These functions are described in the following sections.

Page 58

LAN (Local Area Network)

A Local Area Network (LAN) is a shared communication system to which many computers are attached and is limited to the immediate area, usually the same building or floor of a building.

There are six items within the LAN section: Ethernet, IP Alias, Wireless, Wireless Security, and DHCP Server.

Page 59

Ethernet

The router supports more than one Ethernet IP addresses in the LAN, and with distinct LAN subnets through which you can access the Internet at the same time. Users usually only have one subnet in their LAN. The default IP address for the router is 192.168.0.1.

 IP Address: The LAN IP address of this router.  Netmask: The LAN subnet mask of this router.  RIP: RIP v1, RIP v2 Broadcast, RIP v2 Multicast and RIP v1+v2 Broadcast.

IP Alias

This function allows the creation of multiple virtual IP interfaces on this router. It helps to connect two or more local networks to the ISP or remote node. In this case, an internal router is not required.

You can set up to five IP Alias‟s.

 IP Address: Specify an IP address on this virtual interface.  Netmask: Specify a subnet mask on this virtual interface.

Page 60

Wireless

 WLAN Service: Choose to Enable or Disable the Wireless Network. Default setting is

set to Enable.

 Mode: The default setting is 802.11g+n (Mixed mode). If you do not know or have both

11g and 11n devices in your network, then keep the default in mixed mode. From the drop-down manual, you can select 802.11g if you have only 11g card. If you have only 11b card, then select 802.11b. If you have only 11n card, then select 802.11n.

 ESSID: The ESSID is the unique name of a wireless access point (AP) to be

Note: ESSID is case sensitive and must not excess 32 characters.

Page 61

 Hide ESSID: It is function in which transmits its ESSID to the air so that when wireless

client searches for a network, router can then be discovered and recognized. Default setting is Disable.

o Enable: Select Enable if you do not want broadcast your ESSID. When select

Enable, no one will be able to locate the Access Point (AP) of your router.

o Disable: When Disable is selected, you can allow anybody with a wireless

client to be able to locate the Access Point (AP) of your router.

 Regulation Domain: There are seven Regulation Domains for you to choose from,

including North America (N.America), Europe, France, etc. The Channel ID will be different based on this setting.

 Channel ID: Select the ID channel that you would like to use.  Tx Power Level: It is function that enhances the wireless transmitting signal strength.

User may adjust this power level from minimum 0 up to maximum 100.

Note: The Power Level maybe different in each access network user premises environment and choose the most suitable level for your network.

 AP MAC Address: It is a unique hardware address of the Access Point.  AP Firmware Version: The Access Point firmware version.  WPS service: Enable / disable  WPS State: Current WPS state in AP. It is be used for Microsoft Windows Connect

Now (WCN).

o Configured: This AP is be configured via WPS. It is not allow to be configured

WCN.

o Unconfigured: This AP is un-configured via WPS. It can be configured via

WCN.

Page 62

Wireless Distribution System (WDS)

It is a wireless access point mode that enables wireless link and communication with

other access point. It is easy to be installed, simply define the peer‟s MAC address of the

connected AP. WDS takes advantages of cost saving and flexibility which no extra wireless client device is required to bridge between two access points and extending an existing wired or wireless infrastructure network to create a larger network.

WDS Service: The default setting is Disable. Check Enable radio button to activate this function.

Note: Only WEP Encryption will work with WDS function.

Peer WDS MAC Address: It is the associated AP‟s MAC Address. It is important that

your peer‟s AP must include your MAC address in order to acknowledge and

communicate with each other.

Please enter the MAC addresses of the Access Points you wish to inter-connect using the WDS function.

Note: For MAC Address, Semicolon ( : ) or Dash (-) must be included.

Wireless Security

You can disable or enable with WPA, WPA2 or WEP for protecting wireless network. The default mode of wireless security is Disable.

LevelOne recommends WPA2 for maximum security.

Page 63

WPA Pre-Shared Key

WPA Algorithms: The type of encryption used. TKIP (Temporal Key Integrity Protocol) AES (Advanced Encryption Standard) utilizes a stronger encryption method then TKIP

and incorporates Message Integrity Code (MIC) to provide protection against hackers. WPA Shared Key: The key for network authentication. The input format is in character

style and key size should be in the range between 8 and 63 characters. Group Key Renewal: The period of renewal time for changing the security key

automatically between wireless client and Access Point (AP).

Page 64

WPA2 Pre-Shared Key

WPA2 is a more advanced and secure form of encryption. The most secure form of wireless security is WPA2 with AES algorithms.

WPA Algorithms: The type of encryption used. TKIP (Temporal Key Integrity Protocol) AES (Advanced Encryption Standard) utilizes a stronger encryption method than TKIP

and incorporates Message Integrity Code (MIC) to provide protection against hackers. WPA2 Shared Key: The key for network authentication. The input format is in character

style and key size should be in the range between 8 and 63 characters. Group Key Renewal: The period of renewal time for changing the security key

automatically between wireless client and Access Point (AP).

Page 65

WPA/WPA2 Pre-Shared Key

This mode allows the WBR-6600 to accept wireless clients using both WPA and WPA2 encryptions.

WPA Algorithms: The type of encryption used. TKIP (Temporal Key Integrity Protocol) AES (Advanced Encryption Standard) utilizes a stronger encryption method than TKIP

and incorporates Message Integrity Code (MIC) to provide protection against hackers. WPA Shared Key: The key for network authentication. The input format is in character

style and key size should be in the range between 8 and 63 characters. Group Key Renewal: The period of renewal time for changing the security key

automatically between wireless client and Access Point (AP).

Page 66

WEP

 WEP Authentication: To prevent unauthorized wireless stations from accessing data

 Default Used WEP Key: Select the encryption key ID; please refer to Key (1~4)

below.

 Passphrase: This is used to generate WEP keys automatically based upon the input

 Key (1-4): Enter the key to encrypt wireless data. To allow encrypted data transmission,

Page 67

Wi-Fi Protected Setup (WPS)

WPS feature is following the Wi-Fi Alliance WPS standard and it eases the set up of security-enabled Wi-Fi networks in the home and small office environment. It reduces the user steps required to configure a network and supports two methods that are familiar to most consumers to configure a network and enable security.

All devices supporting WPS can be set up either as Registrar or Enrollee.

o Registrar – The device that allocates the security criteria‟s such as encryption

method and passphrases.

o Enrollee – The device that accepts and uses the security criteria‟s given by the

registrar.

Page 68

Set up WBR-6600 as WPS Registrar

Using the Registrar mode, it means that the WBR-6600 will be allocating the wireless security parameters such as encryption method and passphrase.

There are two methods of connecting the WBR-6600 router to wireless devices using WPS. They are the Push Button Method and the PIN Code Method.

 Push Button Method is to either press the physical WPS buttons on the WPS

devices, or click the Push Button Configuration (PBC) button in the software utility.

 PIN Code Method to use the software utility to authenticate using a PIN code.

When using WPS as a registrar for the first time, please set up your wireless security settings first. See page 57.

Push Button Method

1. First make sure wireless security settings are set up.

2. Ensure WPS is enabled on the Wireless settings page.

Page 69

3. Press and hold the WPS button at the rear of the WBR-6600 for 1 second.

4. Press and hold the WPS button on your wireless client for 1 second.

If your device has no physical WPS push button, then you can push the software button in the utility.

Note: Above screenshot is from LevelOne’s WUA-0600 and WUA-0615. Other wireless adapters may be different.

5. The wireless client should now have implemented the security settings on the

WBR-6600 and successfully achieved a connection.

Page 70

PIN Code Method

1. First, select the Enrollee mode and note down the WPS Pin code on your wireless

client‟s utility (Ex: 5919579).

2. Then proceed to set up your wireless security on the WBR-6600

Page 71

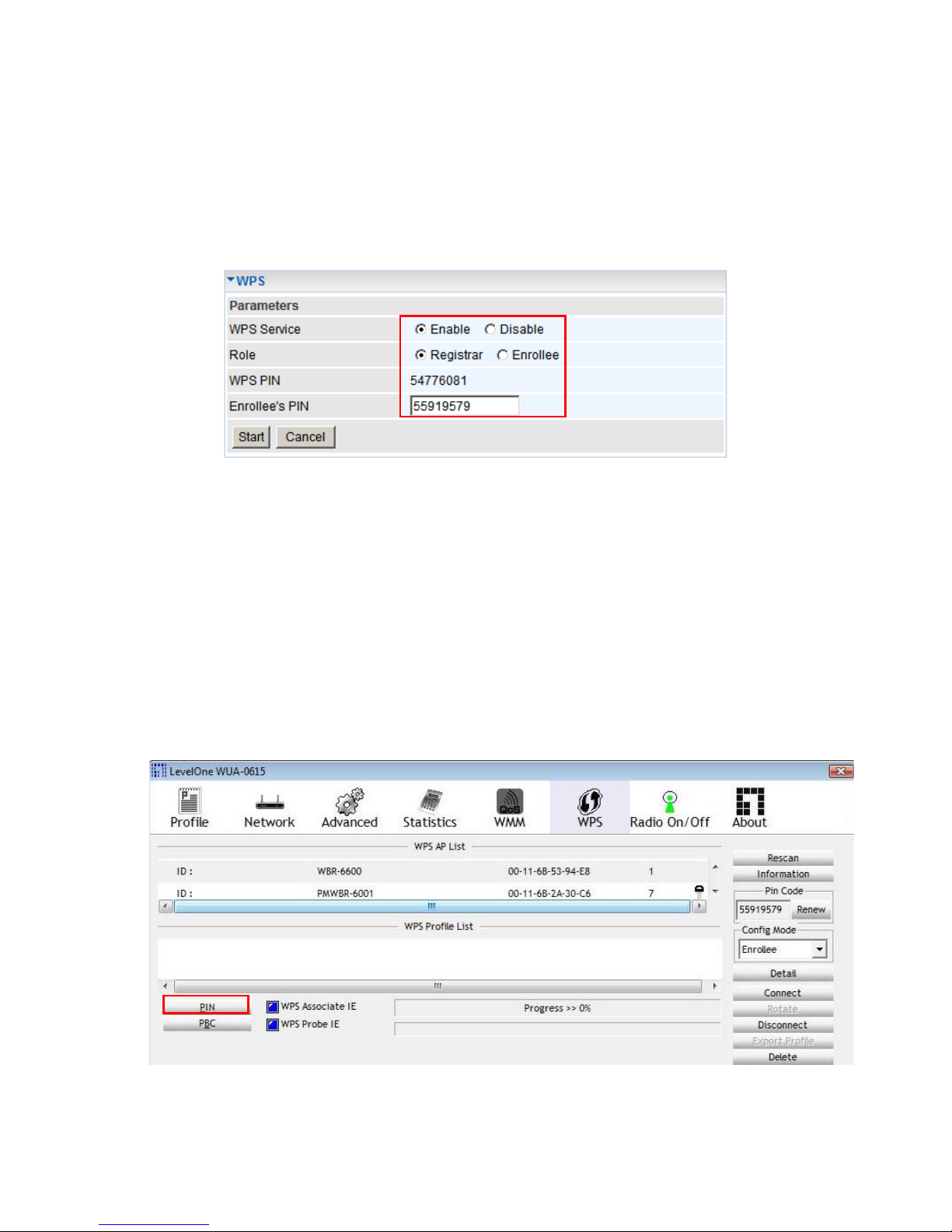

3. In the WBR-6600‟s WPS configuration page

a. Enable the WPS Service b. Change Role to Registrar c. Enter in the PIN Code on your wireless client d. Click the Start button.

4. The router will now be waiting for other WPS devices to connect, as indicated by the

blinking WPS light.

 In the future, you can set the router to search for WPS devices by pushing the

WBR-6600‟s WPS button on the back of the unit for 1 second and then release.

Note: The router will only wait 2 minutes for a client to connect. If you take longer than 2 minutes to set up the client, then you will need to re-initiate WPS on the WBR-6600.

5. Now click the PIN Code Method button on the wireless client‟s utility.

6. The wireless client should now have implemented the security settings on the

WBR-6600 and successfully achieved a connection.

Page 72

Set up WBR-6600 as WPS Enrollee

Using the Enrollee mode, it allows you to configure the network security settings from the wireless client. Security parameters such as SSID and Passphrases could be randomly generated, or set manually.

1. Ensure that the WPS is Enabled on the WBR-6600 and the Mode is set to

Unconfigured.

2. In the WPS Settings, set the role to Enrollee, note down the WPS Pin number of the

WBR-6600, then press Start.

Page 73

3. Once the WBR-6600 has initiated WPS function, it will be listed in the AP List of the

wireless client‟s utility.

4. Set the client to Registrar mode and enter the PIN number of the WBR-6600.

5. Click PIN to begin WPS pairing. Note: Some utilities may set the security settings for you using randomly generated keys.

Some others may prompt you to enter the ones you want.

Page 74

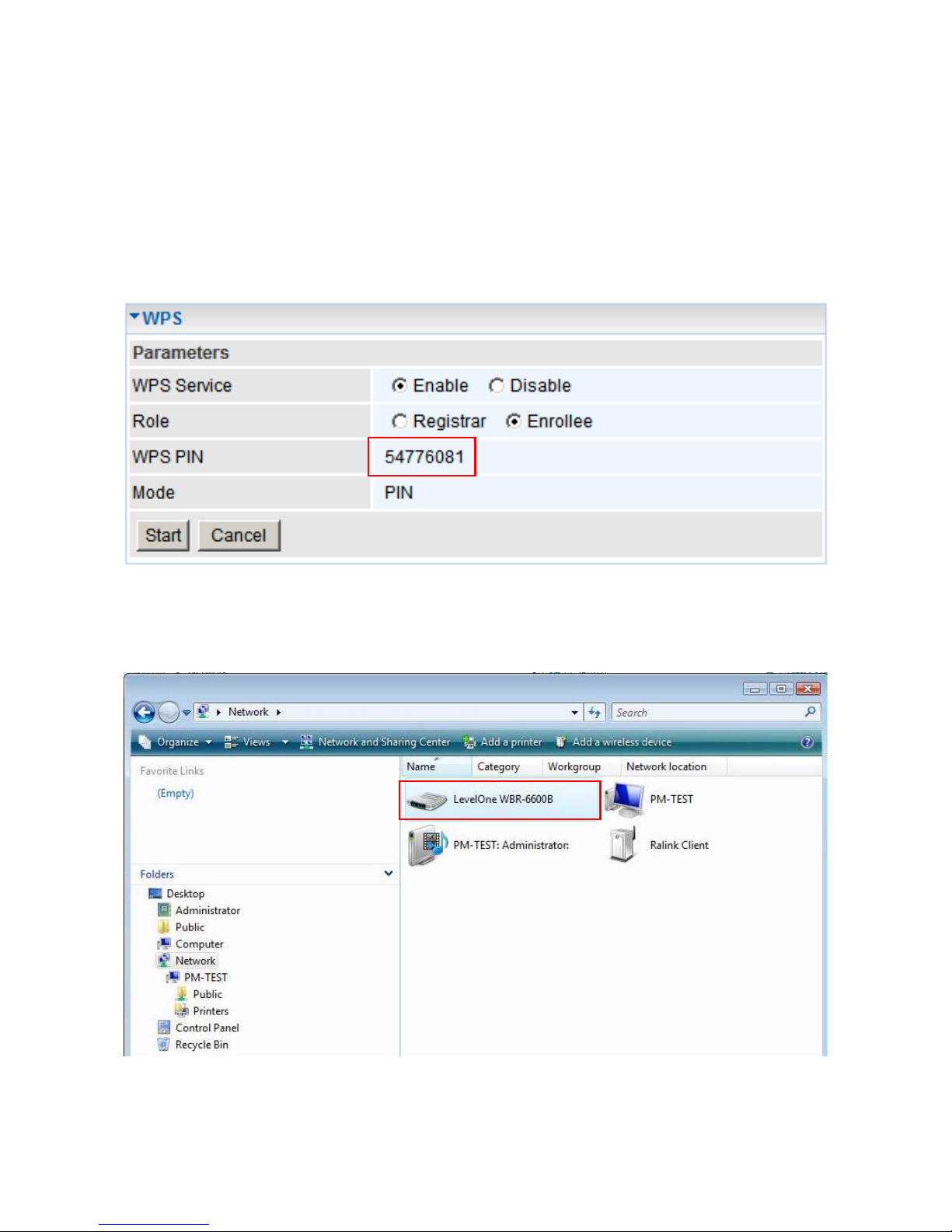

Set up WBR-6600 using WPS with Vista

Note: Before beginning, please ensure that you have a wired connection to the WBR-6600.

1. Set up the WBR-6600 for WPS Enrollee. (page 68)

2. Remember to note down the WBR-6600‟s PIN Code.

3. In Vista`s Control Panel, select Network and Internet and choose View network

computers and devices.

4. Double click the “LevelOne WBR-6600” icon

Page 75

5. Enter the WBR-6600‟s PIN Code and click Next.

6. Enter the Wireless Network Name (SSID) you want and click the “Next” button.

Page 76

7. Enter the Passphrase and apply “Next” button.

(You can use the one Vista randomly creates, or type your own)

8. WCN set up complete. You have set up a security-enabled Wi-Fi network.

Page 77

DHCP Server

You can disable or enable the DHCP (Dynamic Host Configuration Protocol) server or

enable the router‟s DHCP relay functions. The DHCP protocol allows your router to

dynamically assign IP addresses to PCs on your network if they are configured to obtain IP addresses automatically.

DHCP Server Mode: Disable To disable the router‟s DHCP Server, check Disabled and then click Apply. When the

DHCP Server is disabled, you will need to manually assign a fixed IP address to each PC on your network, and set the default gateway for each PC to the IP address of the router (the default is 192.168.0.1).

Page 78

DHCP Server Mode: DHCP Server

To configure the router‟s DHCP Server, check DHCP Server. You can then configure parameters of the DHCP Server including the IP pool (starting IP address and ending IP address to be allocated to PCs on your network), lease time for each assigned IP address (the period of time the IP address assigned will be valid), DNS IP address and the gateway IP address. These details are sent to the DHCP client (i.e. your PC) when it requests an IP address from the DHCP server. Click Apply to enable this function. If you

check “Use Router as a DNS Server”, the ADSL Router performs the domain name

lookup, finds the IP address from the outside network automatically and forwards it back to the requesting PC in the LAN (your Local Area Network).

DHCP Server Mode: DHCP Relay If you check DHCP Relay and then you must enter the IP address of the DHCP server

which assigns an IP address back to the DHCP client in the LAN. Use this function only if advised to do so by your network administrator or ISP. Click Apply to enable this function. This feature is only where the DHCP server is on the WAN.

Page 79

WAN (Wide Area Network)

A WAN (Wide Area Network) is an outside connection to another network or the Internet. There are two items within the WAN section: WAN Profile and ADSL Mode.

Page 80

WAN Profile

Profile Port - ADSL

PPPoE Connection

PPPoE (PPP over Ethernet) provides access control in a manner similar to dial-up services using PPP.

 Description: A user-definable name for this connection.  VPI/VCI: Enter the VPI and VCI information provided by your ISP.  Encap. method: Select the encapsulation format, the default is LLC. Select the one

provided by your ISP

 Username: Enter the username provided by your ISP. You can input up to 128

alphanumeric characters (case sensitive). This is in the format of “username@ispname” instead of simply “username”.

 Password: Enter the password provided by your ISP. You can input up to 128

alphanumeric characters (case sensitive)

 Service Name: This item is for identification purposes. If it is required, your ISP

provides you the information. Maximum input is 15 alphanumeric characters.

 NAT: The NAT (Network Address Translation) feature allows multiple users to access

the Internet through a single ISP account, sharing a single IP address. If users on your LAN have public IP addresses and can access the Internet directly, the NAT function can be disabled.

Page 81

 IP Address: Your WAN IP address. Leave this at 0.0.0.0 to automatically obtain an IP

address from your ISP.

 Auth. Protocol: Default is Auto. Your ISP advises on using Chap or Pap.  Obtain DNS Automatically: Select this check box to use DNS.  Primary DNS/ Secondary DNS: Enter the IP addresses of the DNS servers. The DNS

servers are passed to the DHCP clients along with the IP address and the subnet mask.

 Connection:

 Always on: If you want the router to establish a PPPoE session when starting

up and to automatically re-establish the PPPoE session when disconnected by the ISP.

 Connect to Demand (un-select Always On): If you want to establish a

PPPoE session only when there is a packet requesting access to the Internet (i.e. when a program on your computer attempts to access the Internet). In this mode, you must set Idle Timeout value at same time.

 Idle Timeout: Auto-disconnect the broadband firewall gateway when there is no

activity on the line for a predetermined period of time. The minimum value is 10 minutes.

 MTU: Maximum Transmission Unit. The size of the largest datagram (excluding

media-specific headers) an IP attempts to send through the interface.

Page 82

PPPoA Connection

PPPoA stands for Point to Point Protocol over ATM Adaptation Layer 5 (AAL5). It provides access control and billing functionality in a manner similar to dial-up services using PPP.

 Description: User-definable name for the connection.  VPI/VCI: Enter the VPI and VCI information provided by your ISP.  Encapsulation method: Select the encapsulation format, the default is LLC. Select

the one provided by your ISP

 Username: Enter the username provided by your ISP. You can input up to 128

alphanumeric characters (case sensitive). This is in the format of “username@ispname” instead of simply “username”.

 Password: Enter the password provided by your ISP. You can input up to 128

alphanumeric characters (case sensitive).

 NAT: The NAT (Network Address Translation) feature allows multiple users to access

the Internet through a single IP account, sharing a single IP address. If users on your LAN have public IP addresses and can access the Internet directly, the NAT function can be disabled.

 IP Address: Your WAN IP address. Leave this at 0.0.0.0 to automatically obtain an IP

address from your ISP.

 Authentication Protocol: Default is Auto. Your ISP should advises you on whether to

use Chap or Pap.

 Obtain DNS Automatically: Select this check box to use DNS.

Page 83

 Primary DNS/ Secondary DNS: Enter the IP addresses of the DNS servers. The DNS

servers are passed to the DHCP clients along with the IP address and the subnet mask.

 Connection:

 Always on: The router will establish a PPPoA session when starting up and to

automatically re-establish the PPPoA session when disconnected by the ISP.

 Connect to Demand (un-select Always On): If you want to establish a

PPPoA session only when there is a packet requesting access to the Internet (i.e. when a program on your computer attempts to access the Internet). In this mode, you must set Idle Timeout value at same time.

 Idle Timeout: Auto-disconnect the broadband firewall gateway when there is no

activity on the line for a predetermined period of time. The minimum value is 10 minutes.

 MTU: Maximum Transmission Unit. The size of the largest datagram (excluding

media-specific headers) that the IP attempts to send through the interface.

Page 84

MPoA Connection

 Description: Your description of this connection.  VPI and VCI: Enter the VPI and VCI information provided by your ISP.  Encap. method: Select the encapsulation format, the default is LLC. Select the one

provided by your ISP.

 Encap. mode: Choose whether you want the device to function as bridge mode or

routing mode.

 NAT: The NAT (Network Address Translation) feature allows multiple users to access

the Internet through a single IP account, sharing the single IP address. If users on your LAN have public IP addresses and can access the Internet directly, the NAT function can be disabled.

 IP Address: Your WAN IP address. Leave this at 0.0.0.0 to automatically obtain an IP

address from your ISP.

 Netmask: The default is 255.255.255.0. User can change it to other such as

255.255.255.128. Type the subnet mask assigned to you by your ISP (if given)

 Gateway: Enter the IP address of the default gateway.  Obtain DNS Automatically: Select this check box to use DNS.  Primary DNS/ Secondary DNS: Enter the IP addresses of the DNS servers. The DNS

servers are passed to the DHCP clients along with the IP address and the subnet mask.

Page 85

Pure Bridge Connections

Page 86

ADSL Mode

WBR-6600A (Annex A)

ADSL Mode: There are four modes “Open Annex Type and Follow DSLAM’s Setting”, ”Annex A”, ”Annex L”, ”Annex M” and “Annex J” that user can select for this

connection.

Modulator: There are seven modes “AUTO”,”ADSL multimode”,”ADSL2”,”ADSL2+”,

“G.Lite:”, “T1.413” and “G.DMT” that user can select for this connection.

Page 87

WBR-6600B (Annex B)

Modulator: There are two modes”ADSL2” and”ADSL2+” that user can select for this connection.

Page 88

System

There are six items within the System section: Time Zone, Firmware Upgrade, Backup/Restore, Restart, User Management and Mail Alert.

Page 89

Time Zone

The router does not have a real time clock on board; instead, it uses the Simple Network Time Protocol (SNTP) to get the current time from an SNTP server outside your network. Choose your local time zone, click Enable and click the Apply button. After a successful connection to the Internet, the router retrieves the correct local time from the SNTP server you have specified. If you prefer to specify an SNTP server other than those in the drop-down list, simply enter its IP address as shown above. Your ISP may provide an SNTP server for you to use.

Resync Period (in minutes) is the periodic interval the router waits before it resynchronizes

the router‟s time with that of the specified SNTP server. To avoid unnecessarily increasing

the load on your specified SNTP server you should keep the poll interval as high as possible – at the absolute minimum every few hours or even days.

Page 90

Firmware Upgrade

Your router‟s “firmware” is the software that allows it to operate and provides all its

functionality. Think of your router as a dedicated computer, and the firmware as the software it runs. Over time this software may be improved and modified. Your router allows you to upgrade the software it runs to take advantage of these changes.

Clicking on Browse allows you to select the new firmware image file you have downloaded to your PC. Once the correct file is selected, click Upgrade to update the firmware in your router.

 Restart Device with: To choose “Factory Default Settings” or “Current Settings” which

uses your current setting on the new firmware (it is highly advised to use Factory Default Settings over Current Settings for a clean firmware upgrade).

 New Firmware Image: Type in the location of the file you wish to upload in this field or

click Browse… to locate it.

 Browse…: Click Browse… to find the file with the .afw file extension that you wish to

upload. Remember that you must decompress compressed (.zip) files before you can upgrade from the file.

 Upgrade: Click upgrade to begin the upload process. This process may take up to three

minutes.

Warning:

DO NOT power down the router or interrupt the firmware upgrade while it is still in process. Improper operation may damage the router. Please see section 2.4 for emergency recovery procedures.

Page 91

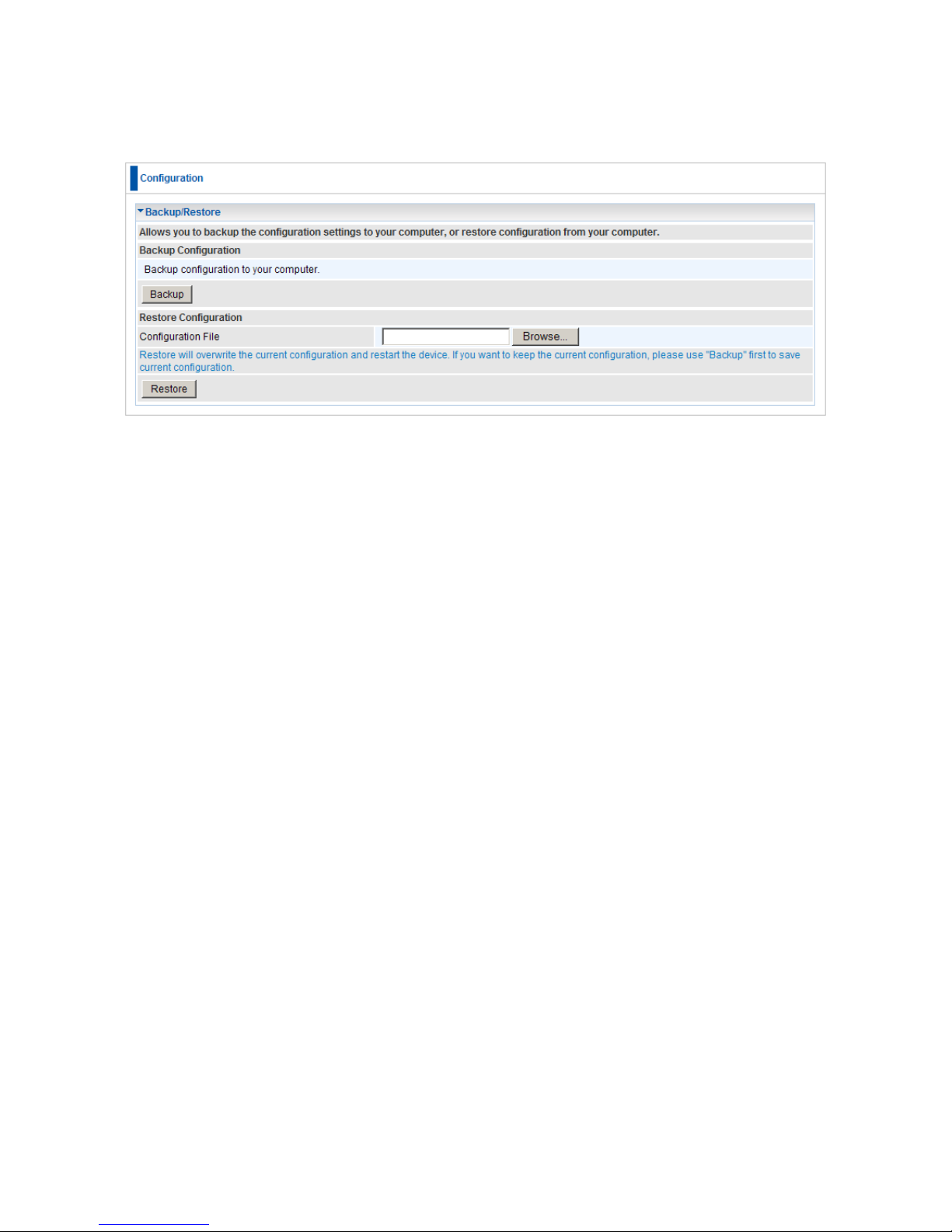

Backup / Restore

These functions allow you to save and backup your router‟s current settings to a file on your PC, or to restore a previously saved backup. This is useful if you wish to experiment with different settings, knowing that you have a backup handy in the case of any mistakes. It is

advisable to backup your router‟s settings before making any significant changes to your router‟s configuration.

Press Backup to select where on your local PC to save the settings file. You may also change the name of the file when saving if you wish to keep multiple backups.

Press Browse… to select a file from your PC to restore. You should only restore settings files that have been generated by the Backup function, and that were created when using the current version of the router‟s firmware. Settings files saved to your PC should not be manually edited in any way.

Select the settings files you wish to use, and press Restore to load those settings into the router.

Page 92

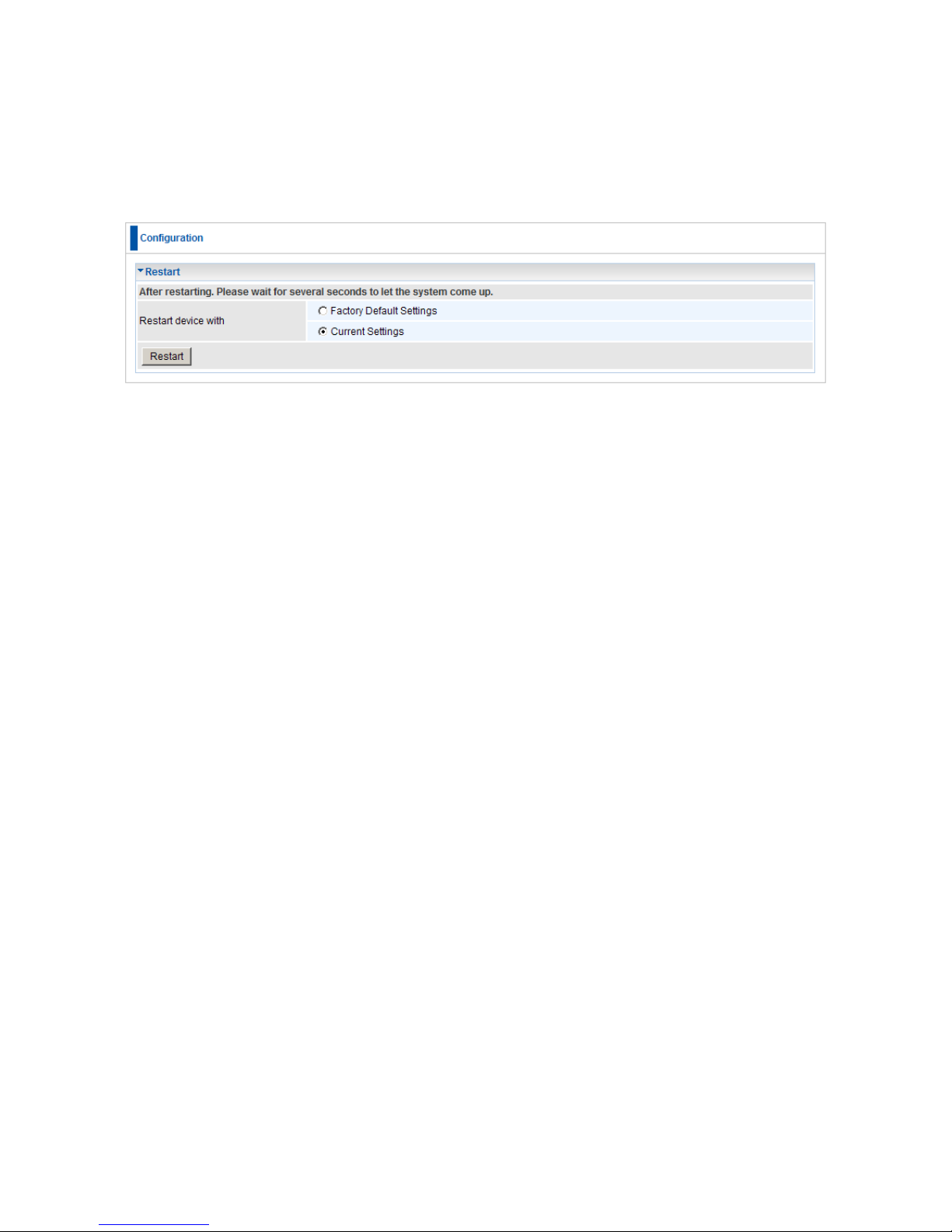

Restart Router

Click Restart with option Current Settings to reboot your router and save the current configuration to device.

If you wish to restart the router using the factory default settings (for example, after a firmware upgrade or if you have saved an incorrect configuration), select Factory Default Settings to reset to factory default settings.

Note: IP Address of the router will revert back to default setting of 192.168.0.1.

Page 93

User Management

In order to prevent unauthorized access to your router‟s configuration interface, it requires

all users to login with a password. You can set up multiple user accounts, each with their own password.

You are strongly advised to change the password on the default “admin” account when you receive your router, and any time you reset your configuration to Factory Defaults.

 Valid: Check this box to enable this user account.  User: Username of the user account.  Password: Password of the user account  Confirm: Confirm the password of the user account.  Login Mode: When this account logs in, the Web Interface will be in Basic of Advanced

modes.

 Level: To restrict the user account in basic (Normal) or advanced (Super) modes.  Add: Adds a new user account.  Edit: Edit existing user account details. You need to click on the account you want to edit.  Delete: To delete an existing account. Please make sure the tick the delete checkbox.

Page 94

Mail Alert

Send a log via email, if WAN IP is changed or if intruders accessing your computer without permission.

Server Information

 SMTP Server: Please enter the address of SMTP mail server for your outgoing emails.

This is usually obtained from your ISP.

 Username: Username of your SMTP mail server account.  Password: Password of your SMTP mail server account  Sender’s E-Mail: When the Mail Alert is sent, it will be shown as being sent from this

e-mail address will be shown

WAP IP Change Alert

When your router reconnects to the Internet, the ISP may have given it a new WAN IP address. When this event happens, an alert e-mail is sent.

 Recipient’s E-mail: The e-mail address where the alert email is sent.

Intrusion Detection

When your router detects a Denial of Service in progress, it will send an alert e-mail. Intrusion Detection needs to be activated in the Firewall settings.

 Alert Mail Time: The interval that Intrusion Detection alert e-mails are sent.  Recipient’s E-mail: The e-mail address where the alert email is sent.

Page 95

Firewall

Firewall and Access Control

Your router includes a full SPI (Stateful Packet Inspection) firewall for controlling Internet access from your LAN, as well as helping to prevent attacks from hackers. In addition to this, when using NAT (Network Address Translation) the router acts as a “natural” Internet firewall, since all PCs on your LAN use private IP addresses that cannot be directly accessed from the Internet. See the WAN configuration section for more details on NAT.

Firewall: Prevents access from outside your network. NAT natural firewall: This masks LAN users‟ IP addresses, which are invisible to outside

users on the Internet, making it much more difficult for a hacker to target a machine on your network. This natural firewall is on when the NAT function is enabled.

Page 96

Note:

When using Virtual Servers (port mapping) your PCs are exposed to the ports specified opened in your firewall packet filter settings.

 Firewall Security and Policy (General Settings): Inbound direction of Packet Filter

rules prevent unauthorized computers or applications accessing your local network from the Internet.

 Intrusion Detection: Enable Intrusion Detection to detect, prevent, and log malicious

attacks.

 MAC Filter rules: Prevents unauthorized computers accessing the Internet.  URL Filter: Blocks PCs on your local network from unwanted websites.

A detailed explanation of each of the following five items appears in the Firewall section

below: Packet Filter, MAC Filter, Intrusion detection, Block WAN PING and URL Filter.

Page 97

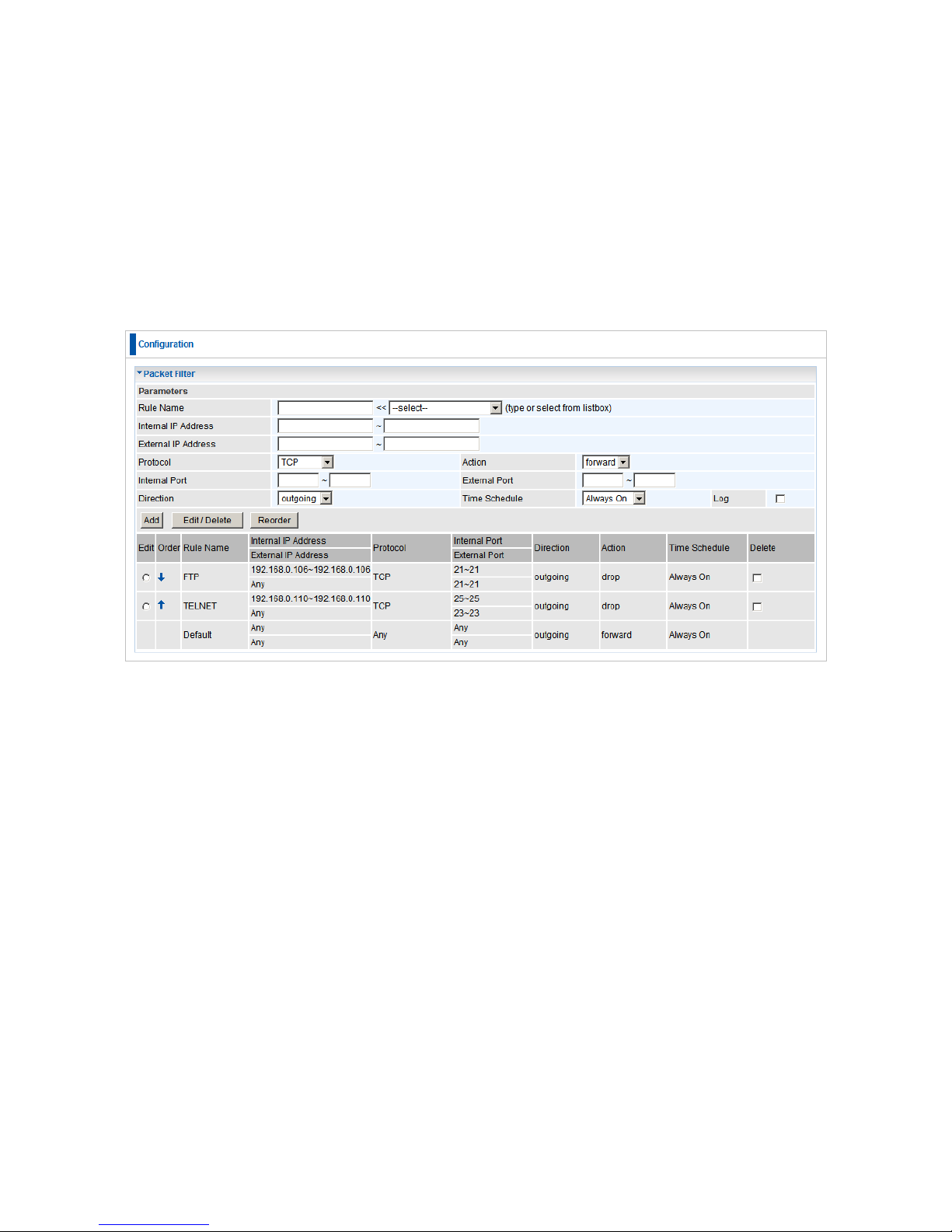

Packet Filter

Packet filtering enables you to configure your router to block specified internal/external users (IP address) from Internet access, or you can disable specific service requests (Port number) to /from Internet. This configuration program allows you to set up to 6 different filter rules for different users based on their IP addresses or their network Port number. The relationship among all filters is “or” operation, which means that the router checks these different filter rules one by one, starting from the first rule. As long as one of the rules is satisfied, the specified action will be taken.

 Rule Name: Users-define description to identify this entry. The maximum name length

is 32 characters, and then can choose application that they want from listbox.

 Internal IP Address / External IP Address: This is the Address-Filter used to allow or

block traffic to/from particular IP address(es). Input the range you want to filter out. If you leave empty or 0.0.0.0, it means any IP address.

 Protocol: Specify the packet type (TCP, UDP, ICMP, etc.) that the rule applies to.  Select TCP if you wish to search for the connection-based application service on the

remote server using the port number. Or select UDP if you want to search for the connectionless application service on the remote server using the port number.

 Action: If a packet matches this filter rule, Forward (allows the packets to pass) or

Drop (disallow the packets to pass) this packet.

 Internal Port: This Port or Port Range defines the ports allowed to be used by the

Remote/WAN to connect to the application. Default is set from range 0 ~ 65535. It is recommended that this option be configured by an advanced user.

Page 98

 External Port: This is the Port or Port Range that defines the application.  Direction: Determine whether the rule is for outgoing packets or for incoming packets.  Time Schedule: It is self-defined time period. You may specify a time schedule for your

prioritization policy. For setup and detail, refer to Time Schedule section.

 Log: Choose “log” if you wish to generate logs when the filer rule is applied to a packet.  Add: Click this button to add a new packet filter rule and the added rule will appear at

the bottom table.

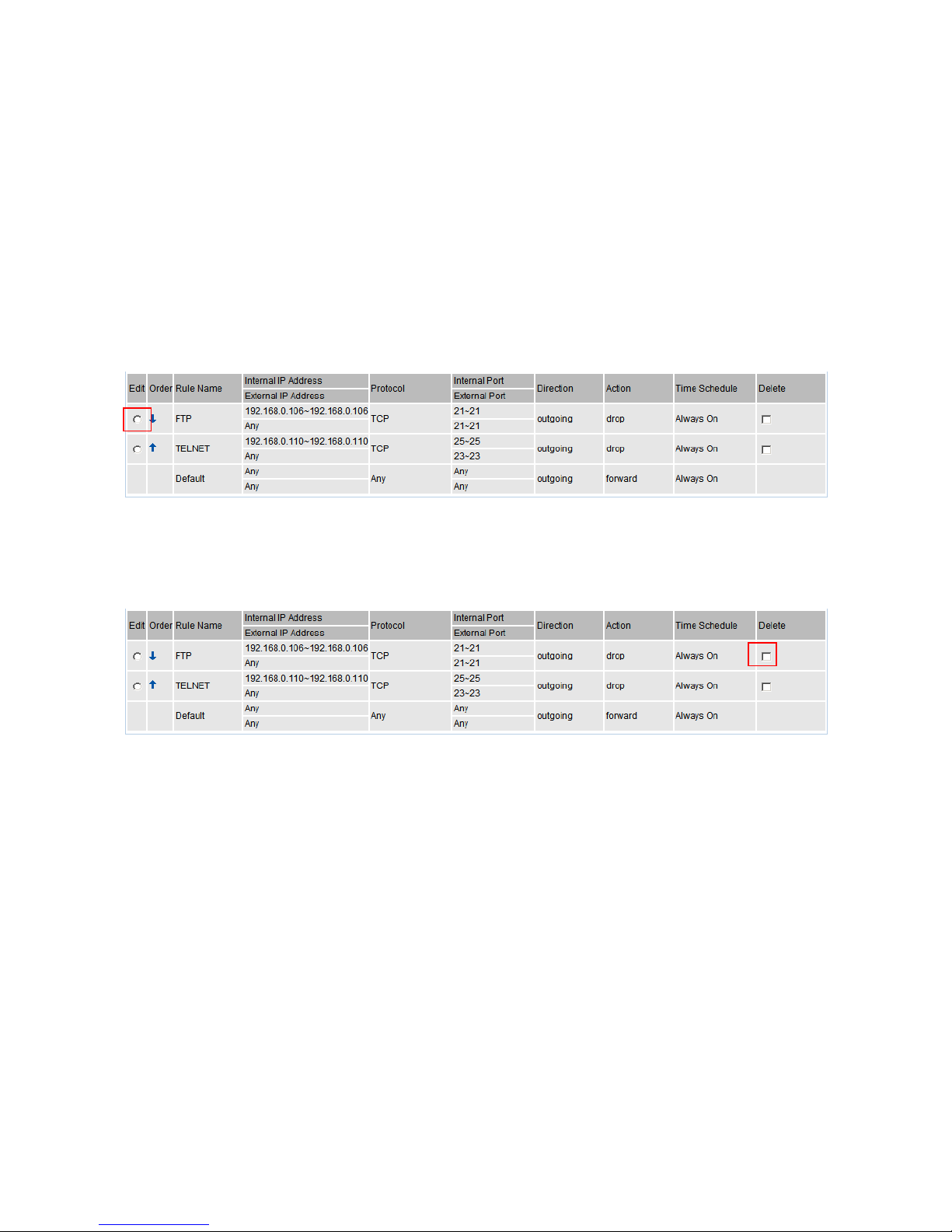

 Edit: Check the Rule No. you wish to edit, and then click “Edit”.

 Order: Use the Up and Down arrows to change the order of the entries.  Delete: First check the Delete tick box of the rule you wish to delete, and then click the

“Edit/Delete” button.

If the DHCP server option is enabled, you must be very careful in assigning IP addresses of a filtered private IP range to avoid conflicts because you do not know which PC in the LAN is assigned which IP address. The easiest and safest way is that the filtered IP address is assigned to a specific PC that is not allowed to access an outside resource such as the Internet. You configure the filtered IP address manually for this PC, but it stays in the same subnet with the router.

Page 99

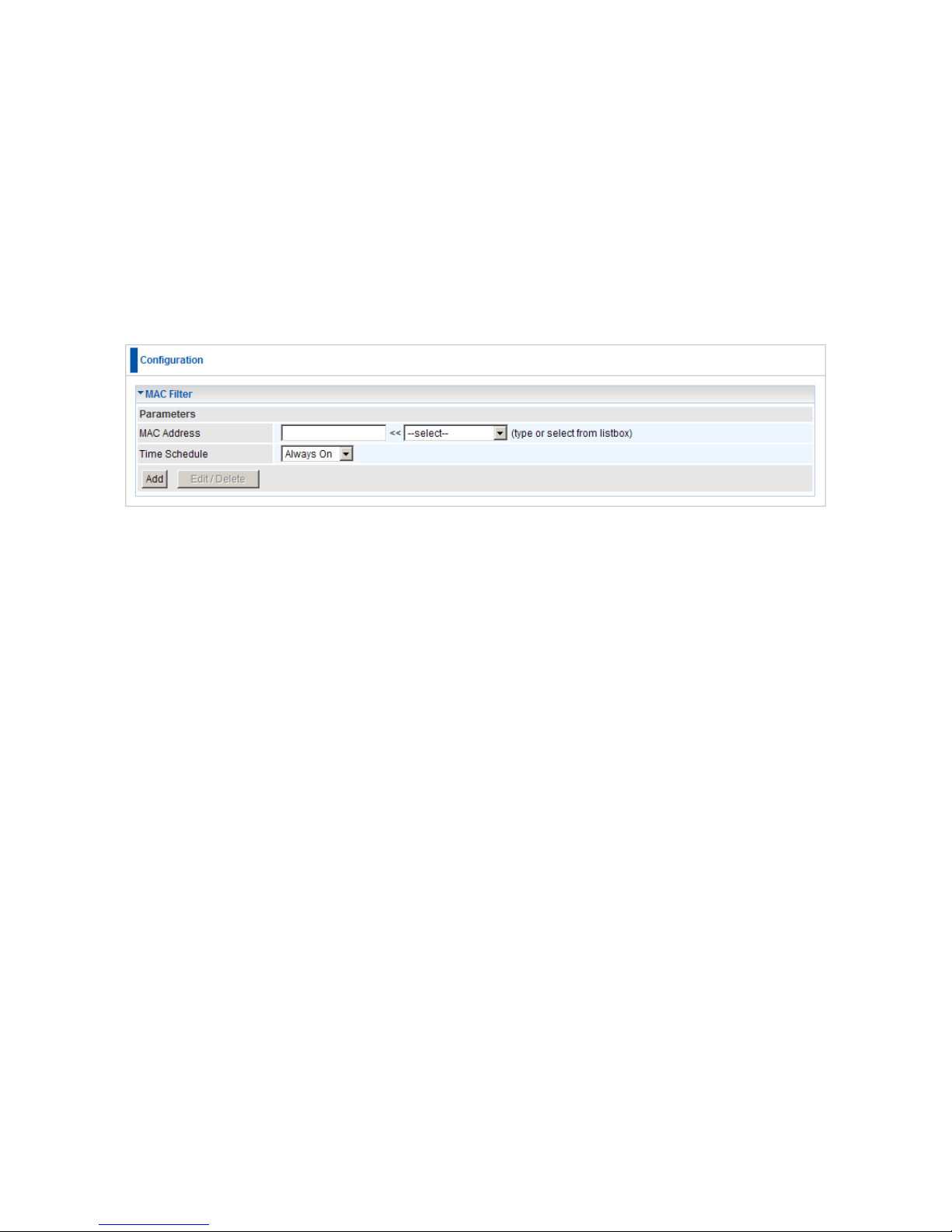

MAC Filter

A MAC (Media Access Control) address is the unique network hardware identifier for each PC on your network‟s interface (i.e. its Network Interface Card or Ethernet card).

Using your router‟s MAC Address Filter function, you can configure to block specific

machines from accessing your LAN.

There are no pre-defined MAC address filter rules; you can add the filter rules to meet your requirements.

 MAC Address: Enter the MAC addresses you wish to filter. You can also use the

selection list box on the right if the router has detected this computer.

 Time Schedule: It is self-defined time period. You may specify a time schedule for your

prioritization policy. For setup and detail, refer to Time Schedule section

Page 100

100

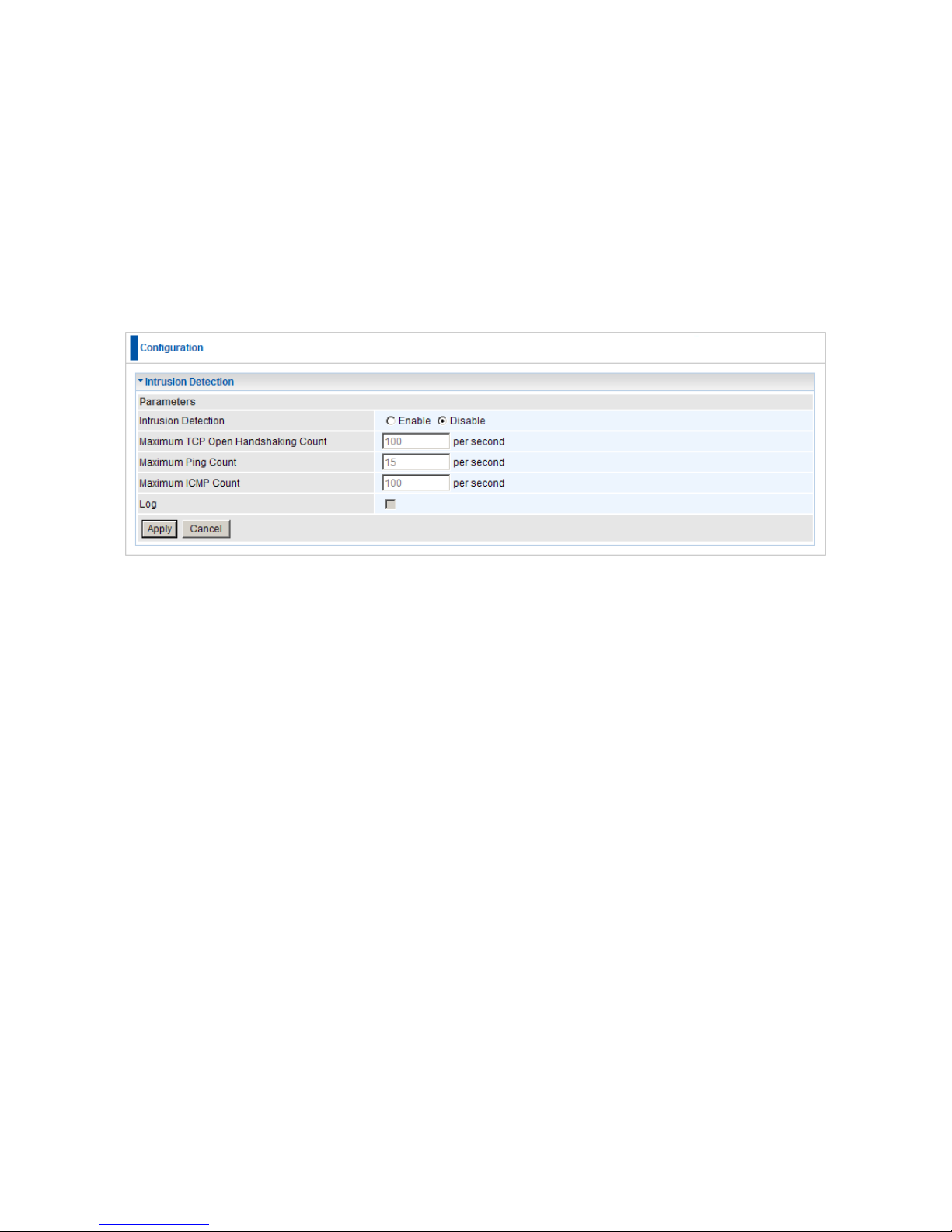

Intrusion Detection

Check Enable if you wish to detect intruders accessing your computer without permission. The router automatically detects and blocks a DoS (Denial of Service) attack.

This kind of attack is not to access confidential data on the network; instead, it aims to disrupt specific equipment functions or the operations of entire network. If this happens, users will have trouble accessing the network resources.

 Intrusion Detection: Check Enable if you wish to detect intruders accessing your

computer without permission.

 Maximum TCP Open Handshaking Count: This is a threshold value to decide

whether a SYN Flood attempt is occurring or not. Default value is 100 TCP SYN per seconds.

 Maximum Ping Count: This is a threshold value to decide whether an ICMP Echo

Storm is occurring or not. Default value is 15 ICMP Echo Requests (PING) per second.

 Maximum ICMP Count: This is a threshold to decide whether an ICMP flood is

occurring or not. Default value is 100 ICMP packets per seconds except ICMP Echo Requests (PING).

 Log: Check Log if you wish to generate logs when the filer rule is applied to the

Intrusion Detection.
