Level One WAC-2000 User Manual
1
Wireless LAN Controller
User’s Manual
V1. 0_20161110
2
1. Check box contents:
Ceiling Wireless AP
Power adapter
LAN cable
QIG
Setting Screws
2. Warning:
Attention:
3
Content
Chapter 1 Manual Introduction .................................................................................. 4
1.1 Target reader ............................................................................................................... 4
1.2 Conventions .................................................................................................. 4
1.3 Chapter allocations ......................................................................................... 4
Chapter 2: Products Introduction ..................................................................... 5
2.1 Products description ................................................................................................... 5
2.2 Products Properties ..................................................................................................... 5
2.3 Product Layout ........................................................................................................... 6
Chapter 3 Configuration Guide ......................................................................... 7
3.1 Login Web Interface ....................................................................................... 7
Chapter 4 Function Setting ................................................................................ 8
4.1 Zero Config ................................................................................................................. 8
4.2 Device List .................................................................................................................. 9
4.2.1 Device list setting ..................................................................................................................... 9
4.2.2 Device status ......................................................................................................................... 10
4.2.3 Device Network .................................................................................................................... 10
4.2.4 Wireless Basic Setting........................................................................................................... 10
4.2.5 Wireless Advanced ................................................................................................................. 11
4.3 Device Log ............................................................................................................... 12
4.4 Address Server .......................................................................................................... 12
4.5 Gateway .................................................................................................................... 13
4.5.1 WAN Setting ......................................................................................................................... 13
4.5.2 LAN Setting .......................................................................................................................... 14

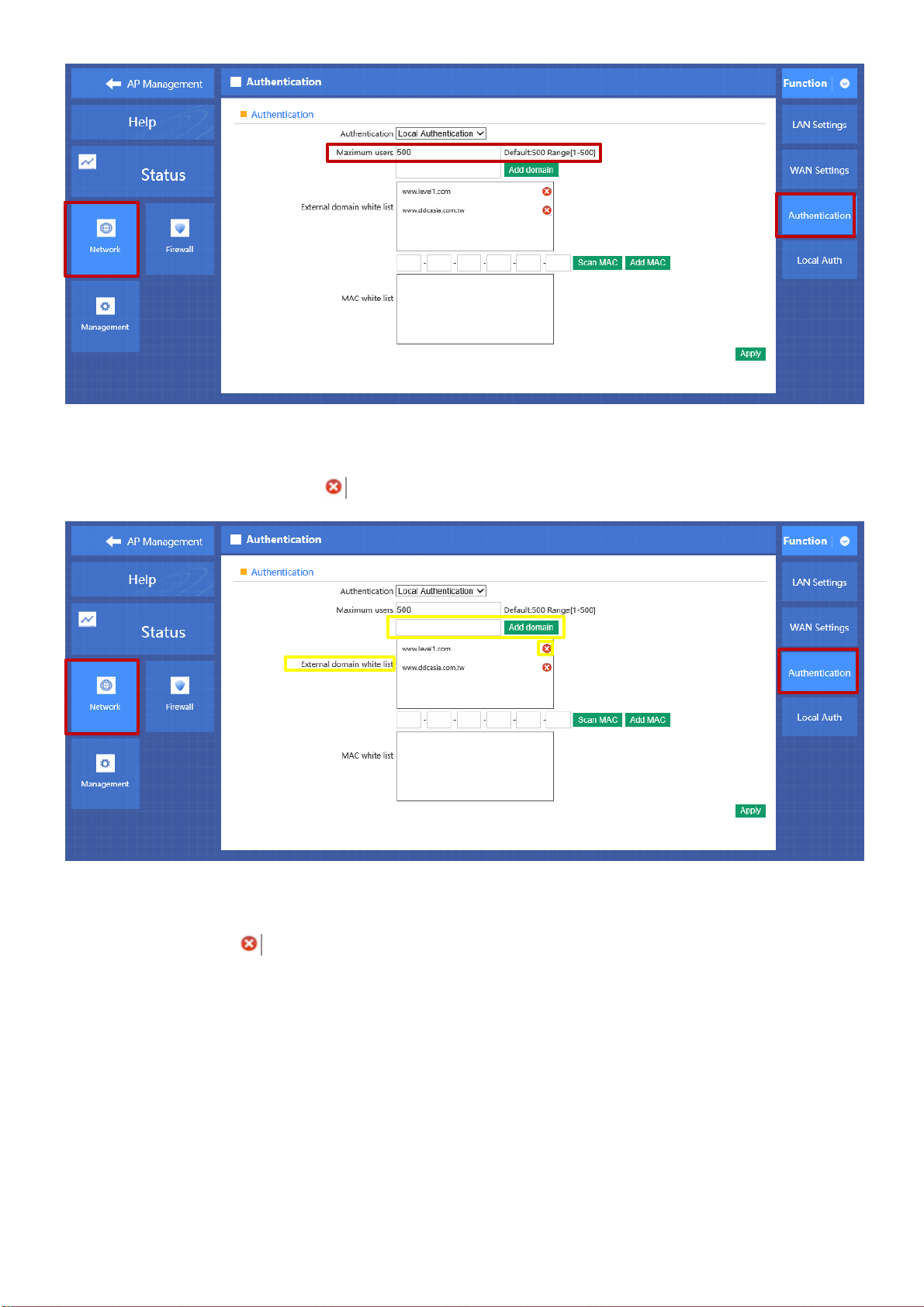

4.5.3 Local Authentication Settings ............................................................................................... 14

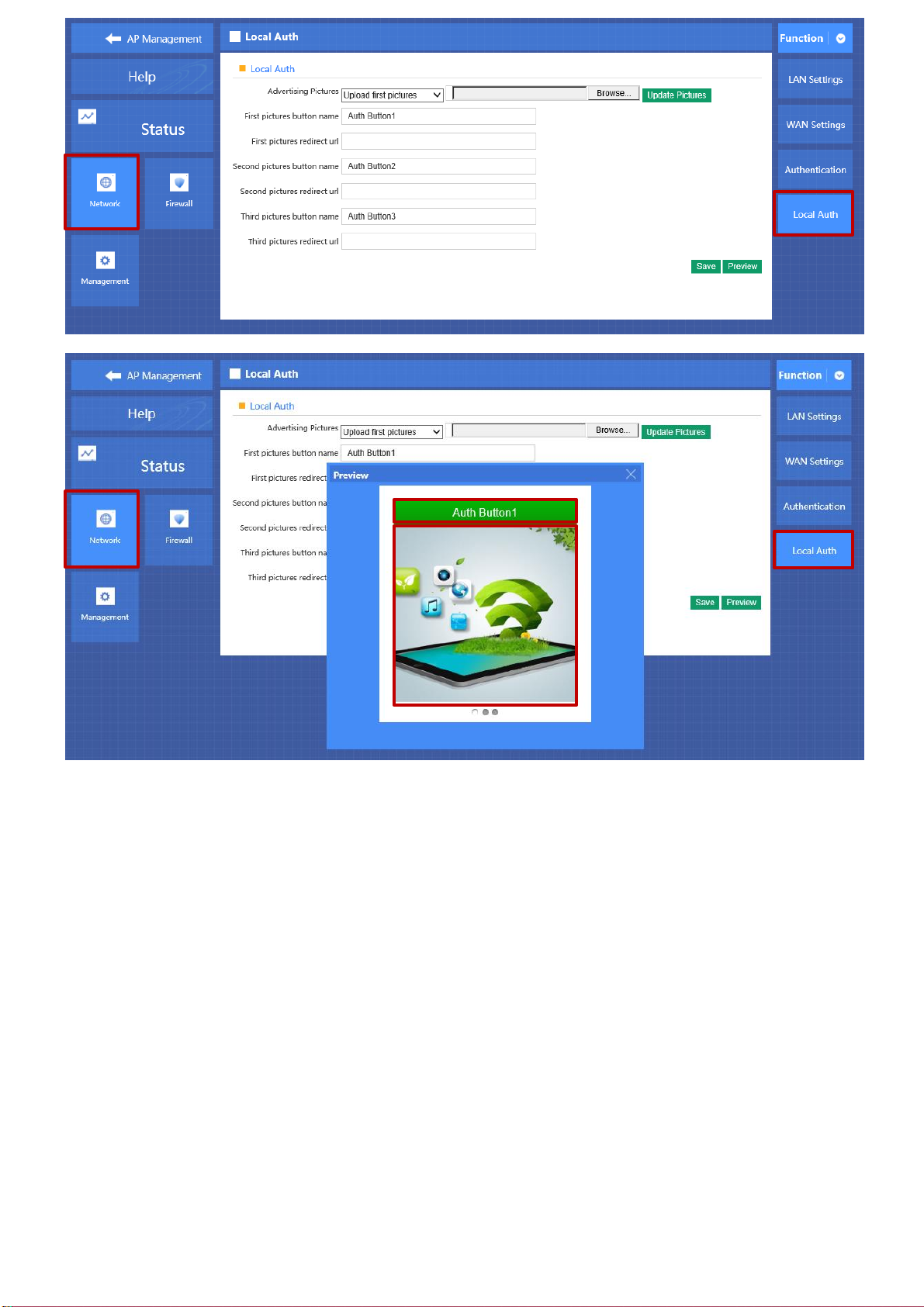

4.5.4 Local Authentication Management ....................................................................................... 16
4.6 Status ......................................................................................................................... 18
4.6.1 LAN Status .......................................................................................................... 18
4.6.2 WAN Status .......................................................................................................... 18
4.7 Firewall ..................................................................................................................... 19
4.7.1 IP/Port Filtering .................................................................................................... 19
4.7.2 MAC Filtering ...................................................................................................... 20
4.7.3 URL Filtering ....................................................................................................... 20
4.7.4 Port Forwarding .................................................................................................... 21
4.7.5 DMZ Settings ....................................................................................................... 21
4.8 Device management ................................................................................................. 22
4.8.1 System management .............................................................................................. 22
4.8.2 QoS .................................................................................................................... 22
4.8.3 User management .................................................................................................. 23
4.8.4 Device Log .......................................................................................................... 23
4.8.5 Upgrade Firmware ............................................................................................... 24
4.8.6 System Time ....................................................................................................... 24
Appendix A Product SPEC ...............................................................................25
Appendix B LICENSE STATEMENT / GPL CODE STATEMENT ..........26
4
Chapter 1 Manual Introduction
This manual is subject to tell users how to use this WLAN management platform properly; Contents include description of this
platform’s properties, and how to configure this platform; Pre-reading this manual before operation is highly recommended;
1.1 Target reader
This manual is for those familiar with basic networking knowledge and terminology;
1.2 Conventions
If without extra explanation, this device, or WIFI management platform mentioned on this guide stands for AC Controller WiFi
management platform, short for AC Controller;
>> stand for the sequence entering interface page; Default: Class A menu>>Sub menu;
There is no sub menu on some functions;
< including words> on body part, means menu name, like <apply>
“including words” means other definition except menu on Web page, like “ARP Binding”
1.3 Chapter allocations
Chapter 1: Manual Introduction:
Grasp the structure of this manual, know convention of this manual, so that make well use of this manual;
Chapter 2: Products Introduction: Introduce properties、application and layout of this device;
Chapter 3:Installation Guide: Instruct users how to login and manage this platform, then introduce the device’s interface briefly;
Chapter 4:Function Settings: Introduce all functions of this platform, help clients to make fully use of this device;
Appendix A: Product SPEC;
Appendix B LICENSE STATEMENT / GPL CODE STATEMENT
5
Chapter 2: Products Introduction
2.1 Products description
AC Controller is a highly performance WIFI management platform, special for WIFI in hotel or small-medium sized
enterprise;
It’s capable for managing all Access point, support AP auto-detection, AP status preview, AP configuration, MAC filtering, AP
software upgrade simultaneously to provide high quality & performance& reliability, easy installation & maintenance WIFI
service to different clients;
2.2 Products Properties
Hardware property
Deploy dual core CPU, 880Mhz frequency
Deploy high capacity & speed memory, up to 256M DDR3 SDRAM;
5 * 10/100/1000Mbps Gigabit Ethernet port
Software property
AC Controller detect and connect to wireless access point automatically, no need to configure any AP, realize true
centralized AP management function
Monitor AP status in real-time, auto-inspection AP’s working status (up or down), show each ap status under interface
page;
Configure related properties to each AP simultaneously, like setting SSID, connection type, Security type, etc;
Adjust WIFI RF output manually, to fit for different networking environment, and maximum WIFI coverage;
AP address server function can allocate IP address for different AP working in the same segment, no need to set up AP’s IP
address manually;
Support smart gateway mode, working as a Gigabit router, to realize router, AC, AP address server function in the same
unit;
Adjust each AP’s WIFI settings like Channels or location remark, providing auto-restarting functions on AP;
Support WIFI MAC filtering, only allow the device, whose MAC address is in the rule list, to have WIFI access, make sure
a securer network allowed;
Full WEB management, clear and concise, make AP management easier and much convenient;
6
2.3 Product Layout
LED Light
Name
Indication
Power
Power Light
Power is on, means status is up;
Power is off, mean status is down;
Run
System Light
flashing, means system status is normal
off or stable steady, means status is abnormal
2.3.1 Front Panel
AC Controller front panel is like following:
P2-1 AC Controller’s Front Panel Diagram
LED indicator
Reset button
If you need to restore the AC Controller into factory default, please do following procedure: Power on AC Controller, use a pin
to press and hold the reset button until all LED becomes quick-flash from slow-flash.
Then release the button and wait AC Controller to reboot to its factory default settings. After that, the default IP address of AC
Controller is still 192.168.10.1, default user name and password are both admin;
RJ45 Ports: 5x 10/100M/1000Mbps auto-negotiation RJ45 Ethernet Port;
Support any connection devices in 10/100M/1000Mbps bandwidth;
DC: Connect with 12V/1.5A DC adapter, to power this AC controller. Please use original power cord for installation; Set locate
power outlet near the devices, to make safer and easier installation and operation
Notice:
LAN/WAN port is LAN port only on the default mode, only when WAN setting is enabled then LAN/WAN port will change to
WAN port;
2.3.2 Rear Panel
AC Controller rear panel is blank like following:
P2-2 AC Controller Rear Panel Diagram
7
Chapter 3 Configuration Guide
3.1 Login Web Interface
AC Controller has normal power up, one port has been connected to the management host.
1) The management host has been properly installed IE 7.0 or higher browser version
2) AC Controller’s default IP address is 192.168.1.1, the management host IP address has been set the same network segment
with WAC-2000, namely 192.168.1.X (X is between 2-254 arbitrary integer Number), a subnet mask of 255.255.255.0.
3) In order to ensure a better effect of Web interface displays, it is recommended to adjust the display resolution to 1024 × 768
or more pixels.
Operation Steps:
A. Open IE browser,Input http://192.168.1.1/ in the address bar to login AC Controller Web management interface.
B. AC Controller login screen shown in Figure 3-1. In this screen enter the AC Controller for user name and password, the
factory default is admin / admin, click <OK>.
P 3-1 Web Login page
C. After a successful login, then see AC 1000 Web interface page, shown in Figure 3-2.
3-2 AC Controller’s Web Interface page
8
Chapter 4 Function Setting
4.1 Zero Config
If the SSID, password is same in one networking, prefer to choose Zero Config operation mode before connect AP to AC
controller, set AC controller’s Zero Config based on following steps, then AP will get data when plug into AC controller, then
play.
Click “Zero Config”--- “New”---“Wireless Basic” to config Wireless AP’s SSID, password, Group name---”Wireless
advanced” to to config wireless AP’s channel, RF Power---”Apply”, then wireless AP can get the data from new zero config
group.
Notice: Device List: “Wlan Device 1” mean 2.4G Wireless; “Wlan Device 2” mean 5G Wireless
If some wireless AP connected to AC controller already, then want to apply Zero Config, click “Zero Config”---
“New”---“Wireless Basic” to config Wireless AP’s SSID, password, Group name---”Wireless advanced” to to config wireless
AP’s channel, RF Power---”Apply”---Restart AP, then wireless AP can get the data from new zero config group.
Notice: If there are different SSID/password in one networking, then prefer to choose device group, the different between zero
config and device group showed as follow:
A. Zero Config can create a new group only, device group can create multi new group.
B. Zero Config: No need to add AP into group by manual; Device group: need to add AP into group by manual
C. Zero Config: there are auto channel, RF power, automatic reboot functions; Device group: none
9
4.2 Device List
Device list show the current wireless AP connected AC Controller.
It show wireless AP’s location, name, IP address, MAC address, user QTY, firmware version, channel, online time, device group,
config button, then can refresh/delete/reboot/reset wireless AP, can set wireless AP in batch, or upgrade firmware for wireless
AP.
In the bottom page of device list, display the total quantity of AP connected to AC Controller, the quantity of AP online or
offline to easy detect the wireless AP’s performance in P4-1
P 4-1 AP List
4.2.1 Device list setting
Through the device list, can login corresponding wireless AP’s IP address directly, can set parameters from wireless AP’s Web
management if this PC is set another fixed IP address same segment as device IP.
Or can click the config button , to set parameters, view the Device Status of the AP; setting the Device Network; setting the
Wireless Base; Wireless Advanced showed in red part as P4-1-1
P4-1-1
10
4.2.2 Device status
Device status can check Device Model, Online Time, Device MAC and Device IP; Software name; software version; AC IP;
SSID; BSSID; Channel; Wireless Security RF Output Power; Beacon Interval; Coverage Threshold as Figure 4-1-2
P4-1-2 Device Status
4.2.3 Device Network
AC Controller’s IP address is 192.168.1.1. In Device Network option, AC Controller can assign IP address for connected
wireless AP. The default IP setting is DHCP, mean wireless AP can get IP address from AC Controller in dynamic way; Then IP
address mean wireless AP’s IP address. Subnet Mask mean Wireless AP’s Subnet Mask.
P4-1-3
4.2.4 Wireless Basic Setting
Wireless basic setting show wireless status, like enable or disable (enabled in default); broadcast SSID is enable or disable;
Virtual AP is turned on or off; Wireless Security turn open or not.
11
P 4-1-4 Wireless Basic Info
4.2.5 Wireless Advanced
Wireless advanced setting mainly for AP’s wireless parameters, including Device List; Mode; Channel; Client isolation;
Coverage Threshold; Max Station
Device List: Display the AC controller is manage 2.4G wireless devices AP
Mode: This mode is used to set up the mode of Wireless Access Point, recommended 11b / g / n 20MHz mode.
Channels: channel range, FCC default is 1-11, ETST default 1-13
Client Isolation: The option is to make the host cannot communicate with each other on a different SSID's if this option Enable.
Coverage threshold: You can set the threshold to achieve wireless signal roaming
Max Station: mean number of end users can access into wireless AP.
(The default is 32 mean 32 end users can access int this wireless AP, 0 mean unlimited).
P 4-1-5 Wireless Advanced Setting
