LevelOne WAB-2000 User Manual

Download

WAB-2000

108Mbps Mesh AP/Bridge

User`s Manual

V er: 1.00-0507

means or to make any derivative work (such as translation, transformation, or adaptation) without written permission

from the manufacturer.

The manufacturer reserves the right to revise this documentation and to make changes in content from time to

time without obligation on the part of the manufacturer to provide notification of such revision or change.

The manufacturer provides this documentation without warranty, term or condition of any kind, either implied or

expressed, including, but not limited to, the implied warranties, terms, or conditions of merchantability, satisfactory

quality, and fitness for a particular purpose. The manufacturer may make improvements or changes in the product(s)

and/or the program(s) described in this documentation at any time. Certain features listed may have restricted

availability and/or are subject to change without notice - please confirm material features when placing orders.

If there is any software or removable media described in this documentation, it is furnished under a license

agreement included with the product as a separate document, in the printed documentation, or on the removable media

in a readable file such as license.txt or the like. If you are unable to locate a copy of the license, contact the

manufacturer and a copy will be provided to you.

___________________________________

Level One and Level One logo are registered trademarks.

Windows is a registered trademark of Microsoft Corporation. Any other company and product name mentioned

herein is a trademark of the respective company with which they are associated.

Table of Contents

Chapter 1: Introduction...................................................................................................1

Basic Features .............................................................................................................2

Wireless Basics............................................................................................................2

802.11b.......................................................................................................................3

802.11a.......................................................................................................................3

802.11b/g Mixed......................................................................................................3

802.11 Super G and Turbo A...................................................................................3

Network Conguration ..........................................................................................4

Access Point Congurations..................................................................................4

Possible AP Topologies.........................................................................................4

Bridging ....................................................................................................................5

Data Encryption and Security................................................................................6

SSID ...........................................................................................................................6

WEP ...........................................................................................................................6

WPA with TKIP/ AES-CCMP................................................................................6

AES ............................................................................................................................7

MAC Address Filtering ..........................................................................................7

DHCP Server............................................................................................................7

Operator Authentication and Management ........................................................7

Management...............................................................................................................8

WAB–2000 Navigation Options ...............................................................................9

Chapter 2: Hardware installation................................................................................11

Preparation for Use..................................................................................................11

Installation Instructions ..........................................................................................12

Minimum System and Component Requirements ............................................12

Connectors and Cabling .........................................................................................13

Bridge Transmit Distance........................................................................................14

Bridge Antenna Location........................................................................................14

Outdoor Protection Kit Installation.......................................................................15

Earth Ground Connection....................................................................................16

Lighnting Arrestor Installation............................................................................16

Antenna Installation................................................................................................17

Sealing Antenna Connections..............................................................................17

Mounting Kit Setup .................................................................................................18

The Indicator Lights..............................................................................................18

Chapter 3: Access Point Conguration ......................................................................21

Introduction..............................................................................................................21

Preliminary Conguration Steps...........................................................................21

Initial Setup using the “Local” Port ......................................................................22

System Conguration..............................................................................................24

General....................................................................................................................24

WAN ........................................................................................................................25

LAN .........................................................................................................................26

Wireless Access Point Conguration ....................................................................27

General....................................................................................................................27

Security ...................................................................................................................30

No Encryption .....................................................................................................30

Static WEP Encryption ......................................................................................31

802.11i and WPA .................................................................................................32

MAC Address Filtering ........................................................................................34

29000156-001 A

29000156-001 A v

Rogue AP Detection..............................................................................................35

Advanced................................................................................................................36

Wireless Bridge.........................................................................................................36

Services Settings.......................................................................................................37

DHCP Server..........................................................................................................37

SNMP Agent...........................................................................................................38

User Management....................................................................................................39

List All Users..........................................................................................................39

Add New User .......................................................................................................40

Monitoring/Reports................................................................................................41

System Status .........................................................................................................41

Bridging Status.......................................................................................................42

Bridge Site Map .....................................................................................................43

Wireless Clients......................................................................................................44

Adjacent AP List....................................................................................................44

DHCP Client List...................................................................................................45

System Log .............................................................................................................45

Web Access Log .....................................................................................................46

Network Activity...................................................................................................46

System Administration ...........................................................................................47

System Upgrade ....................................................................................................47

Firmware Upgrade..............................................................................................47

Local Conguration Upgrade ...........................................................................48

Factory Default ......................................................................................................49

Remote Logging.....................................................................................................49

Reboot .....................................................................................................................50

Utilities....................................................................................................................50

Chapter 4: Wireless Bridge Conguration ................................................................51

Introduction..............................................................................................................51

Wireless Bridge — General ..................................................................................52

Auto-forming Wireless Bridging ......................................................................52

Manual Bridging .................................................................................................55

Monitoring ...........................................................................................................58

Wireless Bridge — Encryption.............................................................................58

Setting Up Bridging Type .......................................................................................59

Point-to-Point Bridge Conguration ..................................................................59

Point-to-Point Bridging Setup Guide - Manual Mode...................................60

Point-to-Point Bridging Setup Guide - Auto Mode .......................................60

Point-to-Multipoint Bridge Conguration ........................................................64

Point-to-Multipoint Bridging Setup Guide - Manual Mode.........................65

Point-to-Multipoint Bridging Setup Guide - Auto Mode..............................65

Repeater Bridge Conguration ...........................................................................66

Repeater Bridging Setup Guide - Manual Mode............................................66

Repeater Bridging Setup Guide - Auto Mode.................................................67

Chapter 5: Technical Support.......................................................................................69

Manufacturer’s Statement ......................................................................................69

Radio Frequency Interference Requirements.......................................................69

Glossary ........................................................................................................................G-a

SAFETY INFORMATION

Please follow thes guidelines when installing and using the WAB–

2000 product.

! WARNING

Warnings must be followed carefully to avoid bodily injury.

! CAUTION

Cautions must be observed to avoid damage to your equipment.

NOTE: Notes contain important information about this product.

The following warnings appear in this manual.

! WARNING

Do not attempt to install any outdoor equipment during hazardous conditions such as a thunderstorm, where lightning could strike the equipment or installer. Failure to follow this warning could result in injury or death.

WAB–2000 Chapter 1: Introduction

Chapter 1: Introduction

This manual covers the installation and operation of the Level One's WAB–2000 108Mbps Mesh

AP/Bridge. The WAB–2000 is a ruggedized access point/bridge which is intended for use in industrial

and external environments. It accommodates 802.11a/b/g, 802.11g Super, and 802.11a Turbo WLAN

access and uses Power over Ethernet (PoE) access to the Ethernet WAN to eliminate the need for

internal access point power supply units (AC-DC converters) and 110-220V cabling installations. The

wireless LANs can include mobile devices such as handheld Personal Data Assistants (PDAs), mobile

web pads, and wireless laptops.

If encryption is desired for the WLAN, you can select None, Static WEP, or WPA. WPA uses

TKIP or AES-CCMP so you can employ legacy client WEP cards and still secure the wireless band.

The WAB–2000 incorporates Power over Ethernet. The PoE interface on the WAB–2000 is

compatible with commercial vendor “injected power” hub units.

The WAB–2000 includes AES cryptographic modules for wireless encryption and HTTPS/TLS, for

secure web communication. In addition, it contains the capability to use the traditional WEP algorithm,

either as static WEP or managed under WPA. The WAB–2000 has an Ethernet WAN interface for

communication to the wired LAN backbone, Ethernet LAN local port for purposes of initial setup and

configuration, and two wireless AP antennas for communicating on the 802.11a/b/g frequencies. Further,

it has the capability for use of an external (remote) antenna, for bridging, using the 802.11b/g Mixed,

802.11a, 802.11g Super, 802.11a Turbo frequencies.

The WAB-2000 supports Auto-forming wireless bridging (AWB) - with a maximum number of

allowable bridges (the default is 40). When the wireless bridge is in auto-forming mode, the wireless

bridge sniffs for beacons from other wireless bridges and identifies APs that match a policy such as

SSID and channel. Instead of simply adding the APs with the same SSID/channel to the network, a

three-way association handshake is performed in order to control network access.

Basic Features

The WAB–2000 is housed in a sturdy case, which is not meant to be opened except by an

authorized technician for maintenance or repair. If you wish to reset to factory settings, use the reset

function available through the GUI-based management module or press and hold the reset button on the

front of the unit for 10 seconds.

The WAB–2000 is wall-mountable.

It has the following features:

WAB–2000 Chapter 1: Introduction

• Ethernet uplink WAN port/Local Ethernet LAN port (for configuration only)

• Wireless AP with operating range of 2000+ feet

• Auto-forming wireless bridging (AWB) ,up to 40 nodes.

• Power over Ethernet (PoE)

• Above average temperature range for extreme environments (with TEC option)

• HTTPS/TLS secure Web

• DHCP client

• Bandwidth control

• Adjustable Radio Power

• MAC address filtering

• Load Balancing

• Rogue AP Detection

The following security modules have been implemented in the WAB–2000.

• AES (128 bit) for Bridge

• WEP (64, 128, and 152 bit) for AP

• WPA (pre-share key and TKIP/AES-CCMP) for AP

• 802.11i/WPA2 (128 bit) for AP

Wireless Basics

Wireless networking uses electromagnetic radio frequency waves to transmit and receive data.

Communication occurs by establishing radio links between the wireless access point and devices

configured to be part of the WLAN.

For wireless devices to communicate with the WAB–2000 , they must meet the following

conditions:

• The wireless device and wireless access point must have been configured to recognize each other

using the SSID (a unique ID assigned in setup so that the wireless device is seen to be part of the

network by the WAB–2000 );

• Encryption and authentication capabilities and types enabled must conform; and

• If MAC filtering is used, the WAB–2000 must be configured to allow the wireless device’s MAC

address to associate (communicate) with the WAB–2000 wireless interface.

WAB–2000 Chapter 1: Introduction

802.11b

The IEEE 802.11b standard ratified by IEEE, establishes a stable standard for compatibility. A user

with an 802.11b product can use any brand of access point with any other brand of client hardware that

is built to the 802.11b standard for basic interconnection. 802.11b devices provide 11 Mbps transmission

(with a fallback to 5.5, 2 and 1 Mbps depending on signal strength) in the 2.4 GHz band.

802.11g

Because 802.11g is backwards-compatible with 802.11b, it is a popular component in LAN

construction. 802.11g broadens 802.11b’s data rates to 54 Mbps within the 2.4 GHz band using OFDM

(orthogonal frequency division multiplexing) technology.

802.11a

The IEEE 802.11a standard is an extension to 802.11 that applies to wireless LANs and provides up to 54 Mbps in the 5GHz band.

802.11a uses an orthogonal frequency division multiplexing encoding scheme rather than FHSS or DSSS.

802.11b/g Mixed

802.11b/g combines 802.11b and 802.11g data rates to offer a broader range. In this mode, all

transmissions will be at the highest data rate available.

802.11 Super G and Turbo A

802.11 Super G and 802.11 Turbo A technologies provide double speed and throughput of standard

11G/11A. Higher throughput is necessary for a variety of functions such as: streaming media (video,

DVD, MPEG), VoIP, etc., or for providing multiple users on a single WLAN with optimal speeds

despite network demand. 108 Mbps is the maximum link speed available and the typical MAXIMUM

end-user throughput ranges from approximately 40 Mbps to 60+ Mbps.

NOTE: Super G’s channel bonding feature can significantly degrade the performance of

neighboring 2.4GHz WLANs that don’t use Super G, because there isn’t enough room in the 2.4GHz

wireless LAN spectrum. Moreover, Super G doesn’t check to see if 11b or 11g standards-compliant

devices are in range before using its non-standard techniques.

NOTE: Due to the frequency regulation in Europe, Turbo A spectrums are reserved and not

available for the general users. Therefore European users may find that all the Turbo A functions

mentioned in this manual are not available.

WAB–2000 Wireless Access Point Chapter 1: Introduction

29000156-001 A 5



Network Conguration

The WAB–2000 is an access point with bridging setup capability:

• Access point/Gateway plus:

• Wireless bridging with choice of:

- Point-to-point setup

- Point-to-multipoint setup

- Repeater setup

Bridging actually has more choices, but the above choices are popular

and are discussed later in this user guide (Chapter 4).

Access Point Congurations

When a WAB–2000 is used as an access point, IP addresses for wireless devices are typically assigned by the wired network’s DHCP server. The wired LAN’s DHCP server assigns addresses dynamically, and the AP virtually connects wireless users to the host wired network. All wireless devices connected to the AP are congured on the same subnetwork as the wired network interface and can be accessed by devices on the wired network.

Possible AP Topologies

1. An access point can be used as a stand-alone AP without any connection to a wired network. In this conguration, it simply provides a stand-alone wireless network for a group of wireless devices.

4 29000156-001 A

WAB–2000 Wireless Access Point Chapter 1: Introduction



 

 

 

 



2. There can be multiple APs connected to an existing Ethernet network to bridge between the wired and wireless environments. Each AP can operate independently of the other APs on the LAN. Multiple APs can coexist as separate individual networks at the same site with a different network ID (SSID).

3. The last and most prevalent use is multiple APs connected to a wired network and operating off that network’s DHCP server to provide a wider coverage area for wireless devices, enabling the devices to “roam” freely about the entire site. The APs have to use the same SSID. This is the topology of choice today.

Bridging

The wireless bridging function in the WAB–2000 allows use as a bridge, in a number of alternate congurations, including the following popular congurations:

• Point-to-point bridging of 2 Ethernet Links;

• Point-to-multipoint bridging of several Ethernet links;

• Repeater mode (wireless client to wireless bridge.)

29000156-001 A 5

WAB–2000 Wireless Access Point Chapter 1: Introduction

29000156-001 A 7

Data Encryption and Security

The WAB–2000 Wireless Access Point includes advanced wireless security features. Over the AP band, you have a choice of no security, Static WEP, or WPA. Some level of security is suggested. Static WEP gives you a choice of 64-bit, 128-bit, or 152-bit encryption. WPA includes the option of using a WPA pre-shared key or, for the enterprise that has a Radius Server installed, conguration to use the Radius Server for key management with either TKIP or AES-CCMP. Bridging encryption is established between WAB–2000’s and includes use of AES-ECB 128-bit encryption (approved by the National Institute of Standards and Technology (NIST) for U.S. Government and DoD agencies).

SSID

The Service Set ID (SSID) is a string used to dene a common roaming domain among multiple wireless access points. Different SSIDs on access points can enable overlapping wireless networks. The SSID can act as a basic password without which the client cannot connect to the network. However, this is easily overridden by allowing the wireless AP to broadcast the SSID, which means any client can associate with the AP. SSID broadcasting can be disabled in the WAB–2000 setup menus.

WEP

WEP is an older encryption standard but is preferable to no encryption. If the WAB–2000 is congured with WEP encryption, it is compatible with any 802.11b PC Card congured for WEP.

WPA with TKIP/ AES-CCMP(WPA2)

WPA, an interim standard developed by the WiFi Alliance, combines several technologies. It includes the use of the 802.1x standard and the Extensible Authentication Protocol (EAP). In addition, it uses, for encryption, the Temporal Key Integrity Protocol (TKIP) and WEP 128-bit encryption keys. Finally, a message integrity check (MIC) is used to prevent an attacker from capturing and altering or forging data packets. In addition, it can employ a form of AES called AES-CCMP.

WPA is a subset of the 802.11i standard and is expected to maintain forward compatibility.

6 29000156-001 A

WAB–2000 Wireless Access Point Chapter 1: Introduction

AES

The Advanced Encryption Standard (AES) was selected by National Institute of Standards and Technology (NIST) in October 2000 as an upgrade from the previous DES standard. AES uses a 128-bit block cipher algorithm and encryption technique for protecting computerized information.

The WAB–2000 uses AES for the bridging channel.

MAC Address Filtering

The MAC address, short for Media Access Control address, is a hardware address that uniquely identies each node of a network. In IEEE 802 networks, the Data Link Control (DLC) layer of the OSI Reference Model is divided into two sub-layers: the Logical Link Control (LLC) layer and the Media Access Control (MAC) layer. The MAC layer interfaces directly with the network media. Consequently, each type of network media requires a unique MAC address.

Authentication is the process of proving a client identity. The WAB–2000 access points, if set up to use MAC address ltering, detect an attempt to connect by a client and compare the client’s MAC address to those on a predened MAC address lter list. Only client addresses found on the list are allowed to associate. MAC addresses are pre-assigned by the manufacturer for each wireless card.

DHCP Server

The DHCP function is accessible only from the local LAN port to be used for initial conguration.

Operator Authentication and Management

Authentication mechanisms are used to authenticate an operator accessing the device and to verify that the operator is authorized to assume the requested role and perform services within that role.

Access to the management screens for the WAB–2000 requires knowledge of the assigned operator ID and Password. The Factory defaults are:

• ID: crypto

• Password: ofcer

The Crypto Ofcer initially installs and congures the WAB–2000 after which the password should be changed from the default password. The ID and Password are case sensitive.

29000156-001 A 7

WAB–2000 Wireless Access Point Chapter 1: Introduction

29000156-001 A 9

Management

After initial setup, maintenance of the system and programming of security functions are performed by personnel trained in the procedure using the embedded gui-based management screens.

The next chapter covers the basic procedure for setting up the hardware.

8 29000156-001 A

WAB–2000 Wireless Access Point Chapter 1: Introduction

WAB–2000 Navigation Options

System Conguration

General

WAN

LAN

Wireless Access Point

General

Security

• None

• Static WEP

• 802.11i and WPA

MAC Address Filtering

Rogue AP Detection

Advanced

Wireless Bridge

General

• Monitoring

Encryption

• AES (128-bit)

MAC Address Filtering

Services Settings

DHCP Server

SNMP Agent

User Management

List All Users

• Edit/Delete

Add New User

Monitoring Reports

System Status

Bridging Status

Bridging Site Map

Wireless Clients

Adjacent AP List

DHCP Client List

System Log

Web Access Log

Network Activities

System Administration

System Upgrade

• Firmware Upgrade

• Local Conguration Upgrade

Factory Default

Remot Logging

Reboot

Utilities

29000156-001 A 9

WAB–2000 Wireless Access Point Chapter 1: Introduction

This page intentionally left blank.

10 29000156-001 A

WAB–2000 Chapter 2: Hardware Installation

Chapter 2: Hardware Installation

Preparation for Use

The WAB–2000 Wireless Access Point requires physical mounting and installation on the site,

following a prescribed placement design to ensure optimum operation and roaming.

FCC Regulations require that the WAB–2000 be professionally installed by an installer

certified by the National Association of Radio and Telecommunications Engineers or equivalent

institution.

The WAB–2000 operates with Power over Ethernet (PoE) which requires the installation of a

separate Power injector which “injects” DC current into the Cat5 cable. There are two versions of the

WAB–2000 available, the standard version with a temperature range of -5 degrees C to +50 degrees C,

and there is the extended temperature range product with a range of -30 degrees C to +70 degrees C. The

latter version of the product employs ThermoElectric Cooler (TEC) technology to extend the product

into the higher temperature environment.

The TEC Technology requires power to transfer the heat. Unfortunately, this raises the electric

current requirement to 25 watts, beyond the 802.3af specification of 15.4 watts. To ensure that the

WAB–2000 with TEC option is provided with the power it requires, an extended range PoE power

injector enclosed within the package is required.

The WAB–2000 package includes the following items:

• The WAB–2000 Wireless Access Point

• 2 attachable 5dBi omni-directional antennas

• 2 meter LAN Ethernet cable (RJ-45 to RJ-45)

• Documentation as PDF files (on CD-ROM)

• Registration and Warranty cards

• Power Injector, POE, 50W

• 3 meter antenna extension cable

• Outdoor Protection Kit

29000156-001A 11

WAB–2000 Wireless Access Point Chapter 2: Hardware Installation

29000155-001 A 13

The bridge antenna port is used when conguring the unit to be used as a bridge. The port uses an omni-directional antenna.

The WAB–2000 can be mounted outdoors on a high post to achieve the best bridge result. If mounted outdoors, the outdoor protection kit must be used to prevent lightning damage.

To comply with FCC RF exposure compliance requirements, the antennas used with the WAB–2000 must be installed with a mini-

mum separation distance of 20 cm from all persons, and must not be co-located or operated in conjunction with any other antenna or transmitter. Installation should be accomplished using the authorized cables and/or connectors provided with the device or available from the manufacturer/distributor for use with this device. Changes or modications not expressly approved by the manufacturer or party responsible for this FCC compliance could void the user’s authority to operate the equipment.

Installation Instructions

The WAB–2000 is intended to be installed as part of a complete wire-

less design solution.

This manual deals only with the WAB–2000 device. The purpose of this chapter is the description of the device and its identiable parts so that the user is sufciently familiar to interact with the physical unit. Preliminary setup information provided below is intended for information and instruction of the wireless LAN system administration personnel.

It is intended that the user not open the unit. Any maintenance required is limited to the external enclosure surface, cable connections, and to the management software (as described in chapter three through ve) only. A failed unit should be returned to the manufacturer for maintenance.

Minimum System and Component Requirements

The WAB–2000 is designed to be attached to the wall at appropriate locations. To complete the conguration, you should have at least the following components:

• PCs with one of the following operating systems installed: Windows NT 4.0, Windows 2000 or Windows XP;

• A Wi-Fi compatible 802.11a/b/g device for each computer that you wish to wirelessly connect to your wireless network.

• Access to at least one laptop or PC with an Ethernet card and cable that can be used to complete the initial conguration of the unit.

• A Web browser program (such as Microsoft Internet Explorer 5.5 or later, or Netscape 6.2 or later) installed on the PC or laptop you will be using to congure the Access Point.

• TCP/IP Protocol (usually comes installed on any Windows PC.)

12 29000155-001 A

WAB–2000 Wireless Access Point Chapter 2: Hardware Installation

Connect RF Antenna for AP

LAN "Local" Ethernet Port

110V Powe

Ethernet switch/hub

Connect

RFAnt

enna for Bridge/ Repeater

Power

Injector

WAN "Uplink

" Ethernet Port / PoE

Connectors and Cabling

The following illustration shows the external connectors on the

WAB–2000.

The WAN connector is used to connect the WAB–2000 to the organization's LAN. The WAN connector is routed from the unit to the power injector which runs DC power through the Ethernet cable to the unit. The

Ground

WAN Port "Uplink"

LAN Port "Local"

Bridge Antenna Port

Ethernet cable is thus run from the WAB–2000 to the power injector which is then connected to a power source and the wired LAN. A second (LAN Port) Ethernet connector is designed for use during initial conguration only. This uses an RJ45 cable to connect the WAB–2000 to a laptop. The following diagram demonstrates the setup.

29000155-001 A 13

WAB–2000 Wireless Access Point Chapter 2: Hardware Installation

29000155-001 A 15

Bridge Transmit Distance

Normally, the bridge need transmit RF signal to another bridge device at long distance. You may need to calculate the RF link Budget as reference. The equation of RF link budget is:

Fade Margin = received signal – receiver threshold

Where

Received signal = Transmitter power – Transmitter cable loss + Trans-

mitter antenna gain – free space path loss + Receiver antenna gain

– Receiver cable loss

Received threshold = Received sensitivity

Free Space Path Loss

Using below Free Space Loss Formula to calculate free space path loss

Where

LP = free space path loss between antennas

F = frequency in GHz

D = path length in miles

Bridge Antenna Location

When as bridge device, the WAB-2000 may need to be mounted out-

doors on a high place to achieve the best bridge result. The Fresnel zone and Earth bulge dominate to decide how high that the unit’s Antenna need be put. The total antenna height equals the width of Fresnel zone plus the height of earth bulge.

The Fresnel zone is the area around the visual line-of-sight that radio waves spread out into after they leave the antenna. This area must be clear or else signal strength will weaken. The rule of thumb is that 60% of the Fresnel zone must be clear of obstacles. Typically, 20% Fresnel Zone blockage introduces little signal loss to the link. Beyond 40% blockage, signal loss will become signicant.

14 29000155-001 A

WAB–2000 Wireless Access Point Chapter 2: Hardware Installation

The equation of the width of Fresnel Zone is:

Where

W = Width of the Fresnel Zone (in feet)

D = Distance between the antennas (in miles)

F = Frequency in GHz

When the transmit distance of RF signal is longer than seven miles, the curvature of the earth may be a factor and require the antenna put at higher location. The additional antenna height can be calculated by below formula:

Where

H = Height of earth bulge (in feet)

D = Distance between antennas (in miles)

Outdoor Protection Kit Installation

If any portion of this assembly, either the WAB–2000 unit or any attached antenna, is to be used outside, the proper Outdoor Protection Kit must be installed. This kit contains lightning arrestors for each antenna and the required cabling to connect these items to the common grounding stud on the WAB–2000 unit.

NOTE: You (the user) are required to ensure that the connection to a proper earth ground is made by properly certied and authorized personnel and must conform to all applicable codes and regulations. The materials required to connect to a proper ground are dened by local conditions and must be procured locally to ensure the correct safety environment is achieved. The cable used to connect to a proper ground must be AWG 10 or heavier. This cable should be kept as short as possible.

! WARNING

29000155-001 A 15

WAB–2000 Wireless Access Point Chapter 2: Hardware Installation

29000155-001 A 17





 



  

Earth Ground Connection

Attach the earth ground ring terminal to the WAB–2000's grounding stud. Make sure the ring terminal is against the unit's metal case. The earth ground ring terminal should be the rst connection on the unit's grounding stud.

NOTE: The cable used to connect to a proper earth ground must be AWG 10 or heavier. This cable should be kept as short as possible

Lighnting Arrestor Installation

To install the lightning arrestor option, attach one end of the lightning arrestor to the WAB–2000's antenna connector. Attach the antenna (or the antenna cable) to the other end of the lightning arrestor.

Attach the ring terminal from the Lightning Arrestors’ ground cable to the grounding stud on the WAB–2000 unit. The lightning arrestor's ring terminal should be attached to the unit after the earth ground ring terminal is attached.

Perform this same procedure for every antenna installed on the unit.

It is recommended that this Outdoor Protection Kit be replaced every three years. If the unit is operated in an area subject to intense lightning activity, it is recommended that the Outdoor Protection Kit be replaced every year.

16 29000155-001 A

WAB–2000 Wireless Access Point Chapter 2: Hardware Installation

Antenna Installation

The WAB–2000 ships with two 5dBi omni-directional antennas. These antennas should be connected to the AP antenna connectors located on the rear of the unit.

NOTE: Make sure a lightning arrestor is installed between the unit and the antenna if any part of this assembly is located outdoors. See the previous section.

If you are not using the access point function then you do not need the AP antennas. Make sure during your conguration set up that you go to the Wireless Access Point—General screen and set the Tx Pwr Mode to Off (see Chapter 3).

Sealing Antenna Connections

Once all antennas have been installed, the connections should be sealed to protect them from the exterior harsh environment. Use a self amalgamating polyisobutylene tape which, over a period of hours, adheres to itself and forms a single amalgamated rubber molding conforming to the shape of the item it is covering. Once the tape is in place for several hours, it forms a shaped rubber molding that is resistant to water and most solvents. It remains stable over a wide temperature range and degrades very slowly in sunlight. If you need to remove the tape after it has sealed for 30 minutes or more, cut it away with a sharp knife.

29000155-001 A 17

WAB–2000 Wireless Access Point Chapter 2: Hardware Installation

29000155-001 A 19

The bridge antenna port is located on the front of the WAB–2000. To obtain the best performance, the bridge antenna should be placed away from the AP antennas. Use a 1.5 meter low loss antenna cable to connect a directional antenna to the WAB–2000. The maximum gain for the directional antenna should be 14 dBi.

Mounting Kit Setup

To mount the WAB–2000 outdoors, you should choose a suitable post to mount the unit high in the air. Use the U-ring, screws and nuts to attach the mounting plate to the post. Next attach the WAB–2000 to the mounting plate with screws.

The Indicator Lights

The top panel of the WAB–2000 contains a set of indicator lights (Light Emitting Diodes or LEDs) that help describe the state of various networking and connection operations.

Power WAN WLAN1WLAN

WLAN

18 29000155-001 A

WAB–2000 Wireless Access Point Chapter 2: Hardware Installation

LED Description

Power The Power indicator LED informs you when the gate-

way is on or off. If this light is on, the gateway is on; if it is not on, the gateway is off.

WAN This light indicates the state of your connection to the

organization's Ethernet LAN network. When on, the WAN light indicates that the unit is connected to the network. When the WAN light is off, the gateway does not have an active connection to the network.

WLAN1 Activity This light may be steady or blinking and indicates that

information is passing through the AP connection.

WLAN2 Activity This light may be steady or blinking and indicates that

information is passing through the Bridge connection.

WLAN Signal Strength The Strength LED indicator indicates the strength of

the Bridge connection (WLAN2).

1. LED Off: means no connection on the bridge side, or the signal is very weak

2. LED blinks slowly (every 1 second): means there is a connection, and the signal quality is poor

3. LED blinks fast: means there is a connection, and the signal quality is good

4. LED steady on: means there is a connection, and the signal quality is excellent

29000155-001 A 19

WAB–2000 Wireless Access Point Chapter 2: Hardware Installation

This page intentionally left blank.

20 29000155-001 A

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

Chapter 3: Access Point Conguration

Introduction

The WAB–2000 comes with the capability to be congured as an access point. As it incorporates two separate 802.11 wireless cards, one for conguring a local WLAN and one for use in bridging, it can also be congured for bridging, with the access point conguration on the WLAN side. Conguration for bridging is discussed in Chapter 4.

Preliminary Conguration Steps

For preliminary installation the WAB–2000 network administrator may need the following information:

• PC/laptop with one of the following operating systems installed: Windows NT 4.0, Windows 2000, or Windows XP

• A web browser program, such as Microsoft Internet Explorer 5.5 or later, or Netscape 6.2 or later, installed on the PC/laptop used for conguring the access point

• IP address – a list of IP addresses available on the organization's LAN that are available to be used for assignment to the AP(s)

• Subnet Mask for the LAN

• Default IP address of the WAB–2000

• DNS IP address

• SSID – an ID number/letter string that you want to use in the conguration process to identify all members of the wireless LAN.

• The MAC addresses of all the wireless cards that will be used to access the WAB–2000 network of access points (if MAC address ltering is to be enabled)

• The appropriate encryption key for Static AES if state-of-the art key management will be used. Alternately, the appropriate WEP key.

29000156-001 A 21

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

29000156-001 A 23

Initial Setup using the “Local” Port

Plug one end of an RJ-45 Ethernet cable to the LAN port of the WAB– 2000 (see page 11) and the other end to an Ethernet port on your PC/ laptop. This LAN port in the WAB–2000 connects you to the device’s internal DHCP server which will dynamically assign an IP address to your laptop so you can access the device for conguration. In order to connect properly to the WAB–2000 on the LAN port, the TCP/IP parameters on your laptop must be set to “obtain IP address automatically.” (If you are unfamiliar with this procedure, use the following instructions for determining or changing your TCP/IP settings.)

In Windows 98/Me click Start à Settings à Control Panel.

Find and double click the Network icon. In the Network window, highlight the TCP/IP protocol for your LAN and click the Properties button. Make sure that the radio button for Obtain an IP address automatically is checked.

In Windows 2000/XP, follow the path Start à Settings à Net- work and Dialup Connections à Local Area Connection and select the Properties button. In the Properties window, highlight the TCP/ IP protocol and click properties. Make sure that the radio button for Obtain an IP address automatically is checked.

Once the DHCP server has recognized your laptop and has assigned a dynamic IP address, you will need to nd that IP address. Again, the procedure is similar for Windows 95/98/Me machines and slightly different for Windows 2000/XP machines.

In Windows 98/Me, click Start, then Run and type winipcfg in

the run instruction box. Then click OK. You will see the IP address of your laptop in the resulting window, along with the “default gateway” IP address. Verify that the IP address shown is 192.168.15.x

In Windows 2000/XP, click Start, then Run and type cmd in the run instruction box. Then click OK. This will bring up a window. In this window, type ipcong /all |more. This will list information assigned to your laptop, including the IP address assigned. Verify that the IP address shown is 192.168.15.x

22 29000156-001 A

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

On your computer, pull up a browser window and put the de-

fault URL for the WAB–2000 Local LAN in the address line. (https://

192.168.15.1)

You will be asked for your User Name and Password. The default is "crypto" with the password "ofcer" to give full access for setup conguration. (This password is case-sensitive.)

NOTE: If your login session is in-active for more than 10 minutes, then you will have to re-authenticate your identity. If after three times you fail to re-authenticate then your account will be locked. The exception is if you are the last active CryptoOfcer on the system, then your account will not be locked. The User Management—List All Users screen displays account status. If an account is locked, it will show a status of "Locked" and a reason of "bad passwd". Other accounts show status as "Active" and reason "Normal".

The CryptoOfcer is the only role that can unlock an account once it has been locked. Go to the User Management—List All Users screen and click the unlock buttn at the end of the user entry.

If you have forgotten your user name or password you can reset the unit back to its factory default username and password by pressing and holding the reset button on the front of the unit for 10 seconds. Note that

all your settings will also be reset to factory defaults.

29000156-001 A 23

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

29000156-001 A 25

System Conguration

General

You will immediately be directed to the System Conguration —

General screen for the WAB–2000 access point.

This screen lists the rmware version number for your WAB–2000 and allows you to set the Host Name and Domain Name as well as establish system date and time. (Host and Domain Names are both set at the factory for “default” but can optionally be assigned a unique name for each.) You can also enter a description of the physical location of the unit in the Physical Location eld. This is useful when deploying units to remote lcoations. When you are satised with your changes, click Apply.

Go next to the System Conguration — WAN page.

24 29000156-001 A

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

WAN

Click the entry on the left hand navigation panel for System Congu-

ration — WAN. This directs you to the System Conguration — WAN

screen.

If not using DHCP to get an IP address, input the static IP information that the access point requires in order to be managed from the wired LAN. This will be the IP address, Subnet Mask, Default Gateway, and, where needed, DNS 1 and 2.

Click Apply to accept changes.

29000156-001 A 25

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

29000156-001 A 27

LAN

Click the entry on the left hand navigation panel for System Congu-

ration — LAN. This directs you to the System Conguration — LAN

screen.

This sets up the default numbers for the four octets for a possible private LAN function for the access point. It also allows changing the default numbers for the LAN Subnet Mask. The Local LAN port provides local access for conguration. It is not advisable to change the private LAN address while doing the initial setup as you are connected to that LAN.

26 29000156-001 A

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

Wireless Access Point Conguration

General

Wireless Setup allows your computer ’s PC Card to communicate with the access point. Follow the manufacturer's instructions to set up the PC Card on each wireless device that will be part of the WLAN.

The Wireless Access Point — General screen lists the MAC Address of the AP card. This is not the MAC Address that will be used for the BSSID for bridging setup, however. That is found on the Wireless Bridge

— General screen.

If you will be using an SSID for a wireless LAN, enter it here and in the setup of each wireless client. This nomenclature has to be set on the access point and each wireless device in order for them to communicate.

29000156-001 A 27

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

29000156-001 A 29

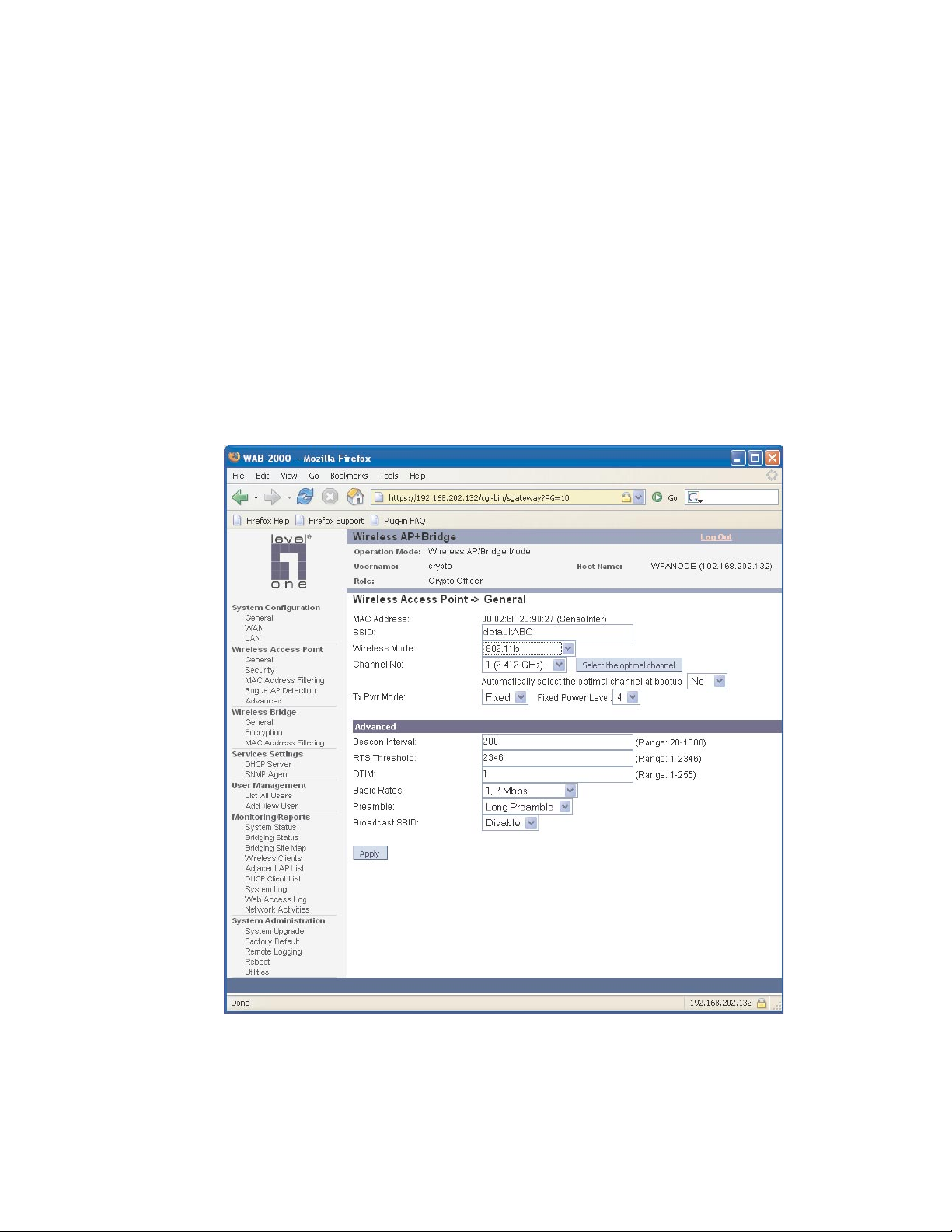

Select the wireless mode from the drop-down list. You can choose

from the following options:

• 802.11b

• 802.11g

• 802.11g Super

• 802.11b/g Mixed

• 802.11a

• 802.11a Turbo

You can assign a channel number to the AP (if necessary) and modify

the Tx Pwr Mode.

The Channel Number is a means of assigning frequencies to a series

of access points, when many are used in the same WLAN, to minimize noise. There are 11 channel numbers that may be assigned. If you assign channel number 1 to the rst in a series, then channel 6, then channel 11, and then continue with 1, 6, 11, you will have the optimum frequency spread to decrease “noise.”

If you click on the button Select the optimal channel, a popup screen

will display the choices. It will select the optimal channel for you. You can also set it up to automatically select the optimal channel at boot up.

Wireless Mode Channel No.

802.11b

802.11g

802.11b/g Mixed

802.11g Super

802.11a

802.11a Turbo

CHANNEL NO. OPTIONS

1 (2.412 GHz) 2 (2.417 GHz) 3 (2.422 GHz) 4 (2.427 GHz) 5 (2.432 GHz) 6 (2.437 GHz) 7 (2.442 GHz) 8 (2.447 GHz) 9 (2.452 GHz) 10 (2.457 GHz) 11 (2.462 GHz)

6 (2.437 GHz)

52 (5.26 GHz) 56 (5.28 GHz) 60 (5.30 GHz) 64 (5.32 GHz) 149 (5.745 GHz) 153 (5.765 GHz) 157 (5.785 GHz) 161 (5.805 GHz) 165 (5.825 GHz)

50 (5.25 GHz) Turbo Mode 58 (5.29 GHz) Turbo Mode 152 (5.76 GHz) Turbo Mode 160 (5.80 GHz) Turbo Mode

NOTE: Due to the frequency regulation in Europe, Turbo A spectrums are reserved and not

available for the general users. Therefore European users may find that all the Turbo A

functions mentioned in this manual are not available.

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

Tx Pwr Mode and Fixed Pwr Level: The Tx Power Mode defaults to

Auto, giving the largest range of radio transmission available under normal conditions. As an option, the AP's broadcast range can be limited by setting the Tx Power Mode to Fixed and choosing from 1-5 for Fixed Pwr Level (1 being the shortest distance.) Finally, if you want to prevent any radio frequency transmission, set Tx Pwr Mode to Off.

There are a number of advanced options included on this page as

described in the following chart:

ADVANCED OPTIONS

Beacon interval

RTS Threshold

DTIM

Basic Rates Basic Rates for 802.11b

20-1000 The time interval in milliseconds in which the

802.11 beacon is transmitted by the AP.

1-2346 The number of bytes used for the RTS/CTS

handshake boundary. When a packet size is greater than the RTS threshold, the RTS/CTS handshaking is performed.

1-255 The number of beacon intervals that broadcast

and multicast trafc is buffered for a client in power save mode.

1 and 2 Mbps

1, 2, 5.5 and 11 Mbps

The basic rates used and reported by the AP. The highest rate specied is the rate that the AP uses when transmitting broadcast/ multicast and management frames.

Preamble

Broadcast SSID

1, 2, 5.5, 11, 6, 12, 24 Mbps

1, 2, 5.5, 11 Mbps

1, 2, 5.5, 11, 6, 12, 24 Mbps

1, 2, 5.5, 11 Mbps

1, 2 Mbps

1, 2, 5.5, 11 Mbps

6, 12, 24 Mbps

Short/Long Preamble

Enabled/ disabled

Basis Rates for 802.11g

Basic Rates for 802.11g Super

Basic Rates for 802.11b/g Mixed

Basic Rates for 802.11a

Basic Rates for 802.11a Turbo

Species whether frames are transmitted with the Short or Long Preamble

When disabled, the AP hides the SSID in outgoing beacon frames and stations cannot obtain the SSID through passive scanning.

Also, when it is disabled, the AP doesn’t send probe responses to probe requests with unspecied SSIDs.

29000156-001 A 29

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

29000156-001 A 31

Security

The Wireless Access Point — Security screen displays a default fac-

tory setting of no encryption, but for security reasons it will not communicate to any clients unless the encryption is set by the CryptoOfcer.

No Encryption

In order to have the WAB–2000 work with no encryption, you must

actively select None and click Apply. A screen will appear, asking if you really want to operate in Bypass mode. If you answer Yes, no encryption will be applied.

30 29000156-001 A

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

Static WEP Encryption

If you choose to use WEP encryption, you can also select whether it will be Open System or Shared Key authentication. For greater security, set authentication type to “shared key.” WEP Data encryption can be set to 64-bit, 128-bit, or 152-bit encryption.

The Key Generator button automatically generates a randomized key of the appropriate length. This key is initially shown in plain text so the user has the opportunity to copy the key. Once the key is applied, the key is no longer displayed in plain text.

WEP (Wired Equivalent Privacy) Encryption is a security protocol for wireless local area networks (WLANs) dened in the IEEE 802.11 standard. WEP was originally designed to provide the same level of security for wireless LANs as that of a wired LAN but has come under attack for its defaults and is not now state of the art. WEP relies on the use of identical static keys deployed on client stations and access points. But the use of WEP encryption provides some measure of security.

29000156-001 A 31

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

29000156-001 A 33

Utilities exist for scanning for networks and logging all the networks it runs into—including the real SSIDs, the access point’s MAC address, the best signal-to-noise ratio encountered, and the time the user crossed into the network’s space. These utilities can be used to determine whether your network is unsecured. Note that, if WEP is enabled, that same WEP key must also be set on each wireless device that is to become part of the wireless network, and, if "shared key" is accepted, then each wireless device must also be coded for "shared key". To use WEP encryption, identify the level of encryption, the Default WEP key and designate the WEP keys as shown on the screen.

802.11i and WPA

Wi-Fi Protected Access or WPA was designed to enable use of wireless legacy systems employing WEP while improving security. WPA uses improved data encryption through the temporal key integrity protocol (TKIP) which scrambles keys using a hashing algorithm and, by adding an integrity-checking feature, ensures that the keys haven’t been tampered with. In addition, user authentication is enabled using the extensible authentication protocol (EAP).

If you wish to use WPA on the WAB–2000, enable either WPA Preshared Key Settings or WPA 802.1x Settings.

If you are a SOHO user, selecting pre-shared key means that you don’t have the expense of installing a Radius Server. Simply input up to 63 character / numeric / hexadecimals in the Passphrase eld. If your clients use WPA-TKIP, select TKIP as encryption type. If your clients use WPA-AES, select AES-CCMP.

Enable pre-authentication to allow a client to authenticate in advance with the AP before the client is associated with it. Allowing the AP to pre-authenticate a client decreases the transition time when a client roams between APs.

Re-keying time is the frequency in which new encryption keys are generated and distributed to the client. The more frequent re-keying, the better the security. For highest security, select the lowest re-keying interval.

As an alternative, for business applications who have installed Radius Servers, select WPA 802.1x and input the Primary and Backup Radius Server settings. Use of Radius Server for key management and authentication requires that you have installed a separate certication system and each client must have been issued an authentication certicate.

Once you have selected the options you will use, click Apply.

32 29000156-001 A

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

If you will be using MAC Address ltering, navigate next to the MAC

Address Filtering screen.

29000156-001 A 33

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

29000156-001 A 35

MAC Address Filtering

The Wireless Access Point — MAC Address Filtering screen is used

to set up MAC address ltering for the WAB–2000 device. The factory default for MAC Address ltering is Disabled. If you enable MAC Address ltering, you should also set the toggle for Filter Type.

This works as follows:

• If Filtering is enabled and Filter Type is Deny All Except Those Listed Below, only those devices equipped with the authorized MAC addresses will be able to communicate with the access point. In this case, input the MAC addresses of all the PC cards that will be authorized to access this access point. The MAC address is engraved or written on the PC (PCMCIA) Card.

• If Filtering is enabled and Filter Type is Allow All Except Those Listed Below, those devices with a MAC address which has been entered in the MAC Address listing will NOT be able to communicate with the access point. In this case, navigate to the report: Wireless Clients and copy the MAC address of any Wireless Client that you want to exclude from communication with the access point and input those MAC Addresses to the MAC Address list.

34 29000156-001 A

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

Rogue AP Detection

The Wireless Access Point — Rogue AP Detection screen allows the

network administrator to set up rogue AP detection. Enable rogue AP detection and enter the MAC Address of each AP in the network that you want the AP being congured to accept as a trusted AP. (You may add up to 20 APs.) Enter an email address for notication of any rogue or non-trusted APs. (The MAC Address for the WAB–2000 is located on the System Conguration — General screen. You can also select the following lter options.

• SSID FIlter: Check the SSID option to only send rogue APs that

match the AP's SSID or wireless bridge's SSID.

• Channel Filter: Check the channel lter option to only send rogue

APs that match the AP's channel or the wireless bridge's channel.

• If both options are checked, only APs that match both the SSID and channel are sent.

The Adjacent AP list, under Monitoring/Reports on the navigation

menu, will detail any marauding APs.

29000156-001 A 35

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

29000156-001 A 37

Advanced

The Wireless Access Point — Advanced screen allows you to enable

or disable load balancing and to control bandwidth.

Load balancing is enabled by default. The load balancing feature balances the wireless clients between APs. If two APs with similar settings are in a conference room, depending on the location of the APs, all wireless clients could potentially associate with the same AP, leaving the other AP unused. Load balancing attempts to evenly distribute the wireless clients on both APs.

Once you have made any changes, click Apply to save.

Wireless Bridge

The Wireless Bridge screens are described in Chapter 4.

36 29000156-001 A

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

Services Settings

DHCP Server

The Service Settings — DHCP Server screen is used for congur-

ing the DHCP server function accessible from the Local LAN port. The default factory setting for the DHCP server function is enabled. You can disable the DHCP server function, if you wish, but it is not recommended. You can also set the range of addresses to be assigned. The Lease period (after which the dynamic address can be reassigned) can also be varied.

The DHCP server function, accessible only from the LAN port, is used

for initial conguration of the management functions.

29000156-001 A 37

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

29000156-001 A 39

SNMP Agent

The Service Settings — SNMP Agent screen allows you to set up an SNMP Agent. The agent is a software module that collects and stores management information for use in a network management system. The WAB–2000's integrated SNMP agent software module translates the device’s management information into a common form for interpretation by the SNMP Manager, which usually resides on a network administrator’s computer.

The SNMP Manager function interacts with the SNMP Agent to execute applications to control and manage object variables (interface features and devices) in the gateway. Common forms of managed information include number of packets received on an interface, port status, dropped packets, and so forth. SNMP is a simple request and response protocol, allowing the manager to interact with the agent to either:

• Get - Allows the manager to Read information about an object

variable

• Set - Allows the manager to Write values for object variables with-

in an agent’s control, or

38 29000156-001 A

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

The SNMP conguration consists of several elds, which are ex-

plained below:

• Community –The Community eld for Get (Read Only), Set

(Read & Write), and Trap is simply the SNMP terminology for “password” for those functions.

• Source –The IP address or name where the information is ob-

tained.

• Access Control –Denes the level of management interaction per-

mitted.

If using SNMPv3, enter a username (minimum of eight characters), authentication type with key and data encryption type with a key. This conguration information will also need to be entered in your MIB manager setup.

User Management

List All Users

The User Management — List All Users screen lists the Crypto Ofcer and administrator accounts congured for the unit. You can edit or delete users from this screen.

29000156-001 A 39

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

29000156-001 A 41

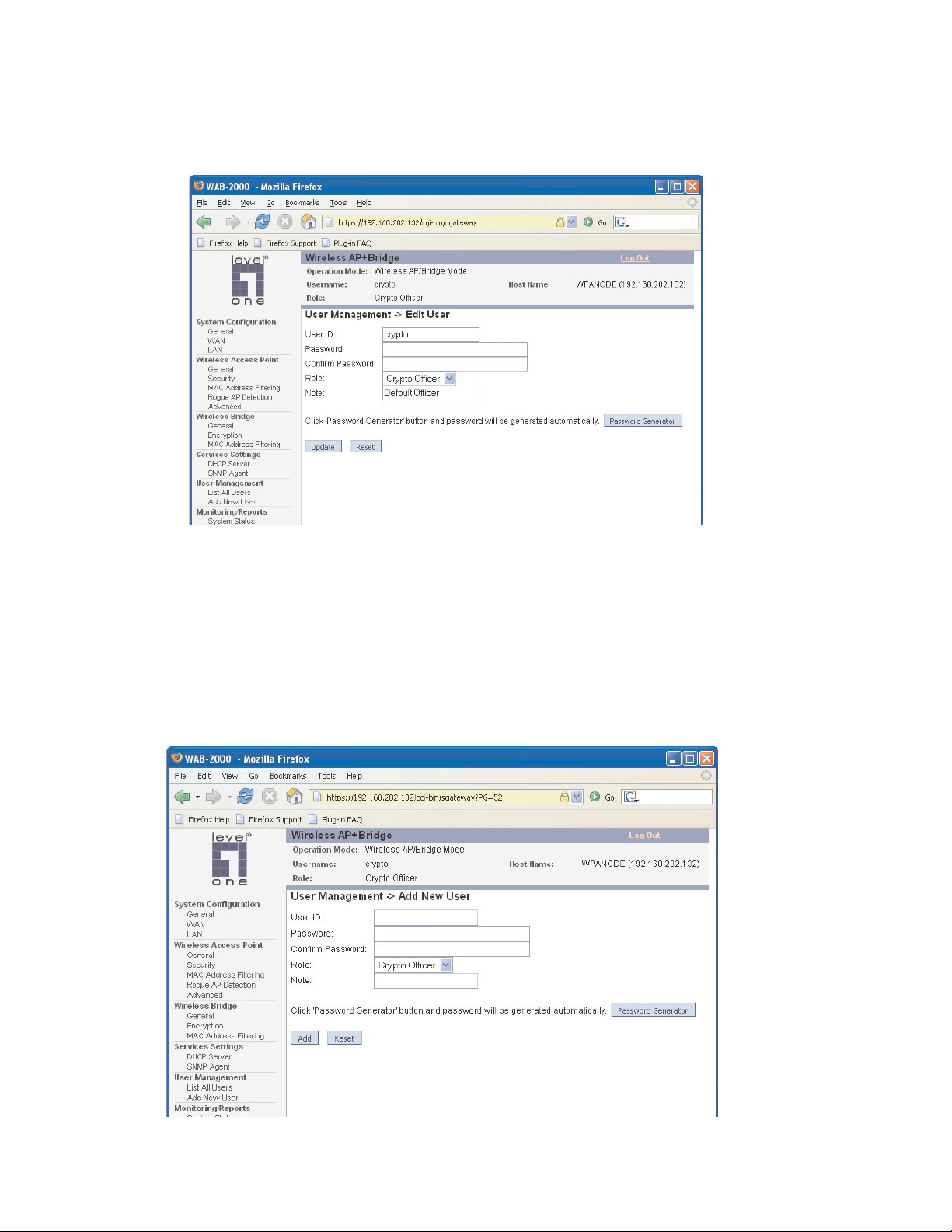

If you click on Edit, the User Management — Edit User screen ap-

pears. On this screen you can edit the user ID, password, role, and note elds.

The Password Generator button creates a random password so that

you don't need to create one. Initially, the password is shown in plain text so that you can copy it. Once the Apply button is pressed, the password is no longer shown.

Add New User

The User Management — Add New User screen allows you to add

new Administrators and CryptoOfcers, assigning and conrming the password.

40 29000156-001 A

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

Monitoring/Reports

This section gives you a variety of lists and status reports. Most of these are self-explanatory.

System Status

The Monitoring/Report — System Status screen displays the status of the WAB–2000 device, the network interface, and the routing table.

There are some pop-up informational menus that give detailed information about CPU, PCI, Interrupts, Process, and Interfaces.

29000156-001 A 41

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

29000156-001 A 43

Bridging Status

The Monitoring/Report — Bridging Status screen displays the Eth-

ernet Port STP status, Ethernet DSL Port STP status, Wireless Port STP status, and Wireless Bridging information.

42 29000156-001 A

WAB–2000 Chapter 3: Access Point Configuration

Bridging Site Map

The Bridge Site Map shows the spanning tree network topology of both wired and wireless nodes

connected to the network. The root STP node is always on top and the nodes of the hierarchy are

displayed below it. Wired links are double dotted lines and wireless links are single dotted lines. You

can choose the preferred interval for auto update or press the Update button to refresh the map manually.

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

29000156-001 A 45

Wireless Clients

The Monitoring/Report — Wireless Clients screen displays the MAC

Address of all wireless clients and their signal strength and transmit rate.

Adjacent AP List

The Monitoring/Report — Adjacent AP List screen shows all the APs

on the network. If you select the check box next to any AP shown, the AP will thereafter be accepted by the WAB–2000 as a trusted AP.

These APs are detected by the AP's wireless card (2.4 GHz band) and the wireless bridge's wireless card (5.8GHz band). The list of APs are only within the band that can be seen from a particular channel. For example, if the AP is on channel 1, it will display APs on channels 1-3.

44 29000156-001 A

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

DHCP Client List

The Monitoring/Report — DHCP Client List screen displays all

clients currently connected to the WAB–2000 via DHCP server, including their hostnames, IP addresses, and MAC Addresses.

The DHCP Client list constantly collects entries. To remove entries

from the list, check mark the Revoke Entry selection and click Remove to conrm the action.

System Log

The Monitoring/Report — System Log screen displays system facil-

ity messages with date and time stamp. These are messages documenting functions performed internal to the system, based on the system’s functionality. Generally, the Administrator would only use this information if trained as or working with a eld engineer or as information provided to technical support.

The System log continues to accumulate listings. If you wish to clear

listings manually, use the Clear button.

29000156-001 A 45

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

29000156-001 A 47

Web Access Log

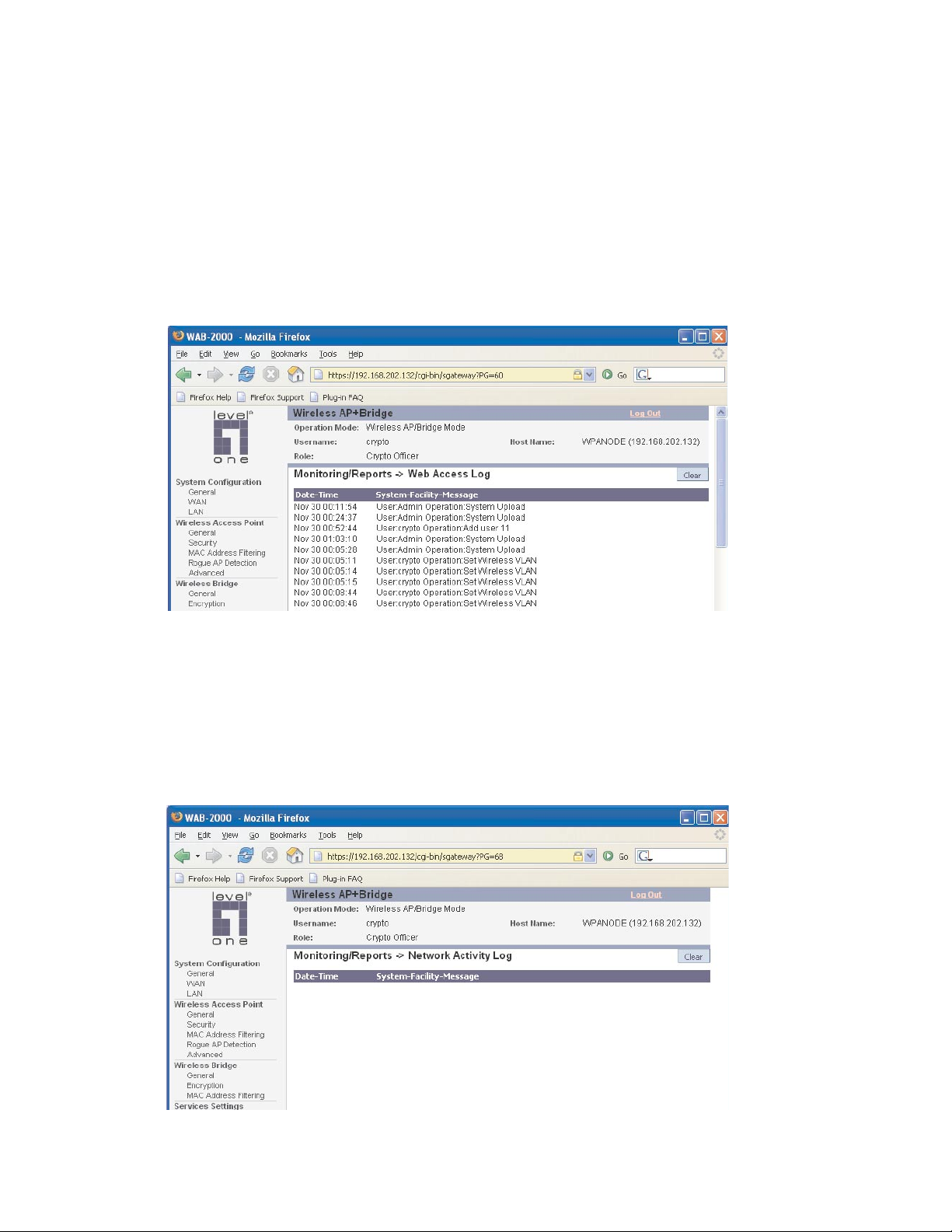

The Web Access Log displays system facility messages with date and time stamp for any actions involving web access. For example, this log records when you set encryption mode, change operating mode, etc., using the web browser. It establishes a running record regarding what actions were performed and by whom.

The Web access log will continue to accumulate listings. If you wish to clear listings manually, use the Clear button.

Network Activity

The Network Activity Log keeps a detailed log of all activities on the network which can be useful to the network administration staff.

The Network Activities log will continue to accumulate listings. If you wish to clear listings manually, use the Clear button.

46 29000156-001 A

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

System Administration

The System administration screens contain administrative functions.

The screens and functions are detailed in the following section.

System Upgrade

The System Administration — System Upgrade screen gives you the

ability to upload updates to the WAB–2000 device’s rmware as they become available. When a new upgrade le becomes available, you can do a rmware upgrade from the Firmware Upgrade window.

There is also a conguration le transfer option which allows the system conguration le from one AP to be transferred to another AP, in order to minimize the administration of the APs. Only conguration parameters that can be shared between APs are downloaded in the conguration le. WAN IP address and hostname are not transferred in the conguration le. Click on the Local Conguration Upgrade tab to perform le transfers.

Only the Crypto Ofcer role can access this function.

Firmware Upgrade

On the System Administration — System Upgrade screen, the Firmware Upgrade tab is the default view.

Click browse and select the rmware le to be uploaded. Click on the Upload Firmware button.

29000156-001 A 47

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

29000156-001 A 49

Local Conguration Upgrade

On the System Administration — System Upgrade screen, click on

the Local Conguration Upgrade tab to upload and download conguration les to access points connected to the network.

To upload a conguration le, select the le using the browse button and enter the passphrase for that le. The passphrase protects the le from unauthorized users. It prevents unauthorized users from applying the system conguration le to an unauthorized AP to gain access to the network. Before downloading the system conguration le to a local computer, the user must enter a passphrase to protect the le. Before the system conguration le can be uploaded onto another AP, the passphrase must be entered on the remote AP.

The conguration le can be tagged with a 12 character tag to keep track of the conguration le as it is transferred to other APs.

48 29000156-001 A

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

Factory Default

The System Administration — Factory Default screen is used to reset

the AP to its factory settings. The "Restore" button is a fallback troubleshooting function that should only be used to reset to original settings.

Only the Crypto Ofcer role has access to the Restore button.

You can also reset the WAB–2000 to its factory default by pressing and holding the reset button located on the front of the unit for 10 seconds. Input is acknowledged by the WLANNSS LED turning on and then turning off after 10 seconds.

Remote Logging

The System Administration —Remote Logging screen allows you to forward the syslog data from each machine to a central remote logging server. In the WAB–2000, this function uses the syslogd daemon. If you enable Remote Logging, input a System Log Server IP Address and System Log Server Port. Click Apply to accept these values.

29000156-001 A 49

WAB–2000 Wireless Access Point Chapter 3: Access Point Conguration

Reboot

The System Administration — Reboot screen allows you to reboot

the WAB–2000 without changing any preset functionality. Both Crypto Ofcer and Administrator functions have access to this function.

You can also reboot the WAB–2000 by pressing and holding the reset button on the front of the unit for ve seconds. Input is acknowledged by the LWLANSS LED turning on.

Utilities

The System Administration — Utilities screen gives you ready access to two useful utilities: Ping and Traceroute. Simply enter the IP Address or hostname you wish to ping or traceroute and click either the Ping or

Traceroute button, as appropriate.

50 29000156-001 A

WAB–2000 Wireless Access Point Chapter 4: Wireless Bridge Conguration

Chapter 4: Wireless Bridge Conguration

Introduction

In the WAB–2000, wireless bridging uses a second WLAN card to set up an independent wireless bridge connection. Since wireless bridging provides a mechanism for APs to collaborate, it is possible to extend the basic service set (BSS) of a standalone AP and to connect two separate LANs without installing any cabling.

The wireless bridging function in the WAB–2000 supports a number of bridging congurations. Some of the most popular settings are discussed in this chapter:

• Point-to-point bridging of two Ethernet links

• Point-to-multipoint bridging of several Ethernet links

• Repeater mode

The wireless bridging screens are the same whether you are in access point or gateway mode.

Bridging is a function that is set up in addition to basic access point setup. If you will be using the WAB–2000 solely as a bridge, some of the settings you may have selected for access point use will not be necessary.

If setting up as a bridge during initial setup, you can either use the LAN Port directly wired by Ethernet cable to a laptop to set the appropriate settings. The management screens that you may need to modify, regardless of what type of bridging mode you choose, will be in the Wire-

less Bridge section of the navigation bar. These include:

• Wireless Bridge — Bridging

• Wireless Bridge — Encryption

NOTE: When the WAB–2000 is used as an access point, it is recom-

mended that you do not use 802.11g Super mode for the bridge. The

802.11g Super mode uses large frequency bandwith and it may interfere with other AP radio signals.

29000156-001 A 51

WAB–2000 Wireless Access Point Chapter 4: Wireless Bridge Conguration

29000156-001 A 53

Wireless Bridge — General

The Wireless Bridge — General screen contains wireless bridging

information including the channel number, Tx rate, Tx power, spanning tree protocol (802.1d) enable/disable, and remote AP's BSSID. This page is important in setting up your bridge conguration. Wireless bridging supports two modes of operation:

• Manual wireless bridging

• Auto-forming wireless bridging (AWB) - with a maximum number of allowable bridges (the default is 40)

Auto-forming Wireless Bridging

When the wireless bridge is in auto-forming mode, the wireless bridge sniffs for beacons from other wireless bridges and identies APs that match a policy such as SSID and channel.

Instead of simply adding the APs with the same SSID/channel to the network, a three-way association handshake is performed in order to control network access.

To make a unit the root (leaf) STP node, set the bridge priority lower than any other node in the network.

52 29000156-001 A

WAB–2000 Wireless Access Point Chapter 4: Wireless Bridge Conguration

AUTO BRIDGING GENERAL SETTINGS OPTIONS

Wireless Mode

Tx Rate 802.11b/g Mixed

Channel No. 802.11b/g Mixed

802.11b/g Mixed

802.11g Super

802.11a

802.11a Turbo

AUTO, 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, 54 Mbps

AUTO The card attempts to select the opti-

AUTO, 6, 9, 12, 18, 24, 36, 48, 54 Mbps

AUTO The card attempts to select the opti-

1 (2.412 GHz) 2 (2.417 GHz) 3 (2.422 GHz) 4 (2.427 GHz) 5 (2.432 GHz) 6 (2.437 GHz) 7 (2.442 GHz) 8 (2.447 GHz) 9 (2.452 GHz) 10 (2.457 GHz) 11 (2.462 GHz)

6 (2.437 GHz) Sets the channel frequency for the

52 (5.26 GHz) 56 (5.28 GHz) 60 (5.30 GHz) 64 (5.32 GHz) 149 (5.745 GHz) 153 (5.765 GHz) 157 (5.785 GHz) 161 (5.805 GHz) 165 (5.825 GHz)

50 (5.25 GHz) Turbo Mode 58 (5.29 GHz) Turbo Mode 152 (5.76 GHz) Turbo Mode 160 (5.80 GHz) Turbo Mode

Sets the wireless mode for the wireless bridge.

When set to AUTO, the card attempts to select the optimal rate for the channel. If a xed rate is used, the card will only transmit at that rate.

802.11g Super

mal rate for the channel.

802.11a

When set to AUTO, the card attempts to select the optimal rate for the channel. If a xed rate is used, the card will only transmit at that rate.

802.11a Turbo

mal rate for the channel.

Sets the channel frequency for the wireless bridge.

802.11g Super

wireless bridge.

802.11a

Sets the channel frequency for the wireless bridge.

802.11a Turbo

Sets the channel frequency for the wireless bridge.

NOTE: Due to the frequency regulation in Europe, Turbo A spectrums are reserved and not

available for the general users. Therefore European users may find that all the Turbo A

functions mentioned in this manual are not available.

WAB–2000 Wireless Access Point Chapter 4: Wireless Bridge Conguration

29000156-001 A 55

Tx Pwr Mode

Fixed Pwr Level

Propagation Distance

Bridging Mode

OFF FIXED, AUTO

1, 2, 3, 4, 5 Select a range when Rx Pwr Mode is

< 5 Miles 5-10 Miles 11-15 Miles 16-20 Miles 21-25 Miles 26-30 Miles > 30 Miles

Auto Bridging auto bridging selected

The Tx Pwr Mode defaults to AUTO, giving the largest range of radio transmission available under ambient conditions. The wireless bridge's broadcast range can be limited by setting the Tx Pwr Mode to Fixed and choosing from 1-5 for Fixed Pwr Level. If you want to prevent any radio frequency transmission from the wireless bridge, set the Tx Pwr Mode to OFF. This will not turn off RF transmissions from any associated wireless devices, but they will not be able to communicate with the wireless bridge when the Tx Pwr Mode is off.

set to FIXED. Level 1 is the shortest distance (Level 1=7dBm) and Level 5 is the longest (Level 5=15dBm)

Set the distance based on the distance between this bridge and furthest bridge that is connected to it.

SSID

Max Auto Bridges

Bridge Priority

Signal Strength MAC

Can be any set of letters and numbers assigned by the network administrator. This nomenclature has to be set on the wireless bridge and each wireless device in order for them to communicate.

1-40 Maximum number of auto bridges

allowed.

1-40 Determines the root (leaf) STP node.

The lowest bridge priority in the network will become the STP root.

The signal strength of this wireless bridge will be indicated on the Signal Strength LED located on the front of the case.

54 29000156-001 A

WAB–2000 Wireless Access Point Chapter 4: Wireless Bridge Conguration

Manual Bridging

When the wireless bridge is in manual bridging mode, you can manu-

ally add the MAC address of the remote bridge.

29000156-001 A 55

WAB–2000 Wireless Access Point Chapter 4: Wireless Bridge Conguration

29000156-001 A 57

MANUAL BRIDGING GENERAL SETTINGS OPTIONS

Wireless Mode

Tx Rate 802.11b/g Mixed

Channel No. 802.11b/g Mixed

802.11b/g Mixed

802.11g Super

802.11a

802.11a Turbo

AUTO, 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, 54 Mbps

AUTO The card attempts to select the optimal

AUTO, 6, 9, 12, 18, 24, 36, 48, 54 Mbps

AUTO The card attempts to select the optimal

1 (2.412 GHz) 2 (2.417 GHz) 3 (2.422 GHz) 4 (2.427 GHz) 5 (2.432 GHz) 6 (2.437 GHz) 7 (2.442 GHz) 8 (2.447 GHz) 9 (2.452 GHz) 10 (2.457 GHz) 11 (2.462 GHz)

6 (2.437 GHz)

52 (5.26 GHz) 56 (5.28 GHz) 60 (5.30 GHz) 64 (5.32 GHz) 149 (5.745 GHz) 153 (5.765 GHz) 157 (5.785 GHz) 161 (5.805 GHz) 165 (5.825 GHz)

50 (5.25 GHz) Turbo Mode 58 (5.29 GHz) Turbo Mode 152 (5.76 GHz) Turbo Mode 160 (5.80 GHz) Turbo Mode

Sets the wireless mode for the wireless bridge.

When set to AUTO, the card attempts to select the optimal rate for the channel. If a xed rate is used, the card will only transmit at that rate.

802.11g Super

rate for the channel.

802.11a

When set to AUTO, the card attempts to select the optimal rate for the channel. If a xed rate is used, the card will only transmit at that rate.

802.11a Turbo

rate for the channel.

802.11g Super

802.11a

802.11a Turbo

NOTE: Due to the frequency regulation in Europe, Turbo A spectrums are reserved and not

available for the general users. Therefore European users may find that all the Turbo A

functions mentioned in this manual are not available.

WAB–2000 Wireless Access Point Chapter 4: Wireless Bridge Conguration

Tx Pwr Mode

Fixed Pwr Level

Propagation Distance

Bridging Mode

Signal Strength LED MAC

Spanning Tree Protocol (STP)

BSSID

Note

OFF FIXED, AUTO

1, 2, 3, 4, 5 Select a range when Rx Pwr Mode is

< 5 Miles 5-10 Miles 11-15 Miles 16-20 Miles 21-25 Miles 26-30 Miles > 30 Miles

Manual Bridging manual bridging selected

Enable/Disable Enable STP is there is any possiblity that

Enter hexadecimal numbers Add the MAC address of the remote

set to FIXED. Level 1 is the shortest distance (Level 1=7dBm) and Level 5 is the longest (Level 5=15dBm)

Set the distance based on the distance between this bridge and furthest bridge that is connected to it.

Allows you to set the number of one of the Remote APs which will be listed at the bottom of the screen once the system is operational This wireless bridge becomes the guiding port that is displayed in the WLANNSS LED on the front of the WAB–2000 as a signal.

a bridging loop could occur. If you are certain that there is no possibility that a bridging loop will occur, then disalbe STP. The bridge will be more efcient (faster) without it. If you are not sure, the safest solution is to enable STP.

bridge. The remote bridge's MAC address will appear at the bottom of the screen.

You can enter a note that denes the location of the remote bridge.

29000156-001 A 57

WAB–2000 Wireless Access Point Chapter 4: Wireless Bridge Conguration

29000156-001 A 59

Monitoring

In the upper right-hand corner of the Wireless Bridge — General screen there is a button called Monitoring. f you click on this button, a pop-up window will appear (WDS Information). If you select Enable refesh, you can set the bridge refresh interval from 5 seconds to 30 minutes. Refreshing the screen allows you to see the effect of aiming the antenna to improve signal strength.

Wireless Bridge — Encryption

The Wireless Bridge — Encryption screen is used to congure static encryption keys for the wireless bridge. This is an important page to set up to ensure that your bridge is working correctly. The encryption key that you use on this screen must be the same for any bridge connected to your bridging network in order for communication to occur. On this screen you can select None or Static AES (128-bit).

58 29000156-001 A

WAB–2000 Wireless Access Point Chapter 4: Wireless Bridge Conguration

Wireless Bridge — MAC Address FIltering

The Wireless Bridge — MAC Address Filtering screen functions just like the AP MAC Address Filter (see page 34) but it is only used in auto bridging mode and only controls access to the wireless bridge network.

The following sections describe the setup for three types of bridging conguration: point-to-point, point-to-multipoint, or, lastly, repeater.

29000156-001 A 59

WAB–2000 Wireless Access Point Chapter 4: Wireless Bridge Conguration

29000156-001 A 61

 

 

 





Setting Up Bridging Type

Point-to-Point Bridge Conguration

A point-to-point link is a direct connection between two, and only two, locations or nodes. Because the bridge function uses a separate WLAN card for bridging, you can also set up WLANs on the separate AP WLAN card.

For the two bridges that are to be linked to communicate properly, they must be set up with compatible commands in the setup screens.

For instance, the bridges must have the same channel number. Because there is a separate WLAN card for bridging, there can be a separate WLAN on the AP WLAN card with no loss efciency, as long as you set the channel numbers so there's no conict or noise with the channel assigned to the bridge. Spanning Tree Protocol may be set to Enable, if there is any possibility of a bridging loop, or to Disable (which is more efcient) if there's no possibility of a bridging loop. Each bridge must contain the other's BSSID. (The BSSID of each is equivalent to the MAC address contained on the Wireless Bridge — General setup page. Enter only hexadecimal numbers, no colons. Data entry is not case sensitive.) Finally, the wireless bridging encryption must be set to the appropriate type and key length and must be identical on each bridge.

The following charts show sample settings for manual bridging and auto bridging modes.

60 29000156-001 A

WAB–2000 Wireless Access Point Chapter 4: Wireless Bridge Conguration

Point-to-Point Bridging Setup Guide - Manual Mode

Direction Bridge 1 Bridge 2

Wireless Bridge — General (Manual Bridging Mode)

Wirelss Mode

Tx Rate

Channel No.

Tx Power

Propagation Distance

Bridging Mode

Signal Strength LED MAC

Spanning Tree Protocol (STP)

BSSID

Wireless Bridge — Encryption

Bridging encryption options

802.11a 802.11a

AUTO AUTO

Must be the same as Bridge 2

Auto Auto

< 5 Miles < 5 Miles

manual briding selected

Not Assigned (select from drop-down list)

Enable (or Disable if no bridging loop possible)

Add Bridge 2 MAC Add Bridge 1 MAC

Select appropriate key type/length and value. Must be the same key as Bridge 2.

Must be the same as Bridge 1

manual bridging selected

Not Assigned (select from drop-down list)

Enable (or Disable if no bridging loop possible)

Select appropriate key type/length and value. Must be the same key as Bridge 1.

Point-to-Point Bridging Setup Guide - Auto Mode

Direction Bridge 1 Bridge 2

Wireless Bridge — Genral (Auto Bridging Mode)

Wirelss Mode

Tx Rate

Channel No.

Tx Power Mode

Propagation Distance

Bridging Mode

SSID

Max Auto Bridges

Bridge Priority

Signal Strength MAC

Wireless Bridge — Encryption

Bridging encryption options

Wireless Bridge — MAC Address Filtering

MAC Address Filtering options

802.11a 802.11a

AUTO AUTO

Must be the same as Bridge 2

Auto Auto

< 5 Miles < 5 Miles

Auto bridging selected Auto bridging selected

Must be the same as Bridge 2

40 (range 1-40) 40 (range 1-40)

Enter from list at the bottom of the screen

Select appropriate key type/length and value. Must be same as Bridge 2.

Select Filter Type: input MAC addresses

Must be the same as Bridge 1

Enter from list at the bottom of the screen

Select appropriate key type/length and value. Must be same as Bridge 1.

Select Filter Type: input MAC addresses

29000156-001 A 61

WAB–2000 Wireless Access Point Chapter 4: Wireless Bridge Conguration

29000156-001 A 63

The following sequence walks you through the setup of bridge 1. Bridge 2 would duplicate this procedure, with the BSSID of bridge 2 being the MAC address of bridge 1 and vice versa.

Navigate to the Wireless Bridge — General screen.

In the rst section: General, you will see the MAC Address of the bridging card. This is used as the BSSID on other WAB–2000s that will be communicatingwith this one.

Wireless Mode is set to 802.11a. Set Basic and Supported Rates. Channel Number must be set the same for each bridge to communicate. TX Pwr Mode can be left on Auto unless the power needs to be regulated.

Set Spanning Tree Protocol to Enable unless you are sure that there is no chance of a loop.

Click Apply to accept your changes but remain on this screen.

Next is Bridging Mode. Select either manual or auto bridging. If you choose manual then you will have to manually add the BSSID of the remote bridge. The BSSID corresponds to that bridge’s MAC address. In entering the BSSID, enter only hexadecimal numbers, no colons. Data entry is not case sensitive. You may also enter a note that denes the location of the remote bridge. Then click Add to accept. The remote bridge’s BSSID will now appear at the bottom of the page. If, at some time you wish to delete the entry, simply click the check box next to it and conrm by clicking Delete.

Signal strength LED MAC allows you to set the number of one of the Remote APs which will be listed at the bottom of the screen once the system is operational as the guiding port that you wish to have display in the WLANSS LED on the front of the WAB–2000 as a signal. If you don’t wish to display any connection signal, simply leave this set at Not Assigned.

Then click Apply to accept.

62 29000156-001 A

WAB–2000 Wireless Access Point Chapter 4: Wireless Bridge Conguration

If you choose auto bridging mode, then enter the Max Auto Bridges

(range from 1-40), Bridge Priority (range from 1-40), and the Signal

Strength MAC.

29000156-001 A 63

WAB–2000 Wireless Access Point Chapter 4: Wireless Bridge Conguration

29000156-001 A 65

Next, navigate to the Wireless Bridge — Encryption screen. Select the appropriate key type and length and the key value. The encryption key value and type for Bridge 1 must be the same as for Bridge 2. For wireless bridging, only AES is available for encryption.

You must complete the conguration of your Bridge 1 by following the general instructions in Chapter 3 of this guide to establish any other required conguration options such as General, WAN and LAN settings.

Congure the second of your two point-to-point bridges following the instructions given for Bridge 1 above.

64 29000156-001 A

WAB–2000 Wireless Access Point Chapter 4: Wireless Bridge Conguration



 

 



 



 





Point-to-Multipoint Bridge Conguration

A point-to-multipoint conguration allows you to set up three or more WAB–2000 access points in bridging mode and accomplish bridging between 3 or more locations wirelessly.

For the three bridges that are to be linked to communicate properly, they have to be set up with compatible commands in their setup screens.

For instance, all bridges must have the same channel number. Spanning Tree Protocol will usually be set to Enable. If congured as in the diagram following, Bridge 1 must contain all of the others' BSSIDs, while Bridge 2 ~ n must only contain Bridge 1's BSSID. (The BSSID of each is equivalent to the MAC address found on the Wireless Bridge — General page. Enter only hexadecimal numbers. Data entry is not case sensitive.) Finally, the wireless bridging encryption of each must be set to the appropriate type and key length and must be the same on all.

Because the WAB–2000 has two separate WLAN cards, one for the AP and one for the Bridge, each bridge can have a WLAN on the 802.11a protocol with no loss of efciency in bridging if you wish.

The following diagram pictures a point-to-multipoint setup, which might be of use where a company's network spans several buildings within a campus-like setting.

Follow the steps of the procedure outlined in the point-to-point bridge section. The chart following describes the basic attributes.

29000156-001 A 65

WAB–2000 Wireless Access Point Chapter 4: Wireless Bridge Conguration

29000156-001 A 67

Point-to-Multipoint Bridging Setup Guide - Manual Mode

Direction Bridge 1 Bridge 2 ~ n

Wireless Bridge — General (Manual Bridging Mode)

Wirelss Mode

Tx Rate

Channel No.

Tx Power

Propagation Distance

Bridging Mode

Signal Strength LED MAC

Spanning Tree Protocol

BSSID

Wireless Bridge — Encryption

Bridging encryption options

802.11a 802.11a

AUTO AUTO

Same as Bridge 2~n Same as Bridge 1

Auto Auto

< 5 Miles < 5 Miles

manual bridging selected

Not Assigned (select from drop-down list)

Enable (or Disable if no bridging loop possible)

Add Bridge 2~n MAC Add Bridge 1 MAC

Select appropriate key type/length and value. Must be the same key as Bridge 2~n.

manual bridging selected

Not Assigned (select from drop-down list)

Enable (or Disable if no bridging loop possible)

Select appropriate key type/length and value. Must be the same key as Bridge 1.

Point-to-Multipoint Bridging Setup Guide - Auto Mode

Direction Bridge 1 Bridge 2 ~ n

Wireless Bridge — General (Auto Bridging Mode)

Wirelss Mode

Tx Rate

Channel No.

Tx Power Mode

Propagation Distance

Bridging Mode

SSID

Max Auto Bridges

Bridge Priority

Signal Strength MAC

Wireless Bridge — Encryption

Bridging encryption options

Wireless Bridge — MAC Address Filtering

MAC Address Filtering options

The above recommended setup requires only Bridge 1 to be set in point-tomultipoint mode. It is possible to set all bridges in point-to-multipoint mode, in which case , each bridge would have to contain the BSSID for each of the other bridges and Spanning Tree Protocol must be Enabled.

802.11a 802.11a

AUTO AUTO

Same as Bridge 2~n Same as Bridge 2~n

Auto Auto

< 5 Miles < 5 Miles

Auto bridging selected Auto bridging selected

Must be the same as Bridge 2~n

40 (range 1-40) 40 (range 1-40)

Enter from list at the bottom of the screen

Select appropriate key type/length and value. Must be same as Bridge 2.

Select Filter Type: input MAC addresses

Must be the same as Bridge 2

Enter from list at the bottom of the screen

Select appropriate key type/ length and value. Must be same as Bridge 2.

Select Filter Type: input MAC addresses

66 29000156-001 A

WAB–2000 Wireless Access Point Chapter 4: Wireless Bridge Conguration













 

 

 











As stated previously, complete any other setup screens following gen-

eral instructions in Chapter 3.

Repeater Bridge Conguration

A repeater setup can be used to extend the wireless signal from one bridge connected to an Ethernet LAN wirelessly so that another bridge can control a wireless LAN at a distance.

Repeater Bridging Setup Guide - Manual Mode

Direction Bridge 1 Bridge 2 Bridge 3

Wireless Bridge — General (Manual BridgingMode)

Wireless Mode

Tx Rate

Channel

Tx Power Mode

Propagation Distance

Bridging Mode

Signal Strength LED MAC

Spanning Tree Protocol

BSSID

Wireless Bridge — Encyption

Wireless Conguration – Bridging Encryption

29000156-001 A 67

802.11a 802.11a 802.11a

AUTO AUTO AUTO

Same as Bridge 2 Same as Bridge 1 Same as Bridge 1

Auto Auto Auto

< 5 Miles < 5 Miles < 5 Miles

manual manual manual

Not Assigned (select from dropdown list)

Enable (or Disable if no bridging loop possible)

Add Bridge 2's MAC

Select appropriate key type/length and enter key value. Must be the same as that on the other 2 Bridges.

Not Assigned (select from drop-down list)

Enable (or Disable if no bridging loop possible)

Add Bridge 1's and Bridge 3's MAC

Select appropriate key type/length and enter key value. Must be the same as that on the other 2 Bridges.

Not Assigned (select from drop-down list)

Enable (or Disable if no bridging loop possible)

Add Bridge 2's MAC

Select appropriate key type/length and enter key value. Must be the same as that on the other 2 Bridges.

WAB–2000 Wireless Access Point Chapter 4: Wireless Bridge Conguration

Repeater Bridging Setup Guide - Auto Mode

Direction Bridge 1 Bridge 2 Bridge 3

Wireless Bridge — General (Auto Bridging Mode)

Wireless Mode

Tx Rate

Channel

Tx Power Mode

Propagation Distance

Bridging Mode

SSID

Max Auto Bridges

Bridge Priority

Signal Strength MAC

Wireless Bridge — Encyption

Wireless Conguration – Bridging Encryption

Wireless Bridge — MAC Address Filtering

MAC Aaddress Filtering options

802.11a 802.11a 802.11a

AUTO AUTO AUTO

Same as Bridge 2 Same as Bridge 1 Same as Bridge 1

Auto Auto Auto

< 5 Miles < 5 Miles < 5 Miles

auto auto auto

Must be the same as Bridge 2

40 (range 1-40) 40 (range 1-40) 40 (range 1-40)

40 (1-40) 40 (1-40) 40 (1-40)

Enter from list at the bottom of the screen

Select appropriate key type/length and enter key value. Must be the same as that on the other 2 Bridges.

Select Filter Type: input MAC addresses

Must be the same as Bridge 1

Enter from list at the bottom of the screen

Select appropriate key type/length and enter key value. Must be the same as that on the other 2 Bridges.

Select Filter Type: input MAC addresses

Must be the same as Bridge 1

Enter from list at the bottom of the screen

Select appropriate key type/length and enter key value. Must be the same as that on the other 2 Bridges.

Select Filter Type: input MAC addresses

With this conguration, each bridge can control a wireless LAN. All wireless clients must have the same SSID as the bridges on the AP card channel. All clients can roam between the three bridges.

All other setup screens should be completed following the guidelines in Chapter 3.

68 29000156-001 A

WAB–2000 Wireless Access Point Chapter 5: Technical Support

Chapter 5: Technical Support

Manufacturer’s Statement

The WAB–2000 is provided with warranty. It is not desired or expected that the user open the device. If malfunction is experienced and all external causes are eliminated, the user should return the unit to the manufacturer and replace it with a functioning unit.

If you are experiencing trouble with this unit, the point of contact is:

your manufacturer or sales representative

Radio Frequency Interference Requirements

This device has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the Federal Communications Commission’s Rules and Regulations. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Installation should be accomplished using the authorized cables and/or connectors provided with the device or available from the manufacturer/distributor for use with this device. Changes or modications not expressly approved by the manufacturer or party responsible for this FCC compliance could void the user’s authority to operate the equipment.

29000156-001 A 69

WAB–2000 Wireless Access Point Chapter 5: Technical Support

This page intentionally left blank.

70 29000156-001 A

WAB–2000 Wireless Access Point Glossary

Glossary

802.11

802.11 refers to a family of specications developed by the IEEE for wireless LAN technology. 802.11 species an over-the-air interface between a wireless client and a base station or between two wireless clients. The IEEE accepted the specication in 1997.

802.11b (also referred to as 802.11 High Rate or WiFi)

802.11b is an extension to 802.11 that applies to wireless LANs and provides 11 Mbps transmission (with a fallback to 5.5, 2 and 1 Mbps) in the 2.4 GHz band. 802.11b uses only DSSS. 802.11b was a 1999 ratication to the original 802.11 standard, allowing wireless functionality comparable to Ethernet.

Access Point

An access point is a gateway set up to allow a group of LAN users access to another group or a main group. The access point doesn’t use the DHCP server function and therefore accepts IP address assignment from the controlling network.

AES

Short for Advanced Encryption Standard, a symmetric 128-bit block data encryption technique developed by Belgian cryptographers Joan Daemen and Vincent Rijmen. The U.S government adopted the algorithm as its encryption technique in October 2000, replacing the DES encryption it used. AES works at multiple network layers simultaneously.

Bridge

A device that connects two local-area networks (LANs), or two segments of the same LAN that use the same protocol, such as Ethernet or Token-Ring.

DHCP

Short for Dynamic Host Conguration Protocol, DHCP is a protocol for assigning dynamic IP addresses to devices on a network. With dynamic addressing, a device can have a different IP address every time it connects to the network. In some systems, the device’s IP address can even change while it is still connected. DHCP also supports a mix of static and dynamic IP addresses. Dynamic addressing simplies network administration because the software keeps track of IP addresses rather than requiring an administrator to manage the task. This means that a new computer can be added to a network without the hassle of manually assigning it a unique IP address. Many ISPs use dynamic IP addressing for dial-up users.

NMS (Network Management Station)

Includes such management software as HP Openview and IBM Netview.

PC Card

A computer device packaged in a small card about the size of a credit card and conforming to the PCMCIA standard.

PDA (Personal Digital Assistant)

A handheld device.

29000156-001 A G-a

WAB–2000 Wireless Access Point Glossary

SNMP

Simple Network Management Protocol

SSID

A Network ID unique to a network. Only clients and access points that share the same SSID are able to communicate with each other. This string is case-sensitive. Wireless LANs offer several security options, but increasing the security also means increasing the time spent managing the system. Encryption is the key. The biggest threat is from intruders coming into the LAN. You set a seven-digit alphanumeric security code, called an SSID, in each wireless device and they thereafter operate as a group.

TKIP

Temporal Key Integrity Protocol. TKIP is a protocol used in WPA. It scrambles the keys using a hashing algorithm and, by adding an integrity-checking feature, ensures that the keys haven’t been tampered with.

VPN (Virtual Private Network)

A VPN uses encryption and other security mechanisms to ensure that only authorized users can access the network and that the data cannot be intercepted.

WLAN (Wireless Local Area Network)

A type of local-area network that uses high-frequency radio waves rather than wires to communicate between nodes.

WPA

WPA stands for WiFi Protected Access. It’s an interim standard developed by the WiFi Alliance pending full ratication of the 802.11i standard, to protect the wired band and improve upon the old WEP encryption standard.

G-b 29000156-001 A

LevelOne WAB-2000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
