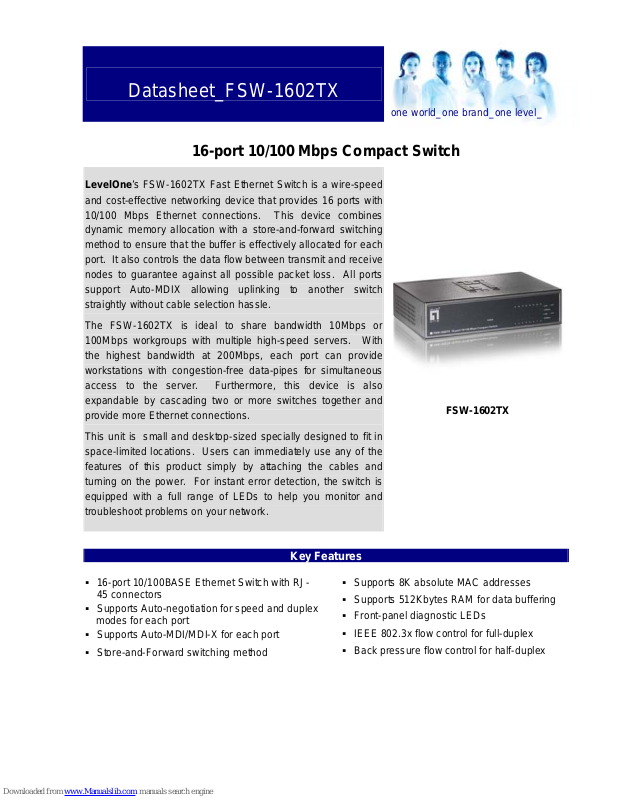

Datasheet_FSW-1602TX
16-port 10/100 Mbps Compact Switch
LevelOne’s FSW-1602TX Fast Ethernet Switch is a wire-speed
and cost-effective networking device that provides 16 ports with
10/100 Mbps Ethernet connections. This device combines
dynamic memory allocation with a store-and-forward switching
method to ensure that the buffer is effectively allocated for each
port. It also controls the data flow between transmit and receive
nodes to guarantee against all possible packet loss. All ports
support Auto-MDIX allowing uplinking to another switch
straightly without cable selection hassle.
The FSW-1602TX is ideal to share bandwidth 10Mbps or
100Mbps workgroups with multiple high-speed servers. With
the highest bandwidth at 200Mbps, each port can provide
workstations with congestion-free data-pipes for simultaneous
access to the server. Furthermore, this device is also
expandable by cascading two or more switches together and
provide more Ethernet connections.
This unit is small and desktop-sized specially designed to fit in
space-limited locations. Users can immediately use any of the
features of this product simply by attaching the cables and
turning on the power. For instant error detection, the switch is
equipped with a full range of LEDs to help you monitor and
troubleshoot problems on your network.
FSW-1602TX
Key Features
16-port 10/100BASE Ethernet Switch with RJ-
45 connectors
Supports Auto-negotiation for speed and duplex
modes for each port
Supports Auto-MDI/MDI-X for each port
Store-and-Forward switching method
Supports 8K absolute MAC addresses
Supports 512Kbytes RAM for data buffering
Front-panel diagnostic LEDs
IEEE 802.3x flow control for full-duplex
Back pressure flow control for half-duplex
Page 2
Datasheet_FSW-1602TX
Technical Specification
Standards Compliance
IEEE 802.3: 10 BASE-T
IEEE 802.3u: 100BASE-TX
IEEE 802.3x Flow Control for Full-Duplex
Ports
16 x 10/100 Base-TX , RJ-45 ports
Protocol
CSMA/CD
Cabling
Ethernet: UTP Cat. 3,4,5, EIA/TIA-568 100-ohm
screened twisted-pair (STP)
Fast Ethernet: UTP Cat. 5, EIA/TIA-568 100-ohm
screened twisted-pair (STP)
Bandwidth
10 BASE-T: 10/20 Mbps (Half/ Full Deplex)
100 BASE-TX: 100/200 Mbps (Half/ Full Deplex)
MAC Address Table
8K entries per device
Buffer
512 KB per device
LEDs
Per Device:1 x Power
Per Port: 1 x Link/Act; 1x Full-Duplex/Collision; 1 x Speed
Power Adapter
7.5V/ 1A
Power Consumption
6 Watts (max)
Temperature
Operating: 0°C ~40°C
Storage: -10°C ~70°C
Humidity
Operating: 10% ~ 90% Non-Condensing
Storage: 5% ~ 90% Non-Condensing
Dimension
184mm(W) * 124mm(H) * 44mm(D)
EMI and Safety
FCC class A, CE
Product Diagram

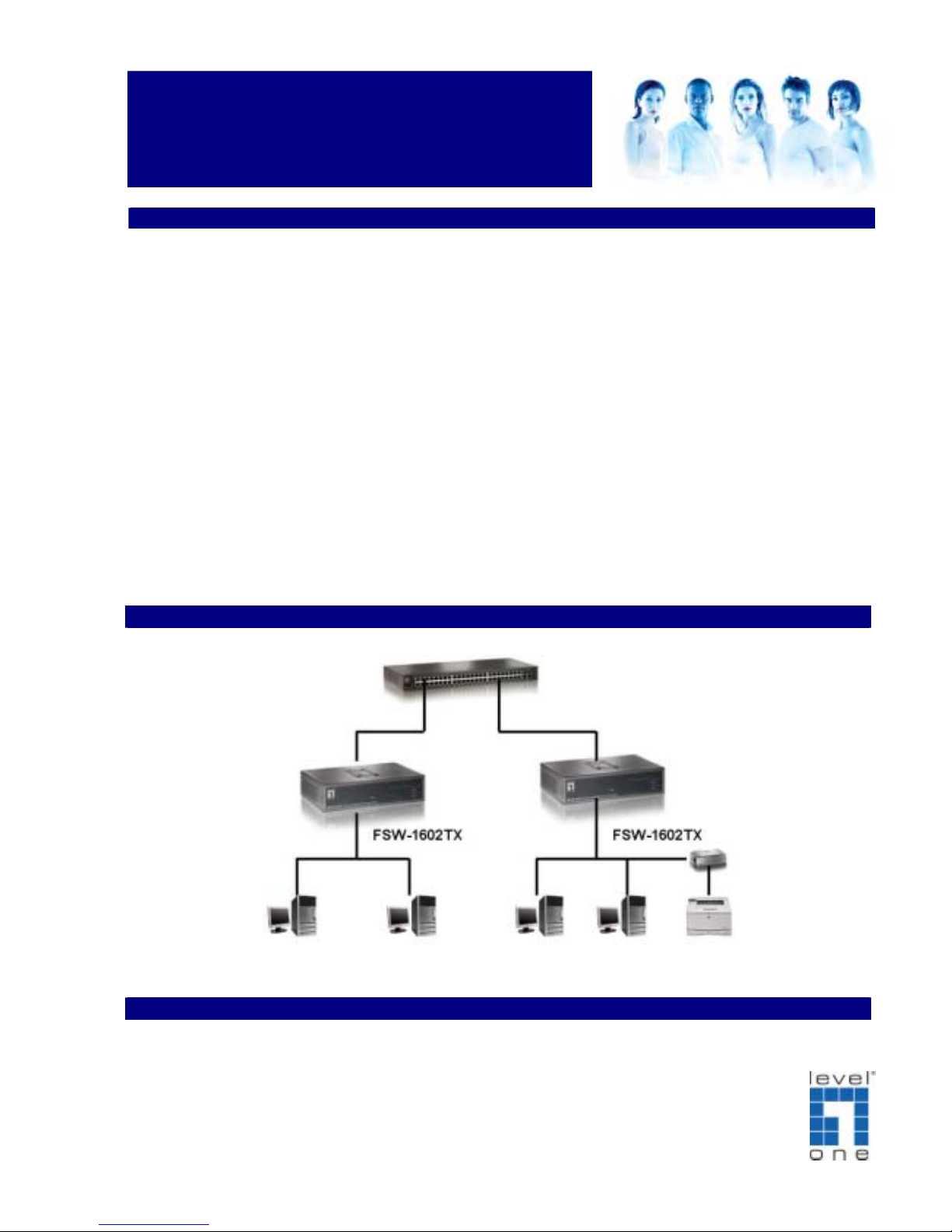

FSW-1602TX Network Diagram
Ordering Information
FSW-1602TX: 16-port 10/100 Mbps Compact Switch
