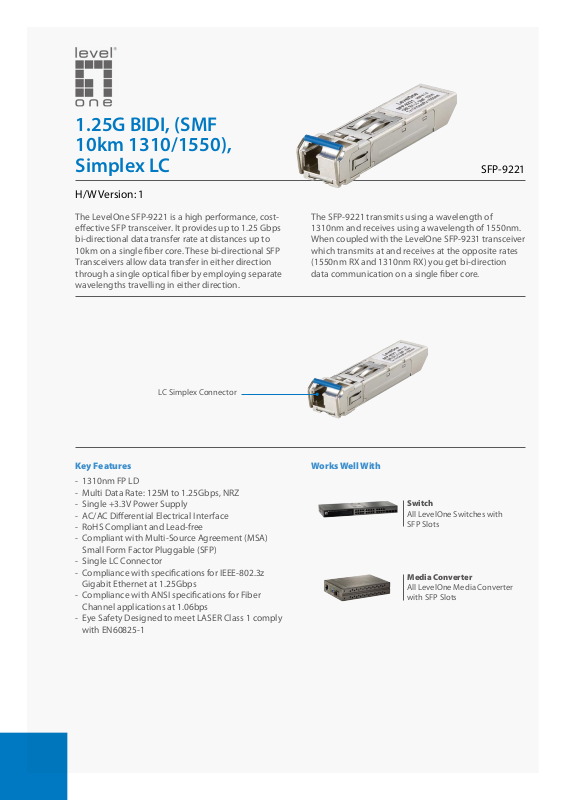

Level One SFP-9221 User Manual

Page 1

1.25G BIDI, (SMF 10km 1310/1550), Simplex LC

H/W Version: 1

The LevelOne SFP-9221 is a high performance, costeective SFP transceiver. It provides up to 1.25 Gbps bi-directional data transfer rate at distances up to 10km on a single ber core. These bi-directional SFP Transceivers allow data transfer in either direction through a single optical ber by employing separate wavelengths travelling in either direction.

LC Simplex Connector

SFP-9221

The SFP-9221 transmits using a wavelength of 1310nm and receives using a wavelength of 1550nm. When coupled with the LevelOne SFP-9231 transceiver which transmits at and receives at the opposite rates (1550nm RX and 1310nm RX) you get bi-direction data communication on a single ber core.

Key Features

- 1310nm FP LD

- Multi Data Rate: 125M to 1.25Gbps, NRZ

- Single +3.3V Power Supply

- AC/AC Dierential Electrical Interface

- RoHS Compliant and Lead-free

- Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP)

- Single LC Connector

- Compliance with specications for IEEE-802.3z Gigabit Ethernet at 1.25Gbps

- Compliance with ANSI specications for Fiber Channel applications at 1.06bps

- Eye Safety Designed to meet LASER Class 1 comply with EN60825-1

Works Well With

Switch

All LevelOne Switches with SFP Slots

Media Converter

All LevelOne Media Converter with SFP Slots

Page 2

www.level1.com I one world_one brand_one level_

Technical Specications

Tranceiver

Stndard Compliance

IEEE 802.3z

Data Rate Gigabit

1.25G

Data Rate Fiber Channel

1.06Gbps

Media Type

SMF

Optical Transmission Power

-9 ~ -3 dBm

Optical Receiver Sensitivity

-21 dBm

Power Budget

12dB

Wavelength

1550nm / 1310nm

Application

SFP-9221

Transmission Range

up to 10km (9/125μm)

Connector

Supply Voltage

3.3V

Max Voltage/Current

6V/300mA

Temperature

0°C ~70°C

Humidity

5~90% (non-condensing)

Dimensions (Lx W x H)

56.5mm x 13.7mm x 8.95mm

Certications

Class 1 eye safety and comply with EN 60825-1

SFP-9231

Mini-GBIC BIDI Transceiver 80km Mini-GBIC BIDI Transceiver 80km

Switch

Order Information

Package Contents

SFP Slots

Single Mode Fiber

SFP-9221: 1.25G BIDI, (SMF 10km 1310/1550), Simplex LC



SFP-9221



SFP Slots

Switch

Page 3

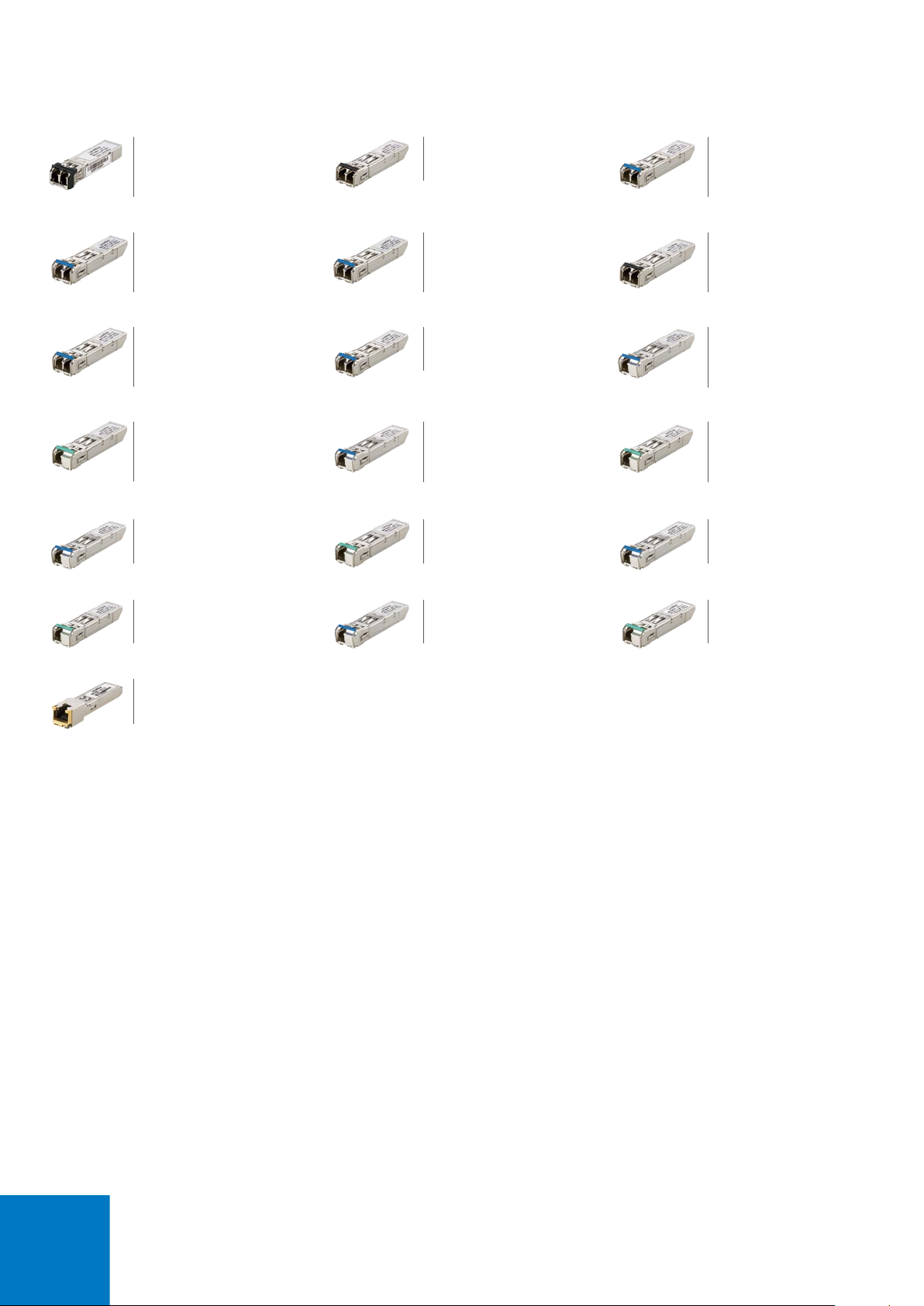

Related Product

SFP-3001

1.25 G transceiver 850nm VCSEL, SX (MMF 500m), Duplex LC

SFP-3611

1.25 G transceiver , 1550nm DFB-LD, ZX (SMF 80km), Duplex LC

SFP-1311

155Mbps transceiver 1310nm FP-LD, (SMF 20km), Duplex LC

SFP-7331

155Mbps BIDI, (SM 20km1550/1310), Simplex LC

SFP-9221

1.25G BIDI, (SM 10km 1310/1550), Simplex LC

SFP-3111

1.25 G transceiver, 1310nm MLX (MMF 2km), Duplex LC

SFP-3711

1.25 G transceiver 1550nm DFB-LD, EZX (SMF 120km), Duplex LC

SFP-1411

155Mbps transceiver 1310nm FP-LD, (SMF 40km), Duplex LC

SFP-7421

155Mbps BIDI, (SM 40km1310/1550), Simplex LC

SFP-9231

1.25G BIDI, (SM 10km 1550/1310), Simplex LC

SFP-3211

1.25 G transceiver , 1310 nm FP-LD, LX (SMF 10m), Duplex LC

SFP-1101

155Mbps transceiver 1310nm FP/LED-LD, (MMF 2km), Duplex LC

SFP-7321

155Mbps BIDI, (SM 20km1310/1550), Simplex LC

SFP-7431

155Mbps BIDI, (SM 40km1550/1310), Simplex LC

SFP-9321

1.25G BIDI, (SM 20km 1310/1550), Simplex LC

SFP-9331

1.25G BIDI, (SM 20km 1550/1310), Simplex LC

SFP-3841

1.25 G transceiver TX Copper (100m), RJ-45 Type

SFP-9421

1.25G BIDI, (SM 40km 1310/1550), Simplex LC

SFP-9431

1.25G BIDI, (SM 40km 1550/1310), Simplex LC
