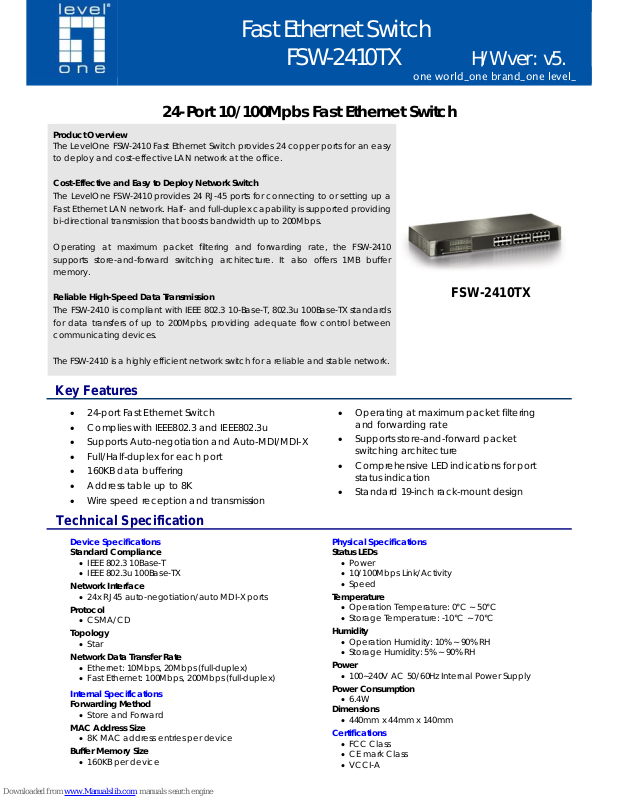

Page 1
Fast Ethernet Switch
FSW-2410TX
H/W ver: v5.
one world_one brand_one level_
24-Port 10/100Mpbs Fast Ethernet Switch
Product Overview
The LevelOne FSW-2410 Fast Ethernet Switch provides 24 copper ports for an easy
to deploy and cost-effective LAN network at the office.
Cost-Effective and Easy to Deploy Network Switch
The LevelOne FSW-2410 provides 24 RJ-45 ports for connecting to or setting up a
Fast Ethernet LAN network. Half- and full-duplex capability is supported providing
bi-directional transmission that boosts bandwidth up to 200Mbps.
Operating at maximum packet filtering and forwarding rate, the FSW-2410
supports store-and-forward switching architecture. It also offers 1MB buffer
memory.
Reliable High-Speed Data Transmission
The FSW-2410 is compliant with IEEE 802.3 10-Base-T, 802.3u 100Base-TX standards
for data transfers of up to 200Mpbs, providing adequate flow control between
communicating devices.
The FSW-2410 is a highly efficient network switch for a reliable and stable network.
FSW-2410TX
Key Features
• 24-port Fast Ethernet Switch
• Complies with IEEE802.3 and IEEE802.3u
• Supports Auto-negotiation and Auto-MDI/MD I-X
• Full/Half-duplex for each port
• 160KB data buffering
• Address table up to 8K
• Wire speed reception and transmission
• Operating at maximum packet filtering
and forwarding rate
• Supports store-and-forward packet
switching architecture
• Comprehensive LED indications for port
status indication
• Standard 19-inch rack-mount design
Technical Specification
Device Specifications
Standard Compliance
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
Network Interface
• 24x RJ45 auto-negotiation/auto MDI-X ports
Protocol
• CSMA/CD
Topology
• Star
Network Data Transfer Rate
• Ethernet: 10Mbps, 20Mbps (full-duplex)
• Fast Ethernet: 100Mbps, 200Mbps (full-duplex)
Internal Specifications
Forwarding Method
• Store and Forward
MAC Address Size
• 8K MAC address entries per device
Buffer Memory Size
• 160KB per device
Physical Specifications
Status LEDs
• Power
• 10/100Mbps Link/Activity
• Speed
Temperature
• Operation Temperature: 0°C ~ 50°C
• Storage Temperature: -10°C ~ 70°C
Humidity
• Operation Humidity: 10% ~ 90% RH
• Storage Humidity: 5% ~ 90% RH
Power
• 100~240V AC 50/60Hz Internal Power Supply
Power Consumption
• 6.4W
Dimensions
• 440mm x 44mm x 140mm
Certifications
• FCC Class
• CE mark Class
•
VCCI-A
Page 2
Fast Ethernet Switch
FSW-2410TX
H/W ver: v5.
one world_one brand_one level_

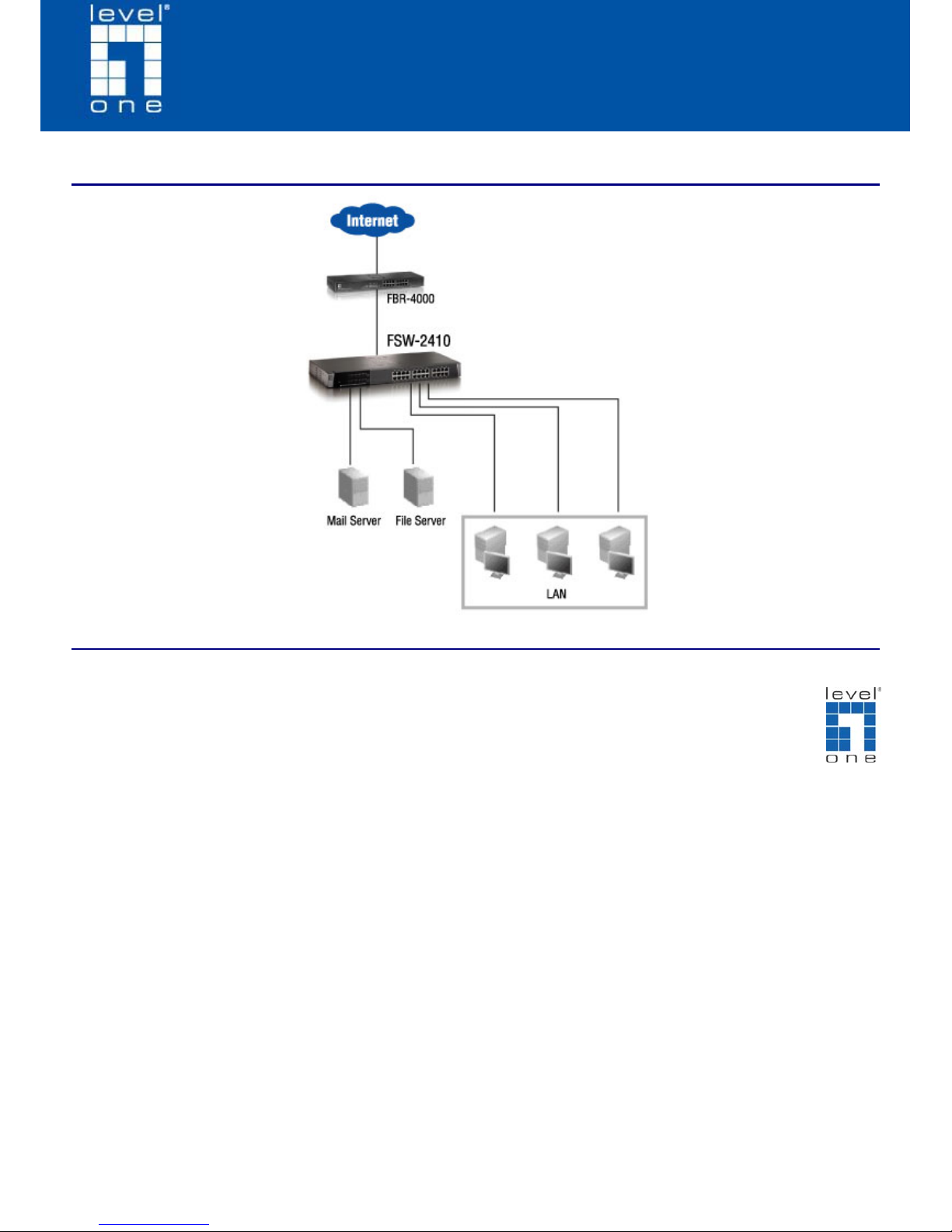

Product Diagram
Order Information
FSW-2410TX: 24-Port 10-100Mbps Fast Ethernet Switch
For more information, please contact your LevelOne representative, or visit www.level1.com
All technical specifications are subject to change without notice.
All mentioned brand names are registered trademarks and property of their owners
