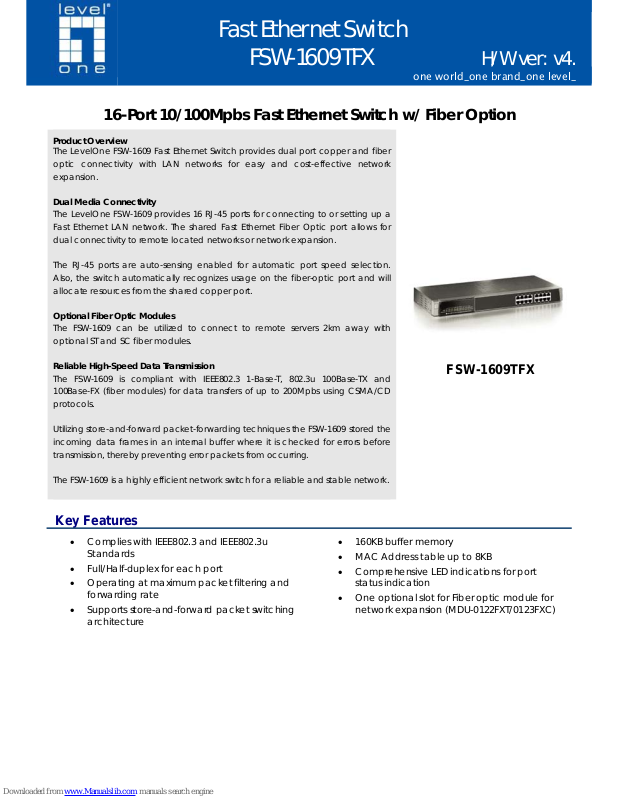

Page 1
Fast Ethernet Switch
FSW-1609TFX
H/W ver: v4.
one world_one brand_one level_
16-Port 10/100Mpbs Fast Ethernet Switch w/ Fiber Option
Product Overview
The LevelOne FSW-1609 Fast Ethernet Switch provides dual port copper and fiber
optic connectivity with LAN networks for easy and cost-effective network
expansion.
Dual Media Connectivity
The LevelOne FSW-1609 provides 16 RJ-45 ports for connecting to or setting up a
Fast Ethernet LAN network. The shared Fast Ethernet Fiber Optic port allows for
dual connectivity to remote located networks or network expansion.
The RJ-45 ports are auto-sensing enabled for automatic port speed selection.
Also, the switch automatically recognizes usage on the fiber-optic port and will
allocate resources from the shared copper port.
Optional Fiber Optic Modules
The FSW-1609 can be utilized to connect to remote servers 2km away with
optional ST and SC fiber modules.
Reliable High-Speed Data Transmission
The FSW-1609 is compliant with IEEE802.3 1-Base-T, 802.3u 100Base-TX and
100Base-FX (fiber modules) for data transfers of up to 200Mpbs using CSMA/CD
protocols.
Utilizing store-and-forward packet-forwarding techniques the FSW-1609 stored the
incoming data frames in an internal buffer where it i s checked for errors before
transmission, thereby preventing error packets from occurring.
The FSW-1609 is a highly efficient network switch for a reliable and stable network.
FSW-1609TFX
Key Features
• Complies with IEEE802.3 and IEEE802.3u
Standards
• Full/Half-duplex for each port
• Operating at maximum packet filtering and
forwarding rate
• Supports store-and-forward packet switching
architecture
• 160KB buffer memory
• MAC Address table up to 8KB
• Comprehensive LED indications for port
status indication
• One optional slot for Fiber optic module for
network expansion (MDU-0122FXT/0123FXC)
Page 2
Fast Ethernet Switch
FSW-1609TFX
H/W ver: v4.
one world_one brand_one level_
Technical Specification
Device Specifications
Standard Compliance
• IEEE802.3u 100Base-Tx, 100Base-FX
(module)
• IEEE802.3 10Base-T
Network Interface
• 16x RJ45 STP Auto-Sensing Port
• 1x Shared Fiber Optic Module Slot
Protocol
• CSMA/CD
Supported Cable
• 10Base-T: UTP category 3 or category 5
cable up to 328ft/100M
• 100Base-TX: UTP category 5 cable up to
328 ft/100M
• 100Base-FX: Multi-mode fiber-optic cable
up 6560 ft/2000M (module)
Network Data Transfer Rate
• Ethernet: 10Mbps (half-duplex), 20Mbps
(full-duplex)
• Fast Ethernet: 100Mbps (half-duplex),
200Mbps (full-duplex)
Internal Specifications
Forwarding Method
• Store and Forward
Packet Forwarding Rate
• 10Base-T: 14,880pps to 10Mbps per port
• 100Base-TX/FX: 148,800pps to 100Mbps per
port
MAC Address Size
• 8KB MAC address entries per device
Buffer Memory Size
• 160KB per device
Physical Characteristics
Dimensions
• 440mm x 44mm x 195mm
Temperature
• Operation Temperature: 0°C-40°C
• Storage Temperature: -20°C-70°C
Humidity
• Operation Humidity: 10% - 90% RH
• Storage Humidity: 5% to 90% RH
Status LEDs
• Power
• 10/100Mbps Link/Activity
• Collision/Full-duplex
Certifications
• FCC Class
• CE mark Class

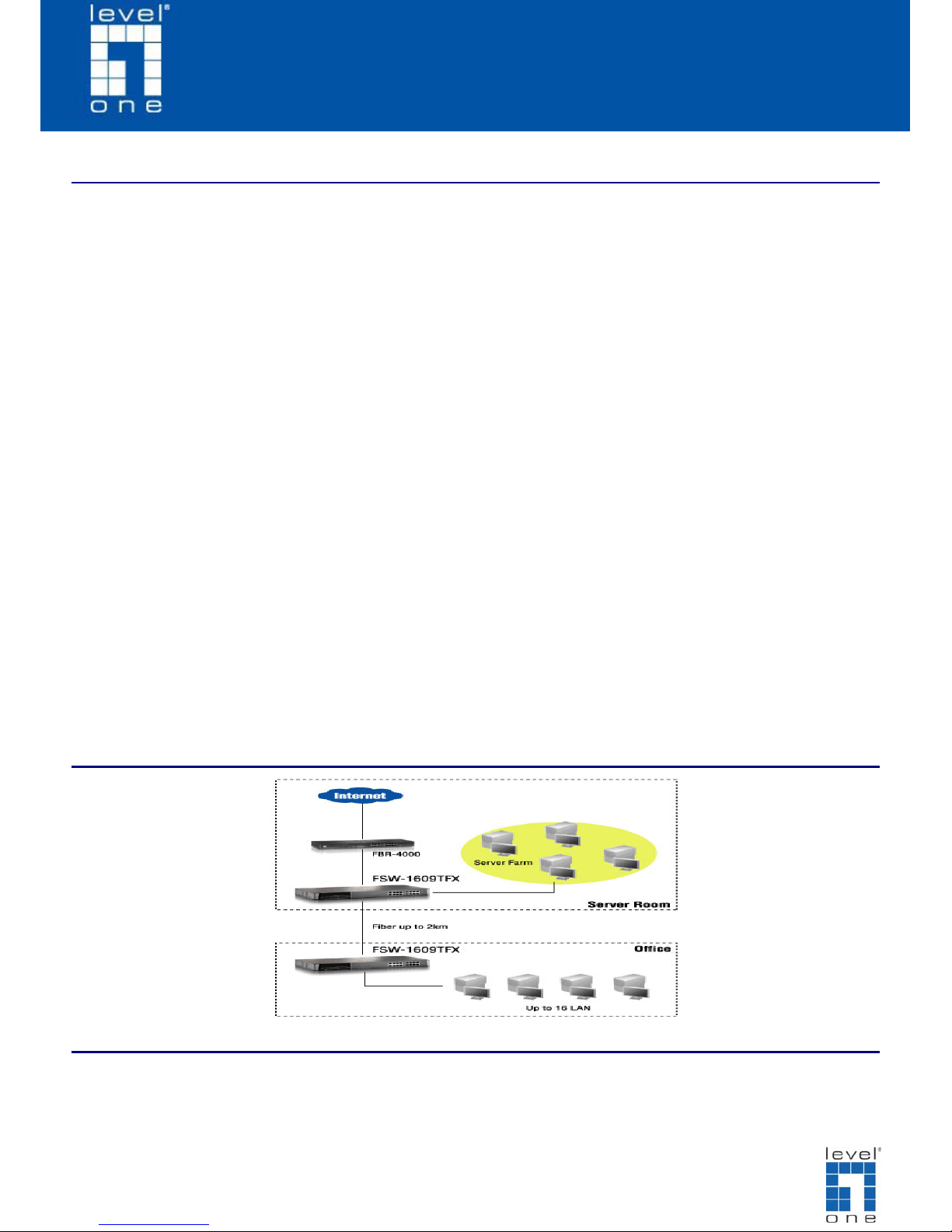

Product Diagram
Order Information
FSW-1609TFX: 16-Port 10-100Mbps Fast Ethernet Switch w/ fiber Option
Optional Fiber Modules
MDU-0122FXT: 100Mbps ST Fiber Module
MDU-0123FXC: 100Mbps SC Fiber Module
For more information, please contact your LevelOne representative, or visit www.level1.com
All technical specifications are subject to change without notice.
All mentioned brand names are registered trademarks and property of their owners
www.level1.com
