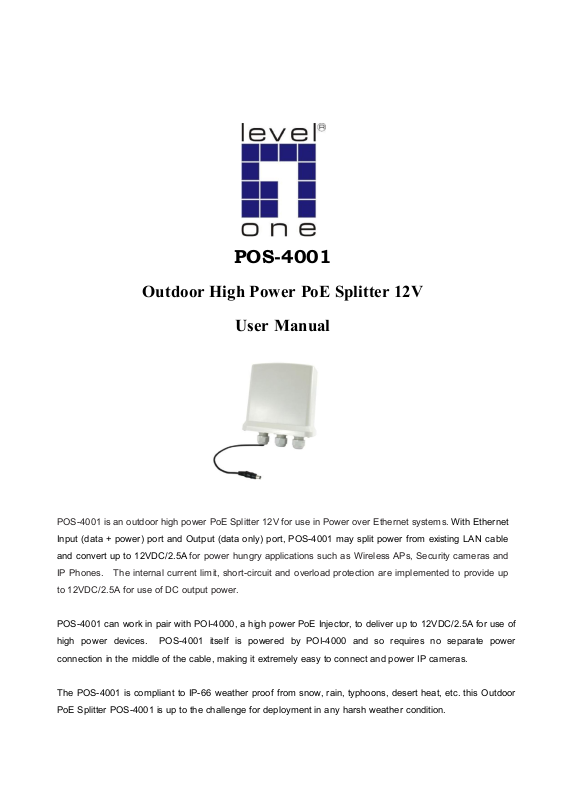

LevelOne POS-4001 User Manual

POS-4001

Outdoor High Power PoE Splitter 12V

User Manual

POS-4001 is an outdoor high power PoE Splitter 12V for use in Power over Ethernet systems. With Ethernet

Input (data + power) port and Output (data only) port, POS-4001 may split power from existing LAN cable

and convert up to 12VDC/2.5A for power hungry applications such as Wireless APs, Security cameras and

IP Phones. The internal current limit, short-circuit and overload protection are implemented to provide up

to 12VDC/2.5A for use of DC output power.

POS-4001 can work in pair with POI-4000, a high power PoE Injector, to deliver up to 12VDC/2.5A for use of

high power devices. POS-4001 itself is powered by POI-4000 and so requires no separate power

connection in the middle of the cable, making it extremely easy to connect and power IP cameras.

The POS-4001 is compliant to IP-66 weather proof from snow, rain, typhoons, desert heat, etc. this Outdoor

PoE Splitter POS-4001 is up to the challenge for deployment in any harsh weather condition.

Advantages:

 12VDC 2.5A High Power PoE Power Splitter

 Split Power Over Ethernet (POE) to remote devices

 DC OUTPUT: 12VDC (default), 9, 6, 5, 3.3VDC(Optional)

 Ethernet 100Mbps Wire Speed

 Simple to install – Plug & Play

 IP66 weatherproof design

Technical Specifications:

LAN Interface:

 IEEE 802.3x, Auto-Detection for 10/100BaseT and full/half duplex
 Standard Straight-through, or Cross-over CAT 5 cable
 Automatic MDIX function
 RJ-45 Connector x 2


POWER:

 OUTPUT: DC12V/2.5A at full load


Regulations & Approvals:

 FCC Rules Part 15 Class A
 CE

Physical Dimension:

WxDxH: 180 x 165 x 95 (mm)

Operating Environment:

 Humidity: 5% to 90% non-condensing
 Temperature: 0 ~ 50 degree C
