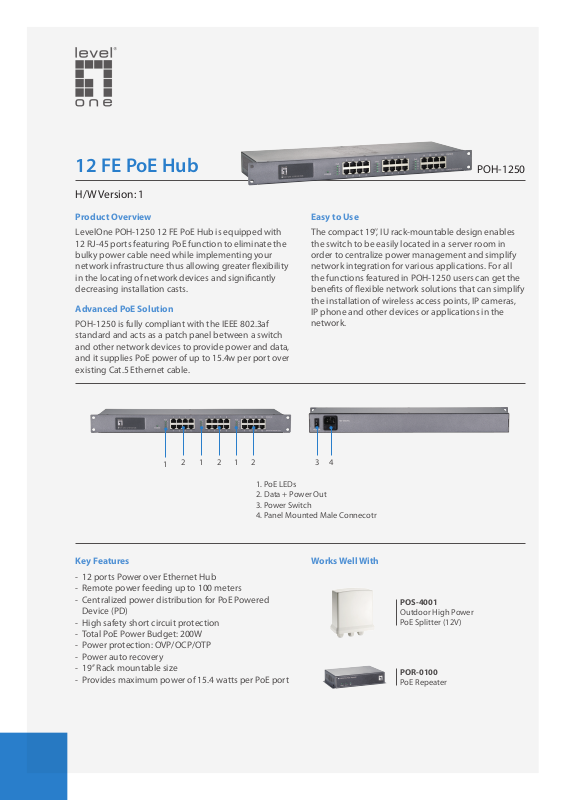

Level One POH-1250 User Manual

12 FE PoE Hub

H/W Version: 1

POH-1250

Product Overview

LevelOne POH-1250 12 FE PoE Hub is equipped with 12 RJ-45 ports featuring PoE function to eliminate the bulky power cable need while implementing your network infrastructure thus allowing greater exibility in the locating of network devices and signicantly decreasing installation casts.

Advanced PoE Solution

POH-1250 is fully compliant with the IEEE 802.3af standard and acts as a patch panel between a switch and other network devices to provide power and data, and it supplies PoE power of up to 15.4w per port over existing Cat.5 Ethernet cable.

2 1 2 1 2 3 4

1. PoE LEDs

2. Data + Power Out

3. Power Switch

4. Panel Mounted Male Connecotr

Easy to Use

The compact 19’’, IU rack-mountable design enables the switch to be easily located in a server room in order to centralize power management and simplify network integration for various applications. For all the functions featured in POH-1250 users can get the benets of exible network solutions that can simplify the installation of wireless access points, IP cameras, IP phone and other devices or applications in the network.

Key Features

- 12 ports Power over Ethernet Hub

- Remote power feeding up to 100 meters

- Centralized power distribution for PoE Powered Device (PD)

- High safety short circuit protection

- Total PoE Power Budget: 200W

- Power protection: OVP/OCP/OTP

- Power auto recovery

- 19’’ Rack mountable size

- Provides maximum power of 15.4 watts per PoE port

Works Well With

POS-4001

Outdoor High Power PoE Splitter (12V)

POR-0100

PoE Repeater

PoE PD/PSE/Repeaters

www.level1.com

one world_one brand_one level_

Technical Specication

Standards Compliance

IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-Tx Fast Ethernet

Power Protection

Auto Recovery, OVP, OCP, OTP

PoE Power Output

Per Port DC 48V 15.4 watts Power Pin Assignment: 4/5(+), 7/8(-)

PoE Power Budget

200 W

Product Diagram

Indicators

LEDs: Power x 1 (Green), PoE Status x 12 (Green)

Dimension (W x D x H) / Weight

480 x 160 x 44 mm (18.8 x 6.3 x 1.73 in) / 1.2kgs (2.64lbs)

Environmental Conditions

Operating Temperature: 0~50°C Storage Humidity: 5~95% Non-condensing Storage Temperature: -40 ~70°C

Regulation

FCC Part 15 Class A, CE

Ethernet Cable (RJ-45)

PoE

Ethernet Switch

100m

IP camera

100m

PoE IP phone

PoE Wireless AP

Order Information POH-1250: 12 FE PoE Hub

Package Contents 12 FE PoE Hub x 1

Power Cord x 1

User Manual x 1

POR-0100

100m

15.4W

POH-1250

All mentioned brand names are registered trademarks and property of their owners. Technical specications are subject to change without notice.

V1.0
