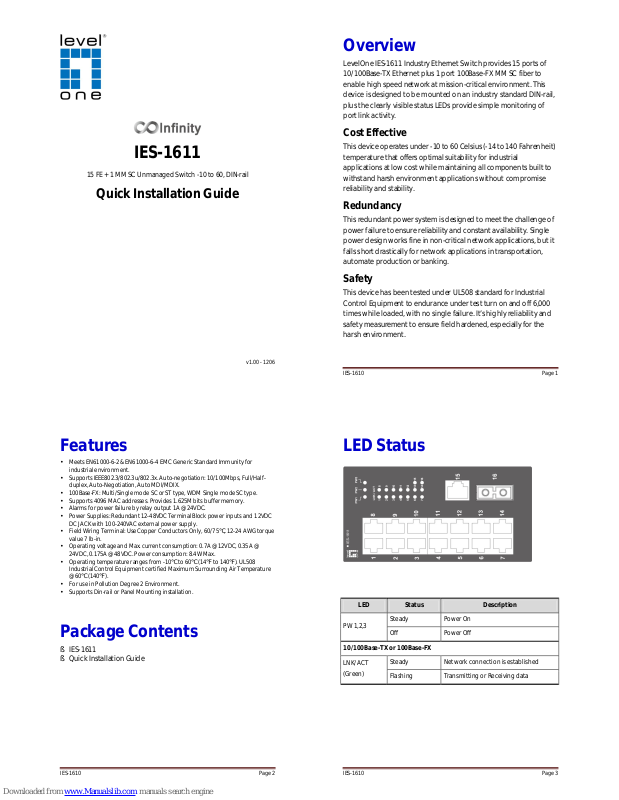

Page 1
IES-1611
15 FE + 1 MM SC Unmanaged Switch -10 to 60, DIN-rail
Quick Installation Guide
v1.00 -
1206
IES-1610 Page 1
Overview
LevelOne IES-1611 Industry Ethernet Switch provides 15 ports of
10/100Base-TX Ethernet plus 1 port 100Base-FX MM SC fiber to
enable high speed network at mission-critical environment. This
device is designed to be mounted on an industry standard DIN-rail,
plus the clearly visible status LEDs provide simple monitoring of
port link activity.
Cost Effective
This device operates under -10 to 60 Celsius (-14 to 140 Fahrenheit)
temperature that offers optimal suitability for industrial
applications at low cost while maintaining all components built to
withstand harsh environment applications without compromise
reliability and stability.
Redundancy
This redundant power system is designed to meet the challenge of
power failure to ensure reliability and constant availability. Single
power design works fine in non-critical network applications, but it
falls short drastically for network applications in transportation,
automate production or banking.
Safety
This device has been tested under UL508 standard for Industrial
Control Equipment to endurance under test turn on and off 6,000
times while loaded, with no single failure. It’s highly reliability and
safety measurement to ensure field hardened, especially for the
harsh environment.
IES-1610 Page 2
Features
• Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for
industrial environment.
• Supports IEEE802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps, Full/Half-
duplex, Auto-Negotiation, Auto MDI/MDIX.
• 100Base-FX: Multi/Single mode SC or ST type, WDM Single mode SC type.
• Supports 4096 MAC addresses. Provides 1.625M bits buffer memory.
• Alarms for power failure by relay output 1A @ 24VDC.
• Power Supplies: Redundant 12-48VDC Terminal Block power inputs and 12VDC
DC JACK with 100-240VAC external power supply.
• Field Wiring Terminal: Use Copper Conductors Only, 60/75℃, 12-24 AWG torque
value 7 lb-in.
• Operating voltage and Max. current consumption: 0.7A @ 12VDC, 0.35A @
24VDC, 0.175A @ 48VDC. Power consumption: 8.4W Max.
• Operating temperature ranges from -10℃ to 60℃ (14℉ to 140℉). UL508
Industrial Control Equipment certified Maximum Surrounding Air Temperature
@ 60℃ (140℉).
• For use in Pollution Degree 2 Environment.
• Supports Din-rail or Panel Mounting installation.
Package Contents
§ IES-1611
§ Quick Installation Guide
IES-1610 Page 3

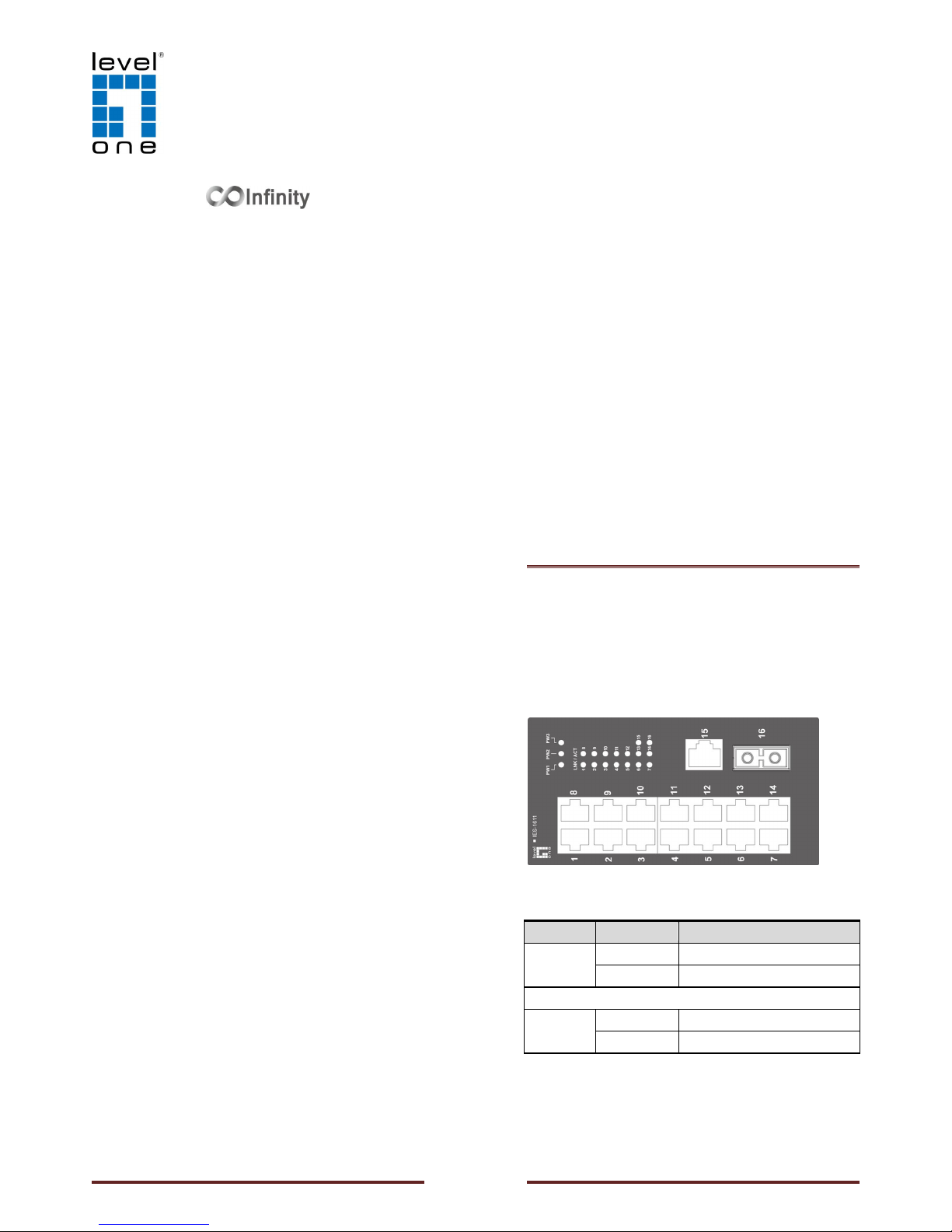

LED Status
LED Status Description
PW 1,2,3
Steady Power On
Off Power Off
10/100Base-TX or 100Base-FX
LNK/ACT
(Green)
Steady Network connection is established
Flashing Transmitting or Receiving data
Page 2
IES-1610 Page 4

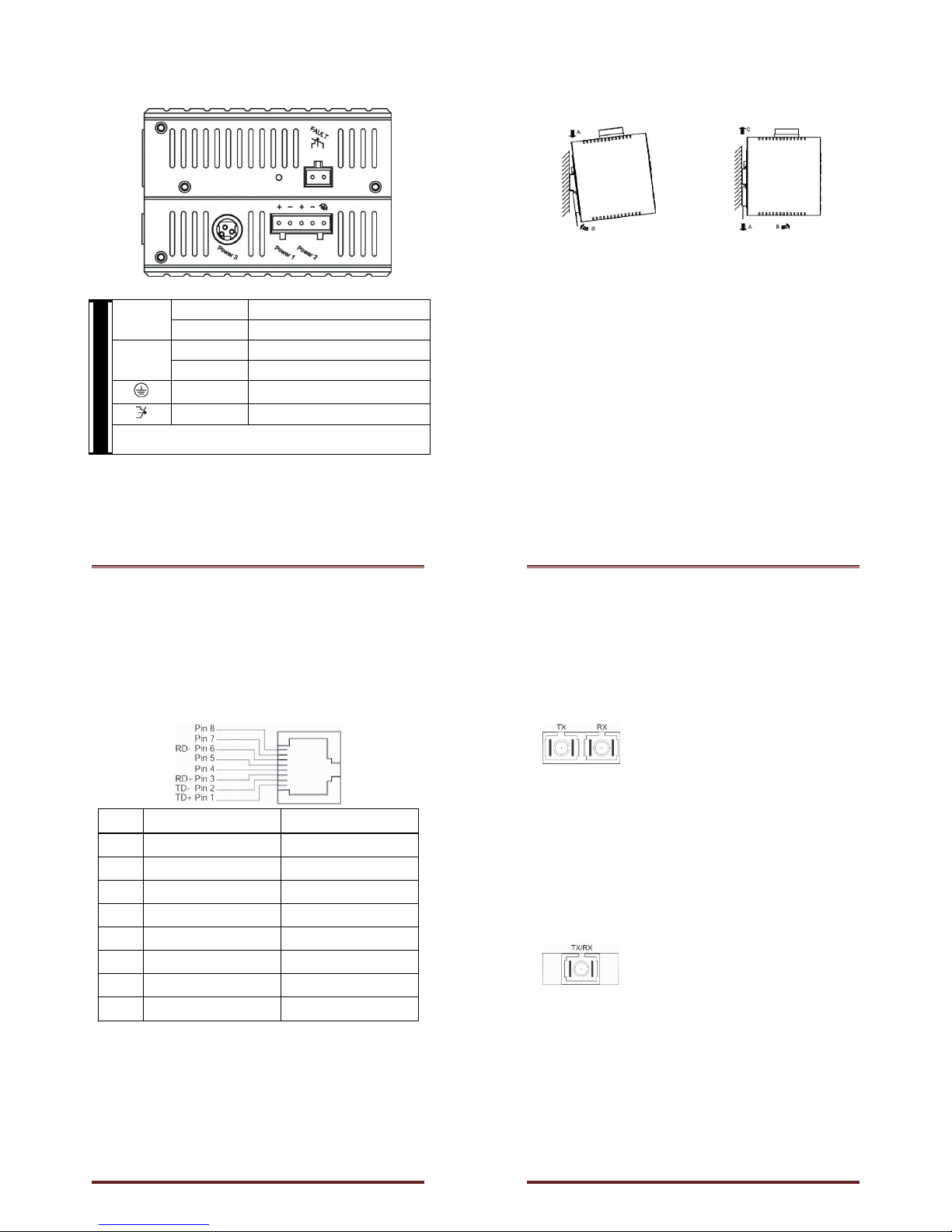

Power Input
Terminal Block
Power1
+
12 – 48VDC
– Power Ground
Power2
+
12 – 48VDC
– Power Ground
Earth Ground
Relay Output
1. The relay contact closes if Power1 or Power2 falls
2. The relay contact closes if Power3 is failed but both Power1 and Power2 are On
Power3: 12VDC DC Jack Input type
IES-1610 Page 5
DIN Rail Mount
• Assembly: Place the switch on the DIN rail from above using the
slot. Push the front of the switch toward the mounting surface
until it audibly snaps into place
• Start-up: Connect the supply voltage to start up the switch via
the terminal block (or DC JACK)
• Dismantling: Pull out the lower edge and then remove the switch
from the DIN rail.
IES-1610 Page 6
10/100Base-TX Connector
The following lists the pin-out of 10/100Base-TX ports.
Pin Standard Port Uplink Port
1 Output Transmit Data + Input Receive Data +
2 Output Transmit Data - Input Receive Data 3 Input Receive Data + Output Transmit Data +
4 NC NC
5 NC NC
6 Input Receive Data - Output Transmit Data 7 NC NC
8 NC NC
IES-1610 Page 7
100Base-FX Connection
The Tx (transmit) port of device I is
connected to the Rx (receive) port
of device II, and the Rx (receive)
port of device I to the Tx (transmit)
port of device II.
WDM 100Base-BX Connection
Only one optical fiber is required to
transmit and receive data
