Page 1

IES-1085

4 x 802.3af + 4 x 802.3at + 2 GE SFP Managed Switch -40 to 75C, DIN-rail

User Manual

v1.00 - 1206

Page 2

User Manual Page 2

Preface

This manual describes how to install and use the Industrial Managed PoE (Power over Ethernet) Ethernet Switch. This switch introduced here is designed to deliver full scalability with SNMP/RMON web-based management functions by providing:

To get the most out of this manual, you should have an understanding of Ethernet networking concepts.

In this manual, you will find: Features on the Industrial Managed PoE Ethernet Switch

 Illustrative LED functions  Installation instructions  Management Configuration   Specifications

Page 3

User Manual Page 3

Table of Contents

PREFACE .................................................................................................................................................. 2

TABLE OF CONTENTS .................................................................................................................................... 3

QUICK START GUIDE .............................................................................................................................. 5

PHYSICAL DESCRIPTION ............................................................................................................................................ 5

FUNCTIONAL DESCRIPTION ....................................................................................................................................... 7

CONSOLE CONFIGURATION ....................................................................................................................................... 8

WEB CONFIGURATION ............................................................................................................................................. 9

PRODUCT OVERVIEW ........................................................................................................................... 10

INDUSTRIAL MANAGED ETHERNET SWITCH ................................................................................................................ 10

PACKAGE CONTENTS .............................................................................................................................................. 10

PRODUCT HIGHLIGHTS ........................................................................................................................................... 11

FRONT PANEL DISPLAY ........................................................................................................................................... 13

PHYSICAL PORTS ................................................................................................................................................... 14

SWITCH MANAGEMENT ......................................................................................................................................... 15

INSTALLATION ....................................................................................................................................... 16

SELECTING A SITE FOR THE SWITCH ........................................................................................................................... 16

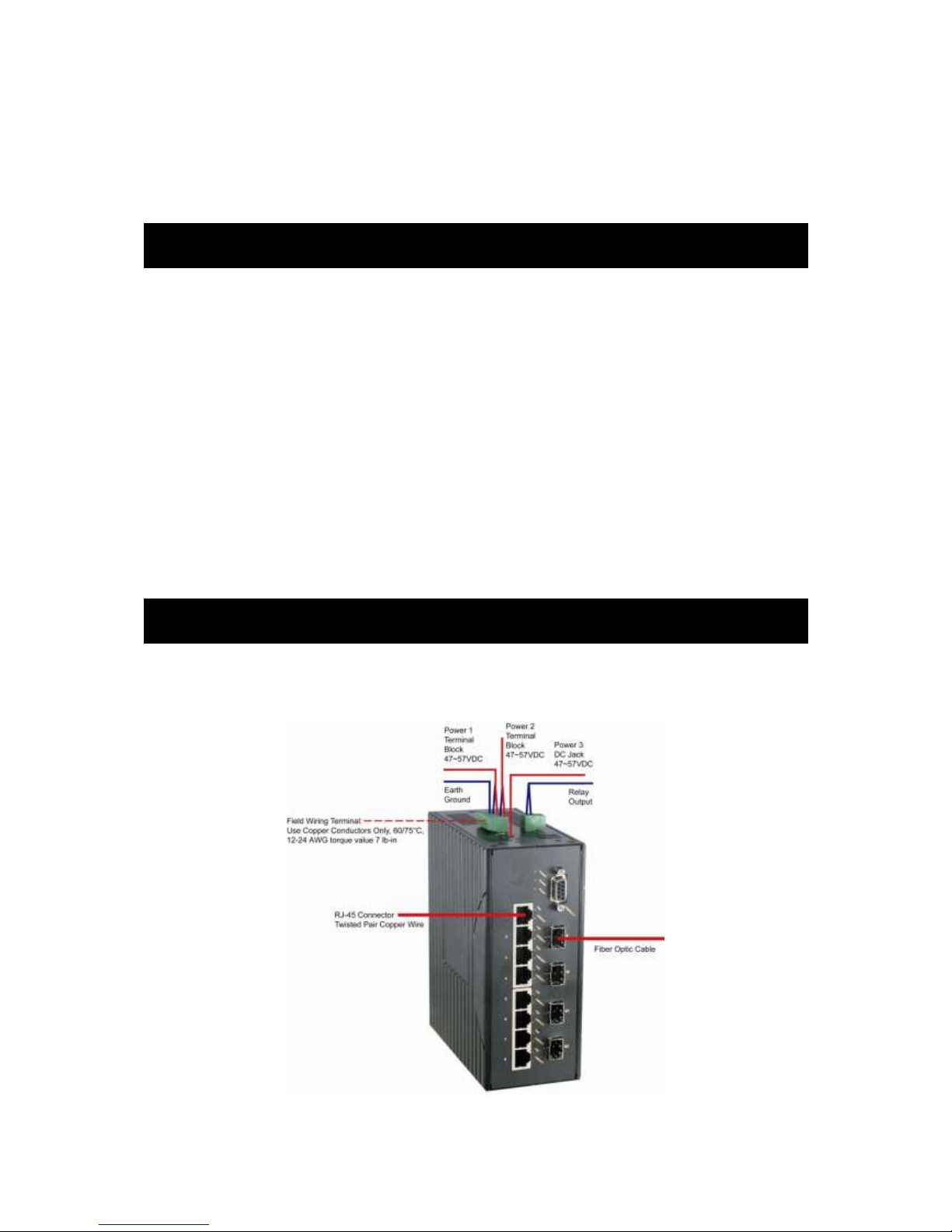

WIRING DIAGRAM ................................................................................................................................................ 16

DIN RAIL MOUNTING ............................................................................................................................................ 17

CONNECTING TO POWER ........................................................................................................................................ 17

CONNECTING TO YOUR NETWORK ............................................................................................................................ 19

SWITCH MANAGEMENT ....................................................................................................................... 20

MANAGEMENT ACCESS OVERVIEW ........................................................................................................................... 20

ADMINISTRATION CONSOLE (CLI) ............................................................................................................................ 21

WEB MANAGEMENT ............................................................................................................................................. 22

SNMP-BASED NETWORK MANAGEMENT ................................................................................................................. 22

PROTOCOLS ......................................................................................................................................................... 22

MANAGEMENT ARCHITECTURE ................................................................................................................................ 23

SNMP & RMON MANAGEMENT ........................................................................................................... 24

OVERVIEW ........................................................................................................................................................... 24

SNMP AGENT AND MIB-2 (RFC 1213) .................................................................................................................. 24

RMON MIB (RFC 2819) AND BRIDGE MIB (RFC 1493) ........................................................................................... 25

WEB-BASED BROWSER MANAGEMENT ........................................................................................... 27

LOGGING ON TO THE SWITCH ................................................................................................................................... 27

UNDERSTANDING THE BROWSER INTERFACE ............................................................................................................... 28

SYSTEM ............................................................................................................................................................... 30

PORT .................................................................................................................................................................. 40

SWITCHING .......................................................................................................................................................... 44

TRUNKING ........................................................................................................................................................... 48

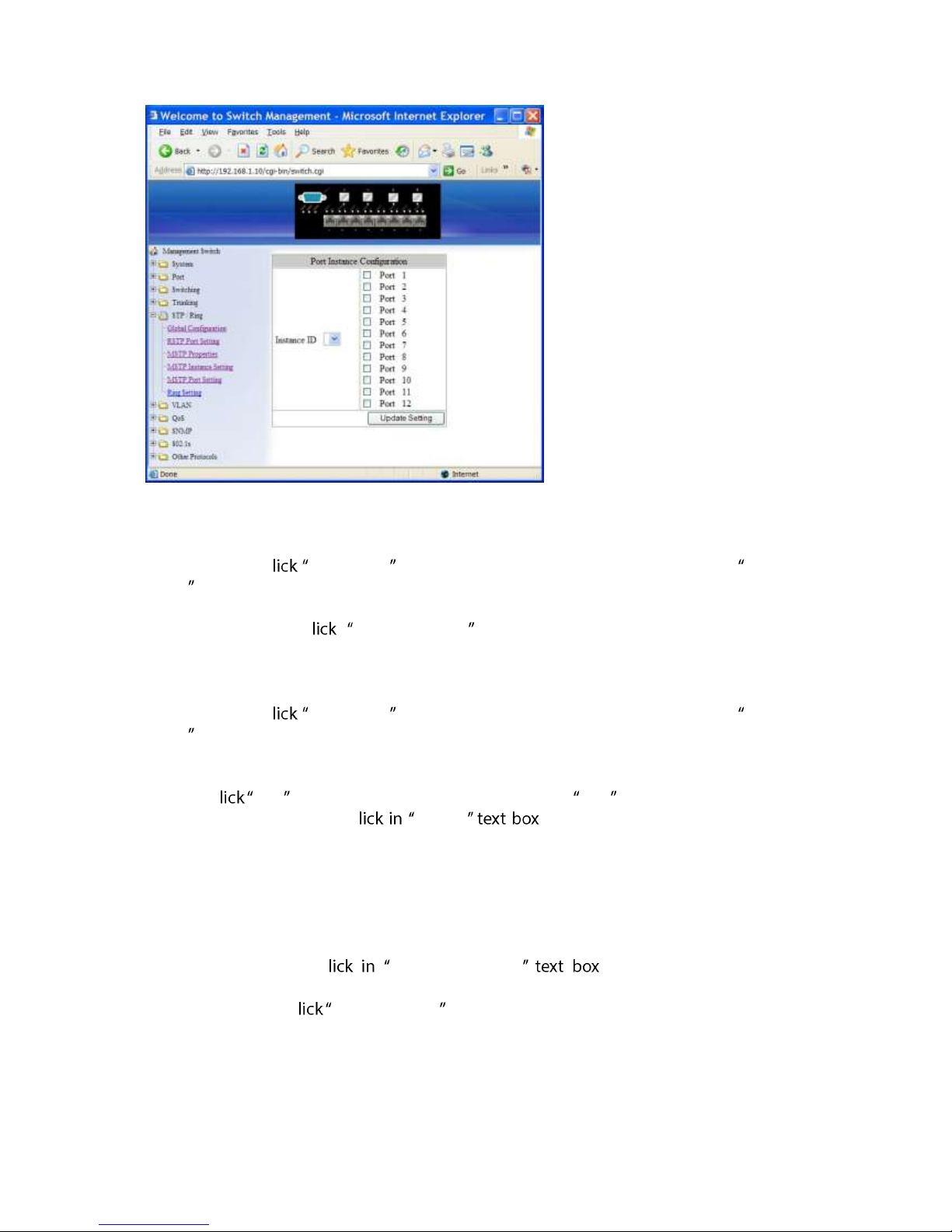

STP / RING ......................................................................................................................................................... 49

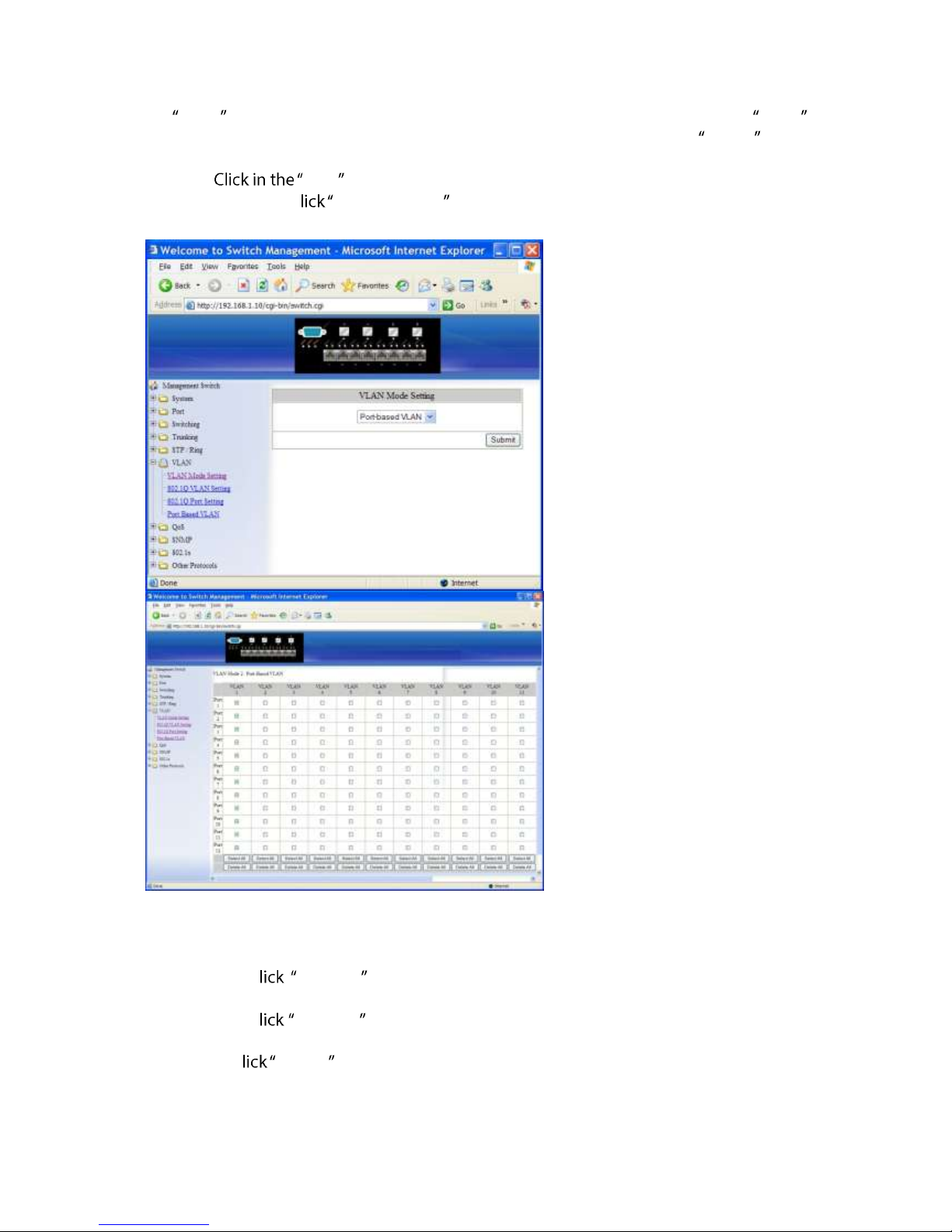

VLAN ................................................................................................................................................................ 56

QOS ................................................................................................................................................................... 60

SNMP ............................................................................................................................................................... 62

802.1X .............................................................................................................................................................. 66

OTHER PROTOCOLS ............................................................................................................................................... 69

COMMAND LINE CONSOLE MANAGEMENT ..................................................................................... 73

Page 4

User Manual Page 4

ADMINISTRATION CONSOLE .................................................................................................................................... 73

SYSTEM ............................................................................................................................................................... 82

PORT .................................................................................................................................................................. 92

SWITCHING .......................................................................................................................................................... 99

TRUNKING ......................................................................................................................................................... 108

STP ................................................................................................................................................................. 109

VLAN .............................................................................................................................................................. 122

QOS ................................................................................................................................................................. 128

SNMP ............................................................................................................................................................. 131

802.1X ............................................................................................................................................................ 138

OTHER PROTOCOLS ............................................................................................................................................. 143

SPECIFICATIONS .................................................................................................................................. 154

APPENDIX A .......................................................................................................................................... 155

APPENDIX B .......................................................................................................................................... 156

Page 5

User Manual Page 5

Quick Start Guide

This quick start guide describes how to install and use the Industrial Managed PoE (Power over Ethernet) Ethernet Switch. This is the switch of choice for harsh environments constrained by space.

Physical Description

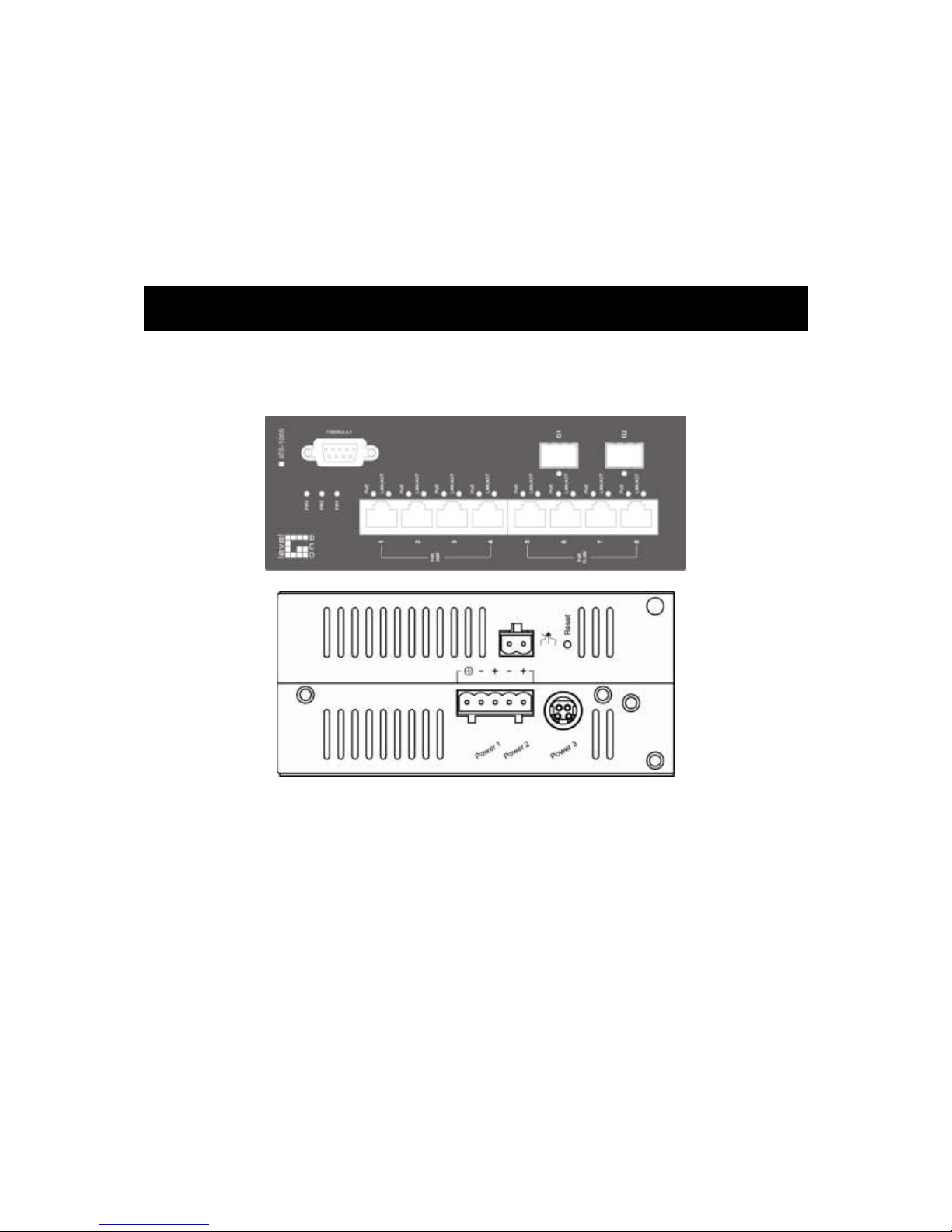

The Port Status LEDs and Power Inputs

Page 6

User Manual Page 6

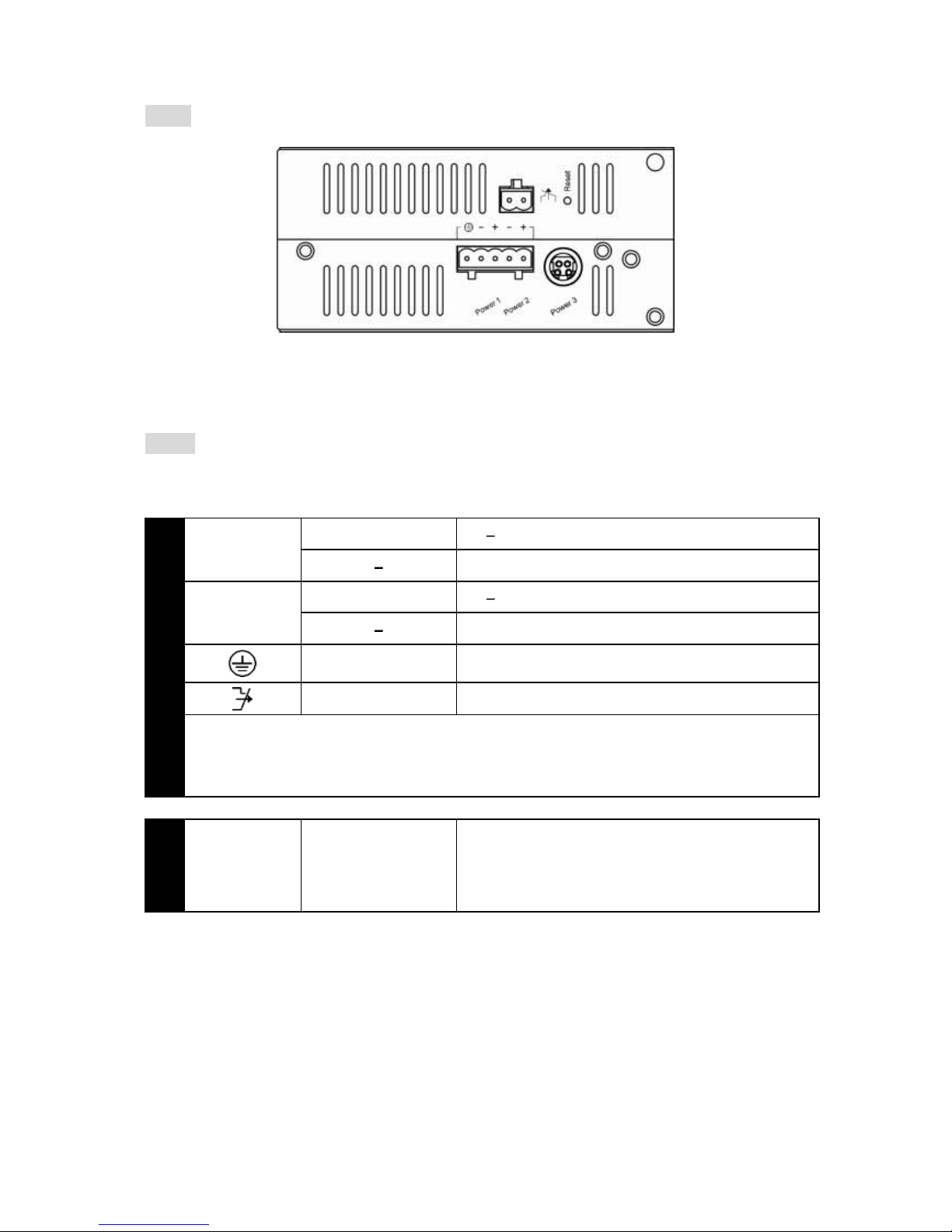

Power Input

Terminal Block

PW1

47 57VDC

Power Ground

PW2

47 57VDC

Power Ground

Earth Ground

Relay Output

1A @ 250VAC

Relay Alarm warning signal disable for following:

1. The relay contact closes if Power1 and Power2 are both failed but Power3 on

2. The relay contact closes if Power3 is failed but Power1 and Power2 are both on

 There are three power inputs can be used. Redundant power function is supported

PW3 is DC Jack type with 47 57VDC input

LED Status

LED

Status

Description

PW 1,2,3 Steady

Power On

Off

Power Off

10/100Base-TX

LNK/ACT Steady

Network connection established

Flashing

Transmitting or Receiving data

PoE Steady

Power Device (PD) is connected

Off

Power Device (PD) is disconnected

100Base-FX

LNK/ACT Steady

Network connection established

Flashing

Transmitting or Receiving data

10/100/1000Base-TX & 1000Base-FX & SFP

LNK/ACT Steady

Network connection established

Flashing

Transmitting or Receiving data

Page 7

User Manual Page 7

Functional Description

 Meets NEMA TS1/TS2 Environmental requirements such as temperature, shock, and

vibration for traffic control equipment.

 Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for industrial

environment.

 RS-232 console, Telnet, SNMP v1 & v2c & v3, RMON, Web Browser, and TFTP

management.

 Supports Command Line Interface in RS-232 console.  Supports 8192 MAC addresses. Provides 2M bits memory buffer.  Port 1 ~ Port 4 support IEEE802.3at Power over Ethernet (PoE) Power Sourcing

Equipment (PSE) and/or Port 5 ~ Port 8 support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE).

 Supports IEEE802.3/802.3u/802.3ab/802.3z/802.3x. Auto-negotiation,

1000Mbps-full-duplex, 10/100Mbps-full/half-duplex, Auto MDI/MDIX.

 100Base-FX: Multi mode or Single mode duplex LC type. 100Base-BX: WDM Multi mode

or Single mode single LC type.

 1000Base-SX/LX: Multi mode or Single mode duplex LC type. 1000Base-BX: WDM Multi

mode or Single mode single LC type.

 Store-and-forward mechanism. Full wire-speed forwarding rate.  Alarms for power and port link failure by relay output.  Power Supply: Redundant 47-57VDC Terminal Block power inputs or 47-57VDC DC Jack

power input.

 Field Wiring Terminal: Use Copper Conductors Only, 60/75℃, 12-24 AWG torque value 7

lb-in.

 Operating voltage and Max. current consumption: 0.31A @ 48VDC. Power

consumption: Power consumption: 230W Max. (Full load with PoE), 15W Max. (Without PoE).

 -40℃ to 75℃ (-40℉ to 167℉) operating temperature range. Tested for functional

operation @ -40℃ to 85℃ (-40℉ to 185℉). UL508 Industrial Control Equipment certified Maximum Surrounding Air Temperature @ 75℃ (167℉).

 For use in Pollution Degree 2 Environment.  Industrial metal case.  Supports Din-Rail or Panel Mounting installation.

Page 8

User Manual Page 8

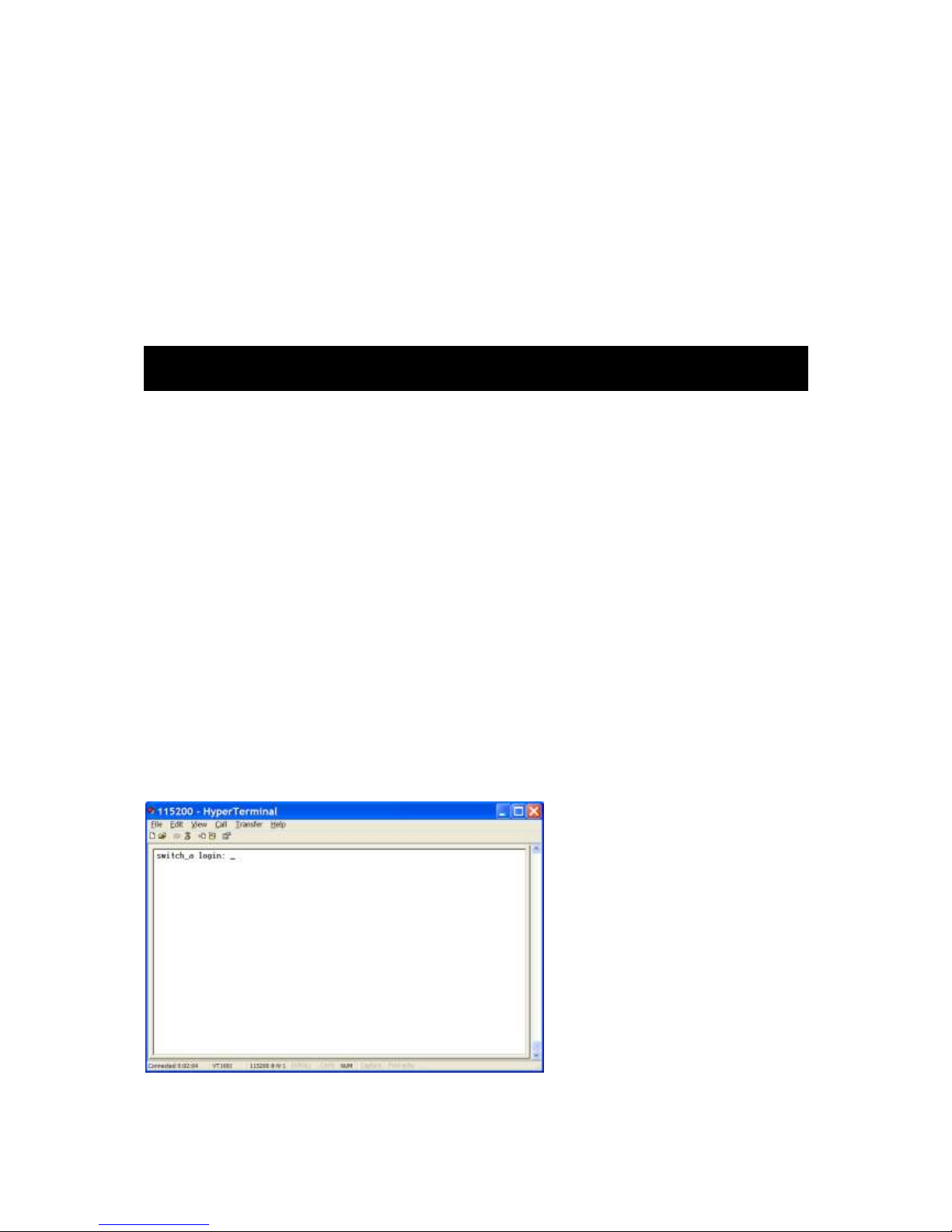

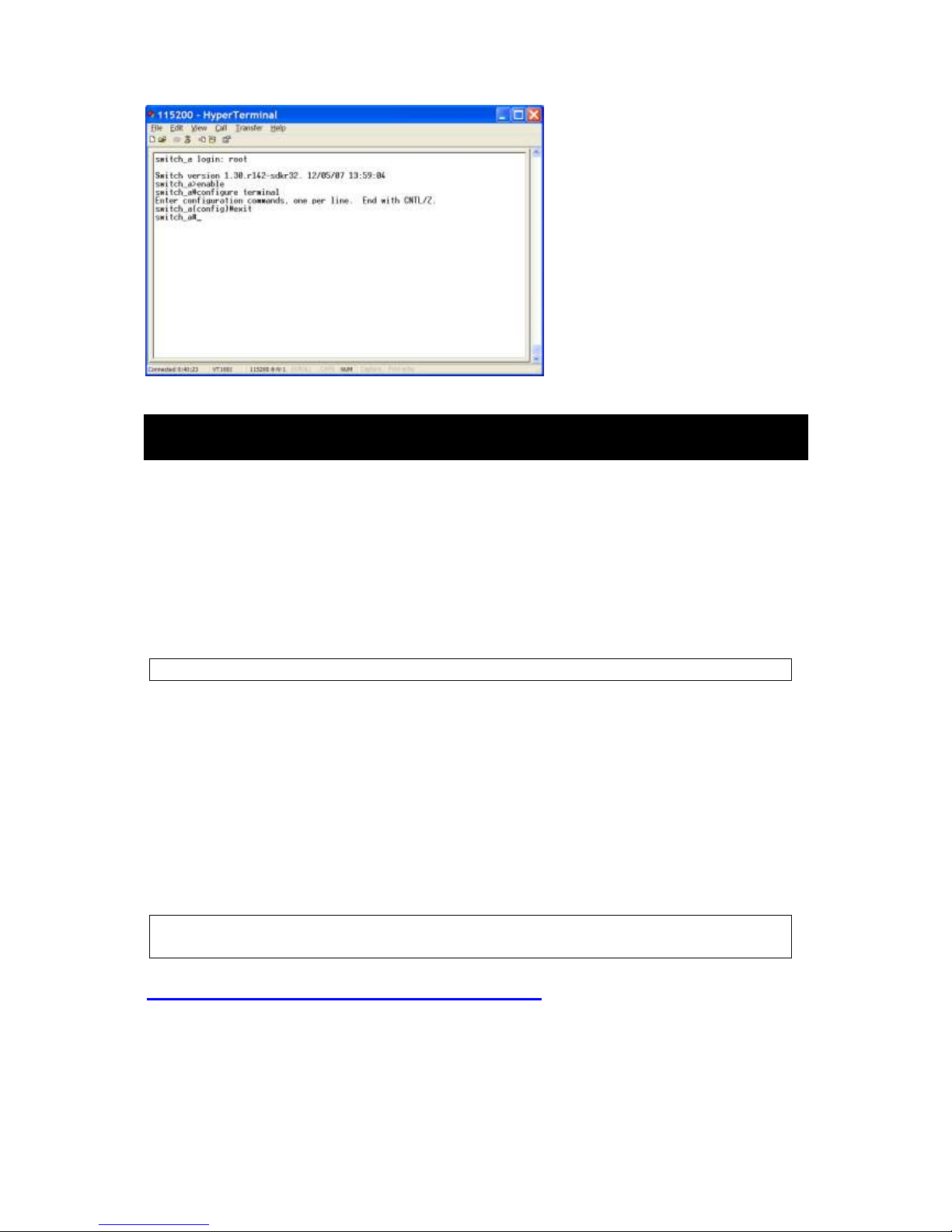

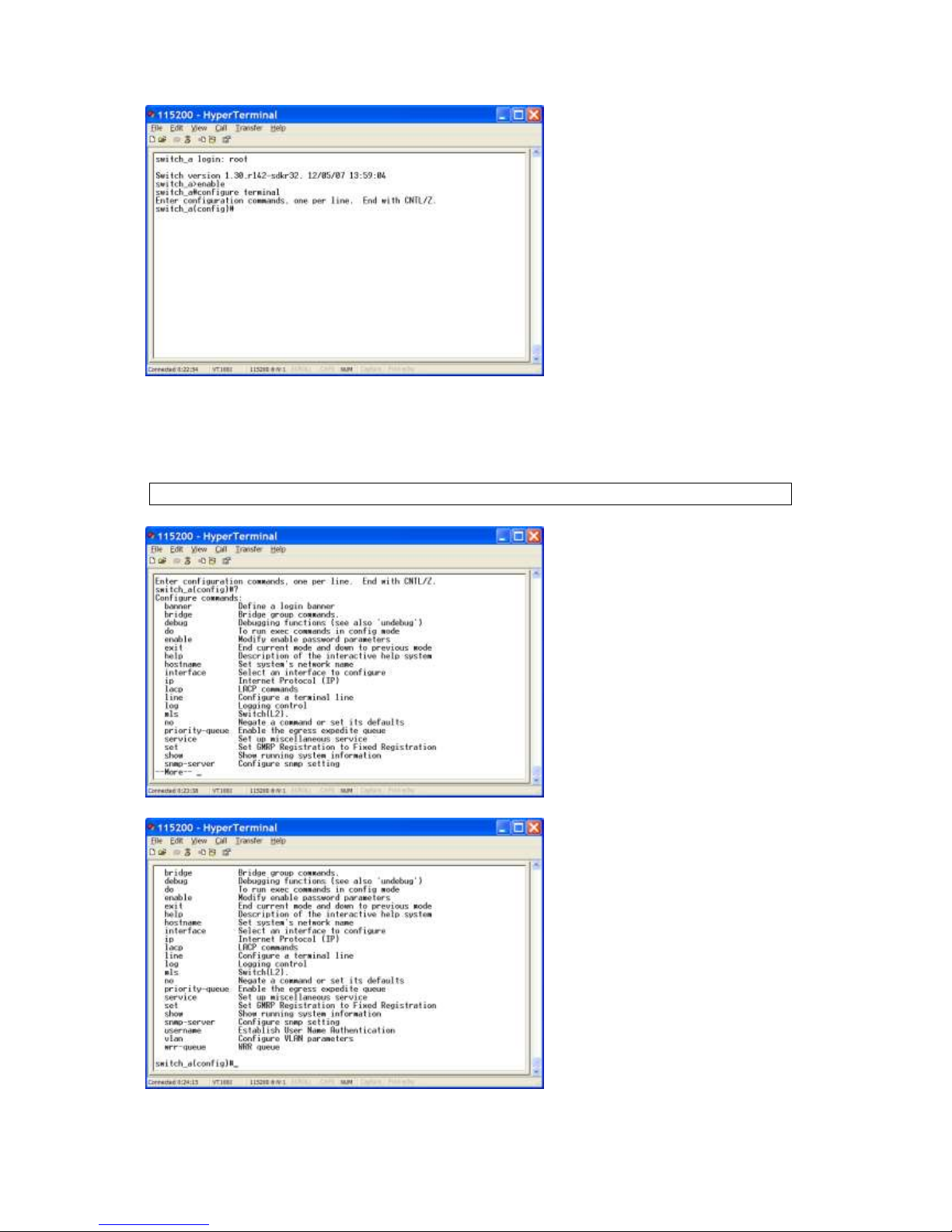

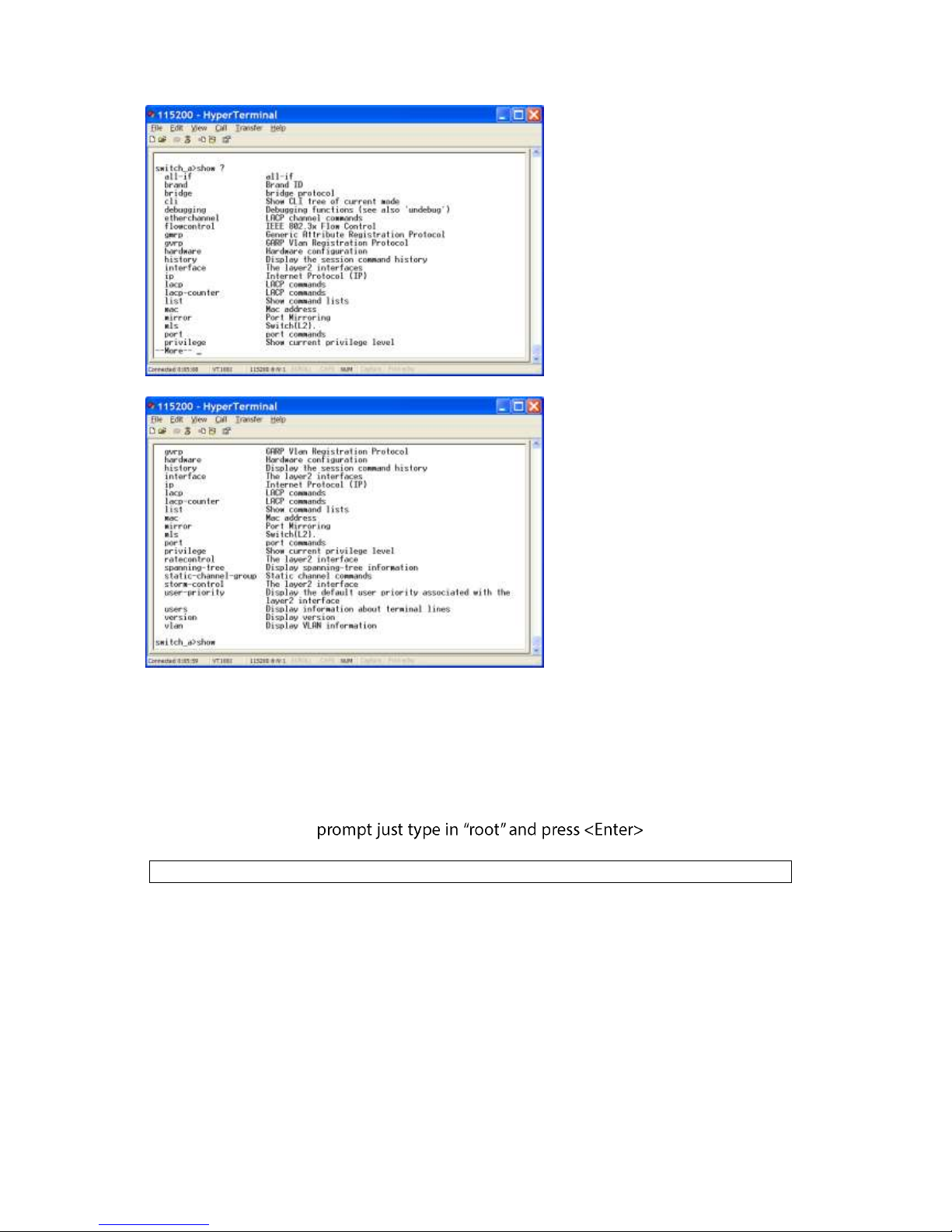

Console Configuration

 Connect to the switch console:

Connect the DB9 straight cable to the RS-232 serial port of the device and the RS-232 serial port of the terminal or computer running the terminal emulation application. Direct access to the administration console is achieved by directly connecting a terminal or a PC equipped with a terminal-emulation program (such as HyperTerminal) to the switch console port.

 Configuration settings of the terminal-emulation program:

Baud rate: 115,200bps Data bits: 8 Parity: none Stop bit: 1 Flow control: none

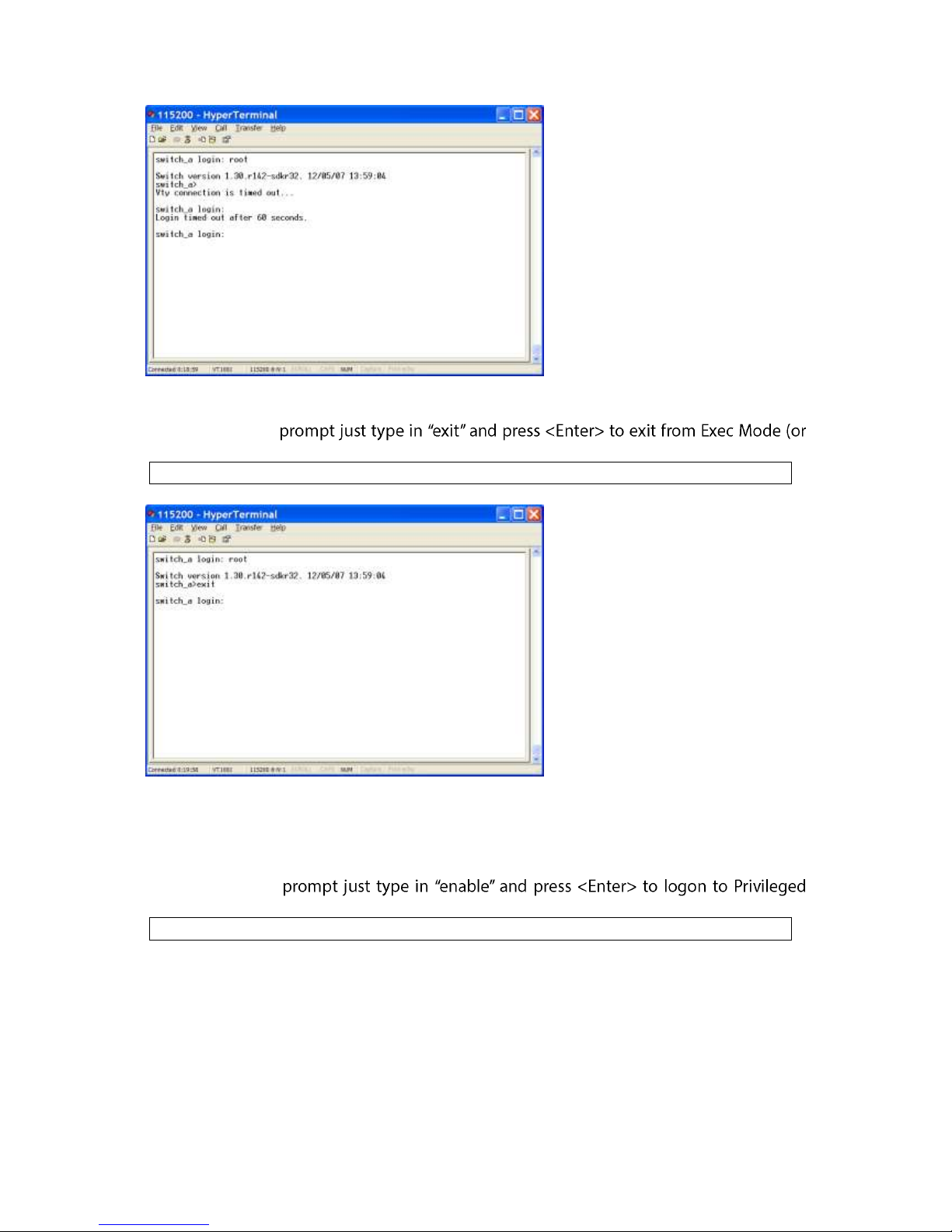

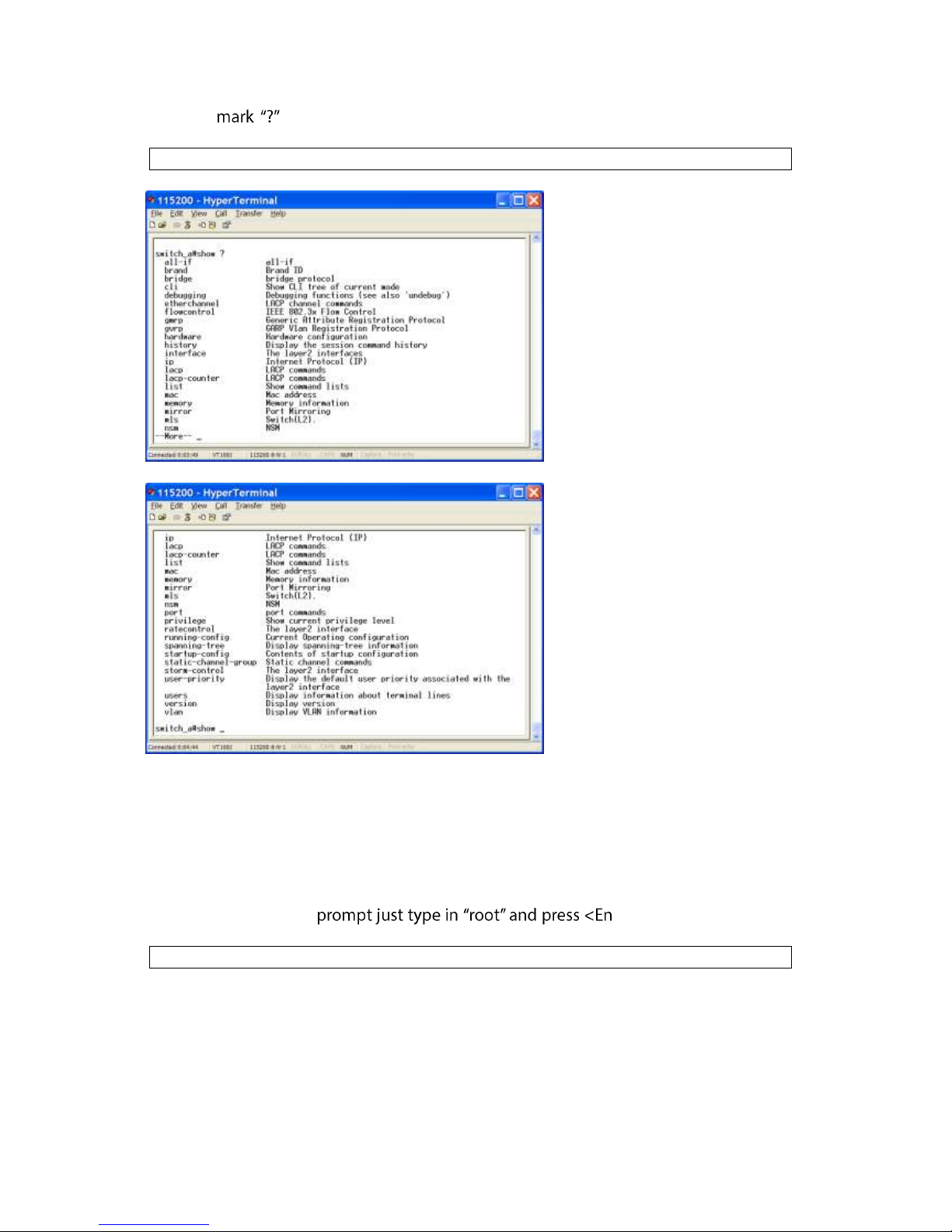

 Press the Enter key. The Command Line Interface (CLI) screen should appear as below:  Logon to Exec Mode (View Mode):

Mode (or View Mode). >

 Logon to Privileged Exec Mode (Enable Mode):

screen.

 Logon to Configure Mode (Configure Terminal Mode):

will show on the screen.

 Set new IP address and subnet mask for Switch:

interface vlan1.1 logon to vlan 1 (vlan1.1 means vlan 1). -if on the screen. Command Syntax: . specifies IP address. M specifies IP subnet mask. M = 8: 255.0.0.0, 16:255.255.0.0, or 24: 255.255.255.0.

For example, -if ip address

192.168.1.10/24 set new IP address (192.168.1.10) and new IP subnet mask (255.255.255.0) for Switch.

Page 9

User Manual Page 9

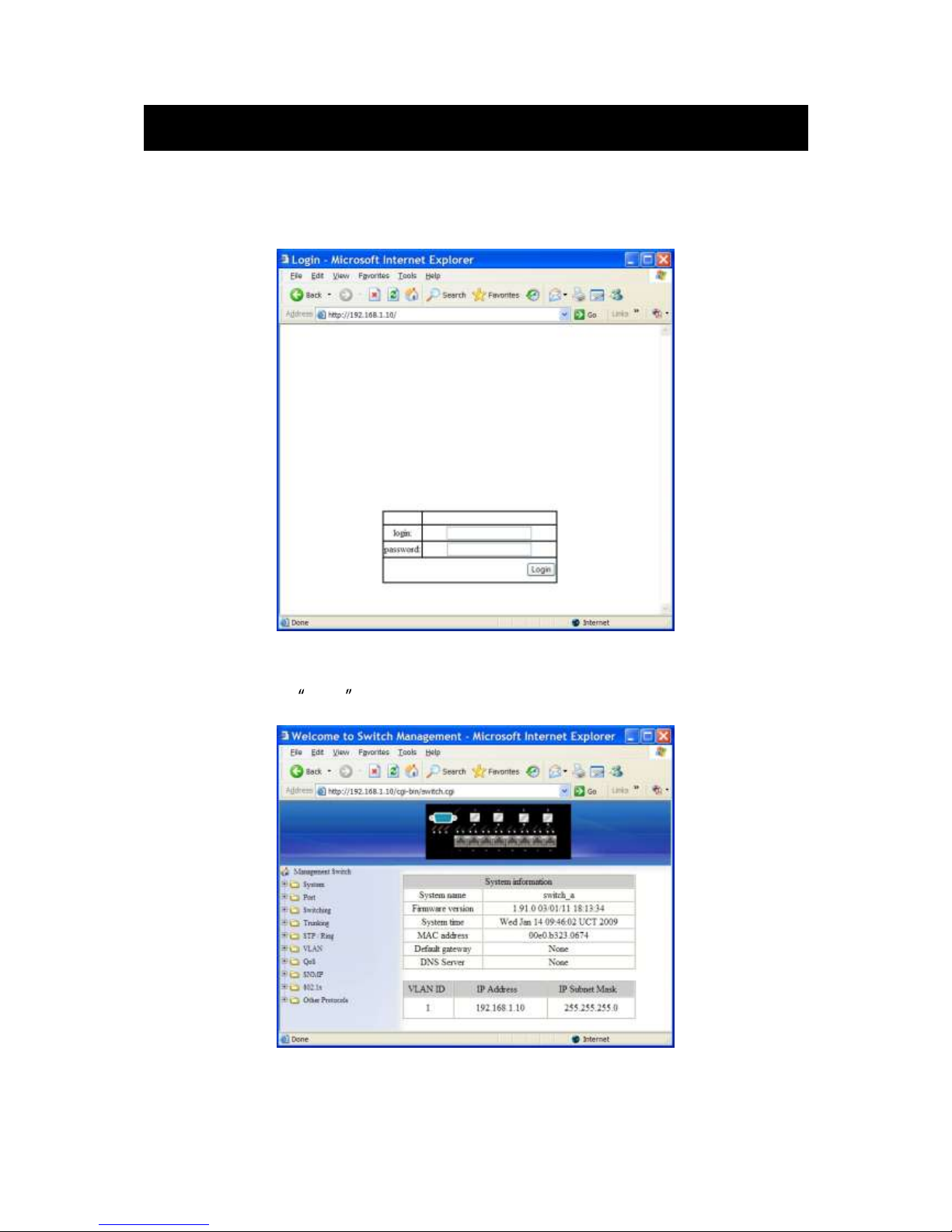

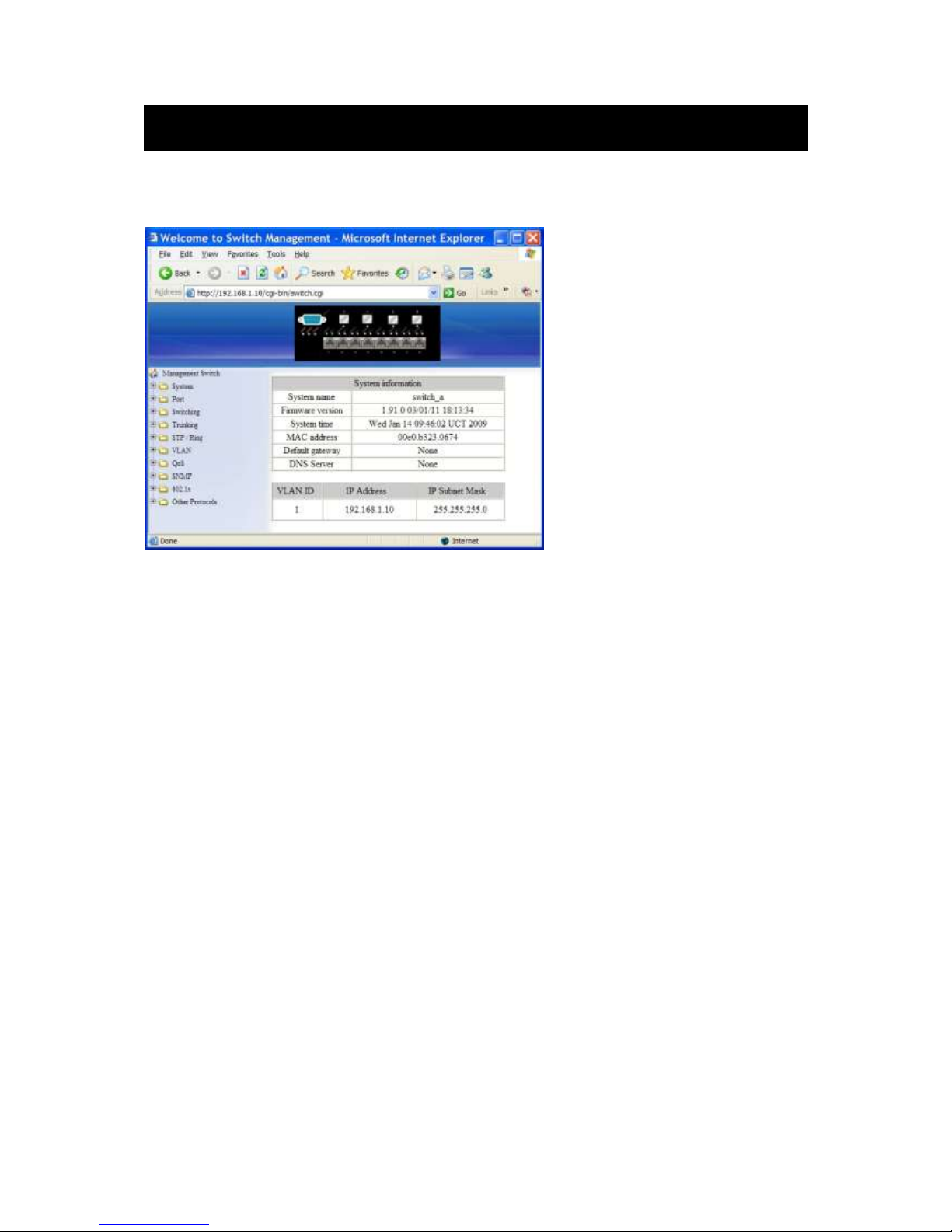

Web Configuration

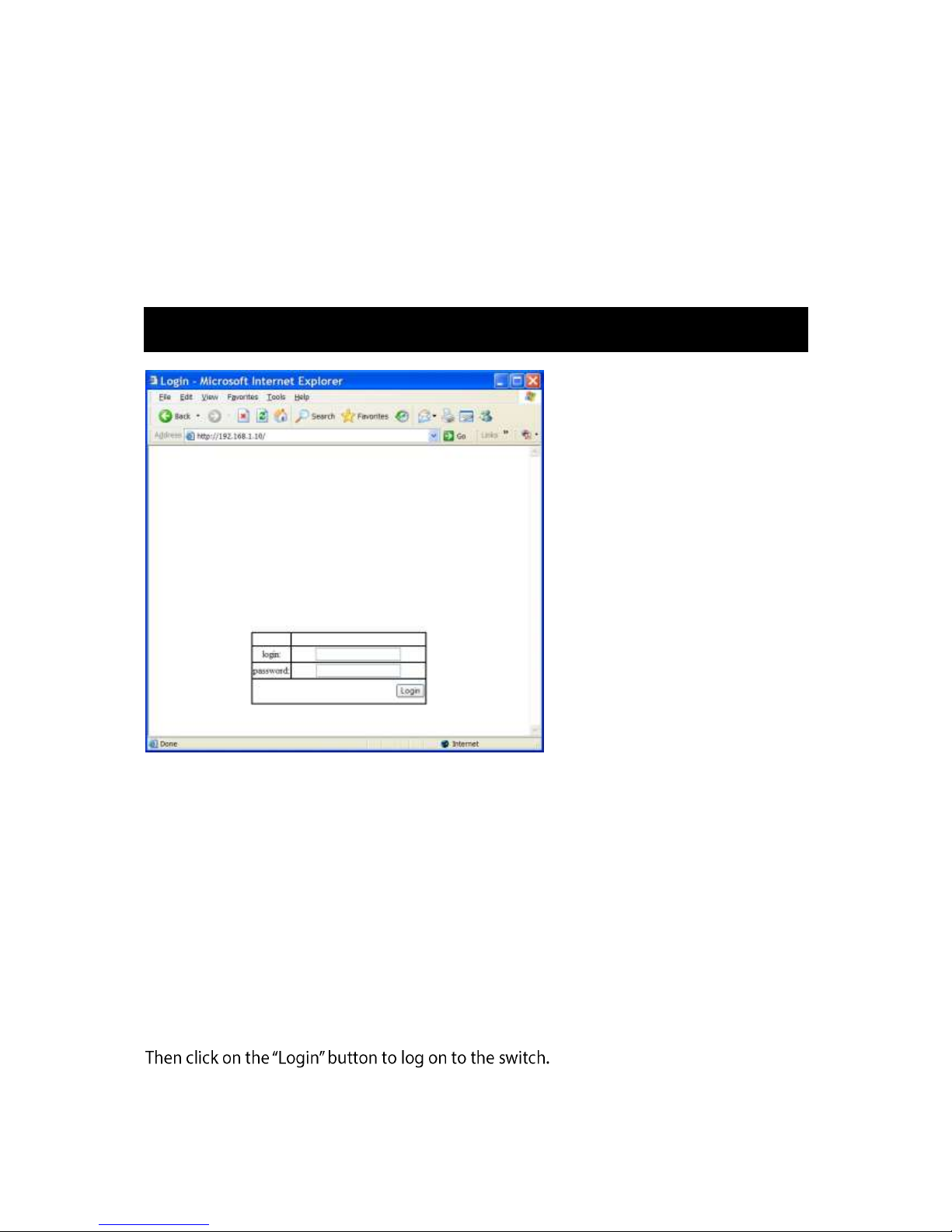

 Login the switch:

Specify the default IP address (192.168.1.10) of the switch in the web browser. A login window will be shown as below:

 Enter the factory default login ID: root.

Enter the factory default password (no password). Then click on the Login button to log on to the switch.

Page 10

User Manual Page 10

Product Overview

Industrial Managed Ethernet Switch

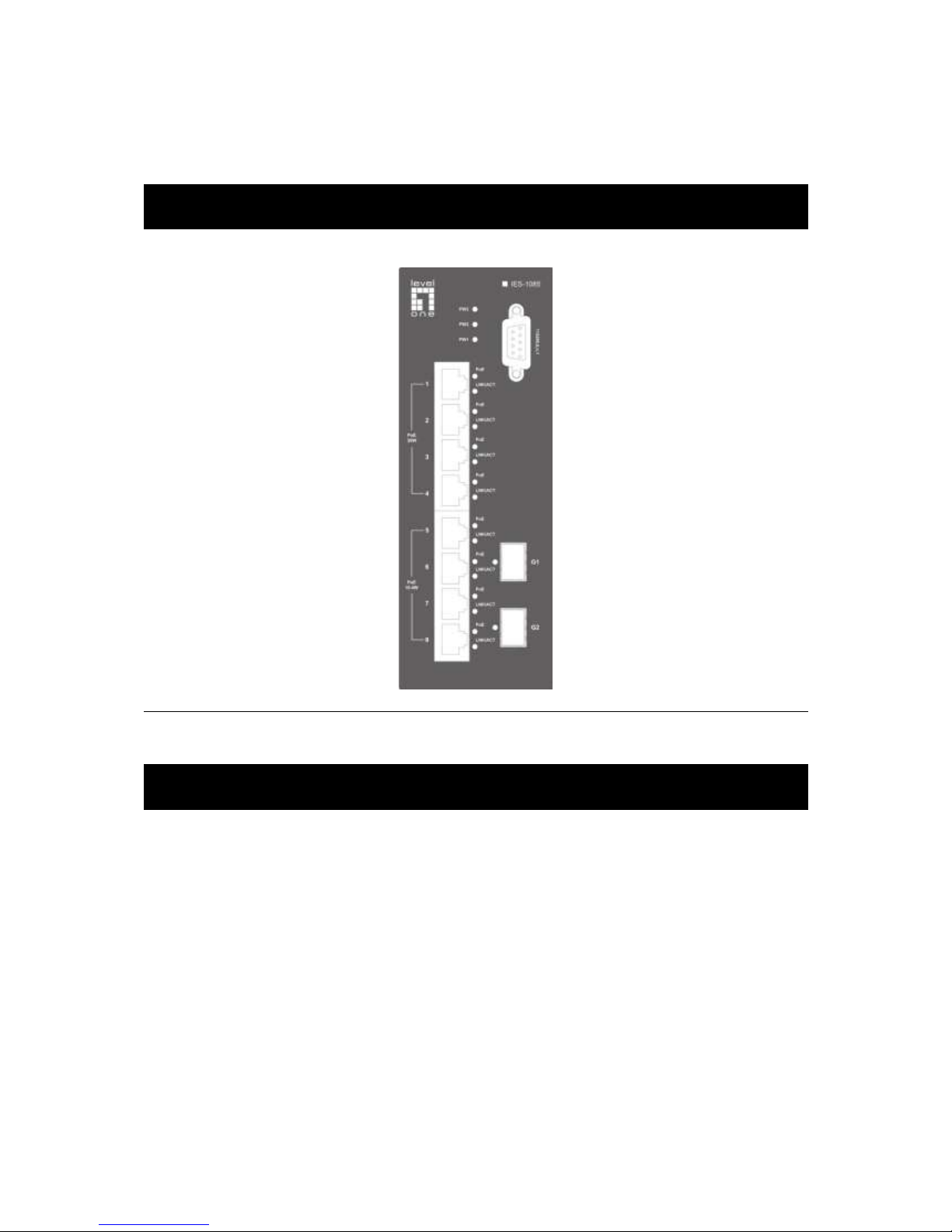

Front View

Package Contents

When you unpack the product package, you shall find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller.

 IES-1085

 Quick Installation Guide  CD User Manual  RS-232 cable

Page 11

User Manual Page 11

Product Highlights

Basic Features

 Meets NEMA TS1/TS2 Environmental requirements such as temperature, shock, and

vibration for traffic control equipment.

 Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for industrial

environment.

 RS-232 console, Telnet, SNMP v1 & v2c & v3, RMON, Web Browser, and TFTP

management.

Equipment (PSE) and/or Port 5 ~ Port 8 support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE).

 Supports IEEE802.3/802.3u/802.3ab/802.3z/802.3x. Auto-negotiation,

1000Mbps-full-duplex, 10/100Mbps-full/half-duplex, Auto MDI/MDIX.

 100Base-FX: Multi mode or Single mode duplex LC type. 100Base-BX: WDM Multi mode

or Single mode single LC type.

 1000Base-SX/LX: Multi mode or Single mode duplex LC type. 1000Base-BX: WDM Multi

mode or Single mode single LC type.

power input.

 Field Wiring Terminal: Use Copper Conductors Only, 60/75℃, 12-24 AWG torque value 7

lb-in.

 Operating voltage and Max. current consumption: 0.31A @ 48VDC. Power

consumption: Power consumption: 230W Max. (Full load with PoE), 15W Max. (Without PoE).

 -40℃ to 75℃ (-40℉ to 167℉) operating temperature range. Tested for functional

operation @ -40℃ to 85℃ (-40℉ to 185℉). UL508 Industrial Control Equipment certified Maximum Surrounding Air Temperature @ 75℃ (167℉).

 For use in Pollution Degree 2 Environment.  Industrial metal case.  Supports Din-Rail or Panel Mounting installation.

Management Support

VLAN

 Port-based VLAN  IEEE802.1Q tagged VLAN

Page 12

User Manual Page 12

TRUNKING

 Port Trunking

PORT-SECURITY

 Per-port programmable MAC address locking  Up to 24 Static Secure MAC addresses per port

PORT-MIRRORING

 Port-mirroring

QOS (IEEE802.1p Quality of Service)

 4 priority queues

INTERNETWORKING PROTOCOLS

 Bridging:

IEEE802.1s Multiple Spanning Tree IEEE802.1w Rapid Spanning Tree IEEE802.1D Spanning Tree compatible IEEE802.1Q GVRP Ring

 IP Multicast:

IGMP Snooping

 Rate Control  NTP

NETWORK MANAGEMENT METHODS

 Console port access via RS-232 cable (CLI, Command Line Interface)  Telnet remote access  SNMP agent:

MIB-2 (RFC1213) Bridge MIB (RFC1493) RMON MIB (RFC2819) statistics, history, alarm and events VLAN MIB (IEEE802.1Q/RFC2674) Private MIB

 Web browser  TFTP software-upgrade capability

Page 13

User Manual Page 13

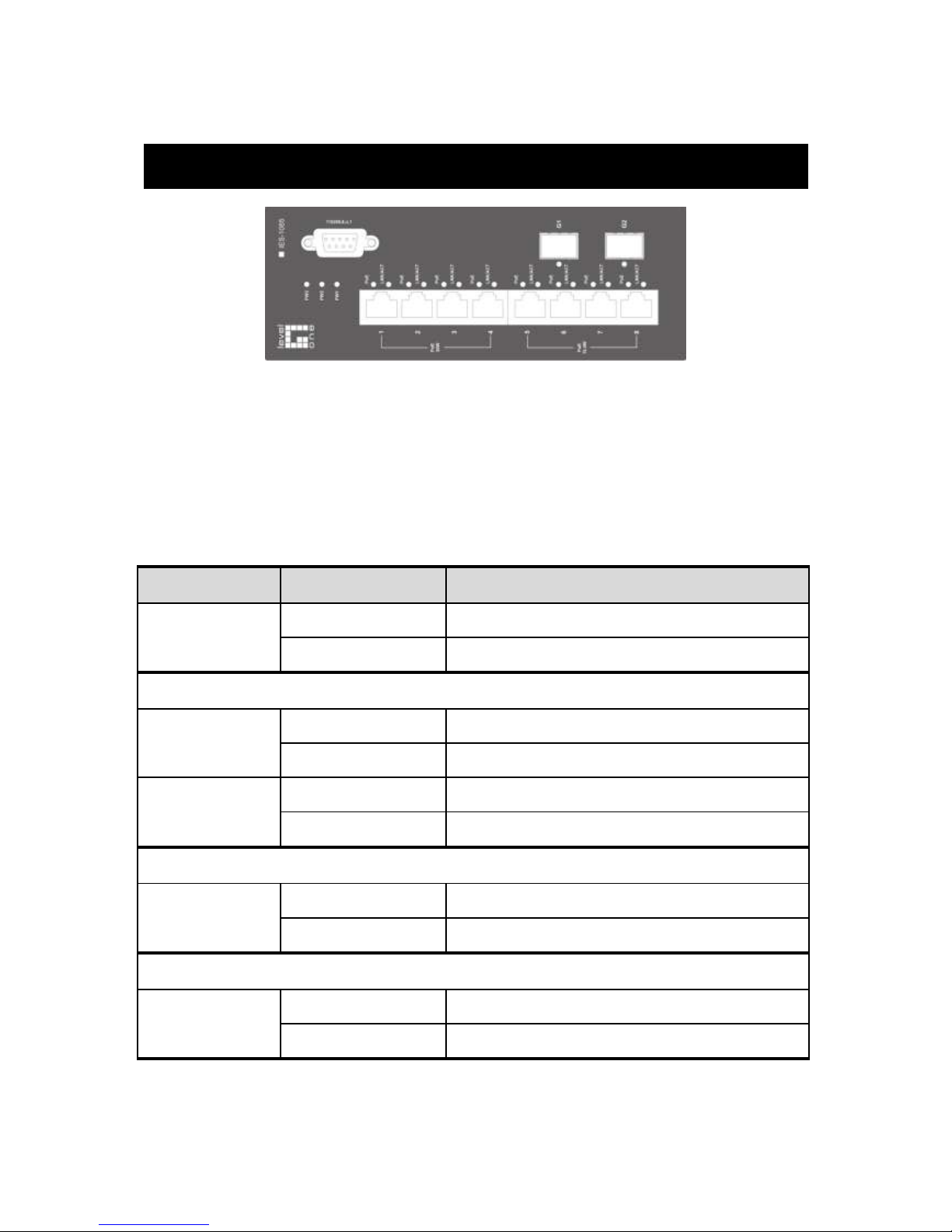

Front Panel Display

 POWER

This LED comes on when the switch is properly connected to power and turned on.

 Port Status LEDs

The LEDs are located on the front panel, displaying status for each respective port. Please refer to the following table for more details.

LED

Status

Description

PW 1,2,3 Steady

Power On

Off

Power Off

10/100Base-TX

LNK/ACT Steady

Network connection established

Flashing

Transmitting or Receiving data

PoE Steady

Power Device (PD) is connected

Off

Power Device (PD) is disconnected

100Base-FX

LNK/ACT Steady

Network connection established

Flashing

Transmitting or Receiving data

10/100/1000Base-TX & 1000Base-FX & SFP

LNK/ACT Steady

Network connection established

Flashing

Transmitting or Receiving data

Page 14

User Manual Page 14

Physical Ports

The Industrial Managed Ethernet Switch provides:

Number of ports

10/100Base-TX (802.3at)

10/100Base-TX (802.3af)

100Base SFP:

10/100Base-TX 100Base-FX/BX

1000Base SFP:

10/100/1000Base-TX 1000Base-SX/LX/BX

CONNECTIVITY

 RJ-45 connectors on TX ports  Single or Duplex LC connectors on SFP 100Base-FX/BX fiber transceiver  Single or Duplex LC connectors on SFP 1000Base-SX/LX/BX fiber transceiver

MODE SELECTION

 10Base-T full-duplex mode  10Base-T half-duplex mode

 100Base-TX full-duplex mode

 100Base-TX half-duplex mode  100Base-FX full-duplex mode  1000Base-T/SX/LX full-duplex mode  Auto-negotiating mode

Page 15

User Manual Page 15

Switch Management

Web-based browser interface

The switch also boasts a point-and-click browser-based interface that lets user access full switch configuration and functionality from a Netscape or Internet Explorer browser.

Administration console via RS-232 serial port (CLI)

The switch provides an onboard serial port, which allows the switch to be configured via a directly connected terminal.

External SNMP-based network management

application

The switch can also be configured via SNMP.

Page 16

User Manual Page 16

Installation

This chapter gives step-by-step instructions about how to install the switch:

Selecting a Site for the Switch

As with any electric device, you should place the switch where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. Specifically, the site you select should meet the following requirements:

-The ambient temperature should be between -40℃ to 75℃ (-40℉ to 167℉).

-The relative humidity should be less than 95 percent, non-condensing.

-Surrounding electrical devices should not exceed the electromagnetic field (RFC) standards.

-Make sure that the switch receives adequate ventilation. Do not block the ventilation holes on each side of the switch.

Wiring Diagram

Field Wiring Terminal Markings: Use Copper Conductors Only, 60/75℃, wire range 12-24 AWG, torque value 7 lb-in.

Page 17

User Manual Page 17

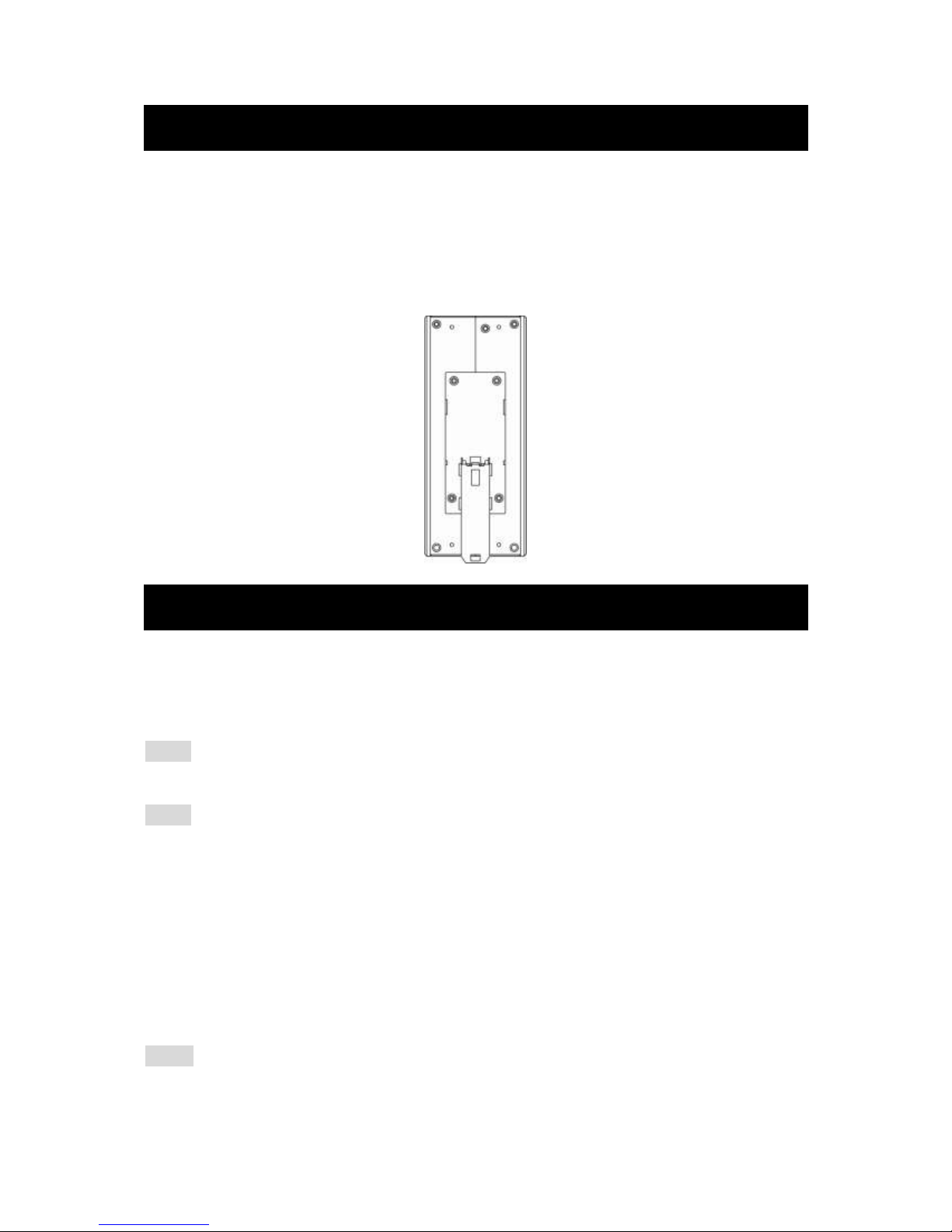

DIN Rail Mounting

Fix the DIN rail attachment plate to the back panel of the Media Converter. Installation: Place the Media Converter on the DIN rail from above using the slot. Push the

front of the Media Converter toward the mounting surface until it audibly snaps into place. Removal: Pull out the lower edge and then remove the Media Converter from the DIN rail.

Connecting to Power

Redundant DC Terminal Block Power Inputs or DC Jack Power Input:

47-57VDC Jack

Step 1: Connect the supplied AC to DC power adapter to the receptacle on the topside of

the switch.

Step 2: Connect the power cord to the AC to DC power adapter and attach the plug into a

standard AC outlet with the appropriate AC voltage.

Redundant 47-57VDC DC Terminal Block Power

Inputs

There are two pairs of power inputs for use with redundant power sources. You only need to have one power input connected to run the switch.

Step 1: Connect the DC power cord to the plug-able terminal block on the switch, and

then plug it into a standard DC outlet.

Page 18

User Manual Page 18

Step 2: Disconnect the power cord if you want to shut down the switch.

Back View

Alarms for Power Failure

Step 1: There are two pins on the terminal block used for power failure detection. It

provides the normally closed output when the power source is active. Use this as a dry contact application to send a signal for power failure detection.

Terminal Block

PW1

47 57VDC

Power Ground

PW2

47 57VDC

Power Ground

Earth Ground

Relay Output

1A @ 250VAC

Relay Alarm warning signal disable for following:

3. The relay contact closes if Power1 and Power2 are both failed but Power3 on

4. The relay contact closes if Power3 is failed but Power1 and Power2 are both on

DC Jack

PW3

DC Jack

47 to 57VDC

Special note: The relay output is normal open position when there is no power to the switch. Please do not connect any power source to this terminal to prevent shorting your power supply.

Page 19

User Manual Page 19

Connecting to Your Network

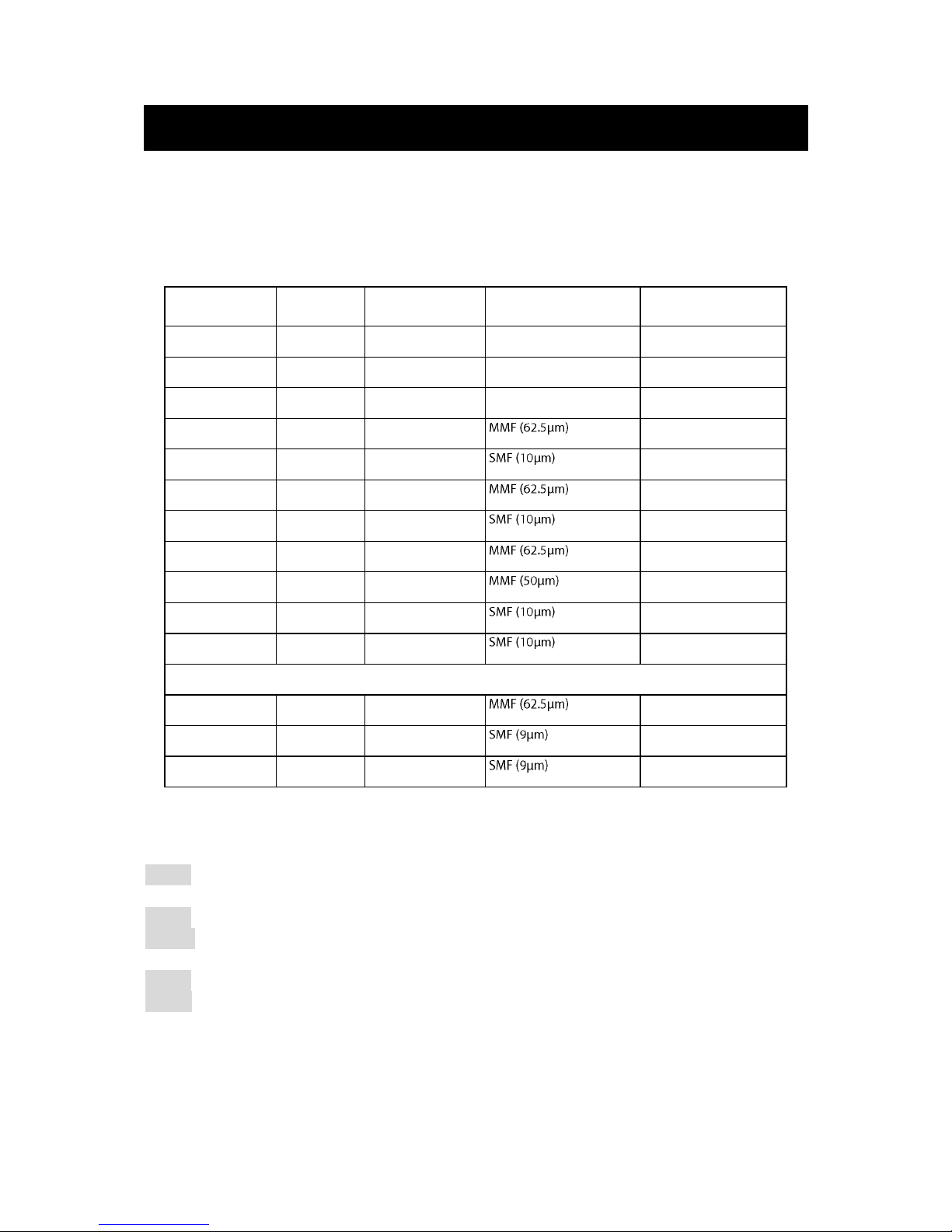

Cable Type & Length

It is necessary to follow the cable specifications below when connecting the switch to your network. Use appropriate cables that meet your speed and cabling requirements.

Cable Specifications

Speed

Connector

Port Speed Half/Full Duplex

Cable

Max. Distance

10Base-T

RJ-45

10/20 Mbps

2-pair UTP/STP Cat. 3, 4, 5

100 m

100Base-TX

RJ-45

100/200 Mbps

2-pair UTP/STP Cat. 5

100 m

1000Base-T

RJ-45

2000 Mbps

4-pair UTP/STP Cat. 5

100 m

100Base-FX

ST, SC

200 Mbps

2 km

100Base-FX

ST, SC

200 Mbps

20, 40, 75, 100 km

100Base-BX

200 Mbps

2, 5 km

100Base-BX

200 Mbps

20, 40 km

1000Base-SX

2000 Mbps

220 m, 2 km

1000Base-SX

2000 Mbps

550 m

1000Base-LX

2000 Mbps

10, 20, 50 km

1000Base-BX

2000 Mbps

20, 40 km

SFP

1000Base-SX

Duplex LC

2000 Mbps

550 m, 2 km

1000Base-LX

Duplex LC

2000 Mbps

10, 40, 60 km

1000Base-BX

Duplex LC

2000 Mbps

70 km

Cabling

Step 1: First, ensure the power of the switch and end devices are turned off. <Note> Always ensure that the power is off before any installation. Step 2: Prepare cable with corresponding connectors for each type of port in use. Step 3: Consult Cable Specifications Table on previous page for cabling requirements

based on connectors and speed. Step 4: Connect one end of the cable to the switch and the other end to a desired device. Step 5: Once the connections between two end devices are made successfully, turn on the

power and the switch is operational.

Page 20

User Manual Page 20

Switch Management

This chapter explains the methods that you can use to configure management access to the switch. It describes the types of management applications and the communication and management protocols that deliver data between your management device (workstation or personal computer) and the system. It also contains information about port connection options.

This chapter covers the following topics:

Management Access Overview Key Concepts Key Guidelines for Implementation Web Management Access Administration Console Access SNMP Access Standards, Protocols, and Related Reading

Management Access Overview

The switch gives you the flexibility to access and manage the switch using any or all of the following methods.

The web browser interface and administration console (CLI) support are embedded in the switch software and are available for immediate use.

Page 21

User Manual Page 21

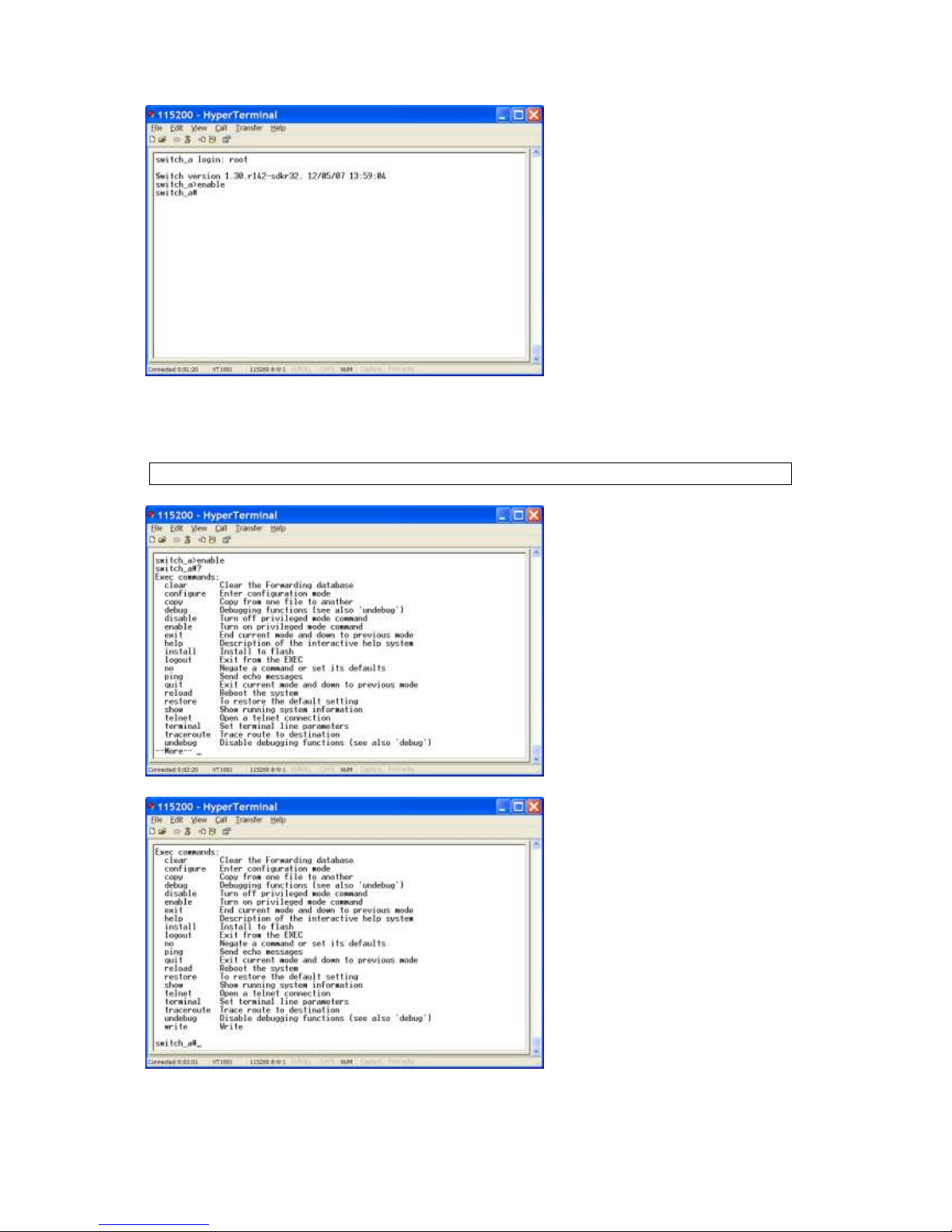

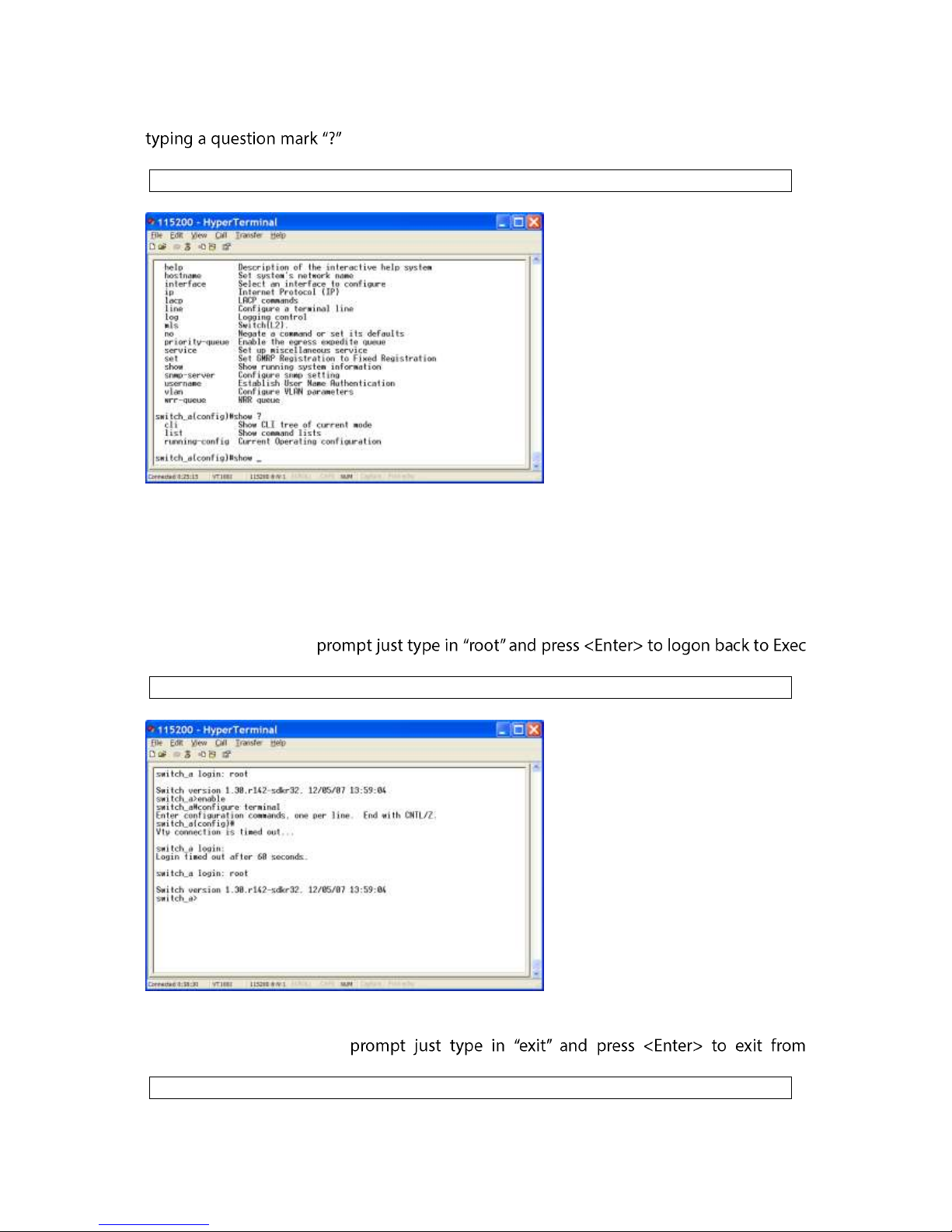

Administration Console (CLI)

The administration console is an internal, character-oriented, Command Line Interface (CLI) for performing system administration such as displaying statistics or changing option settings. Using this method, you can view the administration console from a terminal, personal computer, Apple Macintosh, or workstation co port. There are two ways to use this management method: direct access or modem access. The following sections describe these methods.

Direct Access

Direct access to the administration console is achieved by directly connecting a terminal or a PC equipped with a terminal-emulation program (such as HyperTerminal) to the switch console port.

When using the management method, configure the terminal-emulation program to use the following parameters (you can change these settings after login):

[DEFAULT PARAMETERS]

 115,200bps  8 data bits  No parity  1 stop bit

This management method is often preferred because you can remain connected and monitor the system during system reboots. Also, certain error messages are sent to the serial port, regardless of the interface through which the associated action was initiated. A Macintosh or PC attachment can use any terminal-emulation program for connecting to the terminal serial port. A workstation attachment under UNIX can use an emulator such as TIP.

Modem Access

external modem attached to the console port. The switch management program provides Console Port screen, accessible from the Basic Management screen that lets you configure parameters for modem access.

When you have configured the external modem from the administration console, the switch transmits characters that you have entered as output on the modem port. The switch echoes characters that it receives as input on the modem port to the current administration console session. The console appears to be directly connected to the external modem.

Page 22

User Manual Page 22

Web Management

The switch provides a browser interface that lets you configure and manage the switch remotely.

applications directly in your web browser by entering the IP address of the switch. You can then use your web browser to list and manage switch configuration parameters from one

SNMP-Based Network Management

You can use an external SNMP-based application to configure and manage the switch. This management method requires the SNMP agent on the switch and the SNMP Network Management Station to use the same community string. This management method, in fact, uses two community strings: the get community string and the set community string. If the SNMP Network management station only knows the set community string, it can read and write to the MIBs. However, if it only knows the get community string, it can only read MIBs. The default get and set community strings for the switch are public.

Protocols

The switch supports the following protocols:

VIRTUAL TERMINAL PROTOCOLS, SUCH AS TELNET

A virtual terminal protocol is a software program, such as Telnet, that allows you to establish a management session from a Macintosh, a PC, or a UNIX workstation. Because Telnet runs over TCP/IP, you must have at least one IP address configured on the switch before you can establish access to it with a virtual terminal protocol.

<Note> Terminal emulation is different from a virtual terminal protocol in that you must connect a terminal directly to the console port.

SIMPLE NETWORK MANAGEMENT PROTOCOL (SNMP)

SNMP is the standard management protocol for multivendor IP networks. SNMP supports transaction-based queries that allow the protocol to format messages and to transmit information between reporting devices and data-collection programs. SNMP runs on top of the User Datagram Protocol (UDP), offering a connectionless-mode service.

Page 23

User Manual Page 23

Management Architecture

All of the management application modules use the same Messaging Application Programming Interface (MAPI). By unifying management methods with a single MAPI, configuration parameters set using one method (e.g. console port) are immediately displayed the other management methods (e.g. SNMP agent of web browser).

The management architecture of the switch adheres to the IEEE open standard. This compliance assures customers that the switch is compatible with, and will interoperate with other solutions that adhere to the same open standard.

Page 24

User Manual Page 24

SNMP & RMON Management

Remote Monitoring (RMON) capabilities.

Overview

RMON is an abbreviation for the Remote Monitoring MIB (Management Information Base). RMON is a system defined by the Internet Engineering Task Force (IETF) document RFC 2819, which defines how networks can be monitored remotely.

RMONs typically consist of two components: an RMON probe and a management workstation:

- The RMON probe is an intelligent device or software agent that continually

collects statistics about a LAN segment or VLAN. The RMON probe transfers the collected data to a management workstation on request or when a pre-defined threshold is reached.

- The management workstation collects the statistics that the RMON probe

gathers. The workstation can reside on the same network as the probe, or it can have an in-band or out-of-band connection to the probe.

The switch provides RMON capabilities that allow network administrators to set parameters and view statistical counters defined in MIB-II, Bridge MIB, and RMON MIB. RMON activities are performed at a Network Management Station running an SNMP network management application with graphical user interface.

SNMP Agent and MIB-2 (RFC 1213)

The SNMP Agent running on the switch manager CPU is responsible for:

- Retrieving MIB counters from various layers of software modules according

to the SNMP GET/GET NEXT frame messages.

- Setting MIB variables according to the SNMP SET frame message.

- Generating an SNMP TRAP frame message to the Network Management

Station if the threshold of a certain MIB counter is reached or if other trap conditions (such as the following) are met:

Page 25

User Manual Page 25

WARM START COLD START LINK UP LINK DOWN AUTHENTICATION FAILURE RISING ALARM FALLING ALARM TOPOLOGY ALARM

MIB-II defines a set of manageable objects in various layers of the TCP/IP protocol suites. MIB-II covers all manageable objects from layer 1 to layer 4, and, as a result, is the major SNMP MIB supported by all vendors in the networking industry. The switch supports a complete implementation of SNMP Agent and MIB-II.

RMON MIB (RFC 2819) and Bridge MIB (RFC 1493)

The switch provides hardware-based RMON counters in the switch chipset. The switch manager CPU polls these counters periodically to collect the statistics in a format that complies with the RMON MIB definition.

RMON Groups Supported

The switch supports the following RMON MIB groups defined in RFC 2819:

- RMON Statistics Group maintains utilization and error statistics for the

switch port being monitored.

- RMON History Group gathers and stores periodic statistical samples from

the previous Statistics Group.

- RMON Alarm Group allows a network administrator to define alarm

thresholds for any MIB variable. An alarm can be associated with Low Threshold, High Threshold, or both. A trigger can trigger an alarm when the value of a specific MIB variable exceeds a threshold, falls below a threshold, or exceeds or falls below a threshold.

- RMON Event Group allows a network administrator to define actions

based on alarms. SNMP Traps are generated when RMON Alarms are triggered. The action taken in the Network Management Station depends on the specific network management application.

Page 26

Bridge Groups Supported

The switch supports the following four groups of Bridge MIB (RFC 1493):

- The dot1dBase Group a mandatory group that contains the objects

applicable to all types of bridges.

- The dot1dStp Group

respect to the Spanning Tree Protocol. If a node does not implement the Spanning Tree Protocol, this group will not be implemented. This group is applicable to any transparent only, source route, or SRT bridge that implements the Spanning Tree Protocol.

- The dot1dTp Group

bridging status. This group is applicable to transparent operation only and SRT bridges.

- The dot1dStatic Group

destination-address filtering status. This group is applicable to any type of bridge which performs destination-address filtering.

Page 27

User Manual Page 27

Web-Based Browser Management

The switch provides a web-based browser interface for configuring and managing the switch. This interface allows you to access the switch using a preferred web browser.

This chapter describes how to configure the switch using its web-based browser interface.

Logging on to the switch

SWITCH IP ADDRESS

In your web browser, specify the IP address of the switch. Default IP address is

192.168.1.10.

Enter the factory default login ID: root.

PASSWORD

Enter the factory default password (no password).

Or enter a user-defined password if you followed the instructions later and changed the factory default password.

Page 28

User Manual Page 28

Understanding the Browser Interface

The web browser interface provides groups of point-and-click buttons at the left field of the screen for configuring and managing the switch.

SYSTEM

System Information, System Name/Password, IP Address, ARP Table, Route Table, Save Configuration, Firmware Upgrade, Alarm Setting, Reboot, Logout

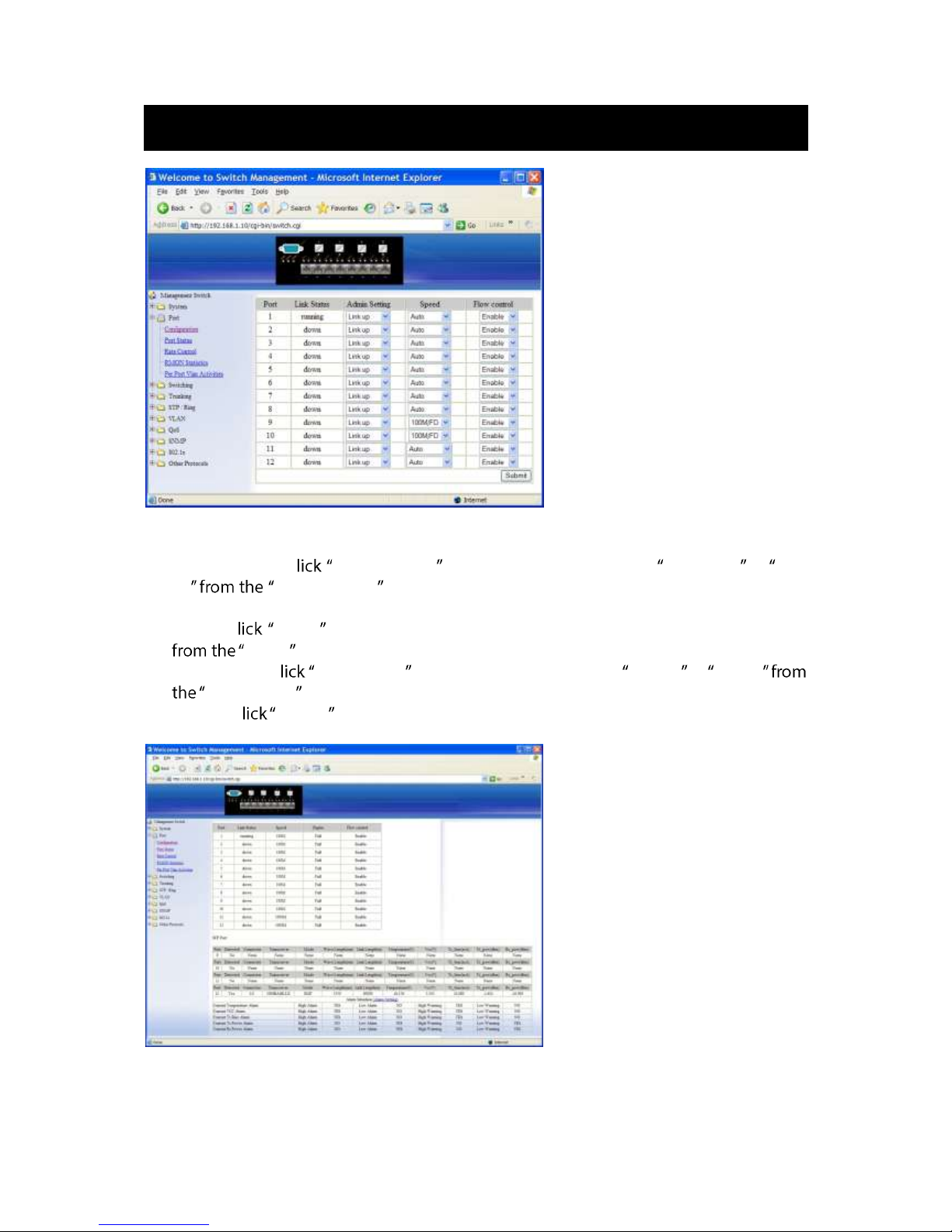

PORT

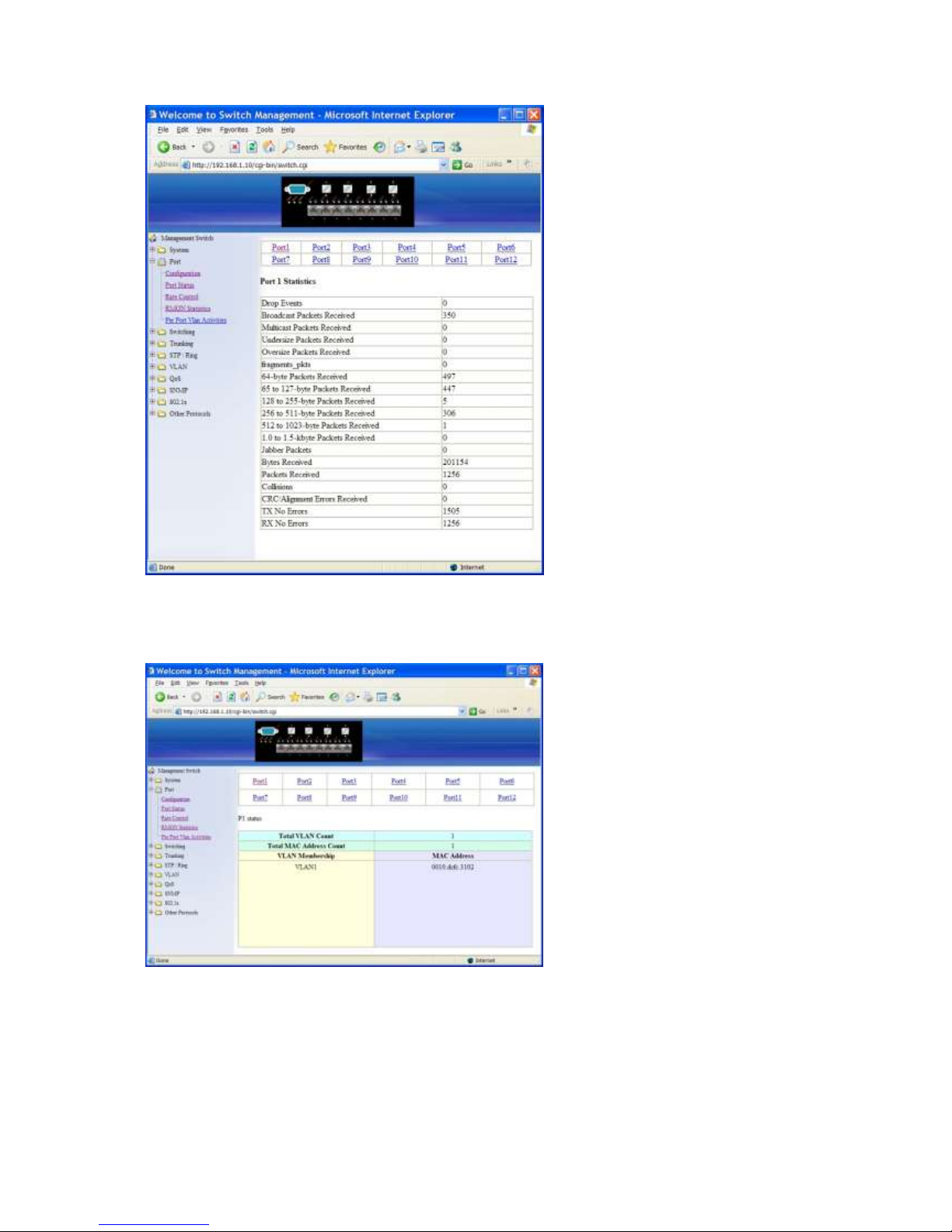

Configuration, Port Status, Rate Control, RMON Statistics, Per Port Vlan Activities

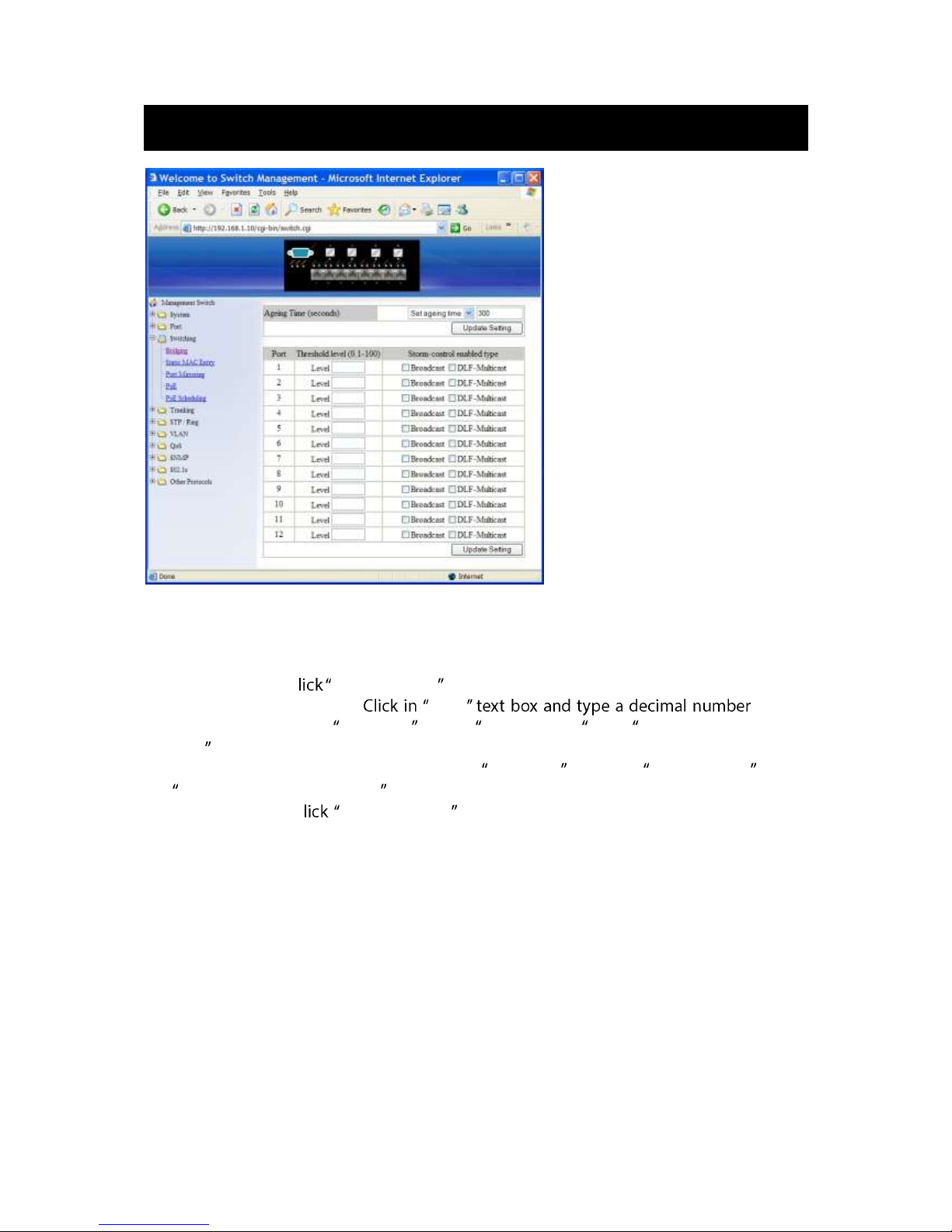

SWITCHING

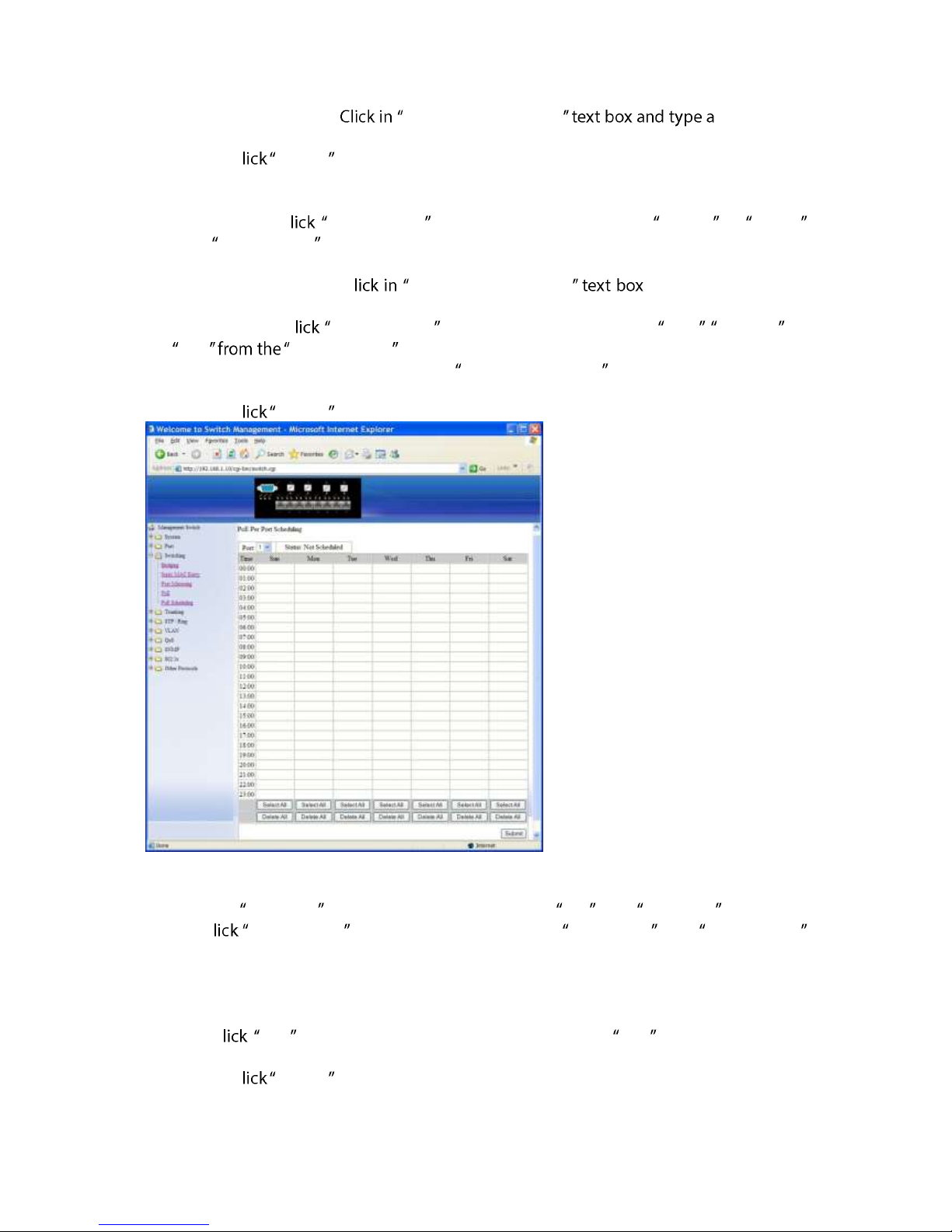

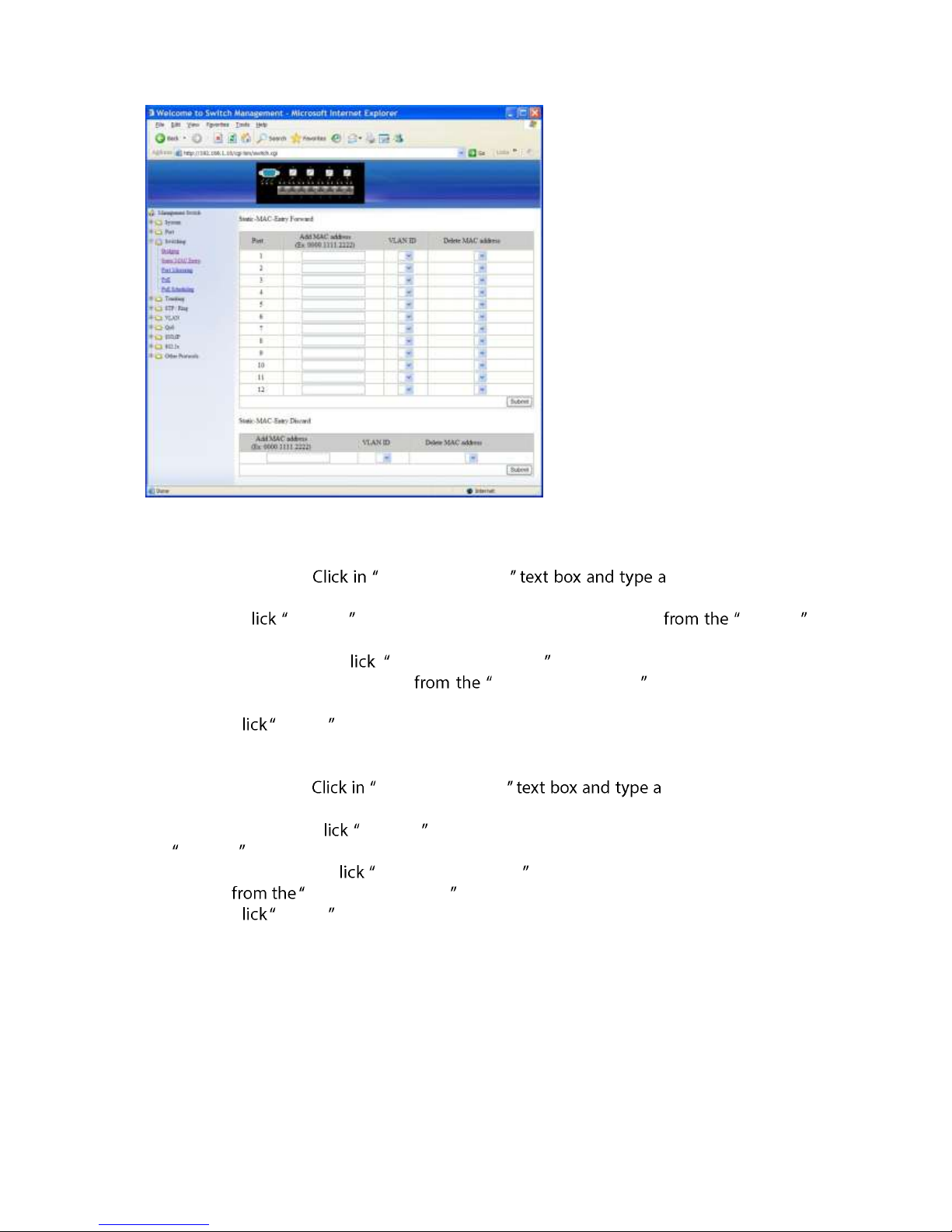

Bridging, Static MAC Entry, Port Mirroring, PoE, PoE Scheduling

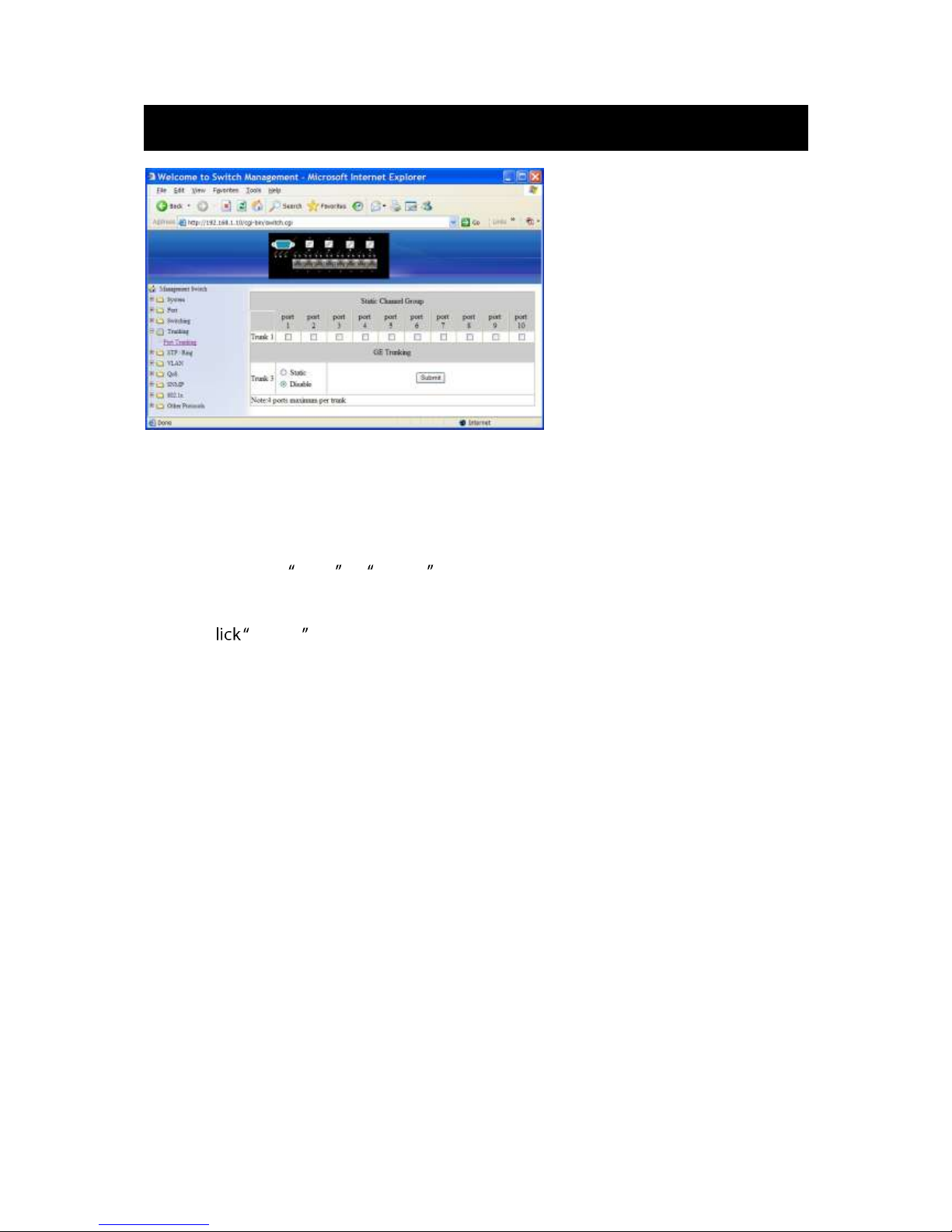

TRUNKING

Port Trunking

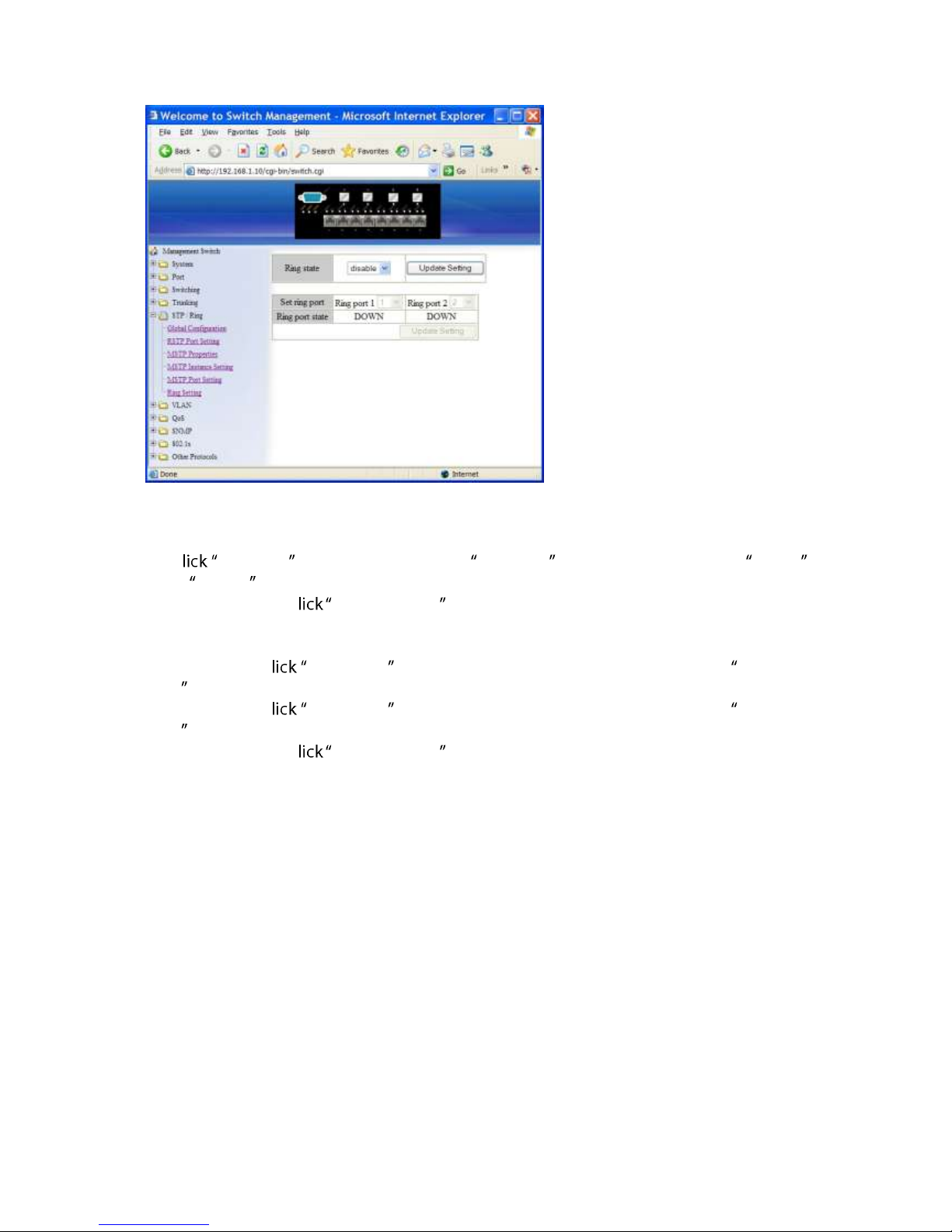

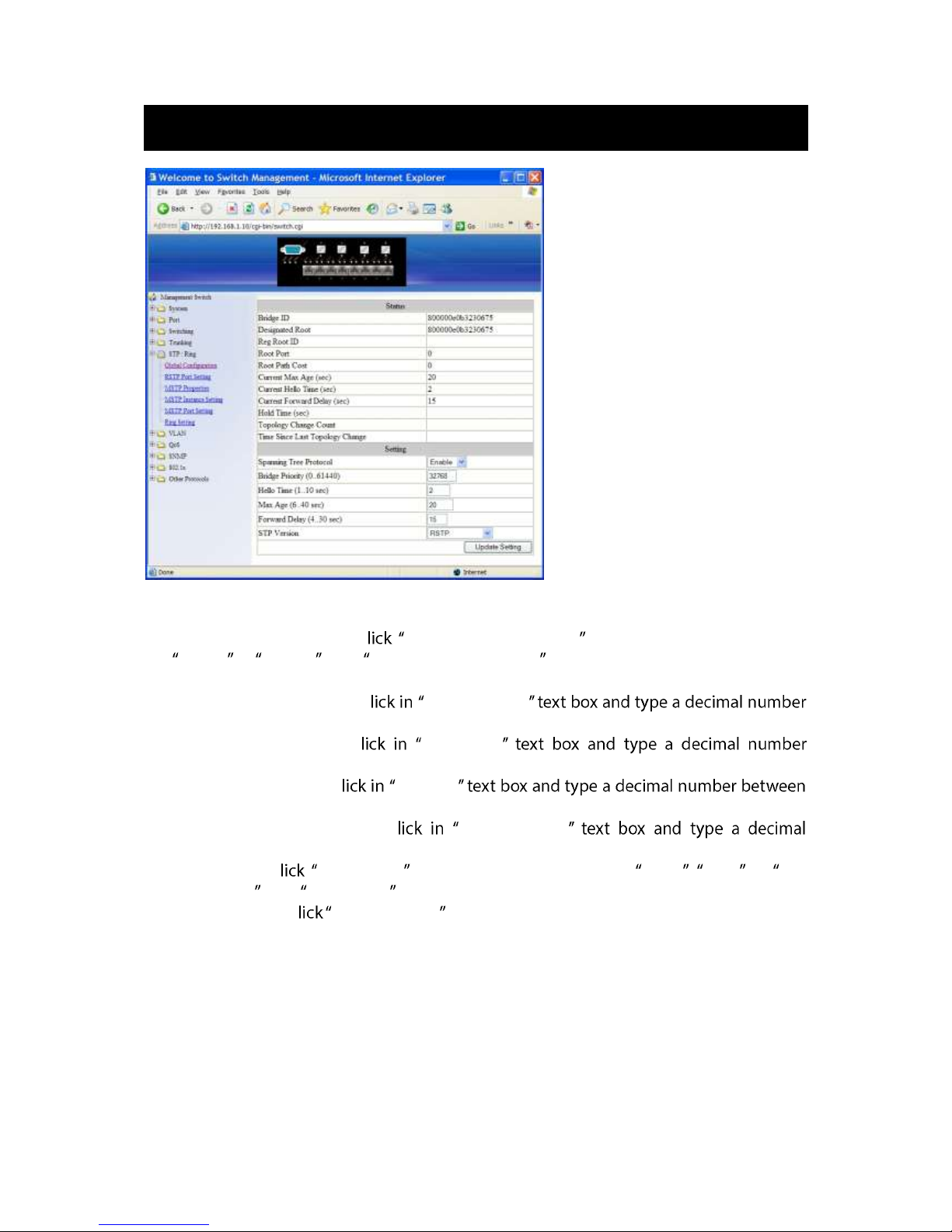

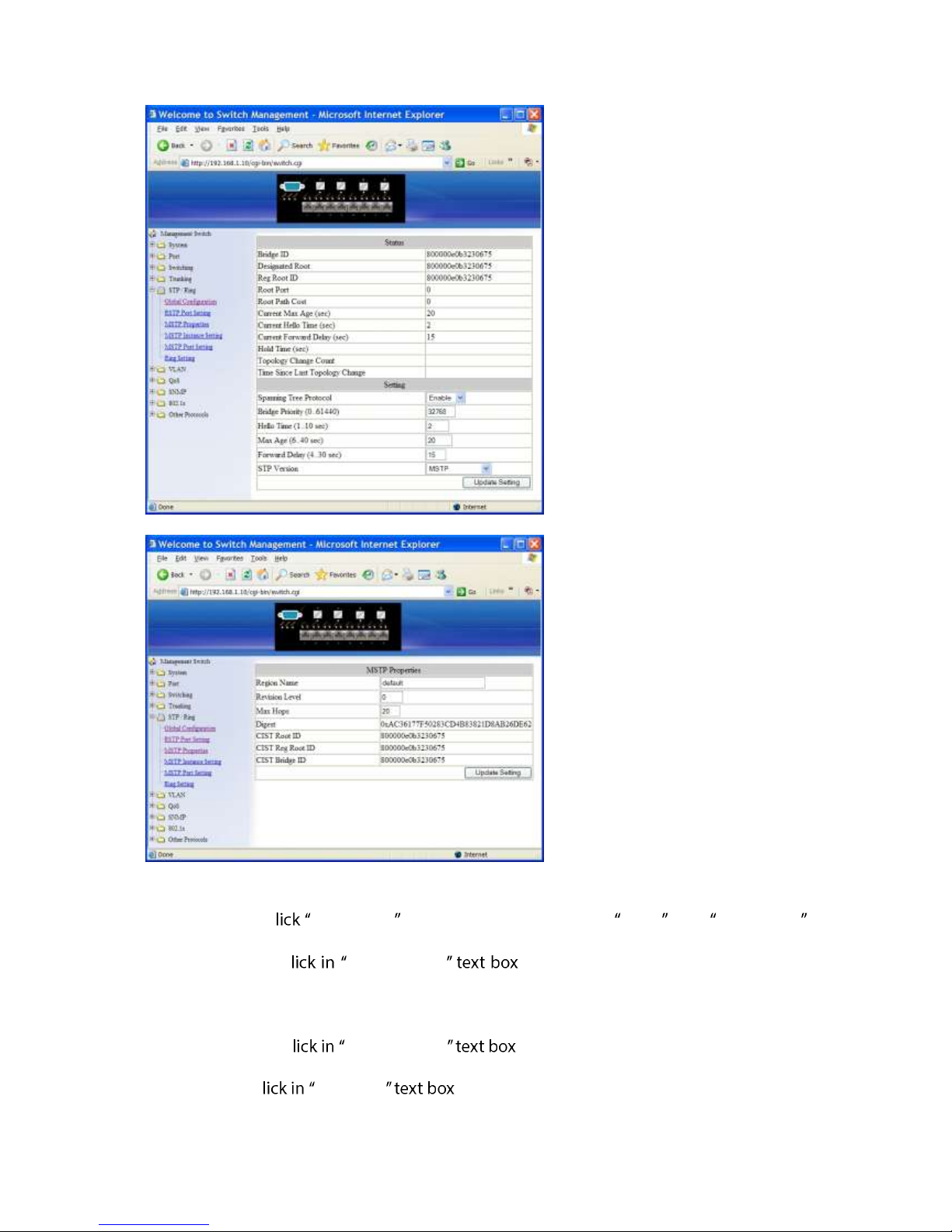

STP / RING

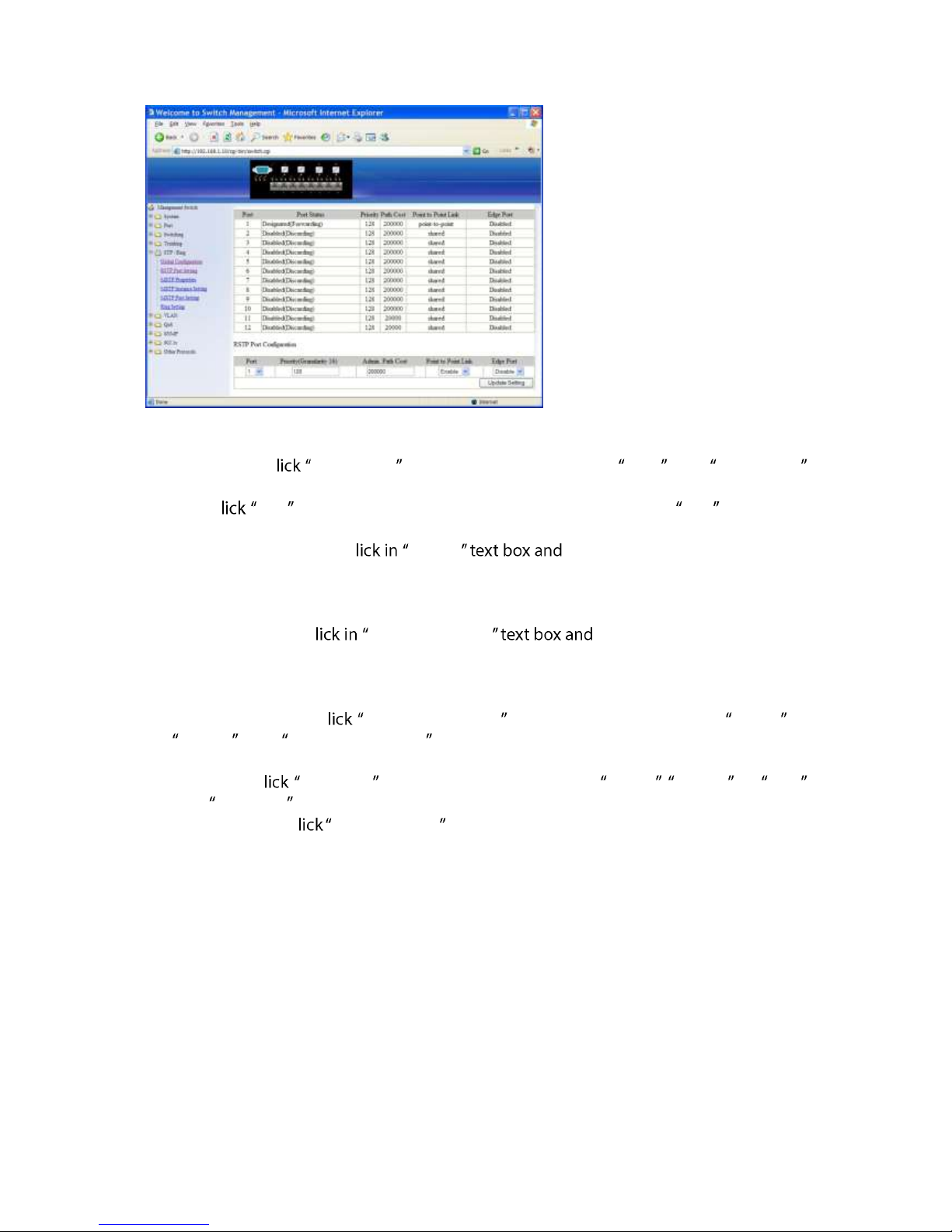

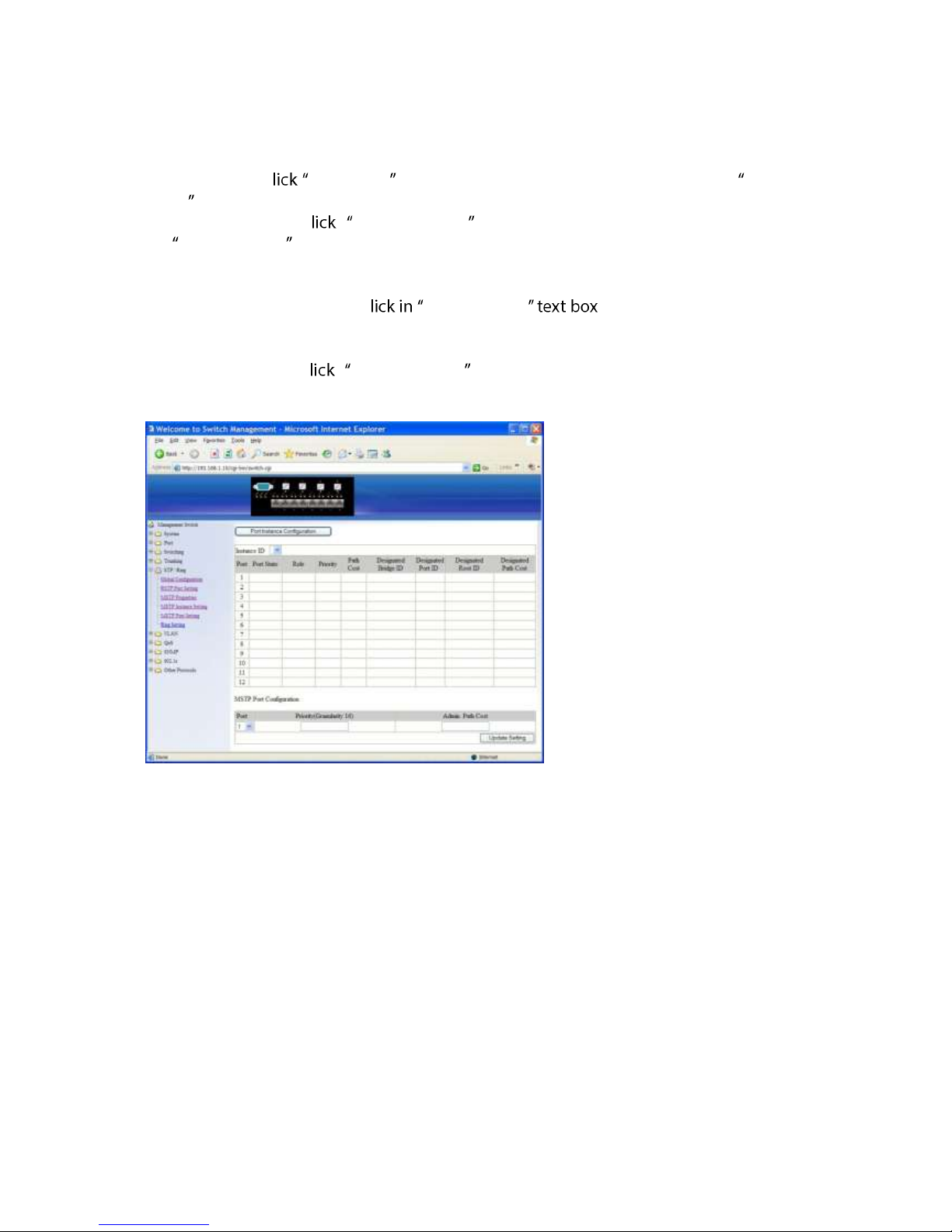

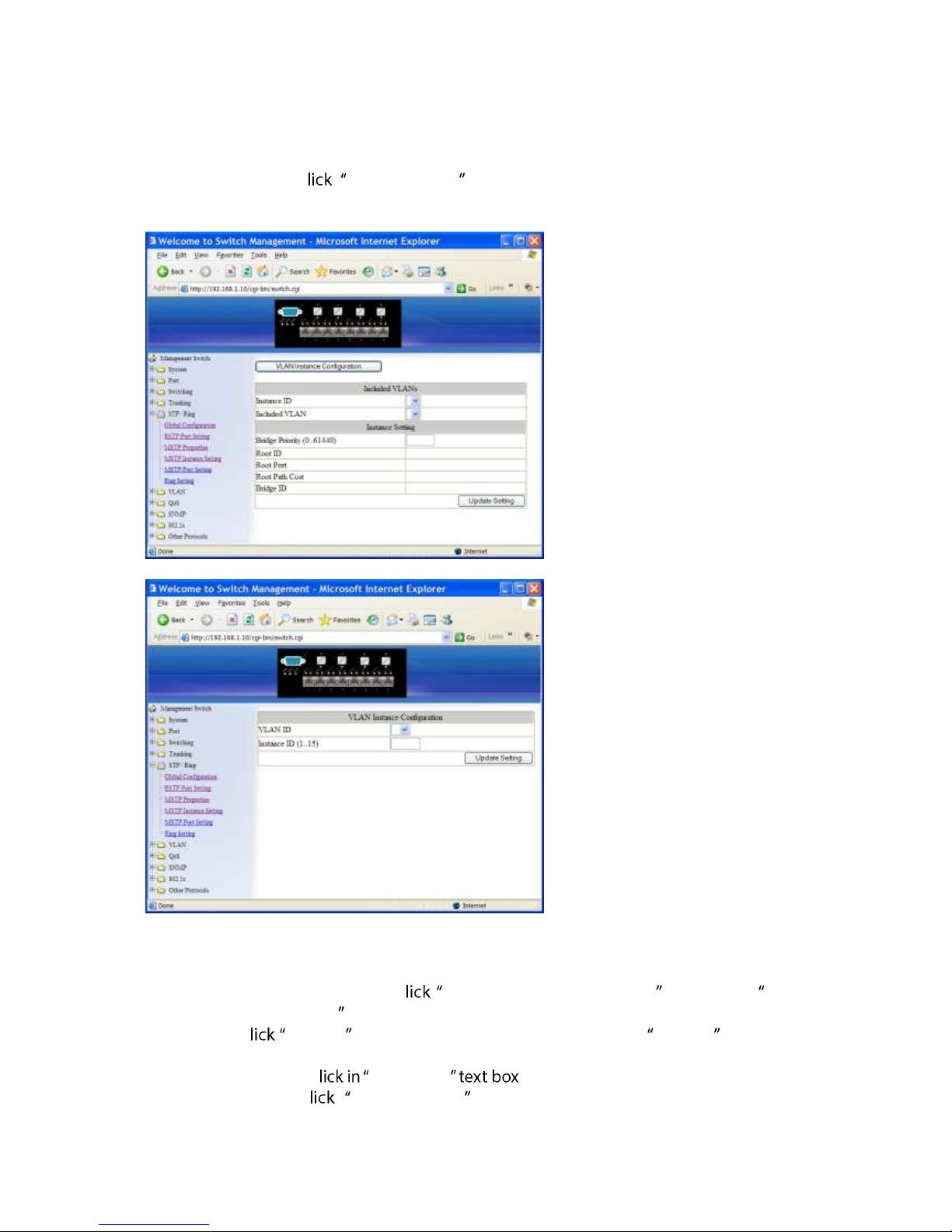

Global Configuration, RSTP Port Setting, MSTP Properties, MSTP Instance Setting, MSTP Port Setting, Ring Setting

VLAN

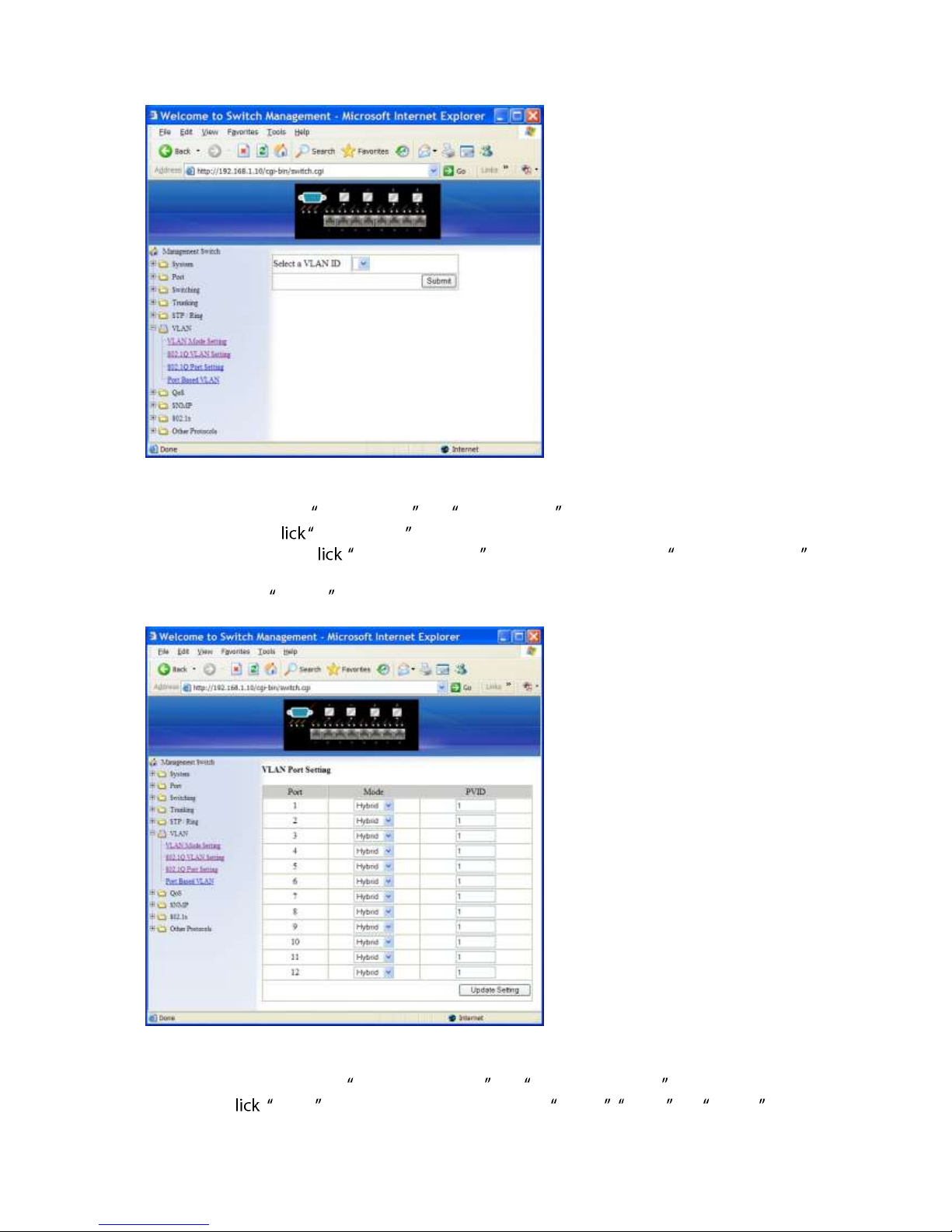

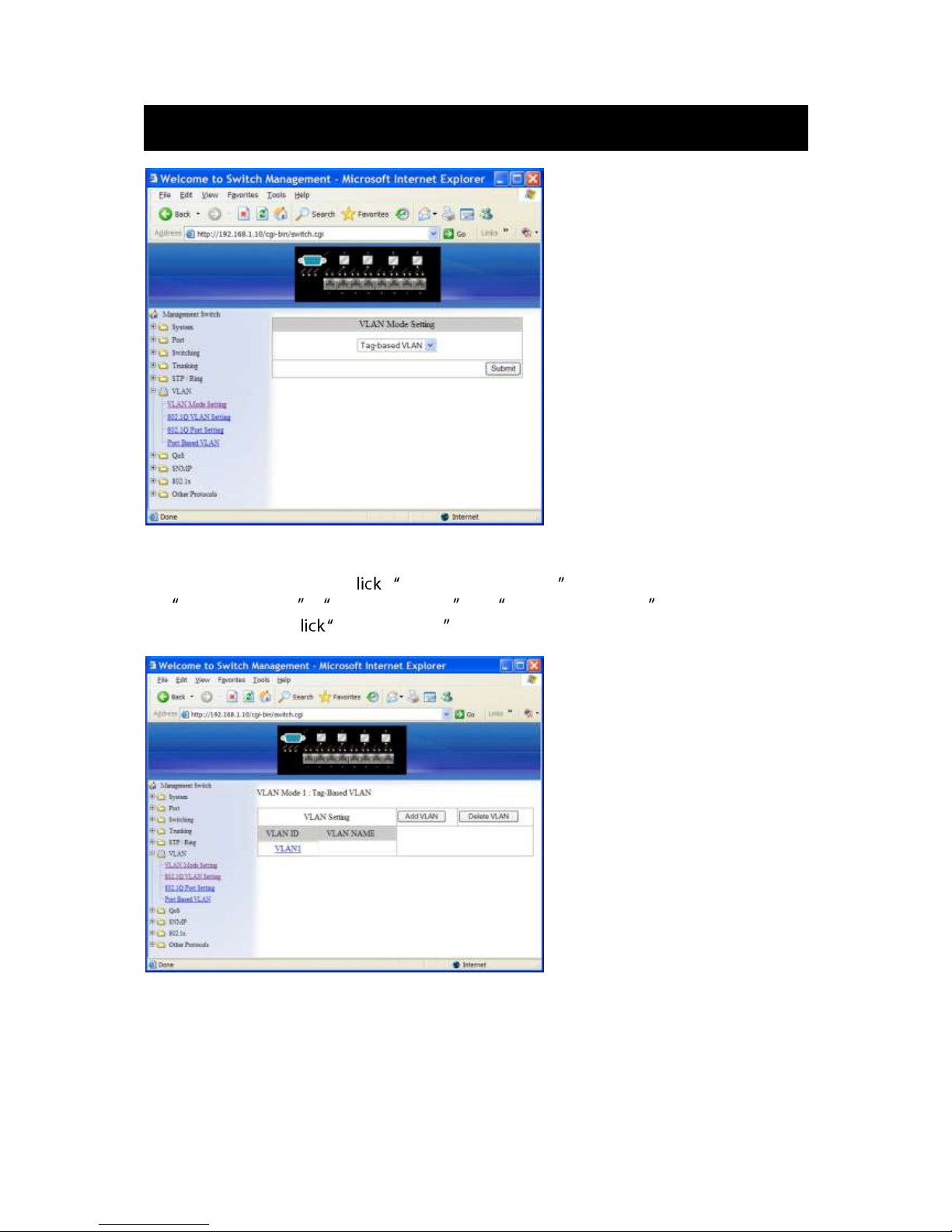

VLAN Mode Setting, 802.1Q VLAN Setting, 802.1Q Port Setting, Port Based VLAN

Page 29

User Manual Page 29

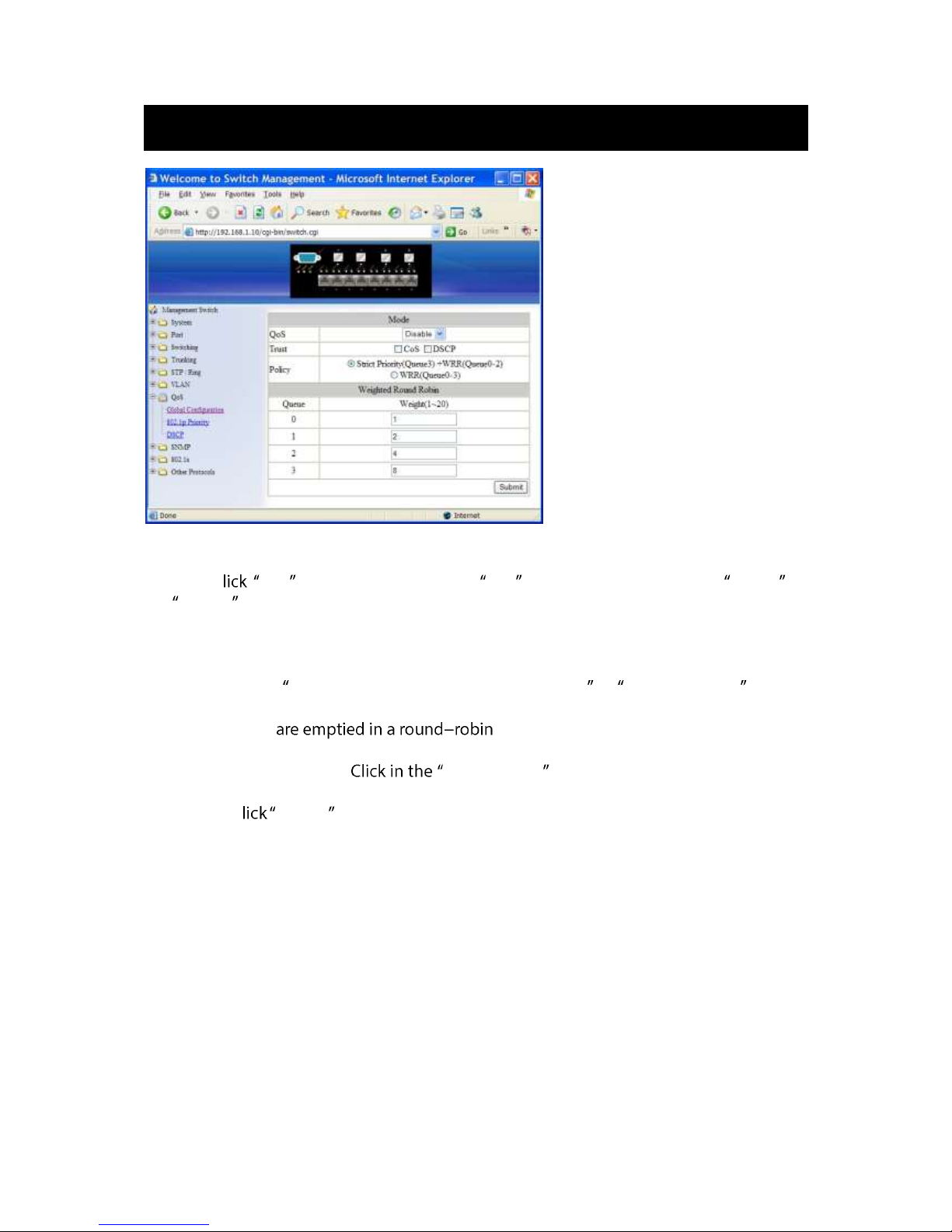

QOS

Global Configuration, 802.1p Priority, DSCP

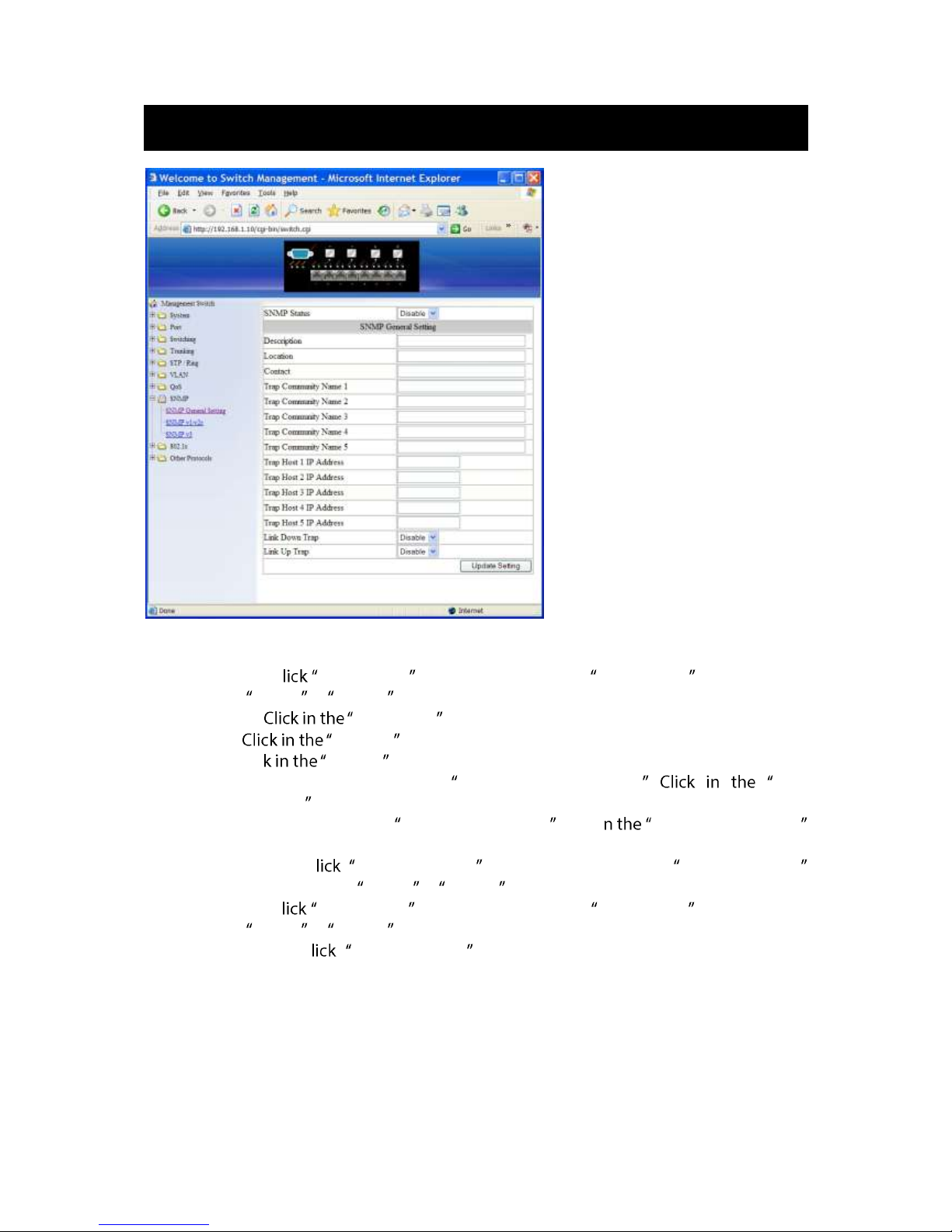

SNMP

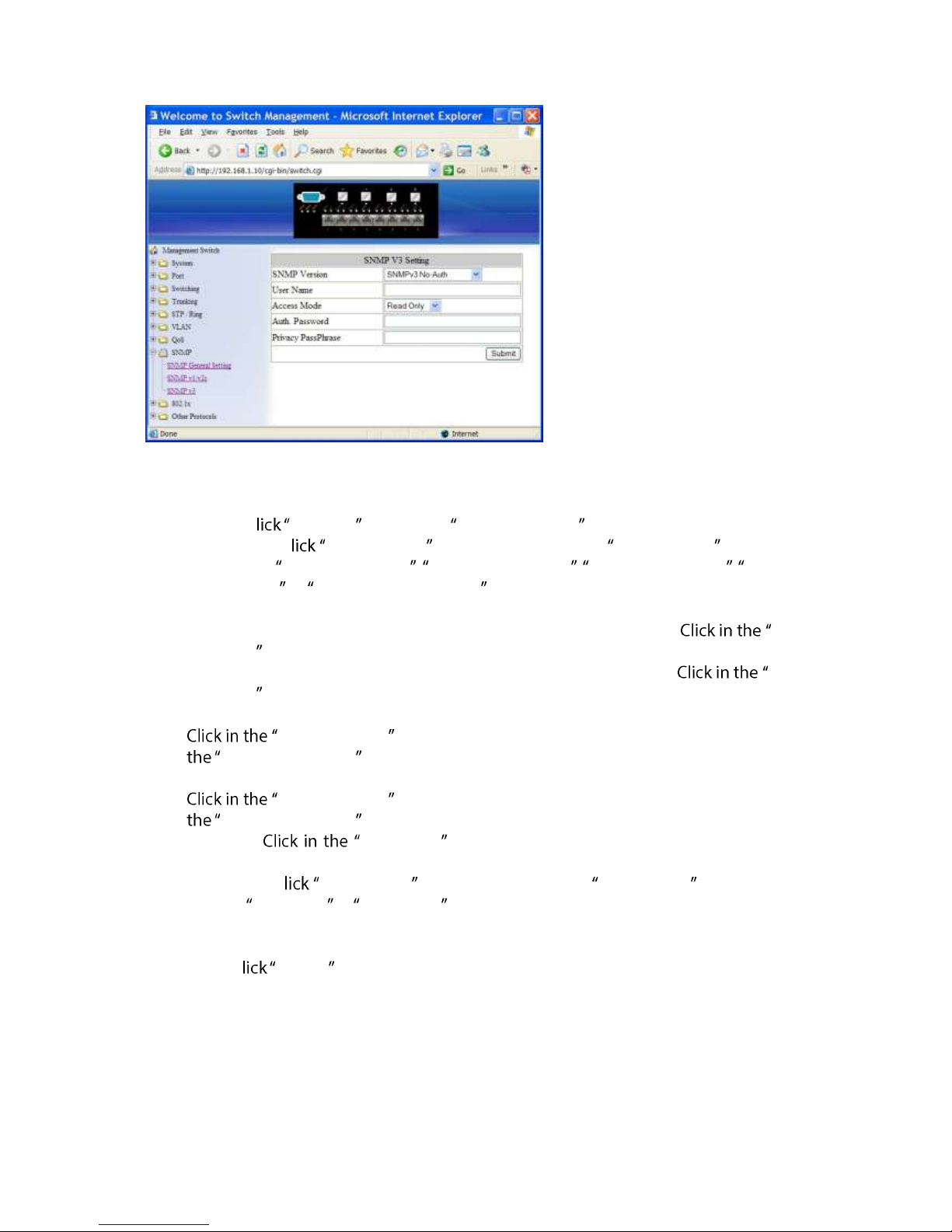

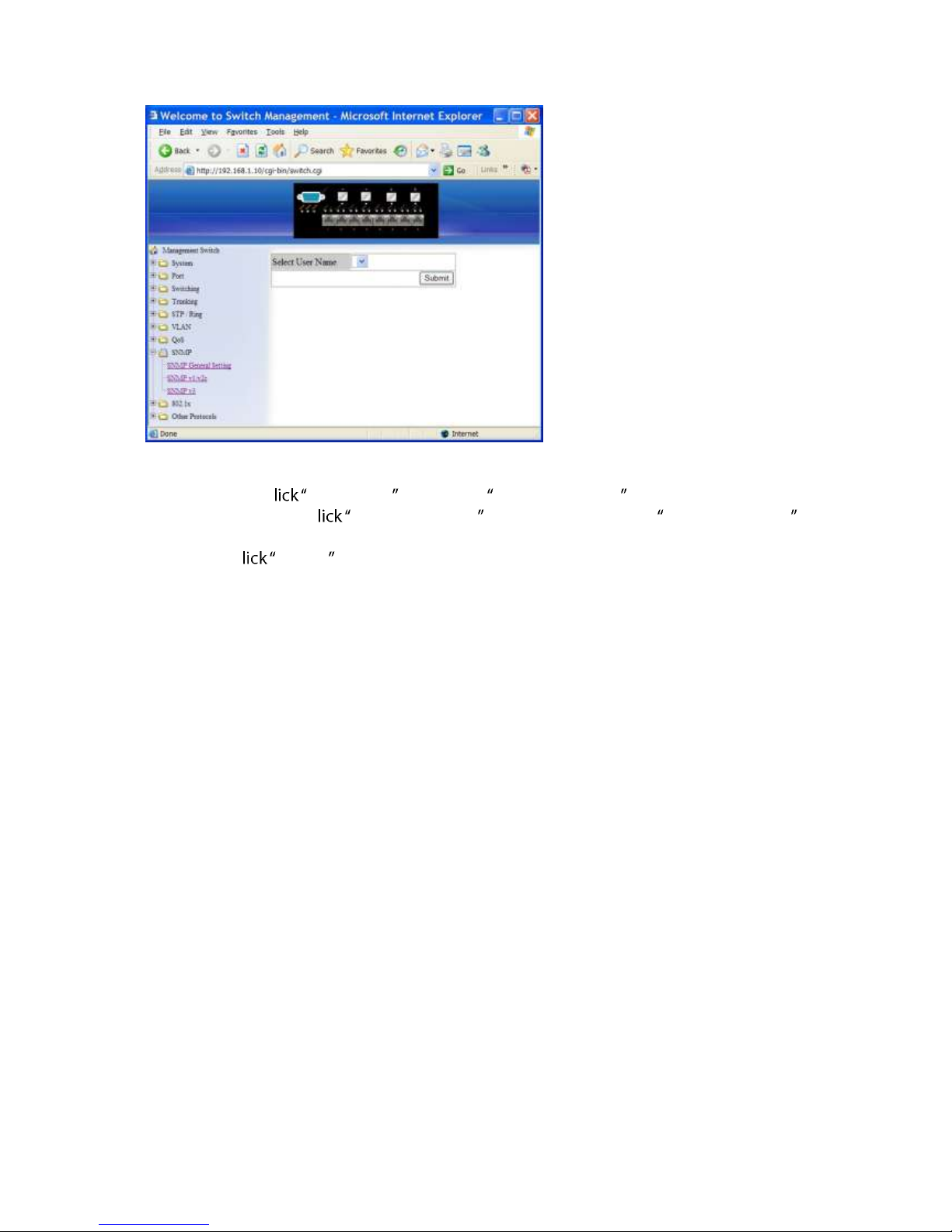

SNMP General Setting, SNMP v1/v2c, SNMP v3

802.1X

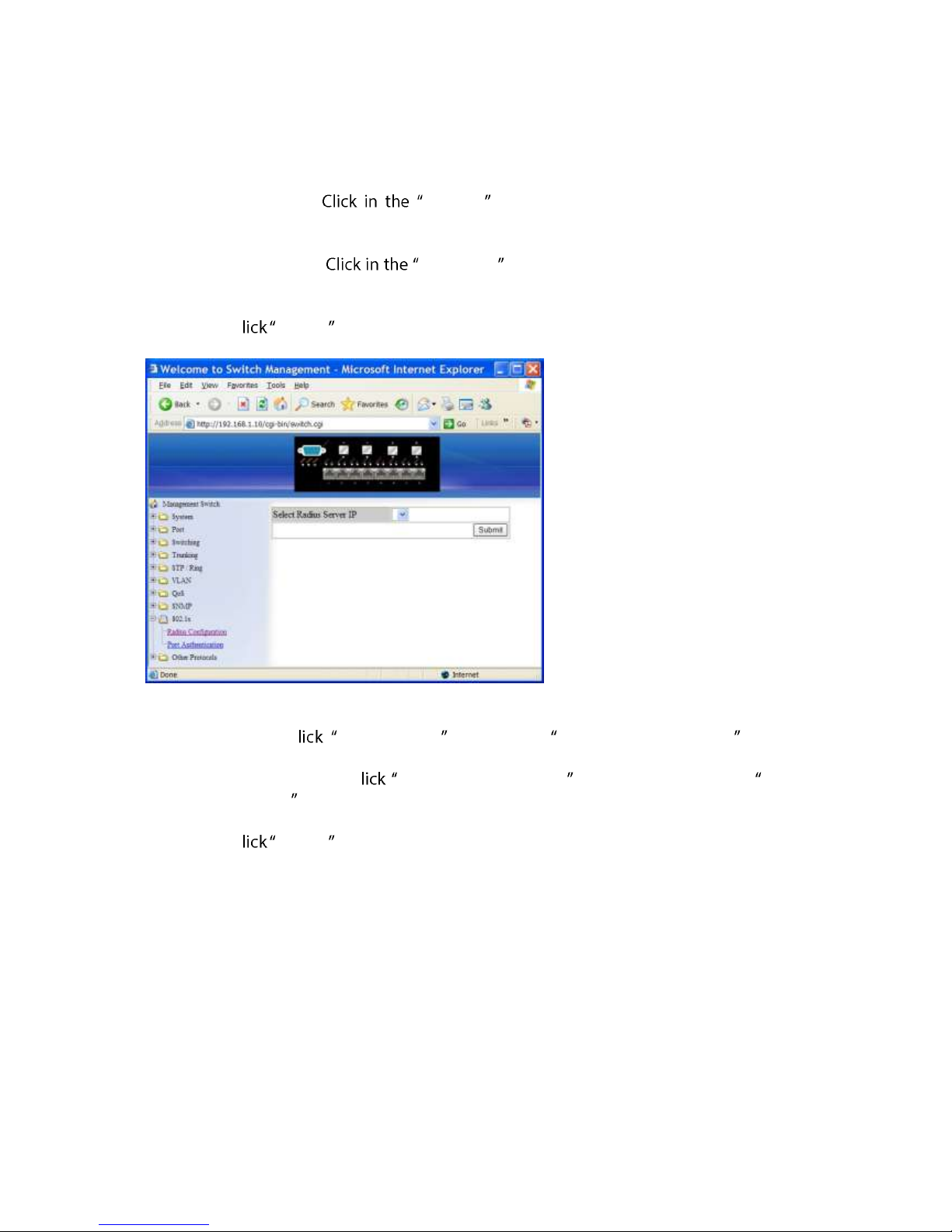

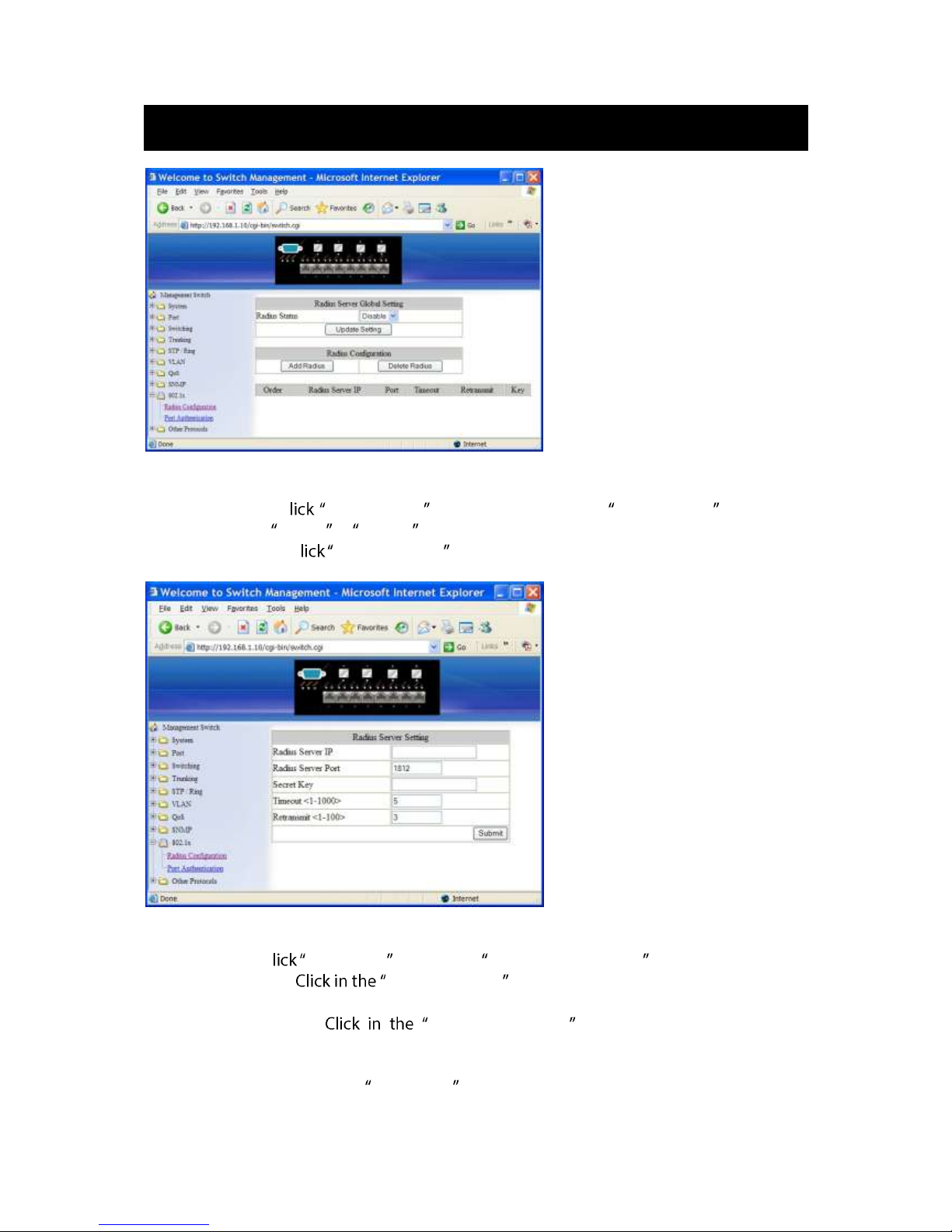

Radius Configuration, Port Authentication

OTHER PROTOCOLS

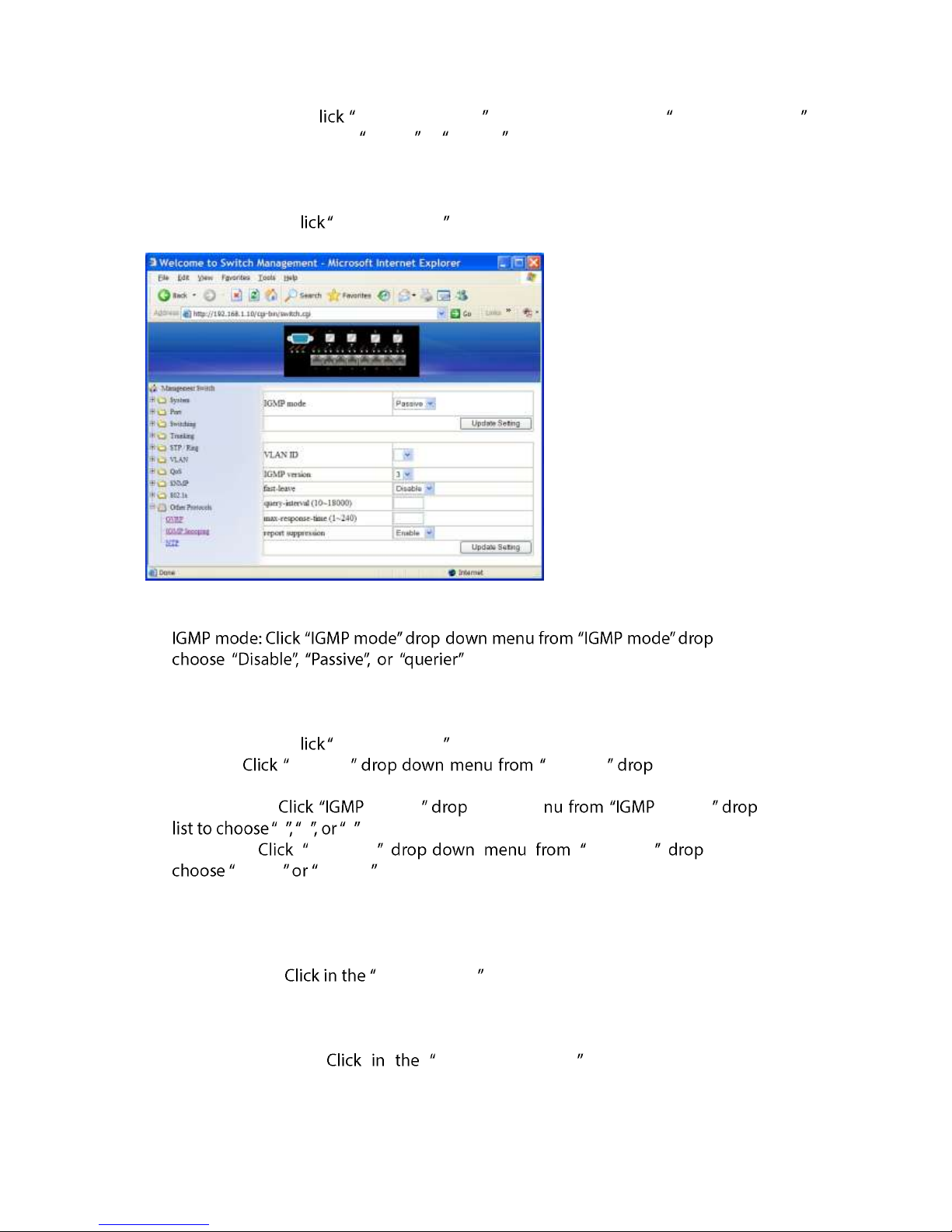

GVRP, IGMP Snooping, NTP

Page 30

User Manual Page 30

System

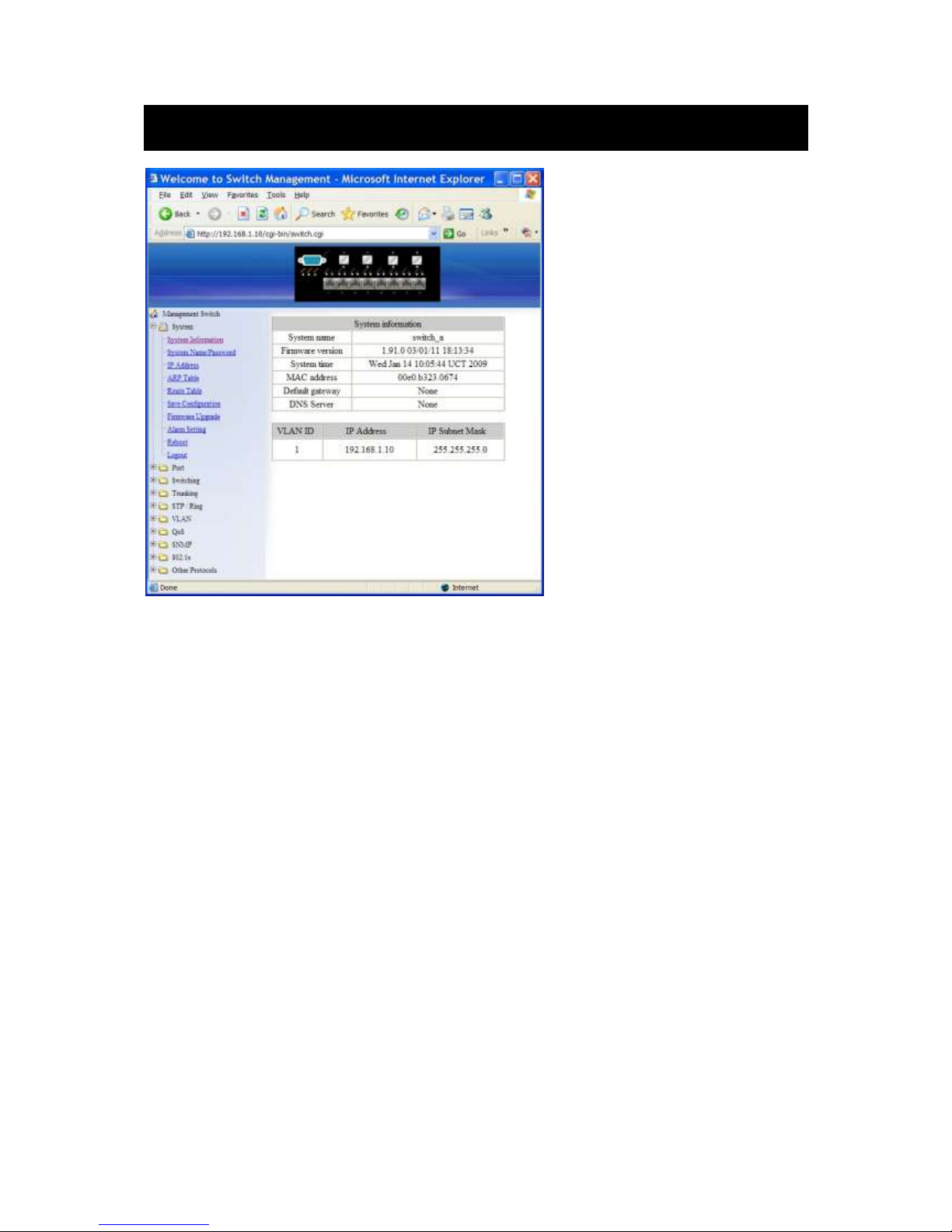

System Information

The System name, Firmware version, System time, MAC address, Default gateway, DNS Server, VLAN ID, IP Address, and IP Subnet Mask of Switch.

Page 31

User Manual Page 31

System Name/Password

1. System Name: System Name . Type a system name if it is blank, or

replace the current system name with a new one.

2. Updating setting: Updating setting button to update your settings.

3. Password: Password . Type a password.

4. Retype Password: Retype Password . Type the same password in

Password again to verify it.

5. Updating setting: Updating setting button to update your settings.

Page 32

User Manual Page 32

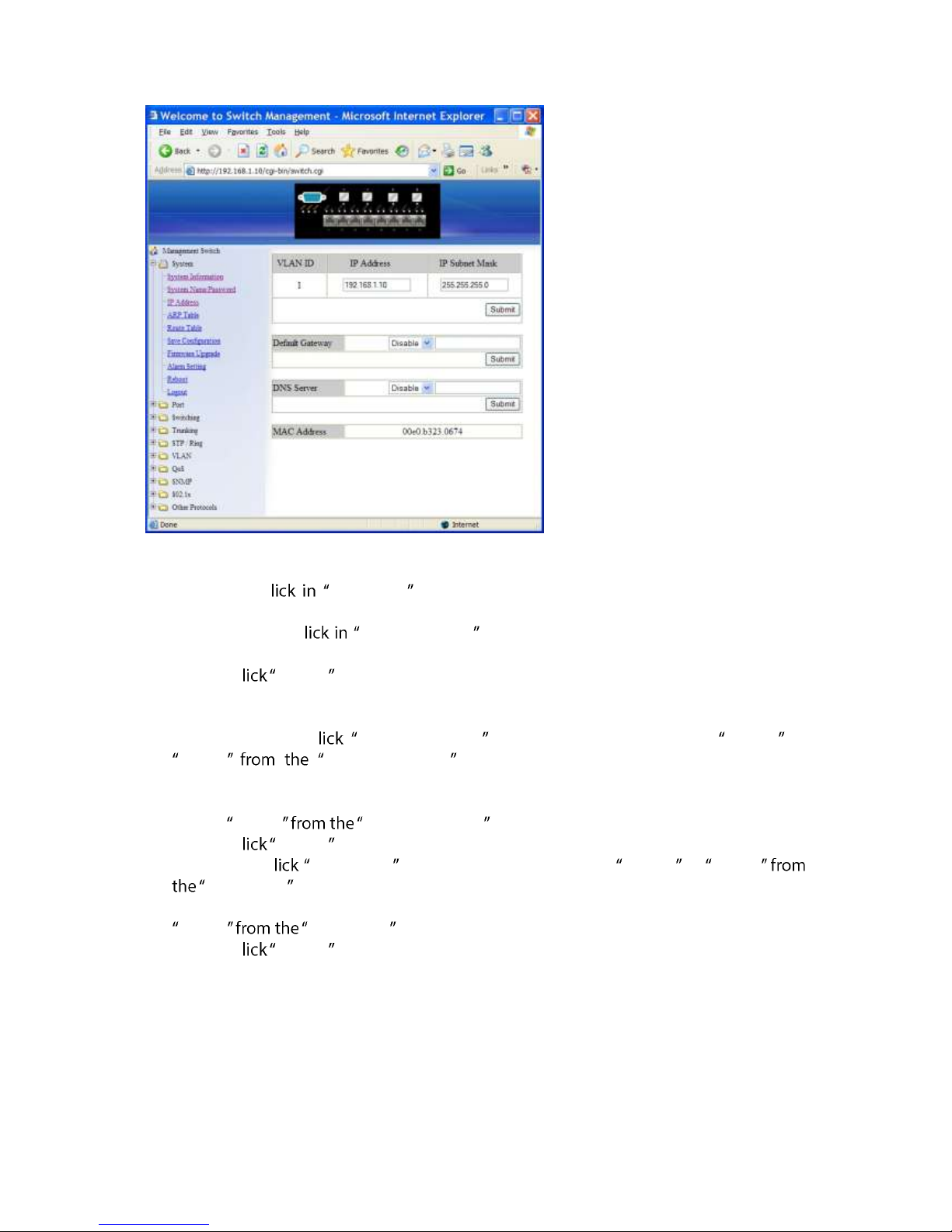

IP Address

1. IP Address: C IP Address text box and type a new address to change the IP

Address.

2. IP Subnet Mask: C IP Subnet Mask text box and type a new address to change

the IP Subnet Mask.

3. Submit: C Submit button when you finished these selections.

4. You need to enter the new IP address on the browser and reconnect to the switch after

IP or subnet mask are changed.

5. Default Gateway: C Default Gateway drop-down menu to choose Disable or

Enable Default Gateway drop-down list to disable or enable Default Gateway Setting for the switch. Click the text box and type a new address to change the Default Gateway. (Need to choose Enable Default Gateway drop-down menu.)

6. Submit: C Submit button when you finished Default Gateway.

7. DNS Server: C DNS Server drop-down menu to choose Disable or Enable DNS Server drop-down list to disable or enable DNS Server Setting for the switch.

Click the text box and type a new address to change the DNS Server. (Need to choose

Enable DNS Server drop-down menu.)

8. Submit: C Submit button when you finished DNS Server.

Page 33

User Manual Page 33

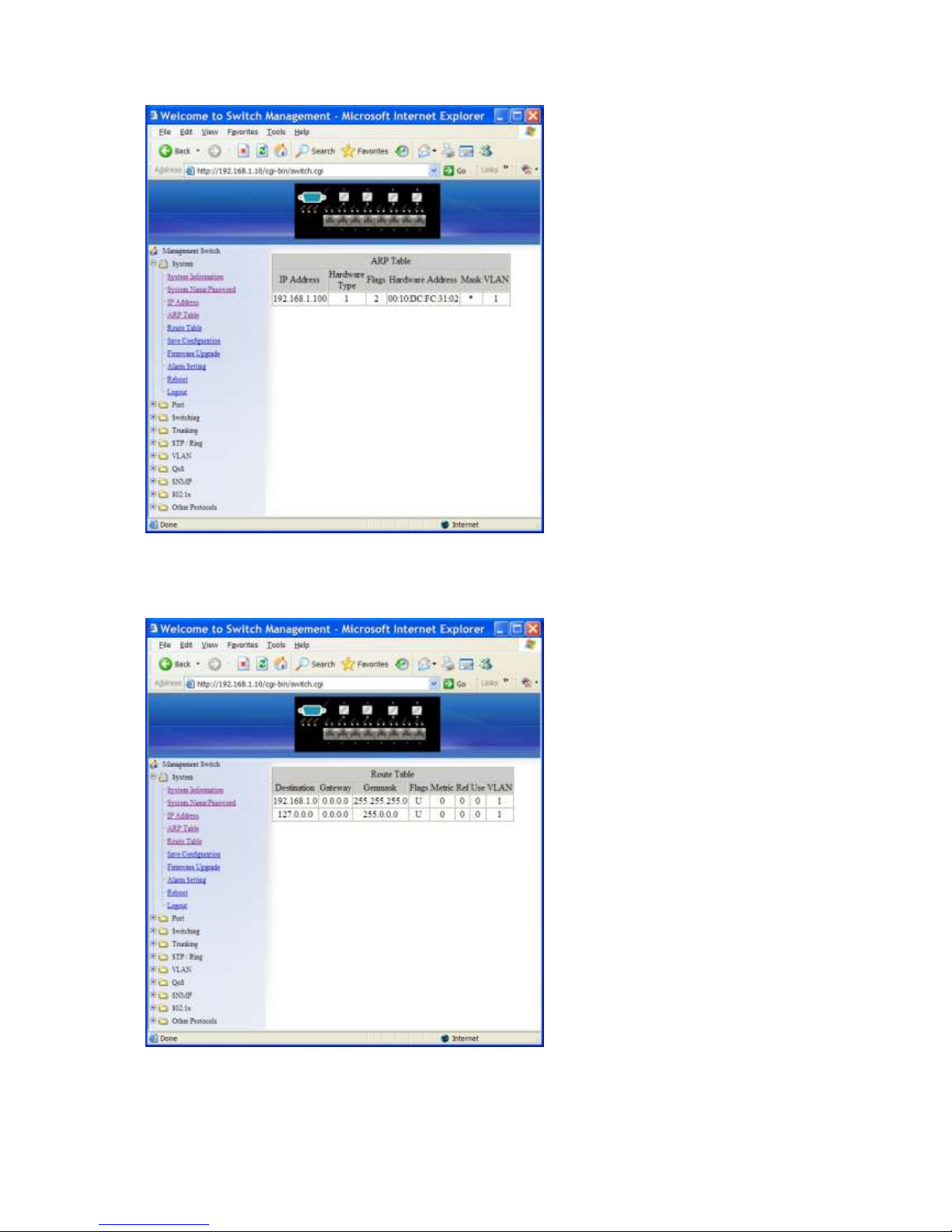

ARP Table

Click ARP Table to view ARP Table.

Route Table

Click Route Table to view Route Table.

Page 34

User Manual Page 34

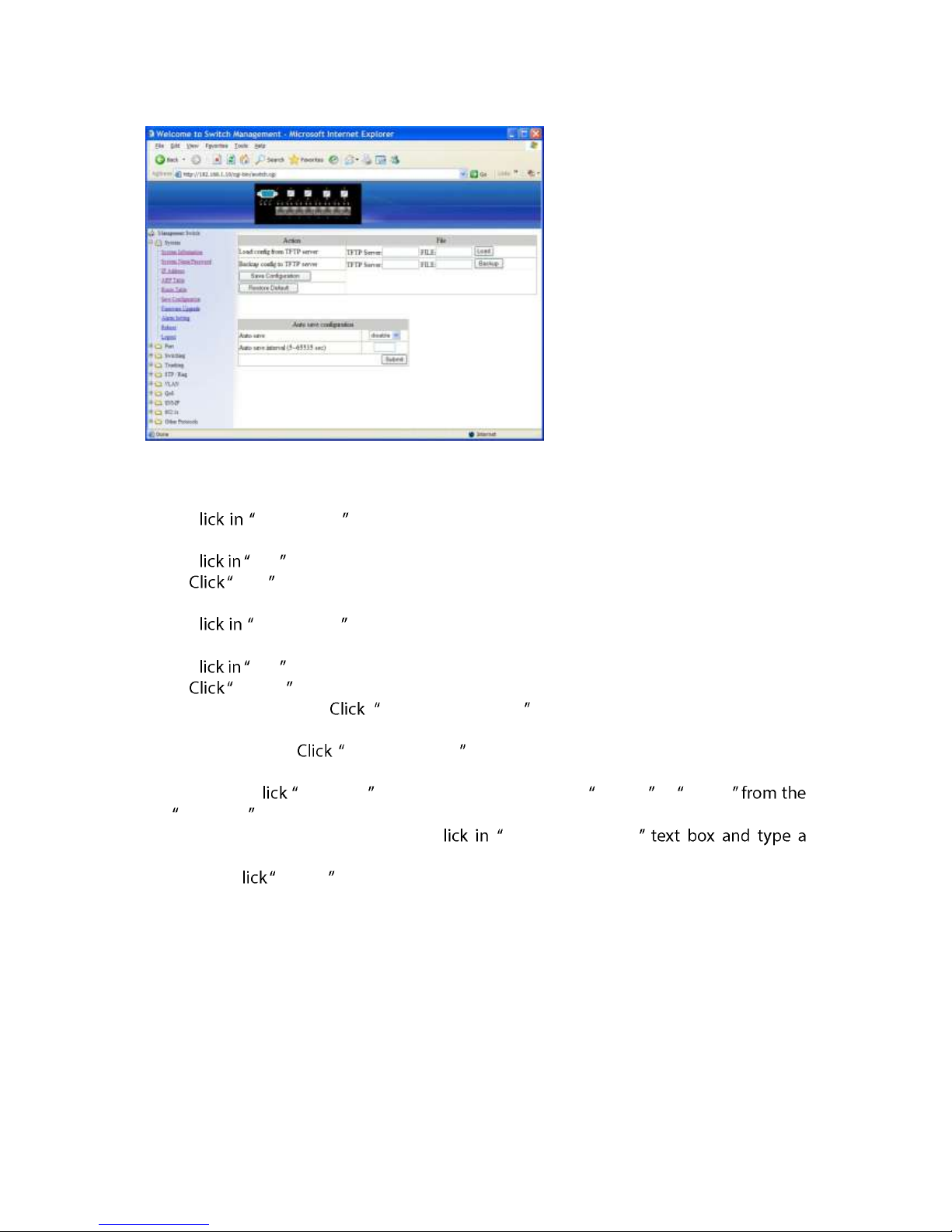

Save Configuration

1. Load config from TFTP server:

C TFTP Server text box and type the TFTP server IP address from where the file will be obtained. C FILE text box and type the name of the file that will be obtained.

Load button to load the file from the TFTP server.

2. Backup config to TFTP server:

C TFTP Server text box and type the TFTP server IP address to where the file will be back upped. C FILE text box and type the name of the file that will be back upped.

Backup button to backup the file to the TFTP server.

3. Save Configuration: Save Configuration button to save your configuration

settings.

4. Restore Default: Restore Default button to restore the default settings of the

switch.

5. Auto save: C Auto save drop-down menu to choose Disable or Enable

Auto save drop-down list to disable or enable Auto save for the switch.

6. Auto save interval (5~65536 sec): C Auto save interval

decimal number between 5 and 65536.

7. Submit: C Submit button when you finished Auto save configuration.

Page 35

User Manual Page 35

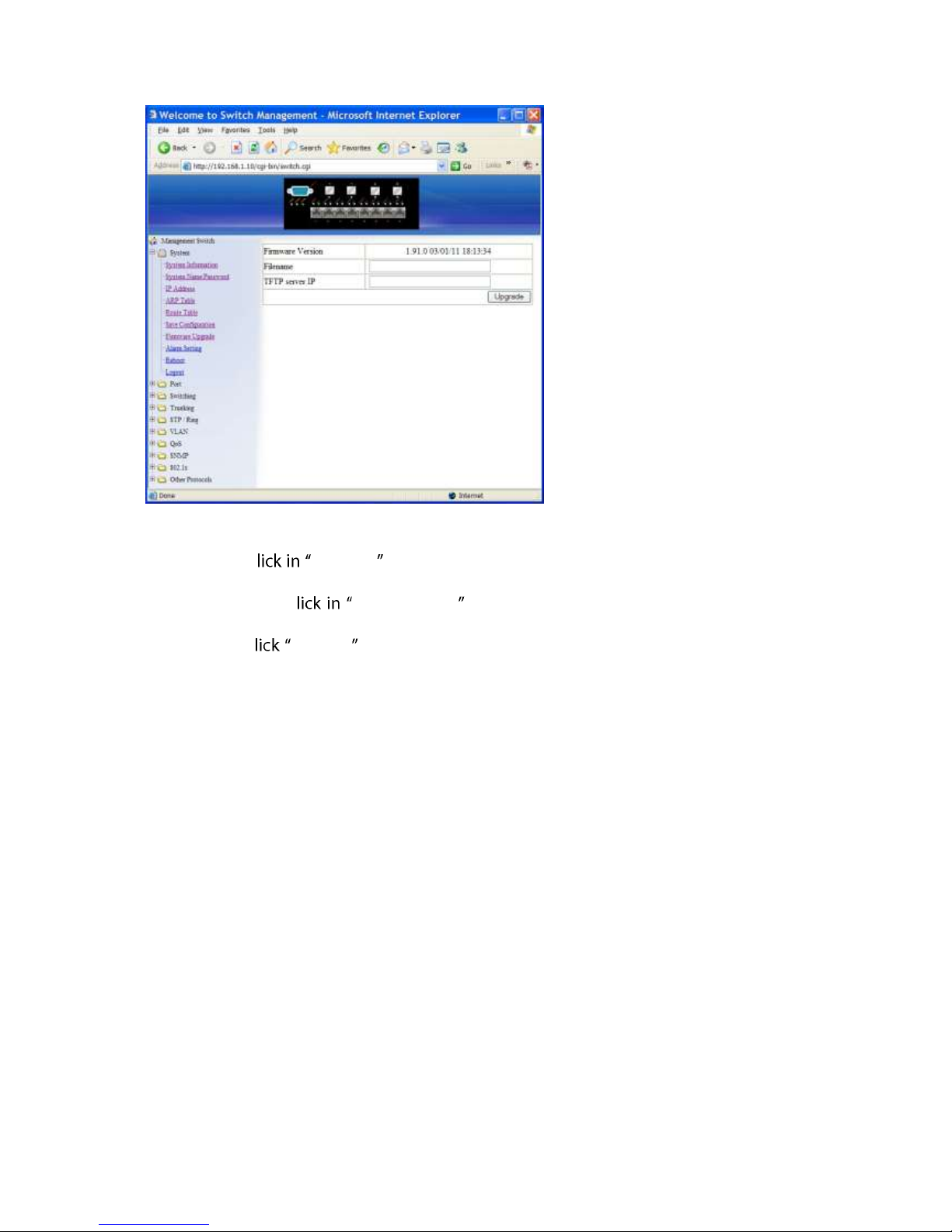

Firmware Upgrade

1. Filename: C Filename text box and type the name of the file that you intend to

upgrade it to the switch.

2. TFTP server IP: C TFTP server IP text box and type the TFTP server IP address

from where the file will be obtained.

3. Upgrade: C upgrade button to upgrade firmware to the switch. Please follow the

message on the screen during the firmware upgrade process. Do not turn off the power or perform other functions during this period of time. Reboot the switch after completing the upgrade process.

Page 36

User Manual Page 36

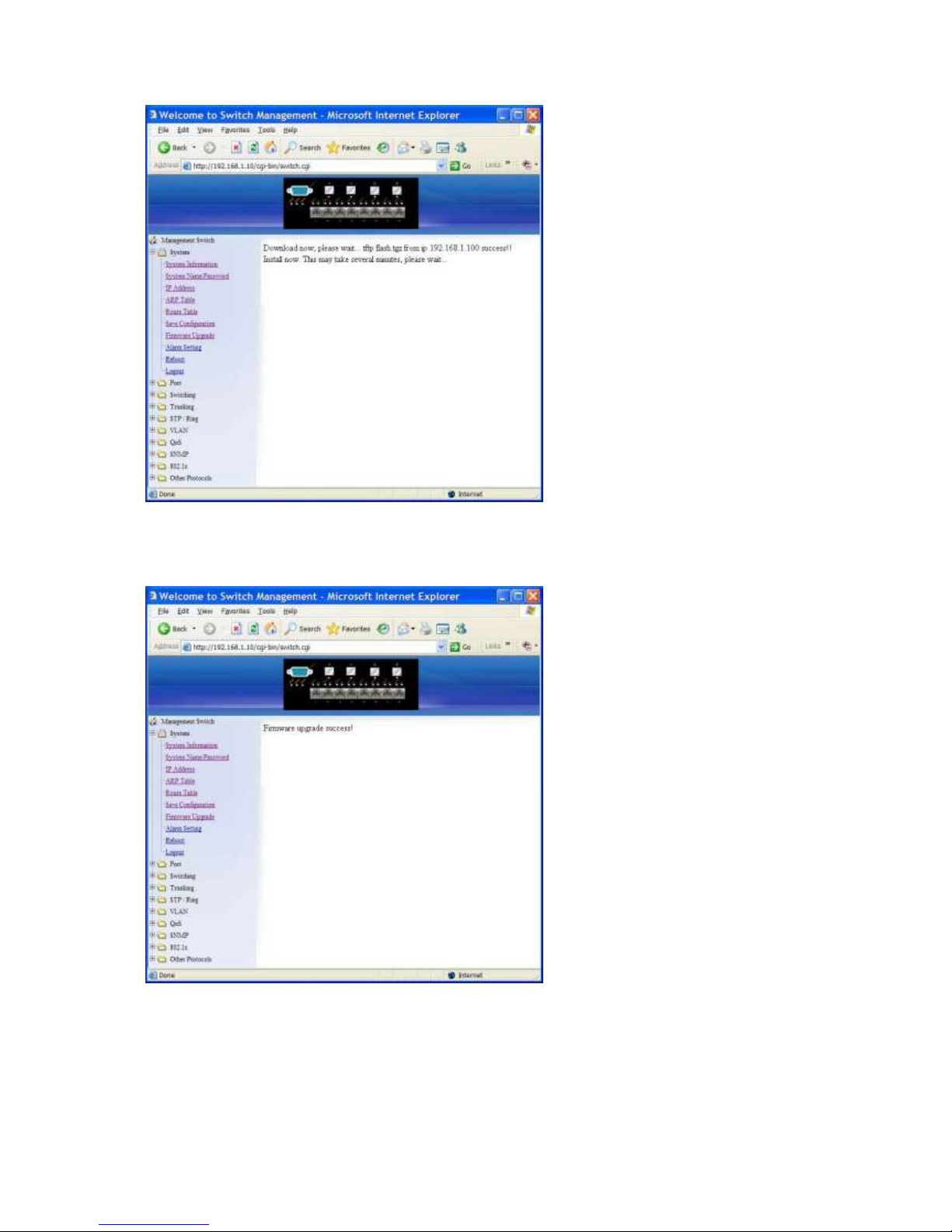

Please follow the message on the screen during the firmware upgrade process. Do not turn off the power or perform other functions during this period of time.

Page 37

User Manual Page 37

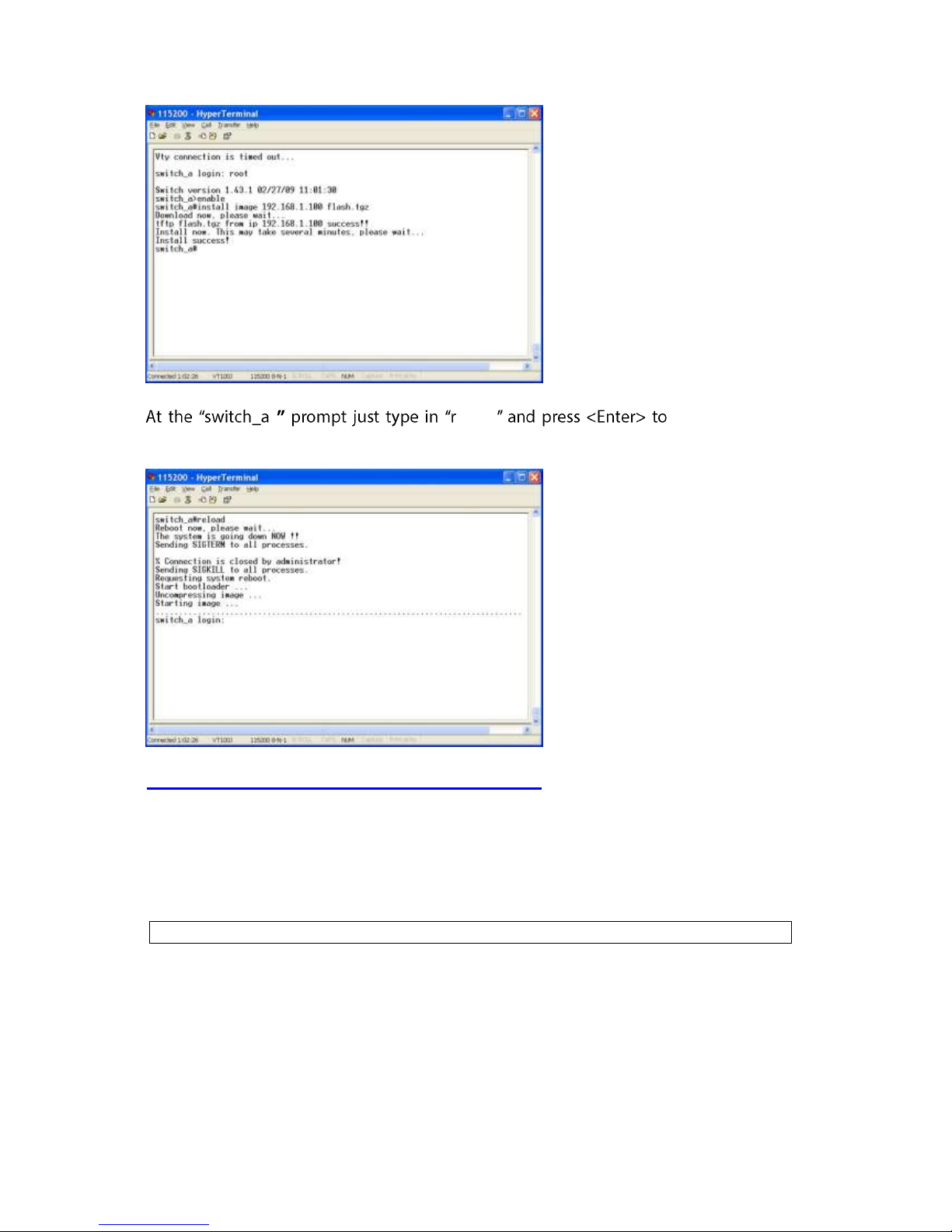

Firmware has been upgraded successfully to the switch. Reboot the switch after completing the upgrade process.

Page 38

User Manual Page 38

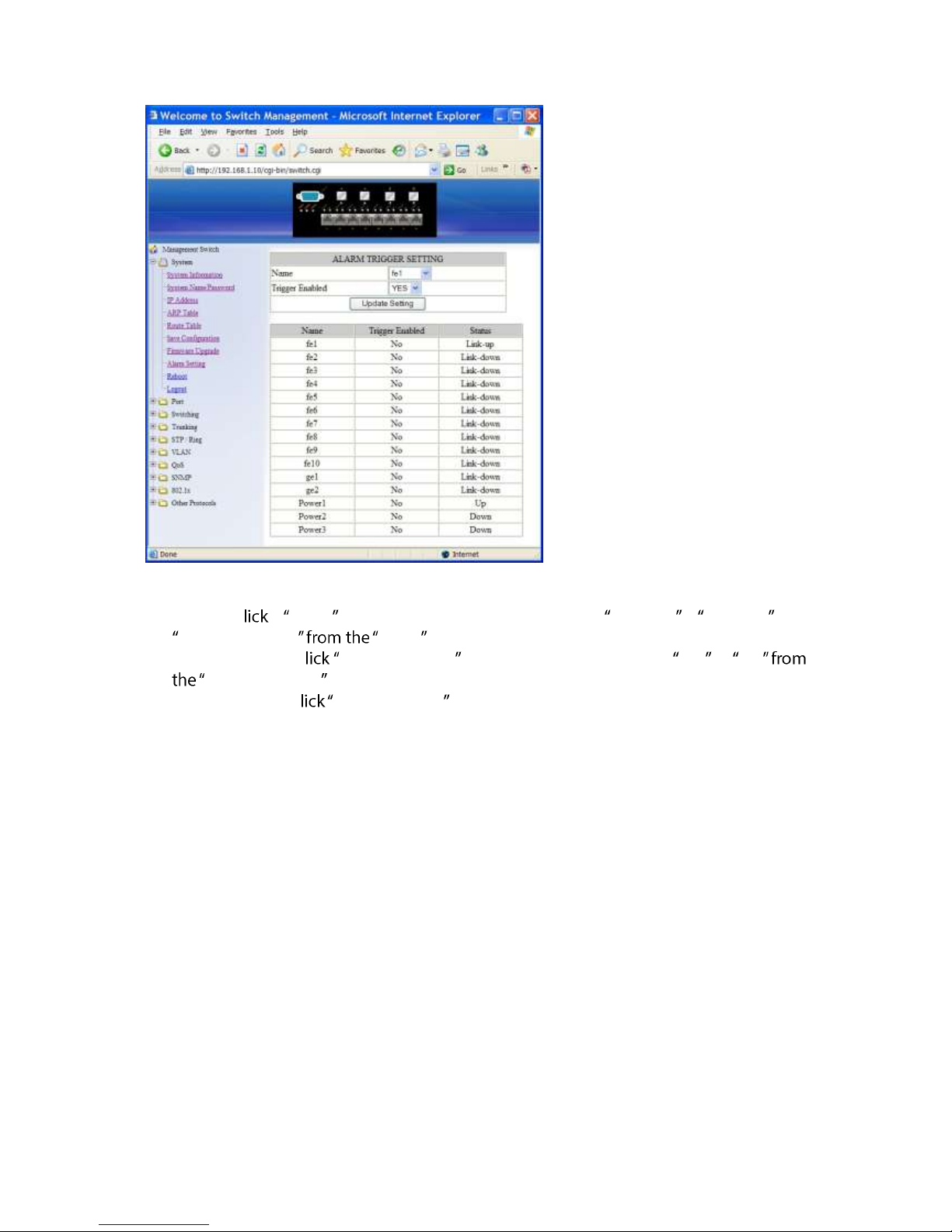

Alarm Setting

1. Name: C Name drop-down menu to choose fe1~fe10, ge1~ge2, or

Power1~Power3 Name drop-down list.

2. Trigger Enabled: C Trigger Enabled drop-down menu to choose YES or NO Trigger Enabled drop-down list to enable or disable Trigger.

3. Update Setting: C Update Setting button to update settings to the switch.

Page 39

User Manual Page 39

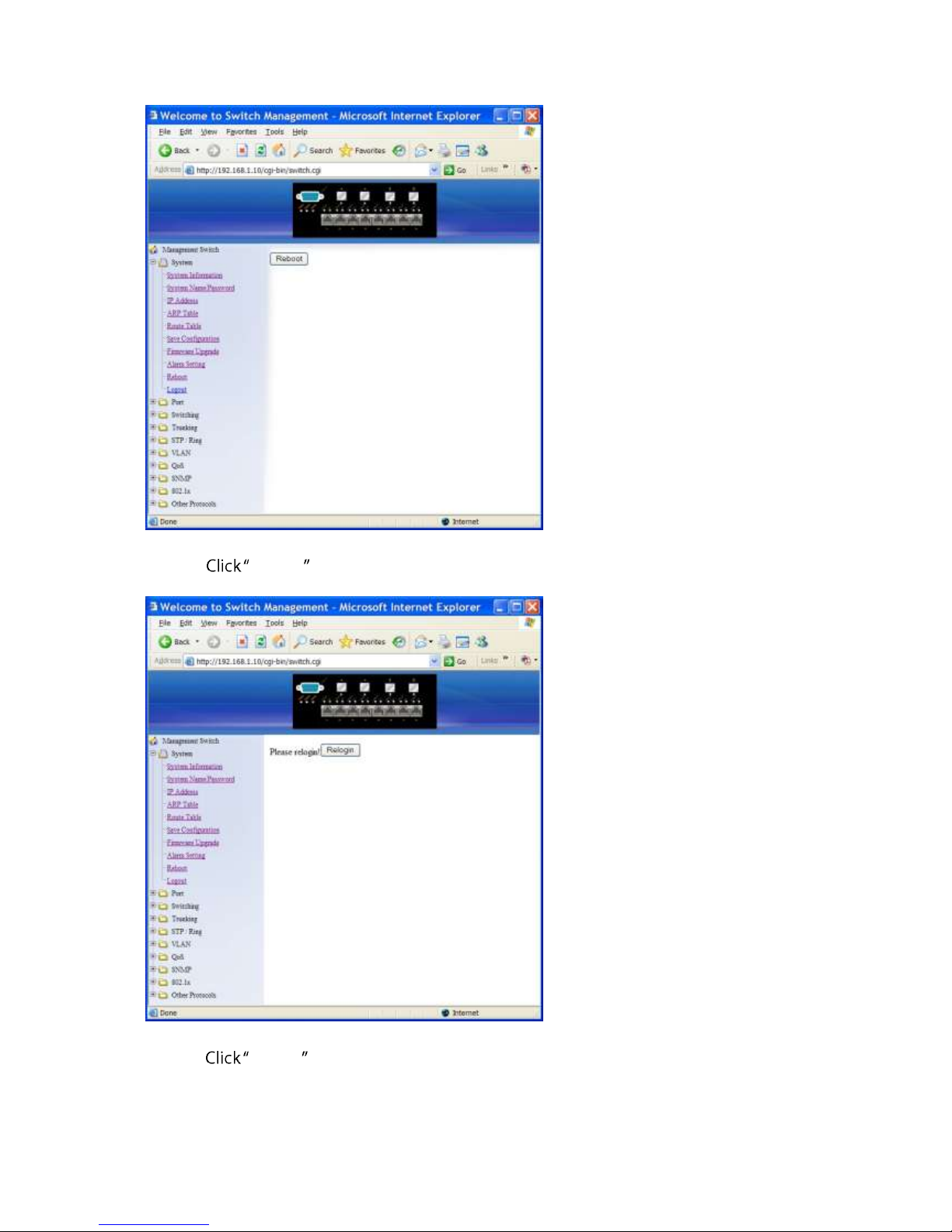

Reboot

Reboot: Reboot button to restart the switch.

Logout

Logout: Logout button to logout of the switch.

Page 40

User Manual Page 40

Port

Configuration

1. Admin Setting: C Admin Setting drop-down menu to choose Link down or Link

up Admin Setting drop-down list to disable or enable Admin Setting for the port.

2. Speed: C Speed drop-down menu to change the line speed and duplex settings

Speed drop-down list for the port.

3. Flow control: C Flow control drop-down menu to choose Disable or Enable Flow control drop-down list to disable or enable Flow control for the port.

4. Submit: C Submit button when you finished configurations.

Page 41

User Manual Page 41

Port Status

View the Link Status, Speed, Duplex, and Flow control status for all ports. SFP Port:

1. View the Detected, Connector, Transceiver, Mode, Wave Length (nm), Link Length (m),

Temperature (C), Vcc (V), Tx_bias (mA), Tx_pow (dbm), and Rx_pow (dbm) information for SFP ports.

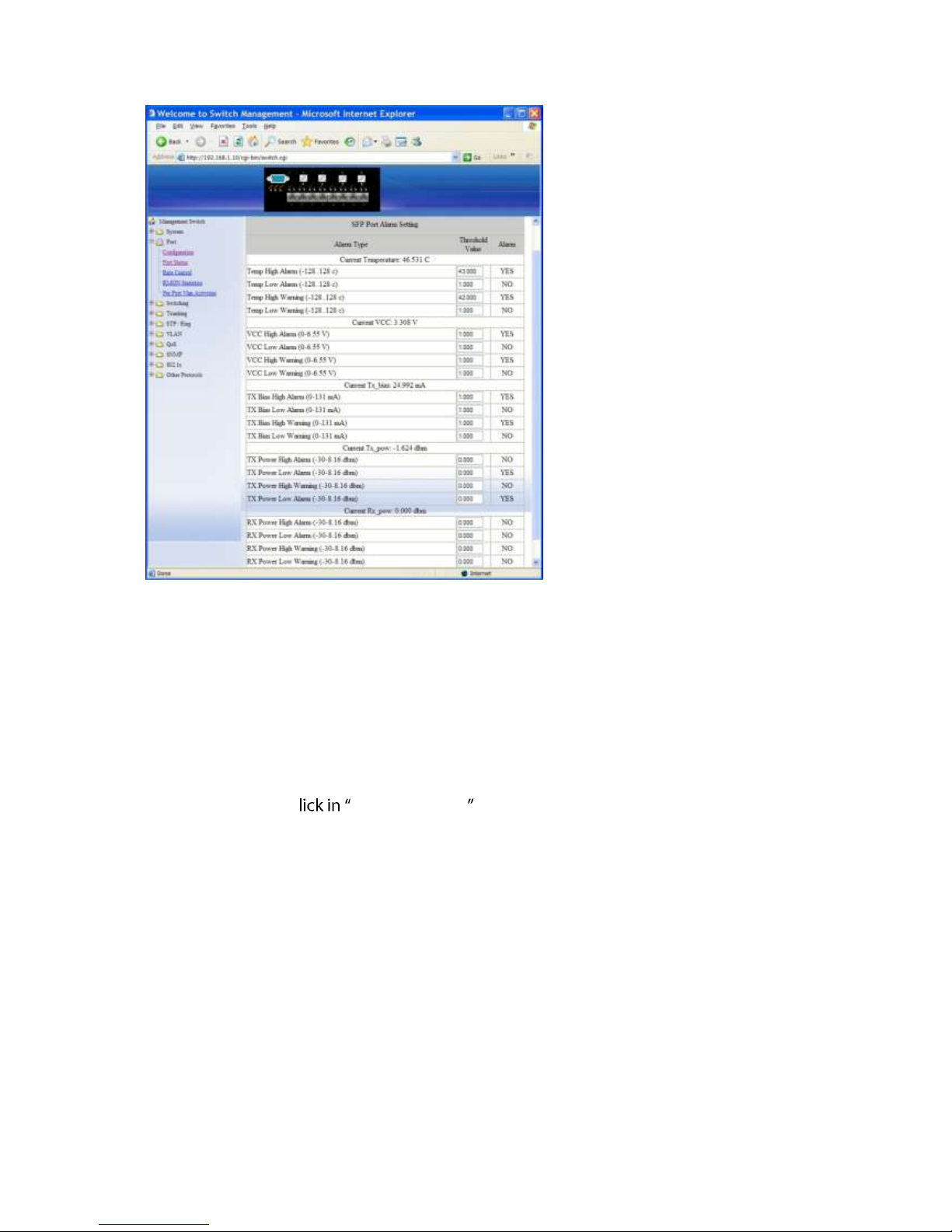

2. Alarm Situation: View Current Temperature Alarm, Current VCC Alarm, Current Tx Bias

Alarm, Current Tx Power Alarm, and Current Rx Power Alarm.

3. Alarm Setting: C Threshold Value text boxes and type new Threshold Values for

Temp High Alarm, Temp Low Alarm, Temp High Warning, Temp Low Warning, VCC High Alarm, VCC Low Alarm, VCC High Warning, VCC Low Warning, TX Bias High Alarm, TX Bias Low Alarm, TX Bias High Warning, TX Bias Low Warning, TX Power High Alarm, TX Power Low Alarm, TX Power High Warning, TX Power Low Warning, RX Power High Alarm, RX Power Low Alarm, RX Power High Warning, RX Power Low Warning.

Page 42

User Manual Page 42

Rate Control

1. Ingress: C Ingress text box and type a new Rate to change the Ingress Rate

Control for the port. Rate Values: 64kbps, 128kbps, 192kbps, , 1792kbps. 2Mbps, 3Mbps, 4Mbps, , 100Mbps. 104Mbps, 112Mbps, 120Mbps, , 1000Mbps. <Note>: M = 1024k.

2. Egress: C Egress text box and type a new Rate to change the Egress Rate Control

for the port. Rate Values: 64kbps, 128kbps, 192kbps, , 1792kbps. 2Mbps, 3Mbps, 4Mbps, , 100Mbps. 104Mbps, 112Mbps, 120Mbps, , 1000Mbps. <Note>: M = 1024k.

3. Update setting: C Update setting button when you finished these Rate Control

settings.

Page 43

User Manual Page 43

RMON Statistics

Click Port 1 ~ Port 12 to view corresponding RMON Statistics.

Per Port Vlan Activities

Click Port 1 ~ Port 12 to view corresponding vlan activities.

Page 44

User Manual Page 44

Switching

Bridging

1. Aging Time (seconds): Click the text box and type a decimal number as Bridging Aging

Time in seconds.

2. Update setting: C update setting button when you finished Aging Time settings.

3. Threshold level (0.1-100): Level for the

port. Need to choose Broadcast and/or DFL-Multicast from Storm-control enabled type for the port. DLF (Destination Lookup Failure).

4. Storm-control enabled type: Choose Broadcast and/or DLF-Multicast from

Storm-control enabled type for the port.

5. Update Setting: C Update Setting button when you finished Threshold level and

Storm-control enabled type settings.

Page 45

User Manual Page 45

Static MAC Entry

Static-MAC-Entry Forward:

1. Add MAC address: Add MAC address locked forwarding

MAC address for the port.

2. VLAN ID: C VLAN ID drop-down menu and choose a VLAN ID VLAN ID

drop-down list.

3. Delete MAC address: C Delete MAC address drop-down menu and choose a

locked forwarding MAC address Delete MAC address drop-down list to be deleted from the port.

4. Submit: C Submit button when you finished Static-MAC-Entry Forward settings.

Static-MAC-Entry Discard:

1. Add MAC address: Add MAC address MAC address to be

discarded for the VLAN.

2. VLAN ID: VLAN ID: C VLAN ID drop-down menu and choose a VLAN ID from the

VLAN ID drop-down list.

3. Delete MAC address: C Delete MAC address drop-down menu and choose a MAC

address Delete MAC address drop-down list to be discarded from the VLAN.

4. Submit: C Submit button when you finished Static-MAC-Entry Discard settings.

Page 46

User Manual Page 46

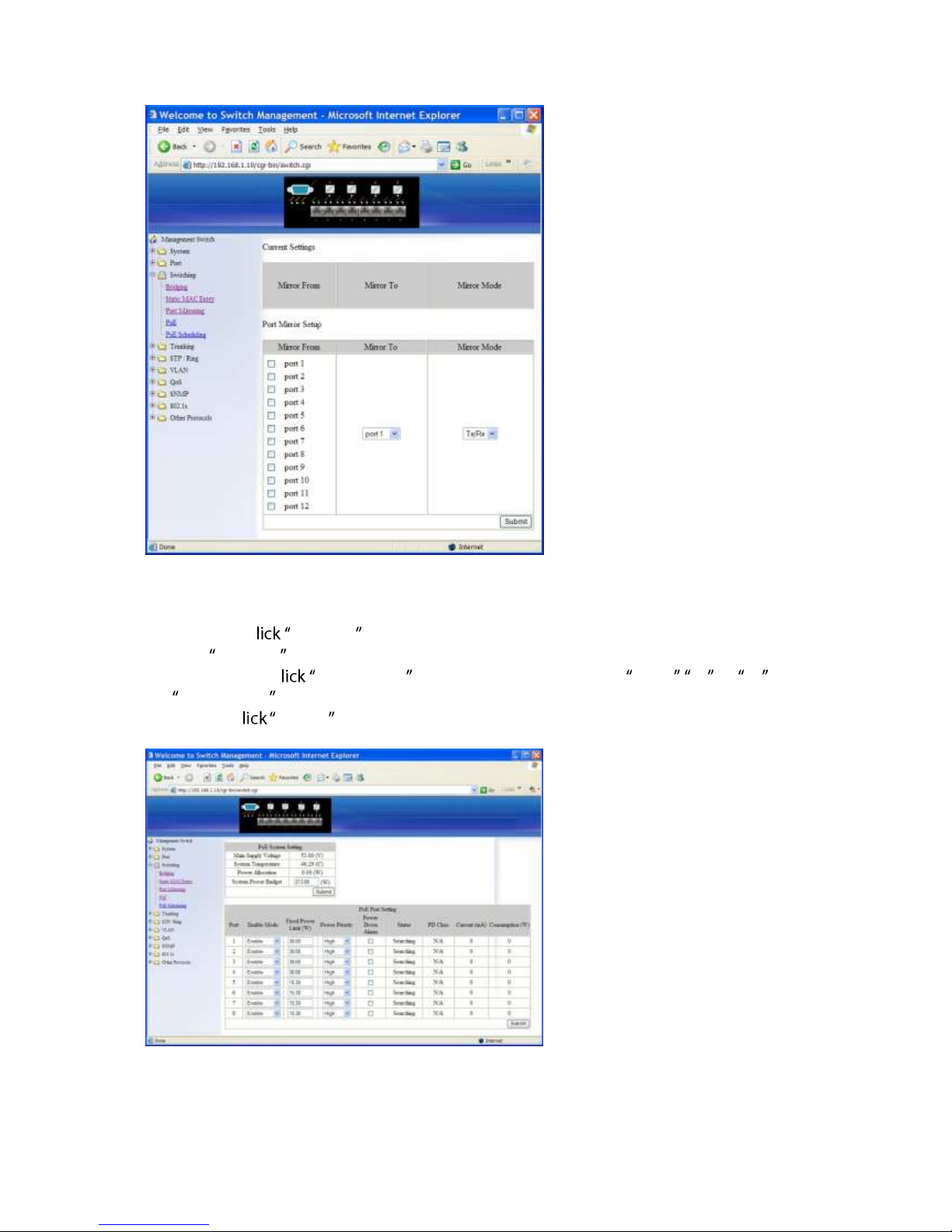

Port Mirroring

1. Mirror From: Choose Mirror From port from Port 1 ~ Port 12.

2. Mirror To: C Mirror To drop-down menu to Choose Mirror To port (Port 1 ~ Port 12)

from Mirror To drop-down list.

3. Mirror Mode: C Mirror Mode drop-down menu to Choose Tx/Rx , Tx , or Rx from

Mirror Mode drop-down list.

4. Submit: C Submit button when you finished Port Mirroring settings.

PoE

PoE System Setting:

Page 47

User Manual Page 47

1. System Power Budget: System Power Budget new system

power budget for Switch.

2. Submit: C Submit button when you finished PoE System Setting.

PoE Port Setting:

1. Enable Mode: C Enable Mode drop-down menu to choose Disable or Enable

from Enable Mode drop-down list to disable or enable this port to discover Powered Device (PD) connected to this port.

2. Fixed Power Limit (W): C Fixed Power Limit (W) and type a new fixed

power limit for this port to provide power to PD.

3. Power Priority: C Power Priority drop-down menu to choose High, Medium , or

Low Power Priority drop-down list to determine power priority of this port.

4. Power Down Alarm: Check or uncheck Power Down Alarm to enable or disable power

down alarm on this port.

5. Submit: C Submit button when you finished PoE Port Setting.

PoE Scheduling

First click on Switching from main menu. Then click on PoE from Switching. In PoE Port Setting, c Enable Mode drop-down menu to choose Scheduling from Enable Mode drop-down list to schedule this port to discover Powered Device (PD) connected to this port.

PoE Per Port Setting:

1. Port: C Port drop-down menu to choose a port from Port drop-down list and

configure PoE scheduling to this port.

2. Submit: C Submit button when you finished PoE Scheduling for this port.

Page 48

User Manual Page 48

Trunking

Port Trunking

Static Channel Group:

1. Trunk 1: Click Port 1 ~ Port 10 to assign ports to Trunk 1. (Maximum 4 ports per Trunk.)

GE Trunking:

1. Trunk 3: Check Static or Disable to enable or disable Trunk 3 for Gigabit Ethernet

ports.

Submit: C Submit button when you finished Port Trunking settings.

Page 49

User Manual Page 49

STP / Ring

Global Configuration

1. Spanning Tree Protocol: C Spanning Tree Protocol drop-down menu to Choose

Enable or Disable from Spanning Tree Protocol drop-down list to enable or disable

Spanning Tree Protocol.

2. Bridge Priority (0..61440): C Bridge Priority

between 0 and 61440.

3. Hello Time (sec) (1..9): C Hello Time

between 1 and 9.

4. Max Age (sec) (6..28): C Max Age

6 and 28.

5. Forward Delay (sec) (4..30): C Forward Delay

number between 4 and 30.

6. STP Version: C STP Version drop-down menu to choose MSTP , RSTP or STP

compatible from STP Version drop-down list.

7. Update setting: C Update setting button when you finished Global Configuration.

Page 50

User Manual Page 50

RSTP Port Setting

1. STP Version: C STP Version drop-down menu to choose RSTP from STP Version

drop-down list.

2. Port: C Port drop-down menu to Choose Port 1 ~ Port 12 from Port drop-down

list.

3. Priority(Granularity 16): C Priority enter a value between 0 and 240

to set the priority for the port. A higher priority will designate the port to forward packets first. A lower number denotes a higher priority. This entry must be divisible by

16. The default priority setting is 128.

4. Admin. Path Cost: C Admin. Path Cost enter a value between 0 and

2000000 to set the Admin. Path Cost for the port. 0 (auto) - Setting 0 for the Admin. Path Cost will automatically set the speed for forwarding packets to the port for optimal efficiency. Default port cost: 100Mbps port = 200000. Gigabit port = 20000.

5. Point to Point Link: C Point to Point Link drop-down menu to Choose Enable or

Disable from Point to Point Link drop-down list to enable or disable Point to Point

Link for the port.

6. Edge Port: C Edge Port drop-down menu to Choose Enable , Disable, or Auto

from Edge Port drop-down list to set Enable, Disable, or Auto Edge Port for the port.

7. Update setting: C Update setting button when you finished RSTP Port Setting.

Page 51

User Manual Page 51

MSTP Properties

1. STP Version: C STP Version drop-down menu to choose MSTP from STP Version

drop-down list.

2. Region Name: C Region Name to create an MST region and specify a

name to it. MST bridges of a region form different spanning trees for different VLANs. By default, each MST bridge starts with the region name as its bridge address. This means each MST bridge is a region by itself, unless specifically added to one.

3. Revision Level: C Revision Level to specify the number for configuration

information. The default value of revision number is 0.

4. Max Hops: C Max Hops to specify the maximum allowed hops for BPDU

in an MST region. This parameter is used by all the instances of the MST. Specifying the

Page 52

User Manual Page 52

max hops for a BPDU prevents the messages from looping indefinitely in the network. When a bridge receives a MST BPDU that has exceeded the allowed max-hops, it discards the BPDU.

5. Update setting: C Update setting button when you finished MSTP Properties

setting.

MSTP Instance Setting

VLAN Instance Configuration

1. VLAN Instance Configuration: C VLAN Instance Configuration button. The VLAN

Instance Configuration window appears.

2. VLAN ID: C VLAN ID drop-down menu to choose VLAN from VLAN ID drop-down

list to simultaneously add multiple VLANs for the corresponding instance of a bridge.

3. Instance ID (1..15): C Instance ID to specify the instance ID.

4. Update setting: C Update setting button when you finished VLAN Instance

Page 53

User Manual Page 53

Configuration.

Included VLANs

1. Instance ID: C Instance ID drop-down menu to choose instance ID from Instance

ID drop-down list.

2. Included VLAN: C Included VLAN drop-down menu to choose VLAN from

Included VLAN drop-down list.

Instance Setting

1. Bridge Priority (0..61440): C Bridge Priority to set the bridge priority for

an MST instance to the value specified. The lower the priority of the bridge, the better the chances are the bridge becoming a root bridge or a designated bridge for the LAN.

2. Update setting: C Update setting button when you finished VLAN Instance

Configuration.

Page 54

User Manual Page 54

MSTP Port Setting

Port Instance Configuration

1. Instance ID: C Instance ID drop-down menu to choose instance ID from Instance

ID drop-down list.

2. Click Port 1 ~ Port 12 to assign ports to the corresponding instance ID.

3. Update setting: C Update setting button when you finished Port Instance

Configuration.

Instance ID

1. Instance ID: C Instance ID drop-down menu to choose instance ID from Instance

ID drop-down list.

MSTP Port Configuration

1. Port: C Port drop-down menu to choose port from Port drop-down list.

2. Priority(Granularity 16): C Priority to set the port priority for a bridge

group. The Multiple Spanning Tree Protocol uses port priority as a tiebreaker to determine which port should forward frames for a particular instance on a LAN, or which port should be the root port for an instance. A lower value implies a better priority. In the case of the same priority, the interface index will serve as the tiebreaker, with the lower-numbered interface being preferred over others. The permitted range is 0-240. The priority values can only be set in increments of 16.

3. Admin. Path Cost: C Admin. Path Cost to set the cost of a path

associated with an interface.

4. Update setting: C Update setting button when you finished MSTP Port Setting.

Page 55

User Manual Page 55

Ring Setting

Ring state

1. C Ring state drop-down menu from Ring state drop-down list to choose Enable

or Disable to enable or disable Ring state.

2. Update setting: C Update setting button when you finished Ring state setting.

Set ring port

1. Ring port 1: C Ring port 1 drop-down menu to choose Ring port 1 from Ring port

1 drop-down list.

2. Ring port 2: C Ring port 2 drop-down menu to choose Ring port 2 from Ring port

2 drop-down list.

3. Update setting: C Update setting button when you finished Set ring port.

Page 56

User Manual Page 56

VLAN

VLAN Mode Setting

1. VLAN Mode Setting: C VLAN Mode Setting drop-down menu to Choose

Tag-based VLAN or Port-based VLAN from VLAN Mode Setting drop-down list.

2. Update Setting: C Update Setting button when you finished VLAN Mode Setting.

Page 57

User Manual Page 57

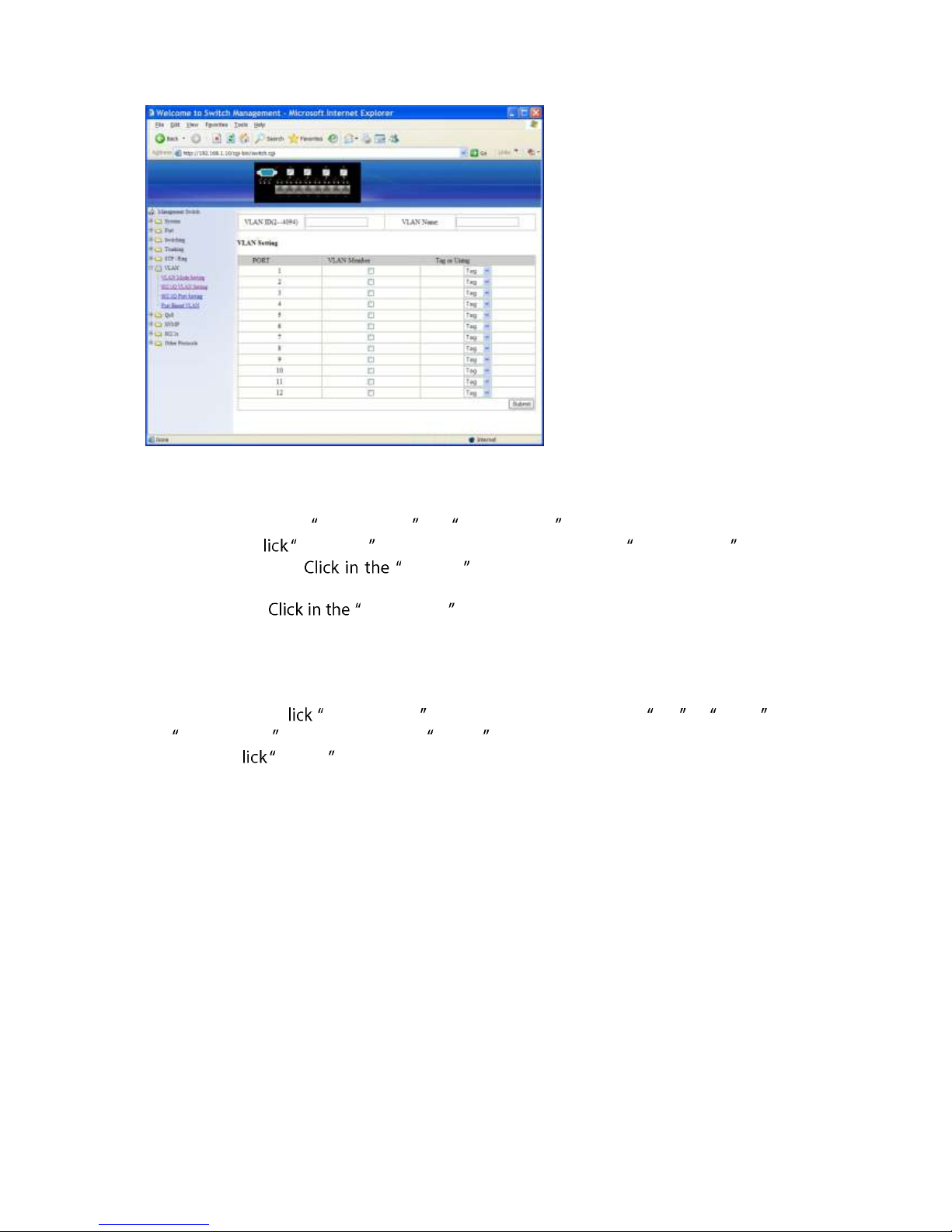

802.1Q VLAN Setting

Add VLAN:

1. VLAN setting: Click VLAN setting. The VLAN Setting window appears.

2. Add VLAN: C Add VLAN button to create a new VLAN from VLAN Setting window.

3. VLAN ID(2-4094): VLAN ID textbox and specify a new VLAN ID number

from 2 ~ 4094.

4. VLAN Name: VLAN Name textbox and type a name for this newly created

VLAN.

Add port to or delete port from VLAN:

1. VLAN Member: Choose the port to be added to or deleted from the VLAN.

2. Tag or Untag: C Tag or Untag drop-down menu to Choose Tag or Untag from

Tag or Untag drop-down list for a Hybrid port.

3. Submit: C Submit button when you finished VLAN setting.

Page 58

User Manual Page 58

Delete VLAN:

1. VLAN setting: Click VLAN setting. The VLAN Setting window appears.

2. Delete VLAN: C Delete VLAN button.

3. Select a VLAN ID: C Select a VLAN ID drop-down menu from Select a VLAN ID

drop-down list to choose the VLAN to be deleted.

4. Submit: Click Submit button when you finished VLAN setting.

VLAN Port Setting

1. VLAN Port Setting: Click VLAN Port Setting. The VLAN Port Setting window appears.

2. Mode: C Mode drop-down menu to Choose Access, Trunk, or Hybrid from

Page 59

User Manual Page 59

Mode drop-down list for the port. The port will be Tag port if you choose Trunk Mode for the port. And the port will be Tag or Untag port if you choose Hybrid Mode for the port.

3. PVID: PVID textbox and specify a new PVID number for the port.

4. Update Setting: C Update Setting button when you finished VLAN Port Setting.

Port Based VLAN

1. VLAN: Choose the port to be added to or deleted from the VLAN.

2. Select all: C select all button to choose Port 1 ~ Port 12 all to be added to the VLAN.

3. Delete all: C delete all button to choose Port 1 ~ Port 12 all to be deleted from the VLAN.

4. Submit: C Submit button when you finished Port Based VLAN setting.

Page 60

User Manual Page 60

QoS

Global Configuration

1. QoS: C QoS drop-down menu from QoS drop-down list to choose Enable or

Disable to enable or disable QoS.

2. Trust: Enable or disable the switch port to trust the CoS (Class of Service) labels of all traffic received on that port. Enable or disable a routed port to trust the DSCP (Differentiated Service Code Point) labels of all traffic received on that port.

3. Policy: Choose Strict Priority(Queue3) + WRR(Queue0-2) or WRR(Queue0-3) . A strict priority queue is always emptied first. The queues that are used in the WRR (Weighted Round Robin) fashion, and you can configure the weight for each queue.

4. Weighted Round Robin: Weight(1~55) textbox and specify a new number from 1 ~ 55 for Queue 0 ~ 3.

5. Submit: C Submit button when you finished Global Configuration.

Page 61

User Manual Page 61

802.1p Priority

1. Priority: C Priority drop-down menu from Priority drop-down list to choose 0 ~ 3 for VLAN Priority 0 ~ 7.

2. Submit: C Submit button when you finished 802.1p priority.

DSCP

1. Priority: C Priority drop-down menu from Priority drop-down list to choose 0 ~ 3 for DSCP Priority 0 ~ 63.

2. Submit: C Submit button when you finished DSCP.

Page 62

User Manual Page 62

SNMP

SNMP General Setting

1. SNMP Status: C SNMP Status drop-down menu from SNMP Status drop-down list to choose Enable or Disable to enable or disable SNMP.

2. Description: Description textbox and specify a new description for SNMP.

3. Location: Location textbox and specify a new location for SNMP.

4. Contact: Clic Contact textbox and specify a new contact for SNMP.

5. Trap Community Name: For each Trap Community Name , Trap Community Name textbox and specify a trap community name.

6. Trap Host IP Address: For each Trap Host IP Address, Click i Trap Host IP Address textbox and specify a trap host IP address.

7. Link Down Trap: C Link Down Trap drop-down menu from Link Down Trap drop-down list to choose Enable or Disable to enable or disable link down trap.

8. Link Up Trap: C Link Up Trap drop-down menu from Link Up Trap drop-down list to choose Enable or Disable to enable or disable link up trap.

9. Update Setting: C Update Setting button when you finished SNMP General Setting.

Page 63

User Manual Page 63

SNMP v1/v2c

1. Get Community Name: Get Community Name textbox and specify a get community name.

2. Set Community Name: Set Community Name textbox and specify a set community name.

3. Update Setting: C Update Setting button when you finished SNMP V1/V2c Setting.

Page 64

User Manual Page 64

SNMP v3

Add User:

1. Add User: C Add User button. The SNMP V3 Setting window appears.

2. SNMP Version: C SNMP Version drop-down menu from SNMP Version drop-down list to choose SNMPv3 No-Auth, SNMPv3 Auth-MD5 , SNMPv3 Auth-SHA, SNMPv3 Priv Auth-MD5, or SNMPv3 Priv Auth-SHA.

 SNMPv3 No-Auth: Add a user using SNMP v3 without authentication.  SNMPv3 Auth-MD5: Add a user using SNMP v3 with authentication. Auth.

Password textbox and specify an authentication password.

 SNMPv3 Auth-SHA: Add a user using SNMP v3 with authentication. Auth.

Password textbox and specify an authentication password.

 SNMPv3 Priv Auth-MD5: Add a user using SNMP v3 with authentication and privacy.

Auth. Password textbox and specify an authentication password. Click in

Privacy PassPhrase textbox and specify a privacy pass phrase.

 SNMPv3 Priv Auth-SHA: Add a user using SNMP v3 with authentication and privacy.

Auth. Password textbox and specify an authentication password. Click in

Privacy PassPhrase textbox and specify a privacy pass phrase.

3. User Name: User Name textbox and specify a user name for user using SNMP v3.

4. Access Mode: C Access Mode drop-down menu from Access Mode drop-down list to choose Read Only or Read/Write.

 Read Only: Add a user using SNMP v3 with read-only access mode.  Read/Write: Add an user using SNMP v3 with read-write access mode

5. Submit: C Submit button when you finished SNMP V3 Setting.

Page 65

User Manual Page 65

Delete User:

1. Delete User: C Delete User button. The Select User Name window appears.

2. Select User Name: C Select User Name drop-down menu from Select User Name drop-down list to choose the user to be deleted from using SNMP v3.

3. Submit: C Submit button when you finished user deletion.

Page 66

User Manual Page 66

802.1x

Radius Configuration

1. Radius Status: C Radius Status drop-down menu from Radius Status drop-down list to choose Enable or Disable to globally enable or disable authentication.

2. Update Setting: C Update Setting button when you finished Radius Status Setting.

Add Radius:

1. Add Radius: C Add Radius button. The Radius Server Setting window appears.

2. Radius Server IP: Radius Server IP textbox and specify the IP address of the remote radius server host.

3. Radius Server Port: Radius Server Port textbox and specify the UDP destination port for authentication requests. The host is not used for authentication if set to 0.

4. Secret Key: Click in the Secret Key textbox and specify the authentication and encryption key for all radius communications between the Switch and radius server.

Page 67

User Manual Page 67

This key must match the encryption used on the radius daemon. All leading spaces are ignored, but spaces within and at the end of the key are used. If spaces are used in the key, do not enclose the key in quotation marks unless the quotation marks themselves are part of the key.

5. Timeout <1-1000>: Timeout textbox and specify the time interval (in seconds) that the Switch waits for the radius server to reply before retransmitting. Enter a value in the range 1 to 1000.

6. Retransmit <1-100>: Retransmit textbox and specify the number of times a radius request is resent to a server if that server is not responding or responding slowly. Enter a value in the range 1 to 100.

7. Submit: C Submit button when you finished Radius Server Setting.

Delete Radius:

1. Delete Radius: C Delete Radius button. The Select Radius Server IP window appears.

2. Select Radius Server IP: C Select Radius Server IP drop-down menu from Select Radius Server IP drop-down list to choose the IP address of the remote radius server host to be deleted.

3. Submit: C Submit button when you finished radius server deletion.

Page 68

User Manual Page 68

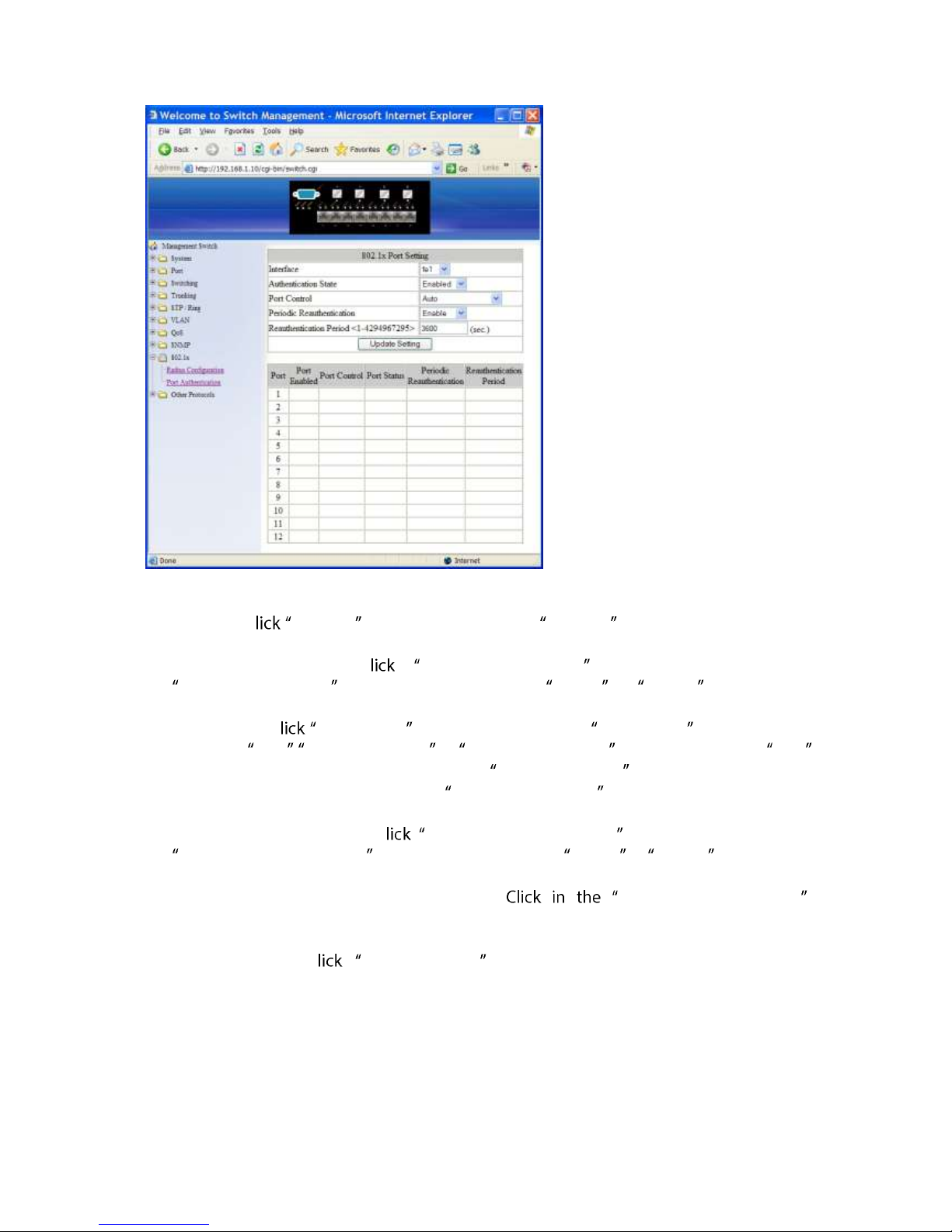

Port Authentication

1. Interface: C Interface drop-down menu from Interface drop-down list to choose the port to be set port-based authentication.

2. Authentication State: C Authentication State drop-down menu from

Authentication State drop-down list to choose Enable or Disable to enable or

disable authentication state.

3. Port Control: C Port Control drop-down menu from Port Control drop-down list to choose Auto, Force Authorized, or Force Unauthorized to force a port state. Auto specifies to enable authentication on port. Force Authorized specifies to force a port to always be in an authorized state. Force Unauthorized specifies to force a port to always be in an unauthorized state.

4. Periodic Reauthentication: C Periodic Reauthentication drop-down menu from

Periodic Reauthentication drop-down list to choose Enable or Disable to enable or

disable periodic reauthentication.

5. Reauthentication Period <1-4294967295>: Reauthentication Period textbox and specify the seconds between reauthorization attempts. The default time is 3600 seconds.

6. Update Setting: C Update Setting button when you finished port-based authentication setting.

Page 69

User Manual Page 69

Other Protocols

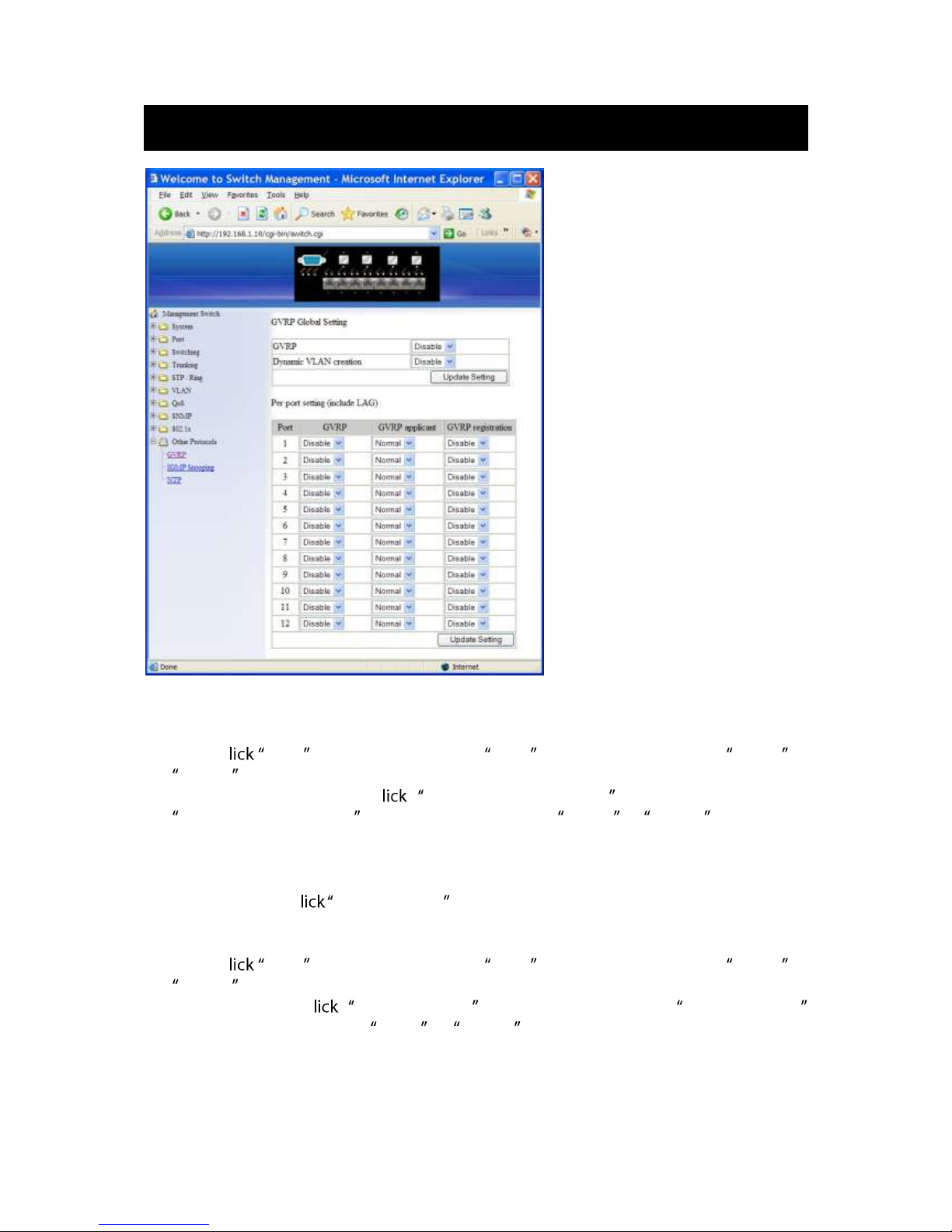

GVRP

GVRP Global Setting:

1. GVRP: C GVRP drop-down menu from GVRP drop-down list to choose Enable or

Disable to enable or disable GVRP (GARP VLAN Registration Protocol).

2. Dynamic VLAN creation: C Dynamic VLAN creation drop-down menu from

Dynamic VLAN creation drop-down list to choose Enable or Disable to enable or disable Dynamic VLAN creation. GARP (Generic Attribute Registration Protocol) provides IEEE802.1Q compliant VLAN pruning and dynamic VLAN creation on IEEE802.1Q trunk ports.

3. Update Setting: C Update Setting button when you finished GVRP Global Setting. Per port setting (include LAG):

1. GVRP: C GVRP drop-down menu from GVRP drop-down list to choose Enable or Disable to enable or disable GVRP for the port.

2. GVRP applicant: C GVRP applicant drop-down menu from GVRP applicant

drop-down list to choose Active or Normal to the port. Ports in the GVRP active applicant state send GVRP VLAN declarations when they are in the STP (Spanning Tree Protocol) blocking state, which prevents the STP bridge protocol data units (BPDUs) from being pruned from the other port. Ports in the GVRP normal applicant state do not declare GVRP VLANs when in the STP blocking state.

Page 70

User Manual Page 70

3. GVRP registration: C GVRP registration drop-down menu from GVRP registration

drop-down list to choose Enable or Disable to enable or disable GVRP registration to the port. Configuring an IEEE802.1Q trunk port in registration mode allows dynamic creation (if dynamic VLAN creation is enabled), registration, and deregistration of VLANs on the trunk port.

4. Update Setting: C Update Setting button when you finished Per port setting.

IGMP Snooping

1. - -down list to

for the switch. Disable: Disable IGMP on the switch. Passive: The switch with only multicast-data-forwarding capability. Querier: The switch acts as the querier for the network. There is only one querier on a network at any time.

2. Update Setting: C Update Setting button when you finished IGMP mode settings.

3. VLAN ID: VLAN ID - VLAN ID -down list to choose the VLAN under configuration for the switch.

4. IGMP version: version -down me version -down

1 2 3 for the switch.

5. Fast-leave: fast-leave - fast-leave -down list to

Enable Disable for the switch. Enable this function will allow members of a multicast group to leave the group immediately when an IGMP Leave Report Packet is received by the Switch.

IGMP querier:

1. Query-interval: query-interval textbox and specify a new number from 1 ~

18000. The query-interval field is used to set the time (in seconds) between transmitting IGMP queries. Entries between 1 and 18000 seconds are allowed. Default = 125.

2. Max-response-time: max-response-time textbox and specify a new number from 1 ~ 124. This determines the maximum amount of time in seconds allowed before sending an IGMP response report. The max-response-time field allows

Page 71

User Manual Page 71

an entry between 1 and 124 (seconds). Default = 10.

IGMP passive snooping:

1. Report suppression: report suppression - report suppression - Enable Disable for the switch. Use this command to enable report suppression for IGMP version 1 and version 2. Report suppression does not apply to IGMP version 3, and is turned off by default for IGMP version 1 and IGMP version 2 reports. The switch uses IGMP report suppression to forward only one IGMP report per multicast router query to multicast devices. When IGMP router suppression is enabled, the switch sends the first IGMP report from all hosts for a group to all the multicast routers. The switch does not send the remaining IGMP reports for the group to the multicast routers. This feature prevents duplicate reports from being sent to the multicast devices.

2. Update Setting: C Update Setting button when you finished IGMP Snooping.

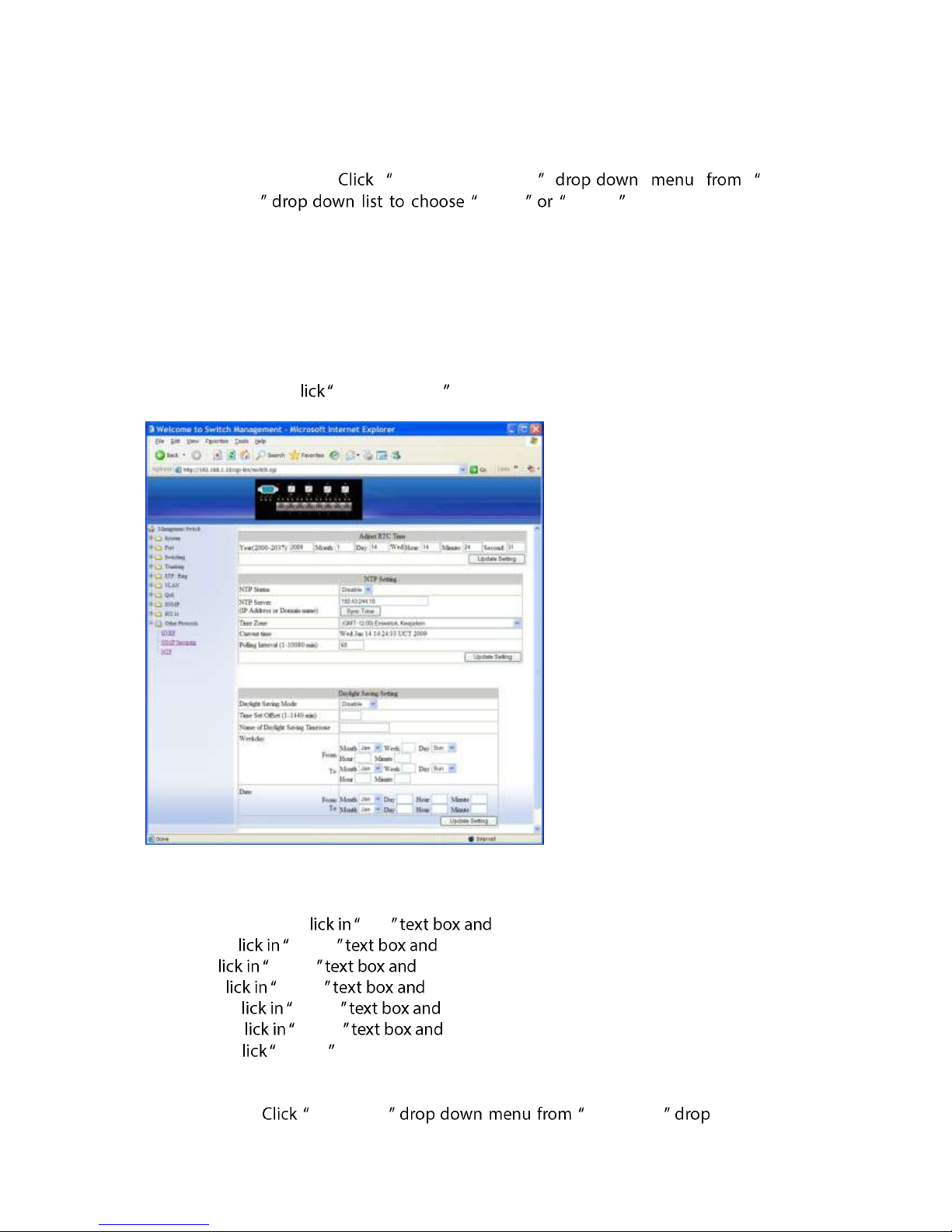

NTP

Adjust RTC Time: Adjust system time for this Switch.

1. Year(2000-2099): C Year specify year 2000 to 2099.

2. Month: C Month specify 1 to 12.

3. Day: C Month specify 1 to 31.

4. Hour: C Month specify 0 to 23.

5. Minute: C Month specify 0 to 59.

6. Second: C Month specify 0 to 59.

7. Submit: C Submit button when you finished Adjust RTC Time.

NTP Setting:

1. NTP Status: NTP Status - NTP Status -down list to

Page 72

User Manual Page 72

Enable Disable to enable or disable NTP for the Switch.

2. NTP Server (IP Address or Domain name): NTP Server textbox and specify the IP address or Domain name of NTP server.

3. Sync Time: C Sync Time button to synchronize time with NTP server.

4. Time Zone: Time Zone - Time Zone -down list to set time zone.

5. Polling Interval (1-10080 min): Polling Interval textbox and specify the polling interval.

6. Update Setting: C Update Setting button when you finished NTP Setting.

Daylight Saving Setting:

1. Daylight Saving Mode: Click "Daylight Saving Mode" drop-down menu from "Daylight Saving Mode" drop-down list to choose "Disable", "Weekday", or "Date" to choose disable, weekday, or date daylight saving for the Switch.

2. Time Set Offset (1-1440 min): Click in the "Time Set Offset" textbox and specify the offset time of daylight saving. For example enter 60 for one hour offset.

3. Name of Daylight Saving Timezone: Click in the " Name of Daylight Saving Timezone" textbox and specify the daylight saving timezone. This can be any given name in 14-character alpha-numerical. Enter the Daylight-Saving time zone using the following example:

EDT - East Daylight Saving Time Zone. CDT - Central Daylight-Saving Time Zone. MDT - Mountain Daylight-Saving Time Zone. PDT - Pacific Daylight-Saving Time Zone. ADT - Alaska Daylight-Saving Time Zone.

4. Weekday: Click in the textboxes and specify the daylight saving period.

 Month: Click "Month" drop-down menu from "Month" drop-down list to choose

from January to December.

 Week: <1-5> Specifies weekdays from Monday to Friday.  Day: Click "Day" drop-down menu from "Day" drop-down list to choose from

Sunday to Saturday.

 Hour: <0-23> Specifies from 0 to 23.  Minute: <0-59> Specifies from 0 to 59.

5. Date: Click in the textboxes and specify the daylight saving period.

 Month: Click "Month" drop-down menu from "Month" drop-down list to choose

from January to December.

 Day: <1-31> Specifies from 1 to 31.  Hour: <0-23> Specifies from 0 to 23.  Minute: <0-59> Specifies from 0 to 59.

6. Update Setting: Click "Update Setting" button when you finished Daylight Saving Setting.

<Note> T W , Hour , Minute , Day s would not accept the alphabetic characters (Like Jan, Feb, sun, mon). They only accept the two digit numbers (0 through 9).

Page 73

User Manual Page 73

Command Line Console Management

The switch provides a command line console interface for configuration purposes. The switch can be configured either locally through its RS-232 port or remotely via a Telnet session. For the later, you must specify an IP address for the switch first.

This chapter describes how to configure the switch using its console by Commend Line.

Administration Console

Connect the DB9 straight cable to the RS-232 serial port of the device to the RS-232 serial port of the terminal or computer running the terminal emulation application.

Direct access to the administration console is achieved by directly connecting a terminal or a PC equipped with a terminal-emulation program (such as HyperTerminal) to the switch console port.

When using the management method, configure the terminal-emulation program to use the following parameters (you can change these settings after login):

[Default parameters] 115,200bps 8 data bits No parity 1 stop bit

Exec Mode (View Mode)

Logon to Exec Mode (View Mode)

Page 74

User Manual Page 74

At the switch_a login: (or View Mode).

switch_a login: root

Basic commands

Exec Mode (or View Mode) is the base mode from where users can perform basic commands like: clear, debug, disable, enable, exit, help, logout, no, quit, show, terminal The CLI contains a text-based help facility. Access this help by typing in the full or partial command string then typing a question m or parameters along with a short description.

At the switch_a> prompt just press <?> to list the above basic commands.

switch_a>?

At the switch_a> prompt just type in the full or partial command string then typing a

to display the command keywords or parameters along with a short

description.

switch_a>show ?

Page 75

User Manual Page 75

The login session to Exec Mode (or View Mode) has timed out due to an extended period of inactivity (60 seconds) to indicate authentication attempt timed out. And the switch_a

Logon back to Exec Mode (View Mode)

At the switch_a login: to logon back to Exec Mode (or View Mode).

switch_a login: root

Page 76

User Manual Page 76

Exit from Exec Mode (View Mode)

At the switch_a> View Mode).

switch_a>exit

Privileged Exec Mode (Enable Mode)

Logon to Privileged Exec Mode (Enable Mode)

At the switch_a> Exec Mode (or Enable Mode). And the switch_a# prompt will show on the screen.

switch_a>enable

Page 77

User Manual Page 77

Commands

Privileged Exec Mode (or Enable Mode) allows users to run commands as following. At the switch_a# prompt just press <?> to list the commands.

switch_a#?

At the switch_a# prompt just type in the full or partial command string then typing a

Page 78

User Manual Page 78

question to display the command keywords or parameters along with a short description.

switch_a#show ?

The login session to Privileged Exec Mode (or Enable Mode) has timed out due to an extended period of inactivity (60 seconds) to indicate authentication attempt timed out. And the switch_a login: prompt will show on the screen.

Logon back to Exec Mode (View Mode)

At the switch_a login: ter> to logon back to Exec Mode (or View Mode).

switch_a login: root

Page 79

User Manual Page 79

Exit from Privileged Exec Mode (or Enable Mode)

At the switch_a# Mode (or Enable Mode).

switch_a#exit

Configure Mode (Configure Terminal Mode)

Logon to Configure Mode (Configure Terminal Mode)

At the switch_a# Configure Mode (or Configure Terminal Mode). And the switch_a(config)# prompt will show on the screen.

switch_a#configure terminal

Page 80

User Manual Page 80

Commands

Configure Mode (or Configure Terminal Mode) serves as a gateway into the modes as following. At the switch_a(config)# prompt just press <?> to list the commands.

switch_a(config)#?

Page 81

User Manual Page 81

At the switch_a(config)# prompt just type in the full or partial command string then

to display the command keywords or parameters along with a

short description.

switch_a(config)#show ?

The login session to Configure Mode (or Configure Terminal Mode) has timed out due to an extended period of inactivity (60 seconds) to indicate authentication attempt timed out. And the switch_a login: prompt will show on the screen.

Logon back to Exec Mode (View Mode)

At the switch_a login: Mode (or View Mode).

switch_a login: root

Exit from Configure Mode (or Configure Terminal Mode)

At the switch_a(config)# Configure Mode (or Configure Terminal Mode).

switch_a(config)#exit

Page 82

User Manual Page 82

System

System Information, System Name/Password, IP Address, ARP Table, Route Table, Save Configuration, Firmware Upgrade, Alarm Setting, Reboot, Logout

System Name/Password

System Name:

1. Command Mode: Configure mode

Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen.

switch_a(config)#

2. Usage:

Use hostname command to set or change the network server name. Use the no hostname command to disable this function.

3. Command Syntax:

(no) hostname HOSTNAME

HOSTNAME specifies the network name of the system.

4. Example:

The following example sets the hostname to switch, and shows the change in the prompt:

switch_a(config)#hostname switch switch(config)#

Password:

1. Command Mode: Configure mode

Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen.

Page 83

User Manual Page 83

switch_a(config)#

2. Usage:

Use enable password command to modify or create a password to be used when entering the Enable mode.

3. Command Syntax:

enable password PASSWORD

PASSWORD specifies the new password of the system.

4. Example:

The following example sets the new password mypasswd to switch:

switch_a(config)#enable password mypasswd switch_a(config)#

ARP Table

1. Command Mode: Privileged Exec mode

Logon to Privileged Exec Mode (Enable Mode). The switch_a# prompt will show on the screen.

switch_a(config)#

2. Usage:

Use show arp-table command to view ARP Table.

3. Command Syntax:

show arp-table

4. Example:

The following example shows the ARP Table of switch:

switch_a#show arp-table

Route Table

1. Command Mode: Privileged Exec mode

Logon to Privileged Exec Mode (Enable Mode). The switch_a# prompt will show on the screen.

switch_a(config)#

2. Usage:

Use show route-table command to view Route Table.

3. Command Syntax:

show route-table

Page 84

User Manual Page 84

4. Example:

The following example shows the Route Table of switch:

switch_a#show route-table

IP Address

IP Address/IP Subnet Mask:

1. Command Mode: Interface mode

Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. vlan1.1 means vlan 1. The switch_a(config-if)# prompt will show on the screen.

switch_a(config)#interface vlan1.1 switch_a(config-if)#

2. Usage:

Use ip address command to set the IP address of an interface. Use the no ip address command to remove the IP address from an interface.

3. Command Syntax:

ip address IP-ADDRESS no ip address IP-ADDRESS no ip address

IP-ADDRESS A.B.C.D/M specifies the IP address and prefix length of an interface. M specifies IP subnet mask, 8: 255.0.0.0, 16:255.255.0.0, 24: 255.255.255.0.

4. Example:

The following example sets the new IP address 192.168.1.10 and new IP subnet mask

255.255.255.0 to switch:

switch_a(config)#interface vlan1.1 switch_a(config-if)#ip address 192.168.1.10/24 switch_a(config-if)#

Default Gateway:

1. Command Mode: Configure mode

Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen.

switch_a(config)#

2. Usage:

Use ip default-gateway command to set the IP address of the default gateway. Use the no ip default-gateway command to remove the IP address of the default gateway.

Page 85

User Manual Page 85

3. Command Syntax:

ip default-gateway IP-ADDRESS no ip default-gateway

IP-ADDRESS A.B.C.D specifies the IP address of the default gateway.

4. Example:

The following example sets the default gateway 192.168.1.254 to switch:

switch_a(config)#ip default-gateway 192.168.1.254 switch_a(config)#

DNS Server:

1. Command Mode: Configure mode

Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen.

switch_a(config)#

2. Usage:

Use ip dns command to set the IP address of the DNS server. Use the no ip dns command to remove the IP address of the DNS server.

3. Command Syntax:

ip dns IP-ADDRESS no ip dns

IP-ADDRESS A.B.C.D specifies the IP address of the DNS server.

4. Example:

The following example sets the DNS server 192.168.1.100 to switch:

switch_a(config)#ip dns 192.168.1.100 switch_a(config)#

Save Configuration

Load config from TFTP server:

1. Command Mode: Privileged Exec mode

Logon to Privileged Exec Mode (Enable Mode). The switch_a# prompt will show on the screen.

switch_a#

2. Usage:

Use install image command to load configuration file from tftp server to switch.

3. Command Syntax:

install image IP-ADDRESS WORD IP-ADDRESS specifies the IP address of tftp server.

Page 86

User Manual Page 86

WORD specifies the file name to be loaded to switch.

4. Example:

The following example specifies upgrading firmware (file name: flash.tgz) from tftp server (IP address: 192.168.1.100) to switch:

switch_a#install image 192.168.1.100 flash.tgz switch_a#

Load config to TFTP server:

1. Command Mode: Privileged Exec mode

Logon to Privileged Exec Mode (Enable Mode). The switch_a# prompt will show on the screen.

switch_a#

2. Usage:

Use write config-file command to backup configuration file to tftp server.

3. Command Syntax:

write config-file IP-ADDRESS IP-ADDRESS specifies the IP address of tftp server.

4. Example:

The following example backups configuration file to tftp server (IP address: 192.168.1.20):

switch_a#write config-file 192.168.1.20 switch_a#

Save Configuration:

1. Command Mode: Privileged Exec mode

Logon to Privileged Exec Mode (Enable Mode). The switch_a# prompt will show on the screen.

switch_a#

2. Usage:

Use copy running-config startup-config command to write configurations to the file to be used at startup. This is the same as the write memory command.

3. Command Syntax:

copy running-config startup-config

4. Example:

The following example specifies writing configurations to the file to be used at startup to switch:

switch_a#copy running-config startup-config

Page 87

User Manual Page 87

switch_a#

Restore Default:

1. Command Mode: Privileged Exec mode

Logon to Privileged Exec Mode (Enable Mode). The switch_a# prompt will show on the screen.

switch_a#

2. Usage:

Use restore default command to restore default setting of the switch.

3. Command Syntax:

restore default

4. Example:

The following example restores default setting of the switch:

switch_a#restore default switch_a#

Auto Save:

1. Command Mode: Configure mode

Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen.

switch_a(config)#

2. Usage:

Use this command to enable auto save configuration function. The configuration will be automatically saved at every configured interval while this command is enabled. Use the no form of this command to disable this feature.

3. Command Syntax:

service auto-config enable no service auto-config enable

4. Example:

The following example enables or disables auto save configuration to switch:

switch_a(config)#service auto-config enable switch_a(config)#no service auto-config enable switch_a(config)#

Auto Save Interval (5~65536 sec):

Page 88

User Manual Page 88

1. Command Mode: Configure mode

Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen.

switch_a(config)#

2. Usage:

Use this command to set the interval when the configuration would be automatically saved. The range of interval value is from 5 to 65535. And the default value is 30 seconds.

3. Command Syntax:

service auto-config interval WORD

WORD specifies the interval value.

4. Example:

The following example sets the interval WORD (10) when the configuration would be automatically saved to switch:

switch_a(config)#service auto-config interval 10 switch_a(config)#

Firmware Upgrade

1. Command Mode: Privileged Exec mode

Logon to Privileged Exec Mode (Enable Mode). The switch_a# prompt will show on the screen.

switch_a#

2. Usage:

Use install image command to upgrade firmware from tftp server to switch.

3. Command Syntax:

install image IP-ADDRESS WORD IP-ADDRESS specifies the IP address of tftp server.

WORD specifies the file name to be upgraded to switch.

4. Example:

The following example specifies upgrading firmware (file name: flash.tgz) from tftp server (IP address: 192.168.1.100) to switch:

switch_a#install image 192.168.1.100 flash.tgz switch_a#

Please follow the message on the screen during the firmware upgrade process. Do not turn off the power or perform other functions during this period of time.

Page 89

User Manual Page 89

# eload reboot the switch

after completing the upgrade process.

Alarm Setting

Alarm-trigger if:

1. Command Mode: Configure mode

Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen.

switch_a(config)#

2. Usage:

Use this command to enable or disable alarm trigger on interface.

3. Command Syntax:

(no) alarm-trigger if INTERFACE

INTERFACE specifies the interface.

Page 90

User Manual Page 90

4. Example:

The following example enables alarm trigger on interface fe1 to switch:

switch_a(config)#alarm-trigger if fe1 switch_a(config)#

Alarm-trigger power:

1. Command Mode: Configure mode

Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen.

switch_a(config)#

2. Usage:

Use this command to enable or disable alarm trigger of power source.

3. Command Syntax:

(no) alarm-trigger power POWER

POWER specifies the power source.

4. Example:

The following example enables alarm trigger of power 1 to switch:

switch_a(config)#alarm-trigger power 1 switch_a(config)#

Reboot

1. Command Mode: Privileged Exec mode

Logon to Privileged Exec Mode (Enable Mode). The switch_a# prompt will show on the screen.

switch_a#

2. Usage:

Use reload command to restart switch.

3. Command Syntax:

reload

4. Example:

The following example specifies restarting switch:

switch_a#reload switch_a login:

Page 91

User Manual Page 91

Logout

1. Command Mode: Exec mode or Privileged Exec mode

Logon to Exec Mode (View Mode) or Privileged Exec Mode (Enable Mode). The switch_a> or switch_a# prompt will show on the screen.

switch_a>

switch_a#

2. Usage:

Use logout command to exit from the Exec mode or Privileged Exec mode.

3. Command Syntax:

logout

4. Example:

The following example specifies to exit from the Exec mode or Privileged Exec mode.

switch_a>logout switch_a login:

Page 92

User Manual Page 92

Port

Configuration, Port Status, Rate Control, RMON Statistics, Per Port Vlan Activities

Configuration

Admin Setting:

1. Command Mode: Interface mode

Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen.

switch_a(config)#interface fe1 switch_a(config-if)#

2. Usage:

Use the shutdown command to shut down the selected interface. Use the no shutdown to disable this function.

3. Command Syntax:

(no) shutdown

4. Example:

The following example shows the use of the shutdown command to shut down the interface fe1 (port 1):

switch_a(config)#interface fe1 switch_a(config-if)#shutdown switch_a(config-if)#

Duplex:

1. Command Mode: Interface mode

Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen.

switch_a(config)#interface fe1 switch_a(config-if)#

2. Usage:

Use duplex command to specify the duplex mode to be used for each interface. Use the no duplex to disable this function.

3. Command Syntax:

(no) duplex MODE

Page 93

User Manual Page 93

MODE specifies the duplex mode: auto, full, half.

4. Example:

The following example shows the use of duplex MODE (full) to the interface fe1 (port 1):

switch_a(config)#interface fe1 switch_a(config-if)#duplex full switch_a(config-if)#

Flow control:

1. Command Mode: Interface mode

Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen.

switch_a(config)#interface fe1 switch_a(config-if)#

2. Usage:

Use flowcontrol on command to enable flow control, and configure the flow control mode for the port. Use the no flowcontrol to disable this function.

3. Command Syntax:

flowcontrol on no flowcontrol

4. Example:

The following example shows the use of flowcontrol on to the interface fe1 (port 1):

switch_a(config)#interface fe1 switch_a(config-if)#flowcontrol on switch_a(config-if)#

Port Status

1. Command Mode: Exec mode or Privileged Exec mode

Logon to Exec Mode (View Mode) or Privileged Exec Mode (Enable Mode). The switch_a> or switch_a# prompt will show on the screen.

switch_a>

switch_a#

2. Usage:

Use the show interface command to display interface configuration and status.

Page 94

User Manual Page 94

3. Command Syntax:

show interface IFNAME

IFNAME specifies the name of the interface for which status and configuration information is desired.

4. Example:

The following example shows the use of show interface to display interface configuration and status of the interface fe1 (port 1):

switch_a>show interface fe1

Alarm Situation:

1. Command Mode: Privileged Exec mode

Logon to Privileged Exec Mode (Enable Mode). The switch_a# prompt will show on the screen.

switch_a#

2. Usage:

Use the show sfp-alarm-trigger command to show the information of SFP alarm trigger including temperature, Vcc, Tx_bias, Tx_pow and Rx_pow.

3. Command Syntax:

show sfp-alarm-trigger IFNAME

IFNAME specifies the name of the interface for which status and configuration information is desired.

4. Example:

The following example shows the use of show sfp-alarm-trigger to display the information of SFP alarm trigger of the interface ge1 (port G1):

switch_a#show sfp-alarm-trigger ge1

Temperature Alarm (Warning) Threshold:

1. Command Mode: Configure mode

Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen.

switch_a(config)#

2. Usage:

Use this command to set temperature alarm (warning) threshold for SFP transceiver.

3. Command Syntax:

sfp set-temp IFNAME high-alarm｜high-warning｜low alarm｜low warning LEVEL

IFNAME specifies the name of the interface for which status and configuration information is desired.

Page 95

User Manual Page 95

LEVEL Threshold value -128 ~ 128℃.

4. Example:

The following example sets high temperature alarm threshold 100℃ for SFP transceiver of interface ge1 (port G1):

switch_a(config)#sfp set-temp ge1 high-alarm 100 switch_a(config)#

Voltage Alarm (Warning) Threshold:

1. Command Mode: Configure mode

Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen.

switch_a(config)#

2. Usage:

Use this command to set voltage alarm (warning) threshold for SFP transceiver.

3. Command Syntax:

sfp set-vcc IFNAME high-alarm｜high-warning｜low alarm｜low warning LEVEL

IFNAME specifies the name of the interface for which status and configuration information is desired. LEVEL Threshold value 0 ~ 6.55 volts.

4. Example:

The following example sets high voltage alarm threshold 6 volts for SFP transceiver of interface ge1 (port G1):

switch_a(config)#sfp set-vcc ge1 high-alarm 6 switch_a(config)#

Tx-bias Alarm (Warning) Threshold:

1. Command Mode: Configure mode

Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen.

switch_a(config)#

2. Usage:

Use this command to set transmitter laser bias alarm (warning) threshold for SFP transceiver.

3. Command Syntax:

sfp set-tx-bias IFNAME high-alarm｜high-warning｜low alarm｜low warning LEVEL

IFNAME specifies the name of the interface for which status and configuration information is desired.

Page 96

User Manual Page 96

LEVEL Threshold value 0 ~ 131 mA.

4. Example:

The following example sets high transmitter laser bias alarm threshold 131 mA for SFP transceiver of interface ge1 (port G1):

switch_a(config)#sfp set-tx-bias ge1 high-alarm 131 switch_a(config)#

Tx-pow Alarm (Warning) Threshold:

1. Command Mode: Configure mode

Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen.

switch_a(config)#

2. Usage:

Use this command to set transmitted output power alarm (warning) threshold for SFP transceiver.

3. Command Syntax:

sfp set-tx-pow IFNAME high-alarm｜high-warning｜low alarm｜low warning LEVEL

IFNAME specifies the name of the interface for which status and configuration information is desired. LEVEL Threshold value -30 ~ 8.16 dbm.

4. Example:

The following example sets high transmitted output power alarm threshold 8.16 dbm for SFP transceiver of interface ge1 (port G1):

switch_a(config)#sfp set-tx-pow ge1 high-alarm 8.16 switch_a(config)#

Rx-pow Alarm (Warning) Threshold:

1. Command Mode: Configure mode

Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen.

switch_a(config)#

2. Usage:

Use this command to set received optical power alarm (warning) threshold for SFP transceiver.

3. Command Syntax:

sfp set-rx-pow IFNAME high-alarm｜high-warning｜low alarm｜low warning LEVEL

IFNAME specifies the name of the interface for which status and configuration

Page 97

User Manual Page 97

information is desired. LEVEL Threshold value -30 ~ 8.16 dbm.

4. Example:

The following example sets high received optical power alarm threshold 8.16 dbm for SFP transceiver of interface ge1 (port G1):

switch_a(config)#sfp set-rx-pow ge1 high-alarm 8.16 switch_a(config)#

Rate Control

1. Command Mode: Interface mode

Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen.

switch_a(config)#interface fe1 switch_a(config-if)#

2. Usage:

Use this command to specify the ingress/egress rate to be used for each interface. The bandwidth value is in bits. Use the no parameter with this command to remove the ingress/egress rate to be used for each interface.

3. Command Syntax:

(no) rate-control ingress/egress VALUE

VALUE <1-10000000000 bits> (usable units: k, m, g) <1-999>k|m for 1 to 999 kilo bits or mega bits. 1g for 1 giga bits.

4. Example:

The following example shows the use of rate-control ingress VALUE (10 mega bits) to the interface fe1 (port 1):

switch_a(config)#interface fe1 switch_a(config-if)#rate-control ingress 10m switch_a(config-if)#

RMON Statistics

1. Command Mode: Exec mode or Privileged Exec mode

Logon to Exec Mode (View Mode) or Privileged Exec Mode (Enable Mode). The switch_a> or switch_a# prompt will show on the screen.

switch_a>

Page 98

User Manual Page 98

switch_a#

2. Usage:

Use the show interface statistics command to display RMON statistics of interface.

3. Command Syntax:

show interface statistics IFNAME

IFNAME specifies the name of the interface for which RMON statistics is desired.

4. Example:

The following example shows the use of show interface statistics to display RMON statistics of the interface fe1 (port 1):

switch_a>show interface statistics fe1

Per Port Vlan Activities

1. Command Mode: Exec mode or Privileged Exec mode

Logon to Exec Mode (View Mode) or Privileged Exec Mode (Enable Mode). The switch_a> or switch_a# prompt will show on the screen.

switch_a>

switch_a#

2. Usage:

Use show vlan command to display information about a particular VLAN by specifying the VLAN ID.

3. Command Syntax:

show vlan <2-4094>

<2-4094> VLAN ID.

4. Example:

The following is an output of show vlan command displaying information about VLAN 2:

switch_a>show vlan 2

Page 99

User Manual Page 99

Switching

Bridging, Static MAC Entry, Port Mirroring, PoE, PoE Scheduling

Bridging

Aging Time (seconds):

1. Command Mode: Configure mode

Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen.

switch_a(config)#

2. Usage:

Use this command to specify an ageing-out time for a learned MAC address. The learned MAC address will persist till this specified time.

3. Command Syntax:

Bridge GROUP ageing-time AGEINGTIME no bridge GROUP ageing-time

Group = <1-1> The ID of the bridge-group that this ageing time is for. AGEINGTIME = <10-1000000> The number of seconds of persistence.

4. Example:

The following example sets the new AGEINGTIME (1000) to bridge GROUP (1):

switch_a(config)#bridge 1 ageing-time 1000 switch_a(config)#

Threshold level (0-100):

1. Command Mode: Interface mode

Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen.

switch_a(config)#interface fe1 switch_a(config-if)#

2. Usage:

Use storm-control level command to specify the rising threshold level for broadcasting, multicast, or destination lookup failure traffic. The storm control action occurs when traffic utilization reaches this level.

3. Command Syntax:

storm-control level LEVEL

LEVEL <0-100> specifies the percentage of the threshold; percentage of the maximum speed (pps) of the interface.

Page 100

User Manual Page 100

4. Example:

The following example shows setting storm-control level LEVEL (30) to the interface fe1 (port 1):

switch_a(config)#interface fe1 switch_a(config-if)#storm-control level 30 switch_a(config-if)#

Broadcast:

1. Command Mode: Interface mode

Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen.

switch_a(config)#interface fe1 switch_a(config-if)#

2. Usage:

Use storm-control broadcast enable command to enable broadcast traffic. Use no storm-control broadcast command to disable broadcast traffic.

3. Command Syntax:

storm-control broadcast enable no storm-control broadcast

4. Example:

The following example shows setting storm-control broadcast enable to the interface fe1 (port 1):

switch_a(config)#interface fe1 switch_a(config-if)#storm-control broadcast enable switch_a(config-if)#

Multicast:

1. Command Mode: Interface mode

Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen.

switch_a(config)#interface fe1 switch_a(config-if)#

2. Usage:

Use storm-control multicast enable command to enable multicast traffic.
