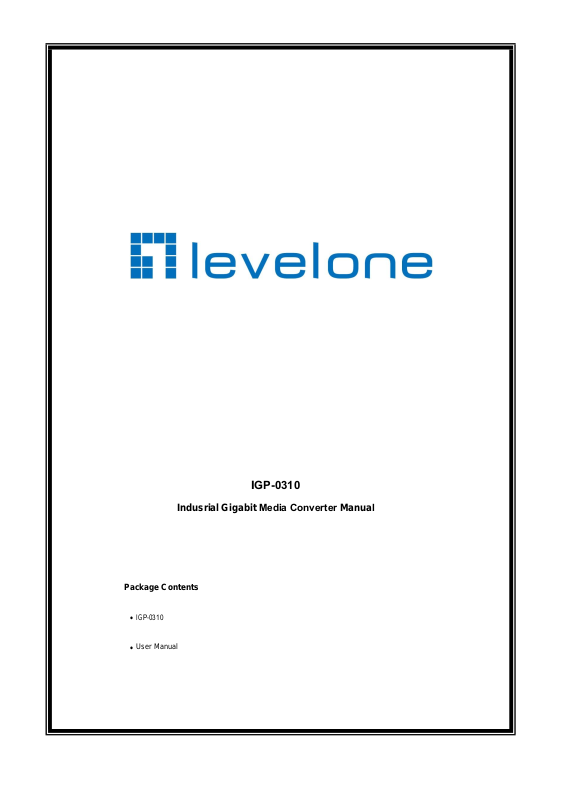

Indusrial Gigabit Media Converter Manual
Package Contents
•
IGP-0310
User Manual
•
IGP-0310
Page 2
CE Marking Warning
CE marking is a certification mark that indicates conformity with health, safety, and
environmental protection standards for products sold within the European Economic Area
(EEA).The CE marking is also found on products sold outside the EEA that have been
manufactured to EEA standards. This makes the CE marking recognizable worldwide even to
people who are not familiar with the European Economic Area.
WEEE
WEEE is waste electrical and electronic equipment. It is end-of-life electrical and electronic
equipment and covers virtually everything with a plug or battery. ... The EC introduced the
WEEE Directive in 2002 to address the environmental impacts of unwanted electrical and
electronic equipment at end-of-life disposal.
FCC Certifications
This Equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received; including interference that may cause undesired
operation.
Page 3
❖ Overview
Parameter
Specifications
Power supply
Powered by PoE Ethernet port
Consumption
Self consumption<5W
Downlink ports
Ports 1: 10/100/1000Base-T 30W PD ;
Ports 2: 10/100/1000Base-T 30W PSE ;
Uplink ports
Port 3: 1000Base-X SFP
Relay alarm
Relay alarm for power off, network broken, PoE off;
Cable and distance
Use cat5e/6,100m max
Standard
IEEE802.3, IEEE802.3u, IEEE802.3z
Switch fabric
6 Gbps
IGP-0310 full gigabit industrial PoE switch that supports up to 1*10/100/1000M 30W PD, 1*10/100/1000M 30W PSE
downlink ports, 1*1000M SFP port. 2*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at standard.
It has the characteristics of reliable work, strong and durable, high performance and so on. It can be used in security
network video monitoring system, network engineering and other occasions.
Supports relay alarm for power off, network broken, PoE off;
6KV surge protection, 6KV contact/8KV air ESD protection;
Supports desktop installation, which is reliable and durable, and can be used in security network video monitoring, network
engineering and other occasions.
❖ Picture
❖ Features
With 1*10/100/1000M 30W PD, 1*10/100/1000M 30W PSE downlink ports, 1*1000M SFP port ;
Supports relay alarm for power off, network broken, PoE off;
6KV surge protection, 6KV contact/8KV air ESD protection;
Supports desktop installation, which is reliable and durable, and can be used in security network video monitoring,
network engineering and other occasions.
Supports working temperature -40℃～75℃.
❖ Specifications
Page 4
Though put
4.46 Mpps
Buffer
1M
MAC address table
8K
Indicator
Uplink3: Green LEDs indicate Link/Act
Downlink 1~2: On RJ45 green LEDs indicate Link/Act
Yellow LEDs indicate PoE
Protection
Surge: 6KV, standard: IEC61000-4-5
ESD: 6KV: contact / 8KV: air, standard:IEC61000-4-2
Working temperature
-40℃~75℃
Storage temperature
-40℃~85℃
Humidity
0~95%(No condensation)
Dimension(L×W×H)
101 mm×65 mm×36mm
Material
Aluminium alloy
Colour
Black
Net-weight
300g

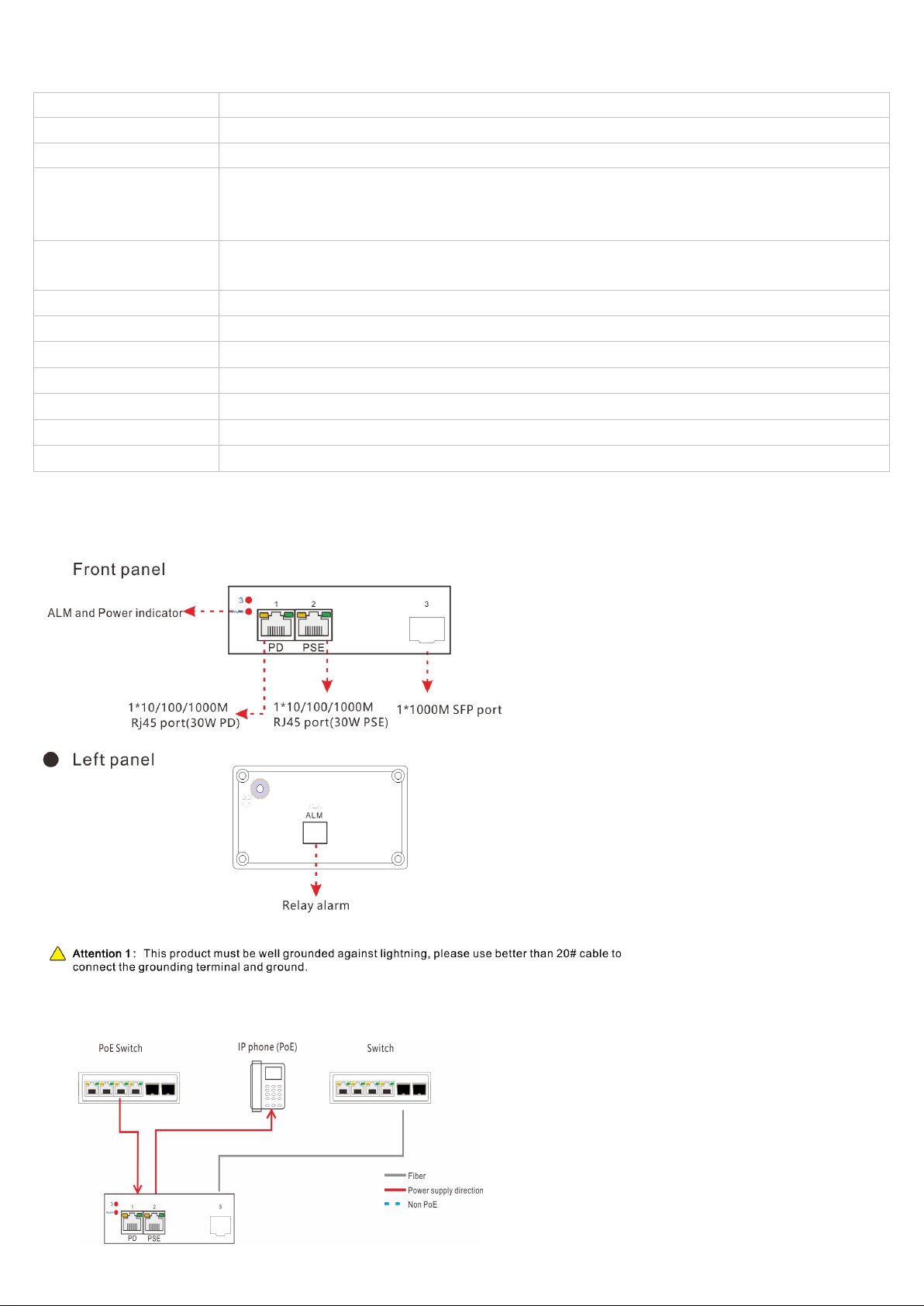

❖ Panel diagram
❖ Application
Page 5

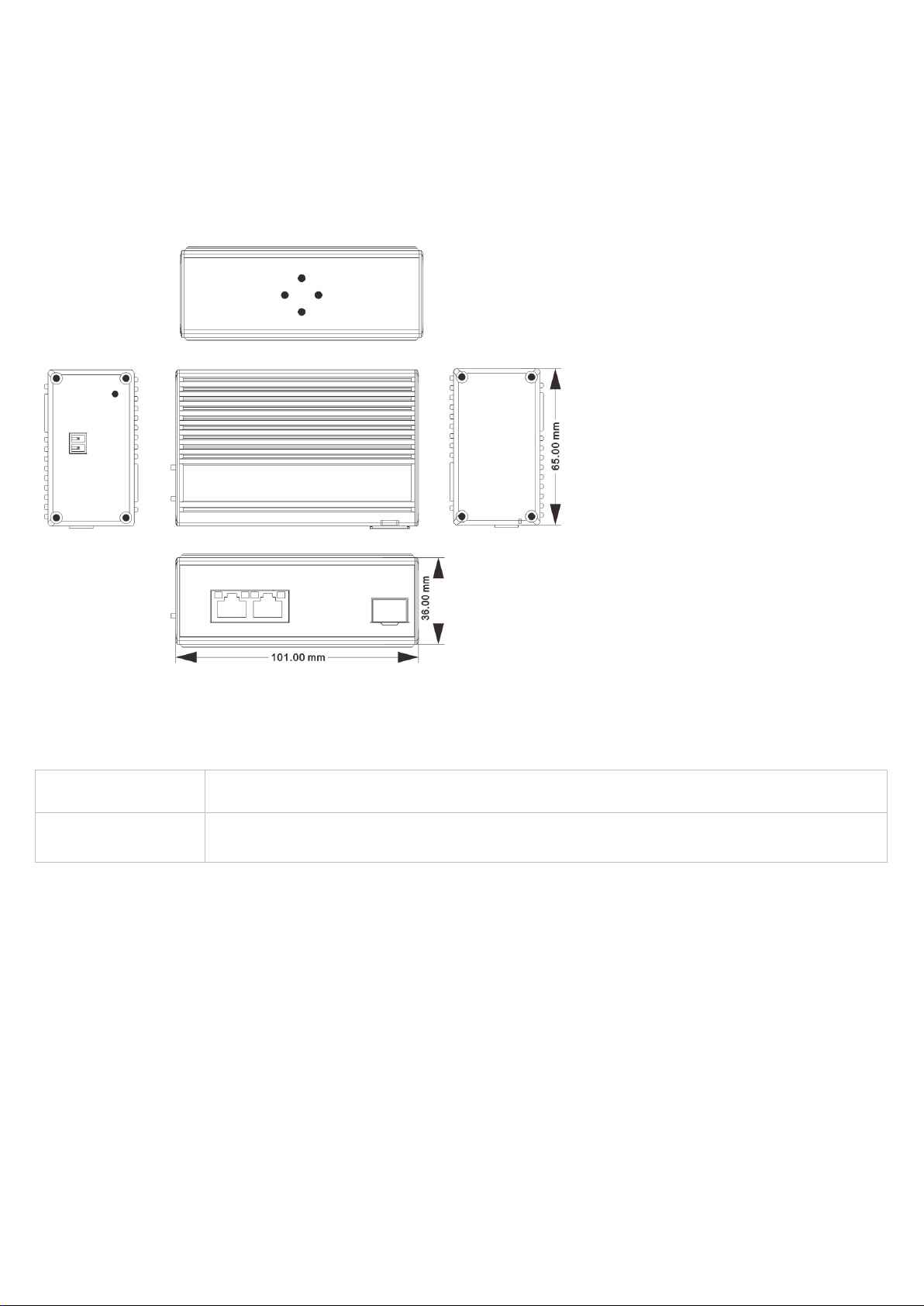

❖ Dimensions
Model
Description
With 1*10/100/1000M 30W PD, 1*10/100/1000M 30W PSE downlink ports, 1*1000M SFP port;
Supports relay alarm function for power off, network broken and PoE off.
❖ Order information
IGP-0310
