Page 1

IES-2881

24 100FX SFP + 4 GE Combo SFP Managed Switch -40 to 75C

User Manual

v1.00 - 1206

Page 2

User Manual Page 2

Preface

This manual describes how to install and use the Industry Managed Ethernet Switch. This switch introduced here is designed to deliver full scalability with SNMP/RMON web-based management functions by providing:

To get the most out of this manual, you should have an understanding of Ethernet networking concepts.

In this manual, you will find: Features on the Industry Managed Ethernet Switch

 Illustrative LED functions  Installation instructions  Management Configuration   Specifications

Page 3

User Manual Page 3

Table of Contents

PREFACE ....................................................................................................................................................... 2

QUICK START GUIDE ..................................................................................................................................... 5

FUNCTIONAL DESCRIPTION ....................................................................................................................................... 5

PHYSICAL DESCRIPTION ............................................................................................................................................ 6

CONSOLE CONFIGURATION ....................................................................................................................................... 7

WEB CONFIGURATION ............................................................................................................................................. 9

PRODUCT OVERVIEW ................................................................................................................................. 10

INDUSTRY MANAGED ETHERNET SWITCH ................................................................................................................... 10

PACKAGE CONTENTS .............................................................................................................................................. 10

PRODUCT HIGHLIGHTS ........................................................................................................................................... 11

FRONT PANEL DISPLAY ........................................................................................................................................... 13

PHYSICAL PORTS ................................................................................................................................................... 14

SWITCH MANAGEMENT ......................................................................................................................................... 15

INSTALLATION ............................................................................................................................................ 16

SELECTING A SITE FOR THE SWITCH ........................................................................................................................... 16

CONNECTING TO POWER ........................................................................................................................................ 16

CONNECTING TO YOUR NETWORK ............................................................................................................................ 18

SWITCH MANAGEMENT ............................................................................................................................. 19

MANAGEMENT ACCESS OVERVIEW ........................................................................................................................... 19

ADMINISTRATION CONSOLE (CLI) ............................................................................................................................ 20

WEB MANAGEMENT ............................................................................................................................................. 21

SNMP-BASED NETWORK MANAGEMENT ................................................................................................................. 21

PROTOCOLS ......................................................................................................................................................... 21

MANAGEMENT ARCHITECTURE ................................................................................................................................ 22

WEB-BASED BROWSER MANAGEMENT ...................................................................................................... 23

SNMP & RMON MANAGEMENT ................................................................................................................. 24

OVERVIEW ........................................................................................................................................................... 24

SNMP AGENT AND MIB-2 (RFC 1213) .................................................................................................................. 24

RMON MIB (RFC 2819) & BRIDGE MIB (RFC 1493) .............................................................................................. 25

WEB-BASED BROWSER MANAGEMENT ...................................................................................................... 27

LOGGING ON TO THE SWITCH ................................................................................................................................... 27

UNDERSTANDING THE BROWSER INTERFACE ............................................................................................................... 28

SYSTEM ............................................................................................................................................................... 30

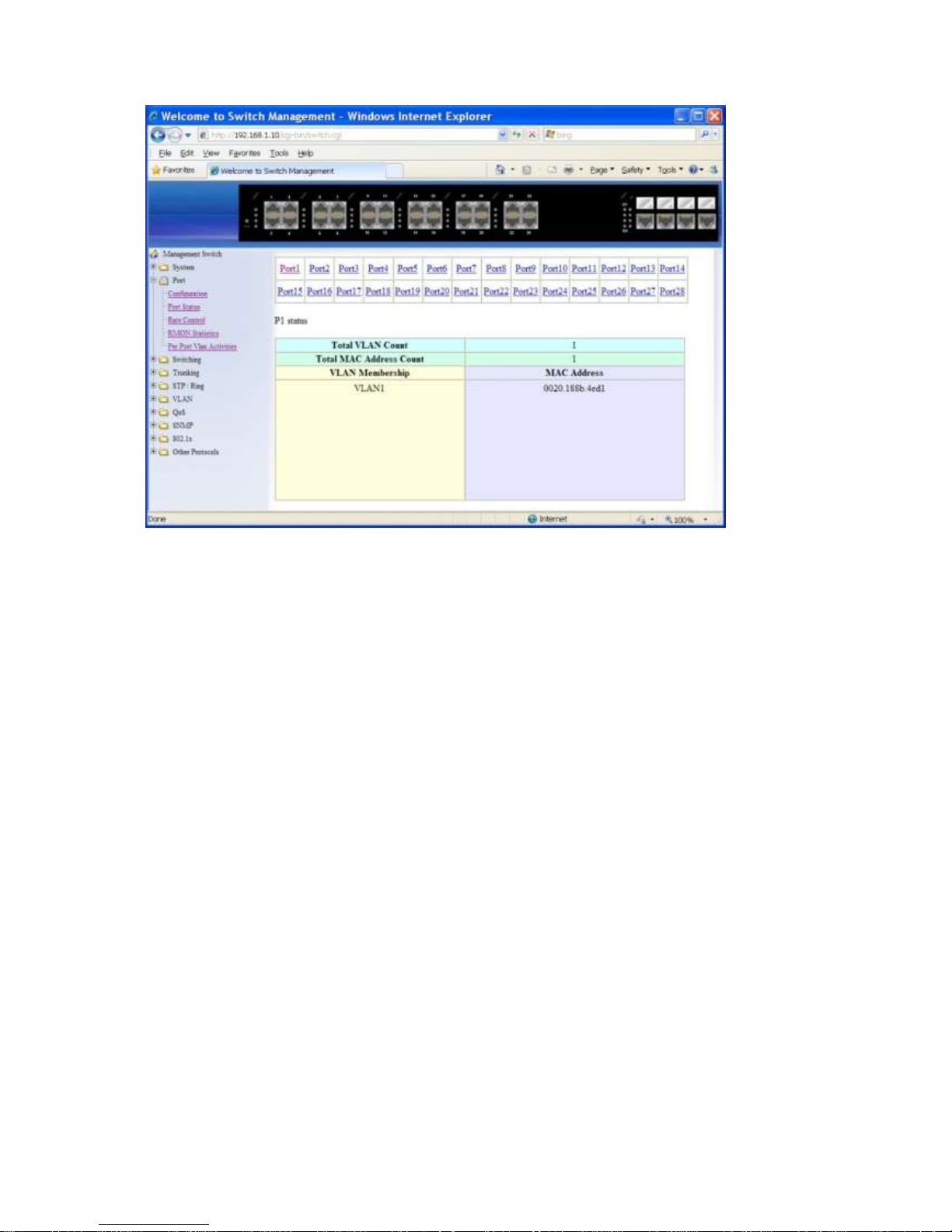

PORT .................................................................................................................................................................. 38

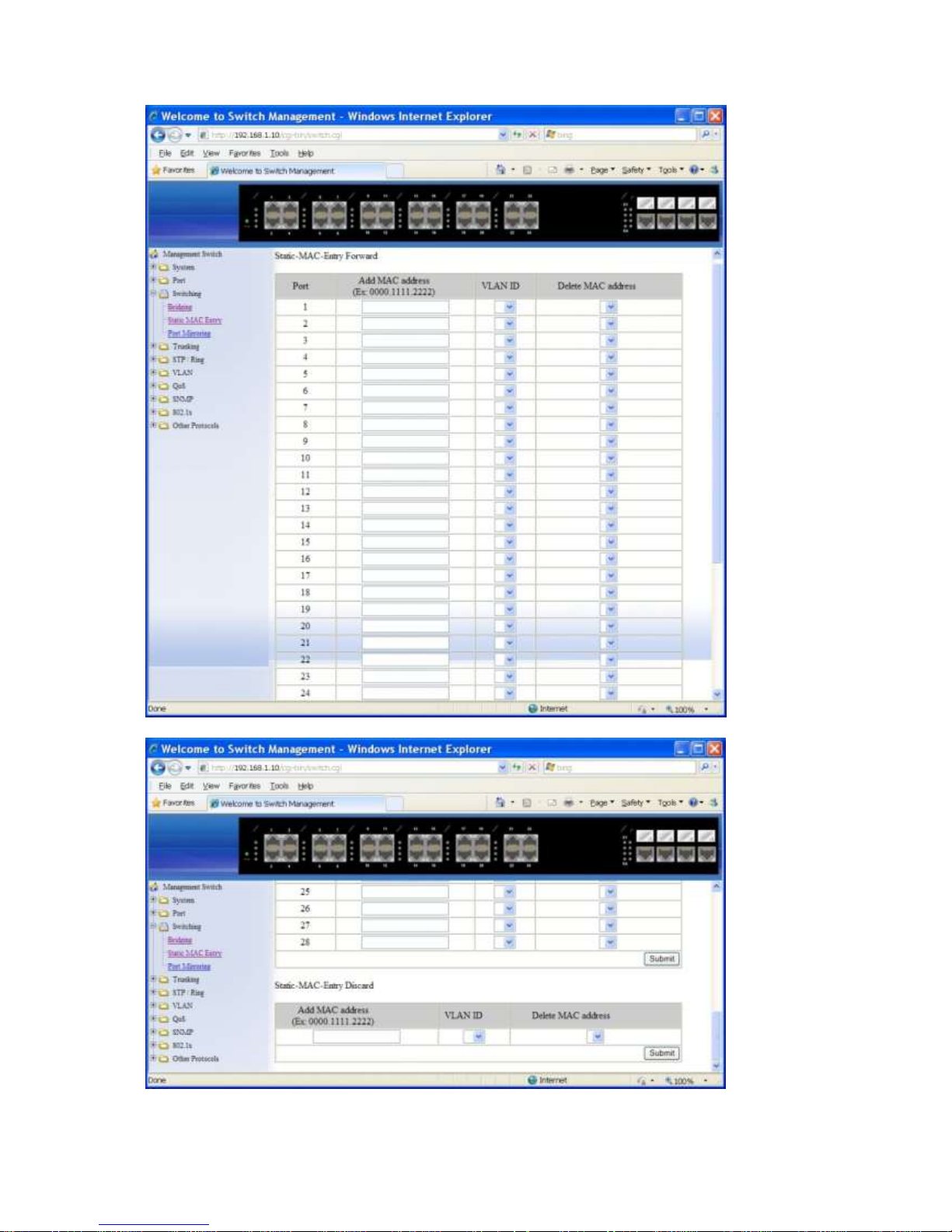

SWITCHING .......................................................................................................................................................... 43

TRUNKING ........................................................................................................................................................... 47

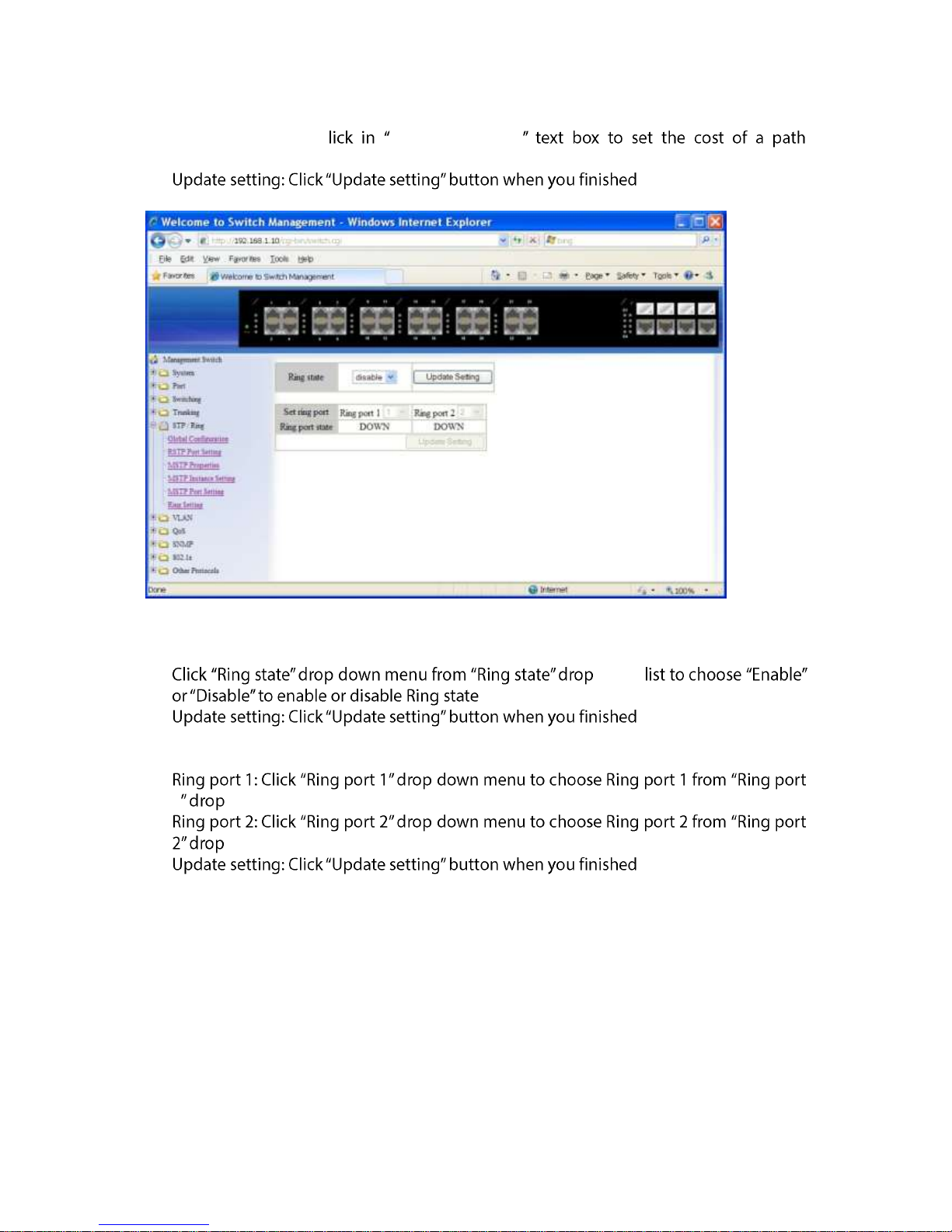

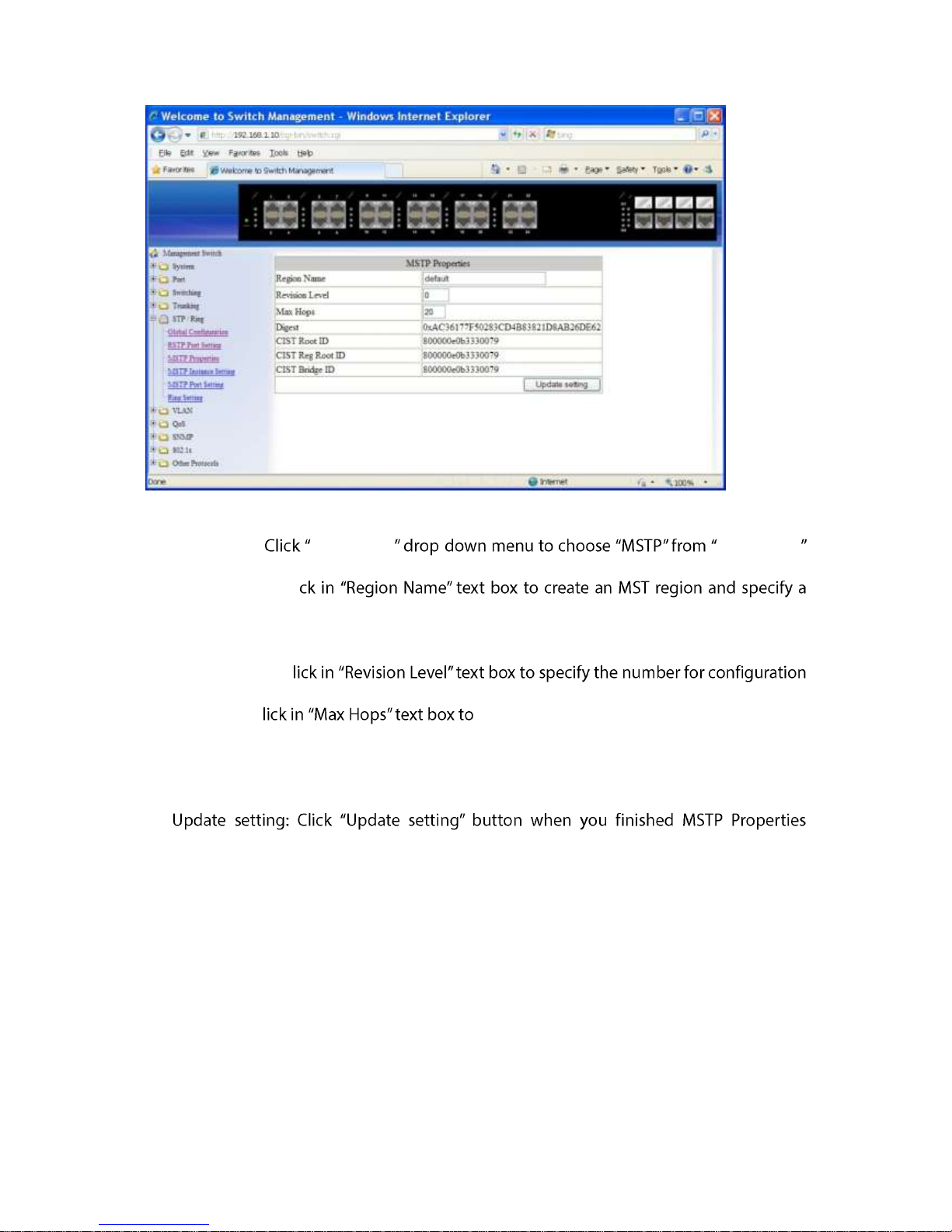

STP / RING ......................................................................................................................................................... 48

VLAN ................................................................................................................................................................ 57

QOS ................................................................................................................................................................... 62

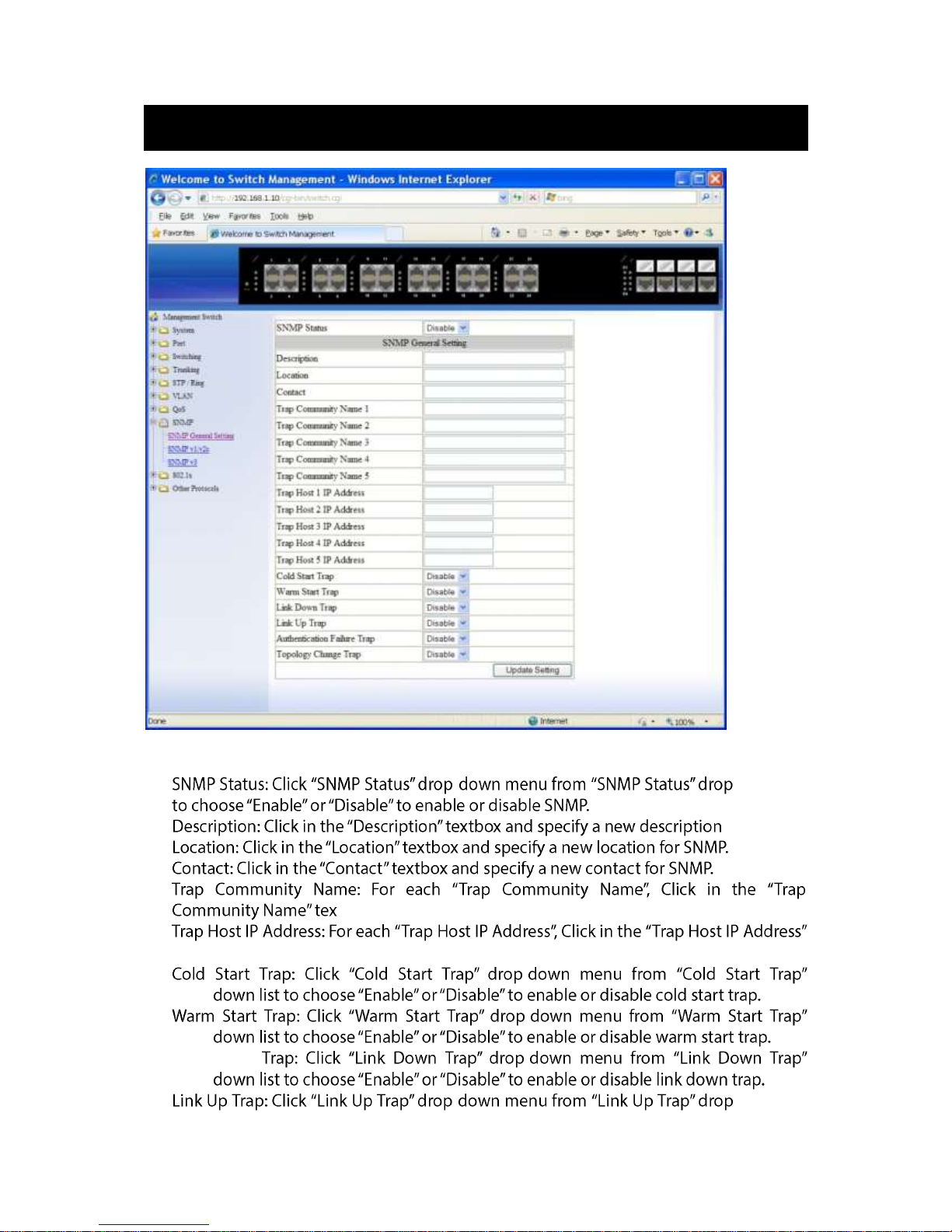

SNMP ............................................................................................................................................................... 65

802.1X .............................................................................................................................................................. 69

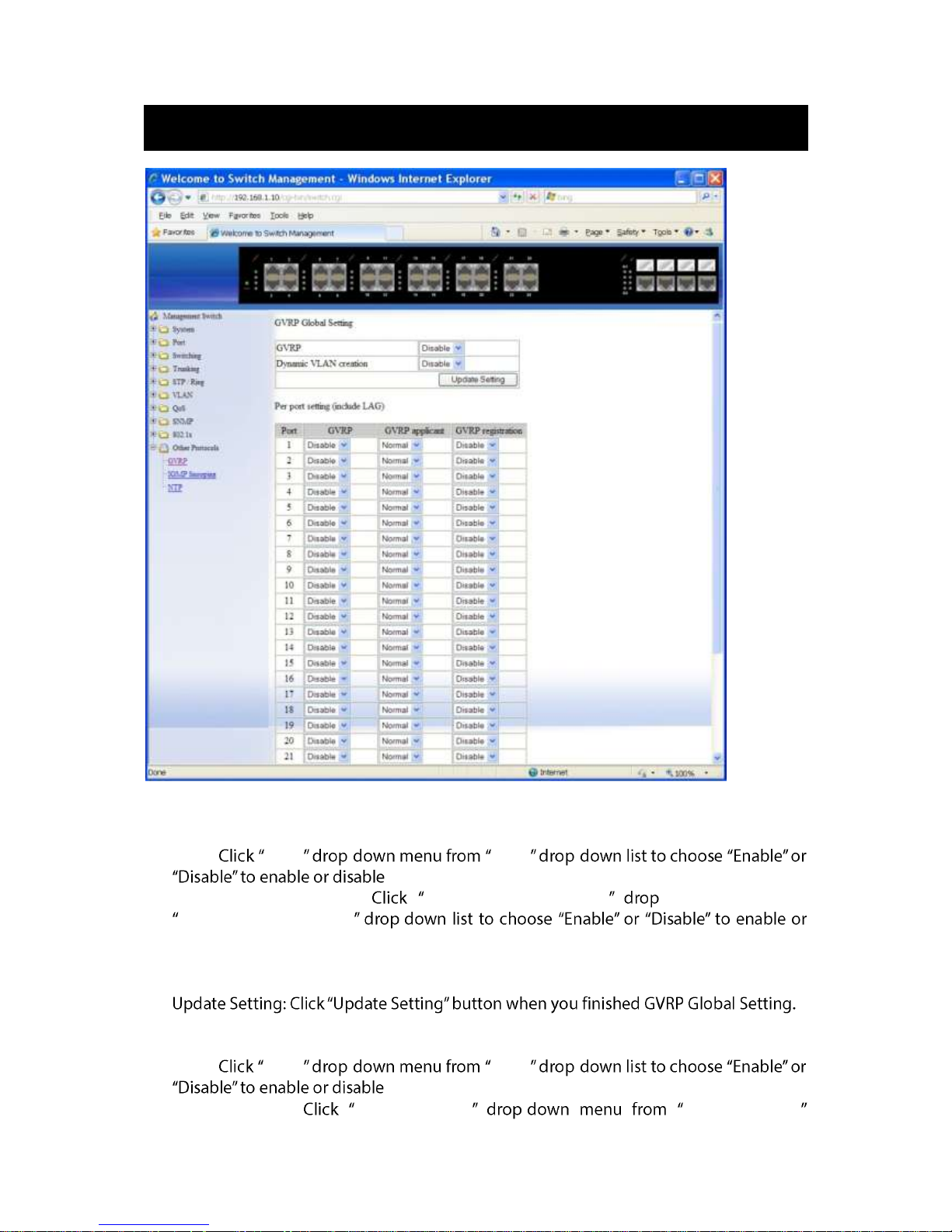

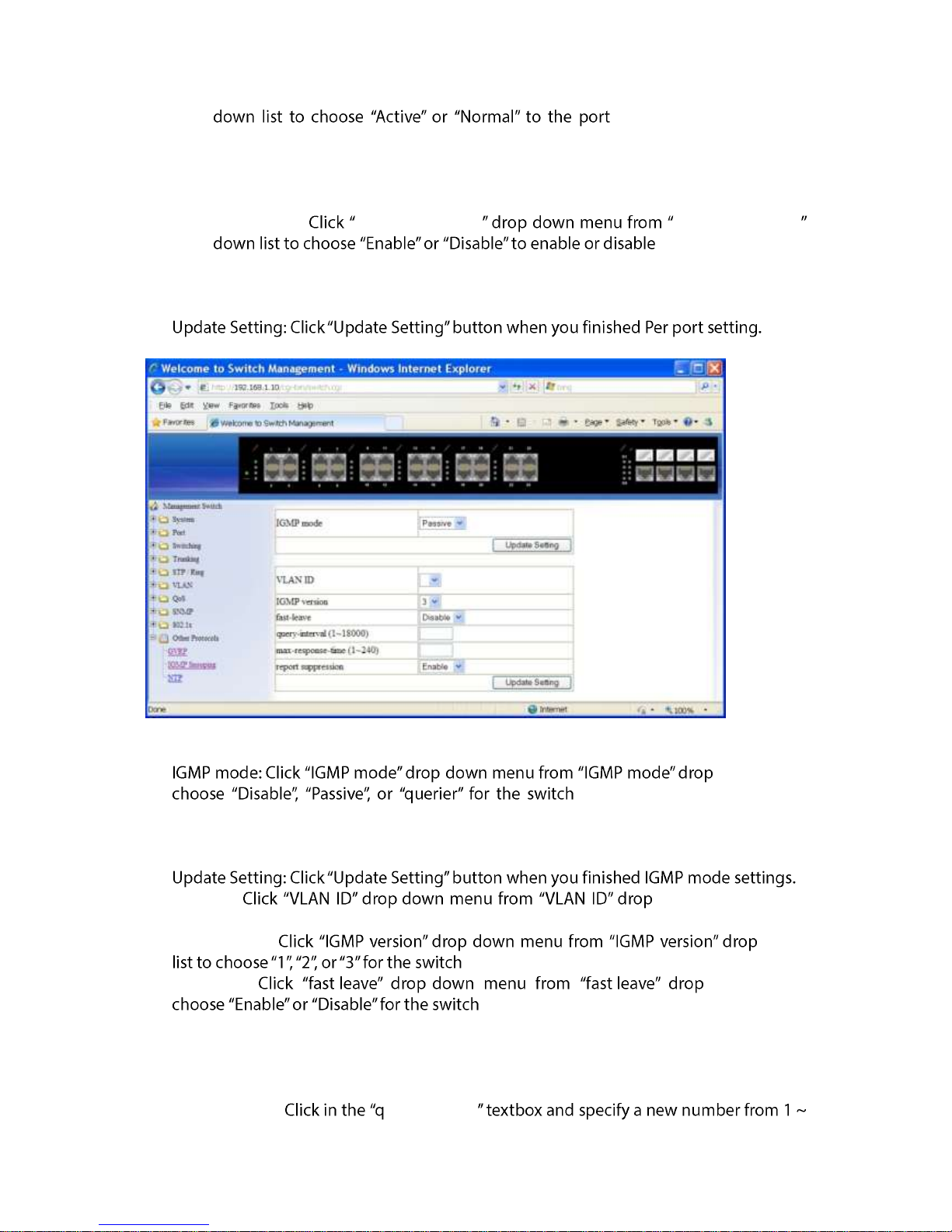

OTHER PROTOCOLS ............................................................................................................................................... 72

COMMAND LINE CONSOLE MANAGEMENT ................................................................................................ 76

ADMINISTRATION CONSOLE .................................................................................................................................... 76

SYSTEM ............................................................................................................................................................... 89

Page 4

User Manual Page 4

PORT .................................................................................................................................................................. 96

SWITCHING ........................................................................................................................................................ 101

TRUNKING ......................................................................................................................................................... 106

STP / RING ....................................................................................................................................................... 107

VLAN .............................................................................................................................................................. 120

QOS ................................................................................................................................................................. 126

SNMP ............................................................................................................................................................. 129

802.1X ............................................................................................................................................................ 138

OTHER PROTOCOLS ............................................................................................................................................. 143

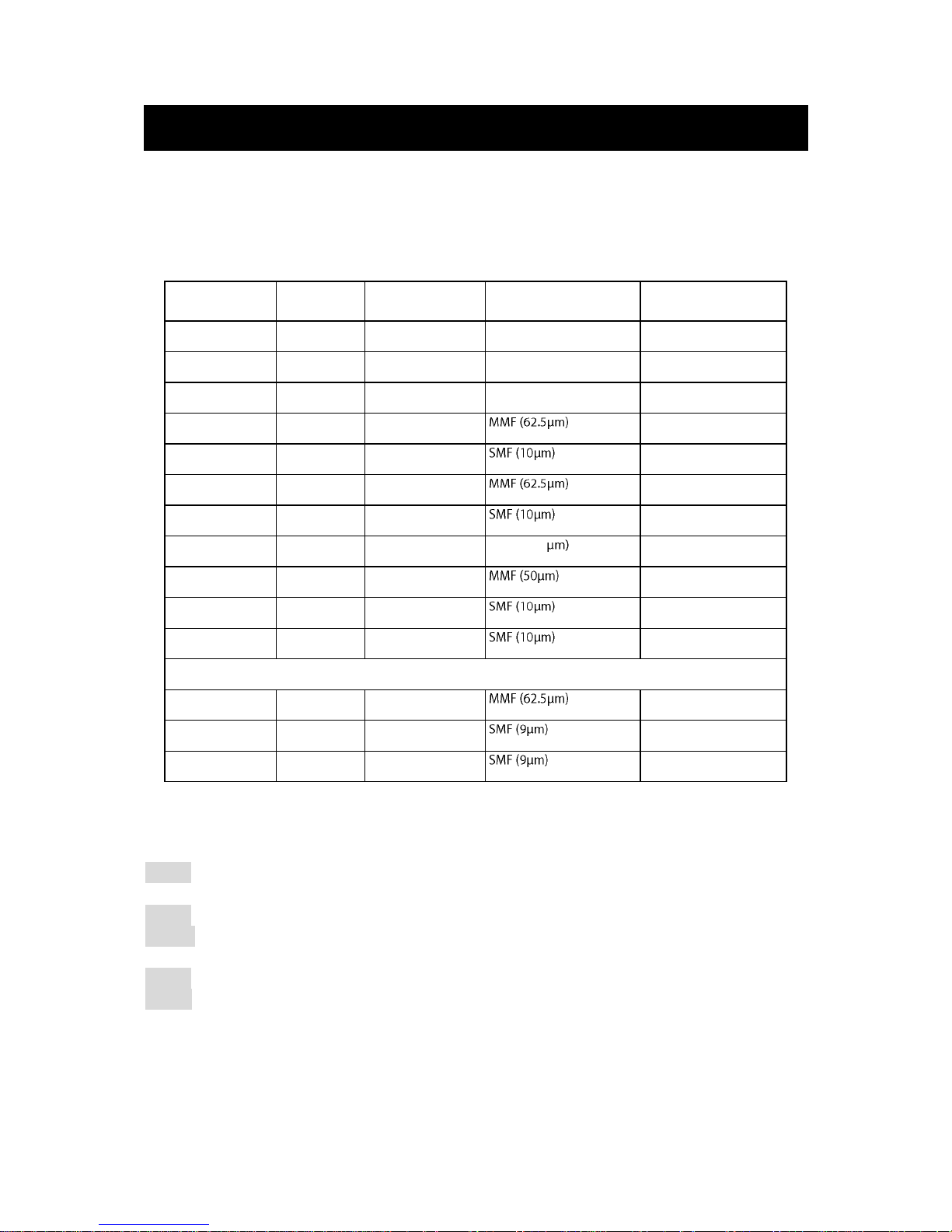

SPECIFICATIONS ........................................................................................................................................ 154

APPENDIX A .............................................................................................................................................. 155

APPENDIX B .............................................................................................................................................. 156

Page 5

User Manual Page 5

Quick Start Guide

This quick start guide describes how to install and use the Industry Managed Ethernet Switch. This is the switch of choice for harsh environments constrained by space.

Functional Description

 Meets NEMA TS1/TS2 Environmental requirements such as temperature, shock, and

vibration for traffic control equipment.

 Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for industrial

environment.

 RS-232 console, Telnet, SNMP v1 & v2c & v3, RMON, Web Browser, and TFTP

management.

 Supports Command Line Interface in RS-232 console.  Supports 8192 MAC addresses. Provides 3M bits memory buffer.  Supports IEEE802.3/802.3u/802.3ab/802.3z/802.3x. Auto-negotiation:

1000Mbps-full-duplex; 10/100Mbps-full/half-duplex; Auto MDI/MDIX.

 100Base-FX: Multi mode SC or ST type, Single mode SC or ST type; 100Base-BX: WDM

Single mode SC type.

 1000Base-SX/LX: Multi mode SC type, Single mode SC type; 1000Base-BX: WDM Single

mode SC type.

 SFP socket for Gigabit fiber optic expansion.  Store-and-forward mechanism.  Full wire-speed forwarding rate.  AC inlet power socket: 100~240VAC, 50~60Hz internal universal PSU.  Terminal Block power input: +48VDC, -48VDC, 88~370VDC, or 90~264VAC.  Supports redundant power supplies for flexible application.  -40C to 75C (-40℉ to 167℉) operating temperature range.  Tested for functional operation @ -40C to 85C (-40℉ to 185℉).  Industry metal case.  Supports Rack Mounting installation.

Page 6

User Manual Page 6

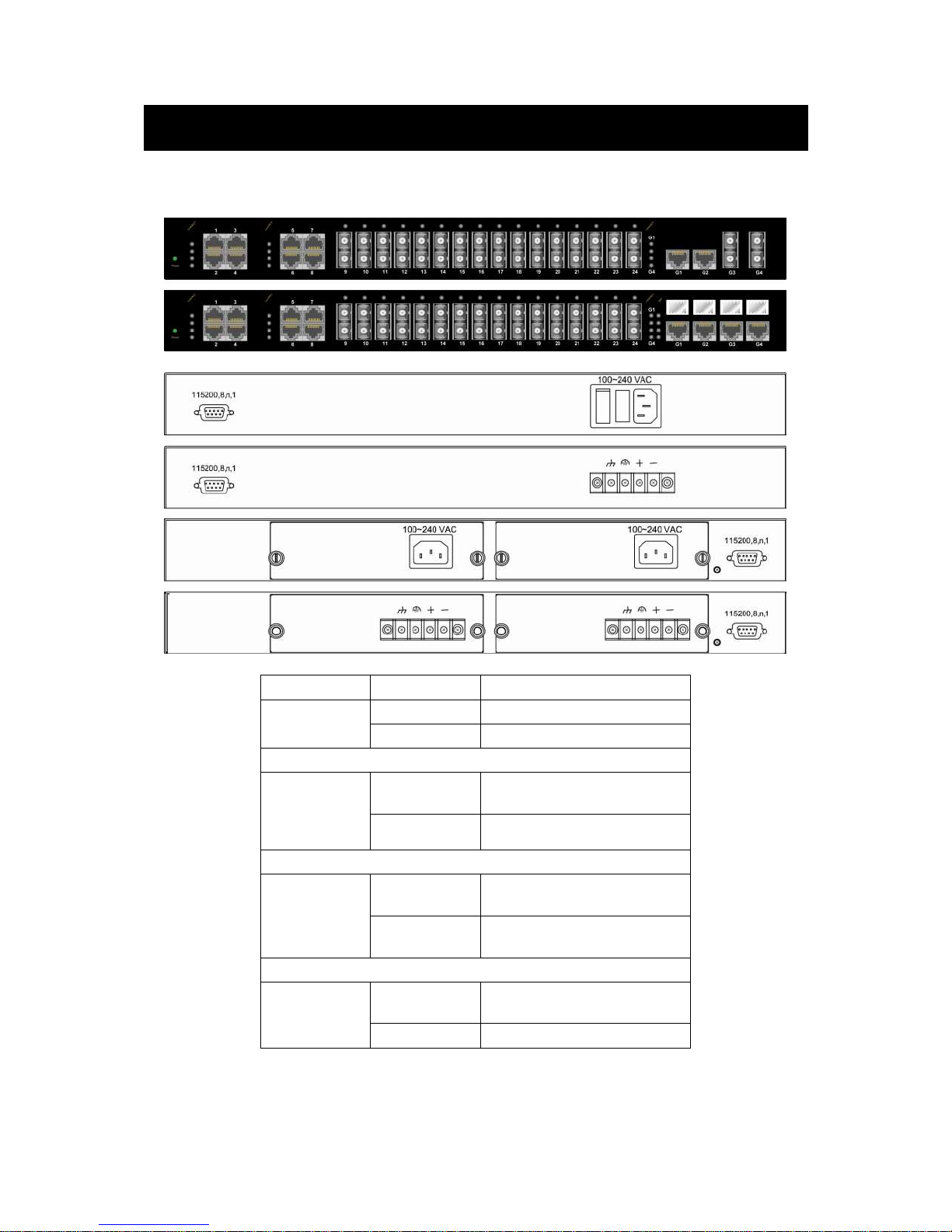

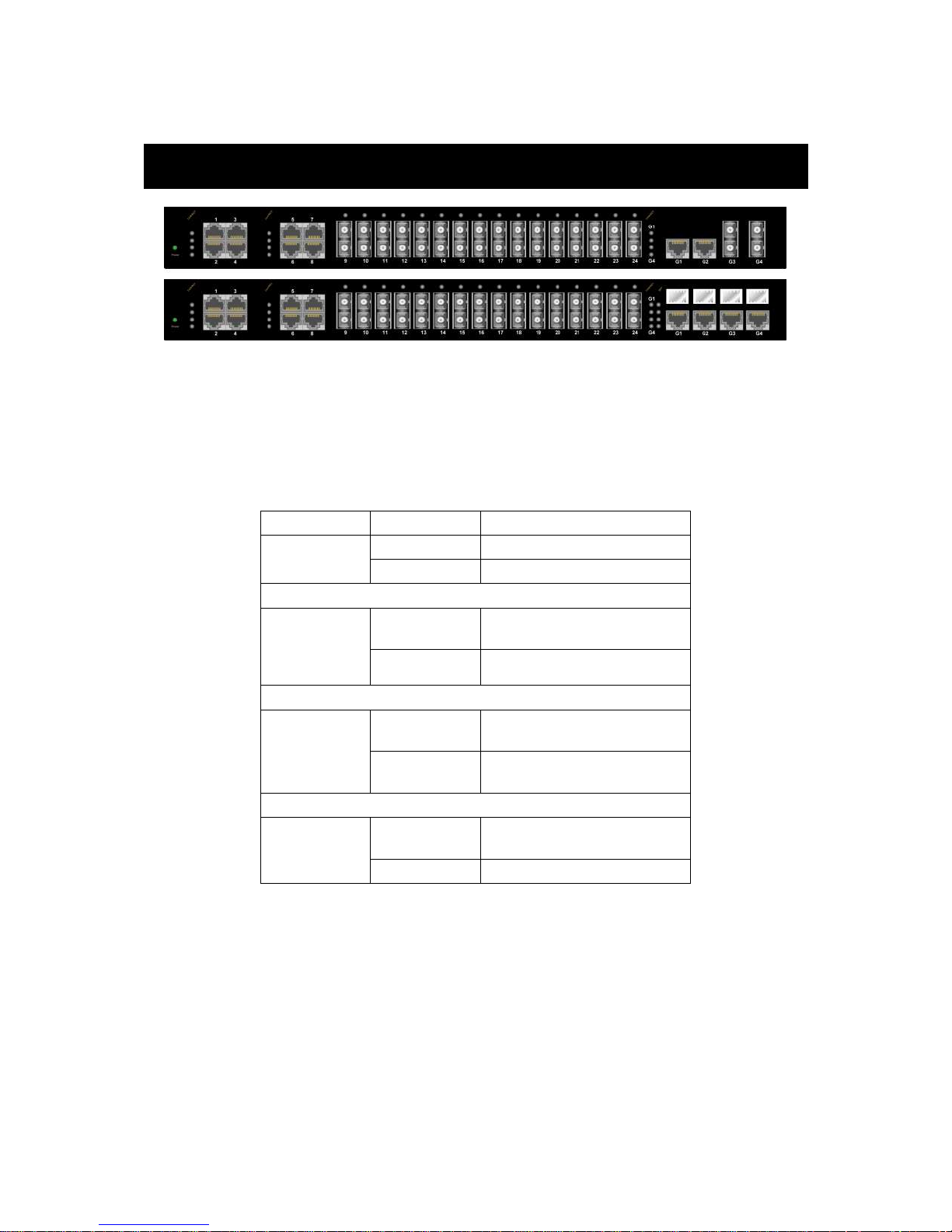

Physical Description

The Port Status LEDs and Power Inputs

LED

State

Indication

Power Steady

Power on

Off

Power off

10/100Base-TX, 100Base-FX/BX

Link/ACT Steady

A valid network connection established

Flashing

Transmitting or receiving data ACT stands for ACTIVITY

10/100/1000Base-TX, SFP, 1000Base-SX/LX/BX

Link/ACT Steady

A valid network connection established

Flashing

Transmitting or receiving data ACT stands for ACTIVITY

SFP

SFP Steady

A valid SFP connection established

Off

Without SFP

Page 7

User Manual Page 7

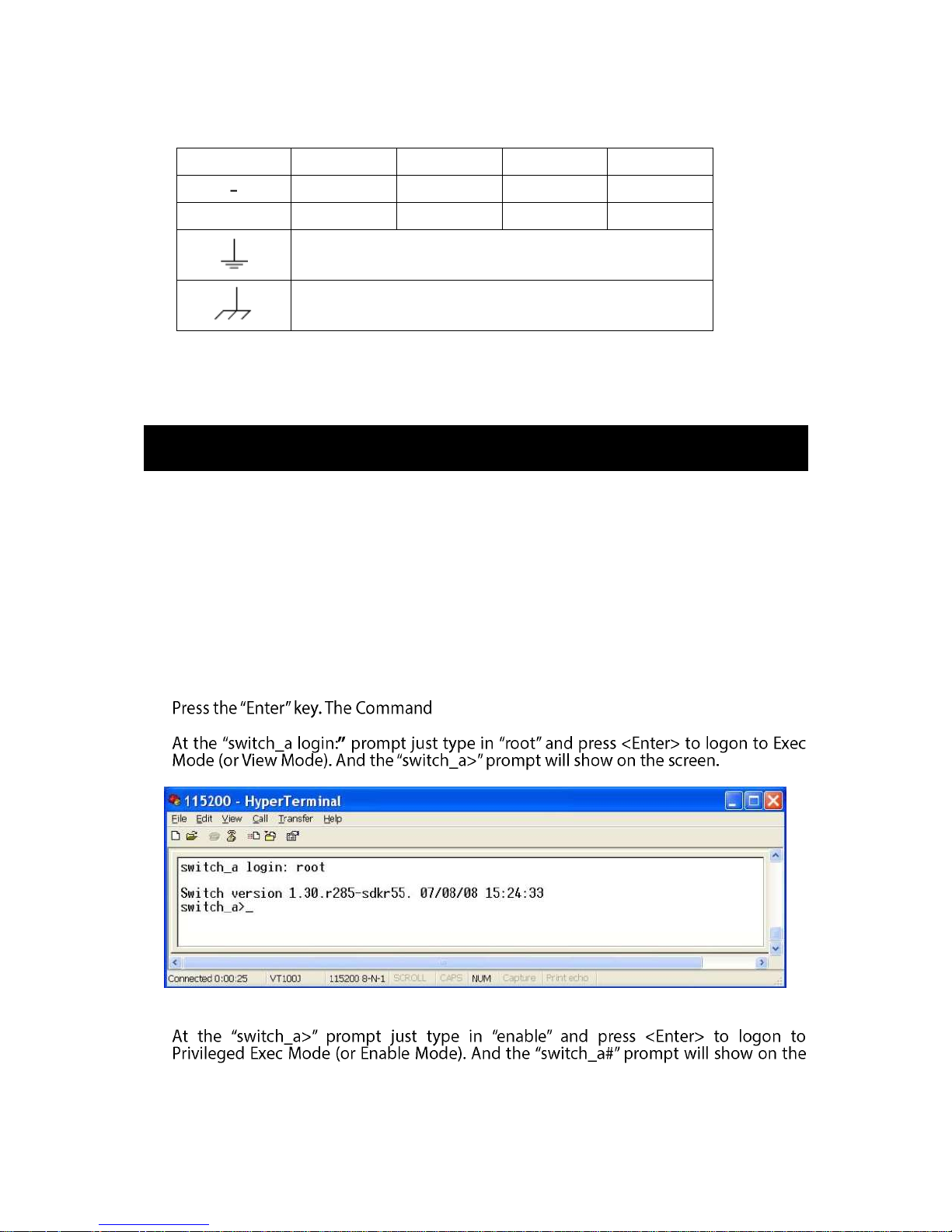

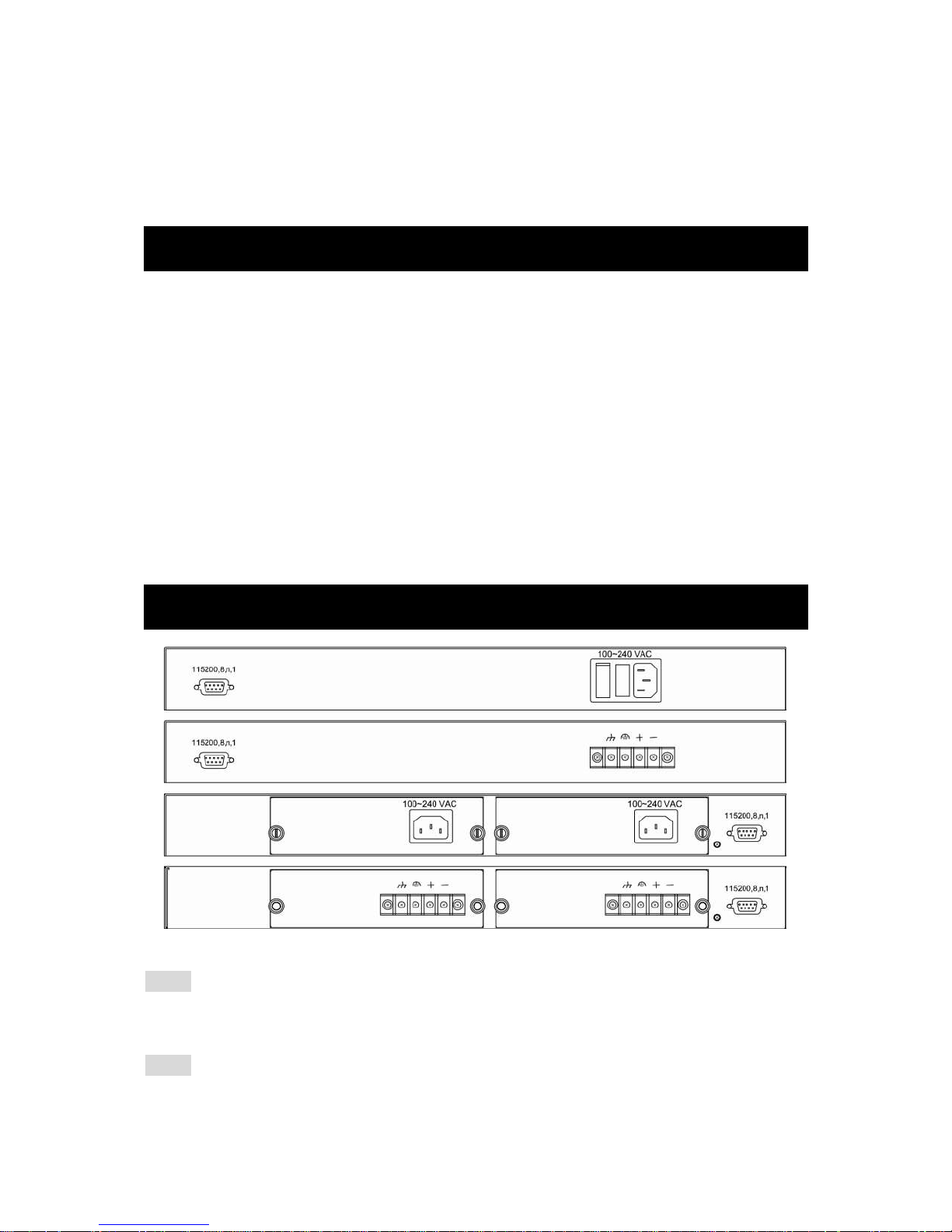

Terminal Block Power Input

+48VDC

-48VDC

88-370VDC

90-264VAC

-48 0 N

+48

88-370

Earth Ground

Protect Ground

<Note> Dielectric withstand (Hipot) test for DC power input, must remove metal chip between Earth Ground and Protect Ground of the terminal block power input to avoid damage to the Switch.

Console Configuration

 Connect to the switch console:

Connect the DB9 straight cable to the RS-232 serial port of the device and the RS-232 serial port of the terminal or computer running the terminal emulation application. Direct access to the administration console is achieved by directly connecting a terminal or a PC equipped with a terminal-emulation program (such as HyperTerminal) to the switch console port.

 Configuration settings of the terminal-emulation program:

Baud rate: 115,200bps Data bits: 8 Parity: none Stop bit: 1 Flow control: none

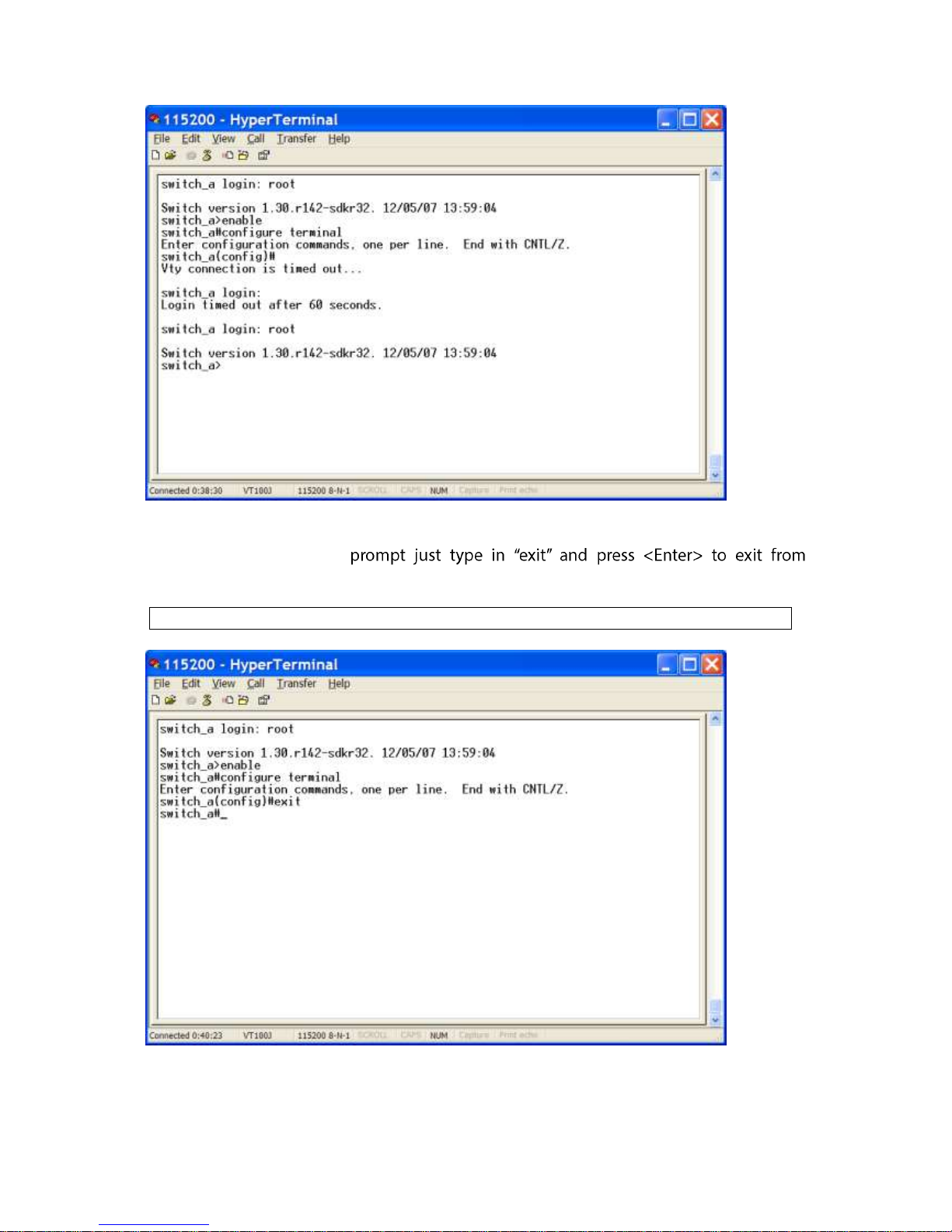

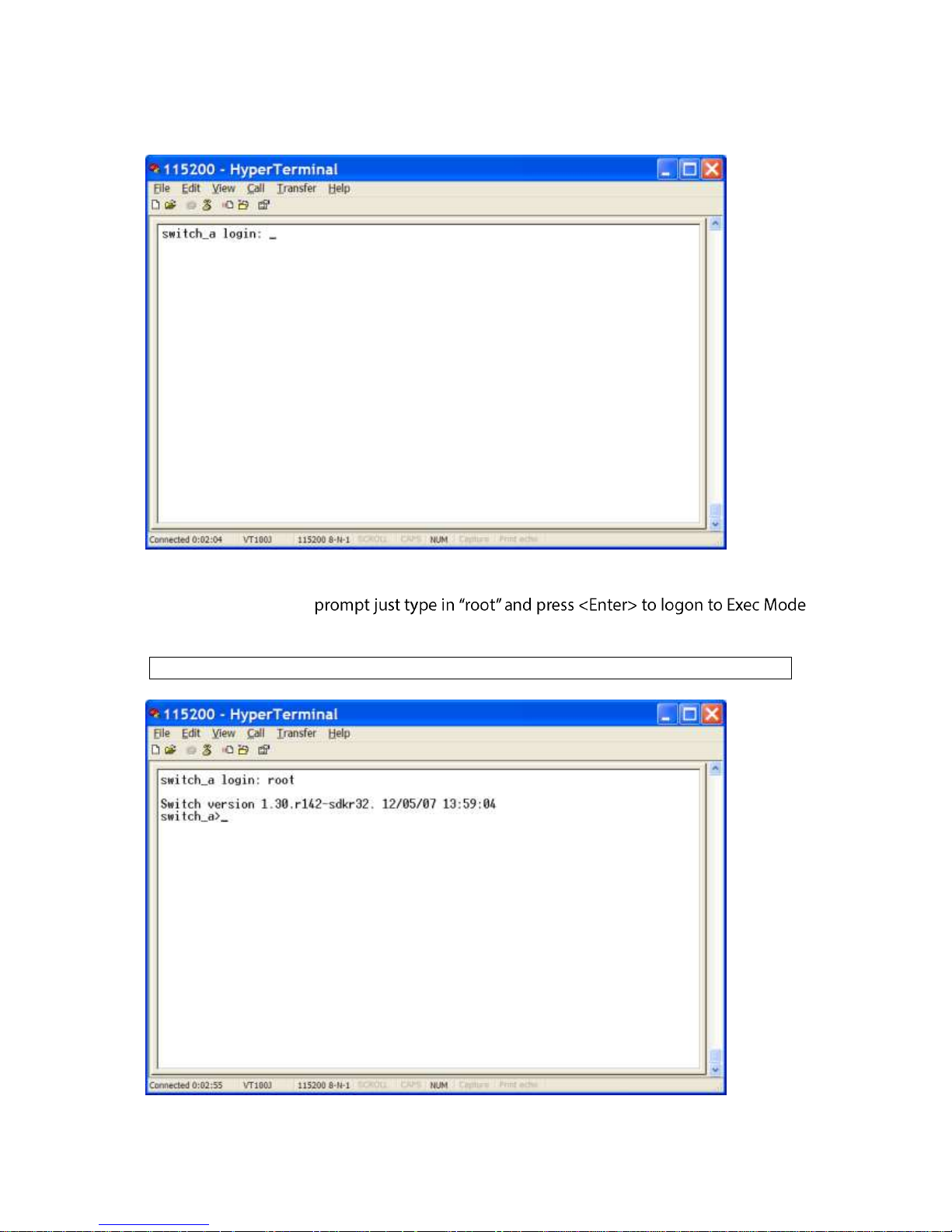

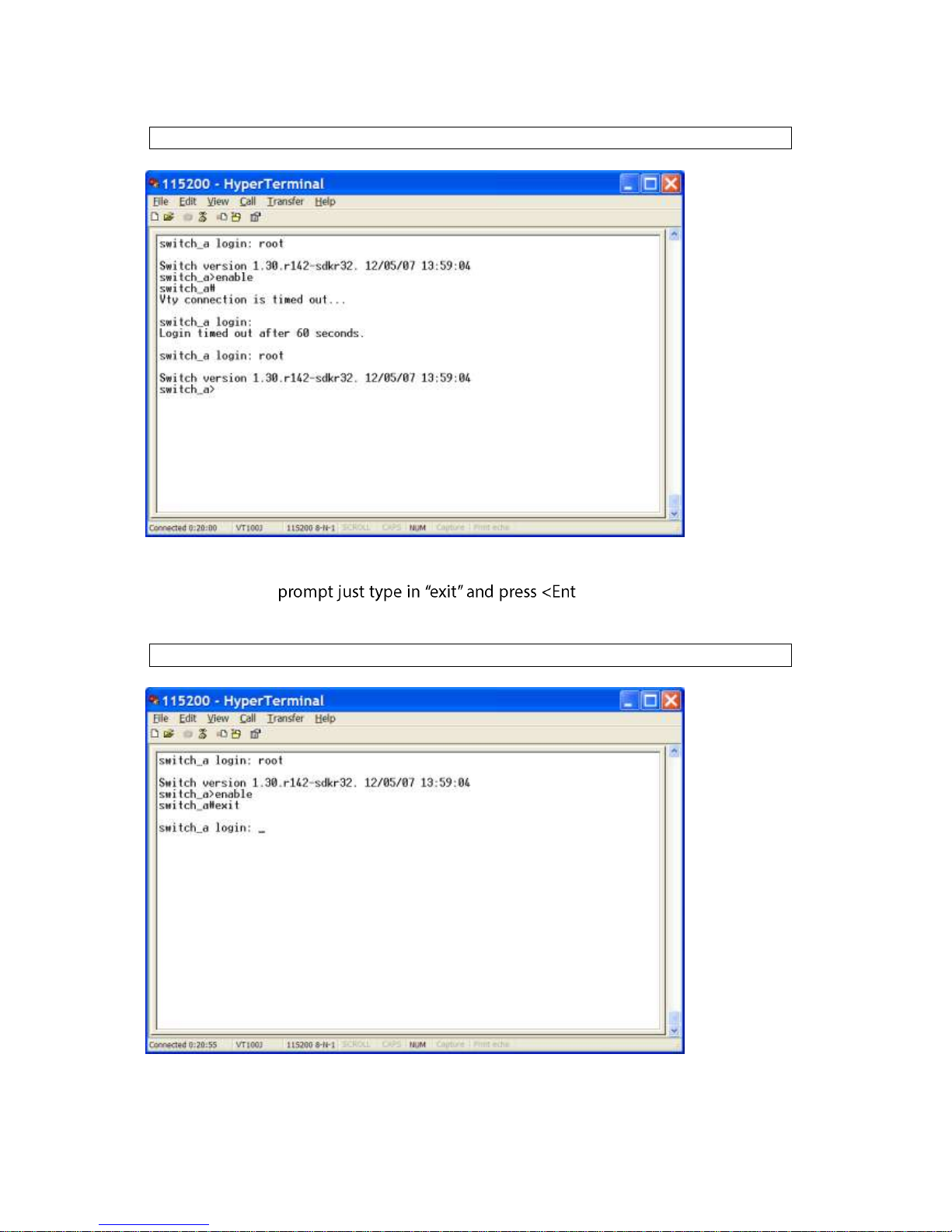

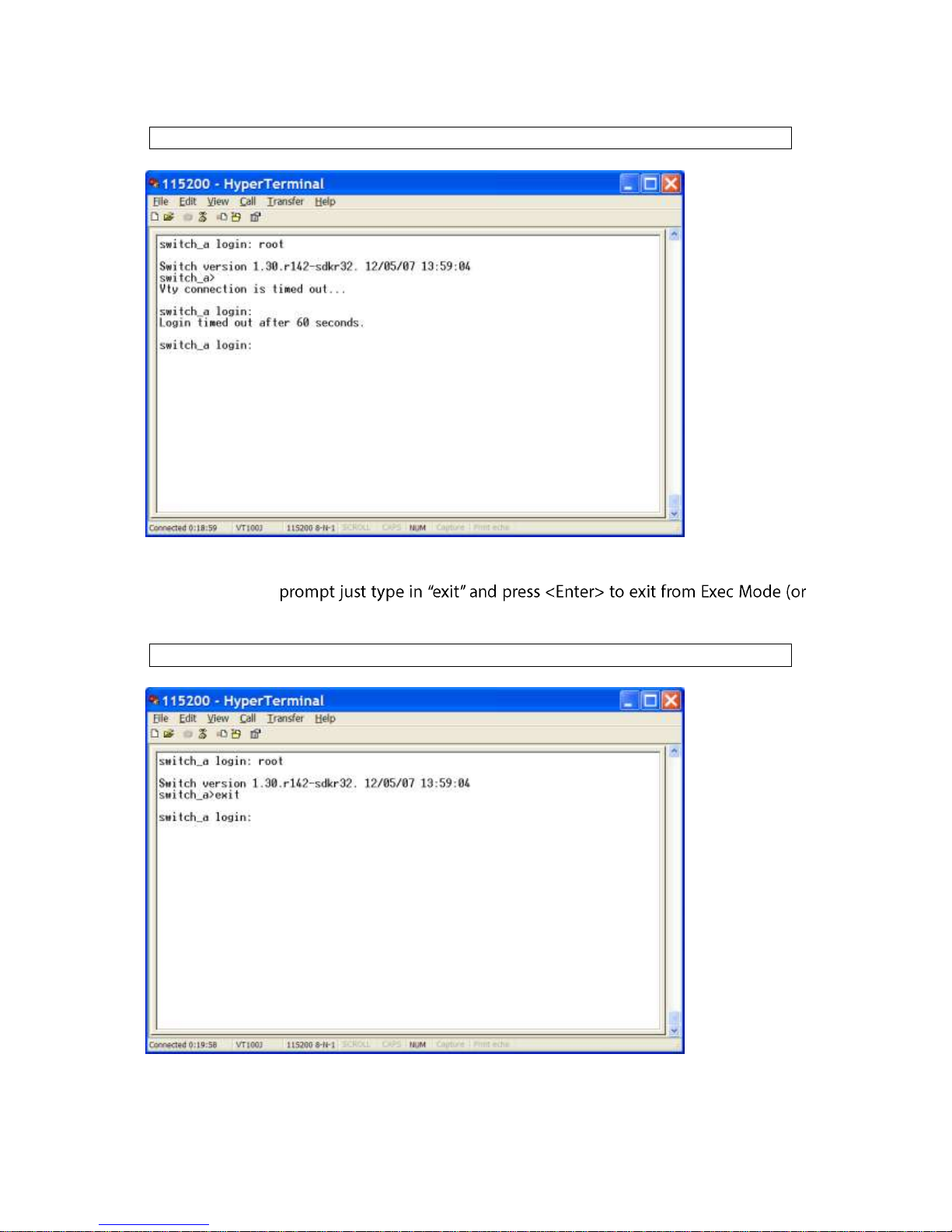

 Line Interface (CLI) screen should appear as below:  Logon to Exec Mode (View Mode):

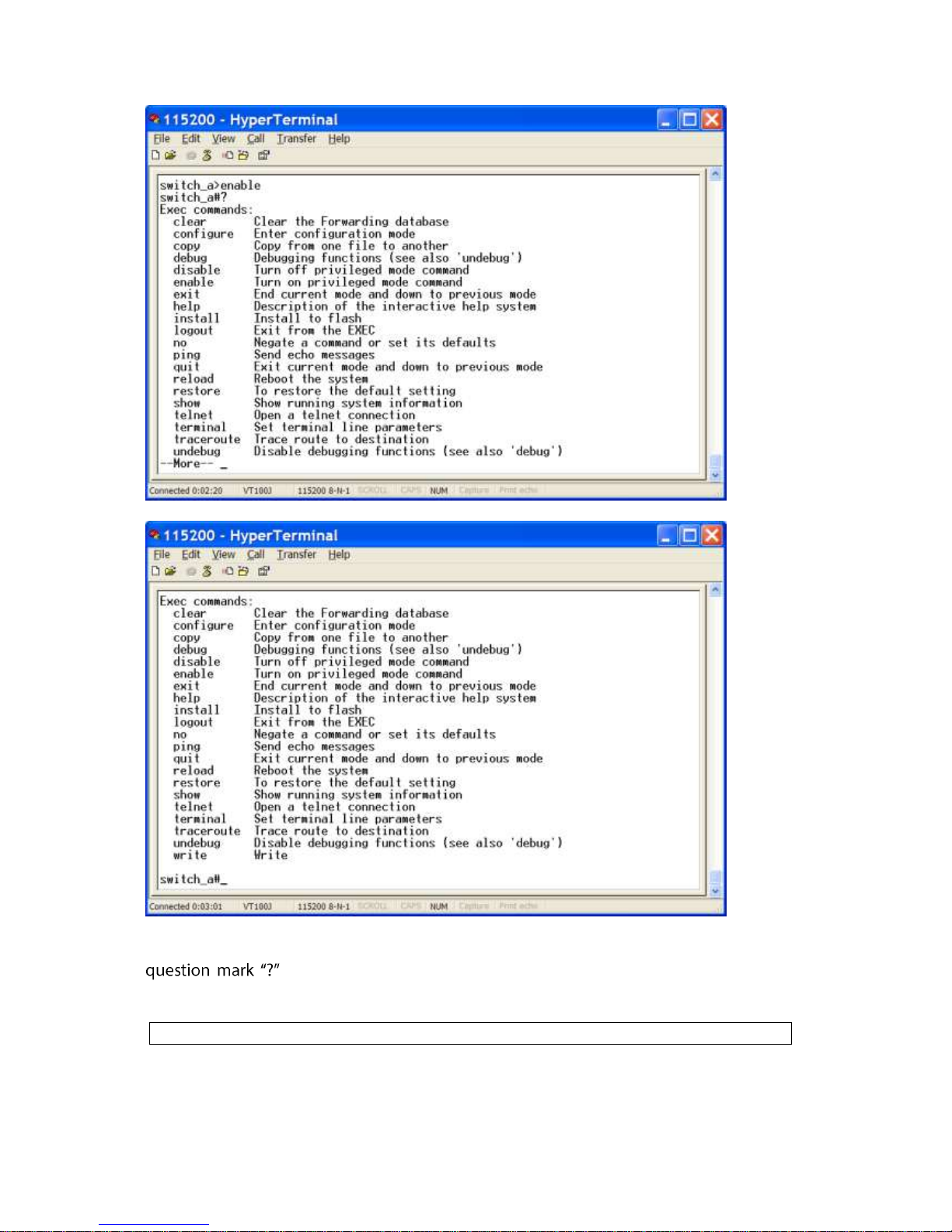

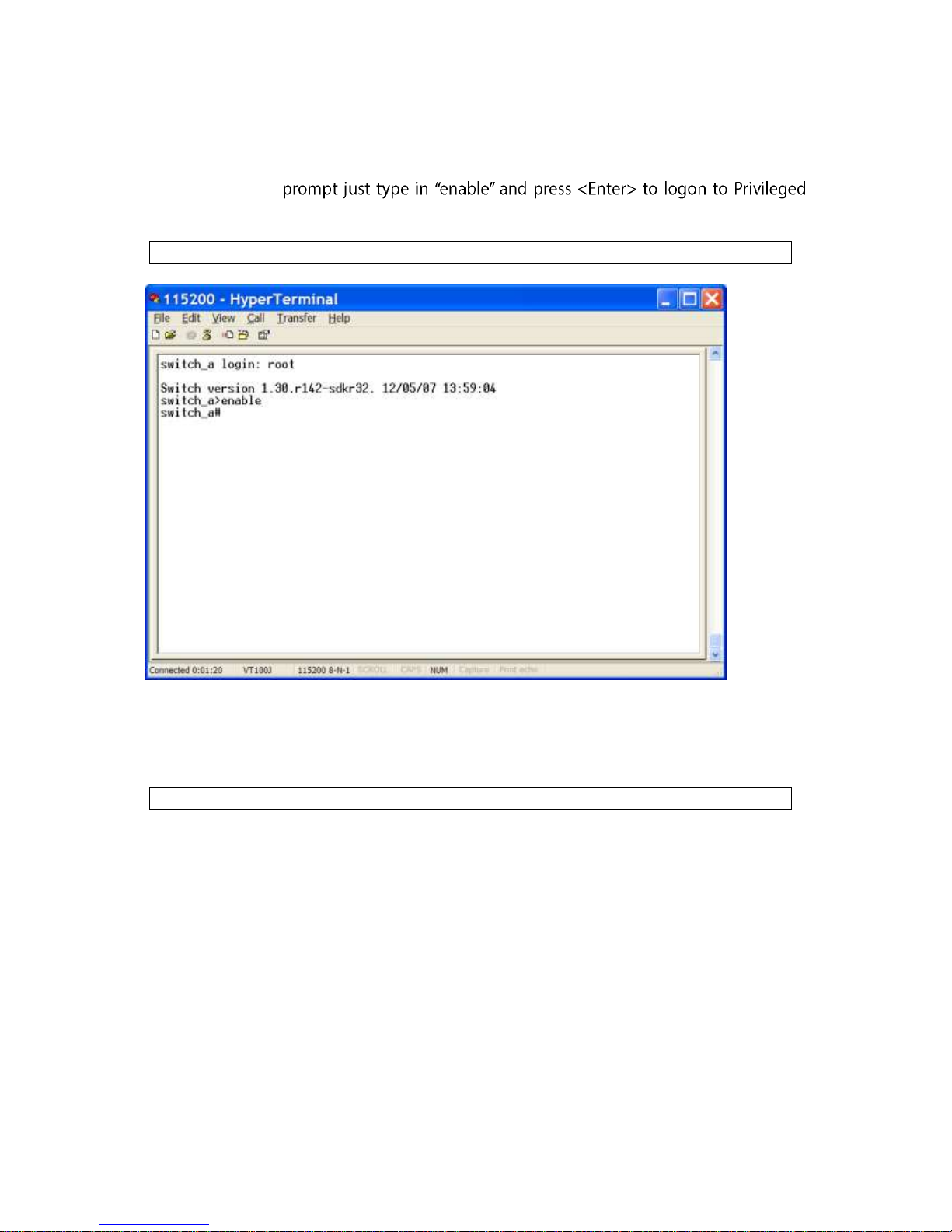

 Logon to Privileged Exec Mode (Enable Mode):

screen.

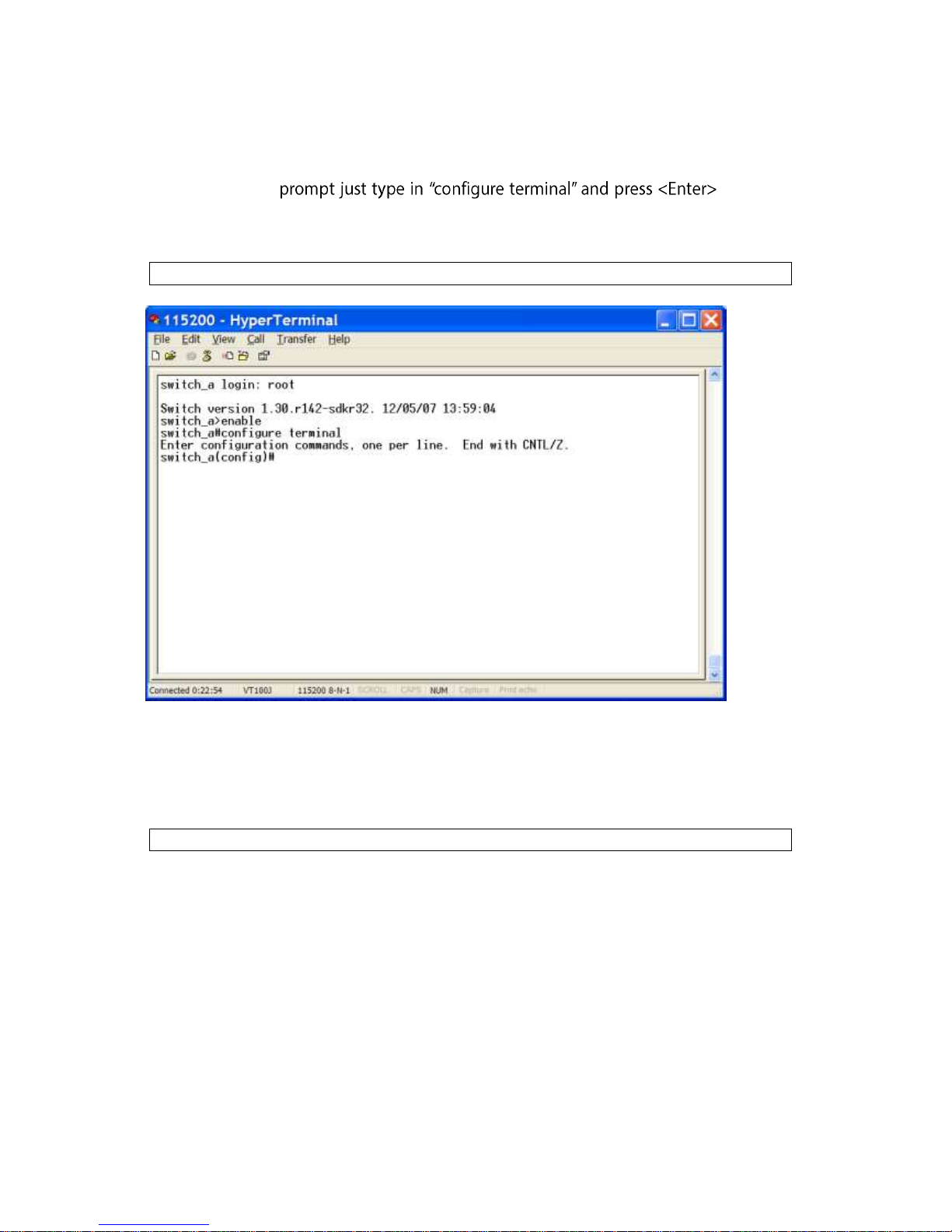

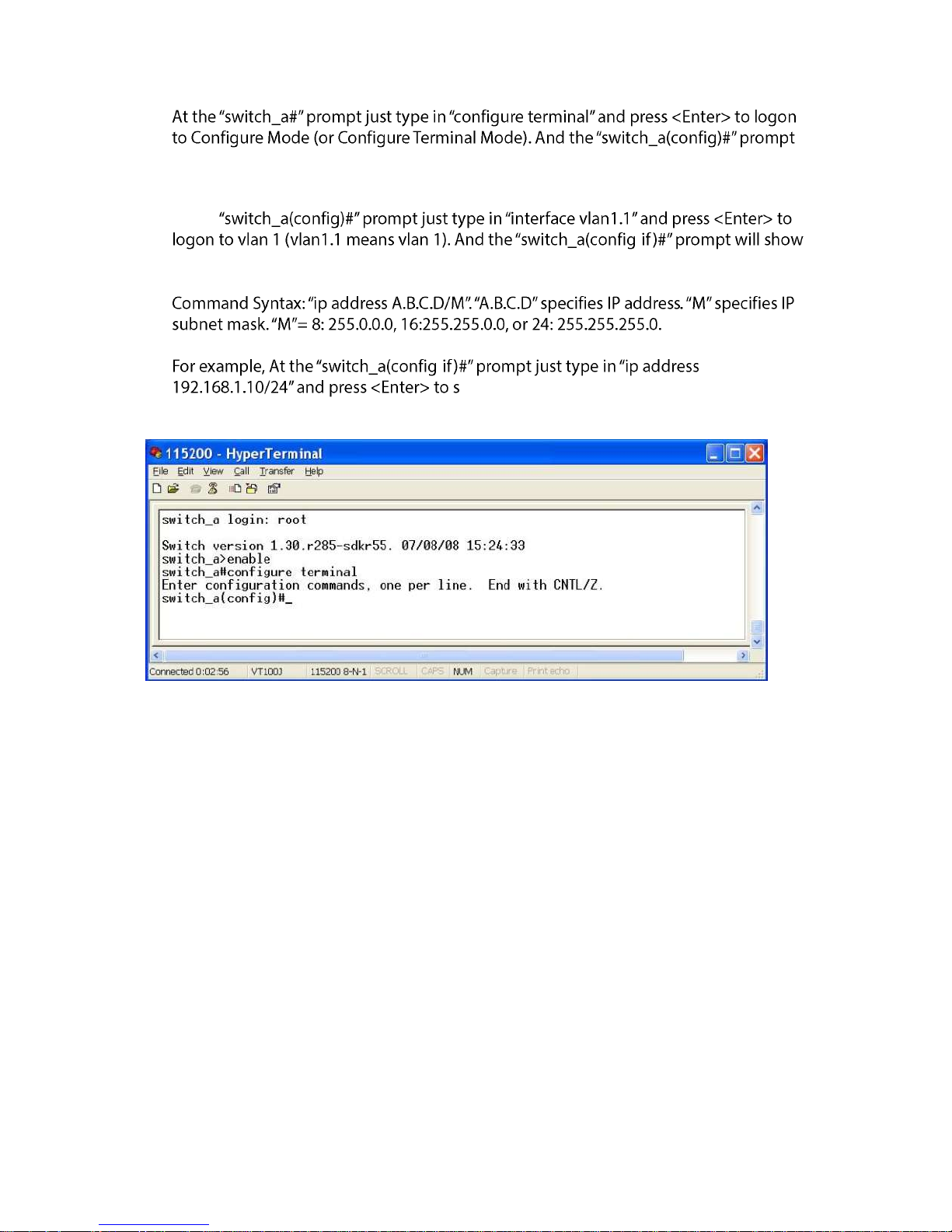

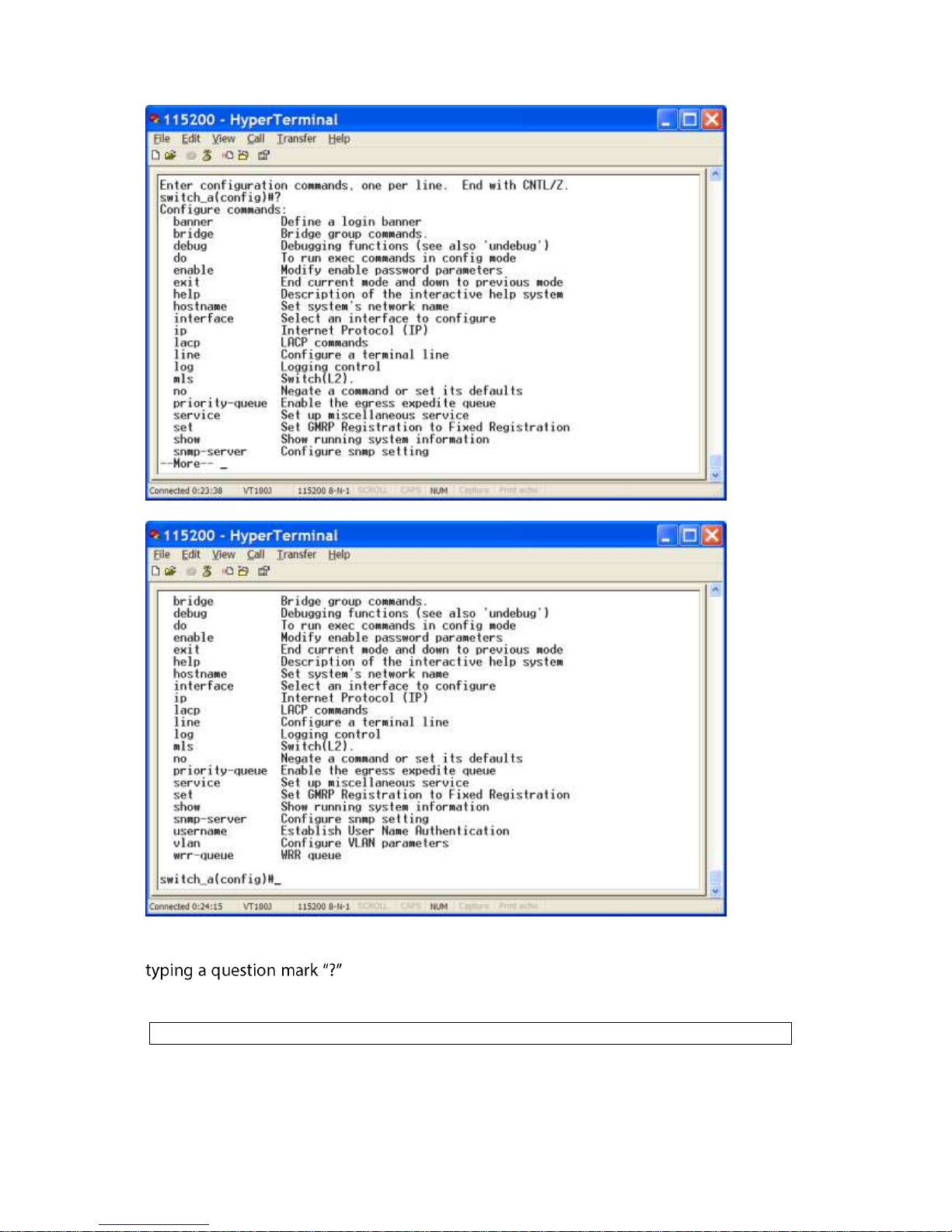

 Logon to Configure Mode (Configure Terminal Mode):

Page 8

User Manual Page 8

will show on the screen.

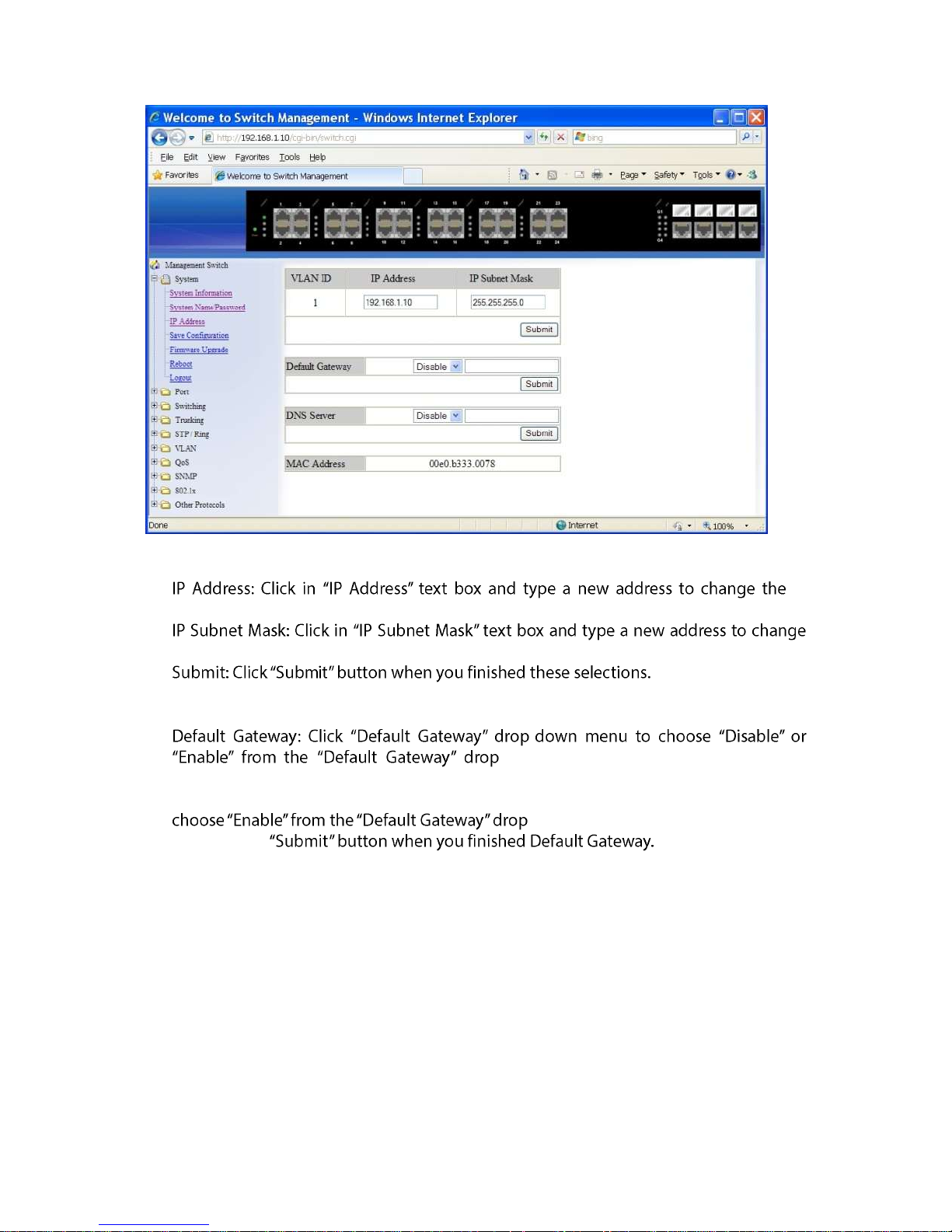

 Set new IP address and subnet mask for Switch:

At the

on the screen.

et new IP address (192.168.1.10) and new IP

subnet mask (255.255.255.0) for Switch.

Page 9

User Manual Page 9

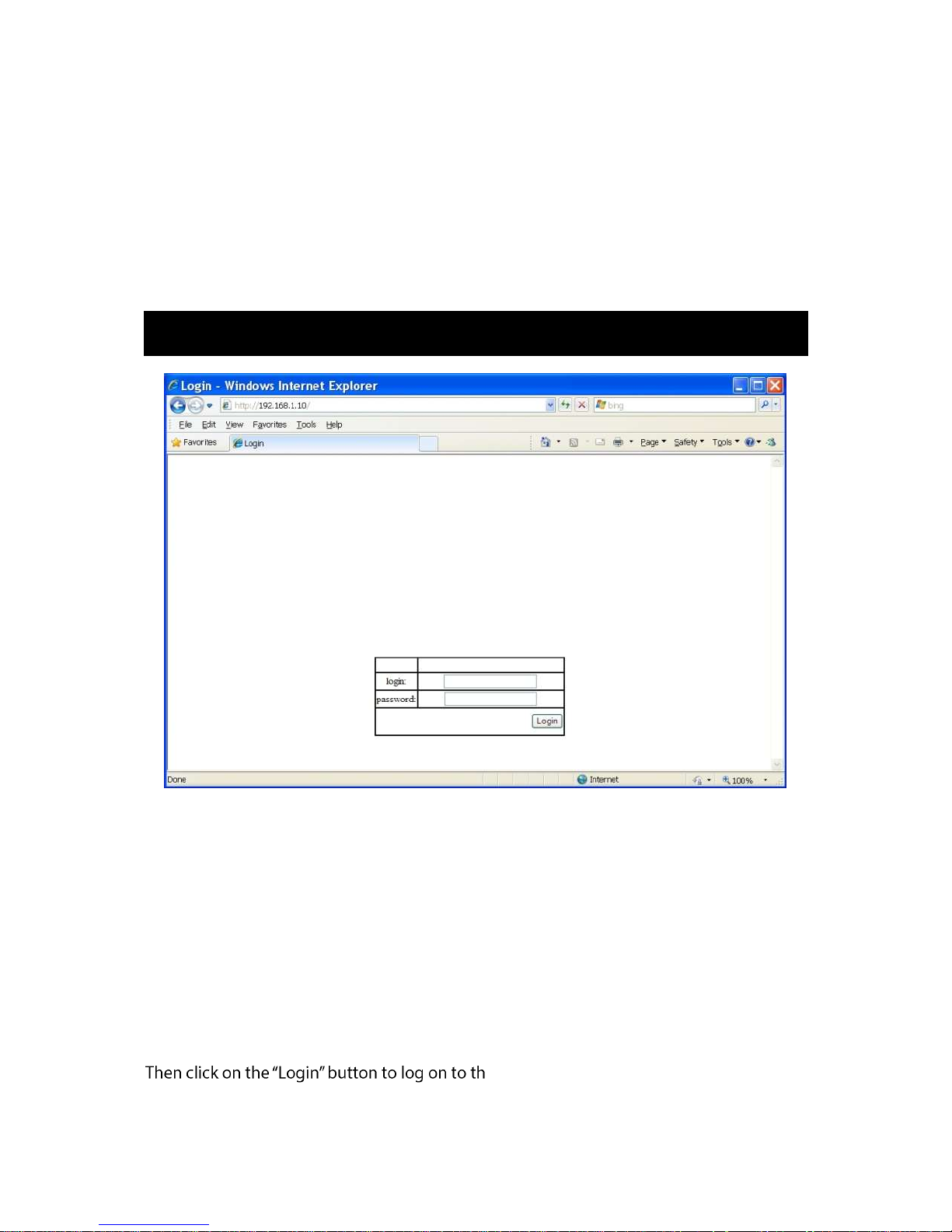

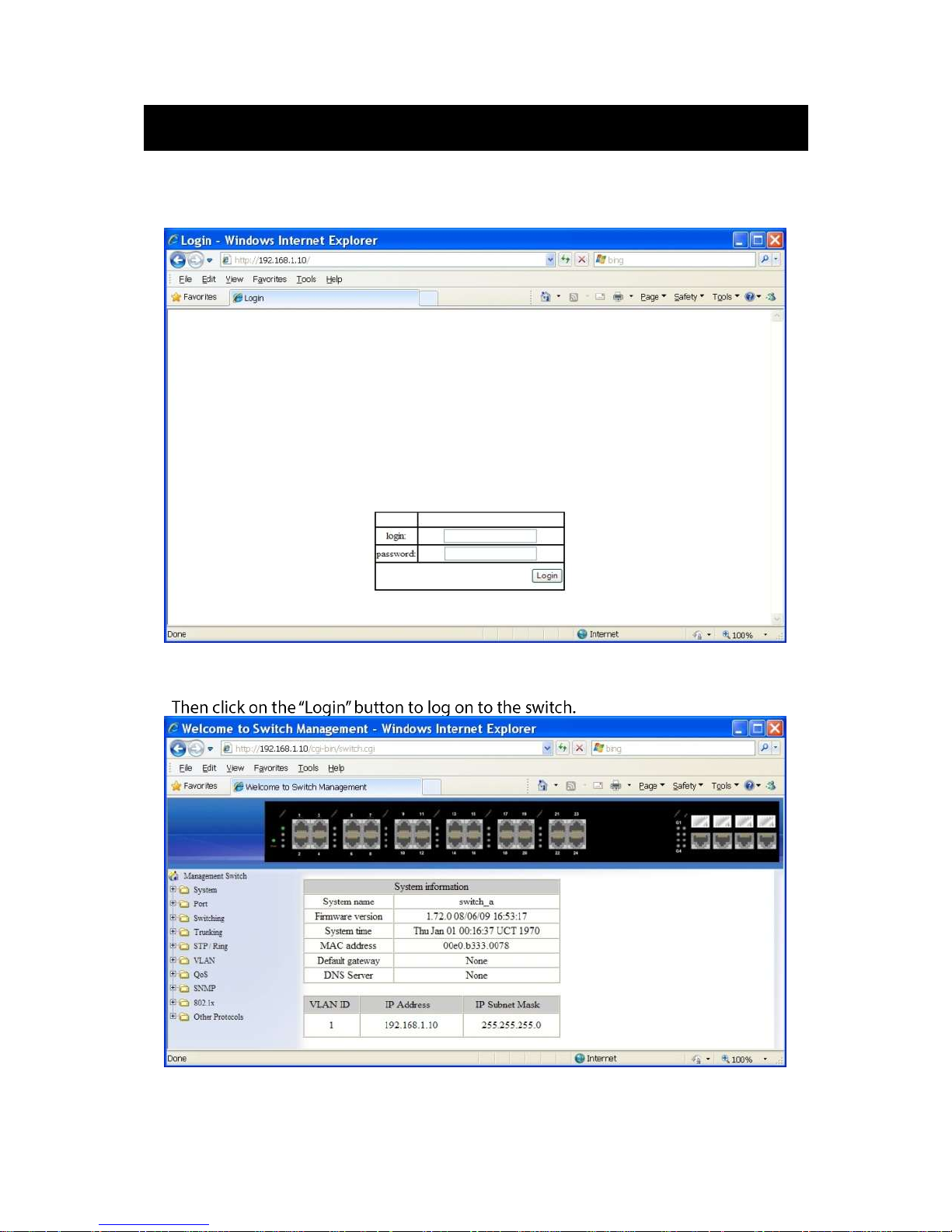

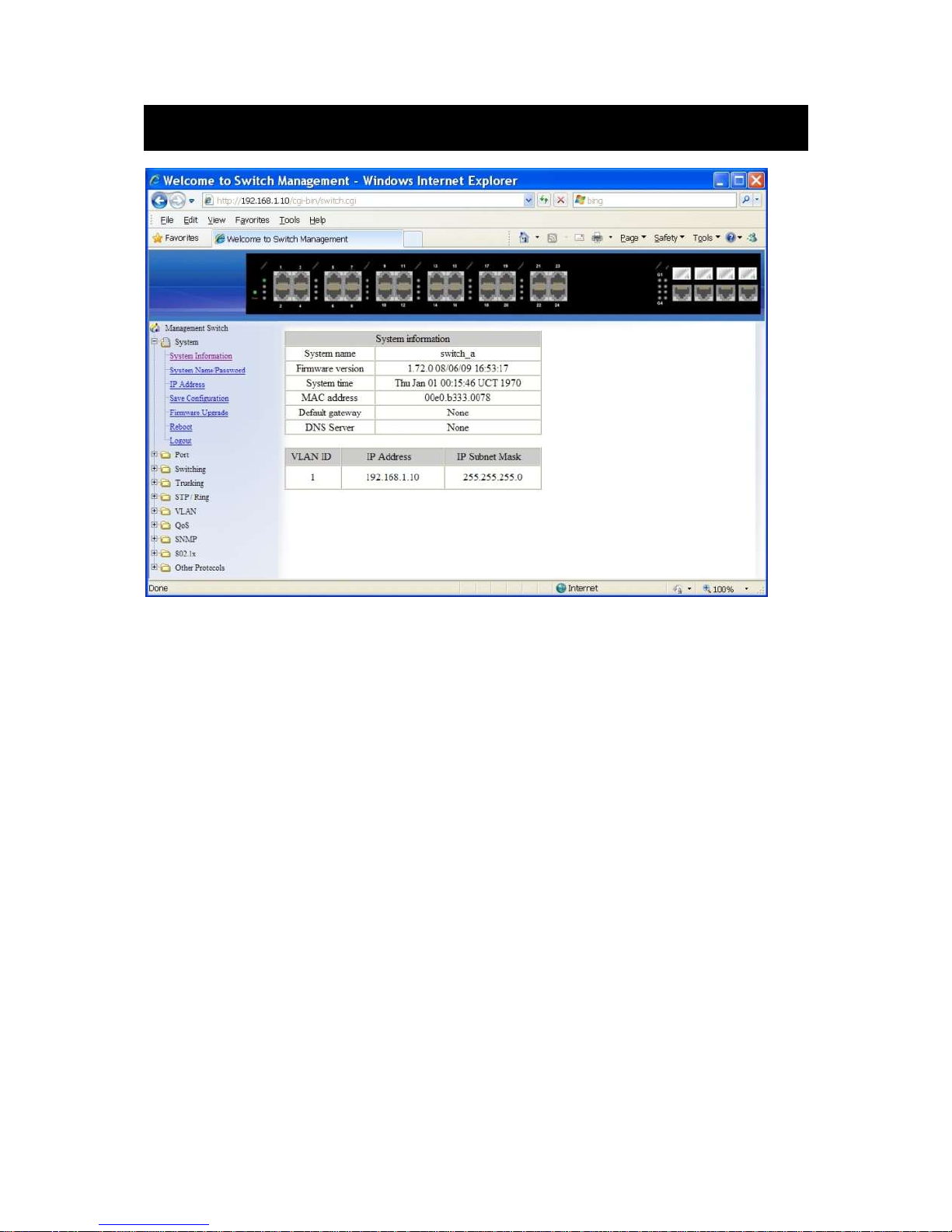

Web Configuration

 Login the switch:

Specify the default IP address (192.168.1.10) of the switch in the web browser. A login window will be shown as below:

 Enter the factory default login ID: root.

Enter the factory default password (no password).

Page 10

User Manual Page 10

Product Overview

Industry Managed Ethernet Switch

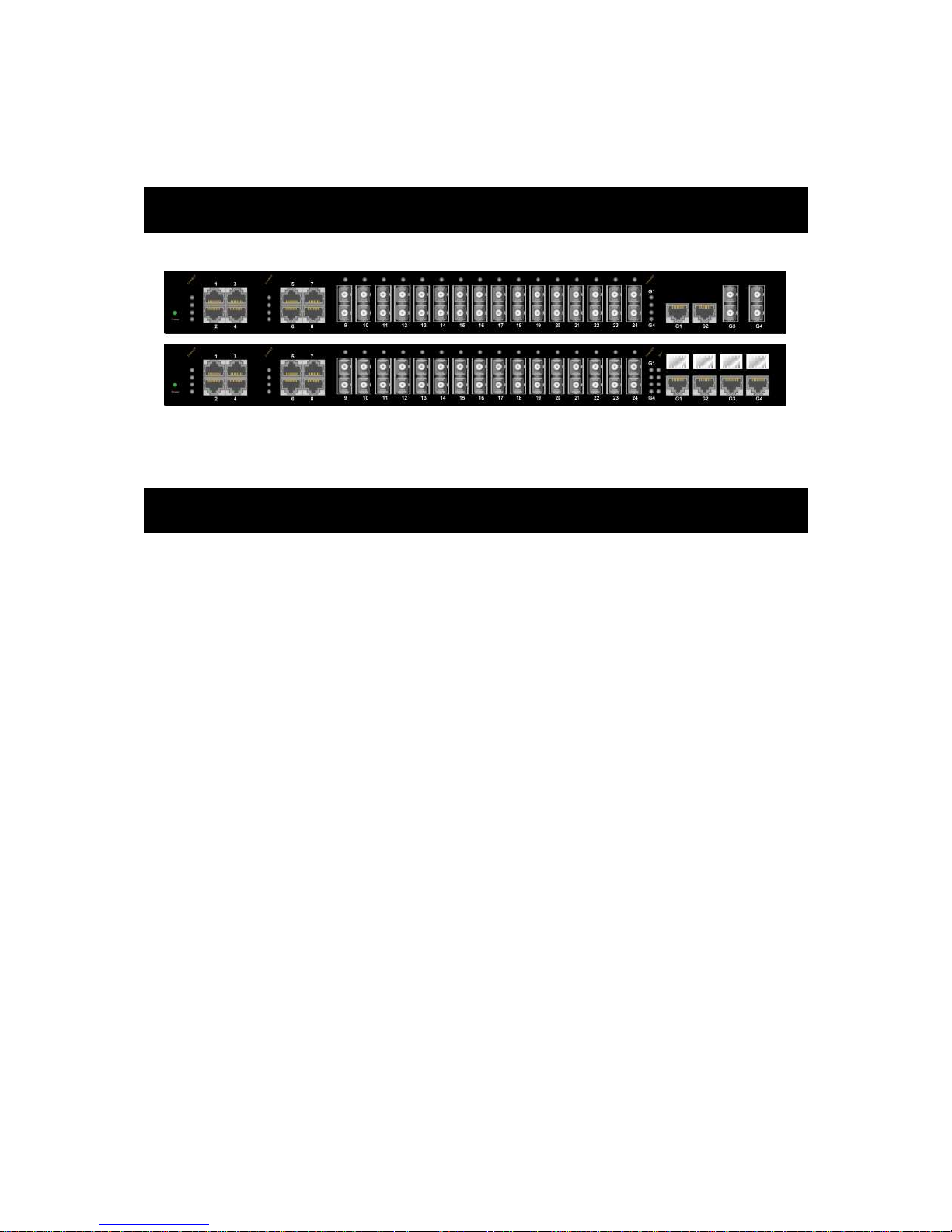

Front View

Package Contents

When you unpack the product package, you shall find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller.

 IES-2881  Quick Installation Guide

 CD User Manual  RS-232 cable  Rackmount brackets with screws

Page 11

User Manual Page 11

Product Highlights

Basic Features

 Meets NEMA TS1/TS2 Environmental requirements such as temperature, shock, and

vibration for traffic control equipment.

 Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for industrial

environment.

 RS-232 console, Telnet, SNMP v1 & v2c & v3, RMON, Web Browser, and TFTP

management.

 Supports Command Line Interface in RS-232 console.  Supports 8192 MAC addresses. Provides 3M bits memory buffer.  Supports IEEE802.3/802.3u/802.3ab/802.3z/802.3x. Auto-negotiation:

1000Mbps-full-duplex; 10/100Mbps-full/half-duplex; Auto MDI/MDIX.

 100Base-FX: Multi mode SC or ST type, Single mode SC or ST type; 100Base-BX: WDM

Single mode SC type.

 1000Base-SX/LX: Multi mode SC type, Single mode SC type; 1000Base-BX: WDM Single

mode SC type.

 SFP socket for Gigabit fiber optic expansion.  Store-and-forward mechanism.  Full wire-speed forwarding rate.  AC inlet power socket: 100~240VAC, 50~60Hz internal universal PSU.  Terminal Block power input: +48VDC, -48VDC, 88~370VDC, or 90~264VAC.  Supports redundant power supplies for flexible application.  -40℃ to 75℃ (-40℉ to 167℉) operating temperature range.  Tested for functional operation @ -40℃ to 85℃ (-40℉ to 185℉).  Industry metal case.  Supports Rack Mounting installation.

Management Support

VLAN

 Port-based VLAN  IEEE802.1Q tagged VLAN

TRUNKING

 Port Trunking

PORT-SECURITY

 Per-port programmable MAC address locking  Up to 24 Static Secure MAC addresses per port  IEEE802.1x Port-based Network Access Control

Page 12

User Manual Page 12

PORT-MIRRORING

 Port-mirroring

QOS (IEEE802.1p Quality of Service)

 4 priority queues

INTERNETWORKING PROTOCOLS

 Bridging:

IEEE802.1s Multiple Spanning Tree IEEE802.1w Rapid Spanning Tree IEEE802.1D Spanning Tree compatible IEEE802.1Q GVRP Ring

 IP Multicast:

IGMP Snooping

 Rate Control  NTP

NETWORK MANAGEMENT METHODS

 Console port access via RS-232 cable (CLI, Command Line Interface)  Telnet remote access  SNMP agent:

MIB-2 (RFC1213) Bridge MIB (RFC1493) RMON MIB (RFC2819) statistics, history, alarm and events VLAN MIB (IEEE802.1Q/RFC2674) Private MIB

 Web browser  TFTP software-upgrade capability

Page 13

User Manual Page 13

Front Panel Display

 POWER

This LED comes on when the switch is properly connected to power and turned on.  Port Status LEDs

The LEDs are located on the front panel, displaying status for each respective port. Please refer to the following table for more details.

LED

State

Indication

Power Steady

Power on

Off

Power off

10/100Base-TX, 100Base-FX/BX

Link/ACT Steady

A valid network connection established

Flashing

Transmitting or receiving data ACT stands for ACTIVITY

10/100/1000Base-TX, SFP, 1000Base-SX/LX/BX

Link/ACT Steady

A valid network connection established

Flashing

Transmitting or receiving data ACT stands for ACTIVITY

SFP

SFP Steady

A valid SFP connection established

Off

Without SFP

Page 14

User Manual Page 14

Physical Ports

The Industry Managed Ethernet Switch provides: 24 FE + 4 GE Combo SFP Managed Switch -40 to 75C, IEC61850

CONNECTIVITY

 RJ-45 connectors on TX ports  ST or SC connector on 100Base-FX fiber port  SC connector on 100Base-BX fiber port  SC connector on 1000Base-SX/LX/BX fiber port  Duplex LC connector on SFP 1000Base-SX/LX/BX fiber transceiver

MODE SELECTION

 10Base-T full-duplex mode  10Base-T half-duplex mode

 100Base-TX full-duplex mode

 100Base-TX half-duplex mode  100Base-FX full-duplex mode  1000Base-T/SX/LX full-duplex mode  Auto-negotiating mode

Page 15

User Manual Page 15

Switch Management

Web-based browser interface

The switch also boasts a point-and-click browser-based interface that lets user access full switch configuration and functionality from a Netscape or Internet Explorer browser.

Administration console via RS-232 serial port (CLI)

The switch provides an onboard serial port, which allows the switch to be configured via a directly connected terminal.

External SNMP-based network management application

The switch can also be configured via SNMP.

Page 16

User Manual Page 16

Installation

This chapter gives step-by-step instructions about how to install the switch:

Selecting a Site for the Switch

As with any electric device, you should place the switch where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. Specifically, the site you select should meet the following requirements:

-The ambient temperature should be between -40°C to 75℃ (-40℉ to 167℉).

-The relative humidity should be less than 95 percent, non-condensing.

-Surrounding electrical devices should not exceed the electromagnetic field (RFC) standards.

-Make sure that the switch receives adequate ventilation. Do not block the ventilation holes on each side of the switch.

Connecting to Power

AC inlet power socket: Step 1: Connect the supplied AC power cord to the receptacle on the back of the switch, and then plug it into a standard AC outlet with a voltage range from 100 to 240 VAC. Turn on the AC power switch at the back panel to turn on the switch.

Step 2: Turn off the AC switch if you want to shut down the switch. Terminal Block power input:

Page 17

User Manual Page 17

+48VDC

-48VDC

88-370VDC

90-264VAC

-48 0 N

+48

88-370

Earth Ground

Protect Ground

<Note> Dielectric withstand (Hipot) test for DC power input, must remove metal chip between Earth Ground and Protect Ground of the terminal block power input to avoid damage to the Switch.

Procedures to Replace Inactive Redundant Power Supply

Module

These procedures provide instructions on removing inactive redundant power supply module and installing a new redundant power supply module in Managed Ethernet Switch while Managed Ethernet Switch still keeps operating normally with another redundant power supply module.

1. Make sure to turn off the power source connected to inactive redundant power supply module first, by loosening terminal block screws and disconnect power cables from terminal block on inactive redundant power supply module.

2. Loosen inactive redundant power supply module screws and remove inactive redundant power supply module from redundant power supply slot of Managed Ethernet Switch.

3. Slide in new redundant power supply module in redundant power supply slot of Managed Ethernet Switch and tighten new redundant power supply module screws.

4. Connect power cables to terminal block on new redundant power supply module by tightening terminal block screws.

5. Turn on the power source connected to new redundant power supply module.

Page 18

User Manual Page 18

Connecting to Your Network

Cable Type & Length

It is necessary to follow the cable specifications below when connecting the switch to your network. Use appropriate cables that meet your speed and cabling requirements. Cable Specifications

Speed

Connector

Port Speed Half/Full Duplex

Cable

Max. Distance

10Base-T

RJ-45

10/20 Mbps

2-pair UTP/STP Cat. 3, 4, 5

100 m

100Base-TX

RJ-45

100/200 Mbps

2-pair UTP/STP Cat. 5

100 m

1000Base-T

RJ-45

2000 Mbps

4-pair UTP/STP Cat. 5

100 m

100Base-FX

ST, SC

200 Mbps

2 km

100Base-FX

ST, SC

200 Mbps

20, 40, 75, 100 km

100Base-BX

200 Mbps

2, 5 km

100Base-BX

200 Mbps

20, 40 km

1000Base-SX

2000 Mbps

MMF (62.5

220 m, 2 km

1000Base-SX

2000 Mbps

550 m

1000Base-LX

2000 Mbps

10, 20, 50 km

1000Base-BX

2000 Mbps

20, 40 km

SFP

1000Base-SX

Duplex LC

2000 Mbps

550 m, 2 km

1000Base-LX

Duplex LC

2000 Mbps

10, 40, 60 km

1000Base-BX

Duplex LC

2000 Mbps

70 km

Cabling

Step 1: First, ensure the power of the switch and end devices are turned off. <Note> Always ensure that the power is off before any installation. Step 2: Prepare cable with corresponding connectors for each type of port in use. Step 3: Consult Cable Specifications Table on previous page for cabling requirements

based on connectors and speed. Step 4: Connect one end of the cable to the switch and the other end to a desired device. Step 5: Once the connections between two end devices are made successfully, turn on the

power and the switch is operational. Note: IES-2881 packs with 24 100Base SFP slots + 4 Gigabit Combo SFP slots. Contact us for

more options in details

Page 19

User Manual Page 19

Switch Management

This chapter explains the methods that you can use to configure management access to the switch. It describes the types of management applications and the communication and management protocols that deliver data between your management device (workstation or personal computer) and the system. It also contains information about port connection options.

This chapter covers the following topics:

Management Access Overview Key Concepts Key Guidelines for Implementation Web Management Access

Administration Console Access

SNMP Access Standards, Protocols, and Related Reading

Management Access Overview

The switch gives you the flexibility to access and manage the switch using any or all of the following methods.

The web browser interface and administration console (CLI) support are embedded in the switch software and are available for immediate use.

Page 20

User Manual Page 20

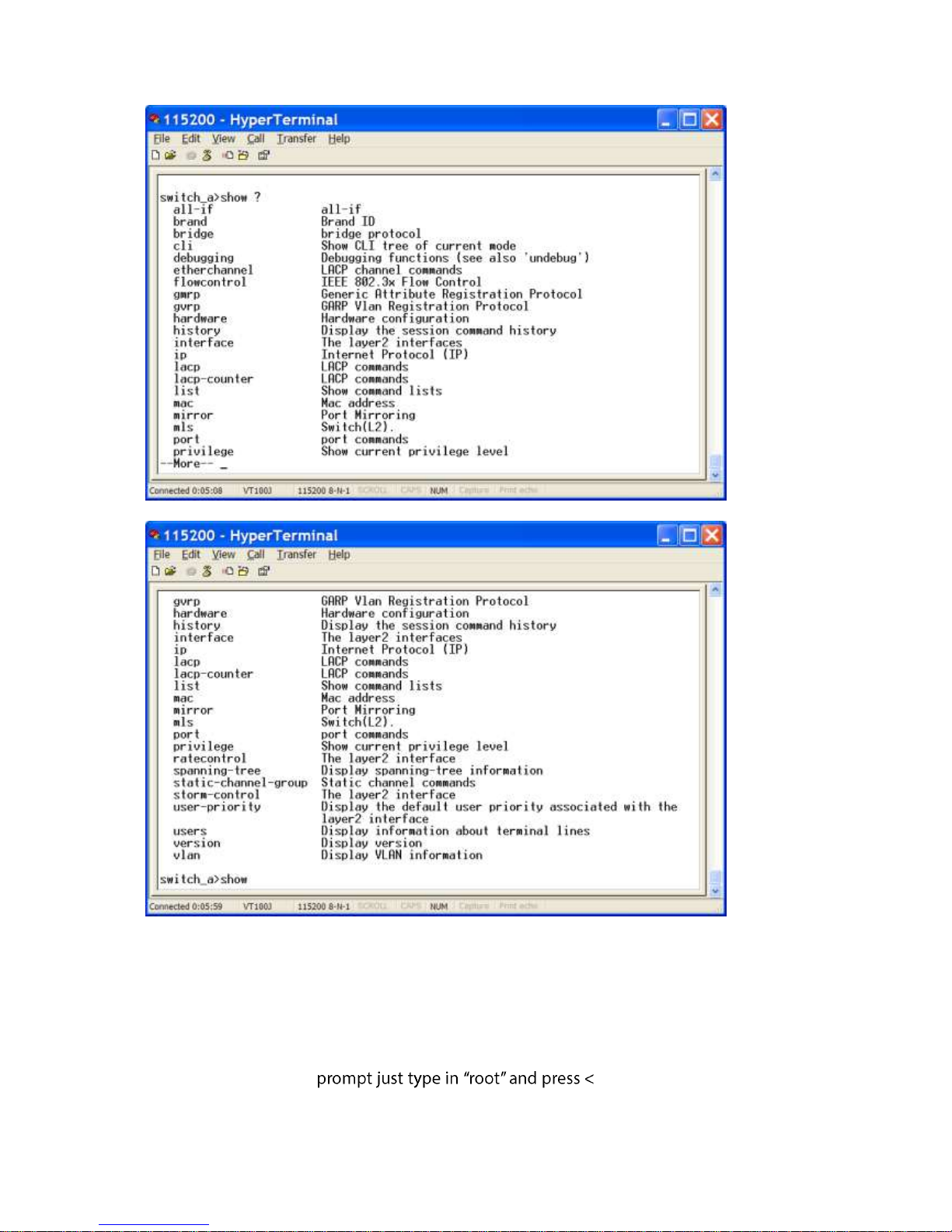

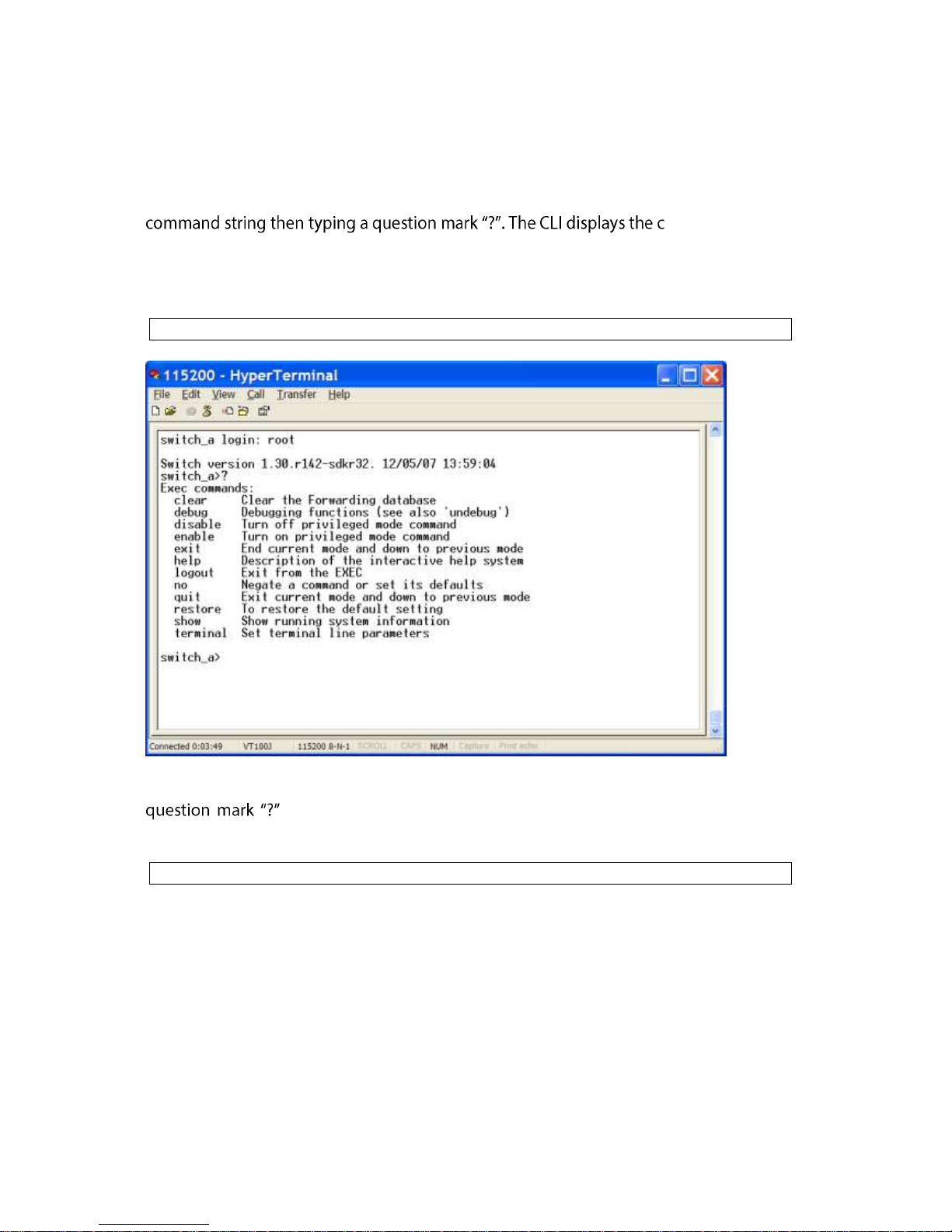

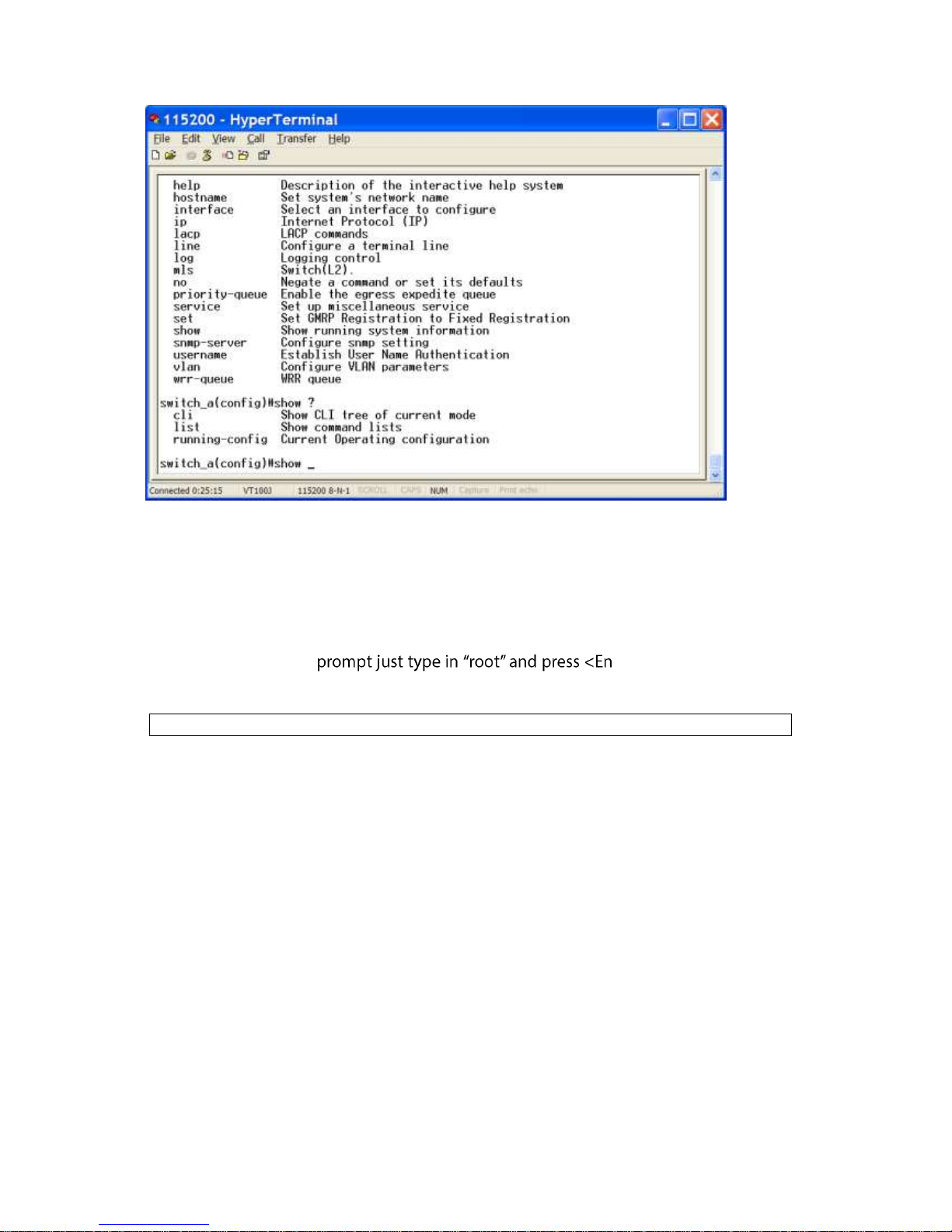

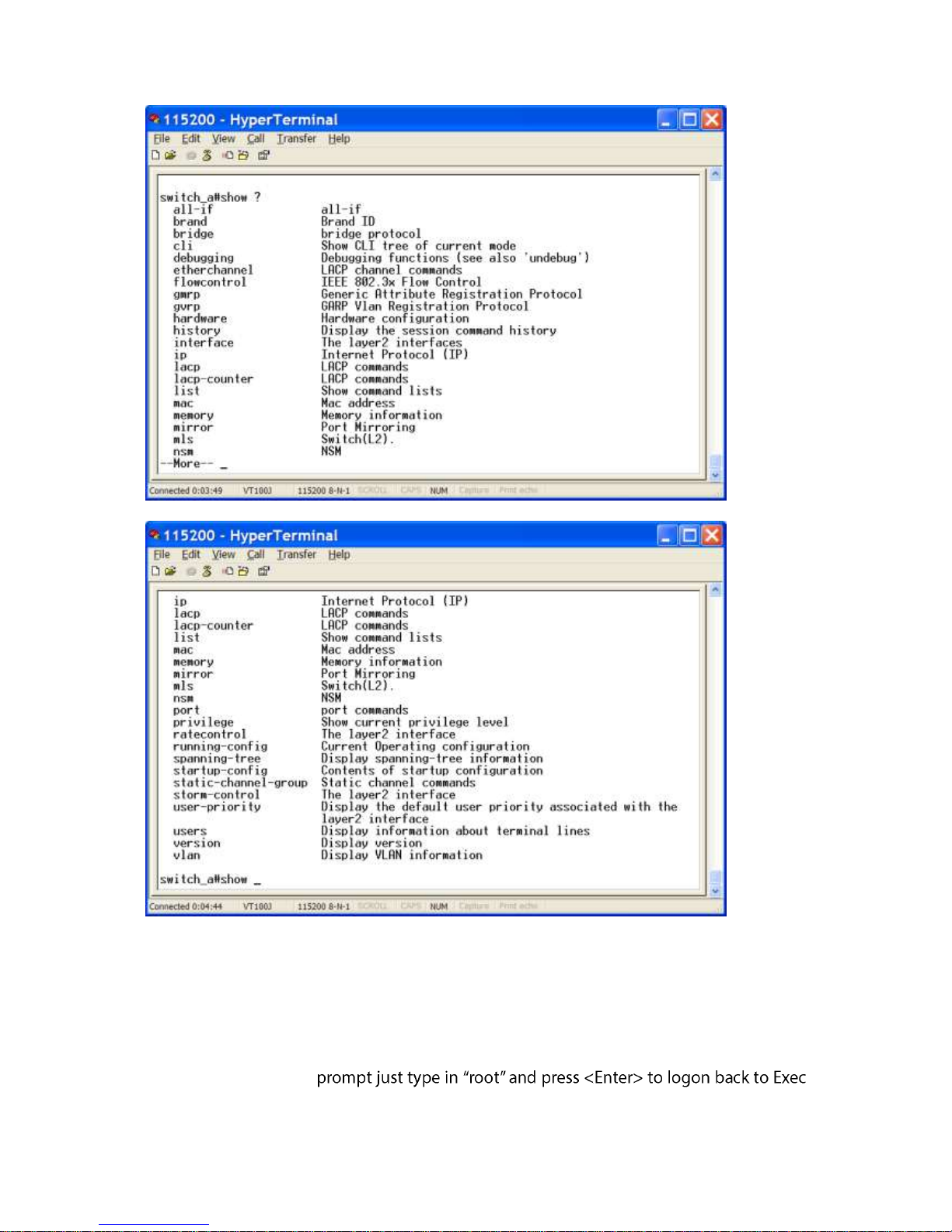

Administration Console (CLI)

The administration console is an internal, character-oriented, Command Line Interface (CLI) for performing system administration such as displaying statistics or changing option settings. Using this method, you can view the administration console from a terminal,

port. There are two ways to use this management method: direct access or modem access. The following sections describe these methods.

Direct Access

Direct access to the administration console is achieved by directly connecting a terminal or a PC equipped with a terminal-emulation program (such as HyperTerminal) to the switch console port.

When using the management method, configure the terminal-emulation program to use the following parameters (you can change these settings after login):

[DEFAULT PARAMETERS]

 115,200bps  8 data bits  No parity  1 stop bit

This management method is often preferred because you can remain connected and monitor the system during system reboots. Also, certain error messages are sent to the serial port, regardless of the interface through which the associated action was initiated. A Macintosh or PC attachment can use any terminal-emulation program for connecting to the terminal serial port. A workstation attachment under UNIX can use an emulator such as TIP.

Modem Access

external modem attached to the console port. The switch management program provides Console Port screen, accessible from the Basic Management screen that lets you configure parameters for modem access.

When you have configured the external modem from the administration console, the switch transmits characters that you have entered as output on the modem port. The switch echoes characters that it receives as input on the modem port to the current administration console session. The console appears to be directly connected to the external modem.

Page 21

User Manual Page 21

Web Management

The switch provides a browser interface that lets you configure and manage the switch remotely.

applications directly in your web browser by entering the IP address of the switch. You can then use your web browser to list and manage switch configuration parameters from one

SNMP-Based Network Management

You can use an external SNMP-based application to configure and manage the switch. This management method requires the SNMP agent on the switch and the SNMP Network Management Station to use the same community string. This management method, in fact, uses two community strings: the get community string and the set community string. If the SNMP Network management station only knows the set community string, it can read and write to the MIBs. However, if it only knows the get community string, it can only read MIBs. The default get and set community strings for the switch are public.

Protocols

The switch supports the following protocols:

VIRTUAL TERMINAL PROTOCOLS, SUCH AS TELNET

A virtual terminal protocol is a software program, such as Telnet, that allows you to establish a management session from a Macintosh, a PC, or a UNIX workstation. Because Telnet runs over TCP/IP, you must have at least one IP address configured on the switch before you can establish access to it with a virtual terminal protocol.

<Note> Terminal emulation is different from a virtual terminal protocol in that you must connect a terminal directly to the console port.

SIMPLE NETWORK MANAGEMENT PROTOCOL (SNMP)

SNMP is the standard management protocol for multivendor IP networks. SNMP supports transaction-based queries that allow the protocol to format messages and to transmit information between reporting devices and data-collection programs. SNMP runs on top of the User Datagram Protocol (UDP), offering a connectionless-mode service.

Page 22

User Manual Page 22

Management Architecture

All of the management application modules use the same Messaging Application Programming Interface (MAPI). By unifying management methods with a single MAPI, configuration parameters set using one method (e.g. console port) are immediately displayed the other management methods (e.g. SNMP agent of web browser).

The management architecture of the switch adheres to the IEEE open standard. This compliance assures customers that the switch is compatible with, and will interoperate with other solutions that adhere to the same open standard.

Page 23

User Manual Page 23

Web-Based Browser Management

The switch provides a web-based browser interface for configuring and managing the switch. This interface allows you to access the switch using a preferred web browser.

This chapter describes how to configure the switch using its web-based browser interface.

Page 24

User Manual Page 24

SNMP & RMON Management

Remote Monitoring (RMON) capabilities.

Overview

RMON is an abbreviation for the Remote Monitoring MIB (Management Information Base). RMON is a system defined by the Internet Engineering Task Force (IETF) document RFC 2819, which defines how networks can be monitored remotely.

RMONs typically consist of two components: an RMON probe and a management workstation:

- The RMON probe is an intelligent device or software agent that continually collects

statistics about a LAN segment or VLAN. The RMON probe transfers the collected data to a management workstation on request or when a pre-defined threshold is reached.

- The management workstation collects the statistics that the RMON probe gathers. The

workstation can reside on the same network as the probe, or it can have an in-band or out-of-band connection to the probe.

The switch provides RMON capabilities that allow network administrators to set parameters and view statistical counters defined in MIB-II, Bridge MIB, and RMON MIB. RMON activities are performed at a Network Management Station running an SNMP network management application with graphical user interface.

SNMP Agent and MIB-2 (RFC 1213)

The SNMP Agent running on the switch manager CPU is responsible for:

- Retrieving MIB counters from various layers of software modules according to the SNMP

GET/GET NEXT frame messages.

- Setting MIB variables according to the SNMP SET frame message.

- Generating an SNMP TRAP frame message to the Network Management Station if the

threshold of a certain MIB counter is reached or if other trap conditions (such as the following) are met:

Page 25

User Manual Page 25

WARM START COLD START LINK UP LINK DOWN AUTHENTICATION FAILURE RISING ALARM FALLING ALARM TOPOLOGY ALARM

MIB-II defines a set of manageable objects in various layers of the TCP/IP protocol suites. MIB-II covers all manageable objects from layer 1 to layer 4, and, as a result, is the major SNMP MIB supported by all vendors in the networking industry. The switch supports a complete implementation of SNMP Agent and MIB-II.

RMON MIB (RFC 2819) & Bridge MIB (RFC 1493)

The switch provides hardware-based RMON counters in the switch chipset. The switch manager CPU polls these counters periodically to collect the statistics in a format that complies with the RMON MIB definition.

RMON Groups Supported

The switch supports the following RMON MIB groups defined in RFC 2819:

- RMON Statistics Group maintains utilization and error statistics for the switch port

being monitored.

- RMON History Group gathers and stores periodic statistical samples from the previous

Statistics Group.

- RMON Alarm Group allows a network administrator to define alarm thresholds for any

MIB variable. An alarm can be associated with Low Threshold, High Threshold, or both. A trigger can trigger an alarm when the value of a specific MIB variable exceeds a threshold, falls below a threshold, or exceeds or falls below a threshold.

- RMON Event Group allows a network administrator to define actions based on alarms.

SNMP Traps are generated when RMON Alarms are triggered. The action taken in the Network Management Station depends on the specific network management application.

Bridge Groups Supported

The switch supports the following four groups of Bridge MIB (RFC 1493):

Page 26

User Manual Page 26

- The dot1dBase Group a mandatory group that contains the objects applicable to all

types of bridges.

- The dot1dStp Group

Spanning Tree Protocol. If a node does not implement the Spanning Tree Protocol, this group will not be implemented. This group is applicable to any transparent only, source route, or SRT bridge that implements the Spanning Tree Protocol.

- The dot1dTp Group contains objects that des

status. This group is applicable to transparent operation only and SRT bridges.

- The dot1dStatic Group -address

filtering status. This group is applicable to any type of bridge which performs destination-address filtering.

Page 27

User Manual Page 27

Web-Based Browser Management

The switch provides a web-based browser interface for configuring and managing the switch. This interface allows you to access the switch using a preferred web browser.

This chapter describes how to configure the switch using its web-based browser interface.

Logging on to the switch

SWITCH IP ADDRESS

In your web browser, specify the IP address of the switch. Default IP address is

192.168.1.10.

Enter the factory default login ID: root.

PASSWORD

Enter the factory default password (no password). Or enter a user-defined password if you followed the instructions later and changed the factory default password.

e switch.

Page 28

User Manual Page 28

Understanding the Browser Interface

The web browser interface provides groups of point-and-click buttons at the left field of the screen for configuring and managing the switch.

SYSTEM

System Information, System Name/Password, IP Address, Save Configuration, Firmware Upgrade, Reboot, Logout

PORT

Configuration, Port Status, Rate Control, RMON Statistics, Per Port Vlan Activities

SWITCHING

Bridging, Static MAC Entry, Port Mirroring

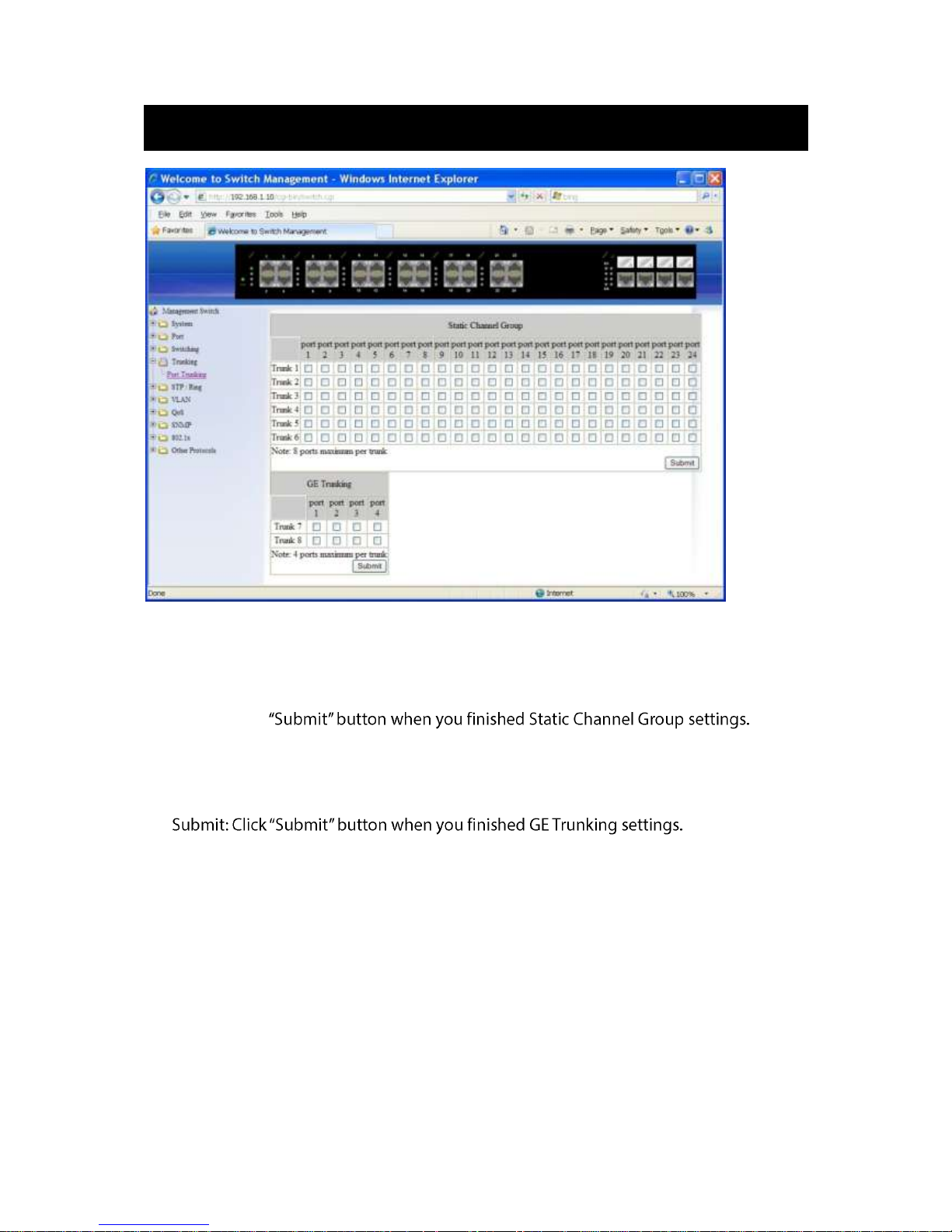

TRUNKING

Port Trunking

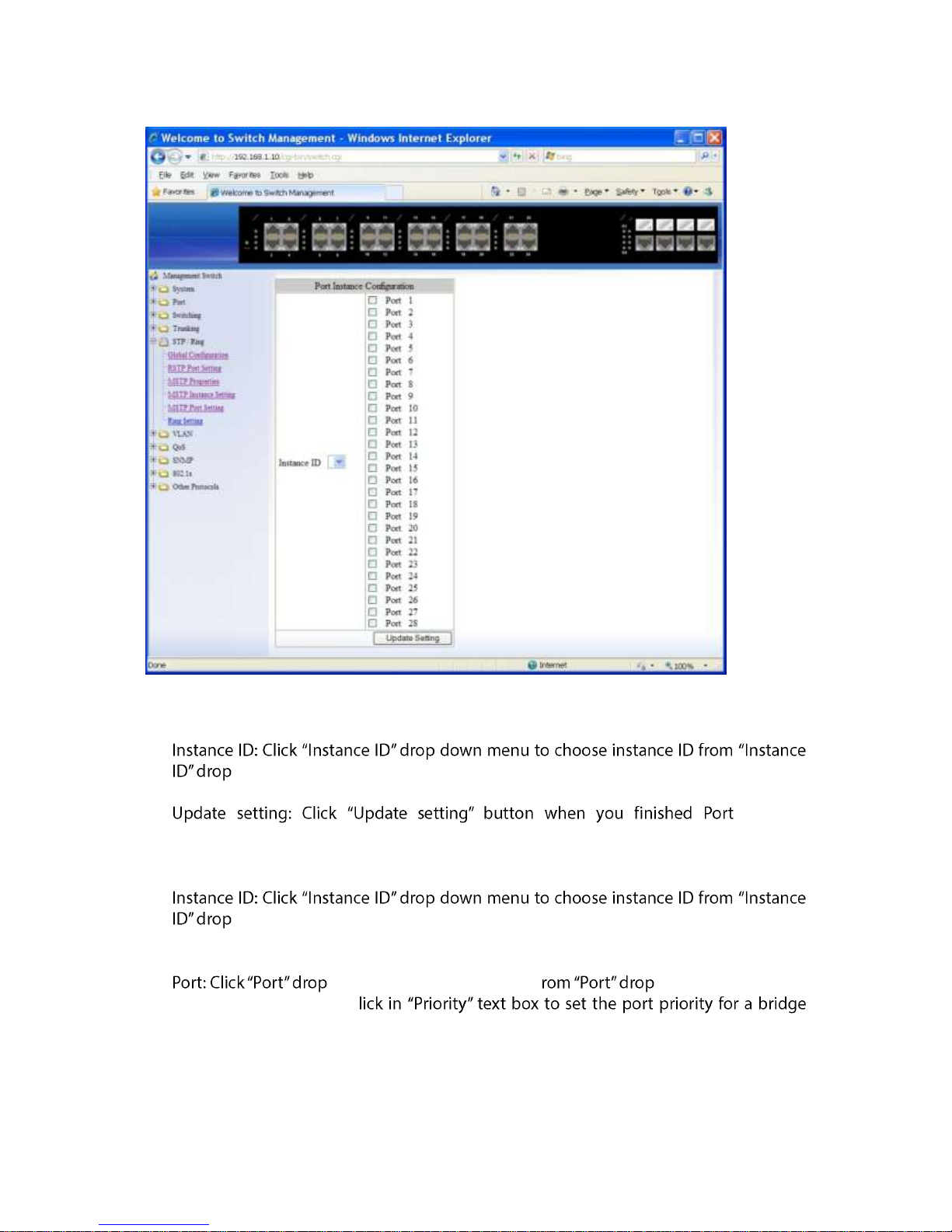

STP / RING

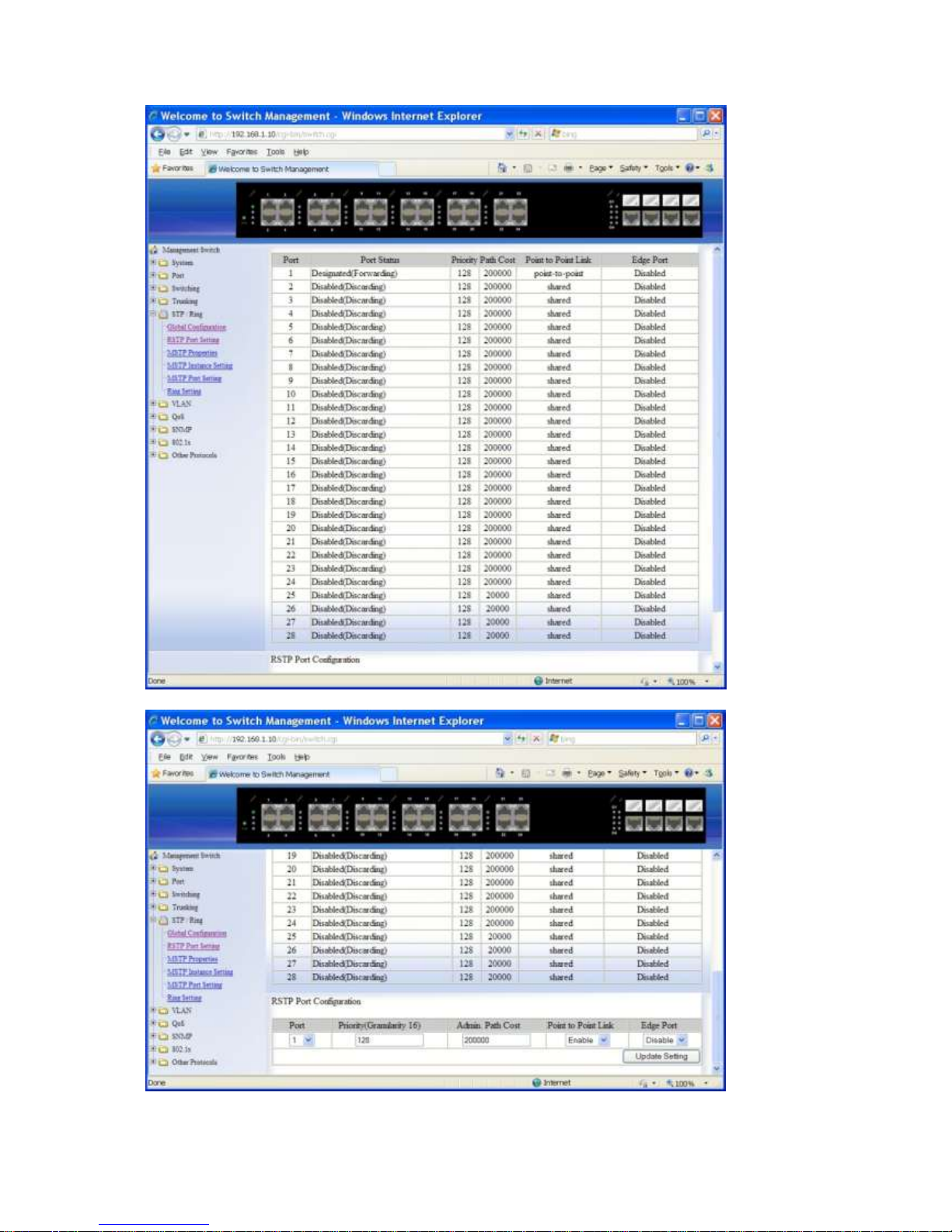

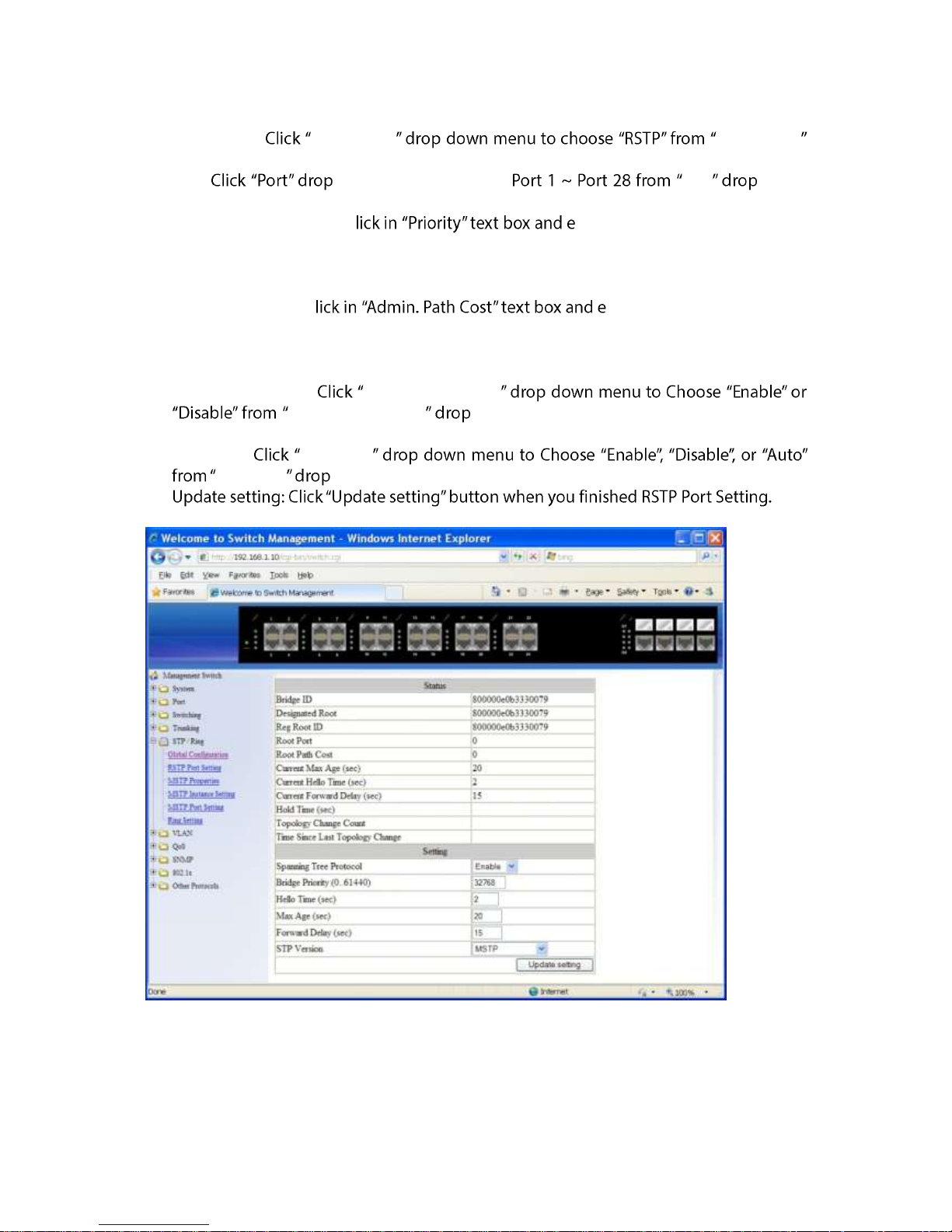

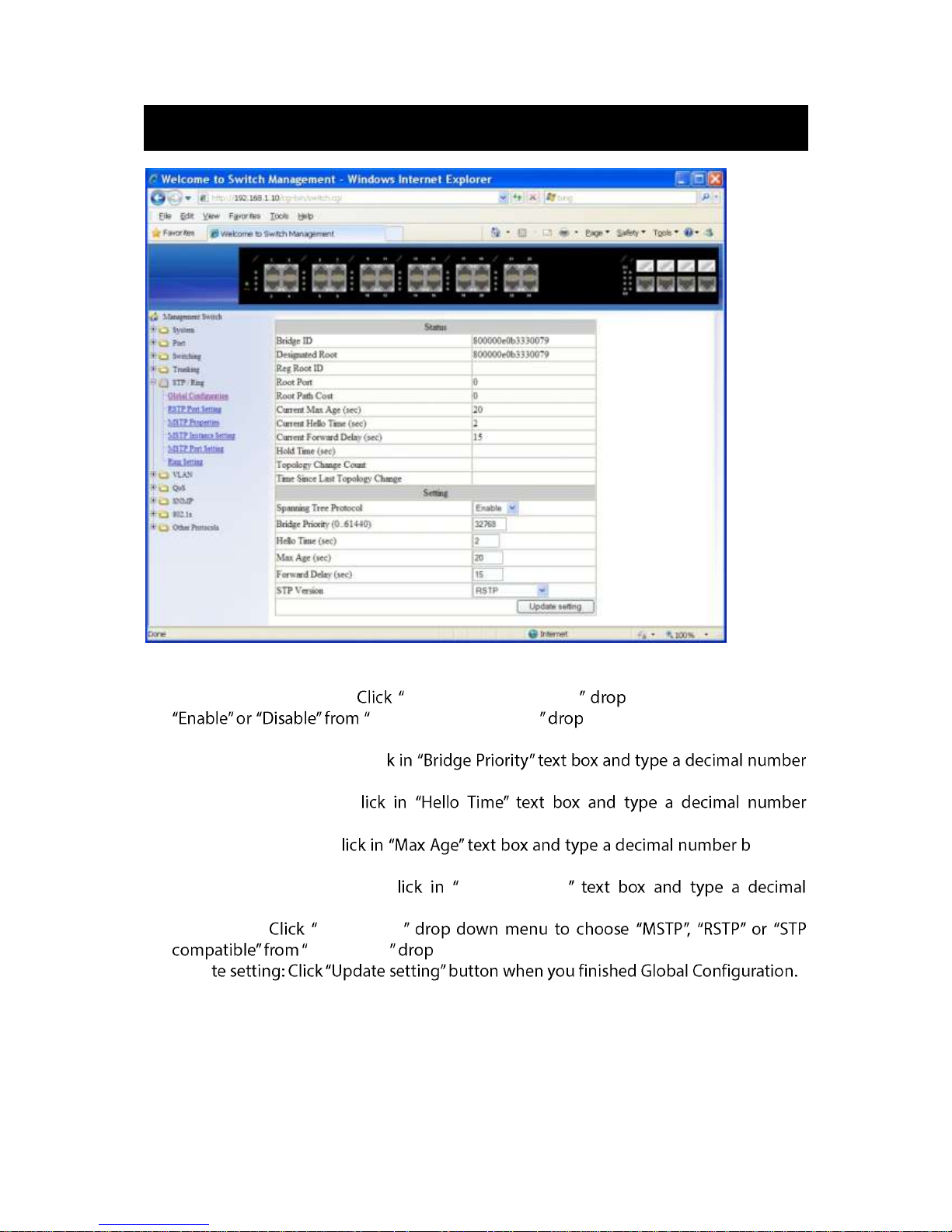

Global Configuration, RSTP Port Setting, MSTP Properties, MSTP Instance Setting, MSTP Port Setting, Ring Setting

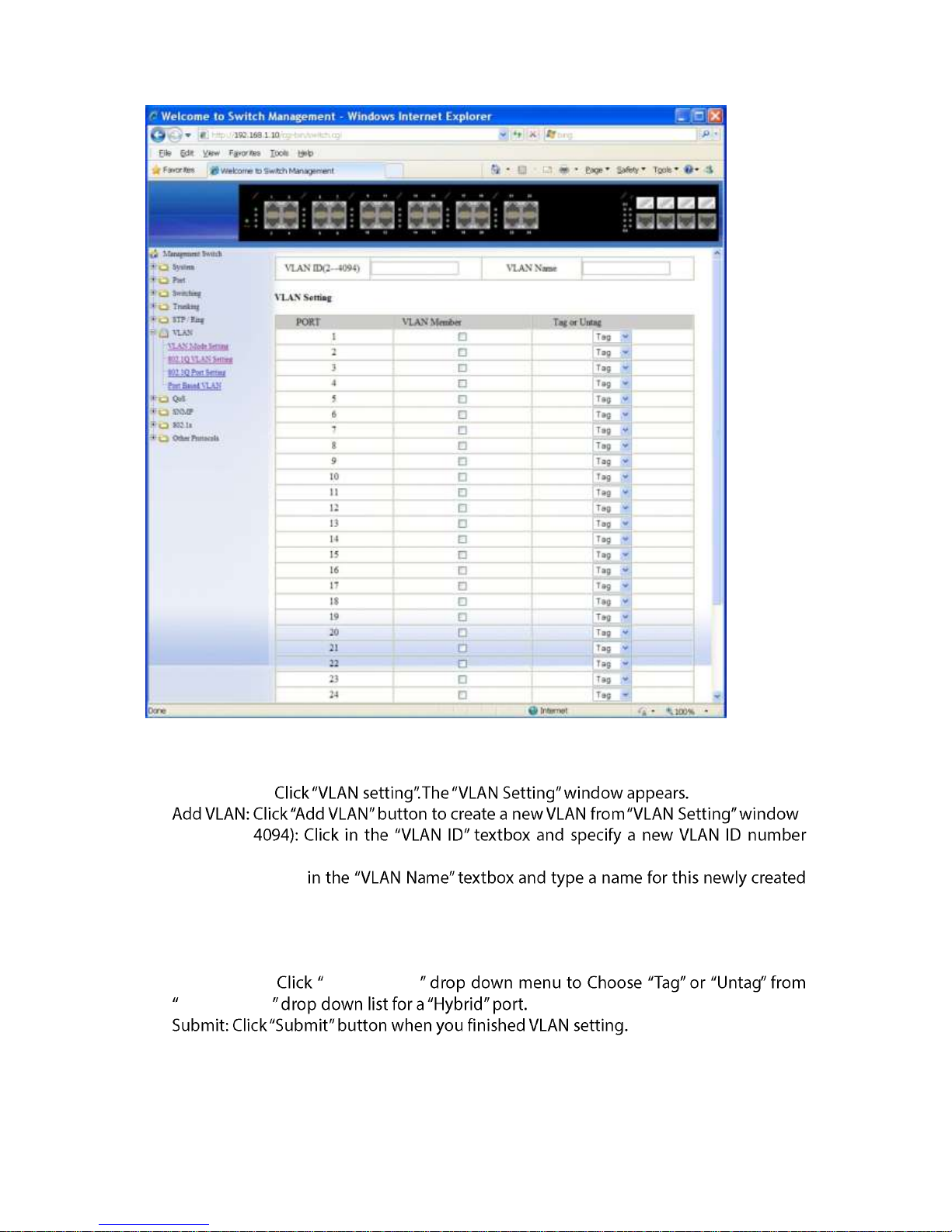

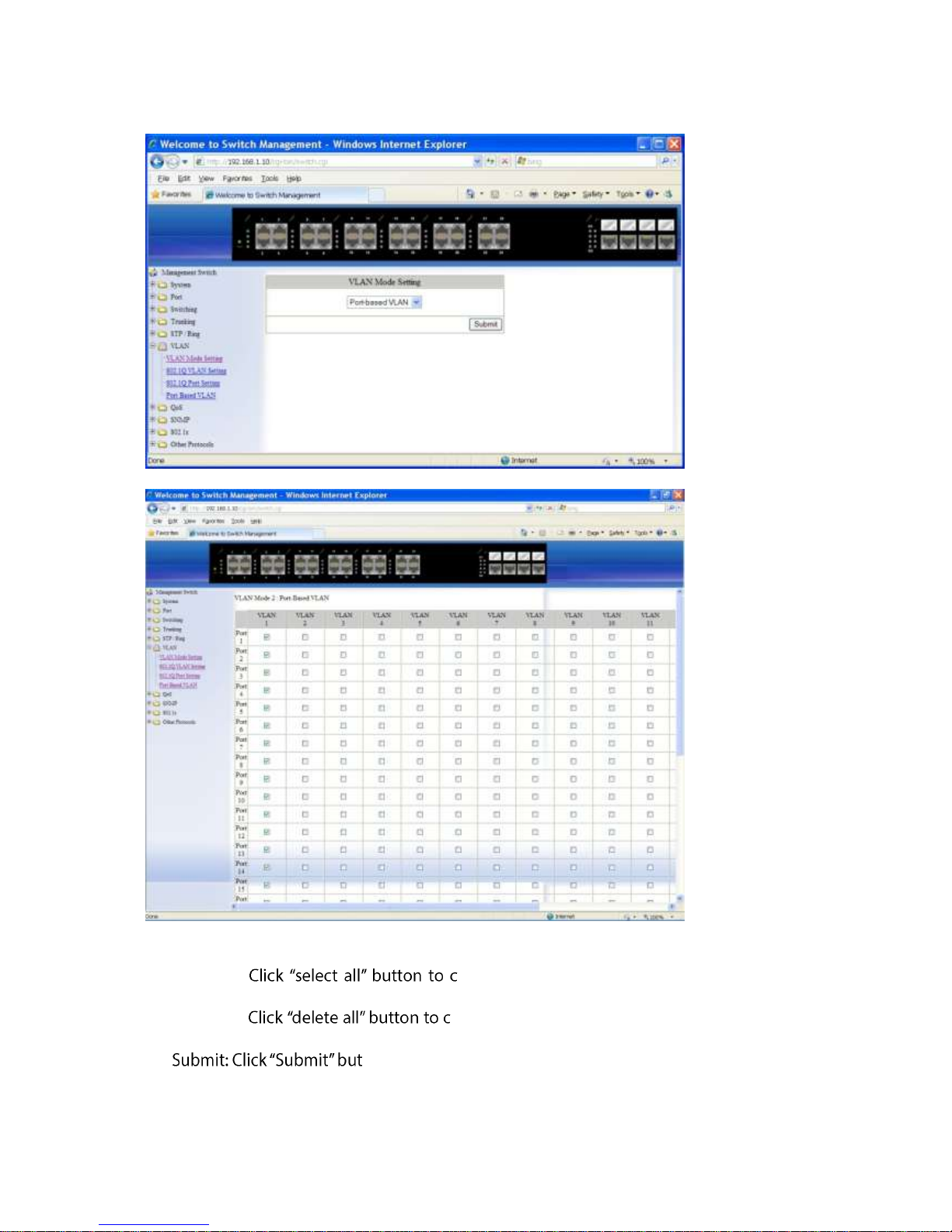

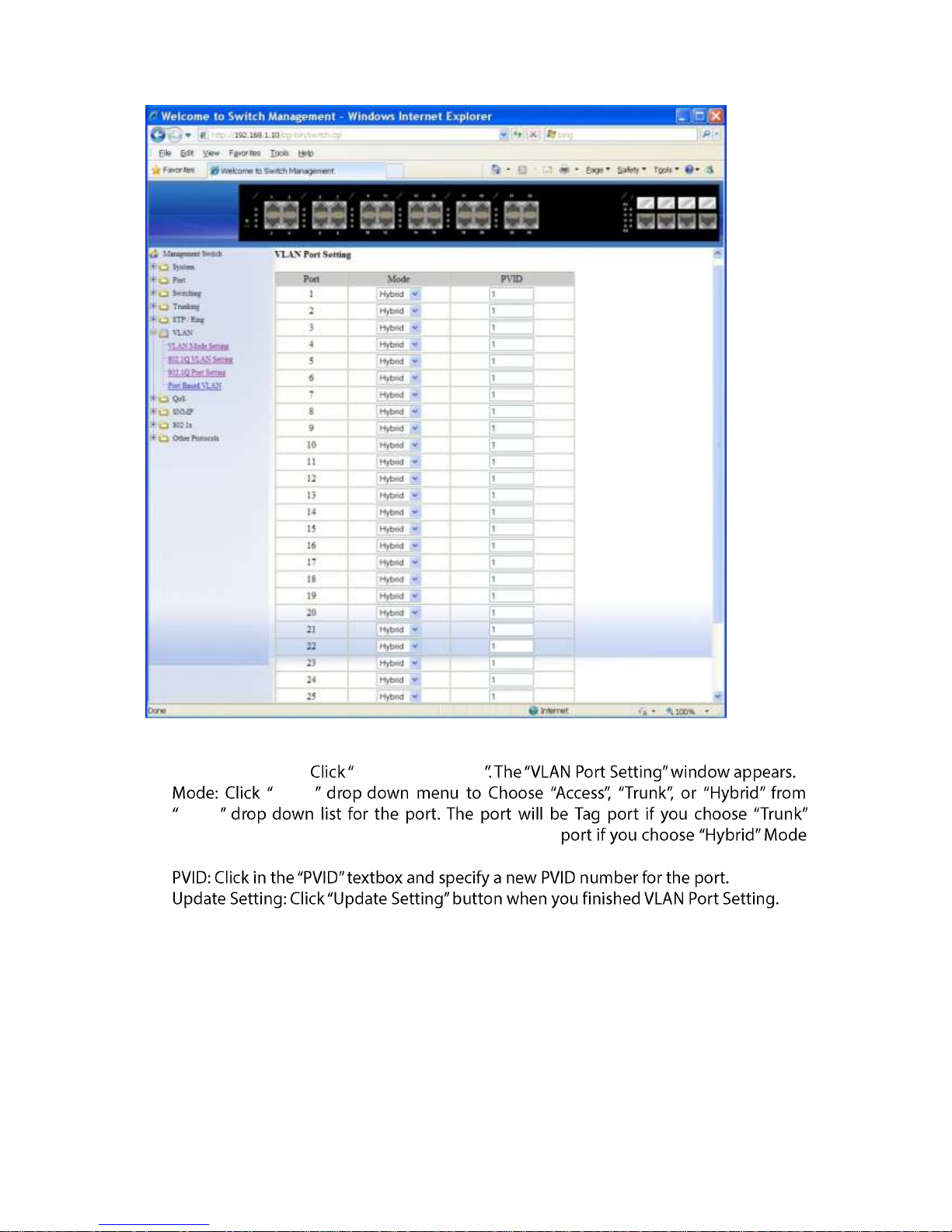

VLAN

VLAN Mode Setting, 802.1Q VLAN Setting, 802.1Q Port Setting, Port Based VLAN

Page 29

User Manual Page 29

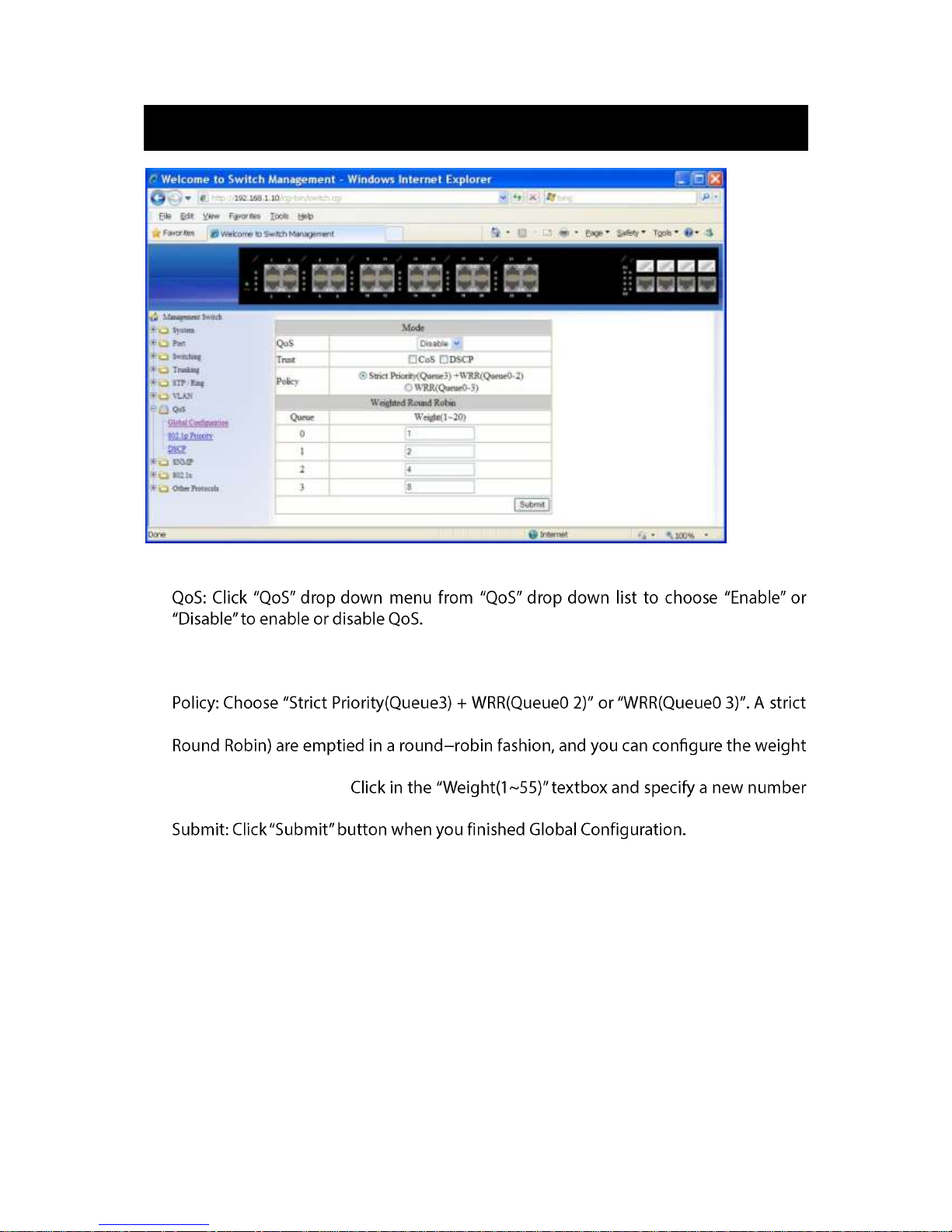

QOS

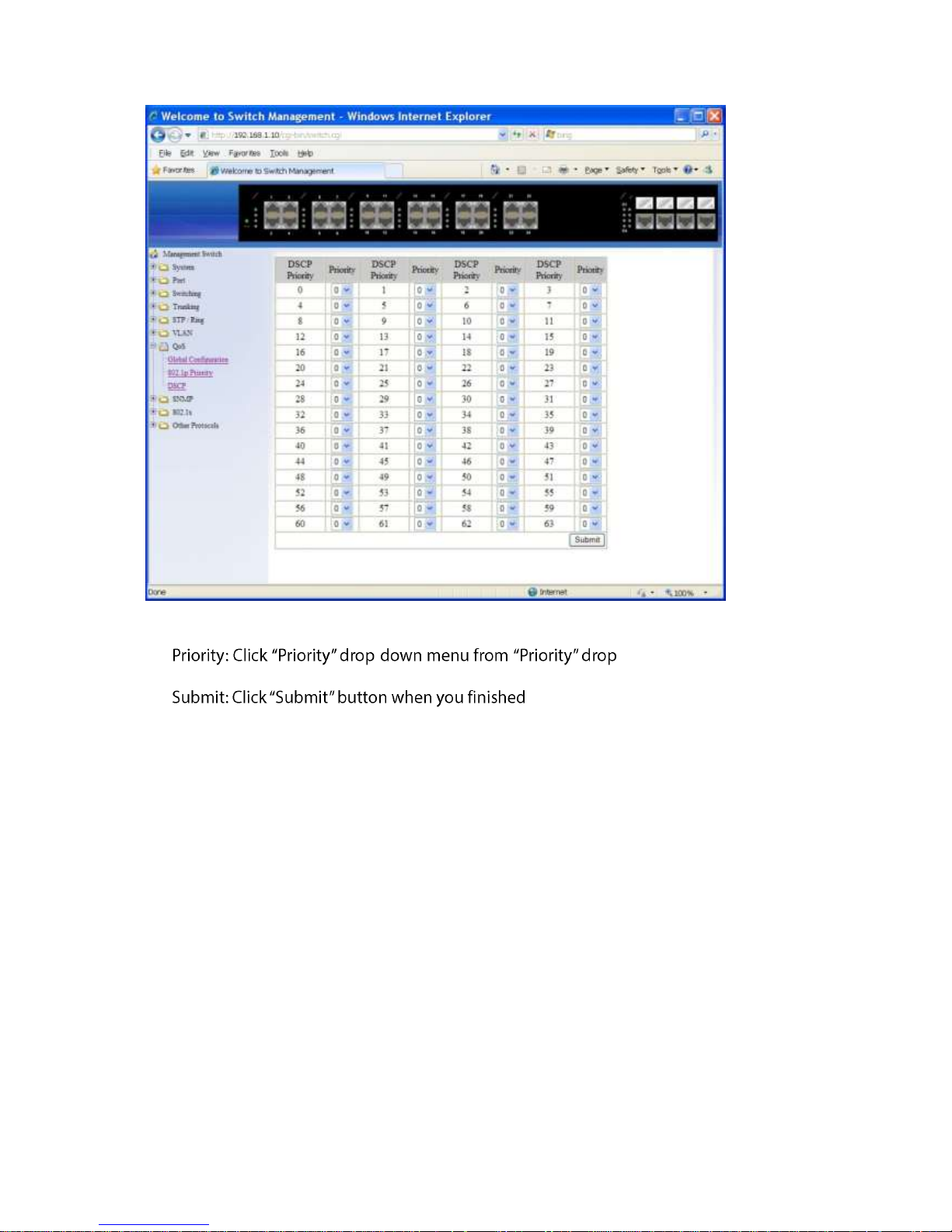

Global Configuration, 802.1p Priority, DSCP

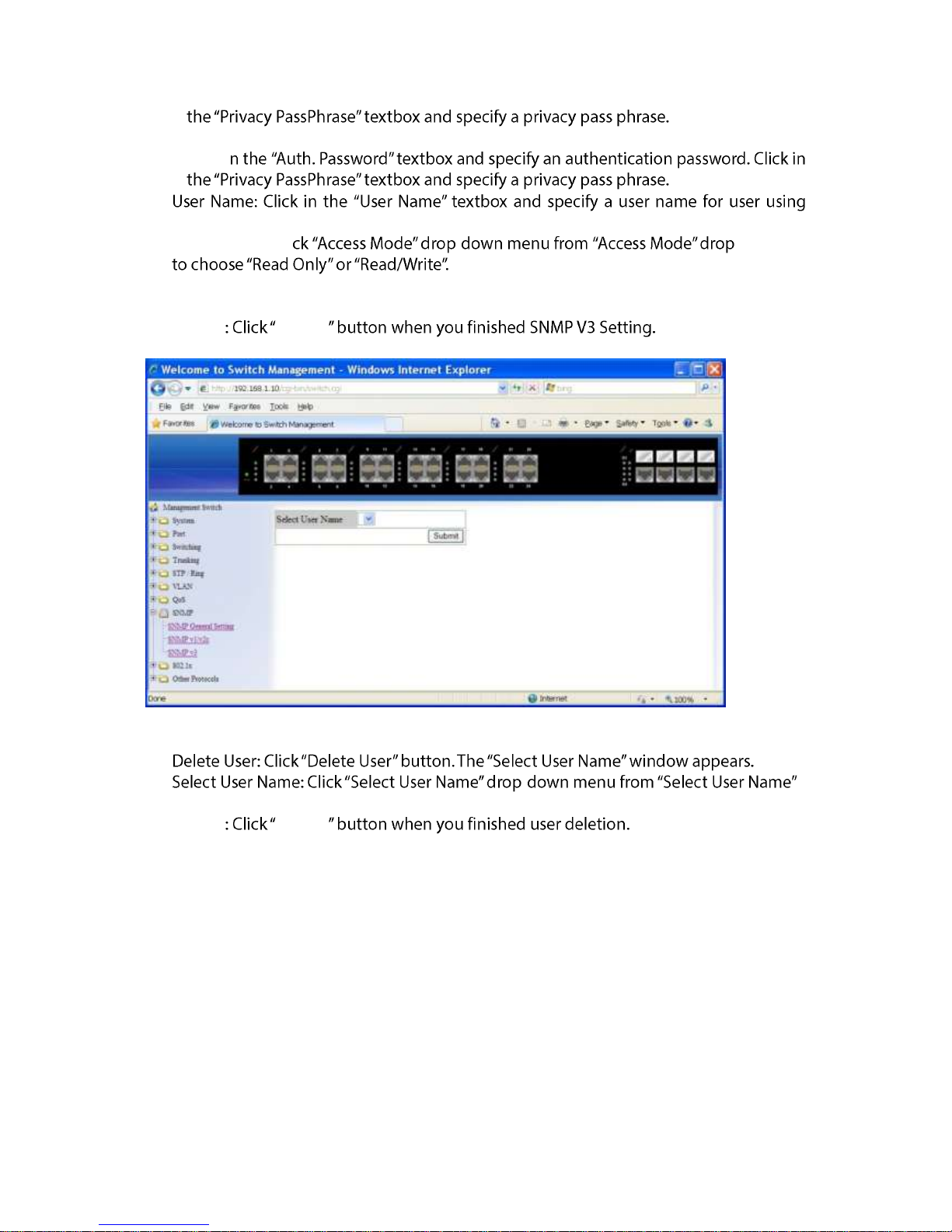

SNMP

SNMP General Setting, SNMP v1/v2c, SNMP v3

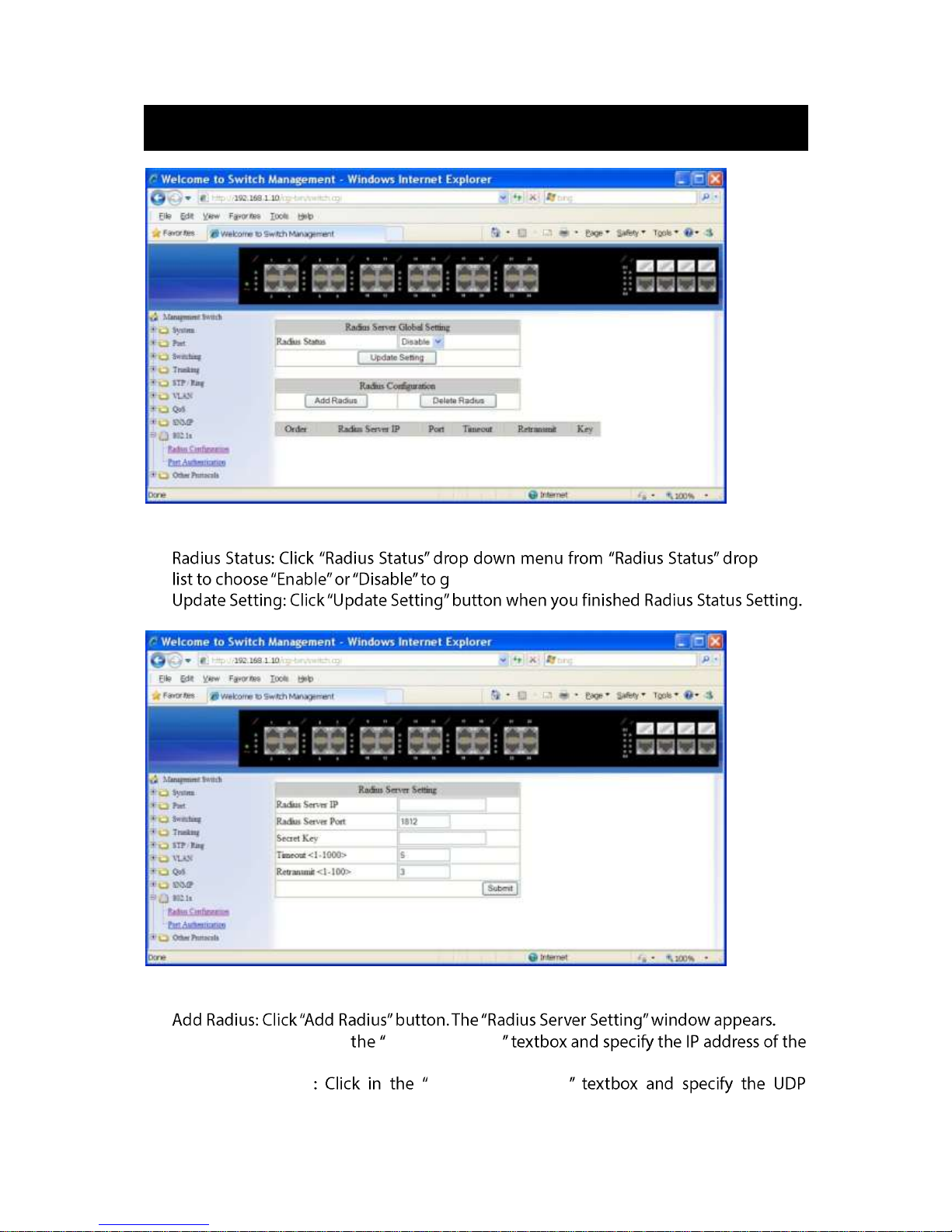

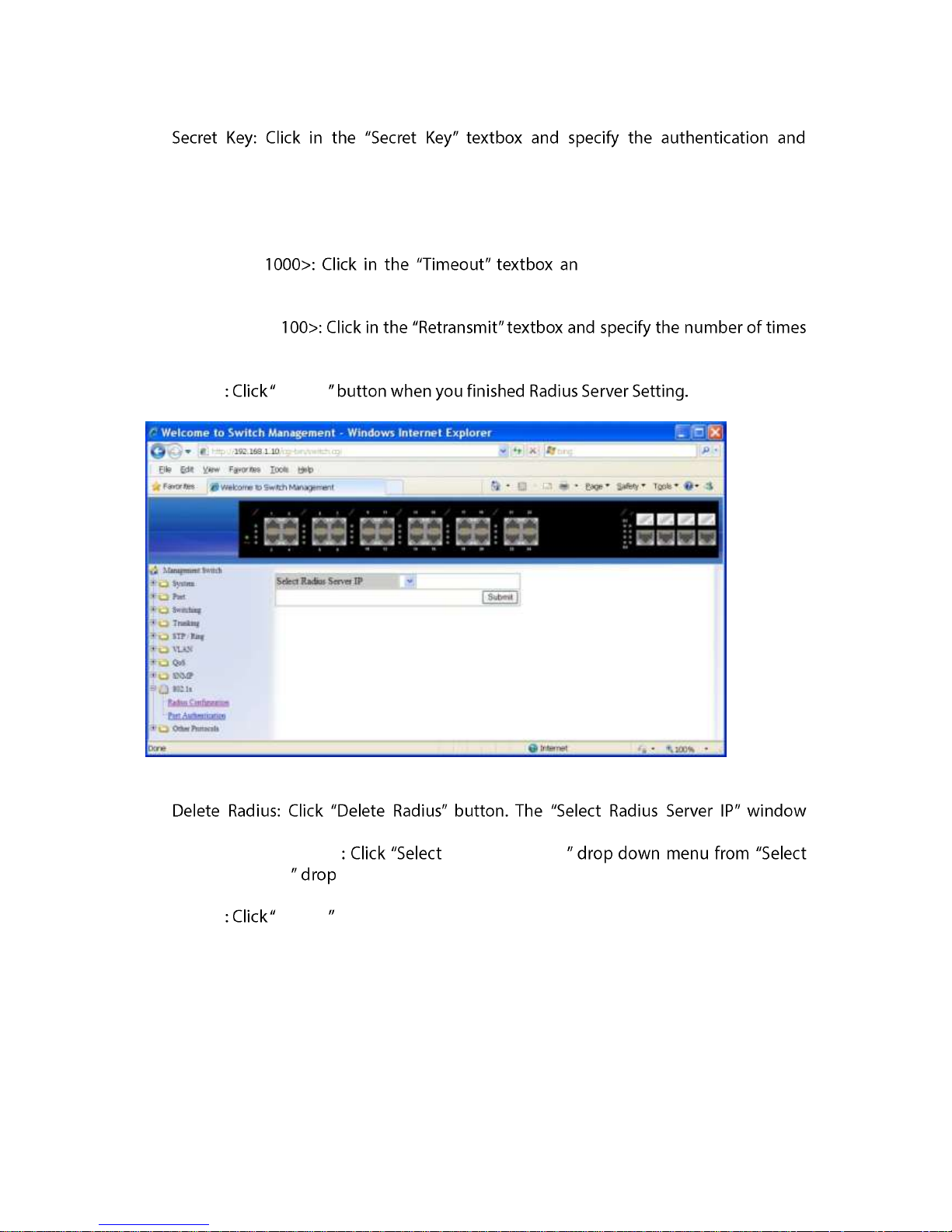

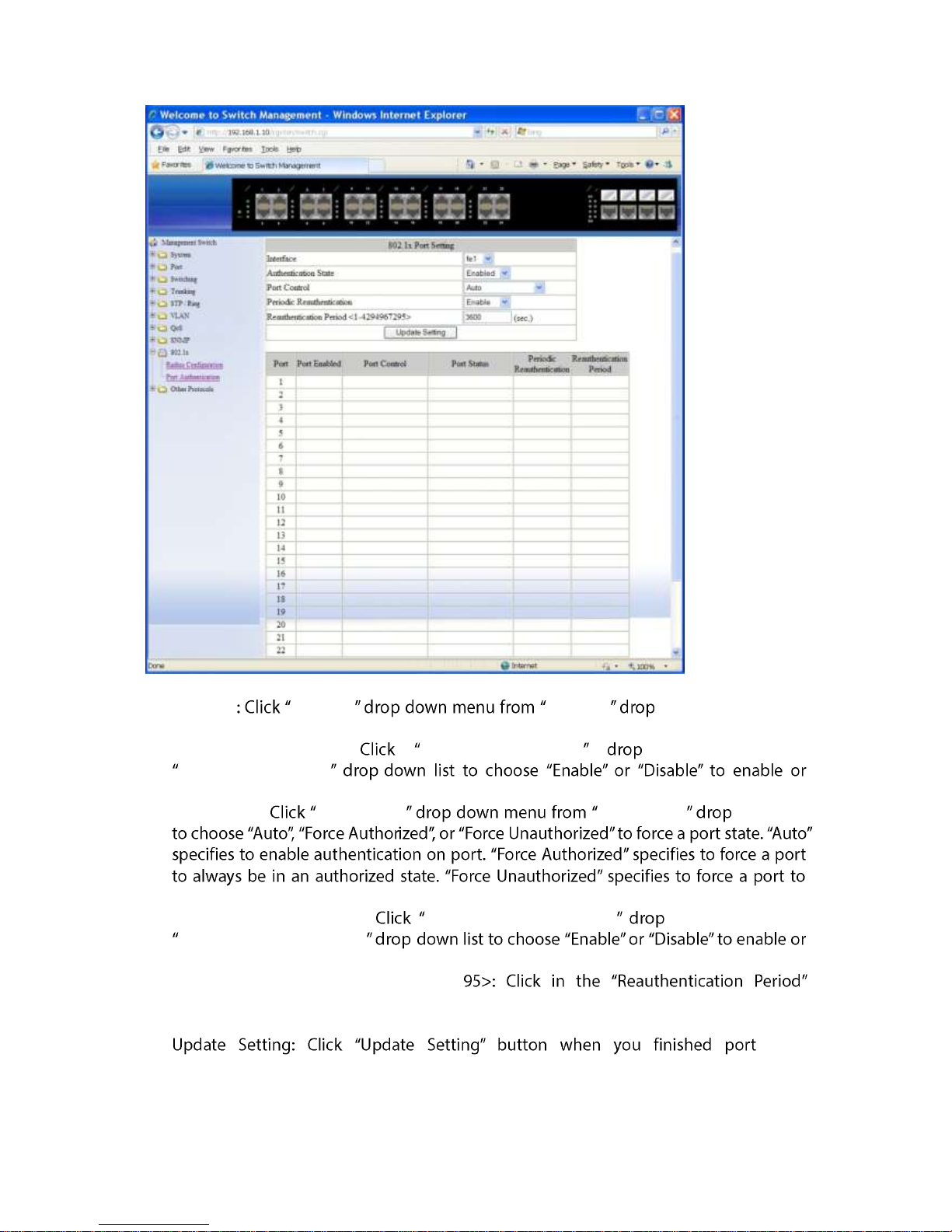

802.1X

Radius Configuration, Port Authentication

OTHER PROTOCOLS

GVRP, IGMP Snooping, NTP

Page 30

User Manual Page 30

System

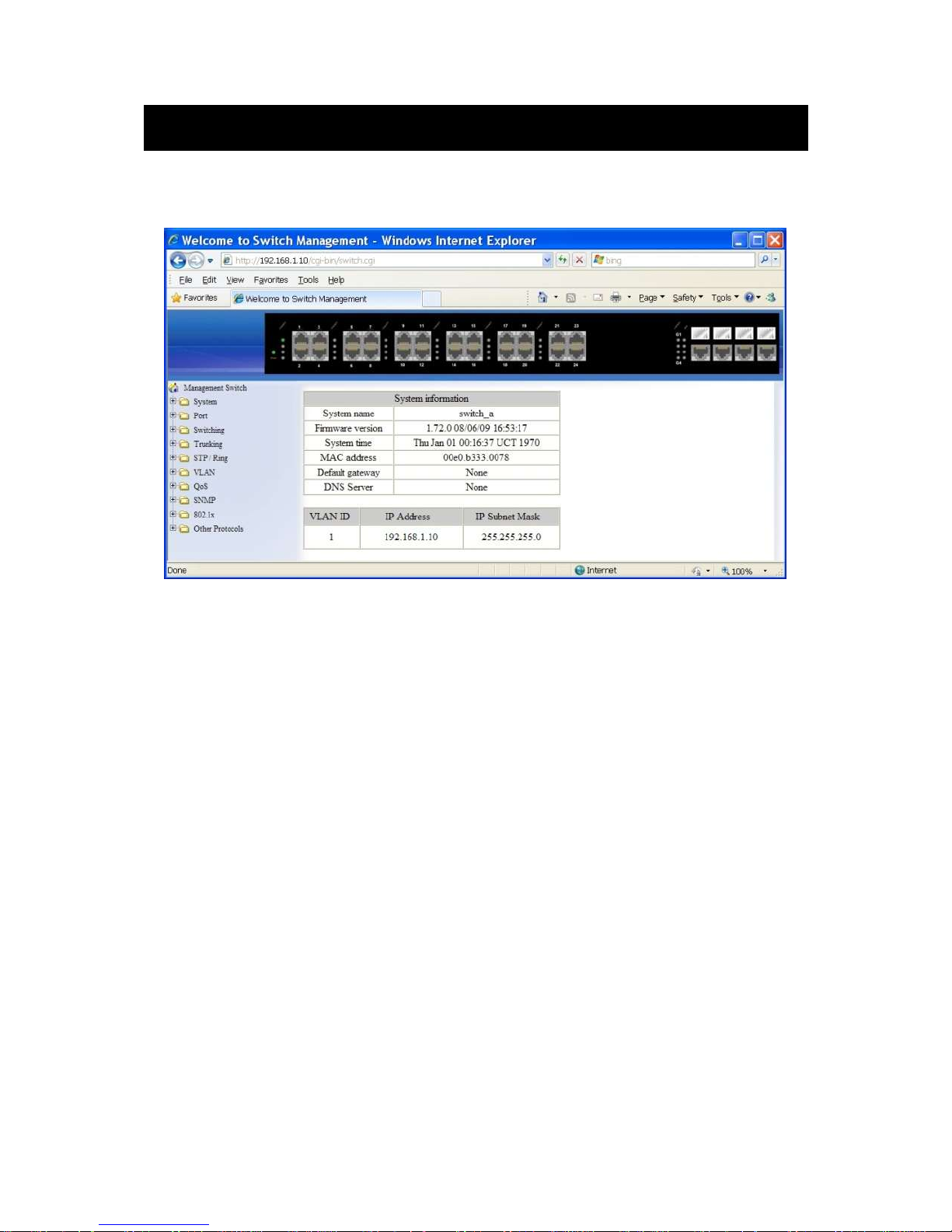

System Information

The System name, Firmware version, MAC address, Default gateway, VLAN ID, IP Address, and IP Subnet Mask of Switch.

Page 31

User Manual Page 31

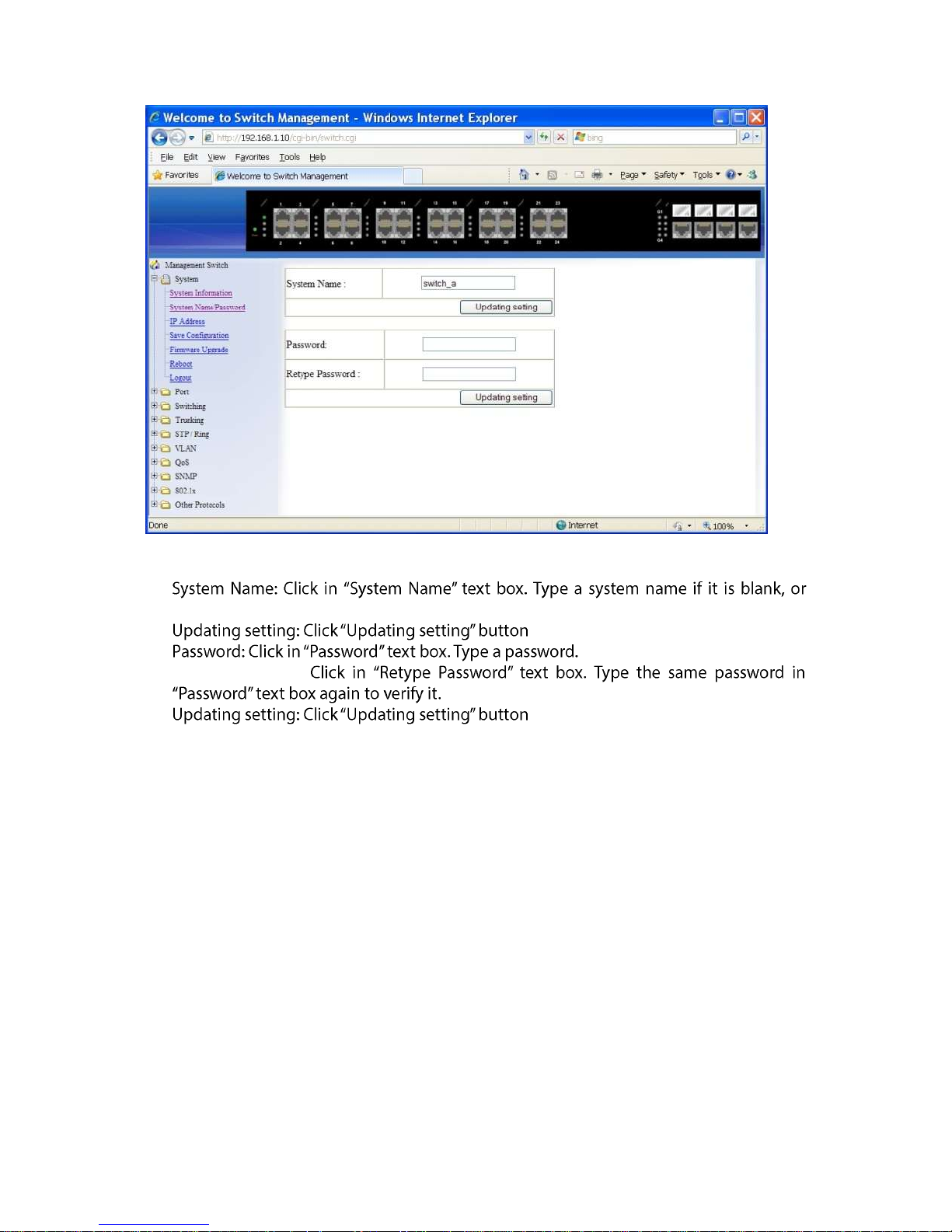

System Name/Password

replace the current system name with a new one.

2. to update your settings.

4. Retype Password:

5. to update your settings.

Page 32

User Manual Page 32

IP Address

1. IP

Address.

the IP Subnet Mask.

4. You need to enter the new IP address on the browser and reconnect to the switch after

IP or subnet mask are changed.

5. -

-down list to disable or enable Default Gateway Setting for the switch. Click the text box and type a new address to change the Default Gateway. (Need to

-down menu.)

6. Submit: Click

Page 33

User Manual Page 33

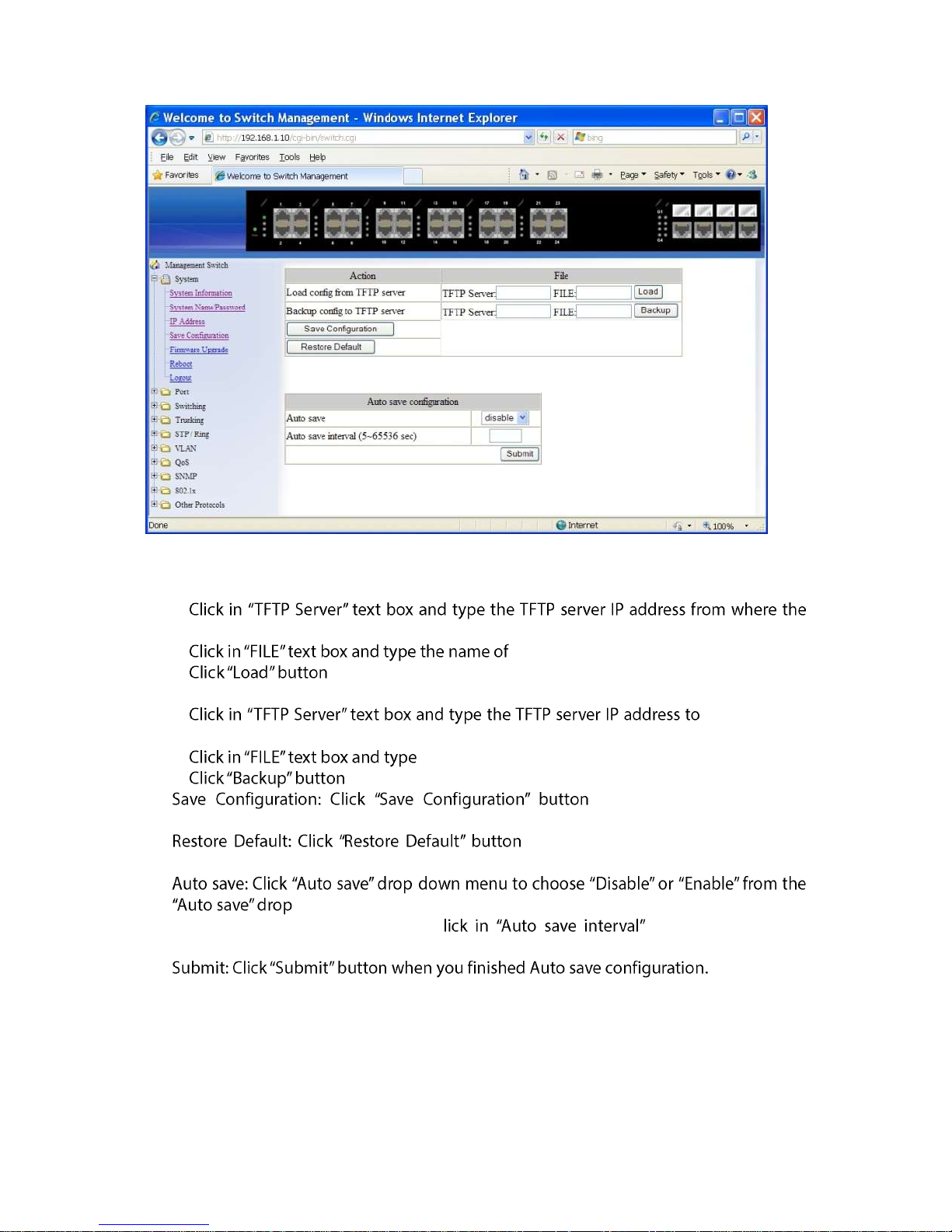

Save Configuration

1. Load config from TFTP server: file will be obtained.

the file that will be obtained.

to load the file from the TFTP server.

2. Backup config to TFTP server:

where the file

will be backup.

the name of the file that will be backup.

to backup the file to the TFTP server.

3. to save your configuration

settings.

4. to restore the default settings of the

switch.

5. -

-down list to disable or enable Auto save for the switch.

6. Auto save interval (5~65536 sec): C text box and type a

decimal number between 5 and 65536.

Page 34

User Manual Page 34

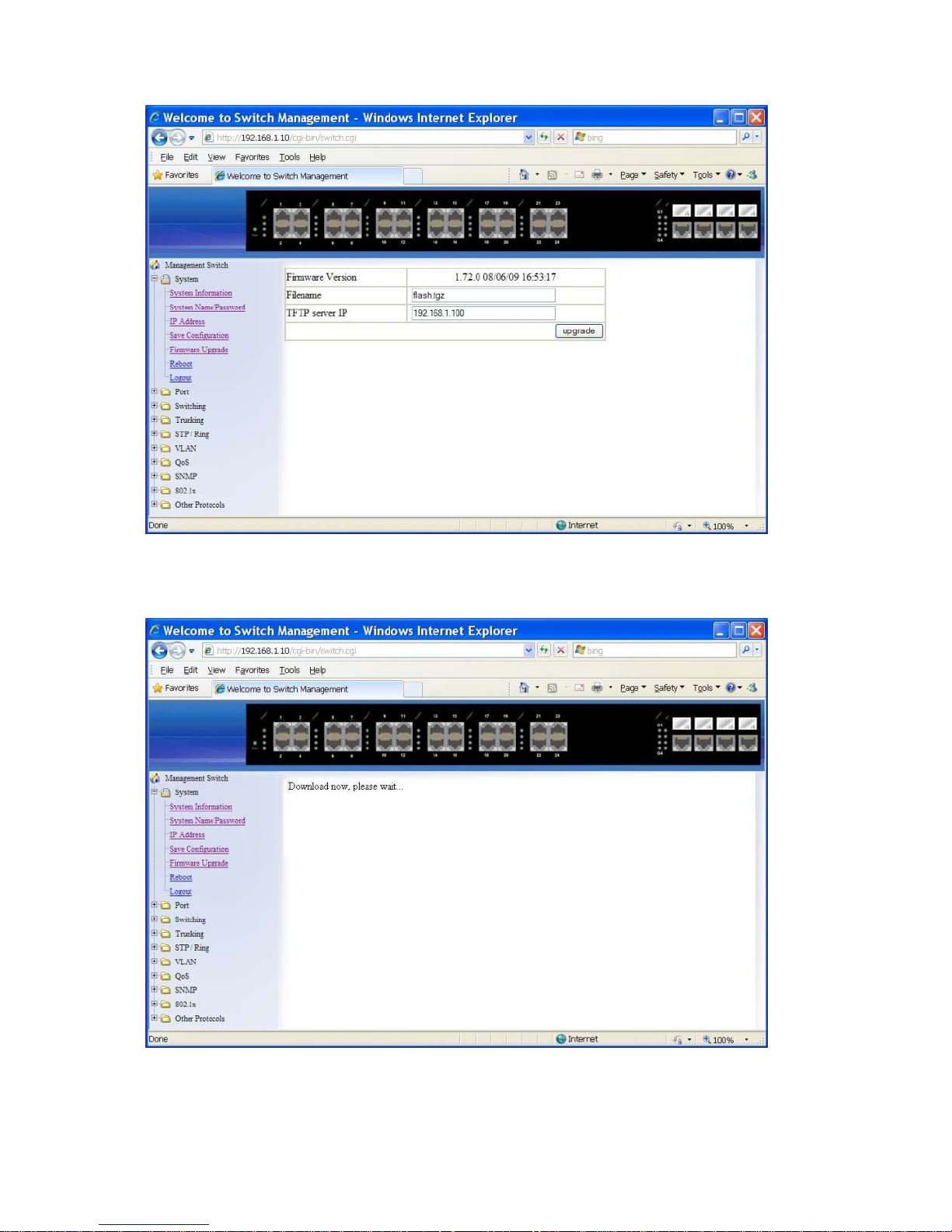

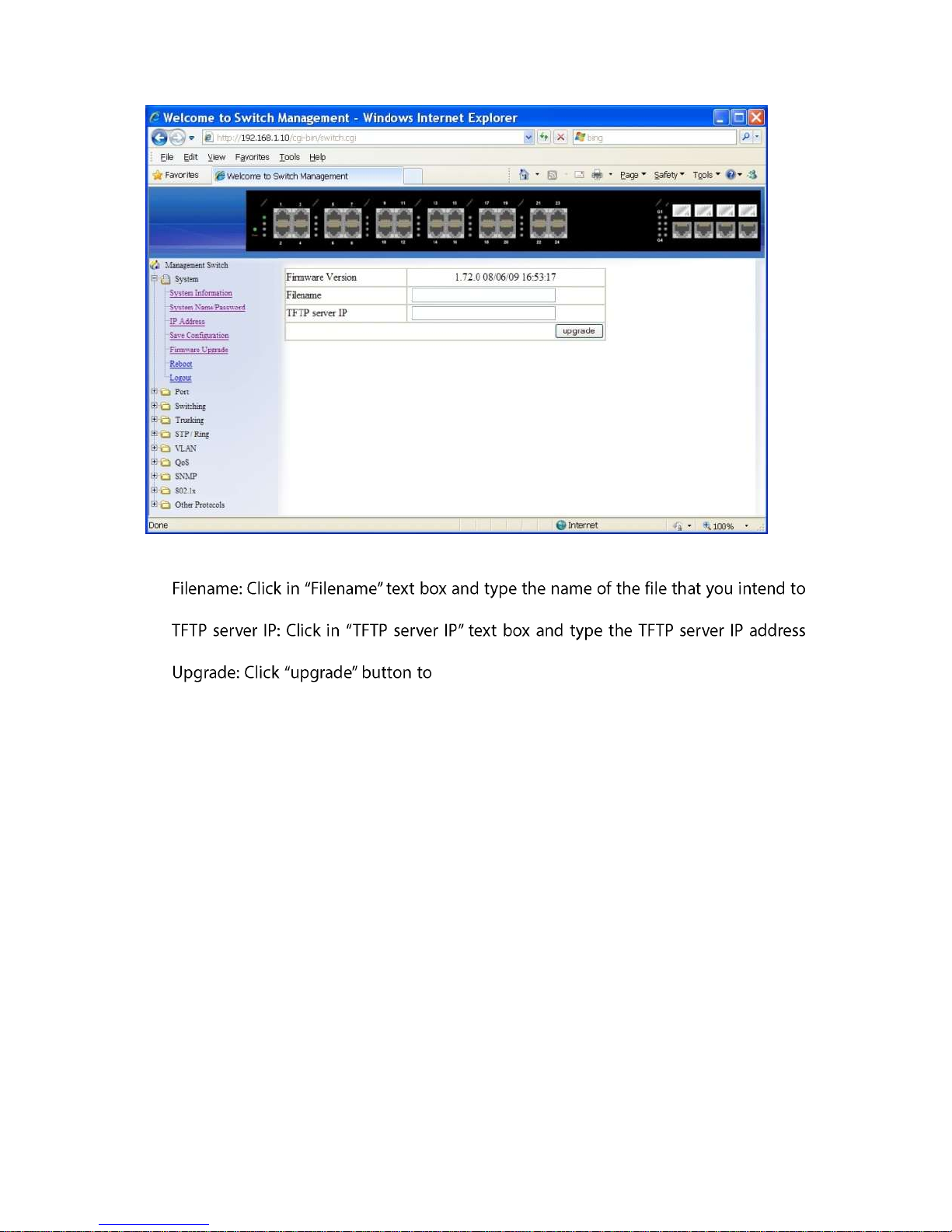

Firmware Upgrade

upgrade it to the switch.

from where the file will be obtained.

3. upgrade firmware to the switch. Please follow the

message on the screen during the firmware upgrade process. Do not turn off the power or perform other functions during this period of time. Reboot the switch after completing the upgrade process.

Page 35

User Manual Page 35

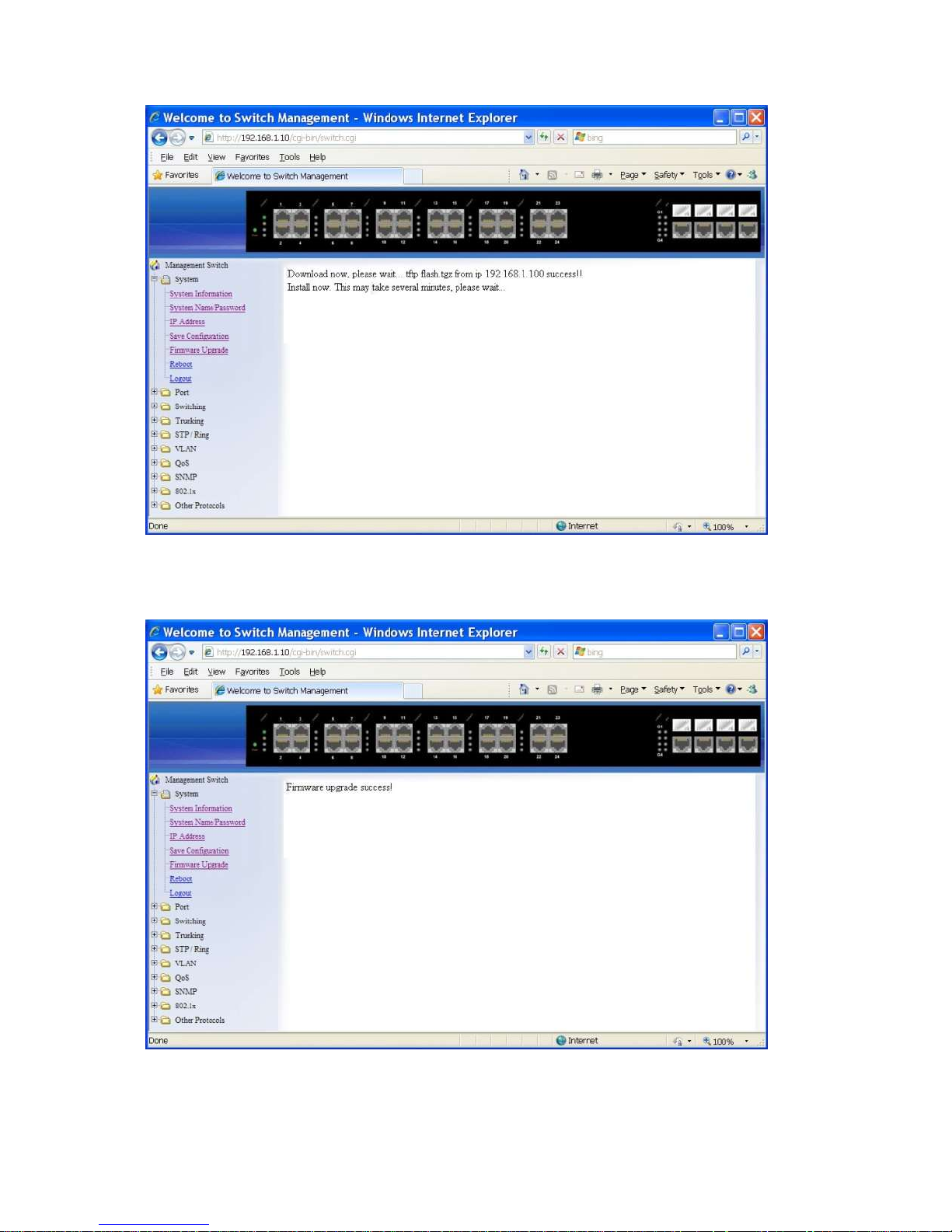

Please follow the message on the screen during the firmware upgrade process. Do not turn off the power or perform other functions during this period of time.

Page 36

User Manual Page 36

Firmware has been upgraded successfully to the switch. Reboot the switch after completing the upgrade process.

Page 37

User Manual Page 37

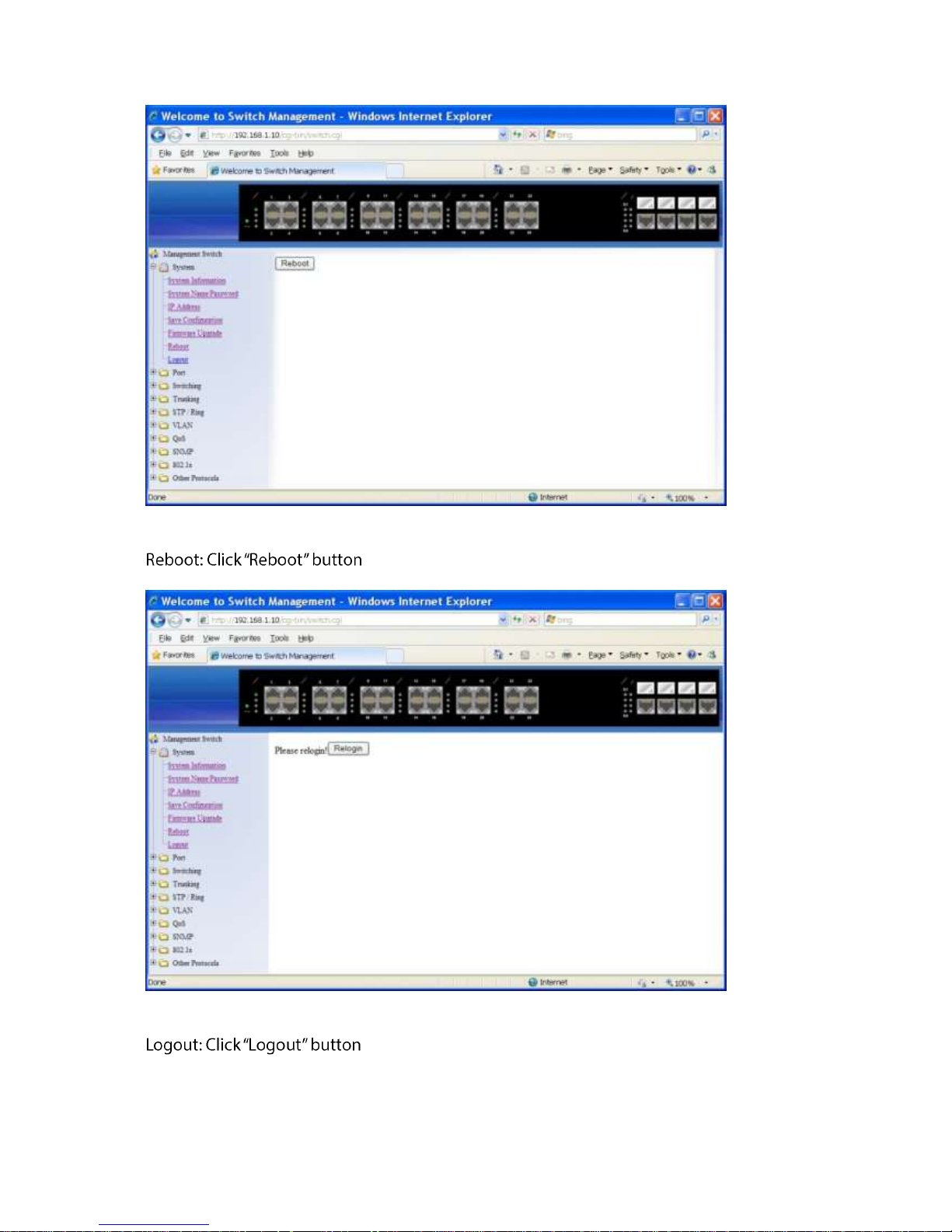

Reboot

to restart the switch.

Logout

to logout of the switch.

Page 38

User Manual Page 38

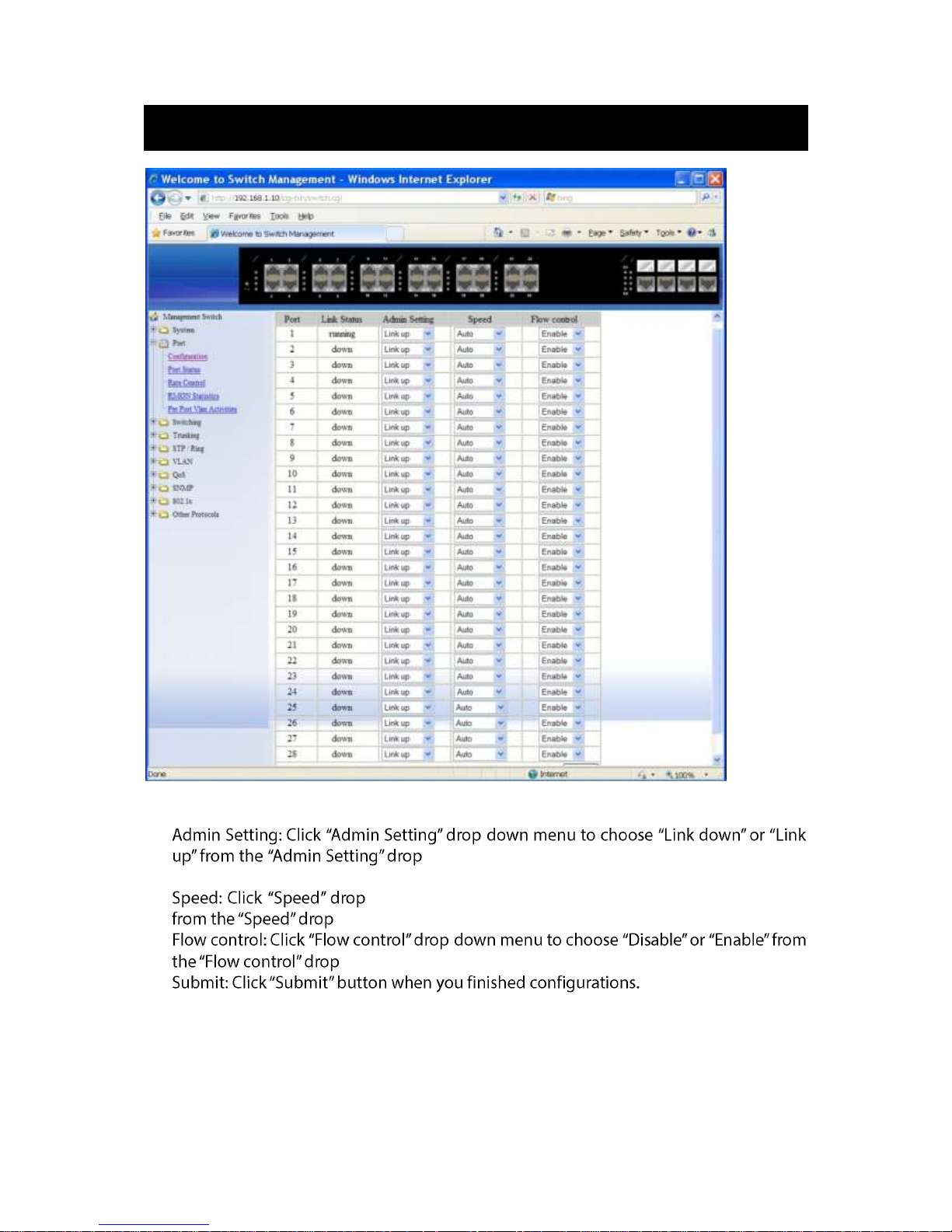

Port

Configuration

1. -

-down list to disable or enable Admin Setting for the

port.

2. -down menu to change the line speed and duplex settings

-down list for the port.

3. -

-down list to disable or enable Flow control for the port.

Page 39

User Manual Page 39

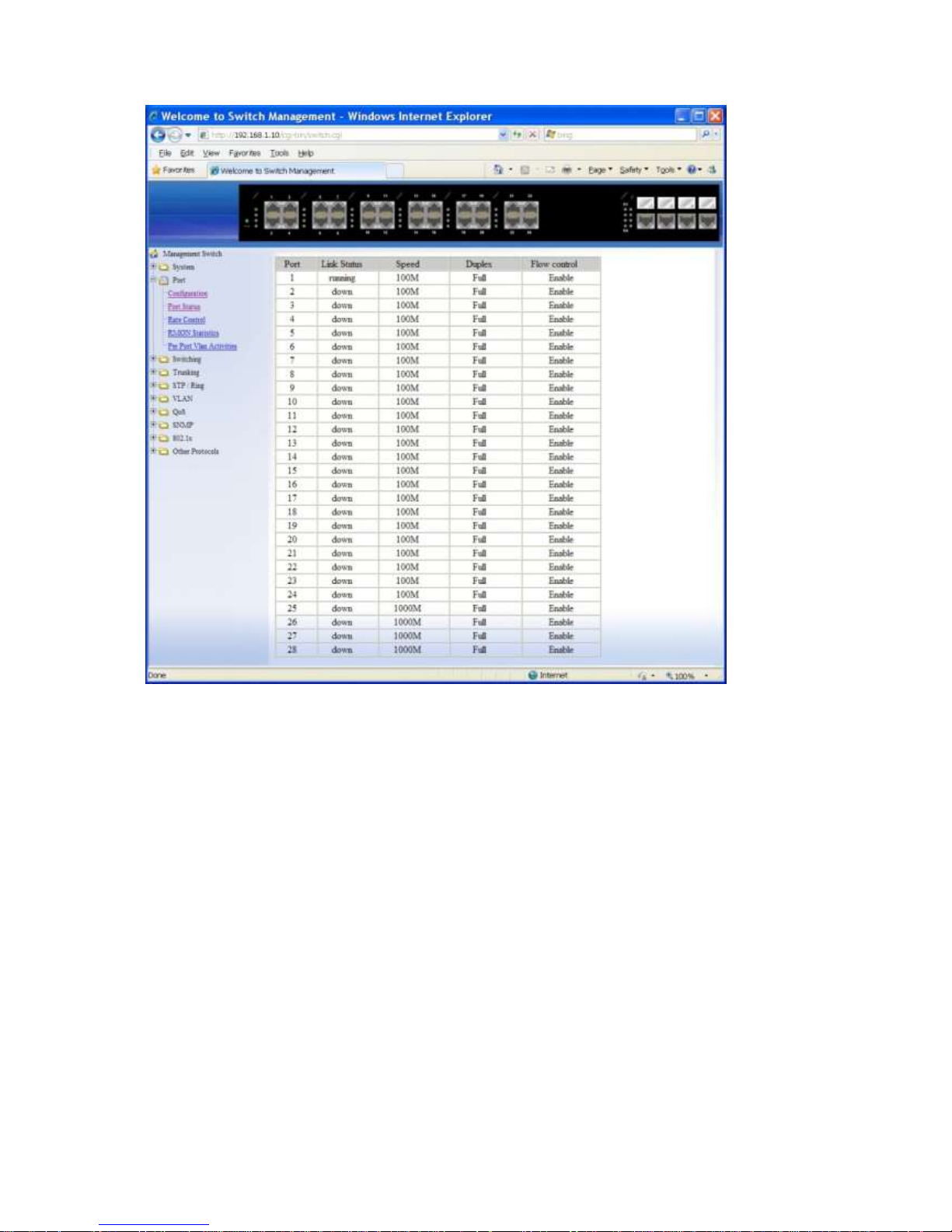

Port Status

View the Link Status, Speed, Duplex, and Flow control status for all ports.

Page 40

User Manual Page 40

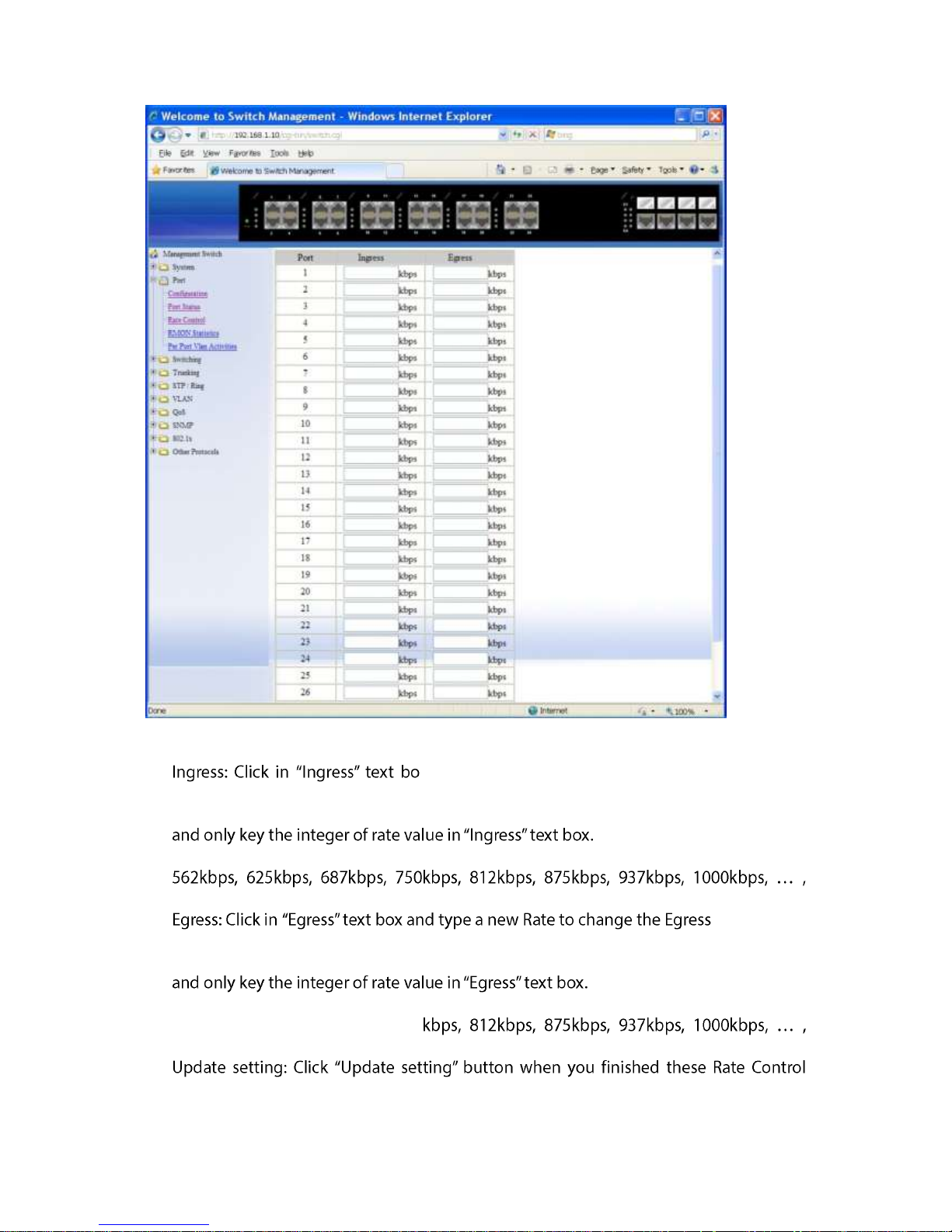

Rate Control

1. x and type a new Rate to change the Ingress Rate

Control for the port. The rate value is a multiple of 62.5kbps. Please round off decimal fraction of rate value

Rate Values: 62kbps, 125kbps, 187kbps, 250kbps, 312kbps, 375kbps, 437kbps, 500kbps, 1000000kbps.

2. Rate Control

for the port. The rate value is a multiple of 62.5kbps. Please round off decimal fraction of rate value

Rate Values: 62kbps, 125kbps, 187kbps, 250kbps, 312kbps, 375kbps, 437kbps, 500kbps, 562kbps, 625kbps, 687kbps, 750 1000000kbps.

settings.

Page 41

User Manual Page 41

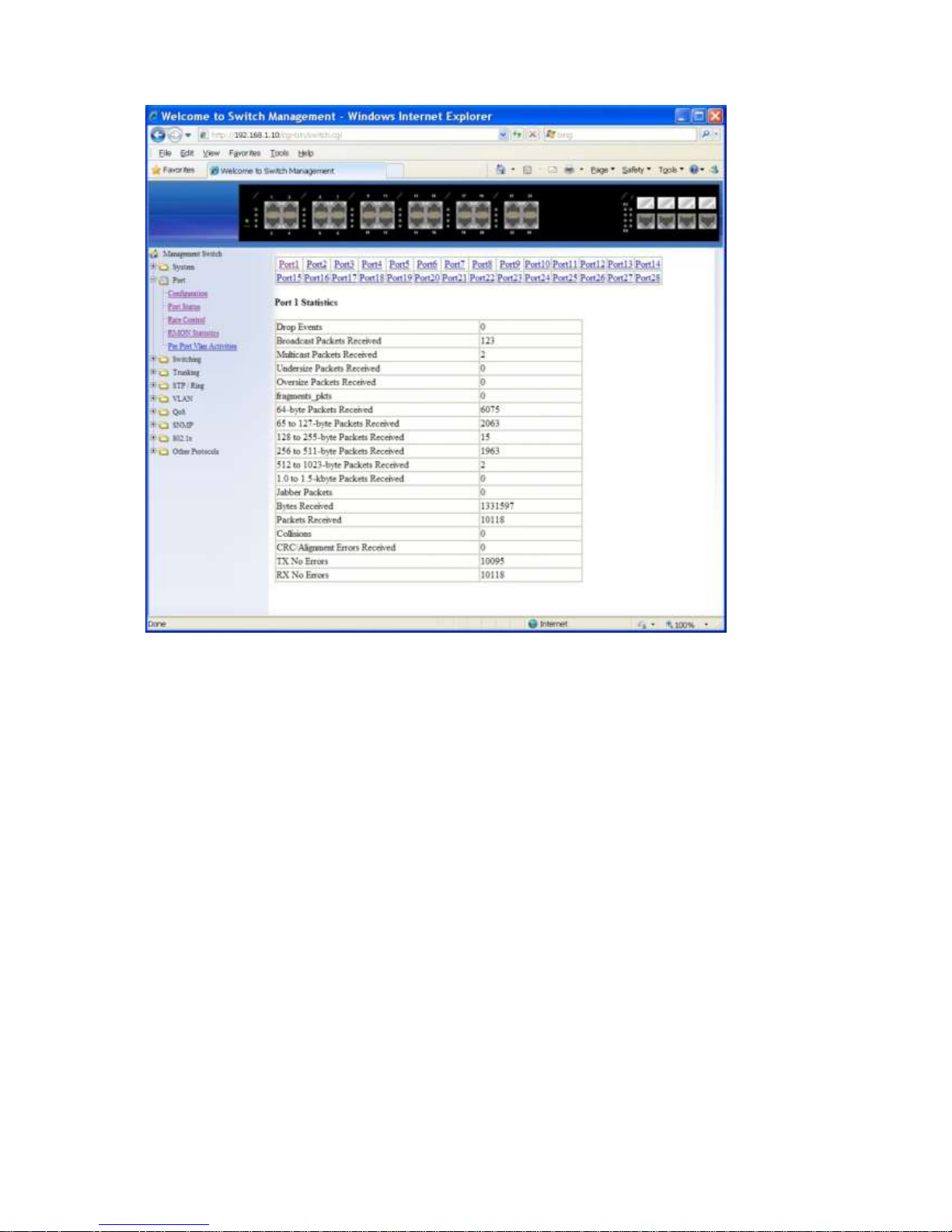

RMON Statistics

Click Port 1 ~ Port 28 to view corresponding RMON Statistics.

Page 42

User Manual Page 42

Per Port Vlan Activities

Click Port 1 ~ Port 28 to view corresponding vlan activities.

Page 43

User Manual Page 43

Switching

Bridging

1. Aging Time (seconds): Click the text box and type a decimal number as Bridging Aging

Time in seconds.

2. finished Aging Time settings.

3. Threshold level (0.1-100):

- -control enabled

DLF (Destination Lookup Failure).

4. Storm-control enabled type: C - from

Storm-control enabled type settings.

Page 44

User Manual Page 44

Page 45

User Manual Page 45

Static MAC Entry

Static-MAC-Entry Forward:

1. Add MAC address: Add MAC address

MAC address for the port.

2. -

drop-down list.

3. Delete MAC address: -down menu and choose a

locked forwarding MAC address -down list to be deleted from the port.

4. Static-MAC-Entry Forward settings.

Static-MAC-Entry Discard:

1. Add MAC address: Add MAC address MAC address to be

discarded for the VLAN.

2. -down menu and choose a VLAN ID from the

-down list.

3. Delete MAC address: -down menu and choose a MAC

address -down list to be discarded from the VLAN.

4. Static-MAC-Entry Discard settings.

Page 46

User Manual Page 46

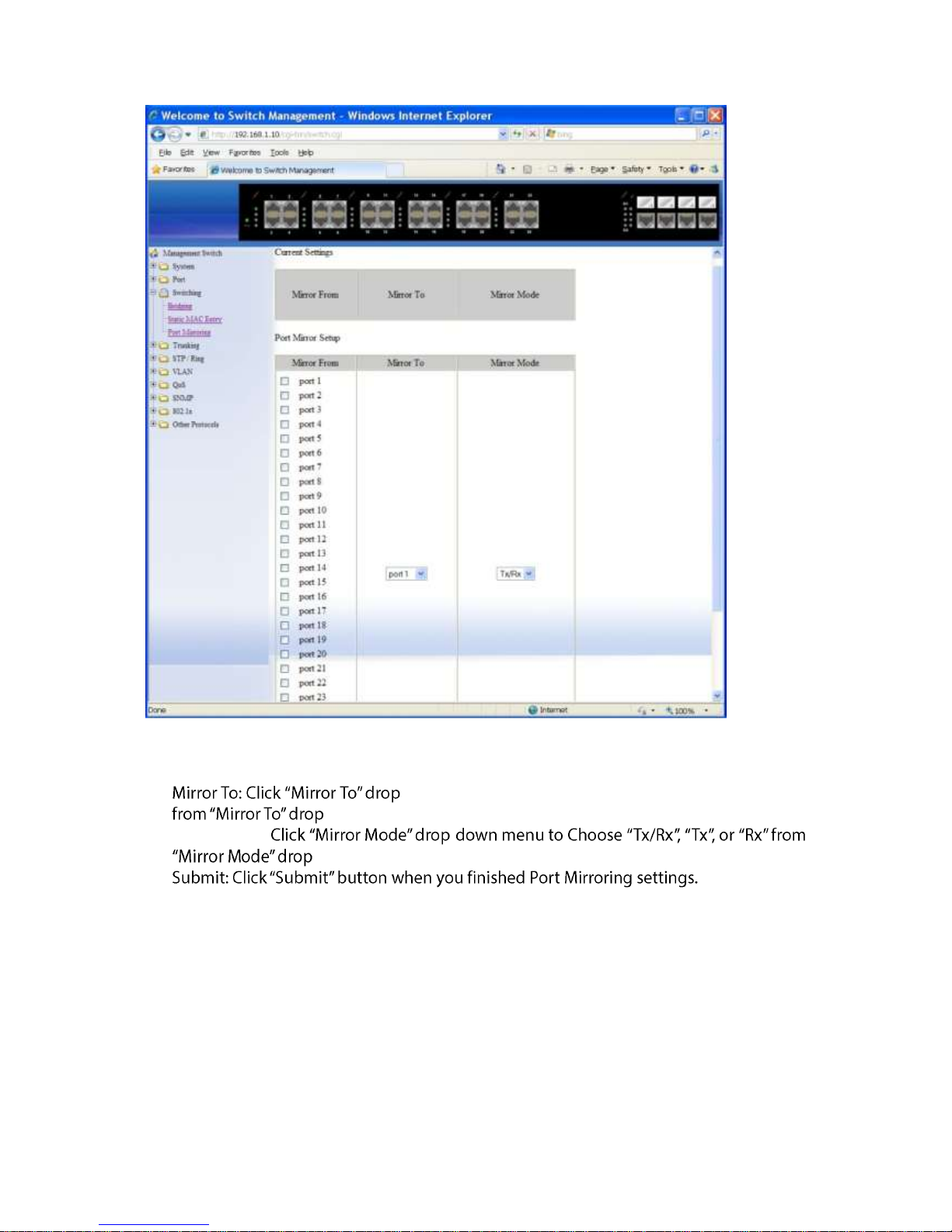

Port Mirroring

1. Mirror From: Choose Mirror From port from Port 1 ~ Port 28.

2. -down menu to Choose Mirror To port (Port 1 ~ Port 28)

-down list.

3. Mirror Mode: -

-down list.

Page 47

User Manual Page 47

Trunking

Port Trunking

Static Channel Group:

1. Trunk 1 ~ 6: Click Port 1 ~ Port 24 to assign ports to Trunk 1 ~ 6. (Maximum 8 ports per

Trunk.)

2. Submit: Click

GE Trunking:

1. Trunk 7 ~ 8: Click Port 1 ~ Port 4 to assign ports to Trunk 7 ~ 8. (Maximum 4 ports per

Trunk.)

Page 48

User Manual Page 48

STP / Ring

Global Configuration

1. Spanning Tree Protocol: Spanning Tree Protocol -down menu to Choose

Spanning Tree Protocol -down list to enable or disable

Spanning Tree Protocol.

2. Bridge Priority (0..61440): Clic

between 0 and 61440.

3. Hello Time (sec) (1..9): C

between 1 and 9.

4. Max Age (sec) (6..28): C etween

6 and 28.

5. Forward Delay (sec) (4..30): C Forward Delay

number between 4 and 30.

6. STP Version: STP Version -

STP Version -down list.

7. Upda

Page 49

User Manual Page 49

Page 50

User Manual Page 50

RSTP Port Setting

1. STP Version: STP Version - STP Version

drop-down list.

2. Port: -down menu to choose Port -down

list.

3. Priority(Granularity 16): C nter a value between 0 and 240

to set the priority for the port. A higher priority will designate the port to forward packets first. A lower number denotes a higher priority. This entry must be divisible by

16. The default priority setting is 128.

4. Admin. Path Cost: C nter a value between 0 and

2000000 to set the Admin. Path Cost for the port. 0 (auto) - Setting 0 for the Admin. Path Cost will automatically set the speed for forwarding packets to the port for optimal efficiency. Default port cost: 100Mbps port = 200000. Gigabit port = 20000.

5. Point to Point Link: Point to Point Link -

Point to Point Link -down list to enable or disable Point to Point

Link for the port.

6. Edge Port: Edge Port -

Edge Port -down list to set Enable, Disable, or Auto Edge Port for the port.

Page 51

User Manual Page 51

MSTP Properties

1. STP Version: STP Version - STP Version

drop-down list.

2. Region Name: Cli

name to it. MST bridges of a region form different spanning trees for different VLANs. By default, each MST bridge starts with the region name as its bridge address. This means each MST bridge is a region by itself, unless specifically added to one.

3. Revision Level: C

information. The default value of revision number is 0.

4. Max Hops: C specify the maximum allowed hops for BPDU

in an MST region. This parameter is used by all the instances of the MST. Specifying the max hops for a BPDU prevents the messages from looping indefinitely in the network. When a bridge receives a MST BPDU that has exceeded the allowed max-hops, it discards the BPDU.

setting.

Page 52

User Manual Page 52

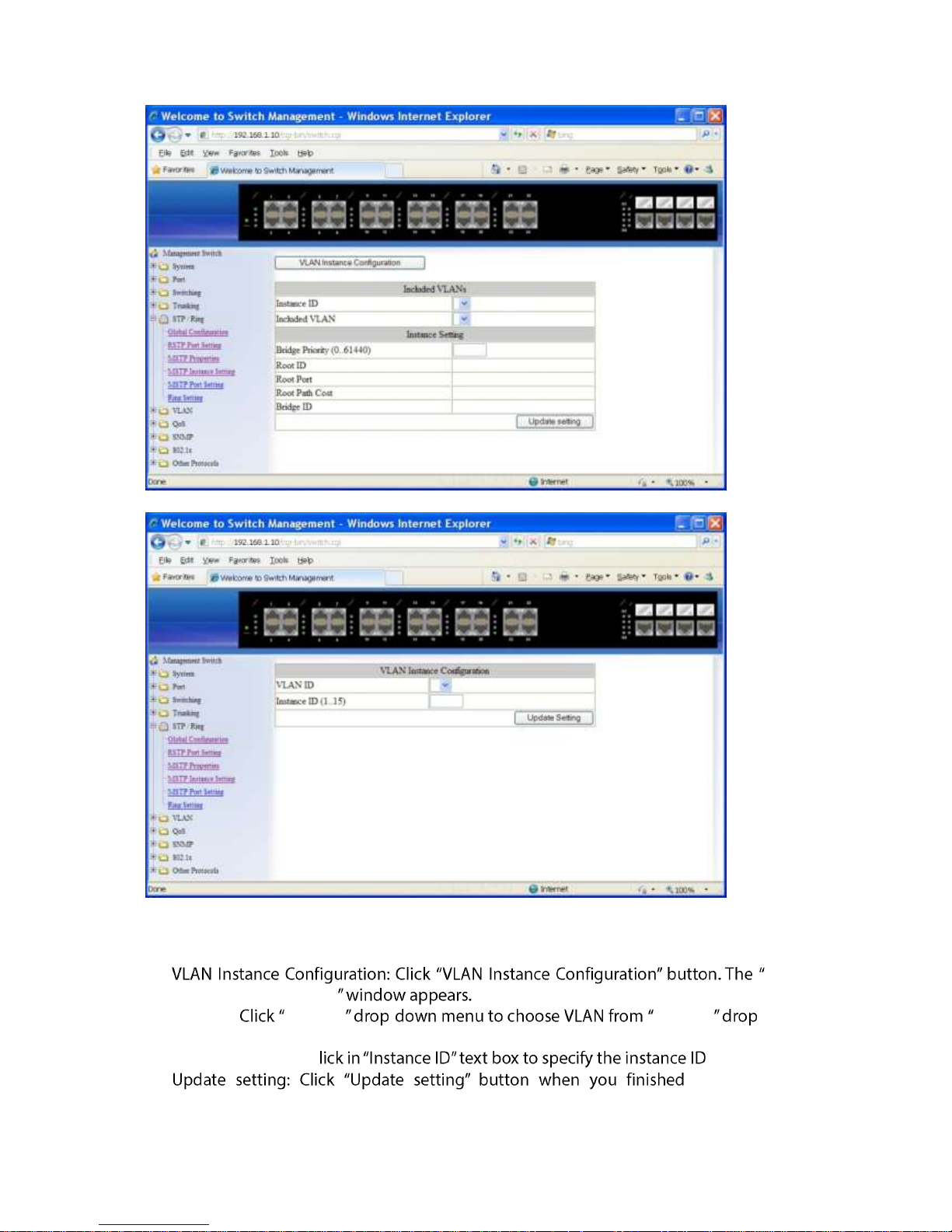

MSTP Instance Setting

VLAN Instance Configuration

1. VLAN

Instance Configuration

2. VLAN ID: VLAN ID - VLAN ID -down

list to simultaneously add multiple VLANs for the corresponding instance of a bridge.

3. Instance ID (1..15): C .

4. VLAN Instance

Configuration.

Page 53

User Manual Page 53

Included VLANs

1. -

drop-down list.

2. -down menu to choose VLAN from

-down list.

Instance Setting

1. Bridge Priority (0..61440): C Bridge Priority

an MST instance to the value specified. The lower the priority of the bridge, the better the chances are the bridge becoming a root bridge or a designated bridge for the LAN.

2. VLAN Instance

Configuration.

Page 54

User Manual Page 54

Page 55

User Manual Page 55

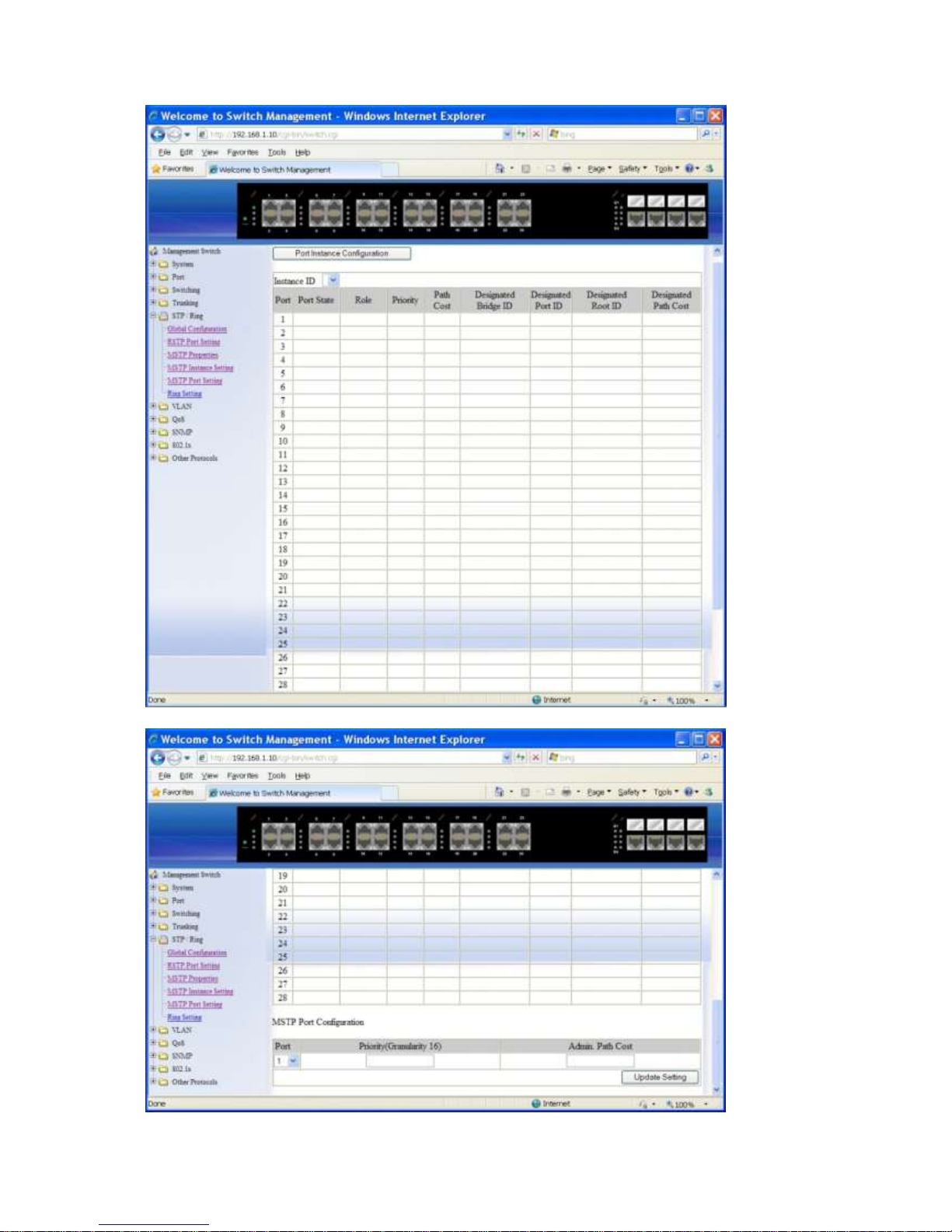

MSTP Port Setting

Port Instance Configuration

1. -

-down list.

2. Click Port 1 ~ Port 28 to assign ports to the corresponding instance ID.

3. Instance

Configuration.

Instance ID

1. -

-down list.

MSTP Port Configuration

1. -down menu to choose port f -down list.

2. Priority(Granularity 16): C

group. The Multiple Spanning Tree Protocol uses port priority as a tiebreaker to determine which port should forward frames for a particular instance on a LAN, or which port should be the root port for an instance. A lower value implies a better priority. In the case of the same priority, the interface index will serve as the tiebreaker, with the lower-numbered interface being preferred over others. The permitted range

Page 56

User Manual Page 56

is 0-240. The priority values can only be set in increments of 16.

3. Admin. Path Cost: C Admin. Path Cost

associated with an interface.

4. MSTP Port Setting.

Ring Setting

Ring state

1. - -down

2. Ring state setting.

Set ring port

1. -

1 -down list.

2. -

-down list.

3. Set ring port.

Page 57

User Manual Page 57

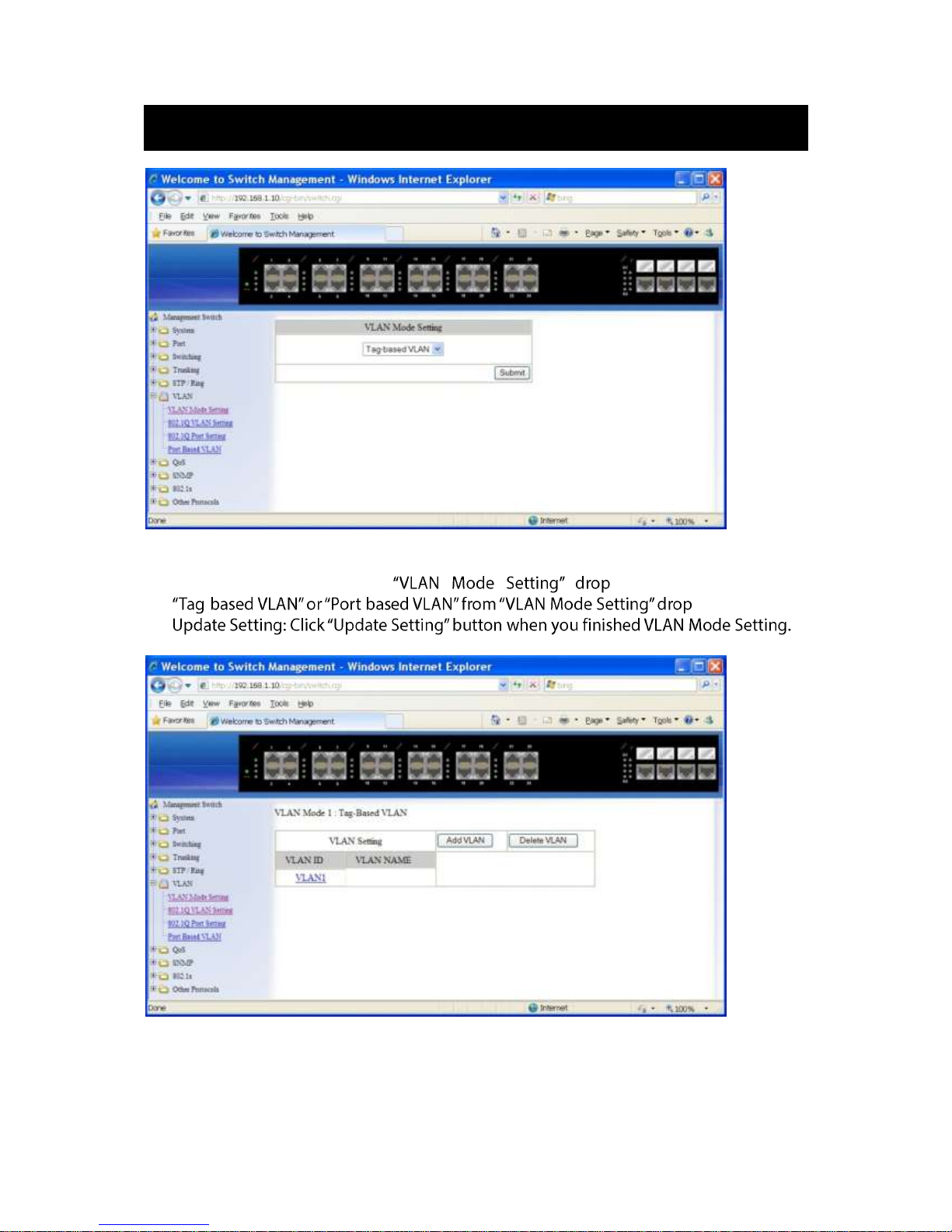

VLAN

VLAN Mode Setting

1. VLAN Mode Setting: Click -down menu to Choose

- - -down list.

Page 58

User Manual Page 58

802.1Q VLAN setting

Add VLAN:

1. VLAN setting:

2. .

3. VLAN ID(2-

from 2 ~ 4094.

4. VLAN Name: Click

VLAN.

Add port to or delete port from VLAN:

1. VLAN Member: Choose the port to be added to or deleted from the VLAN.

2. Tag or Untag: Tag or Untag -

Tag or Untag -

Page 59

User Manual Page 59

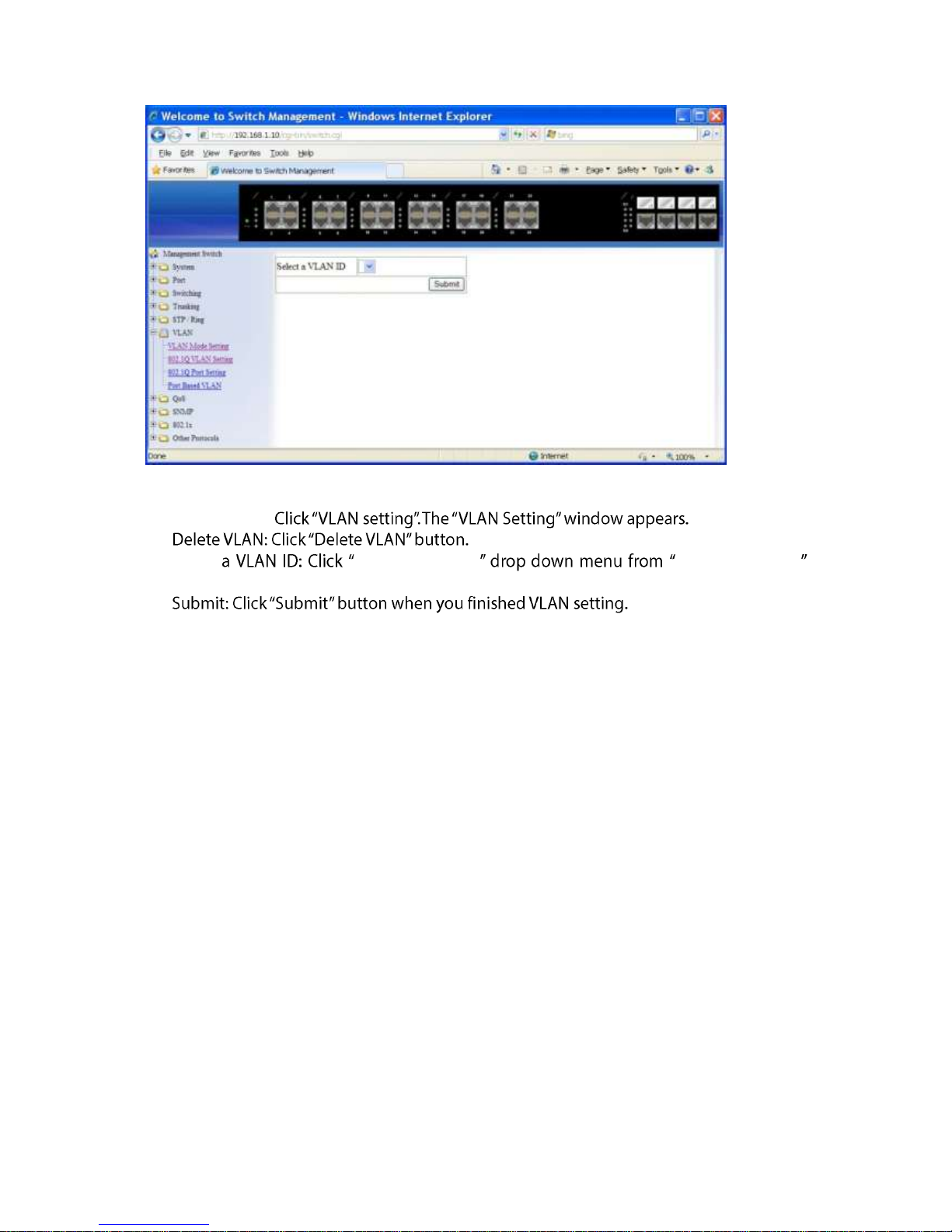

Delete VLAN:

1. VLAN setting:

3. Select Select a VLAN ID - Select a VLAN ID

drop-down list to choose the VLAN to be deleted.

Page 60

User Manual Page 60

VLAN Port Setting

1. VLAN Port Setting: VLAN Port Setting

2. Mode -

Mode Mode for the port. And the port will be Tag or Untag for the port.

Page 61

User Manual Page 61

Port Based VLAN

1. VLAN: Choose the port to be added to or deleted from the VLAN.

2. Select all: hoose Port 1 ~ Port 28 all to be added to the VLAN.

3. Delete all: hoose Port 1 ~ Port 28 all to be deleted from the VLAN.

4. ton when you finished Port Based VLAN setting.

Page 62

User Manual Page 62

QoS

Global Configuration

1. - -

2. Trust: Enable or disable the switch port to trust the CoS (Class of Service) labels of all traffic received on that port. Enable or disable a routed port to trust the DSCP (Differentiated Service Code Point) labels of all traffic received on that port.

3. - priority queue is always emptied first. The queues that are used in the WRR (Weighted

for each queue.

4. Weighted Round Robin: from 1 ~ 55 for Queue 0 ~ 3.

Page 63

User Manual Page 63

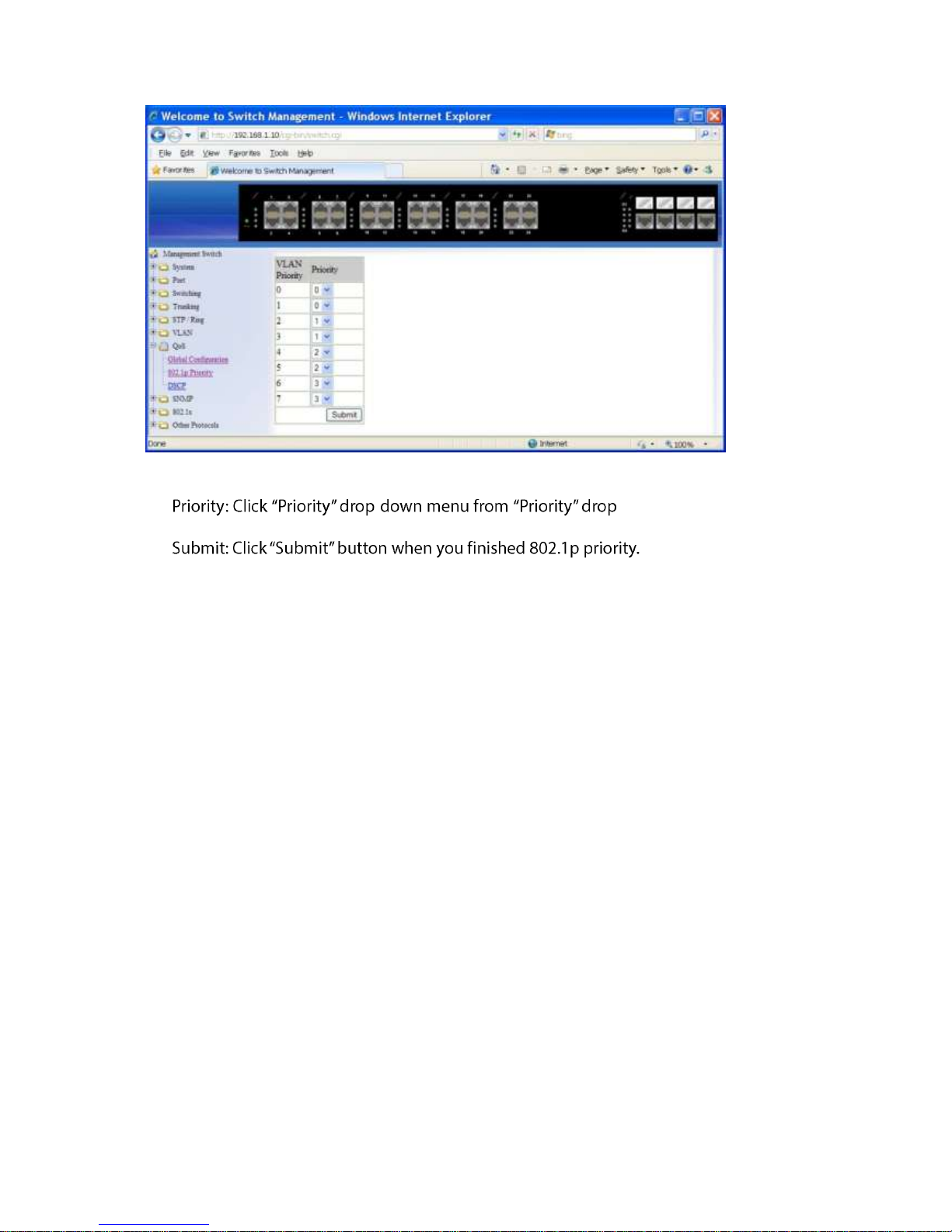

802.1p Priority

1. - -down list to choose 0 ~ 3 for VLAN Priority 0 ~ 7.

Page 64

User Manual Page 64

DSCP

1. - -down list to choose 0 ~ 3 for DSCP Priority 0 ~ 63.

2. DSCP.

Page 65

User Manual Page 65

SNMP

SNMP General Setting

1. - -down list

2. for SNMP.

tbox and specify a trap community name.

6. textbox and specify a trap host IP address.

7. drop-

8. drop-

9. Link Down - drop-

10. - -down list

Page 66

User Manual Page 66

11. -down menu from

disable authentication failure trap.

12. -

topology change trap.

13. General Setting.

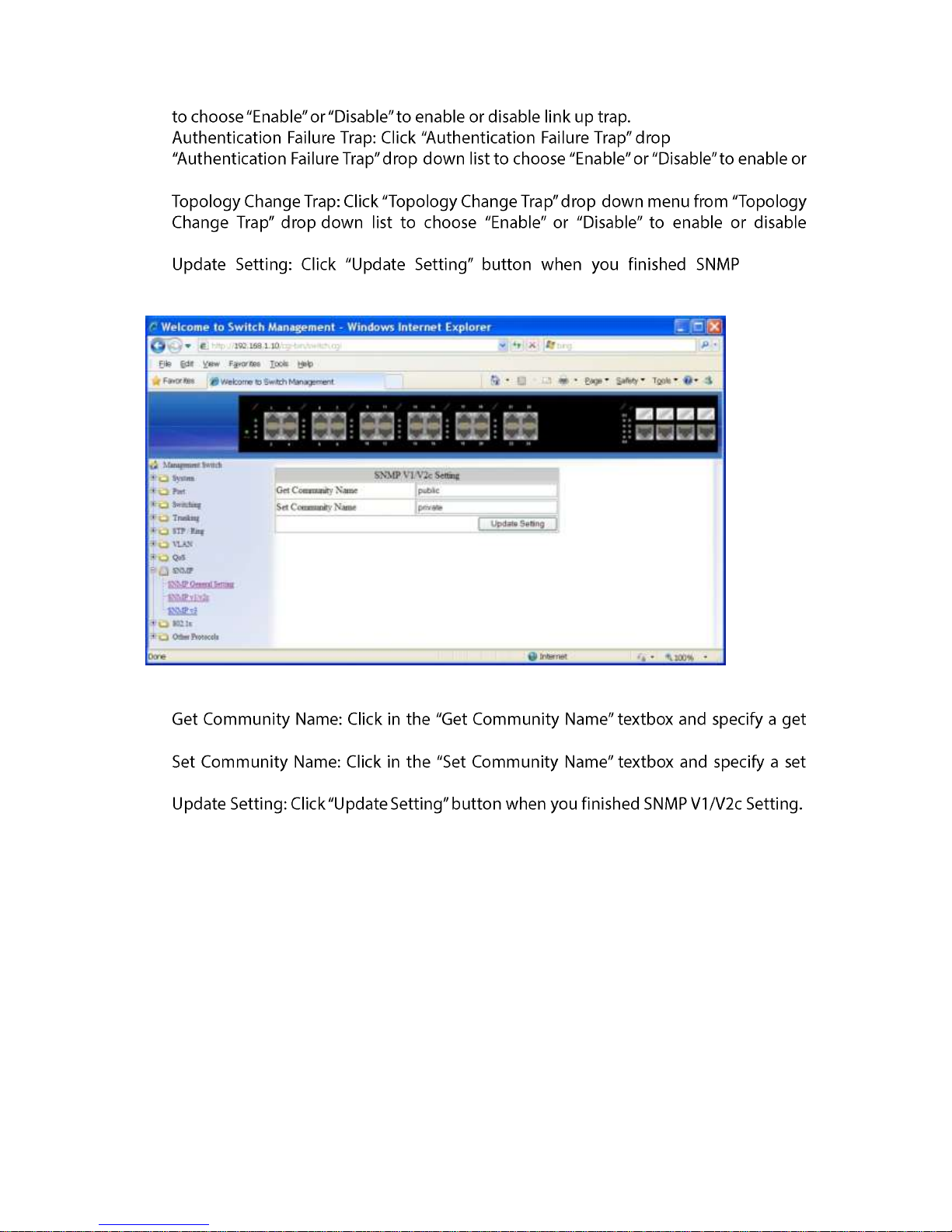

SNMP v1/v2c

1. community name.

2. community name.

Page 67

User Manual Page 67

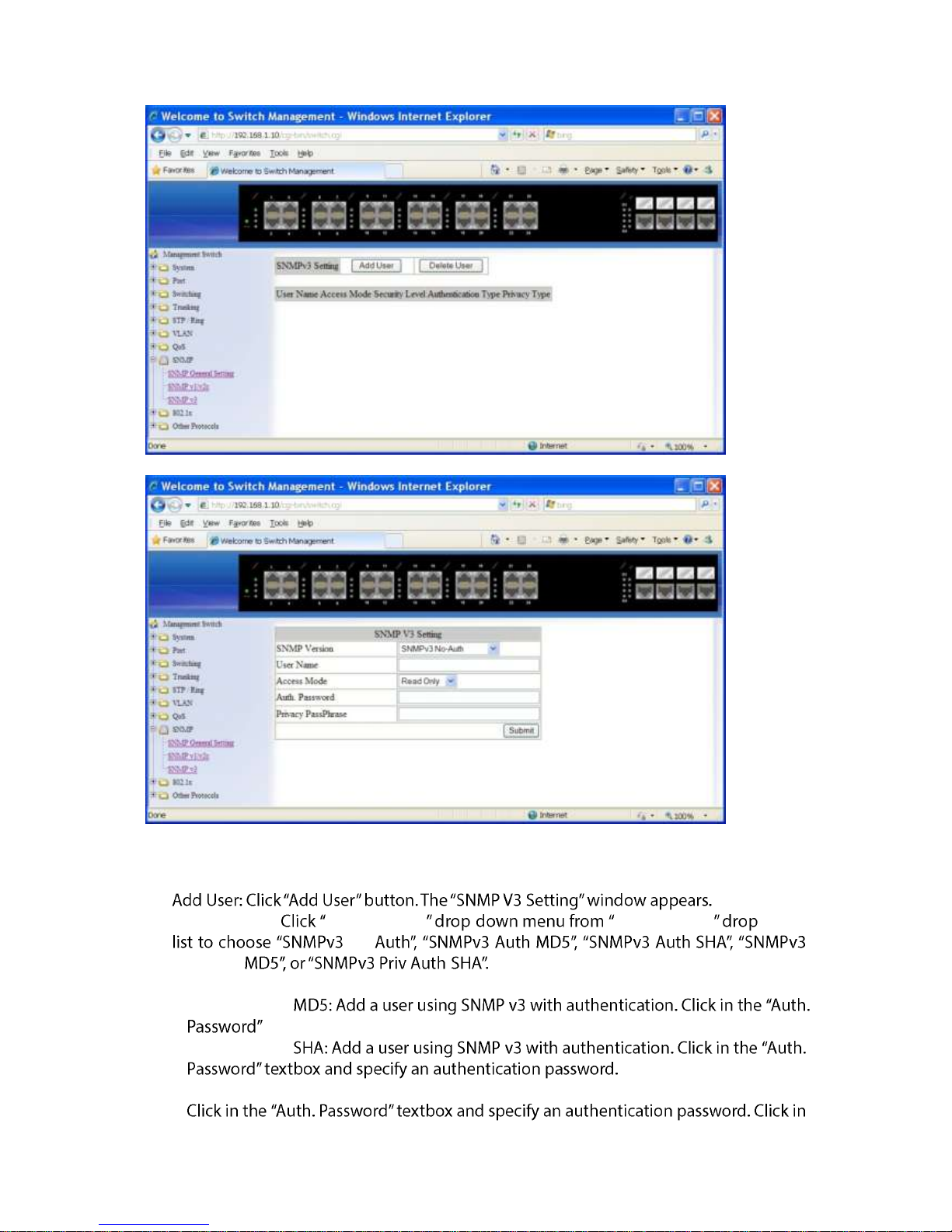

SNMP v3

Add User:

2. SNMP Version: SNMP Version - SNMP Version -down

No- - -

Priv Auth- -

 SNMPv3 No-Auth: Add a user using SNMP v3 without authentication.  SNMPv3 Auth-

textbox and specify an authentication password.

 SNMPv3 Auth-  SNMPv3 Priv Auth-MD5: Add a user using SNMP v3 with authentication and privacy.

Page 68

User Manual Page 68

 SNMPv3 Priv Auth-SHA: Add a user using SNMP v3 with authentication and privacy.

Click i

3. SNMP v3.

4. Access Mode: Cli - -down list

 Read Only: Add a user using SNMP v3 with read-only access mode.  Read/Write: Add an user using SNMP v3 with read-write access mode

5. Submit Submit

Delete User:

2. drop-down list to choose the user to be deleted from using SNMP v3.

3. Submit Submit

Page 69

User Manual Page 69

802.1x

Radius Configuration

1. - -down

lobally enable or disable authentication.

Add Radius:

2. Radius Server IP: Click in Radius Server IP remote radius server host.

3. Radius Server Port Radius Server Port destination port for authentication requests. The host is not used for authentication if

Page 70

User Manual Page 70

set to 0.

4. encryption key for all radius communications between the Switch and radius server. This key must match the encryption used on the radius daemon. All leading spaces are ignored, but spaces within and at the end of the key are used. If spaces are used in the key, do not enclose the key in quotation marks unless the quotation marks themselves are part of the key.

5. Timeout <1- d specify the time interval (in seconds) that the Switch waits for the radius server to reply before retransmitting. Enter a value in the range 1 to 1000.

6. Retransmit <1- a radius request is resent to a server if that server is not responding or responding slowly. Enter a value in the range 1 to 100.

7. Submit Submit

Delete Radius:

1. appears.

2. Select Radius Server IP Radius Server IP - Radius Server IP -down list to choose the IP address of the remote radius server host to be deleted.

3. Submit Submit button when you finished radius server deletion.

Page 71

User Manual Page 71

Port-Based Authentication

1. Interface Interface - Interface -down list to choose the port to be set port-based authentication.

2. Authentication State: Authentication State -down menu from

Authentication State -

disable authentication state.

3. Port Control: Port Control - Port Control -down list

always be in an unauthorized state.

4. Periodic Reauthentication: Periodic Reauthentication -down menu from

Periodic Reauthentication -

disable periodic reauthentication.

5. Reauthentication Period <1-42949672 textbox and specify the seconds between reauthorization attempts. The default time is 3600 seconds.

6. -based authentication setting.

Page 72

User Manual Page 72

Other Protocols

GVRP

GVRP Global Setting:

1. GVRP: GVRP - GVRP -

GVRP (GARP VLAN Registration Protocol).

2. Dynamic VLAN creation: Dynamic VLAN creation -down menu from

Dynamic VLAN creation disable Dynamic VLAN creation. GARP (Generic Attribute Registration Protocol) provides IEEE802.1Q compliant VLAN pruning and dynamic VLAN creation on IEEE802.1Q trunk ports.

3. Per port setting (include LAG):

1. GVRP: GVRP - GVRP - GVRP for the port.

2. GVRP applicant: GVRP applicant - GVRP applicant

Page 73

User Manual Page 73

drop- . Ports in the GVRP active applicant state send GVRP VLAN declarations when they are in the STP (Spanning Tree Protocol) blocking state, which prevents the STP bridge protocol data units (BPDUs) from being pruned from the other port. Ports in the GVRP normal applicant state do not declare GVRP VLANs when in the STP blocking state.

3. GVRP registration: GVRP registration - GVRP registration

drop- GVRP registration to the port. Configuring an IEEE802.1Q trunk port in registration mode allows dynamic creation (if dynamic VLAN creation is enabled), registration, and deregistration of VLANs on the trunk port.

IGMP Snooping

1. - -down list to

. Disable: Disable IGMP on the switch. Passive: The switch with only multicast-data-forwarding capability. Querier: The switch acts as the querier for the network. There is only one querier on a network at any time.

3. VLAN ID: - -down list to choose the VLAN under configuration for the switch.

4. IGMP version: - -down

5. Fast-leave: - - - -down list to

. Enable this function will allow members of a multicast group to leave the group immediately when an IGMP Leave Report Packet is received by the Switch.

IGMP querier:

1. Query-interval: uery-interval

Page 74

User Manual Page 74

18000. The query-interval field is used to set the time (in seconds) between transmitting IGMP queries. Entries between 1 and 18000 seconds are allowed. Default = 125.

2. Max-response-time: max-response-time number from 1 ~ 124. This determines the maximum amount of time in seconds allowed before sending an IGMP response report. The max-response-time field allows an entry between 1 and 124 (seconds). Default = 10.

IGMP passive snooping:

1. Report suppression: eport suppression -down m eport suppression - . Use this command to enable report suppression for IGMP version 1 and version 2. Report suppression does not apply to IGMP version 3, and is turned off by default for IGMP version 1 and IGMP version 2 reports. The switch uses IGMP report suppression to forward only one IGMP report per multicast router query to multicast devices. When IGMP router suppression is enabled, the switch sends the first IGMP report from all hosts for a group to all the multicast routers. The switch does not send the remaining IGMP reports for the group to the multicast routers. This feature prevents duplicate reports from being sent to the multicast devices.

Page 75

User Manual Page 75

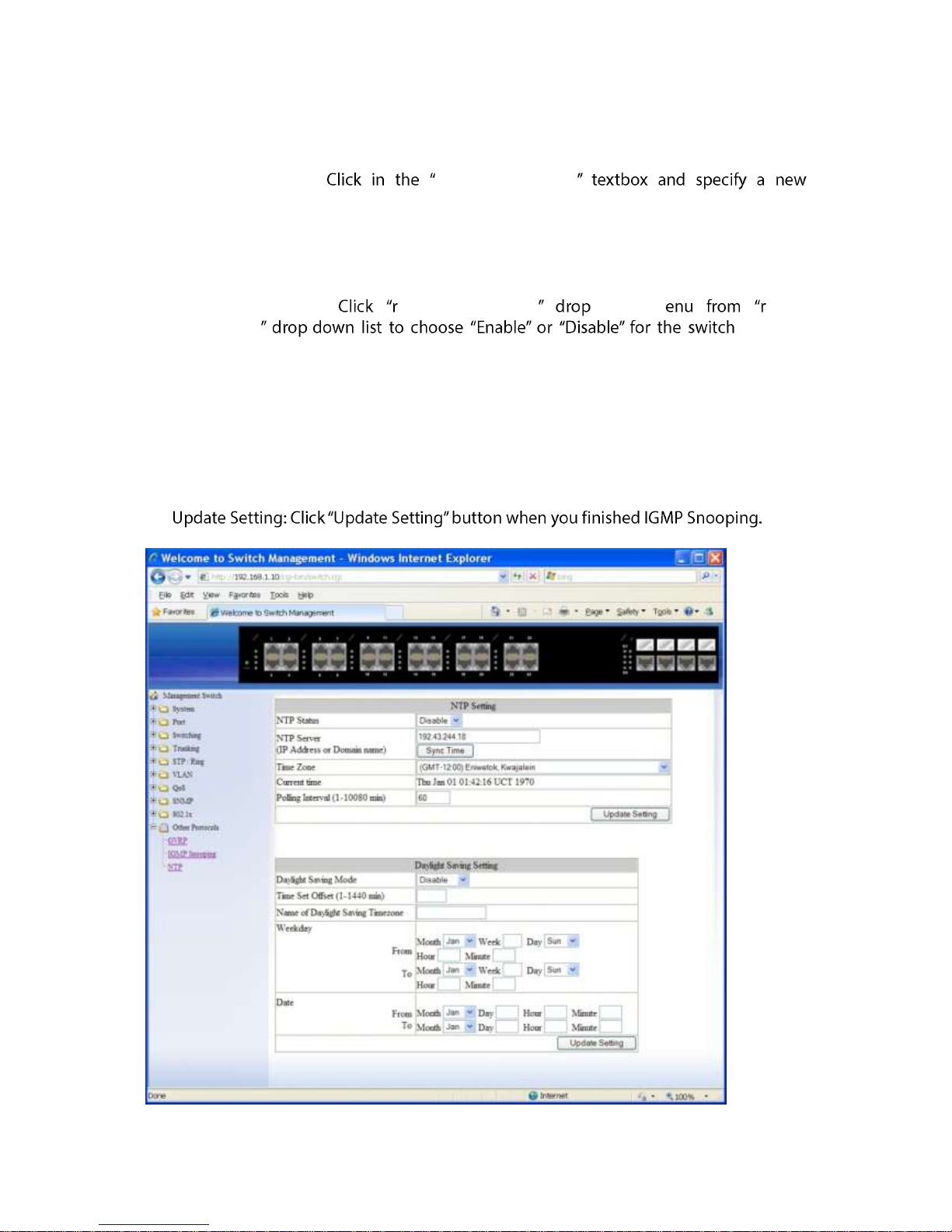

NTP

NTP Setting:

1. - -down list to

2. NTP Server (IP Address or Domain name): NTP Server the IP address or Domain name of NTP server.

3. to synchronize time with NTP server.

4. Time - Time -down list to set time zone.

5. Polling Interval (1-10080 min): Polling Interval polling interval.

Daylight Saving Setting:

1. Daylight Saving Mode: Click "Daylight Saving Mode" drop-down menu from "Daylight Saving Mode" drop-down list to choose "Disable", "Weekday", or "Date" to choose disable, weekday, or date daylight saving for the Switch.

2. Time Set Offset (1-1440 min): Click in the "Time Set Offset" textbox and specify the offset time of daylight saving. For example enter 60 for one hour offset.

3. Daylight Saving Time zone: Click in the "Daylight Saving Time zone" textbox and specify the daylight saving time zone. This can be any given name in 14-character alpha-numerical. Enter the Daylight-Saving time zone using the following example:

EDT - East Daylight Saving Time Zone. CDT - Central Daylight-Saving Time Zone. MDT - Mountain Daylight-Saving Time Zone. PDT - Pacific Daylight-Saving Time Zone. ADT - Alaska Daylight-Saving Time Zone.

4. Weekday: Click in the textboxes and specify the daylight saving period.

 Month: Click "Month" drop-down menu from "Month" drop-down list to choose

from January to December.

 Week: <1-5> Specifies weekdays from Monday to Friday.  Day: Click "Day" drop-down menu from "Day" drop-down list to choose from

Sunday to Saturday.

 Hour: <0-23> Specifies from 0 to 23.  Minute: <0-59> Specifies from 0 to 59.

5. Date: Click in the textboxes and specify the daylight saving period.

 Month: Click "Month" drop-down menu from "Month" drop-down list to choose

from January to December.

 Day: <1-31> Specifies from 1 to 31.  Hour: <0-23> Specifies from 0 to 23.  Minute: <0-59> Specifies from 0 to 59.

6. Update Setting: Click "Update Setting" button when you finished Daylight Saving Setting.

characters (Like Jan, Feb, sun, mon). They only accept the two digit numbers (0 through 9).

Page 76

User Manual Page 76

Command Line Console Management

The switch provides a command line console interface for configuration purposes. The switch can be configured either locally through its RS-232 port or remotely via a Telnet session. For the later, you must specify an IP address for the switch first.

This chapter describes how to configure the switch using its console by Commend Line.

Administration Console

Connect the DB9 straight cable to the RS-232 serial port of the device to the RS-232 serial port of the terminal or computer running the terminal emulation application.

Direct access to the administration console is achieved by directly connecting a terminal or a PC equipped with a terminal-emulation program (such as HyperTerminal) to the switch console port.

When using the management method, configure the terminal-emulation program to use the following parameters (you can change these settings after login):

[Default parameters] 115,200bps 8 data bits No parity 1 stop bit

Page 77

User Manual Page 77

Exec Mode (View Mode)

Logon to Exec Mode (View Mode)

At the switch_a login: (or View Mode).

switch_a login: root

Page 78

User Manual Page 78

Basic commands

Exec Mode (or View Mode) is the base mode from where users can perform basic commands like: clear, debug, disable, enable, exit, help, logout, no, quit, show, terminal The CLI contains a text-based help facility. Access this help by typing in the full or partial

ommand keywords

or parameters along with a short description. At the switch_a> prompt just press <?> to list the above basic commands.

switch_a>?

At the switch_a> prompt just type in the full or partial command string then typing a

to display the command keywords or parameters along with a short

description.

switch_a>show ?

Page 79

User Manual Page 79

The login session to Exec Mode (or View Mode) has timed out due to an extended period of inactivity (60 seconds) to indicate authentication attempt timed out. And the switch_a

Logon back to Exec Mode (View Mode)

At the switch_a login: Enter> to logon back to Exec Mode (or View Mode).

Page 80

User Manual Page 80

switch_a login: root

Exit from Exec Mode (View Mode)

At the switch_a> View Mode).

switch_a>exit

Page 81

User Manual Page 81

Privileged Exec Mode (Enable Mode)

Logon to Privileged Exec Mode (Enable Mode)

At the switch_a> Exec Mode (or Enable Mode). And the switch_a# prompt will show on the screen.

switch_a>enable

Commands

Privileged Exec Mode (or Enable Mode) allows users to run commands as following. At the switch_a# prompt just press <?> to list the commands.

switch_a#?

Page 82

User Manual Page 82

At the switch_a# prompt just type in the full or partial command string then typing a

to display the command keywords or parameters along with a short

description.

switch_a#show ?

Page 83

User Manual Page 83

The login session to Privileged Exec Mode (or Enable Mode) has timed out due to an extended period of inactivity (60 seconds) to indicate authentication attempt timed out. And the switch_a login: prompt will show on the screen.

Logon back to Exec Mode (View Mode)

At the switch_a login: Mode (or View Mode).

Page 84

User Manual Page 84

switch_a login: root

Exit from Privileged Exec Mode (or Enable Mode)

At the switch_a# er> to exit from Privileged Exec Mode (or Enable Mode).

switch_a#exit

Page 85

User Manual Page 85

Configure Mode (Configure Terminal Mode)

Logon to Configure Mode (Configure Terminal Mode)

At the switch_a# to logon to Configure Mode (or Configure Terminal Mode). And the switch_a(config)# prompt will show on the screen.

switch_a#configure terminal

Commands

Configure Mode (or Configure Terminal Mode) serves as a gateway into the modes as following. At the switch_a(config)# prompt just press <?> to list the commands.

switch_a(config)#?

Page 86

User Manual Page 86

At the switch_a(config)# prompt just type in the full or partial command string then

to display the command keywords or parameters along with a

short description.

switch_a(config)#show ?

Page 87

User Manual Page 87

The login session to Configure Mode (or Configure Terminal Mode) has timed out due to an extended period of inactivity (60 seconds) to indicate authentication attempt timed out. And the switch_a login: prompt will show on the screen.

Logon back to Exec Mode (View Mode)

At the switch_a login: ter> to logon back to Exec Mode (or View Mode).

switch_a login: root

Page 88

User Manual Page 88

Exit from Configure Mode (or Configure Terminal Mode)

At the switch_a(config)# Configure Mode (or Configure Terminal Mode).

switch_a(config)#exit

Page 89

User Manual Page 89

System

System Information, System Name/Password, IP Address, Save Configuration, Firmware Upgrade, Reboot, Logout

System Name/Password

System Name:

1. Command Mode: Configure mode

Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen.

switch_a(config)#

2. Usage:

Use hostname command to set or change the network server name. Use the no hostname command to disable this function.

3. Command Syntax:

(no) hostname HOSTNAME

HOSTNAME specifies the network name of the system.

4. Example:

The following example sets the hostname to switch, and shows the change in the prompt:

switch_a(config)#hostname switch switch(config)#

Password:

1. Command Mode: Configure mode

Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen.

switch_a(config)#

2. Usage:

Use enable password command to modify or create a password to be used when entering the Enable mode.

3. Command Syntax:

enable password PASSWORD

PASSWORD specifies the new password of the system.

4. Example:

The following example sets the new password mypasswd to switch:

switch_a(config)#enable password mypasswd switch_a(config)#

Page 90

User Manual Page 90

IP Address

IP Address/IP Subnet Mask:

1. Command Mode: Interface mode

Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. vlan1.1 means vlan 1. The switch_a(config-if)# prompt will show on the screen.

switch_a(config)#interface vlan1.1 switch_a(config-if)#

2. Usage:

Use ip address command to set the IP address of an interface. Use the no ip address command to remove the IP address from an interface.

3. Command Syntax:

ip address IP-ADDRESS no ip address IP-ADDRESS no ip address

IP-ADDRESS A.B.C.D/M specifies the IP address and prefix length of an interface. M specifies IP subnet mask, 8: 255.0.0.0, 16:255.255.0.0, 24: 255.255.255.0.

4. Example:

The following example sets the new IP address 192.168.1.10 and new IP subnet mask

255.255.255.0 to switch:

switch_a(config)#interface vlan1.1 switch_a(config-if)#ip address 192.168.1.10/24 switch_a(config-if)#

Default Gateway:

1. Command Mode: Configure mode

Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen.

switch_a(config)#

2. Usage:

Use ip default-gateway command to set the IP address of the default gateway. Use the no ip default-gateway command to remove the IP address of the default gateway.

3. Command Syntax:

ip default-gateway IP-ADDRESS no ip default-gateway

IP-ADDRESS A.B.C.D specifies the IP address of the default gateway.

4. Example:

Page 91

User Manual Page 91

The following example sets the default gateway 192.168.1.254 to switch:

switch_a(config)#ip default-gateway 192.168.1.254 switch_a(config)#

Save Configuration

Load config from TFTP server:

1. Command Mode: Privileged Exec mode

Logon to Privileged Exec Mode (Enable Mode). The switch_a# prompt will show on the screen.

switch_a#

2. Usage:

Use install image command to load configuration file from tftp server to switch.

3. Command Syntax:

install image IP-ADDRESS WORD IP-ADDRESS specifies the IP address of tftp server.

WORD specifies the file name to be loaded to switch.

4. Example:

The following example specifies upgrading firmware (file name: flash.tgz) from tftp server (IP address: 192.168.1.100) to switch:

switch_a#install image 192.168.1.100 flash.tgz switch_a#

Load config to TFTP server:

1. Command Mode: Privileged Exec mode

Logon to Privileged Exec Mode (Enable Mode). The switch_a# prompt will show on the screen.

switch_a#

2. Usage:

Use write config-file command to backup configuration file to tftp server.

3. Command Syntax:

write config-file IP-ADDRESS IP-ADDRESS specifies the IP address of tftp server.

4. Example:

The following example backups configuration file to tftp server (IP address: 192.168.1.20):

switch_a#write config-file 192.168.1.20 switch_a#

Page 92

User Manual Page 92

Save Configuration:

1. Command Mode: Privileged Exec mode

Logon to Privileged Exec Mode (Enable Mode). The switch_a# prompt will show on the screen.

switch_a#

2. Usage:

Use copy running-config startup-config command to write configurations to the file to be used at startup. This is the same as the write memory command.

3. Command Syntax:

copy running-config startup-config

4. Example:

The following example specifies writing configurations to the file to be used at startup to switch:

switch_a#copy running-config startup-config switch_a#

Restore Default:

1. Command Mode: Privileged Exec mode

Logon to Privileged Exec Mode (Enable Mode). The switch_a# prompt will show on the screen.

switch_a#

2. Usage:

Use restore default command to restore default setting of the switch.

3. Command Syntax:

restore default

4. Example:

The following example restores default setting of the switch:

switch_a#restore default switch_a#

Auto Save:

1. Command Mode: Configure mode

Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen.

switch_a(config)#

Page 93

User Manual Page 93

2. Usage:

Use this command to enable auto save configuration function. The configuration will be automatically saved at every configured interval while this command is enabled. Use the no form of this command to disable this feature.

3. Command Syntax:

service auto-config enable no service auto-config enable

4. Example:

The following example enables or disables auto save configuration to switch:

switch_a(config)#service auto-config enable switch_a(config)#no service auto-config enable switch_a(config)#

Auto Save Interval (5~65536 sec):

1. Command Mode: Configure mode

Logon to Configure Mode (Configure Terminal Mode). The switch_a(config)# prompt will show on the screen.

switch_a(config)#

2. Usage:

Use this command to set the interval when the configuration would be automatically saved. The range of interval value is from 5 to 65535. And the default value is 30 seconds.

3. Command Syntax:

service auto-config interval WORD

WORD specifies the interval value.

4. Example:

The following example sets the interval WORD (10) when the configuration would be automatically saved to switch:

switch_a(config)#service auto-config interval 10 switch_a(config)#

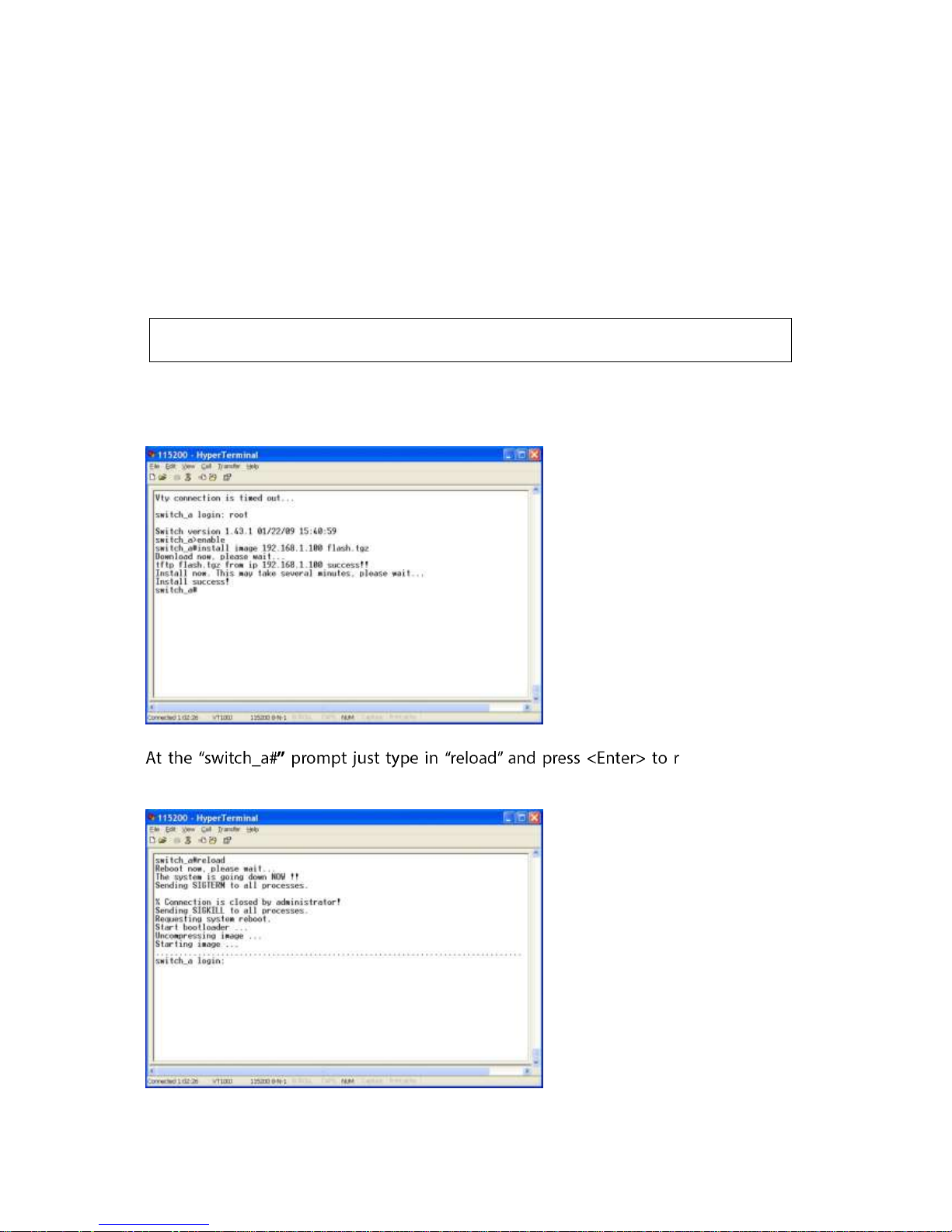

Firmware Upgrade

1. Command Mode: Privileged Exec mode

Logon to Privileged Exec Mode (Enable Mode). The switch_a# prompt will show on the screen.

switch_a#

2. Usage:

Page 94

User Manual Page 94

Use install image command to upgrade firmware from tftp server to switch.

3. Command Syntax:

install image IP-ADDRESS WORD IP-ADDRESS specifies the IP address of tftp server.

WORD specifies the file name to be upgraded to switch.

4. Example:

The following example specifies upgrading firmware (file name: flash.tgz) from tftp server (IP address: 192.168.1.100) to switch:

switch_a#install image 192.168.1.100 flash.tgz switch_a#

Please follow the message on the screen during the firmware upgrade process. Do not turn off the power or perform other functions during this period of time.

eboot the switch

after completing the upgrade process.

Page 95

User Manual Page 95

Reboot

1. Command Mode: Privileged Exec mode

Logon to Privileged Exec Mode (Enable Mode). The switch_a# prompt will show on the screen.

switch_a#

2. Usage:

Use reload command to restart switch.

3. Command Syntax:

reload

4. Example:

The following example specifies restarting switch:

switch_a#reload switch_a login:

Logout

1. Command Mode: Exec mode or Privileged Exec mode

Logon to Exec Mode (View Mode) or Privileged Exec Mode (Enable Mode). The switch_a> or switch_a# prompt will show on the screen.

switch_a>

switch_a#

2. Usage:

Use logout command to exit from the Exec mode or Privileged Exec mode.

3. Command Syntax:

logout

4. Example:

The following example specifies to exit from the Exec mode or Privileged Exec mode.

switch_a>logout switch_a login:

Page 96

User Manual Page 96

Port

Configuration, Port Status, Rate Control, RMON Statistics, Per Port Vlan Activities

Configuration

Admin Setting:

1. Command Mode: Interface mode

Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen.

switch_a(config)#interface fe1 switch_a(config-if)#

2. Usage:

Use the shutdown command to shut down the selected interface. Use the no shutdown to disable this function.

3. Command Syntax:

(no) shutdown

4. Example:

The following example shows the use of the shutdown command to shut down the interface fe1 (port 1):

switch_a(config)#interface fe1 switch_a(config-if)#shutdown switch_a(config-if)#

Bandwidth:

1. Command Mode: Interface mode

Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen.

switch_a(config)#interface fe1 switch_a(config-if)#

2. Usage:

Use this command to specify the bandwidth for each interface. The bandwidth value is in bits. Use the no parameter with this command to remove the bandwidth for each interface.

3. Command Syntax:

Bandwidth BANDWIDTH no bandwidth

Page 97

User Manual Page 97

BANDWIDTH <1-10000000000 bits> (usable units: k, m, g) <1-999>k|m for 1 to 999 kilo bits or mega bits. 1g for 1 giga bits.

4. Example:

The following example shows the use of bandwidth BANDWIDTH (10 mega bits) to the interface fe1 (port 1):

switch_a(config)#interface fe1 switch_a(config-if)#bandwidth 10m switch_a(config-if)#

Duplex:

1. Command Mode: Interface mode

Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen.

switch_a(config)#interface fe1 switch_a(config-if)#

2. Usage:

Use duplex command to specify the duplex mode to be used for each interface. Use the no duplex to disable this function.

3. Command Syntax:

(no) duplex MODE MODE specifies the duplex mode: auto, full, half.

4. Example:

The following example shows the use of duplex MODE (full) to the interface fe1 (port 1):

switch_a(config)#interface fe1 switch_a(config-if)#duplex full switch_a(config-if)#

Flow control:

1. Command Mode: Interface mode

Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen.

switch_a(config)#interface fe1 switch_a(config-if)#

Page 98

User Manual Page 98

2. Usage:

Use flowcontrol on command to enable flow control, and configure the flow control mode for the port. Use the no flowcontrol to disable this function.

3. Command Syntax:

flowcontrol on no flowcontrol

4. Example:

The following example shows the use of flowcontrol on to the interface fe1 (port 1):

switch_a(config)#interface fe1 switch_a(config-if)#flowcontrol on switch_a(config-if)#

Port Status

1. Command Mode: Exec mode or Privileged Exec mode

Logon to Exec Mode (View Mode) or Privileged Exec Mode (Enable Mode). The switch_a> or switch_a# prompt will show on the screen.

switch_a>

switch_a#

2. Usage:

Use the show interface command to display interface configuration and status.

3. Command Syntax:

show interface IFNAME

IFNAME specifies the name of the interface for which status and configuration information is desired.

4. Example:

The following example shows the use of show interface to display interface configuration and status of the interface fe1 (port 1):

switch_a>show interface fe1

Rate Control

1. Command Mode: Interface mode

Logon to Configure Mode (Configure Terminal Mode). Then logon to Interface mode. fe1 means port 1. The switch_a(config-if)# prompt will show on the screen.

Page 99

User Manual Page 99

switch_a(config)#interface fe1 switch_a(config-if)#

2. Usage:

Use this command to specify the ingress/egress rate to be used for each interface. The bandwidth value is in bits. Use the no parameter with this command to remove the ingress/egress rate to be used for each interface.

3. Command Syntax:

(no) rate-control ingress/egress VALUE

VALUE <1-10000000000 bits> (usable units: k, m, g) <1-999>k|m for 1 to 999 kilo bits or mega bits. 1g for 1 giga bits.

4. Example:

The following example shows the use of rate-control ingress VALUE (10 mega bits) to the interface fe1 (port 1):

switch_a(config)#interface fe1 switch_a(config-if)#rate-control ingress 10m switch_a(config-if)#

RMON Statistics

1. Command Mode: Exec mode or Privileged Exec mode

Logon to Exec Mode (View Mode) or Privileged Exec Mode (Enable Mode). The switch_a> or switch_a# prompt will show on the screen.

switch_a>

switch_a#

2. Usage:

Use the show interface statistics command to display RMON statistics of interface.

3. Command Syntax:

show interface statistics IFNAME

IFNAME specifies the name of the interface for which RMON statistics is desired.

4. Example:

The following example shows the use of show interface statistics to display RMON statistics of the interface fe1 (port 1):

switch_a>show interface statistics fe1

Page 100

User Manual Page 100

Per Port Vlan Activities

1. Command Mode: Exec mode or Privileged Exec mode

Logon to Exec Mode (View Mode) or Privileged Exec Mode (Enable Mode). The switch_a> or switch_a# prompt will show on the screen.

switch_a>

switch_a#

2. Usage:

Use show vlan command to display information about a particular VLAN by specifying the VLAN ID.

3. Command Syntax:

show vlan <2-4094>

<2-4094> VLAN ID.

4. Example:

The following is an output of show vlan command displaying information about VLAN 2:

switch_a>show vlan 2
