Level One FEP-1611 User Manual

FEP-1611 Version: 2

16-Port Fast Ethernet PoE Switch, 240W,

802.3af/at PoE

The LevelOne FEP-1611 provides 16 x 10/100Mbps ports with IEEE 802.3at PoE plus supported. This
switch is IEEE 802.3at/af compliant, and provides power and data over a single Ethernet cable to any PoE
device, with total power budget of 240W, up to 30W per port. Ideal for desktops and it is also 19-inch rack­mountable, which provides convenient and flexible installation. The FEP-1611 is designed for small-to­median businesses that prefer an affordable solution for PoE deploying infrastructure.

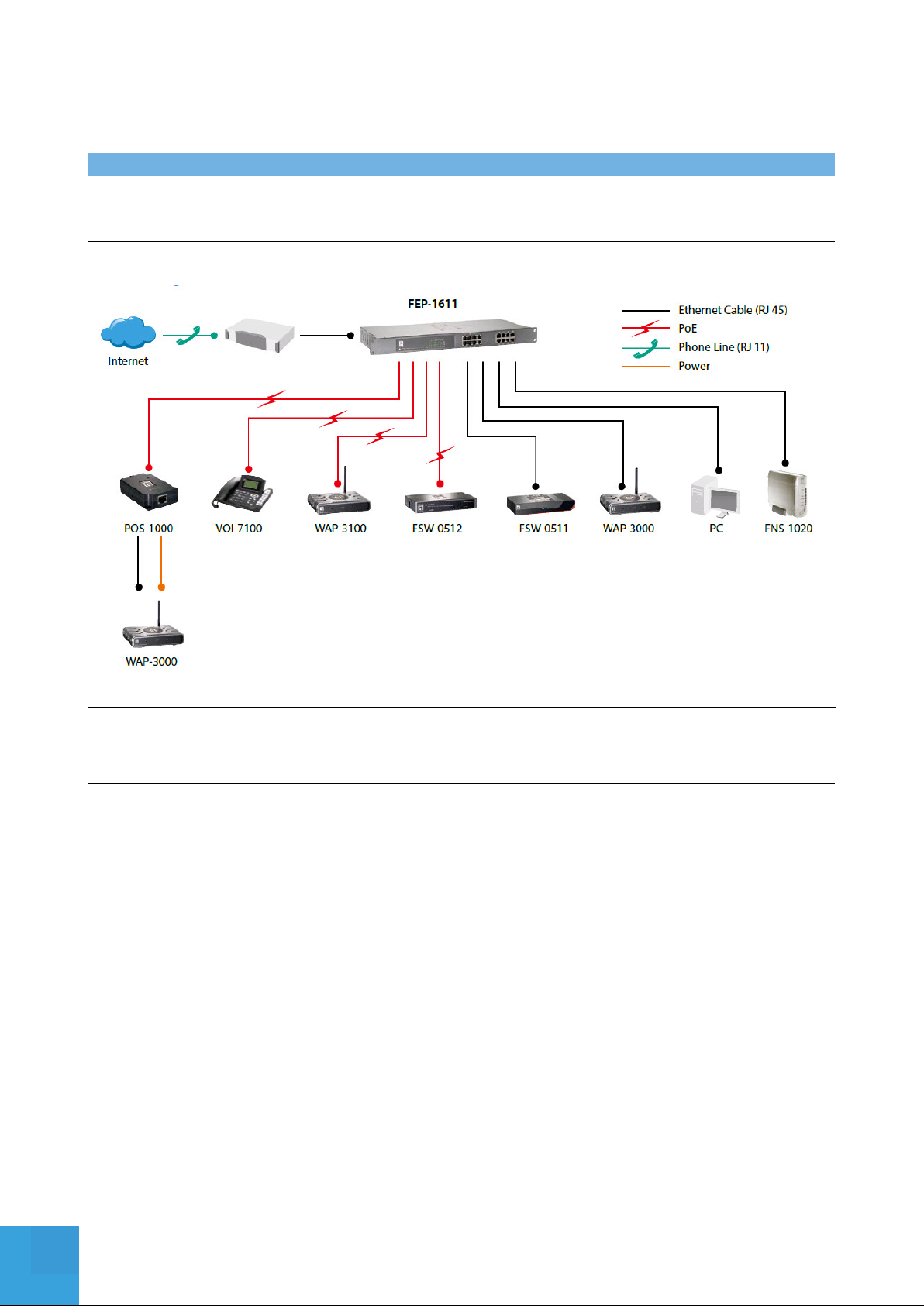

Key Features

IEEE 802.3af/at PoE compliant to simplify deployment and installation

­Auto-detection and protection of non-standard PoE devices

­Supports 4K MAC address auto-learning and auto-aging

­10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX

­19-inch metal housing

­IEEE 802.3x Flow Control protects against lost packets for reliable data transmission

­Total PoE power budget: 240W, up to 30W per port

-

-

Specifications

System Specifications

Standards & Protocols:

IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3x Full-duplex Flow Control
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)

Buffer Memory:

160KB

www.level1.com Page 1 of 3

Connectors and Cabling:

16 x 10/100Base-TX RJ-45 PoE Ports
10Base T Cat. 3, 4, 5 UTP/STP
100Base TX Cat. 5 UTP/STP

Button/Knob:

Power On / Off Switch

Indicator:

Power, Active, 10/100M, PoE

Transmission Method:

Store-and-Forward

Power Input:

100-240V AC, 50-60 Hz, 5A Internal Power Supply

Power Consumption:

< 250W

Features

PoE:

Power Budget: Max. 240W
PoE Standard: IEEE 802.3af/at Power over Ethernet / PSE
PD classification identity
PoE over current protection
PoE circuit sorting protection
PoE Power Output: Per Port 56V DC, Max. 15.4 watts (IEEE

802.3af) or 30 watts (IEEE 802.3at)
Power Pin Assignment: 1/2(+), 3/6(-

Performance

Backplane (Gbps):

3.2Gbps

MAC Address Table:

4K

Data Transfer Rate:

10/100Mbps

Packet Forwarding Rate:

100Mbps port - 148,000pps
10Mbps port - 14,880pps

Environment

Temperature (°C):

Operating: 0°C ~ 45°C
Storage: - 40°C ~ 70°C

Humidity (Non-condensing):

Storage: 10% ~ 90%
Operating: 10% ~ 90%

Deployment:

Desktop and 19-inch rack-mountable

Physical Specifications

Dimensions (W x D x H mm):

200 x 480 x 44 mm
