Level One FEP-0800W65 User Manual
FEP-0800 Version: 1
8-Port Fast Ethernet PoE Switch, 8 PoE Outputs

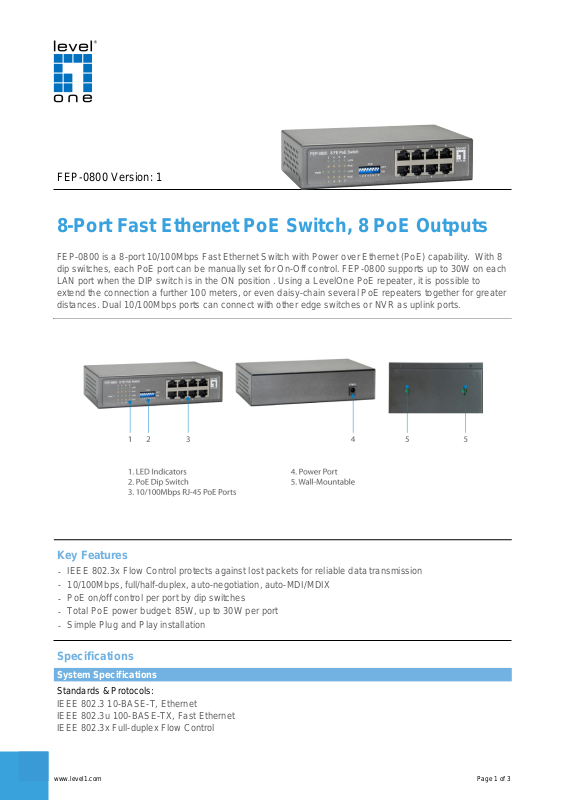

FEP-0800 is a 8-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 8
dip switches, each PoE port can be manually set for On-Off control. FEP-0800 supports up to 30W on each
LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to
extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater
distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports.
Key Features
IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
PoE on/off control per port by dip switches
Total PoE power budget: 85W, up to 30W per port
Simple Plug and Play installation
-
Specifications
System Specifications
Standards & Protocols:
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3x Full-duplex Flow Control
www.level1.com Page 1 of 3
Buffer Memory:
64KB
Connectors and Cabling:
8 x 10/100Base-TX RJ-45 PoE Ports
Button/Knob:
PoE Power On/Off Switch
Indicator:
Power, Active, 10/100M, PoE
Transmission Method:
Store-and-Forward
Power Input:
56VDC
Power Consumption:
< 65W (FEP-0800W65)
< 90W (FEP-0800)
< 120W (FEP-0800W120)
Features
PoE:
Power Budget: Max. 60W (FEP-0800W65)
Max. 85W (FEP-0800)
Max. 115W (FEP-0800W120)
Power Output: 52V DC, up to 30W per port
Protection: PoE over current & PoE circuit sorting protection,
Pin Assignment: 4/5(+), 7/8(-)
Performance
Backplane (Gbps):
1.6Gbps
MAC Address Table:
1K
Data Transfer Rate:
10/100Mbps
Packet Forwarding Rate:
100Mbps port - 148,000pps
10Mbps port - 14,880pps
Environment
Temperature (°C):
Operating: 0°C ~ 45°C
Storage: - 40°C ~ 70°C
Humidity (Non-condensing):
Storage: 10% ~ 90%
Operating: 10% ~ 90%
Deployment:
Desktop
Physical Specifications
