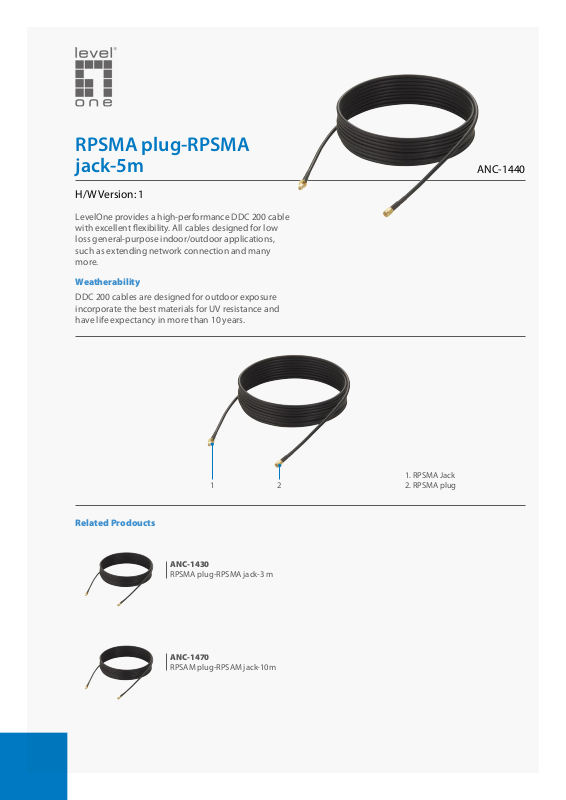

Level One ANC-1440 User Manual

RPSMA plug-RPSMA jack-5m

H/W Version: 1

LevelOne provides a high-performance DDC 200 cable with excellent exibility. All cables designed for low loss general-purpose indoor/outdoor applications, such as extending network connection and many more.

Weatherability

DDC 200 cables are designed for outdoor exposure incorporate the best materials for UV resistance and have life expectancy in more than 10 years.

ANC-1440

Related Prodoucts

1 2

ANC-1430

RPSMA plug-RPSMA jack-3 m

ANC-1470

RPSAM plug-RPSAM jack-10m

1. RPSMA Jack

2. RPSMA plug

www.level1.com I one world_one brand_one level_

Technical Specications

Antenna

Electrical Properties: Frequency Range

DC~6GHz

Impedance

50Ω

Insertion Loss

2.4 Ghz 1.1 dB

3.0 Ghz 1.0 dB

5.8 Ghz 1.2 dB

6.0 Ghz 1.0 dB

VSWR

1.3:1 Max

Cable

Low Loss 200 Coaxial cable

Connector

RP SMA MALE

Connector

RP SMA FEMALE

Physical Properties

Operating Temp

-10°C~+60°C

Storage Temp

-10°C~+70°C

Conductor Material

Bare Copper Wire

Conductor Cond. Size

1.12±0.03mm

Insulation MIN. AVG.THICK

0.84mm

Insulation Material

Gas Injected Foamed Polyethylene

Shield Copper Material

Tinned Copper Wire

Shield Copper Size

0.12±0.008mm

Jacket Material

PVC

Jacket Colour

Black

Jacket O.D

4.95±0.10

Dimension Diagram

5000±20

JACKET

SHIELD

CONDUCTOR

INSULATION

Order Information ANC-1440: RPSMA plug-RPSMA jack-5m

1. RP SMA Male Crmp Type

2. Heat Shrink Tube

3. Low Loss Cable, Color:Black

4. RP SMA Female Bulkhead Crmp

Package Contents ANC-1440

All mentioned brand names are registered trademarks and property of their owners. Technical specications are subject to change without notice.

V1.0
