LevelOne 1650, KVM-0850 User Manual

KVM-0850/1650 IP KVM switch
LevelOne
KVM-0850/1650

8/16-port IP KVM Switch for PS/2

User Manual
Ver 1.00-0504
1
KVM-0850/1650 IP KVM switch
TABLE OF CONTENTS
1. The Quick Installation Guide.............................................................................................. 4
2. Introduction............................................................................................................................... 6
2.1 When the server is up and running............................................................................................. 6
2.2 When the sever is dead............................................................................................................... 6
2.3 Features ...................................................................................................................................... 7
2.4 Package contents ........................................................................................................................ 8
2.5 Technical specifications.............................................................................................................. 9
2.6 System requirement.................................................................................................................. 10
2.7 Cable diagrams......................................................................................................................... 10
2.8 Product Details ......................................................................................................................... 11
3. Hardware installation.......................................................................................................... 12
3.1 Operation Overview.................................................................................................................12
3.2 Connecting KVM-0850/1650 to the host system..................................................................... 12
4. Configuration .......................................................................................................................... 15
4.1 Initial Configuration................................................................................................................. 15
4.1.1 Initial configuration via DHCP server.................................................................................. 15
4.1.2 Initial configuration via serial console................................................................................. 17
4.1.3 Keyboard, Mouse and Video configuration ......................................................................... 17
5. Usage.......................................................................................................................................... 21
5.1 Prerequisites ............................................................................................................................. 21
5.2 Using PS/2 KVM over IP switch as a KVM switch................................................................. 22
5.2.1 Daisy Chain Connection Diagram........................................................................................ 24
5.2.2 Hot Plug................................................................................................................................25
5.2.3 On Screen Display Operation...............................................................................................26
5.3 Login into the KVM-0850/1650 and logout............................................................................. 28
5.3.1 Login into the KVM-0850/1650........................................................................................... 28
5.3.2 Logout from the KVM-0850/1650....................................................................................... 30
5.4 The Remote Console ................................................................................................................ 30
5.5 Main Window...........................................................................................................................31
6. Menu Options......................................................................................................................... 40
6.1 Remote Control ........................................................................................................................ 40

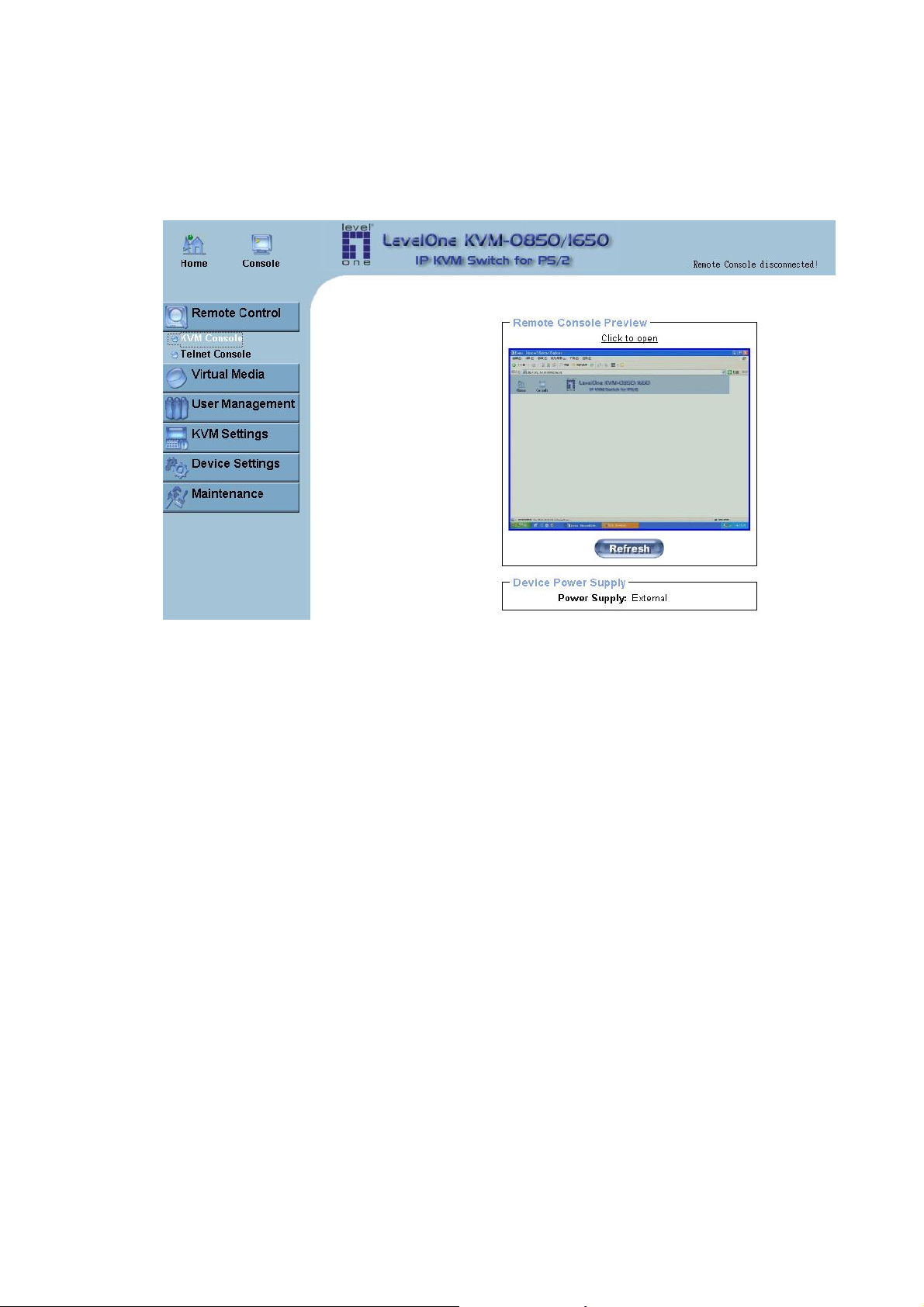

6.1.1 KVM Console....................................................................................................................... 40
6.1.2 Telnet Console .................................................................................................................... 41
6.2 Virtual Media........................................................................................................................ 42

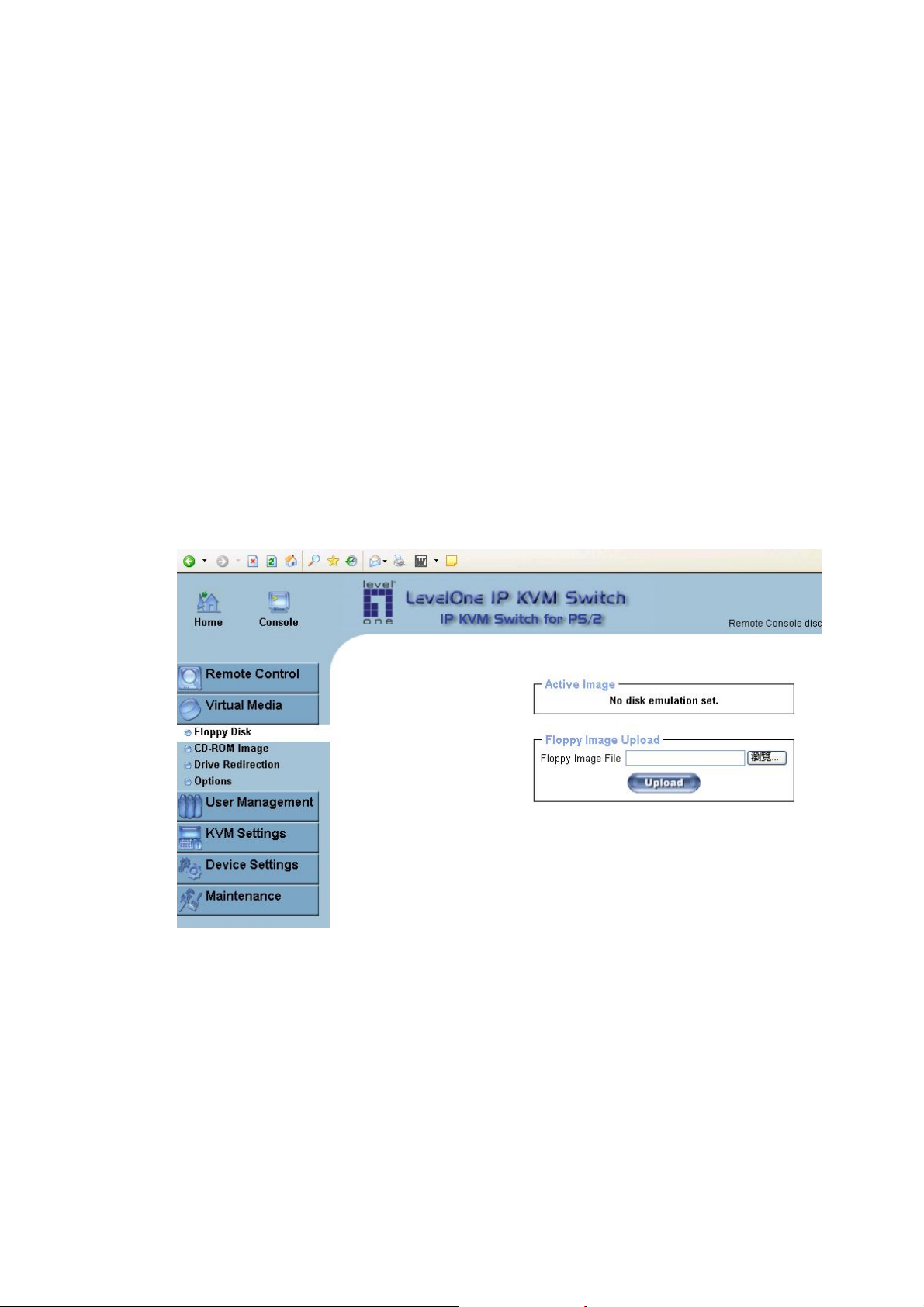

6.2.1 Floppy Disk......................................................................................................................... 42
6.2.2 CD ROM............................................................................................................................. 43

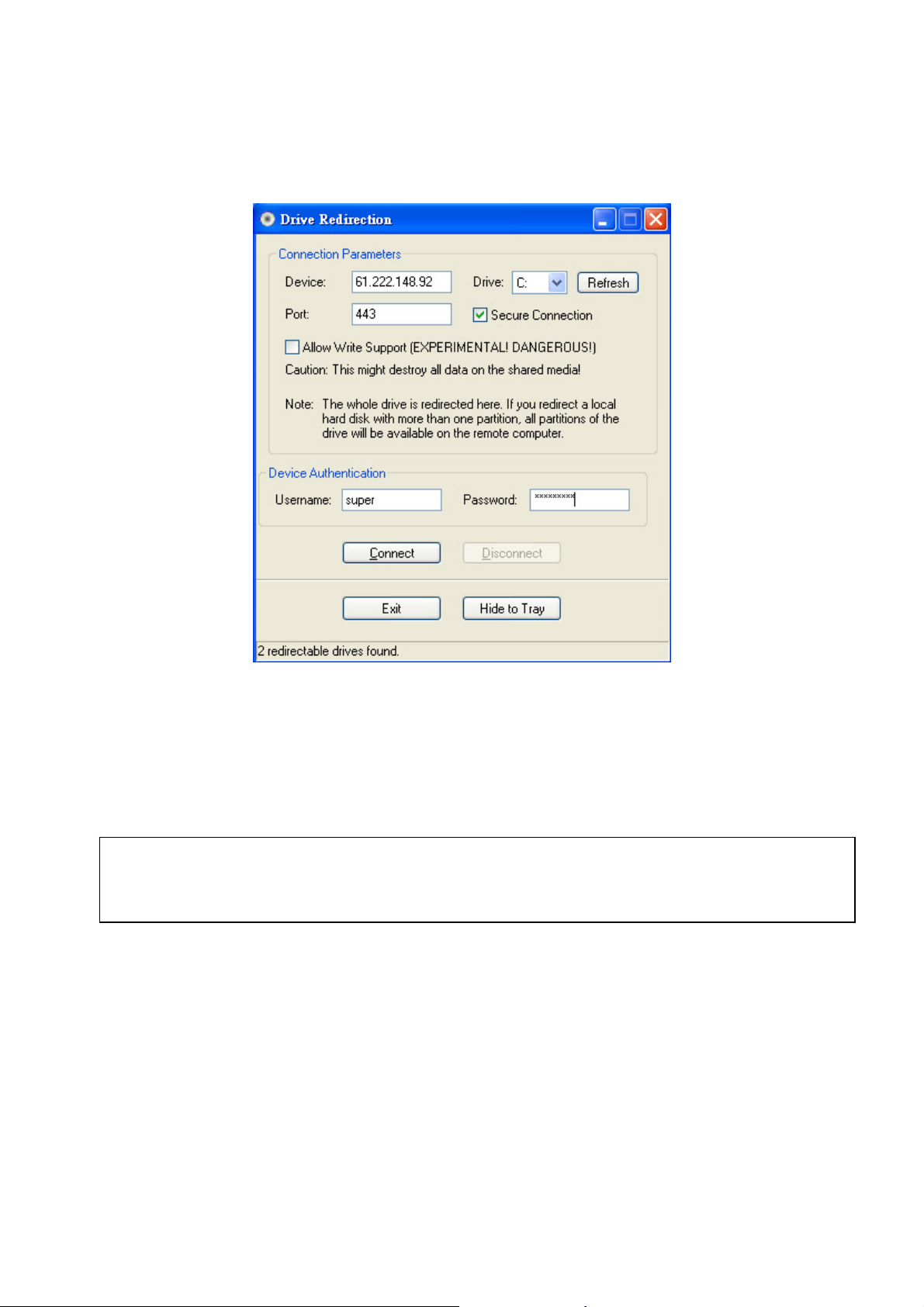

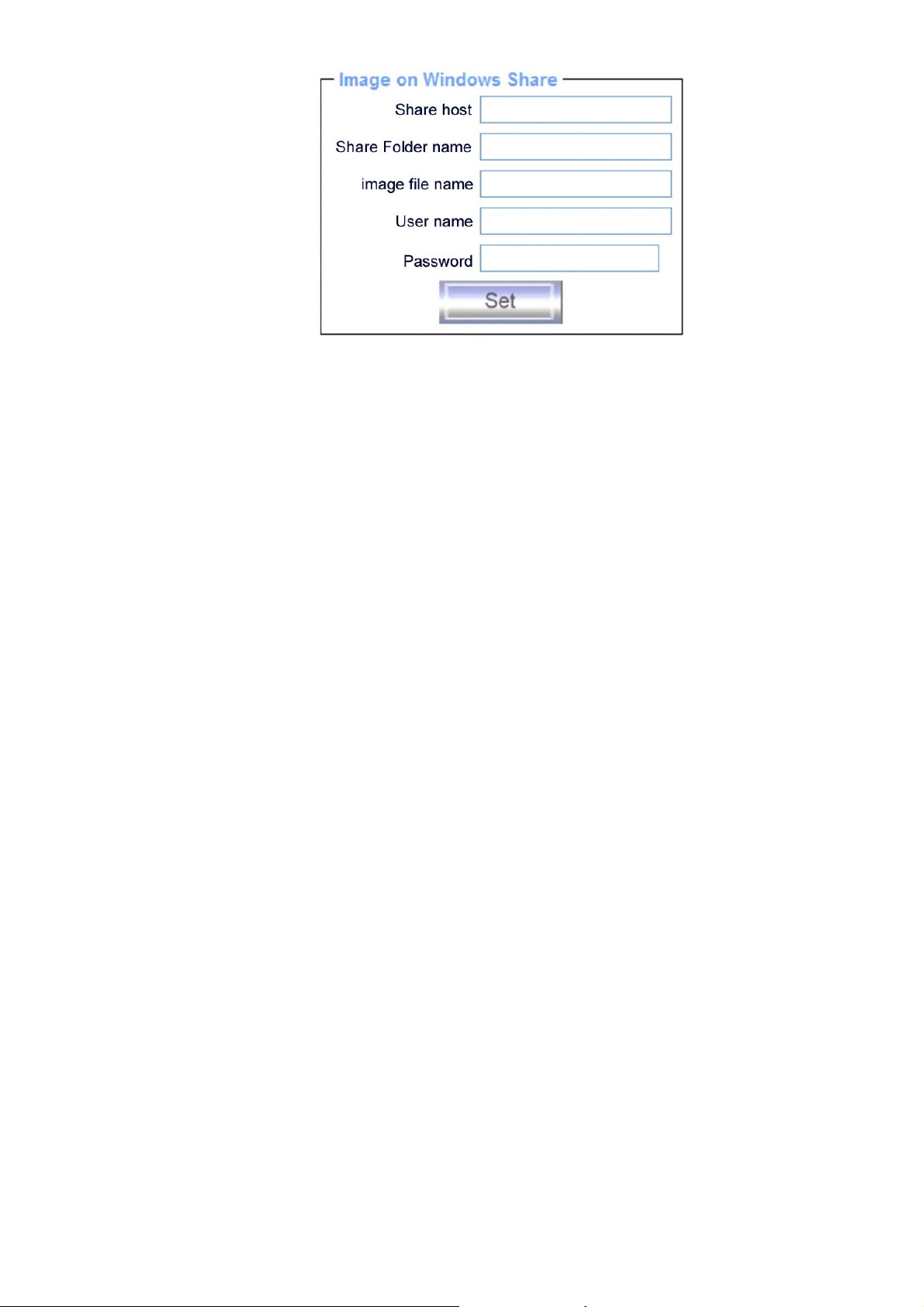

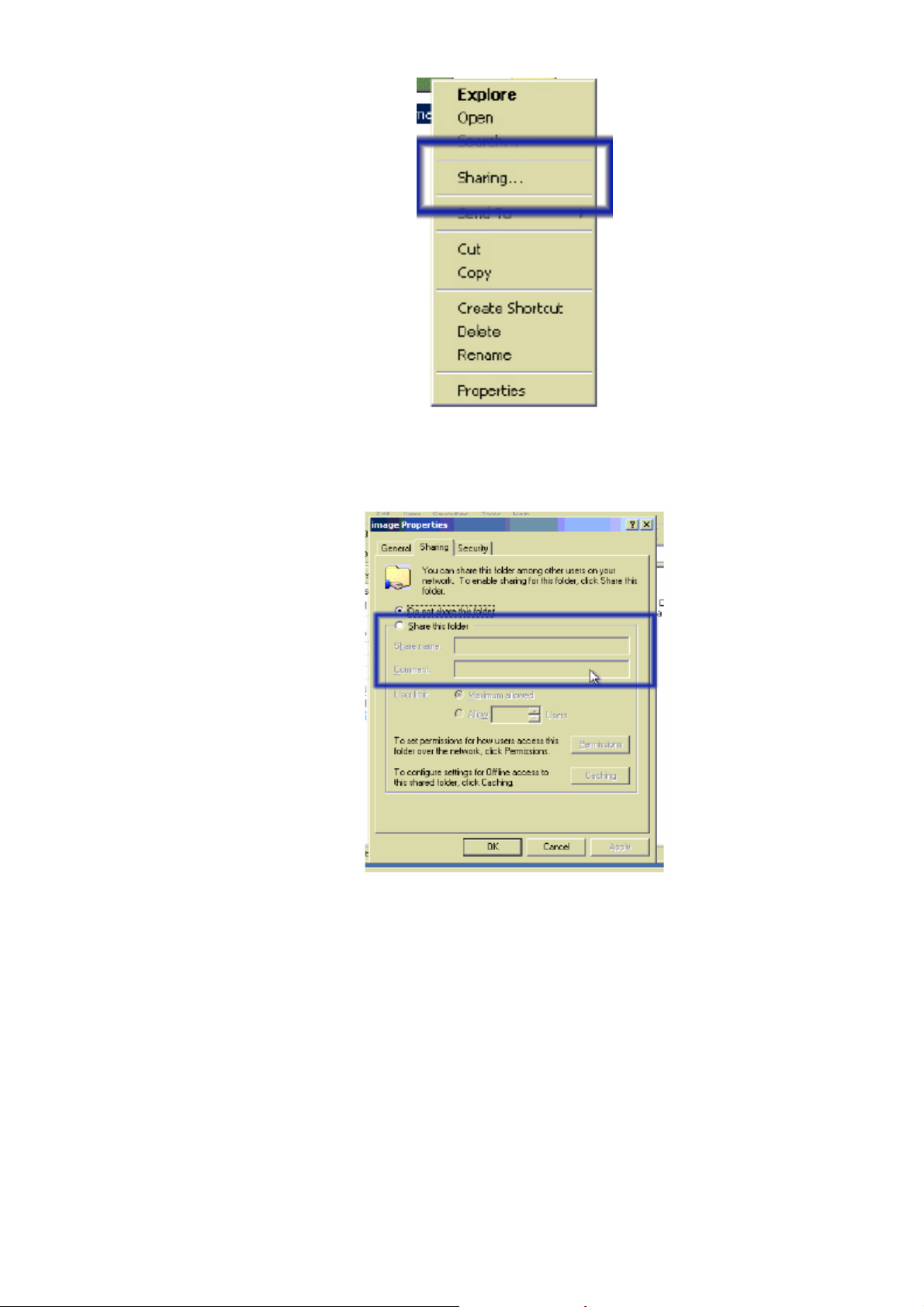

6.2.3 Drive redirection ................................................................................................................ 48
6.2.4 Options................................................................................................................................ 52
6.3 User Management.................................................................................................................. 52
6.3.1 Change Password ................................................................................................................. 52
6.3.2 Users And Groups ................................................................................................................ 53
6.4 KVM Settings.........................................................................................................................54

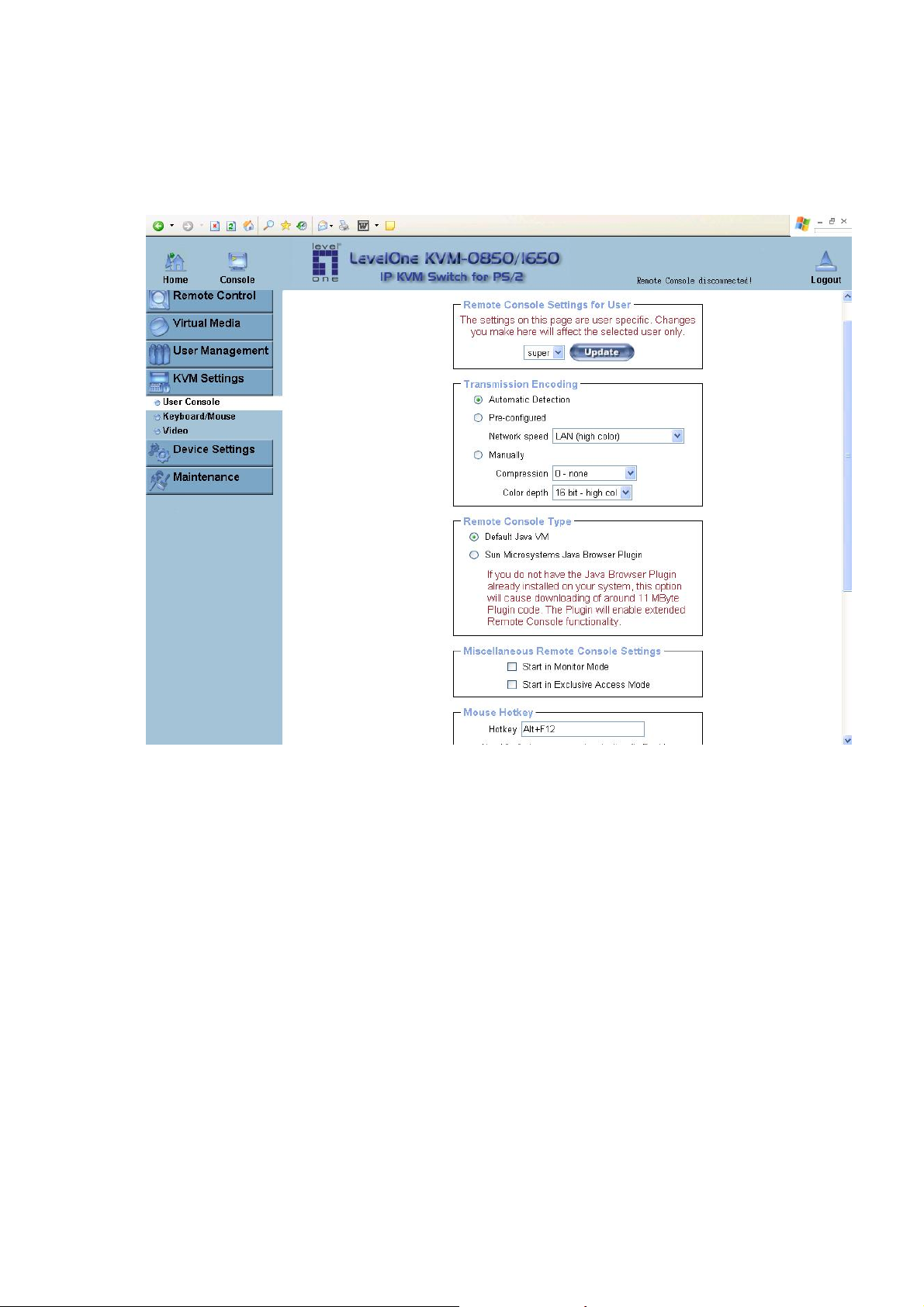

6.4.1 User Console ........................................................................................................................ 54
2
KVM-0850/1650 IP KVM switch
6.4.2 Keyboard/Mouse .................................................................................................................. 57
6.4.3 Video..................................................................................................................................... 59
6.5 Device Settings....................................................................................................................... 59

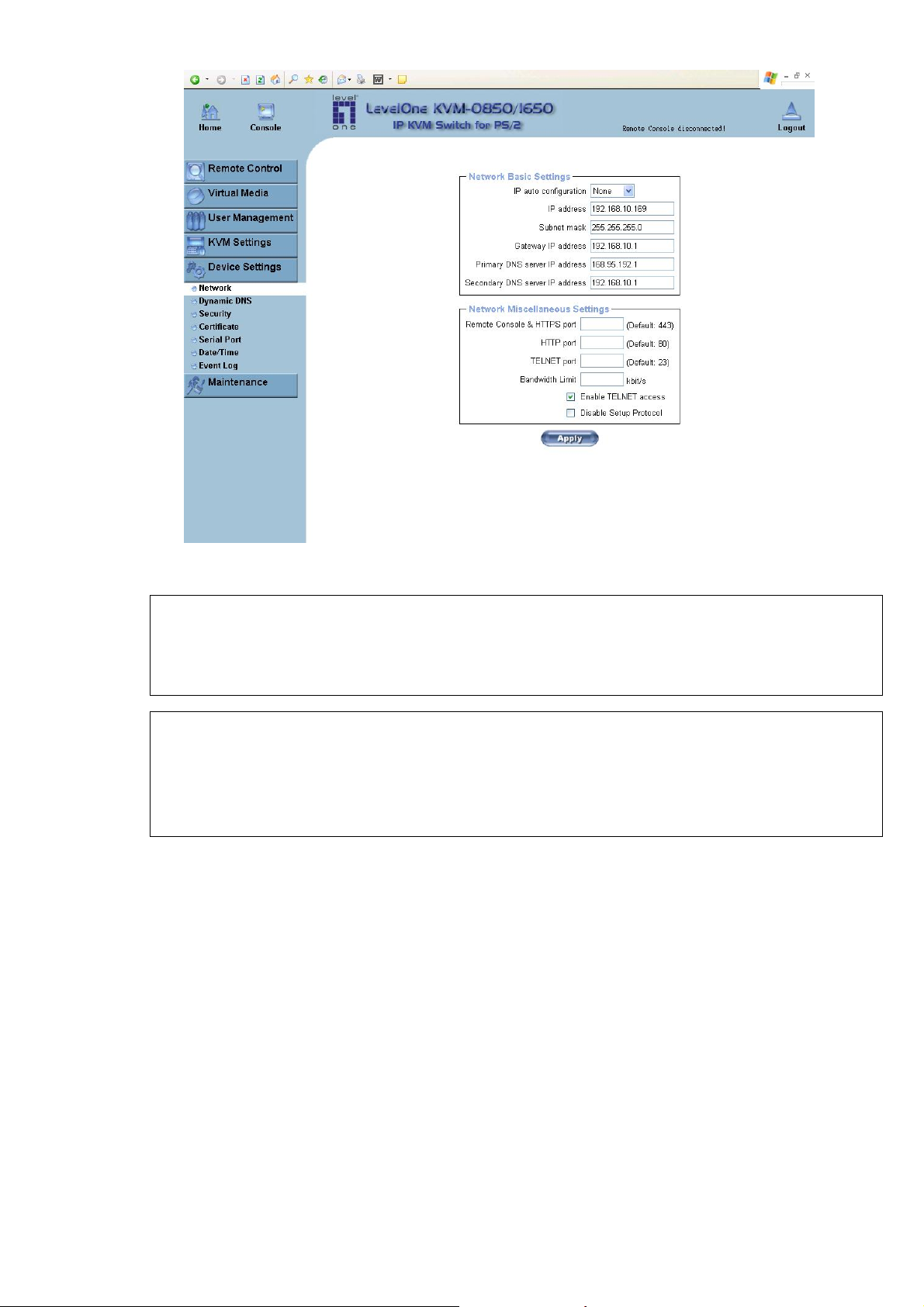

6.5.1 Network................................................................................................................................ 59
6.5.2 Dynamic DNS ...................................................................................................................... 62
6.5.3 Security................................................................................................................................. 64
6.5.4 Certificate............................................................................................................................. 65

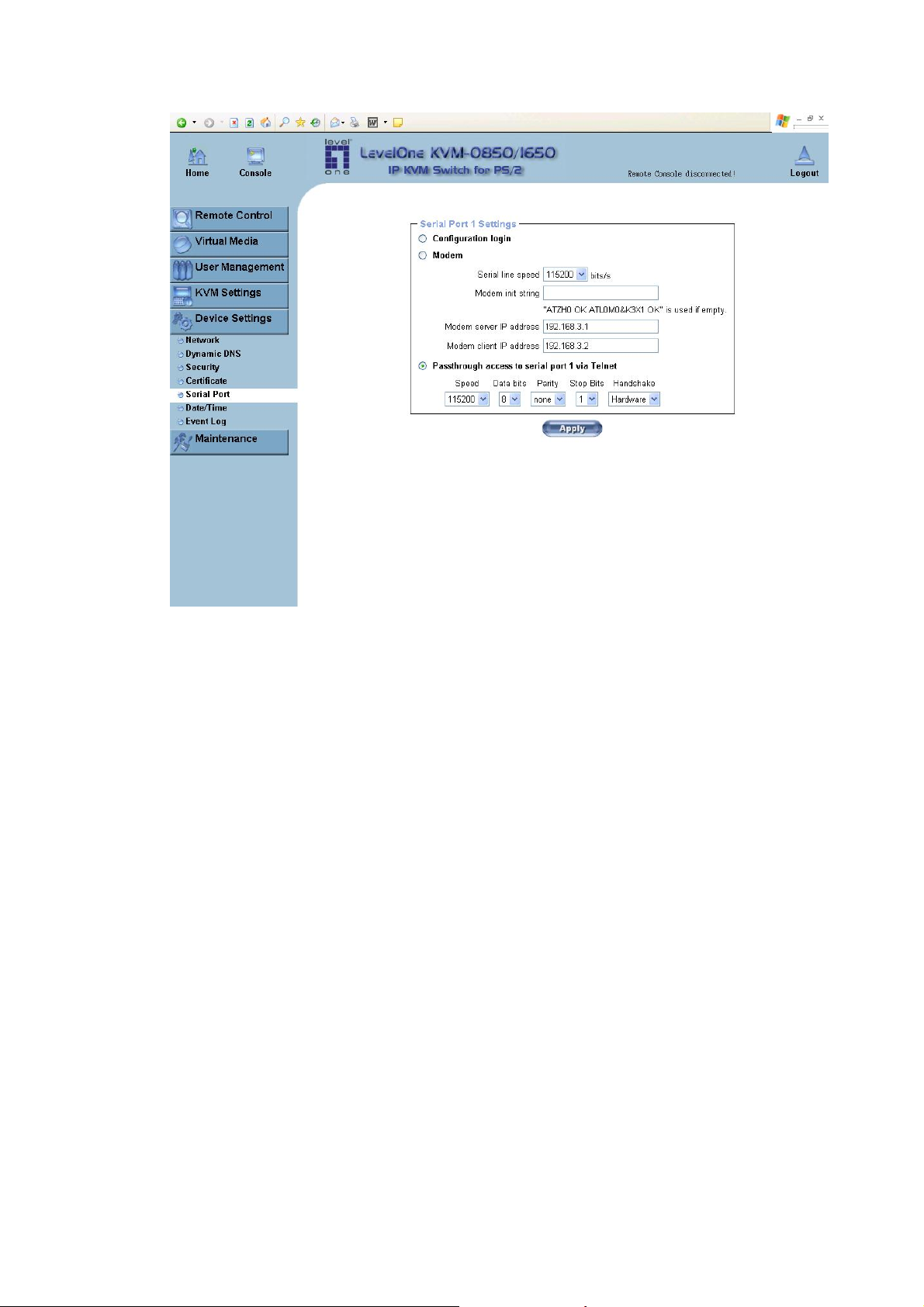

6.5.5 Serial Port............................................................................................................................. 68
6.5.6 Date And Time...................................................................................................................... 70
6.5.7 Event Log ............................................................................................................................. 71
6.6 Maintenance............................................................................................................................ 73
6.6.1 Device Information............................................................................................................... 73
6.6.2 Event Log ............................................................................................................................. 74
6.6.3 Update Firmware.................................................................................................................. 75

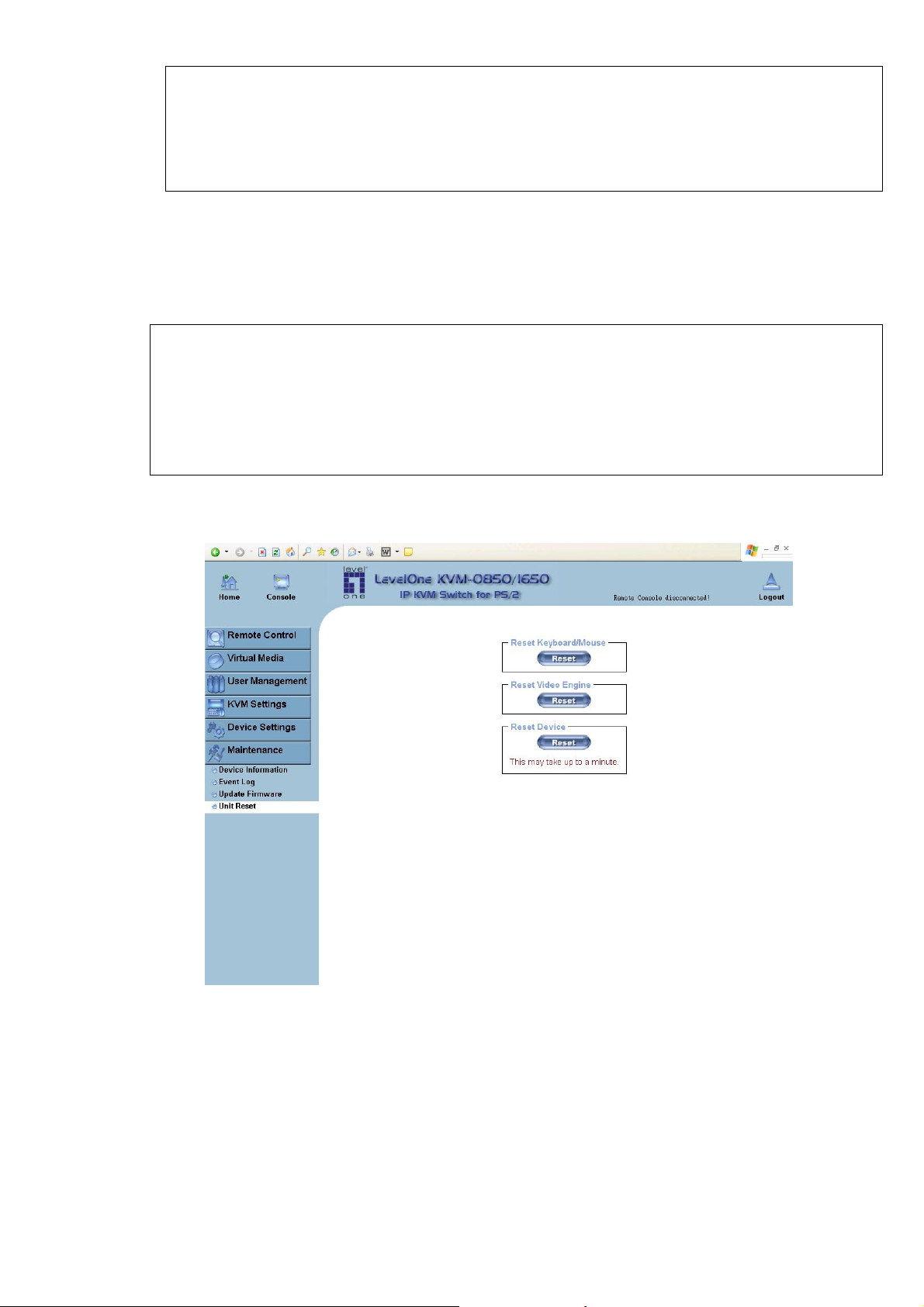

6.6.4 Unit Reset............................................................................................................................. 76
7. Troubleshooting...................................................................................................................... 77
8. Certificates............................................................................................................................... 78
FCC .............................................................................................................................................................. 78
CE – Certificate............................................................................................................................................78

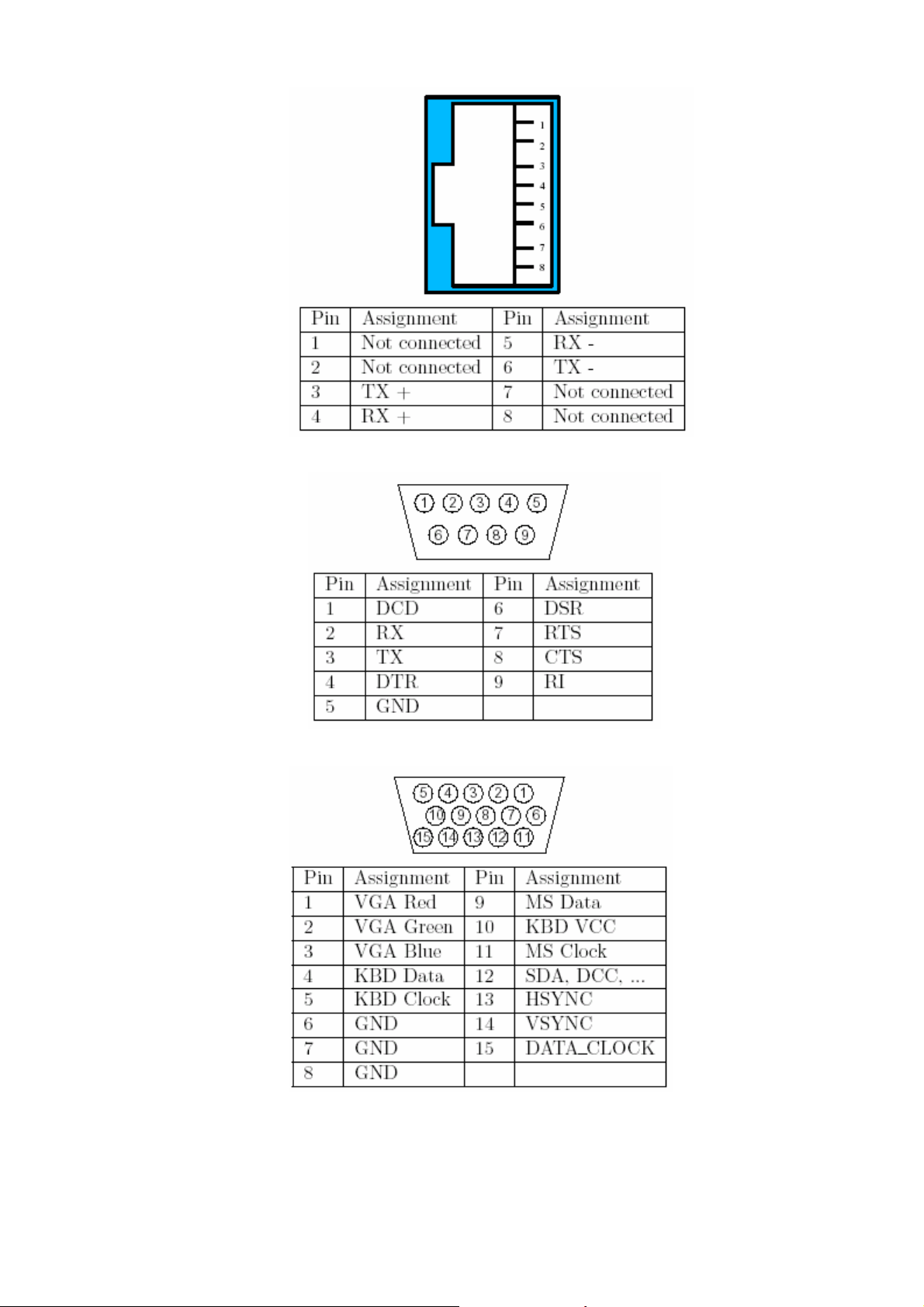

A. Pin Assignments....................................................................................................................... 79
B. Key Codes ................................................................................................................................ 81
C. Video Modes ............................................................................................................................ 83
3
KVM-0850/1650 IP KVM switch
1. The Quick Installation Guide

Installation

KVM-0850/1650, 8-port/16-port PS/2 IP-KVM switch redirects local keyboard, mouse and video data to a remote administration console. All data is transmitted via IP. KVM-0850/1650 can be used in a multi administrator and multi server environment as well. Besides, KVM-0850/1650 is a KVM switch, which can also be used with a local console. Connecting KVM-0850/1650 to the host system
In order to connect the KVM-0850/1650 perform the following steps:
1. Connect the power supply to KVM-0850/1650.
2. Connect the monitor to the KVM-0850/1650.
3. Connect the keyboard to the KVM-0850/1650.
4. Connect the mouse to the KVM-0850/1650.
5. Plug the HDDB15 pin connector of a 3-in-one cable into any label computer port on the rear of KVM-0850/1650 unit. Then connect the HDDB-15 pin male type for PC video, the purple Mini Din 6 pin female type for keyboard and the green Mini Din 6 pin female type for mouse. To plug these three connectors into the respective ports of computer.
6. Repeat item 5 procedure to all of PC ports of KVM-0850/1650
7. Connect Ethernet and/or modem, depending how you want to access KVM-0850/1650.

Video modes

KVM-0850/1650 recognizes a limited number of common video modes. When running X-Window on the host system, please don’t use any custom mode lines with special video modes. If done so, KVM-0850/1650 may not be able to detect these. You are on the safe side with all standard VESA video modes. Please refer to Appendix C for a list of all known modes.

Initial IP configuration

Initially the KVM-0850/1650 network interface is configured with the parameters shown in Table 1.1.
Parameter Value IP auto configuration DHCP IP-Address 192.168.1.22 Net-mask 255.255.255.0 Default-Gateway none IP access control disabled
Table 1.1: Initial configuration If this initial configuration doesn’t meet your local requirements, you need to do the initial IP configuration. Use one of the following ways:
1.Connect the enclosed NULL modem cable to the serial interface on the rear side. The serial
interface needs to be adjusted with the parameters shown in table 1.2:
Parameter Value Bits/second 115200 Data bits 8 Parity No Stop bits 1 Flow Control None
Table 1.2: Serial parameters
4
KVM-0850/1650 IP KVM switch
Use a terminal software (e.g. hyper term or minicom) to connect to KVM-0850/1650. Reset KVM-0850/1650 and immediately press <ESC>. You will see some device information and a ’=>’ prompt. Enter the command ’config’ and press <Enter>. After waiting a few moments you may configure IP auto configuration, IP address, net mask and default gateway. Pressing <Enter> without entering values does not change settings. The gateway value must be set to 0.0.0.0 (for no gateway) or any other value. You will be asked if the values are correct and get a chance to correct them. After confirming, KVM-0850/1650 performs a reset.
2.Use a crossover Ethernet cable to connect KVM-0850/1650 to a subnet where a DHCP server is available. After the DHCP server has assigned an IP address to KVM-0850/1650 you can use the web interface to configure the device.

Web interface

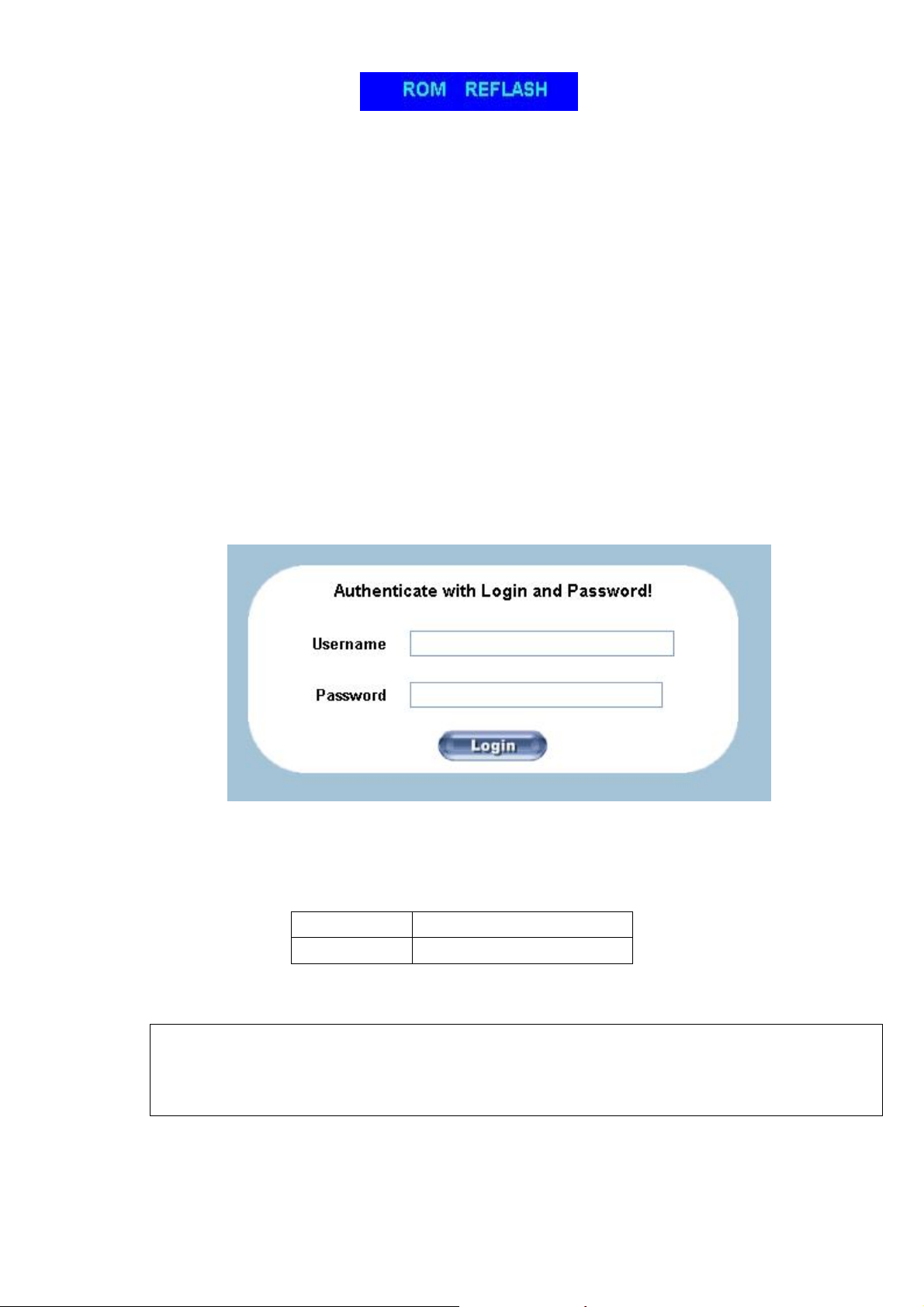

IP-KVM switch may be accessed using a standard JAVA enabled web browser. You may use the HTTP protocol or a secure encrypted connection via HTTPS. Just enter the configured IP address of IP-KVM switch into your web browser.
Login name Password
super (factory default)
pass (factory default) Changing these settings to user specific values is strongly recommended and can be done on the User Management page (see the Section called Users and Groups in Chapter 6 ).

The Remote Console

The Remote Console is the redirected screen, keyboard and mouse of the remote host system to which KVM-0850/1650 is attached. The web browser who is used for accessing KVM-0850/1650 has to supply a Java Runtime Environment version 1.1 or higher. The Remote Console will behave exactly the same way as if you were sitting directly in front of the screen of your remote system. That means keyboard and mouse can be used in the usual way. Open the console by choosing the appropriate link in the navigation frame of the HTML fronted. Figure 1.3 shows the top of the Remote Console.

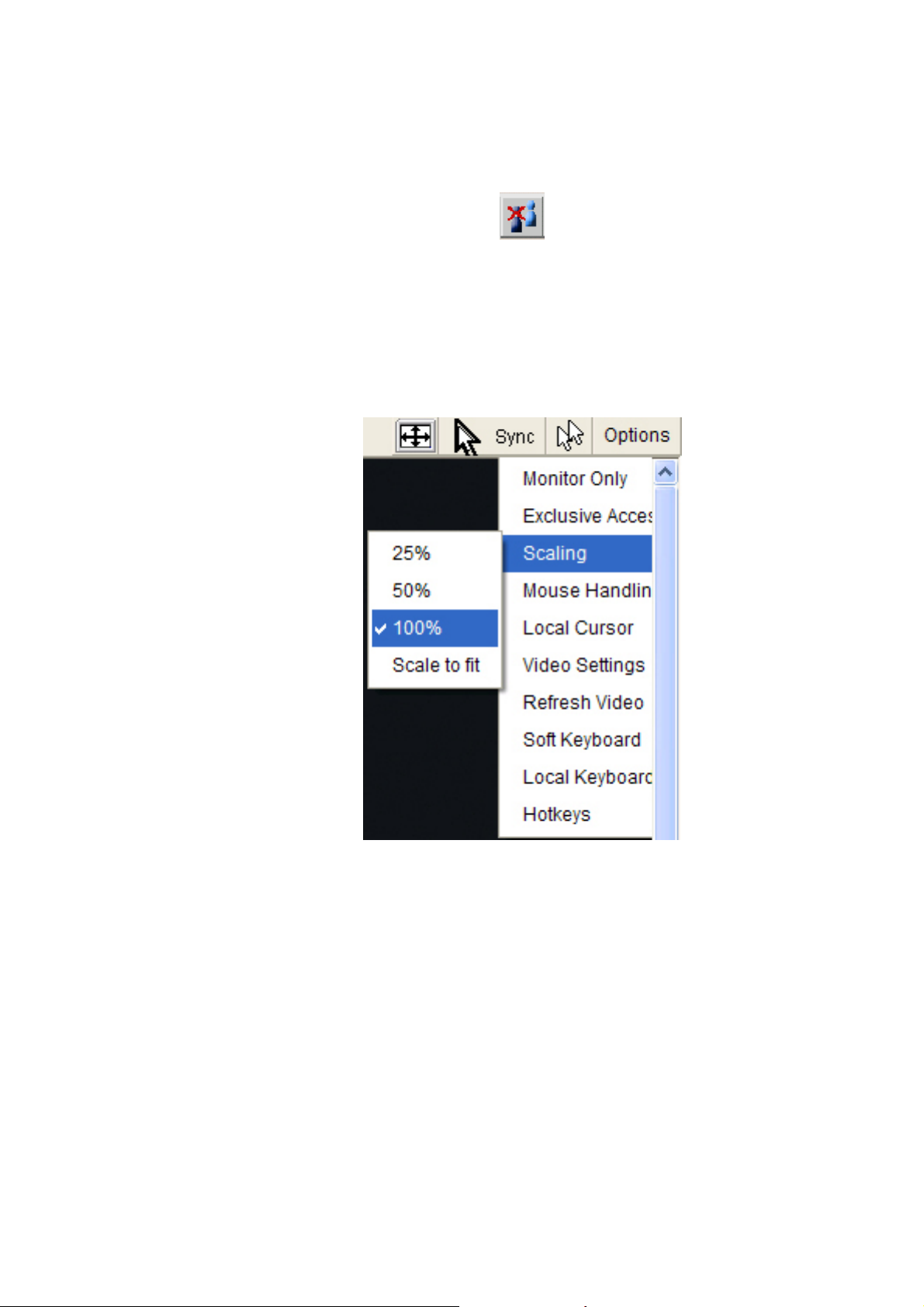

Figure 1.3: Top part of the Remote Console

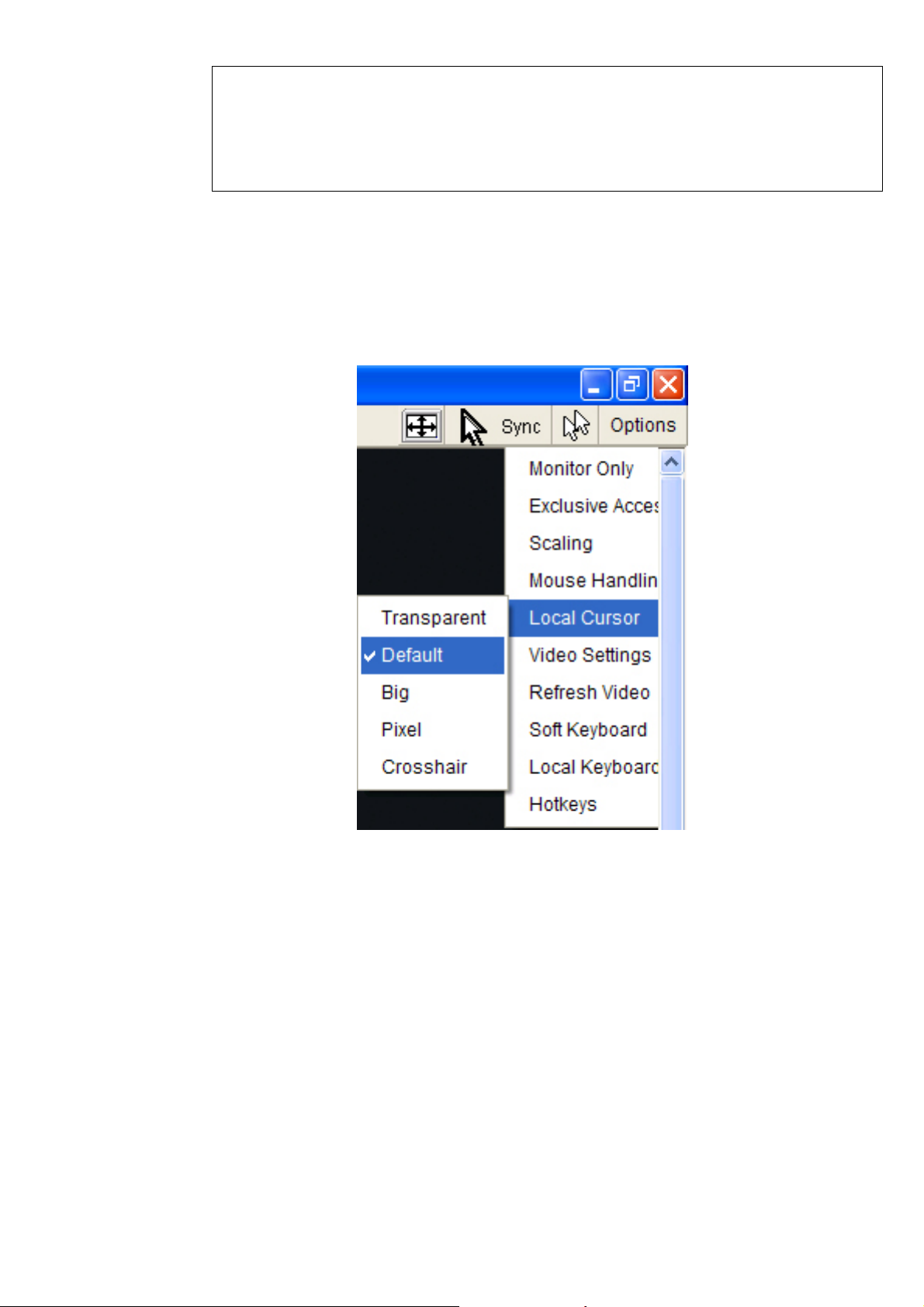

There are some options to choose from and the important ones are the following:
Auto Adjust button
If the video displayed is of bad quality or distorted in some way, press this button and wait a few seconds while KVM-0850/1650 tries to adjust itself for the best possible video quality.
Sync Mouse
Choose this option in order to synchronize the local with the remote mouse cursor. This is especially necessary when using accelerated mouse settings on the host system. In general there is no need to change mouse settings on the host.

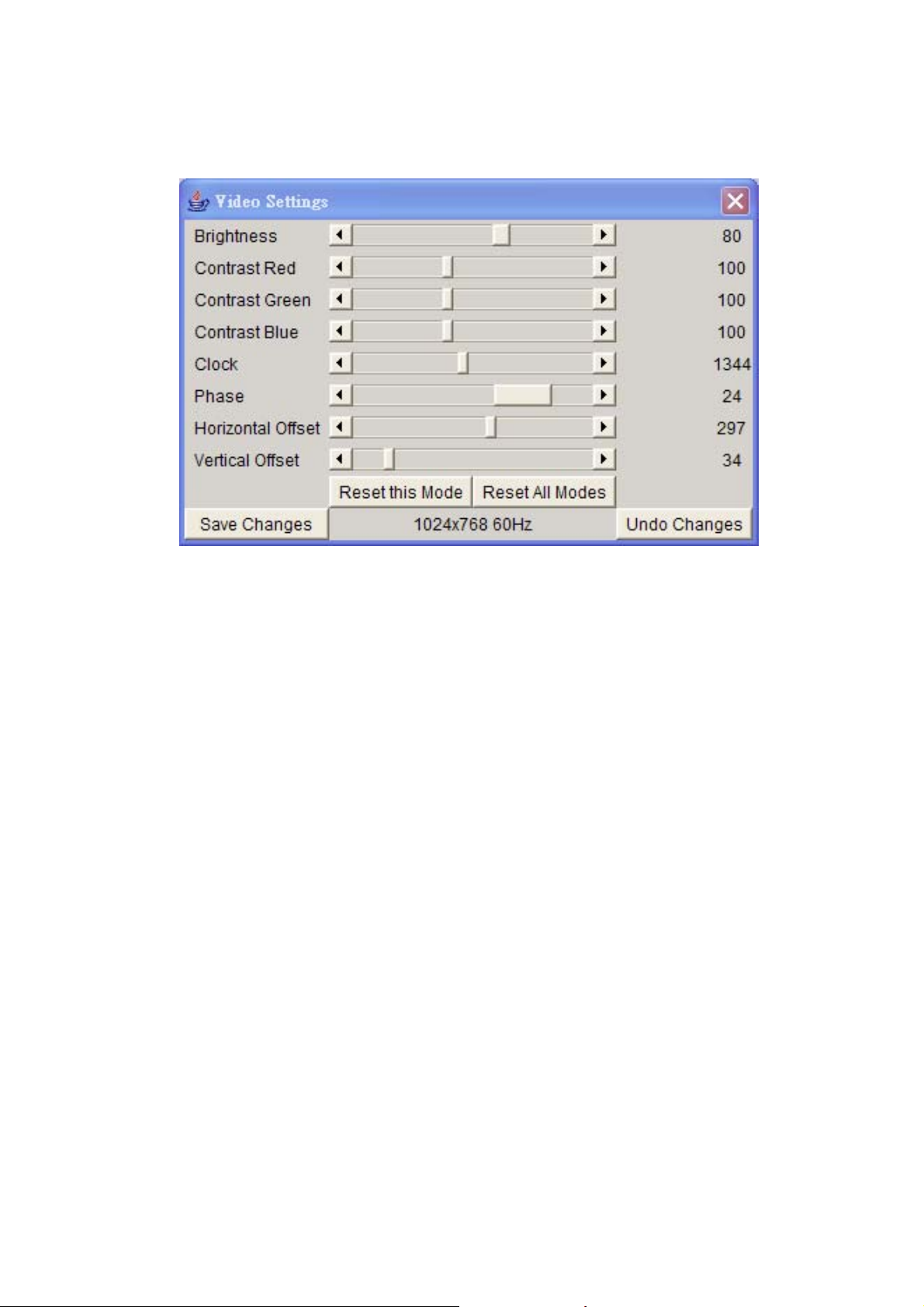

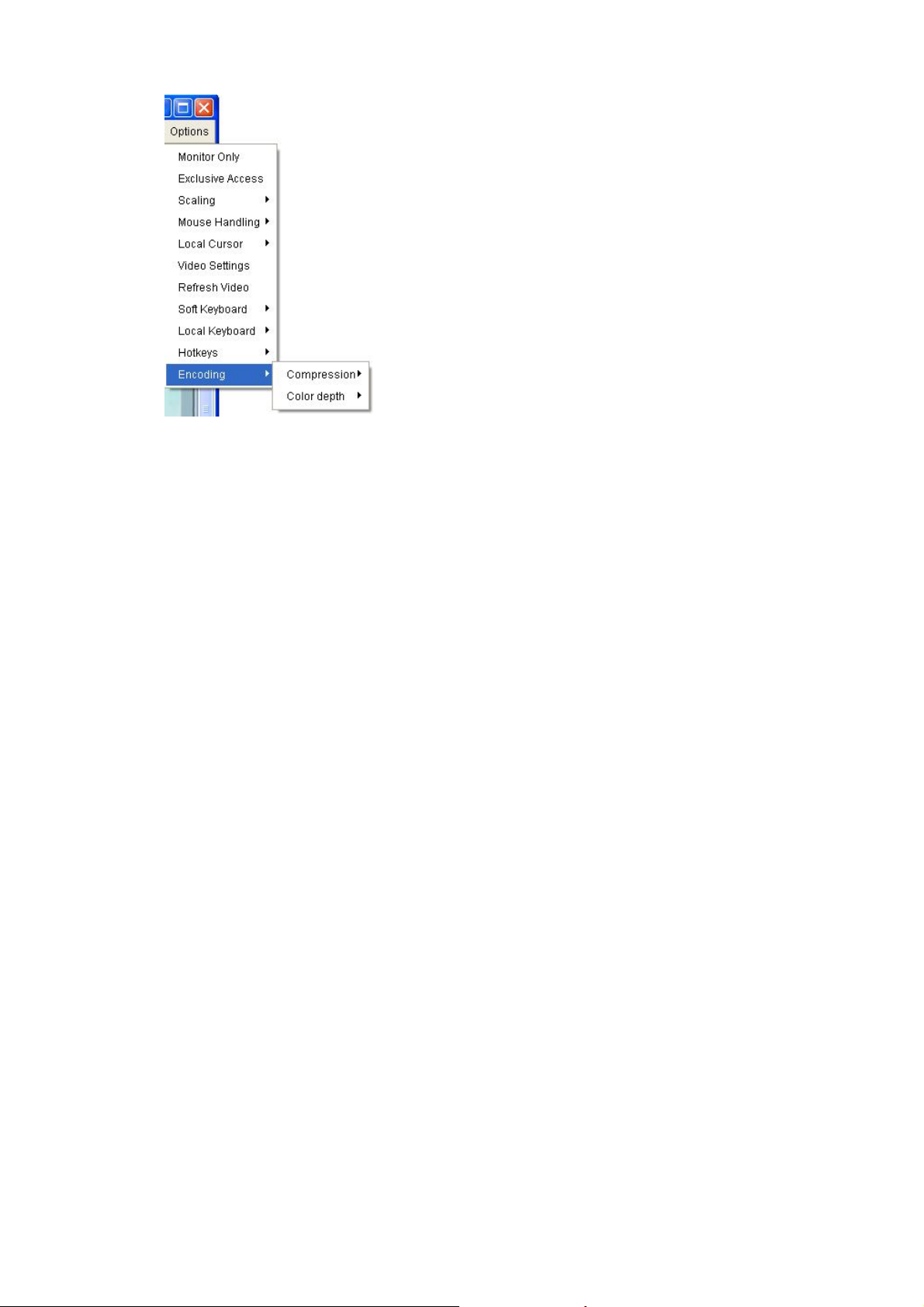

Video Settings in Options Menu This opens a new window with elements to control the
KVM-0850/1650 Video Settings. You can change some values, for instance the brightness and contrast of the picture displayed, which may improve the video quality. It is also possible to revert to the default settings for all video modes or only the current one.
5
KVM-0850/1650 IP KVM switch
2. Introduction
Thank you for purchasing KVM-0850/1650, PS/2 IP-KVM switch, which can save your MONEY, TIME, SPACE, EQUIPMENT and POWER. KVM-0850/1650 defines a new class of remote KVM access devices. KVM-0850/1650 combines an 8/16-port KVM switch with digital remote KVM access via IP networks and comprehensive system management.
KVM-0850/1650 provides convenient; remote KVM access and control via LAN or Internet. It captures, digitizes, and compresses video signal and transmits with keyboard and mouse signals to and from a remote computer. KVM-0850/1650 provides a non-intrusive solution for remote access and control. Remote access and control software runs on its embedded processors only but not on mission-critical servers, so that there is no interference with server operation or impact on network performance.
KVM-0850/1650 supports consoles consisting of PS/2 style keyboards and mouse, and HD 15 video output. KVM-0850/1650 will automatically detect the current video mode of the console, however manual fine-tuning is recommended to receive the best video quality. KVM-0850/1650 will accept video streams up to 110 MHz dot clock. This results in a screen resolution of 1280x1024 pixels with a frame rate of 60 Hz.
2.1 When the server is up and running
KVM-0850/1650 gives you a full control over the remote server. The Management Console allows you to access the remote server’s graphics, keyboard and mouse and to send special commands to the server. You can also perform periodic maintenance of the server. Using the Console Redirection Service, you are able to do the following: I. Reboot the system. II. Watch the boot process. III. Boot the system from a separate partition to load the diagnostic environment. IV. Run special diagnostic programs.
2.2 When the sever is dead
Obviously, fixing hardware defects is not possible through using a remote management device. Nevertheless KVM-0850/1650 gives the administrator valuable information about the type of a hardware failure. Serious hardware failures can be categorized into five different categories with different chances to happen: I. Hard disk failure 50% II. Power cable detached, power supply failure 28% III. CPU, Controller, main board failure 10% IV. CPU fan failure 8% V. RAM failure 4%
Using KVM-0850/1650, administrators can determine which kind of serious hardware failure has occurred (See table 2.1).
6
KVM-0850/1650 IP KVM switch
Type of failure Detected by Hard disk failure Console screen, CMOS set-up information Power cable detached, power supply failure
Server remains in power on state after power on
command has been given. CPU Controller, main board failure. Power supply is on, but there is no video output. CPU fan failure By server specific management software RAM failure Boot-Sequence on boot console
Table 2.1:Host system failures and how they are detected.
2.3 Features
z 8/16 port KVM switch is 19” rack mount size design. z Support Microsoft Intellimouse, Microsoft Intellimouse Explorer without user defined key, Logitech
Net Mouse or the other fully compatible MS mouse.
z Support Win98SE/2000/ME/XP, WinNT, Netware, Unix, Linux z Support iMAC, Power MAC and Sun Microsystems with USB port (Need work with USB-PS/2
adapter)
z Hot Plug - Add PCs or Remove Connected PCs for Maintenance without Powering Down the
KVM switch or PCs.
z High Video Quality – Resolution Up To 1920X1440 z No Software Required - easy PC selection via On Screen Display Menu (OSD), Push Buttons,
Hot Keys
z At local console side - Support eight characters password protection and search PC server name z At Remove console side – Use SSL protocol for any encrypted network traffic between itself and a
connected client.
z Auto Scan Mode for monitoring PCs and flexible Scan time from 5~99 seconds z Keyboard status restored when switching PCs z LED Display for easy status monitoring z Buzzer sound for switching port confirmation. z Built-in one extra daisy chain port and no waste any PC port z No DIP switch setting needed and auto detect daisy chain bank z Manage serves around the world z KVM (keyboard, video, mouse) access over IP and analogous telephone line. z BIOS level access z No impact on server or network performance z Automatically senses video resolution for best possible screen capture z High-performance mouse tracking and synchronization
7
2.4 Package contents
Model No.: 8 port IP KVM Switch- KVM-0850
Base unit- 8 port KVM-0850 1 PC
User’s manual 1 PC
AC to DC Power Adapter 1 PC
Rack Mount Kit 1 SET
Daisy Chain Cable 1 PC
KVM-0850/1650 IP KVM switch
3-in-one cables (One HDDB 15-pin male to one HDDB
2 PCS
15-pin and two Mini Din 6-pin PS/2 cables)
Null modem cable 1 PC
USB A to B Type Cable 1 PC
CD-ROM with supporting programs 1 PC
Model No.: 16 port IP KVM Switch- KVM-1650
Base unit- 16 port KVM-1650 1 PC
User’s manual 1 PC
AC to DC Power Adapter 1 PC
Rack Mount Kit 1 SET
Daisy Chain Cable 1 PC
3-in-one cables (One HDDB 15-pin male to one HDDB
2 PCS
15-pin and two Mini Din 6-pin PS/2 cables)
Null modem cable 1 PC
USB A to B Type Cable 1 PC
CD-ROM with supporting programs 1 PC
8
KVM-0850/1650 IP KVM switch
2.5 Technical specifications Model No. 8 port KVM-0850/1650 16 port KVM-0850/1650
PC Port 8 16 Console Port 1 PC Port Connector (All Female Types) Console Port Connector (All Female Types)
VGA HDDB 15-pin(shared with PS/2 keyboard and Mouse) USB Type B receptacle Local Console: PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin VGA HDDB 15pin
Remote Console: RJ-45 8P8C Daisy Chain Port Connector (All Female Types) Serial Port (DB9 pin
PS/2 Keyboard mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
1 Male) LAN port (RJ-45 8P8C) 1
10BASE-T Ethernet uses Category 3/4/5/5E/6 UTP
100BASE-T Ethernet uses Category 5/5E/6 UTP Reset port 1 PC selection On Screen Display Menu, Hot Key, Push Button PC Port LED 8 16 Bank 7 segment LED 1 On Screen Display
Yes Control Scan Intervals 5~99 Sec. Keyboard Emulation PS/2 Mouse Emulation PS/2 VGA Resolution Local Console: 1920X1440
Remote Console: 1280 X1024 Daisy Chain MAX Level 8 levels MAX PC Connection 64 128 Housing Metal Power Adapter DC 5V, 2.5A Operation Temperature
Storage Temperature
0~50
-20 ~ 60
Humidity 0~80%, Non-Condensing Size 19” Rack Mount / 1RU 19” Rack Mount / 1RU Weight (kg) 2.0kg 2.2kg Dimension (cm)
41(L) X 16.4(W) X 4.6(H) 41(L) X 16.4(W) X 4.5(H)
9
2.6 System requirement
Model No. 8 ports KVM-0850
Local console side One VGA Monitor
One Keyboard One Mouse
Network Side 10/100Mbps Ethernet
or Modem
KVM-0850/1650 IP KVM switch
Remote Console
One computer
side
Computer side 8 PCs with 8 3-in-one cables (One
HDDB 15-pin male to one HDDB 15-pin and two Mini Din 6-pin PS/2 cables)
Model No. 16 ports KVM-1650
Console side One VGA Monitor
One Keyboard One Mouse
Network Side 10/100Mbps Ethernet
or Modem
Remote Console
One computer
side
Computer side 16 PCs with 16 3-in-one cables (One
HDDB 15-pin male to one HDDB 15-pin and two Mini Din 6-pin PS/2 cables)
2.7 Cable diagrams
PS/2 Cable:
Mini Din 6 pin Male to Male
VGA Cable:
HDB15 pin Male to Male
USB 2.0 Cable:
USB A-B cable
10
AT to PS/2 keyboard adapter: (Optional)
Din 5 pin Male to Mini Din 6 pin Female
KVM-0850/1650 IP KVM switch
PS/2 to DB9 adapter (Optional)
Mini Din 6 pin Female to DB 9 pin Female
CAT5/5E/6 Straight Through UTP/STP Cable:
8P8C
2.8 Product Details
8 port Rack Mount KVM-0850:
16 port Rack Mount KVM-1650:
11
KVM-0850/1650 IP KVM switch
3. Hardware installation
3.1 Operation Overview
Figure 3.1 shows the connections of KVM-0850/1650 to its host, to peripheral devices, to the power source and to the local area network.
8/16 Servers
IP Network 8/16 port
Administrator
PS/2 KVM
Figure 3.1: KVM-0850/1650 usage scenario
KVM-0850/1650 redirects local keyboard, mouse, and video data to a remote administration console. All data is transmitted via IP.
KVM-0850/1650 can be used in a multi administrator and multi server environment as well. Attaching one KVM-0850/1650 to a KVM switch or several KVM-0850/1650 to a matrix KVM switch allows accessing multiple servers on a single remote console.
3.2 Connecting KVM-0850/1650 to the host system
Before installation, please make sure all of peripherals and computers have been turned off. This example of installation is based on Rack Mount KVM-0850/1650.In order to connect the KVM-0850/1650 to the host system, please perform the following steps:
Step 1
Find a convenient place to put your KVM-0850/1650. Its 19” rack mount form factor makes it ideal mountable on 19” rack. When mounting to a rack, attach the included brackets to the sides of the KVM-0850/1650. Take note of the length of your cables so that your computers, KVM Switch, keyboard, mouse and monitor are distanced properly.
Step 2 (Local console)
Connect the monitor to the KVM Switch. Using the attached cable, or the one included with your monitor, connect it to the HDDB15-pin female port on the back of the KVM unit labeled with the monitor symbol at the CONSOLE connector.
12
KVM-0850/1650 IP KVM switch
Step 3
Connect the keyboard to the KVM Switch. If you have an AT type keyboard, you will need an AT to PS/2 adapter.
Step 4
Connect the mouse to the KVM Switch.
Step 5
Each PC port connector is HDDB15-pin type. Locate your input cable. It will have an HDDB15-pin male connector at one end. Plug it into any label computer port on the rear of KVM switch unit. The other end of input cable will have three connectors: a HDDB15-pin male type for PC video, a Mini Din 6 pin female type for keyboard and a Mini Din 6 pin female type for mouse. To plug these three connectors into the respective ports of computer. Repeat the same procedure to all of PCs.
Step 6 (Optional)
If using a serial mouse cable (optional), connect one end to a DB-9 serial port on the computer, and the other Mini Din 6 pin end to the mouse cable connector. If you need Serial DB-9 to PS/2 Mini Din 6 pin adapter, please contact your supplier.
The Rear Side of PC
Step 7
Double-check all of the connections. You can check the color of keyboard and mouse connector to make sure the keyboard and mouse cables go to the correct ports.
Step 8
Repeat step 5 to 7 for the remainder of the computers.
13
KVM-0850/1650 IP KVM switch
Step 9
Connect the Ethernet and/or modem, ISDN, depending how you want to access KVM-0850/1650.
INTERNET
MODEM
The rear side of KVM-0850/1650 provides a RJ-45 connector for Ethernet. The connector is used either for a 100 Mbps 100BASE-TX connection or for a 10 Mbps 10BASE-T connection. The adapter can sense the connection speed and will adjust to the appropriate operation mode automatically.
10 Mbps Connection
For 10BASE-T Ethernet networks, the Fast Ethernet adapter uses Category 3, 4, or 5 UTP cable. To establish a 10 Mbps connection, the cable must be connected to a 10BASE-T hub.
¾ Make sure that the cable is wired appropriately for a standard 10BASE-T adapter. ¾ Align the RJ-45 plug with the notch on the adapter’s connector and insert it into the
adapter’s connector.
100 Mbps Connection
For 100BASE-TX Fast Ethernet networks, KVM-0850/1650 supports Category 5 UTP cabling. To establish a 100 Mbps connection, the cable must be connected to a 100BASE-TX hub.
¾ Make sure that the cable is wired appropriately for a standard 100BASE-TX adapter. ¾ Align the RJ-45 plug with the notch on the adapter’s connector and insert it into the
adapter’s connector.
Step 10
Attach the power supply to the KVM unit and plug the other end into an electrical receptacle.
14
KVM-0850/1650 IP KVM switch
4. Configuration
4.1 Initial Configuration
The KVM-0850/1650's communication interfaces are all based on TCP/IP. It comes pre-configured with the IP configuration listed in
Parameter Value IP auto configuration DHCP IP-Address 192.168.1.22 Net-mask 255.255.255.0 Default-Gateway None
Table 4-1. Initial network configuration
If you select DHCP mode, and the DHCP connection fails on boot up, there will be no IP address assigned for KVM-0850/1650.
Table 4-1.

Warning

If this initial configuration does not meet your requirements, the following describes the initial IP configuration that is necessary to access the KVM-0850/1650 for the first time.
4.1.1 Initial configuration via DHCP server
By default, the KVM-0850/1650 will try to contact a DHCP server in the subnet to which it is physically connected. If a DHCP server is found, it may provide a valid IP address, gateway address and net mask. Before you connect the device to your local subnet, be sure to complete the corresponding configuration of your DHCP server. It is recommended to configure a fixed IP assignment to the MAC address of the KVM-0850/1650. You can find the MAC address labeled on the bottom side.
If this initial configuration does not meet your local requirements, use the setup tool to adjust the values to your needs. The setup tool can be found on the CD ROM delivered with this package. You can follow the procedure described below.
KVM-0850/1650 Setup Tool
MAC Address Detection
Connect the IP-KVM switch to your computer via local network. Start the setup tool from the CD ROM on the computer that the IP-KVM switch is installed. Depending on the connection (USB or network), the device detection is different. A window opens as seen below:
15
KVM-0850/1650 IP KVM switch
Figure4-1. IP-KVM switch setup tool
On the upper left corner, the MAC address of the IP-KVM switch is displayed. To detect the MAC address, manually, press the button “Refresh Devices”. The displayed MAC address is the same MAC address printed on the white sticker placed on the back of the IP-KVM switch. If the IP-KVM switch is connected via USB, it is classified as an USB device and an appropriate drive letter is chosen for this device.
On the lower right corner of the window, there are two buttons: “Query Device” and “Setup Device”. Press the “Query Device” button to display the preconfigured values of the network configuration. The values are displayed in the text fields located above. If necessary, adjust the network settings to your needs. To save the changes enter an user name and an according password. Then press the “ Setup Device “ button.
Authentication
To adjust the authentication settings, enter your login as a super user, and change your password.
Super user login Enter the login name of the super user. The initial value is “ super ”. All of characters are
lower case.
Super user password Enter the current password for the super user. This initial value is “ pass “. All of characters
are lower case.
New super user password Enter the new password for the super user.
New password (confirm) Re-type the new password for the super user.
To close the window and accept the changes, press the “ OK ” button, otherwise press the “ Cancel ” button.
16
KVM-0850/1650 IP KVM switch
4.1.2 Initial configuration via serial console
Using a serial terminal, the KVM-0850/1650 has a serial line interface (rear side). This connector is compliant with the RS 232 serial line standard. The serial line has to be configured with the parameters given in
Table 4-2.
When configuring with a serial terminal, reset the KVM-0850/1650 and immediately press the “ESC” key. You will see some device information, and a “=>” prompt. Enter “config”, press “Enter” and wait for a few seconds for the configuration questions to appear.
Parameter Value Bits/second 115200 Data bits 8 Parity No Stop bits 1 Flow Control None
Table 4-2. Serial line parameters
As you proceed, the following questions will appear on the screen. To accept the default values which are shown in square brackets below, press “Enter”.
IP auto configuration (non/dhcp/bootp) [dhcp]: IP [192.168.1.22]: Net mask [255.255.255.0]: Gateway (0.0.0.0 for none) [0.0.0.0]:
IP autoconfiguration
With this option, you can specify whether the KVM-0850/1650 should get its network settings from a DHCP or BOOTP server. For DHCP, enter “dhcp“, and for BOOTP enter “bootp“. If you do not specify any of these, the IP autoconfiguration is disabled and subsequently you will be asked for the following network settings.
IP address
The IP address the KVM-0850/1650 uses. This option is only available if IP autoconfiguration is disabled.
Net mask
The net mask of the connected IP subnet. This option is only available if IP autoconfiguration is disabled.
Gateway address
The IP address of the default router for the connected IP subnet. If you do not have a default router, enter 0.0.0.0. This option is only available if IP autoconfiguration is disabled.
4.1.3 Keyboard, Mouse and Video configuration
Between the KVM-0850/1650 and the host, there are two interfaces available for transmitting keyboard and mouse data: USB and PS/2. The correct operation of the remote mouse depends on several settings, which will be discussed in the following subsections.
17
KVM-0850/1650 IP KVM switch
Warning
Only the PC with USB connection to KVM-0850/1650 could support both PS/2 and USB. All the other PCs could support PS/2 only.
4.1.3.1 KVM-0850/1650 keyboard settings
The KVM-0850/1650 settings for the host's keyboard type have to be correct in order to make the remote keyboard work properly. Check the settings in the KVM-0850/1650 front-end. See
6.3.3 for details.
4.1.3.2 Remote Mouse Settings
A common problem with KVM devices is the synchronization between the local and remote mouse cursors. The KVM-0850/1650 addresses this situation with an intelligent synchronization algorithm. There are two mouse modes available on the KVM-0850/1650.
Auto mouse speed
The automatic mouse speed mode tries to detect the speed and acceleration settings of the host system automatically. See the section below for a more detailed explanation.
Fixed mouse speed
This mode just translates the mouse movements from the Remote Console in a way that one pixel move will lead to n pixel moves on the remote system. This parameter n is adjustable with the scaling. It should be noted that this works only when mouse acceleration is turned off on the remote system.
4.1.3.3 Auto mouse speed and mouse synchronization
The automatic mouse speed mode performs the speed detection during mouse synchronization. Whenever the mouse does not move correctly, there are two ways for re-synchronizing local and remote mouse:
Fast Sync
The fast synchronization is used to correct a temporary, but fixed skew. Choose the
option using the Remote Console options menu or press the mouse synchronization hotkey sequence in case you defined one.
Intelligent Sync
If the fast sync does not work or the mouse settings have been changed on the host
system, use the intelligent resynchronization. This method takes more time than the fast one and can be accessed with the appropriate item in the Remote Console option menu. The intelligent synchronization requires a correctly adjusted picture. Use the auto adjustment function or the manual correction in the Video Settings panel to setup the picture. The Sync mouse button on top of the Remote Console can behave differently, depending on the current state of mouse synchronization. Usually pressing this button leads to a fast sync, except in situations where the KVM port or the video mode changed recently.
Note: At first start, if the local mouse pointer is not synchronized with
the remote mouse pointer, press the Auto Adjust Button once.
18
KVM-0850/1650 IP KVM switch
4.1.3.4 Host system mouse settings
The host's operating system knows various settings from the mouse driver.
Warning
The following limitations are not for the Mouse Type of “MS Windows 2000 and newer”.
While the IP-KVM switch works with accelerated mice and is able to synchronize the local with the remote mouse pointer, there are the following limitations, which may prevent this synchronization from working properly:
Special Mouse Driver
There are mouse drivers which influence the synchronization process and lead to
desynchronized mouse pointers. If this happens, make sure you do not use a special vendor-specific mouse driver on your host system.
Windows XP Mouse Settings
Windows XP knows a setting named “improve mouse acceleration”, which has to be
deactivated.
Active Desktop
If the Active Desktop feature of Microsoft Windows is enabled do not use a plain
background. Instead, use some kind of wallpaper. As an alternative, you could also disable the Active Desktop completely.
Navigate your mouse pointer into the upper left corner of the applet screen and move it slightly forth and back. Thus the mouse will be resynchronized. If re-synchronizing fails, disable the mouse acceleration and repeat the procedure.
4.1.3.5 Single and Double Mouse Mode
The information above applies to the Double Mouse Mode, where remote and local mouse pointers are visible and need to by synchronize. The KVM-0850/1650 also features another mode, the Single Mouse Mode, where only the remote mouse pointer is visible. Activate this mode in the open Remote Console and click into the window area. The local mouse pointer will be hidden and the remote one can be controlled directly. To leave this mode, it is necessary to define a mouse hotkey in the Remote Console Settings Panel. Press this key to free the captured local mouse pointer.
4.1.3.6 Recommended Mouse Settings
For the different operating systems we can give the following advice:
MS Windows 2000/2003 (Professional and Server), XP In general, we recommend the usage of a mouse via USB. Choose USB without Mouse Sync. For a PS/2 mouse choose Auto Mouse Speed. For XP disable the option enhance pointer precision in the Control Panel.
SUN Solaris Adjust the mouse settings either via xset m 1 or use the CDE Control Panel to set the mouse to 1:1, no acceleration. As an alternative you may also use the Single Mouse Mode.
19
KVM-0850/1650 IP KVM switch
MAC OS X We recommend using the Single Mouse Mode.
4.1.3.7 Video Modes
The KVM-0850/1650 recognizes a limited number of common video modes. When running X11 on the host system, please do not use any custom mode lines with special video modes. If you do, the KVM-0850/1650 may not be able to detect them. We recommend using any of the standard VESA video modes, instead
20
KVM-0850/1650 IP KVM switch
5. Usage
5.1 Prerequisites
The KVM-0850/1650 features an embedded operating system and applications offering a variety of operating interfaces. This chapter will describe both these interfaces, and the way to use them in a more detailed manner. The interfaces are accessed using the TCP/IP protocol family, thus they can be accessed using the built-in Ethernet adapter.
The following interfaces are supported:

HTTP/HTTPS

You can full access the device via the embedded web server. The KVM-0850/1650
environment can be entirely managed using a standard web browser. You can access the KVM-0850/1650 using the insecure HTTP protocol, or using the encrypted HTTPS protocol. Whenever possible, use HTTPS.
Telnet
A standard Telnet client can be used to access an arbitrary device connected to the
KVM-0850/1650's serial port via a terminal mode.
The primary interface of the KVM-0850/1650 is the HTTP interface. This is covered extensively in this chapter. Other interfaces are addressed in subtopics.
In order to use the Remote Console window of your managed host system, the browser has to come with a Java Runtime Environment version 1.1 or higher. If the browser has no Java support (such as on a small handheld device), you are still able to maintain your remote host system using the administration forms displayed by the browser itself.
Important: We recommend installing a Sun JVM 1.4 or higher.
In order to access the remote host system using a securely encrypted connection, you need a browser that supports the HTTPS protocol, such as IE 6.0. Strong security is only assured by using a key length of 128 Bit. Some of the old browsers do not have a strong 128 Bit encryption algorithm.
Using the Internet Explorer, open the menu entry “? ” and “Info” to read about the key length that is currently activated. The dialog box contains a link that leads you to information on how to upgrade your browser to a state of the art encryption scheme. Figure 5-1 shows the dialog box presented by the Internet Explorer 6.0.
21
KVM-0850/1650 IP KVM switch
Figure 5-1. The Internet Explorer displaying the encryption key length
Newer web browsers do support strong encryption on default.
5.2 Using PS/2 KVM over IP switch as a KVM switch
The power on state of 8/16-port PS/2 KVM over IP switch: When you power on KVM switch, it will ask you the password, the default password value is eight zero –“ 00000000 “. Please key in eight zero and enter the same value at retype field. Note: Before you are not familiar with the operation of OSD manual, please don’t change the
password – i.e. keep default eight zero (00000000) value. Otherwise, if you have set the password and unfortunately forget the password, you need send it back to your distributor for
maintaining the password.
The Membrane Buttons :
For KVM-0850, press the corresponding port button to choose the PC port you want.
For KVM-1650, press the button 1~8 to select port 1-8. For port 9~16, please press “shift” and “9 -16 ” button to select the port 9 to port 16.
For example: Pressing shift and button and button 13 simultaneously, the thirteen PC port is
selected.
7-Segment BANK LED Indication When you would like to view the next bank KVM switch, please press “ BANK “ push button cyclically to the destination bank. The bank LED will be changed from bank 1 to the maximum daisy chain level and then to press “ BANK “ push button once back to the bank 1.
Bank 1 Bank 2 Bank 3 MAX. BANK
Reset Button ((“ Bank ” button) and (PC8” button)):
BANK
8
To reset the switch, press and hold the Bank button and PC8 “ “ button on the front panel of the switch. This
8
reset action will not only return KVM switch back to initial state --- Check the password, but also re-check all of slave banks which connected to mast KVM Switch. If you add a new KVM Switch as a slave bank, please use reset button of master KVM Switch to automatically assign a new ID to it. You can view this new slave bank go through OSD menu. The
22
KVM-0850/1650 IP KVM switch
PC ports of KVM Switch do not be reset by reset command.
Keyboard Hot Key Commands:
You can also conveniently command KVM switch by switching ports through simple key sequences. To send commands to KVM switch, the “SCROLL LOCK” key must be pressed twice within 2 seconds. You will hear a beep for confirmation and the keyboard is in hot key mode. If you have not pressed any key in hot key mode within 2 seconds (It means to key in any key follows up “Scroll Lock” “Scroll Lock” key ), the keyboard will back to under Operation System (O.S.) control state.
Below are the different hot key commands (for local KVM):
within 2 seconds
Scroll
+ + = Previous Channel
Lock
Scroll Lock
Scroll
+ + = Next Channel
Lock
Scroll Lock
(Note: You also could press “up arrow key” or “down
arrow key” longer time to speed up selecting the destination port)
Scroll
+ + = Previous Bank
Lock
Scroll Lock
Page Up
Scroll
+ + + = Next Bank
Lock
Scroll Lock
Page Down
To select PC port:
Port No.
Scroll
+ + + = Selected Bank and PC
Lock
Scroll Lock
Bank No 1~8
01~08 (8 port) 01~16 (16 port)
Scroll Lock
(Note: The default Beeper function is ON and beeper
Scroll
+ + = Beeper on local KVM Switch
Lock
B
control is only for available for Scan Mode )
Scroll
+ + + = Auto Scan
Lock
Scroll Lock
S
To get out of Auto Scan Mode, Press any key or SPACE bar.
Scroll Lock
(Note: Not including password)
Scroll
+ + = OSD setting back to factory default value
Lock
R
23
Scroll Lock
Scroll
+ + = Search the same PC name
Lock
F
(Note: Search PC name starting from 1
Scroll Lock
Scroll
+ + = On Screen Display Menu
Lock
SPACE BAR
5.2.1 Daisy Chain Connection Diagram
KVM-0850/1650 IP KVM switch
st
PC port)
Please use the attached 3 feet 3-in-one daisy chain Cable Kit to daisy chain the KVM Switch.
A. Connect Keyboard, Mouse and Monitor to the console port (white color block) of bank 1 KVM
switch.
B. Use one end of 3-in-one Cable Kit to connect the daisy chain port of bank 1 and the other end
for the console port (white color block) of bank 2 KVM switch.
C. Please repeat item B to daisy chain more bank as you want. But, the maximum daisy chain
bank is eight levels.
D. Before chaining the slave bank up to six banks, you need a VGA extender between the fifth
bank and the sixth bank to enhance the VGA signal.
(Note: If you would like to daisy chain 8 port and 16 port KVM Switch together, the master bank must be 16 port KVM Switch)
24
KVM-0850/1650 IP KVM switch
Figure 5-2: Daisy Chain Connection
5.2.2 Hot Plug
The KVM Switch supports “Hot Plug“ function for easy addition or removal of PCs. The user can arrange or maintain PCs as follows:
a. A PC can be disconnected and reconnected to the same or different port of the KVM unit
without having to power it off as long as it is not the Daisy-chain port or pass through port.
b. When the pass through port PC (i.e. The pass through port means the PC port that is
connected to console port directly) is powered on, for hot plug function, please switch this pass through port to next port (or say emulation port ) and then switch back to the pass through port.
c. You may unplug or plug the mouse or the keyboard from the console port any time.
N
:
OTE
Some O.S. (Operation Systems) like SCO Unix are unable to support “ Hot Plug ” function. If you apply “Hot Plug” to this kind of O.S., it will cause unpredictable behavior or shut down the PC. Before attempting to use “Hot Plug”, please make sure your O.S. and mouse software driver supports the “Hot Plug” function.
25
Loading...
+ 58 hidden pages
