Leuze electronic BCL 300, BCL304i Technical Description

Download
BCL304i
Bar code reader
en 01-10/2011 50117112
TECHNICAL DESCRIPTION
Condelectric S.A
. Tel. Int. + 54 1148 361053 Fax Int. + 54 1148 361053
Tel. Int. + 43 732 7646-0 Fax Int. + 43 732 7646-785
Balluff-Leuze Pty. Ltd. Tel. Int. + 61 3 9720 4100 Fax Int. + 61 3 9738 2677
Leuze electronic nv/ sa Tel. Int. + 32 2253 16-00 Fax Int. + 32 2253 15-36
ATICS Tel. Int. + 359 2 847 6244 Fax Int. + 359 2 847 6244
Leuze electronic Ltda. Tel. Int. + 55 11 5180-6130 Fax Int. + 55 11 5180-6141
Leuze electronic AG Tel. Int. + 41 41 784 5656 Fax Int. + 41 41 784 5657
Imp. Tec. Vignola S.A.I.C. Tel. Int. + 56 3235 11-11 Fax Int. + 56 3235 11-28
Leuze electronic Trading (Shenzhen) Co. Ltd. Tel. Int. + 86 755 862 64909 Fax Int. + 86 755 862 64901
Componentes Electronicas Ltda. Tel. Int. + 57 4 3511049 Fax Int. + 57 4 3511019
Schmachtl CZ s.r.o. Tel. Int. + 420 244 0015-00 Fax Int. + 420 244 9107-00
Leuze electronic Scandinavia ApS Tel. Int. + 45 48 173200
SKS-automaatio Oy Tel. Int. + 358 20 764-61 Fax Int. + 358 20 764-6820
Leuze electronic Sarl. Tel. Int. + 33 160 0512-20 Fax Int. + 33 160 0503-65
Leuze electronic Ltd. Tel. Int. + 44 14 8040 85-00 Fax Int. + 44 14 8040 38-08
UTECO A.B.E.E. Tel. Int. + 30 211 1206 900 Fax Int. + 30 211 1206 999
ALL IMPEX 2001 Tel. Int. + 7 495 9213012 Fax Int. + 7 495 6462092
Leuze electronic Scandinavia ApS
Ingermark (M) SDN.BHD Tel. Int. + 60 360 3427-88 Fax Int. + 60 360 3421-88
Movitren S.A. Tel. Int. + 52 81 8371 8616 Fax Int. + 52 81 8371 8588
Leuze electronic BV Tel. Int. + 31 418 65 35-44 Fax Int. + 31 418 65 38-08
LA2P, Lda. Tel. Int. + 351 21 4 447070 Fax Int. + 351 21 4 447075
Balluff Sp. z o. o. Tel. Int. + 48 71 338 49 29 Fax Int. + 48 71 338 49 30
O`BOYLE s.r.l Tel. Int. + 40 2 56201346 Fax Int. + 40 2 56221036
Elteco A/S Tel. Int. + 47 35 56 20-70 Fax Int. + 47 35 56 20-99
Great Cofue Technology Co., Ltd. Tel. Int. + 886 2 2983 80-77 Fax Int. + 886 2 2985 33-73
Countapulse Controls (PTY.) Ltd.
11/2011
Tel. Int. + 27 116 1575-56 Fax Int. + 27 116 1575-13
Schmachtl SK s.r.o. Tel. Int. + 421 2 58275600 Fax Int. + 421 2 58275601
Tipteh d.o.o. Tel. Int. + 386 1200 51-50 Fax Int. + 386 1200 51-51
Industrial Elect
rical Co. Ltd.
Tel .
Int. + 66 2 642 6700
Fax Int. + 66 2 642 4250
Leuze electronic San.ve Tic.Ltd.Sti. Tel. Int. + 90 216 456 6704 Fax Int. + 90 216 456 3650
Balluff Asia Pte Ltd Tel. Int. + 65 6252 43-84 Fax Int. + 65 6252 90-60
Leuze electronic, Inc. Tel. Int. + 1 248 486-4466 Fax Int. + 1 248 486-6699
SV Altera OOO Tel. Int. + 38 044 4961888 Fax Int. + 38 044 4961818
C. Illies & Co., Ltd. Tel. Int. + 81 3 3443 4143 Fax Int. + 81 3 3443 4118
Profa-Tech Ltd. Tel. Int. + 254 20 828095/6 Fax Int. + 254 20 828129
Leuze electronic Co., Ltd. Tel. Int. + 82 31 382822
8 Tel. Int. +46 380-490951
Fax Int. + 82 31 3828522
Leuze electronic S.A. Tel. Int. + 34 93 4097900 Fax Int. + 34 93 49035820
Schmachtl GmbH
SABROW HI-TECH E. & A. LTD. Tel. Int. + 234 80333 86366 Fax Int. + 234 80333 84463518
Tipteh d.o.o. Beograd Tel. Int. + 381 11 3131 057 Fax Int. + 381 11 3018 326
Tipteh d.o.o. Skopje Tel. Int. + 389 70 399 474 Fax Int. + 389 23 174 197
Leuze electronic S.r.l. Tel. Int. + 39 02 26 1106-43 Fax Int. + 39 02 26 1106-40
Kvalix Automatika Kft. Tel. Int. + 36 1 272 2242 Fax Int. + 36 1 272 2244
P.T. Yabestindo Mitra Utama Tel. Int. + 62 21 92861859 Fax Int. + 62 21 6451044
Galoz electronics Ltd. Tel. Int. + 972 3 9023456 Fax Int. + 972 3 9021990
M + V Marketing Sales Pvt Ltd. Tel. Int. + 91 124 4121623 Fax Int. + 91 124 434233
Sensortech Company Tel. Int. + 852 26510188 Fax Int. + 852 26510388
Tipteh Zagreb d.o.o. Tel. Int. + 385 1 381 6574 Fax Int. + 385 1 381 6577
Leuze electronic GmbH + Co. KG P.O. Box 1111, D- 73277 Owen Tel. +49(0) 7021/ 57 3-0, Fax +49(0 )7021 / 573-199 info@leuze.desWWw.leuze.com
Sales Region East
Phone 035027/629-106 Fax 035027/629-107
Postal code areas 01000-19999 39000-39999 98000-99999
Sales Region North
Phone 07021/573-306 Fax 07021/9850950
Postal code areas 20000-38999 40000-65999 97000-97999
Sales Region South
Phone 07021/573-307 Fax 07021/9850911
Postal code areas 66000-96999
Sales and Service
Worldwide
AT (Austria)
AR (Argentina)
AU + NZ (Australia + New Zealand)
BE (Belgium)
BG (Bulgaria)
BR (Brasil)
CH (Switzerland)
CO (Colombia)
CZ (Czech Republic)
CL (Chile)
CN (China)
DK (Denmark)
FI (Finland)
GB (United Kingdom)
GR (Greece)
FR (France)
RU (Russian Federation)
SE (Sweden)
MY (Malaysia)
MX (Mexico)
NL (Netherlands)
PT (Portugal)
PL (Poland)
RO (Romania)
NO (Norway)
TW (Taiwan)
ZA (South Africa)
SK (Slowakia)
SI (Slovenia)
TH (Thailand)
TR (Turkey)
SG + PH (Singapore + Philippines)
US + CA (United States + Canada)
UA (Ukraine)
JP (Japan)
KR (South Korea)
ES (Spain)
Germany
KE (Kenia)
NG (Nigeria)
RS (Republic of Serbia)
MK (Macedonia)
IT (Italy)
HU (Hungary)
ID (Indonesia)
IL (Israel)
IN (India)
HK (Hong Kong)
HR (Croatia)
© All rights reserved, especially the right of reproduction, distribution and translation. Copying or
reproductions in any form require the written consent of the manufacturer. Product names used without guarantee of free usability. Changes reflecting technical improvements may be made.
Table of contents
1 General information......................................................................................... 12
1.1 Explanation of symbols................................................................................................... 12
1.2 Declaration of conformity ............................................................................................... 12
2 Safety notices .................................................................................................. 13
2.1 General safety notices..................................................................................................... 13
2.2 Safety standards .............................................................................................................. 13
2.3 Approved purpose ........................................................................................................... 13
2.4 Working safely ................................................................................................................. 14
3Fast commissioning / operating principle..................................................... 16
3.1 Mounting the BCL 304i .................................................................................................... 16
3.2 Device arrangement and selection of the mounting location ...................................... 16
3.3 Electrical connectionBCL 304i ....................................................................................... 17
3.4 Starting the device........................................................................................................... 19
3.5 Bar code reading.............................................................................................................. 21
4 Device description........................................................................................... 22
4.1 About the bar code readers of the BCL 300i series...................................................... 22
4.2 Characteristics of the bar code readers of the BCL 300i series.................................. 23
4.3 Device construction......................................................................................................... 25
4.4 Reading techniques ......................................................................................................... 28
4.4.1 Line scanner (single line)............................................................................................................. 28
4.4.2 Line scanner with oscillating mirror.............................................................................................. 29
4.4.3 Raster scanner (Raster Line).......................................................................................................30
4.5 Fieldbus systems ............................................................................................................. 31
4.5.1 PROFIBUS DP ............................................................................................................................31
4.6 Heater................................................................................................................................ 31
4.7 autoReflAct....................................................................................................................... 32
4.8 Reference codes .............................................................................................................. 32
4.9 autoConfig........................................................................................................................ 33
Leuze electronic BCL 304i 1
Table of contents
5 Specifications .................................................................................................. 34
5.1 General specifications of the bar code readers............................................................ 34
5.1.1 Line scanner / raster scanner.......................................................................................................34
5.1.2 Oscillating-mirror scanner ............................................................................................................36
5.1.3 Line scanner / raster scanner with deflection mirror.....................................................................36
5.2 Heating models of the bar code readers ....................................................................... 37
5.2.1 Line scanner / raster scanner with heater ....................................................................................38
5.2.2 Oscillating-mirror scanner with heating ........................................................................................38
5.2.3 Line scanner / raster scanner with deflection mirror and heating.................................................39
5.3 Dimensioned drawings.................................................................................................... 40
5.3.1 Dimensioned drawing of complete overview of the BCL 304i with MS3xx / MK 3xx...................40
5.3.2 Dimensioned drawing of line scanner with / without heating........................................................41
5.3.3 Dimensioned drawing of deflection mirror scanner with / without heating....................................42
5.3.4 Dimensioned drawing of oscillating-mirror scanner with / without heating...................................43
5.3.5 Dimensioned drawing of MS3xx hood with integrated connectors / MK 3xx terminal hood........44
5.4 Reading field curves / optical data................................................................................. 45
5.4.1 Bar code characteristics ...............................................................................................................45
5.4.2 Raster scanner.............................................................................................................................46
5.5 Reading field curves........................................................................................................ 47
5.5.1 High Density (N) - optics: BCL 304i S/R1 N 102 (H)....................................................................48
5.5.2 High Density (N) - optics: BCL 304i S/R1 N 100 (H)....................................................................48
5.5.3 High Density (N) - optics: BCL 304i ON 100 (H)..........................................................................49
5.5.4 Medium Density (M) - optics: BCL 304i S/R1 M 102 (H)..............................................................50
5.5.5 Medium Density (M) - optics: BCL 304i S/R1 M 100 (H)..............................................................50
5.5.6 Medium Density (M) - optics: BCL 304i OM 100 (H)....................................................................51
5.5.7 Low Density (F) - optics: BCL 304i S/R1 F 102 (H) .....................................................................52
5.5.8 Low Density (F) - optics: BCL 304i S/R1 F 100 (H) .....................................................................52
5.5.9 Low Density (F) - optics: BCL 304i OF 100 (H)............................................................................53
5.5.10 Ultra Low Density (L) - optics: BCL 304i S/R1 L 102 (H) .............................................................54
5.5.11 Ultra Low Density (L) - optics: BCL 304i S/R1 L 100 (H) .............................................................54
5.5.12 Ultra Low Density (L) - optics: BCL 304i OL 100 (H) ...................................................................55
2BCL304i Leuze electronic
Table of contents
6Installation and mounting ............................................................................... 56
6.1 Storage, transportation ................................................................................................... 56
6.2 Mounting the BCL 304i .................................................................................................... 57

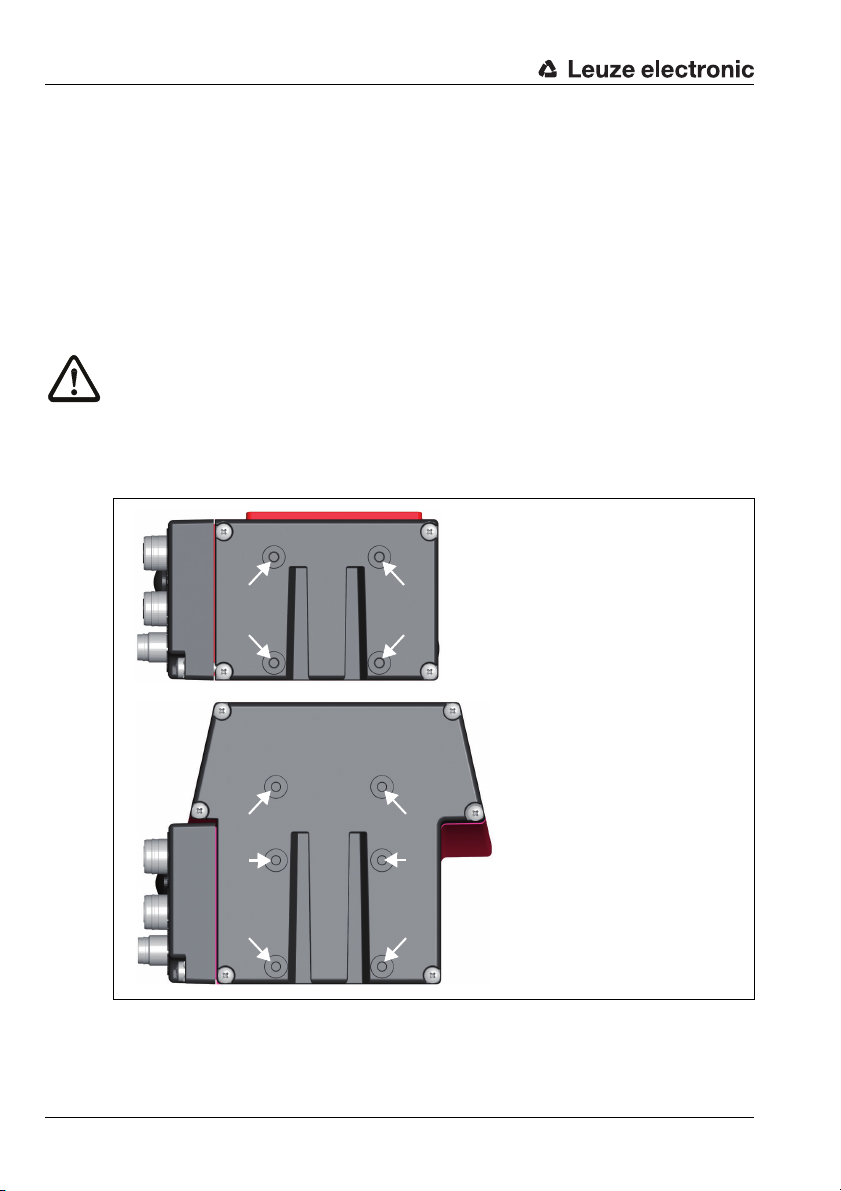

6.2.1 Fastening with M4 x 5 screws......................................................................................................57
6.2.2 BT 56 mounting device................................................................................................................58
6.2.3 BT 59 mounting device................................................................................................................ 60
6.3 Device arrangement......................................................................................................... 61
6.3.1 Selecting a mounting location......................................................................................................61
6.3.2 Avoiding total reflection – Line scanner.......................................................................................62
6.3.3 Avoiding total reflection – deflection mirror scanner.................................................................... 62
6.3.4 Avoiding total reflection – oscillating-mirror scanner ................................................................... 63
6.3.5 Mounting location.........................................................................................................................63
6.3.6 Devices with integrated heating...................................................................................................64
6.3.7 Possible reading angles between BCL 304i and bar code..........................................................64
6.4 Cleaning............................................................................................................................ 65
7 Electrical connection....................................................................................... 66
7.1 Safety notices for the electrical connection.................................................................. 67
7.2 Electrical connectionBCL 304i ....................................................................................... 68

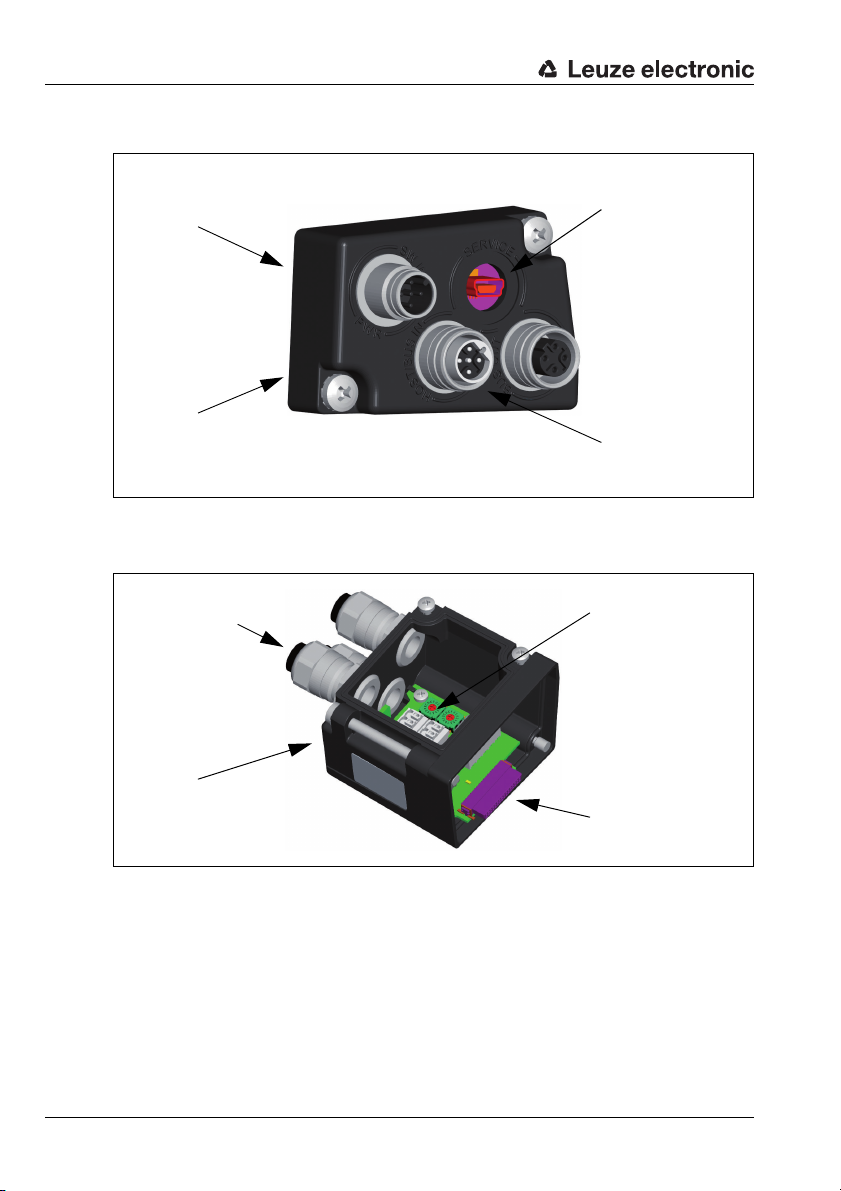

7.2.1 MS304 hood with 3 integrated M12 connectors ......................................................................... 68
7.2.2 MK 304 terminal hood with spring-loaded terminals ....................................................................69
7.3 Detailed description of the connections ........................................................................ 71
7.3.1 PWR / SW IN/OUT - Voltage supply and switching input/outputs 1 and 2 .................................. 71

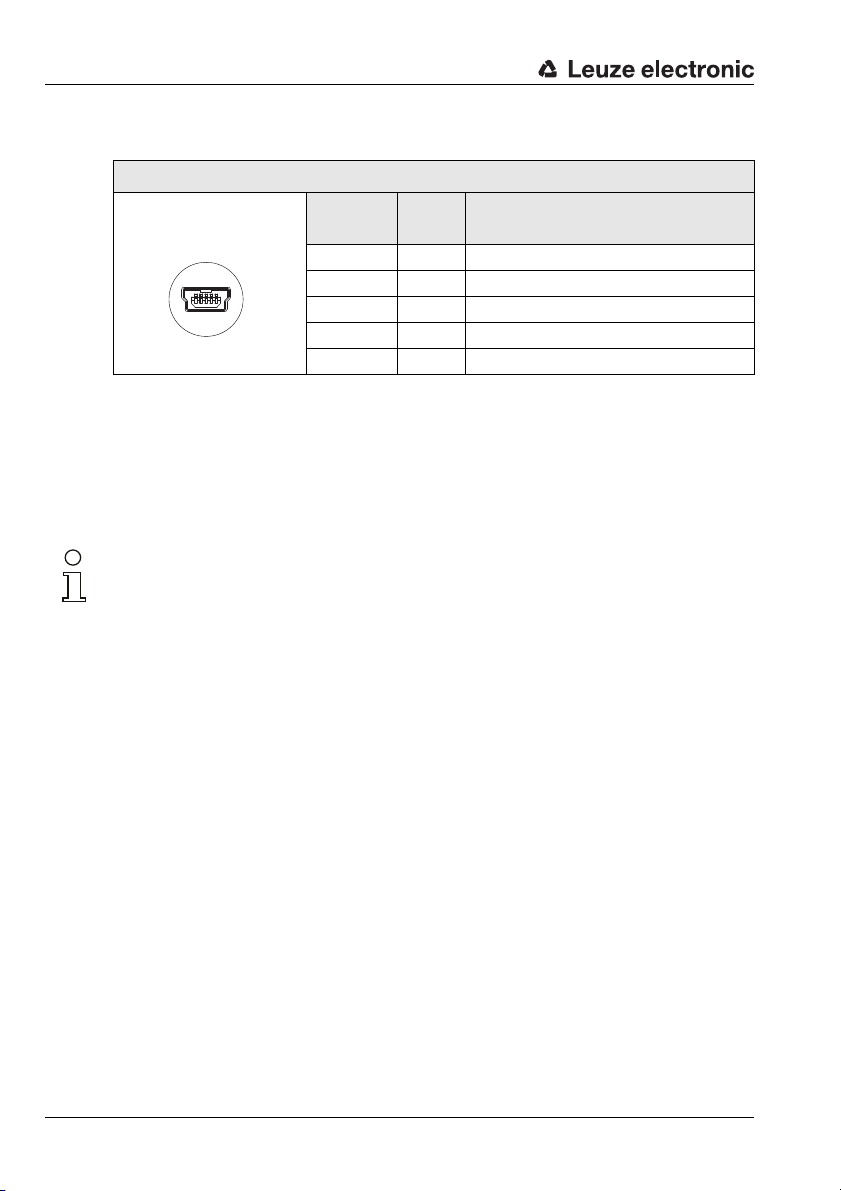

7.3.2 SERVICE – USB interface (Mini-B type) .....................................................................................74
7.3.3 HOST/BUS IN for BCL 304i.......................................................................................................75
7.3.4 BUS OUT for the BCL 304i..........................................................................................................76
7.3.5 PROFIBUS termination................................................................................................................ 77
7.4 Cable lengths and shielding ........................................................................................... 77
8Display elements and display......................................................................... 78
8.1 LED indicators BCL 304i ................................................................................................. 78
8.2 Display BCL 304i.............................................................................................................. 80
Leuze electronic BCL 304i 3
Table of contents
9Leuze webConfig tool...................................................................................... 82
9.1 Connecting the SERVICE USB interface ....................................................................... 82
9.2 Installing the required software...................................................................................... 83
9.2.1 System requirements ...................................................................................................................83
9.2.2 Installing the USB driver...............................................................................................................83
9.3 Starting the webConfig tool ............................................................................................ 84
9.4 Short description of the webConfig tool ....................................................................... 85
9.4.1 Module overview in the Configuration menu ................................................................................85
4BCL304i Leuze electronic
Table of contents
10 Commissioning and configuration................................................................. 87
10.1 General information on the PROFIBUS implementation of the BCL 304i ................... 87
10.1.1 Communication profile................................................................................................................. 87
10.1.2 Bus-access protocol ....................................................................................................................87
10.1.3 Device types ................................................................................................................................ 88
10.1.4 Expanded DP functions ...............................................................................................................88
10.1.5 Automatic baud rate detection.....................................................................................................89
10.2 Measures to be performed prior to the initial commissioning .................................... 90
10.3 Setting of the PROFIBUS address.................................................................................. 91
10.4 Commissioning via the PROFIBUS ................................................................................ 92
10.4.1 General information.....................................................................................................................92
10.4.2 Preparing the control system for consistent data transmission ................................................... 92
10.4.3 General information on the GSD file............................................................................................93
10.4.4 Permanently defined parameters / device parameters ................................................................ 94
10.5 Overview of the project modules ................................................................................... 98
10.6 Decoder modules ........................................................................................................... 101
10.6.1 Modules 1-4 – Code table extensions 1 to 4 .............................................................................101
10.6.2 Module 5 – Code type features (symbology).............................................................................103
10.6.3 Module 7 – Code fragment technology......................................................................................104
10.7 Control modules ............................................................................................................ 105
10.7.1 Module 10 – Activations.............................................................................................................105
10.7.2 Module 11 – Reading gate control............................................................................................. 107
10.7.3 Module 12 – Multi-label..............................................................................................................109
10.7.4 Module 13 – Fragmented read result.........................................................................................110
10.7.5 Module 14 – Interlinked read result ...........................................................................................111
10.8 Result Format................................................................................................................. 112
10.8.1 Module 20 – Decoder state........................................................................................................112
10.8.2 Modules 21-27 – Decoding result ..............................................................................................114
10.8.3 Module 30 – Data formatting .....................................................................................................116
10.8.4 Module 31 – Reading gate number ........................................................................................... 117
10.8.5 Module 32 – Reading gate time................................................................................................. 117
10.8.6 Module 33 – Code position........................................................................................................118
10.8.7 Module 34 – Reading reliability (equal scans)........................................................................... 118
10.8.8 Module 35 – Bar code length..................................................................................................... 119
10.8.9 Module 36 – Scans with information..........................................................................................119
10.8.10 Module 37 – Decoding quality ................................................................................................... 120
10.8.11 Module 38 – Code direction.......................................................................................................120
10.8.12 Module 39 – Number of digits .................................................................................................... 121
10.8.13 Module 40 – Code type..............................................................................................................121
10.8.14 Module 41 – Code position in the swivel range .........................................................................122
10.9 Data Processing ............................................................................................................. 123
10.9.1 Module 50 – Characteristics filter .............................................................................................. 123
10.9.2 Module 51 – Data filtering.......................................................................................................... 125
Leuze electronic BCL 304i 5
Table of contents
10.10 Identifier.......................................................................................................................... 126
10.10.1 Module 52 – Segmentation according to the EAN process ........................................................126
10.10.2 Module 53 – Segmentation via fixed positions...........................................................................127
10.10.3 Module 54 – Segmentation according to identifier and separator..............................................130
10.10.4 Module 55 – String handling parameters ...................................................................................132
10.11 Device Functions ........................................................................................................... 133
10.11.1 Module 60 – Device status .........................................................................................................133
10.11.2 Module 61 – Laser control..........................................................................................................134
10.11.3 Module 63 – Alignment ..............................................................................................................135
10.11.4 Module 64 – Oscillating mirror....................................................................................................136
10.12 SWIO 1 and SWIO 2 switching inputs / outputs.......................................................... 137
10.12.1 Parameters for operating as an output.......................................................................................137
10.12.2 Parameters for operating as an input .........................................................................................139
10.12.3Switch-on and switch-off functions for operation as an output...................................................140
10.12.4 Input functions for operation as an input ....................................................................................141
10.12.5 Module 70 – Switching input/output SWIO1...............................................................................141
10.12.6 Module 71 – Switching input/output SWIO2...............................................................................143
10.12.7 Module 74 – SWIO status and control .......................................................................................145
10.13 Data output ..................................................................................................................... 147
10.13.1 Module 80 – ...............................................................................................................................147
10.14 Reference code comparison......................................................................................... 148
10.14.1 Module 81 – Reference code comparator 1...............................................................................148
10.14.2 Module 82 – Reference code comparator 2...............................................................................150
10.14.3 Module 83 – Reference code comparison pattern 1 ..................................................................152
10.14.4 Module 84 – Reference code comparison pattern 2 ..................................................................153
10.15 Special Functions .......................................................................................................... 154
10.15.1 Module 90 – Status and control .................................................................................................154
10.15.2 Module 91 – AutoReflAct (automatic reflector activation) ..........................................................155
10.15.3 Module 92 – AutoControl ...........................................................................................................156
10.16 Example configuration: Indirect activation via the PLC............................................. 157
10.16.1 Task ...........................................................................................................................................157
10.16.2 Procedure...................................................................................................................................157
10.17 Sample configuration: Direct activation via the switching input .............................. 159
10.17.1 Task ...........................................................................................................................................159
10.17.2 Procedure...................................................................................................................................159
11 Diagnostics and troubleshooting................................................................. 161
11.1 General causes of errors............................................................................................... 161
11.2 Interface errors............................................................................................................... 161
6BCL304i Leuze electronic
Table of contents
12 Type overview and accessories................................................................... 163
12.1 Part number code .......................................................................................................... 163
12.2 Type overview BCL 304i................................................................................................ 163
12.3 Connection hood accessories ...................................................................................... 164
12.4 Accessory terminating resistor .................................................................................... 165
12.5 Accessory connectors .................................................................................................. 165
12.6 Accessory USB cable .................................................................................................... 165
12.7 Accessory mounting device ......................................................................................... 165
12.8 Reflector accessories for autoReflAct ......................................................................... 165
12.9 Accessory ready-made cables for voltage supply...................................................... 166
12.9.1 Contact assignment of PWR connection cable..........................................................................166
12.9.2 Specifications of the cables for voltage supply.......................................................................... 166
12.9.3 Order codes of the cables for voltage supply ............................................................................166
12.10 Accessory ready-made cables for bus connection ....................................................166
12.10.1 General information ................................................................................................................... 166
12.10.2 Contact assignments of PROFIBUS connection cable KB PB…...............................................167
12.10.3 Technical data of interface connection cables ...........................................................................167
12.10.4 Order code interface connection cable ......................................................................................168
13 Maintenance ................................................................................................... 169
13.1 General maintenance information ................................................................................ 169
13.2 Repairs, servicing .......................................................................................................... 169
13.3 Disassembling, packing, disposing ............................................................................. 169
14 Appendix ........................................................................................................ 170
14.1 Declaration of Conformity ............................................................................................. 170
14.2 ASCII character set ........................................................................................................ 172
14.3 Bar code samples .......................................................................................................... 176
14.3.1 Module 0.3 .................................................................................................................................176
14.3.2 Module 0.5................................................................................................................................. 177
Leuze electronic BCL 304i 7
Figures and tables
Figure 2.1: Attachment of the stick-on labels with warning notices at the BCL 304i.................................................. 15
Figure 3.1: BCL 304i - MS 304 hood with integrated M12 connectors....................................................................... 17
Figure 3.2: BCL 304i - MK 304 terminal hood with spring-loaded terminals.............................................................. 18
Figure 3.3: Cable fabrication for MK 304 terminal hood............................................................................................. 18
Figure 4.1: Line scanner, line scanner with deflection mirror and oscillating-mirror scanner.....................................22
Figure 4.2: Possible bar code orientation................................................................................................................... 24
Figure 4.3: BCL 304i device construction - line scanner............................................................................................ 25
Figure 4.4: BCL 304i device construction -line scanner with deflection mirror........................................................... 25
Figure 4.5: BCL 304i device construction - oscillating-mirror scanner....................................................................... 26
Figure 4.6: Device construction MS 304 hood with integrated connectors ................................................................ 27
Figure 4.7: Device construction MK 304 hood with integrated connectors ................................................................ 27
Figure 4.8: Deflection principle for the line scanner...........................................................................
Figure 4.9: Deflection principle for the line scanner with oscillating mirror add-on .................................................... 29
Figure 4.10: Deflection principle for the raster scanner................................................................................................ 30
Figure 4.11: PROFIBUS DP......................................................................................................................................... 31
Figure 4.12: Reflector arrangement for autoReflAct..................................................................................................... 32
Table 5.1: Specifications of the BCL 304i line/raster scanners without heating ....................................................... 34
Table 5.2: Specifications of the BCL 304i oscillating-mirror scanners without heating............................................. 36
Table 5.3: Specifications of the BCL 304i deflection-mirror scanners without heating............................................. 36
Table 5.4: Specifications of the BCL 304i line/raster scanners with heating ............................................................ 38
Table 5.5: Specifications of the BCL 304i oscillating-mirror scanners with heating.................................................. 38
Table 5.6: Specifications of the BCL 304i deflection mirror scanners with heating .................................................. 39
Figure 5.1: Dimensioned drawing of complete overview of the BCL 304i with MS 3xx / MK 3xx .............................. 40
Figure 5.2: Dimensioned drawing BCL 304i line scanner S…102 ............................................................................. 41
Figure 5.3: Dimensioned drawing BCL 304i deflection mirror scanner S…100......................................................... 42
Figure 5.4: Dimensioned drawing BCL 304i oscillating mirror scanner O…100........................................................ 43
Figure 5.5: Dimensioned drawing of MS 3xx hood with integrated connectors / MK 3xx terminal hood.................... 44
Figure 5.6: The most important characteristics of a bar code .................................................................................... 45
Table 5.7: Raster line cover as a function of the distance ........................................................................................ 46
Figure 5.7: Zero position of the reading distance....................................................................................................... 47
Table 5.8: Reading conditions ...................................................................................................
Figure 5.8: "High Density" reading field curve for line scanner without deflection mirror........................................... 48
Figure 5.9: "High Density" reading field curve for line scanner with deflection mirror................................................ 48
Figure 5.10: "High Density" reading field curve for oscillating-mirror scanners............................................................ 49
Figure 5.11: Lateral "High Density" reading field curve for oscillating-mirror scanners................................................ 49
Figure 5.12: "Medium Density" reading field curve for line scanner without deflection mirror...................................... 50
Figure 5.13: "Medium Density" reading field curve for line scanner with deflection mirror........................................... 50
Figure 5.14: "Medium Density" reading field curve for oscillating-mirror scanners...................................................... 51
Figure 5.15: Lateral "Medium Density" reading field curve for oscillating-mirror scanners ..........................................51
Figure 5.16: "Low Density" reading field curve for line scanner without deflection mirror............................................ 52
Figure 5.17: "Low Density" reading field curve for line scanner with deflection mirror................................................. 52
Figure 5.18: "Low Density" reading field curve for oscillating-mirror scanners ............................................................ 53
Figure 5.19: Lateral "Low Density" reading field curve for oscillating-mirror scanners ................................................ 53
Figure 5.20: "Ultra Low Density" reading field curve for line scanner without deflection mirror................................... 54
Figure 5.21: "Ultra Low Density" reading field curve for line scanner with deflection mirror ........................................ 54
Figure 5.22: "Ultra Low Density" reading field curve for oscillating-mirror scanners.................................................... 55
Figure 5.23: Lateral "Ultra Low Density" reading field curve for oscillating-mirror scanners........................................ 55
Figure 6.1: Device name plate BCL 304i ................................................................................................................... 56
........................ 28
............................... 47
8 BCL 304i Leuze electronic
Figures and tables
Figure 6.2: Fastening options using M4x5 threaded holes ........................................................................................ 57
Figure 6.3: BT 56 mounting device ............................................................................................................................ 58
Figure 6.4: Mounting example of BCL 304i with BT 56.............................................................................................. 59
Figure 6.5: BT 59 mounting device ............................................................................................................................ 60
Figure 6.6: Total reflection – line scanner .................................................................................................................. 62
Figure 6.7: Total reflection – line scanner .................................................................................................................. 62
Figure 6.8: Total reflection – BCL 304i with oscillating mirror .................................................................................... 63
Figure 6.9: Reading angle for the line scanner .......................................................................................................... 64
Figure 7.1: Location of the electrical connections ...................................................................................................... 66
Figure 7.2: BCL 304i - MS 304 hood with integrated M12 connectors....................................................................... 68
Figure 7.3: BCL 304i - MK 304 terminal hood with spring-loaded terminals.............................................................. 69
Figure 7.4: Cable fabrication for MK 304 terminal hood............................................................................................. 70
Table 7.1: Pin assignment PWR / SW IN/OUT ......................................................................................................... 71
Figure 7.1: Switching input connection diagram SWIO_1 and SWIO_2 .................................................................... 72
Figure 7.2: Switching output connection diagram SWIO_1 / SWIO_2 ....................................................................... 73
Table 7.2: Pin assignment SERVICE – Mini-B type USB interface........................................................................... 74
Table 7.3: Pin assignment HOST / BUS IN BCL 304i............................................................................................... 75
Table 7.4: Pin assignment BUS OUTBCL 304i......................................................................................................... 76
Table 7.5: Cable lengths and shielding..................................................................................................................... 77
Figure 8.1: BCL 304i - LED indicators..............................................................................................................
Figure 8.2: BCL 304i - Display ................................................................................................................................... 80
Figure 9.1: Connecting the SERVICE USB interface ................................................................................................. 82
Figure 9.2: The start page of the webConfig tool ....................................................................................................... 84
Figure 9.3: Module overview in the webConfig tool.................................................................................................... 85
Table 10.1: PROFIBUS bus-access processes .......................................................................................................... 87
Table 10.2: PROFIBUS DP master and slave types................................................................................................... 88
Table 10.3: Services for DPVM1 class 1 and slaves .................................................................................................. 88
Table 10.4: Services for DPVM1 class 2 and slaves .................................................................................................. 89
Figure 10.1: BCL 304i - MS 304 hood with integrated M12 connectors....................................................................... 90
Figure 10.2: BCL 304i - MK 304 terminal hood with spring-loaded terminals .............................................................. 90
Figure 10.3: BCL 304i - setting of the PROFIBUS address ......................................................................................... 91
Table 10.5: "Common" Parameters ............................................................................................................................ 94
Table 10.6: Module overview ...................................................................................................................................... 99
Table 10.7: Parameters for modules 1-4................................................................................................................... 101
Table 10.8: Parameters for module 5........................................................................................................................ 103
Table 10.9: Parameters for module 7........................................................................................................................ 104
Table 10.10: Parameters for module 10...................................................................................................................... 105
Table 10.11: Output data for module 10 ..................................................................................................................... 105
Table 10.12: Parameters for module 11...................................................................................................................... 107
Table 10.13: Parameters for module 12...................................................................................................................... 109
Table 10.14: Input data for module 12 ...........................................................................................
Table 10.15: Parameters for module 13...................................................................................................................... 110
Table 10.16: Input data for module 13 ........................................................................................................................ 110
Table 10.17: Parameters for module 13...................................................................................................................... 111
Table 10.18: Input data for module 20 ........................................................................................................................ 112
Table 10.19: Input data for modules 21 … 27............................................................................................................. 114
Table 10.20: Parameters for module 30...................................................................................................................... 116
Table 10.21: Input data for module 31 ........................................................................................................................ 117
............................. 109
.......... 78
Leuze electronic BCL 304i 9
Figures and tables
Table 10.22: Input data for module 32 ........................................................................................................................ 117
Table 10.23: Input data for module 33 ........................................................................................................................ 118
Table 10.24: Input data for module 34 ........................................................................................................................ 118
Table 10.25: Input data for module 35 ........................................................................................................................ 119
Table 10.26: Input data for module 36 ........................................................................................................................ 119
Table 10.27: Input data for module 37 ........................................................................................................................ 120
Table 10.28: Input data for module 38 ........................................................................................................................ 120
Table 10.29: Input data for module 39 ........................................................................................................................ 121
Table 10.30: Input data for module 40 ........................................................................................................................ 121
Table 10.31: Input data for module 41 ........................................................................................................................ 122
Table 10.32: Parameters for module 50 ..................................................................................................................... 123
Table 10.33: Parameters for module 51 ..................................................................................................................... 125
Table 10.34: Parameters for module 52 ..................................................................................................................... 126
Table 10.35: Parameters for module 53 ..................................................................................................................... 127
Table 10.36: Parameters for module 54 ..................................................................................................................... 130
Table 10.37: Parameters for module 55 ..................................................................................................................... 132
Table 10.38: Input data for module 60 ........................................................................................................................ 133
Table 10.39: Output data for module 60 ..................................................................................................................... 133
Table 10.40: Parameters for module 61 ..................................................................................................................... 134
Table 10.41: Input data for module 63 ........................................................................................................................ 135
Table 10.42: Output data for module 63 ..................................................................................................................... 135
Table 10.43: Parameters for module 64 ..................................................................................................................... 136
Figure 10.4: Example 1: Start-up delay > 0 and switch-on time = 0........................................................................... 137
Figure 10.5: Example 2: Start-up delay > 0 and switch-on time > 0........................................................................... 137
Figure 10.6: Example 3: start-up delay > 0 switch-off signal prior to lapsing of the start-up delay ........................... 138
Figure 10.7: Start-up delay in input mode .................................................................................................................. 139
Figure 10.8: Switch-on time in input mode................................................................................................................. 139
Figure 10.9: Switch-off delay in input mode ............................................................................................................... 140
Table 10.44: Switch-on/switch-off functions................................................................................................................ 140
Table 10.45: Input functions........................................................................................................................................ 141
Table 10.46: Parameters for module 70 – Input/Output 1........................................................................................... 141
Table 10.47: Parameters for module 71 – Input/Output 2........................................................................................... 143
Table 10.48: Input data for module 74 Input/output status and control....................................................................... 145
Table 10.49: Output data for module 74 Input/output status and control .................................................................... 146
Table 10.50: Parameters for module 80 ..................................................................................................................... 147
Table 10.51: Parameters for module 81 – Reference code comparison..................................................................... 148
Table 10.52: Parameters for module 82 – Reference code comparison..................................................................... 150
Table 10.53: Parameter module 83 – Reference code comparison pattern ............................................................... 152
Table 10.54: Parameter module 84 – Reference code comparison pattern ............................................................... 153
Table 10.55: Input data for module 90 – Status and control ....................................................................................... 154
Table 10.56: Parameters for module 91 – AutoreflAct ................................................................................................ 155
Table 10.57: Parameters for module 92 – AutoControl............................................................................................... 156
Table 10.58: Input data for module 92 – AutoControl ................................................................................................. 156
Table 10.59: Device parameters for example configuration 2..................................................................................... 159
Table 11.1: General causes of errors ....................................................................................................................... 161
Table 11.2: Interface error ........................................................................................................................................ 161
Table 12.2: Type overview BCL 304i........................................................................................................................ 163
Table 12.3: Connection hoods for the BCL 304i ....................................................................................................... 164
10 BCL 304i Leuze electronic
Figures and tables
Table 12.4: Terminating resistor for the BCL 304i .................................................................................................... 165
Table 12.5: Connectors for the BCL 304i.................................................................................................................. 165
Table 12.6: Service cable for the BCL 304i .............................................................................................................. 165
Table 12.7: Mounting devices for the BCL 304i ........................................................................................................ 165
Table 12.8: Reflector for autoReflAct operation ........................................................................................................ 165
Table 12.9: PWR cables for the BCL 304i ................................................................................................................ 166
Figure 12.10: Cable configuration PROFIBUS/multiNet plus connection cables......................................................... 167
Table 12.11: Interface connection cable for the BCL 304i .......................................................................................... 168
Figure 14.1: Declaration of conformity BCL 304i ....................................................................................................... 170
Figure 14.2: Connection hood / connector unit declaration of conformity .................................................................. 171
Figure 14.3: Bar code sample labels (module 0.3)..................................................................................................... 176
Figure 14.4: Bar code sample labels (module 0.5)..................................................................................................... 177
Leuze electronic BCL 304i 11
1 General information
1.1 Explanation of symbols
The symbols used in this technical description are explained below.
Attention!
This symbol precedes text messages which must strictly be observed. Failure to comply with this information results in injuries to personnel or damage to the equipment.
Attention Laser!
This symbol warns of possible danger caused by hazardous laser radiation.
Notice!
This symbol indicates text passages containing important information.
1.2 Declaration of conformity
The bar code readers of the BCL 300i series have been developed and manufactured in accordance with the applicable European standards and directives.
General information
Notice!
You can find the Declaration of Conformity of the devices in the appendix of the manual on page 145.
The manufacturer of the product, Leuze electronic GmbH & Co KG in D-73277 Owen, possesses a certified quality assurance system in accordance with ISO 9001.
Leuze electronic BCL 304i 9
TNT 35/7-24V
Safety notices
2 Safety notices
2.1 General safety notices
Documentation
All entries in this technical description must be heeded, in particular the present chapter "Safety notices". Keep this technical description in a safe place. It should be available at all times.
Safety regulations
Observe the locally applicable regulations and the rules of the employer's liability insurance association.
Repair
Repairs must only be carried out by the manufacturer or an authorized representative.
2.2 Safety standards
The bar code readers of the BCL 300i series were developed, manufactured and tested in accordance with the applicable safety standards. They correspond to the state of the art.
2.3 Approved purpose
Attention!
The protection of personnel and the device cannot be guaranteed if the device is operated in a manner not corresponding to its intended use.
Bar code readers of the BCL 300i series are conceived as stationary, high-speed scanners with integrated decoders for all current bar codes used for automatic object detection.
In particular, unauthorized uses include:
• in rooms with explosive atmospheres
•operation for medical purposes
Areas of application
The bar code readers of the BCL 300i series are especially designed for the following areas of application:
• Storage technology and materials handling, in particular for object identification on fast-moving transport systems
•Pallet transport systems
•Automobile sector
• Omnidirectional reading
10 BCL 304i Leuze electronic
2.4 Working safely
Attention!
Access and changes to the device, except where expressly described in this operating manual, are not authorized.
Safety regulations
Observe the locally applicable legal regulations and the rules of the employer's liability insurance association.
Qualified personnel
Mounting, commissioning and maintenance of the device must only be carried out by qualified personnel. Electrical work must be carried out by a certified electrician.
Attention, laser radiation!
If you look into the beam path over a longer time period, the retina of your eye may be damaged!
Never look directly into the beam path!
Do not point the laser beam of the BCL 304i at persons!
When mounting and aligning the BCL 304i, avoid reflections of the laser beam off reflective surfaces!
The BCL 304i bar code readers correspond to the EN 60825-1 safety standard for a class 2 laser systems. They also comply with the U.S. 21 CFR 1040.10 regulations for a class II laser product except for deviations pursuant to Laser Notice No. 50, dated July 26, 2001.
Radiant Energy: The BCL 304i uses a low power visible laser diode. The emitted wavelength is 655nm. The average laser power is less than 1mW in accordance with the definition of laser class 2.
Adjustments: Do not attempt any adjustments to or alterations of this product.
Do not remove the protective housing of the bar code reader. There are no user­serviceable parts inside.
The glass optics cover is the only aperture through which laser radiation may be observed on this product. A failure of the scanner motor, while the laser diode continues to emit a laser beam, may cause emission levels to exceed those for safe operation. The bar code reader has protective devices to prevent this occurrence. If, however, a stationary beam is emitted, the failing bar code reader should be discon­nected from the voltage supply immediately.
CAUTION: Use of controls or adjustments or performance of procedures other than specified herein may result in hazardous light exposure.
Safety notices
TNT 35/7-24V
Leuze electronic BCL 304i 11
Safety notices
A
BCL 304i
Line scanner and
M12 MS 3xx connection hood
BCL 304i
with oscillating mirror and
M12 MS 3xx connection hood
B
A Warning: laser aperture B Name plate
BCL 304i
with deflection mirror and
M12 MS 3xx connection hood
The use of optical instruments or devices in combination with the device increases the danger of eye damage!
The housing of the BCL 304i is provided with warning notices A and B above and next to the reading window as shown in the following figure:
Figure 2.1: Attachment of the stick-on labels with warning notices at the BCL 304
12 BCL 304i Leuze electronic
i
Fast commissioning / operating principle
3Fast commissioning / operating principle
Below you will find a short description for the initial commissioning of the BCL 304i. Detailed explanations for all listed points can be found throughout this technical description.
3.1 Mounting the BCL 304i
The BCL 304i bar code readers can be mounted in two different ways:
•Via four M4x6 screws on the bottom of the device.
•Via a BT 56 mounting device in the fastening groove on the bottom of the housing.
3.2 Device arrangement and selection of the mounting location
In order to select the right mounting location, several factors must be considered:
• Size, orientation, and position tolerance of the bar codes on the objects to be scanned.
• The reading field of the BCL 304i in relation to the bar code module width.
• The resulting minimum and maximum reading distance from the respective reading field.
• The permissible cable lengths between the BCL 304i and the host s on which interface is used.
• The correct time for data output. The BCL 304i should be positioned in such a way that, taking into consideration the time required for data processing and the conveyor belt speed, there is sufficient time to e.g. initiate sorting operations on the basis of the read data.
• The display and control panel should be very visib
• For configuring and commissioning with the webConfig tool, the USB interface should be easily accessible.
For specific information, please refer to chapter 6 and chapter 7.
le and accessible.
ystem depending
Notice!
The beam exits the BCL 304i as follows for the respective devices:
- line scanner parallel to the housing base
- deflection mirror 105 degrees to the housing base
- oscillating mirror perpendicular to the housing base. The black areas in figure 6.2 are the housing base. The best read results are obtained when:
• The BCL 304i is mounted in such a way that the scanning beam is incident on the bar code at an angle of inclination greater than ±10° … 15° to vertical.
• The reading distance lies in the middle area of the reading field.
• The bar code labels are of good print quality and have good contrast ratios.
• You do not use high-gloss labels.
• There is no direct sunlight.
16 BCL 304i Leuze electronic
Fast commissioning / operating principle
PWR / SW IN/OUT
SWIO_2
SWIO_1
3
2
1
4
5
GNDIN VIN
FE
SERVICE
21354
GNDD+D-VB ID
BUS OUT
VP
1
2
3
4
N
P
GNDP
FE
5
HOST / BUS IN
3
2
1
4
5
n.c.GNDP
FE
N
P
Mini-B USB socket
(behind protective cap)
M12 plug (A-coded)
M12 plug (B-coded)
M12 socket
(B-coded)
Hood with integrated connectors
MS304
3.3 Electrical connectionBCL 304i
For the electrical connection of the BCL 304i, 2 connection variants are available. The voltage supply (18 … 30VDC) is connected acc. to the connection type selected. 2 freely programmable switching inputs/outputs for individual adaptation to the respec-
tive application are also available here. Detailed information on this topic can be found in chapter 7.4.1 and chapter 7.4.3.
MS 304 hood with 2 integrated M12 connectors
Figure 3.1: BCL 304i - MS304 hood with integrated M12 connectors
Notice!
The shielding connection is done via the M12 connector housing.
Notice!
PROFIBUS address 126 is set by default in the MS 304. The integrated parameter memory for the simple replacement of the BCL 304i is located in the MS 304.
Notice!
The PROFIBUS is looped through the MS 304, i.e. the bus is not interrupted when the BCL 304i is removed from the MS 304.
Leuze electronic BCL 304i 17
The bus is terminated at BUS OUT via an external mounted terminating resistor (see chap­ter 13.4 "Accessory terminating resistor").
TNT 35/7-24V
Fast commissioning / operating principle
Terminal hood
MK 304
SERVICE
21354
GNDD+D-VB ID
Mini-B USB socket
(behind protective cap)
Terminal block
PWR / SW IN/OUT
Terminal block
HOST / BUS IN
Terminal block
BUS OUT
Slide switch T:
bus
termination
Bus address switch: slide switch
x100 = hundreds digit, rotary switch x10 = tens digit, rotary switch x1 = ones digit
Terminal designation
MK 304
ON
OFF
MK 304 terminal hood with spring-loaded terminals
Figure 3.2: BCL 304i - MK 304 terminal hood with spring-loaded terminals
Notice!
PROFIBUS address 126 is set by default in the MK 304. The integrated parameter memory for simple exchange of the BCL 304i is located in the MK 304.
Notice!
The PROFIBUS is looped through the MK 304, i.e. the bus is not interrupted when the BCL 304i is removed from the MK 304. The PROFIBUS is terminated via slide switch T in the MK 304. If the termination is activated (slide switch T in the ON position), the down­stream bus is disconnected.
Cable fabrication and shielding connection
Remove approx. 78mm of the connection cable sheathing. 15 mm of sheath of the shielded line must be freely accessible.
≈ 55 mm ≈ 8 mm ≈ 15 mm
Figure 3.3:Cable fabrication for MK 304 terminal hood
The shield is automatic
ally contacted when the cable is lead into the metal screw fitting and fastened when the cord grip is closed. Then lead the individual wires into the terminals according to the diagram. Wire end sleeves are not necessary.
18 BCL 304i Leuze electronic
3.4 Starting the device
ª Set the PROFIBUS address of the BCL304i in your PROFIBUS network via the address
switch (one slide and two rotary switches) provided for this purpose in the MS 304 or MK 304.
ª Install the GSD file associated with the BCL 304i in the PROFIBUS Manager of your
control.
ª Activate the desired modules (at least module 10 and one of the modules 21 … 27).
ª Store the slave address for the BCL 304i in the PROFIBUSmanager. Ensure that the
address is the same as the address configured in the device.
ª Connect the +18 … 30VDC supply voltage (typ. +24VDC).
The BCL 304i starts up, the PWR and BUS LEDs display the operating state. If there is a display, the bar code reading window appears in it.
PWR LED
flashes green Device ok, initialization phase
green continuous light Device ok
green, briefly off - on Good read, successful reading
Fast commissioning / operating principle
green, briefly off - briefly red - on No read, reading not successful
orange continuous light Service mode
flashes red Warning set
red continuous light Device error / parameter enable
Leuze electronic BCL 304i 19
TNT 35/7-24V
Fast commissioning / operating principle
BUS LED
flashes green Initialization
green continuous light Bus operation ok
flashes red Communication error
red continuous light Bus error
If a display is available, the following information appears successively during startup:
• Startup
• Device designation e.g. BCL 304i SM 102 D
• Reading Result
If Reading Result is displayed, the device is ready.
Operation of BCL 304i
After voltage (18 … 30 V DC) has been connected to the switching input, a read process is activated. In the standard setting, the 2/5 interleaved code type is enabled. The decoding
result module (21-27) must be configured and the BCL 304i must be connected to the PROFIBUS.
If a code is led through the reading field, the code content is decoded and passed to the PLC via the PROFIBUS.
20 BCL 304i Leuze electronic
3.5 Bar code reading
Modul 0,5
6677889900
To test, you can use the following bar code in the 2/5 Interleaved format. The bar code module here is 0.5:
Provided your BCL 304i model has a display, the read information appears on this display. The PWR LED goes off briefly and then turns green again. S imultaneously, the read infor­mation is forwarded to the superior system (PLC/PC) via the PROFIBUS.
Please check the incoming da Alternatively, you can use a switching input for read activation (switching signal of a photo-
electric sensor or 24VDC switching signal).
Fast commissioning / operating principle
ta of the bar code information there.
Leuze electronic BCL 304i 21
TNT 35/7-24V
4 Device description
Line scanner
Line scanner with deflection mirror
Oscillating-mirror scanner
4.1 About the bar code readers of the BCL 300i series
Bar code readers of the BCL 300i series are high-speed scanners with integrated decoder for all commonly used bar codes, e.g. 2/5 Interleaved, Code 39, Code 128, EAN 8/13 etc., as well as codes from the GS1DataBar family.
Bar code readers of the BCL 300i series are available in various optics models as well as line scanner heated models.
s, line scanners with deflection mirrors, oscillating mirrors and also optionally as
Device description
Figure 4.1: Line scanner, line scanner with deflection mirror and oscillating-mirror scanner
The extensive options for device configuration enable adaptation to a multitude of reading tasks. Due to the large reading distance combined with the great depth of field, a large opening a and storage technology market.
The interfaces (RS 232, RS 485 and RS 422) integrated in the various device models and the fieldbus systems (PROFIBUS DP, PROFINET-IO and Ethernet) offer optimum connec- tion to the superior host system.
Leuze electronic BCL 304i 25
ngle and a very compact construction, the device is ideally suited for the conveyor
TNT 35/7-24V
Device description
4.2 Characteristics of the bar code readers of the BCL 300i series
Performance characteristics:
•Integrated fieldbus connectivity = i -> Plug-and-Play fieldbus coupling and easy networking
•Numerous interface variants facilitate connection to the superior systems
•RS 232, RS 422
•RS 485 and multiNet plus slave alternatively, various fieldbus systems, such as
•PROFIBUS
•PROFINET-IO
•EtherNet
•Integrated code fragment technology (CRT) enables the identification of soiled or damaged bar codes
•Maximum depth of field and reading distances from 30mm to 700 mm
•Large optical opening angle and, thus, large reading field width
• High scanning rate of 1000 scans/s for fast reading tasks
•On request with display to easily detect and activate functions
•Integrated USB service interface, Mini-B type
•Easy alignment- and diagnostics functions
• Up to four possible connection technologies
• Two freely programmable switching inputs/outputs for the activation or signaling of states
•Automatic monitoring of the read quality with autoControl
•Automatic recognition and setting of the bar code type using autoConfig
• Reference code comp
•Optional heating models to -35°C
•Heavy-duty housing of protection class IP 65
DP
and status messages.
arison
Notice!
Information on technical data and characteristics can be found in Kapitel 5.
General information
The integrated fieldbus connectivity = i contained in the bar code readers of the BCL 300i series facilitates the use of identification systems which function without connector unit or
gateways. The integrated fieldbus interface considerably simplifies handling. The Plug-and­Play concept enables easy networking and very simple commissioning: Directly connect the respective fieldbus and all configuration is performed with no
For decoding bar codes, the bar code readers of the BCL 300i series make available the proven CRT decoder with code fragment technology:
The proven code fragment technology (CRT) enables bar code readers of the BCL 300i
series to read bar codes with a small bar height, as well as bar codes with a damaged or soiled print image.
26 BCL 304i Leuze electronic
additional software.
Device description
With the aid of the CRT decoder, bar codes can also be read without problem in other demanding situations, such as with a large tilt angle (azimuth angle or even twist angle).
Figure 4.2: Possible bar code orientation
With the BCL 304i, configuration is generally performed with the aid of the GSD file. The BCL 304i needs a suitable activation to start
the reading field. This opens a time window ("reading gate") in the BCL 304i for the read process during which the bar code reader has time to detect and decode a bar code.
Alternative activation options include online commands via the host interface and the In the basic setting, triggering takes place through an external reading cycle signal or via the PROFIBUS. An alternative option for activation is the autoReflAct function.
Through the read operation, the BCL 304i collects additional useful pieces of data for diag­nosis which can also be transmitted to the host. The quality of the read operation can be inspected using the alignment mode which is integrated in the webConfig tool.
An optional display in English with button visualization purposes. Two LEDs provide additional optical information on the current oper­ating state of the device.
The two freely configurable switching inputs/outputs SWIO1 and SWIO2 can be assigned various functions and control e.g. activation of the BCL 304i or external devices, such PLC.
System, warning and error messages provide assistance in setup/troubleshooting during commissioning and read operation.
a read process as soon as an object is in
s is used to operate the BCL 304i as well as for
as a
TNT 35/7-24V
Leuze electronic BCL 304i 27
Device description
Connection side for: MK 3xx terminal hood MS3xx hood with integrated connectors
Reading window
Dovetail mounting and 4 mounting threads
Display, LEDs and buttons
Line scanner
Connection side for: MK 3xx terminal hood MS3xx hood with integrated connectors
Reading window
Dovetail mounting and 4 mounting threads
Display, LEDs and buttons
Line scanner with deflection mirror
4.3 Device construction
BCL 304i bar code readers
Figure 4.3:BCL304i device construction - line scanner
Figure 4.4: BCL 304i device construction -line scanner with deflection mirror
28 BCL 304i Leuze electronic
Device description
Connection side for: MK 3xx terminal hood MS3xx hood with integrated connectors
Reading window
Dovetail mounting and 6 mounting threads
Display, LEDs and buttons
Oscillating-mirror scanner
Figure 4.5: BCL 304i device construction - oscillating-mirror scanner
Leuze electronic BCL 304i 29
TNT 35/7-24V
Device description
Connection side with
system plug for
connection to
BCL 304i
M12 connector, 3 x M12
Mini-B type USB service interface
Address setting
for PROFIBUS
Connection side with system plug for connection to BCL 304i
Cable lead-throughs
Mini-B type USB service interface
Terminal compartment with address setting and termination for PROFIBUS
MS 304 hood with integrated connectors
Figure 4.6: Device construction MS304 hood with integrated connectors
MK 304 terminal hood
30BCL304i Leuze electronic
Figure 4.7: Device construction MK 304 hood with integrated connectors
4.4 Reading techniques
4.4.1 Line scanner (single line)
A line (scan line) scans the label. Due to the opt. opening angle, the reading field width is dependent on the read distance. Through the movement of the object, the entire bar code is automatically transported through the scan line.
The integrated code fragment technology permits twisting of the bar code (tilt angle) within certain limits. These are dependent on the transport speed, the scanning rate of the scanner and the bar code properties.
Areas of application of the line scanner
The line scanner is used:
• when the bars of the bar code are printed in the conveying direction ('ladder arrangement').
•with bar codes having very short bar lengths.
• when the ladder code is turned out of the vertical position (tilt angle).
• when the reading distance is large.
Device description

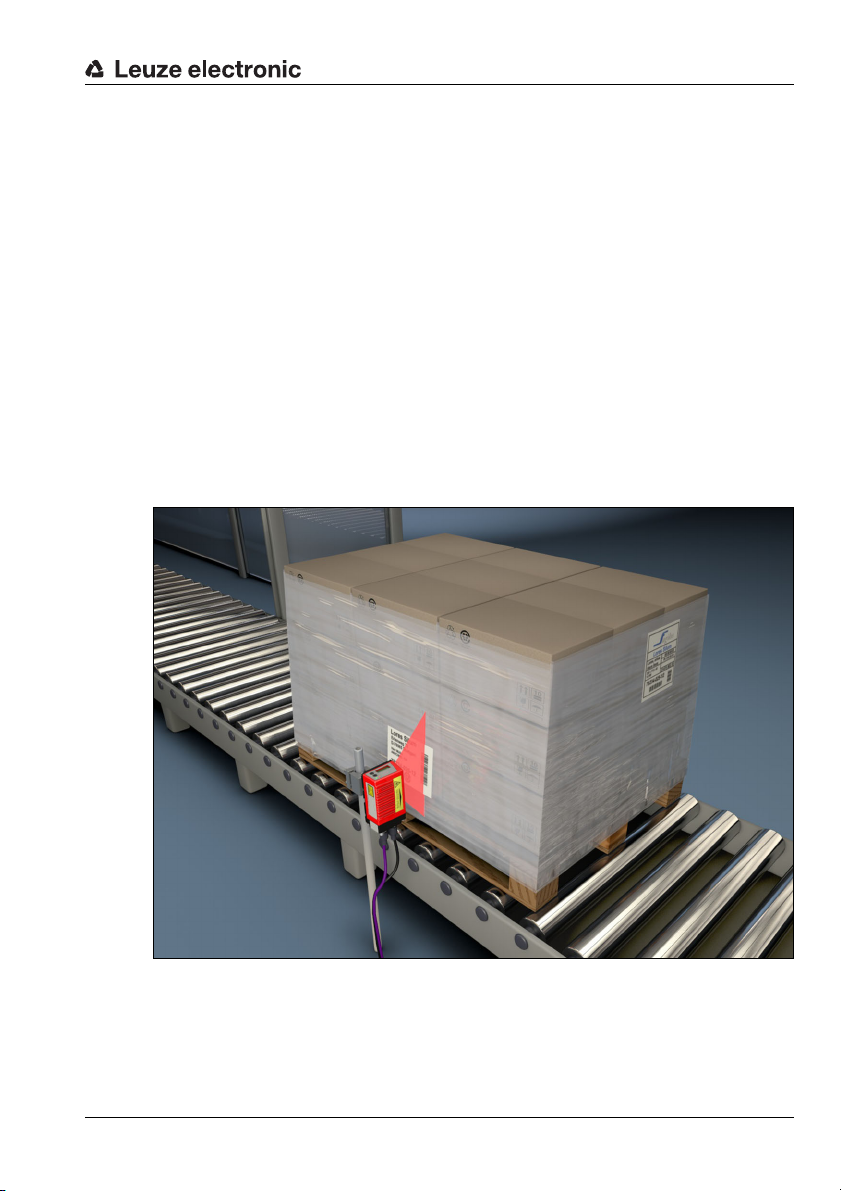

Figure 4.8: Deflection principle for the line scanner
Leuze electronic BCL 304i 31
TNT 35/7-24V
Device description
4.4.2 Line scanner with oscillating mirror
The oscillating mirror deflects the scan line additionally to both sides across the scan direc­tion at a randomly adjustable oscillation frequency. In this way, the BCL 304i can also scan larger areas or spaces for bar codes. The reading field height (and the scan line length useful for evaluation) depends on the re the oscillating mirror.
Areas of application of the line scanner with oscillating mirror
For line scanners with oscillating mirror, oscillation frequency, start/stop position etc. are adjustable. It is used:
• when the position of the label is not fixed, e.g. on pallets – various labels can, thus, be detected at various positions.
• when the bars of the bar code are printed perpendicular to the conveying direction ('picket fence arrangement').
• when reading stationary ob
• when a large reading field (reading window) has to be covered.
ading distance due to the optical opening angle of
jects.
Figure 4.9: Deflection principle for the line scanner with oscillating mirror add-on
32BCL304i Leuze electronic
4.4.3 Raster scanner (Raster Line)
Multiple scan lines scan the label. Due to the optical opening angle, the reading field width is dependent on the reading distance. Provided the code is located in the reading field, it can be read during standstill. If the code moves through the reading field, it is scanned by multiple scan lines.
The integrated code fragment technology permits twisting of the bar code (tilt angle) within certain limits. These are dependent on the transport
and the bar code properties. In most cases, everywhere a line scanner is used, a raster scanner can be used.
Areas of application of the raster scanner:
The raster scanner is used:
• when the bars of the bar code are perpendicular to the conveying direction ('picket fence arrangement')
•with bar codes with low height displacement
• with very glossy bar codes
Device description
speed, the scanning rate of the scanner
Figure 4.10: Deflection principle for the raster scanner
Leuze electronic BCL 304i 33
TNT 35/7-24V
Device description
BCL 304i - Slave 1 BCL 304i - Slave 2 BCL 304i - Slave 3
Terminating resistor on the last participant
PROFIBUS
4.5 Fieldbus systems
Various product variants of the BCL 300i series are available for connecting to different fieldbus systems such as PROFIBUS DP, ProfiNet and Ethernet.
4.5.1 PROFIBUS DP
The BCL 304i is designed as a PROFIBUS device (PROFIBUS DP-V1 acc. to IEC 61158) with a baud rate of max. 12MBd. The functionality of the device is defined via p arameter sets which are clustered in modules. These modules are contained in a GSD file.
The BCL 304i bar code readers can be operated as network devices on the PROFIBUS. The BCL 304i features supply voltage, the interface and the switching inputs and outputs.
The BCL 304i supports:
•PROFIBUS-DP slave functionality.
•Modular structure of the IO data
•Automatic baud rate detection up to 12 Mbit/s
• SYNC/FREEZE
•FailSafe Mode
•Device-specific diagnostic data
•I&M
•No ch
For further details, see Kapitel 10!
multiple M12 connectors / sockets for the electrical connection of the
anging of the slave address via the PROFIBUS
Figure 4.11: PROFIBUS DP
4.6 Heater
For low-temperature applications to min. -35°C (e.g. in cold storage), the bar code readers of the BCL 304i series can optionally be permanently fitted with a built-in heating and these
bar code readers purchased as separate device models.
34BCL304i Leuze electronic
4.7 autoReflAct
AutoReflAct stands for Automatic Reflector Activation and permits an activation without
additional sensors. This is achieved by directing the scanner with reduced scanning beam towards a reflector mounted behind the conveyor path.
Notice!
Compatible reflectors are available on request.
Device description
As long as the scanner is targeted at the reflector, the reading gate remains clos however, the reflector is blocked by an object such as a container with a bar code label, the scanner activates the read procedure, and the label on the container is read. When the path from the scanner to the reflector has cleared, the read procedure has completed and the scanning beam is reduced and again directed onto the reflector. The reading gate is closed.
Figure 4.12: Reflector arra
The autoReflAct function uses the scanning beam to simulate a photoelectric sensor and thus permits an activation without additional sensor system.
4.8 Reference codes
The BCL 304i offers the possibility of storing one or two reference codes. It is possible to store the reference codes via the webConfig tool or via the PROFIBUS. The BCL 304i can compare read bar codes with one and/or both reference codes and
execute user-configurable functions depending on the comparison result.
ed. If,
ngement for autoReflAct
TNT 35/7-24V
Leuze electronic BCL 304i 35
Device description
4.9 autoConfig
With the autoConfig function, the BCL 304i offers the user who only wishes to simultane- ously read one code type (symbology) with one number of digits an extremely simple and convenient configuration option.
After starting the autoConfig function via the switching input or from a superior control, it is sufficient to position a bar code label with the desired code type and number of digits in the reading field of the BCL 304i.
Afterward, bar code decoded.
s with the same code type and number of digits are recognized and
36BCL304i Leuze electronic
5 Specifications
5.1 General specifications of the bar code readers
5.1.1 Line scanner / raster scanner
Specifications
Type BCL 304i
PROFIBUS DP
Type Line scanner without heating
Optical data
Light source Laser diode λ = 655nm (red light) Beam exit Front Scanning rate 1000 scans/s Beam deflection by means of rotating polygon wheel Useful opening angle max. 60° Optics models / resolution High Density (N): 0.127 … 0.20 mm
Reading distance see reading field curves Laser class 2 (acc. to EN 60825-1 and 21 CFR 1040.10 with Laser Notice No. 50)
Medium Density (M): 0.20 … 0.5mm
Low Density (F): 0.30…0.5mm
Ultra Low Density (L): 0.35…0.8 mm
Bar code data
Code types 2/5 Interleaved, Code 39, Code 128, EAN 128, EAN / UPC,
Bar code contrast (PCS) >= 60% External light tolerance 2000 lx (on the bar code) Number of bar codes per scan 3
Codabar, Code 93, GS1 Data Bar, EAN Addendum
Electrical data
Interface type 1x RS 485
Protocols PROFIBUS DP Baud rate 9.6Kbaud… 12MBaud Data formatsSlave DPV1
Service interface Mini-B type USB 2.0 socket Switching input /
switching output
Operating voltage 18 … 30VDC (Class 2, safety clas s III) Power consumption max. 3W
- Switching output: 18 … 3
2 switching inputs/outputs, freely programmable functions
- Switching input: 18 … 30 V DC depending on supply voltage, I max. = 8mA
Switching inputs/outputs protected against polarity reversal!
at 2x M12 (B)
0V DC, depending on supply voltage, I max. = 60mA
(short-circu it proof)
Operating and display elements
Display monochromatic graphical display, 1 2 8 x 32 pixel, with background lighting Keyboard 2 buttons LEDs 2 LEDs for power (PWR) and bus state (BUS), two-colored (red/green)
Table 5.1: Specifications of the BCL 304i line/raster scanners without heating
TNT 35/7-24V
Leuze electronic BCL 304i 41
Specifications
Type BCL 304i
PROFIBUS DP
Type Line scanner without heating
Mechanical data
Protection class Weight Dimensions (WxHxD) Housing
270g (without connection hood)
44 x 95x68 mm (without connection hood)
diecast aluminum
IP 65
1)
Environmental data
Operating temperature range 0°C … +40 °C Storage temperature range -20°C … +70°C
Air humidity max. 90% rel. humidity, non-condensing Vibration IEC 60068-2-6, test FC Shock IEC 60068-2-27, test Ea Continuous shock IEC 60068-2-29, test Eb Electromagnetic compatibility EN 55022;
IEC 61000-6-2 (contains IEC 61000-4-2, -3, -4, -5 and -6)
Table 5.1: Specifications of the BCL 304i line/raster scanners without heating
1) only with the MS304 or MS304 connection hood and s crewed-on M12 connectors or cable lead- throughs and mounted caps. Minimum tightening torque of the housing connection screws on the con­nection hood 1.4Nm!
2) This is a Class A product. In a domestic environment this product may cause radio interference, in which case the operator may be required to take adequate measures.
Attention!
For UL applications, use is permitted exclusively in Class 2 circuits according to NEC (National Electric Code).
2)
The BCL 304i bar code readers are designed in accordance with safety class III for supply by PELV (protective extra-low voltage).
42 BCL 304i Leuze electronic
5.1.2 Oscillating-mirror scanner
Technical data same as for line scanner without heating with the following differences:
Specifications
Type BCL 304i
PROFIBUS DP
Type Oscillating-mirror scanner without heating
Optical data
Beam exit Lateral zero position at an angle of 90° Beam deflection Via rotating polygon wheel (horizontal) and stepping motor with mirror (vertical) Oscillation frequency 0 … 10Hz
Max. swivel angle ±20°(adjustable) Reading field height see reading field curves
(adjustable, max. frequency is dependent on set swivel angle)
Electrical data
Power consumption max. 4.2W
Mechanical data
Weight 580g (without connection hood)
Dimensions (WxHxD)
58 x 125 x 110mm (without connection hood)
Table 5.2: Specifications of the BCL 304i oscillating-mirror scanners without heating
5.1.3 Line scanner / raster scanner with deflection mirror
Technical data same as for line scanner without heating with the following differences:
Type BCL 304i
Type Line scanner with deflection mirror without heating
Optical data
Beam exit Lateral zero position at an angle of 105° Beam deflection Via rotating polygon wheel (horizontal) and deflection mirror (vertical)
Electrical data
Power consumption max. 3W
Mechanical data
Weight 350g (without connection hood)
Dimensions (WxHxD)
44 x 103 x 96 mm (without connection hood)
Table 5.3: Specifications of the BCL 304i deflection-mirror scanners without heating
PROFIBUS DP
TNT 35/7-24V
Leuze electronic BCL 304i 43
Specifications
5.2 Heating models of the bar code readers
The BCL 304i bar code readers are optionally available as models with integrated heating. In this case, heating is permanently installed ex works. Self-installation on-site by the user is not possible!
Features
•Integrated heating (permanently installed)
• Extends the application range of the BCL 304i to -35°C
• Supply voltage 24VDC ±20%
•BCL304i enabling through an internal temperature switch (switch-on delay about 30min for 24VDC and minimum ambient temperature of -35°C)
•Necessary conductor cross-section for the voltage supply: at least 0.75mm²; the use of ready-made cab
Construction
The heating consists of two parts:
• The front cover heater
• The housing heater
Function
When the 24VDC supply voltage is applied to the BCL 304i, a temperature switch initially only connects the heating to current (front cover heater and housing heater). During the heating phase (around 30min), when the inside temperature rises above 15°C, the temper-
ature switch connects the BCL 304i to the supply voltage. This is followed by the self test and the changeover to read operation. The "PWR" LED lights
for operation. When the inside temperature reaches approximately 18 °C, another temperature switch
turns the housing heater off and, if necessary, back on again (if the inside temperature drops below 15°C). This does not interrupt the read operation. The front cover heater remains acti­vated until an inside temperature of 25 °C is reached. At tempera cover heater switches off and, with a switching hysteresis of 3°C, back on again at an inside temperature below 22°C.
les is, thus, not possible
up, showing overall readiness
tures above this, the front
Mounting location
Notice!
The mounting location is to be selected such that it does not expose the BCL 304i with heat­ing directly to a cold air stream. To achieve an optimal heating effect, the BCL 304i should be mounted so that it is thermally isolated.
Electrical connection
The required core cross section of the connection cable for the voltage supply must be at least 0.75 mm².
44 BCL 304i Leuze electronic
Attention!
The voltage supply must not be looped through from one device to the next.
Power consumption
The energy requirement depends on the model:
• the line/raster scanner with heating typically consumes a maximum of 17W power.
• the line scanner with oscillating mirror and heating typically consumes a maximum of 26W power.
• the line/raster scanner with deflection mirror and heating typically consumes a maximum of 19W power.
These values are based on operation with unconnected switching output
5.2.1 Line scanner / raster scanner with heater
Technical data same as for line scanner without heating with the following differences:
Specifications
s.
Type BCL 304i
PROFIBUS DP
Type Line scanner with heater
Electrical data
Operating voltage 24 V DC ±20 % Power consumption max. 17 W Structure of the heating Housing heating and separate heating of the optics glass Warmup time Min. 30min at +24V DC and an ambient temperature of -35° C Min. conductor cross section Conductor cross section of at least 0.75mm² for the supply voltage supply line.
Wiring through of the voltage supply to multiple heating devices is not permissi-
Standard, M12 ready-made cable not usable
(insufficient cable cross-section)
le.
b
Environmental data
Operating temperature range -35°C … +40°C Storage temperature range -20°C … +70 °C
Table 5.4: Specifications of the BCL 304i line/raster scanners with heating
5.2.2 Oscillating-mirror scanner with heating
Technical data same as for line scanner without heating with the following differences:
Type BCL 304i
Type Oscillating-mirror scanner with heating
Optical data
Useful opening angle max. 60° Max. swivel angle ± 20°(adjustable)
Table 5.5: Specifications of the BCL 304i oscillating-mirror scanners with heating
PROFIBUS DP
TNT 35/7-24V
Leuze electronic BCL 304i 45
Specifications
Type BCL 304i
PROFIBUS DP
Type Oscillating-mirror scanner with heating
Electrical data
Operating voltage 24V DC ±20 % Power consumption max. 26W Structure of the heating Housing heating and separate heating of the optics glass Warmup time Min. 30min at +24V DC and an ambient temperature of -35°C Min. conductor cross section Conductor cross section of at least 0.75mm² for the supply voltage supply line.
Wiring through of the voltage supply to multiple heating devices is not permissi-
Standard, M12 ready-made cable not usable
(insufficient cable cross-section)
le.
b
Environmental data
Operating temperature range -35°C … +40°C Storage temperature range -20°C … +70°C
Table 5.5: Specifications of the BCL 304i oscillating-mirror scanners with heating
5.2.3 Line scanner / raster scanner with deflection mirror and heating
Technical data same as for line scanner without heating with the following differences:
Type BCL 304i
Type Deflection mirror scanner with heating
Optical data
Useful opening angle max. 60° Max. adjustment range ±10°(adjustable via display or software)
Electrical data
Operating voltage 24V DC ±20% Power consumption max. 19W Structure of the heating Hous ing heating and separate heating of the optics glass Warmup time Min. 30min at +24VDC and an ambient temperature of -35°C Min. conductor cross section Conductor cross section of at least 0.75 mm² for the supply voltage supply line.
Wiring through of the voltage supply to multiple heating devices is not permiss
Standard, M 12 ready-made cable not usable
Environmental data
Operating temperature range -35°C … +40°C Storage temperature range -20°C … +70 °C
Table 5.6: Specifications of the BCL 304i deflection mirror scanners with heating
PROFIBUS DP
ble.
(insufficient cable cross-section)
i-
46 BCL 304i Leuze electronic
Specifications
BCL 3xx with
MS 3xx hood
with integrated
connectors
BCL 3xx with
MK 3xx
terminal hood
5.3 Dimensioned drawings
5.3.1 Dimensioned drawing of complete overview of the BCL 304i with MS 3xx /
MK 3xx
Figure 5.1: Dimensioned drawing of complete overview of the BCL 304i with MS3xx / MK 3xx
Leuze electronic BCL 304i 47
TNT 35/7-24V
Specifications
A Optical axis
5.3.2 Dimensioned drawing of line scanner with / without heating
Figure 5.2: Dimensioned drawing BCL 304i line scanner S…102
48 BCL 304i Leuze electronic
Specifications
A Optical axis B Deflection angle of the laser beam: ± 30°
5.3.3 Dimensioned drawing of deflection mirror scanner with / without heating
Figure 5.3:Dimensioned drawing BCL 304i deflection mirror scanner S…100
Leuze electronic BCL 304i 49
TNT 35/7-24V
Specifications
A Optical axis B Swivel angle of the laser beam: ± 20 ° C Deflection angle of the laser beam: ± 30°
5.3.4 Dimensioned drawing of oscillating-mirror scanner with / without heating
Figure 5.4: Dimensioned drawing BCL 304i oscillating mirror scanner O…100
50 BCL 304i Leuze electronic
Specifications
MS 3xx
hood with integrated connectors
MK 3xx
terminal hood
Attention!
To ensure protection class IP 65 is fulfilled, the screws of the connection hood are tightened with a tightening torque of 1.4 Nm for connecting to the BCL.
5.3.5 Dimensioned drawing of MS 3xx hood with integrated connectors / MK 3xx terminal hood
Figure 5.5: Dimensioned drawing of MS3xx hood with integrated connectors / MK 3xx
terminal hood
Leuze electronic BCL 304i 51
TNT 35/7-24V
Specifications
M=Module: The narrowest line or space of a bar code
in mm.
Z
B
=Wide character: Wide bars and gaps are a multiple
(ratio) of the module. Module x Ratio = Z
B
(Normal Ratio 1 : 2.5).
B
Z
=Quiet zone: The quiet zone should be at least 10
times the module, but not less than 2.5mm.
L = Code length: The length of the bar code in mm
including the start and stop characters. The quiet zone is included depending on the code definition.
S
L
=Bar length: Height of the elements in mm.
5.4 Reading field curves / optical data
5.4.1 Bar code characteristics
Notice!
Please note that the size of the bar code module influences the maximum reading distance and the width of the reading field. Therefore, when selecting a mounting location and/or the bar code label, take into account the different reading characteristics of the scanner with var­ious bar code modules.
Figure 5.6: The most important characteristics of a bar code
The range in which the bar code can be read by the BCL 304i (the so-called reading field) depends on the quality of the printed bar code and its dimensions.
Therefore, above all, the module of a bar code is decisive for the size of the reading field.
Notice!
A rule of thumb: The smaller the module of the bar code is, the smaller the maximum reading distance and reading field width will be.
52 BCL 304i Leuze electronic
5.4.2 Raster scanner
A raster variant is also available in the BCL 300i series. The BCL 300i as a raster scanner projects 8scan lines which vary depending on the reading distance from the raster aperture.
Front scanner 8 142435455077
Raster line
Deflection mirror scanner 12 17 27 38 48 54 80
cover [mm]
all raster lines
Table 5.7: Raster line cover as a function of the distance
Specifications
Distance [mm] starting at the zero position
50 100 200 300 400 450 700
Leuze electronic BCL 304i 53
TNT 35/7-24V
Specifications
Zero position
Distance acc. to reading field curves
Frontal beam exit BCL 3xxi S/R1…102…
Deflection mirror scanner
BCL 3xxi S/R1…100…
Oscillating-mirror scanner
BCL 3xxi O…100…
or
5.5 Reading field curves
Notice!
Please notice that the real reading fields are also influenced by factors such as labeling material, printing quality, reading angle, printing contrast etc., and may thus deviate from the reading fields specified here.
The reading field curves also apply for the variants with heating.
The zero position of the reading distance always refers the front edge of the housing of the beam exit and is shown in figure 5.7 for the three housing types of the BCL 304i.
Figure 5.7: Zero position of the reading distance
Reading conditions for the reading field curves
Bar code type
Ratio
ANSI specification
Reading rate
2/5 Interleaved
1:2.5
class A
> 75%
Table 5.8:Reading conditions
54 BCL 304i Leuze electronic
5.5.1 High Density (N) - optics: BCL 304i S/R1 N 102 (H)
250 7550 100 150 200 250 300125 175 225 275
25
50
75
100
-25
-50
-75
-100
BCL 3xxi S/R1 N 102
m = 0,127
m = 0,15
m = 0,2
m = 0,15
m = 0,127
m = 0,2
Reading distance [mm]
Reading field width [mm]
250 7550 100 150 200 250 300125 175 225 275
25
50
75
100
-25
-50
-75
-100
BCL 3xxi S/R1 N 100
m = 0,127
m = 0,15
m = 0,2
m = 0,15
m = 0,127
m = 0,2
Reading distance [mm]
Reading field width [mm]
Figure 5.8: "High Density" reading field curve for line scanner without deflection mirror
5.5.2 High Density (N) - optics: BCL 304i S/R1 N 100 (H)
Specifications
Leuze electronic BCL 304i 55
Figure 5.9: "High Density" reading field curve for line scanner with deflection mirror
The reading field curve applies for the reading conditions stated in table 5.8.
TNT 35/7-24V
Specifications
250 7550 100 150 200 250 300125 175 225 275
25
50
75
100
-25
-50
-75
-100
BCL 3xxi O N 100
m = 0,127
m = 0,15
m = 0,2
m = 0,15
m = 0,127
m = 0,2
Reading distance [mm]
Reading field width [mm]
Reading distance [mm]
Reading field height [mm]
5.5.3 High Density (N) - optics: BCL 304i ON 100 (H)
Figure 5.10: "High Density" reading field curve for oscillating-mirror scanners
m = 0,127
BCL 3xxi O N 100
m = 0,2
m = 0,15
100
80
60
40
20
-20
-40
-60
-80
-100 250 7550 100 150 200 250 300125 175 225 275
Figure 5.11: Lateral "High Density" reading field curve for oscillating-mirror scanners
56 BCL 304i Leuze electronic
The reading field curves apply for the reading conditions stated in table 5.8.
m = 0,127
m = 0,15
m = 0,2
5.5.4 Medium Density (M) - optics: BCL 304i S/R1 M 102 (H)
050100 150 250 350 450200 300 400
50
100
150
-50
-100
-150
BCL 3xxi S/R1 M 102
m = 0,2
m = 0,3
m = 0,5
m = 0,3
m = 0,2
m = 0,5
Reading distance [mm]
Reading field width [mm]
050100 150 250 350 450200 300 400
50
100
150
-50
-100
-150
BCL 3xxi S/R1 M 100
m = 0,2
m = 0,3
m = 0,5
m = 0,3
m = 0,2
m = 0,5
Reading distance [mm]
Reading field width [mm]
Figure 5.12: "Medium Density" reading field curve for line scanner without deflection mirror
5.5.5 Medium Density (M) - optics: BCL 304i S/R1 M 100 (H)
Specifications
Figure 5.13: "Medium Density" reading field curve for line scanner with deflection mirror
Leuze electronic BCL 304i 57
The reading field curves apply for the reading conditions stated in table 5.8.
TNT 35/7-24V
Specifications
050100 150 250 350 450200 300 400
50
100
150
-50
-100
-150
BCL 3xxi O M 100
m = 0,2
m = 0,3
m = 0,5
m = 0,3
m = 0,2
m = 0,5
Reading distance [mm]
Reading field width [mm]
050100 150 250 350 450200 300 400
50
100
150
25
75
125
-50
-100
-150
-25
-75
-125
BCL 3xxi O M 100
m = 0,2
m = 0,3
m = 0,5
m = 0,3
m = 0,2
m = 0,5
Reading distance [mm]
Reading field height [mm]
5.5.6 Medium Density (M) - optics: BCL 304i OM 100 (H)
Figure 5.14: "Medium Density" reading field curve for oscillating-mirror scanners
Figure 5.15: Lateral "Medium Density" reading field curve for oscillating-mirror scanners
58 BCL 304i Leuze electronic
The reading field curves apply for the reading conditions stated in table 5.8.
5.5.7 Low Density (F) - optics: BCL 304i S/R1 F 102 (H)
050 150 250 400 500 600350100 200 300 450 550
50
100
200
150
-50
-100
-200
-150
BCL 3xxi S/R1 F 102
m = 0,5
m = 0,35
m = 0,3
m = 0,35
m = 0,5
m = 0,3
Reading distance [mm]
Reading field width [mm]
050 150 250 400 500 600350100 200 300 450 550
50
100
200
150
-50
-100
-200
-150
BCL 3xxi S/R1 F 100
m = 0,5
m = 0,35
m = 0,3
m = 0,35
m = 0,5
m = 0,3
Reading distance [mm]
Reading field width [mm]
Figure 5.16: "Low Density" reading field curve for line scanner without deflection mirror
5.5.8 Low Density (F) - optics: BCL 304i S/R1 F 100 (H)
Specifications
Figure 5.17: "Low Density" reading field curve for line scanner with deflection mirror
Leuze electronic BCL 304i 59
The reading field curves apply for the reading conditions stated in table 5.8.
TNT 35/7-24V
Specifications
Reading distance [mm]
Reading field width [mm]
Reading distance [mm]
Reading field height [mm]
5.5.9 Low Density (F) - optics: BCL 304i OF 100 (H)
200
150
100
50
-50
-100
-150
-200 050 150 250 400 500 600350100 200 300 450 550
BCL 3xxi O F 100
m = 0,3
m = 0,35
m = 0,5
Figure 5.18: "Low Density" reading field curve for oscillating-mirror scanners
200
150
100
50
BCL 3xxi O F 100
m = 0,3
m = 0,35
m = 0,5
m = 0,3
m = 0,35
m = 0,5
m = 0,3
m = 0,35
-50
-100
-150
-200 050 150 250 400 500 600350100 200 300 450 550
m = 0,5
Figure 5.19:Lateral "Low Density" reading field curve for oscillating-mirror scanners
The reading field curves apply for the reading conditions stated in table 5.8.
60 BCL 304i Leuze electronic
5.5.10 Ultra Low Density (L) - optics: BCL 304i S/R1 L 102 (H)
050 150 250 400 550 750350100 200 300 450 650500 700600
50
100
300
250
150
200
-50
-100
-300
-250
-150
-200
BCL 3xxi S/R1 L 102
m = 0,5
m = 0,35
m = 0,8
m = 0,35
m = 0,5
m = 0,8
Reading distance [mm]
Reading field width [mm]
050 150 250 400 550 750350100 200 300 450 650500 700600
50
100
300
250
150
200
-50
-100
-300
-250
-150
-200
BCL 3xxi S/R1 L 100
m = 0,5
m = 0,35
m = 0,8
m = 0,35
m = 0,5
m = 0,8
Reading distance [mm]
Reading field width [mm]
Figure 5.20: "Ultra Low Density" reading field curve for line scanner without deflection mirror
5.5.11 Ultra Low Density (L) - optics: BCL 304i S/R1 L 100 (H)
Specifications
Leuze electronic BCL 304i 61
Figure 5.21: "Ultra Low Density" reading field curve for line scanner with deflection mirror
The reading field curves apply for the reading conditions stated in table 5.8.
TNT 35/7-24V
Specifications
050 150 250 400 550 750350100 200 300 450 650500 700600
50
100
300
250
150
200
-50
-100
-300
-250
-150
-200
BCL 3xxi O L 100
m = 0,5
m = 0,35
m = 0,8
m = 0,35
m = 0,5
m = 0,8
Reading distance [mm]
Reading field width [mm]
050 150 250 400 550 750350100 200 300 450 650500 700600
50
100
300
250
150
200
-50
-100
-300
-250
-150
-200
BCL 3xxi O L 100
m = 0,5
m = 0,35
m = 0,8
m = 0,35
m = 0,5
m = 0,8
Reading distance [mm]
Reading field height [mm]
5.5.12 Ultra Low Density (L) - optics: BCL 304i OL 100 (H)
Figure 5.22: "Ultra Low Density" reading field curve for oscillating-mirror scanners
Figure 5.23:Lateral "Ultra Low Density" reading field curve for oscillating-mirror scanners
62 BCL 304i Leuze electronic
The reading field curves apply for the reading conditions stated in table 5.8.
6Installation and mounting
6.1 Storage, transportation
Attention!
When transporting or storing, package the device so that it is protected against collision and humidity. Optimum protection is achieved when using the original packaging. Heed the required environmental conditions specified in the technical data.
Unpacking
ª Check the packaging for any damage. If damage is found, notify the post office or
shipping agent as well as the supplier.
ª Check the delivery contents using your order and the delivery papers:
• Delivered quantity
• Device type and model as indicated on the name plate
•Laser warning signs
•Brief manual
The name plate provides information as to what BCL type your device is. For specific information, please refer to chapter 5.
Name plates of the bar code readers of the BCL 304i series
Installation and mounting
Figure 6.1: Device name plate BCL 304i
ª Save the original packaging for later storage or shipping.
Notice!
All BCL 304i are delivered with a protective cover on the connection side which must be re­moved before attaching a connection hood.
Leuze electronic BCL 304i 65
TNT 35/7-24V
Installation and mounting
4 x M4x5
6 x M4x5
(oscillating-mirror scanner)
or
If you have any questions concerning your shipment, please contact your supplier or your local Leuze electronic sales office.
ª Observe the applicable local regulations when disposing of the packaging materials.
6.2 Mounting the BCL 304i
The BCL 304i bar code readers can be mounted in two different ways:
•Via four or six M 4x5 screws on the bottom of the device.
•Via a BT 56 mounting device in the two fastening grooves on the bottom of the device.
Attention!
The BCL 300i does not fulfill protection class IP 65 until the connection hood has been screwed on. Minimum tightening torque of the housing connection screws on the connection hood 1.4Nm!
6.2.1 Fastening with M4 x 5 screws
Figure 6.2: Fastening options using M4x5 threaded holes
66 BCL 304i Leuze electronic
6.2.2 BT 56 mounting device
Clamping jaws for fastening on the BCL 304i
Clamp profile for fastening to round or oval pipes Ø16…20mm
A Rod holder, turnable 360 ° B Rods Ø16…20mm
All dimensions in mm
The BT 56 mounting device is available for mounting the BCL 304i using the fastening grooves. It is designed for rod mounting (Ø 16mm to 20mm). For ordering instructions, please refer to chapter "Type overview and accessories" on page 136.
BT 56 mounting device
Installation and mounting
Figure 6.3: BT 56 mounting device
Leuze electronic BCL 304i 67
TNT 35/7-24V
Installation and mounting
Figure 6.4: Mounting example of BCL 304i with BT 56
68 BCL 304i Leuze electronic
6.2.3 BT 59 mounting device
Clamping jaws for fastening on the BCL 304i
A Holder, turnable 360° B ITEM joint, angle adjustable ±90°
C M 8x16 screw cylinder, M 8 wave washer, M 8
sliding block, connectors for ITEM profile (2x)
All dimensions in mm
The BT 59 mounting device offers you an additional fastening option. For ordering instructions, please refer to chapter "Type overview and accessories" on page 136.
BT 59 mounting device
Installation and mounting
Figure 6.5: BT 59 mounting device
Notice!
When mounting, ensure that the scanning beam is not reflected directly back to the scanner by the label which is being read. For further information, see the notices in chapter 6.3! Please refer to chapter 5.4 for the permissible minimum and maximum distances between the BCL 304i and the labels to be read.
Leuze electronic BCL 304i 69
TNT 35/7-24V
Installation and mounting
6.3 Device arrangement
6.3.1 Selecting a mounting location
In order to select the right mounting location, several factors must be considered:
• Size, orientation, and position tolerance of the bar codes on the objects to be scanned.
• The reading field of the BCL 304i in relation to the bar code module width.
• The resulting minimum and maximum reading distance from the respective reading field (see chapter 5.4 "Reading field curves / optical data").
• The permissib on which interface is used.
• The correct time for data output. The BCL 304i should be positioned in such a way that, taking into consideration the time required for data processing and the conveyor belt speed, there is sufficient time to e.g. initiate sorting operations on the basis of the read data.
• The dis
• For configuring and commissioning with the webConfig tool, the USB interface should be easily accessible.
For specific information, please refer to chapter 6 and chapter 7.
Notice!
The beam of the BCL 304i exits:
• parallel to the housing base in the case of the line scanner
• at 105 degrees from the housing base
• perpendicular to the housing base in the case of the oscillating mirror
In each case, the housing base is the black area in figure 6.2. The best read results are obtained when:
• The BCL 304i is mounted in such a way that the scanning beam is incident on the bar code at an angle of inclination greater than ±10° … 15° to vertical.
• The reading distance lies in the middle area of the reading field.
• The bar code labels are of good print quality and have good contrast ratios.
• You do not use high-gloss labels.
• There is no direct sunlight.
le cable lengths between the BCL 304i and the host system depending
play elements such as LEDs or the display should be highly visible.
in the case of the deflection mirror
70 BCL 304i Leuze electronic
6.3.2 Avoiding total reflection – Line scanner
Z
e
r
o
p
o
s
i
t
i
o
n
D
i
s
t
a
n
c
e
a
c
c
.
t
o
r
e
a
d
i
n
g
f
i
e
l
d
c
u
r
v
e
s
Bar code
The BCL 304i should be mounted in such a way that the scanning beam is incident on the bar code at an angle of inclination greater than ±10° … 15° to vertical.
±
1
0
…
1
5
°
D
i
s
t
a
n
c
e
a
c
c
.
t
o
r
e
a
d
i
n
g
f
i
e
l
d
c
u
r
v
e
s
Bar code
The BCL 304i with deflection mirror should be mounted parallel to the bar code.
1
5
°
Zero position
The bar code label must be positioned at an angle of inclination greater than ±10° … 15° from vertical in order to avoid total reflection of the laser beam (see figure 6.6)!
Total reflection occurs whenever the laser light of the bar code reader is directly incident on the surface of the bar code at an angle of 90°. The light directly reflected by the bar code may overload the bar code reader and thereby cause non-readings!
Installation and mounting
Figure 6.6: Total reflection – line sca
6.3.3 Avoiding total reflection – deflection mirror scanner
For the BCL 304i with deflection mirror, the laser beam exits at an angle of 105° to the rear housing wall.
An angle of incidence of 15° of the laser to the label has already been integrated in the deflection mirror so that the BCL 304i can be installed parallel to the bar code (rear housing wall).
Figure 6.7: Total reflection – line scanner
Leuze electronic BCL 304i 71
nner
TNT 35/7-24V
Installation and mounting
Z
e
r
o
p
o
s
i
t
i
o
n
D
i
s
t
a
n
c
e
a
c
c
.
t
o
r
e
a
d
i
n
g
f
i
e
l
d
c
u
r
v
e
s
Bar code
±
2
5
°
The BCL 304i should be mounted in such a way that the scan- ning beam is incident on the bar code at an angle of inclination greater than ±25° to vertical.
6.3.4 Avoiding total reflection – oscillating-mirror scanner
For the BCL 304i with oscillating mirror, the laser beam exits at an angle of 90° to vertical.
For the BCL 304i with oscillating mirror, the swivel range of ±20° (±12° for devices with heating) is to be taken into account.
This means that in order to be on the safe side and to avoid total reflection, the BCL 304i with oscillating mirror must be inclined upward or downward 20° … 30°!
Notice!
Mount the BCL 304i with oscillating mirror in such a way that the outlet window of the bar code reader is parallel to the object. This will result in an angle of inclination of approx. 25°.
Figure 6.8:Total reflection – BCL 304i with oscillating mirror
6.3.5 Mounting location
ª When selecting a mounting location, pay attention to:
• Maintaining the required environmental conditions (temperature, humidity).
• Possible soiling of the reading window due to liquids, abrasion by boxes, or packaging material residues.
• Lowest possible chance of damage to the BCL 304i by mechanical collision or jammed parts.
• Possible extraneous light (no direct sunlight or sunlight reflected by the bar code).
72 BCL 304i Leuze electronic
Installation and mounting
γγ
β
α
6.3.6 Devices with integrated heating
ª For devices with integrated heating, also observe the following points:
•Mount the BCL 304i in a way which provides maximum thermal isolation, e.g. using rubber-bonded metal.
•Mount in such a way that the device is protected from draft and wind; mount additional shields if necessary.
Notice!
When installing the BCL 304i in a protective housing, it must be ensured that the scanning beam can exit the protective housing without obstruction.
6.3.7 Possible reading angles between BCL 304i and bar code.
The optimum alignment of the BCL 304i is accomplished when the scan line scans the code bars almost at a right angle (90°). All reading angles that are possible between the scan line and bar code must be taken account (figure 6.9).
Figure 6.9:Reading angle for the line scanner
α Tilt β Angle of inclination (Pitch) γ Skew
In order to avoid total reflection, the skew
Leuze electronic BCL 304i 73
γ should be greater than 10 °.
TNT 35/7-24V
Installation and mounting
6.4 Cleaning
ª Clean the glass pane of the BCL 304i with a soft cloth after mounting. Remove all pack-
aging remains, e.g. carton fibers or Styrofoam balls. In doing so, avoid leaving finger­prints on the front cover of the BCL 304i.
Attention!
Do not use aggressive cleaning agents such as thinner or acetone for cleaning the device.
74 BCL 304i Leuze electronic
Electrical connection
Line scanner
MK 304
MS 304
M12 connectorTerminals
Line scanner with deflection
mirror
Oscillating-mirror scanner
or
or
7 Electrical connection
The bar code readers in the BCL 300i series feature a modular connection concept with interchangeable connection hoods.
The additional Mini-B type USB interface is used for service purposes.
Notice!
On delivery, the products are provided with a plastic protective cap on the side of the system plug or the system socket.
Additional connection accessories can be found in chapter 13.
Attention!
The BCL 304i does not fulfill protection class IP 65 until the connection hood has been screwed on. Minimum tightening torque of the housing connection screws on the connection hood 1.4Nm!
Location of the electrical connections
Figure 7.1: Location of the electrical connections
66 BCL 304i Leuze electronic
7.1 Safety notices for the electrical connection
Attention!
Do not open the device yourself under any circumstances! There is otherwise a risk of uncontrolled emission of laser radiation from the device. The housing of the BCL 304i contains no parts that need to be adjusted or maintained by the user.
Before connecting the device, be sure that the supply voltage agrees with the value printed on the name plate.
Connection of the device and cleaning must only be carried out by a qualified electrician.
Ensure that the functional earth (FE) is connected correctly. Unimpaired operation is only guaranteed when the functional earth is connected properly.
If faults cannot be corrected, the device should be removed from operation and protected against possible commissioning.
Attention!
For UL applications, use is permitted exclusively in Class 2 circuits according to NEC (National Electric Code).
The bar code readers of the BCL 300i series are designed in accordance with safety class III for supply by PELV (protective extra-low voltage).
Notice!
Protection class IP 65 is not fulfilled until connectors or cable lead-throughs are screwed on and caps are installed!
Electrical connection
Attention!
To ensure protection class IP 65 is fulfilled, the screws of the connection hood are tightened with a tightening torque of 1.4Nm for connecting to the BCL.
Leuze electronic BCL 304i 67
TNT 35/7-24V
Electrical connection
PWR / SW IN/OUT
SWIO_2
SWIO_1
3
2
1
4
5
GNDIN VIN
FE
SERVICE
21354
GNDD+D-VB ID
BUS OUT
VP
1
2
3
4
N
P
GNDP
FE
5
HOST / BUS IN
3
2
1
4
5
n.c.GNDP
FE
N
P
Mini-B USB socket
(behind protective cap)
M12 plug
(A-coded)
M12 plug
(B-coded)
M12 socket
(B-coded)
Hood with integrated connectors
MS304
7.2 Electrical connectionBCL 304i
For the electrical connection of the BCL 304i, 2 connection variants are available. The voltage supply (18 … 30 V DC) is connected acc. to the connection type selected. 2 freely programmable switching inputs/outputs for individual adaptation to the respec-
tive application are also available here. Detailed information on this topic can be found in chapter 7.3.1.
7.2.1 MS 304 hood with 3 integrated M12 connectors
The MS304 hood with integrated connectors features three M12 connector plugs and a Mini-B type USB socket as a service interface. When the device is exchanged, the PROFIBUS address does not have to be re-set; it stays set in the MS304. The PROFIBUS is not interrupted when the device is exchanged. BUS IN and BUS OUT are connected in the MS304 and safeguard the operation of the PROFIBUS even in the case of device replacement.
The addre BCL 304i. If the BCL 304i is the last participant on the PROFIBUS cable, the BUS OUT
socket on the MS304 must be fitted with a terminator plug (accessories).
ss switch located in the MS304 is used to set the PROFIBUS address of the
Figure 7.2: BCL 304i - MS304 hood with integrated M12 connectors
Notice!
The shielding connection is done via the M12 connector housing.
68 BCL 304i Leuze electronic
Notice!
PROFIBUS address 126 is set by default in the MS 304. The integrated parameter memory for the simple replacement of the BCL 304i is located in the MS 304.
Notice!
Terminal hood
MK 304
SERVICE
21354
GNDD+D-VB ID
Mini-B USB socket
(behind protective cap)
Terminal block
PWR / SW IN/OUT
Terminal block
HOST / BUS IN
Terminal block
BUS OUT
Slide switch T:
bus
termination
Bus address switch: slide switch
x100 = hundreds digit, rotary switch x10 = tens digit, rotary switch x1 = ones digit
Terminal designation
MK 304
ON
OFF
The PROFIBUS is looped through the MS 304, i.e. the bus is not interrupted when the BCL 304i is removed from the MS 304. The bus is terminated at BUS OUT via an external mounted terminating resistor (See chap­ter 13.4 "Accessory terminating resistor").
Notice!
See chapter 5.3.5 "Dimensioned drawing of MS 3xx hood with integrated connectors / MK 3xx terminal hood" dimensioned drawing on page 51.
7.2.2 MK 304 terminal hood with spring-loaded terminals
The MK 304 terminal hood makes it possible to connect the BCL 304i directly and without additional connectors. The MK 304 features three cable lead-throughs in which the shielding
connection for the interface cable is also located. When the device is exchanged, the PROFIBUS address does not have to be re-set; it stays set in the MS304. The PROFIBUS is not interrupted when the device is exchanged. A Mini-B type USB socket i
service purposes. One slide switch and two rotary switches are integrated in the MK 304 for setting the PROFIBUS address. The slide switch for termination of the PROFIBUS is also located in the interior of the MK 304.
Electrical connection
s used for
Leuze electronic BCL 304i 69
Figure 7.3:BCL304i - MK 304 terminal hood with spring-loaded terminals
Notice!
PROFIBUS address 126 is set by default in the MK 304. The integrated parameter memory for simple exchange of the BCL 304i is located in the MK 304.
TNT 35/7-24V
Electrical connection
≈ 55 mm ≈ 8 mm ≈ 15 mm
Notice!
The PROFIBUS is looped through the MK 304, i.e. the bus is not interrupted when the BCL 304i is removed from the MK 304. The PROFIBUS is terminated via slide switch T in the MK 304. If the termination is activated (slide switch T in the ON position), the down­stream bus is disconnected.
Cable fabrication and shielding connection
Remove approx. 78mm of the connection cable sheathing. 15 mm of sheath of the shielded line must be freely accessible.
Figure 7.4: Cable fabrication for MK 304 terminal hood
The shield is automatically contacted when the cable is lead into the metal screw fitting and fastened when the cord grip is closed. Then lead the individual wires into the termina according to the diagram. Wire end sleeves are not necessary.
Notice!
See chapter 5.4 "Reading field curves / optical data" dimensioned drawing on page 52.
ls
70 BCL 304i Leuze electronic
Electrical connection
M12 plug
(A-coded)
MS 304
Spring-loaded terminals
MK 304
7.3 Detailed description of the connections
Described in detail in the following are the individual connections and pin assignments.
7.3.1 PWR / SW IN/OUT - Voltage supply and switching input/outputs 1 and 2
PWR / SW IN/OUT
PWR / SW IN/OUT
SWIO_1
2
GNDIN VIN
3
1
5
4
FE
SWIO_2
Pin
(M12)
Name
Remark
(terminal)
1VIN
Positive supply voltage +18 … +30V DC
2 SWIO_1 Configurable switching input / output 1
3 GNDIN
Negative supply voltage 0VDC
4 SWIO_2 Configurable switching input / output 2
5FE
Functional earth
FE
VIN
GNDIN
SWIO_1
Thread FE Functional earth (housing)
SWIO_2
Table 7.1: Pin assignment PWR / SW IN/OUT
Supply voltage
Attention!
For UL applications, use is permitted exclusively in Class 2 circuits according to NEC (National Electric Code).
The bar code readers of the BCL 300i … series are designed in accordance with safety class III for supply by PELV (protective extra-low voltage).
Connecting functional earth FE
ª Ensure that the functional earth (FE) is connected correctly. Unimpaired operation is only
guaranteed when the functional earth is connected properly. All electrical disturbances (EMC couplings) are discharged via the functional earth connection.
Leuze electronic BCL 304i 71
TNT 35/7-24V
Electrical connection
Switching input
Switching output
from controller (deactivated)
Switching input to controller
Switching input / output
The bar code readers of the BCL 300i series are equipped with two freely programmable, opto-decoupled switching inputs and outputs, SWIO_1 and SWIO_2.
The switching inputs can be used to activate various internal functions of the BCL 304i (decoding, autoConfig, …). The switching outputs can be used to signal the st BCL 304i and to implement external functions independent of the superior control.
Notice!
The respective function as input or output can be set with the aid of the webConfig configuration tool!
Described in the following is the external wiring for use as a switching input or output; the respective function assignments to the switching inputs/outputs can be found in chapter 10.
Function as switching input
Figure 7.1: Switching input connection diagram SWIO_1 and SWIO_2
ª If you use a sensor with a standard M 12 connector, please note the following:
•Pins 2 and 4 must not be operated as switching outputs if sensors which function as inputs are also connected to these pins.
If, for example, the inverted sensor output is connected to pin 2, and pin 2 of the bar code reader is, at the same time, configured as an outpu output malfunctions.
ate of the
t (and not as an input), the switching
Attention!
The maximum input current must not exceed 8 mA!
72 BCL 304i Leuze electronic
Electrical connection
Switching output
Switching output
from controller
Switching input to controller (deactivated)
Function as switching output
Figure 7.2: Switching output connection diagram SWIO_1 / SWIO_2
Attention!
Each configured switching output is short-circuit proof! Do not load the respective switching output of the BCL 304i with more than 60mA at +18 … +30VDC in normal operation!
Notice!
Both switching inputs/outputs SWIO_1 and SWIO_2 are configured by default in such a way that:
• Switching input SWIO_1 activates the reading gate.
• Switching output SWIO_2 switches by default on "No Read."
Leuze electronic BCL 304i 73
TNT 35/7-24V
Electrical connection
SERVICE
21354
GNDD+D-VB ID
7.3.2 SERVICE – USB interface (Mini-B type)
SERVICE – USB interface (Mini-B type)
Pin
(USB Mini-B)
1VBSense input
2D-Data -
3D+Data +
4 ID Not connected
5GNDGround
Table 7.2: Pin assignment SERVICE – Mini-B type USB interface
ª Ensure adequate shielding.
The entire connection cable must absolutely be shielded acc. to the USB specifications. Cable length must not exceed 3 m.
ª Use the Leuze-specific USB service cable (See chapter 13 "Type overview and acces-
sories") for the connection and use a service PC to configure.
Notice!
IP 65 is achieved only if the connectors and caps are screwed into place.
Name Remark
74 BCL 304i Leuze electronic
7.3.3 HOST/BUS IN for BCL 304i
HOST / BUS IN
3
2
1
4
5
n.c.GNDP
FE
N
P
M12 connector
(B-coded)
MS 304
P
n.c.
n.c.
GNDP
N
Spring-loaded terminals
MK 304
The BCL 304i makes an interface of type DP IN - incoming PROFIBUS available as HOST/BUS IN connection.
HOST / BUS IN PROFIBUS DP incoming (5-pin connector, B-coded)
Pin
(M12)
Name
(terminal)
1n.c.
Not connected
Electrical connection
Remark
2N
3 GNDP
4P
5FE
FE via
FE via screw
thread
fitting
Receive/transmit data A-line (N)
PROFIBUS reference ground
Receive/transmit data B-line (P)
Functional earth / shield
Functional earth (housing)
Table 7.3:Pin assignment HOST / BUS IN BCL 304i
TNT 35/7-24V
Leuze electronic BCL 304i 75
Electrical connection
BUS OUT
VP
1
2
3
4
N
P
GNDP
FE
5
M12 socket
(B-coded)
MS 304
Spring-loaded terminals
MK 304
7.3.4 BUS OUT for the BCL 304i
To set up the PROFIBUS with additional participants, the BCL 304i makes available another interface of type DP OUT - outgoing PROFIBUS DP.
BUS OUT PROFIBUS DP outgoing (5-pin connector, B-coded)
(M12)
Pin
Name
(terminal)
1VP
Remark
+5 V DC for bus termination
Receive/transmit data A-line (N)
PROFIBUS reference ground
Receive/transmit data B-line (P)
Functional earth / shield
Functional earth (housing)
n.c.
n.c.
GNDP
2N
3 GNDP
4P
5FE
P
N
FE via
thread
FE via
screw fitting
Table 7.4: Pin assignment BUS OUTBCL 304i
Notice!
Ensure adequate shielding. The entire connection cable must be shielded and earthed. For connecting DP IN and DP OUT, we recommend the ready-made PROFIBUS cables. See "Accessory ready-made cables for bus connection" on page 139.
76 BCL 304i Leuze electronic
7.3.5 PROFIBUS termination
The last physical PROFIBUS participant must be terminated with a terminating resistor (see "Accessory terminating resistor" on page 138) on the BUS OUT socket or via the activation of the termination using a slide switch in the MK 304.
7.4 Cable lengths and shielding
ª Observe the following maximum cable lengths and shielding types:
Connection Interface Max. cable length Shielding
BCL – service
PROFIBUS
BCL – power
supply unit
Switching input
Switching output
Table 7.5: Cable lengths and shielding
USB 3 m
PROFIBUS DP
Electrical connection
shielding absolutely necessary
acc. to USB specifications
Acc. to PNO
specifications
30m not necessary
10m not necessary
10m not necessary
acc. to PNO specifications
Leuze electronic BCL 304i 77
TNT 35/7-24V
Display elements and display
2 LEDs
8Display elements and display
The BCL 304i is available optionally with display, two control buttons and LEDs or with only two LEDs as display elements.
8.1 LED indicators BCL 304i
Figure 8.1: BCL 304i - LED indicators
Two multicolor LEDs are used as the primary display instrument. LED functions:
PWR LED
off Device OFF
flashes green Device ok, initialization phase
- no supply voltage
- no bar code reading possible
-voltage connected
- self test running
-initialization running
green continuous light Device ok
- bar code reading possible
- self test successfully finished
- device monitoring active
green, briefly off - on Good read, successful reading
- bar code(s) successfully read
98 BCL 304i Leuze electronic
Display elements and display
green, briefly off - briefly red - on No read, reading not successful
- bar code(s) not read
orange continuous light Service mode
- bar code reading possible
- configuration via the USB service interface
- no data on the host interface
flashes red Warning set
- bar code reading possible
- temporary operating fault
red continuous light Device error / parameter enable
- no bar code reading possible
BUS LED
off No supply voltage
- no communication possible
flashes green Initialization
- of the BCL 304i, establishing communica- tion
green continuous light Operation ok
- bus ok, BCL 304i active on bus ("data exchange")
flashes red Communication error
Bus error
- configuration failed ("parameter failure")
-DP error
-No data exchange
red continuous light Network error
Leuze electronic BCL 304i 99
TNT 35/7-24V
Display elements and display
Control buttons
Display
2 LEDs
8.2 Display BCL 304i
Figure 8.2: BCL 304i - Display
Notice!
The function of the LEDs is identical for the devices with and without display.
The optional display of the BCL 304i has the following features:
• Monochromatic with background lighting (blue/white)
•Double line, 128 x 32 pixels
•Display language: English
The display is only used as a display element. Two buttons can control which values are displayed. In doing displays the result.
The background lighting is activated by the push of any button and automatically deactivated
after a defined point in time:
so, the upper line displays the selected function and the lower line
Display functions
The following functions can be displayed and activated:
• Reading result = result of reading process
• Decodequality = quality of decoding process
• BCL Info = device status/error code
• I/O Status = status of the in/output
• BCL Address = of the BCL 304i on the PROFIBUS
• Adjustmode = alignment mode
• Version = software and hardware version
After the voltage is switched off/on, reading result is always dis
played.
The display is controlled via the two control buttons:
100 BCL 304i Leuze electronic
Display elements and display
ENTER Activate/deactivate the display change function
Down Scroll through functions (downwards)
Example:
Representation of the BUS status on the display:
1. Press button : display flashes
2. Press button : display changes from read result to decoding quality
3.Press bu tton : display changes from decoding quality to device status
4. Press button : display changes from device status to BUS s
5. Press button : bu s status is displayed, display stops flashing.
Description of the display functions
tatus
Reading result 88776655
Decoding quality 84
BCL info Error code 3201
I/O status In = 0 Out = 1
BCL address 25
Adjust mode 73
Version SW: xxxxx HW: xxx
•1st line: read result display function
• 2nd line: code content of the bar code, e.g. 88776655
•1st line: decoding quality display function
• 2nd line: decoding quality in percent, e.g. 84%
•1st line: device status display function
• 2nd line: error code, e.g. Error code 3201
•1st line: input/output state display function
• 2nd line: state: 0 =inactive, 1 = active, e.g. In=0, Out=1
•1st line: bus address display function
• 2nd line: set address, e.g. 25
•1st line: alignment mode display function
• 2nd line: decoding quality in percent, e.g. 73%
•1st line: version display function
• 2nd line: software and hardware version of the device
TNT 35/7-24V
Leuze electronic BCL 304i 101
Leuze webConfig tool
USB Mini-B
9 Leuze webConfig tool
With the Leuze webConfig tool, an operating system independent, web-technology based, graphical user interface is available for configuring bar code readers of the BCL 300i series.
Through the use of HTTP as communication protocol and by using only standard technolo­gies on the client side (HTML, JavaScript and AJAX), which are supported by all commonly
used, modern browsers (e.g. Mozilla Firefox Explorer beginning with Version 8.0), it is possible to operate the Leuze webConfig tool
on any internet-ready PC.
Notice!
The webConfig tool is offered in 5 languages:
•German
• English
• French
• Italian
• Spanish
9.1 Connecting the SERVICE USB interface
The SERVICE USB interface of the BCL 304i is connected via the PC -side USB interface by means of a standard USB cable, with 1 type A connector and 1 Mini-B type connector.
beginning with Version 3.0 or Internet
Figure 9.1: Connecting the SERVICE USB interface
102 BCL 304i Leuze electronic
9.2 Installing the required software
9.2.1 System requirements
Operating system: Windows 2000
Computer: PC with USB interface version 1.1 or higher Graphics card: min. 1024 x 768 pixels or higher resolution Required hard-disk capacity: approx. 10 MB
Notice!
Updating the operating system and the browser regularly and installing the current Windows service packs is recommended.
9.2.2 Installing the USB driver
Notice!
If you have already installed a USB driver for a BCL 5xxi on your computer, you don't have to install the USB driver for the BCL 304i. In this case, you can also start the webConfig tool of the BCL 304i by double-clicking on the BCL 5xxi icon.
In order for the BCL 304i to be automatically detected by the connected PC, the USB driver must be installed once on your PC. To do this, you must have administrator privileges.
Please proceed according to the following steps:
ª Start your PC with administrator privileges and log on.
ª Load the CD included in the delivery contents of your BCL 304i in the CD drive and start
the "setup.exe" program.
ª Alternatively, you can also download the setup program from the internet at
www.leuze.com.
ª Follow the instructions provided by the setup program.
Upon successful installation of the USB driver, an icon with the name automatically appears on the desktop.
Leuze webConfig tool
Windows XP (Home Edition, Professional) Windows Vista Windows 7
TNT 35/7-24V
Leuze Web Config
Notice!
If the installation failed, contact your network administrator: The settings of the firewall used may need to be adjusted.
Leuze electronic BCL 304i 103
Leuze webConfig tool
9.3 Starting the webConfig tool
To start the webConfig tool, click the icon with the name Leuze Web Config located on the desktop. Make certain that the BCL 304i is connected to the PC via the USB interface and that voltage is connected.
Notice!
If you have already installed a USB driver for a BCL 5xxi on your computer, you can also start the webConfig tool of the BCL 304i by double-clicking on the BCL 5xxi icon.
Alternatively, you can start the webConfig tool by starting the browser installed on your PC and entering the following IP address: 192.168.61.100
This is the default Leuze ma the BCL 300i and BCL 500i series.
In both cases, the following start page appears on your PC.
intenance address for communication with bar code readers of
Figure 9.2: The start page of the webConfig tool
Notice!
The webConfig tool is completely contained in the firmware of the BCL 304i. Depending on firmware version, the start page may vary from that shown above.
The individual parameters are – where us efu l – graphically displayed in order to better illustrate the me
The result is an easy-to-use and practically-oriented user interface!
104 BCL 304i Leuze electronic
aning of the what are often perceived as abstract parameters.
9.4 Short description of the webConfig tool
The webConfig tool has 5 main menus:
Home
• with information on the connected BCL 304i as well as on installation. This informa- tion corresponds to the information in this handbook.
•
Alignment
for manually starting read processes and for aligning the bar code reader. The results of the read processes are displayed immediately. As a result, this menu item can be used to determine the optimum installation location.
•
Configuration
for adjusting decoding, for data formatting and output, switching inputs/outputs, communication parameters and interfaces, etc. …
•
Diagnostics
for event logging of warnings and errors.
•
Maintenance
for updating the firmware.
The user interface of the webConfig tool is largely self-explanatory.
9.4.1 Module overview in the Configuration menu
The adjustable parameters of the BCL 304i are clustered in modules in the Configuration menu.
Leuze webConfig tool
Figure 9.3:Module overview in the webConfig tool
Leuze electronic BCL 304i 105
TNT 35/7-24V
Leuze webConfig tool
Notice!
The webConfig tool is completely contained in the firmware of the BCL 304i. Depending on firmware version, the module overview may vary from that shown above.
The individual modules and their relationships to one another are graphically displayed in the module overview. The display is context sensitive, i.e. click a module to directly access the corresponding submenu.
Overview of the configurable modules
• Device:
Configuration of the switching inputs and outputs
•
Decoder:
Configuration of the decoder table, such as code type, number of digits, etc.
•
Control:
Configuration of activation and deactivation, e.g. auto-activation, AutoReflAct, etc.
•
Data:
Configuration of code content, such as filtering, segmentation of bar code data, etc.
•
Output:
Configuration of data output, header, trailer, reference code, etc.
Communication
• Configuration of the host interface and the service interface
•
Oscillating mirror:
Configuration of the oscillating mirror settings
Notice!
On the right side of the user interface of the webConfig tool, you will find a description of the individual modules and functions as a help text in the Information area.
The webConfig tool is available for all bar code readers of the BCL 300i series. Because configuration of the BCL 304i PROFIBUS device is performed via the PROFIBUS, the module overview shown in the webConfig tool is, in this case, used only for displaying and checking the configured parameters.
Notice!
If parameters are set via webConfig which are simultaneously activated via the GSD file modules, the settings made via the PLC (GSD) always prevail.
The current configuration of your BCL 304i is loaded upon startup of the webConfig tool. If you change the configuration via the PROFIBUS while the webConfig tool is running, you can use the "Load parameter from device" button after making the changes to update the display in the webConfig tool. This button appears in the upper left in the center window area in all submenus of the Config
106 BCL 304i Leuze electronic
uration main menu.
Commissioning and configuration
10 Commissioning and configuration
Attention Laser!
Observe the safety notices in chapter 2!
10.1 General information on the PROFIBUS implementation of the
BCL 304i
10.1.1 Communication profile
The communication profile defines how participants serially transmit their data via the transmission medium. The BCL 304i supports the communication profile for automation systems and Decentral Periphery -> PROFIBUS DP.
DP communication profile
The PROFIBUS DP communication profile is designed for efficient data exchange on the field level. Data exchange with the decentral devices occurs primarily cyclically. The neces-
sary communication functions are defined in the DP base functions. The DP optionally offers acyclic communication services as well. These are used for configuring, operating,
observing and alarm handling. In order to be
differentiates between on the basis of the data access points transmitted in the telegram header.
The BCL 304i profile is based on the PROFIBUS profile for identification systems.
able to perform data exchange, services are defined which PROFIBUS DP
10.1.2 Bus-access protocol
The PROFIBUS communication profiles (DP,FMS) use a uniform bus-access process. It is implemented by layer 2 of the OSI model. The bus-access control (MAC) defines the process for specifying the point in time at which a network device can transmit data. It must ensure that no more than one participant has permission to transmit at any given time. The PROFIBUS bus-access process includes the token-pass process.
Process Description BCL 304i
With this process, the bus-access permission is distributed by means of a token. The participant obtains permission to
Token-passing process
Master-slave process
Table 10.1: PROFIBUS bus-access processes
Leuze electronic BCL 304i 87
transmit with the token. The token wanders between the master devices in the ring in a permanently defined time frame. This type of bus access is used for communication between the masters. Various slave devices are assigned to a master. The master can address the slaves which are assigned to it and fetch messages from them. The master always has the initiative.
ing process and the master-slave
No
Ye s
TNT 35/7-24V
Commissioning and configuration
The two processes can also be mixed in order to create a multi-master system. The BCL 304i functions both in a mono-master system as well as in a multi-master system.
Notice!
In 2007, the PROFIBUS DP was extended by the DPV2 specification. The specification will then also permit slave-slave communication. The BCL 304i does not support this type of communication.
10.1.3 Device types
With the PROFIBUS DP, there are two types of master and one type of slave:
Device type Description BCL 304i
Class 1 master (DPM1)
Class 2 Master (DPM2)
Slave
Table 10.2: PROFIBUS DP master and slave types
Notice!
The device is defined as a slave in the device master file (GSD file) of the BCL 304i!
10.1.4 Expanded DP functions
The PROFIBUS standard has been expanded (DPV1) and, in addition to the cyclic services, also offers acyclic services. These services operate in parallel with the cyclic user-data communication. Masters and slaves can use additional READ and WRITE functions as well as ALARM functions. This is intended especially for operation with
master class 2, DPM2) in order to change parameters and read out status information during normal operation.
The acyclic services operate with lower priority. The functions are different for the various master classes.
Class 1 masters are defined for the user-data communication. (e.g.PLC,PC) Class 2 masters are defined for commissioning purposes. Additional services facilitate easier configuration as well as device diagnosis. The slave is a peripheral device which makes ava data for the control and receives output data from the control.
ilable input
X
an engineering tool (DP-
Function Slave SAP Description BCL 304i
MSAC1_Read SAP51 Read datablock at slave Yes MSAC1_Write SAP51 Write datablock at slave Yes
1)
2)
Table 10.3: Services for DPVM1 class 1 and slaves
1) For I&M functionality
2) For I&M functionality
88 BCL 304i Leuze electronic
Function Slave SAP Description BCL 304i
MSAC2_Read51Read datablock at slave No MSAC2_Write 51 Write datablock at slave No
MSAC2_Initiate 49
MSAC2_Abort 0 … 48
MSAC1_Data_Transport 0 … 48
Table 10.4: Services for DPVM1 class 2 and slaves
Notice!
All expanded services are not implemented for the first BCL 304i PROFIBUS profile.
10.1.5 Automatic baud rate detection
The PROFIBUS implementation of the BCL 304i features automatic baud rate detection. The BCL 304i uses this function and offers no possibility for manual or permanent adjust­ment. The following baud rates are supported:
Baud rate kBit/s
Automatic baud rate detection is indicated in the device master file of the BCL 304i:
Auto_Baud_supp = 1
9,6 19,2 45,45 93,75 187,5 500 1500 3000 6000 12000
Commissioning and configuration
Establish connection between DPM2 and slave Establish connection between DPM2 and slave Write data to slave and re from slave in a service cycle
ad data
No
No
No
Leuze electronic BCL 304i 89
TNT 35/7-24V
Commissioning and configuration
PWR / SW IN/OUT
SWIO_2
SWIO_1
3
2
1
4
5
GNDIN VIN
FE
SERVICE
21354
GNDD+D-VB ID
BUS OUT
VP
1
2
3
4
N
P
GNDP
FE
5
HOST / BUS IN
3
2
1
4
5
n.c.GNDP
FE
N
P
Mini-B USB socket
(behind protective cap)
M12 plug
(A-coded)
M12 plug
(B-coded)
M12 socket
(B-coded)
Hood with integrated connectors
MS304
Terminal hood
MK 304
SERVICE
21354
GNDD+D-VB ID
Mini-B USB socket
(behind protective cap)
Terminal block
PWR / SW IN/OUT
Terminal block
HOST / BUS IN
Terminal block
BUS OUT
Slide switch T:
bus
termination
Bus address switch: slide switch
x100 = hundreds digit, rotary switch x10 = tens digit, rotary switch x1 = tens digit
Terminal designation
MK 304
ON
OFF
10.2 Measures to be performed prior to the initial commissioning
ª Before commissioning, familiarize yourself with the operation and configuration of the
BCL 304i.
ª Before connecting the supply voltage, recheck all connections and ensure that they have
been properly made.
Figure 10.1: BCL 304i - MS304 hood with integrated M12 connectors
90BCL304i Leuze electronic
Figure 10.2: BCL 304i - MK 304 terminal hood with spring-loaded terminals
ª Check the applied voltage. It must be in the range between +18V … 30VDC.
Connecting functional earth FE
Terminal hood
MK 304
Setting of the PROFIBUS address: rotary switch x1 = ones digit, rotary switch x10 = tens digit, slide switch
x100
= hundreds digit
Hood with integrated connectors
MS304
Setting of the PROFIBUS address: rotary switch x1 = ones digit, rotary switch x10 = tens digit, slide switch
x100 = hundreds digit (ON = address 100 … 126 OFF = address 1…99)
Slide switch
PROFIBUS termi-
nation
ON
OFF
ON
OFF
ON
OFF
ª Ensure that the functional earth (FE) is connected correctly.
Unimpaired operation is only guaranteed when the functional earth is connected properly. All electrical disturbances (EMC couplings) are discharged via the functional earth connection.
10.3 Setting of the PROFIBUS address
In the MS304 and MK 304, the PROFIBUS address can be set using two rotary switches and a slide switch.
Commissioning and configuration
Leuze electronic BCL 304i 91
Figure 10.3:BCL304i - setting of the PROFIBUS address
The set address must be greater than or equal to 1 and less than or equal to 126. On delivery, the address is set to 126. Address 126 may not be used for data communication. It m
ay only be used temporarily for commissioning.
The address has be set individually in the connection hood of every BCL 304i type bar code reader.
Notice!
The BCL 304i does not support automatic address assignment via the PROFIBUS!
TNT 35/7-24V
Commissioning and configuration
10.4 Commissioning via the PROFIBUS
10.4.1 General information
The BCL 304i is designed as a PROFIBUS slave device. The functionality of the device is defined via parameter sets which are clustered in modules. The modules are included in a GSD file, which is supplied as an integral part of the device. By using a user-specific config- uration tool, such as, e.g., Simatic Manager for the programmable logic control by Siemens, the required modules are integrated into a project during commissioning and its settings and parameters are adjusted accordingly. These modules are provided by the GSD file.
Notice!
All input and output modules described in this documentation are described from the controller's perspective:
- Input data arrives at the controller.
- Output data is sent out by the controller.
10.4.2 Preparing the control system for consistent data transmission
During programming the control system must be prepared for the consistent data transmission. This varies from control system to control system. The following possibilities are available for the Siemens control systems.
S7
The specific function blocks SFC 14 for input data and SFC 15 for output data must be integrated in the program. These are standard function blocks and are used to facilitate consistent data transmission.
92BCL304i Leuze electronic
10.4.3 General information on the GSD file
You can find the GSD file at www.leuze.com -> Download -> identify -> Stationary and hand-held bar code readers.
All data in modules required for operating the BCL 304i is described in this file. These are input and output data and device parameters for the functioning of the BCL 304i and the definition of the control and status bits.
If parameters are changed, e.g., in the project tool, these changes a side in the project, not in the GSD file. The GSD file is a certified and integral part of the device and must not be changed manually. The file is not changed by the system either.
The functionality of the BCL 304i is defined via GSD parameter sets. The parameters and their functions are structured in the GSD file using module. A user-specific configuration tool is
used during PLC program creation to integrate the required modules and configure them
appropriately for their respective use. During operation of the BCL 304i on the PROFIBUS, all parameters are set to default values. If these parameters are not changed by the user,
the device functions with the default settings delivered by Leuze electronic. For the default settings of the BCL 304i, please refer to the following mod
Notice!
Please note that the set data is overwritten by the PLC! Some controls make available a so-called "universal module". This module must not be activated for the BCL 304i!
From the perspective of the device, a distinction is made between PROFIBUS parameters and internal parameters. PROFIBUS parameters are all parameters that can be changed via
the PROFIBUS and are described in the following modules. Internal parameters, on the other hand, can only b a PROFIBUS configuration.
During the configuration phase, the BCL receives a parameter telegram from the master. Before this is evaluated and the respective parameter values are set, all PROFIBUS parameters are reset to default values. This ensure not selected are set to the default values.
Notice!
This does not affect modules 1-4 for the code table extension. By default, all but the first code table entry are locked. If "no code" is selected here, all subsequent code tables are deactivated (see chapter 10.6.1 "Modules 1-4 – Code table extensions 1 to 4").
e changed via a service interface and retain their value even following
Commissioning and configuration
re stored on the PLC
ule descriptions.
s that the parameters of modules that are
TNT 35/7-24V
Leuze electronic BCL 304i 93
Commissioning and configuration
10.4.4 Permanently defined parameters / device parameters
On the PROFIBUS, parameters may be stored in modules or may be defined permanently in a PROFIBUS participant.
The permanently defined parameters are called "common" parameters or device-specific parameters, depending on the configuration tool.
These parameters must always be present. They are defined outside of the modules and are perm
Simatic S7 Controller
In Simatic Manager, the permanently defined parameters are set via object properties of the device. The module parameters are set via the module list of the selected device. By selecting the project properties of a module, the respective parameters may be set if required.
The following list contains the parameters that are permanently defined in the BCL 304i but are config modules.
Parameter Description Addr. Data type Value ra nge Default Unit
Profile number
Code type 1
Number-of­digits mode
Digits 1
Digits 2
Digits 3
Digits 4
Digits 5
Reading reliability
Table 10.5: "Common" Parameters
anently anchored in the telegram header.
urable. These parameters always exist and are available independent of the
Number of the activated profile. For BCL 304i: constant with value 0
Released code type; no code means that all subsequent code tables are also deactivated.
The valid number of digits also depends on the code type.
Specifies how the subsequent numbers of digits are to be interpreted.
Decodable number of digits; in the case of a range, this number defines the lower limit. Decodable number of digits; in the case of a range, this number defines the upper limit. Decodable number of digits in the enumeration mode. Decodable number of digits in the enumeration mode. Decodable number of digits in the enumeration mode. Min. reading reliability to be achieved in order to output a read code.
0 Byte 0 … 255 0 -
0: 0: No code 1: 2/5 Interleaved 2: Code39 2: Code32 6: UPC, UPCE 7: EAN8, EAN13 8: Code128
1.0 … BitArea
1.5
2.6 Bit
2.0 …
1)
UNSIGNED8 0…63 10 -
2.5
3 UNSIGNED8 0…63 0-
4UNSIGNED8 0…63 0-
5UNSIGNED8 0…63 0-
6UNSIGNED8 0…63 0-
7UNSIGNED8 1…100 4 -
10: EAN Addendum 11: Codabar 12: Code93 13:GS1 Data Bar
OMNIDIRECTIONAL
14: GS1 Data Bar
LIMITED
15: GS1 Data Bar
EXPANDED 0: Enumeration 1: Range
1 -
0-
94BCL304i Leuze electronic
Commissioning and configuration
Parameter Description Addr. Data t ype Val ue ra nge Default Unit
Check digit procedure
Check digit output
Code type 2 See code type 1
Number­of-digits mode 2
Digits 2.1
Digits 2.2
Digits 2.3
Digits 2.4
Digits 2.5
Reading reliability 2
Check digit procedure 2
Check digit output 2
Used check digit procedure
Turns the check digit output on or off. 8.7 Bit
Specifies how the subsequent numbers of digits are to be interpreted.
Decodable number of digits; in the case of a range, this number defines the lower limit.
Decodable number of digits; in the case of a range, this number defines the upper limit. Decodable number of digits in the enumeration mode. Decodable number of digits in the enumeration mode. Decodable number of digits in the enumeration mode. Min. reading reliability to be achieved in order to output a read code.
Used check digit procedure
Turns the check digit output on or off. 16.7 Bit
8.0 … BitArea
8.6
9.0 … BitAreaSee code type 1 0 -
9.5
10.6 Bit
10.0
…
UNSIGNED8 0…63 0-
10.5
11 UNSIGNED8 0…63 0-
12 UNSIGNED8 0…63 0-
13 UNSIGNED8 0…63 0-
14 UNSIGNED8 0…63 0-
15 UNSIGNED8 1…100 4 -
16.0
…
BitArea
16.6
0: Standard check digit
evaluation
1: No check digit
verification 2: MOD10 Weight 3 3: MOD10 Weight 2 4: MOD10 Weight 4_9 5: MOD11 Cont 6: MOD43 7: MOD16
Check digit output
0: Standard 1: Not standard
0: Enumeration 1: Range
0: Standard check digit
evaluation 1: No check digit
verification 2: MOD10 Weight 3 3: MOD10 Weight 2 4: MOD10 Weight 4_9 5: MOD11 Cont 6: MOD43 7: MOD16
Check digit output
0: Standard 1: Not standard
0-
0-
0-
0-
0-
Table 10.5: "Common" Parameters
TNT 35/7-24V
Leuze electronic BCL 304i 95
Commissioning and configuration
Parameter Description Addr. Data type Value ra nge Default Unit
Code type 3See code type 1.
Number­of-digits mode 3
Digits 3.1
Digits 3.2
Digits 3.3
Digits 3.4
Digits 3.5
Reading reliability 3
Check digit procedure 3
Check digit output 3
Specifies how the subsequent numbers of digits are to be interpreted.
Decodable number of digits; in the case of a range, this number defines the lower limit.
Decodable number of digits; in the case of a range, this number defines the upper limit. Decodable number of digits in the enumeration mode. Decodable number of digits in the enumeration mode.
Decodable number of digits in the enumeration mode.
Min. reading reliability to be achieved in order to output a read code.
Used check digit procedure.
Turns the check digit output on or off. 24.7 Bit
17.0 …
BitAreaSee code type 1 0 -
17.5
18.6 Bit
18.0 …
UNSIGNED8 0…63 0-
18.5
19 UNSIGNED8 0…63 0-
20 UNSIGNED8 0…63 0-
21 UNSIGNED8 0…63 0
22 UNSIGNED8 0…63 0-
23 UNSIGNED8 1…100 4 -
24.0 …
BitArea
24.6
0: Enumeration 1: Range
0: Standard check digit
evaluation
1: No check digit
verification 2: MOD10 Weight 3 3: MOD10 Weight 2 4: MOD10 Weight 4_9 5: MOD11 Cont 6: MOD43 7: MOD16
Check digit output
0: Standard 1: Not standard
0-
0-
0-
Table 10.5: "Common" Parameters
96BCL304i Leuze electronic
Commissioning and configuration
Parameter Description Addr. Data t ype Val ue ra nge Default Unit
Code type 4 See code type 1.
Number­of-digits mode 4
Digits 4.1
Digits 4.2
Digits 4.3
Digits 4.4
Digits 4.5
Reading reliability 4
Check digit procedure 4
Check digit output 4
Specifies how the subsequent numbers of digits are to be interpreted.
Decodable number of digits; in the case of a range, this number defines the lower limit.
Decodable number of digits; in the case of a range, this number defines the upper limit. Decodable number of digits in the enumeration mode. Decodable number of digits in the enumeration mode.
Decodable number of digits in the enumeration mode.
Min. reading reliability to be achieved in order to output a read code.
Used check digit procedure.
Turns the check digit output on or off. 32.7 Bit
25.0 …
BitAreaSee code type 1 0 -
25.5
26.6 Bit
26.0 …
UNSIGNED8 0…63 0-
26.5
27 UNSIGNED8 0…63 0-
28 UNSIGNED8 0…63 0-
29 UNSIGNED8 0…63 0
30UNSIGNED8 0…63 0-
31UNSIGNED8 1…100 4 -
32.0
…
BitArea
32.6
0: Enumeration 1: Range
0: Standard check digit
evaluation
1: No check digit
verification 2: MOD10 Weight 3 3: MOD10 Weight 2 4: MOD10 Weight 4_9 5: MOD11 Cont 6: MOD43 7: MOD16
Check digit output
0: Standard 1: Not standard
0-
0-
0-
Table 10.5: "Common" Parameters
1) Specifying a 0 for the number of digits means that this entry is ignored for the device.
Parameter length: 33 byte
Input data
None
Output data
None
Notice on number of digits:
If 0 is specified in a field for the number of digits, the corresponding parameter is ignored by the device firmware.
Leuze electronic BCL 304i 97
TNT 35/7-24V
Commissioning and configuration
Example:
For a code table entry x, the two code lengths 10 and 12 are to be enabled. For this purpose, the following number of digit entries are necessary:
Number of digits mode x = 0 (enumeration) Number of digits x.1 = 10 Number of digits x.2 = 12 Number of digits x.3 = 0 Number of digits x.4 = 0 Number of digits x.5 = 0
10.5 Overview of the project modules
In the current version, a total of 52 modules are available for use. A Device Module (see "Permanently defined parameters / device parameters" on page 94) is used for basic scanner configuration BCL 304i and is permanently integrated into the project. Further modules may be included into the project according to requirements and application.
The modules
•Parameter module for the configuration of the BCL 304i
• Status or control modules that influence the input/output data.
•Modules that may include both parameters and control or status information.
A PROFIBUS module defines the existence and meaning of the input and output data. In
ddition, it defines the necessary parameters. The arrangement of the data within a module
a
is defined. The composition of the input/output data is defined via the module list. The BCL 304i interprets the incoming output data and triggers the appropriate reactions in
the BCL 304i. The interpreter for processing the data is adapted to the module structure du
ring initialization.
The same applies for the input data. Using the module list and the defined module proper­ties, the input data string is formatted and referenced to the internal data.
During cyclic operation, the input data is then passed on to the master.
fall into the following categories:
Notice!
The modules can be grouped together in any order in the engineering tool. The BCL 304i offers 52 different modules. Each of these modules may only be selected once; otherwise, the BCL 304i ignores the configuration. The BCL 304i checks its max. permissible number of modules. In addition, it checks the max. permissible total length (244 bytes each) of the input and output data over all selected modules. The specific limits of the individual modules of the BCL 304i are declared in the GSD file.
98 BCL 304i Leuze electronic
