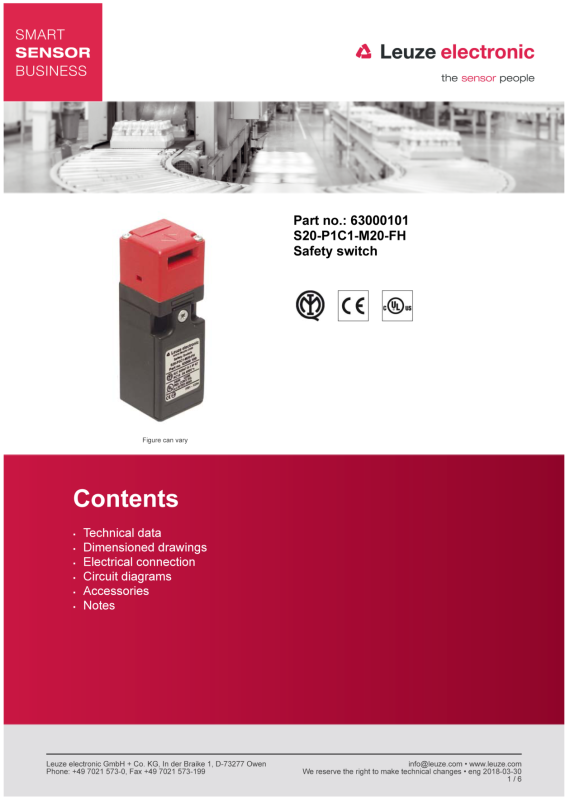

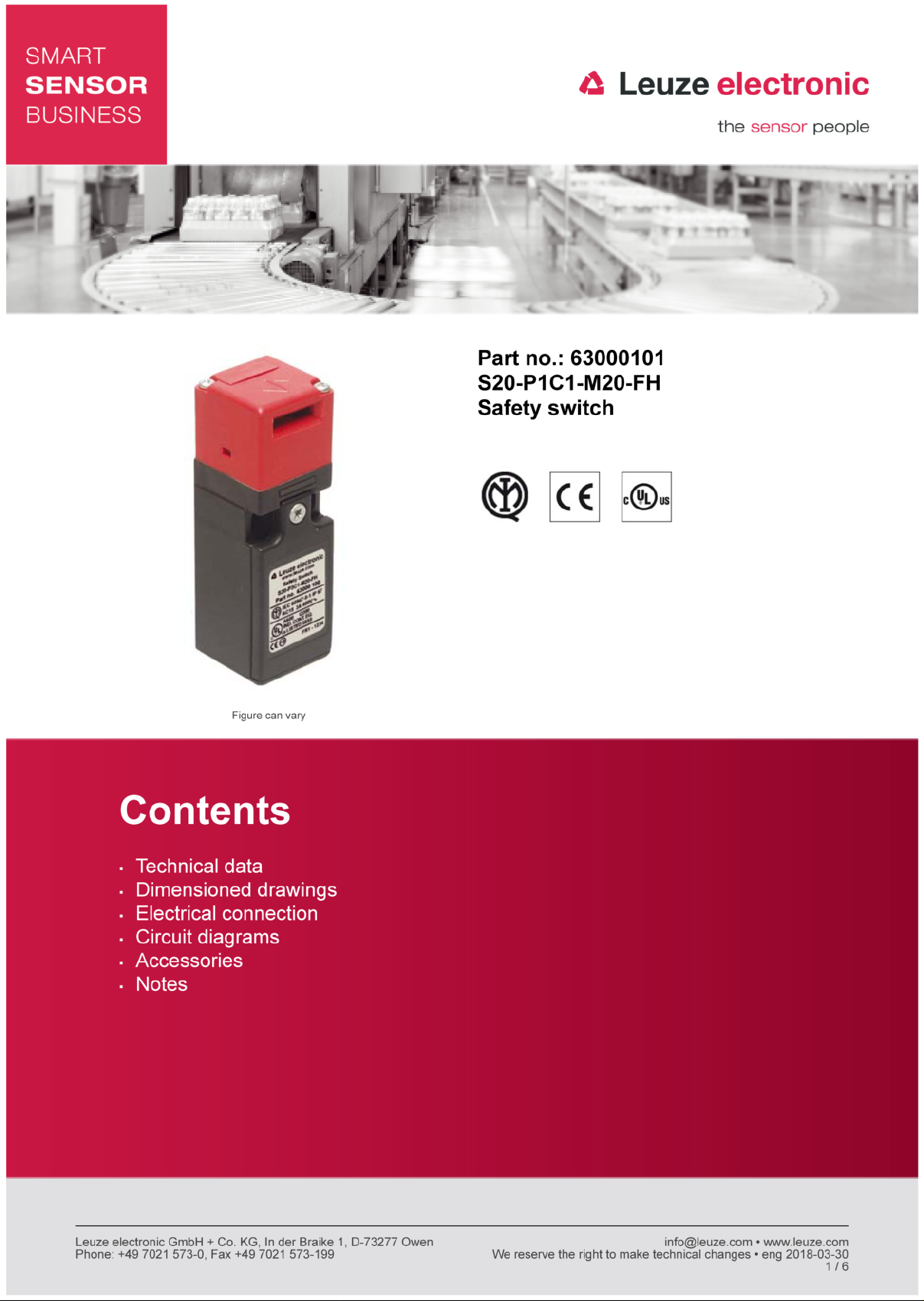

Part no.: 63000101 – S20-P1C1-M20-FH – Safety switch
Technical data
Basic data
Series S20
Functions
Functions Type 2 interlock device with mechanically actuated position switch
Characteristic parameters
Mission time T
B10
d
Electrical data
Usage category at DC 13 Ue / Ie: 24 V / 6 A, 125 V / 1.1 A, 250 V / 0.4 A, EN 60947-5-1
Usage category at AC 15 Ue / Ie: 250 V / 6 A, 400 V / 4 A, 500 V / 1 A, EN 60947-5-1
Contact allocation 1NC + 1NO
Contact opening Force-fit
Short circuit protected 500 V, 10 A, type aM, IEC 60269-1
Contact protection Protective insulation O
Performance data
Rated insulation voltage 500 V AC, 600 V DC
Conventional thermal current, max. 10 A
M
with low-coded actuator acc. to DIN EN ISO 14119
20 years, EN ISO 13849-1
2,000,000 number of cycles
Connection
Number of connections 1 Piece(s)
Number of cable entries 1 Piece(s)
Connection 1
Type of connection Terminal
Function Contact connection
Type of terminal Screw terminal
No. of pins 4 -pin
Cable properties
Connection cross sections 1 x 0.5 mm² to 2 x 2.5 mm², wire
Mechanical data
Design Cubic
Dimension (W x H x L) 30.8 mm x 30.8 mm x 93 mm
Housing material Plastic, Glass fiber reinforced (PPS), self-extinguishing
Electrical contact material Silver alloy
Net weight 99 g
Housing color Red
Type of fastening Through-hole mounting
Type of cable entry M20 x 1.5
Switch type Interlock device without guard interlocking, ISO 14119
Switching principle Slow-action contact
Approach actuation directions 4 x side (90°)
Approach speed 0 ... 0.5 m/s
Mechanical life time 1,000,000 actuation cycles, IEC 6047-5-1
Black
1 x top
eng 2018-03-30
2 / 6
Part no.: 63000101 – S20-P1C1-M20-FH – Safety switch
Actuation frequency, max. 3,600 per hour, IEC 6047-5-1
External actuator AC-ANxx series: straight, angled, resilient, alignable
Actuation force (pull-out) 10 N
Actuating path with forced separation 7.2 mm
Recoil tolerance 4.5 mm
Environmental data
Ambient temperature, operation -25 ... 80 °C
Degree of contamination, external 3, EN 60947-1
Certifications
Degree of protection IP 67
Certifications c UL US
Classification
eCl@ss 8.0 27272602
eCl@ss 9.0 27272602
ETIM 5.0 EC002592
IMQ

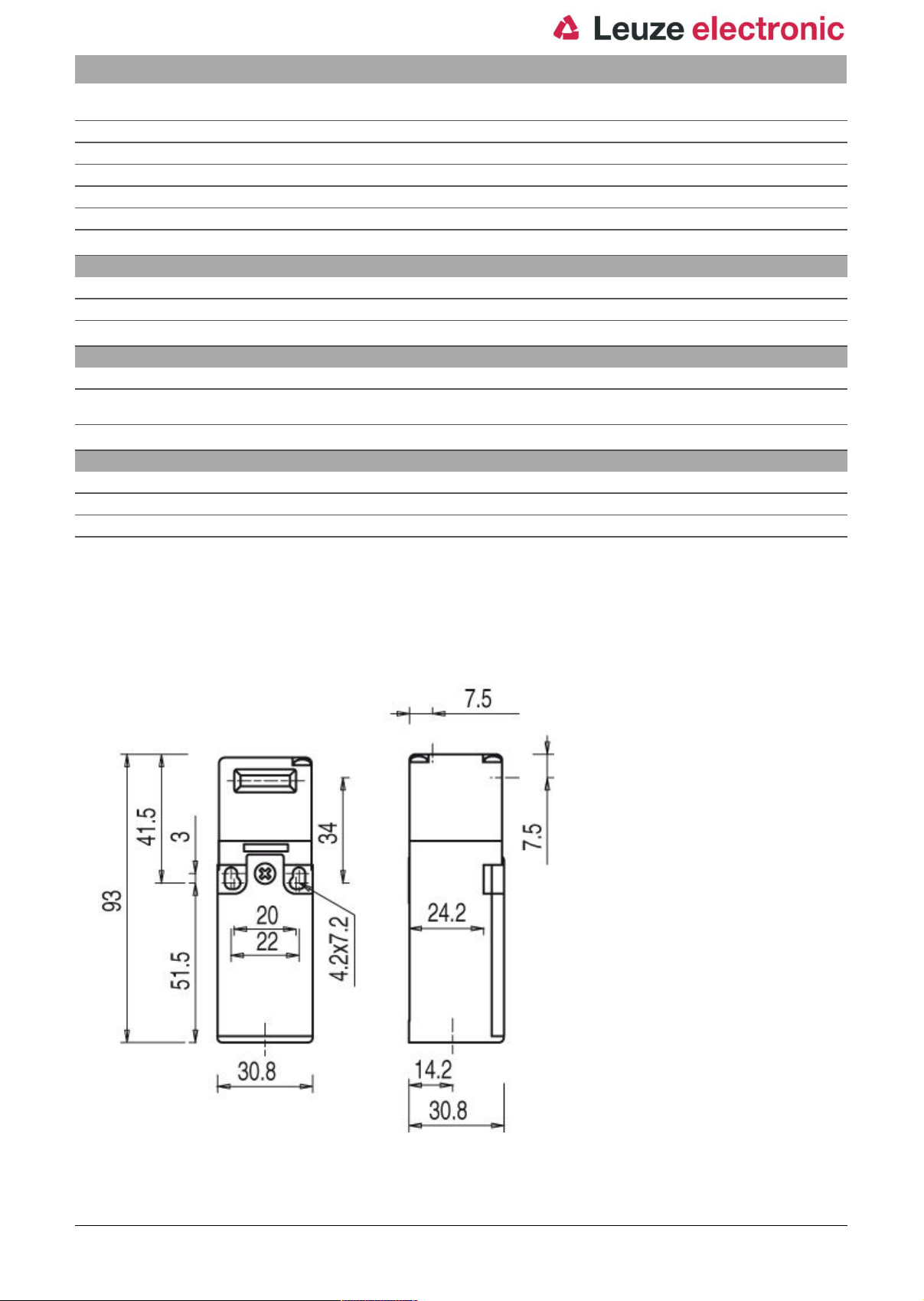

Dimensioned drawings
All dimensions in millimeters
eng 2018-03-30
3 / 6
Part no.: 63000101 – S20-P1C1-M20-FH – Safety switch

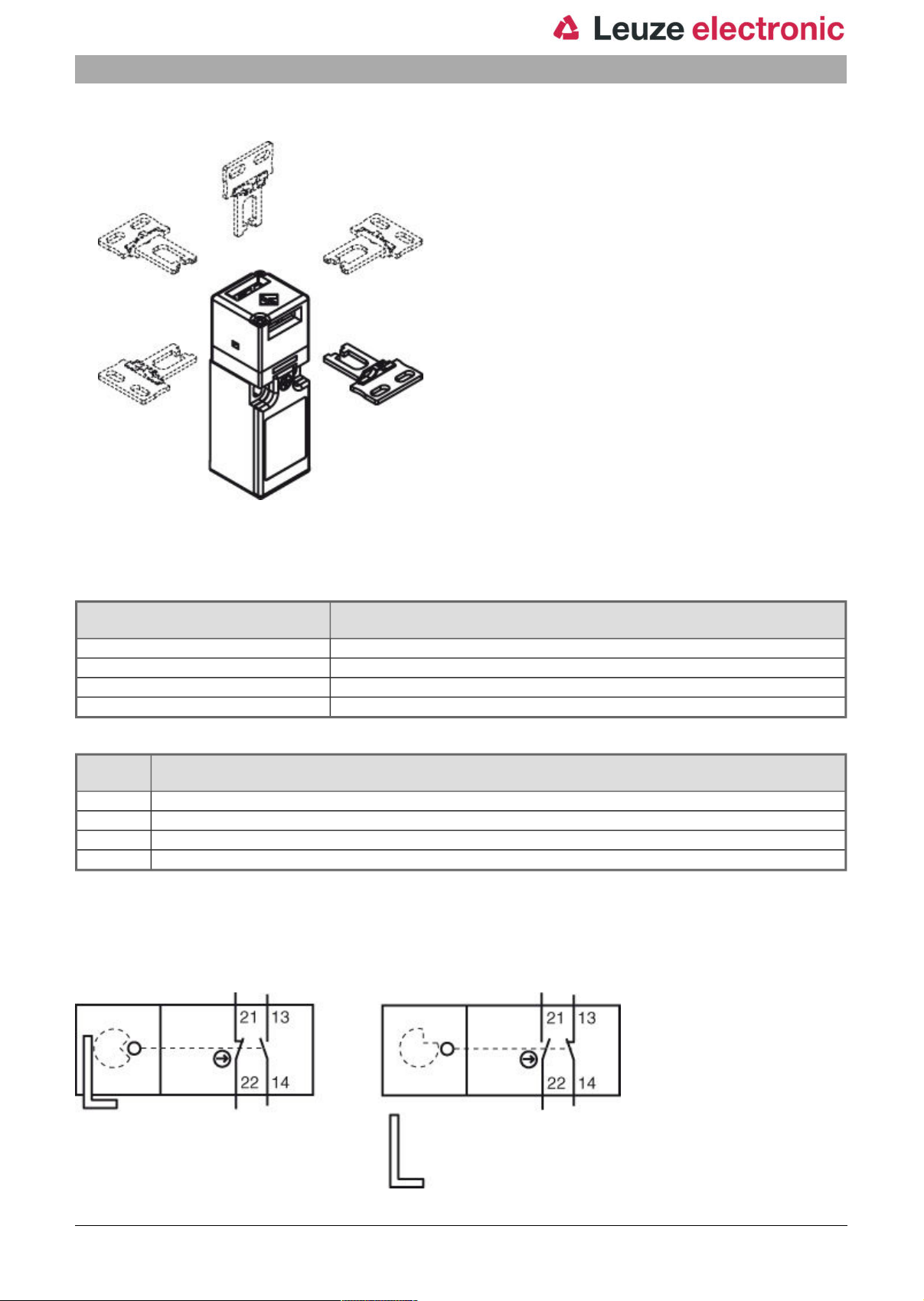

Approach directions
Electrical connection
Connection 1
Type of connection Terminal
Function Contact connection
Type of terminal Screw terminal
No. of pins 4 -pin
Terminal Assignment
13 NO
14 NO
21 NC
22 NC
Circuit diagrams
eng 2018-03-30
4 / 6
Part no.: 63000101 – S20-P1C1-M20-FH – Safety switch
21/22 NC contact, forced

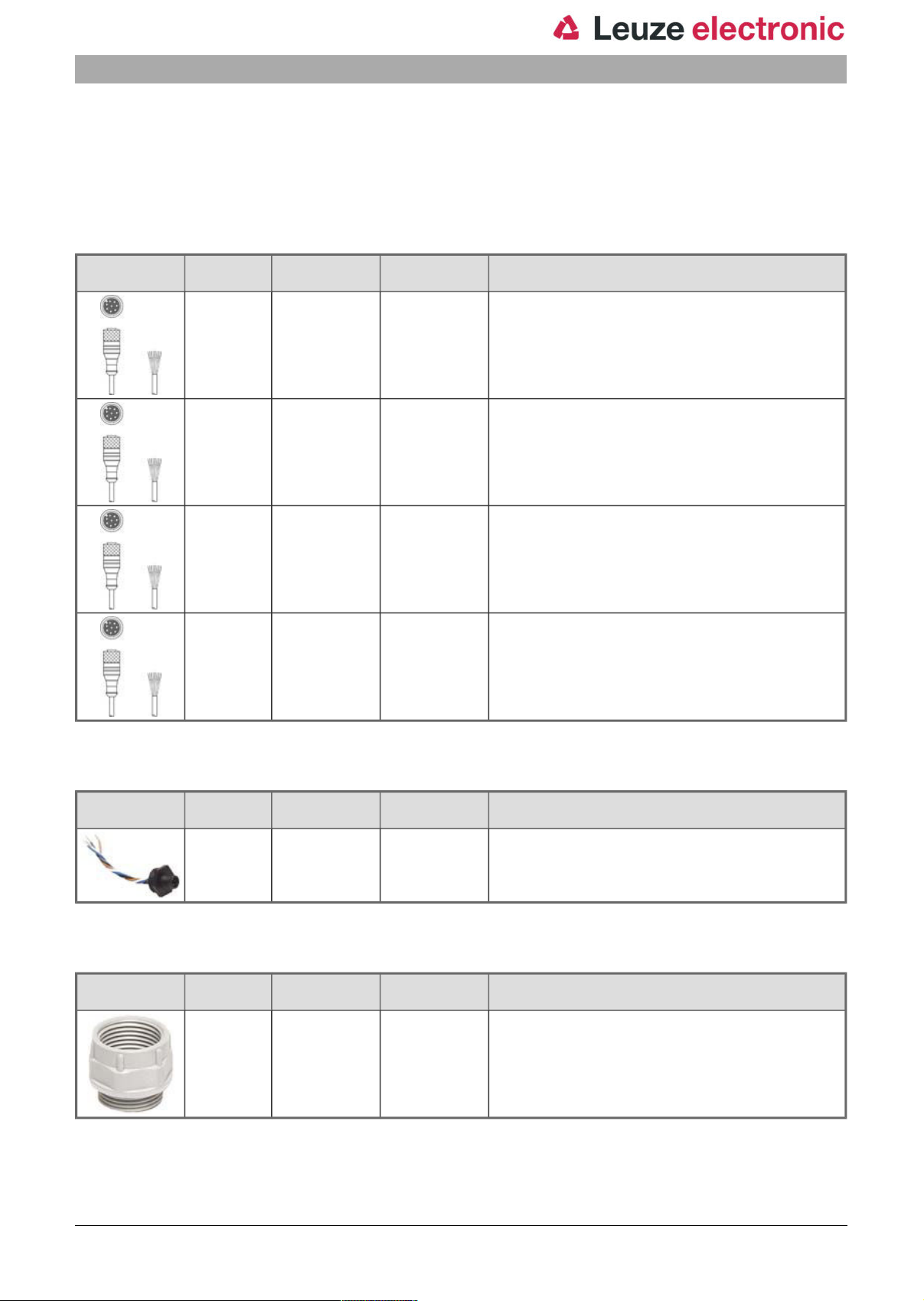

Accessories
Connection technology - Connection cables
Part no. Designation Article Description
50135128 KD S-M12-8A-
P1-050
50135129 KD S-M12-8A-
P1-100
50135130 KD S-M12-8A-
P1-150
50135131 KD S-M12-8A-
P1-250
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 10,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 15,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 25,000 mm
Sheathing material: PUR
Connection technology - Connectors
Part no. Designation Article Description
63000844 AC-PLP-8 Built-in plug Number of conductors: 8 Piece(s)
Connection technology - Adapters
Part no. Designation Article Description
63000843 AC-A-M20-12NPT Adapter Design: M20 x 1.5 on 1/2 NPT
Connection: Connector, M12, Plastic, Axial, 8 -pin
eng 2018-03-30
5 / 6
Part no.: 63000101 – S20-P1C1-M20-FH – Safety switch

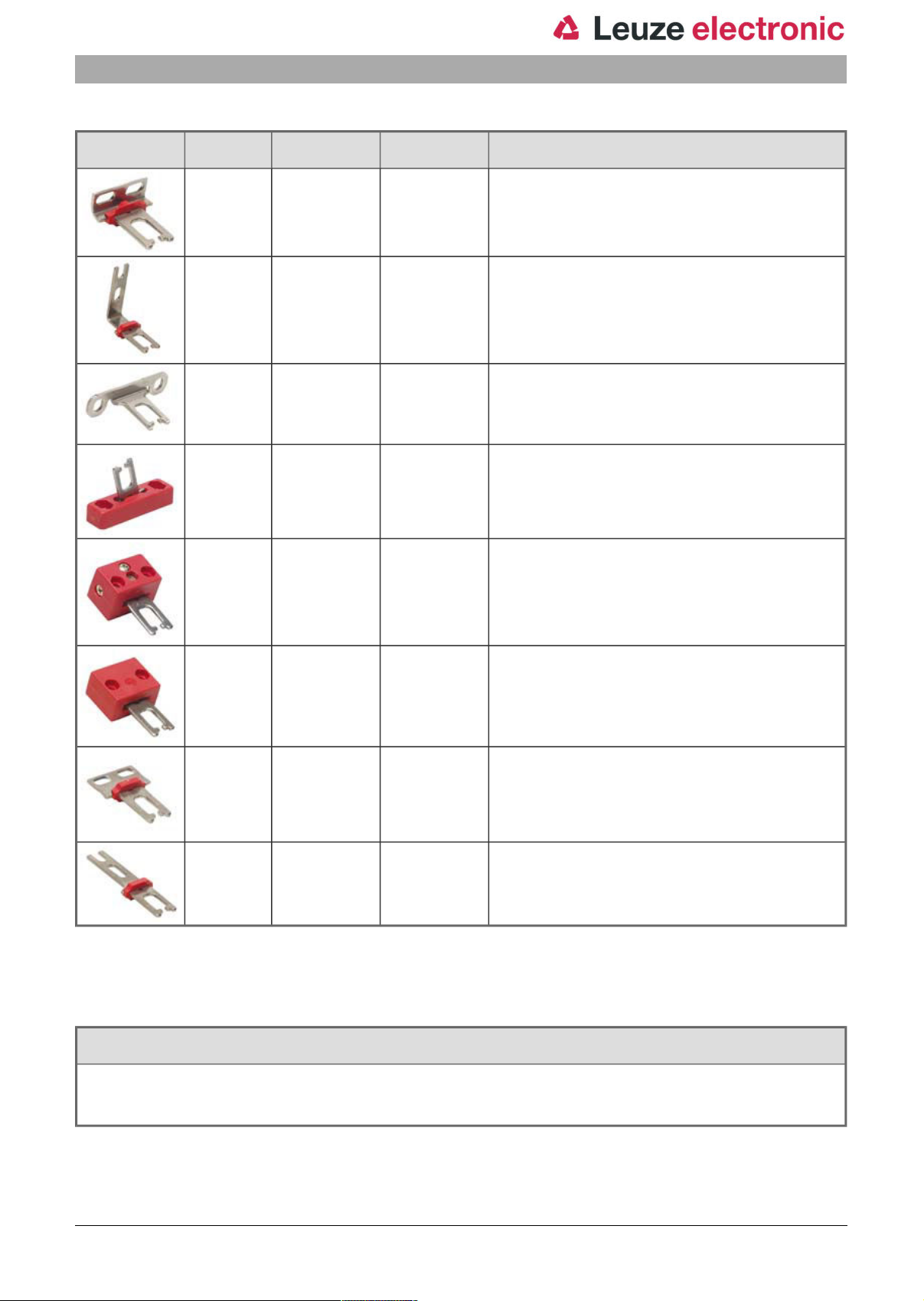

Actuator
Part no. Designation Article Description
63000701 AC-AN-A Actuator Dimensions: 28 mm x 11.8 mm x 30.7 mm
63000705 AC-AN-AL Actuator Dimensions: 20.6 mm x 41.7 mm x 42.7 mm
63000707 AC-AN-ASH Actuator Dimensions: 53 mm x 14 mm x 29 mm
63000706 AC-AN-F1J2 Actuator Dimensions: 56 mm x 16 mm x 35 mm
63000703 AC-AN-F2J2 Actuator Dimensions: 30 mm x 22 mm x 44 mm
Type of fastening: Through-hole mounting
Design: Angled
Area of application: Normal duty
Mounting bore holes: In key direction
Material: Stainless steel
Type of fastening: Through-hole mounting
Design: Angled
Area of application: Normal duty
Mounting bore holes: In key direction
Material: Stainless steel
Type of fastening: Through-hole mounting
Design: Angled
Area of application: Normal duty
Mounting bore holes: In key direction
Material: Stainless steel
Type of fastening: Through-hole mounting
Design: Straight
Area of application: Normal duty
Mounting bore holes: In key direction
Material: Plastic, Stainless steel
Functions: Flexible, 1 direction, Adjustable, 2 directions
Type of fastening: Through-hole mounting
Design: Straight
Area of application: Normal duty
Mounting bore holes: 90° to key direction
Material: Plastic, Stainless steel
Functions: Flexible, 2 directions, Adjustable, 2 directions
63000702 AC-AN-F4 Actuator Dimensions: 30 mm x 16 mm x 48 mm
63000700 AC-AN-S Actuator Dimensions: 28 mm x 9 mm x 39.8 mm
63000704 AC-AN-SL Actuator Dimensions: 20.6 mm x 9 mm x 64 mm
Notes
Observe intended use!
• The product may only be put into operation by competent persons.
Type of fastening: Through-hole mounting
Design: Straight
Area of application: Normal duty
Mounting bore holes: 90° to key direction
Material: Plastic, Stainless steel
Functions: Flexible, 4 directions
Type of fastening: Through-hole mounting
Design: Straight
Area of application: Normal duty
Mounting bore holes: 90° to key direction
Material: Stainless steel
Type of fastening: Through-hole mounting
Design: Straight
Area of application: Normal duty
Mounting bore holes: 90° to key direction
Material: Stainless steel
• Only use the product in accordance with its intended use.
eng 2018-03-30
6 / 6
