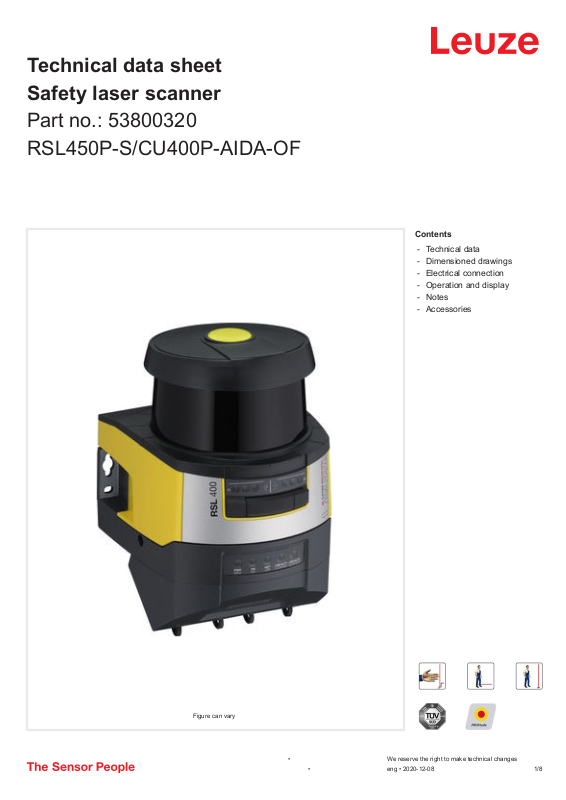

Leuze 53800320 Data Sheet
Technical data sheet
Safety laser scanner
Part no.: 53800320
RSL450P-S/CU400P-AIDA-OF
Contents
-
Technical data
-

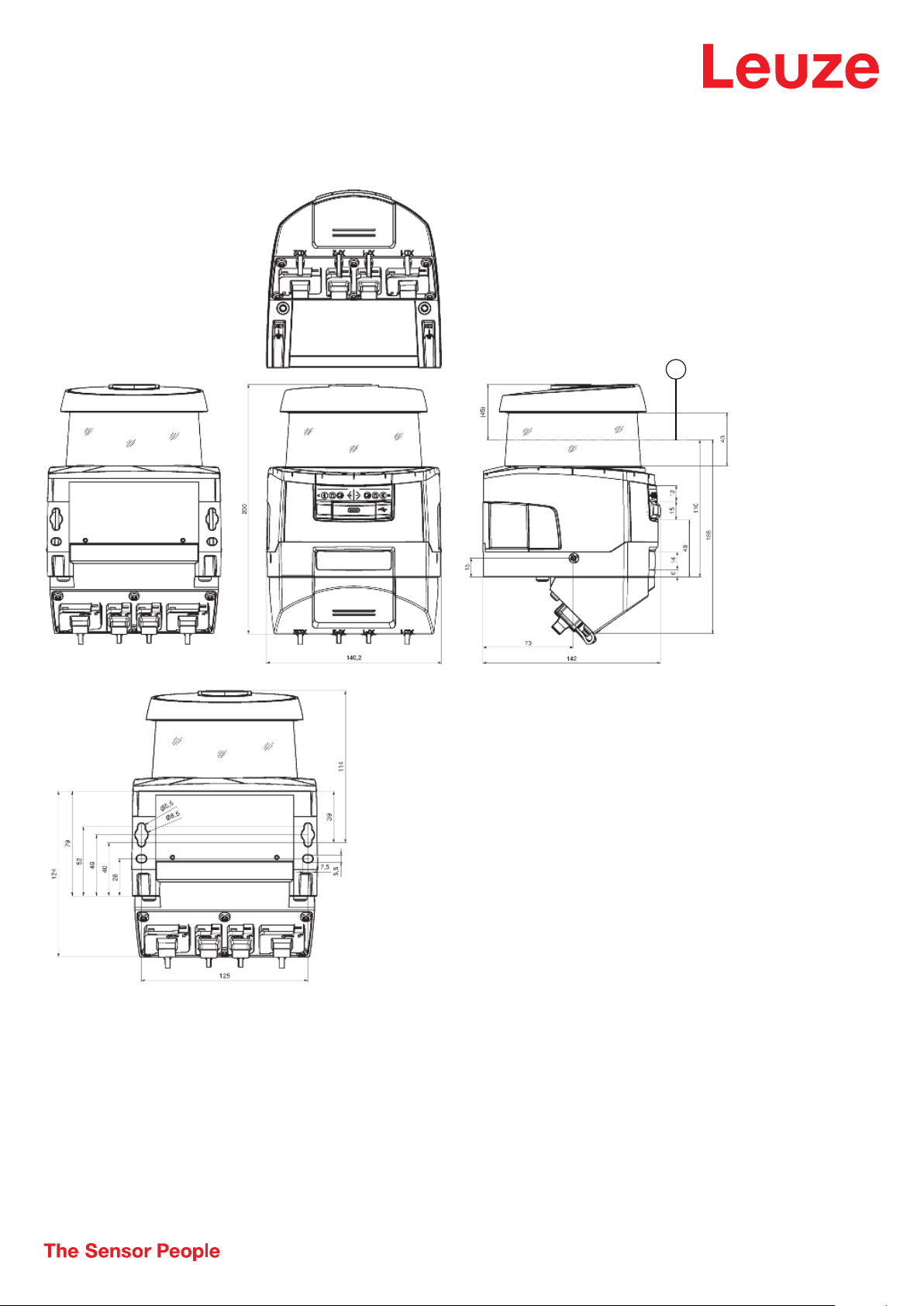

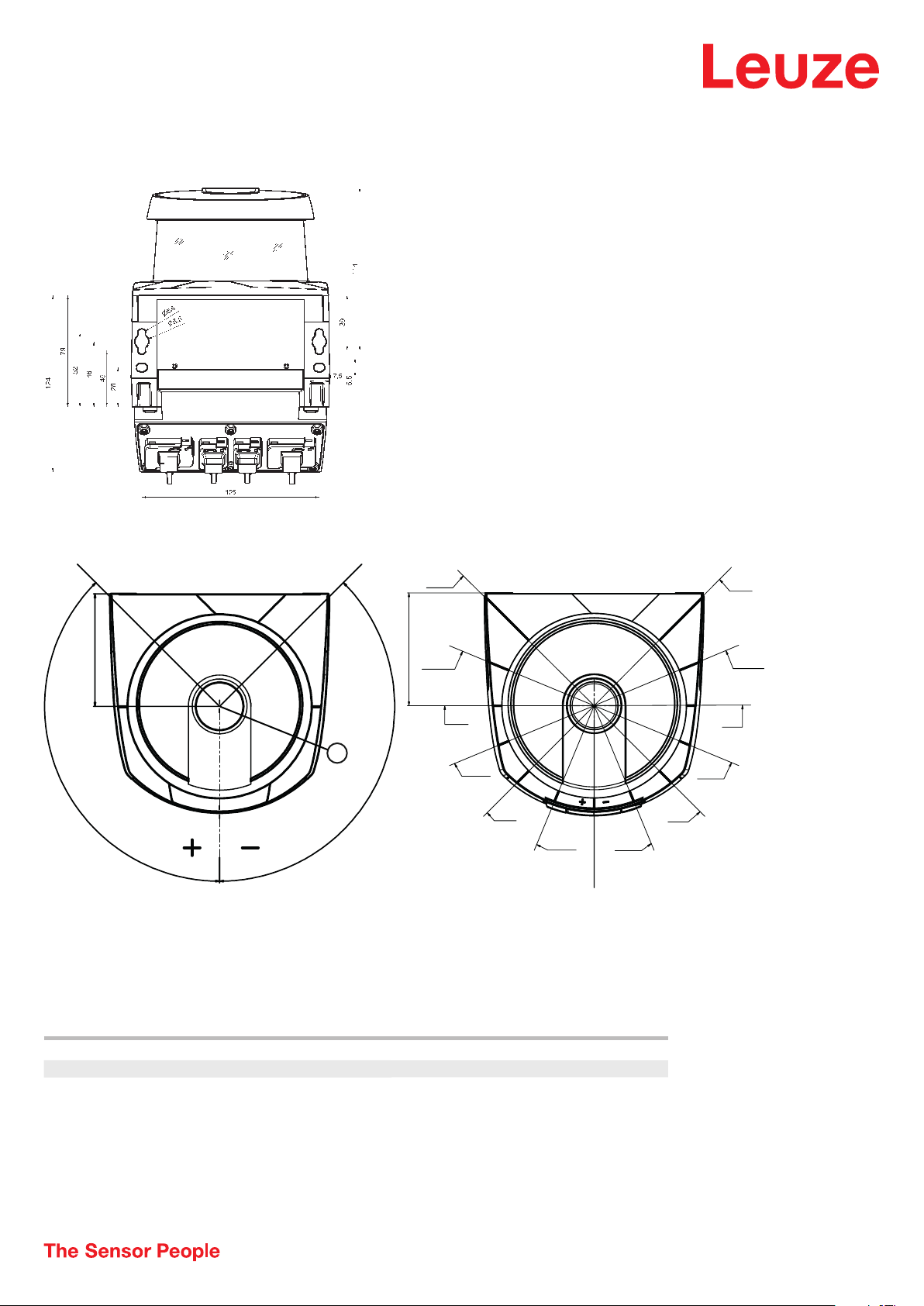

Dimensioned drawings
-
Electrical connection
-
Operation and display
-
Notes
-
Accessories
Figure can vary
• We reserve the right to make technical changes
• eng • 2020-12-08
1 /8
Safety laser scanner • Part no.: 53800320 • RSL450P-S/CU400P-AIDA-OF
Technical data
Basic data
Series RSL 400
Application Mobile danger zone guarding
Mobile side guarding
Stationary access guarding
Stationary danger zone guarding
Functions
Functions Data output, configurable
Four-field mode
PROFIsafe
Resolution, selectable
Characteristic parameters
Type 3, IEC/EN 61496
SIL 2, IEC 61508
SILCL 2, IEC/EN 62061
Performance Level (PL) d, EN ISO 13849-1
PFH
D
Mission time T
Category 3, EN ISO 13849
M
9E-08 per hour
20 years, EN ISO 13849-1
Protective field data
Scanning angle 270 °
Minimum adjustable range 50 mm
Number of field pairs, reversible Up to 100
Number of quads, reversible 50
Number of protective functions 2 Piece(s)
Number of independent sensor configurations
Diffuse reflection, min. 1.8 %
Operating range 0 ... 3 m
Up to 10
Warning field data
Number of field pairs Up to 100
Operating range 0 ... 20 m
Object size 150 mm x 150 mm
Diffuse reflection, min. 1.8 %
Optical data
Light source Laser, Infrared
Laser light wavelength 905 nm
Laser class 1, IEC/EN 60825-1:2007
Transmitted-signal shape Pulsed
Repetition frequency 90 kHz
Measurement data
Distance resolution 1 mm
Detection range 0 ... 50 m
Diffuse reflection 20 %
Angular resolution 0.1 °
Performance data
Supply voltage U
Current consumption (without load),
max.
Power consumption, max. 24 W, For 24 V, plus output load
B
24 V, DC, -30 ... 20 %
1,000 mA, (use power supply unit with 3
A)
Interface
Type PROFINET
Profinet
Function Process
PROFINET device Device acc. to Spec V2.3.4
GSDML GSDML acc. to Spec V2.3.2
Profile PROFINET/PROFIsafe
Conformance class
Network load class III
Security level 1
Switch functionality IRT-ready 2-port switch acc. to IEEE
Port properties Auto-Crossover
I&M 0 - 4
Supported topologies MRP client
Safety-related switching signals
C
802, integrated in connection unit
Auto-Negotiation
Auto-Polarity
SNMP
4 Piece(s)
Service interface
Type Bluetooth, USB
Bluetooth
Function
Frequency band
Radiated transmitting power
Configuration/parametering
2,400 ... 2,483.5 MHz
Max. 4.5 dBm (2.82 mW), class 2
USB
Function Configuration/parametering
Connection USB 2.0 mini-B, socket
Transmission speed, max. 12 Mbit/s
Cable length
≤ 5mLonger cable lengths are possible
using active cables.
Connection
Number of connections 4 Piece(s)
Connection 1
Function
Type of connection PROFINET push-pull 24V
Voltage supply
Connection 2
Function PROFINET/PROFIsafe communication,
Type of connection PROFINET SCRJ push-pull ISO/
input
IEC 61754-24-2
Electrical data
Protective circuit Overvoltage protection
Connection 3
Function PROFINET/PROFIsafe communication,
output
Type of connection PROFINET SCRJ push-pull ISO/
IEC 61754-24-2
• We reserve the right to make technical changes
• eng • 2020-12-08
2 /8
Safety laser scanner • Part no.: 53800320 • RSL450P-S/CU400P-AIDA-OF
Technical data
Connection 4
Function Voltage supply
Type of connection PROFINET push-pull 24V
Mechanical data
Dimension (W x H x L) 140.2 mm x 200 mm x 142 mm
Housing material Metal
Plastic
Metal housing Diecast zinc
Lens cover material Plastic/PC
Net weight 4,500 g
Housing color Yellow, RAL 1021
Type of fastening Mounting plate
Through-hole mounting
V
ia optional mounting device
Operation and display
Type of display Alphanumerical display
LED indicator
Number of LEDs 11 Piece(s)
Type of configuration Software Sensor Studio
Operational controls Software Sensor Studio
Environmental data
Ambient temperature, operation 0 ... 50 °C
Ambient temperature, storage -20 ... 60 °C
Relative humidity (non-condensing) 15 ... 95 %
Certifications
Degree of protection IP 65
Protection class III, EN 61140
Certifications TÜV Süd
Test procedure for EMC in accordance
with standard
Test procedure for oscillation in
accordance with standard
Test procedure for continuous shock
in accordance with standard
US patents US 10,304,307B
DIN 40839-1/3
EN 61496-1
EN 60068-2-6
IEC 60068-2-29
US 7,656,917 B
US 7,696,468 B
US 8,520,221 B
Classification
Customs tariff number 85365019
eCl@ss 5.1.4 27272705
eCl@ss 8.0 27272705
eCl@ss 9.0 27272705
eCl@ss 10.0 27272705
eCl@ss 11.0 27272705
ETIM 5.0 EC002550
ETIM 6.0 EC002550
ETIM 7.0 EC002550
• We reserve the right to make technical changes
• eng • 2020-12-08
3 /8
