Part no.: 53800249 – RSL420-M/CU411-RS4 – Safety laser scanner
Technical data
Basic data
Series RSL 400
Special design
Special design RS4 substitute
Functions
Functions Resolution, selectable
Characteristic parameters
Type 3, IEC/EN 61496
SIL 2, IEC 61508
SILCL 2, IEC/EN 62061
Performance Level (PL) d, EN ISO 13849-1
PFH
D
Mission time T
Category 3, EN ISO 13849
M
9E-08 per hour
20 years, EN ISO 13849-1
Protective field data
Scanning angle 270 °
Minimum adjustable range 200 mm
Number of field pairs, reversible 8
Number of quads, reversible 8
Number of protective functions 1 Piece(s)
Number of independent sensor configurations 1
Diffuse reflection, min. 1.8 %
Operating range 0 ... 4.5 m
Warning field data
Number of field pairs 10
Operating range 0 ... 20 m
Object size 150 mm x 150 mm
Diffuse reflection, min. 1.8 %
Optical data
Light source Laser, Infrared
Laser light wavelength 905 nm
Laser class 1, IEC/EN 60825-1:2007
Transmitted-signal shape Pulsed
Repetition frequency 90 kHz
Measurement data
Radial resolution 5 mm
Detection range 0 ... 50 m
Angular resolution 0.1 °
Electrical data
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-09
2 / 11
Part no.: 53800249 – RSL420-M/CU411-RS4 – Safety laser scanner
Protective circuit Overvoltage protection
Performance data
Supply voltage 24 V, DC, -30 ... 20 %
Current consumption (without load), max. 700 mA, (use power supply unit with 3 A)
Power consumption, max. 17 W, For 24 V, plus output load
Outputs
Number of safety-related switching outputs (OSSDs) 2 Piece(s)
Safety-related switching outputs
Type Safety-related switching output OSSD
Switching voltage high, min. 20.8 V
Switching voltage low, max. 2 V
Voltage type DC
Safety-related switching output 1
Assignment Connection 1, pin 11
Switching element Transistor, PNP
Safety-related switching output 2
Assignment Connection 1, pin 12
Switching element Transistor, PNP
Interface
Type Bluetooth
Bluetooth
Function Configuration/parametering
Frequency band 2,400 ... 2,483.5 MHz
Radiated transmitting power Max. 4.5 dBm (2.82 mW), class 2
Connection
Number of connections 2 Piece(s)
Connection 1
Type of connection Cable with Sub-D
Function Machine interface
Cable length 450 mm
Sheathing material PUR
Cable color Black
No. of pins 15 -pin

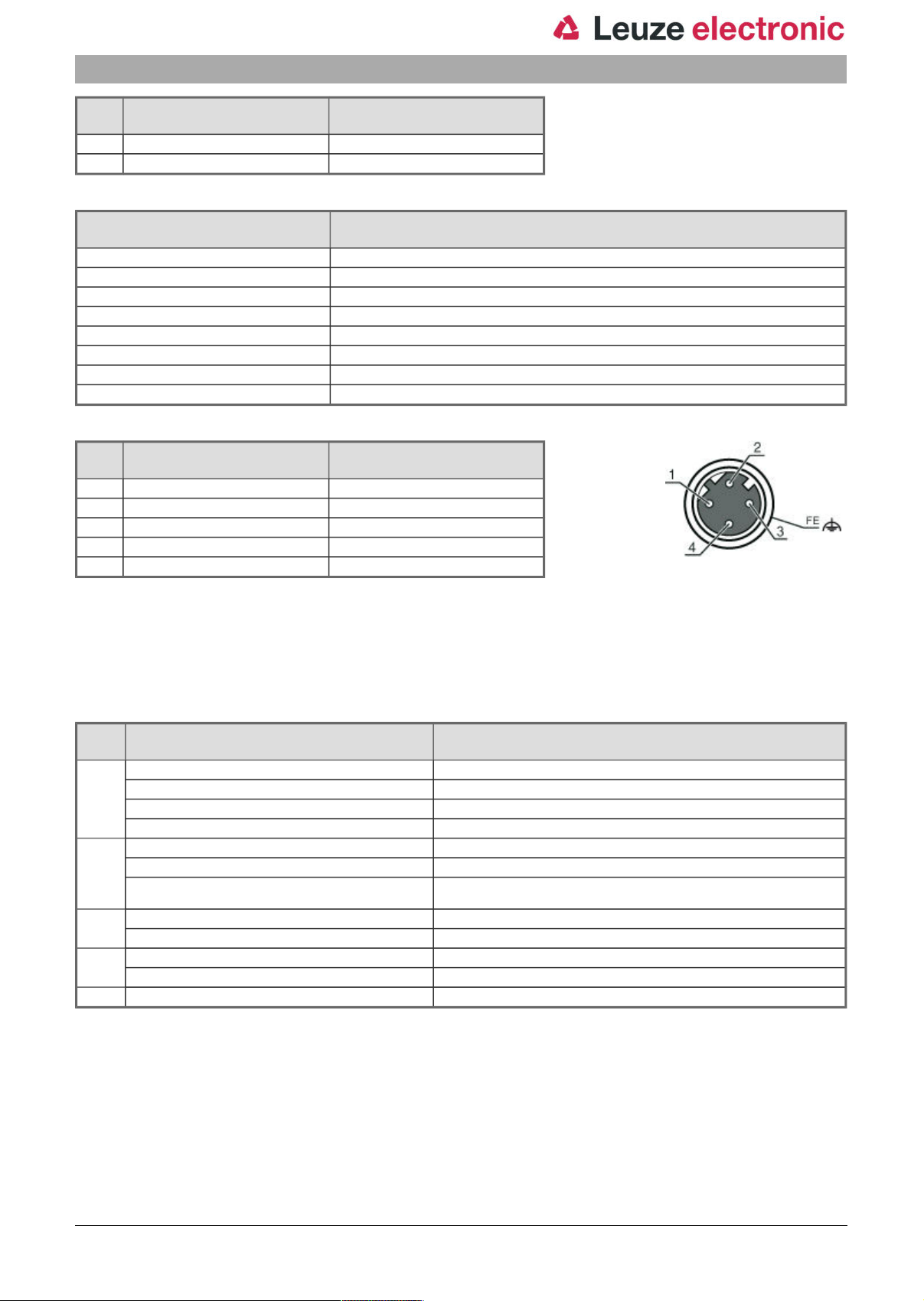

Connection 2
Type of connection Connector
Function Data interface
Thread size M12
Type Female
Material Metal
No. of pins 4 -pin
Encoding D-coded
Cable properties
Cable resistance, max. 15 Ω
Mechanical data
Dimension (W x H x L) 140 mm x 149 mm x 140 mm
Housing material Plastic
Metal, Diecast zinc,
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-09
3 / 11
Part no.: 53800249 – RSL420-M/CU411-RS4 – Safety laser scanner
Lens cover material Plastic/PC
Net weight 3,000 g
Housing color Black
Type of fastening Via optional mounting device
Operation and display
Type of display LED indicator
Number of LEDs 3 Piece(s)
Type of configuration Software Sensor Studio
Operational controls Software Sensor Studio
Environmental data
Ambient temperature, operation 0 ... 50 °C
Ambient temperature, storage -20 ... 60 °C
Yellow, RAL 1021
Mounting plate
Through-hole mounting
Alphanumerical display
Certifications
Degree of protection IP 65
Protection class III, EN 61140
Certifications c TÜV Süd US
US patents US 7,656,917 B
Classification
eCl@ss 8.0 27272705
eCl@ss 9.0 27272705
ETIM 5.0 EC002550
c UL US
TÜV Süd
US 8,520,221 B
US 2016/0086469 A
US 7,696,468 B
Dimensioned drawings
All dimensions in millimeters
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-09
4 / 11
Part no.: 53800249 – RSL420-M/CU411-RS4 – Safety laser scanner

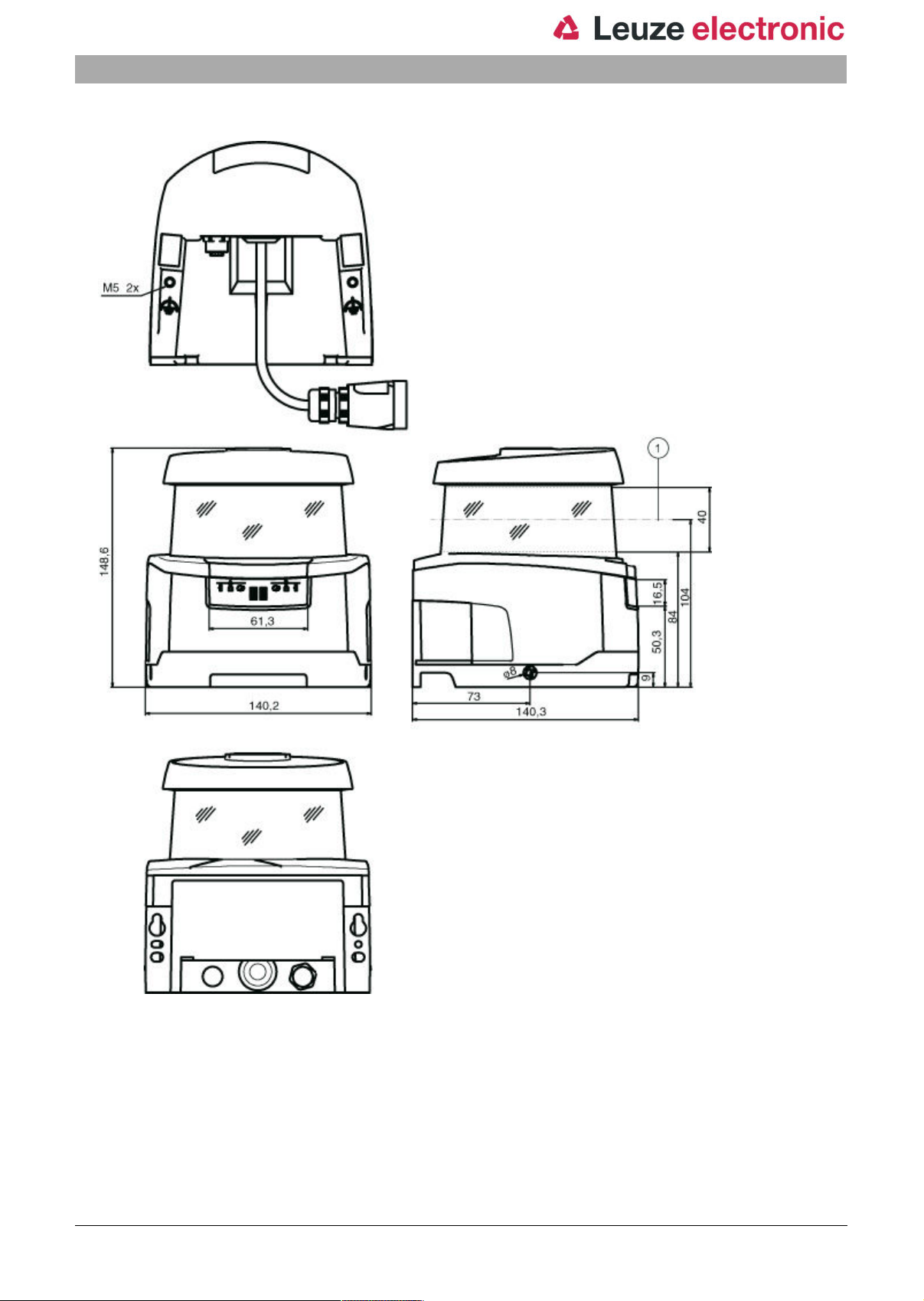

Dimensions safety laser scanner with connection unit
1 Scan level
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-09
5 / 11
Part no.: 53800249 – RSL420-M/CU411-RS4 – Safety laser scanner

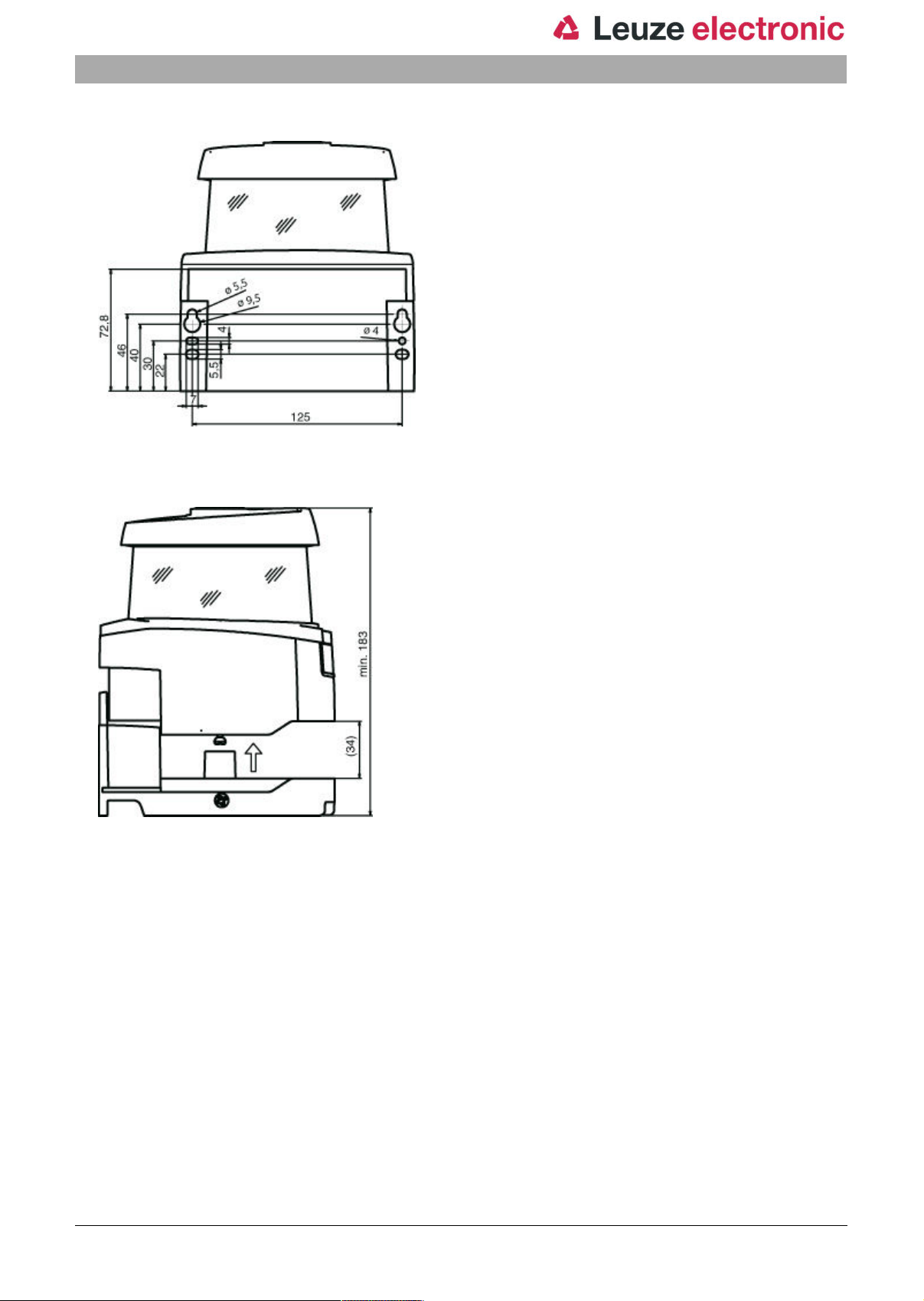

Mounting dimensions safety laser scanner with connection unit
Minimum space requirements for installation and replacement of scanner unit
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-09
6 / 11
Part no.: 53800249 – RSL420-M/CU411-RS4 – Safety laser scanner

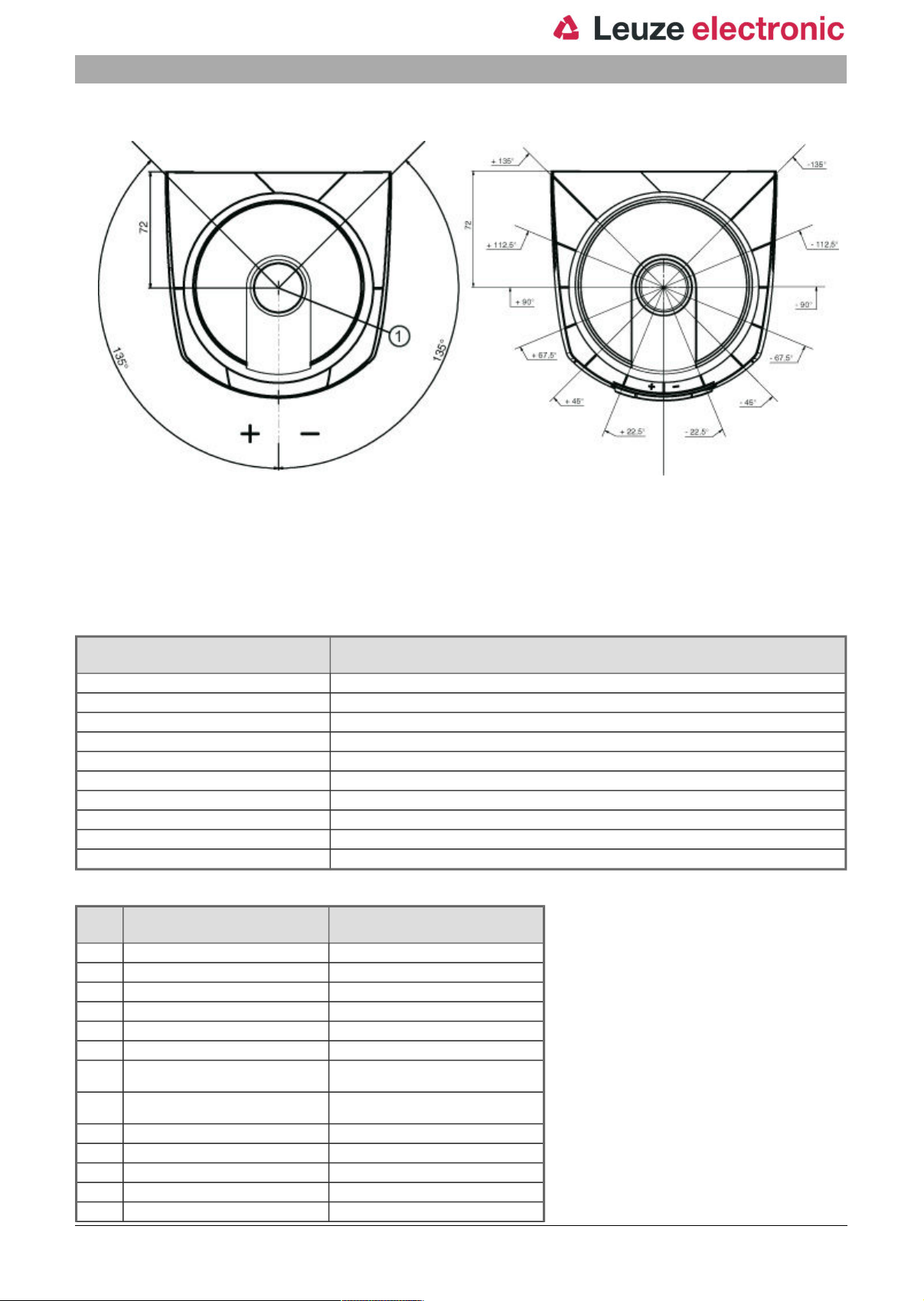

Dimensions of scanning range
1 Reference point for distance measurement and protective field radius
Electrical connection
Connection 1
Type of connection Cable with Sub-D
Function Machine interface
Cable length 450 mm
Sheathing material PUR
Cable color Black
Wire cross section
Wire cross section supply
Wire cross section signals
Type Male
No. of pins 15 -pin
Pin Pin assignment Conductor color
1 0 V Blue
2 RES-I White
3 +24V Brown
4 F1 Black
5 A1 Yellow
6 F2 Violet
7 F3 Gray
8 F4 Red
9 n.c. 10 n.c. 11 OSSDA1 Gray
12 OSSDA2 Pink
13 n.c. -
Pink
Blue
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-09
7 / 11
Part no.: 53800249 – RSL420-M/CU411-RS4 – Safety laser scanner
Pin Pin assignment Conductor color
14 n.c. 15 MELD Red
Connection 2
Type of connection Connector
Function Data interface
Thread size M12
Type Female
Material Metal
No. of pins 4 -pin
Encoding D-coded
Connector housing FE/SHIELD
Pin Pin assignment Conductor color
1 TD+ Yellow
2 RD+ White
3 TD- Orange
4 RD- Blue
5
Operation and display
LEDs
LED Display Meaning
1 Off Device switched off
Red, continuous light OSSD off
Red, flashing Error
Green, continuous light OSSD on
2 Off RES deactivated or RES activated and released
Yellow, flashing Protective field occupied
Yellow, continuous light RES activated and blocked but ready to be unlocked - protective field free
3 Off Free warning field
Blue, continuous light Warning field interrupted
4 Off Four field mode: warning field 3 free
Blue, continuous light Four field mode: warning field 3 interrupted
5 Yellow, flashing Four field mode: warning field 2 interrupted
and linked sensor is enabled if applicable
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-09
8 / 11
Part no.: 53800249 – RSL420-M/CU411-RS4 – Safety laser scanner
Accessories
Connection technology - Interconnection cables
Part no. Designation Article Description

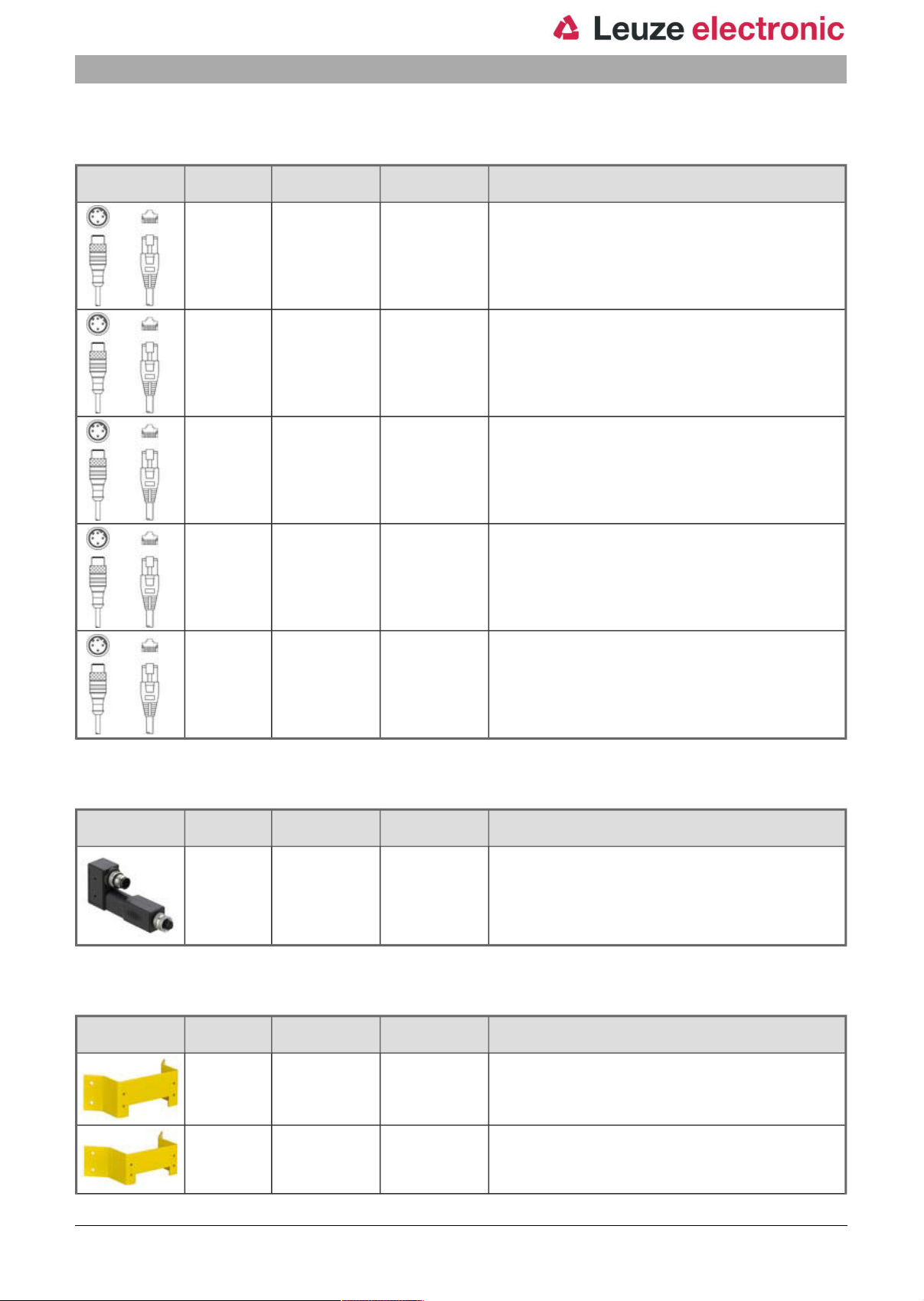

50135080 KSS ET-M12-4A-
RJ45-A-P7-020
50135081 KSS ET-M12-4A-
RJ45-A-P7-050
50135082 KSS ET-M12-4A-
RJ45-A-P7-100
50135083 KSS ET-M12-4A-
RJ45-A-P7-150
50135084 KSS ET-M12-4A-
RJ45-A-P7-300
Interconnection
cable
Interconnection
cable
Interconnection
cable
Interconnection
cable
Interconnection
cable
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 2,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 5,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 10,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 15,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 30,000 mm
Sheathing material: PUR
Connection technology - Adapters
Part no. Designation Article Description
50134656 RSL400 M12
Adapter
Mounting technology - Mounting brackets
Part no. Designation Article Description
53800134 BT840M Mounting bracket Dimensions: 84.9 mm x 72 mm x 205.2 mm
53800135 BT856M Mounting bracket Dimensions: 119 mm x 72 mm x 233.5 mm
Number of connections: 2 Piece(s)
Connection 1: Connector, M12, D-coded, 4 -pin
Connection 2: Connector, M12, D-coded, 4 -pin
Dimensions: 20 mm x 90.5 mm x 40 mm
Color: Black
Color: Yellow, RAL 1021
Type of fastening, at system: Through-hole mounting
Type of fastening, at device: Screw type
Material: Metal
Color: Yellow, RAL 1021
Type of fastening, at system: Through-hole mounting
Type of fastening, at device: Screw type
Material: Metal
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-09
9 / 11
Part no.: 53800249 – RSL420-M/CU411-RS4 – Safety laser scanner
Part no. Designation Article Description

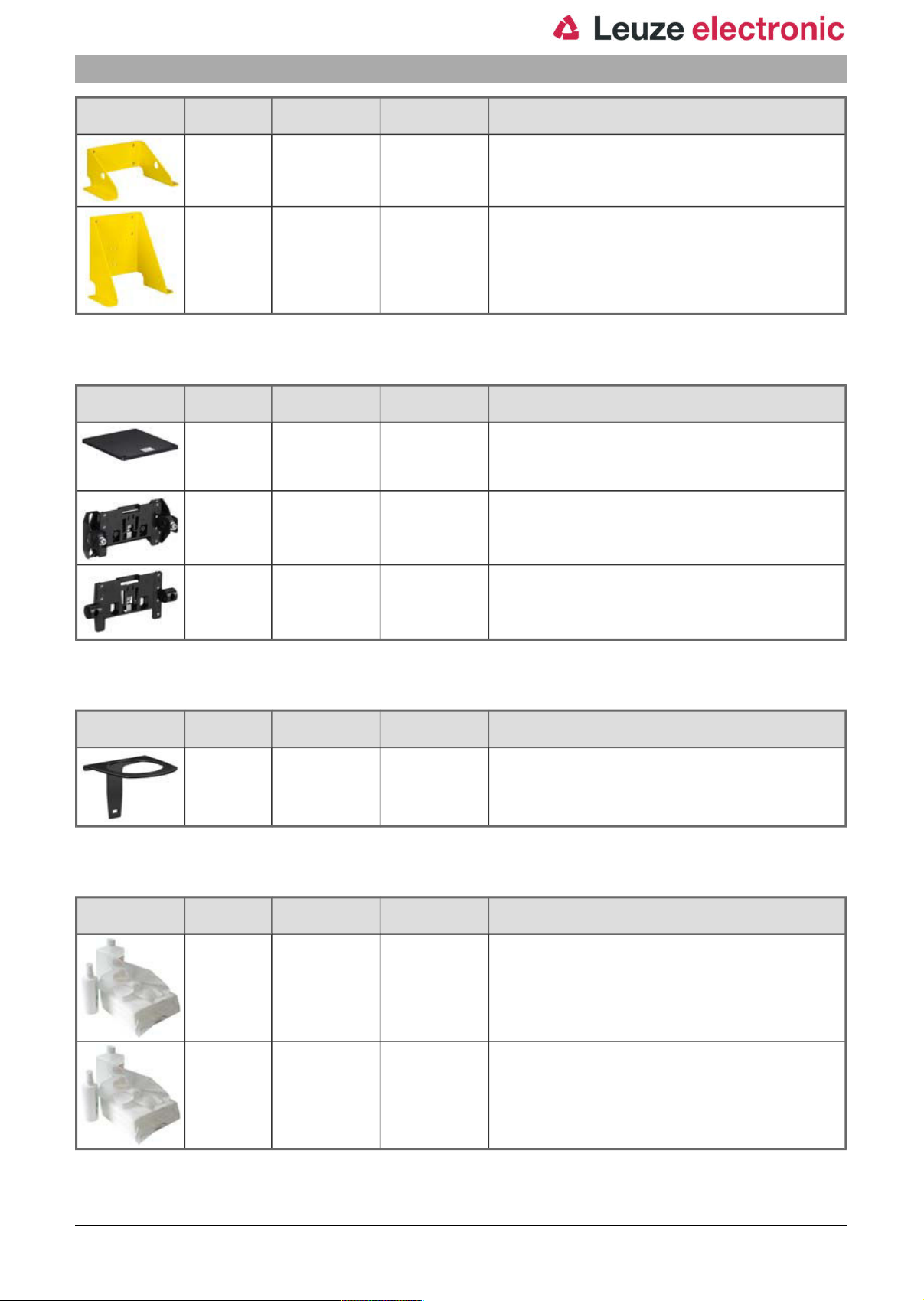

53800132 BTF815M Mounting bracket Dimensions: 186 mm x 120 mm x 288 mm
53800133 BTF830M Mounting bracket Dimensions: 186 mm x 275 mm x 288 mm
Mounting technology - Other
Part no. Designation Article Description
53800137 BT800MA Adapter plate Dimensions: 90 mm x 22 mm x 157 mm
53800130 BTU800M Mounting system Dimensions: 54.5 mm x 90 mm x 192 mm
53800136 BTU804MA Mounting plate Dimensions: 142 mm x 7 mm x 154 mm
Color: Yellow, RAL 1021
Type of fastening, at system: Through-hole mounting
Type of fastening, at device: Screw type
Material: Metal
Color: Yellow, RAL 1021
Type of fastening, at system: Through-hole mounting
Type of fastening, at device: Screw type
Material: Metal
Color: Black
Type of fastening, at system: Through-hole mounting
Type of fastening, at device: Screw type
Material: Metal
Color: Black
Type of fastening, at system: Through-hole mounting
Type of fastening, at device: Screw type
Material: Metal
Color: Black
Type of fastening, at system: Through-hole mounting
Type of fastening, at device: Screw type
Material: Metal
Mounting
General
Part no. Designation Article Description
53800131 BTP800M Loop guard Dimensions: 160 mm x 169 mm
Part no. Designation Article Description
430400 RS4-clean-Set1 Cleaning set Number of cleaning cloths: 40 Piece(s)
430410 RS4-clean-Set2 Cleaning set Number of cleaning cloths: 120 Piece(s)
Color: Black
Material: Metal
Content of cleaning fluid: 150 ml
Content of cleaning fluid: 1,000 ml
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-09
10 / 11
Part no.: 53800249 – RSL420-M/CU411-RS4 – Safety laser scanner
Notes
Observe intended use!
• The product may only be put into operation by competent persons.
• Only use the product in accordance with its intended use.
WARNING! INVISIBLE LASER RADIATION – LASER CLASS 1
The device satisfies the requirements of IEC 60825-1:2007 (EN 60825-1:2007) safety regulations for a product of laser class 1 as well as
the U.S. 21 CFR 1040.10 regulations with deviations corresponding to "Laser Notice No. 50" from June 24, 2007.
• Observe the applicable statutory and local laser protection regulations.
• The device must not be tampered with and must not be changed in any way.
There are no user-serviceable parts inside the device.
Repairs must only be performed by Leuze electronic GmbH + Co. KG.
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-09
11 / 11
Loading...
