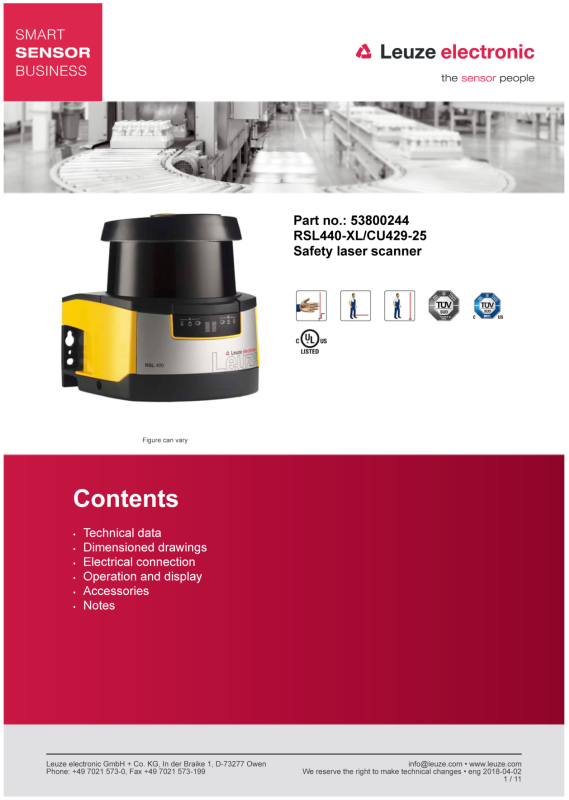

Part no.: 53800244 – RSL440-XL/CU429-25 – Safety laser scanner
Technical data
Basic data
Series RSL 400
Functions
Functions Resolution, selectable
Characteristic parameters
Type 3, IEC/EN 61496
SIL 2, IEC 61508
SILCL 2, IEC/EN 62061
Performance Level (PL) d, EN ISO 13849-1
PFH
D
Mission time T
Category 3, EN ISO 13849
M
E-stop linkage
Data output, configurable
Dynamic contactor monitoring (EDM), selectable
Four-field mode
Safe time delay, internal
9E-08 per hour
20 years, EN ISO 13849-1
Protective field data
Scanning angle 270 °
Minimum adjustable range 200 mm
Number of field pairs, reversible Up to 100
Number of quads, reversible 50
Number of protective functions 2 Piece(s)
Number of independent sensor configurations Up to 10
Diffuse reflection, min. 1.8 %
Operating range 0 ... 8.25 m
Warning field data
Number of field pairs Up to 100
Operating range 0 ... 20 m
Object size 150 mm x 150 mm
Diffuse reflection, min. 1.8 %
Optical data
Light source Laser, Infrared
Laser light wavelength 905 nm
Laser class 1, IEC/EN 60825-1:2007
Transmitted-signal shape Pulsed
Repetition frequency 90 kHz
Measurement data
Radial resolution 5 mm
Detection range 0 ... 50 m
Angular resolution 0.1 °
Electrical data
eng 2018-04-02
2 / 11
Part no.: 53800244 – RSL440-XL/CU429-25 – Safety laser scanner
Protective circuit Overvoltage protection
Performance data
Supply voltage 24 V, DC, -30 ... 20 %
Current consumption (without load), max. 700 mA, (use power supply unit with 3 A)
Power consumption, max. 17 W, For 24 V, plus output load
Outputs
Number of safety-related switching outputs (OSSDs) 4 Piece(s)
Safety-related switching outputs
Type Safety-related switching output OSSD
Switching voltage high, min. 20.8 V
Switching voltage low, max. 2 V
Voltage type DC
Safety-related switching output 1
Assignment Connection 1, gray wire
Switching element Transistor, PNP
Safety-related switching output 2
Assignment Connection 1, pink wire
Switching element Transistor, PNP
Safety-related switching output 3
Assignment Connection 1, yellow/gray wire
Switching element Transistor, PNP
Safety-related switching output 4
Assignment Connection 1, pink/green wire
Switching element Transistor, PNP
Interface
Type Bluetooth
Bluetooth
Function Configuration/parametering
Frequency band 2,400 ... 2,483.5 MHz
Radiated transmitting power Max. 4.5 dBm (2.82 mW), class 2
Connection
Number of connections 2 Piece(s)
Connection 1
Type of connection Cable
Function Machine interface
Cable length 25,000 mm
Sheathing material PVC
Cable color Black
Number of conductors 29 -wire
Wire cross section supply 1 mm²
Wire cross section signals 0.14 mm²
eng 2018-04-02
3 / 11
Part no.: 53800244 – RSL440-XL/CU429-25 – Safety laser scanner
Connection 2
Type of connection Connector
Function Data interface
Thread size M12
Type Female
Material Metal
No. of pins 4 -pin
Encoding D-coded
Cable properties
Cable resistance, max. 15 Ω
Mechanical data
Dimension (W x H x L) 140 mm x 149 mm x 140 mm
Housing material Metal
Lens cover material Plastic/PC
Net weight 3,000 g
Housing color Yellow, RAL 1021
Type of fastening Mounting plate
Plastic, Diecast zinc,
Through-hole mounting
Via optional mounting device
Operation and display
Type of display Alphanumerical display
Number of LEDs 6 Piece(s)
Type of configuration Software Sensor Studio
Operational controls Software Sensor Studio
Environmental data
Ambient temperature, operation 0 ... 50 °C
Ambient temperature, storage -20 ... 60 °C
Certifications
Degree of protection IP 65
Protection class III, EN 61140
Certifications c TÜV Süd US
US patents US 2016/0086469 A
Classification
eCl@ss 8.0 27272705
eCl@ss 9.0 27272705
ETIM 5.0 EC002550
LED indicator
TÜV Süd
c UL US
US 7,656,917 B
US 8,520,221 B
US 7,696,468 B
Dimensioned drawings
All dimensions in millimeters
eng 2018-04-02
4 / 11
Part no.: 53800244 – RSL440-XL/CU429-25 – Safety laser scanner
Dimensions safety laser scanner with connection unit
1 Scan level
eng 2018-04-02
5 / 11
Part no.: 53800244 – RSL440-XL/CU429-25 – Safety laser scanner

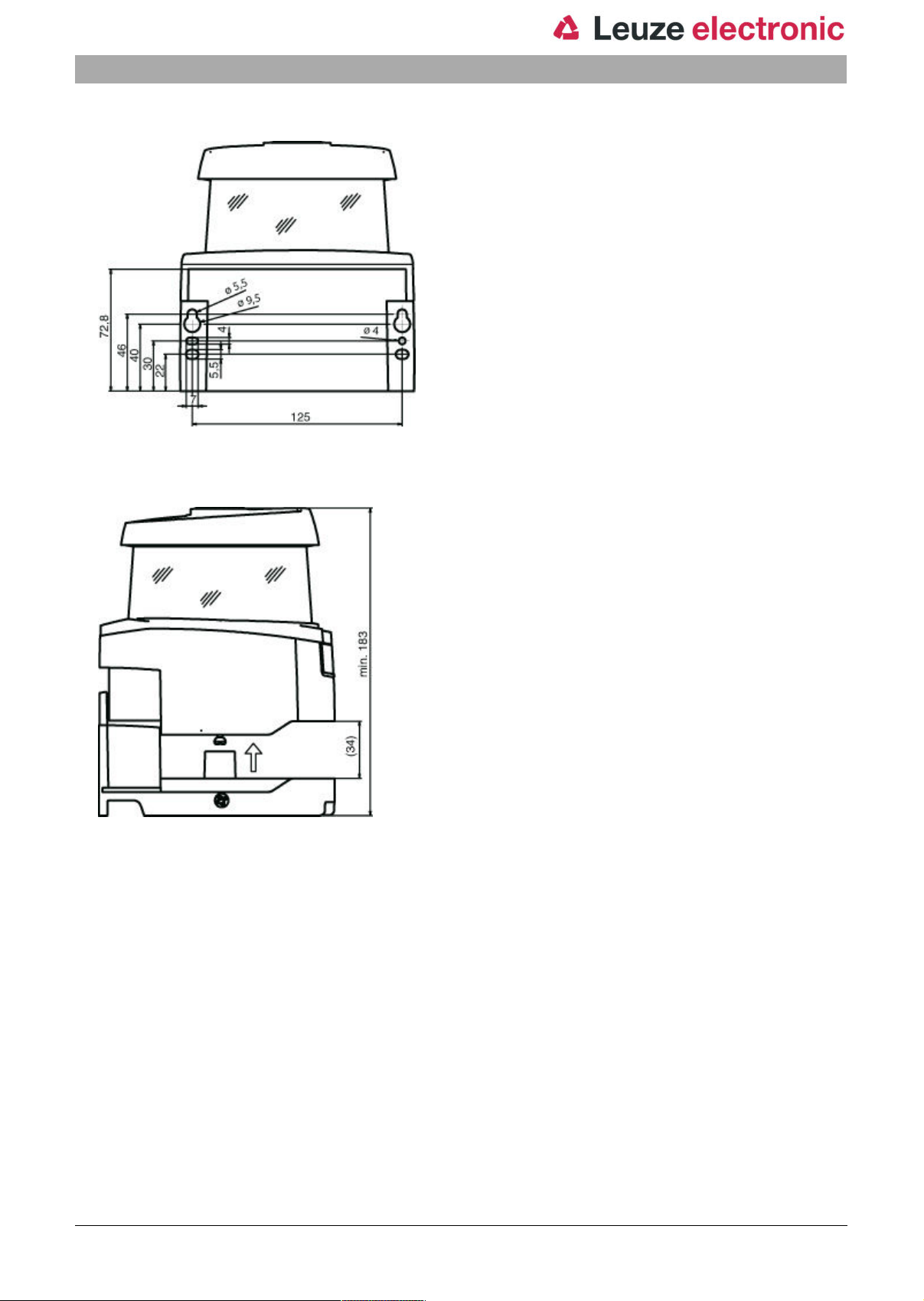

Mounting dimensions safety laser scanner with connection unit
Minimum space requirements for installation and replacement of scanner unit
eng 2018-04-02
6 / 11
Part no.: 53800244 – RSL440-XL/CU429-25 – Safety laser scanner
Dimensions of scanning range
1 Reference point for distance measurement and protective field radius
Electrical connection
Connection 1
Type of connection Cable
Function Machine interface
Cable length 25,000 mm
Sheathing material PVC
Cable color Black
Number of conductors 29 -wire
Wire cross section
Wire cross section supply 1 mm²
Wire cross section signals 0.14 mm²
Conductor color Conductor assignment
White RES1
Brown +24V
Green EA1
Yellow A1
Gray OSSDA1
Pink OSSDA2
Blue GND / Ground
Red MELD
Black F1
Violet F2
Pink
Gray
Red
Blue
Green
White
F3
F4
F5
eng 2018-04-02
7 / 11
Part no.: 53800244 – RSL440-XL/CU429-25 – Safety laser scanner
Conductor color Conductor assignment
Green
Brown
White
Yellow
Yellow
Brown
Gray
White
Brown
Gray
Pink
White
Brown
Pink
White
Blue
Brown
Blue
Red
White
Brown
Red
Black
White
Black
Brown
Green
Gray
Yellow
Gray
Green
Pink
SE1
SE2
A2
A3
A4
EA2
EA3
EA4
F6
F7
F8
F9
F10
RES2
OSSDB1
OSSDB2
Connection 2
Type of connection Connector
Function Data interface
Thread size M12
Type Female
Material Metal
No. of pins 4 -pin
Encoding D-coded
Connector housing FE/SHIELD
Pin Pin assignment Conductor color
1 TD+ Yellow
2 RD+ White
3 TD- Orange
4 RD- Blue
5
eng 2018-04-02
8 / 11
Part no.: 53800244 – RSL440-XL/CU429-25 – Safety laser scanner
Operation and display
LEDs
LED Display Meaning
1 Off Device switched off
Red, continuous light OSSD off
Red, flashing Error
Green, continuous light OSSD on
2 Off RES deactivated or RES activated and released
Yellow, flashing Protective field occupied
Yellow, continuous light RES activated and blocked but ready to be unlocked - protective field free
3 Off Free warning field
Blue, continuous light Warning field interrupted
4 Off Free warning field
Blue, continuous light Warning field interrupted
5 Off RES deactivated or RES activated and released
Yellow, flashing Protective field occupied
Yellow, continuous light RES activated and blocked but ready to be unlocked - protective field free
6 Off Device switched off
Red, continuous light OSSD off
Red, flashing Error
Green, continuous light OSSD on
and linked sensor is enabled if applicable
and linked sensor is enabled if applicable

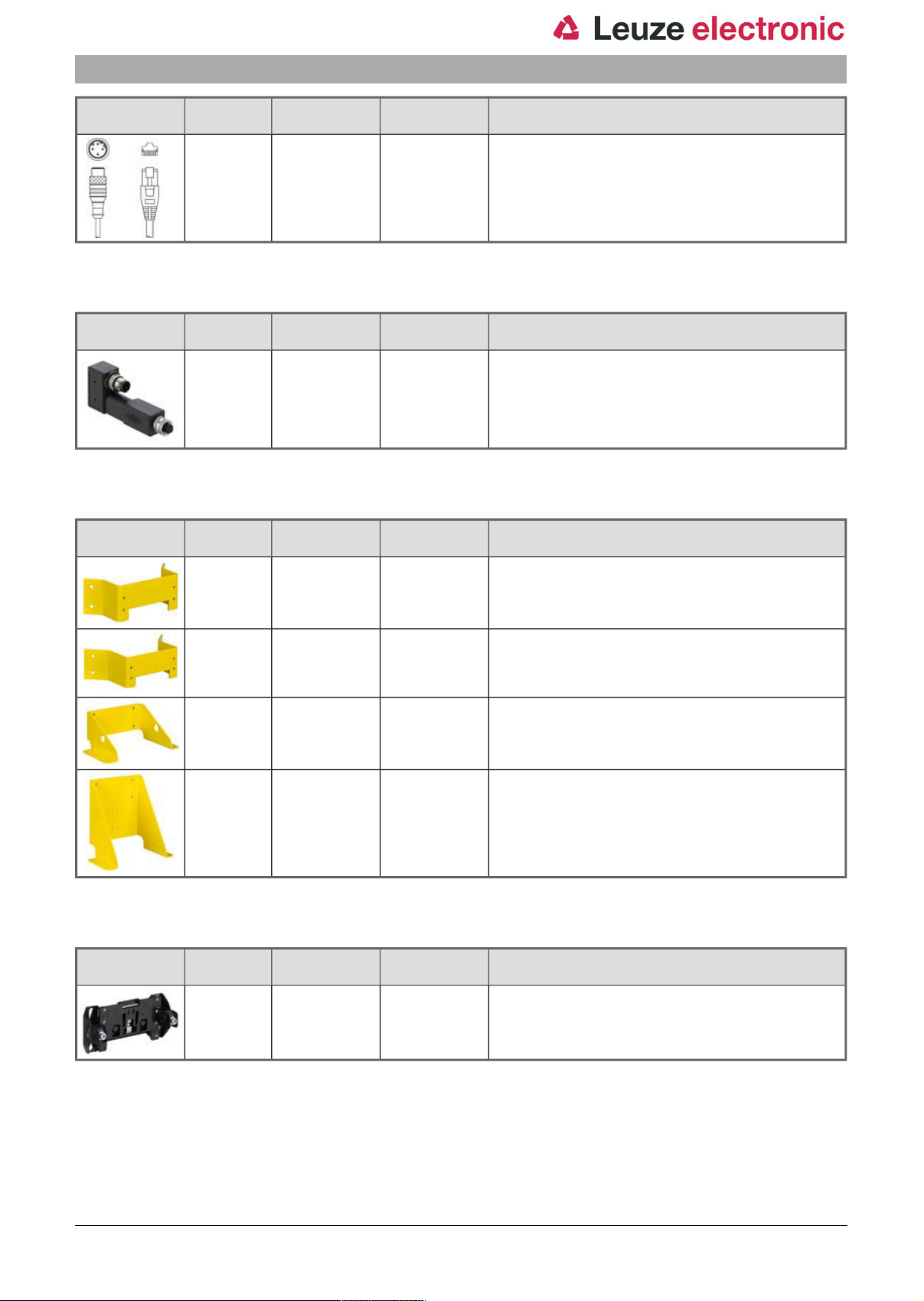

Accessories
Connection technology - Interconnection cables
Part no. Designation Article Description
50135080 KSS ET-M12-4A-
RJ45-A-P7-020
50135081 KSS ET-M12-4A-
RJ45-A-P7-050
50135082 KSS ET-M12-4A-
RJ45-A-P7-100
50135083 KSS ET-M12-4A-
RJ45-A-P7-150
Interconnection
cable
Interconnection
cable
Interconnection
cable
Interconnection
cable
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 2,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 5,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 10,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 15,000 mm
Sheathing material: PUR
eng 2018-04-02
9 / 11
Part no.: 53800244 – RSL440-XL/CU429-25 – Safety laser scanner
Part no. Designation Article Description
50135084 KSS ET-M12-4A-
RJ45-A-P7-300
Interconnection
cable
Connection technology - Adapters
Part no. Designation Article Description
50134656 RSL400 M12
Adapter
Mounting technology - Mounting brackets
Part no. Designation Article Description
53800134 BT840M Mounting bracket Dimensions: 84.9 mm x 72 mm x 205.2 mm
53800135 BT856M Mounting bracket Dimensions: 119 mm x 72 mm x 233.5 mm
53800132 BTF815M Mounting bracket Dimensions: 186 mm x 120 mm x 288 mm
53800133 BTF830M Mounting bracket Dimensions: 186 mm x 275 mm x 288 mm
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 30,000 mm
Sheathing material: PUR
Number of connections: 2 Piece(s)
Connection 1: Connector, M12, D-coded, 4 -pin
Connection 2: Connector, M12, D-coded, 4 -pin
Dimensions: 20 mm x 90.5 mm x 40 mm
Color: Black
Color: Yellow, RAL 1021
Type of fastening, at system: Through-hole mounting
Type of fastening, at device: Screw type
Material: Metal
Color: Yellow, RAL 1021
Type of fastening, at system: Through-hole mounting
Type of fastening, at device: Screw type
Material: Metal
Color: Yellow, RAL 1021
Type of fastening, at system: Through-hole mounting
Type of fastening, at device: Screw type
Material: Metal
Color: Yellow, RAL 1021
Type of fastening, at system: Through-hole mounting
Type of fastening, at device: Screw type
Material: Metal
Mounting technology - Other
Part no. Designation Article Description
53800130 BTU800M Mounting system Dimensions: 54.5 mm x 90 mm x 192 mm
Color: Black
Type of fastening, at system: Through-hole mounting
Type of fastening, at device: Screw type
Material: Metal
eng 2018-04-02
10 / 11
Part no.: 53800244 – RSL440-XL/CU429-25 – Safety laser scanner
Mounting
Part no. Designation Article Description
General
53800131 BTP800M Loop guard Dimensions: 160 mm x 169 mm
Color: Black
Material: Metal
Part no. Designation Article Description
430400 RS4-clean-Set1 Cleaning set Number of cleaning cloths: 40 Piece(s)
Content of cleaning fluid: 150 ml
430410 RS4-clean-Set2 Cleaning set Number of cleaning cloths: 120 Piece(s)
Content of cleaning fluid: 1,000 ml
Notes
Observe intended use!
• The product may only be put into operation by competent persons.
• Only use the product in accordance with its intended use.
WARNING! INVISIBLE LASER RADIATION – LASER CLASS 1
The device satisfies the requirements of IEC 60825-1:2007 (EN 60825-1:2007) safety regulations for a product of laser class 1 as well as
the U.S. 21 CFR 1040.10 regulations with deviations corresponding to "Laser Notice No. 50" from June 24, 2007.
• Observe the applicable statutory and local laser protection regulations.
• The device must not be tampered with and must not be changed in any way.
There are no user-serviceable parts inside the device.
Repairs must only be performed by Leuze electronic GmbH + Co. KG.
eng 2018-04-02
11 / 11
Loading...
