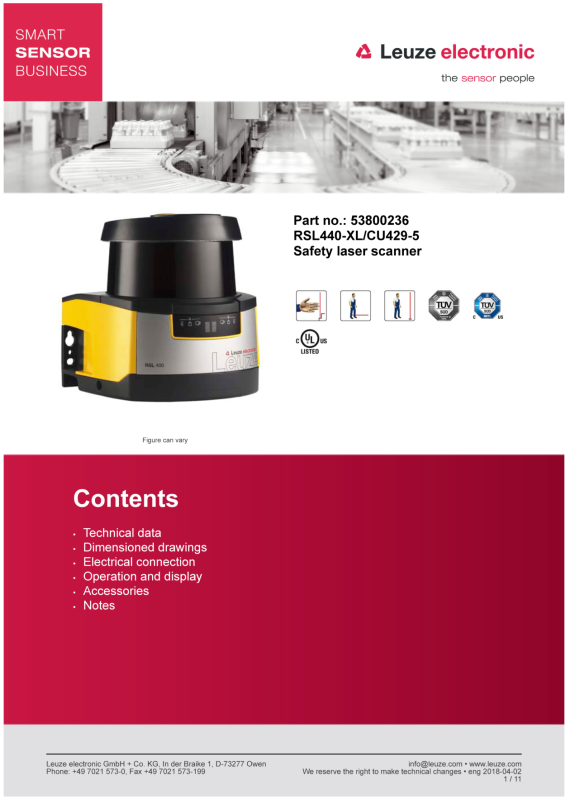

Leuze 53800236 Data Sheet

Part no.: 53800236 – RSL440-XL/CU429-5 – Safety laser scanner

Technical data

Basic data

Series RSL 400

Functions

Functions Dynamic contactor monitoring (EDM), selectable

Characteristic parameters

Type 3, IEC/EN 61496

SIL 2, IEC 61508

SILCL 2, IEC/EN 62061

Performance Level (PL) d, EN ISO 13849-1

PFH

D

Mission time T

Category 3, EN ISO 13849

M

Resolution, selectable
Four-field mode
E-stop linkage
Data output, configurable
Safe time delay, internal

9E-08 per hour

20 years, EN ISO 13849-1

Protective field data

Scanning angle 270 °

Minimum adjustable range 200 mm

Number of field pairs, reversible Up to 100

Number of quads, reversible 50

Number of protective functions 2 Piece(s)

Number of independent sensor configurations Up to 10

Diffuse reflection, min. 1.8 %

Operating range 0 ... 8.25 m

Warning field data

Number of field pairs Up to 100

Operating range 0 ... 20 m

Object size 150 mm x 150 mm

Diffuse reflection, min. 1.8 %

Optical data

Light source Laser, Infrared

Laser light wavelength 905 nm

Laser class 1, IEC/EN 60825-1:2007

Transmitted-signal shape Pulsed

Repetition frequency 90 kHz

Measurement data

Radial resolution 5 mm

Detection range 0 ... 50 m

Angular resolution 0.1 °

Electrical data

eng 2018-04-02

2 / 11

Part no.: 53800236 – RSL440-XL/CU429-5 – Safety laser scanner

Protective circuit Overvoltage protection

Performance data

Supply voltage 24 V, DC, -30 ... 20 %

Current consumption (without load), max. 700 mA, (use power supply unit with 3 A)

Power consumption, max. 17 W, For 24 V, plus output load

Outputs

Number of safety-related switching outputs (OSSDs) 4 Piece(s)

Safety-related switching outputs

Type Safety-related switching output OSSD

Switching voltage high, min. 20.8 V

Switching voltage low, max. 2 V

Voltage type DC

Safety-related switching output 1

Assignment Connection 1, gray wire

Switching element Transistor, PNP

Safety-related switching output 2

Assignment Connection 1, pink wire

Switching element Transistor, PNP

Safety-related switching output 3

Assignment Connection 1, yellow/gray wire

Switching element Transistor, PNP

Safety-related switching output 4

Assignment Connection 1, pink/green wire

Switching element Transistor, PNP

Interface

Type Bluetooth

Bluetooth

Function Configuration/parametering

Frequency band 2,400 ... 2,483.5 MHz

Radiated transmitting power Max. 4.5 dBm (2.82 mW), class 2

Connection

Number of connections 2 Piece(s)

Connection 1

Type of connection Cable

Function Machine interface

Cable length 5,000 mm

Sheathing material PVC

Cable color Black

Number of conductors 29 -wire

Wire cross section supply 1 mm²

Wire cross section signals 0.14 mm²

eng 2018-04-02

3 / 11

Part no.: 53800236 – RSL440-XL/CU429-5 – Safety laser scanner

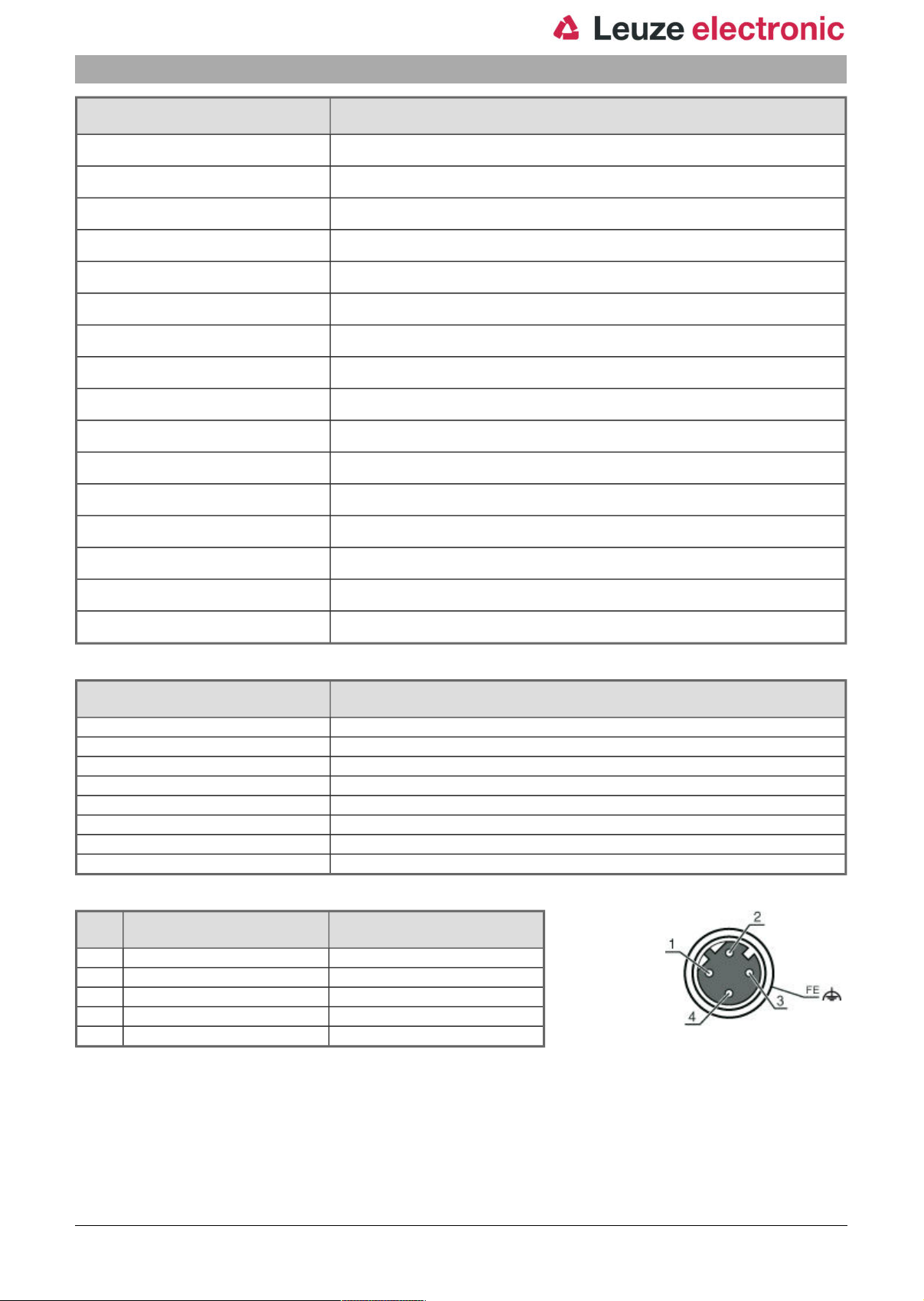

Connection 2

Type of connection Connector

Function Data interface

Thread size M12

Type Female

Material Metal

No. of pins 4 -pin

Encoding D-coded

Cable properties

Cable resistance, max. 15 Ω

Mechanical data

Dimension (W x H x L) 140 mm x 149 mm x 140 mm

Housing material Metal

Lens cover material Plastic/PC

Net weight 3,000 g

Housing color Yellow, RAL 1021

Type of fastening Through-hole mounting

Plastic, Diecast zinc,

Via optional mounting device
Mounting plate

Operation and display

Type of display LED indicator

Number of LEDs 6 Piece(s)

Type of configuration Software Sensor Studio

Operational controls Software Sensor Studio

Environmental data

Ambient temperature, operation 0 ... 50 °C

Ambient temperature, storage -20 ... 60 °C

Certifications

Degree of protection IP 65

Protection class III, EN 61140

Certifications c TÜV Süd US

US patents US 7,696,468 B

Classification

eCl@ss 8.0 27272705

eCl@ss 9.0 27272705

ETIM 5.0 EC002550

Alphanumerical display

c UL US
TÜV Süd

US 8,520,221 B
US 7,656,917 B
US 2016/0086469 A

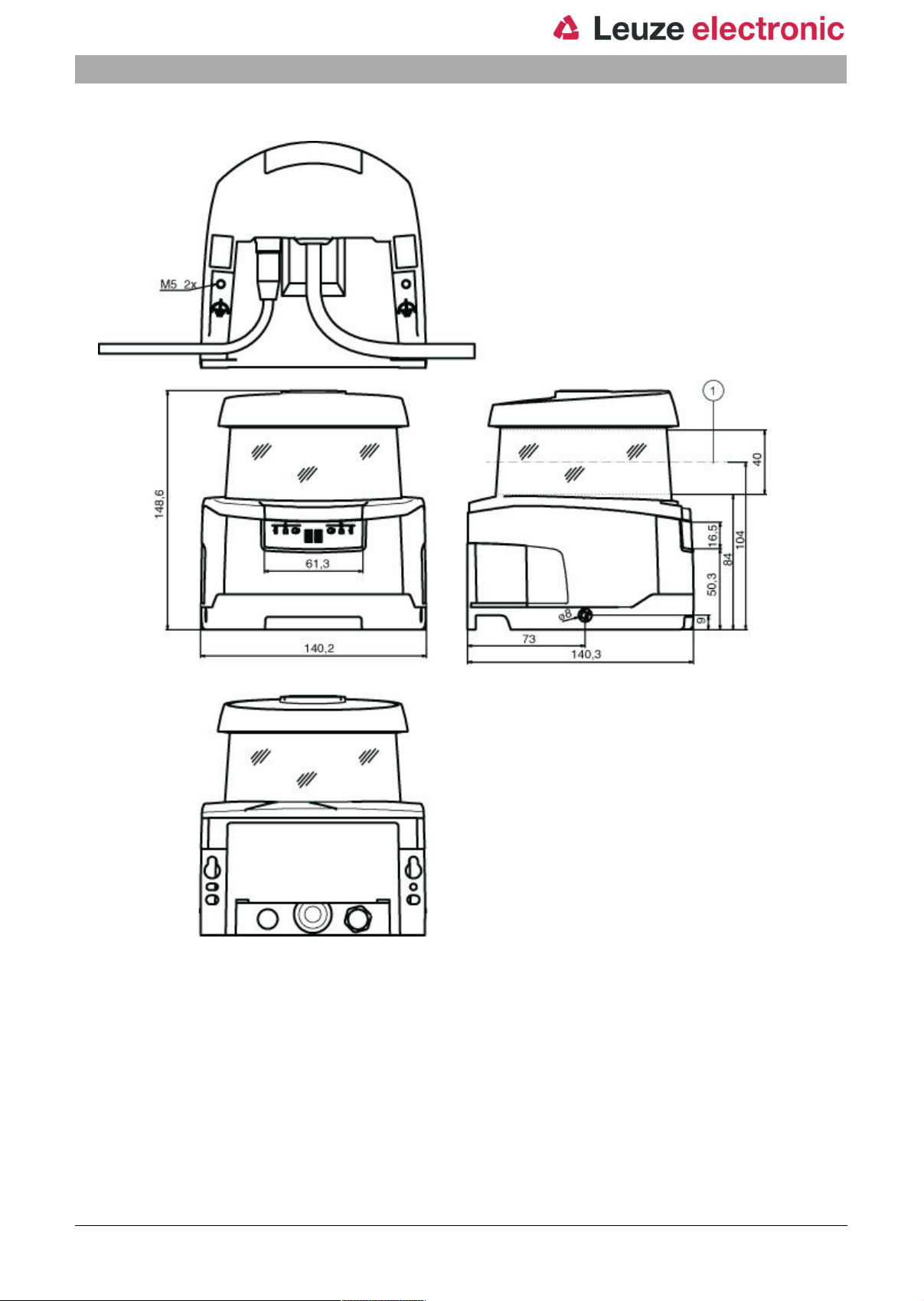

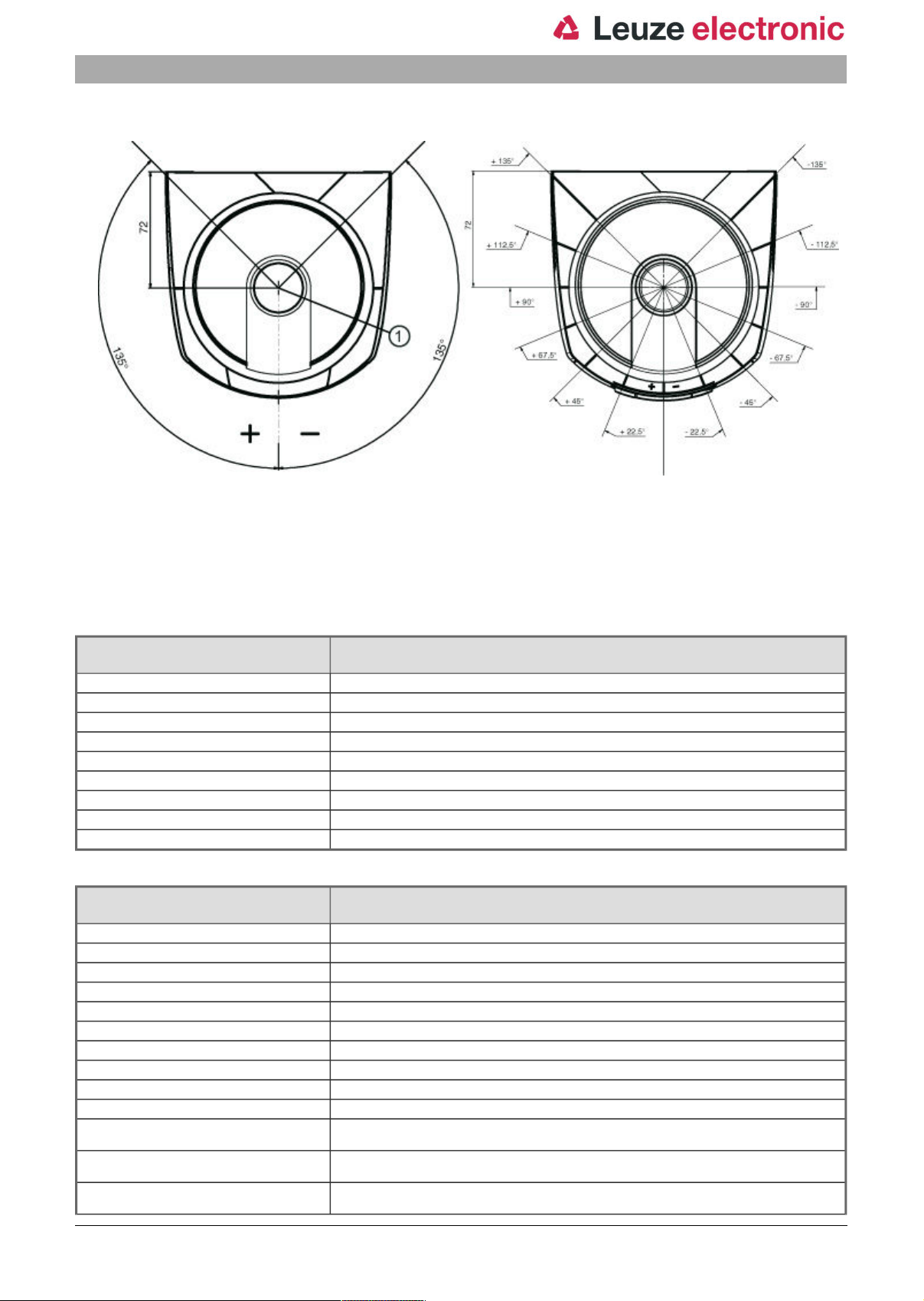

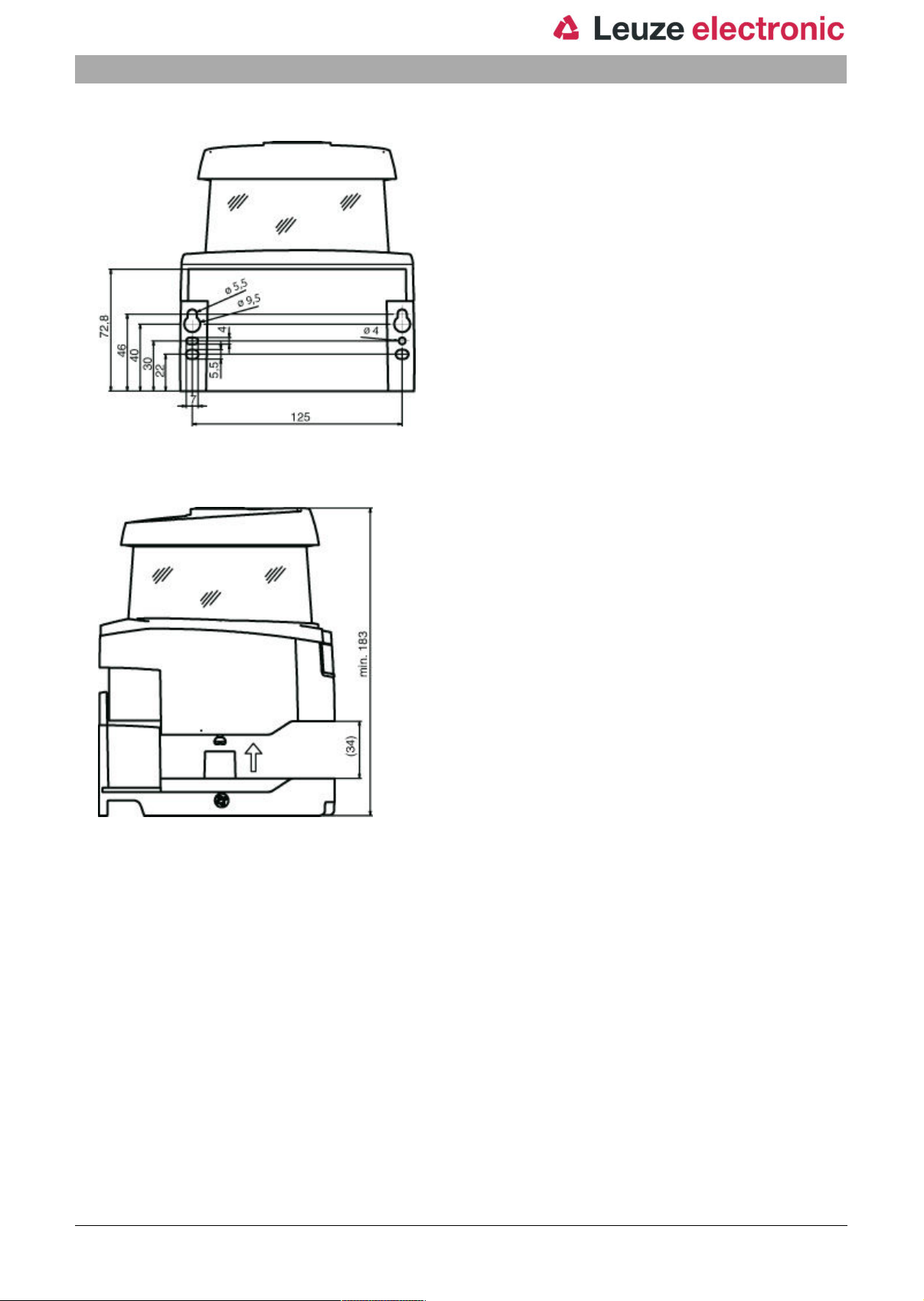

Dimensioned drawings

All dimensions in millimeters
