Page 1

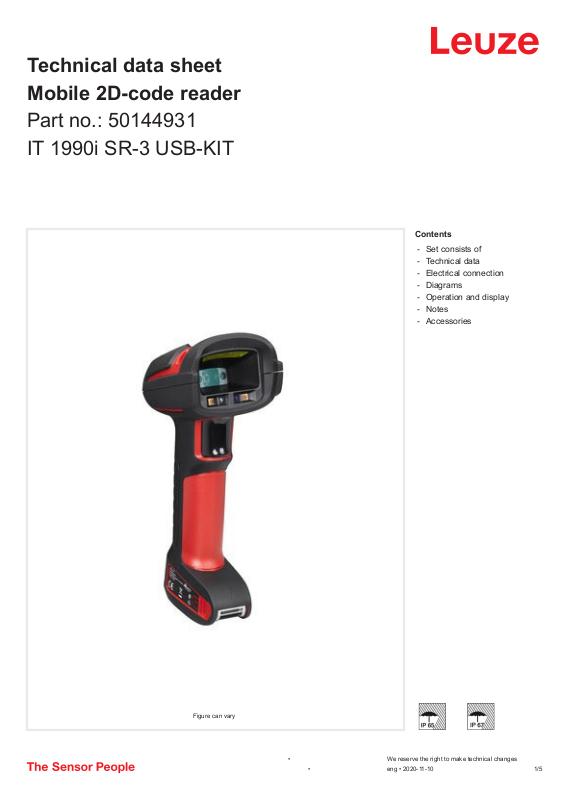

Technical data sheet Mobile 2D-code reader

Part no.: 50144931 IT 1990i SR-3 USB-KIT

Contents

Set consists of

Technical data

Electrical connection

Diagrams

Operation and display

Notes

Accessories

Figure can vary

• We reserve the right to make technical changes

• eng • 2020-11-10

1 /5

Page 2

Mobile 2D-code reader • Part no.: 50144931 • IT 1990i SR-3 USB-KIT

Set consists of

Quantity Part no. Designation Article Description

1 50114521 KB USB-1 IT190x Interconnection cable Suitable for interface: USB

Technical data

Basic data

Series IT19xx

Read data

Code types, readable 2/5 Interleaved

Aztec

Codabar

Codablock

Code 128

Code 39

Code 49

Code 93

Data Matrix Code

EAN/UPC

GS1 Databar

Maxicode

Micro PDF

Others on request

PDF417

QR code

UPC

Optical data

Reading distance 0 ... 837 mm

Camera resolution, horizontal 1,280 px

Camera resolution, vertical 800 px

Electrical data

Performance data

Supply voltage U

Power consumption, max. 2.35 W

Interface

Type PS/2, RS 232, USB

4 ... 5.5 V, DC

Connection 1: USB Connection 2: RJ41 Shielded: Yes Cable length: 3,000 mm Sheathing material: PVC

RS 232

Function Process

USB

Function

Process

Connection

Connection 1

Type of connection RJ41

Mechanical data

Dimension (W x H x L) 76 mm x 100 mm x 192 mm

Housing material Plastic

Plastic housing UL 94-V0

Net weight 320 g

Environmental data

Ambient temperature, operation -30 ... 50 °C

Ambient temperature, storage -40 ... 70 °C

Relative humidity (non-condensing) 0 ... 95 %

Drop height 3 m

Measurements relative to Concrete floor

Certifications

Degree of protection IP 65

IP 67

Classification

Customs tariff number 84719000

eCl@ss 8.0 27280103

eCl@ss 9.0 27280103

eCl@ss 10.0 27280103

eCl@ss 11.0 27280103

ETIM 5.0 EC002999

ETIM 6.0 EC002999

Electrical connection

Connection 1

Function Configuration interface

Data interface

Type of connection RJ41

• We reserve the right to make technical changes

• eng • 2020-11-10

2 /5

Page 3

Mobile 2D-code reader • Part no.: 50144931 • IT 1990i SR-3 USB-KIT

B [mm] C [mm] D [mm]

A [mil]

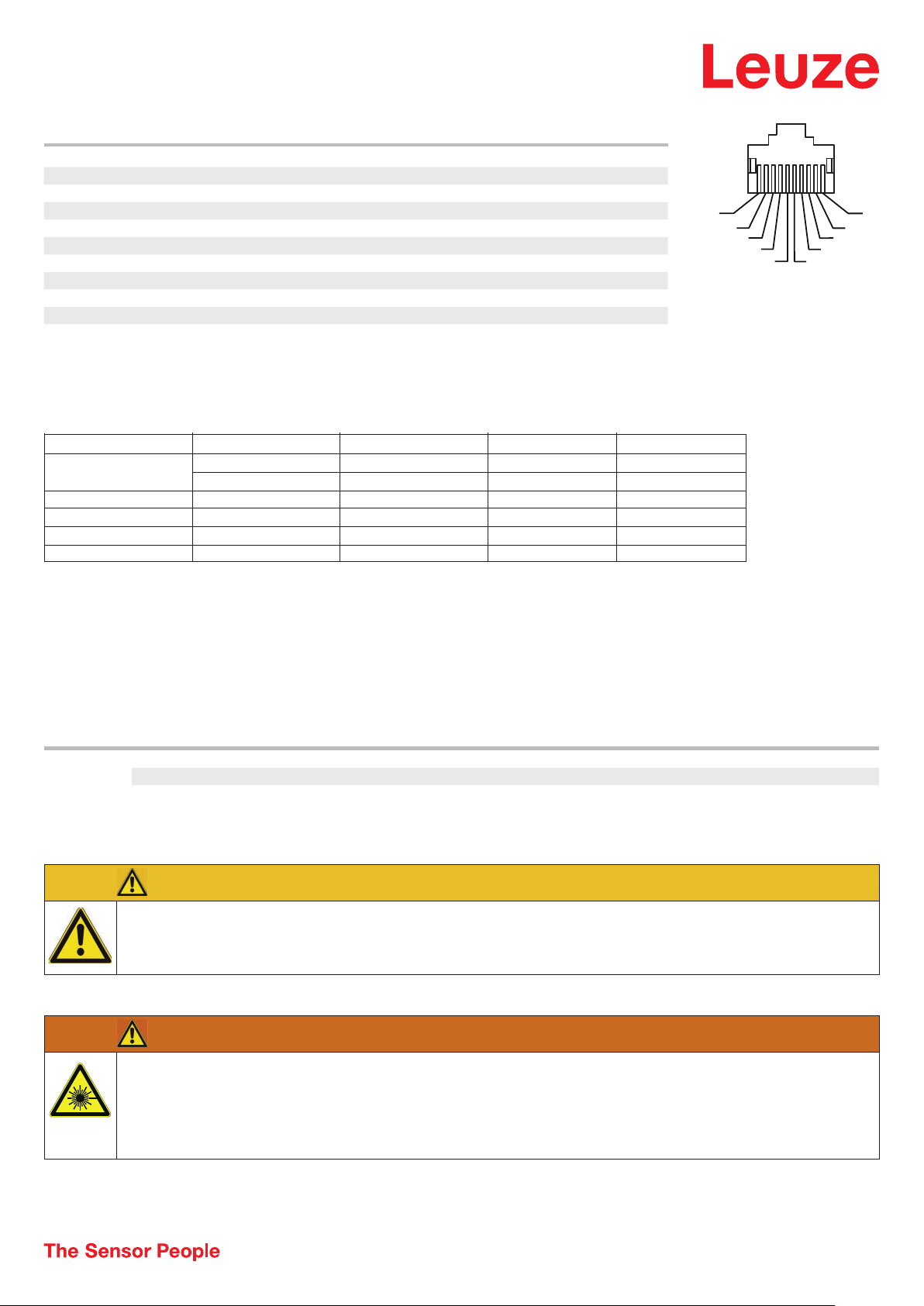

Electrical connection

Pin Pin assignment

1 Shield

2 Cable ID

3 GND

4 TxD RS 232 / n.c. USB

5 RxD RS 232 / n.c. USB

6 CTS RS 232 / n.c. USB

7 +5 V DC

8 R

9 n.c. RS 232 / Data + USB

10 n.c. RS 232 / Data - USB

TS RS 232 / n.c. USB

Diagrams

Typical reading behavior

Code 39

UPC/EAN 13 PDF 417 Data Matrix Code QR Code

A Module size [mil]

B Modulus size [mm]

C From [mm]

20 13

6,7 10

721,05

33,0

961,0

452,0 805,020

D To [mm]

ATTENTION !Please observe the note below

regarding the reading distances.

0805,0

03 33

Operation and display

LED Display Meaning

1 Normal

operation

Green, 1x flashing Reading successful

Red, continuous light Communication error

Notes

Observe intended use!

220 837 5040

209 220

475

ª This product is not a safety sensor and is not intended as personnel protection.

ª The product may only be put into operation by competent persons.

ª Only use the product in accordance with its intended use.

WARNING! LASER RADIATION – CLASS 1 LASER PRODUCT

The device satisfies the requirements of IEC 60825-1:2007 (EN 60825-1:2007) safety regulations for a product of laser class 1 as well as the U.S. 21 CFR 1040.10 regulations with deviations corresponding to "Laser Notice No. 50" from June 24, 2007.

ª Observe the applicable statutory and local laser protection regulations.

ª The device must not be tampered with and must not be changed in any way.

There are no user-serviceable parts inside the device. Repairs must only be performed by

• We reserve the right to make technical changes

• eng • 2020-11-10

3 /5

Page 4

Mobile 2D-code reader • Part no.: 50144931 • IT 1990i SR-3 USB-KIT

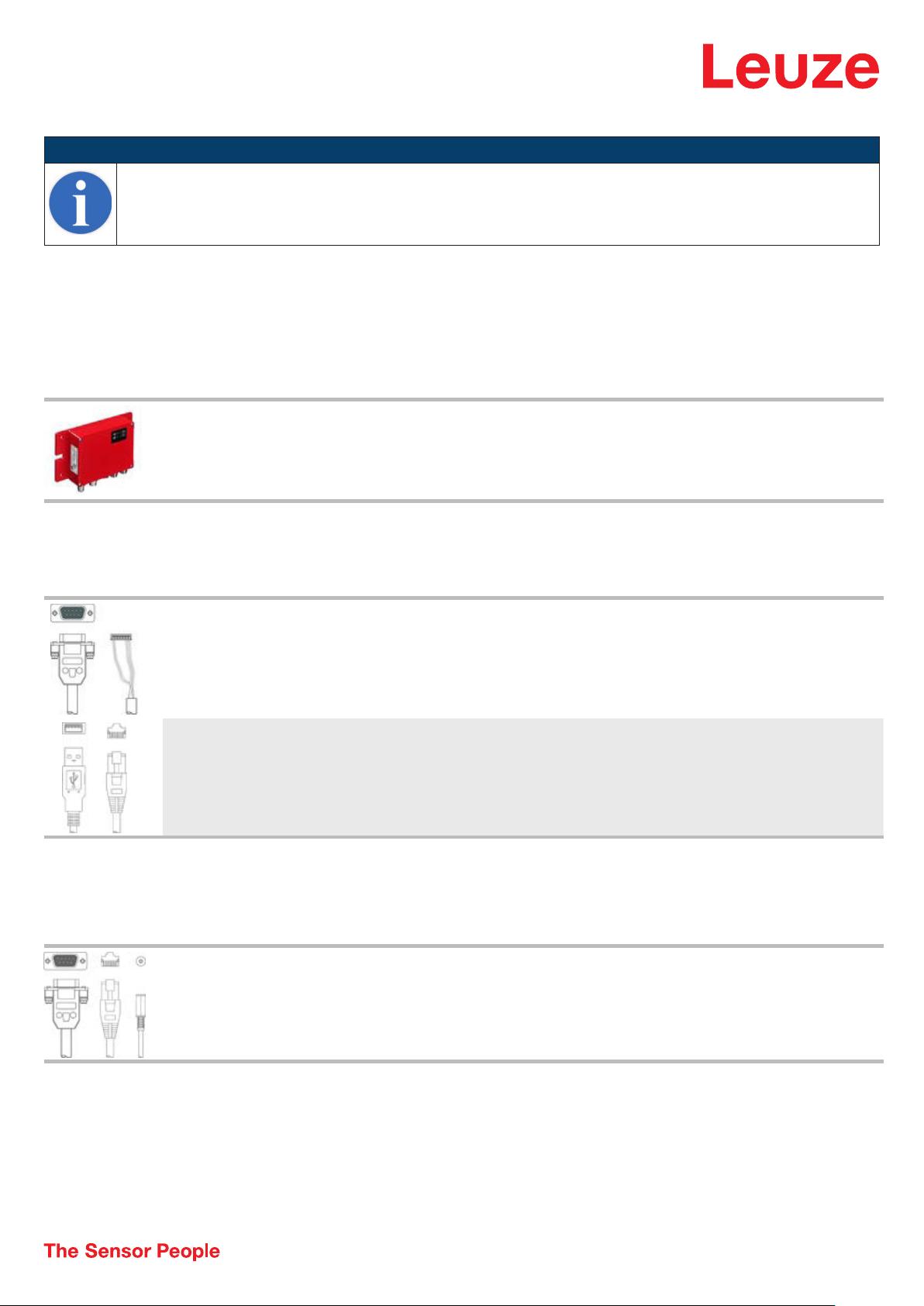

Notes

NOTE

ª Please notice that the real reading distances are also influenced by factors such as labeling material, printing quality, reading angle, printing contrast etc.,

and may thus deviate from the reading distances specified here.

Accessories

Connection technology - Connection unit

Part no. Designation Article Description

50112891 MA 248i Profinet

Connection technology - Interconnection cables

Gateway

Modular connection unit

Supply voltage: 18 ... 30 V Current consumption, max.: 300 mA Interface: PROFINET, RS 232 Connections: 6 Piece(s) Degree of protection: IP 65

Part no. Designation Article Description

50113397 KB JST-HS-300 Connection cable Suitable for interface: RS 232

50114521 ** KB USB-1 IT190x Interconnection cable Suitable for interface: USB

** Included in delivery contents

Connection 1: JST ZHR Connection 2: Sub-D, Axial, Male, 9 -pin Shielded: Yes Cable length: 300 mm Sheathing material: PUR

Connection 1: USB Connection 2: RJ41 Shielded: Yes Cable length: 3,000 mm Sheathing material: PVC

Connection technology - Y distribution cables

Part no. Designation Article Description

50114517 KB 232-1 IT190x Interconnection cable Suitable for interface: RS 232, TTL

• We reserve the right to make technical changes

Connection 1: Sub-D, Axial, Female, 9 -pin Connection 2: RJ41 Connection 3: Connector, Pluggable, Axial, Female, 2 -pin Shielded: Yes Cable length: 3,000 mm Sheathing material: PVC

• eng • 2020-11-10

4 /5

Page 5

Mobile 2D-code reader • Part no.: 50144931 • IT 1990i SR-3 USB-KIT

Accessories

Mounting technology - Other

Part no. Designation Article Description

50120444 BT Wallholder

HS65x8

Wall mount Design of mounting device: Wall mounting

Fastening, at system: Through-hole mounting Mounting bracket, at device: insertable Material: Plastic

Note

ª A list with all available accessories can be found on the Leuze website in the Download tab of the article detailed page.

• We reserve the right to make technical changes

• eng • 2020-11-10

5 /5
