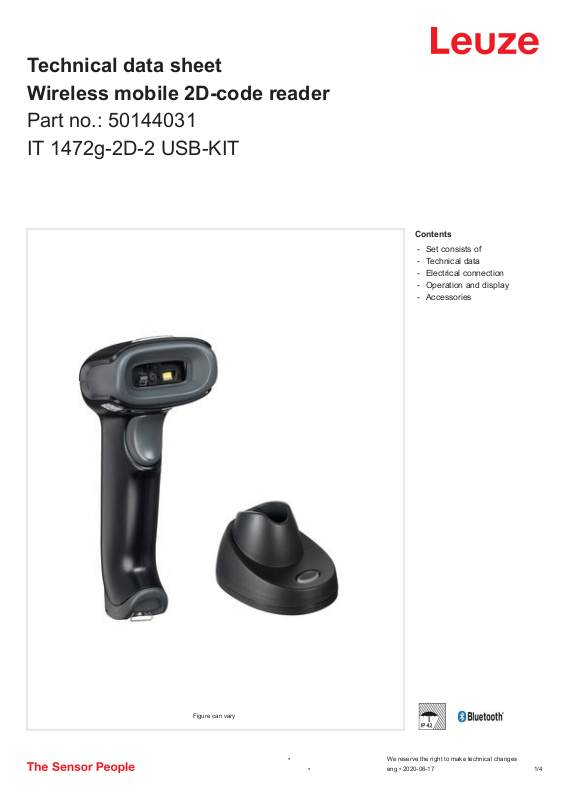

Page 1
Technical data sheet
Wireless mobile 2D-code reader
Part no.: 50144031
IT 1472g-2D-2 USB-KIT
Contents
-
Set consists of
-
Technical data
-
Electrical connection
-
Operation and display
-
Accessories
Figure can vary
• We reserve the right to make technical changes
• eng • 2020-06-17
1 /4
Page 2
Wireless mobile 2D-code reader • Part no.: 50144031 • IT 1472g-2D-2 USB-KIT
Set consists of
Quantity Part no. Designation Article Description
1 50143595 Base IT 1472g Base station Interface: PS/2, RS 232, USB
1 50105384 Battery IT-series Battery Supply voltage: 3.7 V, DC
1 50114521 KB USB-1 IT190x Interconnection cable Suitable for interface: USB
Technical data
Basic data
Series IT147xg
Read data
Code types, readable
2/5 Interleaved
Aztec
Codabar
Codablock
Code 128
Code 39
Code 93
Data Matrix Code
DotCode
EAN 8/13
EAN Addendum
GS1 Databar
GS1 Databar Expanded
GS1 Databar Limited
GS1 Databar Omnidirectional
GS1 Databar Stacked
GS1
Maxicode
Micro PDF
Micro QR
PDF417
QR code
UPC
Databar Truncated
Bluetooth range: Class 2
Bluetooth version: 2.1
Connection 1: RJ41
Connection 2: Jack socket
Connection 3: Bluetooth
Battery technology: LiIon
Battery storage capacity: 2.4 A·h
Connection 1: USB
Connection 2: RJ41
Shielded: Yes
Cable length: 3,000 mm
Sheathing material: PVC
Optical data
Reading distance 5 ... 400 mm
Light source LED
LED group 1
Camera resolution, horizontal 1,040 px
Camera resolution, vertical 720 px
Bar code contrast (PCS) 35 %
Modulus size 0.127 ... 0.508 mm
Electrical data
Performance data
Supply voltage U
Power consumption, max.
Battery technology
Battery storage capacity 2.4 A·h
B
3.7 V, DC
1.8 W
LiIon
Interface
Type PS/2, RS 232, USB
RS 232
Function Process
USB
Function
Process
Connection
Bluetooth range Class 2
Bluetooth version 4.2
Connection 1
Type of connection Bluetooth
Mechanical data
Dimension (W x H x L) 173 mm x 82 mm x 62 mm
Housing material Plastic, UL 94-V0
Net weight 210 g
• We reserve the right to make technical changes
• eng • 2020-06-17
2 /4
Page 3
Wireless mobile 2D-code reader • Part no.: 50144031 • IT 1472g-2D-2 USB-KIT
Technical data
Environmental data
Ambient temperature, operation 0 ... 50 °C
Ambient temperature, storage -40 ... 70 °C
Relative humidity (non-condensing) 0 ... 95 %
Drop height 1.8 m
Measurements relative to Concrete floor
Certifications
Degree of protection IP 42
Classification
Customs tariff number 84719000
eCl@ss 8.0 27280103
eCl@ss 9.0 27280103
ETIM 5.0 EC002550
ETIM 6.0 EC002550
Electrical connection
Connection 1
Function Configuration interface
Data interface
Type of connection Bluetooth
Operation and display
LED Display Meaning
1 Red, continuous light Low battery level
Green, 1x flashing Reading successful
Red, flashing Communication error
Accessories
Connection technology - Connection unit
Part no. Designation Article Description
50112891 MA 248i Profinet
Connection technology - Interconnection cables
Part no. Designation Article Description
50113397 KB JST-HS-300 Connection cable Suitable for interface: RS 232
Gateway
Modular connection
unit
Supply voltage: 18 ... 30 V
Current consumption, max.: 300 mA
Interface: PROFINET, RS 232
Connections: 6 Piece(s)
Degree of protection: IP 65
Connection 1: JST ZHR
Connection 2: Sub-D, Axial, Male, 9 -pin
Shielded: Yes
Cable length: 300 mm
Sheathing material: PUR
• We reserve the right to make technical changes
• eng • 2020-06-17
3 /4
Page 4
Wireless mobile 2D-code reader • Part no.: 50144031 • IT 1472g-2D-2 USB-KIT
Accessories
Connection technology - Y distribution cables
Part no. Designation Article Description
50114517 KB 232-1 IT190x Interconnection cable Suitable for interface: RS 232, TTL
Power supply units
Part no. Designation Article Description
50114525 * NT f. IT 1900+Base- EUPower supply unit Type of power supply unit: Plug-in power supply unit
* Necessary accessories, please order separately
Note
ª A list with all available accessories can be found on the Leuze website in the Download tab of the article detailed page.
Connection 1: Sub-D, Axial, Female, 9 -pin
Connection 2: RJ41
Connection 3: Connector, Pluggable, Axial, Female, 2 -pin
Shielded: Yes
Cable length: 3,000 mm
Sheathing material: PVC
Output: 5 V DC, 1 A
Input: 110..240 V AC, 50..60 Hz
• We reserve the right to make technical changes
• eng • 2020-06-17
4 /4
