Technical data sheet
Stationary bar code reader

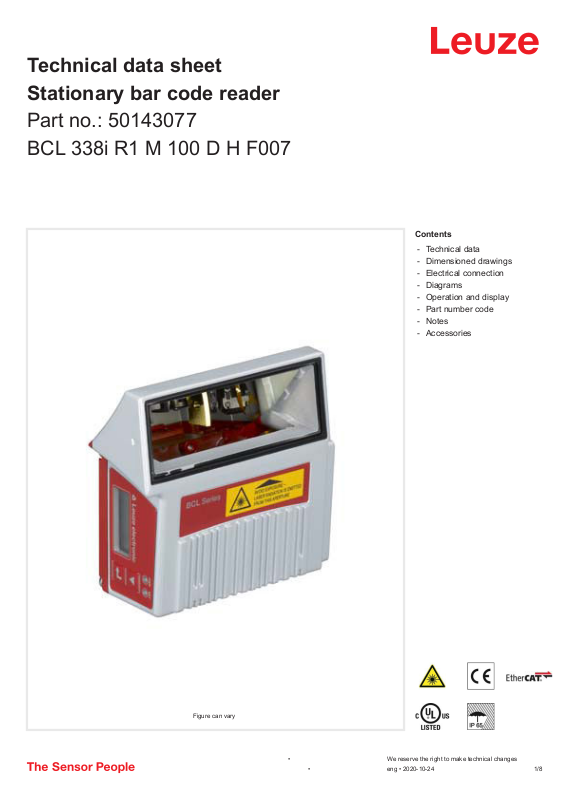

Part no.: 50143077
BCL 338i R1 M 100 D H F007
Contents
-
T
echnical data
-
Dimensioned drawings
-
Electrical connection
-
Diagrams
-
Operation and display
-
Part number code
-
Notes
-
Accessories
Figure can vary
• We reserve the right to make technical changes
• eng • 2020-10-24
1 /8
Stationary bar code reader • Part no.: 50143077 • BCL 338i R1 M 100 D H F007
Technical data
Basic data
Series BCL 300i
Special version
Special version Heating
Functions
Functions Alignment mode
AutoConfig
AutoControl
AutoReflAct
Code fragment technology
Heating
LED indicator
Reference code comparison
Characteristic parameters
MTTF 110 years
Read data
Code types, readable 2/5 Interleaved
Codabar
Code 128
Code 39
Code 93
EAN 8/13
GS1 Databar Expanded
GS1 Databar Limited
GS1 Databar Omnidirectional
UPC
Scanning rate, typical 1,000 scans/s
Bar codes per reading gate, max.
number
64 Piece(s)
Optical data
Reading distance 30 ... 290 mm
Light source Laser, Red
Laser light wavelength 655 nm
Laser class 2, IEC/EN 60825-1:2007
Transmitted-signal shape Continuous
Usable opening angle (reading field
opening)
Modulus size 0.2 ... 0.5 mm
Reading method Raster scanner with deflecting mirror
Beam deflection By means of rotating polygon mirror
Light beam exit Lateral with deflecting mirror
Raster (number of lines) 8 Piece(s)
Scanning field at scanner distance of
100 mm
Scanning field at scanner distance of
200 mm
Scanning field at scanner distance of
300 mm
Scanning field at scanner distance of
400 mm
60 °
wheel + deflecting mirror
17 mm
27 mm
38 mm
48 mm
Performance data
Supply voltage U
Power consumption, max. 27 W
B
18 ... 30 V, DC
Inputs/outputs selectable
Output current, max. 60 mA
Number of inputs/outputs selectable
Input current, max.
2 Piece(s)
8 mA
Interface
Type EtherCAT
EtherCAT
Function
Transmission protocol EtherCAT, CoE and EoE
Process
Service interface
Type USB
USB
Function Configuration via software
Service
Connection
Number of connections 1 Piece(s)
Connection 1
Function
T
ype of connection Plug connector
No. of pins
Type Male
BUS IN
BUS OUT
Connection to device
Data interface
PWR / SW IN / OUT
Service interface
32 -pin
Mechanical data
Design Cubic
Dimension (W x H x L) 103 mm x 44 mm x 96 mm
Housing material Metal, Diecast aluminum
Lens cover material Glass
Net weight 350 g
Housing color Black
Red
Type of fastening Dovetail grooves
Fastening on back
V
ia optional mounting device
Operation and display
Type of display LED
Monochromatic graphic display, 128 x 32
pixels
Number of LEDs 2 Piece(s)
Type of configuration Via web browser
Operational controls Button(s)
Electrical data
Protective circuit Polarity reversal protection
• We reserve the right to make technical changes
• eng • 2020-10-24
2 /8
Stationary bar code reader • Part no.: 50143077 • BCL 338i R1 M 100 D H F007
&
Technical data
Environmental data
Ambient temperature, operation -35 ... 40 °C
Ambient temperature, storage -20 ... 70 °C
Relative humidity (non-condensing) 0 ... 90 %
Certifications
Degree of protection IP 65
Protection class III
Certifications c UL US
Test procedure for EMC in accordance
with standard
Test procedure for shock in
accordance with standard
Test procedure for continuous shock
in accordance with standard
Test procedure for vibration in
accordance with standard
EN 55022
EN 61000-4-2, -3, -4, -6
IEC 60068-2-27, test Ea
IEC 60068-2-29, test Eb
IEC 60068-2-6, test Fc

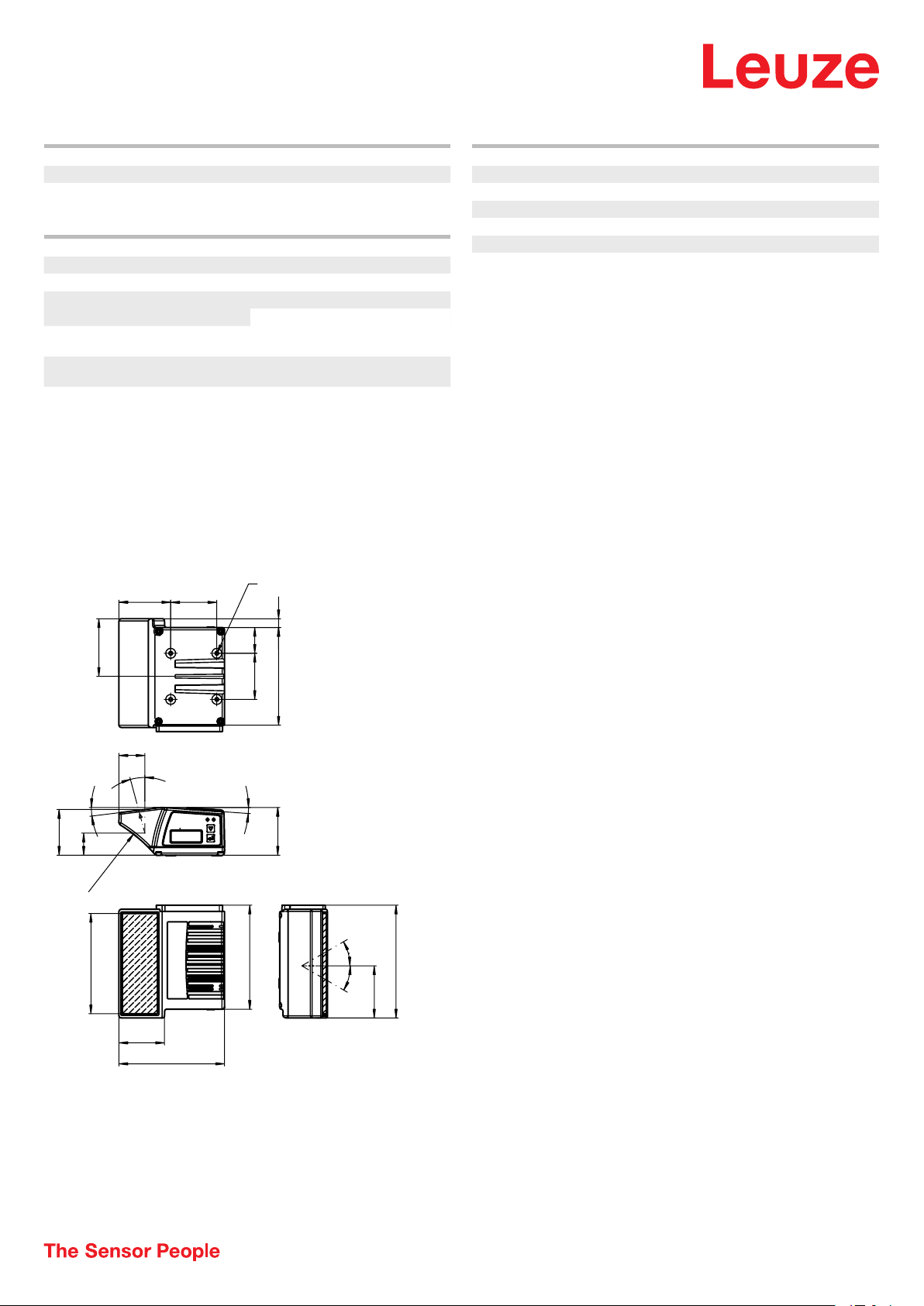

Dimensioned drawings
All dimensions in millimeters
Classification
Customs tariff number 84719000
eCl@ss 8.0 27280102
eCl@ss 9.0 27280102
eCl@ss 10.0 27280102
eCl@ss 11.0 27280102
ETIM 5.0 EC002550
ETIM 6.0 EC002550
A Optical axis
B Deflection angle of the laser beam: ± 30 °
C M4 thread (5 deep)
$
r
r
$
r
5
%
%
• We reserve the right to make technical changes
• eng • 2020-10-24
3 /8
Stationary bar code reader • Part no.: 50143077 • BCL 338i R1 M 100 D H F007
050 100 150 250 350 450200 300 400
-100
-150
y
Electrical connection
Connection 1
Function BUS IN
BUS OUT
Connection to device
Data interface
PWR / SW IN / OUT
Service interface
Type of connection
No. of pins 32 -pin
Type
Plug connector
Male
Diagrams

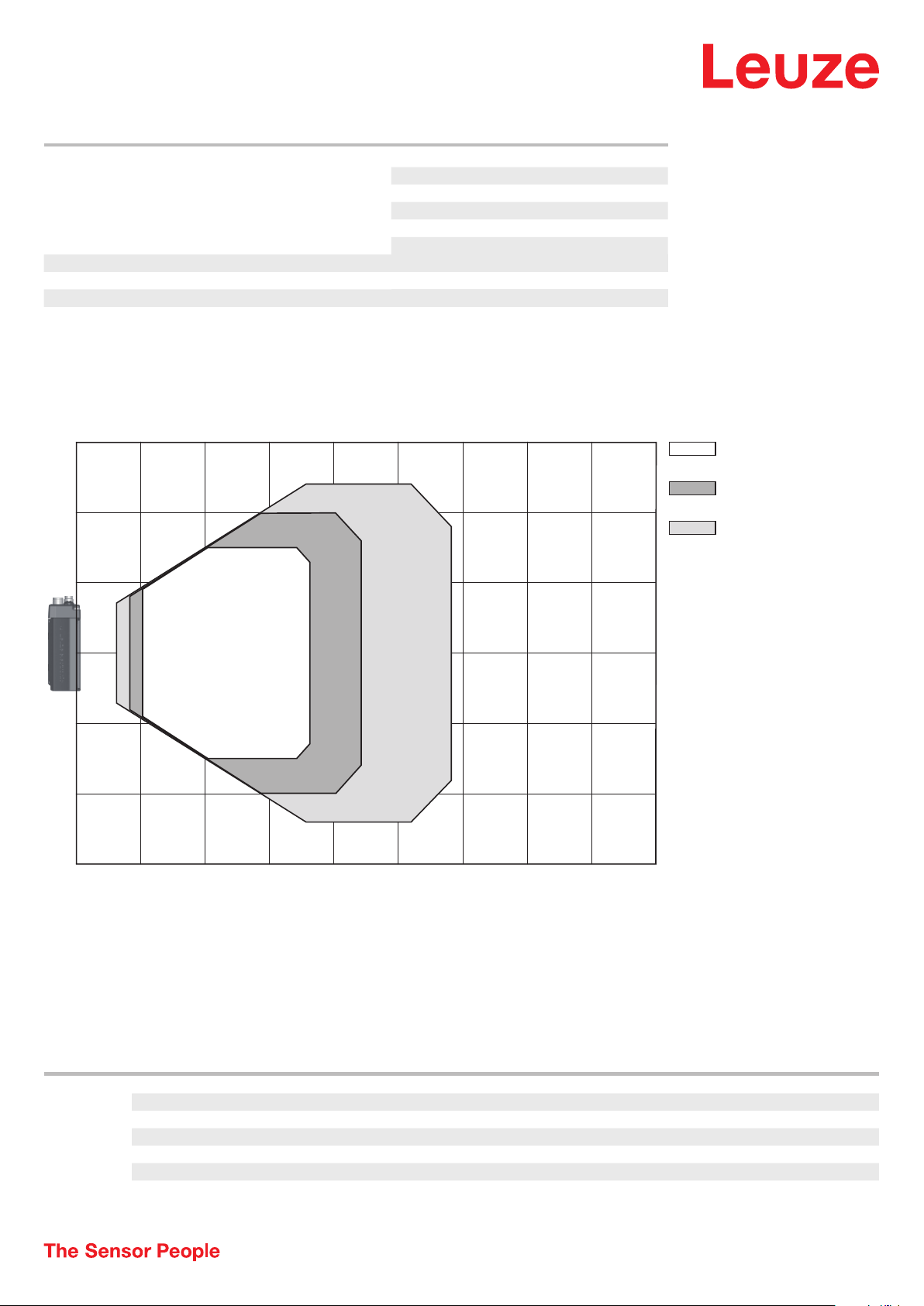

Reading field curve
150
m = 0,2
100
50
0
-50
x Reading field distance [mm]
y Reading field width [mm]
m = 0,2
m = 0,3
m = 0,3
m = 0,5
m = 0,5
x
Operation and display
LED Display Meaning
1 PWR Green, flashing Device ok, initialization phase
Green, continuous light Device OK
Green, briefly off - on Reading successful
green, briefly off - briefly red - on Reading not successful
Orange, continuous light Service mode
Red, flashing Device OK, warning set
Red, continuous light Error, device error
• We reserve the right to make technical changes
• eng • 2020-10-24
4 /8
Stationary bar code reader • Part no.: 50143077 • BCL 338i R1 M 100 D H F007
Operation and display
LED Display Meaning
2 BUS Green, flashing Initialization
Green, continuous light Bus operation ok
Red, flashing Communication error
Red, continuous light Bus error
Part number code
Part designation: BCL
XXXX YYZ AAA BB CCCC
BCL Operating principle
XXXX Series/interface (integrated fieldbus technology)
YY Scanning principle
Z Optics
AAA Beam exit
BB Special equipment
CCCC Functions
BCL: bar code reader
300i: RS 232 / RS 422 (stand-alone)
301i: RS 485 (multiNet slave)
304i: PROFIBUS DP
308i: EtherNet TCP/IP, UDP
348i: PROFINET RT
358i: EtherNet/IP
S: line scanner (single line)
R1: line scanner (raster)
O: oscillating-mirror scanner (oscillating mirror)
N: High Density (close)
M: Medium Density (medium distance)
F: Low Density (remote)
L: Long Range (very large distances)
J: ink-jet (depending on the application)
100: lateral
102: front
D: with display
H: with heating
DH: optionally with display and heating
P: plastic exit window
F007: optimized process data structure
Note
ª A list with all available device types can be found on the Leuze website at
Notes
Observe intended use!
ª This product is not a safety sensor and is not intended as personnel protection.
ª The product may only be put into operation by competent persons.
ª Only use the product in accordance with its intended use.
• We reserve the right to make technical changes
• eng • 2020-10-24
5 /8
Stationary bar code reader • Part no.: 50143077 • BCL 338i R1 M 100 D H F007
Notes
WARNING! LASER RADIATION – CLASS 2 LASER PRODUCT
Do not stare into beam!
The device satisfies the requirements of IEC 60825-1:2007 (EN 60825-1:2007) safety regulations for a product of laser class 2 as well as the
U.S. 21 CFR 1040.10 regulations with deviations corresponding to "Laser Notice No. 50" from June 24, 2007.
ª Never look directly into the laser beam or in the direction of reflected laser beams! If you look into the beam path over a longer time period, there is a risk
of injury to the retina.
ª Do not point the laser beam of the device at persons!
ª Interrupt the laser beam using a non-transparent, non-reflective object if the laser beam is accidentally directed towards a person.
ª When mounting and aligning the device, avoid reflections of the laser beam of
ª CAUTION! Use of controls or adjustments or performance of procedures other than specified herein may result in hazardous light exposure.
ª Observe the applicable statutory and local laser protection regulations.
ª The device must not be tampered with and must not be changed in any way.
There are no user-serviceable parts inside the device.
Repairs must only be performed by
NOTE
Affix laser information and warning signs!
Laser information and warning signs are affixed to the device. In addition, self-adhesive laser information and warning signs (stick-on labels) are
supplied in several languages.
ª Affix the laser information sheet to the device in the language appropriate for the place of use. When using the device in the US, use the stick-on label
with the "Complies with 21 CFR 1040.10" note.
ª Affix the laser information and warning signs near the device if no signs are attached to the device (e.g. because the device is too small) or if the attached
laser information and warning signs are concealed due to the installation position.
ª Affix the laser information and warning signs so that they are legible without exposing the reader to the laser radiation of the device or other optical
radiation.
f reflective surfaces!
Accessories
Connection technology - Connection cables
Part no. Designation Article Description
50132079 KD U-M12-5A-V1-
050
50135074 KS ET-M12-4A-P7-
050
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin
Connection cable Suitable for interface: Ethernet
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PVC
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PUR
• We reserve the right to make technical changes
• eng • 2020-10-24
6 /8
Stationary bar code reader • Part no.: 50143077 • BCL 338i R1 M 100 D H F007
Accessories

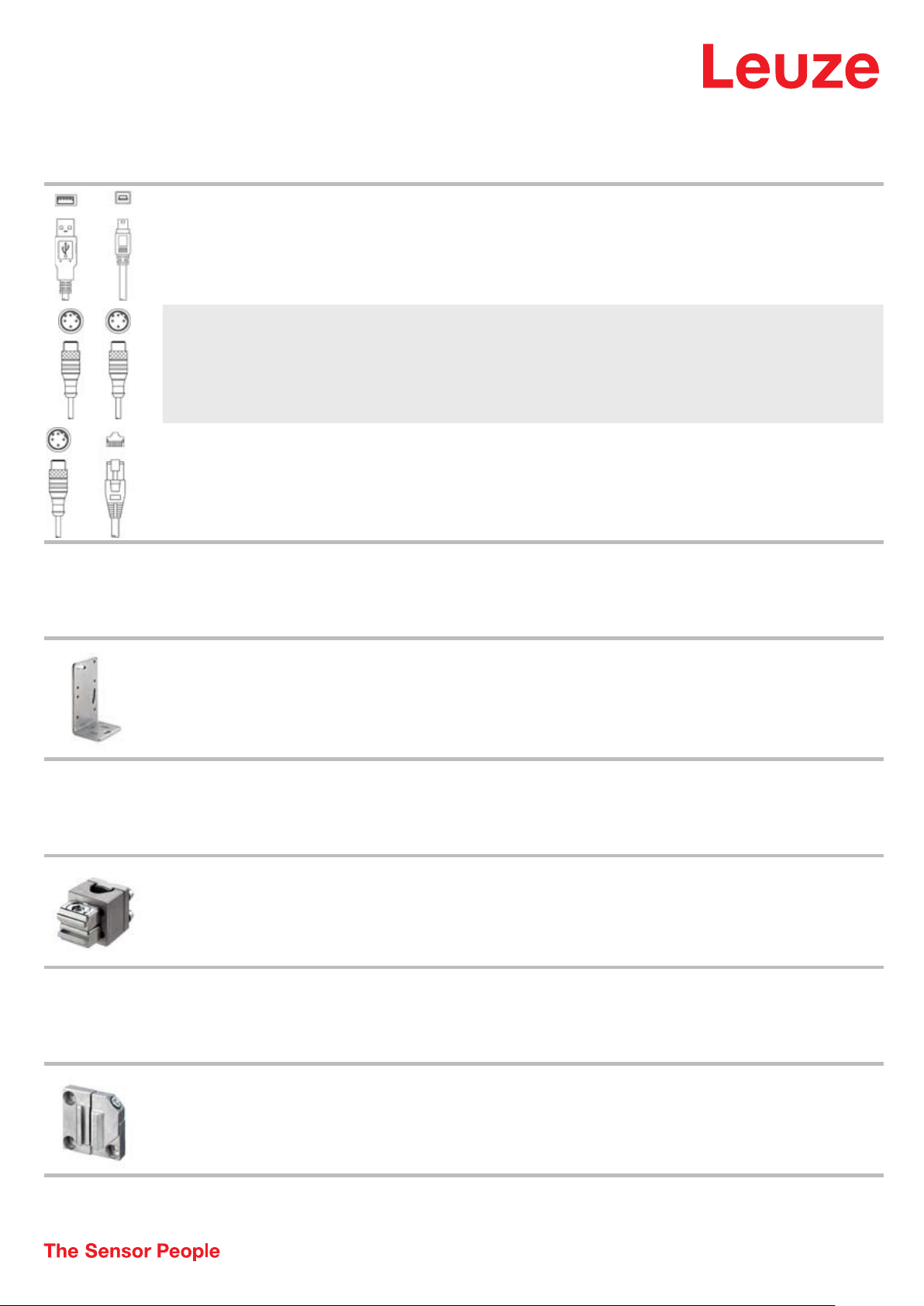

Connection technology - Interconnection cables
Part no. Designation Article Description
50117011 KB USB A - USB
50137078 KSS ET-M12-4A-
50135081 KSS ET-M12-4A-
Mounting technology - Mounting brackets
miniB
M12-4A-P7-050
RJ45-A-P7-050
Service line Suitable for interface: USB
Interconnection cable Suitable for interface: Ethernet
Interconnection cable Suitable for interface: Ethernet
Part no. Designation Article Description
Connection 1: USB
Connection 2: USB
Shielded: Yes
Cable length: 1,500 mm
Sheathing material: PVC
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin
Shielded: Yes
Cable length: 1,000 mm
Sheathing material: PUR
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PUR
50121433 BT 300 W Mounting device Design of mounting device: Angle, L-shape
Mounting technology - Rod mounts
Part no. Designation Article Description
50121435 BT 56 - 1 Mounting device Functions: Static applications
Mounting technology - Other
Part no. Designation Article Description
50124941 BTU 0300M-W Mounting device Fastening, at system: Through-hole mounting
Fastening, at system: Through-hole mounting
Mounting bracket, at device: Screw type
Type of mounting device: Adjustable
Material: Metal
Design of mounting device: Mounting system
Fastening, at system: For 12 mm rod, For 14 mm rod, For 16 mm rod
Mounting bracket, at device: Clampable
Material: Metal
Tightening torque of the clamping jaws: 8 N·m
Mounting bracket, at device: Clampable, Groove mounting, Suited for M4
screws
Material: Metal
• We reserve the right to make technical changes
• eng • 2020-10-24
7 /8
Stationary bar code reader • Part no.: 50143077 • BCL 338i R1 M 100 D H F007
Accessories
Reflective tapes for standard applications
Part no. Designation Article Description
Services
50106119 REF 4-A-100x100 Reflective tape Design: Rectangular
Reflective surface: 100 mm x 100 mm
Material: Plastic
Chemical designation of the material: PMMA
Fastening: Self-adhesive
Part no. Designation Article Description
S981020 CS30-E-212 Hourly rate for
"Configuration"
S981014 CS30-S-110 Start-up support Details: Performed at location of customer's choosing, duration: max. 10
S981019 CS30-T-110 Product training Details: Location and content to be agreed upon, duration: max. 10 hours.
Details: Compilation of the application data, selection and suggestion of
suitable sensor system, drawing prepared as assembly sketch.
Conditions: Completed questionnaire or project specifications with a
description of the application have been provided.
Restrictions: Travel and accommodation charged separately and according to
expenditure.
hours.
Conditions: Devices and connection cables are already mounted, price not
including travel costs and, if applicable, accommodation expenses.
Restrictions: No mechanical (mounting) and electrical (wiring) work
performed, no changes (attachments, wiring, programming) to third-party
components in the nearby environment.
Conditions: Price not including travel costs and, if applicable, accommodation
expenses.
Restrictions: Travel costs and accommodation expenses charged separately
and according to expenditure.
S981021 CS30-V-212 Hourly rate for "Bar
code qualification"
Details: REA evaluation with creation of a test report, evaluation of the code
quality.
Conditions: Original bar codes to be provided by the client.
Note
ª A list with all available accessories can be found on the Leuze website in the Download tab of the article detailed page.
• We reserve the right to make technical changes
• eng • 2020-10-24
8 /8
Loading...
