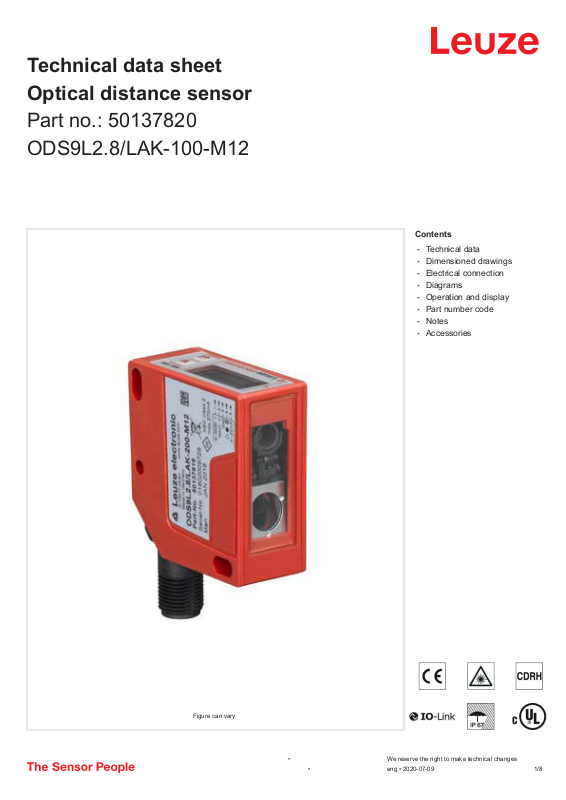

Technical data sheet Optical distance sensor

Part no.: 50137820 ODS9L2.8/LAK-100-M12

Contents

echnical data

Dimensioned drawings

Electrical connection

Diagrams

Operation and display

Part number code

Notes

Accessories

Figure can vary

• We reserve the right to make technical changes

• eng • 2020-07-09

1 /8

Page 2

Optical distance sensor • Part no.: 50137820 • ODS9L2.8/LAK-100-M12

Technical data

Basic data

Series 9

Application Fill-level monitoring

Length measurement in material cutting

Object measurement

Type of scanning system Against object

Order guide Attention! If you need spare parts or

want to switch from ODSL 9 to ODS9, please note that adapter 50140174 - KDS U-M12-5A-M12-5A-P1-003-25X is required

Special version

Special version Activation input

Deactivation input

each input

Optical data

Beam path Collimated

Light source Laser, Red

Laser light wavelength 650 nm

Laser class 2, IEC/EN 60825-1:2007

Transmitted-signal shape Pulsed

Pulse duration 22,000 µs

Light spot size [at sensor distance] 1 mm [650 mm]

Type of light spot geometry Round

Measurement data

Measurement range 50 ... 100 mm

Resolution 0.01 mm

Accuracy 0.5 %

Reference value, accuracy Measurement distance

Reproducibility (1 sigma) 0.05 mm

Referencing No

Optical distance measurement principle

Triangulation

Electrical data

Protective circuit Polarity reversal protection

Short circuit protected

Transient protection

Performance data

Supply voltage U

Residual ripple 0 ... 15 %, From U

Open-circuit current 0 ... 50 mA

18 ... 30 V, DC

Inputs

Number of digital switching inputs

1 Piece(s)

Switching inputs

Voltage type DC

Switching voltage U

Digital switching input 1

Function

Activation input

Deactivation input

Teach input

Trigger

Outputs

Number of analog outputs 1 Piece(s)

Number of digital switching outputs 1 Piece(s)

Analog outputs

Analog output 1

Type Configurable, factory setting: current

Assignment Connection 1, pin 2

Switching outputs

Voltage type DC

Switching voltage high: ≥(UB-2V)

Low: ≤2V

Switching output 1

Assignment

Switching element Transistor, Push-pull

Switching principle IO-Link / light switching (PNP)/dark swit-

Connection 1, pin 4

ching (NPN)

Timing

Response time 1 ms, Under constant ambient

Readiness delay 300 ms

conditions, 90% diffuse reflection, standard measure mode

Interface

Type IO-Link

IO-Link

COM mode

Profile

Frame type 2.V

Port type A

Specification V1.1

SIO-mode support Yes

Process data IN 4 byte

Process data OUT 8 bit

Dual-core operating mode Ye s

Min. cycle time

COM3

Smart sensor profile

COM3 = 0.5 ms

Connection

Number of connections 1 Piece(s)

Connection 1

Function Signal IN

Signal OUT

Voltage supply

Type of connection

Thread size

Type Male

Material Plastic

No. of pins 5 -pin

Encoding A-coded

Connector, Turning, 90°

M12

• We reserve the right to make technical changes

• eng • 2020-07-09

2 /8

Page 3

Optical distance sensor • Part no.: 50137820 • ODS9L2.8/LAK-100-M12

Technical data

Mechanical data

Design Cubic

Dimension (W x H x L) 21 mm x 50 mm x 50 mm

Lens cover material Glass

Net weight 50 g

Housing color Red

Type of fastening Through-hole mounting

Via optional mounting device

Operation and display

Type of display LED

OLED display

Number of LEDs 2 Piece(s)

Operational controls Control buttons

PC software

Environmental data

Ambient temperature, operation -20 ... 50 °C

Ambient temperature, storage -30 ... 70 °C

Certifications

Degree of protection IP 67

Protection class III

Certifications UL

Classification

Customs tariff number 90318020

eCl@ss 8.0 27270801

eCl@ss 9.0 27270801

ETIM 5.0 EC001825

ETIM 6.0 EC001825

• We reserve the right to make technical changes

• eng • 2020-07-09

3 /8

Page 4

Optical distance sensor • Part no.: 50137820 • ODS9L2.8/LAK-100-M12

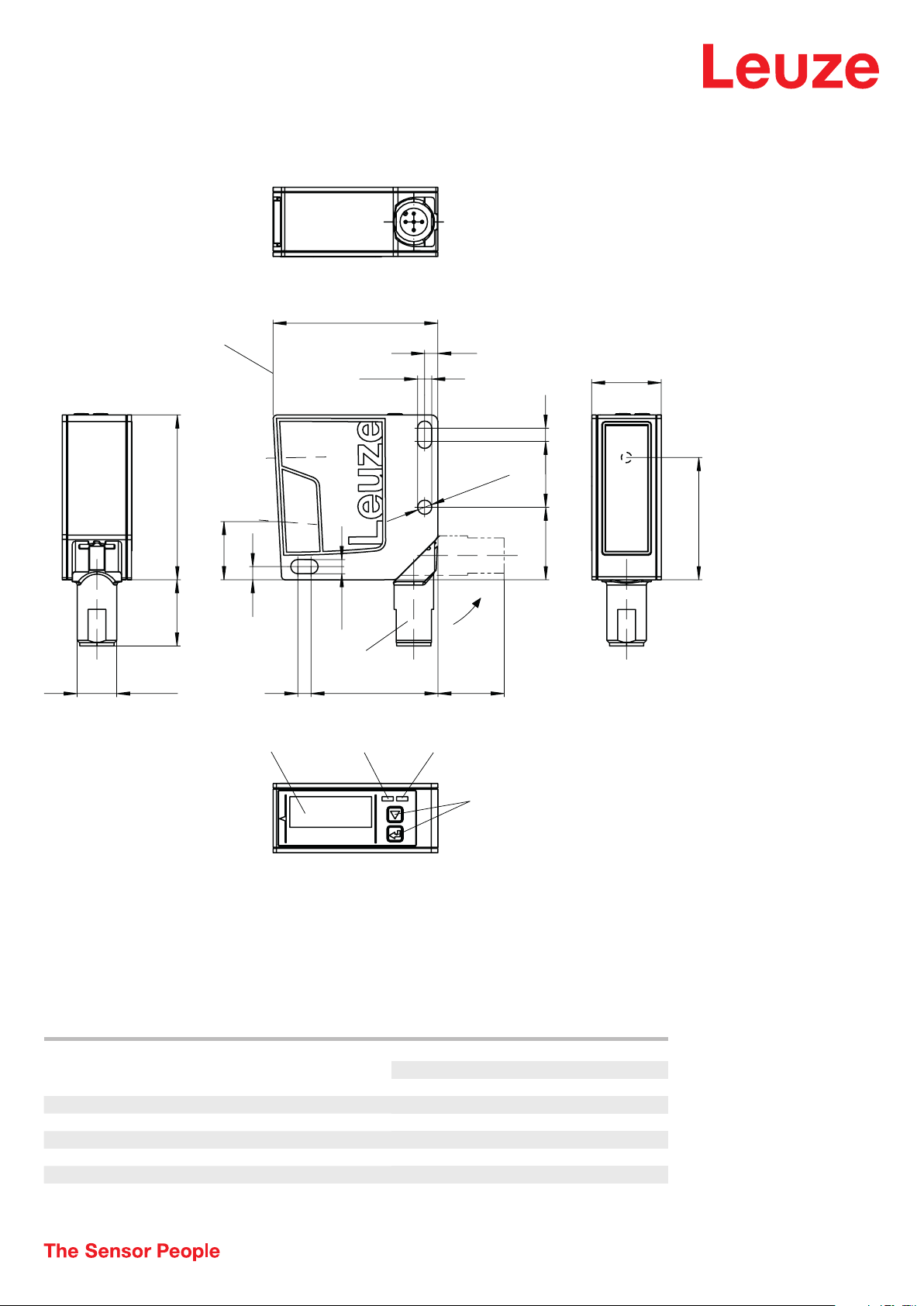

Dimensioned drawings

All dimensions in millimeters

M12x1

17,7

4,3

FGH

4,3

38,5

Ø 4,3

37,1

A Reference edge for the measurement

B Optical axis

C Device plug M12

D Receiver

E Transmitter

F Color display

Electrical connection

Connection 1

Function Signal IN

Signal OUT

Voltage supply

Type of connection Connector

Thread size M12

Type Male

Material

No. of pins 5 -pin

Encoding A-coded

Plastic

G Yellow LED

H Green LED

J Control buttons

• We reserve the right to make technical changes

• eng • 2020-07-09

4 /8

Page 5

Optical distance sensor • Part no.: 50137820 • ODS9L2.8/LAK-100-M12

P

Electrical connection

Pin Pin assignment

1 18 ... 30 V DC +

2 OUT mA / V

3 GND

4 IO-Link / OUT 1

5 multi funct

Diagrams

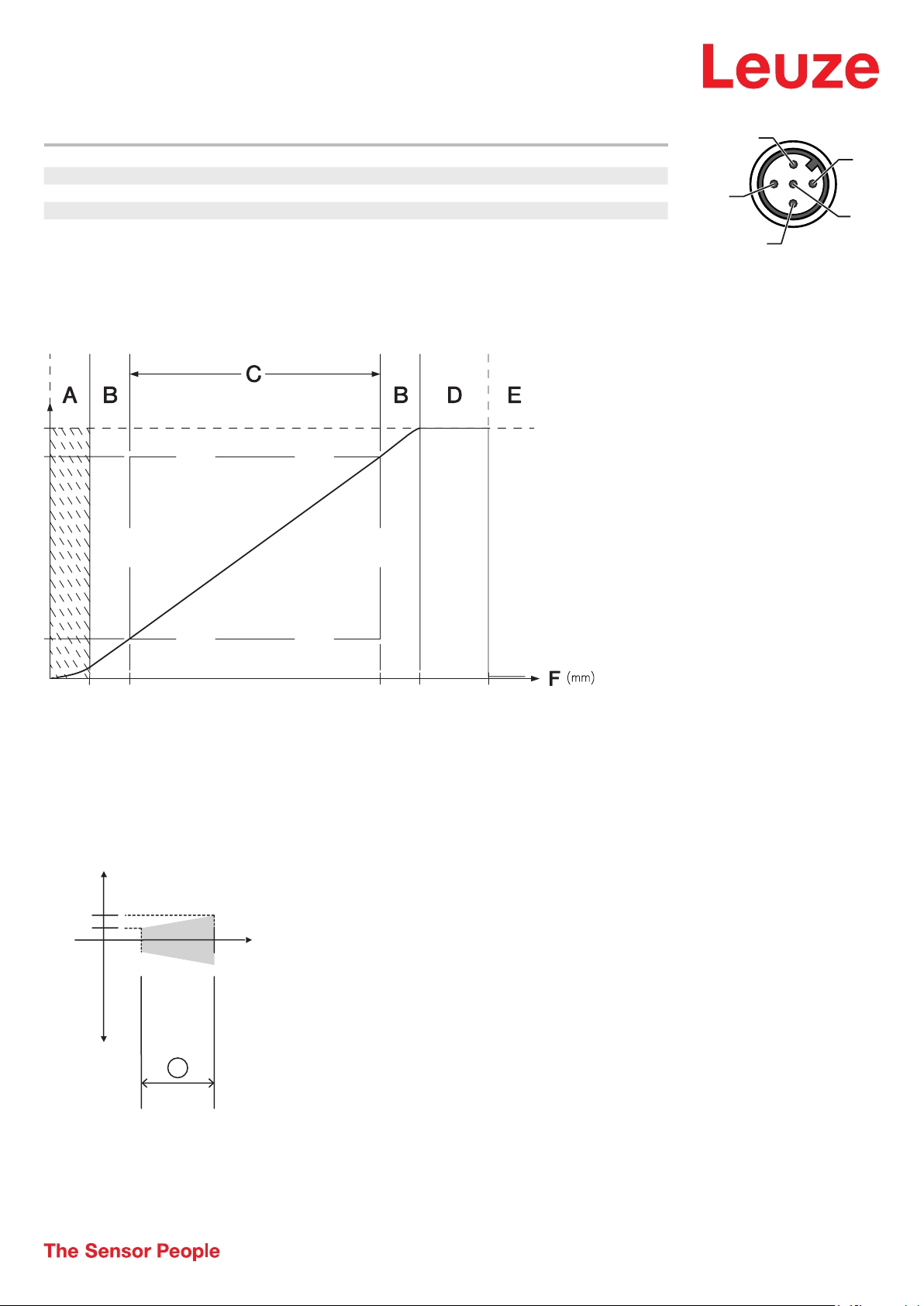

Characteristic curve of analog output

A Area not defined

B Linearity not defined

C Measurement range

D Object detected

Accuracy of measurement

PP

PP

E No object detected (characteristic curve

behavior adjustable via IO-Link)

F Measurement distance

x Measurement distance

y Max. measurement error

a 0.5% of measurement value

[

• We reserve the right to make technical changes

• eng • 2020-07-09

5 /8

Page 6

Optical distance sensor • Part no.: 50137820 • ODS9L2.8/LAK-100-M12

Operation and display

LED Display Meaning

1 Green, continuous light Ready

2 Yellow, continuous light Object in the measurement range

Part number code

Part designation: ODS9XX.Y/ZAB-CCC-DDD

ODS9 Operating principle

XX Light source

Y Equipment

Z Switching output/function OUT 1/IN: Pin 4 or black conductor

A Switching output / function OUT 2/IN: pin 2 or white conductor

B Switching output / function OUT 3/IN: Pin 5

CCC Operating range

DDD Electrical connection

Optical distance sensor of the 9 series

L2: laser class 2 L1: laser class 1

8: OLED display and membrane keyboard for configuration

L: IO-Link

A: Analog output 6: push-pull switching output, PNP light switching, NPN dark switching

X: pin not used 6: push-pull switching output, PNP light switching, NPN dark switching K: Multifunction input (factory setting: deactivation input)

100: operating range 50 … 100 mm 200: operating range 50 … 200 mm 450: operating range 50 … 450 mm 650: operating range 50 … 650 mm

M12: M12 connector

Note

ª A list with all available device types can be found on the Leuze website at

Notes

Observe intended use!

ª This product is not a safety sensor and is not intended as personnel protection.

ª The product may only be put into operation by competent persons.

ª Only use the product in accordance with its intended use.

• We reserve the right to make technical changes

• eng • 2020-07-09

6 /8

Page 7

Optical distance sensor • Part no.: 50137820 • ODS9L2.8/LAK-100-M12

Notes

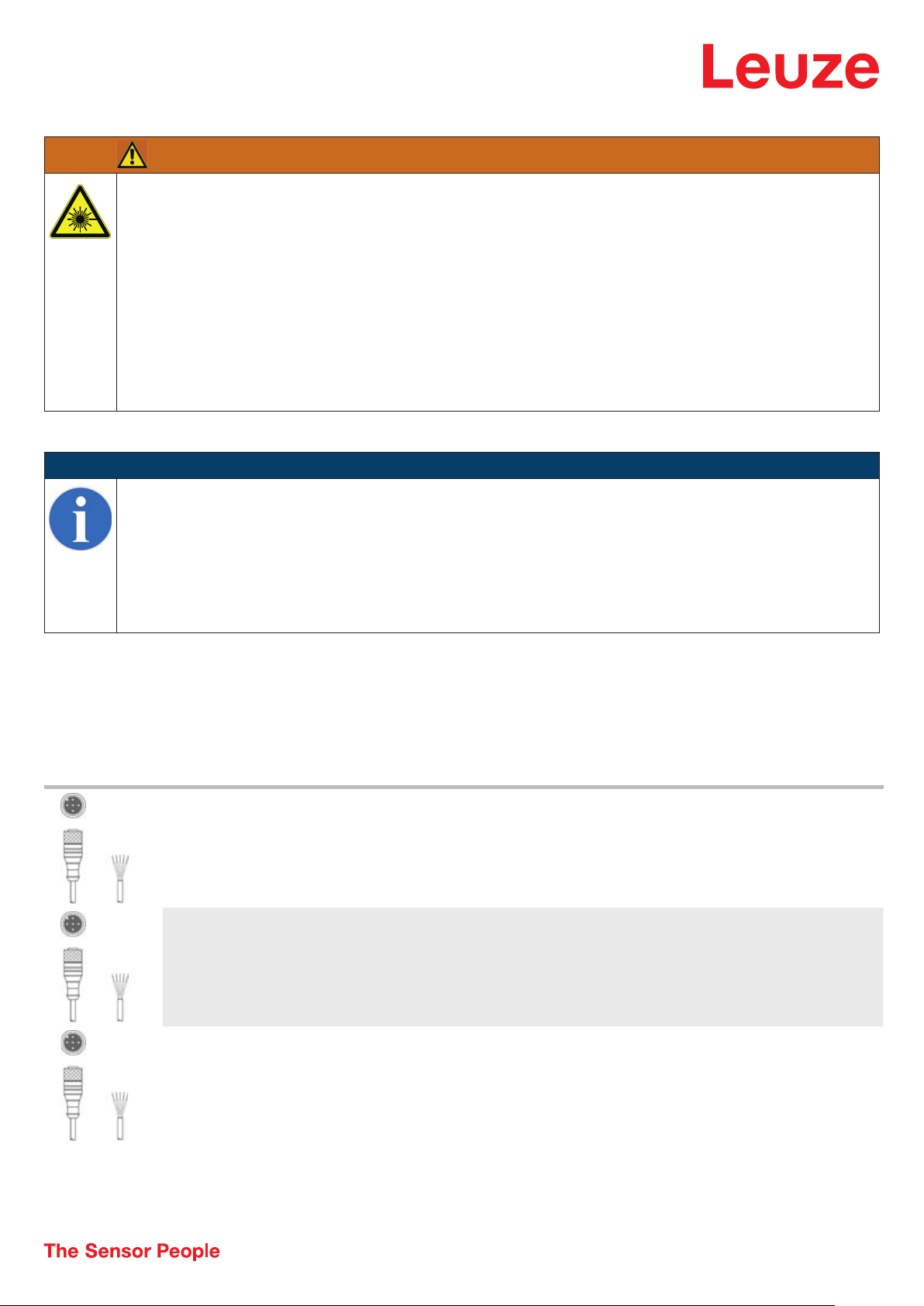

WARNING! LASER RADIATION – CLASS 2 LASER PRODUCT

Do not stare into beam! The device satisfies the requirements of IEC 60825-1:2007 (EN 60825-1:2007) safety regulations for a product of laser class 2 as well as the U.S. 21 CFR 1040.10 regulations with deviations corresponding to "Laser Notice No. 50" from June 24, 2007.

ª Never look directly into the laser beam or in the direction of reflected laser beams! If you look into the beam path over a longer time period, there is a risk

of injury to the retina.

ª Do not point the laser beam of the device at persons!

ª Interrupt the laser beam using a non-transparent, non-reflective object if the laser beam is accidentally directed towards a person.

ª When mounting and aligning the device, avoid reflections of the laser beam of

ª CAUTION! Use of controls or adjustments or performance of procedures other than specified herein may result in hazardous light exposure.

ª Observe the applicable statutory and local laser protection regulations.

ª The device must not be tampered with and must not be changed in any way.

There are no user-serviceable parts inside the device. Repairs must only be performed by

NOTE

Affix laser information and warning signs! Laser information and warning signs are affixed to the device. In addition, self-adhesive laser information and warning signs (stick-on labels) are supplied in several languages.

ª Affix the laser information sheet to the device in the language appropriate for the place of use. When using the device in the US, use the stick-on label

with the "Complies with 21 CFR 1040.10" note.

ª Affix the laser information and warning signs near the device if no signs are attached to the device (e.g. because the device is too small) or if the attached

laser information and warning signs are concealed due to the installation position.

ª Affix the laser information and warning signs so that they are legible without exposing the reader to the laser radiation of the device or other optical

radiation.

f reflective surfaces!

Accessories

Connection technology - Connection cables

Part no. Designation Article Description

50133855 KD S-M12-5A-V1- 020 Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin

50133856 KD S-M12-5A-V1- 050 Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin

50132077 KD U-M12-5A-V1-

020

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin

Connection 2: Open end Shielded: Yes Cable length: 2,000 mm Sheathing material: PVC

Connection 2: Open end Shielded: Yes Cable length: 5,000 mm Sheathing material: PVC

Connection 2: Open end Shielded: No Cable length: 2,000 mm Sheathing material: PVC

• We reserve the right to make technical changes

• eng • 2020-07-09

7 /8

Page 8

Optical distance sensor • Part no.: 50137820 • ODS9L2.8/LAK-100-M12

Accessories

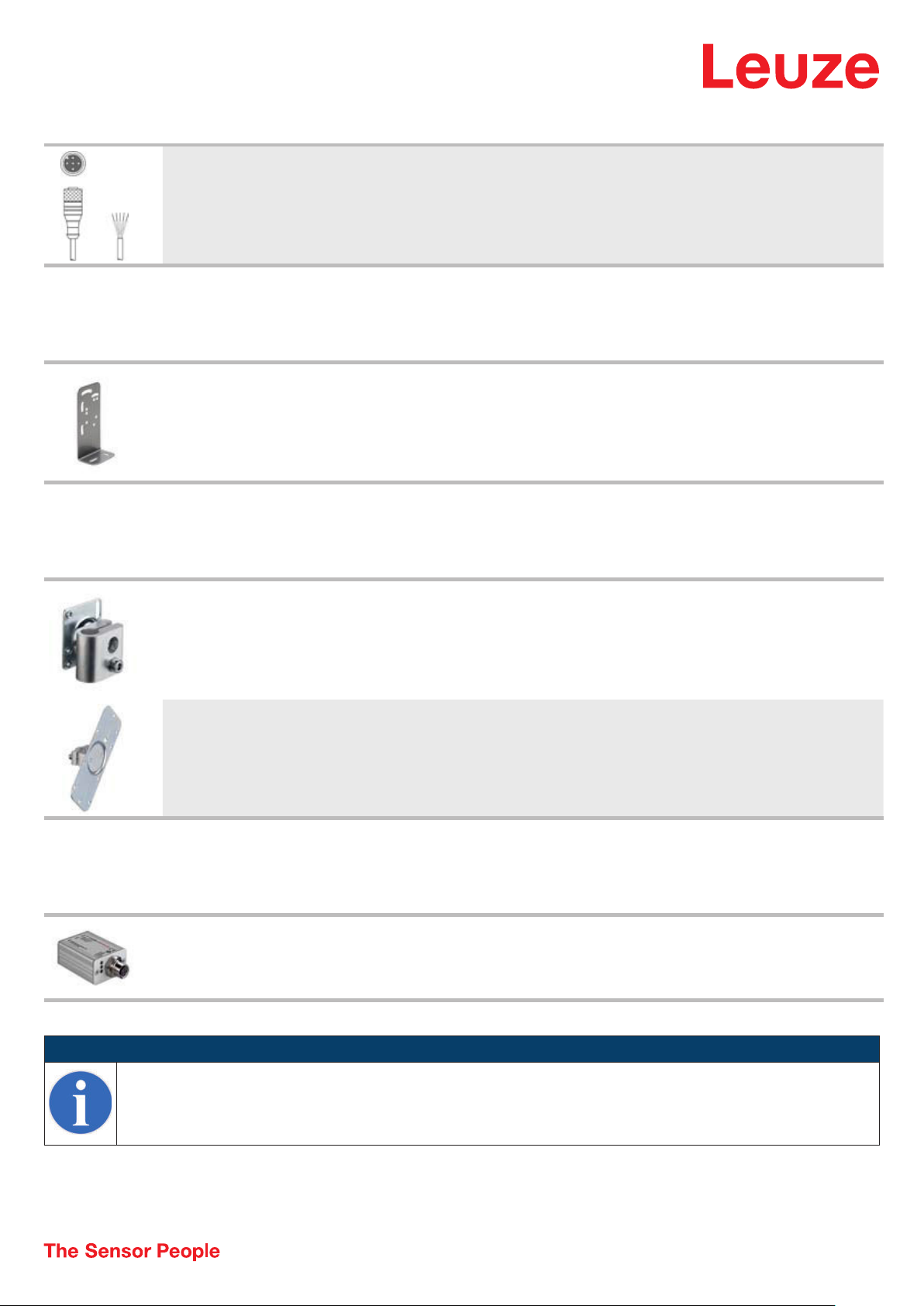

Mounting technology - Mounting brackets

Part no. Designation Article Description

50132079 KD U-M12-5A-V1-

050

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin

Part no. Designation Article Description

50118543 BT 300M.5 Mounting bracket Design of mounting device: Angle, L-shape

Mounting technology - Rod mounts

Part no. Designation Article Description

Connection 2: Open end Shielded: No Cable length: 5,000 mm Sheathing material: PVC

Fastening, at system: Through-hole mounting Mounting bracket, at device: Screw type, Suited for M4 screws Type of mounting device: Adjustable Material: Stainless steel

50117252 BTU 300M-D12 Mounting system Design of mounting device: Mounting system

50128380 BTU 460M-D12 Mounting system Design of mounting device: Mounting system

Configuration devices

Part no. Designation Article Description

50121098 SET MD12-US2-IL1.1

+ Zub.

Fastening, at system: For 12 mm rod, Sheet-metal mounting Mounting bracket, at device: Screw type, Suited for M4 screws Type of mounting device: Clampable, Adjustable, Turning, 360° Material: Metal

Fastening, at system: For 12 mm rod Mounting bracket, at device: Screw type Type of mounting device: Adjustable, Turning, 360° Material: Metal

Diagnostics set Interface: USB

Connections: 2 Piece(s) Degree of protection: IP 20

Note

ª A list with all available accessories can be found on the Leuze website in the Download tab of the article detailed page.

• We reserve the right to make technical changes

• eng • 2020-07-09

8 /8
