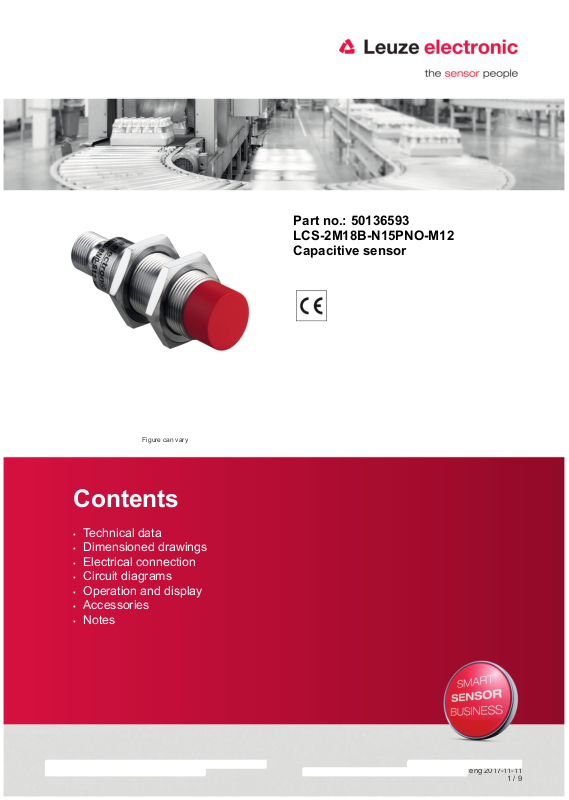

Leuze 50136593 Data Sheet

Figure can vary

Part no.: 50136593
LCS-2M18B-N15PNO-M12
Capacitive sensor

Contents

▪ Technical data

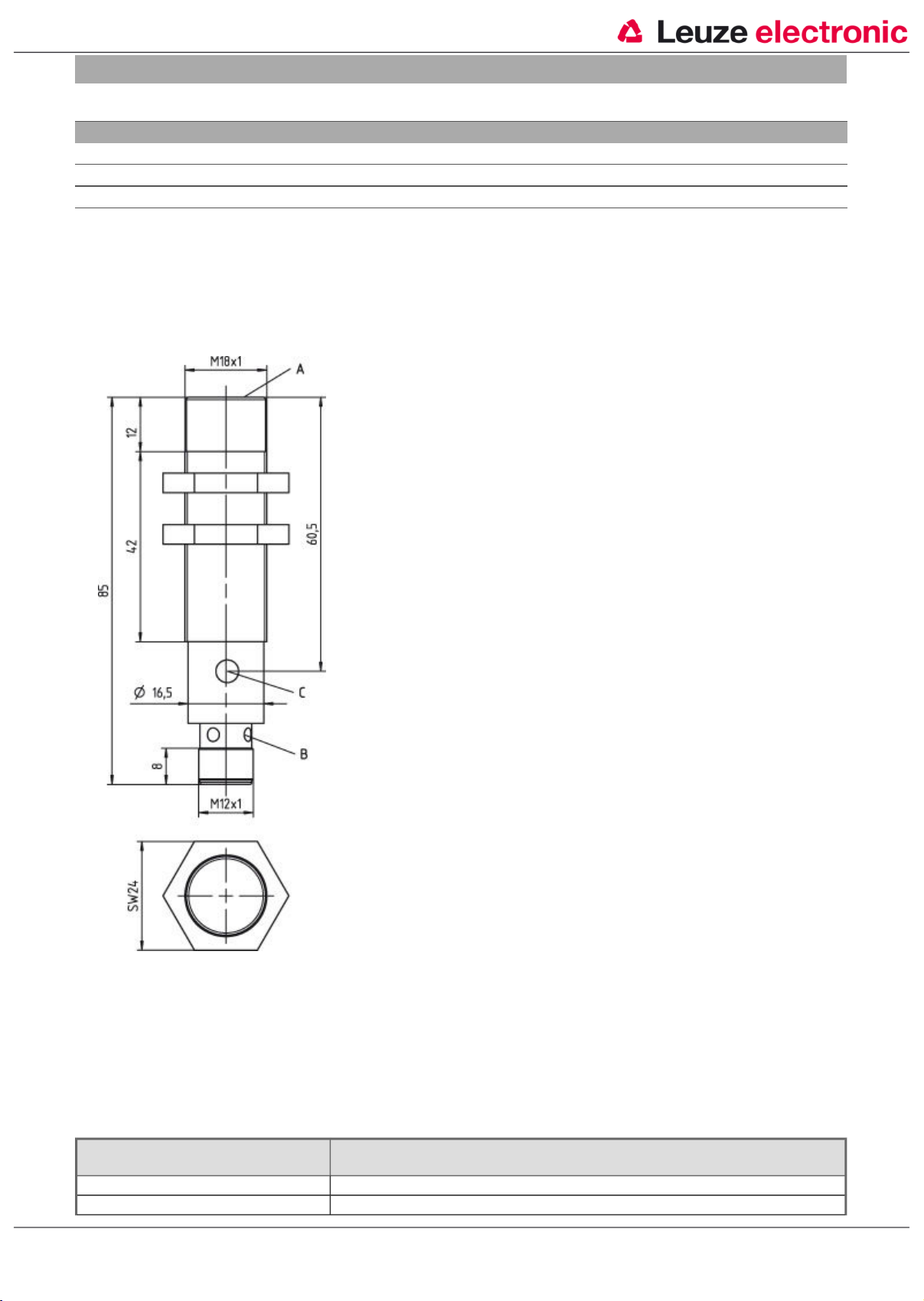

▪ Dimensioned drawings

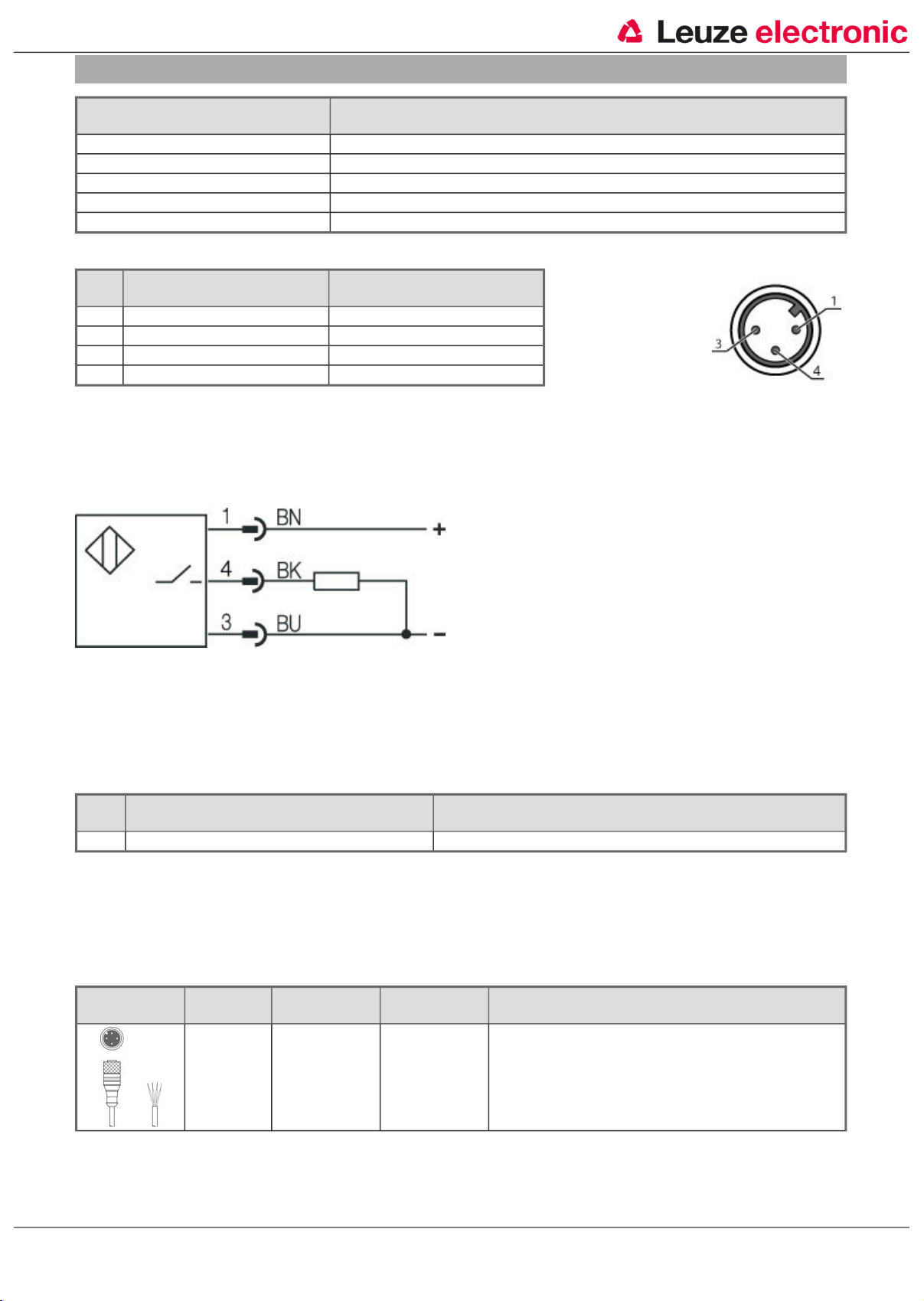

▪ Electrical connection
▪ Circuit diagrams
▪ Operation and display

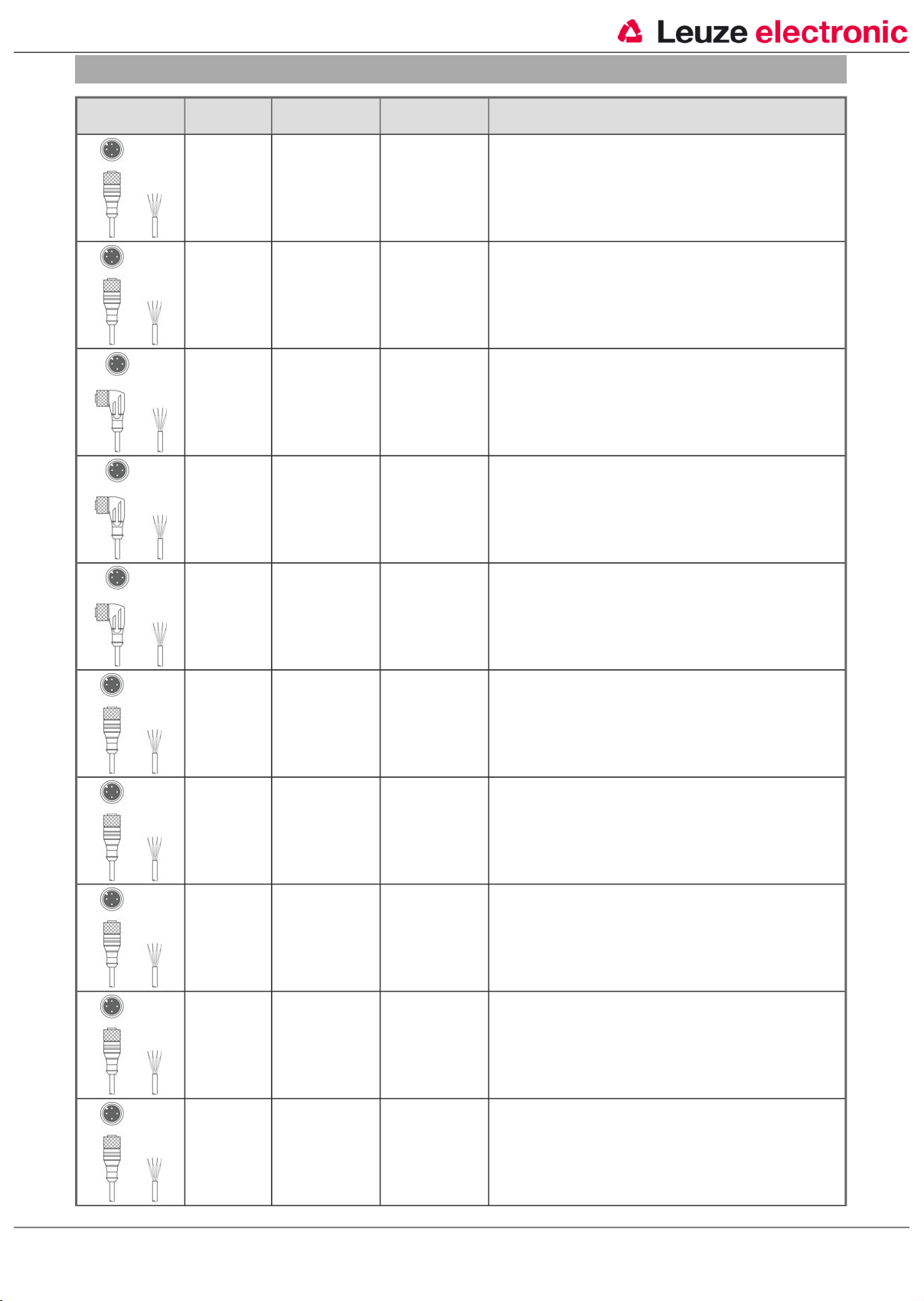

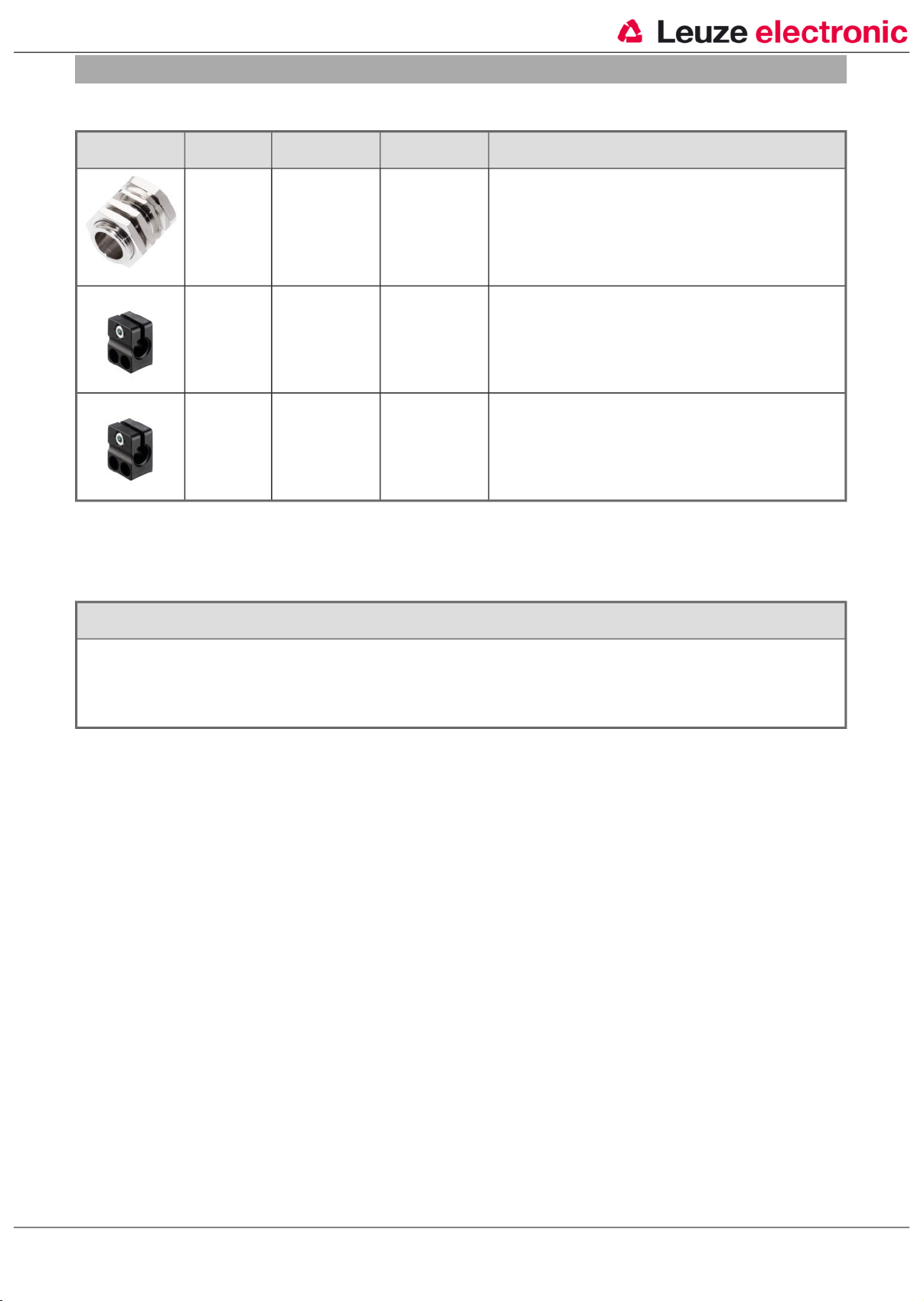

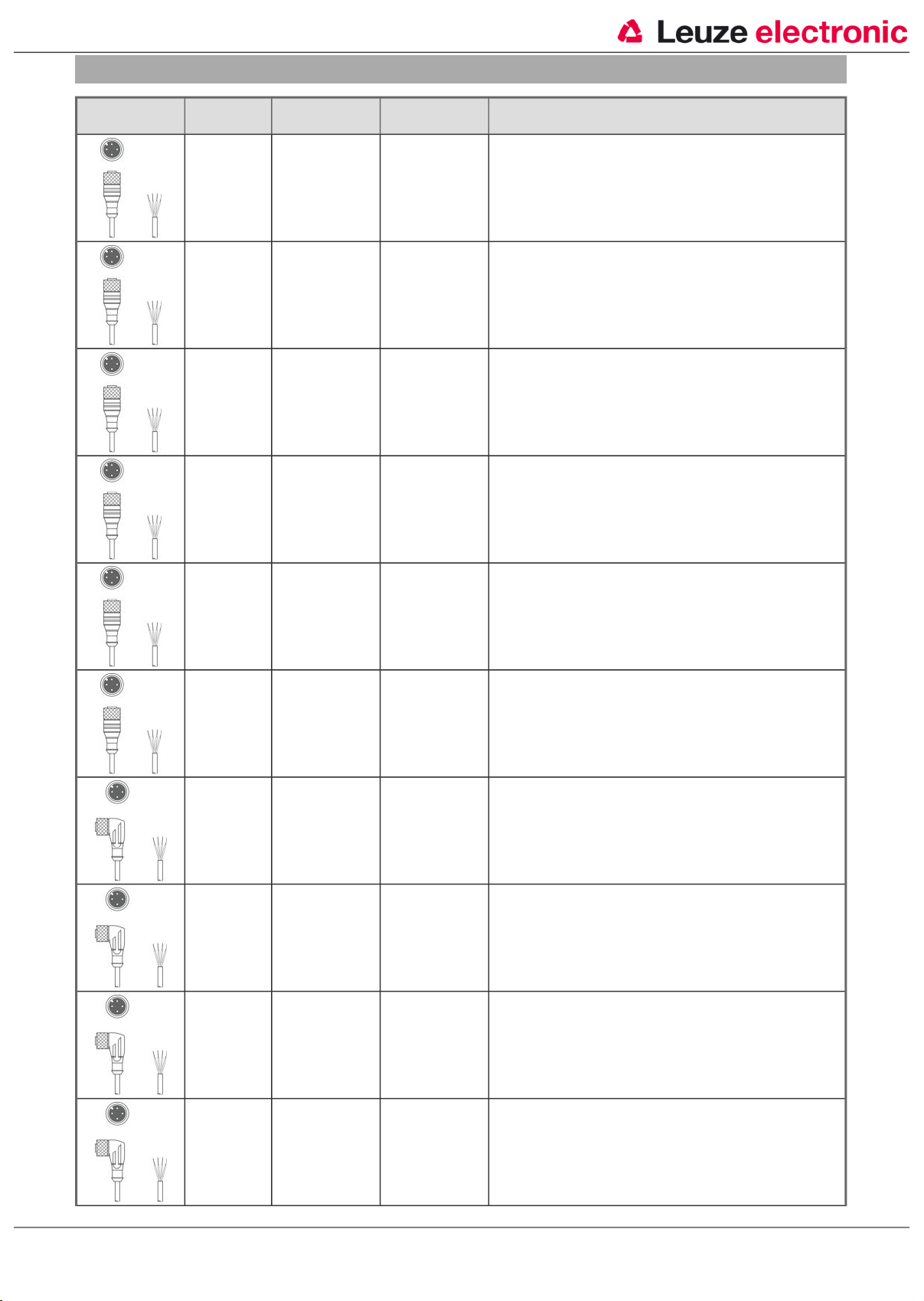

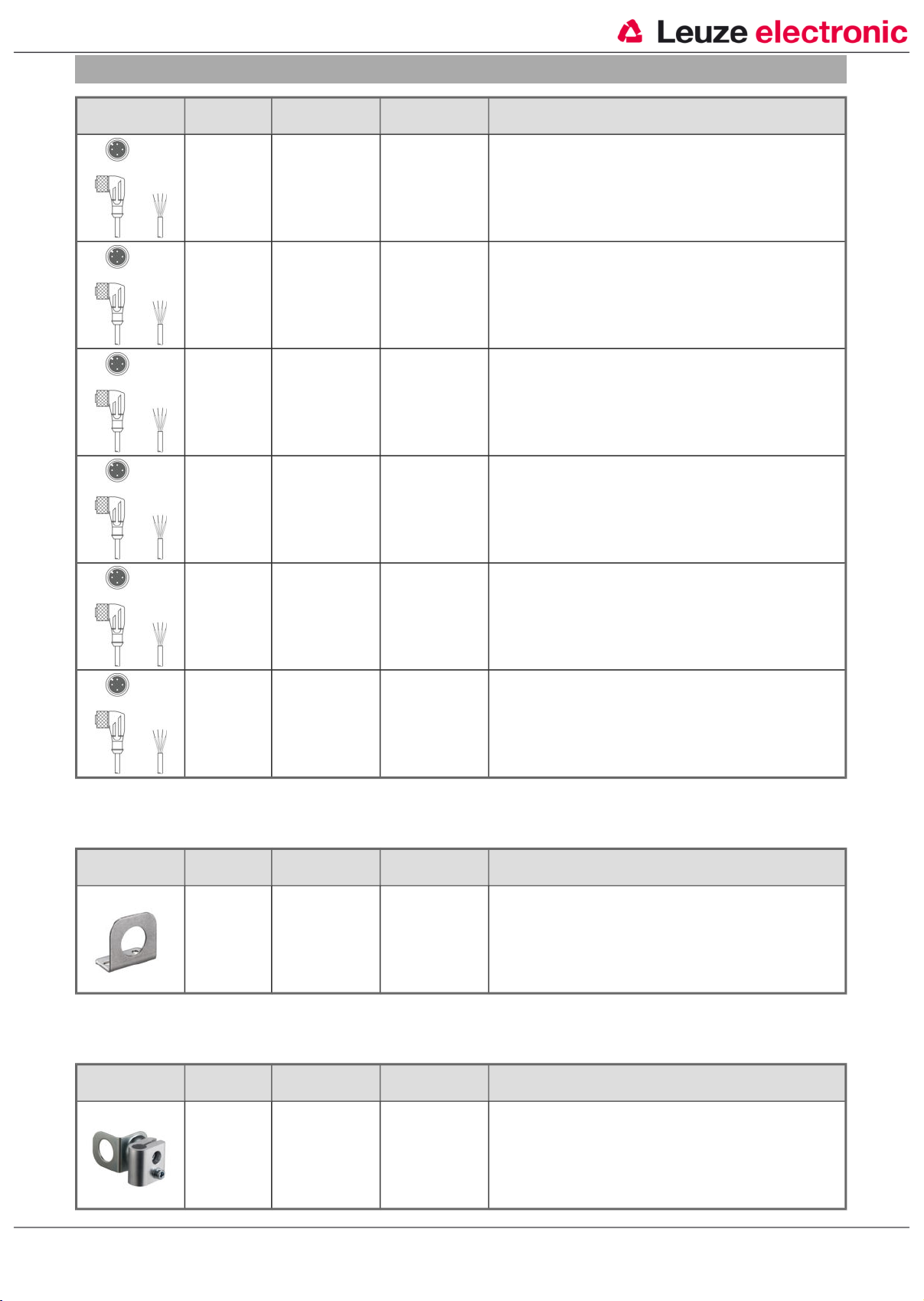

▪ Accessories
▪ Notes

Part no.: 50136593 – LCS-2M18B-N15PNO-M12 – Capacitive sensor

Technical data

Basic data

Series LCS-2

Switching distance S

Assured switching distance 12.1 mm

Electrical data

Protective circuit Polarity reversal protection

Performance data

Supply voltage 10 ... 30 V, DC

Residual ripple 0 ... 10 %

Open-circuit current 10 mA

Rated operating current 300 mA

Outputs

Number of digital switching outputs 1 Piece(s)

Switching outputs

Type Digital switching output

Voltage type DC

Switching output 1

Assignment Connection 1, pin 2

Switching element Transistor, PNP

Switching principle NO (normally open)

n

2 ... 15 mm

Short circuit protected

Timing

Switching frequency 100 Hz

Connection

Number of connections 1 Piece(s)

Connection 1

Type of connection Connector

Thread size M12

Type Male

Material Metal

No. of pins 4 -pin

Encoding A-coded

Mechanical data

Design Cylindrical

Thread size M18 x 1 mm

Dimension (Ø x L) 18 mm x 85 mm

Type of installation Non-embedded

Housing material Metal

Sensing face material Plastic, Polybutylene (PBT)

Cover material Plastic, Polybutylene (PBT)

Operation and display

Type of display LED

Number of LEDs 1 Piece(s)

eng 2017-11-11

2 / 9

Part no.: 50136593 – LCS-2M18B-N15PNO-M12 – Capacitive sensor

Switching distance, adjustable Yes

Environmental data

Ambient temperature, operation -25 ... 70 °C

Certifications

Degree of protection IP 67

Protection class III

Standards applied IEC 60947-5-2

Correction factors

Acetone 0.75

Acrylic resin 0.1 ... 0.25

Alcohol 0.85

Ammonia 0.7 ... 0.85

Aniline 0.4

Gasoline 0.1

Celluloid 0.15

Liquid chlorine 0.1

Ebonite 0.15

Epoxy resin 0.15 ... 0.35

Crude oil 0.05

Ethanol 0.85

Ethylene glycol 0.93

Freon R22 and 502 (liquid) 0.35

Grain 0.15 ... 0.3

Glass 0.2 ... 0.55

Glycerin 0.98

Rubber 0.15 ... 0.9

Wood, wet 0.6 ... 0.85

Wood, dry 0.1 ... 0.4

Marble 0.5

Flour 0.05

Melamine resin 0.25 ... 0.55

Milk powder 0.2

Nylon 0.2 ... 0.3

Oil-containing paper 0.25

Paper 0.1

Polyamide 0.3

Polyester resin 0.15 ... 0.5

Pressboard 0.1 ... 0.3

PTFE 0.1

Quartz glass 0.2

Salt 0.35

Sand 0.15 ... 0.3

Water 1

Cement dust 0.25

Sugar 0.15

eng 2017-11-11

3 / 9
